www.lowrance.com

Pub. 988-0148-811



iFINDER H2Oc

Handheld Mapping GPS Receiver

Operation Instructions

iFINDER

Lowrance

DURACELL

RAYOVAC

Energizer



H2Oc is a trademark of Lowrance Electronics, Inc.

is a registered trademark of Lowrance Electronics, Inc.

Navionics



and e



is a registered trademark of Navionics, Inc.



is a registered trademark of Duracell, Inc.



is a registered trademark of Rayovac Corporation.

2

are registered trademarks of Energizer Holdings, Inc.

eXitSource Database, copyright  2001-2004 Zenrin Co. Ltd. Exit Authority and eXitSource are trademarks of Zenrin Co. Ltd.

Lowrance Electronics may find it necessary to change or end our policies, regulations and special offers at any time. We reserve the right to do so without notice. All features and specifications subject to change without notice. All screens in this manual are simulated.

For free owner's manuals and other information,

visit our web site:

www.lowrance.com

Lowrance Electronics Inc.

12000 E. Skelly Dr.

Tulsa, OK USA 74128-2486

Printed in USA.

Table of Contents

Section 1: Read Me First!......................................................... 1

Capabilities and Specifications: iFINDER

How the iFINDER H2Oc Works .................................................. 4

Introduction to GPS, WAAS and EGNOS ................................... 6

How to use this manual: typographical conventions .................. 8

Arrow Keys................................................................................ 8

Keyboard ................................................................................... 8

Menu Commands ...................................................................... 8

Instructions = Menu Sequences ............................................... 9

Section 2: Installation & Accessories..................................11

Power........................................................................................... 11

Batteries...................................................................................... 11

Battery Installation ................................................................ 12

Cigarette Lighter Power Adapter .............................................. 13

NMEA Cable Connections .......................................................... 14

MMC or SD Memory Card Installation ..................................... 14

To remove an MMC................................................................. 15

To add an MMC or SDC.......................................................... 15

FreedomMaps .......................................................................... 16

External Antenna ....................................................................... 16

R-A-M



Bracket Mounting Systems .......................................... 17

Other Accessories........................................................................ 18

Section 3: Easy Mode Operation .......................................... 19

Keypad......................................................................................... 19

Power/lights on and off ............................................................... 20

Main Menu .................................................................................. 20

Pages ........................................................................................... 21

Satellite Status Page .............................................................. 21

Navigation Page...................................................................... 22

Map Page................................................................................. 24

IFINDER



H2Oc Easy Mode Quick Reference .......................... 28

Find Your Current Position........................................................ 29

Moving Around the Map: Zoom & Cursor Arrow Keys ............. 29

Selecting Any Map Item with the Cursor.................................. 30

Searching..................................................................................... 30

Set Home Waypoint .................................................................... 32

Go Home .................................................................................. 32

Set Man Overboard (MOB) Waypoint........................................ 33

Navigate Back to MOB Waypoint .......................................... 33

Navigate to Cursor Position on Map.......................................... 33

Navigate to a Point of Interest................................................... 35

Creating and Saving a Trail....................................................... 35



H2Oc ...................... 2

FreedomMaps

FreedomMaps are pre-made custom maps that cover multiple states, provinces, countries or other geographic regions on a single memory card. They give you all the features found in our MapCreate™ mapping software, but without the necessity of using a computer. FreedomMaps are available for the United States, Canada and Europe. In 2004, FreedomMaps with topographic contours became available for the United States and Canada.

Like custom maps built in MapCreate, the custom map on a FreedomMap card contains all of these features: rivers/lakes/tributaries; more than 60,000 critical navigation aids; more than 10,000 wrecks/obstructions in coastal and Great Lakes waters; interstate/federal/state highways; interstate exit services; searchable Points-of-Interest (POI) database including: airports, hotels, restaurants, entertainment, emergency services; rural roads and city streets; cities and towns; railways; key landmarks; searchable street intersections and street addresses; national parks and forests with boundaries; wildlife preserves; and more!

FreedomMaps come to you preloaded on a single 128 or 256 MB memory card. Insert the memory card into your Lowrance GPS unit, and you're ready to go.

FreedomMaps are available through LEI-Extras. To order a card (or for list of areas available) see ordering information in the back of this manual.

External Antenna

A GPS antenna requires a clear view of the sky for optimum operation. Inside a vehicle, your iFINDER can sometimes maintain satellite lock while sitting on the seat beside you, but we don't recommend this for optimum performance.

Since the view is restricted to what can be seen through the windows, this operating mode will reduce position accuracy and will increase the chance of losing satellite lock. Inside a vehicle, the unit operates best with an optional external antenna mounted on the windshield, on the dash or on top of the vehicle.

The optional external antenna can use a magnetic base that allows temporary mounting on any flat ferrous metal surface. A suction-cup mount allows you to attach the antenna to a windshield.

The iFINDER H2OC can use the passive FA-8 antenna or the active RAA-3 antenna. The active antenna offers a further performance boost by amplifying the satellite signals it receives. This is especially helpful when operating in areas like dense forests, which can obstruct GPS

signals. Your unit will automatically switch between the active RAA-3 and its internal antenna (located in the top of the case). If you purchase the passive FA-8, you must use a menu check box to manually switch between it and the internal antenna. See the topic "External Passive Antenna" in Sec. 5.

Attach the iFINDER antenna to windshield bracket with two screws.

You may achieve good results by placing the external antenna on the top of the dash, at the base of the windshield. A piece of the rubber nonskid shelf liner material available in recreational vehicle supply stores will also help hold the antenna in place.

To use the antenna: Mount it in a location with an unobstructed view of the sky. Plug the connector into the unit's antenna socket, located on the back, in the upper left corner of the case.

R-A-M Bracket Mounting Systems

Several R-A-M mounting brackets are available for your iFINDER. There are permanent mounts and temporary mounts suitable for virtually any boat, aircraft, vehicle, even motorcycle handlebars.

Two R-A-M mounting systems for your unit.

One model has a mounting arm and cradle attached to a swivel ball plate that can be screwed or bolted to a supporting surface. Another has a moldable, weighted, rubber foot and gooseneck for support virtually anywhere without screws or adhesives. R-A-M even has suction cup bases for attachment to windscreens or fiberglass surfaces. See your Lowrance dealer or visit the LEI web site for the latest options. Accessory ordering information is on the inside back cover of this manual. For a complete look at the many mounting options, visit the R-A-M web site at www.ram-mount.com.

Other Accessories

Other iFINDER accessories include MMC cards, MMC card readers and MapCreate™ 6 custom mapping software for your computer. (The iFINDER H2OC Plus model ships with the GPS Accessory Pack, which is composed of the MapCreate CDs, the card reader and one memory card.)

If these accessories are not available from your dealer, see the accessory ordering information on the inside back cover of this manual.

MapCreate™ 6 CD-ROM and MMC card reader for USB ports.

Section 3:

Easy Mode Operation

This section addresses Easy Mode operation for the iFINDER's main GPS functions. The principles are the same in both operating modes, so this discussion also serves as a good introduction to Advanced Mode work.

Before you turn on the iFINDER, it's a good idea to learn about the different keys, the three Page screens and how they all work together. BUT, if you just can't wait to get outside, grab the batteries and turn to the one-page Quick Reference on page 28.

Keypad

iFINDER H2OC keypad.

1. PWR/LIGHT (Power & Light) – The PWR key turns the unit on and off and activates the backlight.

2. PAGES – Pressing this key switches the unit between the three different page screens in Easy Mode. (Satellite, Navigation and Map.) Each page represents one of the unit's major operation modes.

3. MENU – Press this key to show the menus, which allow you to select or adjust a feature from a list.

4. ARROW KEYS – These keys are used to navigate through the menus, make menu selections, move the map cursor and enter data.

5. ENT (Enter) – This key allows you to save data, accept values or execute menu commands.

6. EXIT – The Exit key lets you return to the previous screen, clear data or close a menu.

7. FIND – The Find key launches the iFINDER search menus and some navigation functions.

8. ZOUT – (Zoom Out) – This key lets you zoom the screen out to see a larger geographic are on the map. Less detail is seen as you zoom out.

9. ZIN – (Zoom In) – This key lets you zoom the screen in to see greater detail in a smaller geographic area on the map.

Power/lights on and off

To turn on the unit, press PWR. To turn on the backlight, press PWR again. Pressing PWR once again will turn off the backlight. Press EXIT to clear any message or alarm displays.

Turn off the unit by pressing and holding the

PWR key for 3 seconds.

Main Menu

Easy Mode has a single Main Menu, which contains function commands and setup option commands. The tutorial lessons in this section will deal only with functions — the basic commands that make the iFINDER do something. The iFINDER will work fine for these lessons right out of the box with the factory default settings. But, if you want to learn about the various options, see Sec. 5, System Setup and GPS Setup Options.

Main Menu, Easy Mode.

The Main Menu commands and their functions are:

Go To Cursor: navigates to the current cursor position on the map

Cancel Navigation: turns off the navigation command after you have

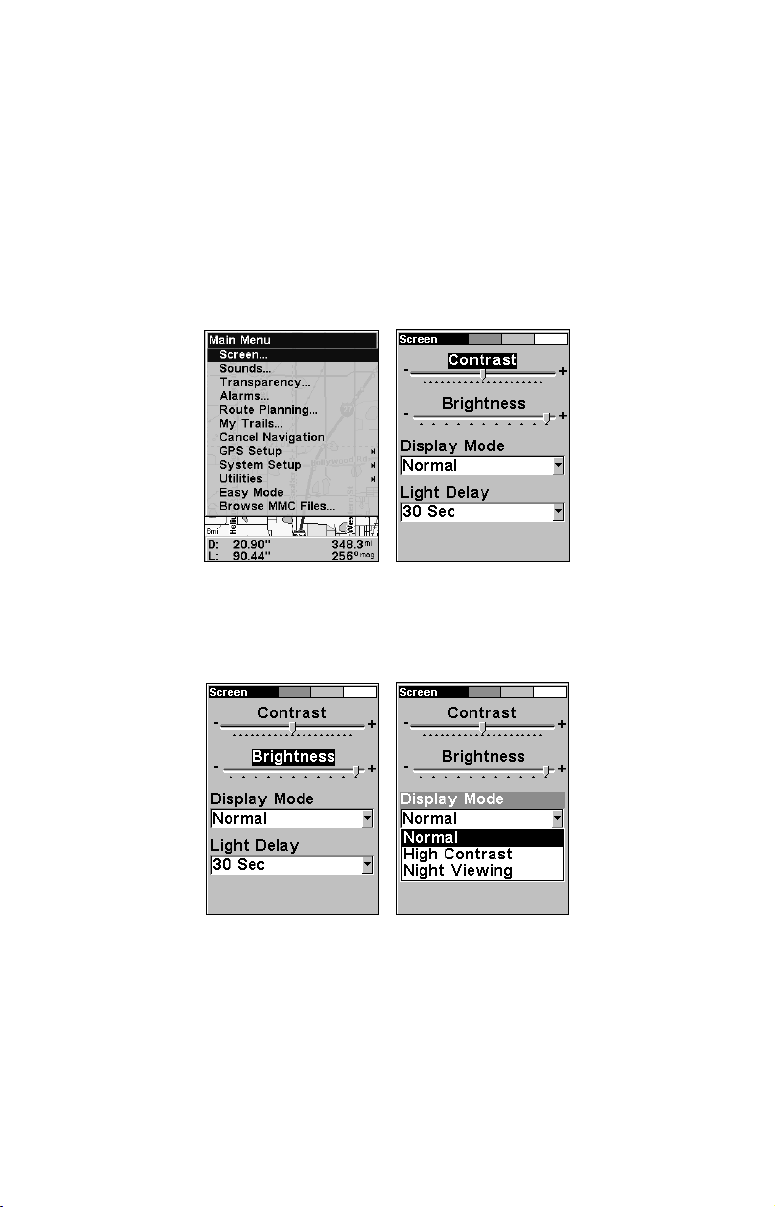

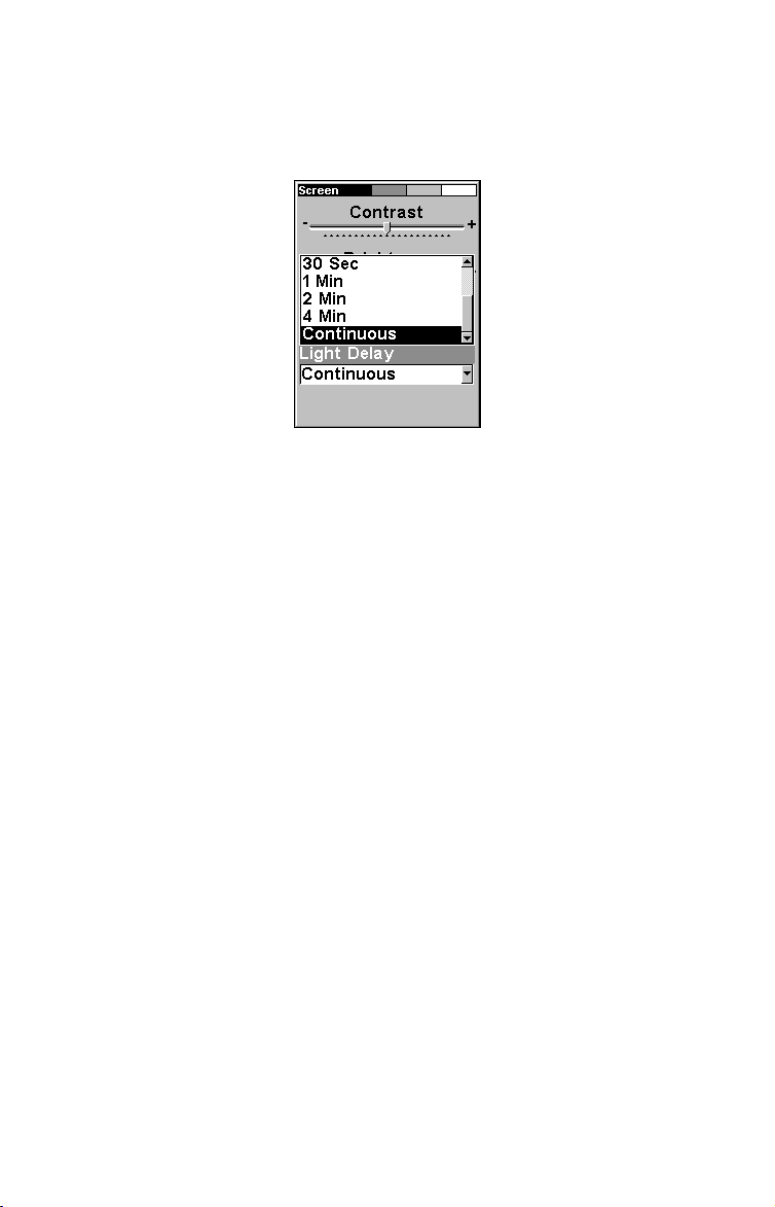

reached your destination. Screen: changes the contrast or brightness of the display screen and

backlight delay.

Sounds: enables or disables the sounds for key strokes and alarms and sets the alarm style.

Navigate Trail: sets up navigation back to the start of the current trail.

Clear Trail: clears all the points stored in the plot trail.

Sun/Moon: finds the rising and setting time of the sun and the moon.

Units of Measure: changes the speed or distance units. Also used to

change the heading, time and temperature formats.

Set Local Time: sets the time for your local time zone.

Advanced Mode: used to switch from Easy Mode to Advanced Mode.

Easy Mode shows only the most commonly used features to simplify the interface and simplify operation.

Transfer My Data: load or save GPS Data Files containing waypoints, routes, trails and event marker icons.

Software Information: shows the product name and software version of the unit's operating system software, as well as copyright notices.

Pages

Easy Mode has three Page displays that represent the three major operating modes. They are the Satellite Status Page, the Navigation Page and the Map Page. The pages are accessed by pressing the Pressing

PAGES repeatedly scrolls among the three screens in an end-

less loop.

Satellite Status Page

This Page, shown in the following images, provides detailed information on the status of the iFINDER's satellite lock-on and position acquisition. To get to the Satellite Status Page, press

PAGES repeatedly until

it appears on the screen. No matter what page you are on, a flashing current position indica-

tor/question mark symbol and flashing GPS data displays indicate satellite lock has been lost and there is no position confirmed. This page shows you the quality and accuracy of the current satellite lock-on and position calculation.

PAGES key.

WARNING:

Do not begin navigating with this unit until the numbers have stopped flashing!

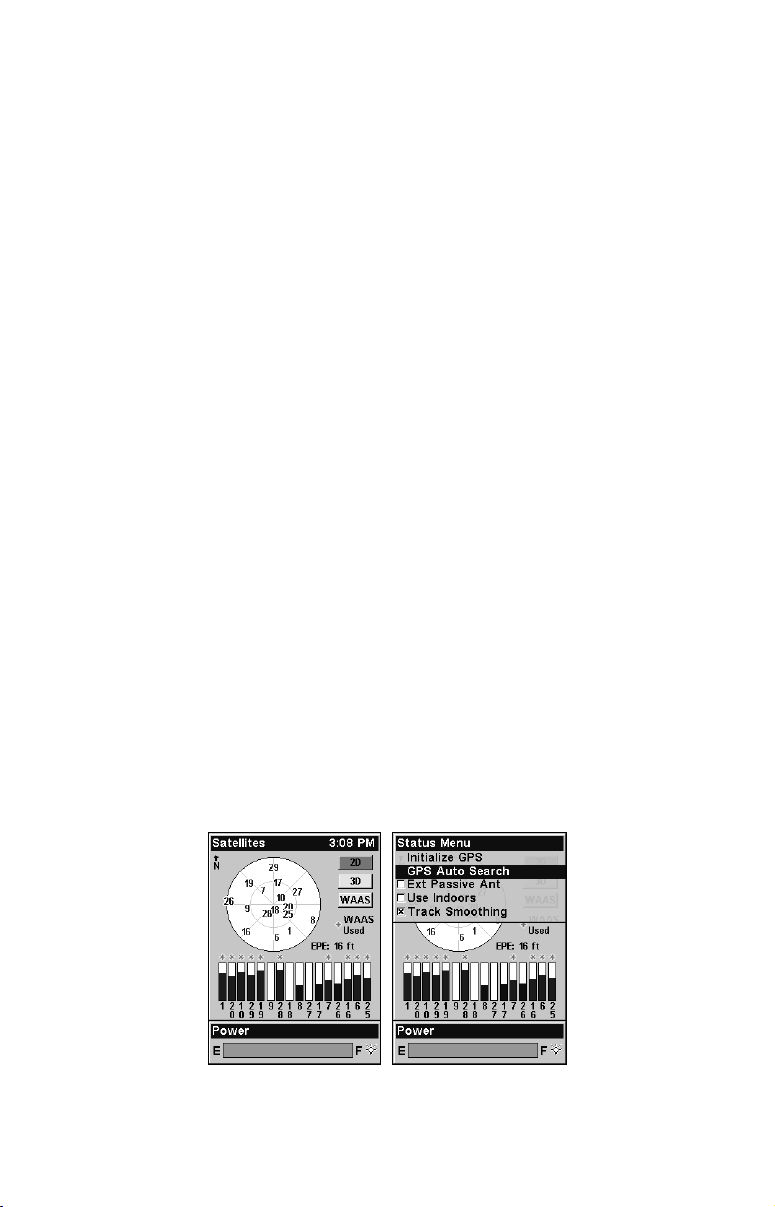

Satellite lock-on with a 3D position acquired.

This screen shows a graphical view of the satellites that are in view. Each satellite is shown on the circular chart relative to your position. The point in the center of the chart is directly overhead. The small inner ring represents 45° above the horizon and the large ring represents the horizon. North is at the top of the screen. If you hold the unit facing north, you can use it to see which satellites are obstructed by obstacles in your immediate area. The GPS receiver is tracking satellites that are in bold type. The receiver hasn't locked onto a satellite if the number is grayed out, which means it isn't being used to resolve the position.

Beneath the circular graph are the bar graphs, one for each satellite in view. Since the unit has 16 channels, it can dedicate one channel per visible satellite. The taller the bar on the graph, the better the unit is receiving signals from the satellite.

The Estimated Position Error (EPE), shown above the bar graphs, is the expected error from a benchmark location. In other words, if the EPE shows 50 feet, then the position shown by the unit is estimated to be within 50 feet of the actual location. This also gives you an indicator of the fix quality the unit currently has. The smaller the position error number, the more accurate the fix is. If the position error flashes dashes, then the unit hasn't locked onto the satellites and the number shown isn't valid.

Navigation Page

This Page has a compass rose. It shows your direction of travel and the direction to a recalled waypoint. When you're not navigating to a waypoint or destination, the navigation screen looks like the one in the following image. No graphic course information is displayed. Your position is shown by an arrow in the center of the screen. Your trail history, or path you've taken, is illustrated by a line extending from the arrow. The arrow pointing down at the top of the compass rose indicates the current track (direction of travel) you are taking.

Track or compass heading indicator, showing direction of travel

Present position

arrow

Trail line

Navigation Page, recording a trail, traveling east. Page looks like this

when the iFINDER is not navigating to a waypoint , following a route,

or backtracking a trail.

Compass

rose

Navigation information data boxes

When navigating to a waypoint or following a route, the Navigation screen looks like the one shown in the next image. Your ground speed, track, distance, course and bearing to waypoint, are all shown digitally on this screen.

The current cross track error is shown in the XTK box. This is the distance you are off-course to the side of the desired course line. The course line is an imaginary line drawn from your position when you started navigating to the destination waypoint. It's shown on the navigation page as a vertical dotted line.

Lines on either side of the present position show the current cross track error range. The default for the cross track error range is 0.20 mile. For example, if the present position symbol touches the right cross track error line, then you are 0.20 mile to the right of the desired course. You need to steer left to return to the desired course. You can use the

ZOUT keys to change the cross track error range. A circular symbol il-

ZIN or

lustrating your destination (waypoint) appears on the screen as you approach the waypoint.

Travel Time is the time that it will take to reach your destination at your present closing speed. Arrival Time is the local time it will be when you arrive at the destination, based upon your present closing speed and track.

Waypoint symbol

Bearing arrow

Trail line

Cross track error range (off course indicator)

Navigation Page, going to cursor. Driver is headed east (a 68º track)

toward a cursor location 68º (bearing) away. The cross track error

range (white corridor) is 0.20 miles either side of the course. The driver is headed toward the cursor location, which is 0.17 miles away. The vehicle is basically on course (off course only 1 foot). Traveling at

34 mph. The driver will arrive at the waypoint in 18 seconds.

Destination name

Navigation information data boxes

Map Page

The map screens show your course and track from a bird's-eye view. By default, this unit shows the map with north always at the top of the screen. (This can be changed using options in Advanced Mode. See the topic Map Orientation, in Sec. 5.) If you're navigating to a waypoint, the map also shows your starting location, present position, course line and destination.

NOTE:

When our text says, navigating to a waypoint, we really mean navigation to any selected item, whether it is a waypoint you made, a map feature or an item (like a restaurant) from the POI database.

Using the map is as simple as pressing the

PAGES key. A screen similar to

those in following images appears. The arrow flashing in the center of the screen is your present position. It points in the direction you're traveling. The solid line extending from the arrow is your plot trail, or path you've taken. Remember, a flashing question mark/arrow symbol or flashing text displays means the iFINDER has not yet calculated a position. The zoom range is the distance across the map. This number is shown in the lower left corner of the screen. In the first example below, the range is 4,000 miles from one side of the map to the other. The Zoom In and Zoom Out keys zoom the map to enlarge or reduce its coverage area. There are 40 zoom ranges, from 0.02 miles to 4,000 miles.

Map Page opening screen (left); Map zoomed to 100 miles (center); Map

zoomed to 6 miles (right). Over Zoomed means you have reached the

detail limits in an area covered only by the basic background map.

Zooming in any closer will reveal no more map details because a high-

detail custom map for this area has not been loaded on the MMC.

If you're using the factory-loaded background map, the maximum zoom range for showing additional map detail is 8 miles. You can continue to zoom in closer, but the map will be enlarged without revealing more map content (except for a few major city streets). Load your own highdetail custom map made with MapCreate and you can zoom in to 0.02 miles with massive amounts of accurate map detail.

Map Pages with high-detail map of an urban area loaded on the MMC.

Arterial streets appear at the 4-mile zoom range (left), with a few Point

icons visible. Numerous dots representing Points of Interest become

visible at the 3-mile range (center). At the 0.4-mile zoom (right), you

can see an interstate highway with an exit, major and minor streets as

well as Point of Interest icons.

Background map vs. MapCreate map content

The background map includes low-detail maps of the whole world containing cities, major lakes, major rivers, political boundaries and medium-detail maps of the United States.

Medium-detail U.S. maps contain all incorporated cities; shaded metropolitan areas; county boundaries; shaded public lands (such as national forests and parks); some major city streets; Interstate, U.S. and state

highways; Interstate highway exits and exit services information; large- and medium-sized lakes and streams and more than 60,000 navigation aids and 10,000 wrecks and obstructions in U.S. coastal and Great Lakes waters.

MapCreate custom maps include massive amounts of information not found in the background map. MapCreate contains the searchable Points of Interest database, all the minor roads and streets, all the landmark features (such as summits, schools, radio towers, etc.); more rivers, streams, smaller lakes and ponds and their names.

What's more important is the large-scale map detail that allows your GPS unit to show a higher level of position accuracy. For example, the background map would show you the general outline and approximate shape of a coastline or water body, but the higher detail in MapCreate shows the shoreline completely and accurately (finer detail). Many smaller islands would not be included in the background map, but are in MapCreate.

POI Markers

School POI

Cursor lineInterstate Major Street

Restaurant POI

POI Pop-up

Zoom Range

When the map is zoomed out far enough, most POIs appear as square dots (left). As you zoom in closer, the symbols become readable icons.

In the 0.3-mile zoom example (right), the cursor has selected Cholita's

Mexican Restaurant POI, which triggers a pop-up box with the POI

name. This pop-up box works on POIs at any zoom range.

Position, distance and bearing data

Tip:

In some urban areas, businesses are so close to one another their POI icons crowd each other on the screen. In the preceding figure, you can see a packed string of POIs all along the west half of 11th Street. You can reduce screen clutter and make streets and other map features easier to see by turning off POIs you're not watching for. To see how, check the text on Map Detail Category Selection, in

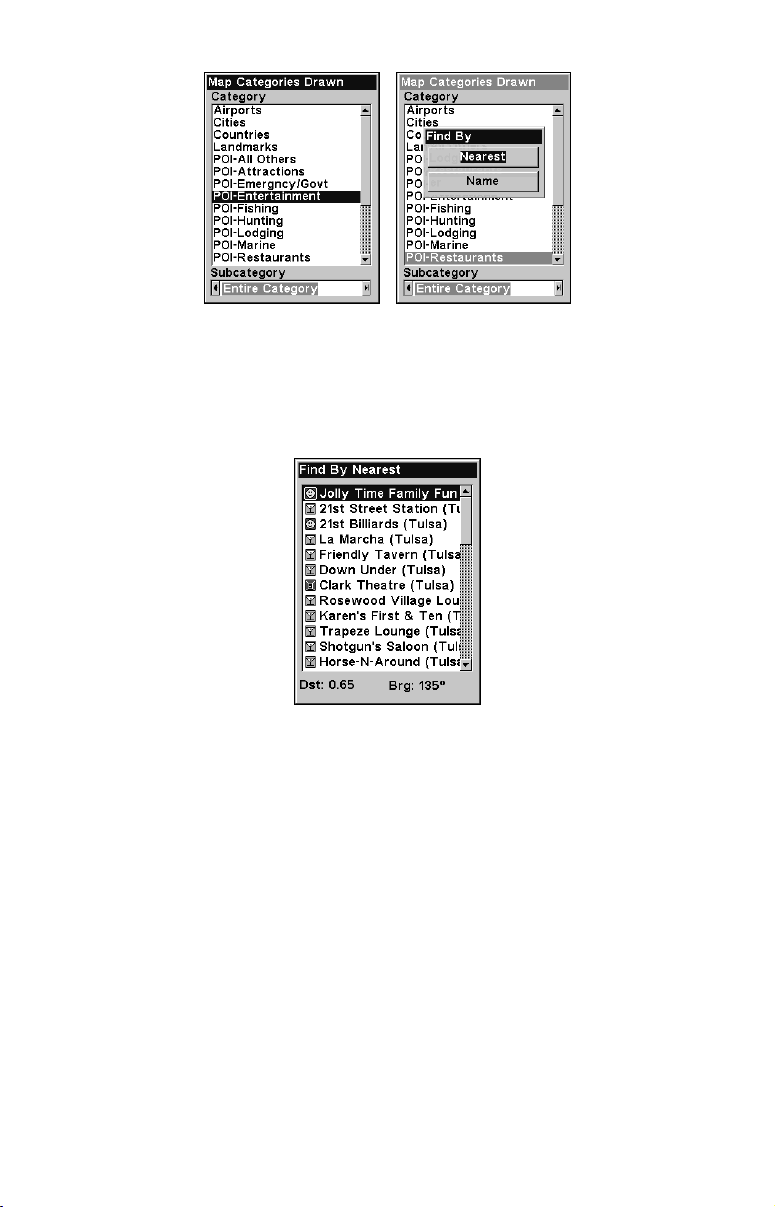

Sec. 5. It shows how to use the Map Categories Drawn menu to turn individual POI displays off and on. Even though their display is turned off, you can still search for POIs and their icons will popup when your unit finds them for you.

The following page contains a 12-step quick reference for Easy Mode operation. If you don't want to carry the manual with you as you practice with the iFINDER, you might consider photocopying this quick reference page and tucking it into your pocket.

IFINDER H2Oc Easy Mode Quick Reference

Start outdoors, with a clear view of the open sky. As you practice, try navigating to a location a few blocks away. Navigation in too small a space, like a backyard, will constantly trigger arrival alarms.

1. Install two AA batteries and an MMC card in the battery compartment on back of case. (See installation details beginning on page 11.)

2. To turn on the iFINDER, press

3. Opening screen displays map of North America at the 4,000-mile zoom range. Rotate through the three main Page screens (Map Page, Satellite Status Page, Navigation Page) by repeatedly pressing key. Switch Pages to display Satellite Status Page.

4. Wait while unit locates satellites and calculates current position. Process is visible on Satellite page. This takes an average of 1 minute or less under clear sky conditions (unobstructed by terrain or structures.) When the unit acquires position, a tone sounds and a position acquired message appears.

5. With position acquired, press shows a bird's eye view of the earth. You can move around the map by zooming out, zooming in or scrolling.

Zoom in closer to see greater detail: press Zoom out to see more area, less detail: press Scroll map north, south, east or west using arrow keys ↑ ↓ → ←.

To stop scrolling and return to current position on map, press

6. Set Home waypoint at your current position so you can navigate back here: press

ENT|ENT.

7. Zoom/scroll map to find a nearby object or location. Use arrow keys to center cursor crosshairs over the map object or location.

8. To navigate to the selected location, press steering arrow on Map Page or compass bearing arrow on Navigation Page.

9. At destination, Arrival Alarm goes off. To clear it, press navigation: press

MENU|↓ to CANCEL NAVIGATION|ENT|← to YES|ENT.

10. Navigate back home by press press

FIND|ENT and follow navigation arrows. To Navigate Trail:

MENU|↓ to NAVIGATE TRAIL|ENT. Wait while route is calculated,

then follow arrows.

11. Back home, Arrival Alarm goes off; press press

MENU|↓ to CANCEL NAVIGATION|ENT|← to YES|ENT.

12. To turn off the iFINDER, press and hold

PWR key.

PAGES

PAGES key to display Map Page, which

ZIN (zoom in key.)

ZOUT (zoom out key.)

EXIT key.

MENU|ENT|EXIT. Follow

EXIT. Cancel

GO HOME or NAVIGATE TRAIL. To Go Home:

EXIT. Cancel navigation:

PWR key for three seconds.

Find Your Current Position

Finding your current position is as simple as turning on the iFINDER. The unit automatically searches for satellites and under a clear sky, calculates its position in approximately one minute or less.

NOTE:

Clear sky means open sky, unobstructed by terrain, dense foliage or structures. Clouds do not restrict GPS signal reception.

If for some reason satellite acquisition takes longer, you may be inside a structure, a vehicle or in terrain that is blocking signal reception. To correct this, be sure you are positioned so the unit has as clear a view of the sky as possible, then turn the unit off and back on again.

Moving Around the Map: Zoom & Cursor Arrow Keys

The map is presented from a bird's eye view. The current zoom range shows in the lower left corner of the screen.

1. Press the a smaller geographic area.

2. Press the detail in a larger geographic area.

When you are walking or riding in a vehicle, the map will automatically move as you move. This keeps your current location roughly centered on the screen.

You can scroll the map northward, southward, eastward or westward by using the arrow keys, which will launch the cursor crosshairs. This allows you to look anywhere on the map. To clear the cursor, press and the map will revert to the current or last known position.

ZIN key (zoom in) to move in closer and see greater detail in

ZOUT key (zoom out) to move farther away and see less map

EXIT

Cursor line

Selected airport

Cursor line

Distance measured by cursor

The selected airport to the northwest is 4.2 miles away.

Tip:

Use the cursor to determine the distance from your current position (or last known position, when working indoors) to any map object or location. Use the arrow keys to position the cursor over the object or place. The distance, measured in a straight line, appears in the data box at the bottom of the map. Press

EXIT to clear the cursor.

Selecting Any Map Item with the Cursor

1. Use the zoom keys and the arrow keys to move around the map and find any item you wish to select.

2. Use the arrow keys and center the cursor crosshairs on the desired object. On most items, a pop-up box will give the name of the selected item.

You will also notice a red halo surrounds the item when it is selected. Once that happens and you press

SELECTED ITEM listed at the top of the menu. Press ENT to see the Way-

FIND, the Find Menu will pop up with

point Information screen for the selected item.

Searching

Now that you've seen how the iFINDER can find where you are, let's search for something else. Searching is one of the most powerful features in the Lowrance GPS product line.

In this example, we'll look for the nearest fast-food restaurant. For more information on different types of searches, refer to Sec. 6, Searching.

NOTE:

This example requires the Point of Interest (POI) database included with a high-detail MapCreate 6 custom map.

After the iFINDER has acquired a position:

1. Press

2. You could search the entire restaurant category, but in this example we will narrow our search. Press → to

FIND|↓ to MAP PLACES|ENT|↓ to POI-RESTAURANTS.

FAST FOOD CHAINS|ENT|ENT.

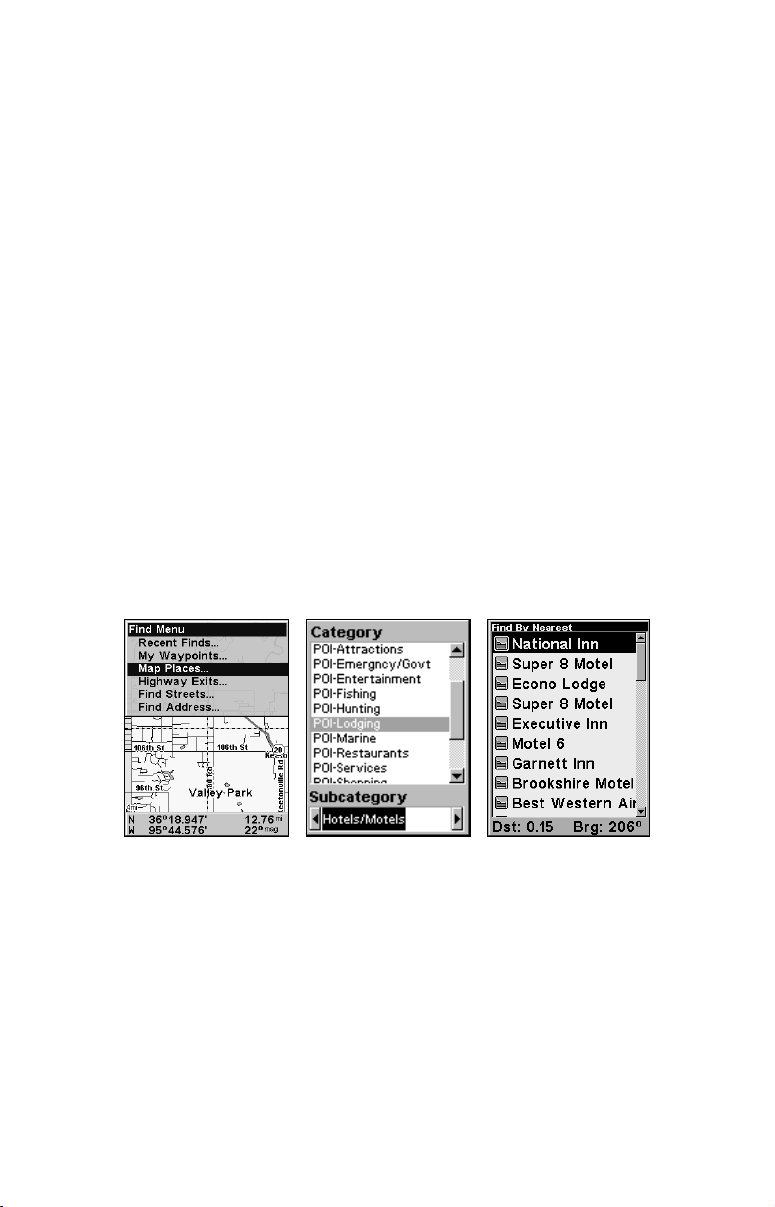

Find Map Places Menu (left); Category Selection menu (center) with

list of the nearest restaurants (right).

3. A list of restaurants will appear with the closest at the top of the list and the one furthest from you at the bottom of the list. The nearest is highlighted.

4. If you wanted, you could scroll for

now, we will just accept the nearest one. Press ENT.

↑ or ↓ to select another restaurant, but

5. The POI's Waypoint Information screen appears. (This is how you can use the iFINDER as a business phone directory!) If you wanted to navigate there, you could press Enter, since the highlighted. But we just want to see it on the map, so press → to

MAP|ENT.

GO TO command is

FIND ON

POI information screen for fast food restaurant nearest this position.

Screen shows name, street address, phone number, latitude/longitude,

distance to the restaurant and its compass bearing. Screen shows Go

To command (left). The Find On Map command is selected (right).

6. The iFINDER's map appears, with the cursor crosshairs highlighting the restaurant's POI symbol. A pop-up name box identifies the POI. A data box at the bottom of the screen displays the location's latitude, longitude, distance and bearing.

Map screen showing Finding Waypoint,

the result of a restaurant search.

7. To clear the search and return to the last page displayed, press

EXIT

repeatedly. Before you completely exited out of the Search menus, you could have gone looking for another place.

NOTE:

Search works from mapping and POI data loaded in the unit. If you have not loaded a high-detailed custom map covering the desired search area, you may not find much.

Set Home Waypoint

A waypoint is an electronic address, based on the latitude and longitude of a position on the earth. Easy Mode allows you to save two waypoints (Home and Man Overboard).

To save a Home Waypoint:

1. Press and release

2. A message appears asking if you want to save as home waypoint. Select

YES and press ENT. The waypoint appears on the map as an X,

named Home.

ENT.

Pop-up box

Save Home Waypoint menu (left). Home waypoint with X symbol and

name (right). When selected by the cursor, the pop-up box appears.

The example shows the home waypoint set at the cursor location. If the cursor was not active, the point would be placed at the current position.

Caution:

Saving a new Home waypoint will overwrite and erase the previous Home waypoint.

Go Home

This command will automatically take you back to the Home waypoint you created.

1. Make sure you have cleared the cursor, then press

FIND|ENT and

follow navigation arrows on the Map Page or the compass rose on the Navigation Page.

To cancel navigation, press

YES|ENT. The iFINDER stops showing navigation information.

MENU|↓ to CANCEL NAVIGATION|ENT|← to

Set Man Overboard (MOB) Waypoint

One of boating's most terrifying events is having a friend or family member fall overboard. This unit has a man overboard feature that shows navigation data to the location where the feature was activated. To activate it, press the tion at the time these keys are pressed is used as the man overboard position.

Caution:

Saving a new Man Overboard waypoint will overwrite and erase the previous Man Overboard waypoint.

Navigate Back to MOB Waypoint

Find your way back to the position with the Navigation Page or Map Page. When MOB is activated, the Navigation Page automatically shows the compass rose with its bearing arrow pointing toward the man overboard position. The destination name says Going To Man Overboard and the Map Page displays a Man Overboard waypoint, represented by a human figure. The steering arrow points where to steer to reach that position.

The man overboard position is stored in the waypoint table for future reference. It can be edited the same as any other waypoint in Advanced Mode. This prevents the inadvertent loss of the current Man Overboard position.

Tip:

You don't need to have an emergency to use the MOB waypoint. In Easy Mode, it is the only way you can set an additional waypoint other than the Home waypoint. When you set the MOB point, cancel navigation and use it like a regular waypoint. (Remember, you can set 1,000 waypoints in Advanced Mode.)

ZOUT and ZIN keys at the same time. Your posi-

To cancel navigation to MOB, press

|ENT|← to YES|ENT. The iFINDER stops showing navigation in-

TION

MENU|↓ to CANCEL NAVIGA-

formation.

Navigate to Cursor Position on Map

The GO TO CURSOR command navigates to the current cursor position on the map. It's a quick and handy way to navigate to anything you can see on the map display.

1. Use the cursor with the zoom in and zoom out keys to maneuver around the map until you find a location you would like to visit.

2. Center the cursor over the location to select it. See the example below. Many map items such as waypoints, Points of Interest, towns, etc., can be selected, and appear highlighted with a pop-up box. Other items, like a river or a street intersection will not appear highlighted, but the cursor will take you to those locations just the same.

Navigate to cursor. In this example, the cursor

crosshairs are centered on Oologah, Oklahoma.

3. Press MENU|ENT and the iFINDER will begin navigating to the cursor location.

The Map Page will display a course line from your current position to the cursor position. The Navigation Page displays a compass rose showing navigation information to your destination. See the following examples.

The 15-mile zoom figure (left) shows the course line connecting your current position to your destination. The 60-mile zoom (center) shows both current position and destination on screen. The Navigation Page

(right) will also show navigation information.

To stop navigating to the cursor, use the Cancel Navigation command: press

MENU|↓ to CANCEL NAVIGATION|ENT|← to YES|ENT. The iFINDER

stops showing navigation information.

Navigate to a Point of Interest

For POIs that are in view on the map, you can use the Navigate to Cursor command above. Use the cursor to select the POI.

Another method involves searching for POIs by pressing the and selecting

MAP PLACES. (See the searching example earlier in this sec-

FIND key

tion, or turn to Sec. 6, Searching, for detailed instructions on POI searches.)

After you have selected gories will appear. Use ↓ ↑ to highlight a category and press The

FIND BY MENU will appear with two options from which to choose:

NAME and NEAREST. Select NEAREST and press ENT. A list of locations will

appear with the one nearest you highlighted at the top. Press press ← to make sure the of the screen. Now press

MAP PLACES and pressed ENT, a list of map cate-

ENTER.

ENT, then

GO TO command is highlighted at the bottom

ENT. The iFINDER begins showing navigation

information to the item.

To cancel navigation, press

YES|ENT. The iFINDER stops showing navigation information.

MENU|↓ to CANCEL NAVIGATION|ENT|← to

Creating and Saving a Trail

A trail, or plot trail, is a history of the path you have taken. On the screen, trails are represented by a solid line extending from the back of the current position arrow.

With the default auto setting, the iFINDER creates a trail by placing a dot (trail point) on the screen every time you change directions. (The method used for creating a trail and the trail update rate can both be adjusted in Advanced Mode. See Sec. 5 for Trail Options.)

In Easy Mode, this unit automatically creates a plot trail when turned on. The trail is saved in memory when the unit is turned off. The iFINDER continues recording the same trail until you clear the trail, which erases the old trail and starts creation of a new trail.

NOTE:

The iFINDER can record up to 9,999 points per trail, which can be adjusted in Advanced Mode. The default setting is a maximum of 2,000 points. When trail length exceeds the maximum setting, the unit begins recording the trail over itself.

In Advanced Mode, you can save and recall up to 10 different plot trails, which can be copied to your MMC for archiving.

Caution:

You also have the option of turning off trail recording in Advance Mode. If the option is left off when you switch modes, you

will not be able to take advantage of the automatic trail creation feature in Easy Mode.

Displaying a Saved Trail

The trail is automatically displayed in Easy Mode by default. Trail display can be selectively turned off and on only in Advanced Mode.

Navigating or Backtracking a Trail

There are two methods for following your back trail. The simplest requires no menu commands at all, but provides no navigation information during the trip. The other requires only three keystrokes and provides a full range of navigation data. Try both methods and see which you prefer. When hiking at walking speed, we often just use visual back trailing because it is better at following each little turn on a footpath. At faster speeds, like on a highway or water, the Navigate Trail command is handy.

Visual Back Trailing

1. On the Map Page, zoom (

2. Begin moving and watch the Map. Walk or steer so your current position arrow follows the trail you just made.

Navigate a Back Trail

1. Press

MENU|↓ to NAVIGATE TRAIL|ENT.

2. Now, begin moving and follow your iFINDER.

NOTE:

If you are already located at or near the beginning of your back trail, the arrival alarm will go off as soon as you hit Enter. Just press

EXIT to clear the alarm and proceed.

On the map, your original trail is visible as a solid line, along with a roughly parallel dotted line indicating the back trail to follow. The map contains a steer arrow in the lower right corner. This arrow shows you where to steer to reach the next waypoint on your back trail.

The Navigation Page will also show the trail line and a bearing arrow, which points to the next waypoint on the trail.

As you travel, the arrival alarm will go off when you near a waypoint, and the steer arrow (on the map) and bearing arrow (on the compass rose) will swing around and point to the next waypoint on the trail. Press

EXIT to clear the alarm.

ZIN or ZOUT) so your trail is visible.

Navigate Trail

North 

Back trail dotted line

Trail point

Present

position

arrow

Steer arrow

Navigate trail, map views: Driver is southbound heading straight toward trail point 6 (left). The steer arrow tells the driver to go straight.

Southbound driver (right) has reached point 6 and must turn east to

follow trail. The steer arrow swings around to the left (east), toward

the next trail waypoint (arrival alarm message turned off for clarity.)

Track or compass heading indicator

Trail waypoint symbol

Trail line

Present position

Compass

rose

Cross track error range (off course indicator)

Bearing arrow

Navigate trail, navigation page (compass rose) views: Driver is east-

bound heading straight toward trail point 5 (left). The bearing arrow

shows the trail point is due east (straight ahead.) Driver (right) has

reached trail point 5 and must turn south to follow the trail. Arrival

alarm goes off and bearing arrow swings around to right (south), to-

ward the next waypoint, trail point 6. The iFINDER now shows naviga-

tion information to point 6, which is 2.07 miles away.

3. When you reach your destination, be sure to cancel your navigation: press

MENU|↓ to CANCEL NAVIGATION|ENT. The iFINDER asks if you're

sure. Press ←

|ENT.

Clearing or Erasing a Trail

You can erase the current trail and automatically begin recording a new one by using the Clear Trail command.

WARNING:

Clearing a trail will erase the trail from the iFINDER's memory. You will not be able to backtrack the trail, if the it is erased. If you need to preserve the trail, switch to Advanced Mode and use the instructions in Sec. 4 for Creating and Saving a Trail.

1. Press Press ←

MENU|↓ to CLEAR TRAIL|ENT. The iFINDER asks if you're sure.

|ENT. 2. Press EXIT| EXIT to get back to the main page display.

Transfer Custom Maps and GPS Data Files

Custom Maps:

Custom maps work only from the MMC card or SD card. When a card containing a Custom Map File is loaded into the unit, the iFINDER automatically loads the map into memory when the unit is turned on.

Instructions for copying Custom Map Files to an MMC are contained in the instruction manual for your MMC card reader and MapCreate 6 software. For instructions on inserting an MMC into the iFINDER, see Sec. 2, Installation/Accessories.

GPS Data Files:

GPS Data files contain waypoints, routes, trails and event marker icons. Instructions for copying GPS Data Files between your computer and an MMC are contained in the instruction manual for your MMC card reader and MapCreate 6 software.

GPS data automatically recorded in the unit's internal memory must be saved to the MMC (as a GPS Data File) in order to store it on your personal computer. GPS Data Files stored on an MMC must be copied from the card to the iFINDER's internal memory before the unit can read them. Here's how:

1. Insert the MMC into your unit. Press

DATA|ENT and the screen below appears.

MENU|↓ to TRANSFER MY

The Transfer My Data submenu asks if you want to save data to the

MMC or load data from the MMC into the iFINDER's memory.

2. The Transfer My Data menu includes a message which tells you if an MMC is present or not. If no MMC is present, you must insert a card into the iFINDER to activate the Load or Save commands.

To transfer data from the iFINDER to the MMC, press To transfer data from the MMC to iFINDER, press → to

ENT.

LOAD|ENT.

3. Saving: To accept the default name Data for the GPS Data File, press ↓ to below), press

SAVE|ENT. If you wish to rename the file (as in the example

ENT to activate the selection box. Press ↑ or ↓ to change

the first character, then press → to the next character and repeat until the name is correct. Then, press

ENT|↓ to SAVE|ENT.

The unit will display first a progress then a completion message when the data transfer is finished. To return to the Page view, press

EXIT|EXIT.

These figures (from left to right) show the menu sequence for naming

and saving a GPS Data File from an MMC to the iFINDER's memory.

4. Loading: There may be more than one GPS Data File (*.USR) on the card. To select a file, press to highlight the file, then press ↓ to

LOAD|ENT. The unit will display a completion message when the

data transfer is finished. To return to the Page view, press

ENT to activate the selection box, use ↓ or ↑

ENT to accept the selection. Next, press

EXIT|EXIT.

These figures (left to right) show the menu sequence for loading a GPS

Data File from an MMC into the iFINDER's memory.

Switch to Advanced Mode

To leave Easy Mode and switch to Advanced Mode:

1. Press

2. The unit asks if you are sure you want to enter Advanced Mode.

3. Press

Switch Back to Easy Mode from Advanced Mode

To leave Advanced Mode and switch back to Easy Mode:

1. Press

2. The unit asks if you are sure you want to turn on Easy Mode.

3. Press ←|

MENU|↓ to ADVANCED MODE|ENT.

←|ENT and the unit switches to Advanced Mode.

MENU|MENU|↓ to EASY MODE|ENT.

ENT and the unit switches to Easy Mode.

Keypad

Section 4:

Advanced Mode Operation

iFINDER H2Oc keypad.

1. PWR/LIGHT (Power & Light) – The PWR key turns the unit on and off and activates the backlight.

2. PAGES – Pressing this key switches the unit between the four different page screens in Advanced Mode. (Satellite, Position, Navigation and Map.) Each page represents one of the unit's major operation modes.

3. MENU – Press this key to show the menus, which allow you to select or adjust a feature from a list.

4. ARROW KEYS – These keys are used to navigate through the menus, make menu selections, move the chart cursor and enter data.

5. ENT/SAVE (Enter & Save) – This key allows you to save data, accept values or execute menu commands.

6. EXIT – The Exit key lets you return to the previous screen, clear data or close a menu.

7. FIND – The Find key launches the iFINDER search menus and some navigation functions.

8. ZOUT – (Zoom Out) – This key lets you zoom the screen out to see a larger geographic are on the map. Less detail is seen as you zoom out.

9. ZIN – (Zoom In) – This key lets you zoom the screen in to see greater detail in a smaller geographic area on the map.

Power/lights on and off

To turn on the unit, press PWR. To turn on the backlight, press PWR again. Pressing PWR once again will turn off the backlight. (Press EXIT to clear any message or alarm displays.)

Turn off the unit by pressing and holding the

PWR key for 3 seconds.

Main Menu

Advanced Mode has a single Main Menu, which contains some function commands and some setup option commands. The instructions in this section will deal only with functions, the basic commands that make the iFINDER do something. The iFINDER will work fine for these instructions right out of the box with the factory default settings. But, if you want to learn about the various options, see Sec. 5, System Setup and GPS Setup Options.

1. To get to the main menu from any page: press the menu screen and return to the page display, press

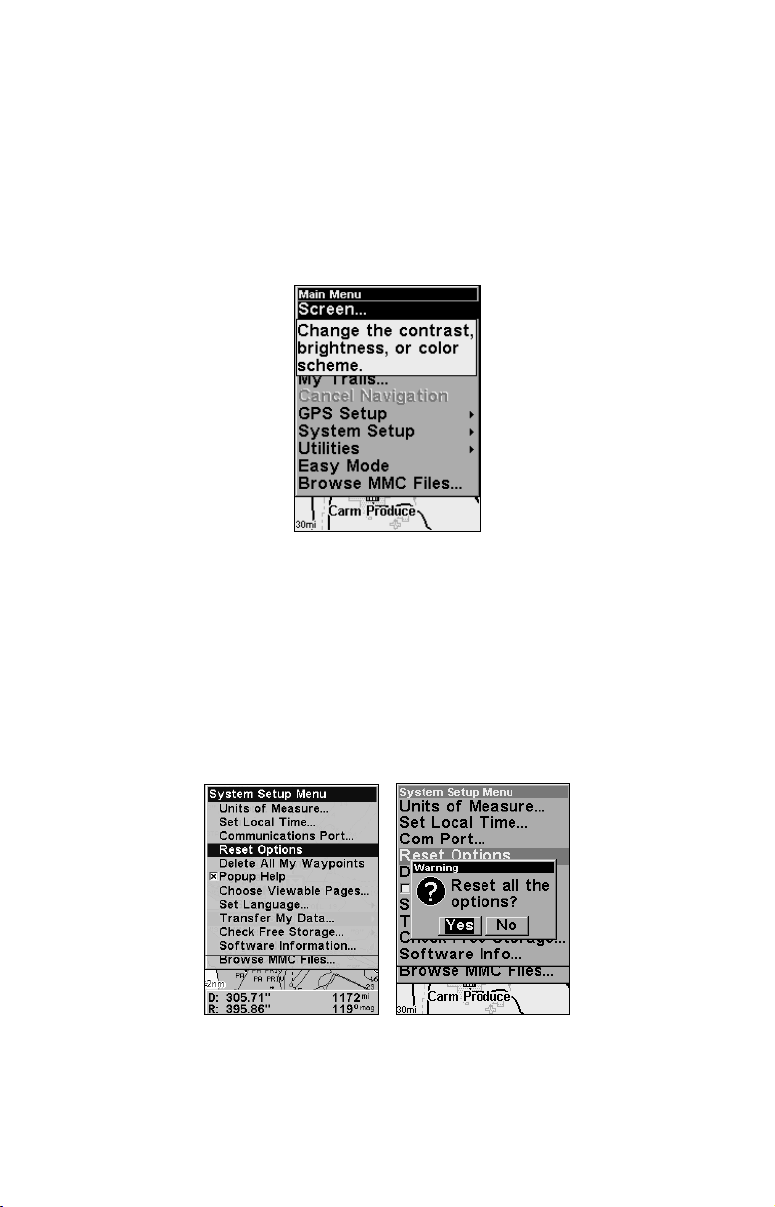

Main Menu, Advanced Mode.

MENU|MENU. To clear

EXIT.

The Main Menu commands and their functions are:

Screen: changes the contrast or brightness of the display screen and backlight delay.

Sounds: enables or disables the sounds for key strokes and alarms and sets the alarm style.

Transparency: adjusts the level of transparency for menus.

Alarms: changes alarm thresholds and allows users to turn on or off

GPS alarms.

Route Planning: allows you to plan, view or navigate routes.

My Trails command: used to show, create, edit or delete trails.

Cancel Navigation: turns off the navigation command after you have

reached your destination.

GPS Setup: gives access to GPS receiver options, like GPS Simulator, Track Smoothing and GPS Auto Search.

System Setup: give access to general configuration options like, Units of Measure, Set Local Time, Reset Options, Popup Help and Transfer My Data.

Utilities: allows users to modify settings for Sun/Moon calculator, Trip Calculator, Timers and Alarm Clock.

Easy Mode: used to switch from Advanced Mode to Easy Mode. Easy Mode shows only the most commonly used features to simplify the interface and operation.

Browse MMC Files: load from or save to an MMC card GPS Data Files containing waypoints, routes, trails and event marker icons.

Pages

Advanced Mode has four Page displays that represent the four major operating modes. They are the Satellite Status Page, Digital Data page, Navigation Page and Map Page. The pages are accessed by pressing the

PAGES key. Pressing PAGES repeatedly scrolls through the four screens

in an endless loop.

Each Page has a submenu screen associated with it. You access a Page Submenu by pressing the (Pressing the Menu key twice will always take you to the Main Menu.)

NOTE:

In Advanced Mode, you can remove the pages you do not want to have in the Pages rotation. Press

SYSTEM SETUP and press ENT. Press ↓ to CHOOSE VIEWABLE PAGES and

press

ENT. Use the ↓ ↑ keys to select desired pages, then press ENT

to turn them on (check) or turn them off (uncheck).

MENU key while the page is displayed.

MENU|MENU, then scroll down to

Satellite Status Page

This page provides detailed information on the status of the iFINDER's satellite lock-on and position acquisition. No matter what page you are on, a flashing current position indicator/question mark symbol and flashing GPS data displays indicate that satellite lock has been lost and there is no position confirmed. This page shows the quality and accuracy of the current satellite lock-on and position calculation.

WARNING:

Do not begin navigating with this unit until the numbers have stopped flashing!

NOTE:

Refer to Sec. 2, Easy Mode Operation, for further explanation and more illustrations of the Satellite Page.

1. To get to the Satellite Status Page press

PAGES repeatedly until it

appears on the screen.

2. To get to Satellite Status Menu press

MENU when the Satellite

Status page is displayed on the screen.

Satellite Status Page (left) with Satellite Status Menu (right).

Status Menu

The Satellite Status Menu allows you to set your own GPS options such as track smoothing, and whether you want the GPS engine to stop searching (a power-saving function for use indoors).

Digital Data Page

This page provides detailed information on the position of the iFINDER's cursor. From this page, you can determine your latitude, longitude, altitude, travel time, speed and other useful information about your position and trip.

1. To get to the Digital Data Page press

PAGES repeatedly until it ap-

pears on the screen.

2. To get to Digital Data Page menu press

MENU when the Digital Data

page is on the main display.

Digital Data page (left) with the Digital Data Menu (right).

Digital Data Menu

The Digital Data Menu allows you to change units of measure and to customize the digital data boxes with the data most important to you.

Navigation Page

This screen has a compass rose that not only shows your direction of travel, but also the direction to a recalled waypoint. The navigation screen looks like the one below when you’re navigating to a waypoint. Your position is shown by an arrow in the center of the screen and your trail history — the path you’ve taken — is depicted by the line extending from the arrow. The large arrow pointing down at the top of the compass rose indicates the current track (direction of travel) you are taking.

NOTE:

Refer to Sec. 2, Easy Mode Operation, for further explanation and more illustrations of the Navigation Page.

1. To get to Navigation Page press

PAGE repeatedly until it appears on

the screen.

2. To get to Navigation Page menu, press Page is on the main display.

MENU, while the Navigation

Navigation Page (left) with Navigation Menu (right).

Navigation Menu

The Navigation Menu allows you to cancel navigation, set alarms and plan and edit routes.

Map Page

The map screens your course and track from a bird’s-eye view. By default, this unit shows the map with north always at the top of the screen. (This can be changed. See the topic Map Orientation, in Sec. 5.) If you’re navigating to a waypoint, the map shows your starting location, present position, course line and destination. You, however, don’t have to navigate to a waypoint to use the map.

The Zoom In and Zoom Out keys zoom the map to enlarge or reduce its coverage area and the amount of mapping detail shown. There are 40 available map zoom ranges, from 0.02 miles to 4,000 miles.

NOTE:

Refer to Sec. 3, Easy Mode Operation, for further explanation and more illustrations of the Map Page.

1. The Map page is displayed by default when the iFINDER is turned on. To switch from the Map Page to another page, press

PAGES repeat-

edly until the desired page appears on the screen.

2. To get to Map Page Menu, press

MENU, when the Map Page is on the

main display.

Map Page (left) with Map Menu (right).

Map Menu

The map menu offers a variety of options, which include, finding distances, changing the orientation of the map and viewing and modifying map data.

Moving Around the Map: Zoom & Cursor Arrow Keys

The map is presented from a bird's-eye view. The current zoom range shows in the lower left corner of the screen. If the zoom range says "4 mi," then the map — from the left edge of the screen to the right edge of the screen — covers four miles.

1. Press the

ZIN key (zoom in) to move in closer and see greater detail in

a smaller geographic area.

2. Press the

ZOUT key (zoom out) to move farther away and see less map

detail in a larger geographic area.

You can pan or scroll the map northward, southward, eastward or westward by using the arrow keys, which will launch the cursor crosshairs. To clear the cursor, press

EXIT and the map will be switched back

to the current or last known position.

Find Distance to Another Location

1. While on the Map page press MENU|↓ to FIND DISTANCE|ENT.

2. Center the cursor over the position you want to find the distance to. A rubber band line appears, connecting your current position to the cursor's location. The distance along that line will appear in the lower right-hand corner of the screen.

3. Press

EXIT|EXIT to return to regular operation.

The distance to Dallas from the starting point is 211.1 miles.

Find Distance from Point to Point

You can also measure distance between two other points on the map.

1. While on the Map page press

MENU|↓ to FIND DISTANCE|ENT.

2. Center your cursor over the first position. (A rubber band line appears, connecting your current position to the cursor's location.) Press

ENT to set the first point and the rubber band line disappears.

3. Move the cursor to the second position. The rubber band line reappears, connecting the first point you set to the cursor. The distance along that line will appear in the lower right-hand corner of the screen.

4. Press

EXIT to clear the command and return to the page screen.

Find Your Current Position

Finding your current position is as simple as turning on the iFINDER. Under clear sky conditions, the unit automatically searches for satellites and calculates its position in approximately one minute or less.

NOTE:

Clear sky means open sky, unobstructed by terrain, dense foliage or structures. Clouds do not restrict GPS signal reception.

If for some reason satellite acquisition takes longer, you may be inside a structure or vehicle or in terrain that is blocking signal reception. To correct this, be sure you are positioned so the unit has as clear a view of the sky as possible, then turn the unit off and back on again.

If the cursor is activated, any information the unit gives you will be based on the cursor position, not your own. If you want to find where you are, just press

EXIT until the cursor goes away and the map snaps

back to your position.

Icons

Icons are graphic symbols used to mark some location, personal point of interest or event. They can be placed on the map screen, saved and recalled later for navigation purposes. These are sometimes referred to as event marker icons. The iFINDER has 42 different symbols to choose from when creating an icon.

Icons are similar to waypoints, but they do not store as much information (like names) as waypoints do. You can't use a menu to navigate to icons as you can with waypoints.( But, you can use the map cursor and navigate to any icon on the map.)

You can create an icon at the cursor position on the map or at your current position while you are navigating.

Create Icon on Map

1. Use the arrow keys to move the cursor to the place where you want to make an icon.

2. Press and hold the

ENT key. The Select Symbol menu will appear.

3. Press ← or ↑ or → or ↓ to select your icon symbol, then press The icon appears on the map.

ENT until the screen displays Save Icon, then release

ENT.

Save icon menu (left) with Select symbol menu (right).

Create Icon at Current Position

1. While you are traveling, press and hold ENT until the screen shows a Save Icon menu, then release the

3. Press ← or ↑ or → or ↓ to select your icon symbol, then press

ENT key.

ENT.

The icon appears on the map.

Delete an Icon

To delete an icon, you must be in Advanced Mode. You can delete all the icons at one time, delete all icons represented by a particular symbol or use the cursor to delete an icon selected from the map.

1. Press

2. Press ↓ to press

MENU|↓ to DELETE MY ICONS|ENT.

DELETE ALL ICONS, DELETE BY SYMBOL or DELETE FROM MAP and

ENT.

Delete icons menu.

Load GPS Data Files from an MMC

GPS Data files, containing waypoints, routes, trails and event marker icons, must be copied from an MMC to the iFINDER's internal memory before the iFINDER can read them. Here's how:

1. Press

and the screen below appears.

The Transfer My Data menu asks if you want to save data to the MMC

or load data from the MMC into the iFINDER's memory.

2. The Transfer My Data menu includes a message which tells you if a MMC is present or not. If no MMC is present, you must insert a card into the iFINDER to activate the

To load data from the MMC to the iFINDER, press → to

LOAD or SAVE commands.

LOAD|ENT.

3. Loading: There may be more than one GPS Data File (*.USR) on the card. To select a file, press highlight the file, then press

ENT to activate the selection box, use ↓ or ↑ to

ENT to accept the selection. Next, press ↓ to

LOAD|ENT. The unit will display a completion message when the data

transfer is finished. To return to the page view, press

EXIT|EXIT|EXIT.

Navigate

Navigation is one of the primary reasons GPS users choose the iFINDER. The unit gives you useful trip information about where you want to go, how to get there and how long it will be before you arrive.

Navigate Back Home

You can navigate to the Home waypoint created in Easy Mode, but you must use Advanced Mode's procedure for navigating to a waypoint. See the entry later in this section on Navigate to a Waypoint.

Navigate Back to Man Overboard Waypoint

This unit has a man overboard feature that shows navigation data to the location where the feature was activated. To activate it, press the

ZOUT and ZIN keys at the same time. Your position at the time these

keys are pressed is used as the man overboard position. The unit automatically begins navigating to the MOB waypoint. For more details, see this subject in Sec. 3, Easy Mode Operation.

Cancel Navigation

In Easy Mode:

Press MENU|↓ to CANCEL NAVIGATION|ENT|← to YES|ENT.

In Advanced Mode

Navigate a Route

1. From the press

MENU|MENU|↓ to ROUTE PLANNING|ENT.

2. Press ↓ to select route name|

3. Upon arrival at your destination, cancel navigation: press

Navigate to Cursor Position on Map

1. Use arrow keys to center cursor crosshairs over the map object or location.

2. To navigate to the selected location, press steering arrow on Map Page or compass bearing arrow on Navigation Page.

Navigate to an Icon

Use the Navigate to Cursor command above and use the cursor to select the icon.

Navigate to Point of Interest (POI)

For POIs that are in view on the map, you can easily use the Navigate to Cursor command above. Use the cursor to select the POI. The other

NAVIGATION PAGE, press MENU|ENT or from the MAP PAGE,

ENT|ENT.

MENU|ENT|EXIT. Follow

method involves searching for POIs with the Find command. (see Sec. 6, Searching, for detailed instructions on POI searches.)

Whenever you locate a POI, the Point of Interest information screen appears (with phone number, position, etc.) and the highlighted in the command box. To navigate to that POI, press

GO TO command is automatically

ENT and the

iFINDER begins displaying navigation information to that location.

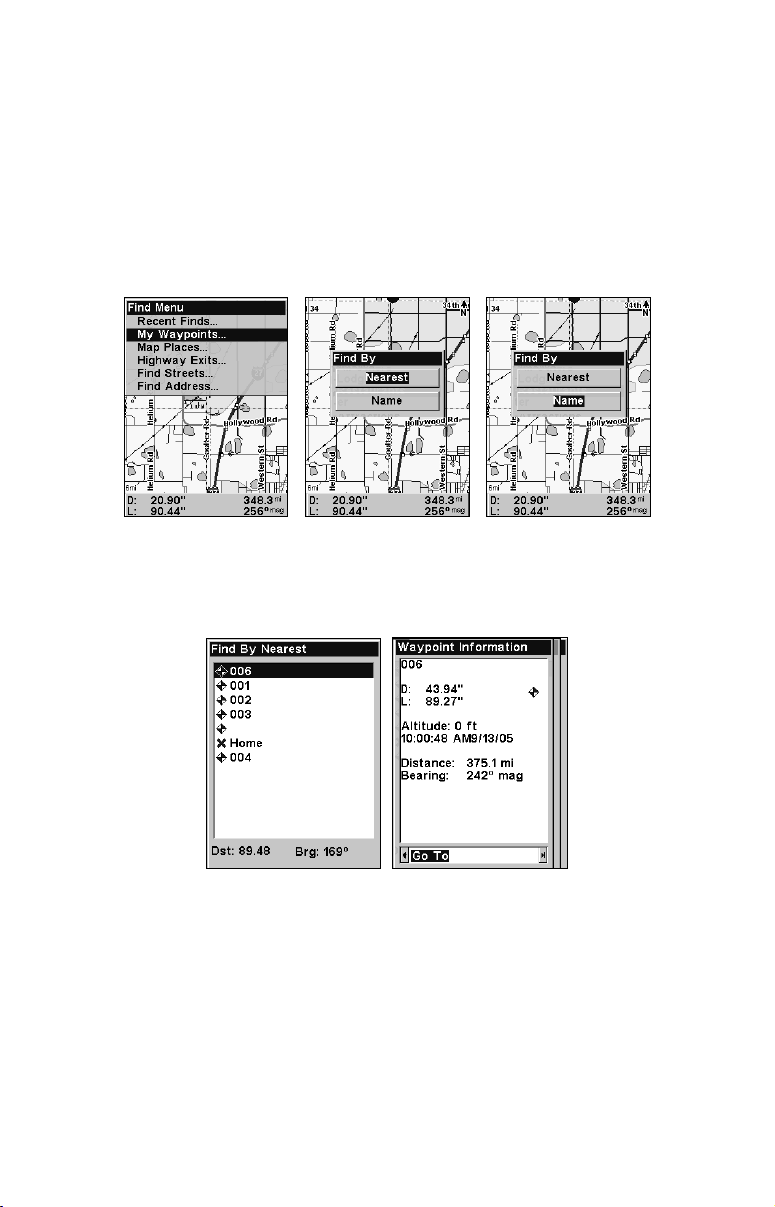

Navigate to a Waypoint

You can select any waypoint visible on the Map Page with the cursor, then use the Navigate to Cursor command. You, however, can avoid scrolling the map to pick your waypoint if you use the Find commands:

1. Press waypoint, press point list), press ↓|

FIND|↓| to MY WAYPOINTS and press ENT. To look up the nearest

ENT, or to look by name (scroll through the entire way-

ENT. For this example, let’s look by name.

2. If your waypoint list is a long one, you can search for a waypoint by spelling it out its name in the

FIND BY NAME box. (Press ↑ or ↓ to change the

first character, then press → to move the cursor to the next character and repeat until the name is correct, then press

ENT to jump to the list below.)

3. If you don’t want to spell out the name, you can jump directly to the

FIND IN LIST box by pressing ENT. Use ↑ or ↓ to select the waypoint name,

press

ENT and the waypoint information screen appears with the GO TO

command selected.

4. To begin navigating to the waypoint, press

ENT.

Navigate a Trail

1. Press

MENU|MENU|↓ to MY TRAILS|ENT and the following screen ap-

pears.

Trails Menu, Advanced Mode.

2. Press ↓ to saved trail list, then use ↓ or ↑ to select a trail to navigate.

3. With the trail name highlighted, press

ENT|↓ → to NAVIGATE|ENT.

4. Wait while the iFINDER creates a route from the trail.

When the progress message disappears, the unit displays a trail information screen, with

NAVIGATE highlighted in the top command box.

Tip: Back Track a Trail

Running the Navigate command will lead you along the trail from its starting point to its ending point. You can also back track a trail, fol- lowing it in reverse order (from its ending point to its starting point.) In Easy Mode, this is done automatically with the most recently created active trail. In Advanced Mode you must first select the Reverse command to reverse the trail point order before you start navigating: press → to

5. To follow the trail, press

REVERSE ROUTE|ENT|← to NAVIGATE.

ENT. The unit begins showing navigation

data along the trail. Follow the steering arrow on the Map Page or the compass bearing arrow on the Navigation Page.

NOTE:

If you are at or near the start of the trail, the arrival alarm will go off as soon as navigation begins because of your proximity to the trail's first point. Just press

EXIT to clear the alarm.

6. Upon arrival at your destination, cancel navigation: press

Routes

A route is a series of waypoints linked together in an ordered sequence, used to mark a course of travel. You can visualize a route as a string of beads. The beads represent waypoints and the string represents the course of travel connecting waypoint to waypoint.

The course from one waypoint to the next is a leg. Routes are composed of one or more legs. The legs of all GPS routes are based on straight lines between waypoints.

A route provides the automatic capability to navigate through several waypoints without having to reprogram the unit after arriving at each waypoint. Once programmed into the GPS unit, a route gives you the option of navigating forward through the route waypoints or in reverse order. You can even begin navigating in the middle of a route!.

Create and Save a Route

In the iFINDER, routes can be created, edited and navigated only in Advanced Mode. You have the option of creating a route in the unit or on your computer, if you have purchased our MapCreate 6 software.

PC-created Routes

MapCreate is the easiest method for preparing a route, because your PC's larger screen, keyboard and mouse are easier to manipulate than the pocket-sized iFINDER.

To load a MapCreate route into the iFINDER, follow instructions in MapCreate's manual for creating a route and saving it as part of a GPS Data File (file format *.usr). Copy the GPS Data File to an MMC and insert the MMC into the iFINDER. (See Sec. 2 for instructions on installing MMCs. To load the GPS Data File into the iFINDER's memory, see the entry on Transferring GPS Data Files between the iFINDER and a Computer in this section.)

Routes Created in the iFINDER

You can create a route by selecting existing waypoints from the waypoint list or you can set a series of route waypoints on the map with cursor arrows and the Enter key. In this example, we'll create a route from the map.

1. From the press

MENU|MENU|↓ to ROUTE PLANNING|ENT.

2. With

FROM MAP|ENT. The Map Page appears with the cursor showing.

NAVIGATION PAGE, press MENU|ENT or from the MAP PAGE,

NEW ROUTE highlighted, press ENT|↓ to (ROUTE END)|ENT|↓ to ADD

3. Use the Zoom and arrow keys to move the map and cursor until the cursor is centered on the spot where you want your route to begin. (If you are starting at your current position or the current cursor position, you are already at the starting spot.)

4. Set the first route waypoint by pressing

ENT. In this example, we

moved to the intersection of 11th Street and 145th E. Ave. to start our route to a public hunting area next to a river.

1. 2. 3.

Route creation sequence: (from left) Fig. 1. Set route waypoint (1) at

11th St. & 145th Ave. Fig. 2. Zoom in; move cursor north to set point (2)

at 145th & Admiral. Fig. 3. With point (2) set, move cursor east to mark

interstate on-ramp with waypoint (3). In figures 2 and 3, notice the

rubber band line extending from the previously set waypoint to the

cursor. This line will become the course for the route.

4. 5. 6.

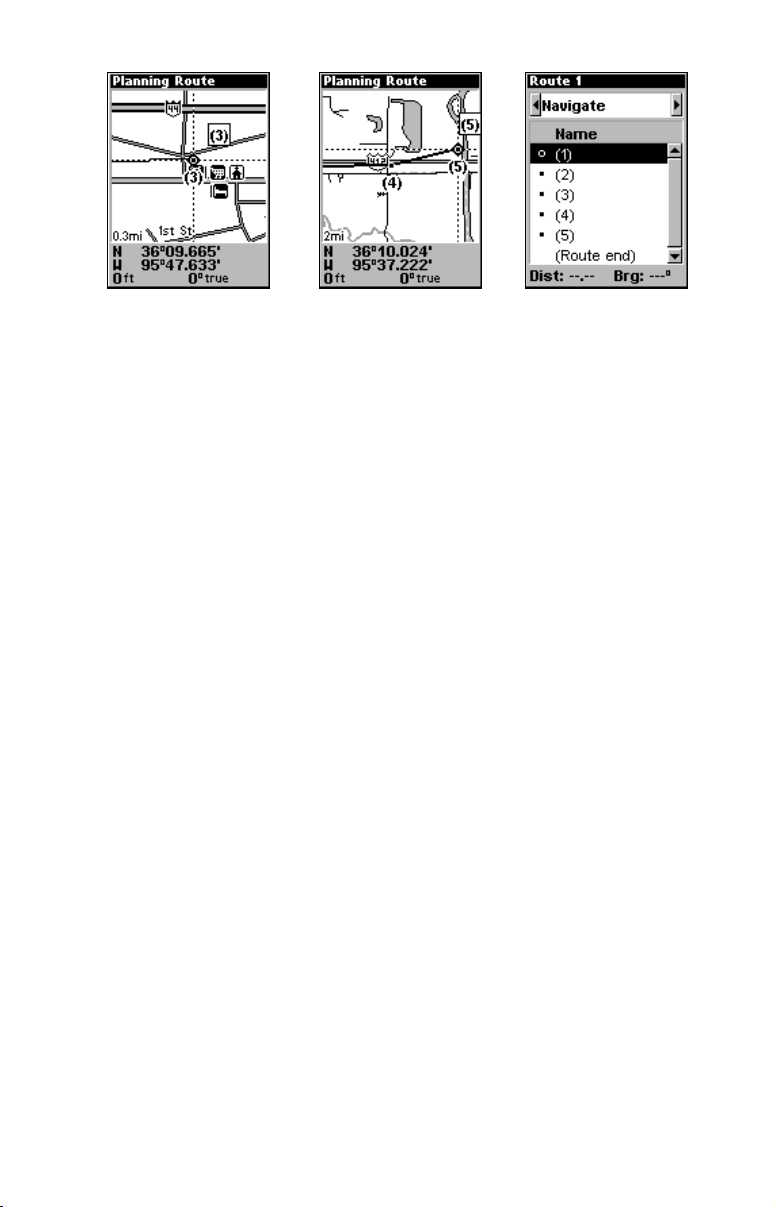

Route creation sequence, continued: Fig. 4. Point (3) set at on-ramp

turn. Fig. 5. Waypoint (4) set at highway exit to frontage road leading

to river. Waypoint (5) ends the route at a tree stand in the hunting

area. Fig. 6. Press EXIT to save the route and you return to this screen.

5. Move the cursor to the next point in the route, a spot where you need to turn or change direction, and press

ENT to set the next waypoint.

6. Repeat step five until the route reaches your destination.

7. To save your route, press

EXIT. The iFINDER reverts to the Route

screen, with the route automatically named Route 1 and stored in the iFINDER's internal memory.

8. You can edit the name if you wish. Press ↑ to select the screen's command box, then press → to

EDIT ROUTE NAME|ENT. Press ↑ or ↓ to

change the first character, then press → to move the cursor to the next character and repeat until the name is correct, then press

ENT.

9. With the command box active, you also can execute other route commands, like press

ENT.

NAVIGATE. Press → to highlight a different command, then

10. If you are finished with the route, you can r e t u rn to th e m a i n page display by pressing

EXIT repeatedly.

Delete a Route

1. From the

NAVIGATION PAGE, press MENU|ENT or from the MAP PAGE

press MENU|MENU|↓ to ROUTE PLANNING|ENT.

2. Press ↓ to the route list|press ↓ or ↑ to select route name|

3. Press ← to

DELETE ROUTE|ENT|← to YES|ENT.

ENT.

Save GPS Data Files to an MMC

1. Press MENU|MENU|↓ to SYSTEM SETUP|ENT|↓ to TRANSFER MY

DATA|ENT.

2. The Transfer My Data menu includes a message which tells you if an MMC is present. If no MMC is present, you must insert a card into the iFINDER in order to activate the Save command.

3. To save data from the iFINDER to the MMC, press

ENT (for SAVE).

4. To accept the default name Data for the GPS Data File, press ↓ to

SAVE|ENT. If you wish to rename the file, press ENT to activate the se-

lection box. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the name is correct. Then press

ENT|↓ to SAVE|ENT.

The unit will display a completion message when the data transfer is finished. To return to the main page display, press

EXIT repeatedly.

Searching

In this example, we'll look for the nearest hotel or motel. For more in- formation on different types of searches, refer to Sec. 6, Searching.

NOTE:

This example requires the Point of Interest (POI) database included with MapCreate 6.

After the iFINDER has acquired a position:

1. Press

2. You could search the entire lodging category, but in this example we will narrow our search. Press → to

3. The iFINDER says it is calculating, then a list of hotels and motels appears, with the closest location at the top of the list and the location furthest from you at the bottom of the list. The nearest is highlighted.

FIND|↓ to MAP PLACES|ENT|↓ to POI-LODGING.

HOTELS/MOTELS|ENT|ENT.

Find Map Places Menu (left); Category Selection menu (center) and list

of the nearest motels (right).

4. If you wanted, you could scroll ↑ or ↓ here to select another motel or hotel, but for now we will just accept the nearest one. Press

ENT.

5. The POI information screen appears. (This is how you can use the iFINDER as a business phone directory!) If you wanted to navigate there, you could press Enter, since the We just want to see it on the map, so press → to

GO TO command is highlighted.

FIND ON MAP|ENT.

POI information screen on fast food restaurant nearest this position. Screen shows name, street address, phone number, latitude/longitude, distance to the restaurant and its compass bearing. Go To command is

highlighted (left). Find On Map command is highlighted (right).

6. The iFINDER's map appears, with the cursor crosshairs centered on the restaurant's POI symbol. A pop-up name box identifies the POI. A data box at the bottom of the screen continues to display the location's latitude, longitude, distance and bearing.

Map screen showing Finding Waypoint the result of a lodging search.

7. To clear the search and return to return to the current or last known position, press

EXIT repeatedly. (Before you exited out of the Search

menus, you could have gone looking for another place.)

Trails

A trail, or plot trail, is a string of position points plotted by the iFINDER as you travel. It's a travel history, a record of the path you have taken. Trails are useful for repeating a journey along the same track. They are particularly handy when you are trying to retrace your trip and go back the way you came.

Easy Mode only allows you to work with one trail. Advanced Mode lets you save up to 10 trails in the iFINDER's memory. Since you can copy these trails to MMCs in the form of GPS Data Files (*.usr format), the only true limit on the number of trails you can record is the number of MMCs you can carry in your pockets.

(For various trail options, see the Trail Options entry in Sec. 5.)

Create and Save a Trail

The iFINDER is set at the factory to automatically create and record a trail while the unit is turned on. It will continue recording the trail until the length reaches the maximum trail point setting (default is 2,000, but the unit can record trails 9,999 points long). When the point limit is reached, the iFINDER begins recording the trail over itself.

To preserve a trail from point A to point B, you must turn off the trail by making it inactive before heading to point C or even back to point A. When a trail is set inactive, the iFINDER automatically creates and begins recording a new trail.

Clear a Trail

In Easy Mode, this command is used to erase the active trail and immediately begin recording a new one. It's available only in Easy Mode.

1. Press

MENU|↓ to CLEAR TRAIL|ENT|← to YES|ENT.

Delete a Trail

This is the command that allows you to delete a trail in Advanced Mode: Press

DELETE TRAIL|ENT|← to YES|ENT.

MENU|MENU|↓ to MY TRAILS|ENT|↓ to trail name|ENT|↓ to

Edit a Trail Name

To edit a trail name, press name|

ENT|ENT. Press ↑ or ↓ to change the first character, then press

→ to the next character and repeat until the name is correct. Press

MENU|MENU|↓ to MY TRAILS|ENT|↓ to trail

EXIT

repeatedly to return to the main page display.

Edit a Trail Color

To edit a trail color, press name|

ENT. Press ↓ TO COLOR and press ENT. Use the ↑ ↓ keys to select

the desired color and press

MENU|MENU|↓ to MY TRAILS|ENT|↓ to trail

ENT. Press EXIT repeatedly to return to the

main page display.

Color highlighted on the Edit Trail menu (left); Scrolling through color

options (center); Customizing the trail pattern (right).

Edit a Trail Pattern

To edit a trail name, press name|

ENT. Press ↓ to PATTERN and press ENT. By default, the pattern

MENU|MENU|↓ to MY TRAILS|ENT|↓ to trail

will consist of a series of asterisks. To erase or add an asterisk to the series, use the ↑ ↓ keys. To move over to the next asterisk in a series,

press the → key. When you are satisfied with the new pattern, press

ENT. Press EXIT repeatedly to return to the main page display.

Transfer Custom Maps and GPS Data Files

Custom Maps:

Custom maps work only from the MMC or SD card. When a card containing a Custom Map File is loaded into the unit, it automatically loads the map into memory when the unit is turned on.

GPS Data files:

GPS Data Files contain waypoints, routes, trails and event marker icons. Instructions for copying GPS Data Files between your computer and an MMC are contained in the instruction manual for your MMC card reader and MapCreate 6 software.

1. Insert the MMC into your unit. Press

SETUP|ENT|↓ to TRANSFER MY DATA|ENT.

MENU|MENU|↓ to SYSTEM

2. The Transfer My Data menu includes a message which tells you if an MMC is present or not. If no MMC is present, you must insert a card into the iFINDER to activate the Load or Save commands.

To transfer data from the iFINDER to the MMC, press

SAVE.)

ENT (for

To transfer data from the MMC to the iFINDER, press → to

LOAD|ENT.

3. Saving to MMC: To accept the default name Data for the GPS Data File, press ↓ to

SAVE DATA|ENT. If you wish to rename the file, press ENT

to activate the selection box. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the name is correct. Then, press

ENT|↓ to SAVE DATA|ENT.

The unit will display a completion message when the data transfer is finished. To return to the Page view, repeatedly press

EXIT.

4. Loading to unit memory: There may be more than one GPS Data File (*.USR) on the card. To select a file, press tion box, use ↓ or ↑ to highlight the file, then press selection. Next, press ↓ to

LOAD|ENT. The unit will display a completion

ENT to activate the selec-

ENT to accept the

message when the data transfer is finished. To return to the Page view, press

EXIT repeatedly.

Utilities

Utilities are useful tools for traveling or for outdoor activities.

Sun/Moon Rise & Set Calculator

To get to the Sun/Moon menu, press

TIES

|ENT|ENT.

Trip Calculator

To get to the Calculator menu, press to

TRIP CALCULATOR|ENT.

MENU|MENU|↓ to UTILITIES|ENT|↓

Alarm Clock

To get to the alarm clock menu press

|ENT|↓ to ALARM CLOCK|ENT.

TIES

Trip Down Timer

To get to the Down Timer menu: press

|ENT|↓ to DOWN TIMER|ENT.

TIES

Trip Up Timer

To get to the Up Timer menu: press to

UP TIMER|ENT.

MENU|MENU|↓ to UTILITIES|ENT|↓

MENU|MENU|↓ to UTILI-

Waypoints

A waypoint is an electronic address, based on the latitude and longitude of a position on the earth. It represents a location, spot, or destination that can be stored in memory, then recalled and used later for navigation purposes. You can create a waypoint at the cursor position on the map or at your current position while you are navigating.

Create a Waypoint

These techniques use the Quick Save method, the fastest and easiest way to create a waypoint.

Create Waypoint on Map

1. Use the arrow keys to move the cursor to a place where you want to make a waypoint.

2. Press

ENT|ENT. The waypoint is saved and automatically given a

name with a sequential number, like waypoint 001. The waypoint symbol and number appear on the map.

Create Waypoint at Current Position

1. While you are traveling, press ENT|ENT. The waypoint is saved and automatically given a name with a sequential number, like waypoint

002. The waypoint symbol and number appear on the map.

Create a Man Overboard Waypoint

This unit has a man overboard feature that shows navigation data to the location where the feature was activated. To activate it, press the

ZOUT and ZIN keys at the same time. Your position at the time these

keys are pressed is used as the man overboard position. The unit automatically begins navigating to the MOB waypoint. For more details, see the Man Overboard entry in the Easy Mode Operation section.

Create a Waypoint by Average Position

This feature sets a waypoint at the current position after taking several position readings and averaging them. It boosts waypoint position accuracy by helping to eliminate errors caused by atmospheric conditions and other factors.

1. Press

ENT|↓ to AVERAGE POSITION|ENT (CREATE is highlighted)|ENT.

2. Wait while the unit takes points to average for the position. (The greater the number of points, the greater the accuracy.) When the desired number of points accumulates, press

ENT to create and save a waypoint.

3. The Waypoint information window appear. Go To will be highlighted at the bottom of the window. But, if you want to edit the waypoint

name, use the ← → keys to bring up

are satisfied with the entry, press

EDIT NAME and press ENT. When you

EXIT|EXIT to save the waypoint.

Create a Waypoint by Projecting a Position

This feature sets a waypoint at a point located a specific distance and bearing from a reference position. The reference position can be a highway exit, a map place or an item from your waypoints list.

1. Press

CREATE)|ENT.

2. Press ↓ to map place or highway exit and press

ENT|↓ to PROJECTED POSITION|ENT|(cursor jumps to highlight

CHOOSE REFERENCE|ENT. Use ↑ and ↓ to select a waypoint,

ENT. After choosing a category, its

internal menu will pop up. Select a reference point from the internal menu and press

ENT. Its position will appear as the reference position

on the map.

3. Press ↑ to

DISTANCE|ENT. Press ↑ or ↓ to change the first character,

then press → to the next character and repeat until the distance is correct. Press

4. Press ↑ to

ENT.

BEARING|ENT. Press ↑ or ↓ to change the first character,

then press → to the next character and repeat until the bearing is correct. Press

5. Press ↑ to

save the new projected waypoint by pressing the waypoint. (Press

ENT.

PROJECT|ENT. The Edit Waypoint menu appears. You can

EXIT|EXIT or you can edit

EXIT|ENT if you want to immediately begin navi-

gating to the new waypoint.)

Select a Waypoint

To select a waypoint on the map (for navigating or editing, etc.) use the arrow keys, centering the cursor over the waypoint. A red border will appear around the waypoint.

Delete a Waypoint

To delete a waypoint, press to waypoint name|

ENT|→ to DELETE WAYPOINT|ENT|← to YES|ENT. To

return to the main page display, press

FIND|↓ to MY WAYPOINTS|ENT. Press ENT|↓

EXIT repeatedly.

Edit a Waypoint

Waypoint Name

To edit a waypoint name, press FIND ↓ to MY WAYPOINTS|ENT. Press

ENT|↓ to desired waypoint name|ENT|→ to EDIT NAME|ENT. Use the ↑

and ↓ keys to select the first character, then press → to move to the

second character and so on. To return to the main page display, press

EXIT repeatedly. Waypoint Symbol

To edit waypoint symbol, press FIND|↓ to MY WAYPOINTS|ENT. Press

ENT|↓ to desired waypoint name|ENT|→ to EDIT SYMBOL|ENT. After the

Select Symbol menu appears, use the arrow keys to select the desired symbol and press

ENT. To return to the main page display, press EXIT

repeatedly.

Waypoint Position

To edit waypoint position, press FIND|↓ to MY WAYPOINTS|ENT. Press

ENT. Use ↓ and ↑ to select a waypoint name|ENT|→ to EDIT POSI-

TION

|ENT.

1. Latitude: press ↓ to

LATITUDE, then press ENT. Use ↑ or ↓ to change the

first character, then press → to the next character and repeat until the latitude is correct. Press

2. Longitude: press ↓ to

EXIT.

LONGITUDE|ENT, then press ↑ or ↓ to change the

first character, then press → to the next character and repeat until the latitude is correct. Press

EXIT.

3. When latitude and longitude are correct, return to the previous page, press

EXIT repeatedly.

Waypoint Altitude

To edit waypoint altitude, press FIND|↓ to MY WAYPOINTS|ENT. Press

ENT. Use ↓ and ↑ to select a waypoint name|ENT|→ to EDIT ALTI-

TUDE

|ENT.

1. Use ↑ or ↓ to change the first character, then press → to the next character and repeat until altitude is correct.

2. To return to the main page display, press

EXIT repeatedly.

Notes

Section 5:

System & GPS Setup Options

Alarms

This unit has several GPS alarms. The factory default setting has all alarms turned on, but you can turn alarms off and on and change their distance settings.

You can set an arrival alarm to flash a warning message and sound a tone when you cross a preset distance from a waypoint. For example, if you have the arrival alarm set to 0.1 mile, the alarm will flash a message when you come within 0.1 mile of the recalled waypoint.

The off-course alarm warns you when your track drifts too far to the right or left of the course line to the waypoint. If the alarm is set to 0.1 mile, an alarm message will flash if you drift 0.1 mile or more to the right or left of the line to the waypoint.

The anchor alarm is triggered when you drift outside of a preset radius. If you're anchored and your boat moves more than 0.1 mile, an alarm message will flash and a tone will sound.

You can only adjust alarm distance settings or turn alarms off or on in Advanced Mode.

Alarms command (left); Alarm menu (right).

To change alarm settings:

1. Press

2. Scroll ↓ or ↑ to select the desired category, then press uncheck the enabled box. This turns the alarm on (checked) or off (unchecked).

3. To change distance settings, use the ↑ or ↓ keys to select the desired category, then press →. To activate the distance dialog box, press Press ↑ or ↓ to change the first character, then press → to the next

character and repeat until the distance is correct.

MENU|MENU|↓ to ALARMS|ENT.

ENT to check or

ENT.

4. When your adjustments are finished, return to the main page displayed by repeatedly pressing

IMPORTANT ALARM NOTES:

Anchor Alarm – The anchor alarm may be triggered even when you're sitting still. This can happen when using small (less than

0.05 mile) anchor alarm ranges.

Arrival Alarm – If you set the arrival alarm's distance to a small number and run a route (see the Navigate Routes segment), this unit may not show navigation data to the next waypoint, after you have arrived at the first one. That will be the case if you are unable to come close enough to the first waypoint to trip the arrival alarm.

EXIT.

Auto Satellite Search

To lock onto the satellites, the GPS receiver needs to know its current position, UTC time and date. Elevation (altitude) is also used in the equation, but it's rarely required to determine a position. It needs this data so it can calculate which satellites should be in view. It then searches for only those satellites.

When your GPS receiver is turned on for the first time, it doesn't know what your position or elevation (altitude) is. The unit begins searching for the satellites using data acquired the last time it was turned on. This was probably at the factory. Since it's almost certain you're not at our factory, it's probably looking for the wrong satellites.

If it doesn't find the satellites it's looking for after a short time, it switches to Auto Search. The receiver looks for any satellite in the sky. Due to advanced technology, the auto search time has shrunk significantly from the early days of GPS.

Once the unit locks onto the satellites, it should take less than a minute to find your position the next time it's turned on, provided you haven't moved more than approximately 100 miles from the last location it was used.

Satellite Status page (left); Satellite Menu (right).

You can force the unit to immediately kick into auto search mode. Here's how:

1. While in Advanced Mode press

PAGES until you are on the Satellites

page.

2. Press

MENU|↓ to GPS AUTO SEARCH|ENT then ← to YES|ENT.

Check MMC Files and Storage Space

To check MMC Files:

1. In Advanced Mode, press

MENU|MENU|↓ to BROWSE MMC FILES|ENT.

Main Menu (left); MMC File Browser (center and right).

Com Port Configuration

The iFINDER has one NMEA 0183 version 2.0 compatible communication port (com port). The Com Port Menu, accessed from the System Setup Menu in Advanced Mode, allows you to configure the communications port to send data to another electronic device, like an autopilot.

Menus for changing Com Port settings.

For connectors and wiring information for another device, consult the factory. Customer service phone numbers are in the back of this manual.

To set Com Port Configuration:

1. Press

2. Press ↓ to

3. Use the ↓ ↑ keys to select the desired Baud Rate and press

MENU|MENU|↓ to SYSTEM SETUP|ENT.

COMMUNICATIONS PORT|ENT|ENT.

ENT.

Configure NMEA

You can configure the unit to use specific NMEA sentences.

2. From the Communications Port menu, press ↓ to

NMEA|ENT.

3. A menu appears showing the prefixes of the available NMEA sentences. A check mark next to a prefix means the prefix is in use. Use ↑ ↓ → ← to select a prefix, then press

ENT to turn the prefix on or off.

CONFIGURE

Communication Port menu (left) with Configure NMEA menu (right).

NOTE:

The names of the NMEA sentences are abbreviated in this menu. These are the functions of the various selectable prefixes:

• GLL transmits latitude and longitude of present position, time of

position fix, and status.

• RMC and RMB transmits navigation information messages.

• APB transmits autopilot information.

• GGA transmits time, position, and fix related data.

• GSA and GSV transmits fix mode, DOP values, and satellites in

view information.

4. When the desired prefixes are checked or unchecked, press

EXIT re-

peatedly to return to the previous page.

Use WAAS/EGNOS

The iFINDER H2Oc has a new feature that allows users to turn WAAS and EGNOS reception on and off. The default value is on. EGNOS (European Geostationary Navigation Overlay Service) is the European

equivalent of WAAS. Like WAAS, it makes GPS position calculation more accurate. To determine the accuracy in your area, place yourself in a known location and turn on the GPS. Note your location on the map with WAAS/EGNOS on, then turn it off and check again. Use the setting that is most accurate in your area.

To Turn on or off WAAS/EGNOS:

1. Press

2. Press ↓ to off (uncheck

MENU|MENU|↓ to GPS SETUP|ENT.

USE WAAS/EGNOS|ENT, which will turn on (check) or turn

) the feature. Press EXIT to clear the menus. Note that this

setting can only be accessed in Advanced Mode.

Coordinate System

The Coordinate System Menu lets you select the coordinate system to use when displaying and entering position coordinates. Access this function only in Advanced Mode.

Menus for changing coordinate system used to display positions.

This unit can show a position in degrees (36.14952°); degrees, minutes and thousandths of a minute (36° 28.700'); or degrees, minutes, seconds and tenths of a second (36° 28' 40.9'). It can also show position in: UTM (Universal Transverse Mercator) projection; MGRS (Standard); MGRS (Standard + 10); Map Fix; Loran TD; British, Irish, Finnish, German, New Zealand, Swedish, Swiss, Taiwan, Greek and Military grids.

UTM's are marked on USGS topographic charts. This system divides the Earth into 60 zones, each 6 degrees wide in longitude.

British, Irish, Finnish, German, New Zealand, Swedish, Swiss, Taiwan, and Greek grid systems are the national coordinate system used only in their respective countries. In order to use these grid systems, you must be in the respective country.

This unit will pick the matching datum for you when you select the grid. See the entry on Map Datum Selection for more information.

The military grid reference system (MGRS) uses two grid-lettering schemes, referred to as standard and alternate MGRS on this unit. Your position and datum in use determines which one to use. If you use standard, and your position is off significantly, then try the alternate MGRS.

NOTE: When the position format is changed, it affects the way all positions are shown on all screens. This includes waypoints.

To select a coordinate system:

1. Press

|ENT|ENT. Press the ↑ or ↓ arrow keys to highlight the desired for-

TEM

mat. Press

MENU|MENU|↓ to GPS SETUP|ENT|↓ to COORDINATE SYS-

ENT to select it.

To setup Loran TD:

1. From the Coordinate System menu, press ↓ to press

ENT.

SETUP LORAN TD and

NOTE:

If the Loran TD conversion is chosen, you must enter the local Loran chain identification for the master and slaves.

Configure Loran TD menu.

To access the Loran Chain Number, Secondary Station 1 or Secondary Station 2 menus, highlight the category and press keys to choose the desired setting and press

ENT. Press EXIT to close the

ENT. Use the ↑ ↓

menu.

Map Fix

Map Fix is used with charts or maps. This system asks for a reference position in latitude/longitude, which you take from a marked location on the map. It then shows the present position as distance on the map from that reference point. For example, if it shows a distance of UP

4.00" and LEFT 0.50", you then measure up four inches and to the left a half-inch from the reference point on the map to find your location.

To configure a map fix:

To use this format, you need to follow these steps in order. First, take your map of the area and determine a reference latitude/longitude.

NOTE:

In order for this system to work, the latitude/longitude lines must be parallel with the edge of the map. USGS maps are parallel, others may not be. This works better with smaller scale maps.

The reference position can be anywhere on the map, but the closer it is to your location, the smaller the numbers will be that you'll have to deal with. Once you've decided on a reference position, you can save it as a waypoint. See the waypoint section for information on saving a waypoint. Save the reference position as a waypoint. Now exit the waypoint screens.

From the Coordinate System menu press ↓ to following screens appear with

MAP SCALE highlighted. Press ENT to input

SETUP MAP FIX|ENT. The

the map's scale. This, typically, is at the bottom of the paper map. It's shown as a ratio, like 1:24000. After inputting the map scale, press

ENT.

Configure a map fix so the iFINDER can find your position on a

printed chart or topographical map.

Press ↓ to SELECT ORIGIN|ENT, which will launch the Select Point window with three options: My Waypoints, Map Places and Highway Exits. If you saved the reference point as a waypoint, choose pressing

ENT|ENT, which will bring up the Waypoint list with the way-

MY WAYPOINTS by

point nearest your location at the top. Use the ↓ ↑ keys to select the

waypoint you want to assign as a reference point and press unit displays a waypoint information screen with the command

ORIGIN selected. Press ENT and the unit returns to the Configure Map

Fix menu. Finally, press

SYSTEM|ENT, select MAP FIX from the list and press ENT. All position in-

EXIT to close this menu. Now press ↑ to COORD

ENT. The

SET AS

formation now shows as a distance from the reference waypoint you chose. Press

EXIT repeatedly to return to the map page display.

Customize Page Displays

The Digital Data, Navigation, and Map pages all have customizable options available in Advanced Mode. The options give you control over what information will be viewed on each page.

Customize Digital Data Page

The Digital Data page has six boxes that may be customized. While on the Digital Data Page, press gins to flash. Use the arrow keys to select the box you want to change. With the desired display box highlighted and flashing, press open a list of data options. Use ↓ or ↑ to select a data category, then press

ENT to open the category menu. Select the data option you want

to display and press

ENT, which will turn on (check) or turn off (un-

check) the box next to the option. You can repeat these steps to change the display in another box. When all your changes are finished, press

EXIT|EXIT to return to the main page display.

Customize Navigation Page

While on the Navigation Page press ↑ to select a data category, then press Select the data option you want to display and press turn on (check) or turn off (uncheck) the box next to the data option. Repeat these steps to change the display in another box. When all your changes are finished, press play.

Customize Map Page

While on the Map Page press select a data category, then press lect the data option you want to display and press on (check) or turn off (uncheck) the box next to the option. Repeat these steps to change the display in another box. When all your changes are finished, press

EXIT to return to the main page display

MENU|↓ to CUSTOMIZE|ENT. A data box be-

ENT to

MENU|↓ to CUSTOMIZE|ENT. Use ↓ or

ENT to open the category menu.

ENT, which will

EXIT|EXIT to return to the main page dis-

MENU|↓ to CUSTOMIZE|ENT. Use ↓ or ↑ to

ENT to open the category menu. Se-

ENT, which will turn

External Passive Antenna

The iFINDER H2OC can be used with an optional external antenna. While we recommend the more powerful external active antenna, the unit can also operate with an external passive antenna. To do this, modify the settings so the unit will look for an external passive antenna rather than an external active antenna.

From the Satellite Status page, press

ENT to turn on (check) or turn off (uncheck) the command.

MENU|↓ to EXT PASSIVE ANT. Press

Remote Passive Antenna command on the Satellite Status Menu.

WARNING:

As long as the External Passive Antenna command is activated, the iFINDER will only monitor GPS signals from an external passive antenna. If you have this command activated and are not using an external passive antenna, the unit will not be able to accurately lock on. To switch back to using the iFINDER's internal antenna (or to use an optional external active antenna), be sure to turn off this command.

GPS Simulator

The GPS simulator lets you use the unit to simulate outdoor navigation. You can set the starting location in latitude/longitude (Starting Position) or from a stored waypoint, map place or POI location (Starting Waypoint). You can move across the map by using the arrow keys (

STEER W/ ARROWS) or by setting the track and speed in the boxes pro-

vided on simulator screen.

To get to the GPS Simulator:

1. Press

2. Press ↓ to

MENU|MENU|↓ to GPS SETUP|ENT.

GPS SIMULATOR|ENT.

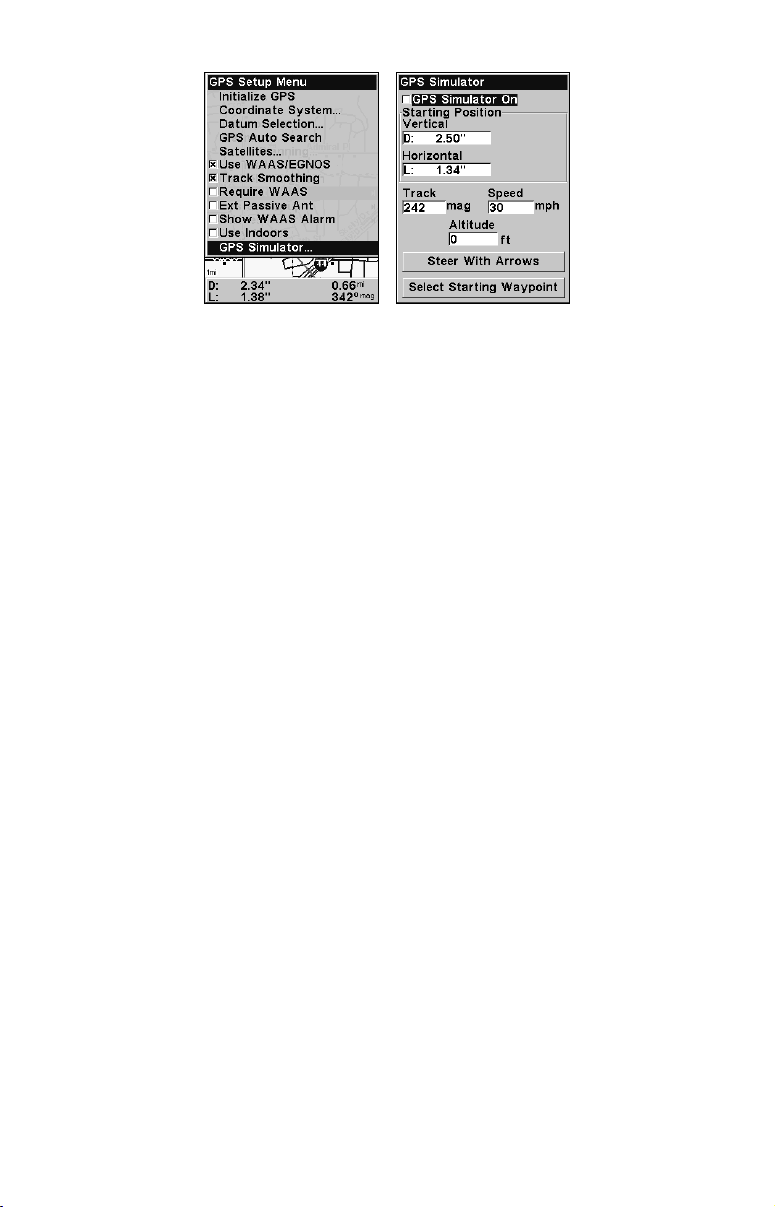

GPS Setup Menu (left) with GPS Simulator Menu (right).

Choose the desired settings, then turn on the simulator by highlighting

GPS SIMULATOR ON and pressing ENT, which will turn on (check) or turn off

(uncheck) the simulator. Press

EXIT to close this menu. A message ap-

pears periodically, reminding you the simulator is on. To turn off the simulator, repeat the steps above or turn off the unit.

While in simulator mode, you can press

EXIT to remove the steering and

speed boxes from the screen. This will allow you to use the map cursor during a simulation. To turn on the steering and speed boxes again, return to the GPS Simulator menu, select

ENT.

STEER WITH ARROWS and press

Simulating Trail or Route Navigation

In Simulator mode, your unit can automatically follow a trail or route without manual steering if you use these steps:

1. From the Map Page, go to the simulator menu. Pick a

SITION

at or near the beginning of your trail/route. Enter an approximate

TRACK (shown in compass degrees) that will point you toward the start

STARTING PO-

of the trail/route.

2. Set

SPEED to zero. Select STEER WITH ARROWS command and press ENT,

which turns on the simulator and returns you to the Map Page.

3. Begin navigating along the trail/route. (If you are close enough to the first waypoint, the arrival alarm will usually go off as soon as navigation begins. Press press ↑ (since you're using the Simulator's

EXIT to clear the alarm.) When navigation starts,

STEER WITH ARROWS command)

to increase speed to the desired setting.

4. Press

EXIT to turn off the steering and speed boxes. The unit will now

automatically steer along the trail or route. When you arrive at your destination, cancel navigation as you normally do.

Map Auto Zoom

This receiver has an auto zoom feature that eliminates much of the button pushing common with other brands of GPS receivers. It works in conjunction with the navigation features.

First, start navigation to a waypoint. (See the waypoint section for more information on navigating to a waypoint.) Then, with auto zoom mode on, the unit zooms out until the entire course shows, from the present position to the destination waypoint. As you travel toward the destination, the unit automatically zooms in — one zoom range at a time — always keeping the destination on the screen.

To turn on this feature from the

ZOOM|ENT. Repeat these steps to turn it off.

MAP PAGE, press MENU|↓ to AUTO

Map Data

The Map Data menu lets you turn off the map — which turns the map screen into a GPS plotter — turn on or off pop-up map info boxes, draw map boundaries or boxes around areas of detail and fill water areas with white. You can also turn on or off Map Overlays, which display range rings and latitude and longitude grid lines on the map. Navionics maps also may be accessed on the Map Data menu. For detailed instructions, see the Navionics Charts entry in this section.

Map Menu (left) with Map Data Menu (right).

To Show Map Data

Press

DETAIL selection list. From there, choose how much detail you want,

MENU|↓ to MAP DATA|ENT. Press ENT to access the EARTH MAP

ranging from Off (so the unit operates like a GPS plotter) to High. After the option is set, press

EXIT.

Popup Map Information

From the Map Data menu, press ↓ to option highlighted, press

ENT to turn it on (check) or turn it off (un-

check). After the option is set, press

POPUP MAP INFORMATION. With the

EXIT.

Draw Map Boundaries

From the Map Data menu, press ↓ to option highlighted, press

ENT to turn it on (check) or turn it off (un-

check). After the option is set, press

DRAW MAP BOUNDARIES. With the

EXIT.

Fill Water with White

From the Map Data menu, press ↓ to option highlighted, press

ENT to turn it on (check) or turn it off (un-

check). After the option is set, press

FILL WATER WITH WHITE. With the

EXIT.

Map Overlays (Range Rings, Lat/Long Grid)

The map screen can be customized with range rings and/or grids that divide the plotter into equal segments of latitude and longitude.

Range rings are handy for estimating distances on the map. Ring diameters are based on the current zoom range. At a 100-mile zoom, the screen will show two rings with your current position in the center. The large ring touching the left and right sides of the screen is 100 miles in diameter (same as the zoom range). The second, smaller ring is 50 miles in diameter (always 1/2 the zoom range).

The distance from your current position to the smaller ring (the ring's radius) is 25 miles (always 1/4 the zoom range). With the arrow keys and map cursor, you can scroll the map to see the third and fourth rings. In this example, the distance from your current position to the third ring is 75 miles and distance to the fourth ring is 100 miles.

To set range rings: From the Map Data menu, press ↓ to With the option highlighted, press

ENT to turn it on (check) or turn it

RANGE RINGS.

off (uncheck). To set Lat/Lon Grid Lines: From the Map Data menu, press ↓ to

LAT/LON GRID LINES. With the option highlighted, press ENT to turn it on

(check) or turn it off (uncheck). After the option is set, press

EXIT|EXIT

to return to the main page display.

Map Datum Selection

Maps and charts are based on a survey of the area covered by the map or chart. These surveys are called Datums. Maps created using different datums will show the same latitude/longitude in slightly different locations.

The GPS system is based on the WGS-84 datum, which covers the entire world. Other datums may also cover the entire world or just a small portion of it. By default, your position is shown using the WGS-84 datum. It, however, can show your position using any of 191 different datums.

Datums can be selected only in Advanced Mode. (Switch from Easy to Advanced:

MENU|↓ to ADVANCED MODE|ENT|←|ENT).

To change the datum:

1. Press

2. Scroll ↓ or ↑ to select the desired datum, then press

3. To return to the main page display, press

ENT.

EXIT|EXIT.

A list of datums supported by this unit is in the back of this manual.

GPS Setup Menu (left) with Map Datum Menu (right).

Map Detail Category Selection

This menu determines which of the mapping features are shown on the screen. This includes waypoints, trails, icons, cities, highways, etc. You can turn on or turn off any of these items, customizing the map to your needs. Map Detail Categories may be turned on and turned off only in Advanced Mode. (Switch from Easy to Advanced:

MODE|ENT|←|ENT.)

MENU|↓ to ADVANCED

To get to Map Categories Drawn:

1. Press

MENU|↓ to MAP CATEGORIES DRAWN|ENT.

2. Press ↑ or ↓ to select a category or subcategory. Press on (check) or turn it off (unchecked).

3. To return to the main page display, press

EXIT|EXIT.

ENT to turn it

Map Menu (left) with Map Categories Menu (right).

Map Orientation

By default, this receiver shows the map with north always at the top of the screen. This is the way most maps and charts are printed on paper. You, however, can change the map orientation to Track Up or Course Up if you switch to Advanced Mode.

In Track Up mode, map shows "N" and arrow to indicate north.

Map orientation is shown in north up (left) and track up (right).

The default North Up setting is fine if you are always traveling north. What you see to your left corresponds to the left side of the map and what you see to your right is shown on the right side of the map as long as you keep heading north. If, however, you travel any other direction, the map doesn't line up with your view of the world.

If you want the map to match up with your view of the world when traveling in other directions, use Track-up mode, which rotates the map as you turn. That way, what you see on the left side of the screen will always be to your left and what you see on the right side of the screen will always be on your right.

Another option is course-up mode, which keeps the map at the same orientation as the initial bearing to the waypoint. When either the track-up or course-up mode is on, a "N" shows on the map screen to help you remember which direction is north.

You can benefit from switching back and forth between North Up and Track Up settings, depending on the circumstances. If you are in an area you know fairly well, run the unit in North Up. But when you are in unfamiliar territory and want to instantly coordinate your surroundings with what is displayed on the screen, switch to Track Up. Try all three modes to find what works best for you.

To change map orientation from the Map Page, press

MAP ORIENTATION|ENT. Press ↑ or ↓ to select an orientation option, then

press

EXIT|EXIT to return to the main page display.

MENU|↓ to

Map Menu (left) with Map Orientation menu (right).

Navionics Charts

Your unit can display Navionics electronic charts on MMCs. Both the GOLD and CLASSIC format charts are accepted. They work just like a MapCreate custom map on an MMC.

Entrance to Aransas Pass in a MapCreate 6 custom map, 4-mile zoom

(left). Remaining images (left to right): same position on Navionics

GOLD chart at 8-mile, 4-mile and 1-mile zoom ranges.

WARNING:

You should never format the MMC containing your Navionics chart. Formatting the MMC will permanently erase the chart from the card.

To display a Navionics chart:

1. Install the Navionics MMC in the memory card compartment and turn on the unit. (For full card install instructions, see Sec. 2.)

2. From the Map Page, press

MAP CHOICE|ENT. Use ↑ or ↓ to select the Map Name, then press ENT|EXIT|EXIT.

MENU|↓ to MAP DATA|ENT|↓ to NAVIONICS

These figures show the menu sequence (from left to right) for selecting

a Navionics chart for the Miami area.

3. To turn off a Navionics chart from the Map Page, press MENU|↓ to

Port Information

Navionics charts contain Port Services information, represented by anchor icons on the map display. These icons appear at the 2 nautical mile zoom range. An example is displayed in the following figures.

To view Port Services information:

1. Use the arrow keys to move the cursor over a Port Services icon. When selected, a pop-up name box appears.

2. Press

FIND|FIND to display the Port Services Information screen.

Port Services

icon

Pop-up name box

Cursor lines

Navionics chart showing Port Services icon selected by cursor. When

first highlighted, the Pop-Up name box appears. After a few seconds,

the name box disappears, and the position, distance and bearing are

displayed at the bottom of the screen.

The Port Services information screen has two windows. The top window lists various service categories. The lower window lists detailed services available in each category.

3. To scroll through the Service Categories window, press

ENT then use

↑ or ↓ to see the types of services available. As you highlight a different category, the list in the lower window changes. To return to the main page display, press

EXIT|EXIT.

Port Services information screens.

4. Depending on the location, the Detailed Services window may have a long list of services under the General Services category. To scroll through the Detailed Services window, press ↓ to

DETAILED SERVICES|ENT,

then use ↑ or ↓ to scroll through the list of available services. If the Detailed Services list is short, you will not be able to scroll through it. To return to the top service category window, press the main page display, press

EXIT|EXIT.

ENT|↑. To return to

Tidal Current Information

Navionics charts contain Tidal Current information, represented at large zoom ranges by a box icon with

the letter "C." The icon stands for a Tidal Current Sta-

tion location. An example is displayed at right.

When you zoom in to a sufficiently small zoom range (1/2 nautical mile), the icon itself becomes an animated arrow showing tidal current velocity and direction for the selected tidal station at the present time.

At larger zoom ranges, you can select the boxed "C" icon and it becomes

an animated arrow with a pop-up name box (the name box disappears after a few seconds). Examples are displayed in the following figures.

To view Tidal Current information:

1. Use the arrow keys to move the cursor over a Tidal Current Station icon. When selected, a pop-up name box appears.

2. Press

FIND|FIND to display the Tidal Current Information screen.

Tidal Current Station icon in animated mode

Cursor lines

Navionics chart showing Tidal Current Station icon selected by cursor

(left). The icon animates automatically without selecting it at the 1/2-

mile zoom range (right). The tidal current is flowing toward the

northwest at a velocity of 0.8 mph.

Line indicates current status

Current Information screen.

The Tidal Current Information screen displays daily tidal current data for this station on this date at the present time. The graph at the top of the screen is an approximate view of the flood and ebb pattern for the day, from midnight (MN), to noon (NN) to midnight (MN). The velocity scale at the top left side of the graph changes dynamically based upon the maximum velocity of the current for that day.

Slack water, the period of little or no current, is represented by the Slack Water Line (SWL). The flood appears above the SWL and the ebb appears below the SWL.

You can look up tidal current data for other dates by changing the month, day and year selection boxes.

To select another date:

1. Use → and ← to highlight month, day or year, then press

2. Use ↑ and ↓ to select the desired month, day or year, then press

To clear the information screen, press

EXIT.

ENT.

Tide Information

Navionics charts contain Tidal Information, represented at large zoom ranges by a box icon with

the letter "T." The icon stands for a Tidal Station

location. An example is displayed at right.

When you zoom in to a sufficiently small zoom range (1/2 nautical mile), the icon itself becomes an animated gauge showing a rising or falling tidal height for the selected station at the present time. At larger

zoom ranges, you can select the boxed "T" icon and it becomes an ani-

mated gauge with a pop-up name box.

To view tide information:

1. Select a Tide Station icon, then use the arrow keys to move the cursor over an icon. When it is selected, a pop-up name box appears.

2. Press

FIND|FIND to display the Tide Information screen.

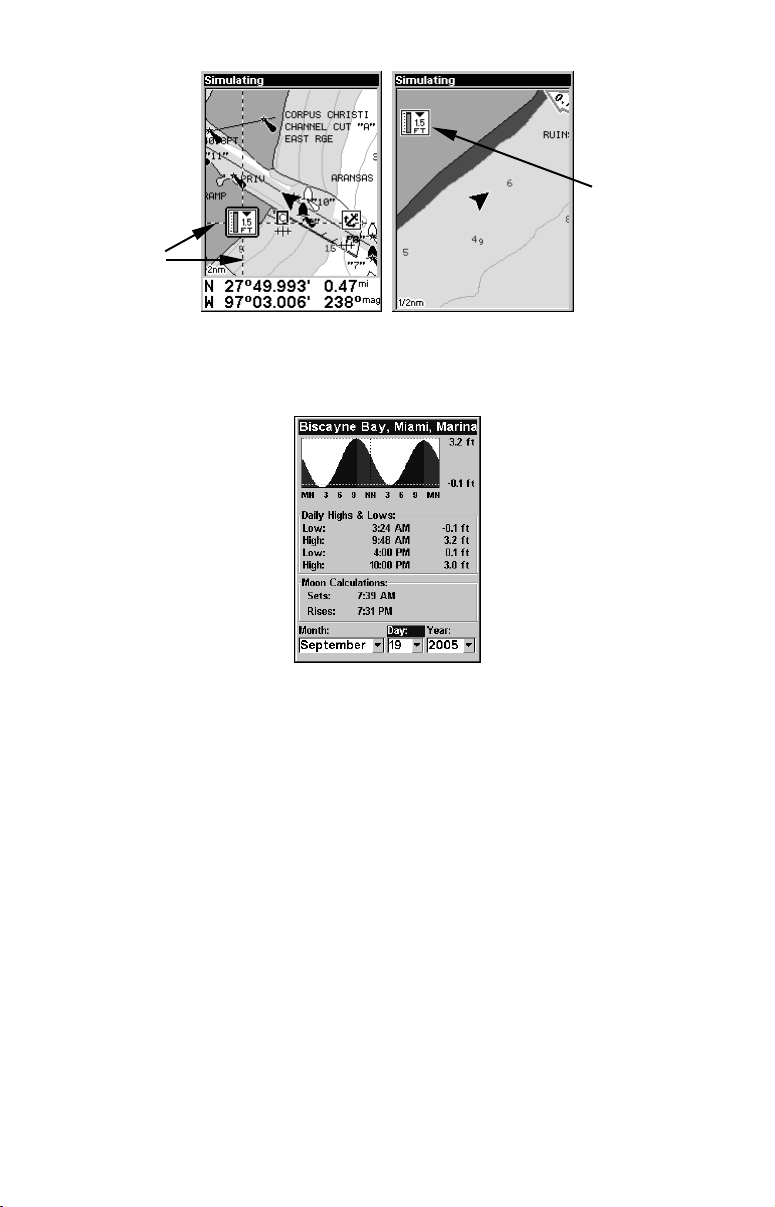

Tide Station icon in animated mode

Cursor lines

Navionics chart showing Tide Station icon selected by cursor (left).

Icon animates automatically without selection at the 1/2 mile zoom

range (right). In the example above, the tide is at 1.5 feet and falling,

as shown by the down arrow at the top of the icon.

Tide Information screen.

The Tide Information screen displays daily tidal data for this station on this date at the present time. The graph at the top of the screen is an approximate view of the tidal range pattern for the day, from midnight (MN) to noon (NN) to midnight (MN). The dotted line across the graph is the Mean Lower Low Water line (MLLW).

The height scale on the top right side of the graph changes, based upon the maximum range of the tide for that day. The MLLW line also ad- justs its position as the height scale changes.

You can look up tidal data for other dates by changing the month, day and year selection boxes. To select another date:

1. Use → and ← to highlight month, day or year, then press

2. Use ↑ and ↓ to select the desired month, day or year, then press

To clear the information screen, press

EXIT.

ENT.

Pop-up Help

Help is available for most all menu items on this unit. Selecting a menu item and leaving it highlighted for a few seconds, a pop-up message appears, describing the function of the item. This feature is on by default.

To set up Popup Help, press to

POPUP HELP. With the option highlighted, press ENT to turn it on

(check) or turn it off (uncheck). After the option is set, press

MENU|MENU|↓ to SYSTEM SETUP|ENT|↓

EXIT|EXIT

to return to the page display.

Pop-up Help message for the Screen command.

Reset Options

In Advanced Mode

1. Press MENU|MENU|↓ to SYSTEM SETUP|ENT|↓ to RESET OPTIONS|ENT|← to

YES|ENT.

In Easy Mode

Hold down the PAGES key while you press PWR to turn the unit on.

NOTE:

Reset Options does not erase any waypoints, routes, icons or plot trails.

Advanced Mode's Reset Options command (left)

and the Reset Options Menu (right).

Screen Contrast and Brightness

Screen adjustments work the same in both Easy and Advanced Mode, but you access the command differently in each mode.

In Easy Mode, press

In Advanced Mode, press

To adjust the display's contrast:

1. After accessing the screen menu, the be selected. Press → or ← to move the bar. The left end of the scale is minimum contrast. The right end is maximum contrast.

Screen Command (left) and Contrast bar (right).

To adjust the display's brightness:

1. Press ↓ to

BRIGHTNESS. Press → or ← to move the bar. The left end of

the scale is minimum contrast. The right end is maximum contrast.

MENU|↓ to SCREEN|ENT.

MENU|MENU|ENT.

CONTRAST slider bar will already

Screen menu with brightness selected. Display mode menu.

To adjust the screen's display mode:

1. Press ↓ to

2. To return to the main page display, press

DISPLAY MODE|ENT then press ↑ or ↓ to select mode|EXIT.

EXIT|EXIT.

To adjust display's backlight delay options:

1. Press ↓ to

LIGHT DELAY|ENT|press ↑ or ↓ to select mode|EXIT.

2. To leave screen settings and return to the main page display, press

EXIT|EXIT.

Continuous selected on Light Delay menu. It's ideal for night travel in

a vehicle, since the cigarette lighter can be used as the power source.

Set Language

This unit's menus are available in 10 languages: English, French, German, Spanish, Italian, Danish, Swedish, Russian, Dutch and Finnish.

To select a different language:

1. Press

2. Press ↓ to

3. Use ↓ or ↑ to select a different language and press now appear in the language you selected. Press

MENU|MENU|↓ to SYSTEM SETUP|ENT.

SET LANGUAGE|ENT.

ENT. All menus

EXIT|EXIT to return to

the main page display.

Set Local Time

The method for setting local time works the same way in both Easy and Advanced Mode, but the each mode.

In Easy Mode, press

In Advanced Mode, you first press

SETUP|ENT|↓ to SET LOCAL TIME|ENT.

SET LOCAL TIME menu is accessed differently in

MENU|↓ to SET LOCAL TIME|ENT.

MENU|MENU|↓ to SYSTEM

Set Local Time highlighted in (left) Easy Mode. Set local time selected

in Advanced mode (center). Time Settings menu (right).

To set Local Time: from the Time Setting menu, press ENT. Press ↑ or ↓ to change the first character, then press → to move the cursor to the

next character. Repeat until the time is correct, then press

ENT.

To set the Month: from the Time Settings menu, press ↓ to

MONTH|ENT. Press ↑ or ↓ to select the month, then press ENT.

To set the Day: from the Time Settings menu, press ↓ to Press ↑ or ↓ to select the day, then press

ENT.

DAY|ENT.

To set the Year: from the Time Settings menu, press ↓ → to

YEAR|ENT. Press ↑ or ↓ to select the year, then press ENT.

Adjusting local time (left) and Adjusting the month (right).

The last field in this menu is CONFIG DST. This feature allows your unit to automatically adjust to Daylight Saving Time (you should only have to set it once). You may select which set of rules matches DST in your region, or accept the default.

Once you have each field set the way you want, press

EXIT repeatedly to

return to the main page display.

Software Version Information

From time to time, Lowrance updates the operating system software in some of its products. These software upgrades usually are offered to

customers as free downloads from our web site, www.lowrance.com. The upgrades make the unit perform better and in many cases, introduce a new feature or function. You can find out what software version is running in your iFINDER by using the Software Info command.

Software Info command in Easy Mode (left). Advanced

mode (center). The Software Info screen (right).

The command works the same in both Easy and Advanced Mode, but the Software Information is accessed differently in each mode.

Easy Mode:

1. Press

MENU|↓ to SOFTWARE INFO|ENT.

2. Read the information displayed on the screen.

3. To return to the main page display, press

Advanced Mode:

1. Press

EXIT|EXIT.

2. Read the information displayed on the screen.

3. To return to the main page display, press

EXIT repeatedly.

Sounds and Alarm Sound Styles

Key strokes and alarm sounds can be adjusted in the Sounds menu. The adjustments work the same in both Easy and Advanced Mode, but the Sounds menu is accessed differently in each mode:

Easy Mode, press MENU|↓ to SOUNDS|ENT.

Advanced Mode, press MENU|MENU|↓ to SOUNDS|ENT.

Sounds selected on main menu in Easy Mode (left). Sounds highlighted

on main menu in Advanced mode (center). Sounds menu (right).

To set Key Sounds: from the Sounds menu, highlight KEY PRESS SOUNDS and press ENT to turn them on (check) or turn them off (uncheck).

To set Alarm Sounds: from the Sounds menu, press ↓ to

SOUNDS. With ALARM SOUNDS highlighted, press ENT to turn them on

ALARM

(check) or turn them off (uncheck).

To set Alarm Style, from the Sounds menu, press ↓ to ALARM STYLE|ENT.

Press ↑ or ↓ to change the style and press press

EXIT|EXIT to return to the main page display.

ENT. After the option is set,

Track Smoothing

This is a factory setting that should always be turned on. When stopped or traveling at slow speeds, Track Smoothing prevents trails from wandering. The steering arrow, compass rose and map, in track-up mode, also benefit from Track Smoothing. To turn on Track Smoothing, press keys to select

GPS SETUP and press ENT. Scroll down to TRACK SMOOTHING

and press ENT to turn it on (check).

MENU|MENU, then use the ↓ ↑

Track Smoothing option turned on.

Trail Options

There are several options you can use with trails. Some affect all trails, others may be applied to specific trails. A few of the options include, displaying, hiding, creating, editing and deleting trails. These options are only available in Advanced Mode, but also will affect the appearance of trails in Easy Mode.

General Trail Options

To access the Trails Menu:

1. Press

MENU|MENU|↓ to MY TRAILS|ENT.

Main Menu (left); Trails Menu (center); Trail Options menu (right).

Delete All Trails

Once you are in the Trails menu, you can remove all trails from memory by pressing → to

DELETE ALL|ENT|← to YES|ENT.

Update Active Trail Option

This menu lets you change the way trail updates occur.

Trail Options menu.

WARNING:

If the Update Active Trail option box is unchecked, automatic trail creation and recording will be turned off in both Advanced and Easy modes. You will have to turn it on again to record trails. The default setting is on.

Press ↓ or ↑ to

ENT to turn it on (check) or turn it off (uncheck).

UPDATE ACTIVE TRAIL. With the option highlighted, press

Update Active Trail Criteria (Auto, Time, Distance)

The options are automatic, time or distance. When it is in the default automatic mode, the unit doesn't update the plot trail while you're traveling in a straight line. Once you deviate from a straight line, the unit drops a plot point (trail waypoint) onto the trail. This conserves plot trail points. If a plot trail uses all of the available points allotted to it, the beginning points are taken away and placed at the end of the trail.

Trail Options menu.

Press ↓ to UPDATE CRITERIA, then press ← → to select the desired criteria

type and press

ENT.

Trail Update Rate (Time, Distance)

You can update a trail by time, with a range from 1 second to 9999 seconds. The default is 3 seconds. You can update by distance, with a range from 0.01 mile/nm/km to 9.99 mile/nm/km. The default is 0.10 mile.

With Update Criteria selected, press ↓ to either the rate or distance data entry boxes and press

ENT. Press ↑ or ↓ to change the first charac-

ter, then press → to the next character and repeat until the entry is correct. Press

EXIT|EXIT to return to the Trails Menu.

Trail Options menu.

Specific Trail Options

Delete Trail

To delete a specific trail, from the Trails menu, press ↓ to the saved trail list, select a trail and press seen in the following figure. Press ↓ to

ENT. The Edit Trail menu appears as

DELETE TRAIL|ENT|← to YES|ENT.

New Trail

If you want to manually start a new trail or delete a trail from the Trails Menu, highlight

NEW TRAIL and press ENT. The edit trail menu

appears with the new trail name listed in the name box at the top.

Edit trail menu.

Trail Visible/Invisible and Other Trail Options

The name, maximum number of points in the trail, activity and visibility are all changed on the Edit Trail screen. The Update Active Trail setting determines whether or not the iFINDER is recording new points for a particular trail.

Press ↓ or ↑ to highlight the option you wish to change, then press Make your changes and press

EXIT to close this menu.

ENT.

You can also change the trail line color and pattern. For instructions, see the entries on Edit a Trail Color and Edit a Trail Pattern in Sec. 4, Advanced GPS Operations.

Units of Measure

This menu (shown below) sets the speed and distance (statute or nautical miles, meters), depth (feet, fathoms, or meters), temperature (degrees Fahrenheit or Celsius) and heading (true or magnetic) units. To change the units:

Easy Mode, press MENU|↓ to UNITS OF MEASURE|ENT.

Advanced Mode, press MENU|MENU|↓ to SYSTEM SETUP|ENT|ENT.

Units of Measure highlighted (left). Units of Measure Menu (right).

To set Speed/Distance: from the Units of Measure menu, press ENT and use ↑ or ↓ to change the unit, then press ENT.

To set Heading: from the Units of Measure menu, press ↓ to

HEADING|ENT, then use ↑ or ↓ to change the unit and press ENT.

To set Altitude and Depth: from the Units of Measure menu, press ↓ to

ALTITUDE AND DEPTH|ENT. Press ↑ or ↓ to change the unit, then press

ENT. Press EXIT repeatedly to return to the main page display.

Section 6: Searching

NOTE:

The background map loaded in your unit lets you search for U.S. Interstate Highway exits and exit services, as well as land features, including cities and lakes. For a full set of searchable land features, including landmarks, streets, addresses and Points of Interest, you must load your own high-detail custom map produced with our MapCreate 6 software. For a complete description of what detail is found in the background map and custom MapCreate maps, check out page 25.

Whether you are in Easy Mode or Advanced Mode, the iFINDER's search functions all begin with the the same in each mode. The Go Home command, however, works only in Easy Mode just as the Find Waypoints command works only in Advanced Mode. (You can still find a Home waypoint in Advanced mode. Just search for it using the Find Waypoints command.)

FIND key. The search menus work

Easy Mode Find menu (left); Advanced Mode Find menu (right).

NOTE:

You can search for items even if the iFINDER hasn't acquired a position yet. When you do a search, distance and bearing to the selected item will be calculated from the iFINDER's current position. If the iFINDER hasn't acquired a position, it will use the last known position. If the cursor is active, the iFINDER will always begin the search at the cursor. You can look up items by name or search for the item nearest to you.

Cursor crosshairs centered on a POI (left). The Find menu with Se-

lected Item highlighted (center). POI information (right).

Selected Item

The Selected Item function will appear on the menu only when you have an item selected with the cursor crosshairs. It allows you to quickly access information on the selected location.

To access a Selected Item:

1. Center the cursor crosshairs on a POI on the map and press

2. SELECTED ITEM will be listed at the top of the Find menu. Press FIND, then press

ENT to launch the POI information window.

3. At the bottom of the POI information window: GO TO will be highlighted. To navigate to the Selected Item press tion on the Map, use the ← → keys to select

ENT. To Find the loca-

FIND ON MAP and press ENT.

FIND.

Destination highlighted on the Find menu (left).

POI information window (right).

Destination

When you are navigating to a location, DESTINATION will appear at the top of the Find menu. It provides quick access to navigation information about your destination.

To access Destination:

1. When navigating to a location, press press

ENT.

FIND, select DESTINATION and

2. If your destination is listed in the POI database, the POI information window will appear. If you are navigating to a location not listed in the POI database, an information window will appear displaying the distance to the target as well as your current bearing.

Recent Finds menu (left) with POI information window (right).

Recent Finds

The Recent Finds function keeps a record of places to which you have navigated either by cursor or via the Map Places menu.

To see Recent Finds:

1. Press

FIND, select RECENT FINDS and press ENT.

2. Use the ↑ ↓ keys to scroll through the list.

3. To open the POI information window for a particular location, highlight the location and press

ENT. Press EXIT to return to the Find Re-

cent menu.

Current Route

When you are navigating a route, Current Route, gives you quick access to route menu.

To access Current Route information:

1. When navigating a route, press

ENT.

2. A window will appear, showing all the points within your current route. Press

EXIT to return to the FIND menu.

FIND, select CURRENT ROUTE and press

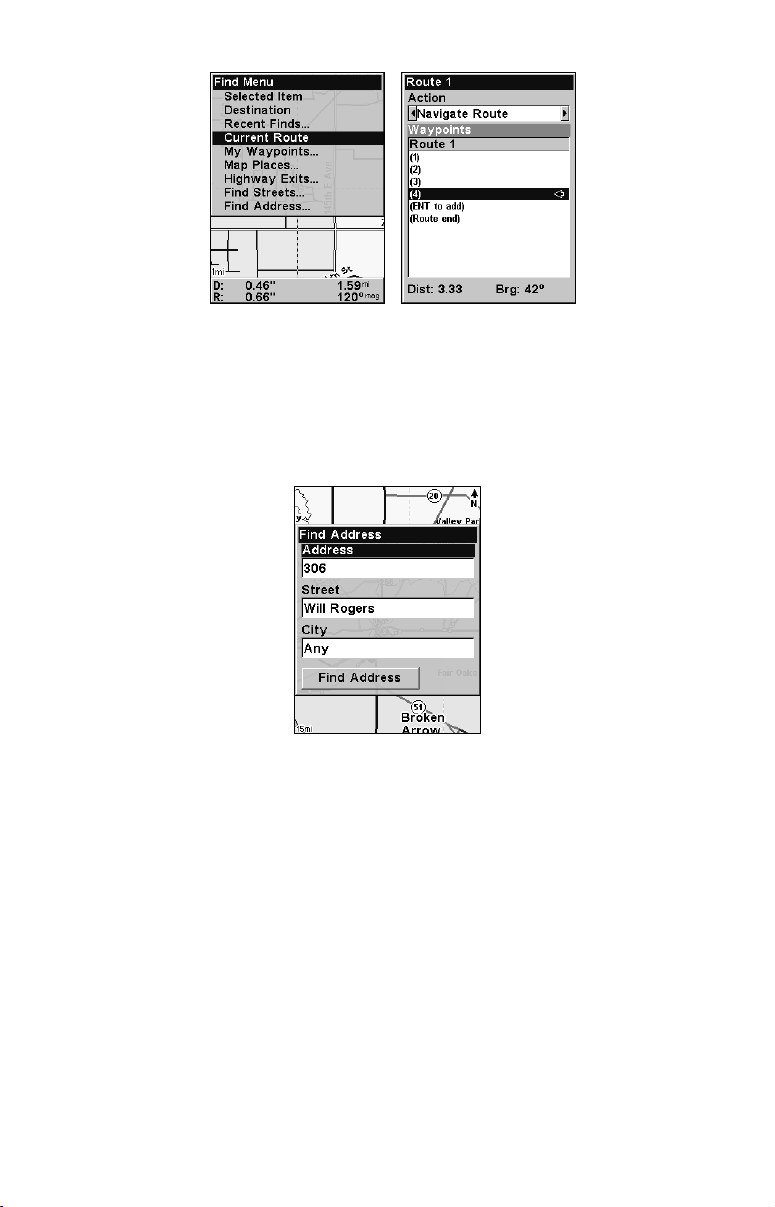

Current Route highlighted on the Find menu (left).

The trail menu (right) launches when C

is selected from the Find menu.

URRENT ROUTE

Find Addresses

1. Press FIND|↓ to FIND ADDRESS|ENT.

2. Press

3. To enter an address number: with the Address bar highlighted, press to move the cursor to the next number and repeat until the number is correct, then press

4. To enter a street name, press ↓ to tions: A. You can spell out the name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press down to the lower selection list by pressing a street name from the list, then press is now in the street field. To return to the previous page, press

ENT to search in the Address field.

Find Address Menu.

ENT, then use the ↑ or ↓ keys to change the first number. Press →

ENT.

STREET|ENT. There are two op-

ENT|ENT. B. Jump

ENT, then press ↓ or ↑ to select

ENT. The street name you selected

EXIT.

Tip:

When entering a street name, do not enter the street's compass direction (N, S, E or W) in the street name field. Just enter the number, or name. If the example below had been a search for 324 E. 9th St, you would enter 9th and press all possible 9th streets and let you choose the one you want.

Find street by name menu (left); Street entry is complete (right).

5. To enter a city name, press ↓ to CITY|ENT. You will be asked if you want to find addresses only within a particular city. This option is designed so you can limit an address search to a single city if necessary (see the note below). If you select yes, there are two options: A. You can spell out the city name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press by pressing then press

ENT, then press ↓ or ↑ to select a city name from the list,

ENT. The city name you selected is now in the city field. To

ENT|ENT. B. Jump down to the lower selection list

return to the previous page, press

ENT. The iFINDER will generate a list of

EXIT.

NOTE:

We recommend you do not enter a city name unless the resulting list is too large when you try searching without including the city. The iFINDER can actually search quicker without a city and you save time by not entering a city name.

Find city field (left); Search in particular city only option (center);

Find City by name (right).

6. When the necessary search fields are filled in, press ↓ to FIND AD-

DRESS

|ENT. Your unit asks you to wait while it searches for the address.

If an address is not in the database, a message appears saying the address could not be found, otherwise a list of addresses will appear on the screen.

7. If the address you are looking for is highlighted at the top of the list, press

ENT. If not, use ↓ and ↑ to select the correct address from the list,

then press

TO the address. Highlight the desired choice and press ENT.

ENT. A window will appear asking if you want to FIND or GO

Find Any Item Selected by Map Cursor

With a POI or map feature selected by the cursor, press FIND|ENT. To return to the previous page, press

EXIT.

A POI selected by the cursor (left): The Find Menu (center); POI infor-

mation screen (right).

NOTE:

Since the selected POI by pressing

GO TO command is highlighted, you can navigate to the

ENT while in the POI Waypoint Informa-

tion screen.

100

Find Home Waypoint

The Home Waypoint is a unique waypoint created when using the iFINDER in Easy Mode.

To search for the Home Waypoint in Easy Mode, press

GO HOME|ENT.

The Easy Mode Find Menu.

FIND|↓ to

In Advanced Mode, you still have access to a Home Waypoint created in Easy Mode. It will show up in your waypoints list under the name Home. You can search for the Home Waypoint, navigate to it, add it to a route or use it exactly like any other waypoint.

Details on searching for waypoints in Advanced Mode can be found in the Find Waypoints segments, later in this section.

Find Interstate Highway Exits

1. Press FIND|↓ to HIGHWAY EXITS|ENT, which calls up the Find Exit Menu.

Find menu. (left); Find Exit menu (center) with Highway highlighted

at the top. Press enter and the Find by Name menu (right) will appear.

2. To select a highway name press ENT, which calls up the Find By Name menu. There are two highway search options: A. You can spell out the highway name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and

101

repeat until the name is correct, then press the lower selection list by pressing highway from the list, then press

ENT, then press ↓ or ↑ to select a

ENT.

ENT|ENT. B. Jump down to

3. Once you have selected a highway name you can then select an exit. Press ↓ to switch to the Exit List, then use ↓ or ↑ to highlight the exit you want and press

ENT. That will launch the Exit information window.

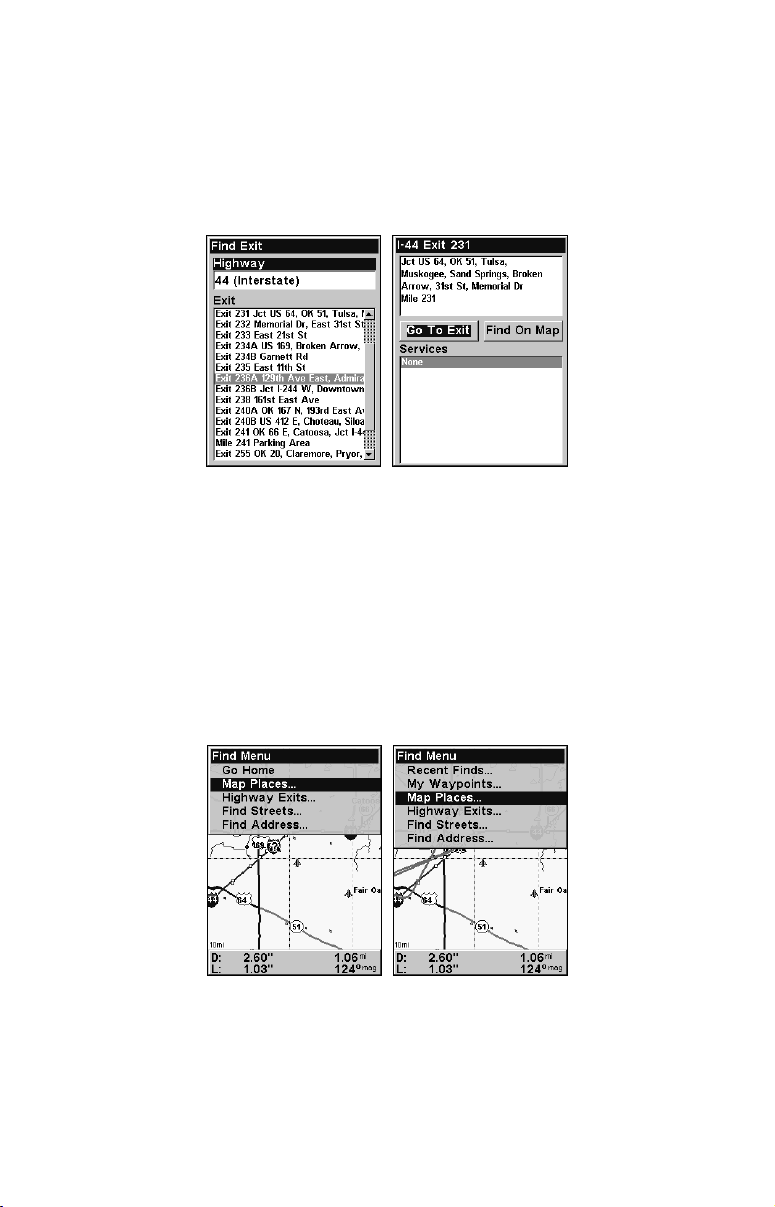

Find Exit menu (left) with Exit information

screen (right). Go To Exit is highlighted.

4. In the Exit Information screen you have two choices. A. Press ENT to navigate or

GO TO the exit. B. Press →|ENT to find the exit on the map.

Tip:

You can also look up additional information on services located near this exit. Press ↓ to

SERVICES|↓ or ↑ to select service name|ENT.

Find Map Places or Points of Interest (POI)

1. Press FIND|↓ to MAP PLACES|ENT.

Easy Mode Find menu (left); Advanced Mode Find menu (right).

2. Press ↓ or ↑ to select a Map Place or POI category then press ENT. (To narrow your search, press ← or → to select a subcategory before pressing search by Name.

ENT.) You will be given two options: search for Nearest or

102

Map Places category menu.

3. Search by nearest POI. Nearest will be highlighted, so press ENT. The Find by Nearest menu will show a calculating screen then a list of nearest POIs will appear. Press ↓ or ↑ to select the desired POI and press

ENT to call up the POI's Waypoint Information screen.

Find by nearest option selected (left). POI list (right).

4. Search by name of POI. When the Find By menu appears, press ↓ to

NAME and press ENT. There are two options: A. You can spell out the

POI in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press by pressing press

ENT to call up the POI's Waypoint Information screen.

ENT, then press ↓ or ↑ to select a POI from the list, then

ENT|ENT. B. Jump down to the lower selection list

103

Find by name option (left); Find by name menu (right).

5. When the POI's Waypoint Information screen appears, you can choose to

GO TO the POI by pressing ENT or FIND ON MAP by pressing →|ENT.

Go To POI option (left); Find on Map POI option (right).

Find Streets or Intersections

Find a Street

1. Press pears.

FIND|↓ to FIND STREETS|ENT and the Find Streets menu ap-

Easy Mode Find menu (left); Advanced Mode Find menu (right).

104

2. You must first fill in a street name in the First Street dialog box. Press

ENT to display the Find By Name menu. There are two options: A. You

can spell out the street in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press the lower selection list by pressing street from the list, then press

ENT.

ENT, then press ↓ or ↑ to select a

ENT|ENT. B. Jump down to

Find streets menu (left); Find by name menu (right).

3. The Find Streets menu reappears with the street you're searching for in the First Street box. (In this example, it's 81st Street.) To search for the street, press ↓ to

FIND FIRST STREET|ENT. A message appears asking

you to wait while the unit finds the street. When the Streets Found list appears, press ↑ or ↓ to the street you are searching for and press

ENT.

Find first street (left); Streets found list (right).

If you want to navigate to the found street at the cursor location, just press

ENT|MENU|ENT.

Find an Intersection

You must enter one street in the First Street dialog box, then enter the next street in the Second Street dialog box.

105

1. Press pears.

FIND|↓ to FIND STREETS|ENT and the Find Streets menu ap-

2. Enter a street name in the First Street dialog box, then press

ENT to

display the Find By Name menu. There are two options: A. You can spell out the street in the top selection box. Press ↑ or ↓ to change the

first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press lower selection list by pressing from the list, then press

ENT.

ENT, then press ↓ or ↑ to select a street

ENT|ENT. B. Jump down to the

3. The street you're searching for appears in the First Street box.

4. Now fill in the second street. Press ↓ to

SECOND STREET|ENT and the

Find by Name menu appears again. Just like before, there are two options: A. You can spell out the street in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press down to the lower selection list by pressing lect the second street from the list, then press

ENT, then press ↓ or ↑ to se-

ENT.

ENT|ENT. B. Jump

5. The Find Streets menu reappears with the first and second streets dialog boxes filled in. In this example we selected Sheridan as our second street. You could now use similar techniques to select a city or Zip Code, but your search will probably be faster if you leave those boxes blank. You can specify a city and/or Zip Code later to narrow the search, if the resulting list is too long.

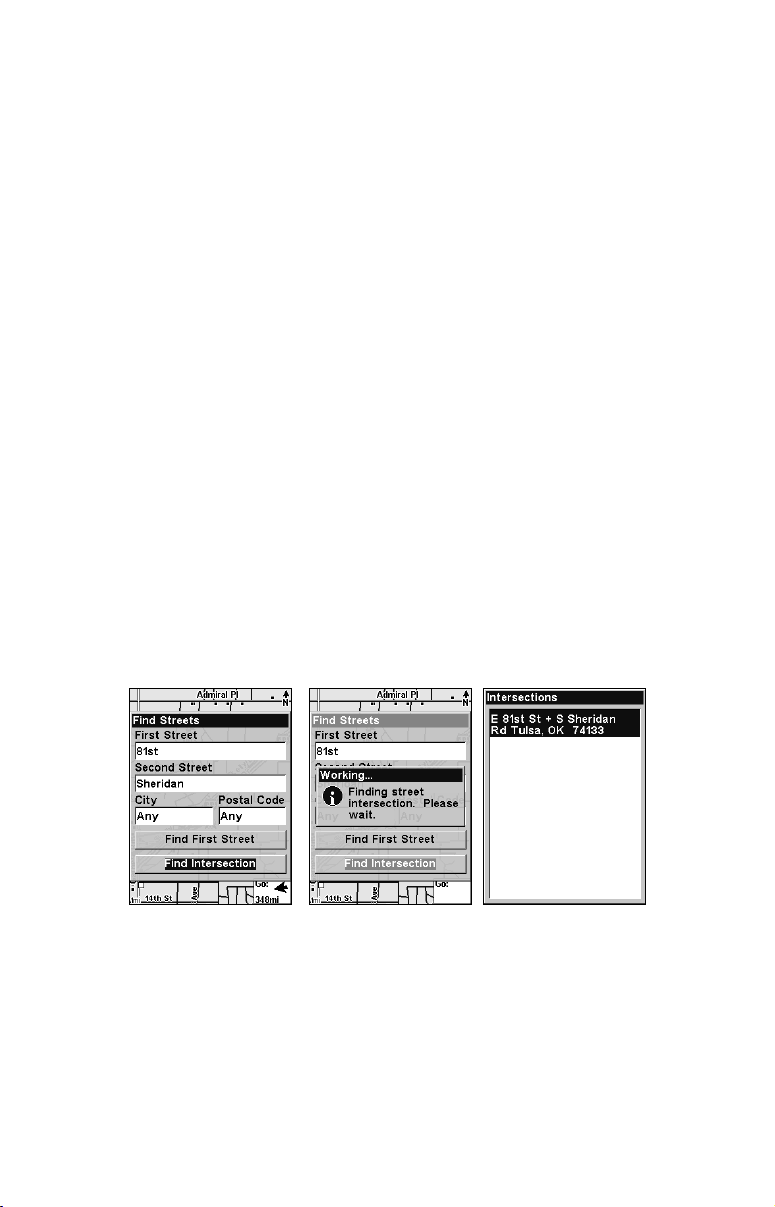

Find intersection selected (left); Working message (center);

Intersection list (right).

6. To search for the intersection of the two streets, press ↓ to FIND

INTERSECTION|ENT. A message appears asking you to wait while the unit

finds the intersection. When the Intersections list appears, press ↑ or ↓ to select the intersection you are searching for and press

ENT. (In the

previous example, we selected the intersection of E 81st St and Sheridan in Tulsa, Okla.

106

If you want to navigate to the found intersection, just press will launch a menu that will give you two options: navigate to location, press

→ to select GO TO and press ENT.

FIND and GO TO. To

Find Waypoints (Advanced Mode only)

1. Press FIND|↓ to MY WAYPOINTS|ENT.

2. If searching for the Nearest waypoint, press waypoint By Name, press ↓|

ENT. (To search by name, jump to step 5

below.)

ENT. If searching for a

ENT, which

Find menu (left); Find By Nearest (center); Find by Name (right).

3. If you're looking for nearest, the iFINDER says it is calculating, then a list of waypoints appears. The closest is highlighted at the top of the list with the one furthest from you at the bottom of the list.

List of nearest waypoints (left); Waypoint information screen

with Go To highlighted (right).

4. To see location information on the closest (highlighted) waypoint, press

ENT and the Waypoint Information screen appears. If you wanted to, you

could select another waypoint from the list with the ↑ or ↓ keys.

A. To navigate to the waypoint, press press

ENT. (The GO TO Way-

point command is already highlighted.) The unit will show navigation information to the waypoint.

107

B. To find the waypoint, press → to

FIND ON MAP|ENT. The Map Page

appears with the cursor highlighting the found waypoint.

To clear these menus and return to the main page display, press

EXIT re-

peatedly.

5. If you're looking by name, there are two options: A. You can spell out the name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press selection list by pressing the list and press

ENT. The Waypoint Information screen appears.

ENT, then press ↓ or ↑ to select a waypoint from

ENT|ENT. B. Or jump down to the lower

Find By Name menu.

A. To navigate to the waypoint, press ENT. The GO TO Waypoint command is already highlighted. The unit will show navigation information to the waypoint.

B. To find the waypoint, press → to

FIND ON MAP|ENT. The Map Page

appears with the cursor highlighting the found waypoint.

To clear these menus and return to the main page display, press peatedly.

108

EXIT re-

Section 7: Supplemental Material

Datums Used by This Unit

WGS 1984 Default

Adindan Mean for Ethiopia, Sudan

Adindan Burkina Faso

Adindan Cameroon

Adindan Ethiopia

Adindan Mali

Adindan Senegal

Adindan Sudan

Afgooye Somalia

Ain el Abd 1970 Bahrain

Ain el Abd 1970 Saudi Arabia

Anna 1 Astro 1965 Cocos Islands

Antigua Island Astro 1943; Antigua (Leeward Islands)

Arc 1950; Mean for Botswana, Lesotho, Malawi, Swaziland,

Zaire, Zambia and Zimbabwe

Arc 1950 - Botswana Arc 1950 - Burundi Arc 1950 - Lesotho Arc 1950 - Malawi Arc 1950 - Swaziland Arc 1950 - Zaire Arc 1950 - Zambia Arc 1950 - Zimbabwe Arc 1960 - Mean for

Kenya, Tanzania Ascension Island

1958 - Ascension Island

Astro Beacon E 1945

- Iwo Jima Astro DOS 71/4 - St.

Helena Island Astro Tern Island

(FRIG) 1961 - Tern Island

Astronomical Station 1952 - Marcus Island

Australian Geodetic 1966 - Australia & Tasmania

109

Australian Geodetic 1984 - Australia & Tasmania

Ayabelle Lighthouse Djibouti

Bellevue (IGN) Efate & Erromango Islands

Bermuda 1957 Bermuda

Bissau - GuineaBissau Bogota Observatory Colombia

Bukit Rimpah - Indonesia (Bangka & Belitung Islands)

Camp Area Astro Antarctica (McMurdo Camp Area)

Campo Inchauspe Argentina

Canton Astro 1966 Phoenix Islands

Cape - South Africa Cape Canaveral -

Bahamas, Florida Carthage - Tunisia Switzerland Chatham Island Astro

1971; New Zealand (Chatham Island)

Chua Astro Paraguay

Corrego Alegre Brazil

Dabola Guinea

Djakarta (Batavia) Indonesia (Sumatra)

DOS 1968 New Georgia Islands (Gizo Island)

Easter Island 1967 Easter Island

European 1950 Mean for Austria, Belgium, Denmark, Finland, France, West Germany, Gibraltar, Greece, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland

European 1950 Mean for Austria, Denmark, France, West Germany, Netherlands, Switzerland

European 1950 Mean for Iraq, Israel, Jordan, Lebanon, Kuwait, Saudi Arabia, Syria

European 1950 Cyprus

European 1950 England, Channel Islands, Ireland, Scotland, Shetland Islands

European 1950 Finland, Norway

European 1950 Greece

European 1950 Iran

European 1950 Italy (Sardinia)

European 1950 (Sicily) European 1950 Malta

Ireland 1965 Ireland

ISTS 061 Astro 1968 South Georgia Islands

ISTS 073 Astro 1969 Diego Garcia

Johnston Island 1961 Johnston Island

Kandawala Sri Lanka

Kerguelen Island 1949 Kerguelen Island

Kertau 1948 West Malaysia & Singapore

L.C. 5 Astro 1961 Cayman Brac Island

Leigon Ghana

Liberia 1964 Liberia

Luzon Philippines (Excluding Mindanao)

Luzon Philippines (Mindanao)

Mahe 1971 Mahe Island

Massawa Ethiopia (Eritrea)

Merchich Morocco

Midway Astro 1961 Midway Islands

Minna Cameroon

Minna Nigeria

Montserrat Island Astro 1958; Montserrat (Leeward Islands)

M’Poraloko Gabon, Nahrwan, Oman (Masirah Island)

Nahrwan Saudi Arabia

European 1950 Egypt

Kusaie Astro 1951 Caroline Islands

110

Nahrwan United Arab Emirates

Naparima BWI Trinidad & Tobago

North American 1927 Mean for Antigua, Barbados, Barbuda, Caicos Islands, Cuba, Dominican Republic, Grand Cayman, Jamaica, Turks Islands

North American 1927 Mean for Belize, Costa Rica, El Salvador, Guatemala, Honduras, Nicaragua

North American 1927 Mean for Canada

North American 1927 Mean for CONUS (Continental United States) North American 1927 Mean for CONUS (East of Mississippi River) including Louisiana, Missouri, Minnesota

North American 1927 Mean for CONUS (West of Mississippi River)

North American 1927 Alaska

North American 1927 Bahamas (Except San Salvador Island)

North American 1927 Bahamas (San Salvador Island)

North American 1927 Canada (Alberta, British Columbia)

North American 1927 Canada (Manitoba, Ontario)

North American 1927 Canada (New Brunswick, Newfoundland, Nova Scotia, Quebec)

North American 1927 Canada (Northwest Territories, Saskatchewan)

North American 1927 Canada (Yukon)

North American 1927 Canal Zone

North American 1927 Cuba

North American 1927 Greenland (Hayes Peninsula)

North American 1927 Mexico

North American 1983 Alaska, Canada, CONUS

North American 1983 Central America, Mexico

Observaorio Metereo 1939; Azores (Corvo & Flores Islands)

Old Egyptian 1907 Egypt

Old Hawaiian Mean for Hawaii, Kauai, Maui, Oahu

Old Hawaiian Hawaii

Old Hawaiian Kauai

Old Hawaiian Maui

Old Hawaiian Oahu

Oman Oman

Ordinance Survey Great Britain 1936 Mean for England, Isle of Man, Scotland, Shetland Islands, Wales

Ordinance Survey Great Britain 1936 England

Ordinance Survey Great Britain 1936 England, Isle of Man, Wales

Ordinance Survey Great Britain 1936 Scotland, Shetland Islands

Ordinance Survey Great Britain 1936 Wales

Pico de las Nieves Canary Islands

Pitcairn Astro 1967 Pitcairn Island

111

Point 58 Sweden

South American 1969 Chile

Tokyo Mean for Japan, Korea, Okinawa

Santo (DOS) 1965 Espirito Santo Island

Sao Braz Azores (Sao Miguel, Santa Maria Islands)

Sapper Hill 1943 East Falkland Island

Schwarzeck Nambia

Selvagem Grande Salvage Islands

SGS 85 Soviet Geodetic System 1985

South American 1969 Mean for Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Trinidad & Tobago, and Venezuela

South American 1969 Argentina

South American 1969 Colombia

South American 1969 Ecuador

South American 1969 Ecuador (Baltra, Galapagos)

South American 1969 Guyana

South American 1969 Paraguay South American 1969 Peru

South American 1969 Trinidad & Tobago

South American 1969 Venezuela

South Asia Singapore Tananarive Obser-

vatory 1925; Madagascar

Tokyo Japan

Tokyo Korea

Tokyo Okinawa Tristan Astro 1968

Tristan da Cunha Viti Levu 1916

Fiji (Viti Levu Island) Wake Eniwetok 1960 Marshall Islands Wake Island Astro

1952 Wake Atoll

WGS 1972 Global Definition

Yacare Uruguay

South American 1969 Bolivia

South American 1969 Brazil

Timbalai 1948 Brunei, East Malaysia (Sabah, Sarawak)

112

Zanderij Suriname

Lowrance electronic H2OC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
