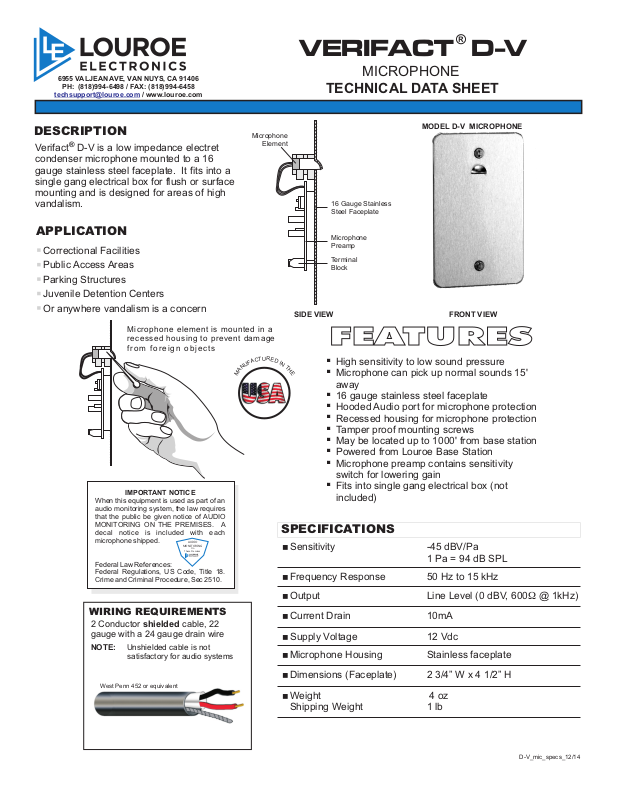

VERIFACT D-V
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.comtechsupport@louroe.com
DESCRIPTION
Verifact D-V is a low impedance electret
condenser microphone mounted to a 16
gauge stainless steel faceplate. It fits into a
single gang electrical box for flush or surface
mounting and is designed for areas of high
vandalism.
®
APPLICATION
Correctional Facilities
Public Access Areas
Parking Structures
Juvenile Detention Centers
Or anywhere vandalism is a concern
Microphone element is mounted in a
recessed housing to prevent damage
from foreign objects
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is includ ed wit h each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
AUDIO
MONITORING
On
These Premises
®
F
U
N
A
M
MICROPHONE
TECHNICAL DATA SHEET
Microphone
Element
16 Gauge Stainless
Steel Faceplate
Microphone
Preamp
Terminal
Block
MODEL D-V MICROPHONE
FRONT VIEWSIDE VIEW
FEATURES
R
U
T
E
D
C
A
I
N
T
H
E
SPECIFICATIONS
<Sensitivity -45 dBV/Pa
<Frequency Response 50 Hz to 15 kHz
<Output Line Level (0 dBV, 600W @ 1kHz)
<Current Drain 10mA
<Supply Voltage 12 Vdc
<Microphone Housing Stainless faceplate
.
High sensitivity to low sound pressure
.
Microphone can pick up normal sounds 15'
away
.
16 gauge stainless steel faceplate
.
Hooded Audio port for microphone protection
.
Recessed housing for microphone protection
.
Tamper proof mounting screws
.
May be located up to 1000' from base station
.
Powered from Louroe Base Station
.
Microphone preamp contains sensitivity
switch for lowering gain
.
Fits into single gang electrical box (not
included)
1 Pa = 94 dB SPL
West Penn 452 or equivalent
<Dimensions (Faceplate) 2 3/4” W x 4 1/2” H
<Weight 4 oz
Shipping Weight 1 lb
D-V_mic_specs_12/14
