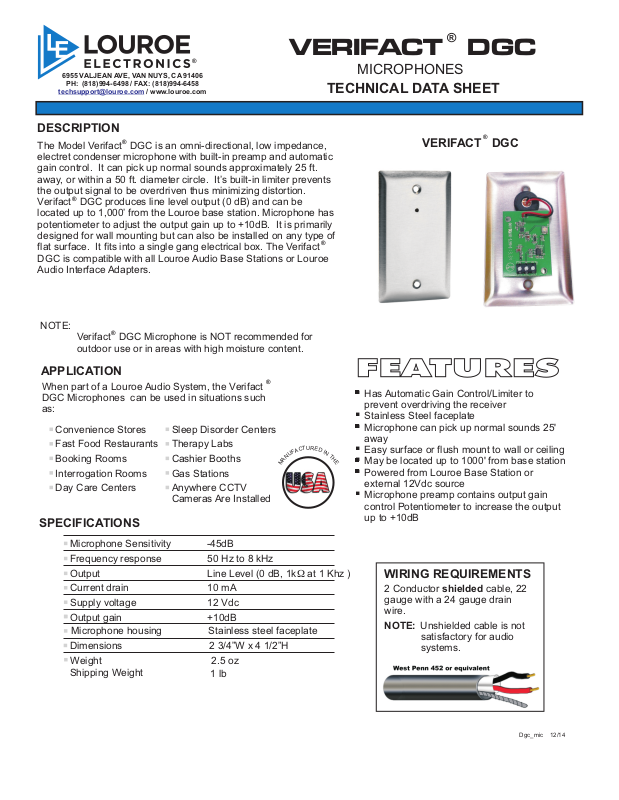

VERIFACT DGC
MICROPHONES
TECHNICAL DATA SHEET
DESCRIPTION
The Model Verifact DGC is an omni-directional, low impedance,
electret condenser microphone with built-in preamp and automatic
gain control. It can pick up normal sounds approximately 25 ft.
away, or within a 50 ft. diameter circle. It’s built-in limiter prevents
the output signal to be overdriven thus minimizing distortion.
Verifact DGC produces line level output (0 dB) and can be
®
located up to 1,000’ from the Louroe base station. Microphone has
potentiometer to adjust the output gain up to +10dB. It is primarily
designed for wall mounting but can also be installed on any type of
flat surface. It fits into a single gang electrical box. The Verifact
DGC is compatible with all Louroe Audio Base Stations or Louroe
Audio Interface Adapters.
NOTE:
Verifact DGC Microphone is NOT recommended for
outdoor use or in areas with high moisture content.
®
®
®
APPLICATION
When part of a Louroe Audio System, the Verifact
DGC Microphones can be used in situations such
as:
Convenience Stores
Fast Food Restaurants
Booking Rooms
Interrogation Rooms
Sleep Disorder Centers
Therapy Labs
Cashier Booths
Gas Stations
Day Care Centers Anywhere CCTV
Cameras Are Installed
®
R
U
T
E
D
C
A
I
F
U
N
A
M
N
T
SPECIFICATIONS
VERIFACT DGC
FEATURES
+
Has Automatic Gain Control/Limiter to
prevent overdriving the receiver
+
Stainless Steel faceplate
+
Microphone can pick up normal sounds 25'
away
+
H
E
Easy surface or flush mount to wall or ceiling
+
May be located up to 1000' from base station
+
Powered from Louroe Base Station or
external 12Vdc source
+
Microphone preamp contains output gain
control Potentiometer to increase the output
up to +10dB
®
Microphone Sensitivity
Frequency response
Output
Current drain
-45dB
50 Hz to 8 kHz
Line Level (0 dB, 1kW at 1 Khz )
10 mA
Supply voltage 12 Vdc
Output gain
+10dB
Microphone housing Stainless steel faceplate
Dimensions
Weight
Shipping Weight
2 3/4”W x 4 1/2”H
2.5 oz
1 lb
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain
wire.
NOTE: Unshielded cable is not
satisfactory for audio
systems.
Dgc_mic 12/14
