L
OUROE
E
6955 VALJEAN AVE, VAN NUYS, CA 91406
LEC TR ON IC S

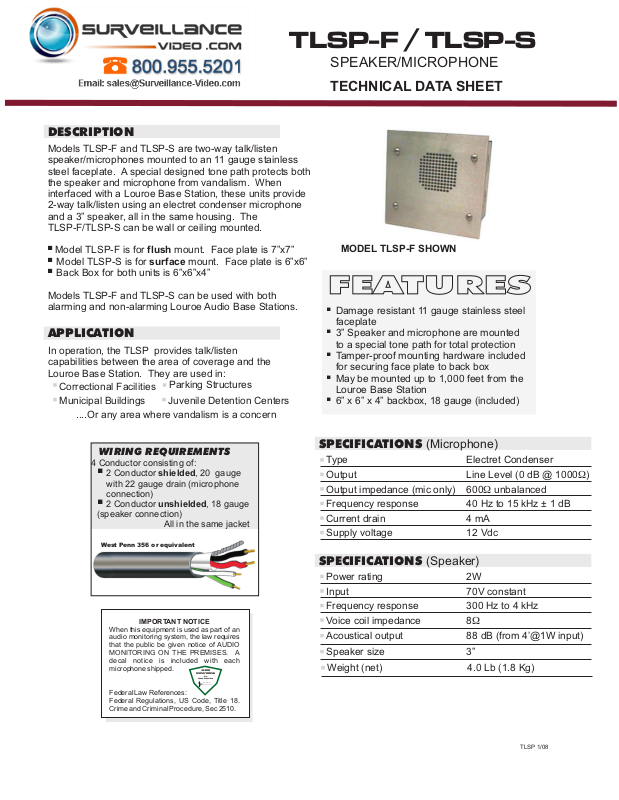

TLSP-F / TLSP-S
DESCRIPTION
Models TLSP-F and TLSP-S are two-way talk/listen
speaker/microphones mounted to an 11 gauge stainless
steel faceplate. A special designed tone path protects both
the speaker and microphone from vandalism. When
interfaced with a Louroe Base Station, these units provide
2-way talk/listen using an electret condenser microphone
and a 3” speaker, all in the same housing. The
TLSP-F/TLSP-S can be wall or ceiling mounted.
SPEAKER/MICROPHONE
TECHNICAL DATA SHEET
+
Model TLSP-F is for flush mount. Face plate is 7”x7”
+
Model TLSP-S is for surface mount. Face plate is 6”x6”
+
Back Box for both units is 6”x6”x4”
Models TLSP-F and TLSP-S can be used with both
alarming and non-alarming Louroe Audio Base Stations.
APPLICATION
In operation, the TLSP provides talk/listen
capabilities between the area of coverage and the
Louroe Base Station. They are used in:
Correctional Facilities
Municipal Buildings
....Or any area where vandalism is a concern
WIRING REQUIREMENTS
4 Conductor consisting of:
+
2 Conductor shielded, 20 gauge
with 22 gauge drain (microphone
connection)
+
2 Conductor unshielded, 18 gauge
(speaker connection)
West Penn 356 or equivalent
Parking Structures
Juvenile Detention Centers
All in the same jacket
MODEL TLSP-F SHOWN
FEATURES
+
Damage resistant 11 gauge stainless steel
faceplate
+
3” Speaker and microphone are mounted
to a special tone path for total protection
+
Tamper-proof mounting hardware included
for securing face plate to back box
+
May be mounted up to 1,000 feet from the
Louroe Base Station
+
6” x 6” x 4” backbox, 18 gauge (included)
SPECIFICATIONS (Microphone)
Type Electret Condenser
Output
Output impedance (mic only)
Frequency response
Current drain
Supply voltage
Line Level (0 dB @ 1000Ω)
600Ω unbalanced
40 Hz to 15 kHz ± 1 dB
4 mA
12 Vdc
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l notice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
OUROE
L
LECTRONICS
E
SPECIFICATIONS (Speaker)
Power rating
Input
Frequency response
Voice coil impedance
Acoustical output 88 dB (from 4’@1W input)
Speaker size 3”
Weight (net) 4.0 Lb (1.8 Kg)
2W
70V constant
300 Hz to 4 kHz
8Ω
TLSP 1/08
