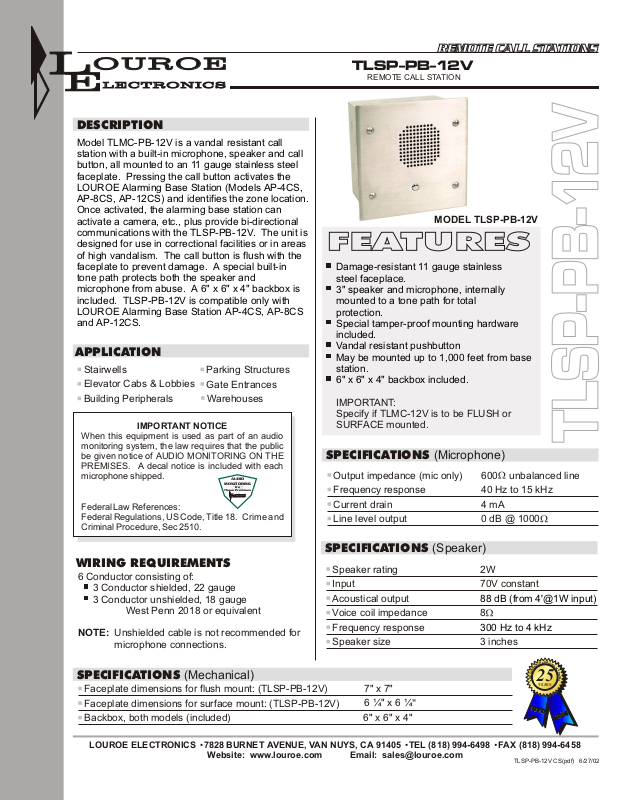

DESCRIPTION
Model TLMC-PB-12V is a vandal resistant call
station with a built-in microphone, speaker and call
button, all mounted to an 11 gauge stainless steel
faceplate. Pressing the call button activates the
LOUROE Alarming Base Station (Models AP-4CS,
AP-8CS, AP-12CS) and identifies the zone location.
Once activated, the alarming base station can
activate a camera, etc., plus provide bi-directional
communications with the TLSP-PB-12V. The unit is
designed for use in correctional facilities or in areas
of high vandalism. The call button is flush with the
faceplate to prevent damage. A special built-in
tone path protects both the speaker and
microphone from abuse. A 6" x 6" x 4" backbox is
included. TLSP-PB-12V is compatible only with
LOUROE Alarming Base Station AP-4CS, AP-8CS
and AP-12CS.
APPLICATION
Stairwells
Elevator Cabs & Lobbies
Building Peripherals
IMPORTANT NOTICE
When this equipment is used as part of an audio
monitoring system, the law requires that the public
be given notice of AUDIO MONITORING ON THE
PREMISES. A decal notice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18. Crime and
Criminal Procedure, Sec 2510.
Parking Structures
Gate Entrances
Warehouses
AUDIO
MONITORING
On
These Premises
OUROEOUROE
LL
LECTRONICSLECTRONICS
EE
REMOTE CALL STATIONS REMOTE CALL STATIONS
TLSP-PB-12V
REMOTE CALL STATION
MODEL TLSP-PB-12V
FEATURESFEATURES
+
Damage-resistant 11 gauge stainless
steel faceplace.
+
3" speaker and microphone, internally
mounted to a tone path for total
protection.
+
Special tamper-proof mounting hardware
included.
+
Vandal resistant pushbutton
+
May be mounted up to 1,000 feet from base
station.
+
6" x 6" x 4" backbox included.
IMPORTANT:
Specify if TLMC-12V is to be FLUSH or
SURFACE mounted.
SPECIFICATIONS (Microphone)
Output impedance (mic only)
Frequency response
Current drain
Line level output
600 unbalanced line
40 Hz to 15 kHz
4 mA
0 dB @ 1000
TLSP-PB-12VTLSP-PB-12V
SPECIFICATIONS (Speaker)
WIRING REQUIREMENTS
6 Conductor consisting of:
+
3 Conductor shielded, 22 gauge
+
3 Conductor unshielded, 18 gauge
West Penn 2018 or equivalent
NOTE: Unshielded cable is not recommended for
microphone connections.
SPECIFICATIONS (Mechanical)
Faceplate dimensions for flush mount: (TLSP-PB-12V)
Faceplate dimensions for surface mount: (TLSP-PB-12V)
Backbox, both models (included)
LOUROE ELECTRONICS 7828 BURNET AVENUE, VAN NUYS, CA 91405 TEL (818) 994-6498 FAX (818) 994-6458
Website: www.louroe.com Email: sales@louroe.com
Speaker rating
Input
Acoustical output
Voice coil impedance
Frequency response
Speaker size
7" x 7"
6 ¼" x 6 ¼"
6" x 6" x 4"
2W
70V constant
88 dB (from 4'@1W input)
8
300 Hz to 4 kHz
3 inches
U
A
N
I
R
E
D
A
E
L
E
H
T
25
YEARS
1
1
9
9
7
7
9
9
TLSP-PB-12V CS(pdf) 6/27/02
