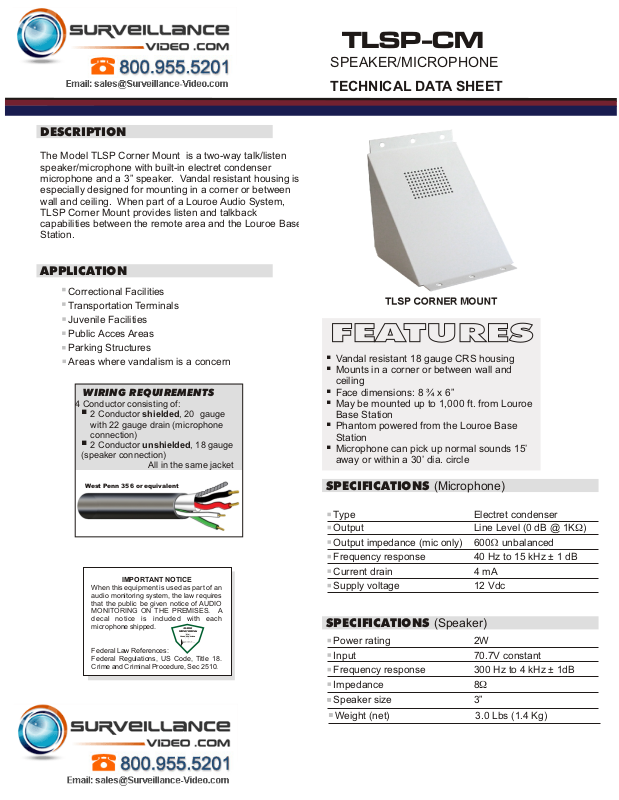

DESCRIPTION
The Model TLSP Corner Mount is a two-way talk/listen
speaker/microphone with built-in electret condenser
microphone and a 3” speaker. Vandal resistant housing is
especially designed for mounting in a corner or between
wall and ceiling. When part of a Louroe Audio System,
TLSP Corner Mount provides listen and talkback
capabilities between the remote area and the Louroe Base
Station.
APPLICATION
TLSP-CM
SPEAKER/MICROPHONE
TECHNICAL DATA SHEET
Correctional Facilities
Transportation Terminals
Juvenile Facilities
Public Acces Areas
Parking Structures
Areas where vandalism is a concern
WIRING REQUIREMENTS
4 Conductor consisting of:
+
2 Conductor shielded, 20 gauge
with 22 gauge drain (microphone
connection)
+
2 Conductor unshielded, 18 gauge
(speaker connection)
All in the same jacket
West Penn 356 or equivalent
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l notice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
OUROE
L
LECTRONICS
E
TLSP CORNER MOUNT
FEATURESFEATURES
+
Vandal resistant 18 gauge CRS housing
+
Mounts in a corner or between wall and
ceiling
+
Face dimensions: 8 ¾ x 6”
+
May be mounted up to 1,000 ft. from Louroe
Base Station
+
Phantom powered from the Louroe Base
Station
+
Microphone can pick up normal sounds 15’
away or within a 30’ dia. circle
SPECIFICATIONS (Microphone)
Type
Output
Output impedance (mic only)
Frequency response
Current drain
Supply voltage
SPECIFICATIONS (Speaker)
Power rating
Input
Frequency response
Impedance
Speaker size 3”
Weight (net) 3.0 Lbs (1.4 Kg)
Electret condenser
Line Level (0 dB @ 1KW)
600 unbalanced
40 Hz to 15 kHz ± 1 dB
4 mA
12 Vdc
2W
70.7V constant
300 Hz to 4 kHz ± 1dB
8W
