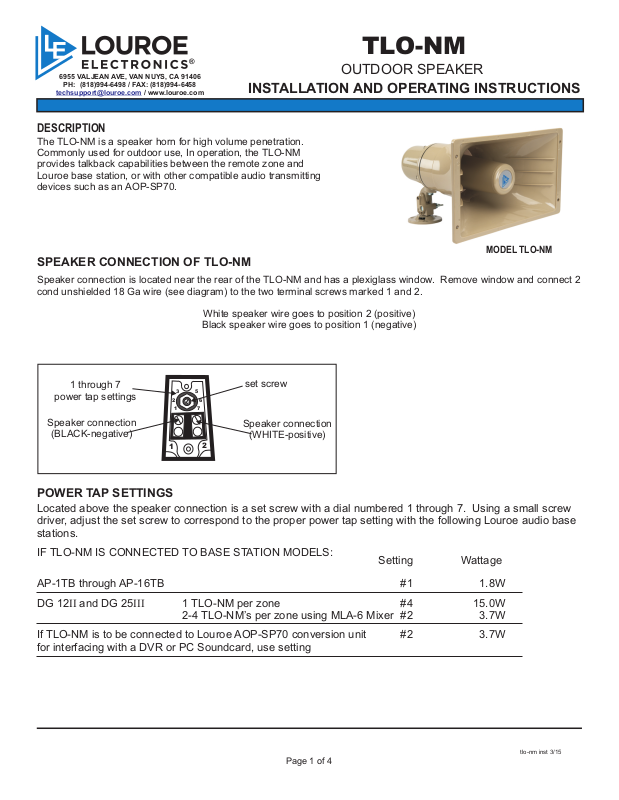

Louroe Electronics TLO-NM User Manual

TLO-NM

®

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: [phone] / FAX: [phone]

/ [e-mail]

INSTALLATION AND OPERATING INSTRUCTIONS

DESCRIPTION

The TLO-NM is a speaker horn for high volume penetration.
Commonly used for outdoor use, In operation, the TLO-NM
provides talkback capabilities between the remote zone and
Louroe base station, or with other compatible audio transmitting
devices such as an AOP-SP70.

SPEAKER CONNECTION OF TLO-NM

Speaker connection is located near the rear of the TLO-NM and has a plexiglass window. Remove window and connect 2
cond unshielded 18 Ga wire (see diagram) to the two terminal screws marked 1 and 2.

White speaker wire goes to position 2 (positive)

Black speaker wire goes to position 1 (negative)

OUTDOOR SPEAKER

MODEL TLO-NM

1 through 7

power tap settings

Speaker connection

(BLACK-negative)

2

1

1

3 5

6

7

2

set screw

Speaker connection

(WHITE-positive)

POWER TAP SETTINGS

Located above the speaker connection is a set screw with a dial numbered 1 through 7. Using a small screw
driver, adjust the set screw to correspond to the proper power tap setting with the following Louroe audio base
stations.

IF TLO-NM IS CONNECTED TO BASE STATION MODELS:

AP-1TB through AP-16TB #1 1.8W

DG 12II and DG 25III 1 TLO-NM per zone #4 15.0W

2-4 TLO-NM’s per zone using MLA-6 Mixer #2 3.7W

If TLO-NM is to be connected to Louroe AOP-SP70 conversion unit #2 3.7W
for interfacing with a DVR or PC Soundcard, use setting

Setting Wattage

Page 1 of 4

tlo-nm inst 3/15

INSTALLATION AND OPERATING INSTRUCTIONS

POSITIONING TLO-NM

After TLO-NM has been mounted to desired structure (wall, pole, etc.), horn should be tilted in a downward position.

CONNECTING TLO-NM TO A LOUROE BASE STATION

Model TLO-NM is compatible with all Louroe audio base stations that feature two-way talk/listen communication. All
Louroe base stations contain terminal blocks for transmitting audio a speaker such as the TLO with 70V audio line.
For wiring and installation instructions, please refer to the specific Louroe Base Station being used.

2 COND 18 GA CABLE

BLACK

(GROUND)

WHITE

(POSITIVE)

GROUND

1

POSITIVE

3 5

2

6

1

7

2

White = speaker (positive)

Black = speaker (negative)

To Louroe base station (SP and G) or AOP-SP70 (SP and C)

Refer to the specific base station instructions for connections

LOUROE ELECTRONICS™ 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

website: www.louroe.com e-mail: [e-mail]

Page 2 of 4

(818)

tlo-nm inst 3/15

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM

LOUROE MODEL AOP-SP70 SPEAKERPHONE CONVERSION UNIT,

AND LOUROE MODEL TLO-NM 70V SPEAKER

CONNECTION TO

DVR, IP NETWORK CAMERAS OR VIDEO SERVER

(ONE WAY TALKBACK ONLY)

LOUROE MODEL AOP-SP70

EXT

SPKR SPKR

BLACK

EXT

SPKR

A B C

ASPB

WHITE

C

Vdc+12

+

GND

WIRE NUTS

BLACK (C)

WHITE (SP)

Using power supply (included), connect as follows:
Positive 12Vdc connects to terminal marked “+”
Negative 12Vdc or ground connects to terminal

marked “GND”( wire with white stripes)

2 COND 18 AWG CABLE

(OBSERVE COLOR CODING)

TO AUDIO OUT OF IP CAMERA, ENCODER, DVR, ETC.

For connection to DVR, IP Network Camera, etc., solder the appropriate plug (RCA, 3.5mm

mono or 3.5mm stereo) to match the audio inputs of the receiving device as shown below.

Refer to IP Camera’s instruction to determine if 3.5mm audio is mono or stereo

3.5mm STEREO CONNECTION

Black Wire

White Wire

3.5mm MONO CONNECTION

Black Wire

S
T
E
R
E

O

Audio Out

M
O

N

O

Audio Out

White Wire

WHITE SPEAKER

(POSITIVE)

RCA CONNECTION

Black Wire

Audio Out

BLACK SPEAKER

(GROUND)

White Wire

LOUROE ELECTRONICS™ 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

website: www.louroe.com e-mail: [e-mail]

(818)

tlo-nm inst 3/15

Page 3 of 4

INSTALLATION AND OPERATING INSTRUCTIONS

MANUFACTURED

IN THE

IMPORTANT NOTICE

When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is included with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.

AUDIO

MONITORING

On

These Premises

®

SPECIFICATIONS

Power rating
Input

Frequency response
Sensitivity

Material

Dimensions

Dispersion

Weight

Shipping Weight

LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.

Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.

®

®

®

30W

70.7V constant
350 Hz to 14 kHz

109dB (Measured at 1m, 1W @ 1kHz)

Heavy Duty ABS Resin

11” W x 6 5/8” H x 12 3/4” D

105° x 72°

5 lbs 5 oz

7 lbs

WARRANTY

®

®

®
