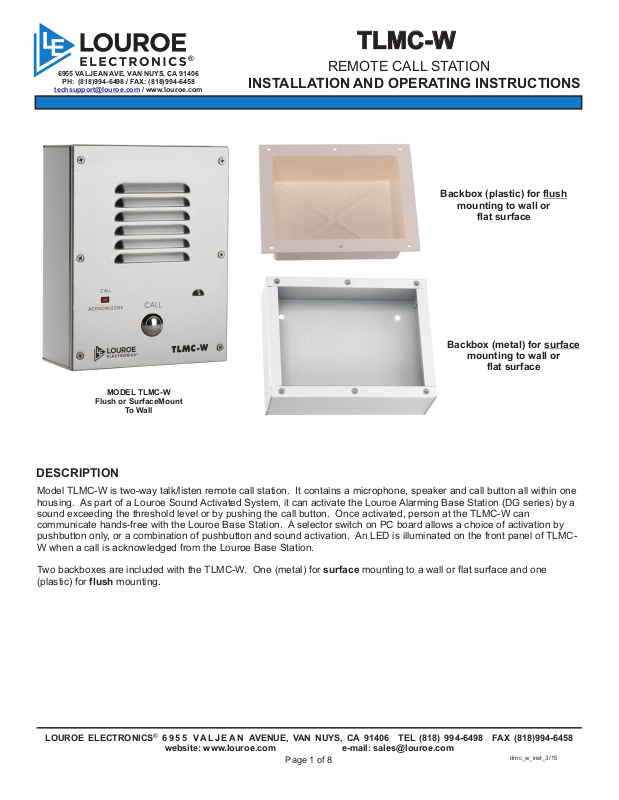

TLMC-W

REMOTE CALL STATION

INSTALLATION AND OPERATING INSTRUCTIONS

Backbox (plastic) for flush

mounting to wall or

flat surface

Backbox (metal) for surface

mounting to wall or

flat surface

MODEL TLMC-W

Flush or SurfaceMount

To Wall

DESCRIPTION

Model TLMC-W is two-way talk/listen remote call station. It contains a microphone, speaker and call button all within one
housing. As part of a Louroe Sound Activated System, it can activate the Louroe Alarming Base Station (DG series) by a
sound exceeding the threshold level or by pushing the call button. Once activated, person at the TLMC-W can
communicate hands-free with the Louroe Base Station. A selector switch on PC board allows a choice of activation by
pushbutton only, or a combination of pushbutton and sound activation. An LED is illuminated on the front panel of TLMC­W when a call is acknowledged from the Louroe Base Station.

Two backboxes are included with the TLMC-W. One (metal) for surface mounting to a wall or flat surface and one
(plastic) for flush mounting.

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 1 of 8

(818)

tlmc_w_inst_3/15

INSTALLATION AND OPERATING INSTRUCTIONS

MICROPHONE AND SPEAKER WIRING CONNECTIONS

Microphone Portion

1) Connect cable to TLMC-W as shown in the wiring diagram page 3.

2) Connect microphone wires (2 cond. shielded) to terminal block of PC board
marked “A”, “B” and “C”. If using West Penn 356:

a. Connect RED wire to terminal marked “A”. (12Vdc power)
b. Connect BLACK wire to terminal marked “B”. (Audio Output)
c. Connect DRAIN (bare) wire to terminal marked “C”. (Ground)

Speaker Portion

3) Connect speaker wires (2 cond. unshielded) to terminal block
marked “SP”, “6”, or “7”. Again If using West Penn 356:

a. Connect GREEN wire to terminal marked “SP”. (speaker positive)
b. Connect WHITE wire to terminal marked “7”. (70V) (speaker return)

NOTE: Terminal “6” is not used with this application.

4) Connect other end of 4 conductor cable to the corresponding
terminal blocks of the Louroe alarming base station. Refer to the
instructions for the specific base station being used.

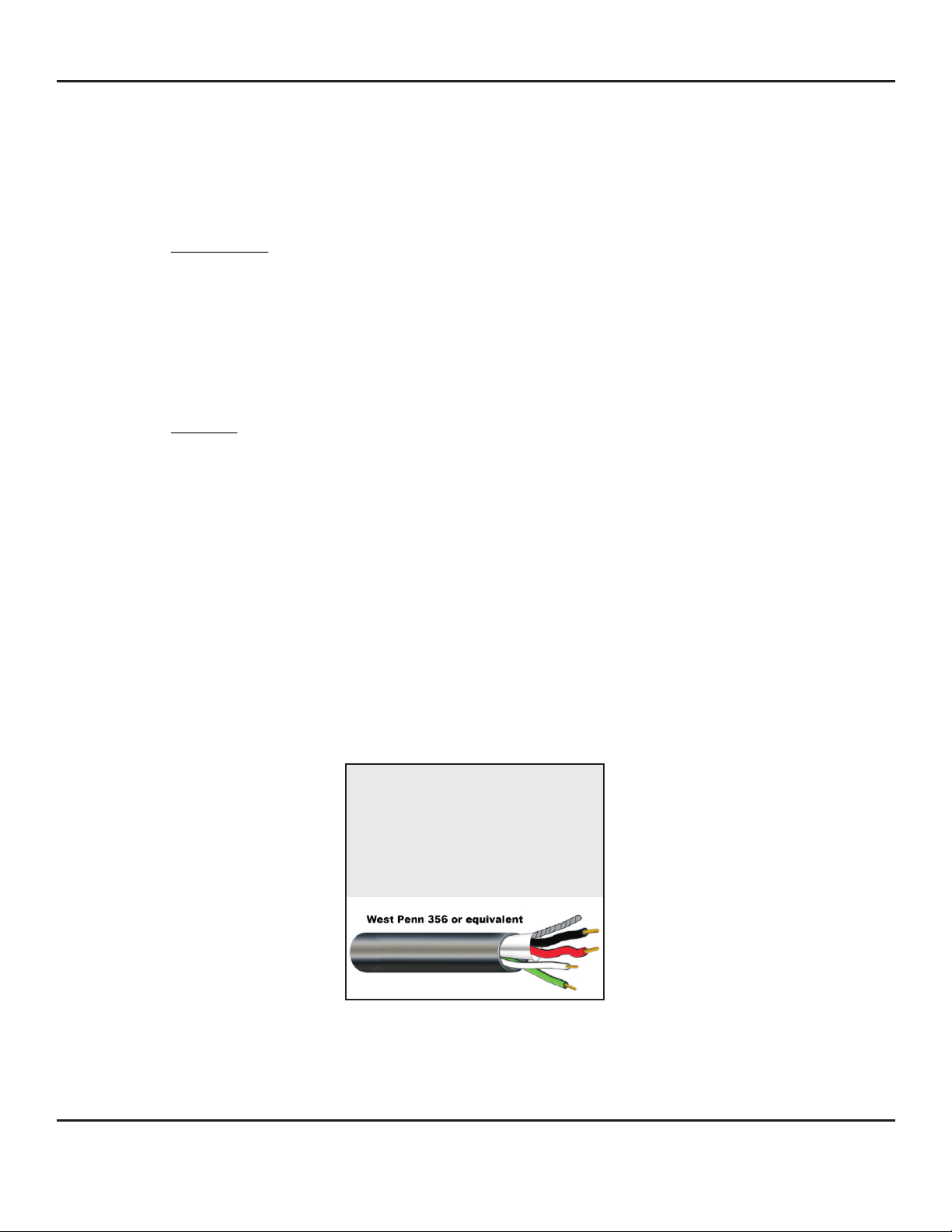

WIRING REQUIREMENTS

4 Conductor consisting of:

+

2 Conductor shielded, 20 gauge
with 22 gauge drain (microphone
connection)

+

2 Conductor unshielded, 18 gauge

(speaker connection)

All in the same jacket

NOTE: If using wiring from other manufacturers, color code may vary.

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 2 of 8

(818)

tlmc_w_inst_3/15

SPEAKER POSITIVE (SP)

SPEAKER RETURN WIRE (7)

MIC +12Vdc SUPPLY (A)

Audio Output (B)

GROUND (C)

NORMAL OR TIMED AUDIO
SELECTOR SWITCH

INSTALLATION AND OPERATING INSTRUCTIONS

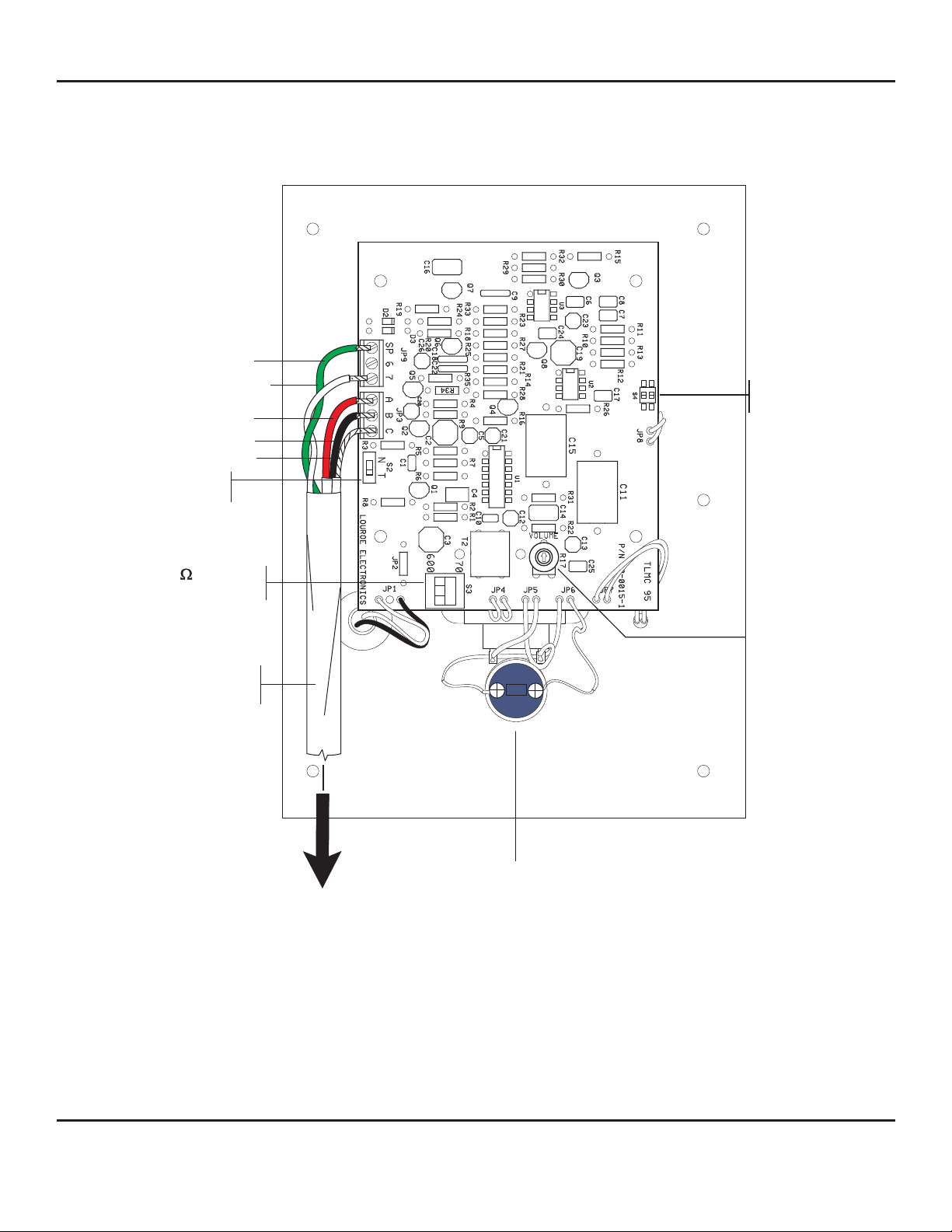

TLMC-W WIRING DIAGRAM

REAR OF TLMC-W FACE PLATE

PC BOARD

TIME SELECTOR
DIP SWITCH (S4)

1 = 30 seconds of
activation
2 = 60 seconds of
activation

/ 70 VOLT

600

SELECTOR SWITCH

FACTORY SET AT 70V

4 CONDUCTOR CABLE
WEST PENN 356 OR EQUIVALENT

SPEAKER LEVEL
CONTROL
Factory set do not
adjust unless
necessary

Clockwise to
Increase

Counterclockwise
To Decrease

CALL BUTTON

TO LOUROE BASE STATION

REFER TO INSTRUCTIONS
OF THE SPECIFIC BASE
STATION FOR CONNECTION
INSTRUCTIONS

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 3 of 8

(818)

tlmc_w_inst_3/15

INSTALLATION AND OPERATING INSTRUCTIONS

OPERATIONS AND TEST OF TLMC-W

1) FOR NORMAL OPERATION (MANUAL RESET)

A. The Louroe Base Station can be triggered either by pressing the call button
or by generating a loud sound or shouting (when used with Alarming Base
Stations DG-12II/25III Series).

B. Move slide switch “S2” of TLMC-W PC Board to position marked “N”.

C. Once an alarm is initiated, the operator at the Louroe base station can respond to

the TLMC-W that initiated the call. The call acknowledge LED on the front panel
will illuminate indicating that the call was received and acknowledged by the
operator.

2) FOR TIMED OPERATION (AUTOMATIC RESET)

A. Move slide switch “S2” to position marked “T”.

B. Select the desired time for microphone to be activated --- 30 seconds or 60 seconds.

For 30 seconds of activation, move switch #1 to ON position.
For 60 seconds of activation, move switch #2 to ON position.
Only one switch can be in the ON position.

C. Press the call button to initiate an alarm. When the person at the base

station responds, the “call acknowledge “LED” will illuminate, activating

the TLMC-W’s microphone for bi-directional communications with the

base station.

D. After time duration (either 30 seconds or 60 seconds), microphone in the TLMC-W

will shut off. To continue communications with the base station,

press call button again.

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 4 of 8

(818)

tlmc_w_inst_3/15

INSTALLATION AND OPERATING INSTRUCTIONS

INSTALLATION OF TLMC-W CALL STATION

Model TLMC-W is designed for mounting to a wall or flat surface. Included are two backboxes:

White plastic backbox is for flush mount
Beige metal backbox is for surface mount

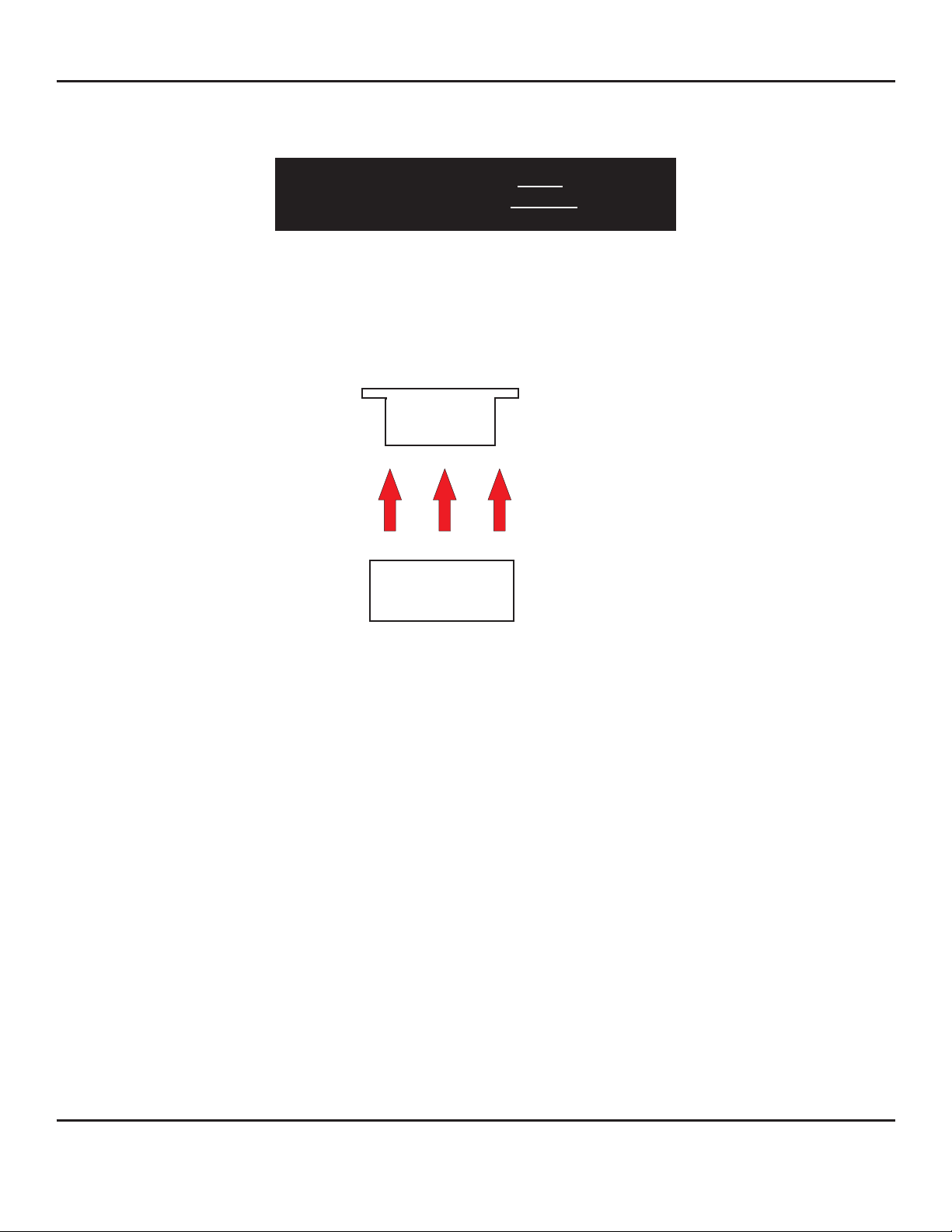

Lift and separate plastic backbox from metal backbox

(2) backboxes

plastic

backbox

metal

backbox

1) SURFACE MOUNTING BACKBOX TO WALL

a. Metal backbox has 4 mounting holes for securing to wall

(screws not supplied).
b. Drill an opening at top, bottom, side or back of backbox for passing
wiring or connecting conduit.
c. Six small screws are supplied for attaching TLMC-W face plate to backbox.

2) FLUSH MOUNTING BACKBOX TO WALL

a. If plastic flush mount backbox is to be used:

b. Drill an opening at back side, as needed, to secure plastic backbox to proper position in wall

opening.

c. Drill an opening at a convenient location on backbox for passing wire or for conduit

connection (top, bottom, etc.)

d. Six plastic anchor bolts are supplied for securing TLMC-W face plate to backbox.

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 5 of 8

(818)

tlmc_w_inst_3/15

INSTALLATION AND OPERATING INSTRUCTIONS

SPECIFICATIONS

Output of microphone (Mic)

Frequency Response (Mic)
Current Drain

Speaker

Faceplate

Backbox

Weight (Faceplate)

Weight (with backboxes)

Surface Mount
Flush Mount

(Including flange)

Line Level (0 dB, 600W @ 1KW)
50 Hz to 15 kHz
40 mA
4”, 7W w/ 70V transformer

8”H x 6 1/4”W

8”H x 6 1/4”W x 2 3/4”D

8”H x 6 1/4”W x 2 5/8”D

2 lbs

4 lbs 8 oz

Shipping Weight

6 lbs

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 6 of 8

(818)

tlmc_w_inst_3/15

INSTALLATION AND OPERATING INSTRUCTIONS

IMPORTANT NOTICE

When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is included with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.

LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.

Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.

®

®

®

WARRANTY

AUDIO

MONITORING

On

These Premises

®

®

®

®
