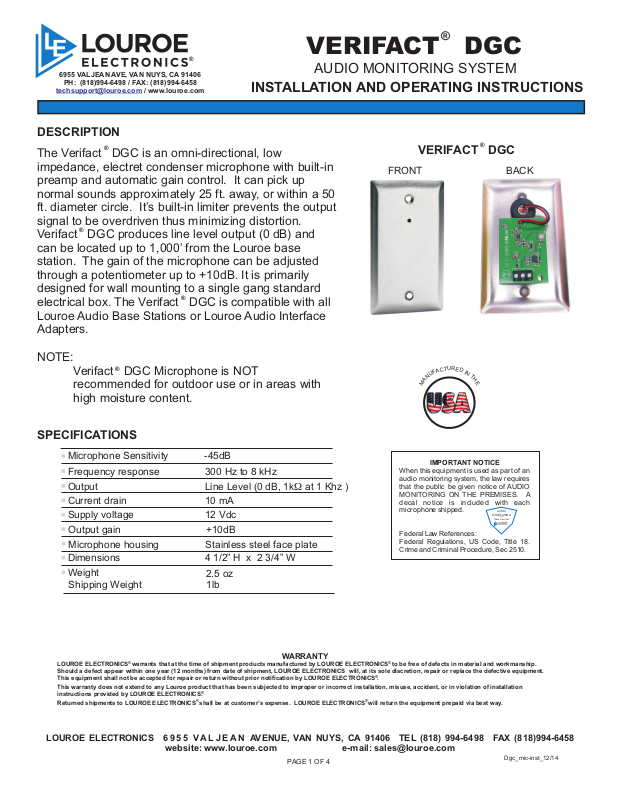

INSTALLATION AND OPERATING INSTRUCTIONS
VERIFACT DGC
AUDIO MONITORING SYSTEM
DESCRIPTION
The Verifact DGC is an omni-directional, low
®
impedance, electret condenser microphone with built-in
preamp and automatic gain control. It can pick up
normal sounds approximately 25 ft. away, or within a 50
ft. diameter circle. It’s built-in limiter prevents the output
signal to be overdriven thus minimizing distortion.
Verifact DGC produces line level output (0 dB) and
®
can be located up to 1,000’ from the Louroe base
station. The gain of the microphone can be adjusted
through a potentiometer up to +10dB. It is primarily
designed for wall mounting to a single gang standard
electrical box. The Verifact DGC is compatible with all
®
Louroe Audio Base Stations or Louroe Audio Interface
Adapters.
®

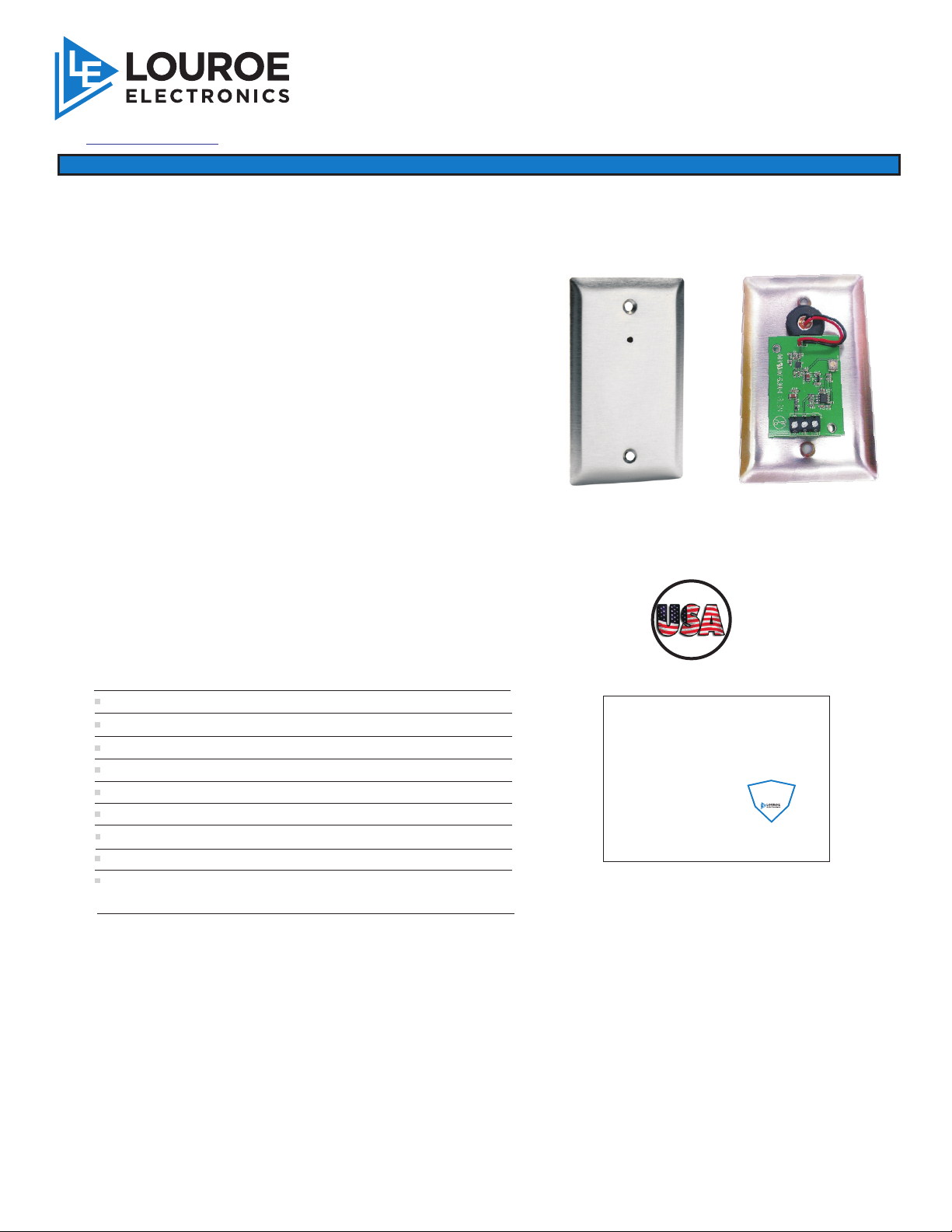

VERIFACT DGC
FRONT
®
BACK
NOTE:
Verifact DGC Microphone is NOT
®
recommended for outdoor use or in areas with
high moisture content.
SPECIFICATIONS
Microphone Sensitivity
Frequency response
Output
Current drain
Supply voltage 12 Vdc
Output gain
Microphone housing
Dimensions
Weight
Shipping Weight
-45dB
300 Hz to 8 kHz
Line Level (0 dB, 1kW at 1 Khz )
10 mA
+10dB
Stainless steel face plate
4 1/2” H x 2 3/4” W
2.5 oz
1lb
R
U
T
E
D
C
A
I
F
U
N
A
M
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
N
T
H
E
AUDIO
MONITORING
On
These Premises
®
LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.
®
®
®
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
WARRANTY
®
®
®
(818)
website: www.louroe.com e-mail: [email protected]
PAGE 1 OF 4
Dgc_mic-inst_12/14
Page 2
INSTALLATION AND OPERATING INSTRUCTIONS
MECHANICAL INSTALLATION:
Verifact DGC microphone Is designed to be installed in a single gang electrical box for flush or surface mounting
to a wall or ceiling. It should be positioned 3 to 6 ft. from the area of desired coverage. Ceiling heights in excess of
10 ft. should be avoided.
MICROPHONE CONNECTION:
A 3-pin terminal block is located on the back of the microphone housing, marked A, B, C.
If using West Penn 452 or equivalent with same color code, connect:
®
A represents +12 Vdc Power
B represents Audio Output
C represents Ground
1. Red wire (12 Vdc) connects to terminal A of microphone terminal block
2. Black wire (audio out) connects to terminal B of microphone terminal block
3. Bare wire (ground) connects to terminal C of microphone terminal block
CONNECTING VERIFACT D-AGC MICROPHONE TO A LOUROE™ BASE STATION OR AUDIO
®
INTERFACE ADAPTER
All Louroe audio base stations and Interface Adapters have corresponding terminal blocks marked A, B, C.
Connect other end of cable as follows:
1. Red wire from microphone connects to pin A of Base Station (12Vdc)
2. Black wire from microphone connects to pin B of Base Station (Audio Output)
3. Bare wire from microphone connects to pin C of Base Station (Ground)
If base station is ALA-4/8 series, please refer to installation instructions for the specific model.
CONNECTING VERIFACT D-AGC MICROPHONE TO OTHER AUDIO DEVICES.
If a Louroe audio base station is not used and microphone is being connected directly to another receiver from
other manufacturers, 12 Vdc power must be applied to terminals A and C. (A is positive, C is negative).
Terminals B and C of microphone (C is common) go to the “Audio In” or “Line in” of the audio source. We
recommend shielded cable connections for terminal B and C (See last page for interconnection diagram)
INSTALLATION TIP: If area to be monitored for audio is noisy or has background disturbances, the
microphone should be positioned close to the subject (4’ - 8’) if possible. Also, the microphone output can be
lowered by adjusting the gain control potentiometer. Rotating clockwise will increase the gain;
counterclockwise decreases the gain. The factory setting is 0dB output.
INSTALLATION TIPS
®
1. Use 2 Cond 22AWG overall shielded audio cable only. West Penn 452, Belden 8451 or equivalent.
UNSHIELDED CABLE IS NOT SATISFACTORY FOR SOUND SYSTEMS.
2. When used at a cash register checkout, microphone should be installed closer to the customer rather than the cash
register, as the drawer sound could dominate the recording. It should be installed closest to the
area to be monitored and documented.
3. Avoid installing microphone near air vents, air conditioners, fans and other equipment that generate
high sound and air pressure.
4. If microphone is installed in a police interview room, room should be conditioned with any type of carpeting, acoustical
ceiling tiles, acoustical foam, etc. to reduce echo. This will enhance the quality of live and recorded audio.
5. The APR-1 and microphone should have a barrier or solid wall between them in order to avoid audio
feedback, especially when they are in close proximity to each other. If no barrier, microphone should be at least 25’
from APR-1 to avoid acoustical feedback.
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 2 of 4
(818)
Dgc_mic-inst_12/14
Page 3
RED
INSTALLATION AND OPERATING INSTRUCTIONS
MICROPHONE GAIN ADJUSTMENT
The microphone has an audio output gain potentiometer.
Microphone is always shipped with a 0dB output. If it’s necessary
to change the gain of the microphone, insert a small screwdriver
into the potentiometer rotate clockwise to increase or
counterclockwise to decrease. Maximum gain is +10dB
B
C
A

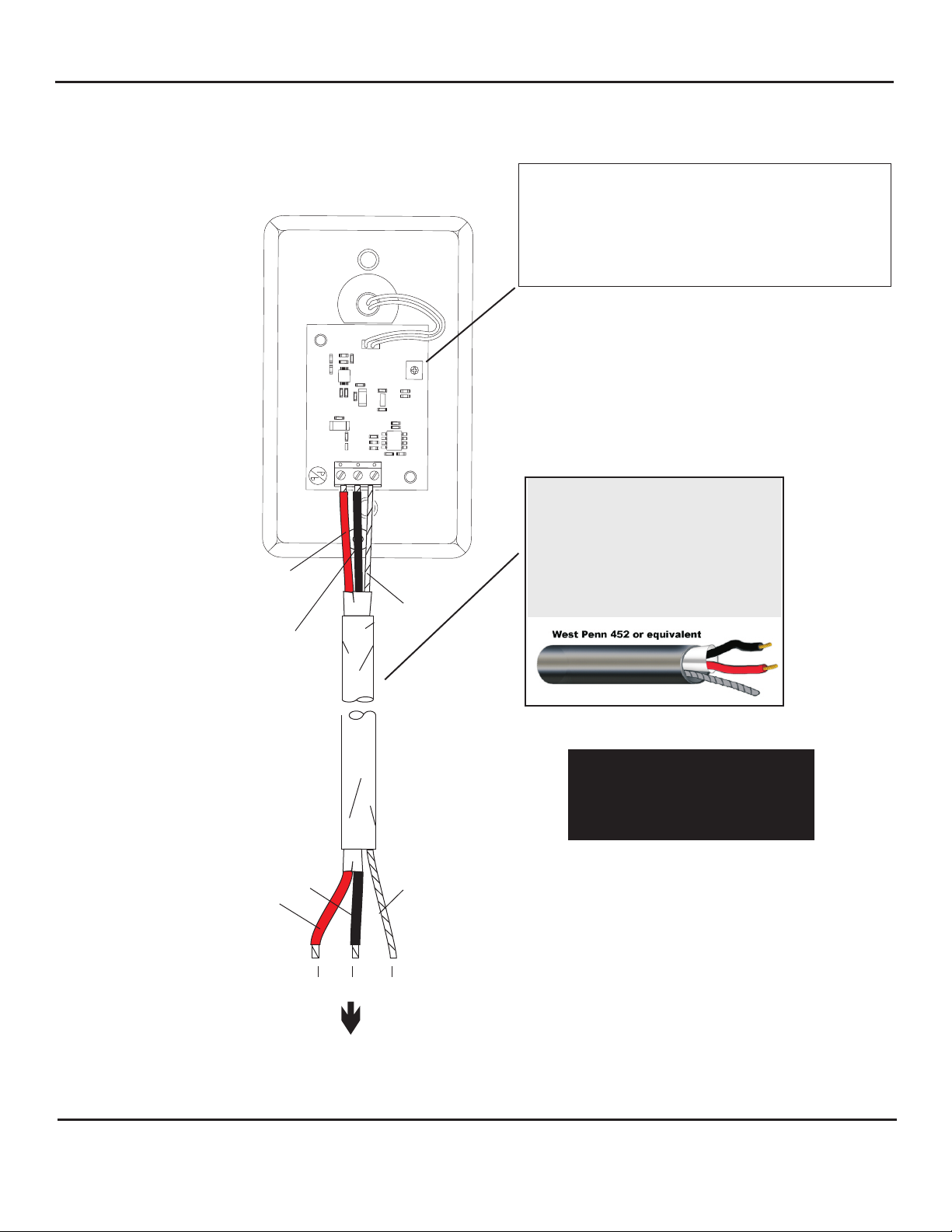

WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain
wire.
NOTE: Unshielded cable is not
satisfactory for audio
systems.
BARE
BLACK
A = +12Vdc (RED)
B = Audio (BLACK)
C = Ground (BARE)
BLACK
RED
B
A
TO LOUROE BASE STATIONS OR AUDIO INTERFACES
OTHER AUDIO RECEIVERS AND RECORDERS
BARE
C
OR
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 3 of 4
(818)
Dgc_mic-inst_12/14
Page 4

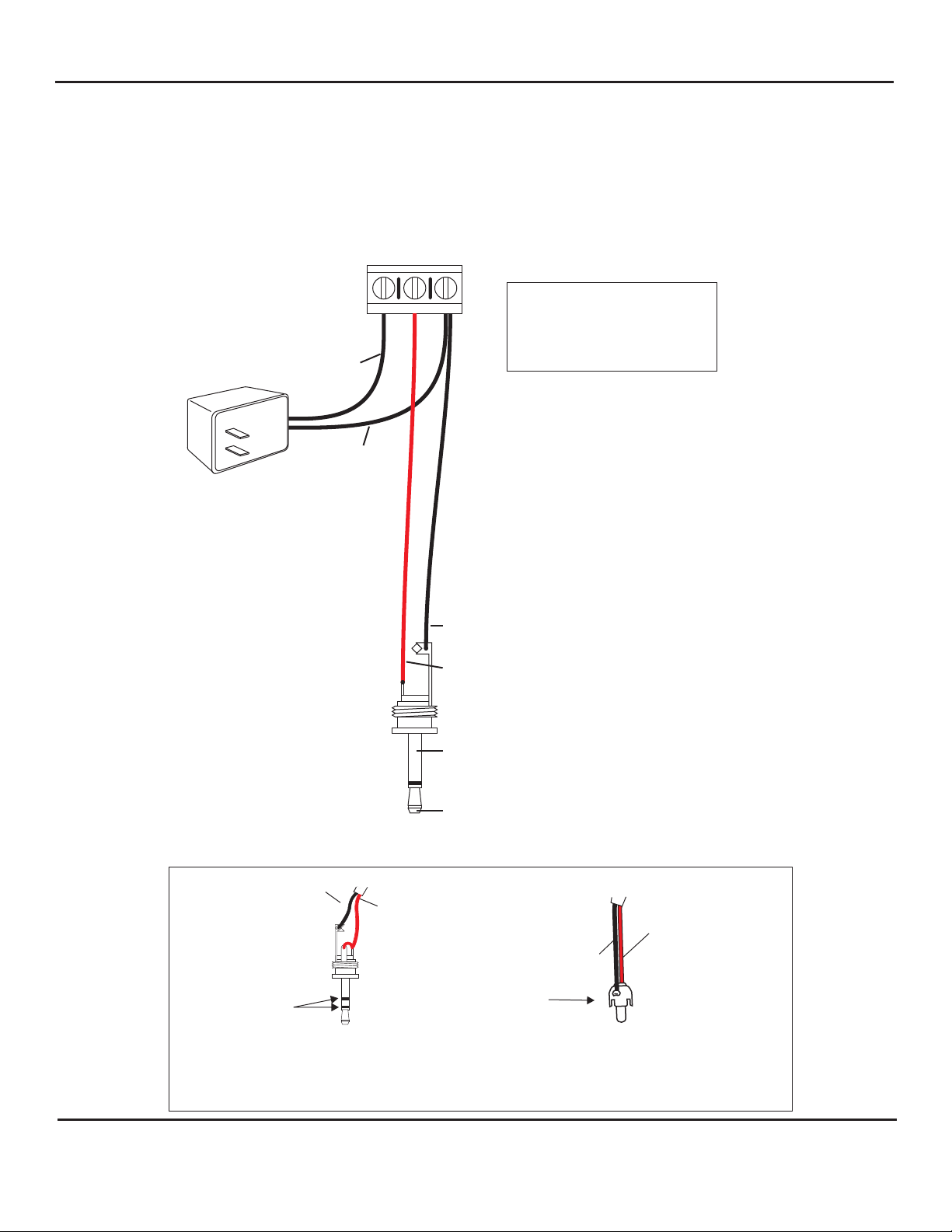

CONNECTING A LOUROE MICROPHONE DIRECTLY
TO AN IP CAMERA, ENCODER OR DVR WITH 3.5mm
12 Vdc POWER SUPPLY
INSTALLATION AND OPERATING INSTRUCTIONS
MONO AUDIO INPUT
MICROPHONE TERMINAL BLOCK
A
B
C
+12 Vdc
+
_
GROUND
A = 12Vdc Power
B = Audio Output
C = Ground
LOOP “C” WIRE THRU OPENING, THEN SOLDER
“B” WIRE
3.5mm MONO PLUG REMOVED
FROM JACKET
TO LINE LEVEL INPUT OF IP CAMERA OR
DVR WITH 3.5mm MONO AUDIO INPUT
OTHER PLUGS WIRING CONFIGURATION
Black Wire
Red Wire
S
T
E
R
E
O
Audio In
of receiver
3.5mm Stereo CONNECTION
Red Wire
Black Wire
R
C
A
Audio In
of receiver
RCA CONNECTION
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 4 of 4
(818)
Dgc_mic-inst_12/14
