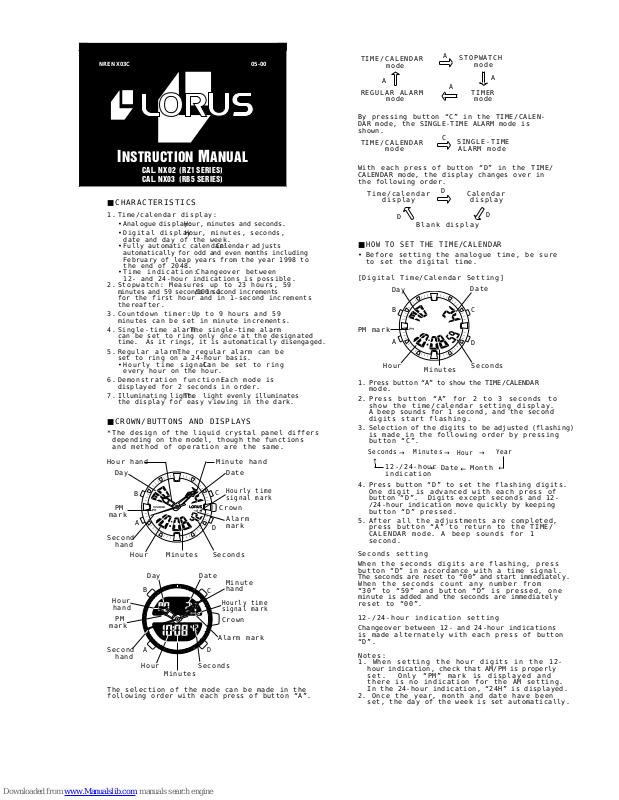

INSTRUCTION MANUAL
CAL. NX02 (RZ1 SERIES)
CAL. NX03 (RB5 SERIES)
NRENX03C
05-00
■
HOW TO SET THE TIME/CALENDAR
[Digital Time/Calendar Setting]
• Before setting the analogue time, be sure
to set the digital time.
Day
BC
Date
D
Seconds
Minutes
Hour
A
PM mark
1. Press button “A” to show the TIME/CALENDAR
mode.
2. Press button “A” for 2 to 3 seconds to
show the time/calendar setting display.
A beep sounds for 1 second, and the second
digits start flashing.
3. Selection of the digits to be adjusted (flashing)
is made in the following order by pressing
button “C”.
Date Month
Year
Hour
Minutes
Seconds
12-/24-hour
indication
→
→→
→
→
→
4. Press button “D” to set the flashing digits.
One digit is advanced with each press of
button “D”. Digits except seconds and 12/24-hour indication move quickly by keeping
button “D” pressed.
5. After all the adjustments are completed,
press button “A” to return to the TIME/
CALENDAR mode. A beep sounds for 1
second.
→
Seconds setting
When the seconds digits are flashing, press
button “D” in accordance with a time signal.
The seconds are reset to “00” and start immediately.
When the seconds count any number from
“30” to “59” and button “D” is pressed, one
minute is added and the seconds are immediately
reset to “00”.
12-/24-hour indication setting
Changeover between 12- and 24-hour indications
is made alternately with each press of button
“D”.
Notes:
1. When setting the hour digits in the 12-
hour indication, check that AM/PM is properly
set. Only “PM” mark is displayed and
there is no indication for the AM setting.
In the 24-hour indication, “24H” is displayed.
2. Once the year, month and date have been
set, the day of the week is set automatically.
A
A
A
STOPWATCH
mode
TIME/CALENDAR
mode
TIMER
mode
REGULAR ALARM
mode
A
By pressing button “C” in the TIME/CALENDAR mode, the SINGLE-TIME ALARM mode is
shown.
TIME/CALENDAR
mode
SINGLE-TIME
ALARM mode
C
With each press of button “D” in the TIME/
CALENDAR mode, the display changes over in
the following order.
D
Time/calendar
display
Calendar
display
Blank display
D
D
■ CHARACTERISTICS
1. Time/calendar display:
• Analogue display: Hour, minutes and seconds.
• Digital display: Hour, minutes, seconds,
date and day of the week.
• Fully automatic calendar: Calendar adjusts
automatically for odd and even months including
February of leap years from the year 1998 to
the end of 2048.
• Time indication: Changeover between
12- and 24-hour indications is possible.
2. Stopwatch: Measures up to 23 hours, 59
minutes and 59 seconds in 1/100 second increments
for the first hour and in 1-second increments
thereafter.
3. Countdown timer: Up to 9 hours and 59
minutes can be set in minute increments.
4. Single-time alarm: The single-time alarm
can be set to ring only once at the designated
time. As it rings, it is automatically disengaged.
5. Regular alarm: The regular alarm can be
set to ring on a 24-hour basis.
• Hourly time signal: Can be set to ring
every hour on the hour.
6. Demonstration function: Each mode is
displayed for 2 seconds in order.
7. Illuminating light: The light evenly illuminates
the display for easy viewing in the dark.
Hour hand Minute hand
Date
C
Day
B
PM
mark
A
Crown
Second
hand
Minutes
Hourly time
signal mark
Alarm
mark
Hour Seconds
D
* The design of the liquid crystal panel differs
depending on the model, though the functions
and method of operation are the same.
1-AL
PM
24
B
C
DA
PM
mark
Crown
Hour
hand
Day Date
Hourly time
signal mark
Minute
hand
Second
hand
Minutes
Hour Seconds
Alarm mark
The selection of the mode can be made in the
following order with each press of button “A”.
■ CROWN/BUTTONS AND DISPLAYS
Second hand
[Analogue Time Setting]
Hour hand Minute hand
Crown
a b
a: Normal position
b: Extended position
1. Pull out the crown when the second hand
is at the 12 o’clock position.
2. Turn the crown to set the hour and minute
hands.
3. Push the crown back in to the normal position
when the second digits count “00” in the
digital display.
Start Stop
Restart
Stop
Accumulated elapsed time measurement
CC CC
D
Reset
Accumulate repeatedly by
pressing button “C ” .
Stopwatch Operation
■ HOW TO USE THE COUNTDOWN TIMER
• The timer can be set up to 9 hours and 59
minutes in minute increments.
• The remaining time is displayed in seconds.
* If the time set previously remains displayed,
press button “D” to reset the digits to “0:00'oo”
before setting the desired time.
*Even if the TIMER mode is changed to another
while the measurement is in progress, it
continues counting properly. After the timer
is used, however, be sure to reset it as the
battery energy is consumed enormously to
shorten the battery life.
Press button “A” to show the STOPWATCH
mode.
Seconds
Timer setting
STOPWATCH
mode mark
C
D
B
A
Minutes Seconds 1/100 seconds
C
D
B
A
Hour
Minutes
Time-up
Stop
Restart
Warning
sound
beeps.
Start
Restart and stop of the
timer can be repeated by
pressing button “C ” .
C
CC
Press the button in the following order.
Timer operation
4. Press button “D” to set the digits. One
digit is advanced with each press of the
button. The digits move quickly by keeping
the button pressed.
5. After all the adjustments are completed, press
button “A” to return to the TIMER mode. A
beep sounds for 1 second.
Hour
Minutes
→
→
1. Press button “A” to show the TIMER mode.
2. Press button “A ” for 2 to 3 seconds to
show the timer setting display. A beep
sounds for 1 second, and the hour digit
starts flashing.
3. Selection of the digits to be adjusted (flashing)
is made in the following order by pressing
button “C”.
*When the set time is up, a warning sound
beeps for 10 seconds. To stop it manually,
press any of the buttons.
■ HOW TO SET THE SINGLE-TIME ALARM
C
D
B
A
Hour
Minutes
Current timePM mark
Single-time
alarm mark
1. Press button “C” in the TIME/CALENDAR
mode to show the SINGLE-TIME ALARM
mode.
2. Press button “C” or “D” to set the desired
alarm time.
The single-time alarm mark “1-AL” is displayed
and the alarm is automatically engaged.
* One minute is advanced or moved back
with each press of button “C” or “D”,
respectively. The digits move quickly
by keeping the respective buttons pressed.
3. To return to the TIME/CALENDAR mode,
press button “A ” .
• To cancel the alarm time you have set,
press buttons “C” and “D” at the same time,
or press button “C” or “D” to set the alarm
time to the current time.
• The alarm rings at the designated time for
20 seconds. To stop it manually, press any
of the buttons.
■ HOW TO SET THE REGULAR ALARM
REGULAR ALARM
mode mark
B
A
C
D
PM
mark
Hour
Minutes
Alarm mark
Hourly time
signal mark
■ HOW TO USE THE STOPWATCH
• The stopwatch can measure up to 23 hours,
59 minutes and 59 seconds in 1/100 second
increments for the first hour and in second
increments thereafter.
* Even if the STOPWATCH mode is changed
to another while the measurement is in progress,
it continues counting properly. After the
stopwatch is used, however, be sure to reset
it as the battery energy is consumed enormously
to shorten the battery life.
TIMER
mode mark
• The single-time alarm can be set to ring
only once at the designated time. As it
rings, it is automatically disengaged.
• The alarm time can be set in minute increments
starting from the current time.
→
→
MinutesHour
4. Press button “D ” to set the digits. One
digit is advanced with each press of the
button. The digits move quickly by keeping
the button pressed.
5. After all the adjustments are completed,
press button “A” to return to the REGULAR
ALARM mode. A beep sounds for 1 second.
1. Press button “A ” to show the REGULAR
ALARM mode.
2.Press button “A” for 2 to 3 seconds to
show the regular alarm setting display. A
beep sounds for 1 second, and the hour
digits start flashing.
3. Press button “ C” to select the digits to be
adjusted (flashing).
Engagement/disengagement of the
regular alarm and hourly time signal
■ DEMONSTRATION FUNCTION
1. Press button “ D” for 2 to 3 seconds in the
TIME/CALENDAR mode to activate the
demonstration function.
2. The modes and displays are shown for 2
seconds automatically in the following order.
→
→
Calendar
display
Time/calendar
display
Stopwatch
mode
Blank
display
→
Regular
alarm mode
→
→
→
Timer
mode
3. To deactivate the demonstration function,
press any of the buttons. The watch returns
to the TIME/CALENDAR mode.
■ LUMIBRITE WATCH
(dial, hands, buttons, case, bezel,
strap, etc.)
✩ If your watch is a LORUS LUMIBRITE watch,
it has following features.
LORUS LUMIBRITE watches absorb and store
light energy from natural and artificial light sources
and emit light in the dark. They are made of
environmentally friendly material, and therefore,
are harmless to human beings and the environment.
• With a full charge, LORUS LUMIBRITE watches
glow in the dark hours longer than conventional luminous watches of this type. If exposed to a light of more than 500 lux (i.e., the
brightness of a typical office) for approximately
10 minutes, or direct sunlight for 2 minutes,
they will glow for hours.
• Since LORUS LUMIBRITE watches emit the
light they store, the brightness will decrease
gradually over time. The length of time they
will glow may also differ slightly depending
on such factors as the brightness of and distance
from the light source used to charge the watch.
• With each press of button “C” in the REGULAR
ALARM mode, the engagement and disengagement
of the regular alarm and hourly time signal
are made as follows.
1
2
Hourly time
signal mark
Neither engaged
Both engaged
Hourly time signal engaged
Alarm engaged
Alarm mark
3
4
• At the designated time, the alarm rings for
20 seconds and stops. To stop it manually,
press any of the buttons.
• The alarm can be tested by keeping button
“C” pressed in the REGULAR ALARM mode.
Notes:
1. When the time function is displayed in the
24-hour indication, the alarm is also displayed
in the 24-hour indication.
2. When setting the hour digits in the 12-
hour indication, check that AM/PM is properly
set. Only “PM” mark is displayed and
there is no indication for the AM setting.
In the 24-hour indication, “24H” is displayed.
■ ILLUMINATING LIGHT
• When button “ B ” is pressed and released
in any of the modes and displays, the light
illuminates the display for 3 seconds for
easy viewing in the dark. The display remains
illuminated if button “B ” is kept pressed.
• When button “ B” is pressed in the calendar
or blank display of the TIME/CALENDAR
mode, the time/calendar is shown while
the display is illuminated.
■ ViViDiGi
Note: If the alarm is used for more than 10
seconds a day and/or the illuminating
light for more than once (for 3 seconds)
a day, the battery life may be less than
the specified period.
■ BATTERY CHANGE
The miniature lithium batteries SONY SR626SW
for analogue display and SONY SR41W for
digital display,which power your watch should
last approximately 2 years. However, because
they are inserted at the factory, the actual
life of the batteries once in your possession
may be less than the specified period. Be
sure to replace the batteries to prevent any
possible malfunction as soon as they run down.
To replace the batteries, we recommend taking
the watch to a local watch repair shop.
■ CARE OF YOUR LORUS WATCH
• BATTERY
• WATER RESISTANT
B
No
indication
WATER
RESISTANT
WATER
RESISTANT
(50 M/5 BAR)*
WATER
RESISTANT
100 M/
10 BAR or
above
Condition
of use
Accidental
contact with
water, such
as splashes
and rain
Swimming and
taking a
shower
Skin
diving
Scuba
diving
Indication on
the dial/
case back
NO
NO NO NO
YES
YES NO NO
YES NO NO NO
YES YES YES NO
()
*
CAUTION
Do not expose the old battery to
fire or recharge it. Keep it at a
place beyond the reach of children. If a child swallows it, consult
a doctor immediately.
ViViDiGi is a new type of liquid crystal panel that
makes possible various colors and high contrast.
• Excellent light reflection and transmission make
the display bright and clear.
• Various color options are available.
• Either the whole panel or the displayed data
only can be illuminated.
* Features vary in different models.
* If your watch is 200 M/20 BAR, 100 M/10 BAR
or 50 M/5 BAR water resistant, it is so indicated
on the dial/case back.
■ SERVICE
When your LORUS watch requires repair or
servicing, please see the enclosed WARRANTY/
GUARANTEE.
Printed in China
• Do not operate the crown and buttons when
the watch is wet.
• If the watch is exposed to salt water, rinse it in
fresh water and then wipe it thoroughly dry.
Caution:
Leather straps are not water resistant except so
indicated, even if the watch head is water resistant.
• ALLERGIC REACTION
Because the case and band touch the skin
directly, it is important to clean them regularly.
If not, shirt sleeves may be stained and those
with delicate skin may develop a rash. Please
wear the watch with some play to avoid any
possible allergic reaction. If you develop a
rash on your wrist, stop wearing and consult
a physician.
• MAGNETISM
Your watch will not be affected by magnetism generated by household electric appliances.
• SHOCKS AND VIBRATIONS
Your watch may be worn for normal sports
activities, but be careful not to drop it or hit
it on hard surfaces.
• TEMPERATURE
Your watch is preadjusted so that constant
accuracy may be insured at normal temperature.
Loading...
