Longshine LCS-WR5-2214-A User Manual

802.11g Wireless

Broadband Router

User’s Manual

FCC Certifications

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.

IEEE 802.11b or 802.11g operation of this product in the U.S.A. is
firmware-limited to channels 1 through 11.

CE Mark Warning

This equipment complies with the requirements relating to
electromagnetic compatibility, EN 55022 class B for ITE, the
essential protection requirement of Council Directive 89/336/EEC
on the approximation of the laws of the Member States relating to
electromagnetic compatibility.

Company has an on-going policy of upgrading its products and it
may be possible that information in this document is not up-to-date.
Please check with your local distributors for the latest information.
No part of this document can be copied or reproduced in any form
without written consent from the company.

Trademarks:

All trade names and trademarks are the properties of their
respective companies.
Copyright © 2006, All Rights Reserved.

Table of Contents

Unpacking Information············································································· 1
Introduction To Wireless Router······························································ 2

General Description················································································· 2
Key Features ·························································································3
The Front Panel······················································································ 4

LED definition················································································· 4

The Rear Panel······················································································ 5

Power Connection··········································································· 5
Placement (Optional) ·······································································5
Restore Default Button····································································· 6

Installing And Using Wireless Router······················································ 7

Network configuration setup··································································· 7
Computer configuration setup································································· 8

Management ··························································································· 10

Wireless Router configuration setup······················································ 10
Setup Wizard ····················································································· 12
Operation Mode·················································································· 16
Wireless ···························································································· 17

Basic Settings············································································· 17
Advanced Settings······································································ 20

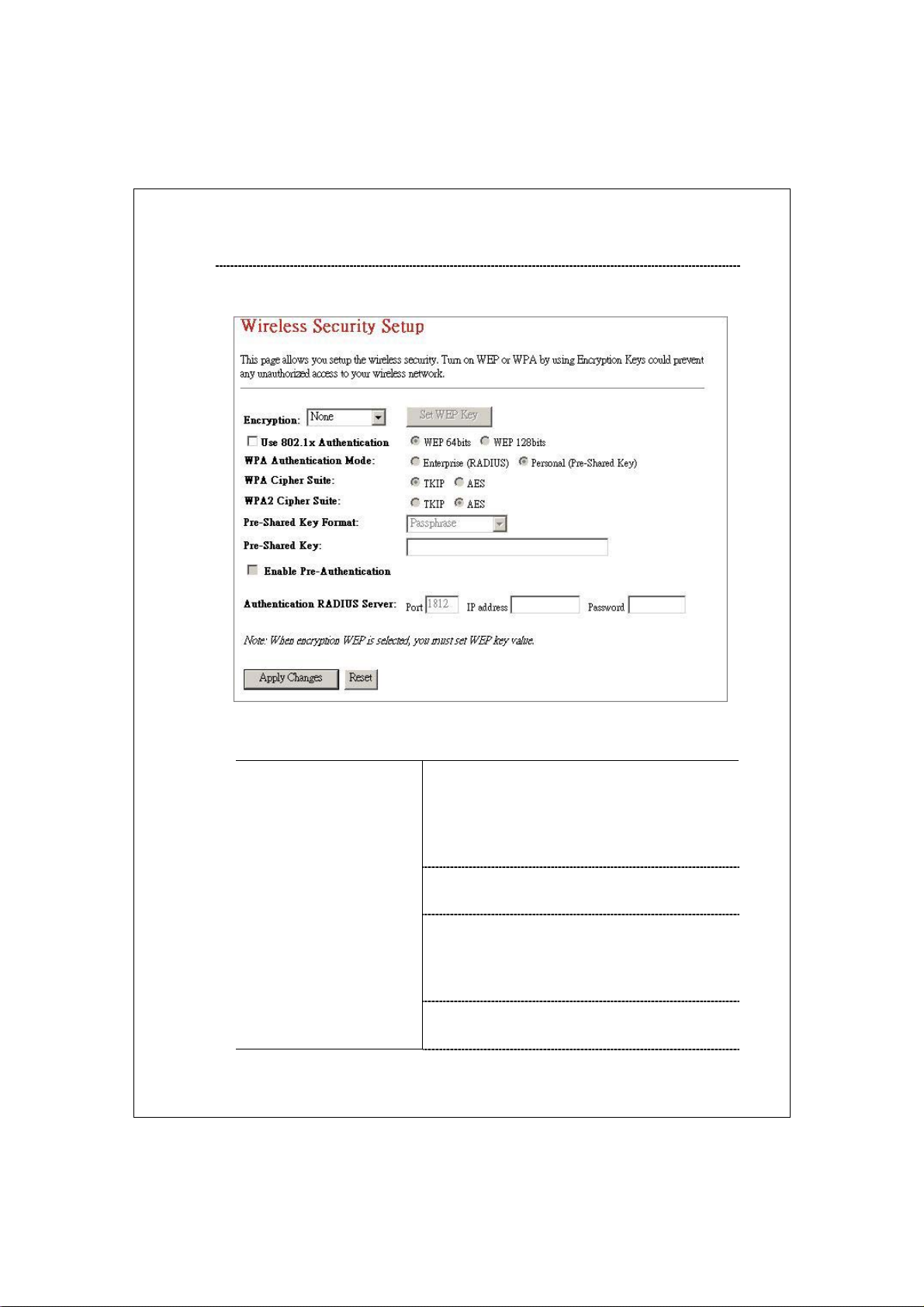

Security·····················································································22

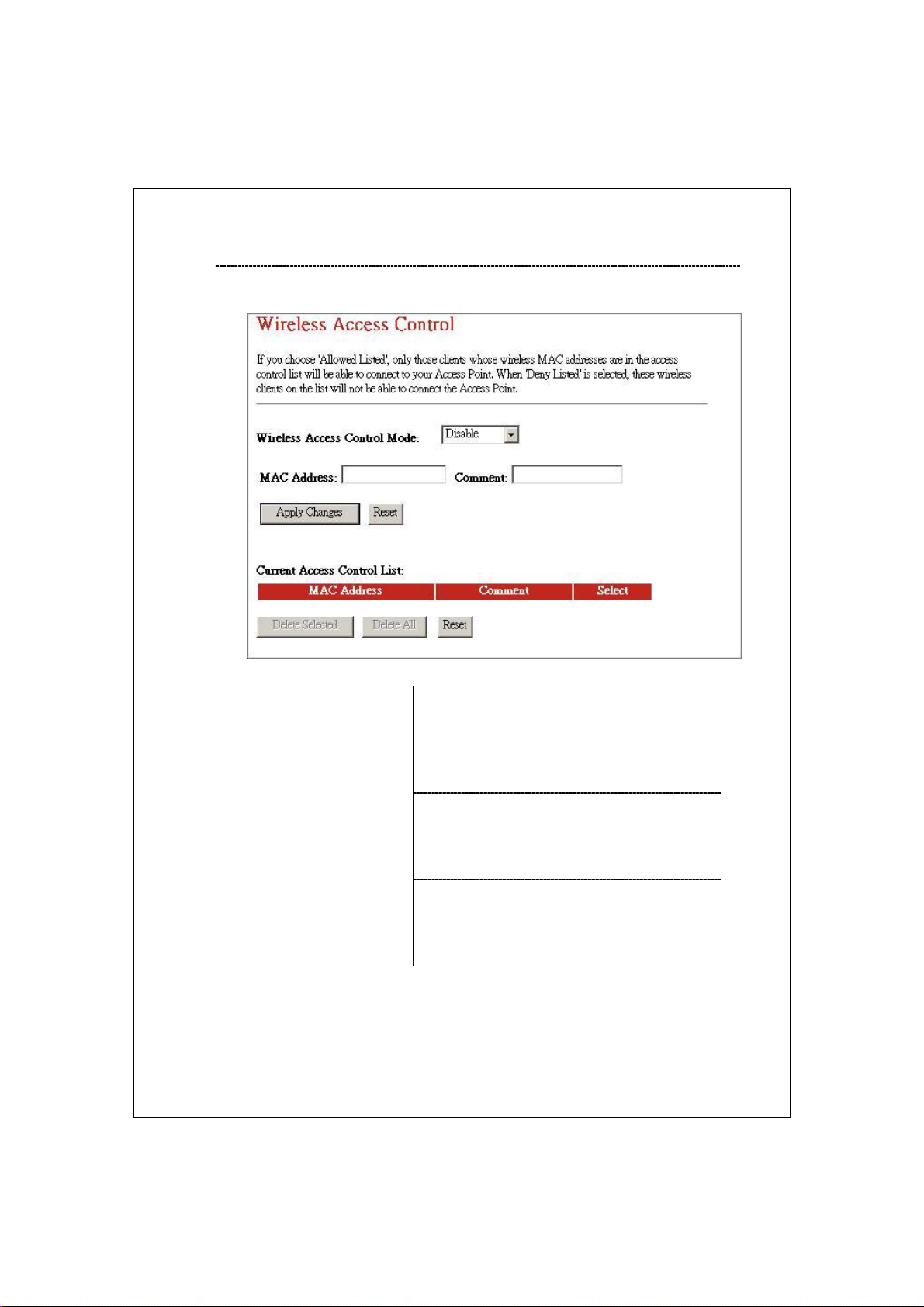

Access Control···········································································24

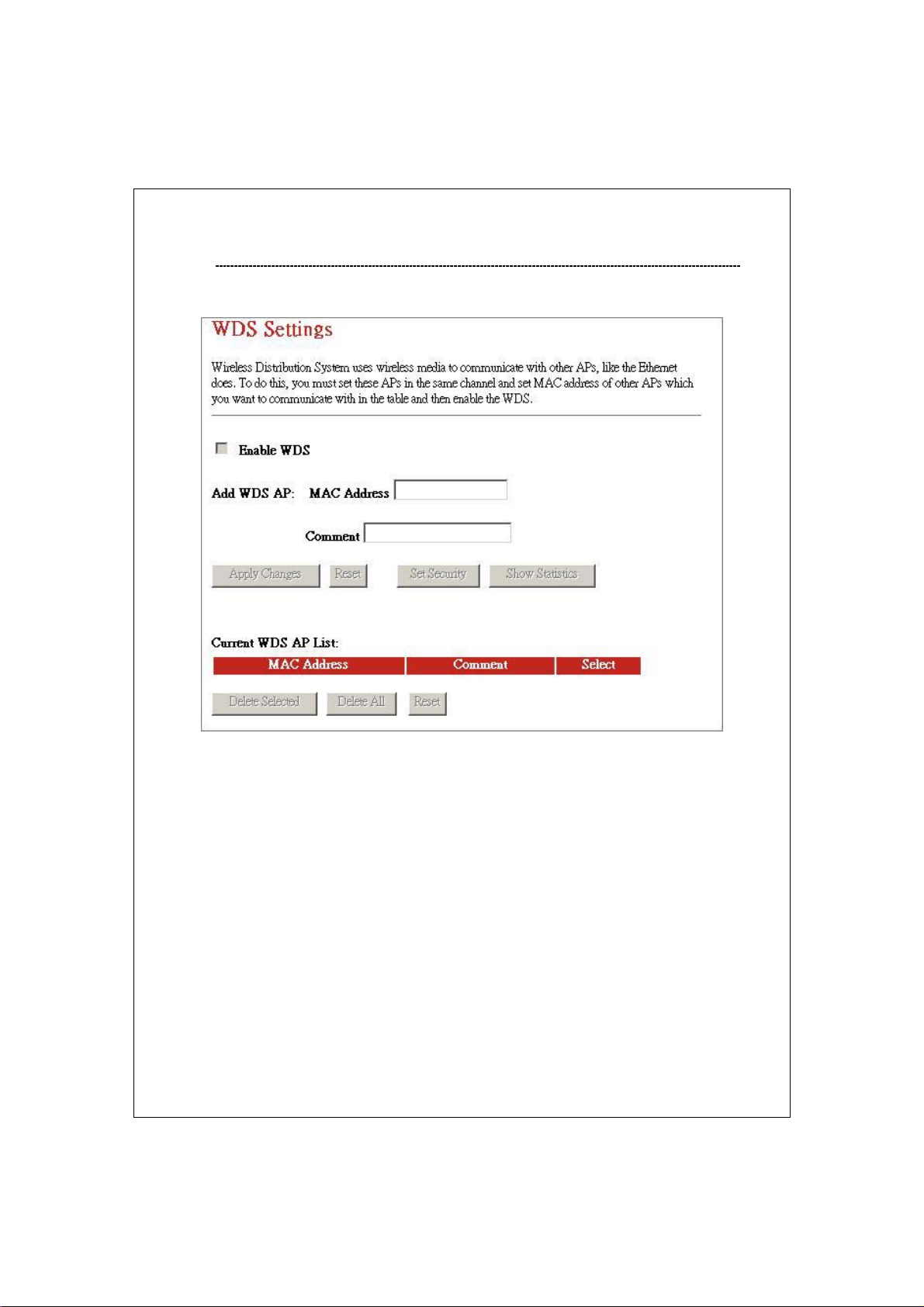

WDS Setting··············································································· 25

TCP/IP Setting····················································································26

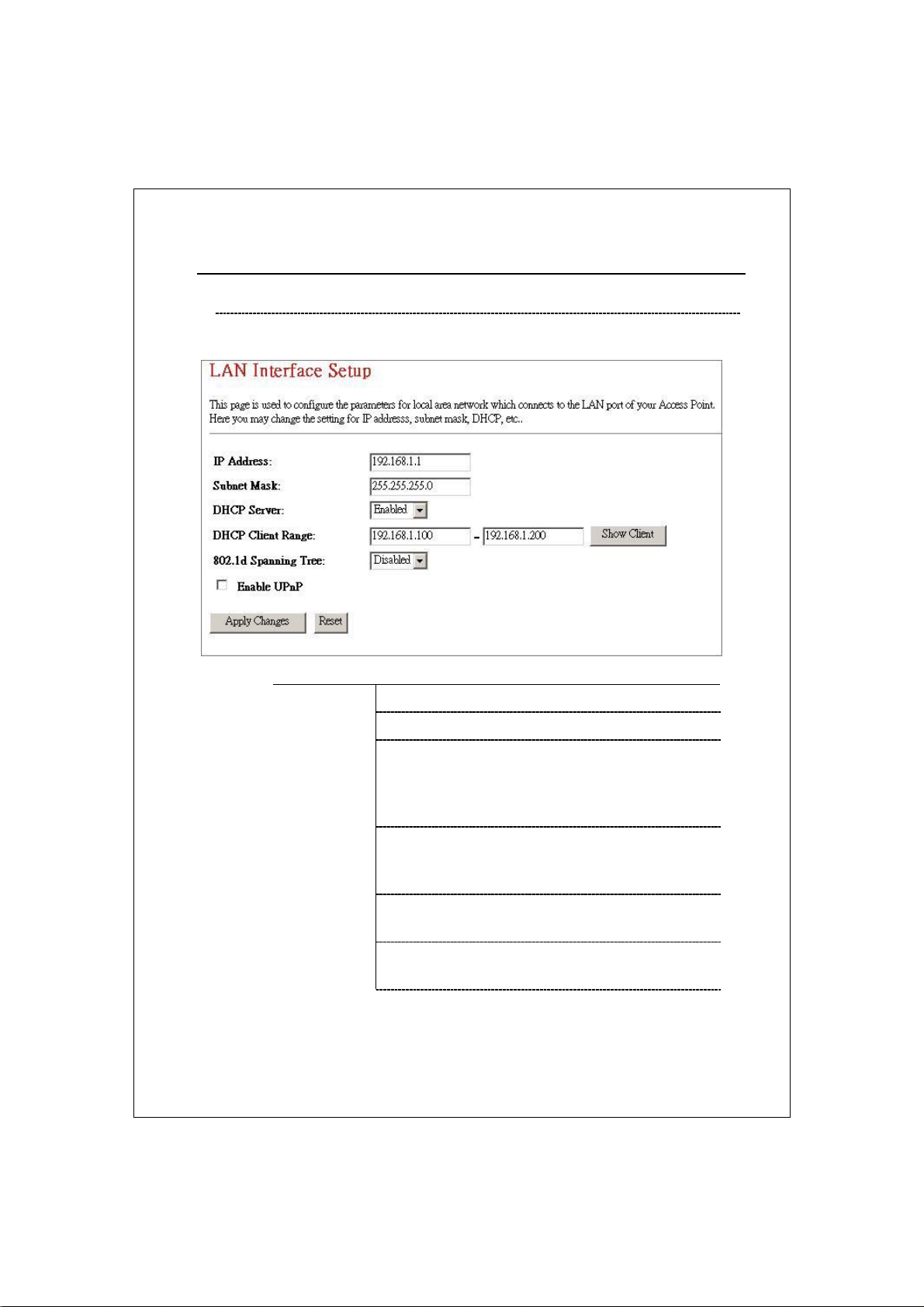

LAN Interface Setup···································································· 26
WAN Interface Setup··································································· 27

Static IP Mode···························································································· 27

Firewall Configuration····································································· 31

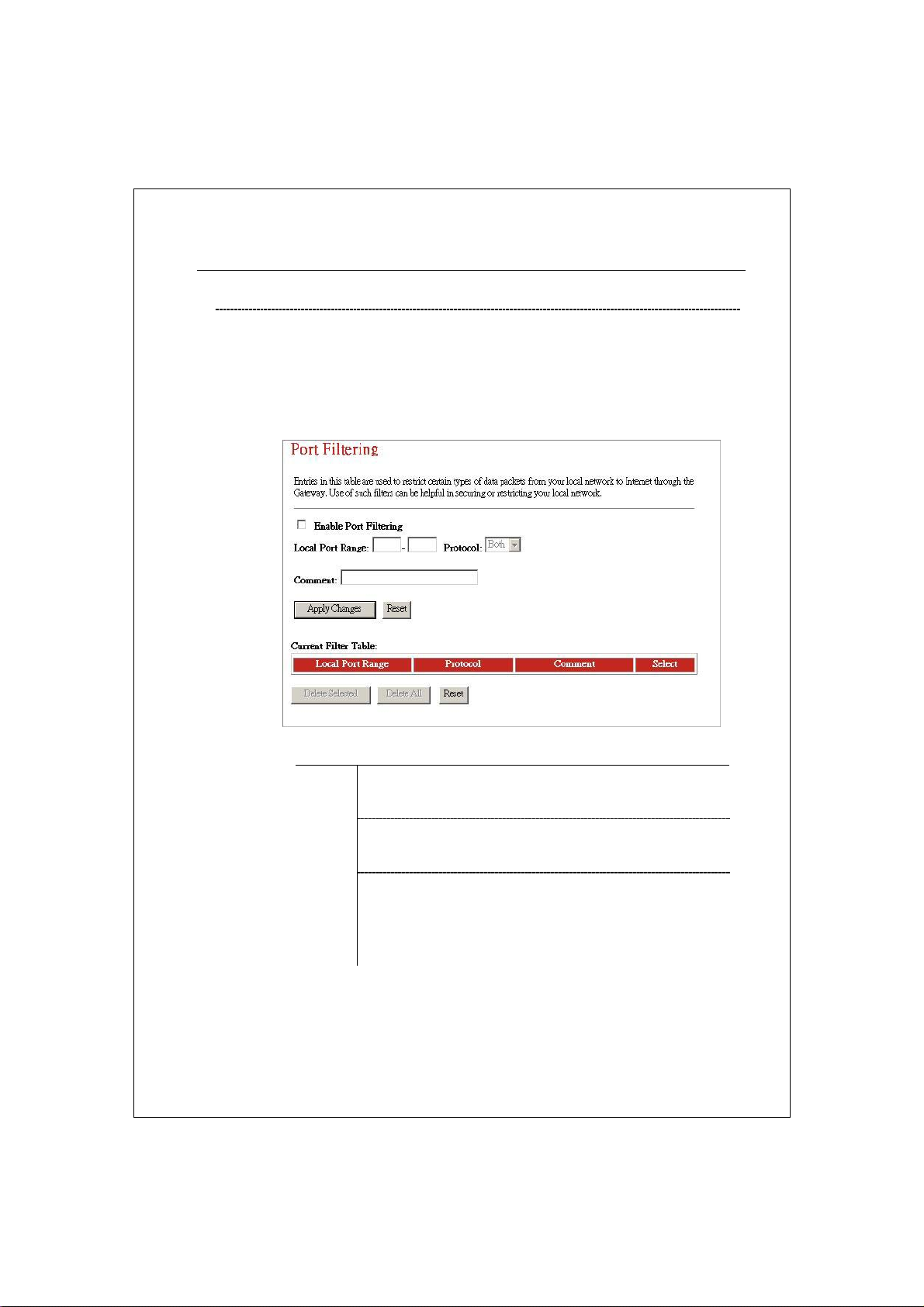

Port Filtering··············································································· 31
IP filtering··················································································· 32
MAC filtering··············································································· 33
Port forwarding··········································································· 34
URL Filtering·············································································· 35
Virtual DMZ················································································ 36

Management······················································································ 37

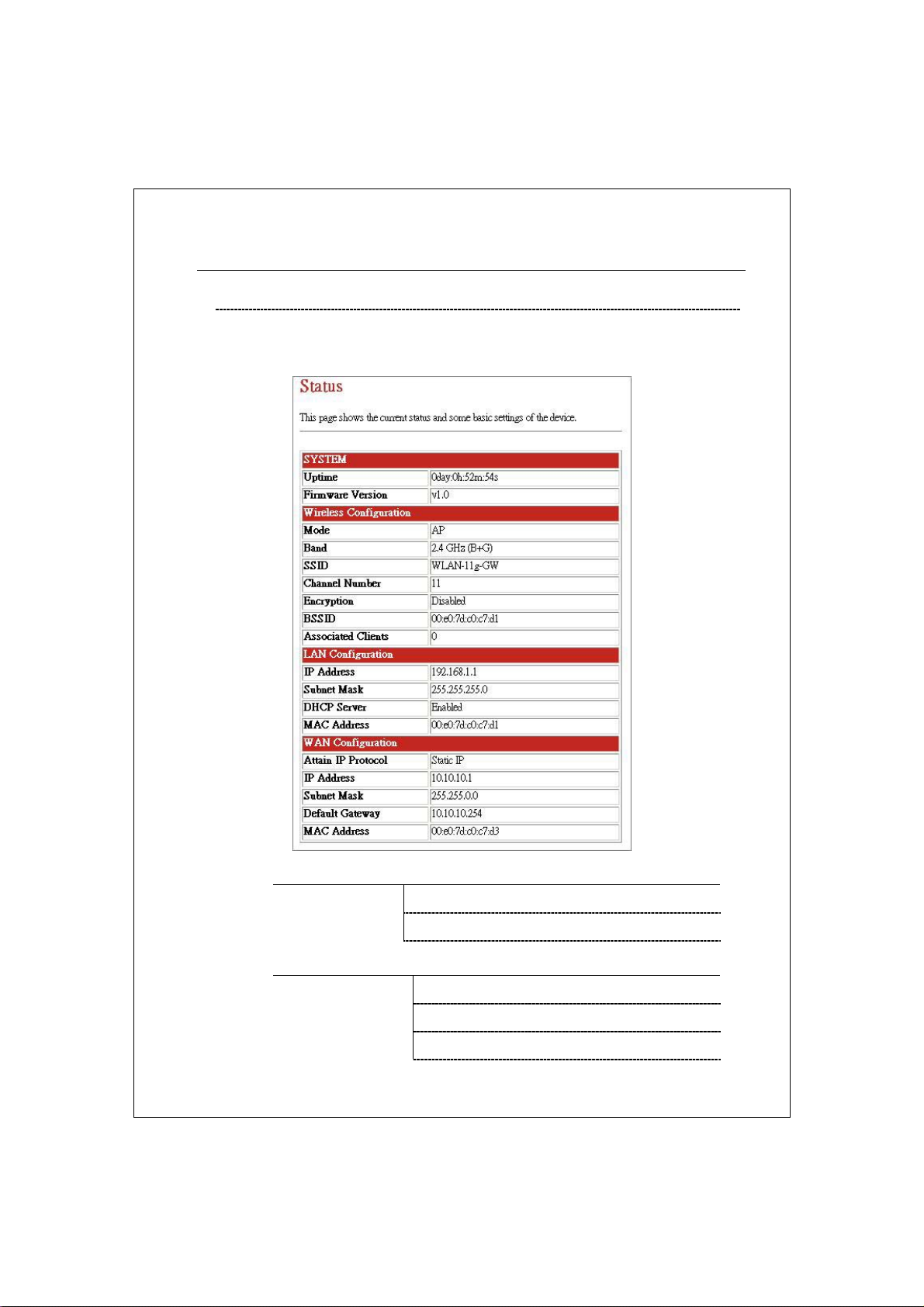

Status························································································ 37
Statistics···················································································· 39
DDNS························································································ 39
Time Zone Setting······································································· 40
System Log················································································ 40
Upgrade Firmware······································································41

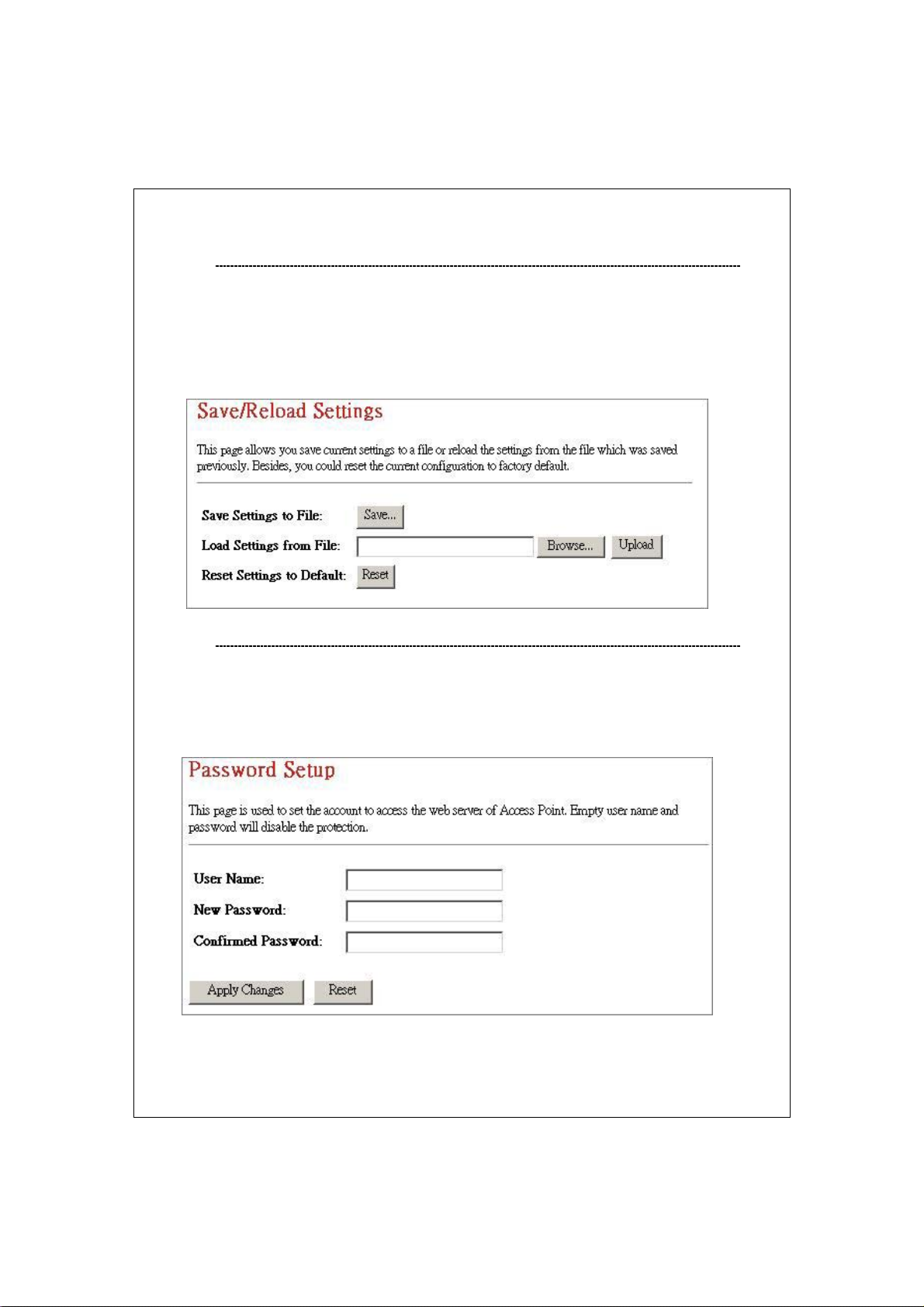

Save and Reload Settings···························································· 42
Password··················································································· 42

Product Specifications ··········································································· 43

Unpacking Information

Thank you for purchasing the product. Before you start, please check all the contents
of this package.

The product package should include the follo wing:

1. One Wireless Router

2. One power adapter

3. One User Manual (CD)

4. One detachable antenna

1

Introduction To Wireless Router

General Description

The Wireless Router built-in with 4-port 10/100Mbps Fast Ether net Switch is
the latest generation of Wireless router product for Home/Office and SOHO users.
This full-feature and self-contained compact Wireless Router will be fully for
broadband access in both of LAN and Wireless environment. This device has
been specifically designed to provide LAN and Wireless users the most
cost-effective method with multiple accesses to the Internet at the cost of a single

public IP address（IP Sharing）and enjoy the true Plug-and-Play installation.
Moreover, the built-in 4-port 10/100Mbps switch lets users plug the network cab le

into the device without buying additional switch.

This device is also an Access Point. It has a built-in wir eless LAN. Users
can connect to Internet using wireless network interfaces anywhere within the
range of its radio transmission. It’s ideal for SOHO users who require inst ant and
convenient access to Internet without the restriction of connecting cables.

The friendly WEB-based graphics interface for setup makes any
inexperienced users soon enter plug-and–play operation. Embedded DHCP
server simplified IP address management and no MIS people needed for daily
technical services. What is more, NAT/firewall is also implemented on this
compact Router Box for protecting whole LAN from outsi de attack.

2

Key Features

The switch provides the following key features:

 Complies with IEEE 802.11b/g wireless standards
 Provides one 802.11b/g wireless Reverse SMA detachable antenna
 High speed transfer data rate up to 54Mbps
 Supports turbo mode for 72Mbps data transfer
 Supports wireless data encryption with 64/128-bit WEP, WPA (TKIP with IEEE

802.1x), WPA2 and AES functions

 Supports system log
 Supports authentication for wireless connectivity based on ESSID
 Provides MAC access control and hidden SSID function
 WDS supported with WEP, TKIP and AES encryption
 Channel : USA 11, Europe 13, Japan 14
 Supports NAT/NAPT IP Sharing
 Supports Static IP, PPPoE, PPTP, & DHCP client
 SPI Anti-DoS Firewall; Virtual DMZ; DNS relay; UPnP
 Provides DHCP server
 Supports ALG for FTP, NetMeeting, DDNS (DynDNS, TZO)
 Supports firmware upgrade function via Web
 Compliant with FCC Part 15.247 for US, ETS 300 328 for Europe
 Flash : 2MB NOR type, SDRAM : 8MB
 Certifications : FCC Class B, CE Mark, VCCI Class B

3

The Front Panel

LED definition

System LEDs

System LED indicators locate on the front panel for showing the operating
status of the whole device.

 PWR (Power) LED

 Status LED

Port LEDs (Wireless)

This indicator lights green when the Wireless Router is receiving power;
otherwise, it is off.

The LED will be dark for a few seconds when the system is started.
After that, the LED will blink periodically to show the Wireless Router
is working normally. If the LED stays green/dark that means the
system failed, you need to contact your agent or try to reboot the
system.

 WLAN LED

I. When system is ready for data transmitting and receiving, it is
II. When the data is transmitting or receiving, it is blinking green.

steady green.

4

Port LEDs (WAN)

Port LED (WAN) indicators locate on the front panel for showing the
operating status of WAN port.

 Act/Link LED

Port LEDs (LAN)

Port LEDs (LAN) indicators locate on the front panel for showing the
operating status of 10/100Mbps Fast Ethernet switching ports.

 Act/Link LED

The Rear Panel

The LED stays light (green) means the port has goo d linkage
to its associated devices.

The LED will blink green when there is traffic transverse the port.

Every port has a Act/Link LED. Steady green (link state) indicates
that the port has good linkage to its associated devices. Flashi ng
green indicates that the port is receiving or transmitting data between
its associated devices.

Power Connection

Plug the circle end of the power adapter firmly into the rear panel of the
Wireless Router, and the other end put into an electric service outlet then the
system is ready.

Placement (Optional)

There are three ways to place the Router. The first way is to place the Router horizontally
on a surface. The second way is to attach the router to the wall. The third way is to stand
the Router vertically on a surface. These options are explained in further detail below.

Desktop Option

1. The Router has one plastic stand that can be divided into two parts.

2. Combine one part of stand with the side of router.

5

3. Do the same with the second part.

4. Place the Router
Wall-mount option

Before attach this router on the wall, you have to finish the desktop option steps first.

1. Select a location with access for cables and a power outlet.

2. Unplug the unit. Place it upside down on a flat surface and mark the two holes for
anchors.

3. Installing the Wall mount anchor (plastic) into the wall with tools such as drill or
hammer.

4. Insert the provided screws in each hole of the stand parts.

5. Attaches the unit to the anchors on the wall.

Stand Option

1. The Router includes two stand parts.

2. Combine two parts into one stand. Combine it with the side of router near the power

port. Push the stand up to snap it into place.

3. Place the Router.

Restore Default Button

1. Push the button for more than 5 seconds and then release it, the
system will return to factory default setting. In the meantime, system
rewrites flash to default value and Status LED halts for a while.
Approximately 60 seconds later, the Status LED blinks green
periodically, now the whole system parameters have returned to
factory default value. If the process has been interrupted by any
reason (power off…), the system will fail. Before performing the

process, ensure a safe operating environment please！

2. To reboot the Router, Press the button for 2-5 seconds and then
release it, and all the setting won’t be erased. Wait for the Router to
complete the reboot, and then you can start to use it.

Warning：Incomplete factory setting recovery procedure will cause the

Wireless Router malfunction！If you are unfortunately in this
situation, do not try to repair it by yourself. Consult your local
distributor for help！

6

Installing And Using Wireless Router

This Chapter provides a step-by-step guide to the installation and configuration
of the Wireless Router. We suggest you go over the whole chapter and then do
more advanced operation.

Network configuration setup

Steps to build up the network:

 Connect the ADSL or Cable modem to the Ethernet WAN port on the back of

the Wireless Router by using the UTP cable.

 Connect the phone line from the wall socket to the line-in port on the ADSL

modem, or the coaxial cable to the line-in port on the Cable modem.

 Plug-in the power adapter to the modem and turn on the power. Install the

Ethernet card into the computer by referring to the User Guide that came with
the card.

 Connect the computer to the Wireless Router by using standard twisted-pair

Ethernet cable from the computer’s Ethernet card to an 10/100Mbps Ethernet
port on the back of the Wireless Router.

 Plug-in the power adapter to the Router and the other side to the wall outlet.

7

Computer configuration setup

In order to communicate with this Wireless Router, you have to configure the IP
addresses of your computer to be compatible wit h the device. The router supports
DHCP server and it is enabled as default. Users that configure your IP address as
“Obtain an IP address automatically” may skip the following IP configuration
instruction.

Note:

1. The default network setting of the device:
IP address: 192.168.1.1
Subnet Mask: 255.255.255.0
DHCP Server: enabled

2. In the following TCP/IP configuration guide, the IP address “192.168.1.2 ” is
assumed to be your IP address if you want to specify IP addresses manually.
Please DO NOT choose 192.168.1.1 for the IP address (192.168.1.1) has been
set as the default IP for this device.

3. The following TCP/IP configuration guide uses windows XP as the presu med
operation system.

Procedures to configure IP addresses for your computer

1. If you are in Classic Start menu view, click StartSettingsControl
PanelNetwork Connections.

If you are in Start menu view, click StartControl Panel Network Connections.

2. Double click “Local Area Connection”

8

3. Choose Internet Protocol (TCP/IP) and click Properties.

4. You may choose “Obtain an IP address automatically”(recommend) to get IP address

automatically or choose “Use the following IP address ” to specify IP addresses manually.
Please click the OK button after your configuration.

9

Management

Wireless Router configuration setup

In order to make the whole network operate successfully, it is necessary to
configure the Wireless Router through your computer has a WEB browser
installed. Please follow up the steps listed below.

1. Double click the Internet WEB browser icon on your desktop screen
(Netscape Communicator 4.0 and Internet Expl orer 3.0 or update version)

2. Type 192.168.1.1 into the URL WEB address location and press Enter.

3. The Username and Password Required window appe ars.

- Enter admin in the User Name location (default value).

- Enter admin in the Password location (default value).

- Click “OK” button

10
