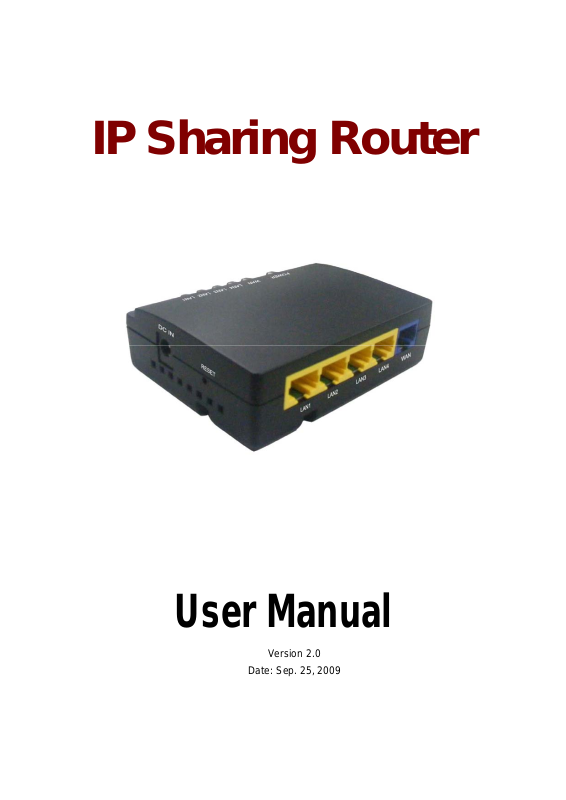

Longshine LCS-IR2114-D User Manual

IP Sharing Router

User Manual

Version 2.0

Date: Sep. 25, 2009

IP Sharing Router

FCC Certifications

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

CE Mark Warning

This equipment complies with the requirements relating to electromagnetic compatibility, EN 5502 2 class B for ITE, the essential protection requirement of Council Directive 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company.

Trademarks:

- 2 -

IP Sharing Router

Content

Unpacking Information................................................................................................................................5

Chapter 1 Introduction.............................................................................................................................6

1.1 General Description......................................................................................................................6

1.2 Key Features ................................................................................................................................6

1.3 The Front Panel............................................................................................................................7

1.4 The Right Panel............................................................................................................................8

1.5 The Rear Panel.............................................................................................................................8

1.6 Connecting this Router to your network........................................................................................9

1.7 Application Scenario .....................................................................................................................9

Chapter 2 Quick Installation Guide........................................................................................................10

2.1 Configure PC..............................................................................................................................10

2.2 Login...........................................................................................................................................14

2.3 Quick Setup................................................................................................................................15

Chapter 3 Configuring the Router .........................................................................................................19

3.1 Admin..........................................................................................................................................19

3.1.1 Management....................................................................................................................19

3.1.2 System Settings...............................................................................................................20

3.1.3 Firmware Upgrade...........................................................................................................21

3.1.4 Configuration....................................................................................................................21

3.1.5 Tools.................................................................................................................................21

3.1.6 Language.........................................................................................................................22

3.1.7 Log Settings.....................................................................................................................22

3.1.8 Logout..............................................................................................................................22

3.2 WAN............................................................................................................................................23

3.3 LAN.............................................................................................................................................32

3.3.1 LAN Settings....................................................................................................................32

3.3.2 DHCP Client List..............................................................................................................33

3.4 NAT.............................................................................................................................................34

3.4.1 Virtual Server...................................................................................................................34

3.4.2 Port Triggering.................................................................................................................35

3.4.3 Port Mapping....................................................................................................................36

3.4.4 Passthrough .....................................................................................................................38

3.4.5 DMZ.................................................................................................................................39

3.5 Firewall .......................................................................................................................................40

3.5.1 Firewall Options...............................................................................................................40

3.5.2 Client Filtering..................................................................................................................41

3.5.3 URL Filtering....................................................................................................................42

3.5.4 MAC Filtering...................................................................................................................42

3.6 Routing .......................................................................................................................................44

- 3 -

IP Sharing Router

3.6.1 Routing Table...................................................................................................................44

3.6.2 Static Routing...................................................................................................................44

3.6.3 Dynamic Routing..............................................................................................................45

3.7 QoS.............................................................................................................................................47

3.8 Misc ............................................................................................................................................48

3.8.1 UPnP................................................................................................................................48

3.8.2 DDNS...............................................................................................................................49

3.9 Status..........................................................................................................................................50

3.9.1 Status...............................................................................................................................50

3.9.2 Log...................................................................................................................................50

Appendix A: Specifications .......................................................................................................................52

Appendix B: Glossary...............................................................................................................................53

- 4 -

IP Sharing Router

Unpacking Information

Thank you for purchasing the product. Before you start, please check all the contents of this package. The product package should include the following:

1. One IP Sharing Router

2. One Power Adapter

3. One resource CD, including: User’s Manual

Note:

Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor.

Conventions

The Router mentioned in this guide stands for IP Sharing Router without any explanation.

- 5 -

IP Sharing Router

Chapter 1 Introduction

With the excellent circuit design and high quality production, we guarantee its high performance, great stability and easy to use. This product is a complete plug-and-play solution. With standard Ethernet interface, it can be directly connected to any 10M/100M Ethernet devices, support Auto-MDI/MDIX.

1.1 General Description

High Performance

It provides the most cost-effective solution for IP sharing router. Among these Ethernet ports, four ports are used as LAN ports and one as WAN ports. Its hardware based IGMP snooping can support the real-time multimedia application without the intervention of CPU. The switch engine provides rich functions to meet the requirement of future applications,

Greater Range

With multiple functions, high-reliability, and high-security, it widely meets enterprise, organ, Internet cafe, broadband community, and school networks new and changing requirements. Additionally, it provides a friendly configuration interface for easy using and perfect setting up.

Strong Security Function

It features much more advanced security functions, such as NAT, Firewall. Moreover, it provides strong attack and defense function and supports internal and external attack precaution. It is especially effective in the prevention of DoS Attacks----ICMP Flood, UDP Flood, SYN Flood, Ping of Death, Land Attack etc.

1.2 Key Features

Provides 4*10/100 Mbps Ethernet port for LAN, 1*10/100 Mbps Ethernet port for WAN Support 1K MAC addresses table Support Auto MDI/MDIX Provide 512 KB Flash, 2 MB SDRAM UI Language provides English and Traditional Chinese. WAN support Static IP, DHCP client, PPPoE, PPTP,L2TP, BigPond Support Virtual Server, DMZ, DoS, UPnP, DDNS, QoS. Support IP filter, MAC Filter, URL filter. Support Static Routing, Dynamic Routing. Support VPN Passthrough, Netmeeting Passthrough. EMI Certification : FCC, CE, VCCI Class B

- 6 -

IP Sharing Router

1.3 The Front Panel

The front panel of IP Sharing Router includes one power indicator and five function indicators, as explained in the following chart.

Name Status Indication

On Power On

Power

Off Power Off

Off

WAN /

LAN (1~5)

Blinking Sending or receiving data over corresponding port

There is no device linked to the corresponding port or the connection is dropping off.

There are devices linked to the corresponding ports but no data transmitted or received.

- 7 -

IP Sharing Router

1.4 The Right Panel

DC IN

Plug the circle end of the power adapter firmly into the rear panel of the Router, and the other end put into an electric service outlet then the system is ready.

RESET

Push the button for more than 5 seconds and then release it, the system will reset to factory default setting. In the meantime, system rewrites flash to default value. Approximately 15 seconds later, the whole system parameters have reset to factory default value. If the process has been interrupted by any reason (power off), the system will fail. Before performing the process, ensure a safe operating environment please!

1.5 The Rear Panel

z LAN(1~4): Through these ports, you can connect the Router to your PCs and the other Ethernet

network devices.

z WAN: This WAN port is where you will connect the cable/DSL Modem, or Ethernet

- 8 -

IP Sharing Router

1.6 Connecting this Router to your network

Before you install the router, you should connect your PC to the Internet through your broadband service successfully. If there is any problem, please contact with your ISP for help. After that, please install the router according to the following steps. Don’t forget to pull out the power plug and keep your hands dry.

1. Connect the PC(s) and all Switched/Hubs on your LAN to the LAN Ports on the router.

2. Connect the DSL/Cable modem to the WAN port on the router.

3. Connect the AC power adapter to the AC power socket on the router, and the other end into an

electrical outlet. The router will start to work automatically.

4. Power on your PC(s) and Cable/DSL modem.

Note:

Do not use this product near water , for example, in a wet basement or neat a swimming pool. Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning

1.7 Application Scenario

- 9 -

IP Sharing Router

Chapter 2 Quick Installation Guide

After connecting the router into your network, you should configure it. This chapter describes how to configure the basic functions of your router. These procedures only take you a few minutes. You can access the internet via the router immediately after it has been successfully configured.

2.1 Configure PC

In order to communicate with this Router, you have to configure the IP addresses of your computer to make it compatible with the device.

Note: The router supports DHCP server and it is enabled as default. Users that configure your IP

address as “Obtain an IP address automatically” may skip the following IP configuration instruction. The default network setting of the device:

IP address: 192.168.1.1 Subnet Mask: 255.255.255.0 DHCP Server: enable

In the following configuration guide, the IP address “192.168.1.2” is assumed to be your IP address if you want to specify IP addresses manually. Please DO NOT choose “192.168.1.1” as the IP address. For the IP address “192.168.1.1“ has been set as the default IP for this device. The following configuration guide uses windows XP as the presumed operation system.

Procedures to configure IP addresses for your computer

1. If you are in Classic Start menu view, click Start > Settings > Network Connections.

If you are in Start menu view, click Start > Control Panel > Network Connections.

- 10 -

IP Sharing Router

2. Right-click on Local Area Connection item and click on Properties.

3. Choose Internet Protocol (TCP/IP) and click Properties.

- 11 -

IP Sharing Router

4. You may choose “Obtain an IP address automatically” (recommend) to get IP address automatically

or choose “Use the following IP address” to specify IP addresses manually. Please click the OK button after your configuration.

Note:

You can configure the PC to get an IP address manually, select “Obtain an IP address automatically” and “Obtain DNS server address automatically” in the screen above, For Windows 98 OS or earlier, the PC and router may need to be restarted,

Now, you can run the Ping command in the command prompt to verify the network connection. Please click the Start menu on your desktop. Select run tab, type cmd in the field, and then type ping

192.168.1.1 on the next screen, and then press Enter. If the result displayed id similar to the screen below, the connection between your PC and the Router has been established.

- 12 -

IP Sharing Router

If the result displayed is similar to the screen shown below, it means that your PC has not connected to the Router.

You can click it follow the steps below:

Note:

Is the connection between your PC and the Router correct? The LEDs of LAN port which you link to the device and the LEDs on your PC’s adapter should be lit.

Is the TCP/IP configuration for your PC correct? If the Router’s IP address is 192.168.1.1., you PC’s IP address must be within the range of

192.168.1.2~192.168.1.254, the gateway must be 192.168.1.1.

- 13 -

IP Sharing Router

2.2 Login

Once your host PC is properly configured, please proceed as follows to use the Web-based Utility:

1. Open the Internet WEB browser.

2. Type 192.168.1.1 into the URL WEB address location and press Enter.

3. The Login window appears.

- Enter admin in the User Name location (default value).

- Enter admin in the Password location (default value).

- Click OK button.

Finally, you access to the Quick Setup screen, then please follow the steps below to complete the Quick Setup.

- 14 -

IP Sharing Router

2.3 Quick Setup

Select the Quick Setup tab on the middle of the main menu and the “Wizard” screen will appear.

1. Host Settings

Enter the host name, select “Time Zone / Daylight Saving”, then click “Next” button

2. WAN Mode Specify the WAN connection type required by your ISP, please select your WAN connection “Auto Detect / Manual Select”

(1) Auto Detect

In this mode, you may only click “Detect” to get the detect result.

(2) Manual Select

In this mode, the router supports six popular ways to connect to Internet. Please select one compatible with your ISP.

- 15 -

IP Sharing Router

A. If you choose “Dynamic IP Address”, the router will automatically receive the IP parameters from your ISP without needing to enter any parameters. You will see the screen as the below, select the checkbox of MAC Address

B. If you choose “WAN Static IP”, you should enter the detailed IP information. Click the “Next” button

C. If you choose “PPPoE”, you will see the screen as the following figure, enter the “User Name & Password & Retype password & Service Name & MTU & Maximum Idle Time”, and then click the “Next”

- 16 -
