Longshine LCS-6321P User Manual

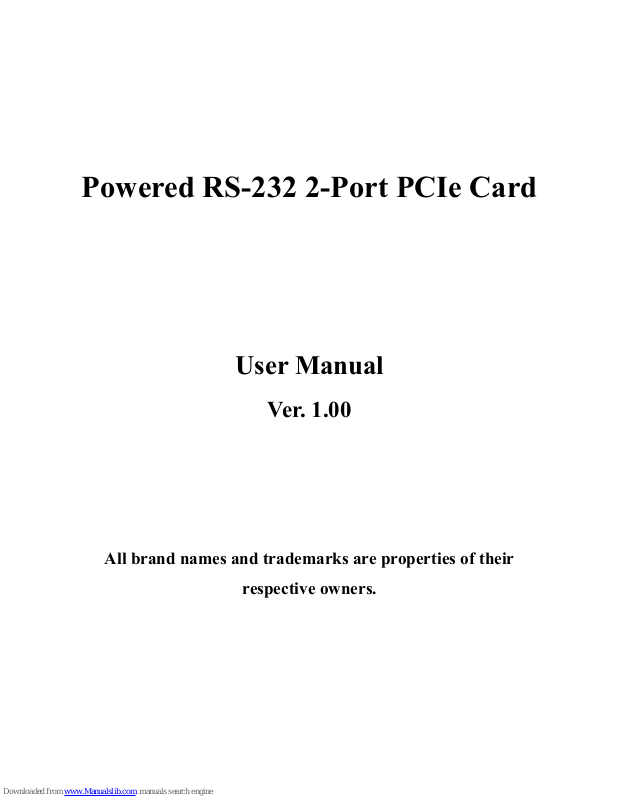

Powered RS-232 2-Port PCIe Card

User Manual

Ver. 1.00

All brand names and trademarks are properties of their

respective owners.

MN2000000197 Page 2

Contents:

Chapter 1: Introduction ...................................................... 3

1.1 Product Introduction .................................................... 3

1.2 Features ........................................................................ 4

1.3 System Requirements .................................................. 4

1.4 Package Contents ......................................................... 5

Chapter 2: Getting Started ................................................. 5

2.1 Hardware Installation .................................................. 5

2.2 Jumper Settings............................................................ 6

2.3 Driver Installation ........................................................ 9

2.3.1 Installation for Windows XP/Vista/7 .................... 9

2.3.2 Installation for Linux 2.4.x/2.6.x ........................ 10

2.3.3 Installation for Windows CE............................... 11

MN2000000197 Page 3

Chapter 1: Introduction

1.1 Product Introduction

RS-232 I/O series, a line of PCI Express Multi-port Serial

Communication Board, is designed to meet PCI Express Base

Specification Ver1.1 (Compliable with PCI Express General 2

Specification). It can be installed in virtually any available PC system

and compatible with all major operating systems. Users do not need to

manually set jumpers to configure I/O addresses and IRQ locations.

Besides this board supports 5VDC or 12DV of power from each serial

port via 1/4/8/9 pin output. It’s convenient for users connecting serial

devices without addition external power supply.

This board offer independent serial ports for connecting terminals,

modems, printers, scanners, cash registers, bar code readers, keypads,

numeric displays, electrical scales, data acquisition equipment, and

other serial devices for the PC and compatible systems. This board

offers a reliable and high performance solution for serial multi-port

communications.

MN2000000197 Page 4

1.2 Features

 Compliant with PCI Express Base Specification 1.1



Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector

keys

 Support 2 x UART serial ports

 Built-in 16C950 compatible UART

 128-bype deep transmit/receive FIFOs

 Data transfer rate up to 230400bps

 Optional RS-232 signal or power output to serial device

 Provides 5VDC or 12VDC power output via pin 1/4/8/9

 ±15KV ESD protection on all signal pins

 Plug-n-Play, I/O address and IRQ assigned by BIOS

 Support Windows XP/Vista/7, Linux, Window CE

1.3 System Requirements

 Windows® XP/Vista/7 (32/64 bit), Linux, Windows CE

 One available PCI Express slot
