Longshine LCS-6021 User Manual

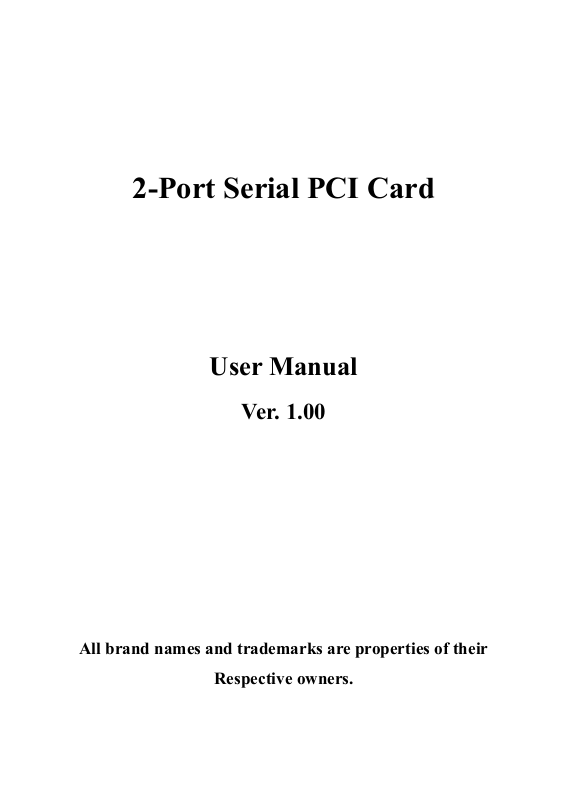

2-Port Serial PCI Card

User Manual

Ver. 1.00

All brand names and trademarks are properties of their

Respective owners.

Features and Benefits

Features z Compliant with PCI Local Bus Specification,

Revision 2.3

z Supports 2 x UART serial ports

z Easy Plug and Play

z Automatically selects IRQ & I/O address

z Built-in 16C450/550 compatible UART

z On chip 256 byte FIFOs in transmit and receive

path of each serial port

z Serial data transfer rate up to 115200bps

Bus z PCI 32-bit

Connectors z 2 x DB9 male serial connectors

System Requirements

z Windows® 2000, XP/2003 32/64 bit, Vista 32/64 bit

z Available PCI slot

MN2000000139 Page2

Package Contents

z 1 x 2-Port Serial PCI Card

z 1 x Driver CD

z 1 x User’s Manual

Hardware Installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCI slot.

4. To install the card, carefully align the card’s bus connector with

the selected PCI slot on the motherboard. Push the board down

firmly.

5. Replace the slot bracket’s holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

Driver Installation

For Windows® 2000/XP/Server 2003

1. Don’t insert the PCI card into PCI slot.

2. At the Windows desktop click Start, then Run.

3. Type D:\PCI_IO\MCS9865\XP\PciSetup.exe, then click OK.

MN2000000139 Page3

4. Press “Install” button to install the drivers.

5. Click “Exit” button to complete the driver installation.

6. Shutdown the PC.

7. Place the PCI card into PCI slot and then power on the system.

8. Once the system gets booted the Windows will automatically start

installing the device driver software.

For Windows® XP-x64/Server 2003-x64

1. Don’t insert the PCI card into PCI slot.

2. Type D:\PCI_IO\MCS9865\XP64\PCISetup.exe, then click OK.

3. Press “Install” button to install the drivers.

4. Click “Exit” button to complete the driver installation.

5. Shutdown the PC.

6. Place the PCI card into the PCI slot then power on the system.

7. Once the system gets booted the Windows will automatically start

installing the device driver software.

For Windows® Vista

1. Don’t insert the PCI card into PCI slot.

2. Type D:\PCI_IO\MCS9865\Vista32\PciSetup.exe, then click

MN2000000139 Page4

OK.

3. Press “Install” button to install the drivers.

4. Click “Exit” button to complete the driver installation.

5. Shutdown the PC.

6. Place the PCI card into PCI slot and then power on the system.

7. Once the system gets booted the Windows will automatically start

installing the device driver software.

For Windows® Vista-x64

1. Don’t insert the PCI card into PCI slot.

2. Type D:\PCI_IO\MCS9865\Vista64\PCISetup.exe, then click

OK.

3. Press “Install” button to install the drivers.

4. Click “Exit” button to complete the driver installation.

5. Shutdown the PC.

6. Place the PCI card into PCI slot and then power on the system.

7. Once the system gets booted the Windows will automatically start

installing the device driver software.

MN2000000139 Page5

To Verify Windows® Driver Installation

Click on the Device Manager tab in System Properties, which you

access from the Windows Control Panel. You should see two

High-Speed PCI Serial Port … installed under Ports (COM & LPT)

item.
