LOGITECH K810 User Manual [en, fr, it, de]

Logitech® Bluetooth® Illuminated Keyboard K810

Setup Guide

Logitech Bluetooth Illuminated Keyboard K810

English. . . . . . . . . . . . . . . . . . 3

Deutsch . . . . . . . . . . . . . . . . 13

Français . . . . . . . . . . . . . . . . 23

Italiano. . . . . . . . . . . . . . . . . 33

www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Know your product

1 2 4

75 6 8

Logitech Bluetooth Illuminated Keyboard K810

1. Bluetooth® status lights

2. Bluetooth keys

3. Function keys

4. Battery status light

5. On/O switch

6. Bluetooth connect button

7. Micro-USB port

8. Micro-USB charging cable

English 3

Logitech Bluetooth Illuminated Keyboard K810

Set up your product

Pair your ﬁrst device

1. Turn on the Bluetooth keyboard.

2. Press the Bluetooth connect button.

The lights above the Bluetooth keys blink blue.

3. Press a Bluetooth key to assign your ﬁrst device to that key:

• The light above the selected key

continues to blink blue.

• The Bluetooth keyboard is

discoverable for 15 minutes.

4 English

Logitech Bluetooth Illuminated Keyboard K810

4. Complete Bluetooth pairing on your device:

Windows® 7 and 8: a. Go to Control Panel >

Devices and Printers.

b. Click “Add a device.” c. Choose “Logitech K810”

from the device list.

d. Click “Next,” and follow the on-screen

instructions.

Apple iOS® (iPad® or iPhone®): a. In Settings, choose General

> Bluetooth, and then turn on Bluetooth.

b. Choose “Logitech K810” from

the Devices menu.

The Bluetooth keyboard and your device are now paired. The light above the Bluetooth key you have selected turns blue for 30 seconds.

For Windows, to customize the function keys and to specify backlight settings, download and install software at www.logitech.com/support/k810.

Android® a. In Settings, choose Wireless

and network > Bluetooth settings, and then turn on Bluetooth.

b. Choose “Logitech K810” from

“Bluetooth devices.”

Note: If your mobile device requests a PIN, enter the code using the Bluetooth keyboard and not the virtual keyboard on your mobile device.

English 5

Logitech Bluetooth Illuminated Keyboard K810

Pair or reassign a Bluetooth key to another device

Pair up to three compatible devices with the Bluetooth keyboard.

1. Make sure the keyboard is on.

2. Press the Bluetooth connect button.

The lights above the Bluetooth keys rapidly blink blue.

3. Press a Bluetooth key to assign your device to that key. For example, if you already paired a device to Bluetooth key 1, press the Bluetooth key 2.

• The light above the selected key

continues to blink blue.

• The keyboard is discoverable

for 3 minutes.

4. Go to “Pair your ﬁrst device” and follow step 4 to complete Bluetooth pairing.

Note: After you press the Bluetooth connect button, the lights above the Bluetooth keys blink blue. All three Bluetooth keys can be assigned or reassigned, and the Bluetooth keyboard is discoverable for 3 minutes.

6 English

Switching among paired devices

Logitech Bluetooth Illuminated Keyboard K810

To select a paired device:

• Press the Bluetooth key (1, 2, or 3) associated with it.

• The light above the selected key blinks blue, indicating the Bluetooth keyboard is connecting.

• The light turns solid blue for 5 seconds, indicating the connection has been made.

• For example, if a device is paired with the Bluetooth 2 key, press that key to use the device with the Bluetooth keyboard.

Note: Only one device can be active at a time.

English 7

Logitech Bluetooth Illuminated Keyboard K810

Charge the batteries

A three-hour charge provides up to 10 days of use when you type about two hours a day with the backlight on, or about one year without backlight. You can use the Bluetooth keyboard while it charges.

To check battery power and to charge the keyboard, do the following:

1. Turn on the Bluetooth keyboard.

• Battery Status light ﬂashes green:

the battery has an adequate charge.

• Battery Status light ﬂashes red:

recharge the battery. Go to step 2.

2. Connect the Bluetooth keyboard to a computer using the Micro-USB charging cable. The Battery Status light will pulse green. Charge for 1 to 3 hours, or until the Battery Status light turns o.

Note: If the battery power is critically low, the keyboard backlight is disabled and

USB

the battery status light will blink red

8 English

Visit Product Central

There’s more information and support online for your product. Take a moment to visit Product Central to learn more about your new Bluetooth keyboard.

Browse online articles for setup help, usage tips, or information about additional features. If your Bluetooth keyboard has optional software, learn about its beneﬁts and how it can help you customize your product.

Connect with other users in our Community Forums to get advice, ask questions, and share solutions.

Logitech Bluetooth Illuminated Keyboard K810

At Product Central, you’ll ﬁnd a wide selection of content

• Tutorials

• Troubleshooting

• Support community

• Software downloads

• Online documentation

• Warranty information

• Spare parts (when available)

Go to www.logitech.com/support/k810

English 9

Logitech Bluetooth Illuminated Keyboard K810

Use your product

1 2 3 7654 8 9

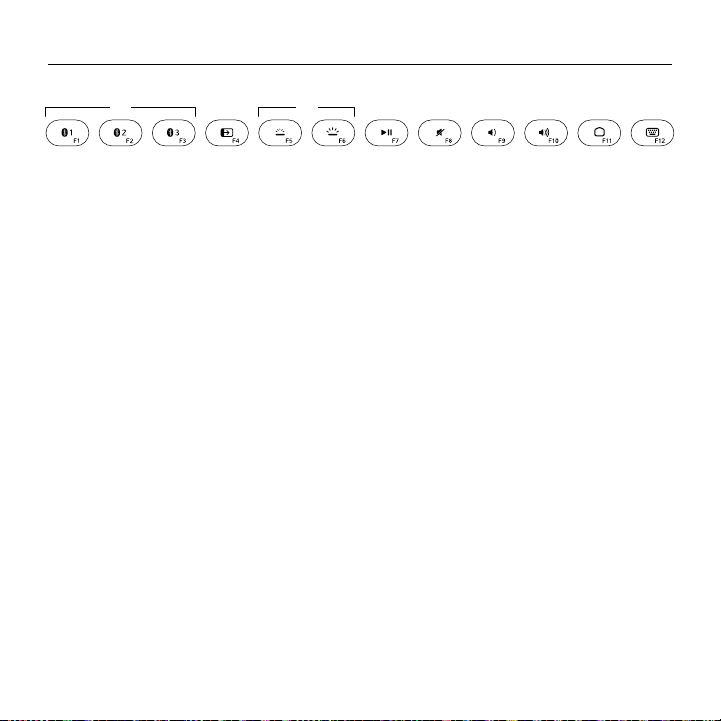

Function and media keys

1. Bluetooth keys 1, 2 and 3 Pair up to three compatible devices.

2. Application switch Cycles through open apps.

3. Decrease (F5) and Increase (F6) keyboard backlight intensity

4. Play/Pause

F-keys: F1 to F12 To use in Windows, press and hold the Fn key, and then press an F-key.

Customizable with optional software. See “Software for Windows.”

5. Mute

6. Volume down

7. Volume up

8. Home

9. Multifunction key

Calculator Windows only Show/Hide virtual keyboard iOS only

10 English

Software for Windows

Download and install the Logitech Software for F-key functionality and customization; also specify backlight settings. Go to www.logitech.com/support/k810

Keyboard backlight

Keyboard sensors detect your hands, turning the backlight on and o. The backlight adjusts automatically to the level of your room light. Bright light and low battery power cause the backlight to turn o, which helps conserve battery power. In bright light, the F5 and F6 keys are disabled.

Automatic backlight control turns o when you use the F5 or F6 keys to adjust backlight intensity. You can restore automatic backlight control by turning the keyboard o then on. If the keyboard is idle for two hours or more, automatic backlight control is restored automatically.

What do you think?

Please take a minute to tell us.

Thank you for purchasing our product.

www.logitech.com/ithink

Logitech Bluetooth Illuminated Keyboard K810

Troubleshooting

Keyboard not working

• Slide the On/O switch to O then to On.

• If the Battery Status light ﬂashes red, recharge the batteries. For more information, see “Charge the batteries.”

• Go to Bluetooth settings on your device to check if “Logitech K810” is present. If it is, remove it. Then follow steps 2–4 in “Pair your ﬁrst device” to redo Bluetooth pairing. If you’re using custom Bluetooth hardware and software, refer to your product documentation to resolve any Bluetooth issues.

English 11

Logitech Bluetooth Illuminated Keyboard K810

Battery disposal at product end of life

1 2

5 6

1. On keyboard bottom, pry o cover and remove 4 screws.

2. On keyboard top, pry o cover surrounding F-keys and remove 5 screws.

3. Separate top and bottom cases.

4. Remove 5 screws securing circuit board.

5. On bottom of circuit board,

remove battery cable. Remove battery from bottom case.

12 English

6. Dispose of battery and product according to local laws.

Produkt auf einen Blick

1 2 4

75 6 8

Logitech Bluetooth Illuminated Keyboard K810

1. Bluetooth®-Anzeige

2. Bluetooth-Tasten

3. Funktionstasten

4. Akkustandsanzeige

5. Ein-/Ausschalter

6. Bluetooth-Verbindungstaste

7. Mikro-USB-Anschluss

8. Mikro-USB-Ladekabel

Deutsch 13

Logitech Bluetooth Illuminated Keyboard K810

Einrichtung des Produkts

Pairen des ersten Geräts

1. Schalten Sie die Bluetooth-Tastatur ein.

2. Drücken Sie die Bluetooth-

Verbindungstaste. Die Lämpchen über den Bluetooth-Tasten blinken blau.

3. Drücken Sie eine Bluetooth-Taste, um dieser das erste Gerät zuzuweisen:

• Das Lämpchen über der ausgewählten

Taste blinkt weiterhin blau.

• Die Bluetooth-Tastatur ist für

15 Minuten erkennbar.

14 Deutsch
