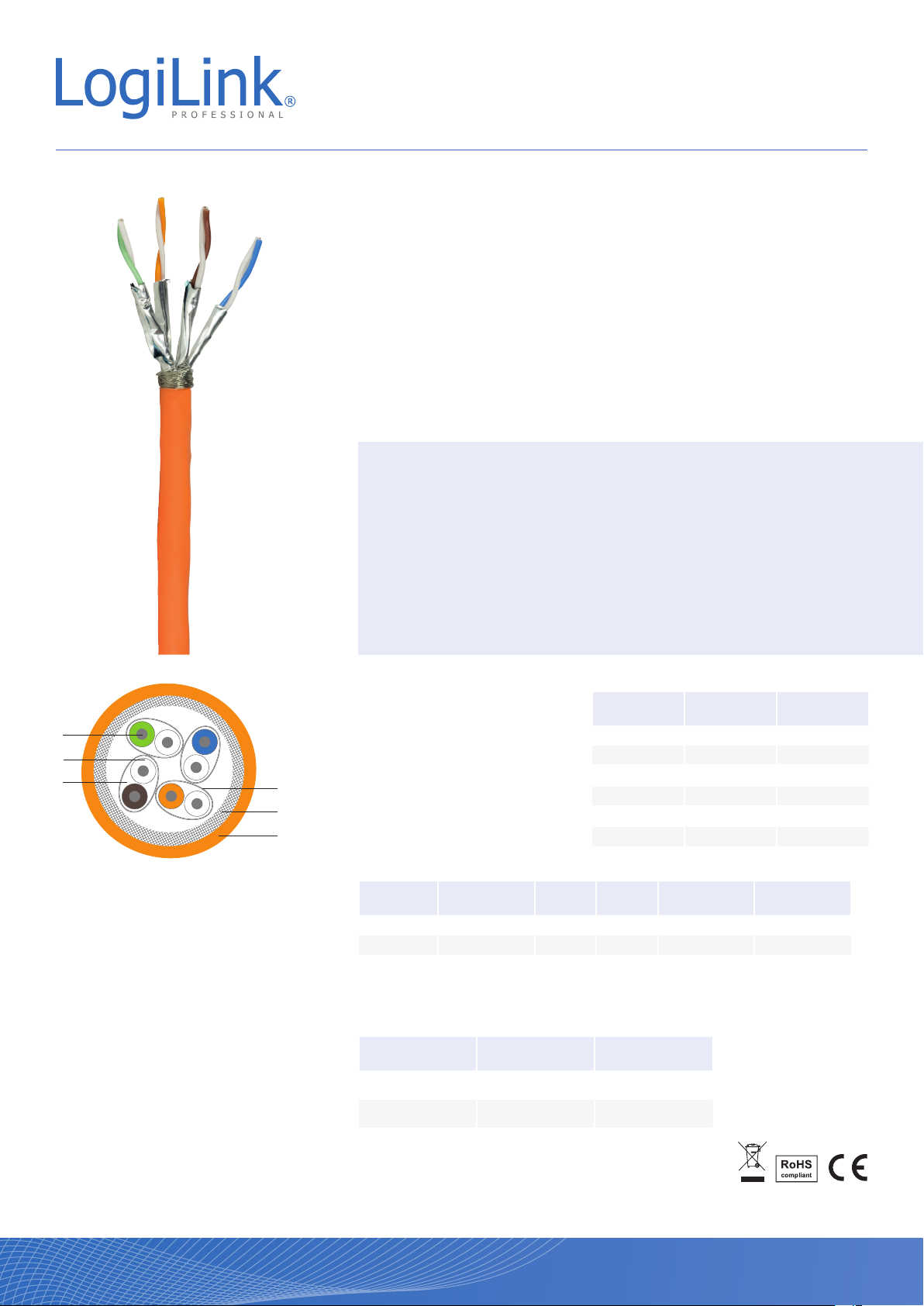

Installation Cable S/FTP
Cat.7A, 1000MHz, PrimeLine
LogiLink’s Category 7A high end cables are manufactured in Europe in accordance with ISO IEC 61156 requirements. It is the best choice for future proof
structered horizontal cabling. These cables are ideal for LAN data transmission in
all Ethernet (IEEE 802.3) applications up to 10 GBase-T and higher. The copper
braid overall screen offers protection against electromagnetic interference as well
as mechanical reinforcement.
Technical Specifications
- Solid Installation Cable Cat.7A 1000 MHz
- 4x2x23AWG bare copper conductor
- 4 individually screened pairs (PIMF)
- Tin plated copper braiding overall screen
- LSFRZH Jacket, orange
- Fire safety class FRNC-C according to IEC 60332-3
- Fast-, Gigabit- & 10 Gigabit Ethernet
- ISO/IEC 11801, EN 50173-1, IEC 61156-5
1. Conductor: 100% copper solid wire
1
2
3
4
5
6
2. Insulation: Foam-skin PE compound
3. Twisting: 2 cores twisted in a pair
4. Individual Screen:
Overlapped laminated aluminium foil
5. Overall Screen:
Braiding of tinned copper wires
6. Outer jacket: LSOH compound
Cable type Dimension Sheath Sheath
Simplex 4x2x23 AWG LSOH Orange 7.5 58.0
Duplex 2x (4x2x23 AWG) LSOH Orange 7.5x15.5 110.0
Part no. Length
CQ5100S 100 Reel
CQ5200S 200 Reel
CQ5500S 500 Bobbin
CQ5000S 1000 Bobbin
CQ5100D 100 (Duplex) Reel
CQ5500D 500 (Duplex) Bobbin
Color
(m)
Outer
diameter (mm)
Packaging
Cable weight
(kg/km)
Operation Conditions
Static Dynamic
Temperature range
(Indoor)
Bending radius Static 4 x D Dynamic 8 x D
Fire behaviour
Pro LSOH cable
-20°C to +60°C 0°C to +50°C
IEC 60332-3-24, IEC 60754-2, IEC 61034
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
Basic Transmission Characteristics (20°C)
Frequency
MHz
1 2.0 1.8 78 103 78.0 101 20.0 -
4 3.7 3.4 78 103 78.0 101 23.0 29
10 5.9 5.3 78 103 75.3 96 25.0 35
16 7.4 6.7 78 103 71.2 91 25.0 35
31.25 10.4 9.5 78 103 65.4 85 23.6 35
62.5 14.9 13.7 78 103 59.4 81 21.5 34
100 19.0 17.2 75.4 102 55.3 80 20.1 34
200 27.5 24.5 70.9 100 49.3 80 18.0 34
300 34.2 30.3 68.2 96 45.8 75 17.3 32
600 50.1 43.2 63.7 92 39.7 71 17.3 31
900 58.5 53.5 61.1 90 36.2 60 15.5 25
1000 61.9 56.8 60.4 89 35.3 55 15.1 23
Attenuation dB/100m
Cat 7E max. Typical value
NEXT dB
Cat 7E max. Typical value
Basic Electrical Characteristics (20°C)
ELFEXT dB
Cat 7E max. Typical value
Cat 7E max. Typical value
Return loss dB
- DC Conductor Resistance: ≤75 Ohm/km
- Insulation Resistance: ≥5000 MΩkm / 500 VDC
- Mutual Capacitance: ≤43 nF/km / 1.0 KHz
- Capacitance pair to ground: ≤1500 pF/km / 1.0 KHz
- Characteristic Impedance: 100 ± 7% Ω / 1-100 MHz;
100 ± 7% Ω / 100-250 MHz
100 ± 15% Ω / 250-600 MHz
- Velocity of Propagation: 79% nom.
- Operating Voltage: 100 V max.
- Dielectric Strength: 1000 Volts / 1 minute DC
- Transfer Impedance: <9.7 mOhm/m at 1 MHz
<8 mOhm/m at 10 MHz
<23 mOhm/m at 100 MHz
- Coupling Attenuation, min: 75 dB
- TCL, min: 50,0-10 x log10 (f ) at 1-250 MHz
Identification Color Coding
- Pair 1: White / Blue
- Pair 2: White / Orange
- Pair 3: White / Green
- Pair 4: White / Brown
Sheath Marking
“LOGILINK S/FTP 4x2x23 AWG Cat7A in accordance with
ISO/IEC 11801/ EN 50173 – Length m”
