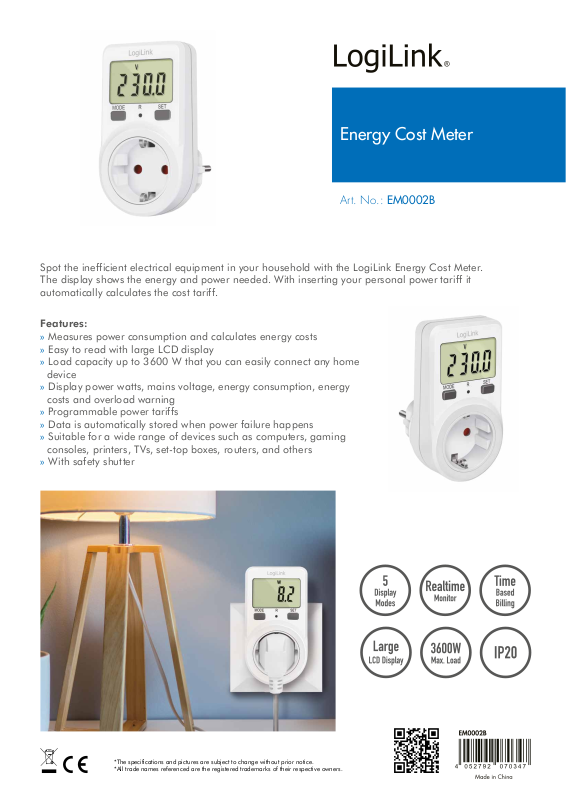

Page 1
Energy Cost Meter
Art. No.: EM0002B
Spot the inefficient electrical equipment in your household with the LogiLink Energy Cost Meter.
The display shows the energy and power needed. With inserting your personal power tariff it
automatically calculates the cost tariff.
Features:
» Measures power consumption and calculates energy costs
» Easy to read with large LCD display
» Load capacity up to 3600 W that you can easily connect any home
device
» Display power watts, mains voltage, energy consumption, energy
costs and overload warning
» Programmable power tariffs
» Data is automatically stored when power failure happens
» Suitable for a wide range of devices such as computers, gaming
consoles, printers, TVs, set-top boxes, routers, and others
» With safety shutter
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Page 2
Specification:
Rated Voltage 230 V AC 50 Hz
Maximum Load 16 A, 3600 W
Standby Power Consumption 0.3 W
Type of Plug
Type of Socket
LCD Display 1.9" LCD
Function Buttons MODE, SET, RESET
Power Display 0.0–9999 W
Voltage Display 0.0–9999 V
Electricity Tariffs Display 0.00–99.99 Cost/kWh
Accumulated Electricity Display 0.00–9999 Cost
Total Energy Consumption Display 0.00–9999 kWh
Overload Display Yes
Protection Class IP20
Safety Shutter Ye s
Measurement Deviation (Accuracy) ±1 %
Safety plug CEE 7/4
German socket CEE 7/3
Currency Display €
Operating Temperature -10 – 4 0 °C
Operating Humidity 0–93% RH (non-condensing)
Product Dimensions 10.8 x 5.7 x 7.63 cm
Weight 0.10 8 kg
Color White
Package Contents:
» 1x Energy Cost Meter
» 1x User Manual
Package Information:
» Packing Dimension: 82 x 61 x 111 mm
» Packing Weight: 0.152 kg
» Carton Dimension: 350 x 330 x 365 mm
» Carton Q‘ty: 60 pcs
» Carton Weight: 10.5 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
