Loewe ViewVision DR+ User Manual

Download

Page 1

3 2 8 1 8 0 2 2

Operating Manual

DVD

Viewvision DR

233–32818.022

Page 2

Contents

Remote control Assist – recorder operation .................... 3

Front Panel ......................................................................4

Rear Panel & Display .......................................................5

Welcome ..........................................................................6

Scope of delivery ...........................................................................................6

Set up ...........................................................................................................6

Shipping the Unit ..........................................................................................7

Disposal ........................................................................................................7

Advantages of connection to a Loewe TV set ................................................7

About the internal hard disk .........................................................................7

For your safety ................................................................8

Essential Information ......................................................9

Rewritable discs ............................................................................................9

Playable Discs .............................................................................................10

Notes on Discs ............................................................................................ 11

Disc-related Terms .......................................................................................11

Symbols ...................................................................................................... 11

Initial Installation ..........................................................12

Initial Remote Control Setup ...................................................................... 12

Resetting the DVD Recorder ........................................................................12

Switching over to Progressive Scan .............................................................12

Connections - General .................................................................................12

Connecting to the Aerial ............................................................................. 12

Connecting to the Television .......................................................................13

Connecting to a set-top box / Satellite Receiver...........................................13

Connecting to an External Decoder Box ......................................................14

Connecting to an Ampliﬁer .........................................................................14

Connecting Audio/Video (A/V) Accessories ..................................................15

Connecting a digital camcorder ..................................................................15

Activating Digital Link .................................................................................15

Basic Settings .............................................................................................15

Main menu .................................................................................................16

Setup menu ................................................................................................16

The General Menu .......................................................................................17

Language Menu ..........................................................................................21

Audio Menu ................................................................................................22

Lock Menu ..................................................................................................22

Recording Menu .........................................................................................25

Disc Menu ..................................................................................................26

Additional Screen Menus ............................................................................28

HDMI mode ....................................................................29

Video mode ....................................................................30

Playing back a DVD or video CD ..................................................................30

Playing memory media with mixed contents ...............................................33

PIP (Picture In Picture) ................................................................................33

DivX mode ..................................................................... 34

Audio mode ................................................................... 35

Copy/move files/folders ...............................................................................36

Program list ................................................................................................ 37

Photo mode ...................................................................38

Card-Reader mode .........................................................39

Remote control Assist – Card-Reader operation ............40

Recording ...................................................................... 41

Recordings on the HDD ...............................................................................41

Delayed TV viewing – Timeshift mode .........................................................41

Simultaneous record and display ................................................................. 42

Manual Record ...........................................................................................42

Timer Recording ..........................................................................................43

Timer recordings with the ShowView® system ............................................43

Timer Record List .........................................................................................44

Record from external sources ......................................................................44

Digital Video ...............................................................................................44

Edit recordings ..............................................................46

Menu Title List and Chapter List ..................................................................46

Edit Original and Playlist .............................................................................47

Add chapter markers ...................................................................................47

Create new Playlist ...................................................................................... 47

Add title/chapter to the Playlist ...................................................................48

Delete title/chapter from Original/Playlist ....................................................49

Delete part ..................................................................................................49

Title Name ..................................................................................................50

Select title start point ..................................................................................50

Select chapter .............................................................................................50

Sorting ........................................................................................................51

Undo/redo deletion .....................................................................................51

Combine titles .............................................................................................51

Divide title ..................................................................................................52

Combine chapters .......................................................................................52

Move Playlists Chapters ..............................................................................53

Hide title/chapter ........................................................................................53

Protect title .................................................................................................53

Dubbing .........................................................................54

Dub from HDD to DVD ................................................................................55

Dub from DVD to HDD ................................................................................55

Overwrite recordings ...................................................................................56

Title List menus on other devices .................................................................56

Playing on other devices .............................................................................56

Troubleshooting ............................................................. 57

Technical Specifications .................................................59

Masthead ...................................................................................................59

Operating additional devices .........................................60

Setting the remote control ..........................................................................60

Operating Loewe equipment .......................................................................60

Remote control Assist – TV-operation ........................... 61

Language Code List ....................................................... 62

List of country codes ..................................................... 63

Glossary .........................................................................64

Index .............................................................................. 65

Service ........................................................................... 66

- 2

Please fold out this page.

Page 3

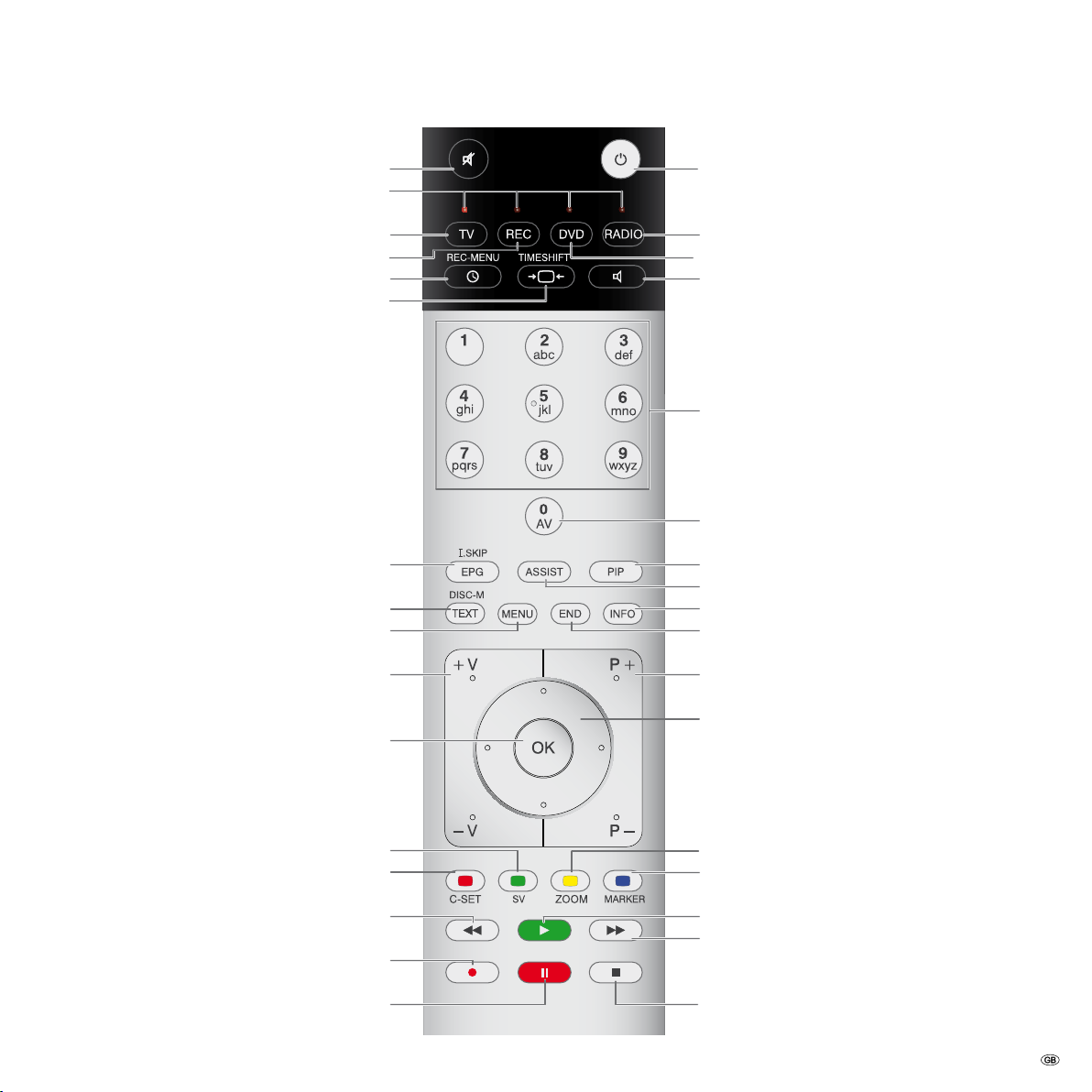

Remote control Assist – recorder operation

Loewe TV: Sound off/on

LED indicator for current operating mode

Switch over to operate TV set

(Page 15) ....................... Switch over to operate Recorder

Timer recording menu; timer recording list menu

(Page 41) ................................................Timeshift Mode

(Page 30) .............................................PLAY: skip 15 Sec.

(Page 32) ............................User interface of loaded DVD

MENU: switch between original and playlist

(Page 16) ...................................................“Setup” menu

V–/V+ Loewe TV: Volume

(Page 28) ....................................Status display (TV, DVD)

MENU: confirm the menu selection

Switch on/off - on stand by ...............................(Page 15)

Loewe TV: Radio Digital Switch over to operate DVD-Player Loewe TV: Sound menu

STOP: Select station directly ..............................(Page 42)

MENU: enter numbers or letters........................(Page 30)

STOP: Call AV selection .....................................(Page 42)

MENU: enter numbers or letters

PIP (picture in picture) ......................................(Page 33)

“Home” menu ...................................................(Page 16)

Info; PLAY: menu bar ........................................(Page 28)

MENU: hide menu

P+/P– PLAY: Next chapter;

STOP: Select station up/down .................... (Page 30, 42)

MENU: select/set ..............................................(Page 16)

(Page 43) ...............................................ShowView menu

(Page 47) ......................................... New chapter marker

(Page 31) ........................PAUSE: short: slow motion back

(Page 30) ..................................... PLAY: search backward

(Page 42) ..............................................................Record

(Page 30, 31) .....................................Pause; single frame

Zoom ................................................................(Page 31)

short: Set marker; long: Marker search .............(Page 31)

Playback ...........................................................(Page 30)

PAUSE: slow motion forward ............................(Page 31)

PLAY: search forward ........................................(Page 30)

Stop ..................................................................(Page 30)

3 -

Page 4

Front Panel

HDD

DVD

HDD

Power button Switch off in standby

RES

(screen

resolution)

Record

hard disk

Record

DVD

Start

recording

Disc tray

open/close

Beginning of

chapter

/ previous chapter

Stop

Playback

/ Pause

Disc tray

chapter

Display

Front ﬂap

(closed)

- 4

Memory card 2

SD / MMC / MS / MS-Pro / XD

Memory card 1

CF / MD

Front ﬂap

(open)

DV IN

Input 4

S-Video IN

VIDEO IN 4 /

AUDIO IN 4 L/R

Page 5

DV D

REC T/S

HDD

Rear Panel & Display

S-VIDEO OUT

AERIAL

Aerial connection

RF. OUT

Passes the aerial signal to the TV

HDMI OUT

connection of a TV with HDMI input

S-VIDEO OUT

Connection for a TV with S-Video input.

EURO AV 2 DECODER SCART connection for an external source (Decoder, Set-Top-Box, Video Recorder etc.).

EURO AV 1 AUDIO / VIDEO

SCART connection for TV set

VIDEO OUTPUT switch Position RGB: EURO AV1 socket gives out the RGB signal and COMPONENT VIDEO OUT socket does not supply a signal Position COMPONENT: COMPONENT VIDEO OUT socket gives out a Comp. signal and EURO AV1 socket does not supply a signal. * Please note the position of the switch here.

VIDEO IN 3/AUDIO IN 3 (L/R) Connection for an external source (Audio System, TV/Monitor, VCR, Camcorder etc.) with video / audio inputs (Cinch).

VIDEO OUT / AUDIO OUT (L/R)

Connection for a TV with video / audio inputs (Cinch)

COMPONENT VIDEO OUT (Y Pb Pr)

Connection for a TV with component inputs (Cinch), *

DIGITAL OUT Digital, coaxial audio output

OPTICAL

Digital, optical audio output

Mains cable

Caution: Do not touch the inner pins of connection sockets on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

T/S Timeshift mode active REC recording mode active HDD hard disk in operation DVD DVD in operation HDD ◄► DVD dubbing mode active TV TV reception active

 Timer recording active or programmed

Character specications

time, total playing time, time elapsed, title, chapter / track number, station, status etc.

5 -

Page 6

Welcome

Thank you

for choosing a Loewe product. We are happy to welcome you as our customer. At Loewe we combine the highest standards of technology, design and user friendliness. This is equally true of TV, DVD, video, audio and accessories. Neither technology nor design is an end in itself, but both are intended to provide our customers with the best possible audio and visual experience. Our design is not influenced by short-term, fashionable trends. You have, after all, purchased a high-quality piece of equipment which you do not want to get tired of looking at tomorrow or the day after.

Scope of delivery

recorder Loewe ViewVision DR+

•

Assist remote control with 2 batteries

•

Euro AV cable (Scart cable)

•

Digital audio coaxial cable

•

Audio cinch cable

•

Video cinch cable

•

Antenna cable

•

HDMI cable

•

1x DVD-RW disc

•

this operating manual

•

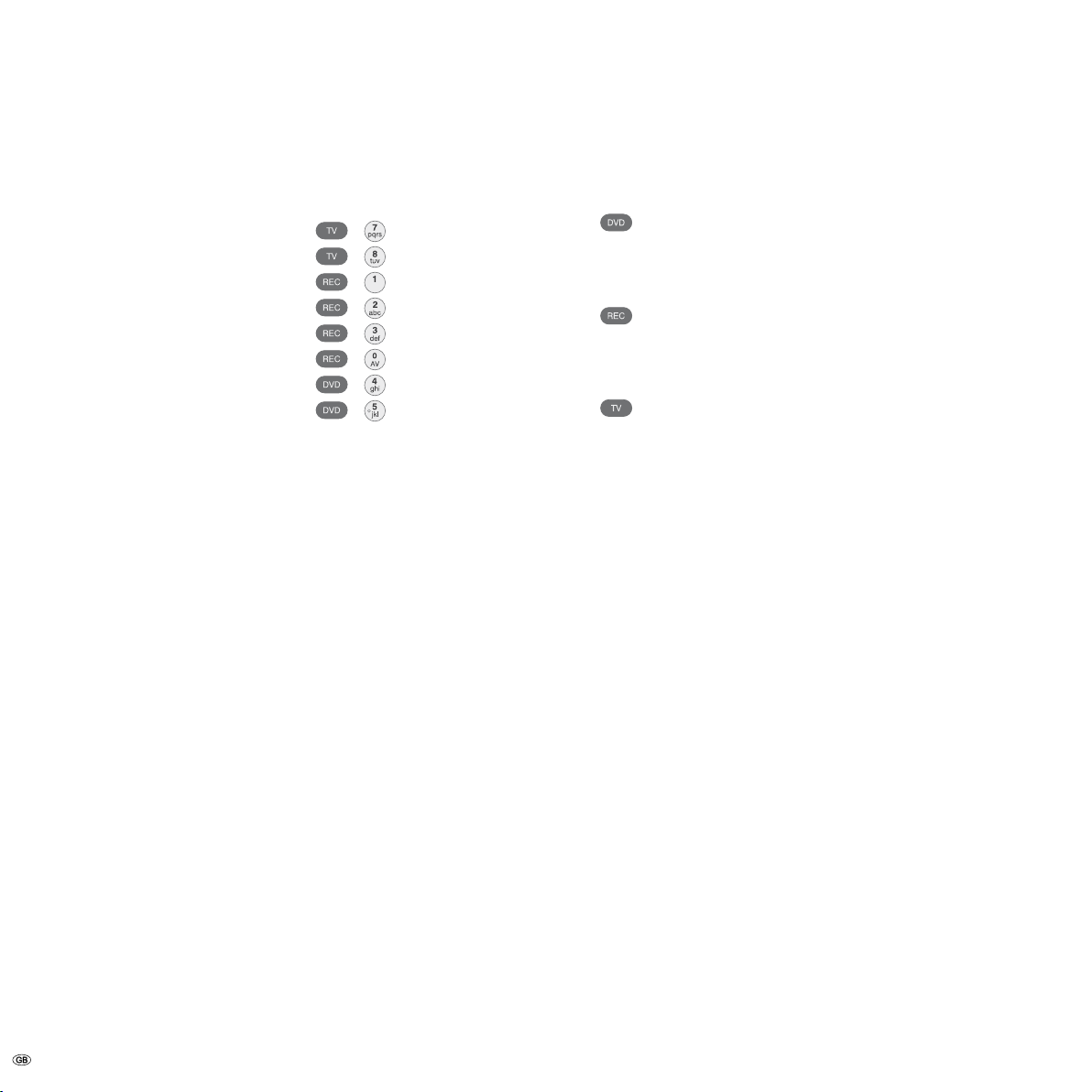

You can control three units with the remote control, apart from this recorder also a Loewe TV set and a Loewe DVD player or a Loewe Audio System.

Trademark rights

Manufactured under license from Dolby Laboratories. Dolby, ProLogic and the double-D symbol are trademarks of Dolby Laboratories. “DTS“ and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. ShowView is a registered trademark of Gemstar Development Corporation. The ShowView System is manufactured under license from Gemstar Development Corporation. HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

Set up

Place the recorder on a ﬁrm, level base.

•

Do not move the recorder during operation or just after switching it off.

•

Do not place the recorder in the vicinity of sources of intense heat or in direct

•

sunlight. When installing in a cabinet or enclosed shelf: Leave at least 2.5 cm free around

•

the recorder to allow unhindered circulation of air and avoid build-up of heat. Do not cover up fan and openings on the rear. There can be interference to the images and sound of any nearby television,

•

video recorder or radio. If this is the case, do not position the unit in the direct vicinity of a TV set, video recorder or radio, or switch the unit off after removing the disc. Position the recorder so that the infrared signal of the remote control can

•

reach the display of the recorder unobstructed (or if this is not possible, see “Advantages of connection to a Loewe TV set”, page 7). Do not place strong artificial light sources in front of the device. This may affect

•

infrared reception. Incorrect voltages can damage the device. This device may only be connected

•

to a power supply with the voltage and frequency specified on the rating plate, using the power cable provided. If there is an electrical storm, disconnect the antenna and mains plug. Power

•

surges caused by lightning strikes can damage the unit through the antenna system or the mains. The antenna and mains should also be disconnected if the unit is to remain

•

unsupervised for a long period of time. The mains plug must be easily accessible so that the unit can be disconnected

•

at any time. Lay the cable in such a way that it cannot get damaged. The power cable should

•

not be kinked or laid over sharp edges, not stood upon or exposed to chemicals

- the latter also applies to the device as a whole. A mains cable with damaged insulation can cause electric shocks and is a fire hazard. Do not tug the cable when you remove the mains plug but hold the plug by the

•

housing. The wires in the mains plug may be damaged and cause a short-circuit when you plug it back in.

- 6

You should also read and follow the safety advice on the following pages.

Page 7

Welcome

Shipping the Unit

The original shipping box and packaging materials should be used to ship the unit. To give the unit the best possible protection, repack it as it was originally packed by the manufacturer.

Disposal

Cardboard box and packaging

In line with national regulations regarding the disposal of packaging materials, we pay a fee to authorised recyclers who collect packaging from dealers. However, we recommend that you keep the original cardboard box and the rest of the packaging materials so that the unit can, if necessary, be transported in the safest possible conditions.

The unit

Important: The EU Directive 2002/96/EG governs the proper re-acceptance, handling and recycling of used electronic appliances. Old electronic appliances must therefore be disposed of separately. Never throw this set in the normal domestic waste.

You can hand in your old set free of charge at identiﬁed collection

points or at your dealer if you buy a similar new set. Other details about re-acceptance (also for non-EU countries) are available from your local administration.

Remote control batteries

The batteries provided contain no harmful materials such as cadmium, lead or mercury. Regulations concerning used batteries mean that batteries may no longer be thrown out with the household rubbish. You can dispose of used batteries free of charge at the collection points in commercial outlets. Your dealer will also have a collection point for used batteries.

Advantages of connection to a Loewe TV set

With Digital Link you can install the recorder for example in a closed rack or a cupboard without direct visual contact with the recorder. With the DVD remote control, you operate the recorder via the Loewe TV set. Digital Link must be switched on on the recorder (page 15). If you use the HDMI connection, the TV set is automatically switched over to this input if your TV set supports this function. If you want to make timer recordings from the TV satellite tuner, Digital Link Plus controls the recording. With Digital Link Plus the station data of the aerial and cable stations of the TV set are transferred to the recorder so that the same stations are saved in the same order in both devices. This enables timer recordings of aerial and cable stations to be made comfortably on the TV set with the EPG (Electronic Program Guide). The timer data are transferred to the recorder which then makes the timer recording independently of the TV set. For timer data for satellite stations, the TV set starts and stops the recorder and sets it to the Euro AV 1 input. When play is started, this is shown immediately on the TV set regardless of which TV station you are currently watching (if the TV is switched off, it will be switched back on automatically first).

About the internal hard disk

The internal hard disk (HDD) is very sensitive. Operate the recorder according to the following regulations to avoid HDD errors. Important recordings should be saved on DVDs to avoid losing data (page 54). Do not move the recorder immediately after switching it off. To move the recorder, proceed as follows:

Wait at least two minutes after the message POWER OFF.

1. Pull out the mains plug.

2. Move the recorder.

Data on the HDD may be lost if the power fails during recorder operation. The HDD is very sensitive. Improper handling or an unsuitable environment could damage the HDD after a few years in operation. Sudden stopping during playing and visible mosaic effects in the picture are an indication of this. There may be no advance warning signs for an HDD defect. Recordings cannot be played if the HDD is defective. The HDD must be replaced in this case.

7 -

Page 8

For your safety

For your own safety and to avoid unnecessary damage to your unit, please read and follow the safety advice below:

Use for the intended purpose and ambient conditions

This recorder is intended exclusively for the reception, recording and playing of video and audio signals and is designed for the home and office and may not be operated in rooms with a high humidity (e.g. bathroom, sauna) or high concentra- tion of dust (e.g. workshops).

The terms of the warranty only cover normal use of the recorder.

If the device is used outdoors, make sure that it is protected against moisture (rain, drips and splashes or dew). High humidity and dust concentrations lead to leak currents in the device which may lead to electric shocks or fires.

If you have moved the device out of the cold into a warm environment, leave it switched off for about an hour to avoid formation of condensation.

Always switch off your system (ViewVision DR+, TV set and any other audio components which may be connected) before connecting or disconnecting other devices or loudspeakers.

Do not open up the housing, or you could be directly exposed to the laser beam. The laser beam will be visible if the unit is open.

DO NOT LOOK INTO THE LASER BEAM.

PLEASE NOTE: TO AVOID RISK OF ELECTRICAL SHOCK, DO NOT REMOVE THE COVER (OR THE REAR OF THE UNIT). THERE ARE NO PARTS INSIDE THE UNIT THAT CAN BE REPAIRED BY THE USER. REPAIRS SHOULD ONLY BE CARRIED OUT BY A LOEWE DEALER.

Only use original accessories such as Loewe installation systems if possible.

Supervision

Do not allow children to use the recorder/TV set unsupervised. Do not allow children to play in the immediate vicinity of the recorder/TV set. They could knock, push or pull the equipment over and cause injury.

Cleaning

Only clean your recorder with a slightly damp, soft, clean cloth (without any aggressive cleaning agents). If the recorder does not read a disc correctly, the reading unit in the device may be soiled. Use a commercially available cleaning disc. Keep the disc drawer closed to prevent dust from the drawer getting onto the lens.

About this user guide

The information in this guide refers to the Loewe product Viewvision DR+ and Viewvision DR+ Secam - (version for France). Unless stated otherwise, the instructions refer to the operating elements on the Assist remote control.

The explanations for DVDs in this guide refer to the DVDs recorded with this recorder. They do not apply for DVDs recorded on other recorders and played on this recorder.

Paragraphs beginning with the ➠ symbol indicate important hints, tips or conditions for perfect operation.

Protect your recorder from:

liquids and damp

•

shock and mechanical stress

•

magnetic and electrical fields

•

cold, heat, direct sunlight and extreme fluctuations in temperature

•

dust

•

anything which obstructs ventilation

•

manual interference with the unit‘s interior

•

- 8

Terms which you will find in the menu or printed on the recorder are printed in bold type.

In the functional descriptions, the necessary operating elements are arranged to the left of the text which contains the handling instructions.

Page 9

Essential Information

Rewritable discs

DVD-RW (Digital Versatile Disc - ReWritable)

DVD-RW discs can be formatted for recording in the VR mode or in the video mode. These discs can be rewritten several times. Recordings can be deleted and the disc can then be rewritten.

VR mode Recordings can be extensively edited.

They can only be played on VR mode compatible players (after finalisation).

Video mode Limited editing possible.

Play on normal DVD players (after finalisation).

DVD-R (Digital Versatile Disc - Recordable)

These discs can be recorded once. A DVD-R disc cannot be rewritten or edited after finalisation. DVD-R discs can only be formatted for recording in video mode. Play on normal DVD players (after finalisation). Limited editing possible.

DVD+RW (Digital Versatile Disc + ReWritable)

These discs can be rewritten several times. Recordings can be deleted and the disc can then be rewritten. Play only on DVD+RWcompatible players (automatic finalisation). Edited contents can only be played after finalisation on DVD+RW-compatible players. Titles/chapters of recordings can be edited.

DVD+R (Digital Versatile Disc + Recordable)

These discs can be recorded once. A DVD+R disc cannot be rewritten or edited after finalisation. Play only on DVD+R-compatible players (after finalisation). Edited contents can only be played after finalisation on DVD+R-compatible players. Title/chapters can be edited conditionally.

➠ This recorder cannot write to CD-R or CD-RW discs.

➠ This recorder cannot write data discs (e.g. no MP3 or JPEG files).

➠ The displayed recording time is not exact because the recorder uses a vari-

able bit rate video compression. This means that the exact recording time depends on the contents being recorded.

➠ When recording a television broadcast the remaining recording time may

be shorter if the reception is poor or the picture contains interference.

➠ If you record only still pictures or audio, the recording time may be longer.

➠ The displayed recording time and remaining time may not always add up to

the total length of the disc.

➠The available recording time may be shorter following intensive editing of

the disc.

➠ If you use a DVD-R disc you can continue recording until the disc is full or

until you finalize it. Before you start recording check how much recording time is available on the disc.

➠ If you use a DVD-RW disc in video mode, the available recording time is

extended again when you delete the last title recorded on the disc.

➠ The Delete Parts function (page 49) only hides the title but does not delete

it from the disc and does not extend the recording time (except for the last recorded title on a DVD-RW disc in video mode).

➠ Overwrite recording is only possible on DVD+RW discs (Page 56).

9 -

Page 10

DIGITAL AUDIO

Recordable

ReWritable

Essential Information

Recording TV-Audio Channels

This recorder can also record NICAM audio. If the NICAM setting (page 20) is set to “Auto“, NICAM audio will be recorded in the case of a NICAM transmission.

Restrictions on Video Recording

You cannot record movie material with copy protection with this recorder. If

•

a copy protection is encountered during recording, the recording stops or is interrupted automatically and a message is displayed on the screen. A video that can only be copied once can only be recorded using a DVD-RW

•

disc in VR mode with CPRM (see below). NTSC format signals from analog or DV inputs cannot be recorded correctly

•

with this recorder. SECAM format video signals (from an integrated TV tuner or from analog

•

inputs) are recorded in PAL format.

CPRM

CPRM is a copy protection system (with scramble system) that only allows the recording of “copy once“ broadcasts. CPRM is the abbreviation for “Content Protection for Recordable Media”. This recorder is CPRM compatible. You can therefore record copy-once broadcasts but cannot make copies of these recordings. CPRM recordings are only possible with VR mode formatted DVD-RW discs and can only be played on players with CPRM compatibility.

The recording equipment should only be used for lawful copying. You should

• find out what constitutes lawful copying in the country in which you are making a copy. Copying of copyrighted material e.g. films or music is only lawful if permitted by a legal exception or consented to by the rights owner. The product contains copyright protection technology through certain US pat-

• ents and other intellectual property rights and is the property of the Macrovision Corporation and other companies. Use of this protection technology must be authorized by the Macrovision Corporation. It is only intended for private or other limited use unless otherwise authorized by the Macrovision Corporation. Reverse engineering and disassembly are prohibited.

Playable Discs

Video-DVD (8 cm- / 12 cm disc)

Video-CD (VCD, SVCD, 8 cm- / 12 cm disc)

Audio-CD (8 cm- / 12 cm disc)

CD-R/RW

DVD-R/DVD-RW discs, DVD+R/DVD+RW discs, CDR/CD-RW discs with audio titles, DivX, MP3/WMA or JPEG files, VCD/SVCD and Kodak Picture-CDs (JPEG) can also

be played on this unit.

 including MP3 discs with ID3-Tag.

➠ DVD-R/RW, DVD+R/RW and CD-R/RW discs written to using a PC or a DVD

or CD recorder cannot be played if the disc is damaged or dirty or if there is condensation on the recorder‘s lens.

➠ If you record a disc using a PC, even if it is in a compatible format, the disc

may not play depending on the settings of the application software used to create the disc. (Further information can be obtained from the software provider).

➠ Depending on the recording unit or the CD-R/RW (or DVD±R/±RW) disc itself,

some CD-R/RW (or DVD±R/±RW) discs cannot be played with this unit.

➠ Do not attach any labels to either side (the labeled side or the written side)

of a disc.

➠ Do not use any irregularly shaped CDs (e.g. heart-shaped or octagonal). If

you use these discs malfunctions may occur.

➠ Fingerprints and scratches on the disc can affect playback and/or recording.

Take proper care of your discs.

- 10

Page 11

Essential Information

Regional code of the Recorder and DVDs

This Recorder can only play Region “2“ or “all“ coded DVDs.

The region code on the label of some DVDs shows which type of DVD recorder can play those discs. If you play other discs the error message “Incorrect region code. Playback not possible.“ will be displayed on the TV screen. Some discs may not have the label with the region code even though they cannot be played in all regions.

Notes on Discs

Handling Discs

Do not touch the prerecorded side of the disc. Hold the disc at the edges so as not to touch the surface with your fingers. Do not stick paper or tape to either side of the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or a source of heat and never leave it in a parked car exposed to direct sunlight as there may be a considerable increase in temperature inside the car.

Cleaning Discs

Fingerprints and dust on the disc can affect the picture and sound quality. Clean the disc before playing it with a clean cloth. Wipe the disc from the center outwards.

Do not use any strong solvents such as alcohol, benzine, thinner, commercially available cleaners or anti-static sprays intended for vinyl records.

Disc-related Terms

Title

A title is the main movie content or the music album. You have easy access by the title number.

Chapter (DVD)

Chapters are movie sequences or a piece of music which are parts of a title. You have easy access by the assigned chapter number.

Track (only Video-CD or Audio-CD)

Movie sequences or a piece of music on a Video-CD or an Audio-CD. You have easy access by the assigned track number.

Scene

On a Video-CD with PBC functions (Playback Control) the moving pictures and freeze frames are divided into sections called “scenes”. You have easy access by the assigned scene number.

Symbols

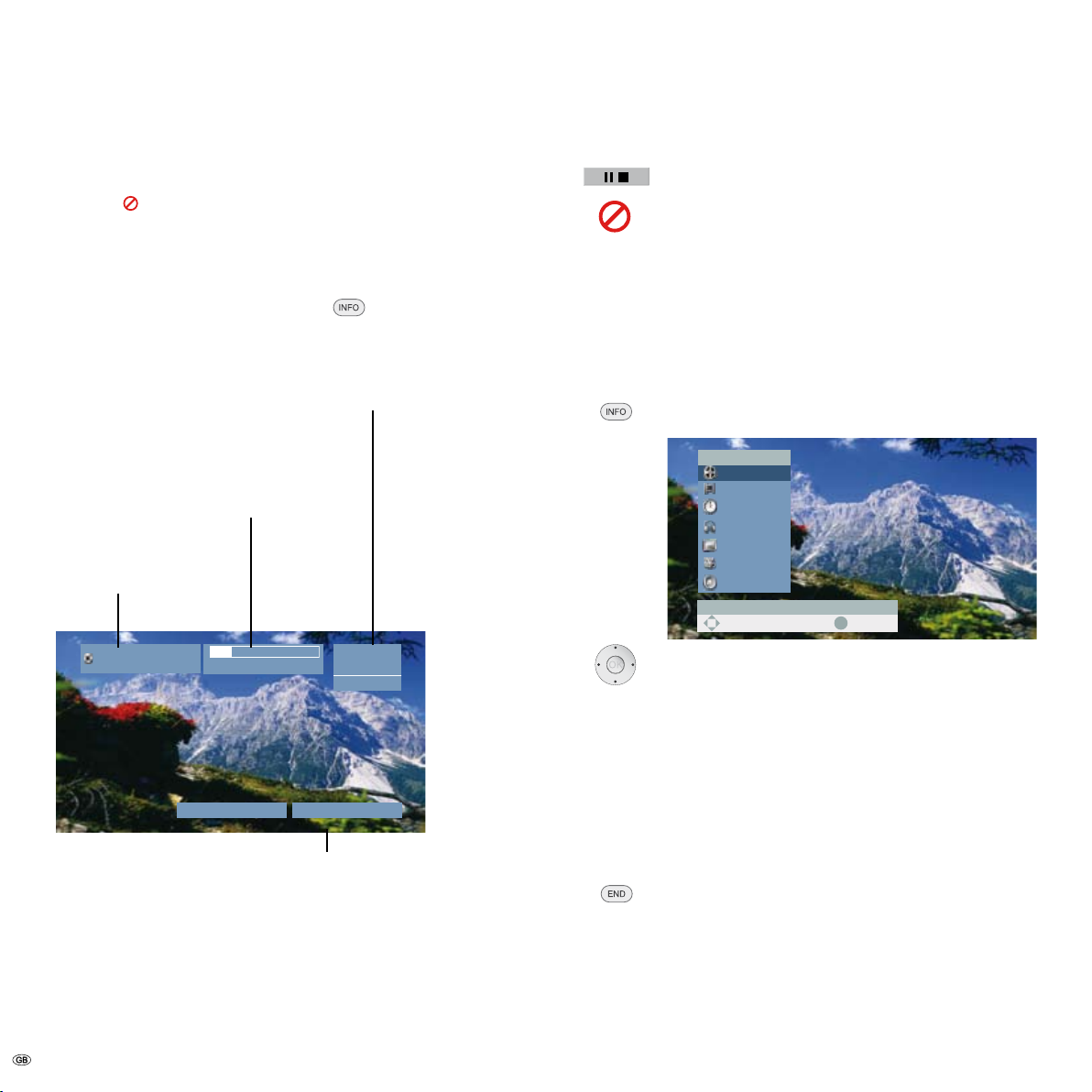

The symbol on the screen

During operation, may appear on the screen. This symbol means that the desired function is not available at the moment.

Disc symbols in the operating instructions

If part of the operating instructions contains one of the symbols listed below, the section is only applicable to the disc shown on the symbol. Many functions of this recorder are dependent on the selected recording quality. One or more of the symbols (DVD, Video, +RW, MP3) are displayed for each function described in the manual so that you can immediately see whether the disc supports this function.

HDD Title on HDD DVD ALL All DVDs listed below

-RW Video DVD-RW Disc with video mode

-RW VR DVD-RW Disc with VR mode

-R DVD-R disc +R DVD+R disc +RW DVD+RW disc DVD-V DVD-Video disc VCD Video-CD CD Audio-CD DivX DivX/Xvid files MP3 MP3 files

WMA WMA files

JPEG JPEG files

11 -

Page 12

S-VIDEO OUTPUT

AUDIO INPUT

VIDEO INPUT

HDMI INPUT

S-VIDEO

INPUT

SCART INPUT

COMPONENT VIDEO INPUT

Initial Installation

Initial Remote Control Setup

To insert or change the batteries, press on the imprinted arrow. Sldie off and remove the battery compartment cover. Insert alkaline-manganese LR 03 (AAA) type batteries and make sure the + and – poles are aligned correctly. Then, replace the cover.

Resetting the DVD Recorder

If any of the following problems occur.

The unit is plugged in but will not turn on or off.

•

The display panel does not work.

•

The Recorder is not functioning normally.

•

the Recorder can be reset in the following way:

Hold down the button on the device for at least five seconds. The device switches off or pull out the power cable, wait at least 20 seconds and reconnect the cable.

Press the button again to switch the device back on.

Switching over to Progressive Scan

With the “Progressive Scan” mode you get the best possible picture quality without flicker the “Component Video” mode (VIDEO OUTPUT switch on the back of the recorder in position COMPONENT page 13) in display units which support this operating mode.

➠ Your recorder must be switched on.

Button on the recorder.

On: 576 P appears briefly in the recorder display.

Off: 576 I appears briefly in the recorder display.

Connections - General

➠ Depending on your television set and the other units you want to connect,

there are several ways of connecting your recorder to your TV set. Only use the connection methods described below.

➠ Refer as necessary to the manuals for your television, recorder, stereo system

and other units in order to make the best possible connections.

➠ The recorder must be connected directly to the TV set. Use the “connection

wizard” for this in Loewe TV sets.

➠ Do not connect the Recorder AUDIO OUT socket to the audio system Phono

In socket.

Connecting to the Aerial

Remove the existing aerial cable plug (R) (for analog, terrestrial or cable TV) from the TV and plug it into the aerial socket on the back of the recorder (AERIAL socket). Then plug one end of the aerial cable provided into the TV socket on the recorder (RF-OUT) and the other end into the aerial socket on the TV.

Back of the television

Aerial

Back of the recorder

- 12

Page 13

S-VIDEO OUTPUT

UD IO I PUT

VIDEO IPUT

IPUT

S T I PUT

OPO E T VIDEO IPUT

S-VIDEO OUTPUT

UD IO I PUT

VIDEO IPU TDIIPU T

S-VIDEO

IPU T

S T IPU T

OPO E T VIDEO IPU T

S T V S T V

E I I PUT

E I

OUTPUT

Initial Installation

Connecting to the Television

Make the following connections depending on the scope of functions of your existing equipment:

Antenna/ cable television wall socket

SCART connection

Connect the EURO AV1 AUDIO/VIDEO scart socket of the recorders to the appro- priate input socket on the TV with the scart cable (S). Move the VIDEO OUTPUT switch to position RGB.

HDMI connection

Connect the HDMI OUT socket of the recorder to the HDMI input socket on the TV set with the HDMI cable (H) provided (HDMI socket 1 in Loewe). Make the settings as described on page 29. The SCART connection is required additionally for recording from the TV set.

Video connection

Connect the VIDEO OUT socket of the DVD player to the video input socket on the TV set with the video cable (V).

S-Video connection

Connect the S-VIDEO OUT socket of the recorder to the S-Video input socket of the TV set with the S-Video cable (L).

Component Video connection

Connect the COMPONENT VIDEO OUT sockets on the recorder to the appropriate input sockets on the TV set with a Y Pb Pr cable (available from your dealer) (C). Move the VIDEO OUTPUT switch to position COMPONENT.

Audio connection (left/right)

Connect the left and right AUDIO OUT socket of the recorder to the left and right AUDIO IN sockets on the TV set with the audio cables (A).

Digital Audio output

Connect the DIGITAL-OUT socket of the recorder to the DIGITAL-IN socket of the surround amplifier.

Back of the television

Back of the recorder

Connecting to a set-top box / Satellite Receiver

If you use a cable or satellite receiver with integrated decoder, connect it to your recorder and television set as described below. If you use a separate decoder box for your cable/satellite television, follow the instructions in the next section “Connecting to an External Decoder Box“.

Connect the aerial cable as shown. This enables you to watch and record TV

1. channels.

Connect the EURO AV1 AUDIO/VIDEO connection to a EURO AV socket on

2. your TV set with the Scart cable. This enables you to view discs.

Connect the EURO AV2 DECODER connection to a EURO AV socket on your set-

3. top box / your satellite receiver. This enables you to watch its TV channels.

➠ This recorder is equipped with a “Loop-Through“ function. The function

enables you to record a TV program from the integrated analog terrestrial TV tuner of this recorder while watching a satellite or set-top box channel. Do not connect the recorder “via“ your video recorder, satellite receiver or set-top box.

Antenna/ cable television wall socket

Back of the recorder

Back of the television

Set-top box or satellite receiver

13 -

Page 14

S-VIDEO OUTPUT

UD IO I PUT

VIDEO IPUTDIIPUT

S-VIDEO

IPUT

S T I PUT

OPO E T VIDEO I PUT

S T V S T V

EI IPUTEIOUTPUT

S T V

S-VIDEO OUTPUT

UD IO I PUT DIIT I PUT

O I

DI IT I P UT

OPTI

Initial Installation

Connecting to an External Decoder Box

If you use an external decoder box for your satellite or cable TV system, follow the connection procedure described below.

Connect your aerial socket in the wall to the aerial input socket on your set-top

1. box / satellite receiver using an aerial cable.

Connect the decoder to the EURO AV DECODER socket on the set-top box

2. /satellite receiver using a SCART cable. Further instructions can be found in the manual for your decoder box.

Connect the EURO AV2 socket on the DVD recorder to a EURO AV 2 socket

3. on your set-top box / satellite receiver using a SCART cable.

Connect the EURO AV1 socket on the DVD recorder to a EURO AV 1 socket

4. on your television using the SCART cable.

➠ Do not connect the Decoder-Box directly to the recorder but as shown in

the figure below to the satellite/set-top box.

➠ Stations from the decoder (e.g. via Pay-TV services) can only be viewed when

the recorder is switched off (standby mode).

➠ For timer recordings to work properly on this recorder, the satellite / set-top

box must also be switched on during recording.

➠ With this configuration you cannot watch one television broadcast and record

another at the same time.

Set-top box or satellite receiver

Antenna/

cable television

wall socket

Decoder

Connecting to an Amplier

Connecting to an analog amplifier with analog 2-channel stereo or Dolby Pro Logic II / Pro Logic

Connect the left and right AUDIO OUT socket of the recorder to the left and right AUDIO IN sockets of the amplifier, receiver or stereo system with the audio cables (A).

Connecting to a digital amplifier with two-channel digital stereo (PCM) or to an audio/video receiver with a multichannel decoder (Dolby Digital™, MPEG 2 or DTS)

Connect one of the DIGITAL AUDIO OUT sockets (OPTICAL O or COAXIAL

1. X) of the recorder to the appropriate input socket on your amplifier. Use an appropriate digital audio cable (optical O or coaxial X - available from your dealer).

You must configure the digital output of the recorder (Page 22).

Back of the recorder

- 14

Back of the television

Back of the recorder

Amplifier (Receiver)

Digital multi-channel sound

A digital multi-channel connection offers the best sound quality. You will need a multi-channel audio/video receiver which supports one or more audio formats, e.g. MPEG 2, Dolby Digital and DTS. You will find information in the documentation enclosed with the receiver.

➠ Due to the DTS licensing agreement the digital output will be to DTS DIGITAL-

OUT when a DTS audio stream is selected.

This recorder does not perform a (2-channel) decoding (downmix) of a DTS sound track internally. In order to enjoy DTS multi-channel surround sound, you have to connect this recorder to a DTS-compatible receiver via one of the recorder’s digital audio outputs.

Page 15

Video

S-Video

L-Audio-R

VIDEO

OUTPUT

AUDIO

OUTPUT

S-VIDEO OUTPUT

IN/OUT

Video

S-Video

L-Audio-R

Initial Installation

➠ If the audio format of the digital output does not correspond to the capa-

bilities of your receiver, the receiver will emit a strong distorted sound or no sound at all.

5.1 Digital surround sound via the digital connection can only be obtained if your receiver is equipped with a digital multi-channel decoder.

You can obtain information about the audio format of the current DVD via the “Disc Info“ menu (Page 28).

Connecting Audio/Video (A/V) Accessories

Connect the input sockets (AV2, AV3 = AUDIO IN 3 / VIDEO IN 3 on the back of the device or AV4 = input 4 on the front of the device (page 4)) of the recorder to the audio/video out sockets of the accessory components with the audio/video cables.

➠ You can use either the S-VIDEO IN socket on the front panel or the VIDEO

IN socket on the rear.

If you have connected a device to AV2 and switched off its power supply, the Digital Link Plus function to the recorder is not possible.

Connector block for an accessory component (VCR, Camcorder, etc.)

Connecting a digital camcorder

You can connect a digital camcorder (DV) or a digital DVD-R/RW recorder to the DV IN socket and transfer contents of DV tapes or DVDs digitally. Use a DV cable (not included in delivery) to connect the DV IN-/OUT socket of your DV-camcorder/video deck to the DV IN socket on the front control panel of this recorder.

➠ Only DV units can be connected to this socket (the source signal must be in

the DV-25 format; see page 44). It is not compatible with digital satellite tuners or S-VHS video decks.

DV Digital Camcorder

Front of the recorder

Activating Digital Link

With Digital Link, Loewe TV sets pass on the signals from the remote control through the Euro-AV connection on the recorder. Digital Link is useful when you want to put the recorder in a concealed place, e.g. in a closed rack.

➠ Your recorder must be switched on.

Button on the recorder for > 3 s

Digital Link on: LINK appears in the recorder display.

Digital Link off: FRONT appears in the recorder display.

Back of the recorder

Basic Settings

Set the remote control for recorder operation.

Front of the recorder

Push the On/Off button on the DVD recorder or

the On/Off switch on the remote control.

15 -

Page 16

HDD

DISC

Memory Card1

Memory Card2

MUSIC

Auto Programming

Program Edit

Clock Set

TV Aspect

Display Mode

AV2 Connection

Power Save Mode

Initialisation

Auto

Manual

3 Prev.

SelectMove

Initial Installation

Main menu

All media files can be called from the main menu for playing and recording with the recorder.

Call main menu.

34Select desired operating mode. 56 Call options.

Confirm selection with OK. Exit main menu.

TV HDD: Live TV picture on – record on HDD.

DVD: Live TV picture on – record on DVD.

MOVIE HDD: Display the Title List menu of the HDD (page 46).

HDD DivX: Display the Movie List menu of the HDD (page 34). Disc: a.) Display of Title List of a rewritable disc (page 46). b.) Display of the Movie List menu of a DivX disc (page 34). c.) Play a Video-CD or DVD-Video-Disc (page 30).

PHOTO (page 38)

HDD: Display the Photo List menu of the HDD. Disc: Display the Photo List menu of the disc. Memory card 1/2: Display the Photo List menu

MUSIC (page 35)

HDD: Display the Music List menu of the HDD. Disc: Display the Music List menu (or Audio-CD) of a disc. Memory card 1/2: Display the Music List menu.

Setup Call the Setup menu (this page).

Setup menu

The menu system offers several ways of changing settings. Most menus consist of three levels for setting up options. If you press only the ﬁrst and second levels of the menu system are displayed on the screen. You can display the third level by pressing 4. When navigating in the menus, 4 on the right side of the menu tab shows you that the next level can be called up.

1. Level 2. Level 3. Level

Navigation in the menu

The arrow buttons of the Assist remote control are illustrated as follows in this user guide:

The arrows correspond in the text: “5634“. The OK function is shown in the text as OK. Call menu.

5 6 Select desired option. 4 Call second level. 5 6 Select second option. 4 Call third level. 5 6 or 4to select the desired setting.

Confirm selection with OK. Exit menu.

- 16

Page 17

Stop

Searching 20 %

Start DLP

Others

Auto Programming

Program Edit

Clock Set

TV Aspect

Display Mode

AV2 Connection

Power Save Mode

Initialisation

3 Prev.

Select

Others

Start

Start DLP

Move

Auto Programming

Program Edit

Clock Set

TV Aspect

Display Mode

AV2 Connection

Power Save Mode

Initialisation

3 Prev.

Select

Initial Installation

The General Menu

Automatic programming

This recorder is equipped with an analog receiver (tuner) which can receive a maximum of 88 channels.

➠ When using Digital Link Plus, the channel setting is adapted to the TV set

(on this page).

➠ Connect the recorder to the aerial system (page 12).

Call menu.

5 6 Select General symbol. 4 Call second level. 5 6 Select Auto Programming. 4Mark country option. 5 6 Select Country. 4Mark Start.

Start channel search. The tuner runs through all the available channels automatically

and transfers the found stations to the tuner memory.

Please make all station changes only on the TV set if your TV set is equipped with Digital Link Plus or a comparable system of another make. If your TV set to which you have connected the recorder does not have Digital Link Plus or a comparable system, you should match up the stations lists of the recorder and the TV set. This makes it easier for you to find the channels on the TV set and the recorder.

➠ Connect the recorder to the TV set with Digital Link Plus with a SCART con-

nection (page 13).

➠ If the recorder has taken over the stations from a Loewe TV via Digital Link

Plus (DLP), the functions Program Edit, Move and Delete are locked and cannot be used again until the channels have been overwritten again by automatic programming.

Transfer station list

Call menu.

5 6 Select General symbol. 4 Call second level. 5 6 Select Auto Programming.

4 Press 3 times. The Start DLP button is marked.

Digital Link Plus

If you have connected the recorder to a Loewe TV set with Digital Link Plus or a comparable system of another make (e.g. EasyLink, Mega Logic, Project 50), the station list will be transferred from the TV to the recorder. This happens when you log in the recorder to the TV set or when you change the stations on the TV set (resort, delete, add others). After such a change, the TV will prompt you to start transfer of the changed station list. The recorder detects a connected TV set with Digital Link Plus or the comparable system of a different make and sets the recorder accordingly. Then you can no longer search for, delete or sort TV stations on the recorder. The menu items are displayed in grey, in the automatic search it is only possible to transfer the station data from the TV set. Please note that all stations which you receive via aerial or cable have to be stored at channel slots 1 to 88 in the TV set. If the TV set does not prompt you to transfer the station data, start the transmission on the recorder.

Start transfer of the station list from the TV to the recorder.

This may last a few seconds. The display on the recorder shows DLP during the transfer.

➠ (Viewvision DR+ Secam). French stations will only be transferred in the cor-

rect standard with Digital Link Plus if you select France as the country (see above) first.

17 -

Page 18

Edit

Auto Programming

Program Edit

Clock Set

TV Aspect

Display Mode

AV2 Connection

Power Save Mode

Initialisation

3 Prev.

Select

END

01 C12 0 ARD 02 C23 0 ZDF 03 C7 0 RTL 04 C27 0 SAT1 05 C17 0 PRO7 06 C33 0 BBC 07 C34 0 CNN 08 C47 0 ABC 09 C10 0 TV5 10 11

Select

CloseP+/P- Page Up/Down

PR Ch. MFT Station

PR-04 NICAM

END

01 C12 0 ARD 02 C23 0 ZDF 03 C7 0 RTL 04 C27 0 SAT1 05 C17 0 PRO7 06 C33 0 BBC 07 C34 0 CNN 08 C47 0 ABC 09 C10 0 TV5 10 11

Program Edit Station Rename Move Delete Decoder On/Off NICAM Auto/Off

Select

PR Ch. MFT Station

PR-04 NICAM

25 S 23 PAL0 OK

PR Seek Ch. MFT PAL/SECAM

Initial Installation

Program Edit

You can edit a channel manually (add, delete, rename, move etc.).

Call menu.

5 6 Select General symbol. 4 Call second level. 5 6 Select Program Edit.

4 Mark Edit.

Confirm. The Station List menu is displayed.

Explanations of the settings Program Edit search, channel input, fine adjustment Station Rename Change name Move Move station in the station list Delete Delete station from the station list. Decoder On/Off Divert station via decoder (on). NICAM Auto/Off Switch off NICAM reception (off).

Close menu.

Program Edit

In addition to the automatic programming, it is also possible to set and store stations manually.

➠ Not with Digital Link Plus (DLP).

5 6 Select station in the Station List menu.

Confirm. The Station List menu is displayed.

The available options are displayed at the bottom left. 5 6 Select Program Edit.

Confirm with OK.

The Program Edit menu is displayed.

3 4 Move the cursor to the previous / next column. 5 6 Edit the setting at the current cursor position.

5 6 Select PR number.

Confirm with OK.

The available options are displayed at the bottom left.

5 6 Select option.

Confirm with OK.

- 18

Explanations of the settings PR Indicates the selected station number (display only). Seek Searches for stations automatically. 3 4 Select Seek and then 5 6 start. The search is stopped when the recorder receives

a station. Ch. Changes the channel number. 3 4 Select Channel and then 5 6 set. MFT Changes the frequency for manual fine tuning. 3 4 Select MFT and then 5 6 set. PAL/SECAM Changes the reception standard in Viewvision DR+ Secam. 3 4 With distorted negative picture select PAL/SECAM 5 6 Select SECAM for the SECAM-L standard.

Confirm with OK.

Page 19

Alphabet Capital

Space Delete OK Cancel

ABC|

1 2 3 4 5 6 7 8 9 0 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Æ Ç Đ Ø ' ´ ^ ~ " ° Þ ß µ .

Initial Installation

Station Rename

You can give whatever name you like to a station. Names should have a maximum of five characters.

5 6 Select station in the Station List menu.

Confirm with OK.

The available options are displayed at the bottom left.

5 6 Select Station Rename.

Confirm with OK. The Keyboard menu is displayed.

Enter a name for the station.

5634Select character or function.

OK Insert character.

Explanations of the settings Alphabet Capital Switches the keyboard to capitals. Alphabet Small Switches the keyboard to small letters. ABC...123 Inserts the selected character at the cursor position

(shaded grey for special characters).

OK Save setting and exit. Cancel Exit setting without saving. Space Inserts a space at the cursor. Delete Deletes characters to the left of the cursor.

3 4 Moves the marker in the selection. Inserts a space at the cursor. Deletes the characters to the right of the cursor. Deletes the character to the left of the cursor.

P+ / P- Moves the cursor to the left or right. , Switches the keyboard back and forth between

capitals and small letters.

Press the OK button at the end to confirm the settings and return to the Station List menu.

Moving stations

You can sort the order of stations in the Station List menu.

➠ Not with Digital Link Plus (DLP).

5 6 Select station in the Station List menu.

Confirm with OK.

The available options are displayed at the bottom left.

5 6 Select Move.

Confirm with OK.

5 6 Select desired slot.

OK to go to the station list.

Delete Station

You can delete a station in the Station List menu.

➠ Not with Digital Link Plus (DLP).

5 6Select station in the Station List menu.

Confirm with OK.

The available options are displayed at the bottom left.

5 6 Select Delete.

OK The station is deleted.

Decoder on/off

5 6 Select the station which you want to divert via the

decoder.

Confirm with OK.

The available options are displayed at the bottom left.

5 6 Select Decoder on/off.

Confirm with OK.

When you select On, Decoder (with Secam: Canal+) appears

underneath the station shown in the small picture.

19 -

Page 20

Auto Programming

Program Edit

Clock Set

TV Aspect

Display Mode

AV2 Connection

Power Save Mode

Initialisation

Auto

Manual

3 Prev.

SelectMove

Auto Programming

Program Edit

Clock Set

TV Aspect

Display Mode

AV2 Connection

Power Save Mode

Initialisation

Auto

Manual 4

3 Prev.

SelectMove

2007Year

5 8Date

10 57:

Time

Initial Installation

NICAM

This recorder can receive HiFi sound broadcasts in NICAM-Stereo. However, distortions may occur under unfavourable reception conditions. Switch off the function in this case (off).

5 6 Select station in the Station List menu.

Confirm with OK.

The available options are displayed at the bottom left.

5 6 Select NICAM Auto/Off under station list.

Confirm with OK.

When you select Auto, NICAM appears underneath the station shown in the small picture.

Clock set

When the automatic station search has finished, the date and time are set automatically (depending on the transmitting station), also when power is recovered. The Auto option must be set for this.

Call menu.

5 6 Select General symbol. 4 Call second level.

5 6 Select Clock set.

4 Call third level.

5 6 Select Auto.

Confirm with OK.

Exit menu.

- 20

➠ Please check by pressing in TV mode whether the year and date have

been automatically set correctly. You may have to set it manually as described under “Manual setting of date / time”.

Manual Setting of the Date / Time

It is possible that the television station may broadcast incorrect date and / or time information or no information at all and that the Recorder sets the incorrect time. If this is the case we recommend that you set the clock manually.

Call menu.

5 6 Select General symbol.

4 Call second level.

5 6 Select Clock set.

4 Call third level.

5 6 Select Manual.

Confirm with OK.

Enter the date and time.

3 4 Move cursor.

5 6 Enter data.

Confirm with OK.

Exit menu.

TV Aspect

You can choose: 4:3 Select this setting if a television set with 4:3 picture format is

connected. 16:9 Select this setting if a widescreen television set with 16:9

picture format is connected.

Screen Mode

The screen mode setting is only available if the TV aspect of the television is set to 4:3. You can choose:

Letter Box Widescreen format recordings appear with black borders at

the top and bottom of the screen. Pan Scan The picture fills the whole screen but cuts off areas at either

side that do not fit on the screen if required.

Page 21

Auto Programming

Program Edit

Clock Set

TV Aspect

Display Mode

AV2 Connection

Power Save Mode

Initialisation

Decoder

Others

3 Prev.

SelectMove

Auto Programming

Program Edit

Clock Set

TV Aspect

Display Mode

AV2 Connection

Power Save Mode

Initialisation

Factory Set

HDD Format

M/C Format

3 Prev.

SelectMove

Display Menu

Disc Menu

Disc Audio

Disc Subtitle

English

Deutsch

Français

Italiano

Español

Nederlands

3 Prev.

SelectMove

Display Menu

Disc Menu

Disc Audio

Disc Subtitle

Original English German French Italian Spanish Portuguese Russian Others ----

3 Prev.

SelectMove

Initial Installation

AV2 connection

You can connect the following devices to the EURO AV2 DECODER connection on the back of the recorder:

Decoder Connect a Pay-TV or Canal+ decoder. Others Connect a video recorder or similar device.

Energy saving mode

You can set the recorder so that it consumes < 1 Watt on standby. In the On setting, the VPS timer, the decoder signal transfer from AV2 to AV1 and “Digital Link Plus” are switched off (no recording via recording wizard of the TV set possible

- page 44).

Initialisation

You can reset the recorder to its factory settings if necessary. Select Factory set and press OK.

➠ Some options cannot be reset with this (security stage, password, country

code, station list, timer list).

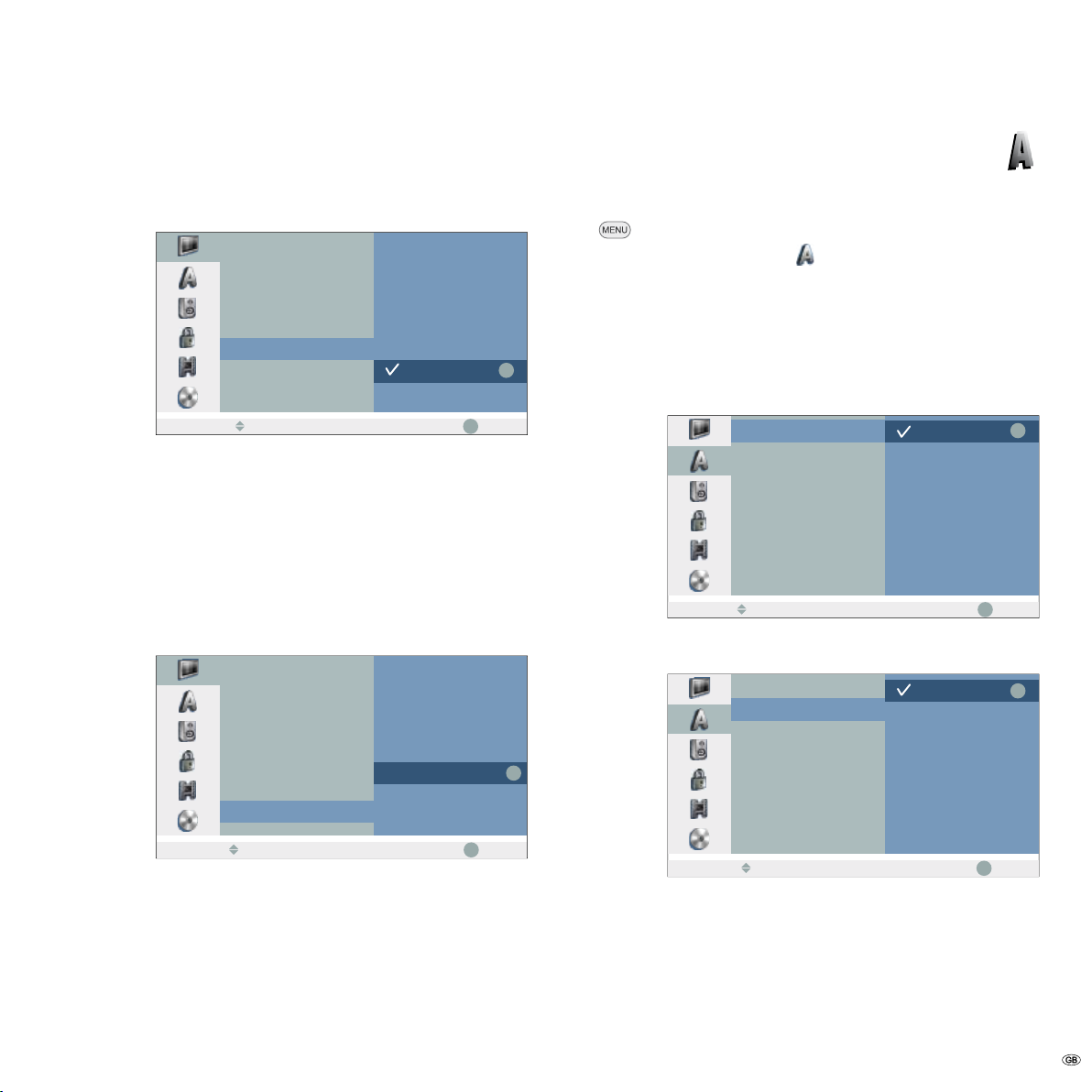

Language Menu

Menu Language

Select a language for the menus and dialogues displayed by the recorder.

Call menu.

5 6 Select symbol Language.

4 Call second level.

5 6 Select Display Menu.

4 Call third level.

5 6 Select English.

Confirm with OK.

Disc Languages

Select a language for the disc‘s menu, audio and subtitles.

You can format the HDD and an inserted memory card by selecting the menu item Format HDD or Format M/C. Press OK and confirm the option yes with OK.

If another language is to be used as the “original” version of the disc, select this here if it is available on the Disc.

Original The original language of the disc is selected. Others Select other language with Other and confirm with OK. Enter

the corresponding four-digit number from the “language code

list” on page 62 and confirm with OK.

21 -

Page 22

Dolby Digital

DTS

MPEG

Sampling Freq.

DRC

Vocal

OFF

3 Prev.

SelectMove

Rating

Set Password

Area Code

DivX Reg. Code

Change

Löschen

3 Prev.

0-9 Input

New Password

Initial Installation

Audio Menu

Each DVD disc offers a variety of audio formats. Set the audio format for the recorder according to the type of audio system you are using.

Dolby Digital / DTS / MPEG

PCM Select this option if the unit is connected to a digital two

channel stereo amplifier. The DVD recorder‘s digital audio outputs emit sound in PCM 2 channel format if you play a

DVD-Video disc with Dolby Digital audio format.

Bitstream Select “Bitstream“ if you have a Dolby Digital decoder (or

amplifier, a Loewe TV with AC3 or DIS module or another unit with Dolby Digital decoder) connected to the DIGITAL OUT socket of the DVD recorder.

OFF If you select “Off“ the DTS signal is not emitted from the

DIGITAL OUT socket.

Sampling Frequency

If your receiver or amplifier is NOT designed for 96 kHz signals, select 48 kHz. If you have made this selection, the unit automatically converts the 96 kHz signals to 48 kHz signals that the system can decode. If your receiver or amplifier is designed for 96 kHz signals, select 96 kHz.

Night Mode

Thanks to digital audio technology the DVD format enables you to hear soundtracks in the most accurate and realistic way possible. However, you may wish to limit the dynamics (i.e. the difference between the loudest and the quietest sounds). In this way you can play a film with minimum volume differences. For this purpose switch DRC to ON.

Karaoke Audio

Switch the singing option (Vocal) on, if you want to play a multi-channel karaoke DVD. The karaoke channels on the disc are mixed into normal stereo sound.

Lock Menu

Films on DVD can contain scenes that are not suitable for children. For this reason discs can contain child protection information that applies to the whole disc or only to certain scenes on the disc. The ratings are country-dependent. The child lock function enables you to prevent your children watching certain discs or scenes.

Set Password

Change the four-digit code.

Call menu.

5 6 Select symbol Lock.

4 Call second level.

5 6 Select Set Password.

4 Call third level.

If you have not yet entered a password

Enter a four-digit number with number buttons.

Confirm with OK.

Enter password to check.

Confirm with OK.

If you have already entered a password

Select Change.

Confirm with OK.

Enter current password.

Confirm with OK.

Then enter a new four-digit password.

Confirm with OK.

- 22

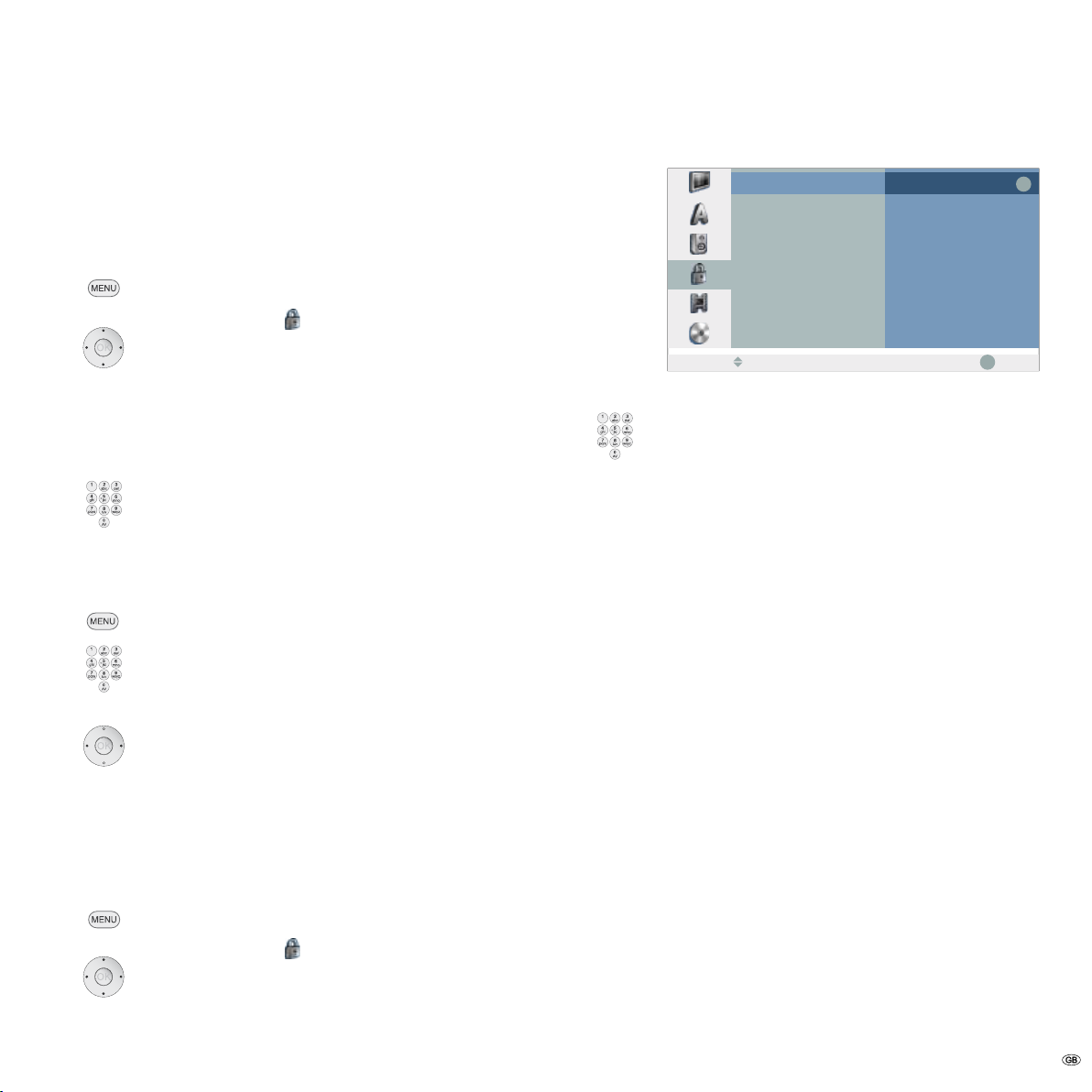

Page 23

Rating

Set Password

Area Code

DivX Reg. Code

No Limit 8 (Adult) 7 6 5 4 3 2 1 (Children)

3 Prev.

SelectMove

Initial Installation

Enter password to check.

Confirm with OK.

➠ If you make a mistake, press 3repeatedly before you press OK to delete or

correct the password numbers one after another.

Switching off the password

Proceed as follows if you want to switch off the password.

Call menu.

5 6 Select symbol Lock.

4 Call second level.

5 6 Select Set Password.

4 Call third level.

5 6 Select Delete.

Confirm with OK.

Enter a four-digit number with number buttons.

Confirm with OK.

Delete Password

If you forget your password, proceed as follows to delete the current password.

Call menu.

Enter the six-digit number “210499” with the number buttons.

A message is displayed.

3 4Select the yes button.

Confirm with OK.

The four-digit password is deleted. Enter a new password as described above.

Rating

This function prevents playing of DVDs unsuitable for children if these contain the appropriate code.

Call menu.

5 6 Select symbol Lock.

4 Call second level.

5 6 Select Rating.

4 Call third level.

Enter the four-digit password with the number buttons (see

Set Password).

Confirm with OK.

5 6 Select security stage between 1 and 8.

No Limit If you select “No Limit”, the parental lock is not

active. The disc will be played fully.

Step 1 to 8 Some discs contain scenes which are unsuitable for

children. If you assign the recorder a security stage, only those scenes of the inserted disc will be played which correspond to the assigned security stage or have a security stage below it.

“1” has the most play restrictions.

“8” has the least play restrictions.

Scenes with a higher rating on the DVD are only played when

appropriate substitute scenes are available on the disc. The

alternative scene must have the same or a lower security stage.

If no suitable alternative is found, the recorder stops playing.

You have to enter the four-digit password or change the rating

to play the disc.

Confirm with OK.

23 -

Page 24

Rating

Set Password

Area Code

DivX Reg. Code

G B

3 Prev. 4Next

Select

Move

Rating

Set Password

Orts Code

DivX Reg. Code

Zeige

3 Prev.

Select

DivX(R) Video On Demand Your registration code is: YJ3ZEJUR To learn more visit <www.divx.com/vod>

Initial Installation

Area Code

Enter the code for a country/region whose standards are to be used to rate the DVDVideo disc. (See “List of country code“ on page 63). For Great Britain select “G B“.

Call menu.

5 6 Select symbol Lock.

4 Call second level.

5 6 Select Area Code.

4 Call third level.

Enter the four-digit password with the number buttons (see “Set Password”).

Confirm with OK.

5 6 Enter data.

3 4 Move cursor.

Confirm with OK.

DivX registration code

You receive the DivX® VOD (Video On Demand) registration identification for hiring and purchasing films through the DivX® VOD-Service. Further information is available under:

www.divx.com/vod.

Call menu.

5 6 Select symbol Lock.

4 Call second level.

5 6 Select DivX Reg. Code.

4 Call View.

Confirm with OK.

The “registration code” valid for your device is now displayed.

You can use this registration code to hire or buy movies through

the DivX® VOD Service under www.divx.com/vod.

See the instructions for saving movies on a disc for playing on

this recorder.

➠ All movies purchased from DivX® VOD can be played only on this

recorder.

- 24

Page 25

Rec Mode Set

Rec Aspect

DV Rec Audio

TV Rec Audio

Auto Chapter

AV2 Recording

3 Prev.

SelectMove

Rec Mode Set

Rec Aspect

DV Rec Audio

TV Rec Audio

Auto Chapter

AV2 Recording

Audio 1

Audio 2

3 Prev.

SelectMove

Rec Mode Set

Rec Aspect

DV Rec Audio

TV Rec Audio

Auto Chapter

AV2 Recording

None

5 Min

10 Min

15 Min

3 Prev.

SelectMove

Initial Installation

Recording Menu

Rec Mode Set

You can set the picture quality for recording: DVD+/-R/RW (4,7 GB) HQ mode: approx. 1 hour. SQ mode: 2 hours. LQ mode: 4 hours. EQ mode: 6 hours.

HDD (160 GB) HQ mode: approx. 43 hours. SQ mode: approx. 80 hours. LQ mode: approx. 152 hours. EQ mode: approx. 227 hours.

Call menu.

5 6 Select symbol Record.

4 Call second level.

5 6 Select Rec Mode Set.

4 Call third level.

56 Set desired recording quality (EQ, LQ, SQ or HQ).

Confirm with OK.

Rec Aspect

You can adapt the picture format (16:9 or 4:3) to the material being recorded during the recording.

DV Rec Audio

You need to use this setting if your camcorder with 32 KHz / 12-bit is connected to the DV IN socket on the front panel. Some digital camcorders have two stereo tracks for audio. One is used for recording, the other is used for post-editing. On the Audio 1 setting the original sound is recorded. On the Audio 2 setting the edited sound is used.

TV Rec Audio

When recording bilingual TV you can select the audio channel to be recorded. . Audio 1+2: both languages are recorded.

Audio 1: language 1 only. Audio 2: language 2 only.

Auto Chapter

Chapter start marks are inserted at fixed intervals in recordings on DVDs in video mode. You can select intervals of 5, 10 or 15 minutes. If you select None automatic chapter setting is switched off.

AV2 Recording

The signal type can be selected to record the video in signal of a device connected to the EURO AV2 DECODER.

Auto The video in signal is adapted automatically to the received

video signal.

CVBS Only for recording a CVBS input signal. RGB Only for recording an RGB input signal.

25 -

Page 26

Start

Disc Format

Finalise

Disc Label

Disc Protect

PBC

3 Prev.

Select

VR Mode Video Mode

Select a Mode.

Disc Format

OK Cancel

All data on the disc will be deleted. Proceed?

Disc Format

Move

Disc Format

Finalise

Disc Label

Disc Protect

PBC

Finalise

Unfinalise

3 Prev.

Select

Initial Installation

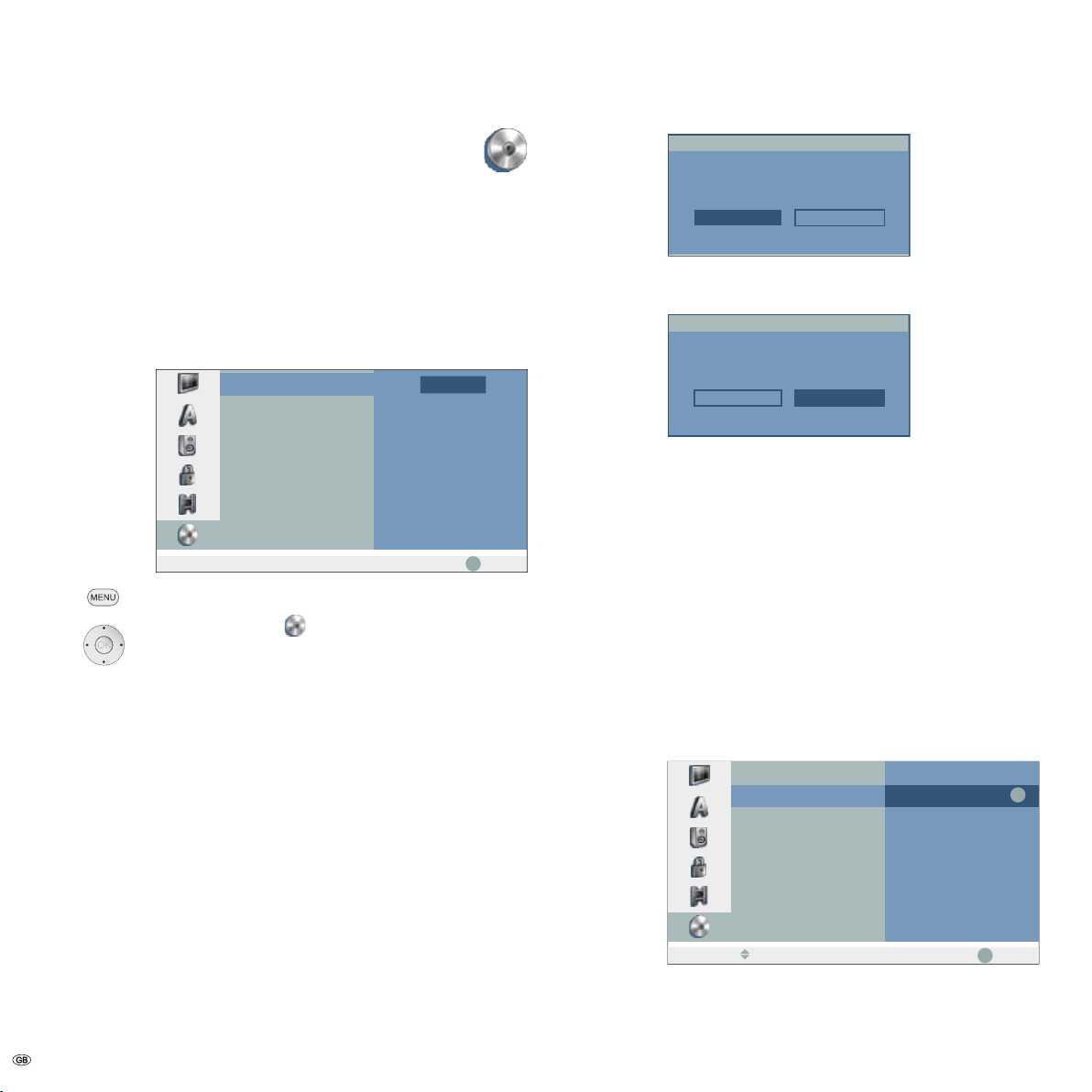

Disc Menu

Disc Format

The recorder automatically initialises a new disc when it is inserted.

DVD-R The recorder initializes the disc in “video mode”. DVD-RW The recorder initializes the disc in “VR mode”. DVD+R The recorder initializes the disc in “video mode”. DVD+RW The recorder initializes the disc in “video mode”.

➠ A DVD+RW or DVD-RW disc can also be initialised later by menu:

Call menu.

5 6 Select symbol Disc.

4 Call second level.

5 6 Select Disc Format.

4 Call third level.

OK call Start menu.

3 4 Select a desired format for DVD-RW (Video mode or VR mode).

Confirm with OK.

The following prompt appears:

34 Select OK button.

Confirm with OK.

➠ When you start formatting all recordings on the disc are

deleted.

After pressing OK disc formatting begins. It can take a few

minutes.

Finalisation

Finalisation ﬁxes recordings so that the disc can be played on a regular DVD player

or a computer with a suitable DVD-ROM drive. During finalisation of a Video mode disc a menu is created for disc navigation (Page 56).

➠ Following recording and finalisation of DVD-R and DVD+R discs no other

editing or recording can take place. This does not however apply for a DVD+RW and DVD-RW disc.

- 26

Page 27

OK Cancel

Do you want finalisation?

Finalise

Alphabet Capital

Space Delete OK Cancel

DVD-RW|

1 2 3 4 5 6 7 8 9 0 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Æ Ç Đ Ø ' ´ ^ ~ " ° Þ ß µ .

Move

Disc Format

Finalise

Disc Label

Disc Protect

PBC

OFF

3 Prev.

Select

Initial Installation

Call menu.

5 6 Select symbol Disc.

4 Call second level.

5 6 Select Finalise.

4 Call third level.

5 6 Select Finalise.

Confirm with OK.

34 Select OK button.

Confirm with OK to finalise the disc.

➠ The time needed for finalisation depends on the type of disc, how much is

recorded on the disc and the number of titles on the disc. Finalisation of a prerecorded disc can take up to 8 minutes.

➠ When inserting a finalised DVD-RW, the finalisation can be cancelled by

selecting Unfinalise in the Finalise menu. Then the disc can be edited and rewritten.

Disc Label

Use this option to enter a name for the disc. The name is displayed when the disc is loaded and when you display disc information on the screen.

➠ The disc name can be up to 32 characters long.

➠ For discs formatted on other recorders you will only see a limited character set.

Call menu.

5 6 Select symbol Disc.

4 Call second level.

5 6 Select Disc Label.

4 Call Edit.

Confirm with OK.

Enter a name for the disc.

5634Select character or function.

Insert OK character.

See Station Rename on page 19 for functions.

Save with OK button.

Disc Protect

Set Disc Protect to On to avoid accidental recording, editing or deleting of the disc. To release the disc again, select OFF.

PBC - Play-Back Control

VCD, SVCD

If a VCD (or SVCD) possesses the property of Play-Back Control (PBC) and the PBC menu is set to ON, the disc is played via the menu on the disc. Otherwise the VCD can be played like an audio CD but without a track list.

27 -

Page 28

DVD-RW

VR Mode

SQ 43M Free

PR-01

N Stereo

Kabel

24/05/2007 13:30

Stereo

Title

Move 0-9 Input

Enter

DVD-Video

1/10

0:12:34

1.STEREO OFF

1/1

NORMAL

 4/14 

Initial Installation

Additional Screen Menus

This manual contains basic instructions for operating the recorder. Some DVDs require specific handling or only permit limited operation during playback. If this is the case the symbol appears on the screen. This indicates that certain operations are not permitted at certain points or that no menu is available on the disc

The Disc Info menu

If you are currently watching a TV channel supplied by the integrated receiver of the recorder (recorder in Stop mode), you can show (and hide) information about the TV station and the inserted disc with OK or . Example: A DVD-RW in the VR mode is inserted and the station 01 with the name “Kabel” is on at the moment:

Indicates the channel number, the station name and the audio signal (NICAM, STEREO, MONO, BILINGUAL) of the station you are currently watching.

Indicates in a progress bar the ratio of used to free space on the inserted disc, the free space in hours (H) and minutes (M) and the recording quality (for other discs see page 25).

Indicates the name, mode and format of the disc.

Temporarily Visible Symbols

Resume play from this point.

Action prohibited or not available.

➠ Not all discs provide all the functions described below.

➠ The screen menu closes automatically when no buttons are pressed for 10

seconds.

Displaying Disc Information on the Screen during Disc Playback

You can display a variety of information about the inserted disc on the screen.

Twice to select the Title menu.

5 6 Select the desired function.

Indicates the current date and time.

- 28

Title Current title (or track number)/total number of titles (page 30). Chapter Current chapter number/total number of chapters (page 30). Time Elapsed playing time (page 31). Sound Selected sound formats, movie language and audio channels

(page 32).

Subtitles Selected subtitle (page 33). Camera Selected camera position / total number of camera positions

(page 32).

Sound (3D-surround) selected sound mode (page 32).

Exit menu.

Page 29

HDMI mode

HDMI (DVI) connection

The HDMI connection (High Definiton Multimedia Interface) allows digital picture and sound transmission via a connecting cable, e.g. to Loewe Flat TV sets. The digital picture and sound data are transmitted without data compression and therefore lose none of their quality. In the equipment connected, no analogue/digital conversion is necessary, which might also have lead to losses in quality. DVI signals can be also be reproduced by the HDMI connection using a DVI/HDMI adapter cable. This is possible because HDMI is based on DVI and is downwardly compatible. That means that the digital video signals are transmitted via HDMI

- no audio signals are transmitted, though. In addition, both use the same copy protection method HDCP (High Definition Content Protection).

Switch off the TV set/monitor with HDMI connection and recorder.

Connect recorder to TV set/monitor via HDMI connection as described on page 13.

Switch on the TV set/monitor.

Switch on the recorder after 30 seconds.

➠ DVI: If a DVI-HDMI adapter cable is used for transmission,

connect the analog or digital audio outputs on the recorder with the corresponding inputs of the TV set as described on pages 13 and 14.

Leave the existing SCART connection as it is to record from the TV.

HDMI operation

Switch the TV set over to the HDMI AV input (takes place automatically in connection with a -Loewe Flat-TV set, see page 13).

Press the RES button on the recorder repeatedly to set the desired picture resolution (e.g. 576i, 576p, 720p, 1080i).

➠ You can only set resolutions which your TV set/monitor is

capable of. For optimum picture quality, select the resolution 1080i on the recorder.

Open the disc drawer.

Insert the selected disc in the drawer with the side to be played facing down.

Close the drawer. Call main menu.

34 Select FILM. 56 Select HDD, HDD DivX or Disc.

Confirm selection with OK. A menu appears on the screen.

5 634Select title on DVD.

Depending on the medium, playing starts automatically or is started with the Play button or you have to make entries in the menu.

➠ The other sockets (VIDEO OUT, S-Video and Component Video) have no

function during the HDMI mode.

➠ With an HDMI connection the audio scanning frequency is only 48 kHz, even

when selecting 96 kHz.

➠ This recorder performs no internal (2-channel) decoding of DTS soundtracks.

In order to enjoy DTS multi-channel surround sound, this recorder must be connected by one of the digital audio outputs to a DTS-compatible receiver.

➠ If the “Dolby Digital” or “MPEG” option has not been set to “PCM” in the

Sound menu (page 22), no sound is output through the TV set.

➠ The HDMI connection to the recorder is operated as a signal output. Please

proceed as described on page 44 if you want to record from an external signal source with the recorder.

29 -

Page 30

DVD-Video

 4/14 

Video mode

Playing back a DVD or video CD

Preparation

Switch the television on and set the video source to be the input that the recorder has been connected to or activate the “Control voltage“ option for the television‘s AV input. If you have connected the recorder to an audio system, switch on the audio system and, as the source, set the input that the DVD recorder has been connected to.

Open the disc drawer.

Insert the selected disc in the drawer with the side to be played facing down.

Close the drawer.

READING shows on the display while disc recognition is in progress.

Play

Call main menu.

34 Select FILM. 56 Select HDD, HDD DivX or Disc.

Confirm selection with OK. A menu appears on the screen.

5 634Select title on DVD.

Start / continue playing.

Select title on (S)VCD.

The menu setting and the exact operating instructions for the disc may differ from disc to disc. Follow the instructions on the individual menu pages.

Pause: Pause playing.

Stop: Finish playing.

You will find further information on page 28.

➠ If the child lock is active and the DVD disc‘s security rating is higher than that of the child lock, the four-digit password will need to be entered (see “Ratings“ on page 23).

➠ DVD‘s have a country code. The recorder will not play a disc that has a country code which differs from the country code stored in the unit. This player has country code 2.

➠ You can also switch off (OFF) PBC for (S)VCD (see page 27) in the main menu.

General functions

➠ Unless otherwise indicated, the remote control (page 3) is able to control the functions described. The recorder‘s own controls can also be used to control certain functions (page 4).

Select TITLE HDD DVD-ALL DivX

Twice to select the Title menu.

5 6 Select symbol.

34 Select title number.

OK start playing.

Select CHAPTER / TRACK

HDD DVD-ALL VCD

If a title has several chapters/tracks, you can select another chapter/track as follows:

P+ or P- during playing to select the next chapter/next track or return to the beginning of the current chapter/track.

P- twice briefly to return to the previous chapter/track.

Search HDD DVD-ALL VCD DivX CD

Select the search direction and speed:

Press several times for faster search in reverse.

Press several times for faster search forwards.

Speed and direction are shown as arrows.

End search mode and continue playing.

Skip

34 Jump back/forward 5 minutes during playing (HDD).

Jump forward 15 seconds during playing (HDD, DVD±R, DVD±RW).

- 30

Page 31

DVD-Video

1/10

0:12:34

 4/14 

HDD

1/6

Video mode

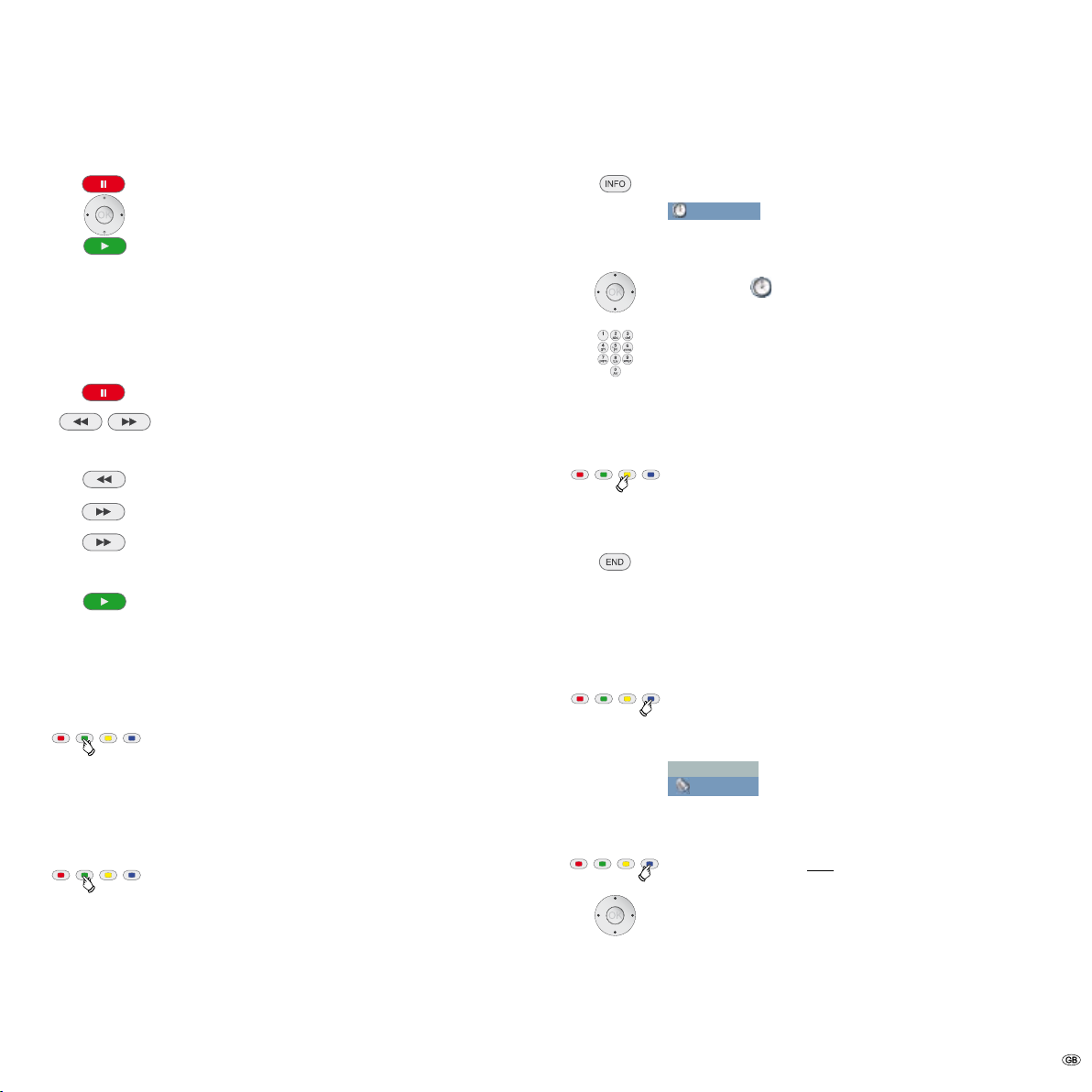

Freeze frame and picture for picture play-back

HDD DVD-ALL VCD DivX

Pause: Pause playing.

34 Scroll picture by picture.

Continue playing.

➠ The picture by picture scroll back is not supported by VideoCDs and in DivX. You can page forward through images by pressing PAUSE on the remote control.

Slow Motion

HDD DVD-ALL VCD

Pause: Pause playing.

Switch on slow motion mode during pause.

Select the slow motion direction and speed:

1/16, 1/8, 1/4, 1/2 (reverse).

1/16, 1/8, 1/4, 1/2 (forwards).

1/8, 1/4, 1/2 (forwards / VCD).

Slow motion speed and direction are displayed.

End slow motion mode and continue playing.

➠ On Video-CD the slow motion play-back in reverse is not supported.

Repeat HDD DVD-ALL VCD CD MP3

DVD-Discs

Select type of repetition.

Chapter Repeats the current chapter. Title Repeats the current title. All Repeats all titles on the disc (VR mode; only DVD-RW disc).

Off No repeat.

Video-CDs / DivX

Select type of repetition.

Track Repeats the current track. All Repeats all tracks on the disc or in the folder (DivX).

Off No repeat.

➠ On a Video-CD with PBC you have to set PBC to OFF in “Disc” menu of the main menu to use the repeat function. You will find further information on page 27.

Time (Play from ...) HDD DVD-ALL DivX

The “Time” function enables you to select where a disc starts playing.

Press twice.

The elapsed playing time of the current disc is displayed in the “Time” box.

5 6 Select symbol.

Enter time in format h:mm:ss.

OK start playing from set time.

Zoom HDD DVD-ALL VCD

With the Zoom function you can enlarge the video picture during playback and navigate in the enlarged picture.

Select Zoom function during play/freeze frame.

Zoom stages: x1, x2, x4, x1 (normal size).

3 4 5 6 Select picture section.

Close Zoom window.

➠ The Zoom function may not work on certain DVDs.

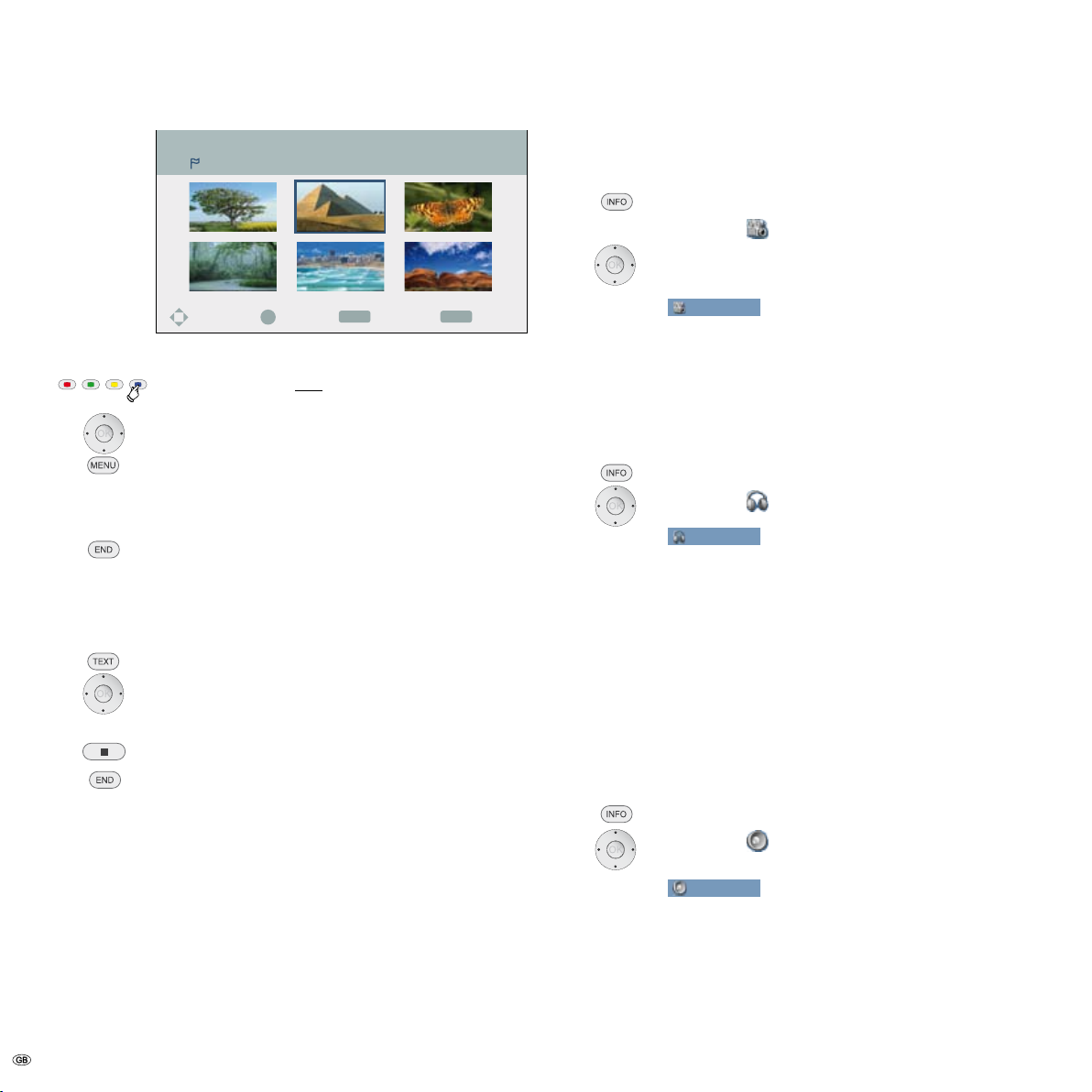

Markers HDD DVD-ALL VCD You can start playing from a saved marker. A maximum of six markers may be saved.

Set Marker

Press the blue button briefly to set a mark at a selected point.

The marker symbol is displayed on the screen for a short time.

Repeat this step to enter a maximum six markers on one disc.

Call Marker

Press the blue button long to select Marker Search menu.

5 634 Select marked scene.

OK Start playing from marked scene.

31 -

Page 32

ENDMENU

Select

CloseDeleteMove

Marker Search

DVD-Video

1/10

0:12:34

1.STEREO OFF

1/1

 4/14 

DVD-Video

1/10

0:12:34

1.STEREO

 4/14 

DVD-Video

1/10

0:12:34

1.STEREO OFF

1/1

NORMAL

 4/14 

Video mode

Camera positions DVD-V

If the DVD contains scenes taken at different camera positions, it is possible to change to another camera position during play-back.

Select twice during play-back.

5 6 Select symbol.

3 4 Select the desired camera angle. The number of the

current camera position is displayed.

Delete Marker

Press the blue button long to select Marker Search menu.

5 634 Select marked scene.

Delete Marker.

34 Select yes option.

Confirm with OK.

Exit the Marker Search menu.

➠ The markers are only saved until the disc is changed (DVD-ALL VCD).

Disc menu HDD DVD-V VCD

DVDs and Video CDs usually contain their own menus.

Select Disc menu.

5 634 Select the desired settings.

Confirm with OK.

Exit Disc menu DVD.

Exit Disc menu HDD.

➠ A camera symbol will appear on the screen during scenes that were recorded using different camera positions.

Digital sound formats, movie language and audio channels

You can select the digital sound format in connection with the movie language here.

Select twice during play-back.

5 6 Select symbol.

3 4 Select other movie language or sound format (DVD-V

DivX).

3 4 Select other audio channel (STEREO, LEFT or RIGHT) (VCD Video VR).

➠ Some discs have got Dolby Digital and DTS sound tracks. If DTS is selected, there is no analogue audio output. To listen to the DTS sound track, connect the recorder via one of the digital outputs to a DTS amplifier (page 14).

3D-Surround DVD-ALL VCD DivX

This device can create a 3D surround effect which simulates a multi-channel audio reproduction with two conventional stereo speakers.

Select twice during play-back.

5 6 Select symbol.

- 32

3 4 Select 3D SUR. for surround sound.

3 4 NORMAL to end surround sound.

Page 33

DVD-Video

1/10

0:12:34

1.STEREO OFF

 4/14 

Video mode

Subtitles DVD-ALL DivX

Select twice during play-back.

5 6 Select symbol.

3 4 Select the desired subtitle language.

Playing memory media with mixed contents

If the memory media contain files of different playing formats such as MP3, JPG and DivX, you can switch between the three play modes MOVIE, PHOTO and MUSIC with the button in the main menu (page 16):

➠ For operation of the MOVIE mode, see chapter “DivX mode” on page 34.

➠ For operation of the MUSIC mode, see chapter “Audio mode” on page 35.

➠ For operation of the PHOTO mode, see chapter “Photo mode” on page 38.

Storing the last disc settings

DVD-V Video VR

The recorder saves the user settings for the last disc that you have watched. The settings are saved until you remove the disc from the recorder or switch it off. If you insert a disc that has already been played back, playback will continue from the last stopping point.

PIP (Picture In Picture)

HDD DVD-ALL

This function enables you to watch TV stations or videos from other connected AV sources whilst playing the video.

Start play-back.

Switch on small picture.

Select station for small picture in TV mode.

Select signal source for the small picture in the order Tuner, AV1, AV2, AV3, AV4, Tuner.

End play-back and PIP. Transfer small picture to large picture.

3 4 Select desired small picture position.

Yellow button – Select Zoom function for the small picture.

Three different sizes are available.

Switch off small picture.

33 -

Page 34

ENDINFO

Select

Movie 2 Item(s)

HDD Clip1.avi

Clipl2.avi

New Album

CloseInfo

Movie List

DivX mode

With this recorder you can play DivX files which are saved on HDD, CD-R/RW or DVD±R/RW media.

➠ Before playing DivX files, please read the notes “About DivX Video files” on this page.

Playing DivX files

Open the disc drawer.

Insert the selected disc in the drawer with the side to be played facing down.

Close the drawer. The disc is read. Call main menu.

34 Select MOVIE. 56Call HDD DivX or DISC.

Confirm selection with OK. The Movie List menu appears on the screen.

5 6 Select title or folder.

OK show menu options for file.

5 6 Select option.

Confirm with OK.

Start play-back.

P+ or P- during play-back to select the next title or return to the beginning of the current title.

- 34

P- twice briefly to return to the previous title.

Finish playing.

Show detailed information.

Exit DivX menu.

See page 30 onwards for other operating func tions.

DivX subtitles

For subtitles to be displayed correctly press MENU – LANGUAGE – Disc Subtitles and select the desired subtitle language. To select the correct character set for the subtitles, press the red button

during play-back and then select the desired character set with

34. The subtitles function can be switched on and off like on DVD-Video (page 33).

About DivX Video les

This recorder is compatible with the following DivX formats:

The maximum picture resolution of the DivX ﬁle is less than or equal 720 x

•

576 (H x V) pixels.

The filename of the DivX ﬁle has a maximum of 47 characters.

•

Characters in DivX ﬁlenames which cannot be displayed are shown as “_”.

•

The unit can not correctly play image refresh rates of > 30 images per sec-

•

ond. If the sound and picture are out of sync, either the sound or the picture is

•

played. This recorder does not support the “GMC” DivX/Xvid function.

•

Valid DivX ﬁle extensions for videos are: “.avi”, “.divx”.

•

Valid DivX ﬁle extensions for subtitles are: “.smi”, “.srt”, “.sub” (only Micro

•

DVD, Subviewer 1-2 formats), “.txt” (only Micro DVD, T1-4 formats). Other subtitles cannot be displayed. Valid DivX Codec formats: “DivX3.xx”, “DivX4. xx”, “DivX5.xx”, “XVID”,

•

“3IVX”. Valid DivX Audio formats: “Dolby Digital” (AC3), “PCM”, “MP2”, “MP3”, “DTS

•

(only at DIGITAL OUT)”, “WMA”. MP3 sampling rates: 8 - 48 kHz.

•

WMA sampling rates: 32 - 48 kHz.

•

MP3 bit rates: 32 - 320 kbps.

•

WMA bit rates: 32 - 192 kbps.

•

Page 35

END

MARKER TEXT

Select

Track List Duration

Audio CD

55:02:45

TRACK 1 TRACK 2 TRACK 3 TRACK 4 TRACK 5

0:04:12 0:03:45 0:02:15 0:03:22

0.04:15

CloseProg.-ListMark

Music List

END

MARKER TEXT

Select

Music

TITLE1.mp3

Play Random Copy Program add

TITLE.mp3 TITLE2.mp3 TITLE3.mp3 TITLE4.mp3

CloseProg.-ListMark

Music List

Audio mode

Playing titles on Audio CD or MP3/WMA media

Audio CDs can be played with the recorder. Recordings in MP3/WMA format can also be played from HDD, memory card, CD-ROM, CD-R or CD-RW discs (read the instructions for MP3/WMA recordings on page 36 before playing MP3/WMA recordings).

Open the disc drawer.

Insert the selected disc in the drawer with the side to be played facing down.

Close the drawer. Call main menu.

34 Select MUSIC. 56 Select HDD / DISC / Memory Card 1/2.

Confirm selection with OK. The Music List menu appears on the screen.

AUDIO CD menu

Change between program and original list.

Display detailed information (only MP3/WMA).

Finish playing.

Options in the music menus

5 6 Select title or folder.

OK display menu options.

5 6 Select option.

Confirm with OK.

New album Create new folder. Play Starts playing the selected tracks/files. Random Random play-back order of the tracks/files. Program add Inserts track/file in the program list (page 37). Copy Copy files to folder or data medium (page 36). Move Move files to folder or data medium (page 36). Open Open folder and show contents. Delete Deletes selected title/folder. Rename Change file/folder name.

Pause

Pause playing.

Continue playing.

MP3/WMA menu

5 6 Select title.

Start Play.

The elapsed playing time of the current track/current file is displayed on the left.

Playing stops automatically at the end of the disc/list.

Play another title

P+ or P- during play-back to select the next title or return to the beginning of the current title.

P- twice briefly to return to the previous title.

Enter the track number of the desired title directly with an AudioCD.

Search CD

Switch on seek mode during play-back.

Select the search direction and speed:

x2, x4, x8 (reverse).

x2, x4, x8 (forwards).

Search speed and direction are displayed.

End search mode and continue playing.

35 -

Page 36

Copy

HDD Memory Card1

Memory Card2

Copy

Cancel

Select the Media

New Album

Audio mode

Random play

5 6 Select title or folder.

OK display menu options.

5 6 Select Random.

Confirm with OK. The random play-back starts and the symbol is displayed: .

Skip the current title with P+.

Hints for MP3/WMA recordings

Sampling rates: MP3: 8 - 48 kHz; WMA: 24 - 32 kHz.

•

MP3 bit rates: 32 - 320 kbps.

•

WMA bit rates: 32 - 192kbps.

•

An MP3 file consists of audio data compressed with the MPEG1 Audio Layer-3

•

file coding. A WMA ﬁle (Windows Media Audio) consists of data which have been com-

•

pressed with the Windows Media Codec.

The ﬁlenames must have the extension “.mp3” or “.wma”.

•

Compatibility of MP3 discs

The physical format of the CD-R must conform to ISO 9660 and JOLIET.

•

The physical format of the DVD+R/RW must correspond to ISO 9660 (UDF

•

Bridge-Format). The total number of files in a folder on the disc may not exceed 1999.

•

➠ Please note that permission is required for downloading MP3/WMA files and music from the Internet. The required permission must be

obtained from the respective copyright owners or their representatives.

Copy/move files/folders

Files and folders can be copied or moved to other data media depending on the medium.

➠ Switch off the memory card’s write protection.

➠ Check whether the memory medium has enough free capacity.

5 6 Select file or folder.

Confirm with OK. Display menu options.

5 6 Select Edit.

4 Call second level.

5 6 Select Copy / Move.

Confirm with OK.

The Copy or Move menu appears.

5 6 Select the folder on the memory medium.

or create a new folder with New Album.

4 5 6 Select Copy / Move.

Confirm with OK.

The selected files / folders are copied to the memory medium into the selected folder.

Cancel returns to the start menu.

- 36

Page 37

END

MARKER TEXT

Select

Music

TITLE1.mp3

HDD

New Album

TITLE1.mp3 TITLE2.mp3

TITLE3.mp3 TITLE4.mp3

CloseProg.-ListMark

Music List 3 Item(s)

END

MARKER TEXT

Select

Music Program list

TITLE1.mp3

HDD

New Album

TITLE1.mp3 TITLE2.mp3 TITLE3.mp3 TITLE4.mp3

TITLE1.mp3 TITLE2.mp3 TITLE3.mp3

CloseProg.-ListMark

Music List

Audio mode

Program list

With the program list you can put together your favorite titles on a memory medium in any order for your individual program. This list may contain 99 titles (Audio CD) or 256 titles (MP3/WMA). Program lists can be saved permanently, renamed, deleted and loaded as often as you like.

5 6 Select title or folder.

Mark title or folder. A symbol (✓) appears in front of the title/ folder. Repeated pressing marks other titles/folders.

➠ If a folder is selected, all the files in it are added to the program list.

OK display menu options.

5 6 Select Programm add to add title to program list.

Confirm with OK.

34 Change to program list.

5 6 Select first title of the program.

or OK start playing in the programmed order.

Change between program and original list.

Options in the menu Program List

5 6 Select title or folder.

OK display menu options.

New album Create new folder. Play Starts playing the titles in the programmed order. Random Random play-back order of the titles. Delete Deletes selected title/folder/program list. Move Move order of the selected title in the program list. Save Saves the program list you have just created in the PROGRAM

folder in the main directory of the hard disc (HDD).

Program add Inserts track/file in the program list. Load Load saved program list. Rename Change name of program list.

Repeat programmed tracks/files

Select type of repetition during play-back.

TRACK Repeats the current title. ALL Repeats all tracks (CD). FOLDER (MP3/WMA) repeats all files in the currents folder.

Delete title from the program list

5 6 Select title.

Mark title. A symbol (✓) appears in front of the title.

OK display menu options.

5 6 Select Delete.

Confirm with OK.

Change track/file order in the program list

5 6 Select title to be moved.

Mark title. A symbol (✓) appears in front of the title.

OK display menu options.

5 6Select Move. A blue bar appears in the program list.

5 6 Move bar to desired position.

OK perform movement.

37 -

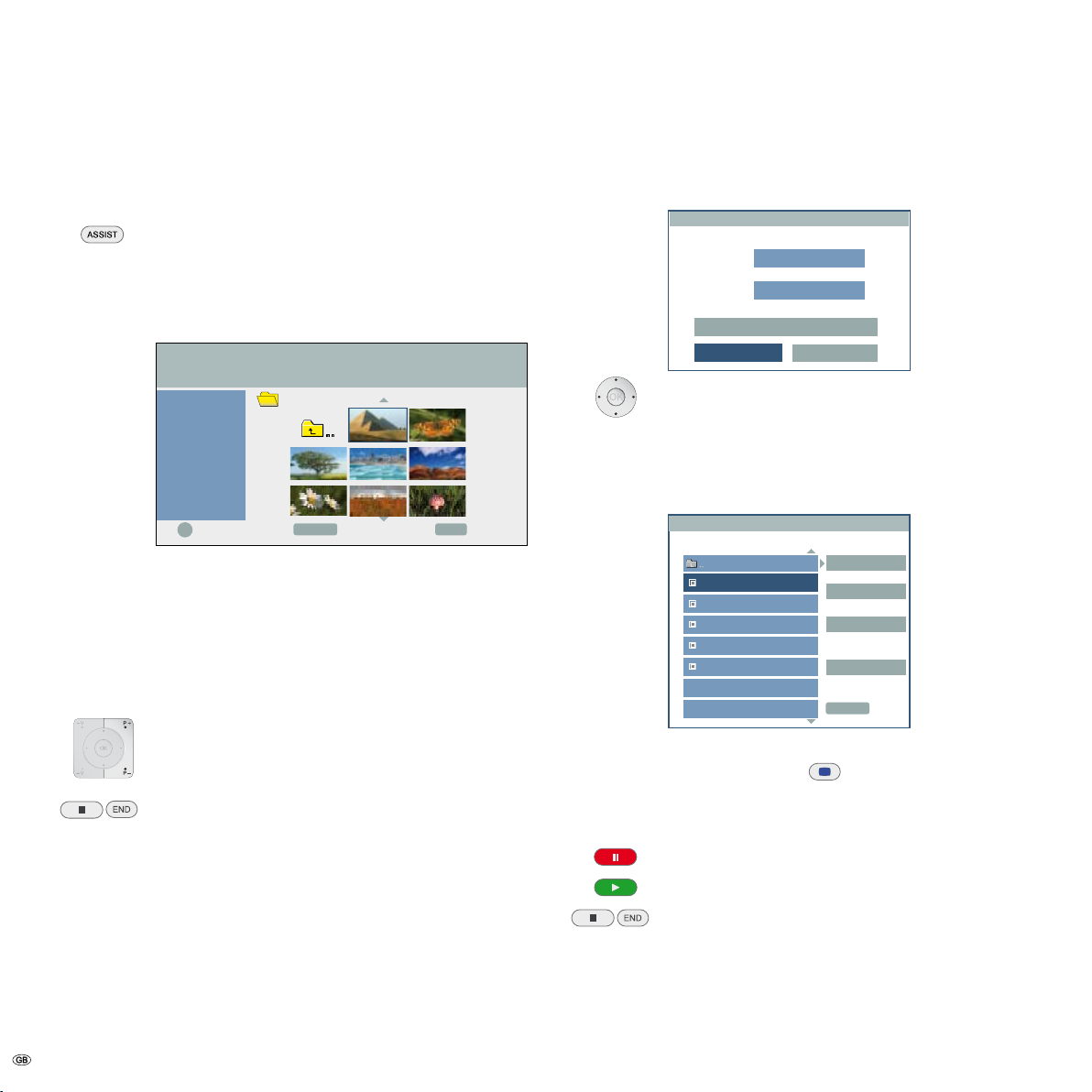

Page 38

END

MARKER

Select

JPG\ 1/15

HDD

15 File(s)

220 KB

New Album

CloseMark

Photo List

Slide Show

Simultaneous Music play

All

CancelStart

Pictures

Normal

Speed

Slide Show

Select All

Deselect All

Start

Cancel

Select music

MARKER

Mark

TITLE1.mp3

TITLE2.mp3

TITLE3.mp3

TITLE4.mp3

TITLE5.mp3

Photo mode

Show photos

The recorder can display JPEG files under the following conditions. The maximum size of a JPEG file may not exceed 4 MB. The total number of files and folders is

1999. The file extension must be “.jpg”. The progressive and loss-free compression of JPEG files is not supported.

Call main menu.

34 Select PHOTO. 56 Select HDD / DISK / Memory Card 1/2.

Confirm selection with OK. The Photo List menu appears on the screen.

5 634 Select desired photo.

OK display options.

5 6 Select Full Screen.

Confirm with OK. The photo is displayed.

➠ If the thumbnail is displayed in black, this JPEG file cannot be displayed.

OK hide / show menu bar.

Go to previous / next photo with P- / P+.

5 6 Rotate photo 90° to left / right.

Exit photo display, return to Photo List menu.

Options in the “Photo List” menu

New Album Create new folder. Open Open folder and show contents. Full Screen Show photo. Delete Delete file(s)/folder. Slide Show Automatically running photo sequence. Rename Change file/folder name. Move Move files to folder or data medium (page 36). Copy Copy files to folder or data medium (page 36).

- 38

Slide Show

5 6 Select Slide Show option in the Photo List menu.

Confirm with OK. The Slide Show menu appears.

5 634 Select options and confirm with OK.

Pictures Display Selected files  or All files.

Speed Speed of the slide show: Slow, Normal or Fast. Simultaneous Music Background music selectable from HDD.

 You can put together the slide show and simultaneous music individually by

selecting individual files with the MARKR button.

5 634 Select Start button.

OK start slide show.

Stop slide show.

Continue slide show.

End slide show, return to Photo menu.

Page 39

HDD

DVD

HDD

MultiMedia

Card

Secure Digital

Memory

Stick

CompactFlash

Card-Reader mode

About the system

With the digital audio/photo card reader integrated in the recorder, you can show photos taken by digital cameras on the screen with the most common memory cards. MP3/WMA audio files can be played. You can operate the Audio/Photo Card reader with the remote control of the Loewe recorder. MP3 or JPEG files can be copied from a data-CD/DVD to a memory card or an HDD with sufficient free capacity (page 36).

Compatibility of the memory cards

The memory card must be formatted in FAT 12, 16 or 32 format. Memory cards with other formats cannot be read.

Formats of the memory cards

Memory Stick (MS) ................................................................. Memory card 2

Memory Stick Pro .....................................................................Memory card 2

MultiMediaCard (MMC) ...........................................................Memory card 2

Secure Digital (SD) ...................................................................Memory card 2

xD-Picture Card ........................................................................Memory card 2

Compact Flash (CF) ..................................................................Memory card 1

Micro Drive (MD) .....................................................................Memory card 1

To avoid compatibility problems, only use high quality memory cards from brand name manufacturers.

Maximum memory capacity

Compact Flash (CF) ................................................................................. 4 GB

Micro Drive (MD) ....................................................................................5 GB

Memory Stick (MS) ............................................................................. 128 MB

Memory Stick Pro .................................................................................... 1 GB

MultiMediaCard (MMC) ..........................................................................1 GB

Secure Digital (SD) .................................................................................. 1 GB

xD-Picture Card (xD) ........................................................................... 512 MB

➠ When activating the audio/photo card reader, the Recorder should be idle, with no additional screen displays (no menu or Picture In Picture display).

➠ Take care with the card‘s polarity / tag (see diagram).

➠ Keep memory cards out of reach of children. If swallowed, a doctor is required

immediately.

➠ Cards should not be touched with electrical contacts, or the memory may be damaged.

➠ Only one card at a time may be plugged in the memory card slot 1.

➠ For formatting of memory cards, please see “M/C Format” on page 21.

➠ The reading time of the memory card depends on the number of ﬁles, the

ﬁle size or resolution.

➠ If a folder on the memory card contains more than 645 ﬁles, not all the ﬁles

can be played.

➠ The card in the slot1 has priority when cards are inserted in both memory card slots. To activate the card in the left hand memory slot, remove the card from the right hand slot.

➠ The front flap on the recorder cannot be closed while one or both memory cards are plugged in.

Inserting/removing memory cards

Memory card 2

Memory card 1

Inserting card Open the front flap. Insert card until it snaps in.

Removing card Press the card lightly in the middle at the front until it

is released (memory card 2) and then remove the card carefully (both memory cards).

Audio mode

See “Audio mode” on page 35 for operation.

Photo mode

See “Photo mode” on page 38 for operation.

39 -

Page 40

Remote control Assist – Card-Reader operation

Loewe TV: Sound off/on

LED indicator for current operating mode

Switch over to operate TV set

(Page 15) ....................... Switch over to operate Recorder

(Page 37) .......................MP3/WMA: original list / playlist

(Page 16) ..................................................“Set-up” menu

V–/V+ Loewe TV volume

Switch on/off - on stand by ...............................(Page 15)

Loewe TV: Radio Digital

Switch over to operate DVD-Player * *

Loewe TV: Sound menu

Main menu ....................................................... (Page 16)

Show detailed information ................................(Page 35)

MENU: Close menu

P– / P+ Select previous / next file ..................... (Page 35)

- 40

MENU: confirm the menu selection

PLAY: Reverse search

Pause

MENU: select / adjust

* *

Highlight selection ................................(Page 31, 37, 38)

Playback

PLAY: Search forward

Stop

* no function in this operating mode

Page 41

10:26

Play�

11:26

2 3 4

10:26 11:26

CLIPREC�

10:26 11:26

CLIPREC

END

CloseStart Point End Point 

Recording

Recordings on the HDD

Recordings on the internal hard disc (HDD) of the recorder are similar to recording in the VR mode on DVD-RW discs. Ten genres can be assigned to the recordings for easier management (see “Title Name”, page 50).

➠ The maximum number of titles on the HDD is 255.

Delayed TV viewing – Timeshift mode

You can interrupt a TV program at any time and continue watching it later with a timeshift.

Set the recorder to the desired signal source as described under “Manual Record” (page 42).

➠ The timeshift operation only starts when the TV option is set to TV HDD in the main menu (page 16).

Start recording with TIMESHIFT (BUFF ERI N G appears briefly in the display window of the DVD recorder and the T/S HDD display lights up). The display for Timeshift appears.

1 Status display for play mode. 2 Timeshift start time. 3 Already elapsed Timeshift time. 4 Current Timeshift time. 5 Timeshift start time plus one hour.

Interrupt recording. Press again to continue.

Switch Timeshift display on / off.

➠ The display for Timeshift disappears after 10 seconds. A symbol appears for this in the bottom left of the screen:

The display can be called again with OK.

Markers in Timeshift

A marker can be set in Timeshift mode.

Press the blue button briefly to set a mark at a selected point.

Press the blue button long to select the marked scene.

Exit display.

Clip recording

A program can be saved permanently on the HDD during the Timeshift display.

Search for the starting point with single frame, search and slow motion (page 30).

Press at the starting point of the clip to be recorded.

The progress of the recording is shown red in the progress display.

Search for the end point with single frame, seek and slow motion.

Press at the end point of the clip to be recorded.

Playing continues. Repeat the procedure for other clips if necessary.

➠ The display for Clip recording disappears after 10 seconds. A symbol appears for this in the bottom left of the screen:

➠ Only the sequences selected by clip recording are saved permanently on the HDD.

➠ Clip recordings are not possible for sequences shorter than five seconds.

Jump to start or end during Timeshift

The display appears.

3 Start playing from Timeshift starting point.

4 Start playing from Timeshift end point.

34 Jump back/forward 5 minutes during playing.

Jump forward 15 seconds during playing.

Exit Timeshift

End recording.

A confirmation message is displayed.

34 Select yes.

Confirm with OK. The current TV program is displayed.

41 -

Page 42

10M Rec

80H 19M Free

Recording

Simultaneous record and display

Playing another medium during recording

Play and record take place independently of each other for DVDs and the integrated HDD. For example, you can record on a DVD or the HDD and at the same time play a movie, photos or music from the respective other memory medium (except Timeshift, DivX).

Start recording. Call main menu.

34 Select MOVIE, PHOTO, MUSIC. 56 Select desired memory medium.

Confirm selection with OK.

Start play-back.

The recording is continued during play-back from the other data medium.

➠ Some functions (e.g. simultaneous play and recording when dubbing) are not possible.

Time Slip

HDD

Time Slip enables delayed playing of the title while it is being recorded.

Start recording.

Start play-back.

Playing starts whilst recording continues.

34 You can navigate during play-back with single frame, seek and slow motion.

End play and display current recording position.

➠ Playing can start at the earliest 15 seconds after starting the recording.

➠ This function is not available in the DVD recording mode.

Manual Record

Proceed as follows to make video recordings.

Switch on the recorder. Insert a rewritable disc for DVD recordings. If you insert an empty disc, the recorder will initialise it automatically first (page 26).

If required, select Rec mode Set (page 25) Call main menu.

34 Select TV. 56Call TV HDD or TV DVD.

Confirm selection with OK. A status information to the selected memory medium is displayed briefly.

Switch the recorder input to the signal source you wish to record from with the number buttons, the P+ / P- buttons or the 0 AV button. The station number, name and current sound status are displayed on the screen.

Then select the sound channel (“TV Audio” page 25).

Start recording. (REC lights up in the display window of the recorder). The recording starts immediately and continues until the disc is full or you interrupt the recording.

During recording. Show remaining recording time. By pressing the button again the maximum recording time is limited to a fixed period of time. Every additional press of a button extends the recording time by 10 – 30 minutes to a maximum 4 hours.

Interrupt recording. Press again to continue.

Show status of recording.

End recording.

➠ If the recorder is disconnected from the mains during recording (or in case of a power failure) or the recording is interrupted manually with the On-Off button, the whole recording is lost.

- 42

Page 43

END

Enter

CloseTimer Record List

REC-MENU

Timer Record SQ 80H 9M Free

Media PR Date

HDD 31

S23 K1 Duration : 105 M

StartTime EndTime Repeat

VPS/ PDC

8/12 Fr 20:15 22:00 Once Off

END

Enter Delete

Close0-9 Input

ShowView

Number

Recording

Timer Recording

This recorder can be programmed to record up to seven programs within one month. For programmed recordings the timer must be informed which signal sources (TV stations or from AV devices) are to be recorded and the respective start and stop time.

Switch on the recorder. Insert a rewritable disc for DVD recordings.

Call the Timer Record menu.

Media Select the memory medium for the recording. PR Select the stations or an external input. Date Select the data up to one month in advance. Start time Defines the start time for the recording. End time Defines the end of the recording. Repeat Select repetition (once, daily (Mo-Fr), weekly). PDC The VPS/PDC system adapts the recording time automatically

to changes in the program start time for recordings via the integrated tuner. Set the VPS/PDC time and the date of the program you want to record. You will find these in your TV guide or in the teletext.

Enter the necessary information for your timer recording(s).

3 4 Move the cursor to the previous / next column. 5 6 Edit the setting at the current cursor position.

OK saves timer data.

Exit Timer Record menu without saving.

Call Timer Record List menu.

Switch recorder to standby. End recording.

A confirmation message is displayed.

Confirm with OK.

➠ The recorder must be in standby mode for timer recording to start automatically.

➠ Please note that not every station operates with VPS/PDC.

➠ The starting time for the recording must be at least 3 minutes into the future.

The recorder switches on about 2 minutes before the programmed time and runs up to about 2 minutes after the programmed time.

➠ The current time and the current date must be set in the recorder (page 20).

➠ The energy saving function must be switched off (page 21).

➠ Select the audio channel for two-language TV recordings in the “TV Rec

Audio” menu (page 25).

➠ In standby mode the Timer symbol lights up in the display window when a timer recording is programmed (page 4).

Timer recordings with the ShowView® system

Programming timer recordings with this system is child‘s play. Most television schedule publications include the ShowView code numbers along with the information about the programmes. So when you want to make a timer recording of a programme, you only need to key in the appropriate ShowView code number. The date, start time, end time and station are set automatically. You only need to set the recording quality and specify whether it is to be a one-off or repeated recording. You can save up to seven timer programmes on the recorder.

Select ShowView menu with the green button.

Enter the ShowView number.

Delete input errors.

Confirm with OK. The Timer Record menu appears.

Check and, if necessary, correct the settings as described under “Timer Recording” (this page).

43 -

Page 44

END

Edit

PR Date StartTimeDuration Mode Check

1/1

PR-01 8/12 Fr 20:15 105M SQ Rec. OK

New

CloseDelete

Timer Record List  : VPS/PDC On

Timer Record

REC-MENU

Recording

Timer Record List

Checking the timer programming

Press twice to call the Timer Record List menu.

Editing a timer programming

5 6 Select timer recording.

OK edit selected programming.

Delete selected programming.

or New opens “Timer Record” menu (page 43).

Recording conditions

With the programmed timer the recorder does not record under the following conditions:

No disc or a non-rewritable disc inserted. The recording is then made on the HDD.

•

The power supply is interrupted or the recorder is not ready.

•

There are already 99 recorded titles on the disc.

•

The starting time for the recording is less than three minutes into the future.

•

You cannot program the timer under the following circumstances:

A recording is already in progress.

•

Seven timer recordings have already been programmed.

•

Multiple overlapping timer programs:

The earlier recording takes priority.

•

When the earlier recording ends, the later one will start.

•

➠ If the disc is damaged, it is possible that the recording will not be done

properly. Even if the “Rec. OK” message appears in the “Check“ ﬁeld, this is not

necessarily true in this case.

Record from external sources

You can record from an external source ( e.g. SAT-TV set, SAT receiver, camcorder or video recorder).

The device you want to record from must be connected to the recorder properly. You will find further information on page 13.

Switch on the recorder and set the desired memory medium under TV in the main menu. Insert a rewritable DVD if necessary.

Select source.

AV1 EURO AV1 AUDIO VIDEO to the rear of the housing. AV2 EURO AV2 DECODER to the rear of the housing. AV3 AUDIO AV IN 3 / VIDEO IN 3 to the rear of the housing. AV4 AUDIO IN 4 / VIDEO IN 4 / S-Video IN to the front of the

housing.

DV DV IN to the front of the housing. PR-nn Integrated tuner on station nn.

Set the recording quality (page 25).

For further operation see “Manual Record” on page 42 or “Timer Recording“ on page 43.

➠ If you operate this recorder with a Loewe Flat-TV set, the recording wizard of the TV set controls the recording via Digital Link Plus. This has the advantages of easier operation, especially when recording digital stations. You will find further information in the TV user guide under “Operation of additional equipment – Timer recordings”.

➠ If your source is copy-protected by Copy-Guard, you cannot use this recorder to record from it. Read the copyright notes on page 10.

Digital Video

General “DV“ information

With DV (Digital Video, also known as i.LINK), you can use a DV cable as the audio, video, data and control signals input / output to connect a camcorder that has DV to this recorder. The i.LINK interface complies with the IEEE 1394-1995 standard. “i.LINK” and the “i.LINK” logo are trademarks.

This recorder is only compatible with “DV 25“ format camcorders. Digital satel-

•

lite tuners and digital VHS video recorders are not compatible. You cannot connect more than one DV cam-corder at a time to this recorder.

•

You cannot control this recorder with external devices that are connected via

•

the DV IN socket (incl. two Recorders). The camcorder connected via the DV IN socket cannot necessarily, in every

•

case, be controlled.

- 44

Page 45

Recording

Digital camcorders can usually record audio as 16 bit/48 kHz stereo or twin

•

stereo tracks with 12 bit/32 kHz. This recorder can only record one stereo audio track. Set “DV Rec Audio“ as required or Audio 1 or Audio 2 (page 25). The sampling rate of the digital sound input to the DV IN socket must be either

•

32 or 48 kHz (not 44.1 kHz). Recording may suffer from interference if the camcorder stops playing back, if a

•

part of the tape that has not been recorded on is played back, if the electricity supply to the camcorder is cut off, or if the DV cable comes out. When “DV Rec Audio“ is set to “Audio 2“ and there is no Audio 2 signal, “DV

•

Audio“ will automatically be set to “Audio 1“.

DV messages

When you are using the DV IN socket, the following messages may appear on the screen.

Not connected to camcorder: The camcorder is not properly connected, or the camcorder is switched off.

Too many devices connected: This recorder‘s DV socket only supports the connection of one camcorder.

Check tape: There is no tape in the device that is connected.

Incompatible device: The recorder is unable to control the camcorder.

Information is being reloaded: The camcorder is updating data for DV.

Camera mode: The camcorder is set to camera mode.

Troubleshooting

If you are not receiving images and/or sound via the DV IN socket, check the following:

The DV cable must be properly connected.

•

Switch off the camcorder that is connected, and switch it back on.

•

Tune the audio input in to the recorder.

•

➠ This recorder cannot necessarily control every camcorder that is connected to it.

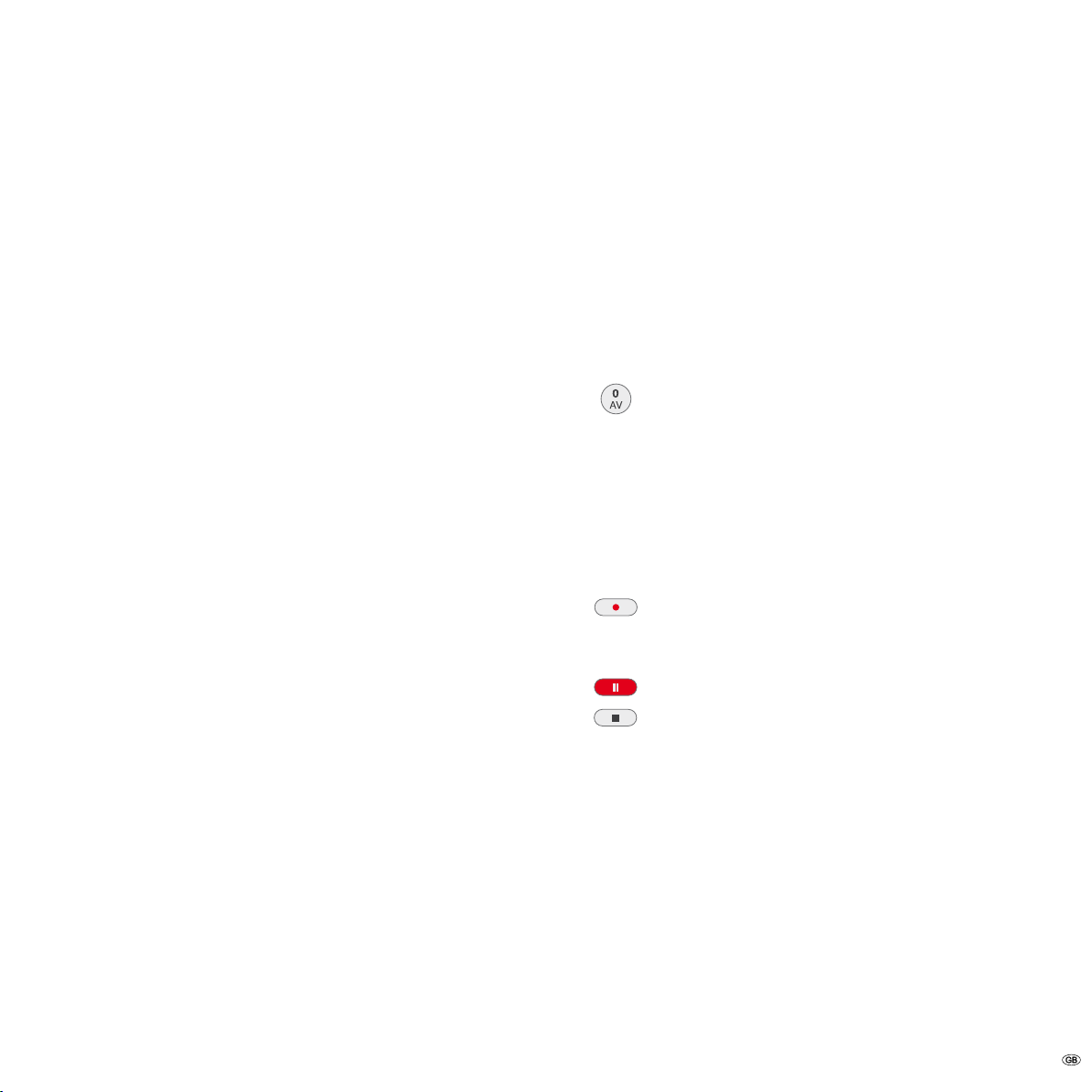

Recording from a digital camcorder

You can record from a camcorder that is connected to the DV IN socket in the recorder‘s front panel. You can use the recorder‘s remote to control a cam-corder and the recorder. Before recording, make sure that the audio input has been set up for the DV IN socket (page 25).

The digital camcorder must be connected to the DV IN socket at the front of the housing. Further information can be found on page15.

You can choose from between Audio 1 (original audio) and Audio 2 (overdubbed audio).

The DV input is set using the “DV Rec Audio“ submenu of the main menu (page 25).

Select DV input.

“DV” is displayed in the display window of the recorder and on the screen.

Search the position on the camcorder tape from which you want to record.

For optimum results, interrupt play-back of the camcorder at the point from which you want to record. Depending on the camcorder you can operate the functions STOP, PLAY and PAUSE with this recorder.

Start recording.

The recording is stopped automatically when the recorder detects no signal.

Interrupt recording. Press again to continue.

End recording.

➠ You cannot use the recorder to control the camcorder while recording is in progress.

➠ In Video mode, the last frame of the recording is shown on the screen for a short time after recording has ended.

➠ For timer recordings to work properly on this recorder, the digital camcorder should be switched on and operational.

45 -

Page 46

ENDTEXTINFO

Select

DVD-RW

SQ 25M

Free Play Search > Delete Protect Edit > Playlist Add > Dubbing

ClosePlaylistInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List - Original 1/9

5 6

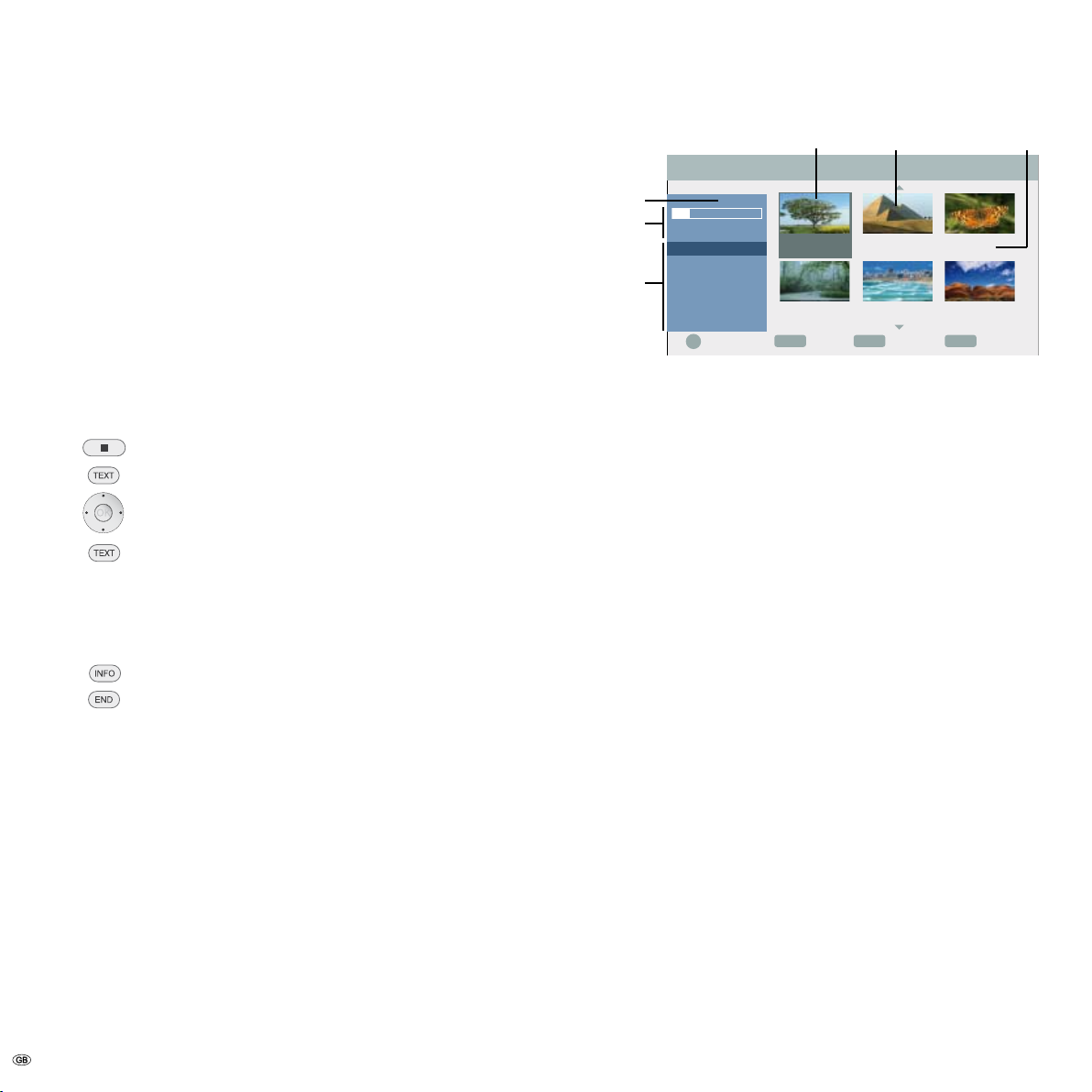

Edit recordings

Menu Title List and Chapter List

Under the Title List menu, video contents on unfinalised DVDs in VR mode and video contents on the internal HDD can be edited. The available edit functions are dependent on whether video on a DVD in VR mode or on the HDD or whether original contents or playlists are edited. DVD-RW discs in VR-mode can be edited in two ways. Original contents of the disc can be edited directly or a playlist can be created and edited. The playlist does not change the contents of the disc but controls its play-back. The editing of recordings on the HDD is the same as editing of original contents of a DVD-RW in the VR mode. Similar commands for deleting and naming titles as well as a fine setting of the chapter contents within the titles are available.

➠ If the Title List menu of the HDD is displayed during recording, some titles may have a marker. These titles have been recorded with a different input setting to the current recorder setting. These titles cannot be played during the recording.

Pause playing.

Select Title List menu.

5634 Select title.

Change between Original and Playlist menu when editing in DVD VR mode.

The available options are displayed at the left. The titles (or chapters) on the DVD or HDD are displayed on the right of the screen. The thumbnails can be edited. (See “Change title thumbnail” on page 47).

Information about the selected title in the Title List menu.

Close menu.

- 46

Different menu options are displayed depending on the memory medium.

Combime Connects two titles or chapters as one (page 51). Delete Deletes the title or the chapter (page 49). Delete part Deletes part of the title (page 49). Divide Divides a title into two (page 52). Dubbing Copies the title to another data medium (page 55). Full Play Starts playing the selected title including hidden chapters. Hide Hides (shows) the selected title or the chapter (page 53). Move Moves a chapter in the Chapter List / Playlist menu to another

position (page 53).

Play Starts playing the selected title or chapter. Hidden titles and

chapters on the DVD+R/RW are not played.

Playlist Add Adds the title or chapter to a new playlist (page 47). Protect Prevents accidental recording, editing or deleting of a title

(page 53).

Title Name Edits the title name; assignment to genre (page 50). Search Chapter Display Chapter List of title (page 50). Search Time Time at which title starts playing (page 50). Sort Sorts the title list according to date, title or genre (page 51). Title Displays the title list of the chapter. Undo / Undo last deletion or

Redo Redo (page 51).

Displays the recording quality, free memory space and a progress display of

2. the elapsed playing time.

Name of the current memory medium.

3. Currently selected title.

4. Thumbnail.

5. Shows the title name, the recording date and the length of the recording.

Page 47

ENDTEXTINFO

Select

DVD-RW

SQ 25M

Free Play Search > Delete Protect Edit > Playlist Add > Dubbing

ClosePlaylistInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List - Original 1/9

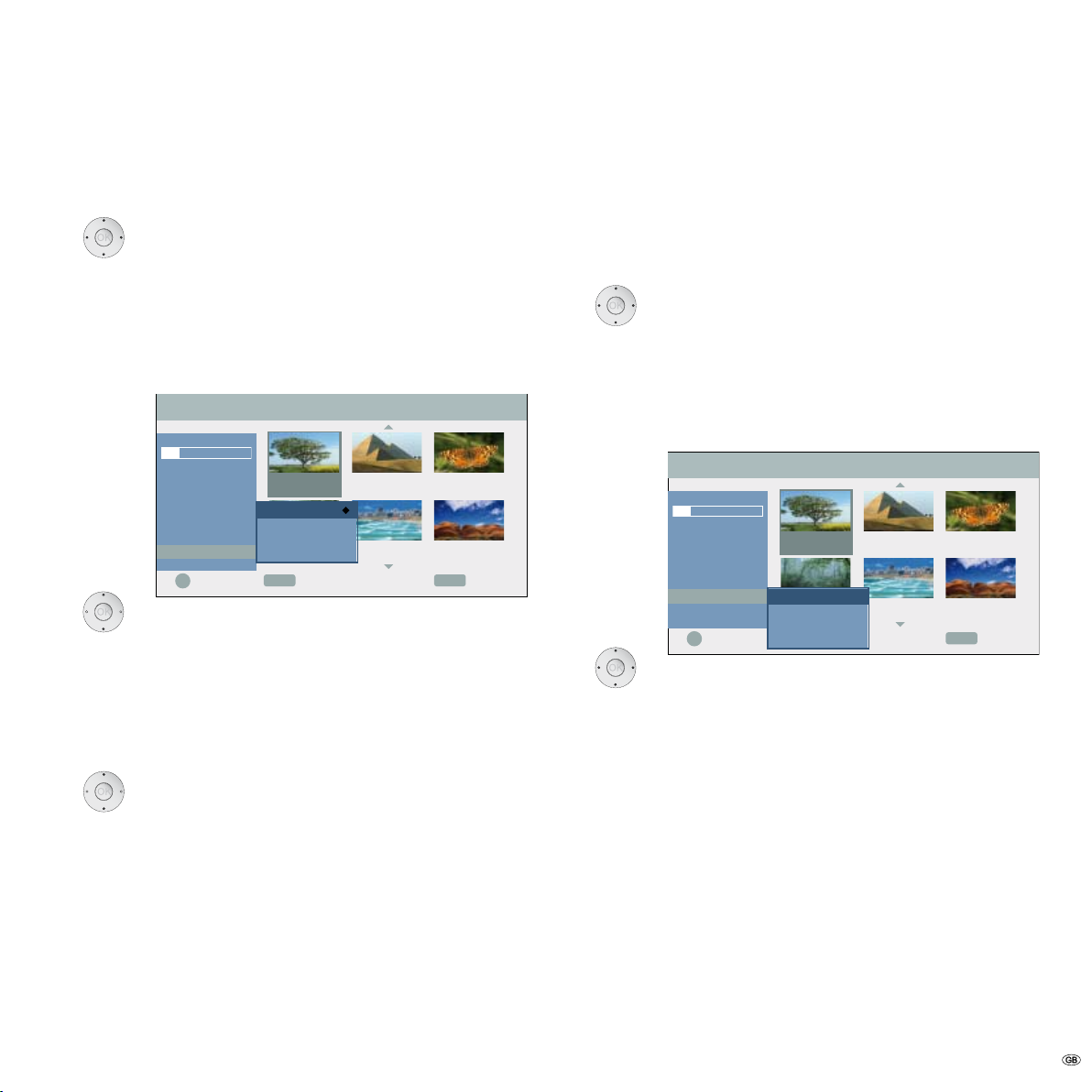

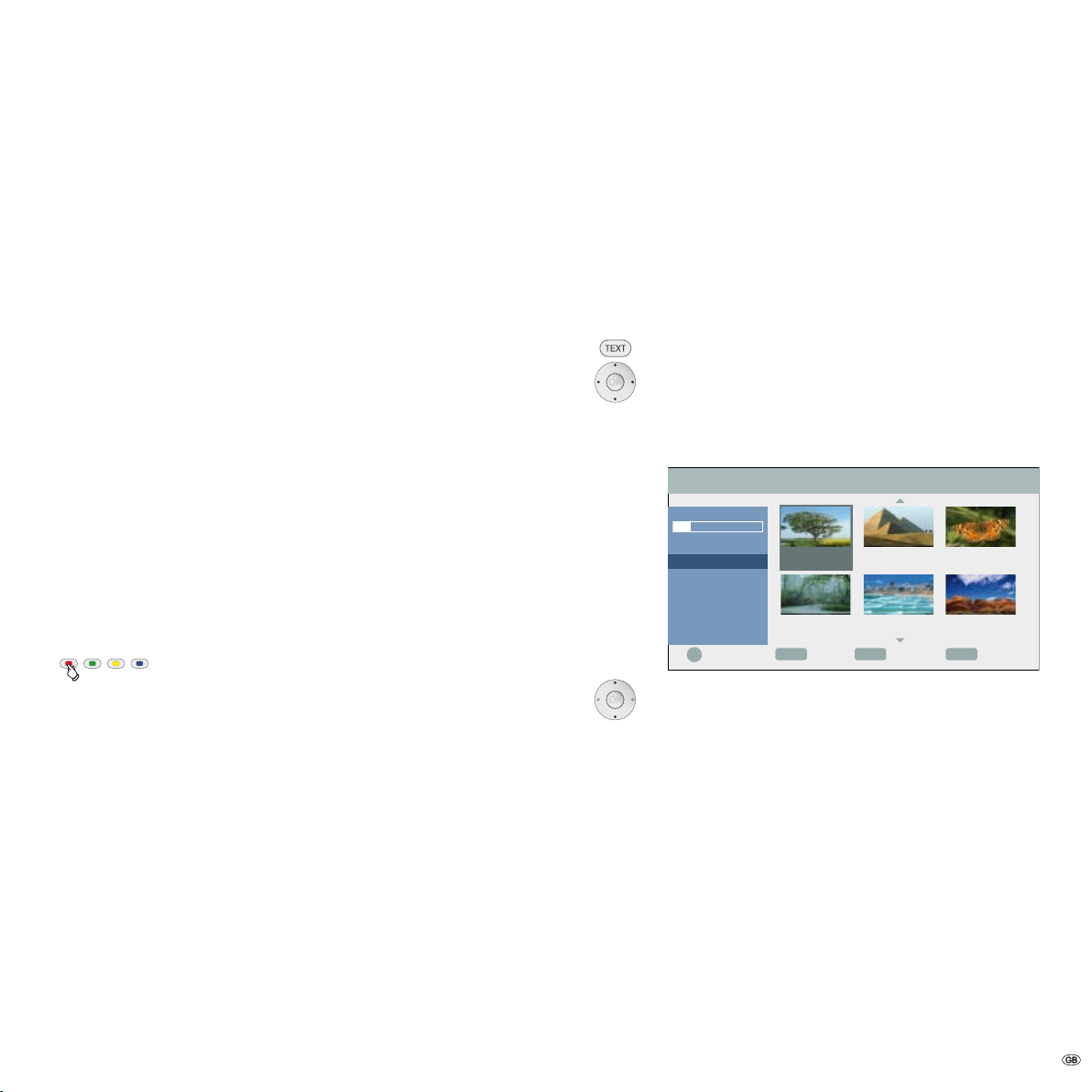

Edit recordings

Edit Original and Playlist

Title, Chapter and Parts

Titles of the original content of the disc contain one or more chapters. When inserting a title in the playlist, all the chapters within this title also appear. That means that chapters in the playlist behave exactly the same as chapters on a DVD-Video disc. Parts are sequences of the original or playlist titles. Parts can be added to or deleted from the Original and Playlist menu. When adding a chapter or title to the Playlist, a new title is created consisting of a sequence (= chapter) of an original title. When deleting, part of the title of the Original or Playlist menu is deleted.

➠ If you use the Delete, Edit and Move functions, the start and end frames may not correspond exactly with the start and end points. A short pause may be made between edits during play-back of the playlist. This is not a malfunction.

Original and Playlist

-RW VR

The terms Original and Playlist are used in this user guide for the actual contents and the edited contents.

Original The contents of the actual recordings on the disc. Playlist On DVDs a “Playlist” of the contents to be played and the

play times is created for editing. The recorder plays the disc according to the playlist.

Add chapter markers

HDD -RW VR +RW +R

Chapters can be created by inserting chapter markers at the desired positions within a title.

C-SET During recording or playing at the position at which a new chapter is to be inserted.

A chapter marker symbol appears on the screen.

➠ Chapter markers are inserted automatically at regular intervals. You can change these intervals in the “Recording” menu (see “Auto Chapter” on page 25).

Create new Playlist

-RW VR

Use this function to add an original title or a chapter to the playlist. The whole title is added to the playlist (you can delete parts you will not need later; see “Delete title/chapter from Original/Playlist” on page 49). The title appears in the playlist together with the chapter markers of the original. When adding other chapter markers to the original later, however, these are not copied automatically to the titles of the playlist. You can add a maximum 999 chapters to a disc. To add only one chapter of a title, read “Add title/chapter to Playlist” on page 48.

Select Title List/Chapter List Original menu.

5634 Select title/chapter.

Confirm with OK.

The available options are displayed at the left.

56 Select Playlist Add.

Confirm with OK.

47 -

Page 48

ENDTEXT

INFO

Select

DVD-RW

SQ 25M

Free Play Search > Delete Protect Edit > Playlist Add > Dubbing

ClosePlaylistInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List - Original

New Playlist

Select Playlist

1/9

ENDTEXTINFO

Select

DVD-RW

SQ 25M

Free Play Search > Delete Title Name Delete Part

CloseOriginalInfo

TITLE 1

21.11. 0:25:30

Title List - Playlist

1/1

ENDTEXTINFO

Select

DVD-RW

SQ 25M

Free Play Search > Delete Protect Edit > Playlist Add > Dubbing

ClosePlaylistInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List - Original

2/9

ENDTEXT

INFO

Select

DVD-RW

SQ 25M

Free Play Search > Delete Protect Edit > Playlist Add > Dubbing

ClosePlaylistInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List - Original

New Playlist TITLE 1

Select Playlist

1/9

ENDTEXT

Select

CloseOriginal

TITLE 1

21.11. 0:25:30

Chapter List - Playlist

1/2

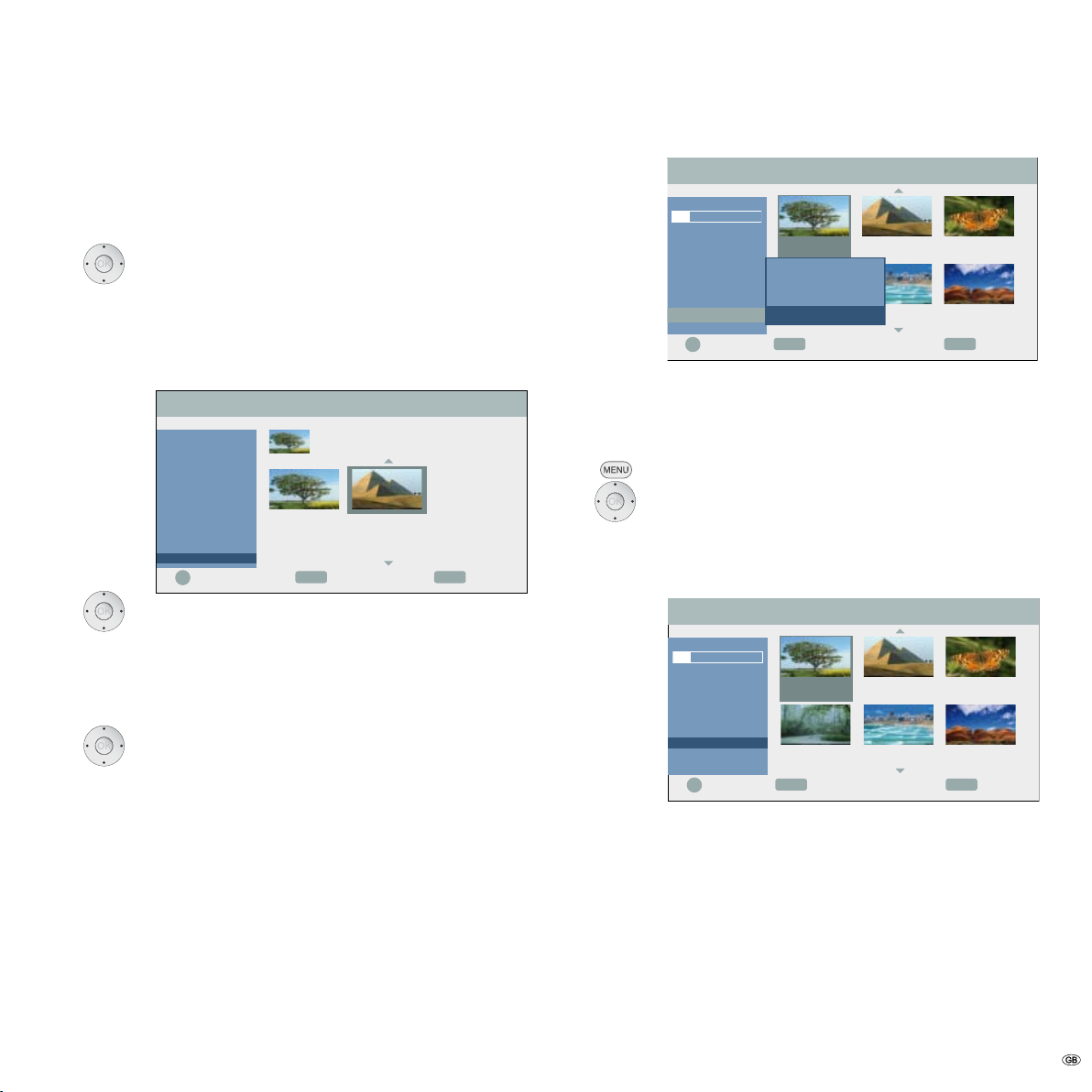

Edit recordings

56 Select New Playlist.

Confirm with OK.

The new title appears in the updated Playlist. All chapters of the title are added to the Playlist.

Add title/chapter to the Playlist

-RW VR

You can add an original title or a chapter to a Playlist title even if it is already registered.

5634 Select a title/chapter in the Title List Original or Chapter List Original menu which is to be inserted in the Playlist.

Confirm with OK.

The available options are displayed at the left.

- 48

56 Select Playlist Add.

Confirm with OK.

5634 Select Title List Playlist in which a title or chapter is to be inserted.

Confirm with OK.

The added chapters are displayed in the menu (Search - Chap- ter) Chapter List - Playlist.

End editing of the Playlist.

Page 49

END

INFO

Select

HDD

SQ 80H 09M

Free Play Search> Delete Rename Edit > Sort > Dubbing

CloseInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List 1/16

END

Select

Delete Part

Start Point

End Point

Cancel

Done

CloseMove Point

II 0:00:33

TITLE 1

24.11. 0:12:55

Edit

Edit recordings

Delete title/chapter from Original/Playlist

When you delete a title or a chapter from the playlist, you only remove the title/ chapter from the playlist. When you delete a title or chapter from the original list, title/chapter are deleted from the disc and the time remaining for recording is prolonged again. Titles or chapters deleted from the original are also deleted from the playlist.

➠ You cannot delete chapters with a playing time of less than 5 seconds.

563 4 Select a title/chapter in the menu Title List - Original or Chapter List - Original which is to be deleted from

the playlist.

Confirm with OK.

The available options are displayed at the left.

56 Select Delete.

Example: Title List (HDD):

Confirm with OK. A delete prompt is displayed.

56 Select yes.

Confirm with OK. The chapter or title is deleted.

OK displays the updated menu.

End editing.

➠ For DVD+R/DVD+RW recordings the deleted title is renamed after “Deleted Title”.

➠ In case of fast deleting of more than two titles in succession, the titles are combined as one.

➠ When deleting a title or chapter, the remaining recording time is increased on the DVD+RW only by the size of the title which was deleted at the end.

Delete part

HDD -RW VR

You can delete a part which you no longer want in the title.

5634 Select title in the Title List menu.

Confirm with OK.

The available options are displayed at the left.

564 Select Edit – Delete Part.

Confirm with OK.

The Edit menu (Delete Part) is displayed.

The Start point symbol is marked.

34 Start play-back and search the start point with single frame, search and slow motion.

OK at the start point of the clip to be deleted.

The End point symbol is marked.

34 Search the end point with single frame, search and slow motion.

Confirm with OK.

➠ Other parts can be deleted in recordings on the HDD. Select Next Part in the menu, press OK and repeat the steps described above.

56 End editing with Done.

Confirm with OK. A delete prompt is displayed.

34 Select yes.

Confirm with OK. The selected part is deleted from the title.

34 Select Cancel to reject the editing.

49 -

Page 50

END

INFO

Enter

HDD

SQ 80H 09M

Free Play Search > Delete Rename Edit > Sort > Dubbing

CloseInfo

Titel 2

22.11. 0:33:12

Titel 1

21.11. 0:25:30

Titel 3

23.11. 0:45:00

Titel 5

24.11. 0:05:00

Titel 4

24.11. 0:12:55

Titel 6

28.11. 0:08:42

Title List 1/16

Alphabet Capital

Space Delete OK Cancel

ABC|

1 2 3 4 5 6 7 8 9 0 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Æ Ç Đ Ø ' ´ ^ ~ " ° Þ ß µ .

ClearAV In

ShowMovie

SportsAnimat.

DramaNews

EduDocu

Genre

END

Play

Time

CloseMove Point

12:0611:52 13:07

TITLE 1

24.11. 0:12:55

Search with ◄ ►and Select

Edit recordings

Title Name

You can assign names to the titles of Original or Playlist. The names may have a maximum 32 characters. A genre can be added to the name (HDD).

5634 Select title to be renamed in the Title List menu.

Confirm with OK. The available options are displayed at the left.

56 Select Title Name/Rename.

Confirm with OK.

The Keyboard menu is displayed.

Explanations of the options: Alphabet Capital Switches the keyboard to capitals. Alphabet Small Switches the keyboard to small letters. Symbol Switches the keyboard to special characters. ABC...123 Inserts the selected character at the cursor position

(shaded grey for special characters).

OK Save setting and exit. Cancel Exit setting without saving. Space Inserts a space at the cursor. Delete Deletes characters to the left of the cursor.

3456 Moves the marker in the selection. Inserts a space at the cursor. Deletes the characters to the right of the cursor. Deletes the character to the left of the cursor.

P+ / P- Moves the cursor to the left or right. Genre Assigns the title to a genre (HDD). , Switches the keyboard back and forth among

- 50

capitals, small letters and synbols.

Select the OK button and save with OK.

➠ On DVD-R-, DVD+R- or DVD+RW discs, the entered name is only displayed after finalisation.

Select title start point

HDD -RW VR -RW Video +RW +R -R

You can select the start point of the title.

5634 Select title in the Title List menu.

Confirm with OK.

The available options are displayed at the left.

56 Select Search - Time.

Confirm with OK.

The Search menu is displayed on the screen.

Example: Title List (HDD):

34 Select the desired start point.

The time changes in one minute steps.

34 Keep pressed to increase the time in steps of 5 minutes.

OK to start at the desired point.

Select chapter

HDD -RW VR -RW Video +RW +R -R

You can select any chapter from a title.

5634Select title in the Title List menu.

Confirm with OK.

The available options are displayed at the left.

56 Select Search - Chapter.

Confirm with OK.

The Chapter List menu is displayed.

5634 Select desired chapter.

OK to start at the selected point.

Page 51

ENDINFO

Select

HDD

SQ 80H 09M

Free Play Search > Delete Rename Edit > Sort > Dubbing

CloseInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List 1/16

Date

Title

Genre

ENDINFO

Select

HDD

SQ 80H 09M

Free Play Search > Delete Rename Edit > Sort > Dubbing

CloseInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List 1/16

Combine

Divide

Delete Part

Edit recordings

Sorting

HDD

With this function the title list can be sorted by date, title or genre for quicker retrieval of titles.

5634 Select title in the Title List menu of the HDD.

Confirm with OK.

The available options are displayed at the left.

56 Select Sort.

Confirm with OK.

The options for sorting are displayed.

56 Select Date, Title or Genre.

OK Display menu with selected sorting.

Undo/redo deletion

-RW VR

Errors when deleting can be undone. Only the last action (i.e. one deletion) can be undone.

56 Select Edit - Undo.

Confirm with OK.

It makes no difference whether you are in the menu screen. The last deletion is undone.

➠ After ejecting the disc or switching to standby mode no actions can be undone.

➠ A deletion can still be undone after exiting the menu.

➠ With Redo the last undone action can be redone.

Combine titles

HDD

With this function two adjacent original titles on the HDD can be united.

➠ This function is not available if only one title is saved on the HDD.

➠ No titles can be combined of there are more than 60 titles on the HDD.

5634 Select first title of the two titles to be joined in the

Title List menu.

Confirm with OK.

The available options are displayed at the left.

56 Select Edit - Combine.

Confirm with OK.

5634 Select second title of the two titles to be joined.

Confirm with OK.

A confirmation message is displayed.

56 Select yes.

Confirm with OK. The updated Title List menu is displayed.

51 -

Page 52

ENDINFO

Select

HDD

SQ 80H 09M

Free Play Search > Delete Rename Edit > Sort > Dubbing

CloseInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List 1/16

Combine

Divide

Delete Part

END

Select

Divide

Divide Cancel

Done

CloseMove Point

II 0:00:33

TITLE 1

24.11. 0:12:55

#1 00:00:00

Edit

ENDTEXT

Select

ClosePlaylist

TITLE 2

21.11. 0:25:30 PR-31

Chapter List - Original 2/2

Play Title Delete Combine Playlist Add >

Edit recordings

Divide title

HDD +RW

With this function you can divide a title into two new titles.

5634 Select title to be divided in the Title List menu.

Confirm with OK.

The available options are displayed at the left.

56 Select Edit - Divide.

Example: Title List (HDD):

Confirm with OK.

The menu Edit - Divide is displayed and the Divide option is marked.

Combine chapters

HDD -RW VR +RW +R

With this function two adjacent playlist or original chapters can be united.

➠ This function is not available if the title only contains one chapter.

5634 The second of the two chapters to be united should be selected in the (Title List - Search - Chapter) Chapter List menu.

Confirm with OK.

The available options are displayed at the left.

56 Select Combine. The combination indicator is shown between the two chapters which you can join.

Confirm with OK.

34 Seek the start point for dividing the title with single frame, seek and slow motion.

- 52

56 Select Divide.

Confirm with OK.

56 Select Done.

Confirm with OK. The title is divided into two new titles. This process may last up to 4 minutes.

➠ Division points must be at least three seconds apart.

Page 53

ENDTEXT

Select

CloseOriginal

TITLE 2

21.11. 0:25:30

Chapter List - Playlist 2/2

Play Title Delete

Combine

Move

END

INFO

Select

DVD+RW

SQ 25M

Free Play Full Play Search > Delete Protect Edit > Dubbing

CloseInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List 1/15

Title Name

Divide

Hide

END

INFO

Select

DVD+RW

SQ 25M

Free Play Full Play Search > Delete Protect Edit > Dubbing

CloseInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List 1/15

Edit recordings

Move Playlists Chapters

-RW VR

With this function the play-back order of the chapters within Playlists can be edited.

➠ This function is not available if only one chapter is available.

5634 Select chapter in the Chapter List-Playlist menu.

Confirm with OK.

The available options are displayed at the left.

56 Select Move.

Confirm with OK.

5634 Select position of chapter.

Confirm with OK. The updated menu is displayed.

Hide title/chapter

+RW +R

Playing of selected chapters or titles can be skipped by the disc.

5634 Select the chapters to be hidden in the Title List or Chapter List menu.

Confirm with OK.

The available options are displayed at the left.

56 Select Hide.

Confirm with OK. The thumbnail of the chapter or title is hidden.

➠ When selecting, a hidden chapter or title can be shown in the Title List or Chapter List menu by selecting the Edit - Display option in the menu. Then the chapter or title is displayed.

Example: Title List (DVD+RW):

Protect title

-RW VR +RW +R

This function prevents accidental overwriting, editing or deleting of a title.

Select Title List menu.

5634 Select the title to be protected.

Confirm with OK.

The available options are displayed at the left.

56 Select Protect.

Confirm with OK. The lock marker appears in the title thumbnail.

➠ If you select a title which is already protected in the Title List menu, this can be enabled by selecting Unprotected in the options of the Title List menu. Then the title can be edited and deleted.

53 -

Page 54

Dubbing

Before dubbing

With the dubbing function of this recorder you can

create backup copies of important recordings on the HDD on a DVD.

•

Create a DVD copy of a recording on the HDD for playing on other players.

•

Copy movies from a DVD to the HDD for editing.

•

Copy edited movies from the HDD to a DVD.

•

➠ Titles which are shorter than 5 seconds cannot be copied from HDD to DVD.

Restrictions when dubbing

Some movies have a single copy protection: These movies cannot be copied to HDD or DVD. Single copy protection movies are recognizable by display of the disc information with INFO during play-back.

Signals in NTSC format from the analog or the DV inputs canot be recorded

•

correctly with this recorder.

Video signals in SECAM format (from the integrated TV tuner or analog inputs)

•

are recorded in PAL format.

Please also see the hints for recording on page 10.

•

PLEASE NOTE THAT NOT EVERY HIGH DEFINITION DEVICE IS FULLY COMPATIBLE WITH THIS PRODUCT AND THAT ARTEFACTS MAY OCCUR WHEN DISPLAYING THE PICTURE. IF 625 PROGRESSIVE SCAN PICTURE DISPLAY IS FAULTY, WE RECOMMEND SETTING THE CONNECTION TO THE “STANDARD DEFINITION” OUTPUT. PLEASE CONTACT OUR CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT THE COMPATIBILITY OF THE TV WITH THIS RECORDER (page 66).

High-Speed dubbing (maximum 12x)

Dubbing between DVD and HDD is a full digital process and therefore takes place without loss of picture and sound quality. The dubbing process can take place at high speed. When dubbing from HDD to DVD, the dubbing speed depends on the recording quality and the DVD disc used.

Minimum duration for high-speed dubbing

The following table contains the respective minimum duration for dubbing a twohour movie recorded in SQ mode from HDD to DVD.

Disc type Disc speed Dubbing time (recording speed)

DVD-R / DVD+R 16x 6.5 min. (12x) DVD-R / DVD+R

/ DVD+RW DVD-RW 6x 12 min. (6x) DVD-R / DVD+R

DVD-RW / DVD+RW DVD+R / DVD+RW 2.4x 21 min. (2.4x) DVD-R / DVD-RW 2x 25 min. (2x)

➠ The specified times are approximate values.

➠ The actual dubbing speeds may vary with different disc recordings.

➠ Even 4x-/6x-/8x-/16x¬compatible discs may not be dubbed at maximum speed.

➠ High-speed dubbing is not always possible with discs initialized on another device.

8x 8 min. (8x)

4x 13 min. (4x)

- 54

Page 55

ENDINFO

Select

HDD

SQ 80H 09M

Free Play Search > Delete Rename Edit > Sort > Dubbing

CloseInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List 1/16

Start Cancel

Dubbing

00:45:00Title Length

120 minFree Space

HQRec Mode

20%

END

INFO

Select

DVD+RW

SQ 25M

Free Play Full Play Search > Delete Protect Edit > Dubbing

CloseInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List 1/15

Start Cancel

Dubbing

01:45:00Title Length

2473 minFree Space

HQRec Mode

20%

Dubbing

Dub from HDD to DVD

5634 Select title in the Title List (HDD) menu.

Confirm with OK.

The available options are displayed at the bottom left.

56 Select Dubbing.

Confirm with OK. The Dubbing menu appears.

5634 Select Rec Mode (HQ, SQ, LQ, EQ, AUTO).

6 Select Start button.

OK start dubbing.

Cancel dubbing.

Dub from DVD to HDD

5634 Select title in the Title List (DISC) menu.

Confirm with OK.

The available options are displayed at the bottom left.

56 Select Dubbing.

Confirm with OK. The Dubbing menu appears.

5634 Select Rec Mode (HQ, SQ, LQ, EQ, Fast , AUTO).

6 Select Start button.

OK start dubbing.

Cancel dubbing.

➠ The recording time in Fast mode may vary depending on the amount of source data.

➠ When aborting the dubbing in Fast mode the recording is halted and all the data recorded up to this point are lost.

➠ The Fast mode is not possible if there is not enough memory space remaining on the disc.

➠ The Fast mode is not possible for edited titles on the HDD and clip recordings.

➠ Dubbing may not always be possible depending on the conditions of the recording device or the disc itself.

➠ When aborting the dubbing in Auto mode the recording is halted and all the data recorded up to this point are lost.

➠ The recording time in the Auto mode may be up to 19 minutes.

➠ The Auto mode is not available for edited titles on DVD-RW in the VR recording mode.

55 -

Page 56

ENDINFO

Select

DVD+RW

SQ 25M

Free

CloseRECInfo

TITLE 2

22.11. 0:33:12

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

Title List 1/12

TITLE 2

22.11. 0:33:12

<< 1/1 >>

TITLE 1

21.11. 0:25:30

TITLE 3

23.11. 0:45:00

TITLE 5

24.11. 0:05:00

TITLE 4

24.11. 0:12:55

TITLE 6

28.11. 0:08:42

DVD+RW

Dubbing

Overwrite recordings

+RW

Proceed as follows to overwrite a recorded title with a new video recording:

➠ This function is not possible for DVD+R because the recordings are always made at the end of the disc here.

Switch the recorder input to the signal source you wish to record from with the number buttons, the P+ / P- buttons or the 0 AV button.

Select Title List menu.

5634 Select title to be overwritten.

Start overwriting.

The overwriting begins at the start point of the selected title.

End recording. The new title is created and the updated menu is displayed.

➠ This function is not possible for protected titles (page 53).

➠ If the overwriting title is longer than the recorded title, the

following title is overwritten . However, if the following title is protected, the recording stops a the start point of this title.

➠ If the length of the selected title is shorter than 10 seconds, the following title is overwritten. However, if this title is protected, recording stops.

Title List menus on other devices

+RW +R

The Title List menu can be displayed on DVD players on which DVD+RW or DVD+R discs can be played.

Insert a written DVD+R or DVD+RW disc.

Select the Title menu (see user guide of the respective unit).

Playing on other devices

Finalised discs, finalised DVD+R or DVD+RW discs recorded in video mode can be played on most DVD players. Some players can play fialised/unfinalised DVD-RW discs recorded in VR mode. Look in the player user guide to find out which disc formats it supports. In the finalisation the recordings are “fixed” so that the disc can be played on normal DVD players or computers with a DVD-ROM drive. In the finalisation of a disc in video mode, a menu is created for controlling the disc. Access is obtained with the MENU or TITLE buttons. For finalisation of a disc, please read “Finalisation” on page 26.

➠ Unfinalised DVD+RW discs can be played on normal DVD players.

➠ Edited contents of a DVD+RW disc can only be played on normal DVD players

after finalisation.

➠ Edited contents of a DVD+R disc (hidden files, combined chapters, added chapter markers etc.) cannot be played on normal DVD players.

- 56

Page 57

Troubleshooting

Problem Possible cause Remedy

No function. The mains cable is not plugged in. Fix the mains cable firmly into a socket. No image. The television is not switched to re-

ceive signals from the Recorder.

The SCART cable is not properly connected. Connect the SCART cable properly. The television that is connected is switched off. Switch the television on.

No sound. The connected audio equipment is

not switched to DVD playback. The audio cables are not properly connected. Connect the audio cable properly. The connected audio equipment is switched off. Switch on the audio equipment that is connected.

The audio connection cable is faulty. Change it. Inferior picture quality. The disc is dirty. Clean the disc. Playback not possible. There is no disc. Insert a disc. (Check that the disc display

A non-playable disc has been inserted. Insert a playable disc. (Check the disc type, the colour system

The disc has not been inserted with the playable

side downwards.

The disc has not been properly placed in the guide. Position the disc properly into the guide in the disc drawer.

The disc is dirty. Clean the disc.

A security rating has been set. Cancel the security rating or change the protection.

Select the right video input mode on the television, so that the image from the Recorder appears on the television screen.

Set the audio receiver so that you can hear the sound playing on your Recorder.

comes on in the display window.)

and the region code.) Insert the disc with the playable side downwards.

There is interference with images from an external source.

A channel is skipped when using P+ / P- . The channels have not been saved in the recorder. Retune the channels. See channel tuning on page 18. The image or sound on the transmission channel

is weak or absent. The camcorder image is not displaying. The camcorder is switched off. Switch on the camcorder and make sure your are using it

The camcorder image is not appearing on the television screen when using the A/V input or DV IN to the Recorder.

A disc that was recorded to from this Recorder cannot be played on a different DVD player.

The video signal from the external component is

copy-protected.

Loose antenna or cable. Tighten the connections or change the cable.

The Recorder AV selection is wrong. Select the input channel (AV1, AV2, DV etc.) with DVD-AV.

The disc was recorded in video mode. Finalising the disc (page 26).

You cannot get a connection from this recorder. Connect the component directly into the television.

properly.

57 -

Page 58

Troubleshooting

Problem Possible cause Remedy

A disc that was recorded to from this Recorder cannot be played on a different DVD player.

Playback not possible or unsuccessful. There is insufficient space on the disc. Use a different disc.

Timer recording not possible. The time has not been set correctly on the recorder. Set the correct time. See “Setting the time automatically“ or

Stereo-audio recording and/or playback unavailable.

The remote control is not working properly. The remote control’s batteries have run out. Replace the old batteries with new ones. Interference is visible at the top and

bottom edges of the screen.

Some players do not play discs with finalisation in

video mode.

The disc was recorded in VR mode. The other player must be RW-compatible.

The ability of CD-R / RWs (MP3/WMA, JPEG,

(X)VCD, (X)SVCD) and DVD+R / RWs and DVD-R

/ RWs is influenced by the recording equipment,

recording methods and data media. Therefore,

there may be problems occasionally when playing

on conventional DVD players.

The source that you want to record is copy-protected. You cannot record the source.

Copy-protected broadcasts cannot be recorded on a

video mode disc.

The timer was wrongly programmed. Re-program the timer. See “Timer recording“ on page 43.

The time between programming the timer and the

start of recording is too short.

After programming, the timer recording LED is no

longer displayed.

The television is not stereo-compatible or the

broadcast transmission is not in stereo format.

The Recorder’s A/V Out sockets are not connected

to the TV’s A/V In sockets.

The Recorder’s audio/video Out has not been

selected for the television.

The DVD recorder’s TV audio channel must be set

to Mono.

Unfavourable resolution setting in HDMI mode. Set the resolution to 1080i with the RES button (page 29).

No solution.

Use a disc formatted in the VR mode for once copiable material.

“Setting the time manually“ on page 20.

The recording‘s start time must be at least 3 minutes into the future.

Re-program the timer.

No solution.

Make the A/V connections.

Select the AUX or A/V source as the TV input.

Set the TV’s audio channel to stereo.

- 58

Page 59

Technical Specifications

General

ViewVision DR+ Item No. 66502 ViewVision DR+ Secam Item No. 66532 Power supply AC 110-240V, 50/60 Hz Power consumption During operation: 35 W In standby mode: <1 W (with energy save function) Dimensions (approx.) 430 x 75 x 345 mm (W x H x D) Weight (approx.) 4,1 kg Operating temperature 5 °C to 35 °C Humidity 5 % to 90 % TV system ViewVision DR+ PAL B/G, I, Secam DK ViewVision DR+ PAL B/G, Secam L Recording format PAL

Recording

Recording format DVD Video-Recording, DVD-VIDEO Rewritable memory media Hard disk (HDD) 160 GB, DVD-RW, DVD-R, DVD+RW, DVD+R

Video recording format

Sampling frequency 27MHz Compression format MPEG 2

Audio recording format

Sampling frequency 48kHz Compression format Dolby Digital

Playback

Frequency response DVD (PCM 48 kHz): 8 Hz to 22kHz, CD: 8 Hz to 20 kHz DVD (PCM 96 kHz): 8 Hz to 44 kHz Signal-to-noise ratio > 100 dB (AUDIO OUT connection) Harmonic distortion < 0,008% (AUDIO OUT connection) Dynamic range > 95 dB (AUDIO OUT connection)

Outputs

HDMI OUT Type A, 19 Pin, LVDS digital, V1.2a VIDEO OUT 1.0 Vp-p 75 ohms, negative Sync., RCA socket x 1/ SCART S-VIDEO OUT (Y) 1,0 V (p-p), 75 ohms , negative Sync., (C) 0,3 V (p-p) 75 ohms, Mini DIN 4-pin x 1 COMPONENT VIDEO OUT (Y) 1,0 V (p-p), 75 ohms, negative Sync., RCA socket x 1 (Pb)/(Pr) 0,7 V (p-p), 75 ohms, RCA socket x 3 Audio output (digital audio) 0,5 V (p-p), 75 ohms, RCA socket x 1 Audio output (optical audio) Optical connector x 1 (TOS-Link) Audio output (analogue audio) 2,0 Vrms (1 kHz, 0 dB), 600 ohms, RCA socket (L, R) x 1 / SCART

Masthead

The Loewe Opta GmbH is a share company of German law with its Head Office in Kronach.

Industriestraße 11, 96317 Kronach Telephone: + 49 (0)9261 / 99-0 Fax: + 49 (0)9261 / 99-500 E-mail: ccc@loewe.de

Trade Register: Municipal Court Coburg, No. HRB 42243 VAT ID-No.: DE 193216550 WEEE registration no.: DE 41359413

Inputs

AERIAL IN Aerial input, 75 ohms VIDEO IN 1.0 Vp-p 75 ohms, negative sync. , RCA socket x 2 / SCART x 2 S-VIDEO IN (Y) 1,0 V (p-p), 75 Ohm , negative Sync., Mini DIN 4-pin x 1 (C) 0,3 V (p-p) 75 Ohm AUDIO IN 0 dBm > 47 kOhm, RCA socket (L, R) x 2 / SCART x 2 DV IN 4 Pins (i.LINK/IEEE 1394-Standard/DV-25) Cardreader 7 in 2: SD, MMC, Memorystick (Pro), CF, MD, xD

59 -

Page 60

Operating additional devices

Setting the remote control

The different Loewe sets can be set as follows on the Assist remote control:

Device Button combination Loewe TV (Q2500 – L2650) +  Loewe TV (Q2300 – Q2400) + Loewe Centros 11x2 + Loewe Viewvision, Centros 21x2 + Loewe ViewVision DR+ (DVB-T) +  Loewe ViewVision 8106 H + Loewe Auro 2216 PS/8116 DT +  Loewe Xemix 6222 PS +  Factory setting The specified key combination must be pressed (approx. 5 s) until one of the LEDs flashes twice.

Operating Loewe equipment

Using the remote control for a DVD player

Press the DVD button, the indicator above it lights for about 5 seconds.

Using the remote control for a recorder

Press the REC button, the indicator above it lights for about 5 seconds.

Using the remote control for a TV set

Press the TV button, the indicator above it lights for about 5 seconds.

Every time you press the button, the indicator of the selected operating mode (TV – REC – DVD – RADIO) lights up.

- 60

Page 61

Remote control Assist – TV-operation

Sound off/on

LED indicator for current operating mode

Switch over to operate TV set

Switch over to operate Recorder

Call timer list

Set picture format

Electronic Programme Guide (EPG) on/off

Teletext on/off

Show/hide menu

V–/V+ Volume down/up

Switch on/off - on stand by

Radio Digital on/off Switch over to operate Auro Sound menu on/off

Select station directly MENU: enter numbers or letters

Call AV selection

PIP on/off (picture in picture) Menu “Other functions“ on/off Open index; MENU: info texts on/off Status display on/off; MENU: hide menu

P+/P– Select station up/down

Station list on; MENU: confirm/call

Green button: Standard settings for picture/sound

Red button: Freeze picture on/off;

DR+: Call the DR+ archive

Select station down; DR+: Jump back/Rewind/Replay

DR+: Record

Freeze picture on/off;

DR+: Pause (Start viewing with time shift)

PIP: Position of the PIP picture; MENU: select/set

Yellow button: previous station Blue button: programme info on/off

Freeze picture off; DR+: Playback/Set bookmark Select station up; DR+: Jump forward/Fast forward

Freeze picture on; DR+: Stop

61 -

Page 62

Language Code List

Enter the appropriate code when fi rst setting up “Disc Audio“, “Disc Subtitles“ and/or “Disc Menu“. (Further information can be found under “Disc Languages“ on page 21.)

Code Language 6565 Afar 6566 Abkhaz 6570 Afrikaans 6577 Amharic 6582 Arabic 6583 Assamese 6588 Aymara 6590 Azerbaijani 6665 Bashkir 6669 Byelorussian 6671 Bulgarian 6672 Bihari 6678 Bengali; Bangla 6679 Tibetan 6682 Breton 6765 Catalan 6779 Corsican 6783 Czech 6789 Welsh 6865 Danish 6869 German 6890 Bhutanese 6976 Greek 6978 English 6979 Esperanto 6983 Spanish 6984 Estonian 6985 Basque 7065 Persian 7073 Finnish 7074 Fijian 7079 Faroese 7082 French 7089 Frisian 7165 Irish 7168 Scottish Gaelic 7176 Galician 7178 Guarani 7185 Gujarati 7265 Hausa 7273 Hindi 7282 Croatian 7285 Hungarian 7289 Armenian 7365 Interlingua 7378 Indonesian 7383 Icelandic 7384 Italian

Code Language

7387 Hebrew 7465 Japanese 7473 Yiddish 7487 Javanese 7565 Georgian 7575 Kazakh 7576 Greenlandic 7577 Cambodian 7578 Canadian 7579 Korean 7583 Kashmiri 7585 Kurdish 7589 Kirgiz 7665 Latin 7678 Lingala 7679 Laotian 7684 Lituanian 7686 Latvian 7771 Malagasy 7773 Maori 7775 Macedonian 7776 Malayalam 7778 Mongolian 7779 Moldovian 7782 Marathi 7783 Malay 7784 Maltese 7789 Burmese 7865 Nauruan 7869 Nepalese 7876 Dutch 7879 Norwegian 7982 Oriya 8065 Punjabi 8076 Polish 8083 Pashto 8084 Portuguese 8185 Quechua 8277 Romansh 8279 Romanian 8285 Russian 8365 Sanskrit 8368 Sindhi 8372 Serbocroat 8373 Singhalese 8375 Slovak 8376 Slovene 8377 Samoan 8378 Shona

Code Language

8379 Somali 8381 Albanian 8382 Serbian 8385 Sudanese 8386 Swedish 8387 Swahili 8465 Tamil 8469 Telugu 8471 Tadzhik 8472 Thai 8473 Tigrinya 8475 Turkmen 8476 Tagalog 8479 Tongan 8482 Turkish 8484 Tatar 8487 Twi 8575 Ukranian 8582 Urdu 8590 Uzbek 8673 Vietnamese 8679 Volapuk 8779 Wolof 8872 Xhosa 8979 Yoruba 9072 Chinese 9085 Zulu

- 62

Page 63

List of country codes

Key in the corresponding code when first setting the “Area code“ (page 24).

Code Country code

AD Andorra AE United Arab Emirates AF Afghanistan AG Antigua and Barbuda AI Anguilla AL Albania AM Armenia AN Dutch Antilles AO Angola AQ Antarctic AR Argentina AS American Samoa AT Austria AU Australia AW Aruba AZ Azerbaizhan BA Bosnia-Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso BG Bulgaria BH Bahrain BI Burundi BJ Benin BM Bermuda BN Brunei Darussalam BO Bolivia BR Brazil BS Bahamas BT Bhutan BV Bouvet Island BW Botswana BY Byelorussia BZ Belize CA Canada CC Cocos (Keeling) Islands CF Central African Republic CG Congo CH Switzerland CI Ivory Coast CK Cook Islands CL Chile CM Cameroon CN China CO Columbia CR Costa Rica CS Former Czechoslovakia CU Cuba

Code Country code

CV Cape Verde CX Christmas Islands CY Cyprus CZ Czech Republic DE Germany DJ Djibouti DK Denmark DM Dominica DO Dominican Republic DZ Algeria EC Ecuador EE Estonia EG Egypt EH West Sahara ER Eritrea ES Spain ET Ethiopia FI Finland FJ Fiji FK Falkland Islands FM Micronesia FO Faroe Islands FR France FX France (European Territory) GA Gabon GB Great Britain GD Grenada GE Georgia GF French Guyana GH Ghana GI Gibraltar GL Greenland GM Gambia GN Guinea GP Guadeloupe (French) GQ Equatorial Guinea GR Greece GS S. Georgia & S. Sandwich Islands GT Guatemala GU Guam (USA) GW Guinea Bissau GY Guyana HK Hong Kong HM Heard and McDonald Islands HN Honduras HR Croatia HT Haiti

Code Country code

HU Hungary ID Indonesia IE Ireland IL Israel IN India IO British Territory in the Indian Ocean IQ Iraq IR Iran IS Iceland IT Italy JM Jamaica JO Jordan JP Japan KE Kenya KG Kirghizia KH Cambodia KI Kiribati KM Comoros KN Saint Kitts and Nevis Anguilla KP North Korea KR South Korea KW Kuwait KY Cayman Islands KZ Kazakhstan LA Laos LB Lebanon LC Saint Lucia LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho LT Lithuania LU Luxembourg LV Latvia LY Libya MA Morocco MC Monacco MD Moldova MG Madagascar MH Marshall Islands MK Macedonia ML Mali MM Myanmar MN Mongolia MO Macao MP Northern Mariana Islands MQ Martinique (French) MR Mauretania

Code Country code

MS Montserrat MT Malta MU Mauritius MV Maldives MW Malawi MX Mexico MY Malaysia MZ Mozambique NA Namibia NC New Caledonia (French) NE Niger NF Norfolk Island NG Nigeria NI Nicaragua NL Netherlands NO Norway NP Nepal NR Nauru NU Niue NZ New Zealand OM Oman PA Panama PE Peru PF Polynesia (French) PG Papua New Guinea PH Philippines PK Pakistan PL Poland PM Saint Pierre and Miquelon PN Pitcairn Island PR Puerto Rico PT Portugal PW Palau PY Paraguay QA Qatar RE Reunion (French) RO Rumania RU Russian Federation RW Rwanda SA Saudi Arabia

63 -

Page 64

Glossary

AV socket: Audio and video signal. AV sources: Audio/video source. AVS: Audio/video front sockets on the TV set (cinch and Mini-DIN).

Cinch cable: Cable for transmitting sound or picture. Component Signal: The Component video signal consists of the “Y” brightness signal and the colour difference signals red and blue “U” and “V”. Therefore it is sometimes called YUV signal. If the signal is transmitted in progressive scan, the signals are called YcrCb. For transmission in half screen mode (line jump method or interlace), the signals are called YPrPb.

Digital Link: System for controlling recorders (for Loewe video recorders and DVD recorders) via the Euro AV sockets of the Loewe TV set when installed in a concealed place. Control of the recorder for timer recordings. Digital Link Plus: System for controlling recorders according to protocol 50. Station and timer data are transmitted to the recorder via the Euro AV socket for analog stations. The time recording is made exclusively by the recorder. Different names at different manufacturers. DTS: Digital multi-channel sound. Dolby Digital: Digital multi-channel sound. Dolby Pro Logic: Analog multi-channel sound. Dolby Surround: is an analog multi-channel sound system which accommodates four audio channels in two sound tracks using a matrix coding. Dolby Virtual: Dolby Pro Logic audio signals are played over two speakers as a virtual surround signal. DVD: abbreviation for Digital Video Disc and later Digital Versatile Disc. DVD-Preceiver: combi-device of DVD player and radio. DVI: Digital Visual Interface is an interface for transmitting digital video and graphic data (without sound).

Euro AV socket: Interface for connecting video recorders to a TV set. This socket is also known as a Scart socket.

HDCP: Copy protection standard. HDMI: High Definition Multimedia Interface is a newly developed interface for full digital transmission of audio and video data.

LCD: Liquid Crystal Display. L-Link: Interface for detection and control of Loewe audio components.

NICAM: Sound standard NICAM is used in Belgium, Denmark, England, France, Sweden and Spain. NTSC: American color standard.

PAL: European colour standard. PCM: Puls Code Modulation for digital sound. PIP: Picture in Picture, a function which shows two pictures on one screen. Progressive Scan: Progressive Scan (PS for short) is a technique in the picture buildup of monitors, TV sets, beamers and other display devices in which the output device is not sent line interlaced half pictures – unlike in the interlace technique – but real full pictures. Picture In Picture: see PIP.

RGB: colour signals red, green, blue.

Switching voltage: Video devices transmit this voltage to switch the TV to play. SECAM: French colour standard. SetTop-Box: Set-Top-Box refers to a device in entertainment electronics which is connected to another device, usually a TV set and offers the user additional useful features. Signal strength: strength of the reception signal. Signal quality: quality of the incoming signal. Stereo: dual channel sound.

Terrestrial: In data transmission, a radio transmission which does not use a satellite as an intermediate station is called terrestrial. Tuner: receiver

VPS: The Video Program System (VPS) is a signal which some (but not all) stations transmit in the scanning gap of the TV signal. The signal serves for video or DVD recorders to react to differences in the starting time, postponements and overrunning of the planned transmission time when recording programs.

Ycc/Ypp: colour standard in Set-Top-Boxes.

MPEG: Digital compression method for video. Modulator: Transmitter in the recorder to receive signals via the TV tuner. Mono: single channel sound.

64 -

Page 65

Index

AERIAL 5 Area Code 24 AUDIO IN 5 AUDIO OUT 5 Auto Chapter 25 Automatic programming 17

Basic Settings 15

Card-Reader 39 Chapter List 46 Chapter marker 3 Clock set 20 Codelist RC3H 67–70 COMPONENT VIDEO OUT 5 Connections 12

Accessories 15 Aerial 12 Ampliﬁer 14 Camcorder 15 Decoder 14 General 12 Satellite Receiver 13 Set-top box 13

Television 13 Copy/move ﬁles/folders 36 Copy protection system 10 Copyright 10 CPRM 10

Delete Station 19 Digital Link 7,15 Digital Link Plus 7,17 DIGITAL OUT 5 Digital Video 44 Disc-related Terms 11 Disc Format 26 Disc Label 27 Disc Protect 27 Display 5 Disposal 7 DivX registration code 24 Dolby Digital 22 DTS 22

Dubbing 54

Dub from DVD to HDD 55 Dub from HDD to DVD 55

DV IN 4

Edit recordings 46

Add chapter markers 47 Combine chapters 52 Combine titles 51 Create new Playlist 47 Delete part 49 Divide title 52 Edit thumbnail 47 Move Playlists Chapters 53 Protect title 53 Sorting 51

Title Name 50 Energy saving mode 21 EURO AV 1 5 EURO AV 2 5

Fernbedienung 61 Finalisation 26 Front Panel 4

Glossary 65

Hard disk 7 HDMI 5,29

Initialisation 21 Inserting/removing memory

cards 39

Language Code List 62 List of country codes 63

Main menu 16 Mains cable 5 Masthead 59 Memory capacity 39 Moving stations 19 MPEG 22

NICAM 20

Operating additional devices

OPTICAL 5

Photo mode 38 Picture in Picture (PIP) 33 Play-Back Control 27 Playable Discs 10 Playback

Audio CD 35 Compatibility 36 MP3/WMA media 35 Program list 37 Random play 36

Playiback 30

3D-Surround 32 Camera positions 32 CHAPTER 30 Disc menu 32 DivX ﬁles 34 Freeze frame 31 Markers 31 Media with mixed contents

33 Repeat 31 Search 30 Skip 30 Slow Motion 31 Subtitles 33 Time 31 TITLE 30 Title menu 32 Zoom 31

Playing on other devices 56 Playlist 47 Program Edit 18 Progressive Scan 12

Rating 23 Rear Panel 5 Recording 41

Clip recording 41 Delayed TV viewing 41 Digital Video 44 Manual Record 42 Record from external

sources 44 ShowView 43 Simultaneous record and

display 42 Timer Recording 43 Timer Record List 44 Timeshift mode 41

Regional code 11 Remote Control 12,40,61 Remote control 3 Resetting 12 Rewritable discs 9

S-VIDEO OUT 5 Safety 8 Scope of delivery 6 Screen Menus 28 Service 64 Set Password 22

Delete 23 Switching off 23

Set up 6 Setup menu 16

Audio Menu 22 Disc Menu 26 General Menu 17 Language Menu 21 Lock Menu 22 Recording Menu 25

Slide Show 38 Station Rename 19 Symbols 11

Technical Speciﬁcations 59 Technische Daten 59 Title List 46 Trademark rights 6 Troubleshooting 57–58

VIDEO IN 5 VIDEO OUT 5 VIDEO OUTPUT switch 5

- 65

Page 66

Service

Loewe Austria GmbH Parkring 10 1010 Wien, Österreich Tel.: +43 - 810/0810-24 (zum Ortstarif) EMail loewe@loewe.co.at

International Dynamics Australasia Pty Ltd. 129 Palmer Street Richmond 3121, Victoria, Australia Tel. +61 - 3 - 94 29 08 22 Fax +61 - 3 - 94 29 08 33 Email mail@internationaldynamics.com.au

Loewe Opta Benelux NV/SA Uilenbaan 84 2160 Antwerpen, België Tel. +32 - 3 - 2 70 99 30 Fax +32 - 3 - 2 71 01 08 Email ccc@loewe.be

Telion AG Rütistrasse 26 8952 Schlieren, Schweiz Tel. +41 - 44 732 15 11 Fax +41 - 44 732 15 02 Email infocpe@telion.ch

HADJIKYRIAKOS & SONS LTD. Prodromou 121, P.O Box 21587 1511 Nicosia, Cyprus Tel. +357 - 22 87 21 11 Fax +357 - 22 66 33 91 Email Efthymios@hadjikyriakos.com.cy

Ing. Ivo Tietz Dolní nám. 9 746 01 Opava, Česko Tel. +420 553 624 944 Fax +420 553 623 147 Email tietz@opava.cz

Loewe Opta GmbH, Customer Care Center Industriestraße 11 96317 Kronach, Deutschland Tel. +49 1801–22256393 Fax +49 9261–99500 Email ccc@loewe.de

Kjaerulff 1 A/S C.F. Tietgens Boulevard 19 5220 Odense SØ, Denmark Tel. +45 - 66 13 54 80 Fax +45 - 66 13 54 10 Email mail@kjaerulff1.com

Gaplasa S.A. Conde de Torroja, 25 28022 Madrid, España Tel. +34 - 917 48 29 60 Fax +34 - 913 29 16 75 Email loewe@maygap.com

Loewe Opta France S.A. 13 rue du Dépôt, Parc del l‘Europe, BP 10010 67014 Strasbourg Cédex, France Tel. +33 - 3- 88 79 72 50 Fax +33 - 3- 88 79 72 59 Email loewe.france@wanadoo.fr

Kjaerulff 1 OY Uudenmaantie 100 20760 Piispanristi, Finland Tel. +358 - 20 751 3800 Fax +358 - 20 751 3801 Email Finland@kjaerulff1.com
