Loewe Connect ID 46 DR+, Connect ID 40 DR+, Connect ID 55 DR+ User Manual

Connect ID

Connect ID 55 DR+ Connect ID 46 DR+ Connect ID 40 DR+

User guide

35908020

Connect ID 40-55 DR+ User guide

Imprint

Loewe Technologies GmbH Industriestraße 11 D-96317 Kronach www.loewe.tv

Printed in Germany Editorial date 11/16-2.0 TB © Loewe Technologies GmbH, Kronach ID: 2.3.24.0

All rights including translation, technical modifications and errors reserved.

Imprint

Connect ID 40-55 DR+ User guide



Table of contents

Imprint ...........................................................................................2

Welcome ........................................................................................5

Scope of delivery .......................................................................................... 5

About this user guide ................................................................................... 5

For your safety ..............................................................................6

Basic Functions ............................................................................8

Remote control .............................................................................9

Operating controls on the TV set ............................................. 10

Connections rear side of the device .........................................11

Preparing the TV set .................................................................. 12

Installing the TV set .....................................................................................12

Set covers .....................................................................................................12

Connecting the TV set ................................................................................12

Bundling the cables .....................................................................................14

Preparing the remote control unit .............................................................14

Switching the TV set ON/OFF ...................................................................15

Technical information .................................................................................15

General information on menu operation ................................. 16

Info display ....................................................................................................19

Operation without remote control.............................................................19

Initial installation ...................................................................... 20

Initial installation wizard .............................................................................20

TV set as a monitor .....................................................................................31

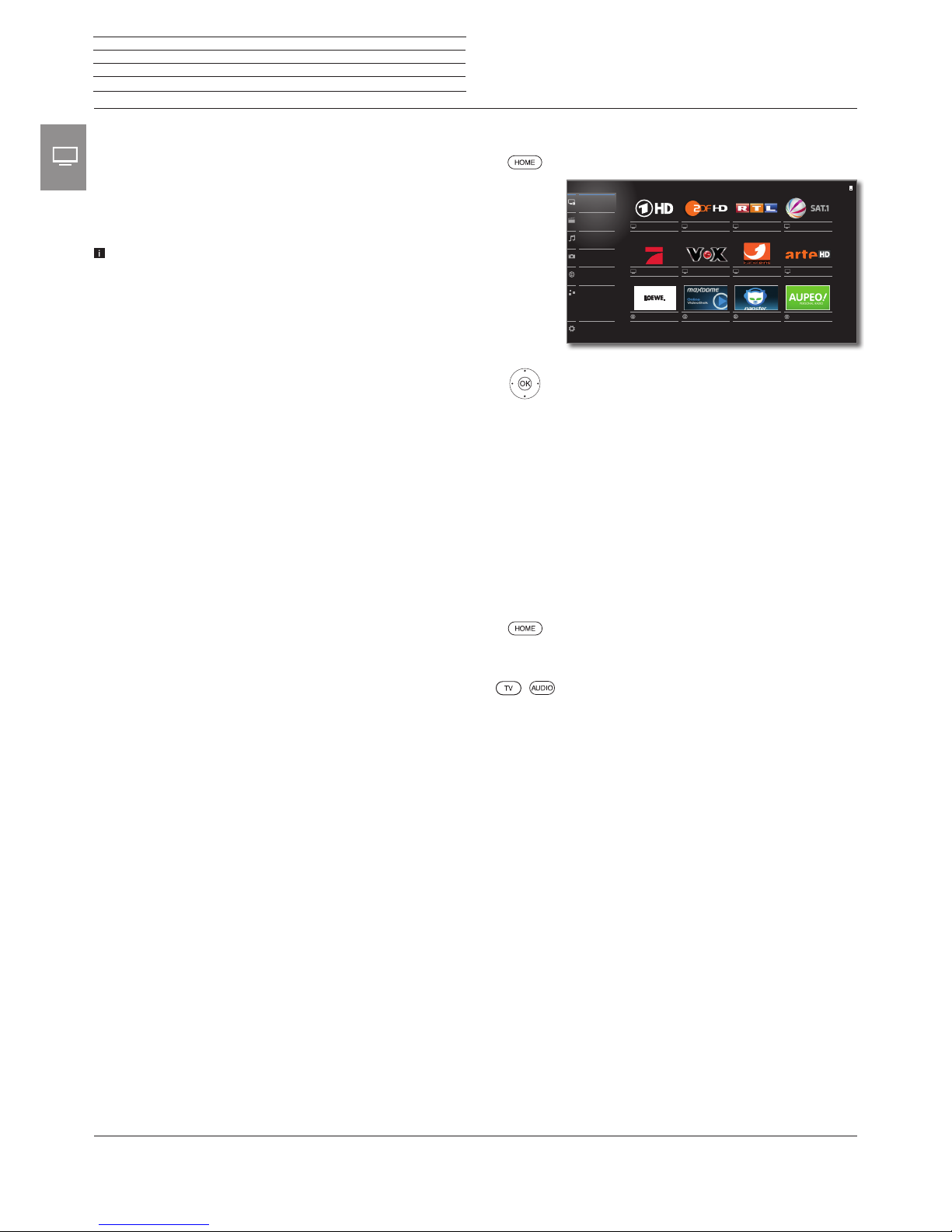

Home view ...................................................................................32

Home - Favourites ......................................................................................33

TV ................................................................................................ 34

Setting the volume .....................................................................................34

Select station ..............................................................................................34

Status display ..............................................................................................36

Function list .................................................................................................37

AV list ............................................................................................................ 37

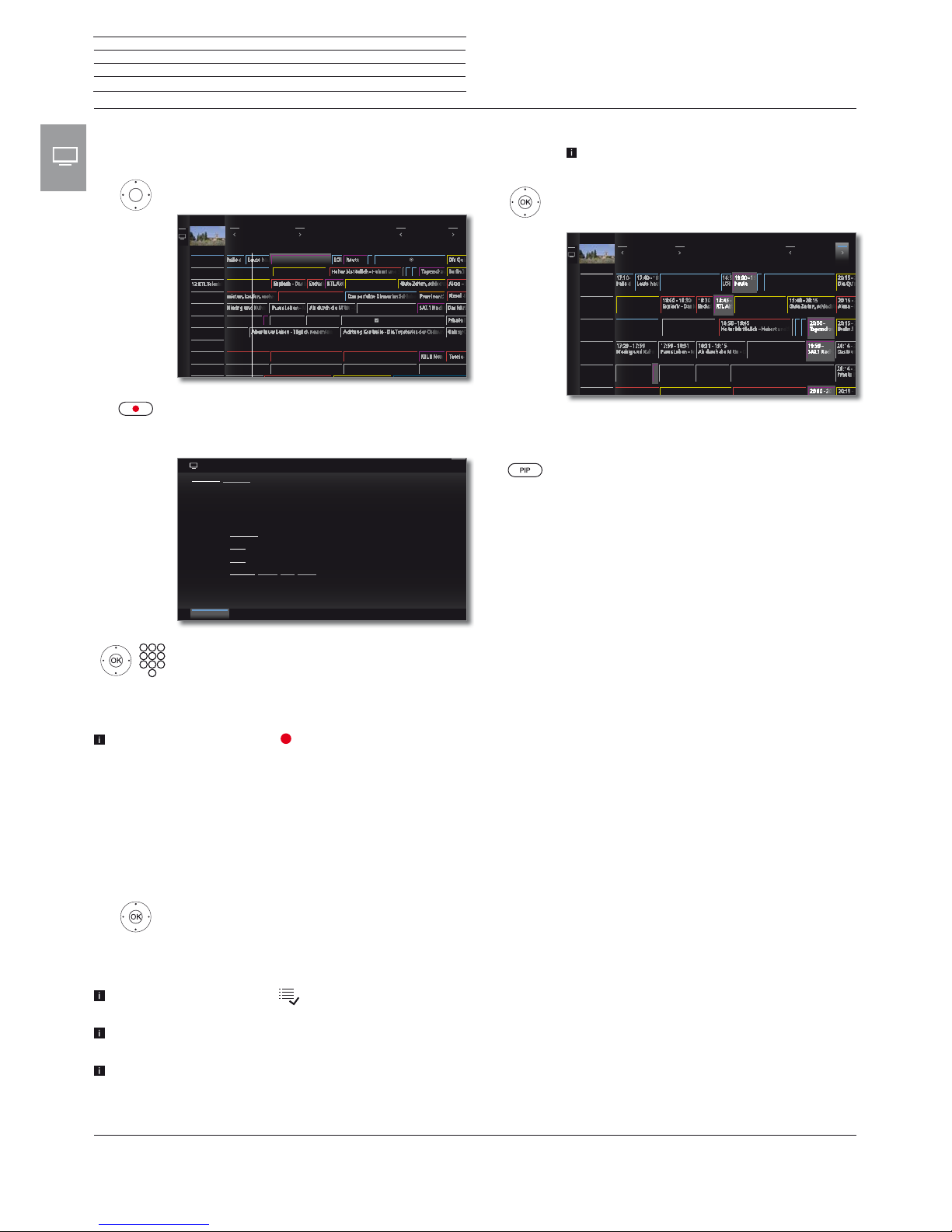

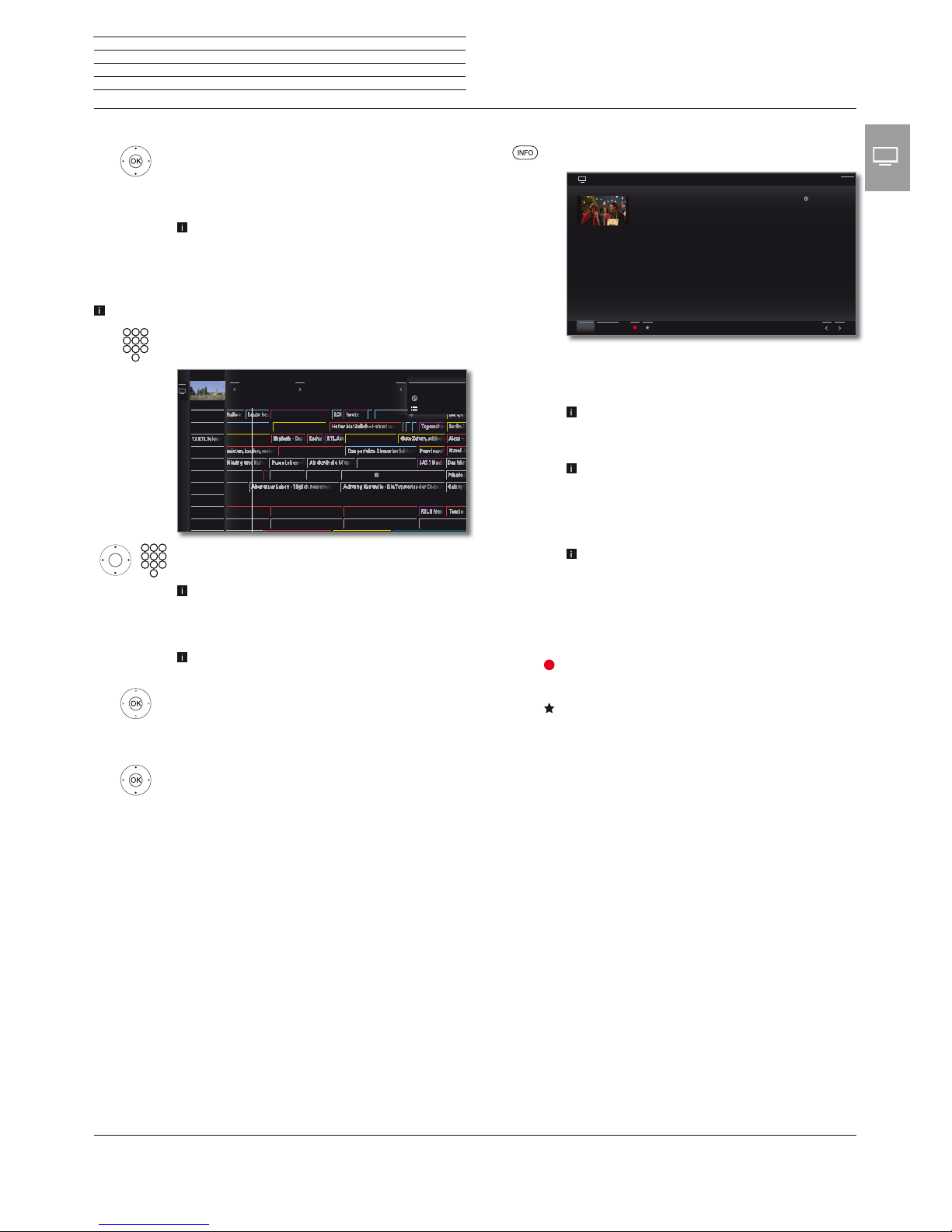

Electronic Programme Guide – EPG........................................................38

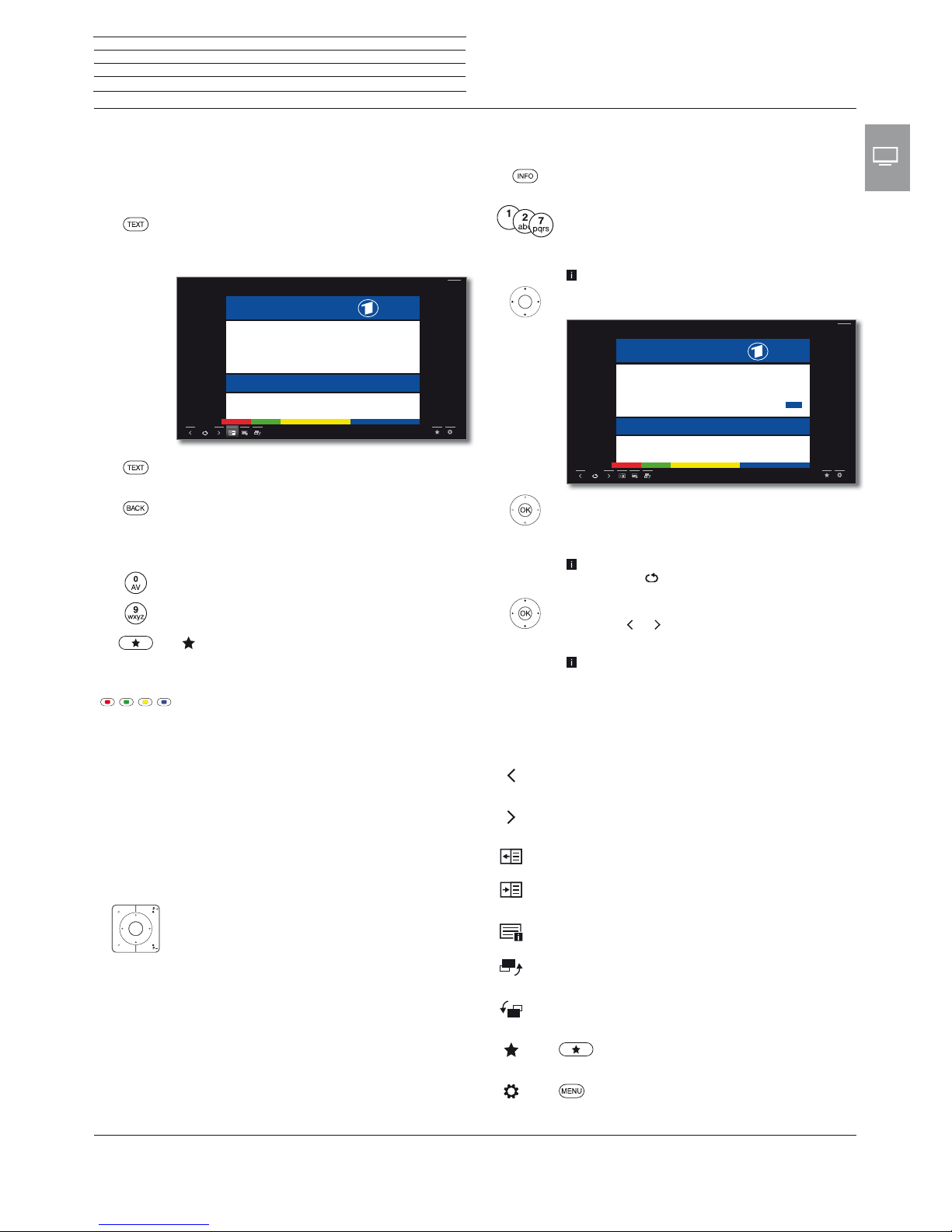

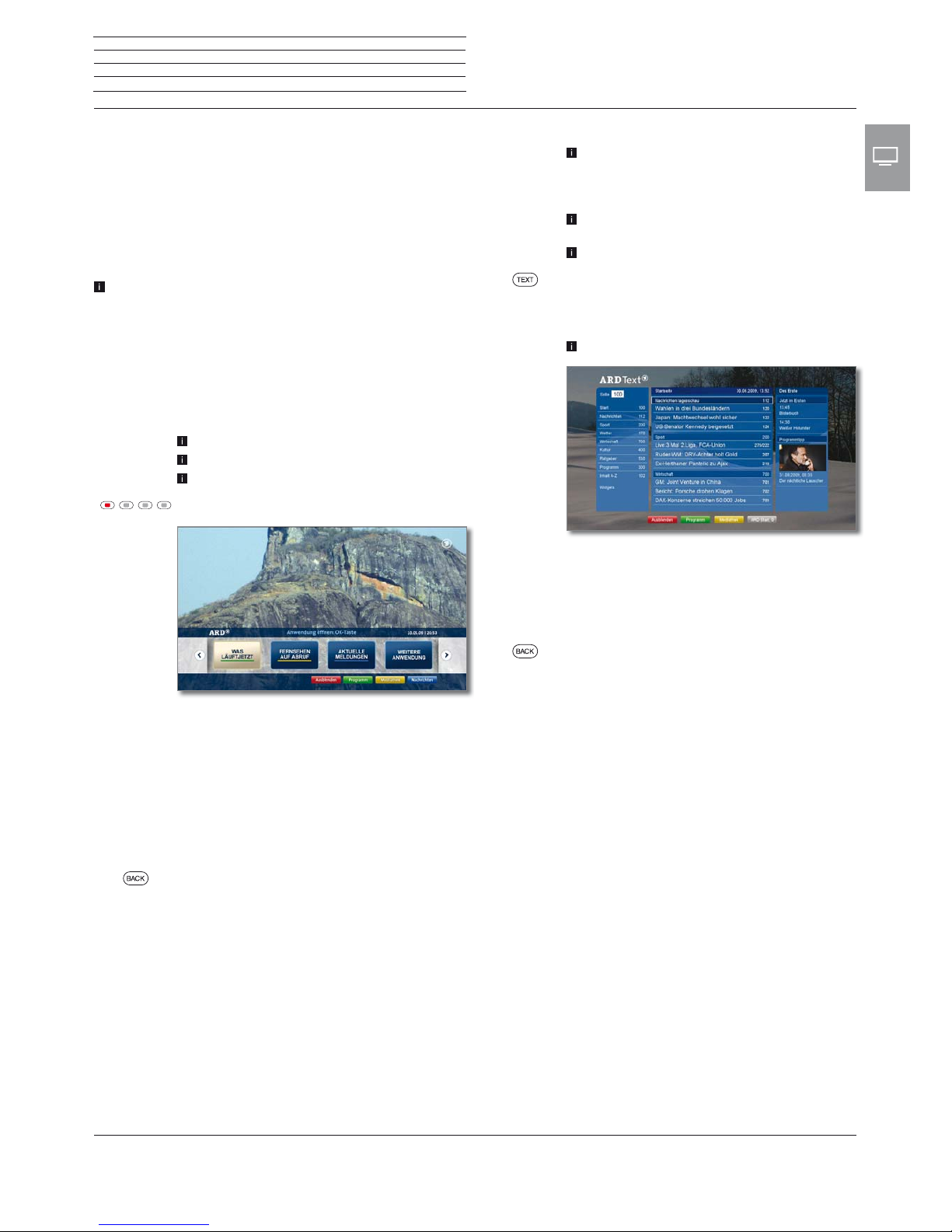

Teletext ..........................................................................................................41

HbbTV / MediaText .................................................................................... 43

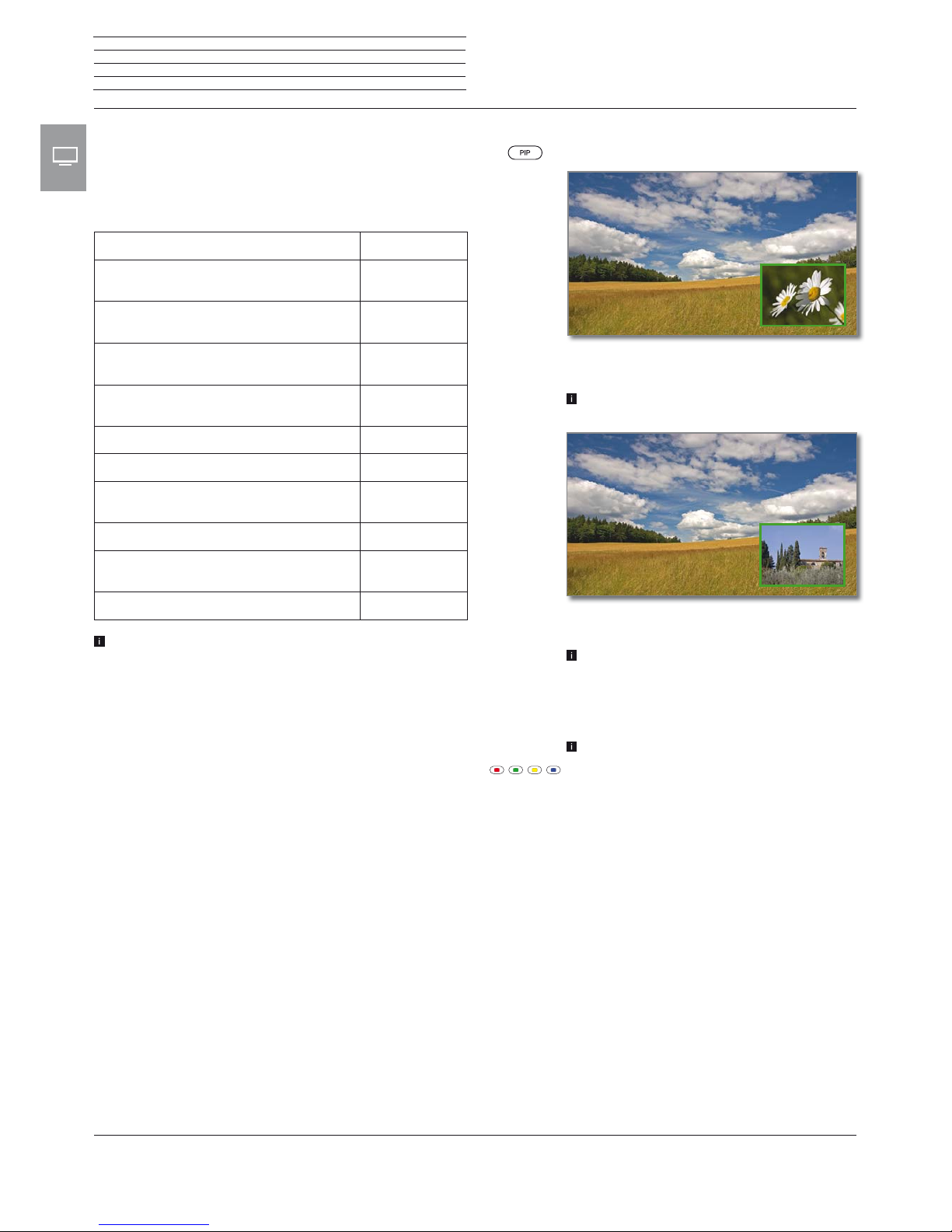

Picture in Picture (PIP) ............................................................................... 44

Digital Recorder .......................................................................................... 45

Digital-Recorder – Overview of functions ............................................ 45

TV viewing with time shift .......................................................................46

Archive recording ..................................................................................... 47

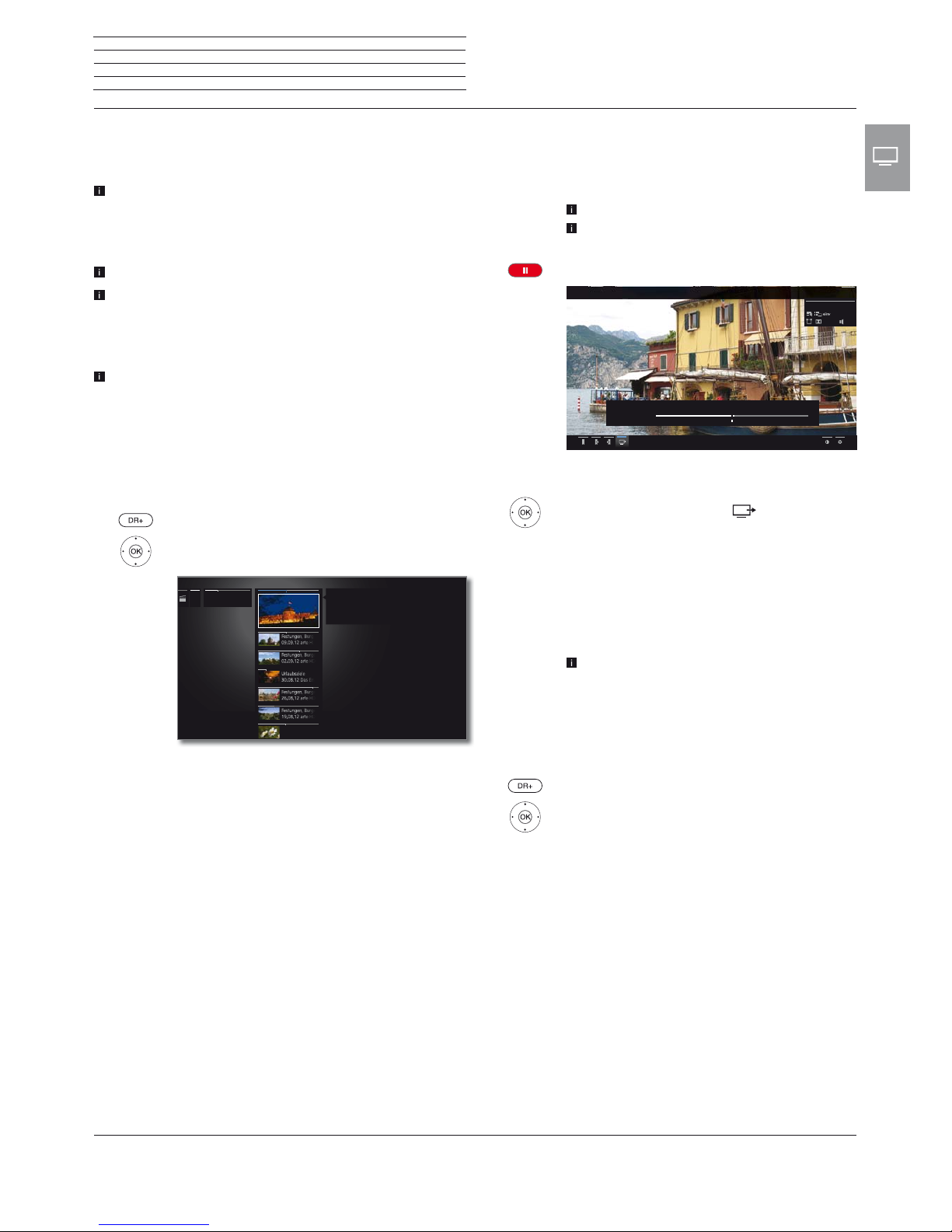

DR+ archive .............................................................................................. 49

DR+ Streaming ........................................................................................53

Follow me function ..................................................................................53

Media

+ ........................................................................................ 54

General information on media reproduction ..........................................54

Accessing your media ................................................................................ 54

Video ............................................................................................55

Video playback ............................................................................................56

Audio/Radio .............................................................................. 63

Audio playback ...........................................................................................64

Radio mode (DVB radio) ........................................................................... 67

Radio mode (Internet radio) ..................................................................... 68

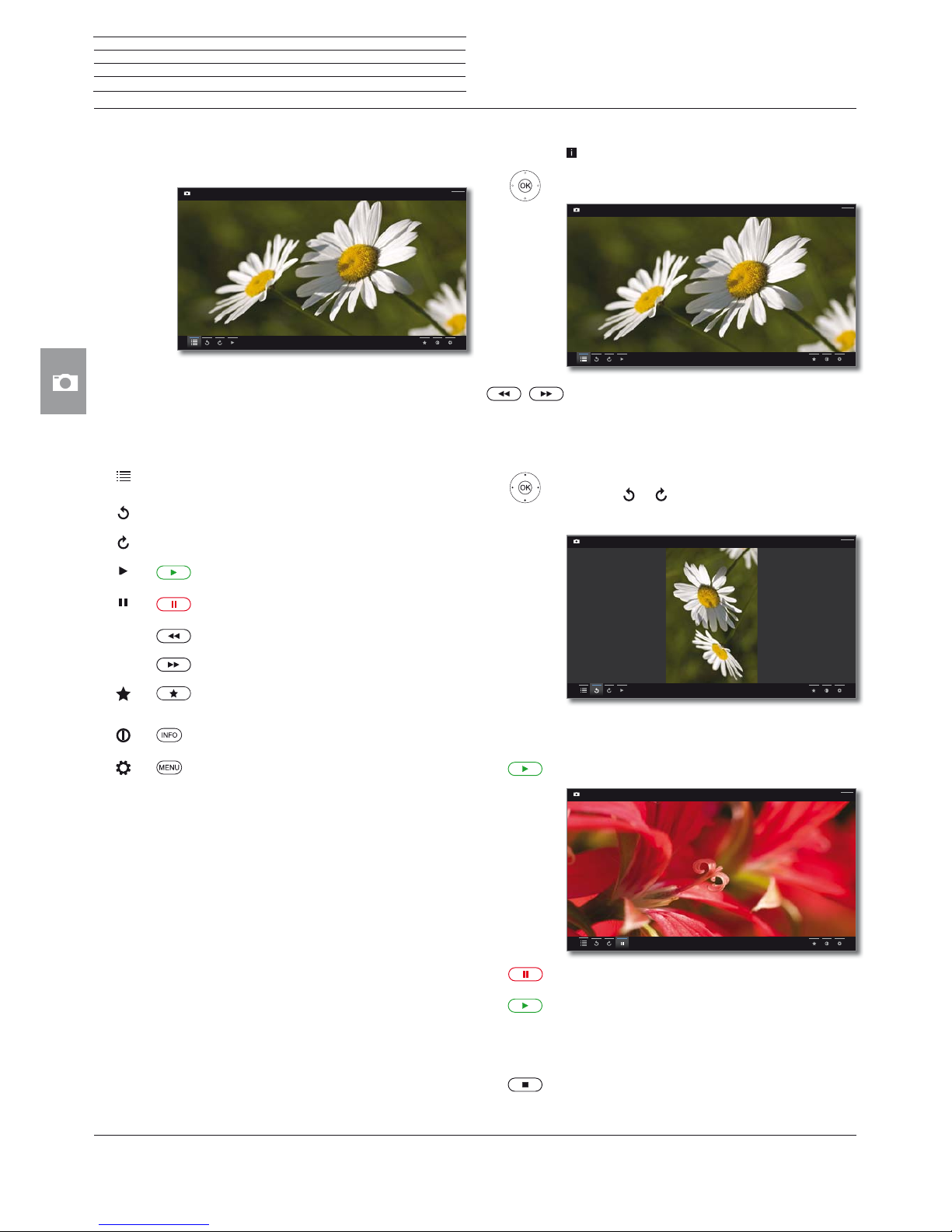

Photo .......................................................................................... 69

Photo display ...............................................................................................70

Web .............................................................................................. 71

MediaNet ......................................................................................................71

Browser ........................................................................................................ 73

Extras...........................................................................................74

Timer ............................................................................................................ 74

Conditional Access module (CA module) ............................................... 79

DVB Common Interface Standard (CI) ...................................................80

DR+ Streaming ...........................................................................................80

Special functions .........................................................................................81

Integrated features ......................................................................................81

Picture ..........................................................................................................83

Sound ........................................................................................................... 87

Stations ........................................................................................................88

Automatic scan TV+Radio .....................................................................89

Manual Scan TV / Radio .........................................................................90

Station lists TV / Radio ...........................................................................92

Compose / edit Personal list .................................................................. 93

Update station list automatically ...........................................................94

Control .........................................................................................................95

Language ..................................................................................................96

EPG ............................................................................................................96

Parental lock ............................................................................................. 97

Energy efficiency ...................................................................................... 98

Quick start mode ..................................................................................... 98

Software update.......................................................................................99

On-screen displays ................................................................................104

Time and date ........................................................................................104

DVB settings ...........................................................................................105

PIP ............................................................................................................ 105

DR+ .........................................................................................................106

Standard Teletext ................................................................................... 107

HbbTV ..................................................................................................... 108

CA module(s) ......................................................................................... 109

Record ......................................................................................................110

WEB key function....................................................................................110

Hard disks .................................................................................................111

Network settings .....................................................................................112

Multimedia settings ................................................................................115

Renderer ..................................................................................................115

Connect ID 40-55 DR+ User guide



Table of contents

System settings (continued) .................................................. 116

Connections ...............................................................................................116

Sound components ............................................................................... 117

Antenna DVB ...........................................................................................121

AV connection settings .......................................................................... 121

Digital Link ............................................................................................... 122

Gaming mode ........................................................................................ 122

Assign digital audio input ...................................................................... 123

External devices .......................................................................124

Devices to the HDMI connections .......................................................... 124

Digital Link HD ........................................................................................... 125

Devices on AV ............................................................................................ 126

Devices on AVS ......................................................................................... 127

Devices on PC IN ...................................................................................... 128

Connecting the Loewe speaker system ................................................ 129

Connecting active loudspeakers ............................................................ 130

Connecting the HiFi/AV amplifier ...........................................................130

Audio playback from external devices ....................................................131

Serial interface RS-232C (RJ12) .............................................................. 131

Operating Loewe units ............................................................................. 132

Teaching the remote control ..................................................133

Loewe Apps ............................................................................................... 134

Loewe Apps ...............................................................................135

Troubleshooting ....................................................................... 137

Technical Data .......................................................................... 139

Technical data ..........................................................................139

Function of the connections ................................................................... 140

Media ........................................................................................................... 141

Signals via AVS (PC IN) / HDMI .............................................................. 142

Signal input groups .................................................................................. 142

Accessories ...............................................................................143

Upgrade kits / conversion kits / cables ................................................ 143

Equipment variants .................................................................................. 144

Mounting options ..................................................................................... 145

Environment .............................................................................146

Glossary .................................................................................... 147

EC Declaration of Conformity..................................................151

Index .......................................................................................... 153

Service .......................................................................................156

Code page ................................................................................. 157

Notes .........................................................................................159

Connect ID 40-55 DR+ User guide

Scope of delivery

• LCD TV set

• Mains cable

• Antenna cable

• Table Stand Dynamic (Connect ID 40 / 46)

• Wall mount WM62 (Connect ID 55)

• Remote control Assist with two batteries

• Quick guide

About this user guide

For best results regarding safety and the longevity of the set, we

recommend you read the chapter For your safety before switching it on for the first time.

The glossary gives explanations of certain terms used in the TV set and the user guide.

Paragraphs which begin with the symbol

indicate important instruc-

tions, tips or conditions for the following settings. Terms which you will find in the menus or printed on the remote control

or TV set are written in bold type. The necessary control elements are shown in the descriptions to the

left of the text containing the instructions for action.

In addition to the remote control, a PC keyboard can be connected to one of the USB ports on your TV and then used to control your TV set.

In the user guide, this symbol indicates places in which the use of a keyboard is particularly advantageous.

Depending on the connected accessory equipment the menus in the TV set can differ from those described here.

All the station names, programme contents, the illustrated photos, titles, albums and album covers in this user guide are examples.

The user guide instructions for your TV set is updated at irregular intervals. We recommend checking now and then, especially after a software update.

General information on menu operation of the TV set

For further information on the user interface and the general operation of your TV set see chapter General information on menu operation.

Interactive data services

In some countries the stations also broadcast interactive data services with their programmes, leading to the functions of individual buttons not being available or only so to a limited extent. You can find out more about this in chapter TV, section HbbTV / MediaText.



Welcome

Thank you,

for choosing a Loewe TV set! At Loewe we combine the highest requirements regarding technol-

ogy, design and ease of use. This applies equally for TV, video and accessories. In addition to sleek design and a varied combination of colour and mounting choices, your Loewe TV set offers a host of technological options.

Loewe Image

Image+ and state-of-the-art full HD LCD displays with LED backlit TV technology guarantee the best image quality and high contrast values and all this at lowest possible energy consumption.

Loewe Digital

The integrated triple tuner for DVB-T/C/S enables the reception of standard as well as high-definition contents and thanks to the CI Plus interface even from Pay TV.

Loewe Sound

Audio competence on the highest level - this is for what Loewe is unique: an integrated multichannel decoder provides 5.1 Home Entertainment of outstanding quality without any external devices.

Loewe DR

Due to Loewe DR+, recording of TV transmissions on the integrated hard disk by simply pressing a key or halting the current transmission are no problem. Additionally, DR+ Streaming enables the retrieval of films on further Loewe devices.

Loewe Assist

The intuitive Loewe user interface Assist Media offers a simple access to all device functions; by means of the HOME key on the remote control you can access all your favourite content as well as all multimedia functions of your TV set.

Loewe Media

The Loewe Miltimedia functions offer you a multitude of options; you have access to your photos, videos and music in your home network or on the USB stick.

Loewe MediaNet and MediaText help you to access numerous worldwide web-applications and contents from HbbTV services.

Loewe Connectivity

Network your TV set by means of numerous interconnection options. Be it HDMI, USB, CI Plus or LAN/WLAN, discover the world of the Loewe networking possibilities.

Connect ID 40-55 DR+ User guide

For your safety, and to avoid unnecessary damage to your unit, please read and follow the safety advice below:

Use for the intended purpose and ambient conditions

This TV set is intended exclusively for receiving and playing visual and audio signals. It must not be used in rooms with a high level of humid- ity (e.g. bathroom, sauna) or a high dust concentration (e.g. work- shops). The manufacturer‘s warranty is only valid for use in the specified permissible environment.

If the unit is used outdoors, make sure that it is protected from moisture (rain, dripping water and splashing water or dew). High humidity and dust concentrations lead to leakage currents in the device. This can result in a shock hazard by touching it or even fire.

If you have moved the unit out of the cold into a warm environment, leave it switched off for about an hour to avoid the formation of condensation.

Do not place objects containing liquids on top of the unit. Protect the appliance against dripping and splashing water. Candles or naked flames must be kept away from the TV set at all times to prevent it from catching fire.

Never place the TV set in a location where it is exposed to vibrations. This may lead to damage.

Transporting

Move the device in vertical position only. Grasp the device on the upper and lower edges of the housing.

If the set has to be put down during packing/unpacking, place the TV set with its entire front surface lying flat on soft material such as a blanket or the fleece from the packing material. Use a blanket or the fleece from the packing material as an underlay.

The LCD screen is made of glass or plastic and can break if not handled properly. Always wear rubber gloves to carry the TV set if the LCD screen is damaged and liquid crystal might be leaking out. In the case of skin

contact immediately rinse thoroughly with water.

Power supply Incorrect voltages can damage the unit. This device may only be con-

nected to a power supply with the voltage and frequency indicated on the type plate using the supplied mains cable. The mains plug of the TV set must be easily accessible so that the device can be disconnected from the mains at any time. When unplugging the unit from the mains, pull at the connector body and not at the cable. The cables in the mains plug could otherwise be damaged and could cause a short-circuit when plugged in again.

Lay the mains cable so that it cannot be damaged. Do not step on the mains cable. The mains cable may not be kinked or laid over sharp edges nor be exposed to chemicals; the latter also applies to the unit as a whole. A mains cable with damaged insulation can cause electric

shocks and poses a fire risk.

Air circulation and high temperatures

The vent slots on the rear panel of the set must always be kept unobstructed. Please do not place newspapers or cloths on/over the TV set.

Ensure that there is at least 10 cm free space on the sides and above the set for air circulation, if the set is placed in a cabinet or on a shelf.

Like any electronic device, your TV set requires air for cooling. Obstruction of the air circulation can cause fires.

Prevent metal items, needles, paper clips, liquids, wax, or similar items, from getting into the interior of the device through the vent slots in the rear panel. Such objects can cause short circuits in the set, which could possibly cause a fire.

If something should get into the interior of the set then immedi- ately unplug the mains plug of the device and contact the field service for more information.

Note on the LCD screen

The TV set with LCD screen you have purchased satisfies the most rigorous quality requirements and has been inspected with respect to pixel errors. Despite of thorough care when manufacturing the display, it cannot be 100% guaranteed that no subpixel defects will occur due to technical reasons. Please understand that these types of effects, as long as they are within the standard of specified limits, cannot be considered as a device defect in terms of the guarantee.

Avoid displaying still images for long periods of time. It is possible that a copy of the image may remain.

TV sets with 3D function

Read the following safety instructions before using the 3D function of your TV set.

Please use the Loewe 3D TV sets only with the Loewe 3D glasses which can be purchased as an accessory from your Loewe dealer (see chapter Accessories).

People that have a visual disorder may not be able to perceive 3D effects or may only be able to perceive them to a limited extent. People who are sensitive to flickering images (e.g. those with epilepsy) should only use the 3D function after having consulted their doctor.

It might take some time for you to get used to the 3D glasses and before you can perceive the 3D effects properly. Stop using the 3D function immediately if you experience any feelings of nausea, dizziness or malaise when viewing 3D content.

Supervise children whilst they are viewing 3D content, as they can be particularly sensitive to it.

Allow more time for a break when viewing 3D films, so that you are able to relax. Failure to do this could result in headaches, fatigue, dizziness or malaise.

Position yourself comfortably in front of the 3D TV set and ensure that you are seated firmly. By doing this, you will avoid any injuries that may arise due to reacting to extreme 3D content.

Switch off any artificial light sources (e.g. energy saving lamp) between the 3D TV set and the 3D glasses. These could impair the infrared reception or the TV picture may flicker as a result.

10 cm



For your safety

Connect ID 40-55 DR+ User guide



For your safety

Set-up

Loewe Flat TV sets are specified for Loewe accessories. The TV set is suitable for different mounting options. Note the assembly instructions regarding the different possible mounting options.

When using accessories from other manufacturers take care that the TV set can be easily inclined or rotated on the respective mounting option.

For mounting options from other manufacturers with motor drive, make sure that the TV set cannot be rotated manually. The use of mounting options from other manufacturers with locks in certain positions is generally discouraged.

During the adjustment of the TV set it is essential to ensure that the pressure exerted on the device frame is not too large. Especially in case of large-format displays there is a risk to damage the screen.

Before setting up the device, please check that the final location is suitable to bear the load of the device in terms of surface (sensitivity to pressure) and stability (statics). This is particularly the case for the high-gloss painted surfaces and surfaces that are made from real wood / real wood veneer or plastic surfaces.

Place the TV set with the table or floor stand only on a level, sturdy, horizontal base. Particularly ensure that the set does not protrude to the front when placed in or on pieces of furniture. Place the TV set in a normal position for use. TV set may only be used in an upright horizontal position. It may not be tilted by more than 10 degrees. The TV set must never be operated in portrait position, lying flat or hanging overhead from the ceiling.

Set up the device where it is not exposed to direct sunlight and where it is not exposed to additional warming through heating elements.

Mounting a Loewe flatscreen TV set to a holder according to the VESA standard necessarily requires the use of Loewe Vesa adaptor bolts to prevent damage to the TV set.

When mounting the TV set, always check that all four Loewe Vesa adaptor bolts are used.

The Loewe Vesa adaptor bolts are used to ensure stability and the necessary distance between rear wall of the TV set and Vesa-Holder (at least 5mm).

The Loewe Vesa adaptor bolts are fastened

with a torque of about 4 Nm on the TV set. If you use a Vesa mounting options from other manufacturers, you can order the Vesa adapter bolts M8x32 (No.

90458.957) at your author-

ized dealer of Loewe.

Supervision

Do not let children loiter and play unsupervised close to the device. The set could tip over, be pushed off or pulled down from the stand surface and injure someone.

Do not allow the switched-on TV set to run unattended.

Volume

Loud music can lead to ear damage. Avoid extreme volume especially over long periods and when using headphones.

±10°

Thunder storms

Pull out the mains plug and all connected antenna cables from the TV set in a thunderstorm. Overvoltage caused by lightning strokes can damage the set via the antenna system, as well as via the mains. The mains plug and all connected antenna cables should also be pulled out during long periods of absence.

Automatic shutdown

If the TV is not operated for 4 hours (adjustment of volume, programme change, etc.) the TV will automatically switch to stand-by mode to save energy. A prompt to terminate this shutdown process appears one minute before expiry of the 4 hours. The automatic shutdown is generally active for the TV mode as soon as the energy efficiency mode Home Mode is enabled for at least one of the six signal input groups (see chapter Technical Data, section Signal input groups). This also applies if another energy efficiency mode is selected during initial installation, but one of the signal input groups is subsequently set to Home Mode. Automatic shutdown does not occur when using the radio without screen display (screen off).

Cleaning and care

Switch off the TV set with the main switch prior to cleaning.

Clean the TV set, the screen, and the remote control unit with a soft, moist, clean and colour-neutral cloth only, without any aggressive or scouring cleaning agents.

The speaker panel of your TV set is covered with textile. Vacuum the surface regularly using a soft brush set.

In case of dirt or stains: Moisten a soft, colour-neutral cloth with detergent or normal stain remover and gently rub away the stain. You can also treat the mark/ stain directly with normal dry stain remover spray (vacuum up powder). Do not moisten the covering fabric directly with detergent or stain remover (risk of encrustation). Do not use any solvents to clean the fabric.

Follow the manufacturer’s instructions when using stain removers. There is an increased risk of encrustation when cleaning speaker

panels with nicotine deposits.

Repairs and accessories

Never remove the back of the TV set yourself. Have your TV set repaired or serviced by authorised television technicians only.

Only use original accessories such as Loewe stands, if possible (see chapter Accessories).

Connect ID 40-55 DR+ User guide



Basic Functions

The assignment of these keys can be changed (see chapter External devices, section Operating Loewe units).

The assignment of these keys can be changed (see chapter System settings, section Control – Web key function).

On/Off of the television set

Switching the TV set ON / switching it OFF in Standby mode (Mains switch must be switched ON)

When TV set is switched on: Press key long: Switch TV set and all CEC-capable devices connected to the HDMI interfaces OFF to Standby mode (System Standby).

General navigation

Navigation on the user interface, select

objects

Select station

OK short: Call station list. Or: OK long: Call expanded station list.

 Mark station, OK switch over to station.

Or:

P+/P– Next/previous channel

Or:

Select station with numerical keys

Sound

V+/V– Increase/reduce volume

Sound on/off

Colour key function during TV operation

Red key: Start HbbTV or value-added network

service

Yellow key: Last selected station

Blue key: Call function list

(selection of language/sound,

subtitles or channel/video track)

Function of the coloured keys in audio mode

Green key: Switch screen ON/OFF

Yellow key: Last selected station in DVB radio mode

Key functions

TV operation

Call radio mode (standard assignment)

Call Home view, Select the operating mode or the function

Pressing briefly, during screen fade-in function: Info display, info text appropriate to the content that can assist you further, should you have any questions about your TV device;

Pressing briefly without on-screen display: access status display. With status display open and repeatedly pressing the key call / close the detailed information on the broadcast

Pressing long: show key explanation

Pressing briefly: Open the DR+ archive Pressing long: Call up the timer list

Add current object to Home favourites

Call MediaNet (standard assignment)

On/Off EPG (Electronic Programme Guide)

On/Off PIP (picture in picture)

Turn Teletext/MediaText on/off

Pressing briefly: Call function list for the active

operating mode

Pressing long: call System settings

Pressing briefly: step / level back Pressing long: close all displays

Connect ID 40-55 DR+ User guide



Remote control

The assignment of these keys can be changed (see chapter External devices, section Operating Loewe units).

The assignment of these keys can be changed (see chapter System settings, section Control – Web key function).

Depending on the corresponding settings.

Sound mute/on

LED display for currently operated device

Switch to TV mode

Reassign remote control to SetTop-Box (PACE DS440N)

DR+ archive on/off

Define active object as favourite

Electronic Programme Guide on/off

Teletext/MediaText

on/off

Call function list

V+/V- Increase/reduce volume

Call station list / expanded station list

In the menu: confirm/call up

Green coloured key: screen on/off

Red coloured key: call preferred value-added network service

Jump / wind

Direct recording (One Touch Recording)

Start / interrupt timeshift television

Finish timeshift

Jump / wind

Start / continue timeshift television

Blue coloured key: call station function list with subfunctions

Yellow coloured key: switching to previously received station

In menu / in lists: selecting/setting

P+/P– Select stations up/down

Press briefly: back to previous window (step back)

Press long: close all displays

Status display on/off

In menu: context-relevant Info on/ off

PIP (picture in picture) on/off

Open/close

Home

view

AV list

Select station directly

In the menu: Enter numbers or letters

Call MediaNet

Reassign remote control to BluTech Vision 3D

Switch to radio mode

Switch ON/OFF to standby mode

System standby

The key assignment displayed here is valid for the main level of the TV set. The key assignment may vary in certain operating modes (see the corresponding chapter in this user guide).

Connect ID 40-55 DR+ User guide

Functions of the operating elements

Mains switch:

The mains switch is located on the bottom of the set. Always return the TV set to Standby mode before switching it off

with the main switch.

The TV set will be completely separated from mains only when

you unplug the mains cable.

On/Off key:

Switching on in standby mode Switching off to the standby mode

IR receiver:

Infrared receiver for receiving the remote control commands.

Display:

white: TV set in standby white, intermittent: TV set starts green: TV set switched on red: timer recording active blue:

TV set in standby and background operation active (EPG data updating, software update or DR+ streaming server function)

Infrared transmitter:

When showing 3D content, the 3D glasses Loewe Active

Glasses 3D are controlled via the infrared sensor.

Key M:

TV set in standby mode: switch TV set on in TV mode TV set switched on: call direct control on TV set in direct control on TV set: up 

Key R:

TV set in standby mode: switch TV set on in radio mode TV set switched on: toggle TV mode and radio mode Direct control on TV set: down 

Key +:

increase volume Direct control on TV set: to the right 

Key – :

reduce volume Direct control on TV set: to the left 



Operating controls on the TV set

Connect ID 40-55 DR+ User guide

SPDIF OUT - Digital audio output

SPDIF IN - Digital sound input

CENTER IN - Centre audio input (analogue)

DIGITAL AUDIO LINK - Surround audio outputs (digital)

AUDIO OUT - Audio output (analogue)

AV - Mini AV socket

AUDIO IN - Audio inout (analogue)

PC IN - VGA-/XGA input

HDMI 1 - HDMI input 1 (with HDMI ARC support)

HDMI 2 - HDMI input 2

HDMI 3 - HDMI input 3

LAN - Network connection

USB - USB connection

ANT TV - Antenna/cable analogue/digital

ANT SAT - Satellite antenna (Sat tuner 1)

ANT SAT 2 - Satellite antenna (Sat tuner 2)

CI-COMMON INTERFACE - Common Interface 1 (CI slot 1)

CI-COMMON INTERFACE - Common Interface 2 (CI slot 2)

HDMI 4 - HDMI input 4

USB - USB connection

- Headphone connection

AVS - S-Video connection (AVS)

AUDIO IN R - Audio input right (AVS)

AUDIO IN L - Audio input left (AVS)

RS-232C - Serial interface (2

IR LINK - Infrared transmitter connection

Socket for Kensington lock

AC IN - Mains connection



Connections rear side of the device

Adaptor set is available as an accessory (see chapter Accessories).

1 2

12 13

Connect ID 40-55 DR+ User guide

Installing the TV set

Mounting options

Your Loewe specialist dealer can assist you in finding other mounting options that correspond to your needs. Use exclusively Loewe mounting options (e.g., wall bracket, floor stand), which you will find in the chapter Accessories, section Mounting options.

After you have decided on a mounting option, follow the directions found in the corresponding assembly instructions.

Installation notes

Choose a place for installing your TV set where no bright light or sunlight shines directly onto the screen. This could cause reflections which impair the picture.

3 times the screen diagonal can be taken as a guide value for the viewing distance (e.g., for a 46-inch set approx. 3.5 m for SD signal). The viewing distance can be reduced with an HD signal.

Set covers

Covers for rear and side connections

In order to remove the rear side cable covers pull them simply from the device.

To fit the cover, insert the lugs at the top edge of the cover into the corresponding cut-outs in the rear panel and push up the cover until it snaps in.

The side cover of the TV set can also be completely removed. For this, open it as far as it will go and gently pull on the open cover.

The cover detaches from the holder and gives free access to the connection area. To replace the cover, simply push it until it latches back into place.

into place

Connecting the TV set

Connecting to the mains supply

Remove the cover for the connections. Connect the TV set to a 220-240V mains socket:

First plug the small plug of the power cable into the mains connection on the back of the TV and then the large mains plug into a mains socket.

Connecting antennas

Cable (analogue) / DVB-C / DVB-T antenna: Plug the cable of antenna, cable TV system or room antenna into the

ANT TV socket. If you want to use analogue cables / DVB-C connection and a DVB-T antenna together, use an external antenna switch (available from your dealer).

Satellite antenna DVB-S:

Depending on the used satellite system, connect a connecting cable from the multi-switch or directly from the LNC to the ANT-SAT and ANT-SAT2 sockets of the TV set respectively.

When connecting the TV set to a single cable community antenna, connect the ANT-SAT and ANT-SAT2 sockets directly to the appro- priate SAT antenna socket.

When connecting the TV set to a DiSEqC single cable community antenna (in accordance with EN 50494), connect the ANT-SAT socket directly to the appropriate SAT antenna socket.

In case of a DiSEqC one cable communal system you require only

one antenna cable. Further distribution of the signal to the two reception routes is accomplished by the TV set's satellite tuner.

Ask your dealer in this regard.

R TV

Cable analogue / DVB-C

DVB-T DVB-S



Preparing the TV set

Connect ID 40-55 DR+ User guide

Connecting the TV set to the Home network

You may link your TV set to the home network by a wired connection (Ethernet, Powerline) or by a wireless radio connection (WLAN). Please contact your specialist dealer for more information on Powerline.

For the network adaptor configuration, see chapter System settings, section Multimedia / Network– Network settings.

Under no circumstances may the TV set be wired and at the

same time connected by a wireless connection to the same network, e.g. router. This may cause severe operational faults!

Example for a wired connection

Connect the LAN socket of your TV set to the LAN switch/router of your home network with a network cable (available from your dealer).

Example for a wireless connection

You can connect the TV set to your home network by a wireless radio connection via the WLAN antenna inside the set.

Shadow effects of various materials, such as reinforced concrete, metal surfaces, etc., attenuate the WIFI signal sometimes significantly or completely.

DSL

WLAN router

TV set



Preparing the TV set

DSL

LAN switch/router

TV set

Connect ID 40-55 DR+ User guide

Bundling the cables

Connect ID 40/46

When installing the TV set with the mounting option Table Stand Dynamic (included in scope of delivery):

Thread the Velcro cable tie (K) through the holder of the Table Stand, connect the cables to the TV set and secure them with the Velcro cable tie. For more information, refer to the installation instructions of the Table Stand Dynamic.

Then fit the cover for the connections (see chapter Preparing the

TV set, section Set covers).

Connect ID 55

When installing the TV set with the WM62 wall bracket mounting option (included) it is not possible to fix the cables to the TV set.

Preparing the remote control unit

Inserting or replacing batteries

Press on the embossed arrow whilst pushing the battery cover down. Only use leak-proof micro-cells of the LR 03 (AAA) Alkali-Manganese

type. Do not use different types of batteries and old and new batteries together.

The batteries used must not be exposed to excessive heat such as sunlight, fire or similar!

Pay attention to the correct polarity of + and – when inserting the batteries.

If the batteries are too weak after longer use, the TV set prompts you to change the batteries.

Dispose of used batteries in an environmentally friendly way (see chapter Environment / Legal information).

Push the cover back on from below after having inserted the batteries.

Adjusting the remote control for operating the TV set

Press the TV key.

See in chapter External devices,section Operating Loewe units how to operate other Loewe appliances and how to re-programme the remote control keys.



Preparing the TV set

AAA LR03

Connect ID 40-55 DR+ User guide

Switching the TV set ON/OFF

Switching TV set to the standby mode

Press the mains switch at the bottom of the set. The indicator in the control panel on the front side lights up white. The

set is now in standby mode.

Switching the TV on/off on the control unit

To switch the TV set into Operating mode or switch it off to Standby mode, press the middle of the On/Off button for about 2 seconds.

Meaning of the colour of the LEDs in the On/Off button:

white: TV set in standby white, intermittent: TV set starts green: TV set switched on red: Timer recording active blue: TV set in standby and background opera-

tion active (EPG data updating, software update, DR+ streaming server function)

After switching on the TV set, it takes a few seconds for further

operating commands to be processed (Exception: Quick start mode, see chapter System settings, section Control – Quick start mode). Your TV set is ready to operate as soon as the status indicator in the control panel lights up in green.

Mains switch

Control unit

Display

Switching the TV set on by means of the remote control

Press the on/off key.

Or:

Press the TV key. The previously watched station will be called.

Or:

Press numerical keys 1-9. The corresponding station will be called.

After switching on the TV set, it takes a few seconds for further

Switching the set off with the remote control (Standby)

Press the on/off key.

Before switching off the set with the mains switch,

we recommend you to switch it to standby mode.

Switching off the TV set and connected additional devices (System standby)

Press on/off key long:

Switch TV set and all CEC-capable devices connected to the HDMI interfaces OFF to Standby mode (System Standby).

Technical information

Switching off the TV set with the mains switch during operation or an inadvertent disruption to the power supply (e.g. power failure) can cause damage to the hard disk file system and hence loss of the recorded broadcasts. Always return the TV set to Standby mode before switching it off with the main switch. Never ever disconnect the USB storage device from the TV set during a copy process.

However, if unexpected problems occur when operating the hard disk, formatting the hard disk may rectify this. Refer to the instructions in chapter System settings, section Control – Hard disks. This applies also to the use of external USB hard disks with the TV set.

Loewe are not liable for the loss of data on the integrated hard disk of your TV set. To avoid data loss, we recommend copying important recordings to an external storage medium.



Switching the TV set ON/OFF

Connect ID 40-55 DR+ User guide



General information on menu operation

Some keys of the remote control for operating the TV set you will use more often than others. The most important keys for navigation will be explained in general. The numbers in the text refer to the figure showing the remote control in chapter Remote control.

The arrow keys

help you to navigate in the menus and lists of the TV set and for selecting menu items. They are arranged in the middle of the remote control in a circle around the OK key

. Later in this

quick guide they will be represented as follows:

 Select the desired item.

The OK key

is used to confirm a selection, for calling the highlighted menu item and for opening the station list. In this quick guide, an instruction for this key looks like the following:

OKconfirm.

Using the numerical keys of your remote control

you enter programme channels and teletext pages directly. With key 0 you open the AV list. In this user guide, entering numbers with numerical keys is shown as follows:

Entering programme channel directly.

The numerical keys are also used to enter text (see chapter General

information on menu operation,section Entry of characters by remote control).

The Home view is the central overview page for all of your TV set‘s operating modes. You reach Home view with the HOME key

HOME: Call Home view.

Pressing the BACK key

briefly brings you one level up in the wizard. Pressing the BACK key longer closes all opened fade-ins. An example for the BACK key in this quick guide:

BACK: Stop text entry and exit entry box.

Prolonged pressure on the INFO key

shows a key guide window that

gives you information on the currently most important key functions.

If the function for a key is not available, this will be indicated by an inserted symbol

on the right above.

Structure of the Menu screen

Basically, the structure of the different menu screens is similar, depending on the fact if a wizard, rendering media content or a setup menu are concerned. The structure is explained by means of three different screens.

The functions of these menu screens are explained more detailed in the respective chapters.

Screen structure: Wizard

(A) Title bar with name of the wizard and the current operating step.

(B) Selected items, whose number can be different according to the

operating step.

instructions and information are inserted.

Screen structure: Rendering of media content (example: Audio player)

(A) Title bar with selected album / subdirectory.

(B) Menu item Back to exit the menu or to go back to the previous

menu item.

(D) Time bar

(E) Bottom line with the different symbols for controlling the playback

function.

INITIAL INSTALLATION - Menu language

Proceed withBack with

Which menu language do you want to use for operation?

Deutsch (de) Ελληνικά (el) Svenska (sv)

English (en) Polski (pl) Dansk (da)

Français (fr) Magyar (hu) Português (pt)

Italiano (it) Suomi (fi) Русский (ru)

Español (es) Slovenščina (sl) Norsk (no)

Nederlands (nl) Slovenčina (sk) ₼㠖 (zh)

Čeština (cs) Türkçe (tr)

Chasing Cars Shut Your EyesHands Open

Snow Patrol / Eyes Open

00:00

02:56

04:27

Back

Connect ID 40-55 DR+ User guide



General information on menu operation

Screen structure: Setup (example: picture)

(A) Selected function in the Home overview (here: system settings)

(B) Home Menu System settings, with selected menu item Picture.

(D) Help text for the selected menu item Picture > 3D

Navigation: Selection of elements (example: On-screen displays)

Highlighting and thus selecting the symbols/elements or menu items on the screen can be effected by the arrow keys on the remote control. So you can see all the time where you are. As soon as there is a bar above a symbol or text, this is a selected element.

(A) Selectable elements / menu items.

(B) The text in the line where the marker is currently located is white.

to the menu item to be set.

The position of the marking is easy to see by the blue line.

In most cases, the marked menu item will be automatically

adopted. The font colour of the previously active item will change to grey, that of the newly selected item to white.

In a few menus, to confirm a selected menu item is required by

pressing OK.

CB D


Picture adjustment

Contrast

Brightness

Colour intensity

Image+ Active

Picture format

more ...

If your desired display format has not been automatically selected then you can choose it in the 3D settings menu. You may display the 3D image in 2D or vice versa.

......

On-screen displays

Display time

Volume display

Automatic menu info

Key explanation

Permanent clock display

Automatic HDMI hint

On-screen displays

If you select "on" here, the informational text belonging to each selected menu item will always appear simultaneously.

Back

< 7s >

off on

< 7s >

off on

Navigation: Wizards

If the menu item(s) (marked white) is/are already correctly preset:

Go to next step.

Otherwise: Mark the menu items to be changed. The

update will be adopted automatically. The fount colour of the previously active item will change to grey. If not,

OK confirm the selection.

Go to next step.

Navigation: Element selection in lists using initials

Using the numerical keys of the remote control you can jump into list, e.g., Internet radio station lists.

If the list is sorted in alphabetical order, you jump to the entered letter. For example, when pressing the key 7 three times you jump to the first list element starting with letter R.

In case of numerical sorting, you can directly select the stations with the numerical keys.

Please specify whether you want to search for scrambled stations too. Note: Scrambled stations can only be received with an integrated CA module and additional card.

Scrambled stations

Search method

Symbol rate

Accept Logical Channel Number

DVB-S settings (ASTRA1 19,2°E)

Back with Proceed with

yes

Network search

Frequency search

22000

yes

Connect ID 40-55 DR+ User guide



General information on menu operation

Entering characters with on-screen keyboard

For cer tain functions, entering letters or characters is required, e.g., for Web addresses (URLs) in the browser or for renaming archive entries. An on-screen keyboard appears for entering text.

highlight character / on-screen button, OK Adopt character.

In the event of letters with a triangular, additional

letters are displayed when pressing the OK button longer (2 sec).

For the selection of special characters use the .-/

field.

To conclude the entry:

 Mark Adopt, OK confirm the selection.

Entry of characters by remote control

Alternatively to the on-screen keyboard you can also enter the desired characters by means of the remote control (as with the keypad of a mobile phone).

 Mark text entry field.

Under the 1st letter of the name you will see a line indicating the current input position.

Input position one character to the right (also for

blanks).

Input position one character to the left.

Input the letters one after another. When using the remote control, press the numerical keys just as on a mobile phone keypad (0-9) until the desired symbol is displayed. The available letters are printed on the individual numeric buttons.

You find the exact key assignment in the character table in the right column.

To conclude the entry:

 Mark Adopt, OK confirm the selection.

.-/

ABC

http://www.loewe.de

.com .net . /.dewww.

Enter/change internet address

Back

Adopt Cancel

Delete Cancel AdoptSpace

(2 sec) on a letter with a triangle shows more letters

Table of characters for entering text by means of the remote control

Key Characters (uppercase - lowercase)

[space] 1

A B C 2 Ä Æ Ã Å Ā À Á Ć Ç Č - a b c 2 ä æ ã å ā â à á ć ç č

D E F 3 Ė Ë Ē Ę Ê È É - d e f 3 ė ë ē ę ê è é

G H I 4 Ï Ī Į Î Ì Í - g h i 4 ï ī į î î ì í

J K L 5 - j k l 5

M N O 6 Ö O E Õ Ō Ô Ò Ó Ø - m n o 6 ń ñ ö o e õ ō ô ò ó ø

P Q R S 7 ß - p q r s 7 ß

T U V 8 Ü Ū Û Ù Ú - t u v 8 ü ū û ù ú

W X Y Z 9 - w x y z 9

. 0 - / _ : + , ; ? ! = & # % ~ @ $ * ’ ( ) ” § \ { } [ ] < > ´ ` ^ |

Connect ID 40-55 DR+ User guide



General information on menu operation

Operation without remote control

Changing Volume

+ / – Increase/reduce volume.

Switching radio on or off or switching to radio

R Radio on or switch between TV and Radio.

Calling direct control on TV set

M Call direct control on TV set.

R Scroll down. M Scroll up. – Scroll left. + Scroll right, adopt settings, confirm.

Close all displays

Press M longer.

Explanations of the settings:

Operating

mode

Switch between TV and radio operation.

Station

selection

Call Station selection.

AV selection Select AV interface.

3D Calling 3D settings.

Contrast Set contrast.

The power consumption of the TV set depends directly on the value set here.


format

Selecting the picture format.

Service

The Service menu item is provided for service

purposes by dealers only.

Operating mode

Station selection

AV selection

Contrast

Picture format

Service

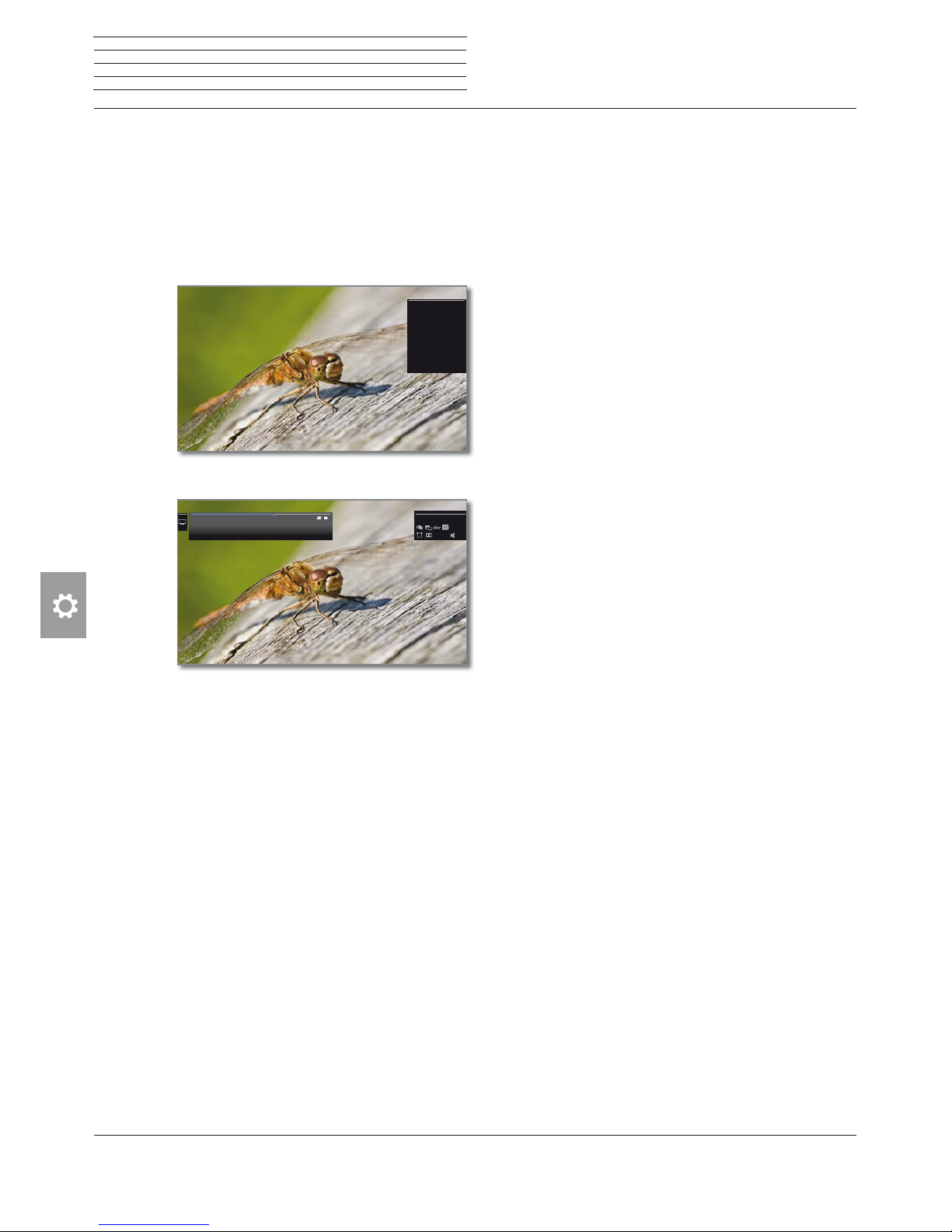

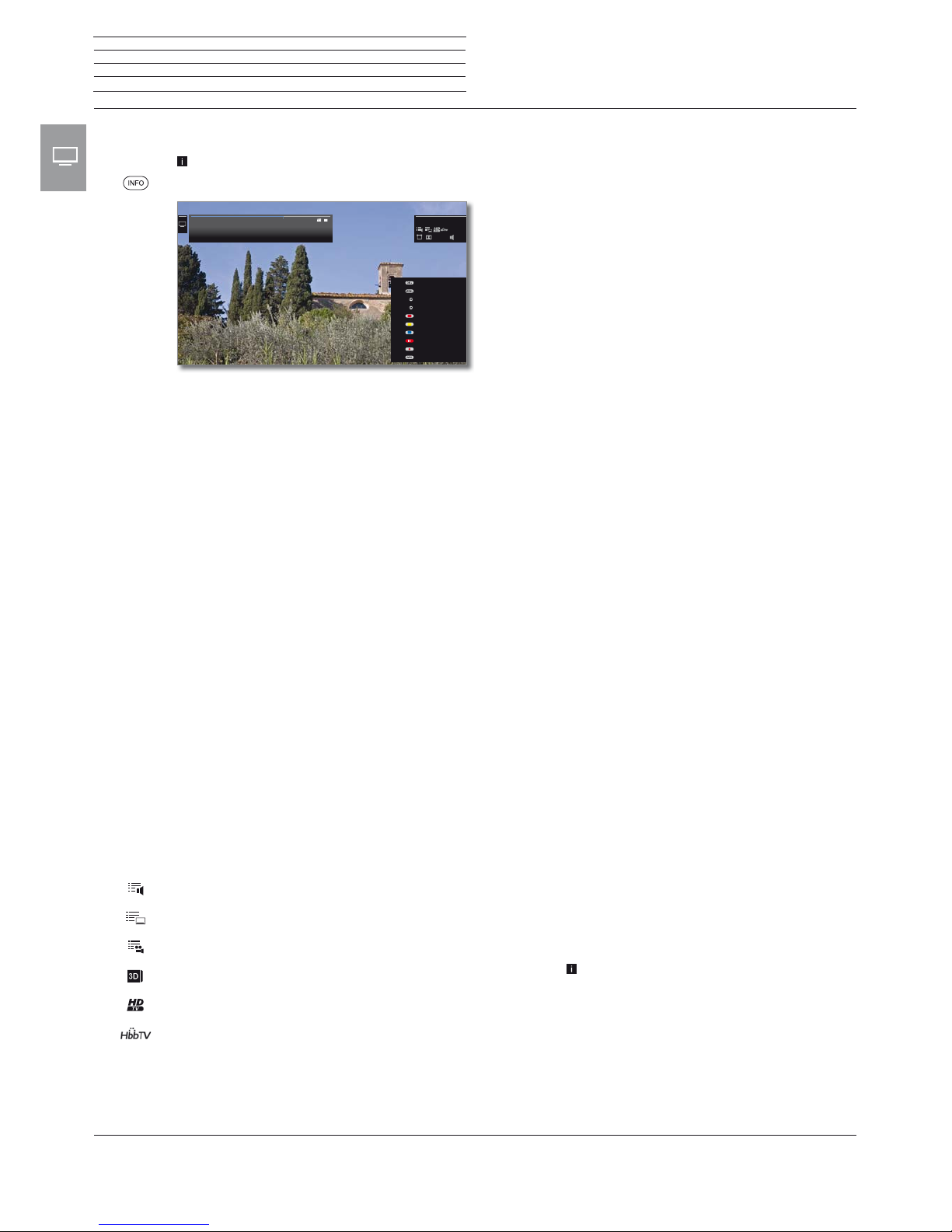

Info display

The info display provides an info text appropriate to the on-screen display that can assist you further with the operation of your TV set.

An on-screen display is faded in.

The factory setting is that the info display is shown automatically for each menu item. In this case you can temporarily hide the info texts with the INFO key.

The automatic info display can be hidden via a menu setting. Then it can be displayed temporarily by pressing the INFO key.

Permanently display or hide the automatic info display

Once you have become familiar with how to operate the TV set, you can switch off the automatic info display.

HOME: Call Home view.

 Mark System settings, OK call system settings.

Mark Control,  go to next column.

Mark more ...,  move to next column.

 Mark On-screen displays, call on-screen display settings.

 Select Automatic menu info, select on / off.

OK adopt settings.

...

Energy efficiency

Home Mode

Premium Mode

Shop Mode

The priority here is low energy consumption in home use. In this case, the TV switches off automatically for the sake of saving energy, after it has been out of operation for four hours.

......

On-screen displays

Display time

Volume display

Automatic menu info

Key explanation

Permanent clock display

Automatic HDMI hint

On-screen displays

If you select "on" here, the informational text belonging to each selected menu item will always appear simultaneously.

Back

< 7s >

off on

< 7s >

off on

Connect ID 40-55 DR+ User guide



Initial installation

Initial installation wizard

Initial installation after switching on for the first time

The Initial installation wizard starts automatically with an initial installation. It may be called repeatedly again (see chapter Extras ,section Special functions – Repeat initial installation).

If at least one station is locked, the access code must be entered before repeating initial installation (see chapter System settings, section Control – Parental lock).

For information on navigation within the wizard refer to chapter

General information on menu operation.

First installation wizard routine

The selected settings affect the routine of the Initial installation wizard.

 Select desired Menu language.

Selecting the language of the user guidance is the wizard’s first step. Then you simply follow the instructions on your TV screen.

 Proceed to next step.

 Select Energy efficiency.

Determine how energy efficient your TV set shall

be. The value for the contrast (and thus the brightness of the background lighting) is adapted and the automatic dimmer activated or deactivated depending on the presetting.

Choosing Home mode automatically activates

shutdown. For Premium mode or Shop mode, automatic shutdown is initially deactivated.

See chapter For your safety for further informa-

tion on automatic shutdown.

Deutsch (de) ǼȜȜȘȞȚțȐ (el) Svenska (sv)

English (en) Polski (pl) Dansk (da)

Français (fr) Magyar (hu) Português (pt)

Italiano (it) Suomi (fi) ȇɭɫɫɤɢɣ (ru) Español (es) Slovenščina (sl) Norsk (no) Nederlands (nl) Slovenčina (sk) 中文(zh) Čeština (cs) Türkçe (tr)

INITIAL INSTALLATION - Menu language

Proceed with

Which menu language do you want to use for operation?

language

Here you define how energy efficiently you operate your TV. With the "Home Mode" setting you put the focus on low energy consumption for home use. The "Premium Mode" is optimised to a brighter environment with a higher energy consumption. The "Shop Mode" is designed for operation in a showroom.

Note: If you select "Home Mode" here, the TV set will automatically switch off to save energy after no longer being operated for 4 hours.

Energy efficiency

Back with Proceed with

Home mode Premium mode Shop mode

Energy

efficiency

Home mode:

The emphasis for home use is on low energy consumption. The automatic dimmer is activated.

Premium mode:

This mode optimises the settings to a brighter environment at a higher energy consumption. The automatic dimmer is activated. The use of this energy efficiency setting must be confirmed afterwards once again.

Shop mode:

The picture settings are aligned to operation in the presentation room. The automatic dimmer is deactivated. If the ambient brightness diminishes, the energy consumption is not reduced. The use of this energy efficiency setting must be confirmed afterwards once again.

The presetting can be changed later in Extras ט

Energy efficiency or in the System settings under Pictureט Picture adjustment.

 Proceed to next step.

 Select the Operating mode.

Use the TV set as a TV set: Continued with Location of TV set (see below).

Use the TV set just as a monitor: see chapter Initial installation, section TV set as a monitor.

 Select Location of TV set (national defaults

are adopted).

For certain locations (e.g., Australia), there

is finally a selection screen where you can indicate in which state/territory the device is being operated.

 Proceed to next step.

Energy

efficiency

(continued)

Operating

mode

Please specify if you wish to use the full TV function of your set, or if you wish to use it purely as a monitor.

Operating mode

As TV set As monitor only

Back with Proceed with

Please specify the location of your TV set so that the available stations can be sorted according to the specify country.

Location of TV set

Back with Proceed with

(DK) Denmark

(E) Spain

(F) France

(FIN) Finland

(H) Hungary

(I) Italy

(IRL) Ireland

(L) Luxembourg

(N) Norway

(NL) Netherlands

(NZ) New Zealand

(P) Portugal

(PL) Poland

(RUS) Russia

(S) Sweden

(SK) Slovakia

(SLO) Slovenia

(TR) Turkey

(UK) United Kingdom

Other country

Location of

TV set

Connect ID 40-55 DR+ User guide



Initial installation

Select antenna cable. OK Connect/disconnect antenna cable. Ahead of each selected antenna, the symbol

appears.

Cable analog: analogue stations via

cable

Terrestrial (DVB-T): digital stations via

antenna

Cable (DVB-C): digital stations via

cable

Satellite (DVB-S/cable 1): digital stations via

satellite

Satellite (DVB-S/cable 2): digital stations via

satellite

 Proceed to next step.

 Considering the plugged CA module(s) specify

which stations should be searched automatically.

If the CA module(s) do(es) not support this func-

tion or if no CA module is plugged in, this step will be skipped.

 Proceed to next step.

Depending on the antennas (analogue cable, DVB-T, DVB-C, DVB-S) selected, the appropriate settings appear below.

Antenna cable(s) for: to antenna socket(s):

Cable analog ANT TV

Terrestrial (DVB-T) ANT TV

Cable (DVB-C) ANT TV

Satellite (DVB-S / cable 1) ANT SAT

Satellite (DVB-S / cable 2) ANT SAT2

Your television will automatically search for stations. With , highlight which antenna cables are available for your TV set and connect them to the correct antenna sockets, which are specified here in the right-hand column.

Connect antenna cable(s)

Back with Proceed with

Selecting antennas

The CA module "name module" provides a special station list "name list".

Taking this into consideration, specify which stations are to be searched

automatically and mark at least one of the two items below with .

All receivable stations excluding stations in the special station list

Stations in the special station list "name list"

Extent of station search

Back with Proceed with

Extent of

station search

Setting options for reception via analogue cable:

If you have not selected Cable analog in the list of available antennas: Proceed to Setting options for DVB-T reception.

The selection of a Colour standard is only required when the Location of TV set Other country was selected. Otherwise, the country-specific default settings will be preset when selecting the Location of TV set. This step will be skipped then

 Select appropriate colour standard.

 Proceed to next step.

Depending on the antennas (analogue cable, DVB-T, DVB-C, DVB-S) selected, the appropriate settings appear below.

Please select the TV/colour standard.

Automatic BG+L SECAM-BG

PAL-BG SECAM-DK PAL-DK SECAM-L PAL-I NTSC

TV/col. standard

Back with Proceed with

TV/col.

standard

Connect ID 40-55 DR+ User guide



Initial installation

Setting options for DVB-T reception:

If you have not selected DVB-T antenna in the list of available antennas: Proceed to Setting options for DVB-C reception.

If a CA module is plugged in during Initial installation and if the item Station of the special station list was selected in Extent

of station search, the routine continues with the step Supply voltage (see right column).

If several networks are available via DVB-T, you can decide which network you want to receive your channels from.

Select network,

OK Confirm selection.

 Proceed to next step.

 Select and adapt settings for DVB-T reception.

Network

selection

Please state from which network you wish to receive your station. Note: The newly selected parameter must be confirmed with the button.

Freeview

other network

Network selection (DVB-T)

Back with Proceed with

Please specify whether you want to search for scrambled stations too. Note: Scrambled stations can only be received with an integrated CA module and additional card.

DVB-T settings

Search method

Accept Logical Channel Number

Scrambled stations no yes

Channel search Frequency search

no yes

Back with Proceed with

Settings

Scrambled

stations

You can state whether coded stations are to be searched for in the search/update.

Select yes to save all found scrambled stations. However, these stations can only be received in connection with a CA module and the appropriate Smart Card.

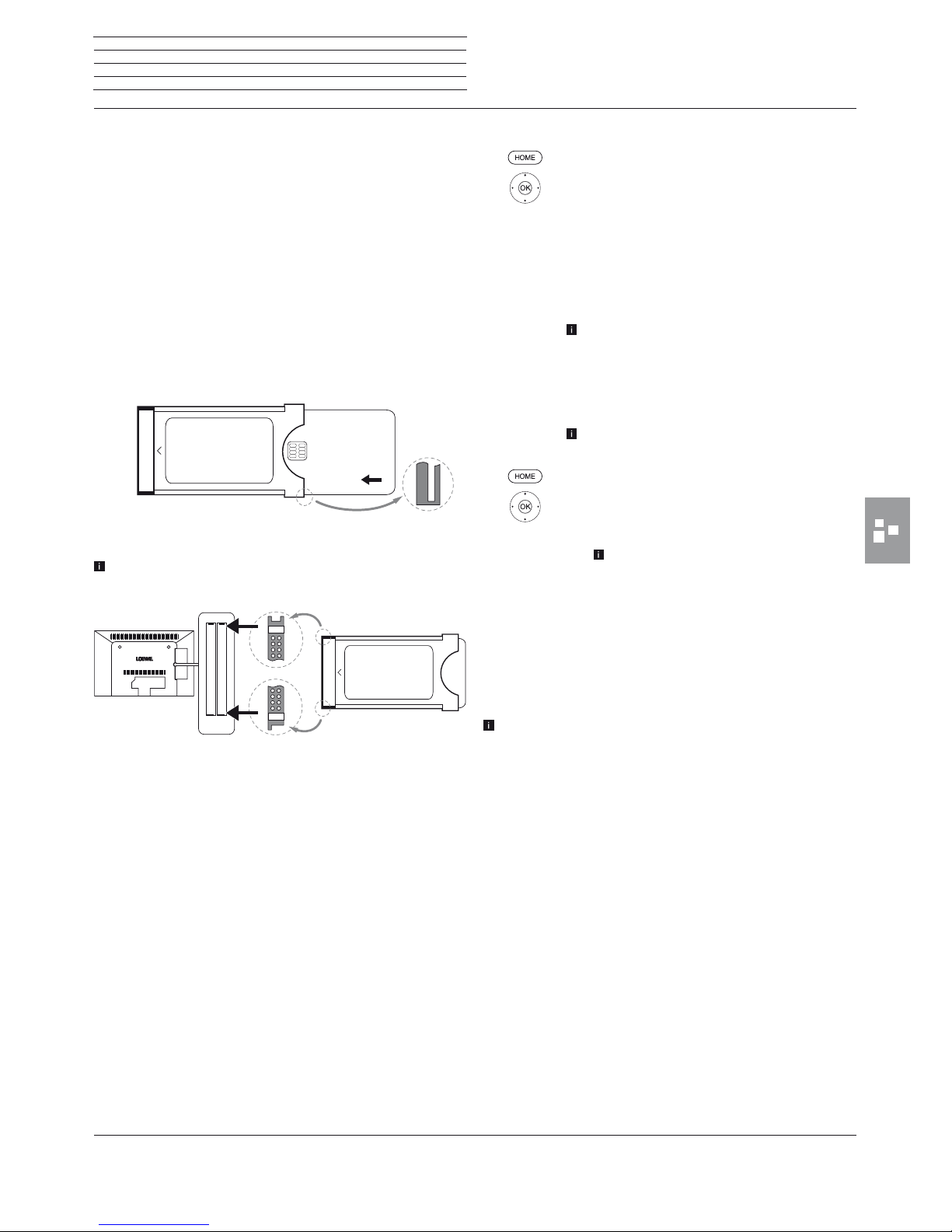

Handling of the CA module is described in chapter Extras, section CA module.

method

If you want to run the station search independently of the channel grid, select Frequency search for the search method.

Logical Channel Number

In various countries, digital stations (DVB-T) are transmitted with a preset channel number per station, known as Logical Channel Numbers (LCN).

If you select yes here, these default channel slots will be used and the channels of the preferred signal source will be sorted as per LCN. The stations in the station list can no longer be shifted.

 Proceed to next step.

 Select supply voltage no / yes.

If you use a DVB-T antenna that requires a supply

voltage (active antenna) and which is not already supplied via a power adaptor, then select yes (5V) for the antenna’s power supply.

How to align your DVB-T antenna is described in

chapter System settings, section Connections

– Antenna DVB.

 Proceed to next step.

Please state here whether your DVB-T antenna needs a supply voltage. Antennas with an integrated amplifier need a supply voltage on the antenna line.

Supply voltage DVB-T antenna

no (0V) yes (5V)

Back with Proceed with

Supply voltage

Connect ID 40-55 DR+ User guide



Initial installation

Setting options for DVB-C reception:

If you have not selected DVB-C antenna in the list of available antennas: Proceed to Setting options for DVB-S reception.

If a CA module is plugged in during Initial installation and if the item

Stations in the special station list was selected in Extent of station search, the station list of the CA module will be adopted.

Further settings described on this page will then be skipped. The procedure of the initial installation will then be continued with the step Setting options for DVB-S reception.

If several networks are available via DVB-C, you can decide which network you want to receive your channels from. The normal DVB-C settings are derived from the selection of the location or network and do not need to be changed. Exactly which of the following settings are present is dependent on which network is selected.

 Select network.

OK Confirm selection.

 Proceed to next step.

 Select and adapt settings for DVB-C recep-

tion.

Network

selection

Please state from which network you wish to receive your station. Note: The newly selected parameter must be confirmed with the button.

Unitymedia

Standard

Network selection (DVB-C)

Back with Proceed with

Please specify whether you want to search for scrambled stations too. Note: Scrambled stations can only be received with an integrated CA module and additional card.

DVB-C settings

Scrambled stations

Search method

Start frequency

Network ID

Accept Logical Channel Number

no yes

Network search Frequency search

044.00 MHz

none 00000

no yes

Back with Proceed with

Settings

Scrambled

stations

You can state whether coded stations are to be searched for in the search/update.

Select yes to save all found scrambled stations. However, these stations can only be received in connection with a CA module and the appropriate Smart Card.

Handling of the CA module is described in chapter Extras, section CA module.

method

If you select Frequency search here, a search is performed for all receivable stations. With Network search, only the stations which the networks supply are searched - either for all receivable networks or only for the particular network specified under Network ID.

Start

frequency

The DVB stations are only searched for in the frequency range above the start frequency.

Network ID

If you select none here, DVB signals of all current transmitter networks are searched automatically (recommended for most cable networks). If, on the other hand, you specify a cer tain network ID (necessary in the cable networks of some countries), only DVB signals of this broadcasting network are searched for automatically. Your cable provider has the information you need.

Logical Channel Number

In various countries, digital stations (DVB-C) are transmitted with a preset channel number per station, known as Logical Channel Numbers (LCN).

If you select yes here, these default channel slots will be used and the channels of the preferred signal source will be sorted as per LCN. The stations in the station list can no longer be shifted.

 Proceed to next step.

Connect ID 40-55 DR+ User guide



Initial installation

Setting options for DVB-S reception:

If you have not selected DVB-S antenna in the list of available antennas: Proceed to Setting options for all types of reception.

 Select network. If several networks are available via DVB-S, you can

decide which network you want to receive your channels from.

 Proceed to next step.

 Selecting the satellite system.

Specify how you receive which satellite(s) (single

satellite or type of satellite system). Ask your dealer in this regard.

The normal DVB-S settings are derived from the

selection of the location and do not need to be changed in most cases.

Network

selection

Please state from which network you wish to receive your station. Note: The newly selected parameter must be confirmed with the button.

ASTRA LCN

Standard

Network selection

Back with Proceed with

Please define which satellites you receive or which satellite equipment you use.

Select satellite installation

Indietro con Avanti con

Single satellite

2 satellites on 22 kHz switchbox

2 satellites on toneburst switch

Max. 4 satellites on DiSEqC multiswitch

DiSEqC one cable communal system

Other communal installation

Select

satellite

installation

Single

satellite

Reception of a single satellite via a connected LNC (LNB).

2 satellites

on 22 kHz switchbox

Reception of two different satellites with two LNCs (LNBs) which are connected to the TV set by a 22 kHz switchbox.

2 satellites

on toneburst

switch

Reception of two different satellites with two LNCs (LNBs) which are connected to the TV set by a toneburst switch.

Max. 4

satellites

on DiSEqC

multiswitch

The TV set controls a DiSEqC multiswitch to which up to four LNCs (LNBs) for different satellites are connected.

DiSEqC

one cable

communal

system

Select setting if the TV set is connected to a DiSEqC single-cable system (according to EN 50494). Several Sat receivers can be connected to one Sat cable.

other communal installation

Select setting if the TV set is connected to a singlecable system (without DiSEqC). Several Sat receivers can be connected to one Sat cable. Contrary to a DiSEqC one cable communal system there are restrictions in the range of certain reception frequencies in "common" single-cable community systems.

 Proceed to next step (to the appropriate page of

the satellite system).

Connect ID 40-55 DR+ User guide



Initial installation

Setting options for the satellite system (single satellite):

 Select satellite,

OK Confirm selection.

 Proceed to next step.

 Select Dual band (low/high) or Single band. Here you specify if you use a Dual Band (Univer-

sal) LNB or a Single LNB.

 Proceed to next step.

 Set LNB frequencies.

OK Adopt settings.

The setting of the LNB frequency is only called when you have used the setting Single band in step Dual / single band.

Normally, you do not need to change the values

for high and low band, unless the LNC (LNB) of your satellite system uses a different oscillator frequency (important for the frequency display).

 Proceed to next step. Proceed with Setting options for DVB-S reception

(continued).

Optus D1160°E Türksat 42°E Hellas Sat2 39°E Eutelsat 36A 36°E Eutelsat 28A 28,5°E ASTRA2 28,2°E ASTRA3 23,5°E

Eutelsat 5 West A 5°W Nilesat 7°W Eutelsat 7 West A 7,2°W Eutelsat 8 West A 8°W Eutelsat 12 West A 12,5°W Telestart12 12,5°W Intelsat901 18°W

ASTRA1 19,2°E

Eutelsat 16A 16°E Hot Bird 13°E Eurobird 9A 9°E Eurobird 7A 7°E ASTRA4A 4,8°E Thor/Intelsat10-02 0,8

Select satellites

Please specify here which satellite you receive. Note: The newly selected parameter must be confirmed with the button.

Back with Proceed with

Select

single satellite

Here, please specify whether you are using a Dual Band (Universal) LNB or a Single Band LNB.

Dual/single band (ASTRA1 19,2°E)

Dual band (low/high) Single band

Back with Proceed with

Dual/single

band

Please specify the oscillator frequency for your LNB.

LNB frequencies

ASTRA1 19,2°E low Band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

Back with Proceed with

LNC

frequencies

Setting options for the satellite system (2 satellites on 22 kHz switchbox / 2 satellites on toneburst switch):

 Mark Satellite 1 / Satellite 2,  select satellite.

OK Adopt settings.

 Proceed to next step.

 Set LNB frequencies. OK Adopt settings.

Normally, you do not need to change the values

unless the LNC (LNB) of your satellite system uses a different oscillator frequency (important for the frequency display).

 Proceed to next step. Proceed with Setting options for DVB-S reception

(continued).

Thor/Intelsat10-02 0,8 Eutelsat 5 West A 5°W Nilesat 7°W Eutelsat 7 West A 7,2°W Eutelsat 8 West A 8°W Eutelsat 12 West A 12,5°W Telestart12 12,5°W

ASTRA3 23,5°E

ASTRA1 19,2°E

Eutelsat 16A 16°E Hot Bird 13°E Eurobird 9A 9°E Eurobird 7A 7°E ASTRA4A 4,8°E

Select satellites

Please select satellite 1 and satellite 2. Note: The newly selected parameter must be confirmed with the button.

Back with Proceed with

none Optus D1160°E Türksat 42°E Hellas Sat2 39°E Eutelsat 36A 36°E Eutelsat 28A 28,5°E ASTRA2 28,2°E

Satellit 1 Satellit 2

Satellite

selection

Please select the LNB frequency for the Low Band. High band frequency is autom. adjusted. Note: The newly selected parameter in each case must be confirmed with the button.

ASTRA1 19,2°E Low Band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

Hot Bird 13°E Low Band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

LNB frequencies

Back with Proceed with

LNB frequencies

Please select the LNB frequencies for High and Low Bands. Note: The newly selected parameter in each case must be confirmed with the button.

ASTRA1 19,2°E low band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

ASTRA1 19,2°E high band 10600 MHz 10750 MHz 11000 MHz 11250 MHz

Hot Bird 13°E low band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

Hot Bird 13°E high band 10600 MHz 10750 MHz 11000 MHz 11250 MHz

Back with Proceed with

LNC

frequency

(22 kHz

Switch box)

LNC

frequencies

(Toneburst

switch)

Connect ID 40-55 DR+ User guide



Initial installation

Setting options for the satellite system (max. 4 satellites on DiSEqC multiswitch):

 Select and adapt settings for the DiSEqC

multiswitch.

OK Adopt settings.

Repeat rate

The refresh rate determines how often a DiSEqC command is output. A refresh is only necessary with cascaded systems.

Control

voltage

The control voltage controls the switching of the polarisation level (horizontal/vertical) in non-DiSEqC capable components (e.g., control of single LNBs via DiSEqC multiswitch).

22kHz signal

The 22 kHz signal controls the switching between high and low band in the Band setting. The Position setting controls the selection of the satellites in nonDiSEqC capable components.

Toneburst

The Toneburst controls the selection of the satellites in non-DiSEqC but Toneburst capable components with the Position and Option settings.

 Proceed to next step.

 Mark Satellite 1 ... Satellite 4,  Select satellite.

OK Adopt settings.

 Proceed to next step.

With the refresh rate you determine how often a DiSEqC command is output. This is only necessary in a cascaded system. Your system provider will bei able to tell you more about this.

Settings DiSEqC multiple switch

Back with Proceed with

Repeat rate none 1 2

Control voltage 13 / 18V off on

22kHz signal Band Position off

Toneburst off Position Option

DiSEqC

multiple

switch

Thor/Intelsat10-02 0,8 Eutelsat 5 West A 5°W Nilesat 7°W Eutelsat 7 West A 7,2°W Eutelsat 8 West A 8°W Eutelsat 12 West A 12,5°W Telestart12 12,5°W

ASTRA3 23,5°E

ASTRA1 19,2°E

Eutelsat 16A 16°E Hot Bird 13°E Eurobird 9A 9°E Eurobird 7A 7°E ASTRA4A 4,8°E

Select satellites

Please select satellite 1 to satellite 4. Note: The newly selected parameter must be confirmed with the button.

Back with Proceed with

none Optus D1160°E Türksat 42°E Hellas Sat2 39°E Eutelsat 36A 36°E Eutelsat 28A 28,5°E ASTRA2 28,2°E

Satellit 1 Satellit 2 Satellit 3 Satellit 4

Satellite

selection

 Set LNB frequencies. Normally, you do not need to change the values. OK Adopt settings.

 Proceed to next step.

Proceed with Setting options for DVB-S reception (continued).

LNB frequencies

Please select the LNB frequencies for both High and Low Bands. Note: The newly selected parameter in each case must be confirmed with the button.

ASTRA1 19,2°E low band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

ASTRA1 19,2°E high band 10600 MHz 10750 MHz 11000 MHz 11250 MHz

Hot Bird 13°E low band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

Hot Bird 13°E high band 10600 MHz 10750 MHz 11000 MHz 11250 MHz

Eutelsat W2 16°E low band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

Eutelsat W2 16°E high band 10600 MHz 10750 MHz 11000 MHz 11250 MHz

Türksat 42°E low band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

Türksat 42°E high band 10600 MHz 10750 MHz 11000 MHz 11250 MHz

Back with Proceed with

LNC

frequencies

Connect ID 40-55 DR+ User guide



Initial installation

Setting options for the satellite system (DiSEqC one cable communal system):

 Select One channel or Two channels.

Here you specify if you use one or two transmis-

sion channels in your one cable communal system.

In case of two channels - as far as they are avail-

able in your system - different stations can be simultaneously viewed on the main picture and on PIP.

You get more information on your system from

your dealer.

 Proceed to next step.

Select DiSEqC single cable communal instal-

lation.

 Proceed to next step.

 Select satellites from list,

OK Confirm selection.

 Proceed to next step.

Number of

system

channel used

Number of system channel used

One channel Two channels

Do you wish to use one or two transmission channels in your single cable communal installation? With two channels - provided they are available to you from the installation - it is possible to watch different stations at the same time in the main screen and in the PIP.

Retour avec Continuer avec

Select DiSEqC single cable communal installation

Please enter here which DiSEqC single cable system you are using. The following setting parameters of your system are then adapted accordingly.

User defined DELTA SUM-918 KATHREIN EXR-501

DELTA SUM-514 DELTA SUM-928 KATHREIN EXR-551 DELTA SUM-516 DELTA MSU-50x KATHREIN EXR-552 DELTA SUM-518 DELTA MSU-90x/170x KATHREIN EXR-154

Back with Proceed with

DiSEqC

one cable communal installation

Thor/Intelsat10-02 0,8 Eutelsat 5 West A 5°W Nilesat 7°W Eutelsat 7 West A 7,2°W Eutelsat 8 West A 8°W Eutelsat 12 West A 12,5°W Telestart12 12,5°W

ASTRA3 23,5°E

ASTRA1 19,2°E

Eutelsat 16A 16°E Hot Bird 13°E Eurobird 9A 9°E Eurobird 7A 7°E ASTRA4A 4,8°E

Select satellites

Please specify here which satellite you receive. Note: The newly selected parameter must be confirmed with the button.

Back with Proceed with

none Optus D1160°E Türksat 42°E Hellas Sat2 39°E Eutelsat 36A 36°E Eutelsat 28A 28,5°E ASTRA2 28,2°E

Satellite

selection

 Set LNB frequencies. Normally, you do not need to change the

values unless the LNC (LNB) of your satellite system uses a different oscillator frequency (important for the frequency display).

OK Adopt settings.

 Proceed to next step.

 Select and adjust settings for the DiSEqC

single cable communal installation.

OK Adopt settings.

Transmission

channel

Select the desired transmission channel.

Transmission

frequency

Select the corresponding transmission frequency.

PIN protection

If your system is designed for it, it is possible to protect your used transmission data from use by other subscribers with a PIN.

Define/

change PIN

Here you can determine and change the PIN for PIN protection. Only possible, when yes has been selected for PIN protection.

 Proceed to next step. Proceed with Setting options for DVB-S reception

(continued).

Please specify the oscillator frequency for the Low Band. High band frequency is auotm. adjusted Note: The newly selected parameter must be confirmed with the button.

LNB frequencies

ASTRA1 19,2°E low Band 9750 MHz 10000 MHz 10200 MHz 10600 MHz

ASTRA1 19,2°E high Band 10600 MHz 10750 MHz 11000 MHz 11250 MHz

Back with Proceed with

LNB

frequencies

Please log on to your DiSEqC single-cable system that is connected to the antenna input ANT SAT and specify the desired transmission channel and associated transmission frequency. Please also indicate whether your single-cable system has a broad frequency band instead of a division into high and low band. If your antenna system is designed for this, it is possible to protect your used transmission data from being used by other participants by having a PIN. Note: The newly selected parameter in each case must be confirmed with the button.

Transmission channel 1

2 3 4 5 6 7 8

Transmission frequency

1284 MHz 1400 MHz 1516 MHz 1632 MHz 1748 MHz

PIN protection Ja

Nein

Define/change PIN 000

Manual registration (for socket ANT SAT)

Back with Proceed with

Manual

registration

(for socket

ANT SAT)

Connect ID 40-55 DR+ User guide



Initial installation

Setting options for the satellite system (other communal installation):

 Select satellite.

OK Confirm selection.

 Proceed to next step.

 Select and adapt settings.

LNC

frequency

Normally, you do not need to change the values for high and low band, unless the LNC (LNB) of your satellite system uses a different oscillator frequency (important for the frequency display).

Supply

voltage

If your set is connected to a single-cable system without external voltage supply, you can connect the antenna supply (13V or 18V / max. 500mA).

 Proceed to next step.

Continue with Setting options for all types of reception.

Optus D1160°E Türksat 42°E Hellas Sat2 39°E Eutelsat 36A 36°E Eutelsat 28A 28,5°E ASTRA2 28,2°E ASTRA3 23,5°E

Eutelsat 5 West A 5°W Nilesat 7°W Eutelsat 7 West A 7,2°W Eutelsat 8 West A 8°W Eutelsat 12 West A 12,5°W Telestart12 12,5°W Intelsat901 18°W

ASTRA1 19,2°E

Eutelsat 16A 16°E Hot Bird 13°E Eurobird 9A 9°E Eurobird 7A 7°E ASTRA4A 4,8°E Thor/Intelsat10-02 0,8

Select satellites

Please specify here which satellite you receive. Note: The newly selected parameter must be confirmed with the button.

Back with Proceed with

Select

single satellite

LNB frequency, supply voltage

ASTRA1 19,2°E 9750 MHz 10000 MHz 10200 MHz 10600 MHz

Supply voltage off 13V 18V

Please specify the oscillator frequency for your LNB. If your TV set is connected to a single cable system without an external power supply, you can connect the antenna supply (13 or 18V/max. 350mA) with „13V“ or „18V“.

Back with Proceed with

LNB

frequencies

Connect ID 40-55 DR+ User guide



Initial installation

Setting options for DVB-S reception (continued):

After you have made the previous settings, you should receive picture and sound of the selected satellites (only possible for Astra1 and HOTBIRD).

 Proceed to next step.

 Select and adapt settings.

If several satellites are received, the following settings must be made for every satellite. The type of settings available may differ depending on the selected satellite or network.

Scrambled

stations

You can state whether coded stations are to be searched for in the search/update.

Select yes to save all found scrambled stations. However, these stations can only be received in connection with a CA module and the appropriate Smart Card.

Handling of the CA module is described in chapter Extras, section CA module.

method

If you select Frequency search here, a search is performed for all receivable stations. With Network search, from all receivable networks all the stations are searched which are supplied by these networks.

Depending on the selected network, this step

might possibly be skipped.

Symbol rate

The symbol rate is specified by the satellite provider and normally does not need to be changed.

Logical Channel Number

In various countries, digital stations (DVB-S) are transmitted with a preset channel number per station, known as Logical Channel Numbers (LCN).

If you select yes here, these default channel slots will be used and the channels of the preferred signal source will be sorted as per LCN. The stations in the station list can no longer be shifted.

 Proceed to next step. Continue with Setting options for all types of

reception.

Test reception

You should now receive a picture and sound from the following satellite:

Astra1 19,2°E C/N Level

Otherwise, please adjust your antenna. If it is already correctly adjusted, please continue all the same, without receiving picture or sound for the moment.

Back with Proceed with

Settings

Please specify whether you want to search for scrambled stations too. Note: Scrambled stations can only be received with an integrated CA module and additional card.

Scrambled stations

Search method

Symbol rate

Accept Logical Channel Number

DVB-S settings (ASTRA1 19,2°E)

Back with Proceed with

yes

Network search

Frequency search

22000

yes

Connect ID 40-55 DR+ User guide



Initial installation

continued on the next page

Setting options for all types of reception:

 Select desired languages and alternative

languages for subtitles and audio for DVB programmes.

Set up audio commentary for the visually

impaired.

OK Confirm selection.

 Proceed to next step.

You will see a list of the selected settings. You can go back step by step with the key  to make any changes to the settings.

OK Start automatic search.

Now, the TV set searches for TV and radio stations. It searches successively for stations from the selected signal sources. The progress of search is shown by a progress bar.

In case of a repeated initial installation routine (via

Home view under Extras

Special functions)

all stored stations will be first deleted here.

The number of found TV stations is displayed.

 Proceed to next step.

The number of found radio stations is displayed.

 Proceed to next step.

You can preset the desired languages and reserve languages for subtitles and audio for DVB programmes here.

You may preset whether you would always like to hear a special tone for visually-impaired persons (if provided by the station), which describes the operation in more detail, with the aid of an audio commentary. In "System Settings -> Sound," you can set its volume in relation to the "normal" volume by means of the "Audio commentary volume."

Note: The newly selected parameter in each case must be confirmed with the button.

Subtitle and audio languages (DVB)

Subtitle (DVB) Audio (DVB) Audio commentary

Favoured language Alternative language

Back with Proceed with

German Italian Czech Hungarian S

Englisch Spanish Greek Finnish T French Dutch Polish Slovenian S

Subtitle and

audio

languages

(DVB only)

Your TV performs the following automatic search with the listed settings. If you wish to correct them, please scroll back.

Check search settings

Start automatic search Antenne Wizard Cancel

Back with

Location of TV set (UK) United Kingdom Signal source(s) Cable analogue, DVB-T, DVB-C, DVB-S Satellite system Single satellite Satellite(s) ASTRA1 19,2°E

Check

settings

The automatic station search and sort have been stopped.

1164 new TV station(s) has (have) been found.

Result TV

Proceed with

Info

station search

 Select Age-related lock. OK Confirm selection.

You can specify an age limit for your TV set here.

DVB broadcasts which have an appropriate age identification are locked and can only be watched after entering the access code.

In some countries, the yes/no option does not

exist for some channels, and a compulsory age check must be entered.

 Proceed to next step.

Depending on the selected network, this step may

be skipped.

 Select time / date. If no values or no correct values have been

entered for date and time, enter the correct values with the numerical keys here.

 Proceed to next step.

If you enter an age restriction here, all DVB programmers are locked which have an appropriate age code and can only be watched by entering the access code. Note: The newly selected parameter must be confirmed with the button.

Age-related lock

Proceed with

No age-related lock Special security level

Age-related

lock

Please enter the date and time if none has been entered or if they are incorrect.

Time and date

Date 14.09.2012

Time 17:45:00

Back with Proceed with

Time and

date
