Page 1
32” Widescreen LED TV
FREEVIEW
MODEL NO.: DGTEC DG-320H
USER MANUAL
Please read this manual carefully before using,
and keep it for futur e reference.
Page 2
1
product.
IMPORTANT INSTRUCTIONS
SAFETY INSTRUCTIONS
The lightning flash and
arrow head within t he
triangle is a warning
sign alerting you of
“dangerous voltage”
inside the product.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONN EL .
The exclamation
point within the
triangle is a warning
sign alerting you of
important
instructions
accompanying the
WARNING – TO REDUCE THE RI SK OF FIRE, ELECTRIC SHOCK, OR
SERIOUS PERSONAL INJURY:
● If the cord is damaged, have it repaired by the manufacturer, its service or a similarly
qualified person in order to avoid any hazard.
● The cord should always be readily accessible.
● The apparatus shall not be exposed to dripping or splashing of water or liquids and that
no objects filled with liquids such as flowers vases shall be placed on the product.
● The normal ventilation of the product shall not be impended for intended use.
● Always leave a minimum dis tance of 10 cm around the unit to ensure sufficient
ventilation.
● Naked flame sources, such as candles, should not be placed on top of the device.
● The device is intended for use only in a temperate climate.
● Situate this product away from heat sources such as radiators, heat registers, stoves, or
other appliances (including amplifiers) that produce heat.
● Clean the product only as recommended by the manufacturer (see “Maintenance”
section for details). Unplug the power plug from the wall outlet before cleaning,
● Unplug the power plug from the wall outlet when left unused for an extended period.
● Prevent objects/liquids from falling or spilled on the product.
● Operate the product only with the supplied power cord. Route power cords so they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attentio n to pl ugs, co nv enien ce r e ceptacles, and the point where they exit from
the product.
● Where the MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
Page 3
2
● Do not operate this produc t under the following conditions.
- When the power-supply cord or plug is damaged.
- If liquid has been spilled into or objects have fallen into the product.
- If the product has been exposed to rain or water.
- If the product does not operate when used according to the operating in struc tio ns.
- If the product has been dropped or damaged in any way.
● Do not attempt to service th e p roduc t; t a ke it t o t he e lec tron ic s repair shop of your choice
for any servicing or repair.
● Do not overload wall outl ets, extension cords, or integral convenience receptacles.
● Connect this product to the power outlet which has protective earth connection.
CAUTION- TO REDU CE THE RISK OR PERSONAL INJURY OR
PRODUCT/PROPERTY DAMAGE:
● This product is intended solely for non-commercial, non-industrial, personal use as a
television. Do not use this product for any other purpose.
● Do not subject the product to violent shocks, extr eme t emp er atur e s, or l engt hy periods of
direct sunlight.
● Keep the product away from magnetic objects, motors, and transformers.
● Do not use outdoors in inclement weather.
● Do not use the TV while driving; this is dangerous and is illegal in some areas.
BATTERY HANDLING AND USAGE:
● CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the
same type or equivalent.
● The battery should not be exposed to excessive heat such as sunshine, fire or similar.
● Different types of batteries, new and used batteries should not be mixed.
● The battery must be installed according to the polarity.
● If the battery is worn, it must be removed from the product.
● The battery must be disposed of safely. Always use the collection bins provided (check
with your dealer) to protect the environment.
● Keep batteries away from children and pets. Only adults should handle batteries.
● Never throw batteries into a fire or expose them to fire or other heat sources.
● Follow the battery safety and usage instructions.
Page 4
3
THE DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT WASTE PRODUCTS
ACCESSORIES
ON THE PART OF FINAL USERS IN THE EUROPEAN UNION
This sym bol on the product or on the container indicates that this product cannot be
eliminated with the general waste. The user is responsible for eliminating this kind of waste
by throwing them away at a “recycling point” specifically for electrical and electronic waste.
Selective collection and electrical equipment recycling contribute to preserve natural
resources and warrant waste recycling to protect environment and health. In order to
receive further information about electrical and electronic waste collecting and recycling,
contact your Local Council, the service of household waste or the establishment where the
product was acquired.
To avoid possible hearing damage, do not listen at high
audio volume for l ong periods of time.
User Manual……………………………………………………………………………………x 1
Remote Control……………………………….………………………………………….……x 1
Adaptor Cable for Mini YPbPr…………………………………..……………………………x 1
Adaptor Cable for Mini AV………………...……………………..……………………………x 1
All the pictures in this manual are just for your reference, appearance and display
should subject to the final product.
Page 5
4
TABLE OF CONTENTS
GETTING STARTED
IMPORTANT INSTRUCTIONS...........................................................................................1-3
ACCESSORIES……….......................................................................................................3
FEATURES....................................................................................................................5
GENERAL PARTS..............................................................................................................6-7
REMOTE CONTROL..........................................................................................................8-9
REMOTE CONTROL PREPARATION.................................................................................10
BASIC CONNECTION....................................................................................................11-15
OPERATIONS
BASIC OPERATIONS.............................................................................................16-24
MAIN MENU...........................................................................................................25-42
FIRST TIME INSTALLATION……..………………………………………………………25-26
DTV MODE..............................................................................................................27-41
ATV AND OTHER MODES.............................................................................................41
PC MODE.......................................................................................................................42
FOR REFERENCE
MAINTENANCE..................................................................................................................43
WALL MOUNTING………………………………………………………………………………...43
STAN D INSTALLATION…………………………………………………………………………..44
SPECIFICATIONS...............................................................................................................45
TROUBLESHOOTING.........................................................................................................46
Page 6
5
FEATURES
32" LED Display
This unit has a built-in LED display window to provide clear vision and low
radiation.
With Hotel Lock
Support Auto TV Scanning
Support Digital Broadcasting Reception
Support TV Guide Function
Support TELETEXT (Europe) Function
Support USB Multimedia Playback
Support Multi-languages On Screen Display
Support Full Function Remote Control
Support HDMI, SCART, YPBPR, AV, VGA, PC AUDIO and CI Input
Support EARPHONE and COAXIAL Output
Support PVR Function
Support TIME SHIFT Function
With Detachable Stand Holder
With External Ant enna Jack
With Built-in Speakers
Page 7
6
GENERAL PARTS

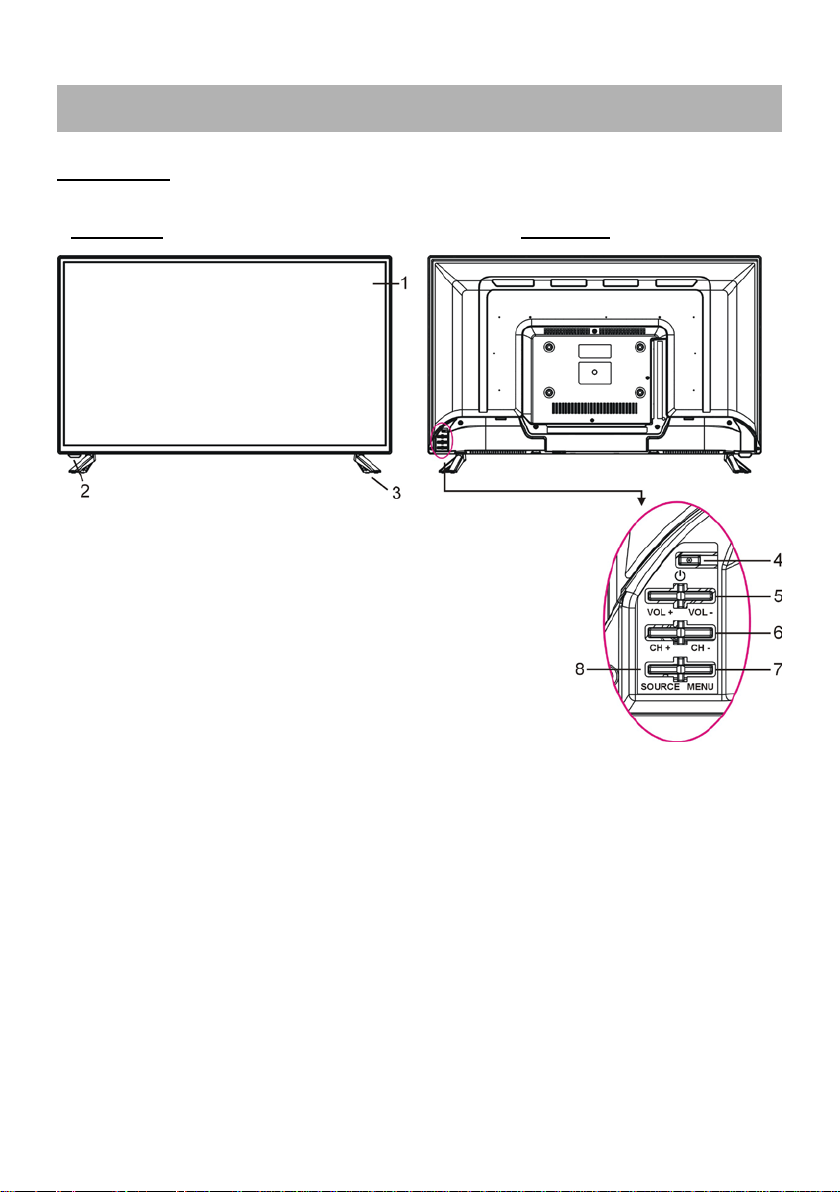

Front View
Back View
MAIN UNIT
1. LED display screen
2. Remote control sensor / Power indicator - In standby mode
the indicator light is red; when sw itching on the unit the
indicator light is blue color.
3. Stand holder
4. POWER button- To turn the TV ON/OFF .
5. VOL +/- button- To increase/decrease the volume level or
move left/right.
6. CH +/- button- To select next/previous chan nel or mov e
up/down.
7. MENU button- To open menu setting page.
8. SOURCE button- To select the input source (or to enter what
you select in menu setting).
Page 8
7
GENERAL PARTS

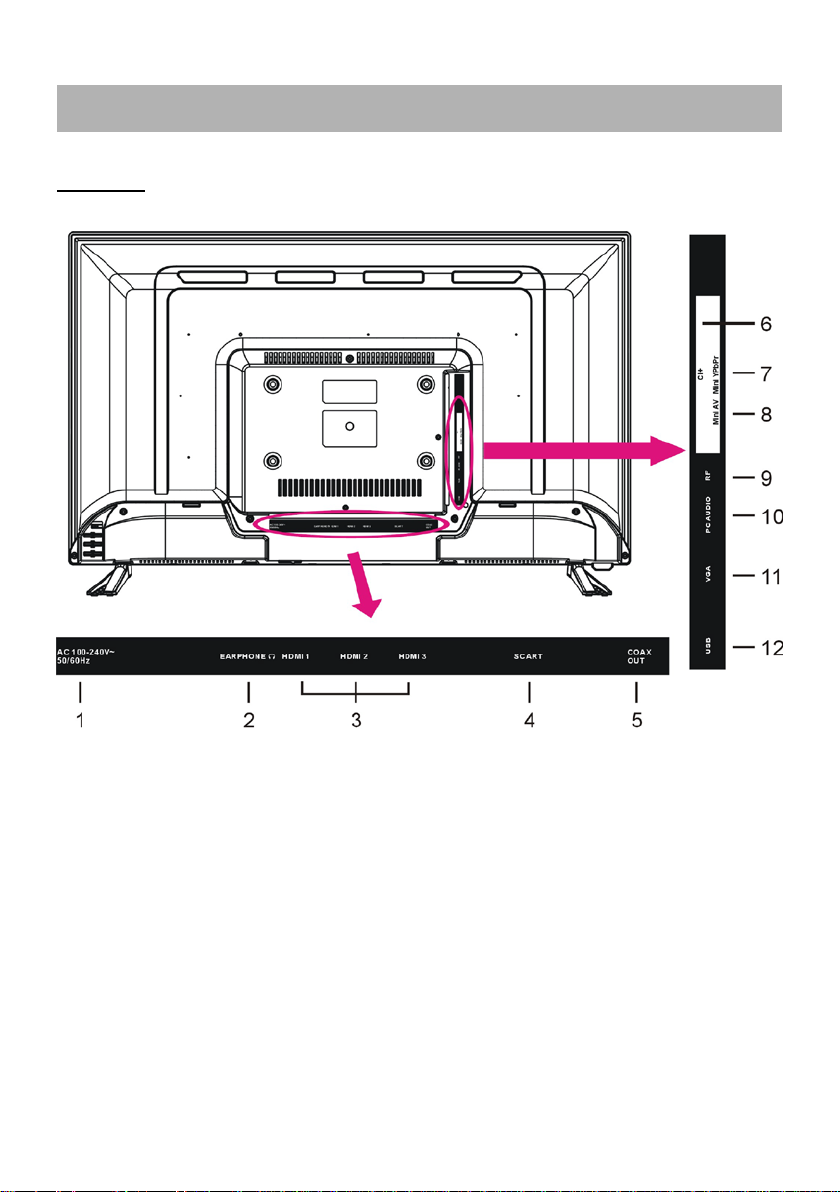

Back View
1. Power input
2. EARPHONE output terminal
3. HDMI 1/2/3 input terminal
4. SCART input terminal
5. COAXIAL output terminal
6. CI input terminal (“CI+” compatible)
7. Mini YPbPr input terminal
8. Mini AV input terminal
9. RF input terminal- To connect the external antenna.
10. PC AUDIO input terminal
11. VGA input terminal
12. USB input terminal
Page 9
8

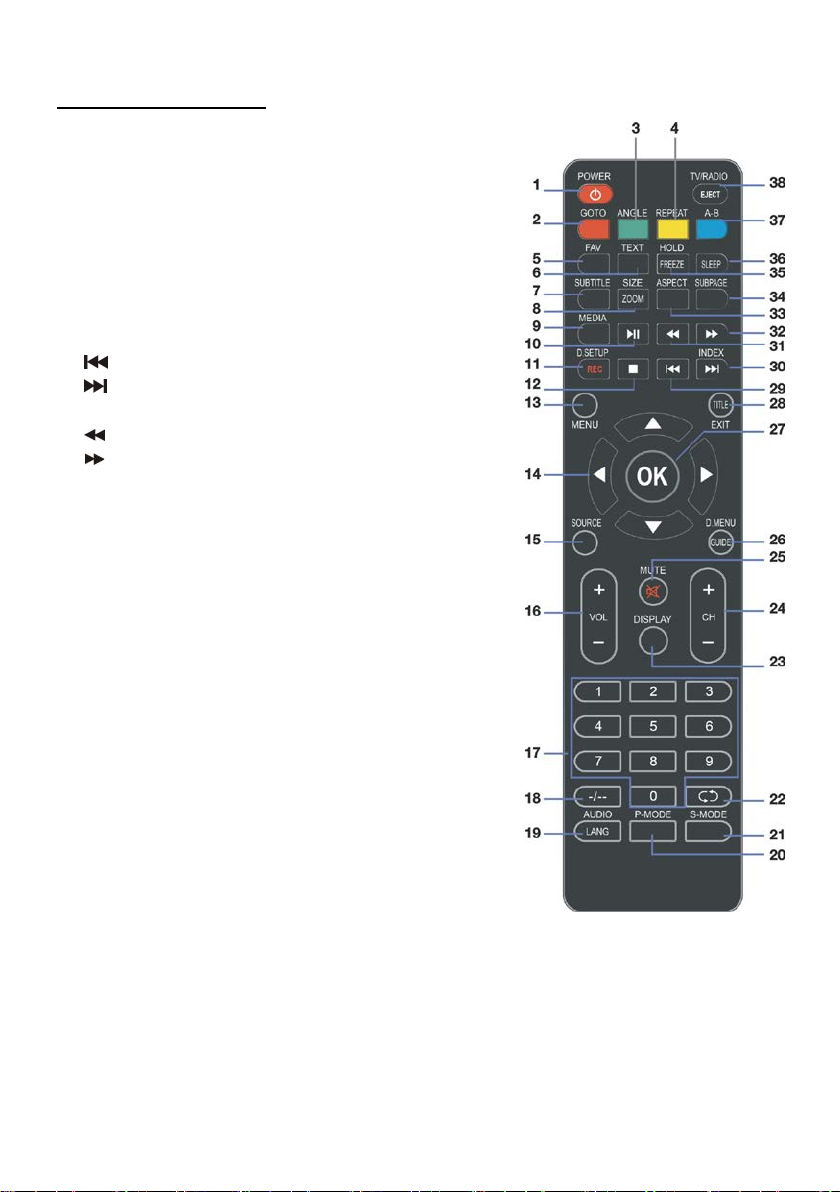

REMOTE CONTROL
1 POWER: Set the unit in standby mode; press it
again to switch it on.
2 GOTO: Jump to a different chapter of DVD.*
3 ANGLE: View DVD playback from different angles,
if the DVD has this feature.*
4 REPEAT: Repeat different chapter/title or entire
DVD.*
5 FAV: Press to display your favourite program in
DTV mode.
6 TEXT: Switch between TV and Teletext mode.
7 SUBTITLE: Enable/disable subtitles.
8 SIZE / ZOOM: Change the picture size.
9 MEDIA: Select USB mode.
10
: PLAY/PAUSE in TIMESHIFT and USB mode.
11 RECORDER/D-SETUP: Record / Display the DVD
setup menu.
12
: Stop playing.
13 MENU: Display the main TV menu.
14 ◄/►/▲/▼: Press the LEFT/RIGHT/UP/DOWN
button to navigate the on-screen menus and
adjust the system settings to your preference.
Press OK to confirm your selection.
15 SOURCE: Switch the input source.
16 VOL +/-: Turn the volume up/down.
17 NUMBER BUTTONS (0-9): Press to select a TV
channel directly when watching TV. The channel
changes after 2 seconds.
18 -/--: Switch the digits.
19 AUDIO / LANG: Switch the available soundtrack
language (DTV/DVD).*
20 P-MODE: Cycle through the different picture mode.
21 S-MODE: Cycle though the different sound modes.
22
23 DISPLAY: Display information of the current
: Return to the previous channel.
program.
Page 10
9
REMOTE CONTROL
24 CH +/-: Press to play the next or previous channel;
press repeatedly to scan through the channels.
25 MUTE: Mute the sound. Press again or press VOL+
to restore the sound.
26 GUIDE / D. MENU: Display electronic program guide;
Display the main disc menu.*
27 OK: Confirm selection.
28 EXIT / TITLE: Exit from the main TV menu displayed
on the screen; Display the DVD title menu. (DVD)*
29
30
31
32
33 ASPECT: Press repeatedly to select the desired
34 SUBPAGE: Manually jump to previous or next
35 FREEZE: Hold the picture.
36 SLEEP: Set the TV sleep timer.
37 A-B: Repeat DVD scenes of your preference.
38 TV/RADIO: Switch the unit between TV and radio;
: Play the previous file.
/ INDEX: Play next file; Display the record
program list (DTV).
: Move fast backward.
: Move fast forward.
screen aspect ratio.
subpages of Teletext.
EJECT: Open or close the disc compartment. (DVD )*
NOTE: The functions of those buttons, which marked
with “DVD”, are available only when your TV has fitted a
DVD player.
Page 11
10
REMOTE CONTROL PREPARATIO N
Fig1 Fig2
Remote Control
Push
Press
Open

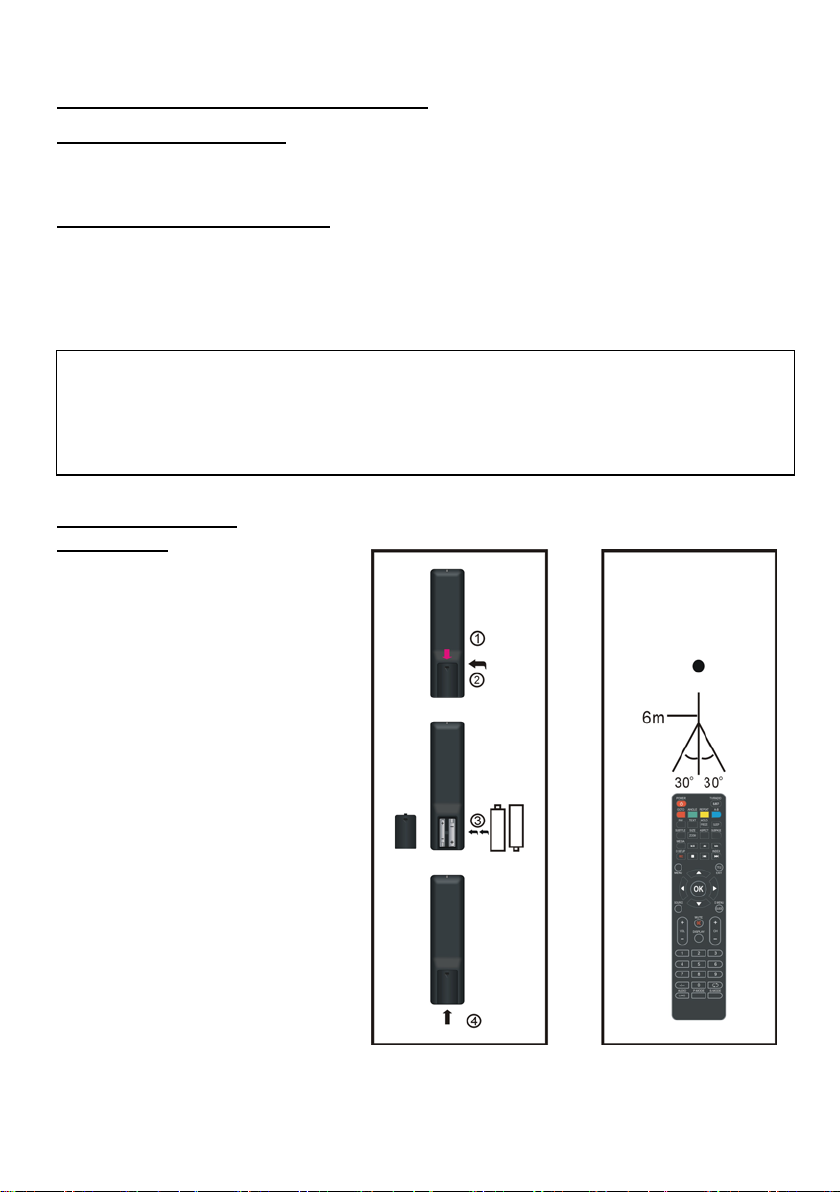

BATTERY INSTALLATION
Install the batteries as the following pictures. Be sure + and – terminals are positioned
as indicated in the battery compartment (Fig1).
SERVICE LIFE OF BATTERIES
- The batteries normally last for one year although this depends on how often the
remote control is used.
- If the remote control fails to work even when it is operated near the player, replace the
batteries.
- Use two size AAA dry batteries.
NOTE:
● Do not drop, step on or otherwise impact the remote control. This may damage the
parts or lead to malfunction.
● If the remote control is not going to be used for a long time, remove the batteries.
REMOTE CONTROL
OPERATION
Point the remote control from no more
than about 6m from the remote control
sensor and within about 60°of the
front of the player (Fig2).
NOTES:
- The operating distance may vary
according to the brightness of the
room.
- Do not point bright light at remote
control sensor .
- Do not place objects between the
remote control and the remote control
sensor.
- Do not use this remote control while
simultaneously operating the remote
control of any other equipments.
Sensor
Page 12
11
BASIC CONNECTION
Antenna
Outdoor
Indoor
Power pl u g
75 OHM
T o power outlet
● Ensure all the cables are disconnec ted from the main unit before connecting to AC
power source.
● Read through the instructions before connecting other equipments.

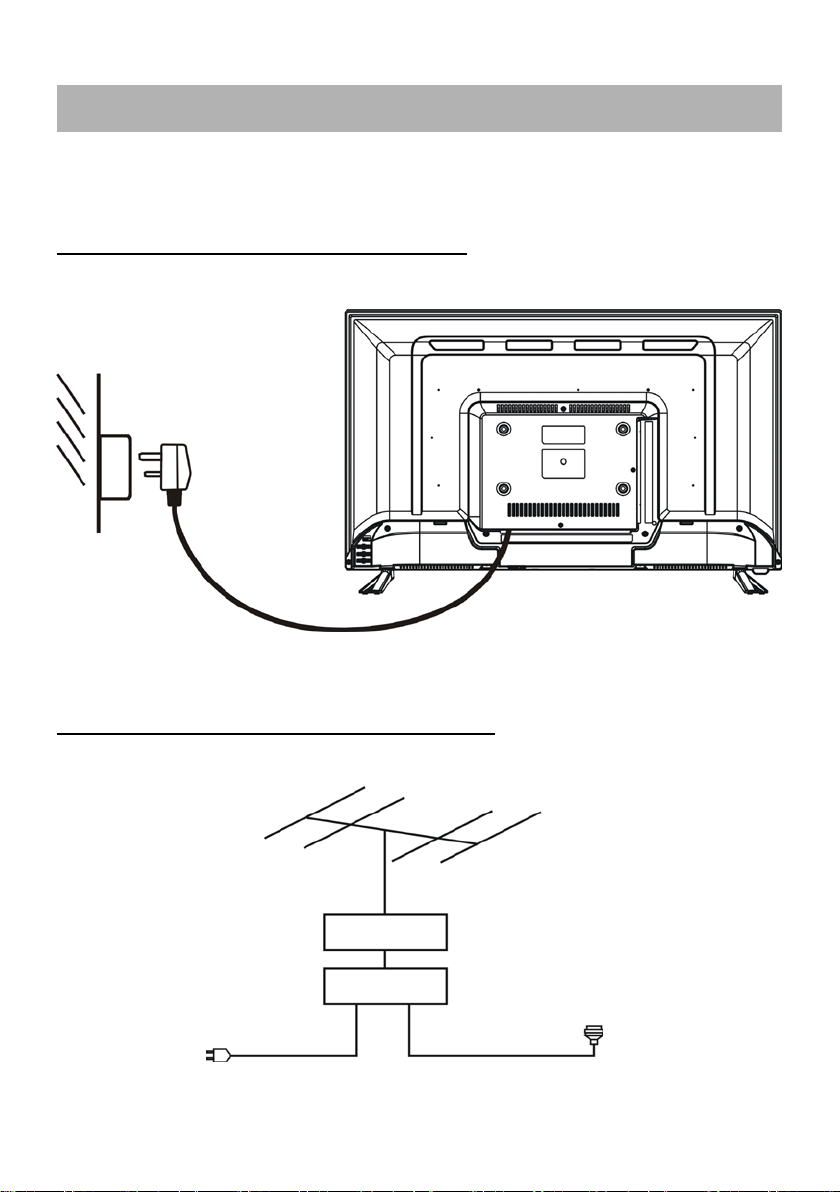

CONNECTING TO AC POWER SOURCE
CONNECT EXTERNAL ANTENNA TO UNIT
Install external antenna into antenna jack for best picture.
of antenna
amplifier
antenna
amplifier
antenna
amplifier
antenna
plug
Page 13
12

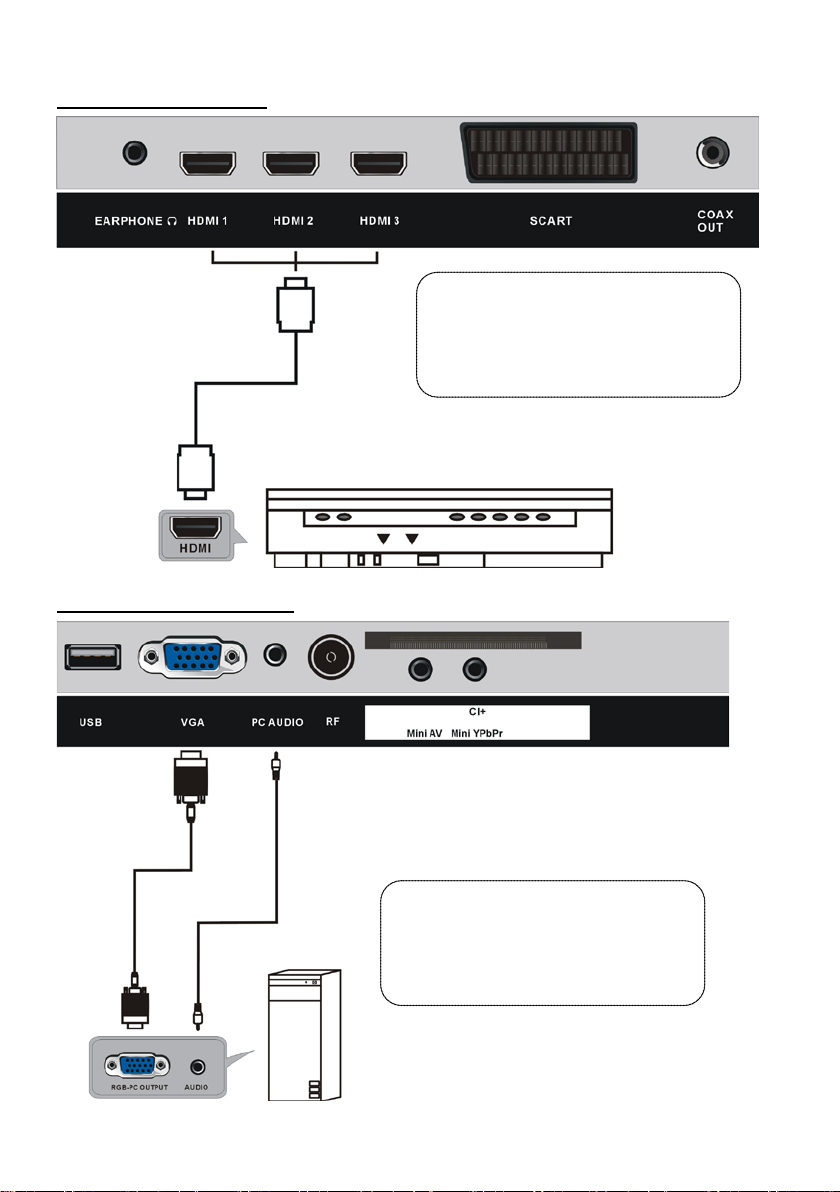

HDMI CONNECTION
HDMI cable
(Not included)
PC/VGA CONNECTION
VGA cable
(Not included)
Back of PC
Use HDMI cable to connect the unit
with other devices to receive
high-definition multimedia signal.
Back of DVD/VCR
Audio cable
(Not included)
Use VGA cable and Audio cable to
connect the unit with TV or PC, and use
this product as a monitor.
Page 14
13
SCART CONNECTION
COAXIAL CONNECTION
Use Coaxial cable to connect the unit with amplifier or other audio
decoding devices for audio signal output.
(Coaxial cable is not included.)
SCART cable
(Not included)
Back of DVD/VCR
Page 15
14

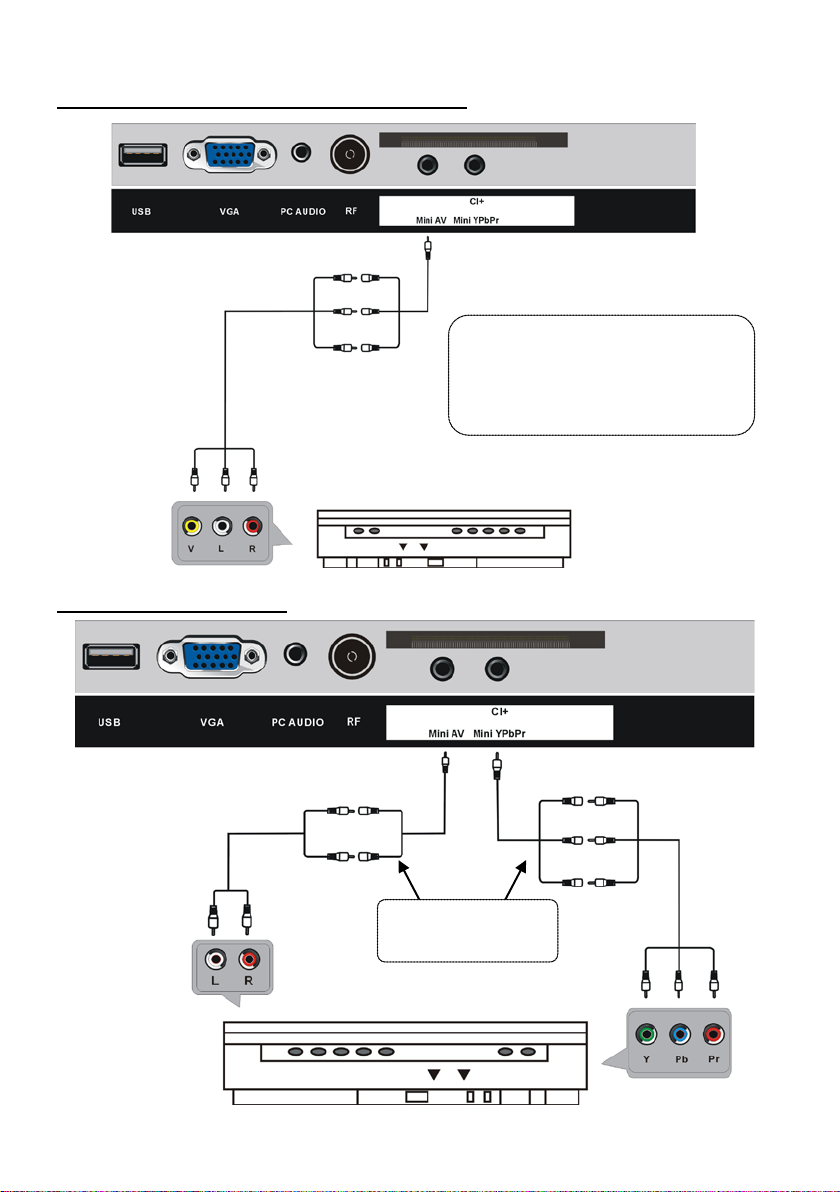

AV (COM POSITE VIDEO) CONNECTION
unit with other devices.
Adaptor Cable for
YPbPr cable
cables (Included)
AV cable
(Not included)
Back of DVD/VCR
YPBPR CONNECTION
Audio L/R of AV
cable (Not included)
YPbPr & AV adaptor
Back of DVD/VCR
Mini A V (included)
For basic connection, use the
composite Audio L/R (white/red) and
CVBS (yellow) cable to connect the
(Not included)
Page 16
15

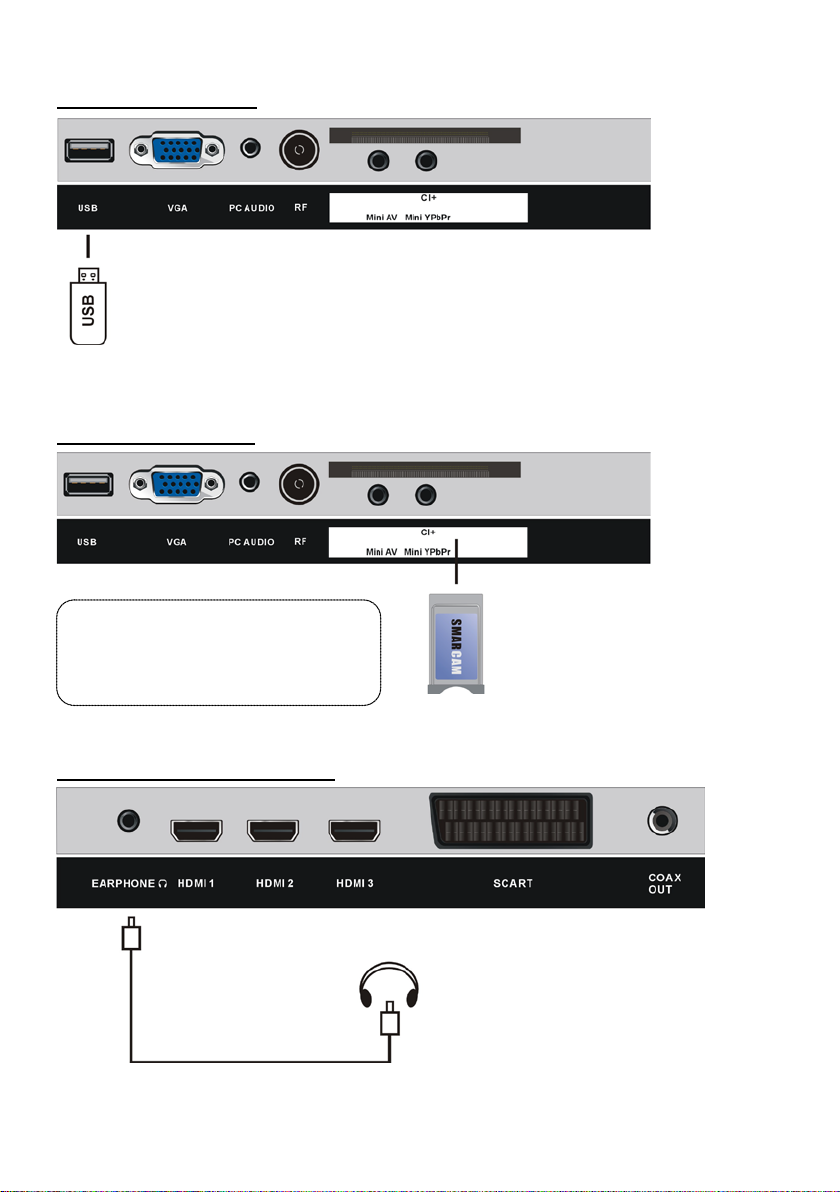

USB CONNECTION
USB Memory Device
(Not included)

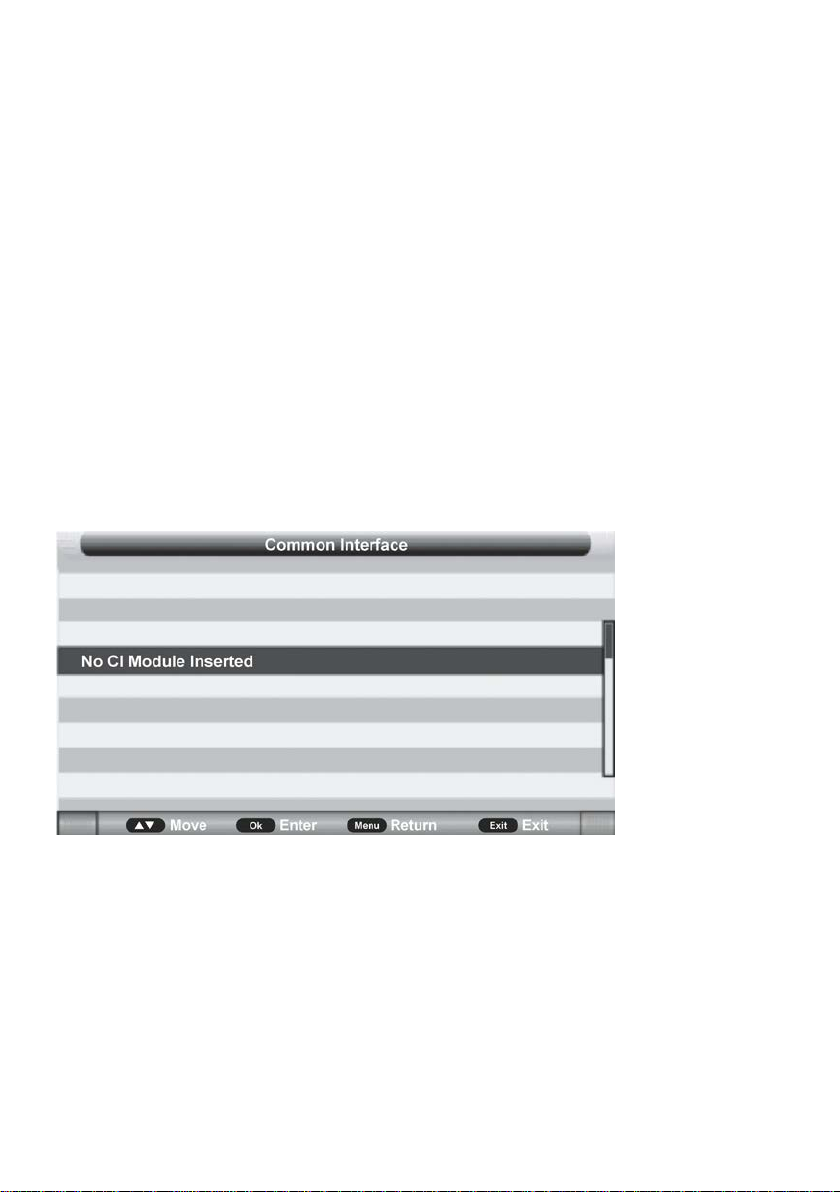

INSERT A CI CARD
Insert your CI card (Conditional Access
Module) to watch special digital
channels in your area.
EARPHONE CONNECTION
Earphone cable
(Not included)
(Not included)
Page 17
16
MAKE SURE ALL THE EQUIPMENTS AND POWER CORD ARE
BASIC OPERATIONS
CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE
BEFORE KINDS OF OPERATIONS.
- Press POWER button on the unit or remote control to power ON the unit (indicator
will glow blue); press it again to power OFF (standby mode) the unit (indicator will
glow red).
- Press SOURCE button on the unit or remote control to set the unit in DTV or ATV
mode.
SELECT DESIRED PROGRAM
1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.
NOTE: Press -/-- button repeatedly to switch the digit.
VOLUME CONTROL
- Press VOL+ or VOL- to adjust the level of current volume.
Available range: 0-100.
MUTE CONTROL
- Press MUTE button to mute the sound, press it again to turn on the s ound.
SOURCE SETTING
- Press SOURCE button on the unit or remote control to display the sources list.
- Press UP or DOWN navigation button to select desired input source, and then press OK
button to confirm selection.
Available options: DTV, ATV, AV, SCART, YPBPR, HDMI 1/2/3, PC, MEDIA.
PICTURE MODE
- Press P-MODE button on remote control repeatedly to select desired PICTURE mode
directly.
Available options: Standard, Mild, User, Dynamic.
SOUND MODE
- Press S-MODE button on remote control repeatedly to select SOUND mode directly.
Available options: Standard, Movie, Music, Speech, User.
Page 18
17
SLEEP TIME SETTING
- Press SLEEP button on remote control repeatedly to select SLEEP TIME directly.
Available options: Off, 10 Mins, 20 Mins, 30 Mins, 60 Mins, 90 Mins, 120 Mins, 180 Mins, 240
Mins.
VIDEO SIZE SETTING
- Press ASPECT button on remote control repeatedly to select VIDEO SIZE directly.
Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.
NOTE: If there’s no signal, pressing ASPECT button will not work. And the available video
size may be different for different input source.
MULTIAUDIO SETTING
- Press AUDIO button on remote control to enter Multi-Audio
menu page.
- Press LEFT/RIGHT navigation button to select the available
soundtrack.
- Press UP/DOWN navigation button to select the av aila ble
audio language.
NOTE: To enable this function, make sure that the channel
you are viewing supports multi-audio languages.
INFORMATION DISPLAY
- Press DISPLAY button on remote control to display information of current program.

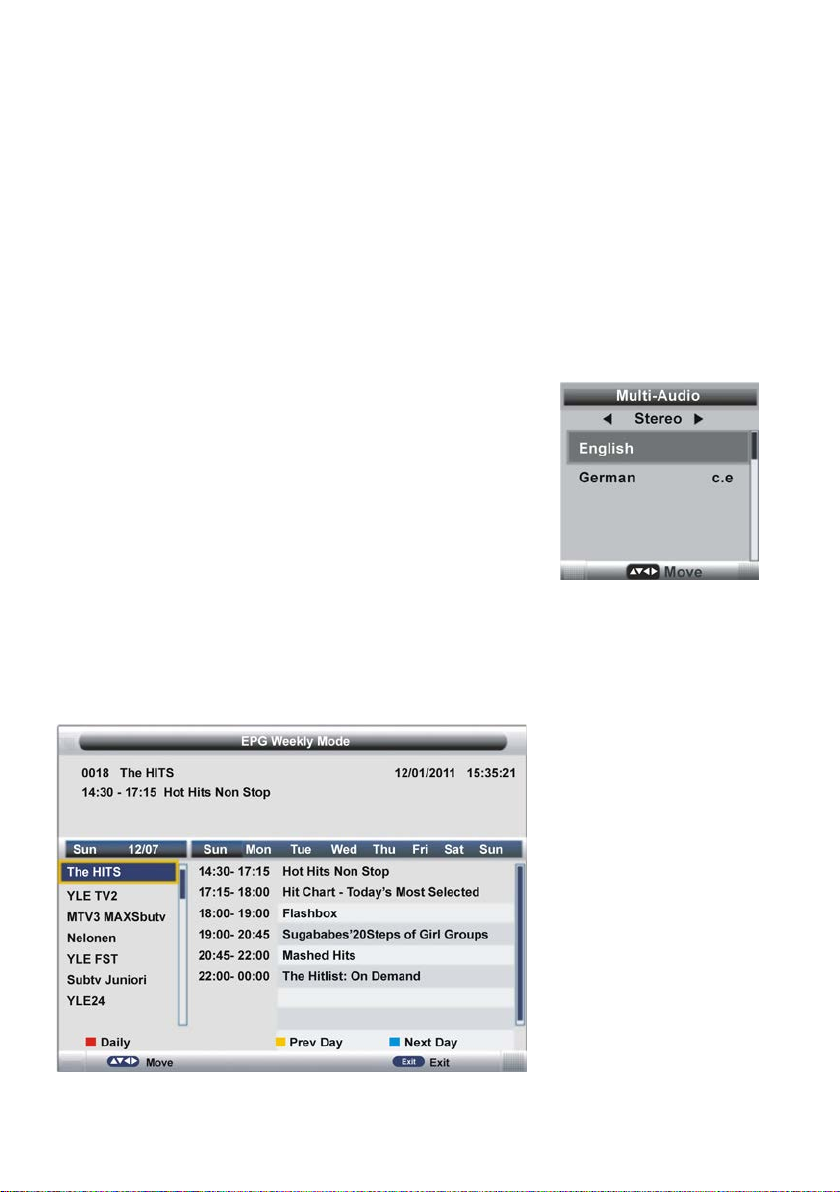

TV GUIDE (FOR DTV MODE ONLY)
- Press GUIDE button on remote control to enter EPG menu page.
Page 19
18
- Press UP/DOWN navigation button to select prefe rr ed cha n nel.
- Press LEFT/RIGHT navigation button to switch between left c olumn and right column.
- Press RED button to switch between weekly mode and daily mode.
- Press YELLOW button to display the T V guide of prev iou s day.
- Press BLUE button to display the TV guide of next day.

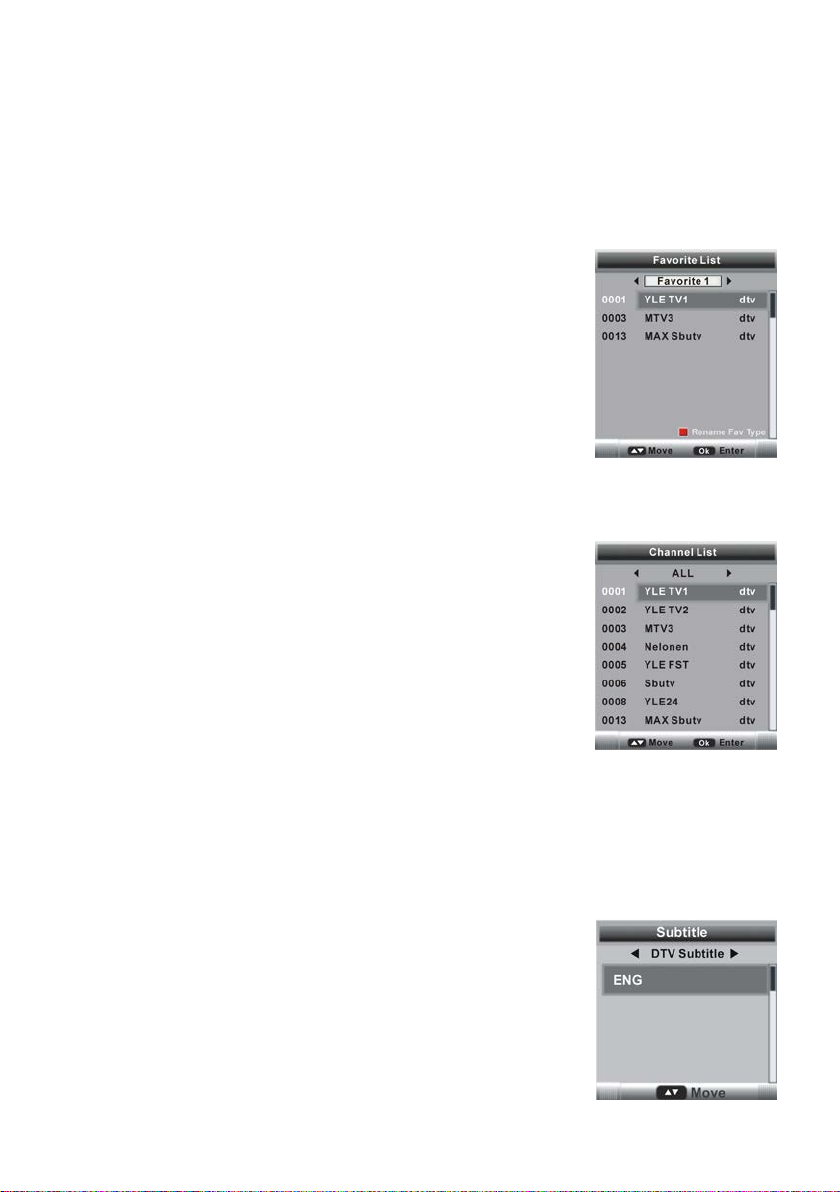

FAVORITE LIST
When viewing an available channel, press FAV button on remote
control to enter Favorite List menu page.
- Press UP or DOWN navigation button to select preferred
channel.
- Press LEFT/RIG H T navigation button to select preferred favorite
group.
- Press OK button to confirm selection.
NOTES:
- To add/remove a channel from Favorit e Lis t, ple ase see Part 3.2
“Favorite Management”.
- Press RED button on remote control to display the keyboard. Then you can rename a
desired favorite type usi ng navigation buttons.
QUICK SELECT
When viewing an available channel, press OK button on remote
control to enter Channel List menu page.
- Press UP or DOWN navigation button to select preferred
channel.
- Press OK button to confirm selection.
TELETEXT
- Press TEXT button on remote control to display the available teletext information and
press it again to stop playing the teletext.
TV/RADIO (FOR DTV MODE ONLY)
- Press TV/RADIO button on remote control to switch the unit between TV and radio mode.
SUBTITLE
- Press SUBTITLE button on remote control to enter Subtitle
menu page.
- Press LEFT/RIGHT navigation button to select preferred option.
- Press UP/DOWN navigation button to select availa ble subtitle.
- Press OK button to confirm selection.
NOTE: To enable this function, make sure that the channel you
are viewing supports multi-subtitle.
Page 20
19

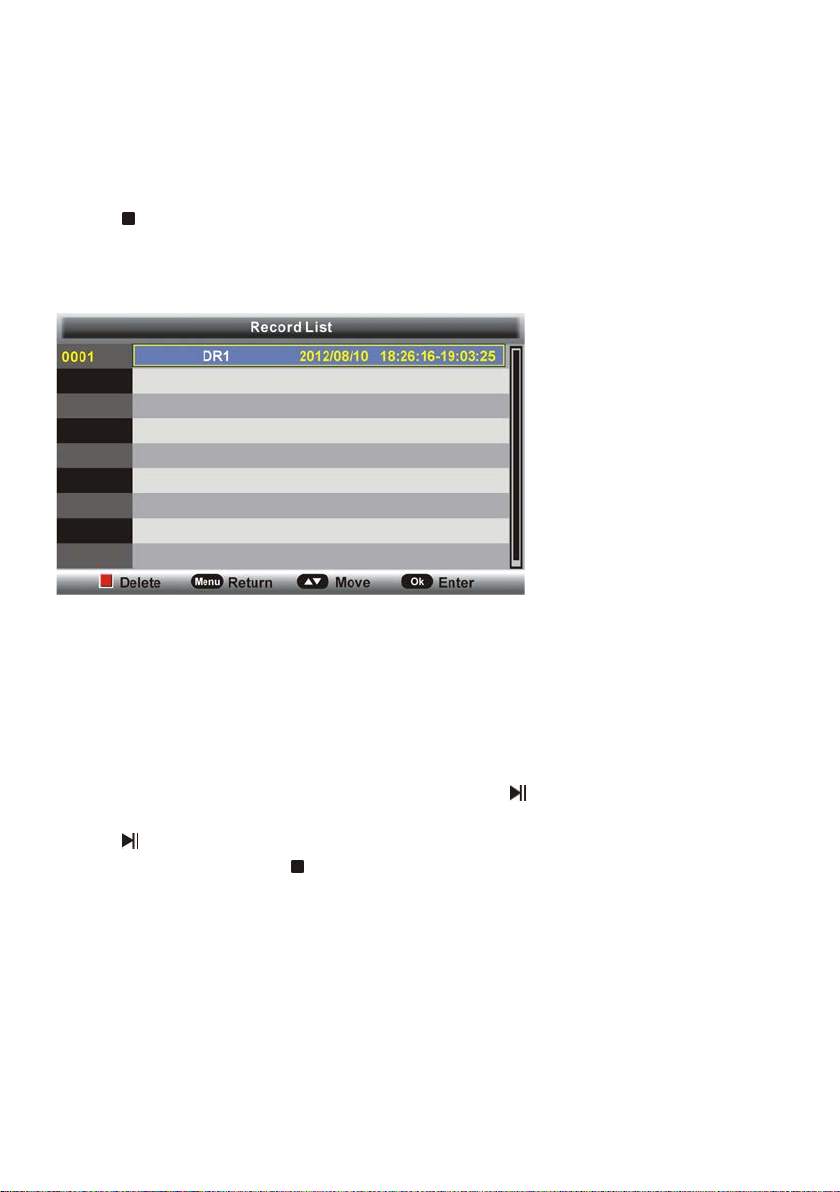

RECORDER (FOR DTV MODE ONLY)

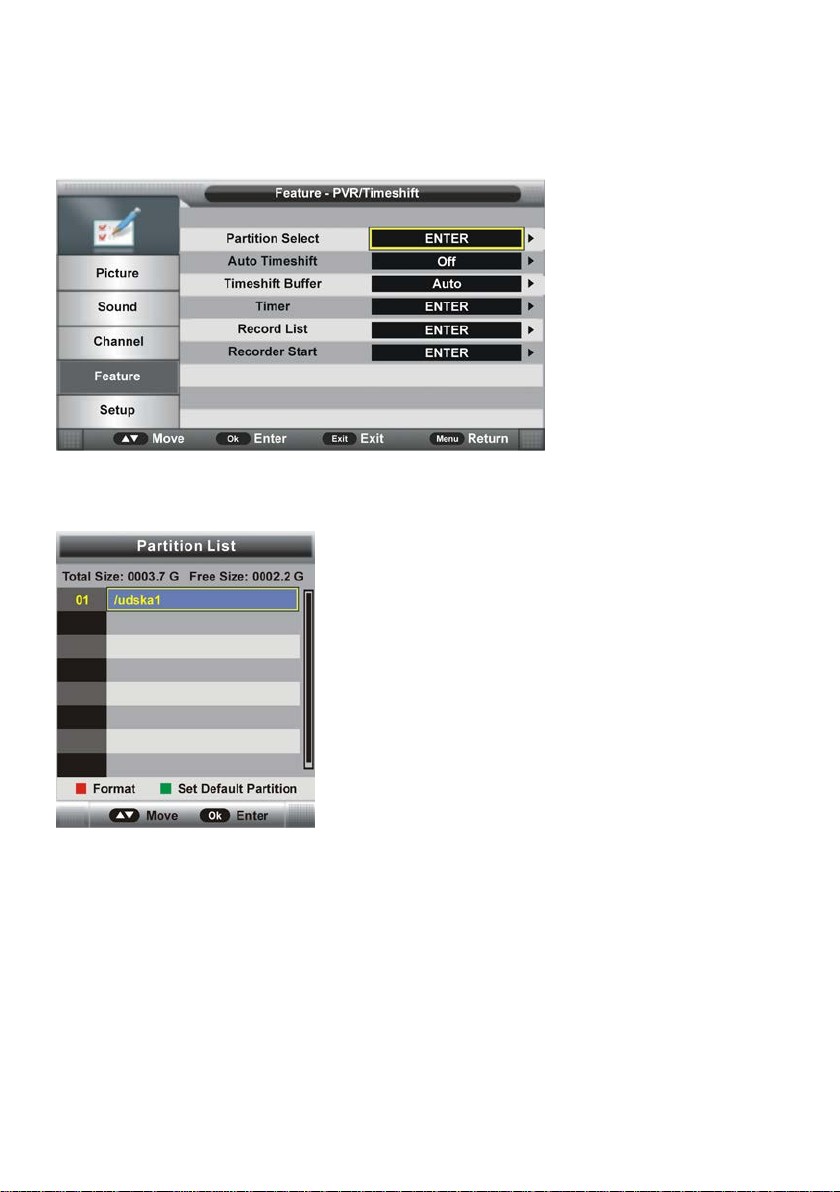

- Insert your USB memory device into USB slot first.
When watching a digital program:
- Press REC button on remote control to start recording directly.
- Press
To watch recorded programs:

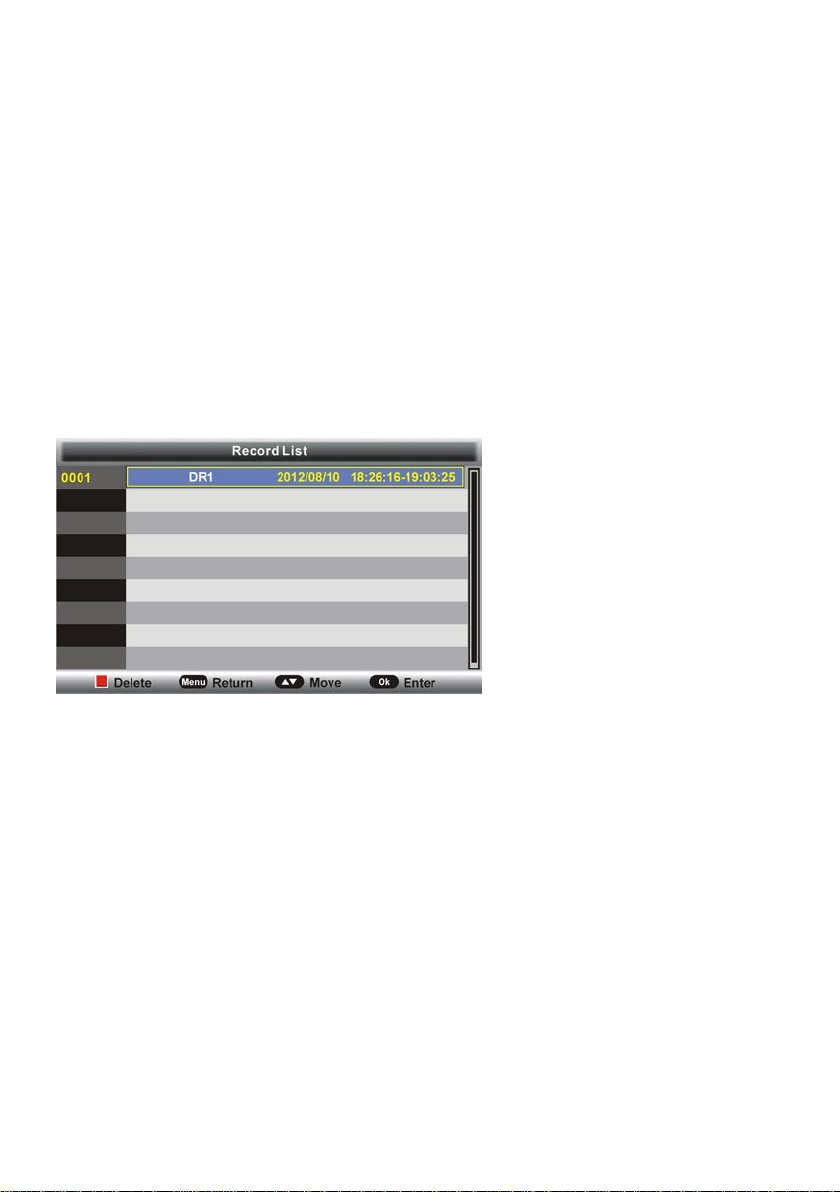

- Press INDEX button on remote control to call out the Record List menu.
- Press UP/DOWN navigation button to select recorded files and press OK button to start
playback.
button on remote control to stop recording.
TIME SHIFT (FOR DTV MODE ONLY)
- Insert your USB memory device into USB slot first.
When watching a digital program:
-If you don’t want to miss any programs when left, press
enable TIME SHIFT function.
- Press
- To stop TIME SHIFT, press
button again when you’re back to watch the program in TIME SHIFT mode.
on remote control.
button on remote control to
Page 21
20
MEDIA PLAYBACK
- Press SOURCE button on the unit or remote control to set the unit in MEDIA mode.
- Insert a USB memory device into USB slot before following operations.
- Press UP/DOWN/LEFT/RIGHT navigation button to move the cursor.
- Press EXIT button to return to previous menu page.
NOTE: Press MEDIA button on remote control to enter MEDIA mode directly.

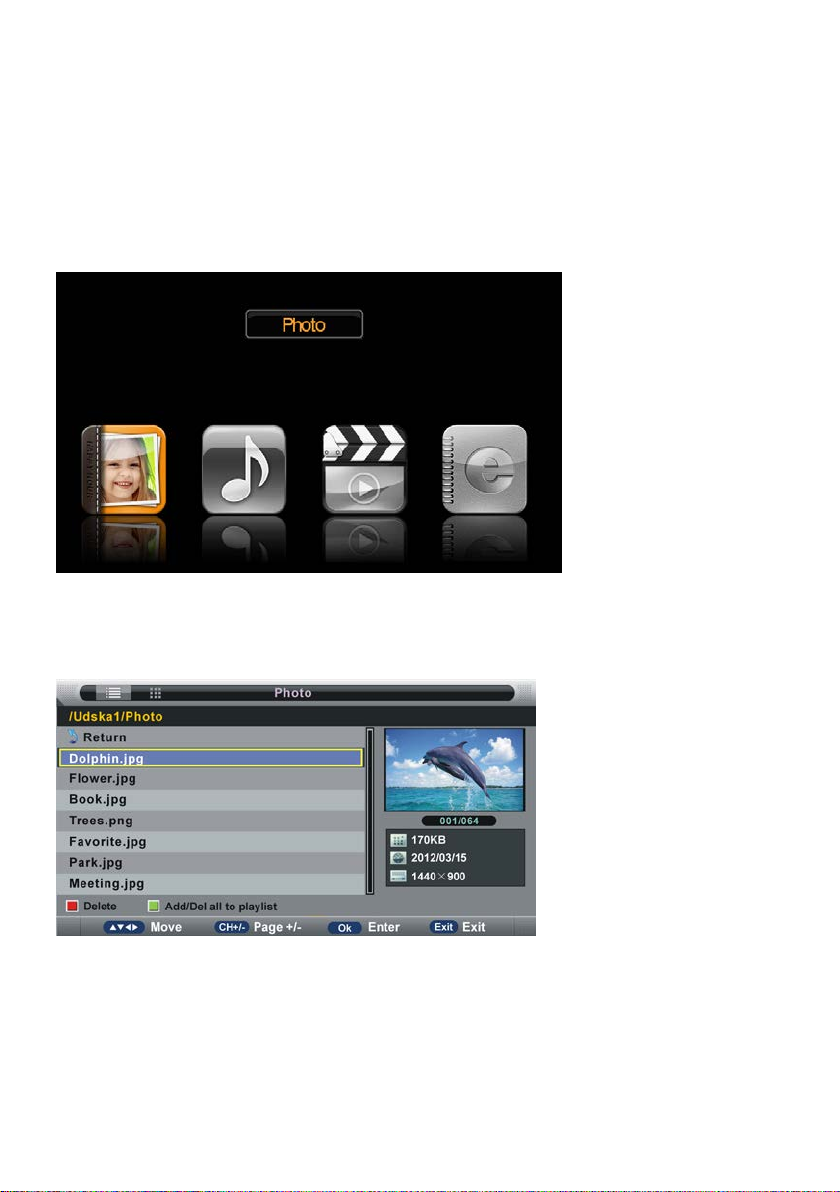

1. Photo
- Press LEFT/RIGHT navigation button to select Photo in the main m enu and press OK
button to enter it.
NOTE: When selecting Photo f iles , press EXIT button to move the cur sor to TITLE and then
press RIGHT navigation button to view files in thumbnail mode.
- Use navigation buttons to select preferred file.
- Press RED button to enter a dial og box, and select Y es to d elete high lighted file; select No
to cancel this operation.
Page 22
21
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press
During photo normal playing:
- Press OK button on remote control to display the tool bar; press EXIT button to hide it.
- Press LEFT/RIGHT navigation button to select preferred option in the tool bar and press
OK button to confirm selection/enter sub menu.
- Press
- Press
- Press
- Press
button to start playing.
button on remote control to play or pause playing.
button on remote control to stop pl aying.
button on remote control to play previous file.
button on remote control to play next file.

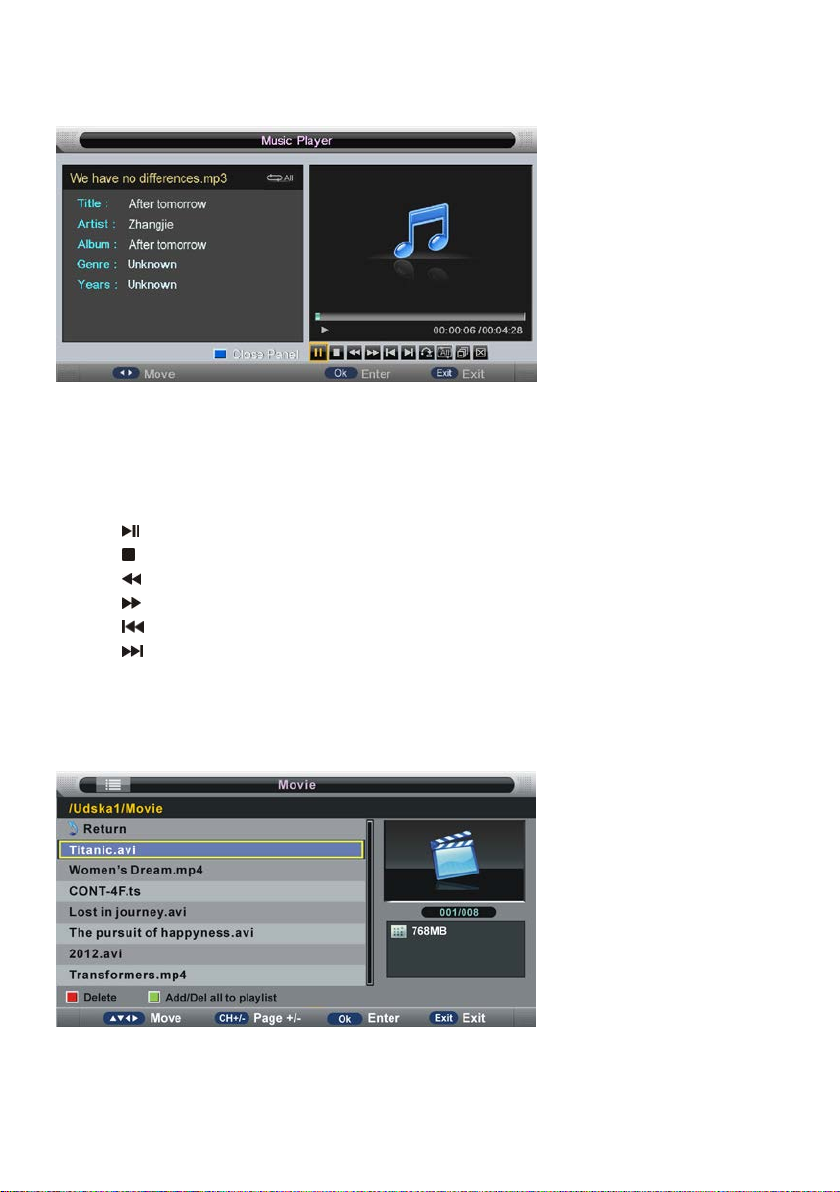

2. Music
- Press LEFT/RIGHT navigation button to select Music in the main menu and press OK
button to enter it.
- Use navigation buttons to select preferred file.
- Press RED button to enter a dial og box, and select Y es to d elete highlighted file; select No
to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press
button to start playing.
Page 23
22

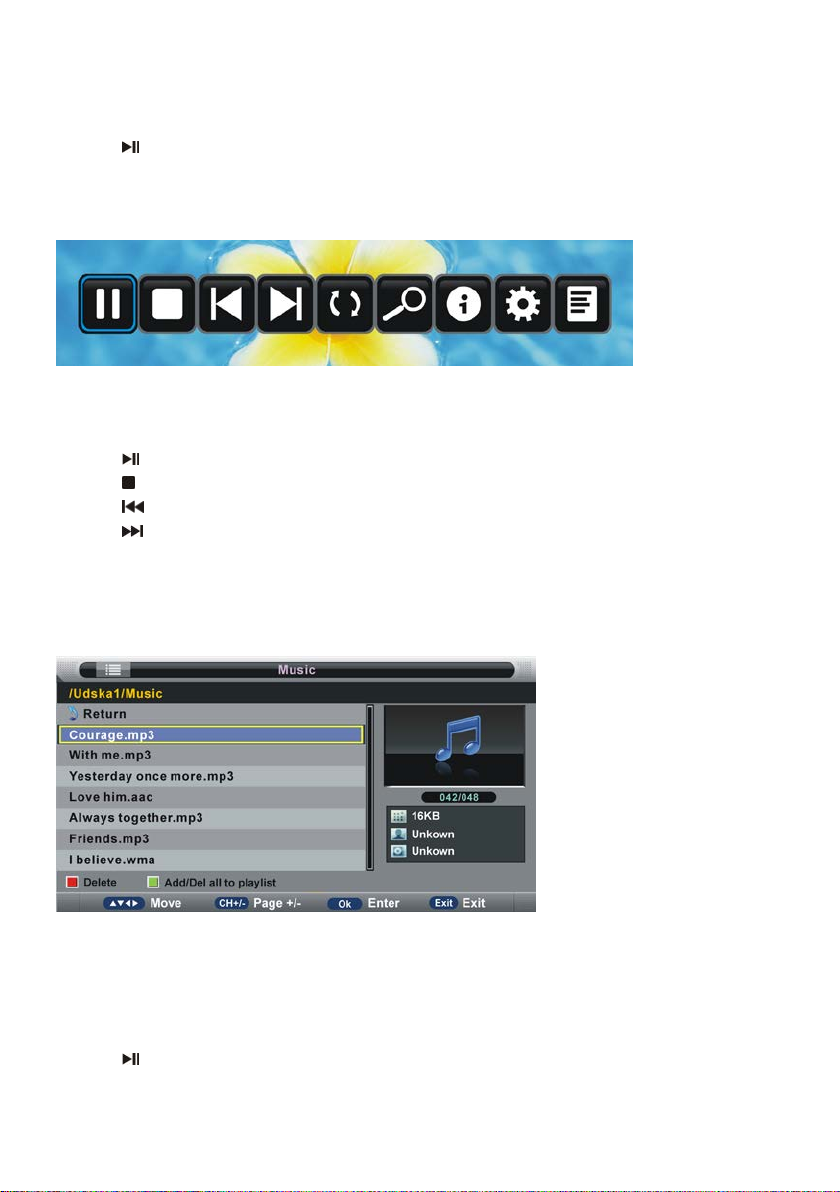

During music normal playing:
- Press LEFT/RIGHT navigation button to select preferred option in the tool bar and press
OK button to confirm selection/enter subme nu.
- Press BLUE button on remote control to close the on-screen display; press any button on
remote control to display it again.
- Press
- Press
- Press
- Press
- Press
- Press
button on remote control to play or pause playing.
button on remote control to stop pl aying.
button on remote control to move fast backward.
button on remote control to move fast forward.
button on remote control to play previous file.
button on remote control to play next file.
3. Movie
- Press LEFT/RIGHT navigation button to select Movie in the main menu and press OK
button to enter it.
Page 24
23
- Use navigation buttons to select preferred file.
- Press RED button to enter a dial og box, and select Y es to d elete high lighted file; select No
to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press
During movie normal playing:
- Press OK button on remote control to display the tool bar; press EXIT button to hide it.
- Press LEFT/RIGHT navigation button to select preferred option in the tool bar and press
OK button to confirm selection/enter subme nu.
- Press
- Press
- Press
- Press
- Press
- Press
button to start playing.
button on remote control to play or pause playing.
button on remote control to stop pl aying.
button on remote control to move fast backward.
button on remote control to move fast forward.
button on remote control to play previous file.
button on remote control to play next file.

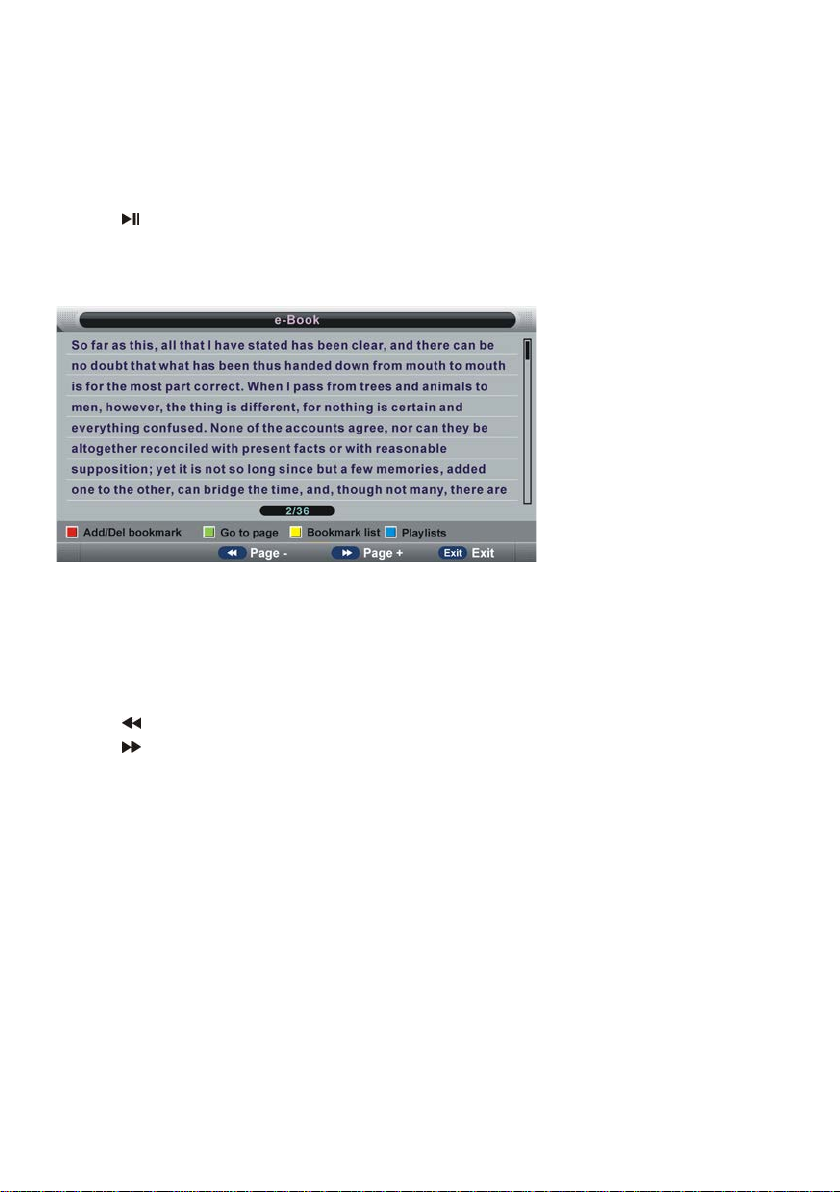

4. e-Book
- Press LEFT/RIGHT navigation button to select e-Book in the main menu and press OK
button to enter it.
Page 25
24
- Use navigation buttons to select preferred file.
- Press RED button to enter a dial og box, and select Y es to d elete high lighted file; select No
to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press

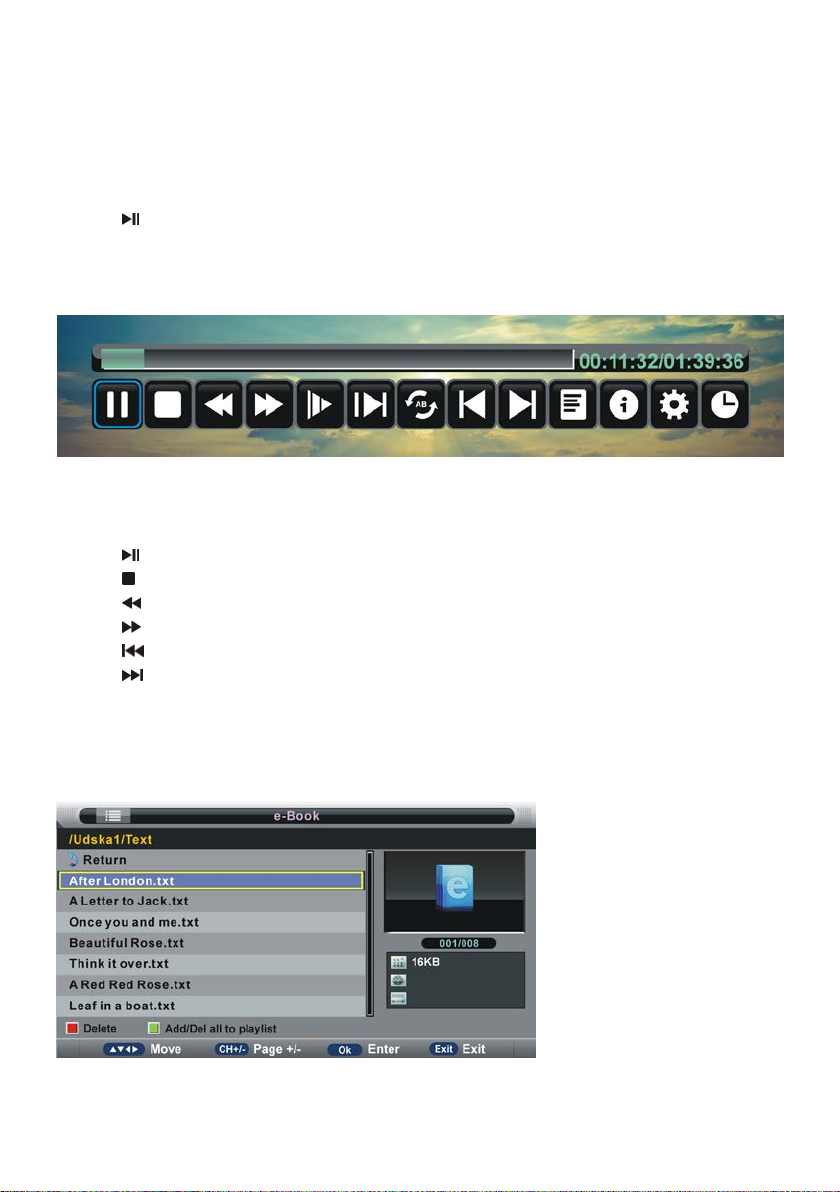

During e-book normal playing:
- Press RED button on remote control to add/remove current page from Bookmark List.
- Press GREEN button on remote control to enter GOTO mode. Input valid number and
press OK button to enter desired page directly.
- Press YELLOW button on remote control to display the Bookmark list.
- Press BLUE button on remote control to display the play list.
- Press
- Press
NOTE: To play your multimedia files, make sure you have selected correct icon in the main
menu of MEDIA PLAYBACK. That is to say, you can only play Photo files in PHOTO item,
Music files in MUSIC item and so on.
button to start playing.
button on remote control to play previous page.
button on remote control to play next page.
Page 26
25
MAIN MENU
● The unit contains differ e nt setti ng men us. On ce the init ial progra mm ing is enter ed, it will
be remained in the memory until change, and the unit can always be operated under the
same conditions.
● The settings will be remained in the memory until the settings are changed, even after
setting the player to standby mode.
Common procedure for initial settings
- Press MENU button on the unit or remote control to display the main menu.
- Press UP or DOWN navigation button to select submenus.
- Press OK or RIGHT navigation button to enter submenu page.
- Press UP or DOWN navigation button to select preferred option.
- Press LEFT or RIGHT navigation button to adjust the value.
- Press OK button to confirm selection.
- Press MENU button to return to previous menu page.
- Press EXIT button to exit menu page.

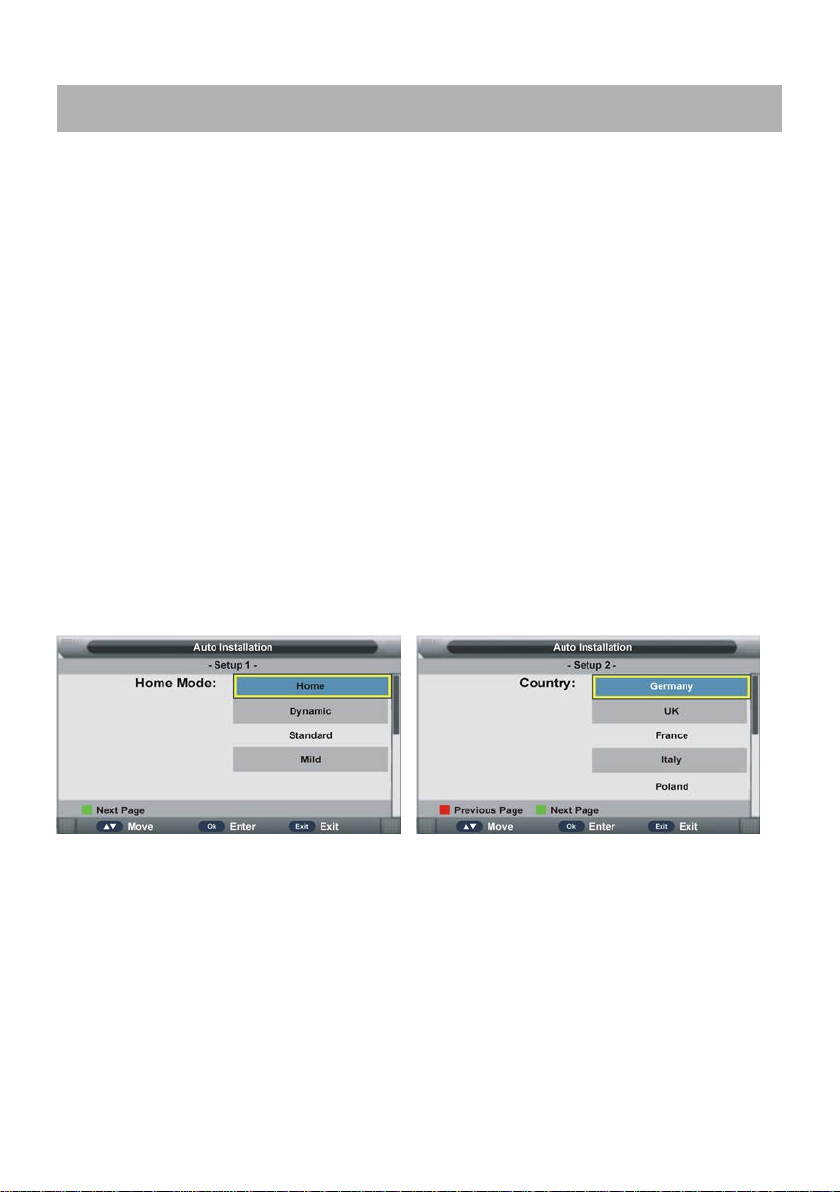

First Time Installation
- Connect to power source and turn on this TV, then below installation menu page will
display on the screen:
Setup 1
- Press UP/DOWN navigation button to select de sired picture M ode.
- Press OK button to call out a dialog box. Select OK to confirm selection and turn to next
page; select Cancel to dismiss the dialog box.
Setup 2
- Press UP/DOWN navigation button to select the country that you are living in.
- Press OK button to confirm selection and turn to next page.
Page 27
26

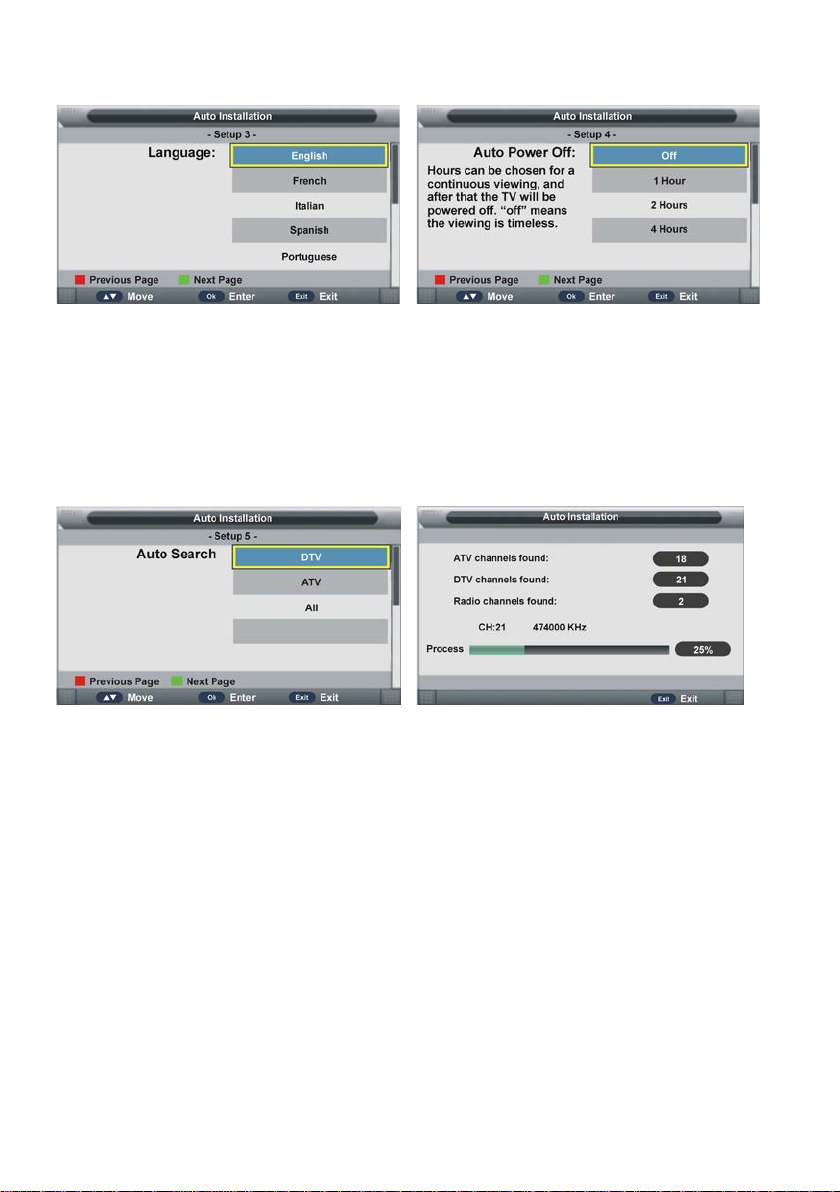

Setup 3
- Press UP/DOWN navigation button to select de sired menu langua ge.
- Press OK button to confirm selection and turn to next page.
Setup 4
- Press UP/DOWN navigation button to select desired auto power off time.
- Press OK button to confirm selection and turn to next page.
Setup 5
- Press UP/DOWN navigation button to select de sired search ing type.
- Press OK button to con f irm s elec tion and then this unit will search programs automatica lly.
NOTE:
- To exit tuning, press EXIT button on remote control to call out a dialog box , and select OK
to exit tuning; select Cancel to dismiss the dialog box.
Page 28
27
DTV MODE
- Press SOURCE button on the unit or remote control to select DTV input source.

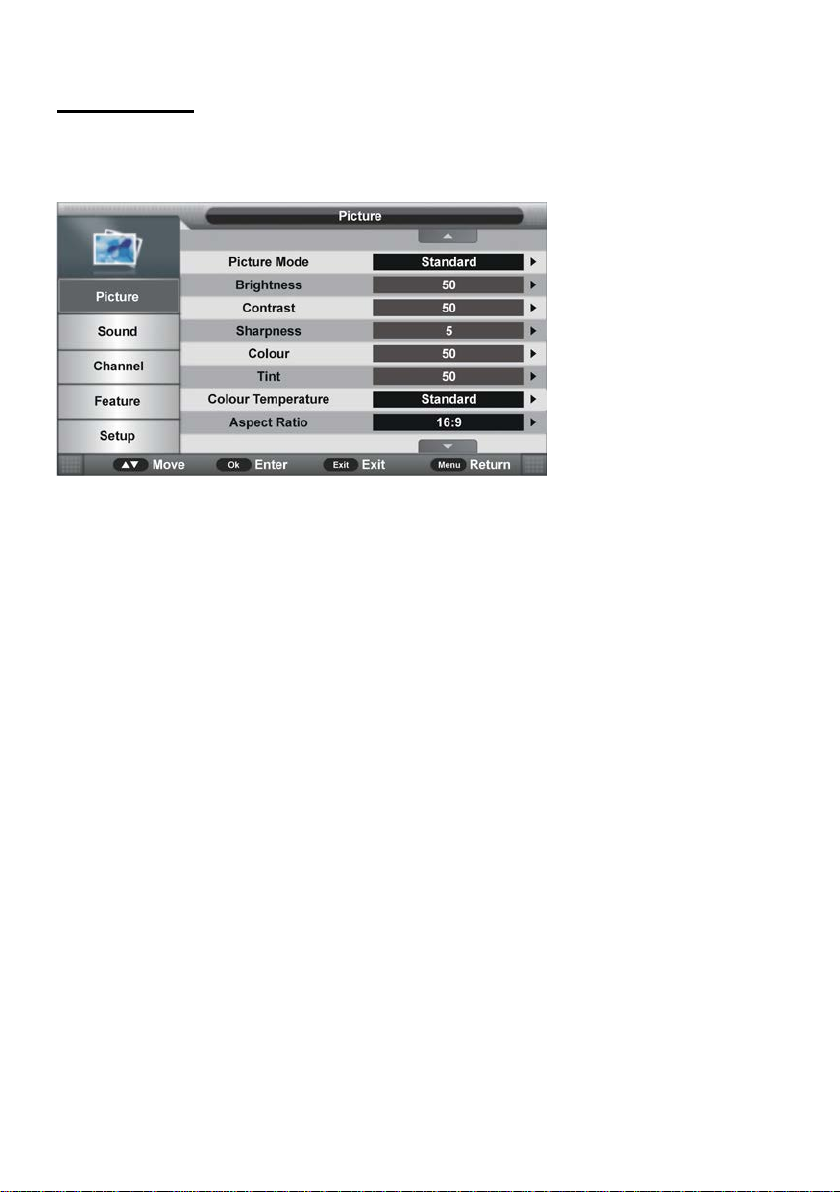

1. Picture
1.1 Picture Mode
Available options: Standard, Mild, User, Dynamic.
1.2 Brightness
The brightness value of picture can be adjusted from 0-100.
1.3 Contrast
The contrast value of picture can be adjusted from 0-100.
1.4 Sharpness
The sharpness value of picture can be adjusted from 0-10.
1.5 Colour
The colour saturation value of picture can be adjusted from 0-100.
NOTE: The value of Brightness, Contrast, Sharpness, and Colour is adjustable only in User
picture mode.
1.6 Tint
This item is used to adjust the tone of color in NTSC system from 0-100.
1.7 Colour Temperature
This item is used to adjust the optimum colour temperature for suitable viewing.
Available options: Standard, Cool, Warm.
Page 29
28
1.8 Aspect Ratio
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
button to select preferred option.
Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.
NOTE: If there’s no signal, pressing ASPECT button on remote control will not work. And
the available video size may be different in different input source.
1.9 Noise Reduction
This item is used to elimi nate the image noise to gain better image effect.
Available options: Off, Low, Middle, High.

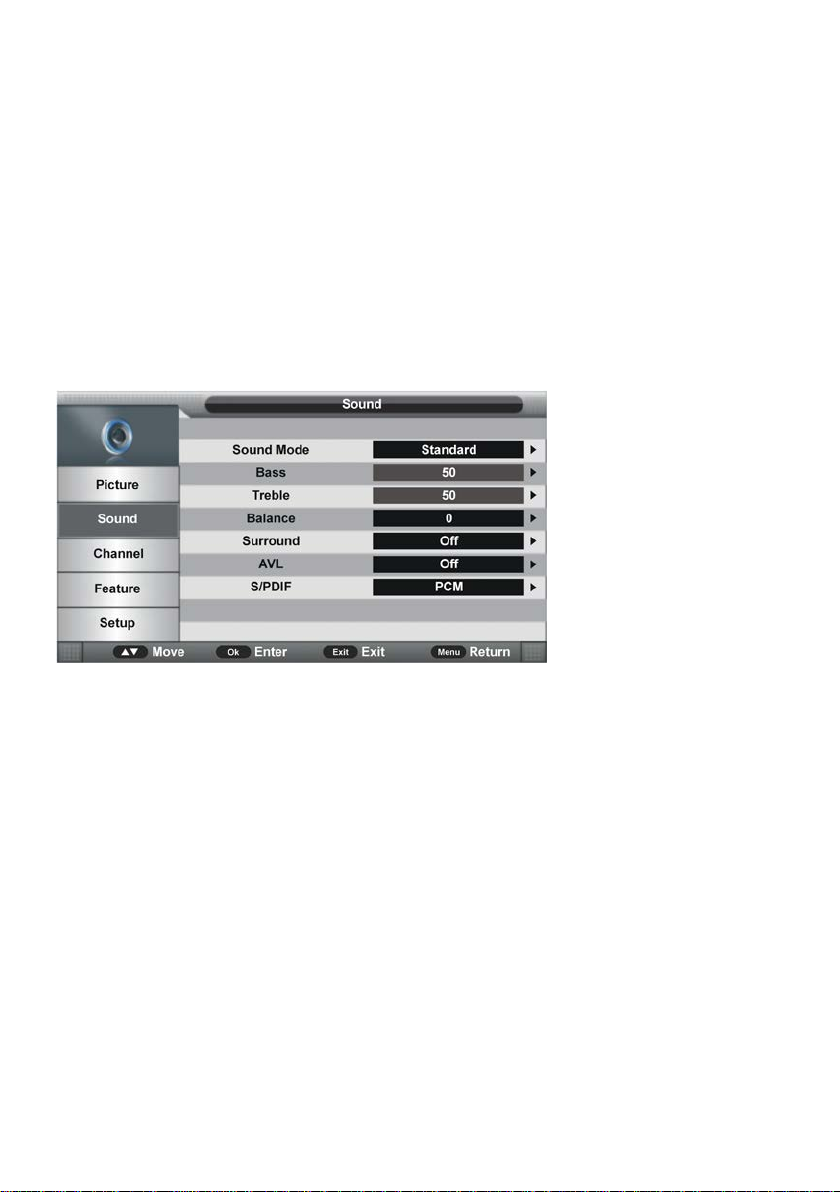

2. SOUND
2.1 Sound Mode
Available options: Standard, Movie, Music, Speech, User.
2.2 Bass
This item is used to adjust the level of lower-pitched sounds from 0-100.
2.3 Treble
This item is used to adjust the level of higher-pitched sounds from 0-100.
NOTE: The value of Bass and Treble is adjustable only in User sound mode.
2.4 Balance
This item is used to adjust the audio output between left and right speaker from -50 to 50.
2.5 Surround
This item is used to turn on/off Surround function.
Page 30
29
2.6 AVL (Auto Volume Level)
This item is used to turn on/off AVL function.
2.7 S/PDIF
This item is used to selec t desired S/PDIF audio output type.
Available options: Off, PCM, Auto.

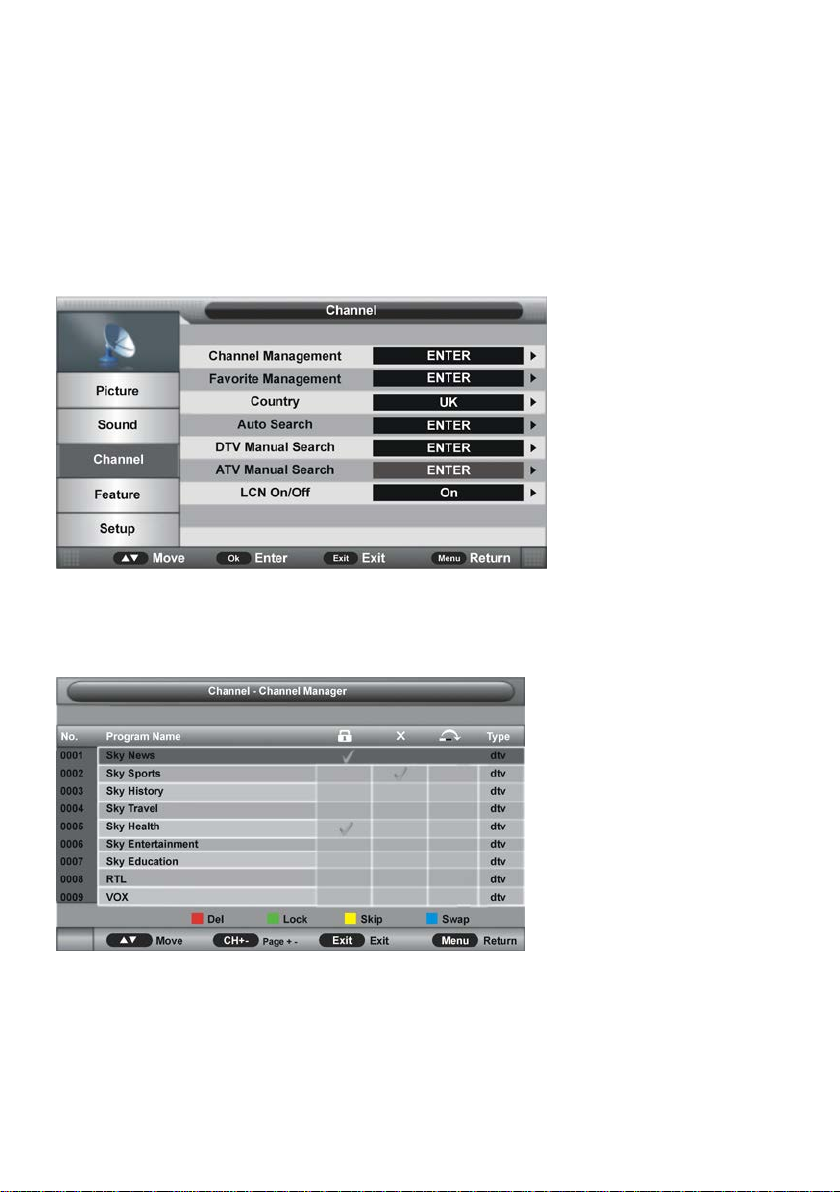

3. Channel
3.1 Channel Management
- Press UP/DOWN navigation button to select this item and press OK or RIGHT navigati on
button to enter submenu.
- Press UP/DOWN navigation to select preferred program.
a) Press RED button on rem ote control and use number buttons to input the password if
“Lock Channel” is on. Then press RED button to add/remove a delete mark on highlighted
program. After that, press MENU button to enter a dialogue box. Select OK to delete it;
select C ancel to cancel this operation.
Page 31
30
b) Press GREEN button on remote control and use number buttons to input the password if
“Lock Channel” is on. Then press GREEN button to lock/unlock a program.
c) Press YELLOW button on remote control to add/r emov e s kip mar k.
d) Press BLUE button on remote control to enter MOVE mode. Then use UP/DOWN
navigation button to sel ec t preferred position and press OK button to move it.

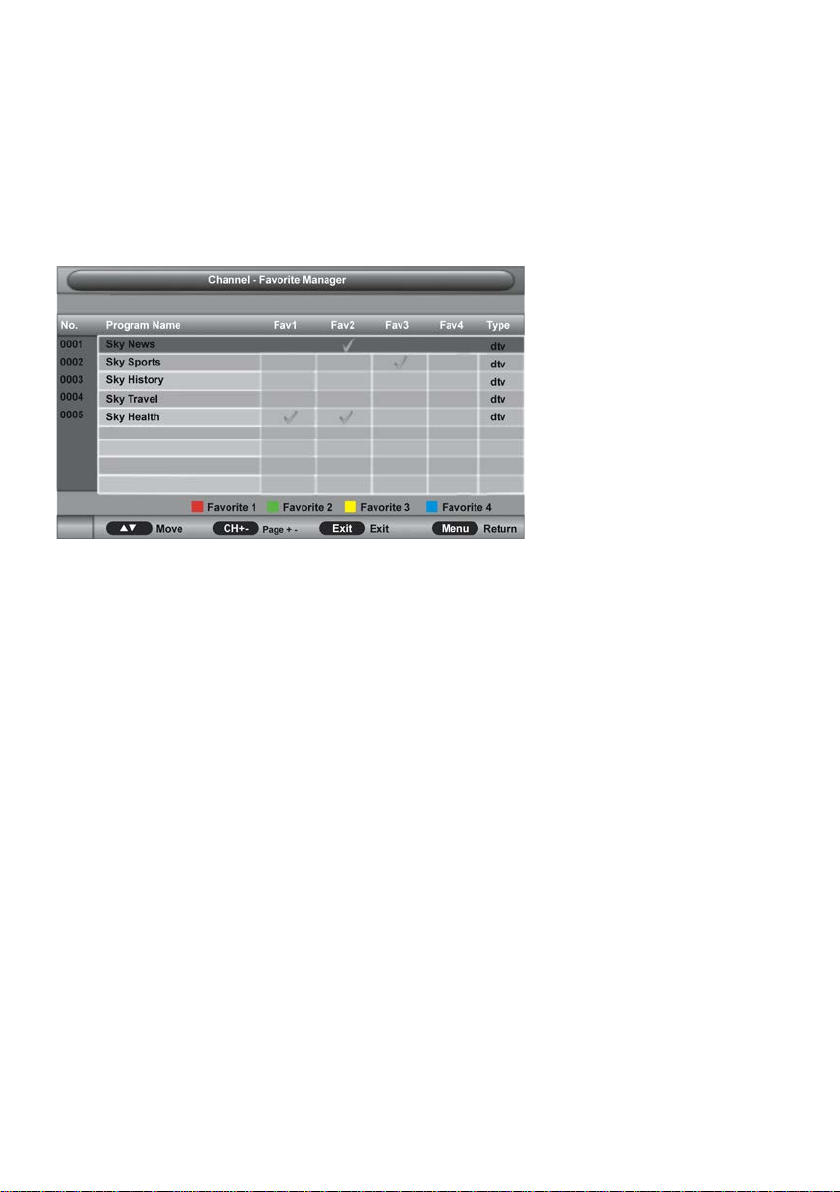

3.2 Favorite Management
- Press UP/DOWN navigation to select preferred program.
a) Press RED button on rem ote control to add highlighted channel to Favorite 1 list.
b) Press GREEN button on remote control to add highlighted channel to Favorite 2 list.
c) Press YELLOW button on remote control to add highlighted channel to Favorite 3 list.
d) Press BLUE button on remote control to add highlighted channel to Favorite 4 list.
3.3 Country
This item is used to select the country that you are living in.
3.4 Auto Search
- Press UP/DOWN navigation button to sel ect thi s item and p ress OK or RIGH T navigation
button to enter submenu.
- Then press UP/DOWN navigation button to select All, DTV or ATV and press OK or R IGHT
navigation button to enter a dialog box. Select OK to start auto searching; select Cancel to
cancel this operation.
Page 32
31
To exit auto tuning, press MENU or EXIT button and select OK.

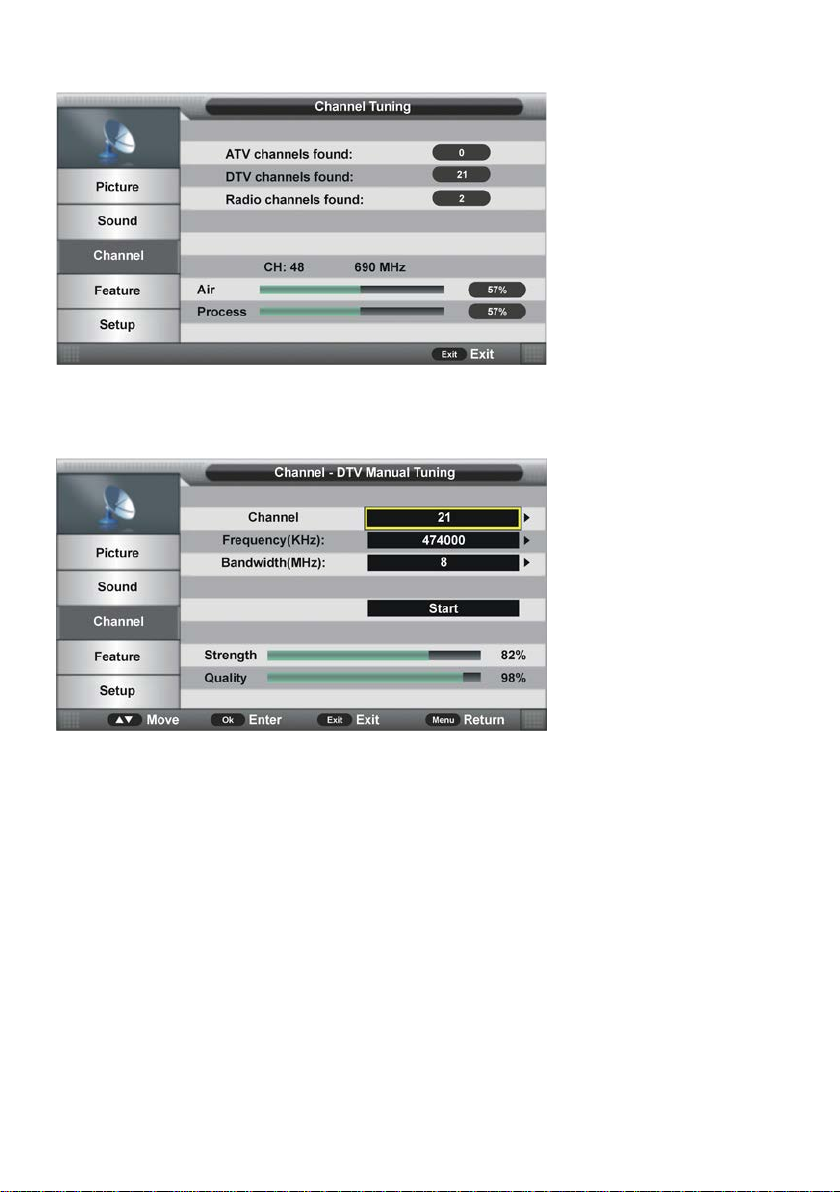

3.5 DTV Manual Search
3.51 Channel
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
button to select preferred program.
3.52 Frequency (KHz)
- Press OK or RIGHT navigation button to enter submenu.
- Press LEFT/RIGHT navigation button to move the cursor; press number buttons on
remote control to input desired value.
3.53 Bandwidth (MHz)
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
button to select preferred bandw id th.
Once the settings of part 3.51 to part 3.53 are finished, select Start in the menu and press
OK button to start searching.
Page 33
32

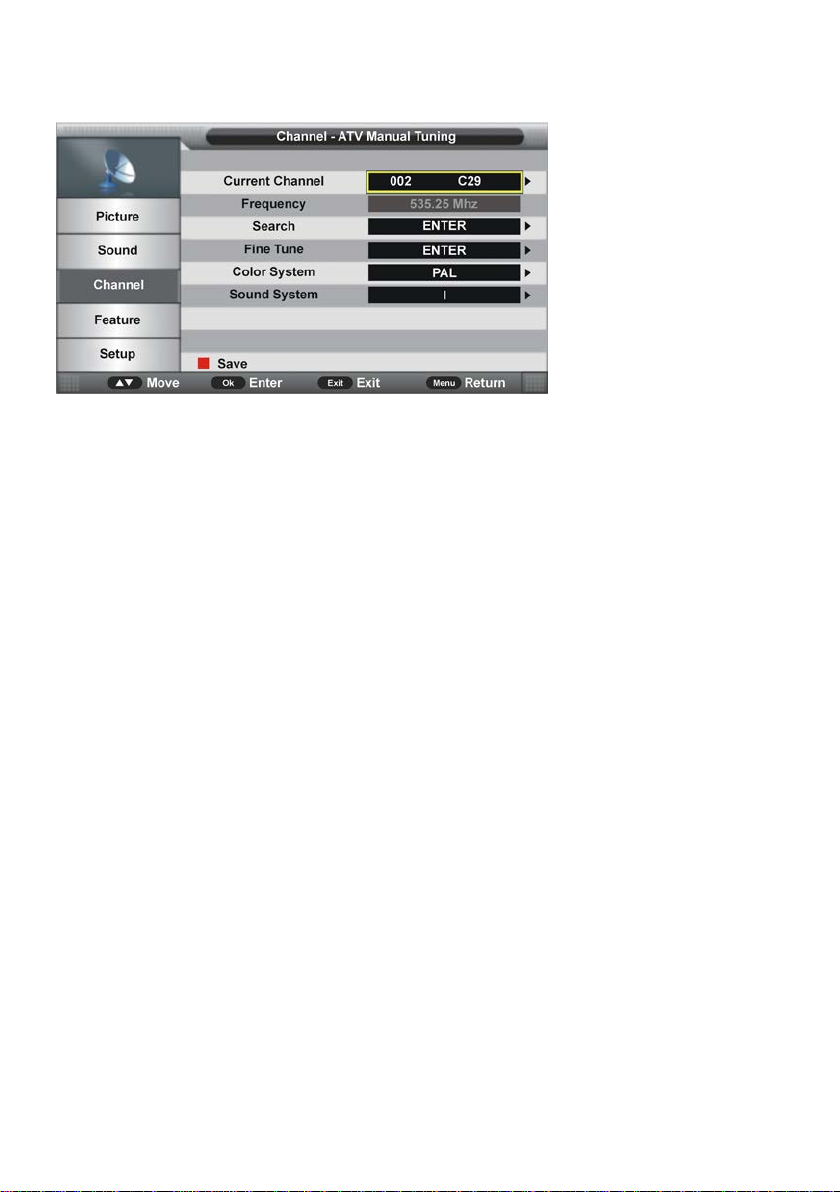

3.6 ATV Manual Search (for ATV input source only)
3.61 Current Channel
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
button to select preferred program.
3.62 Frequency
This item is not user adjustable.
3.63 Search
This item is used to start searching.
3.64 Fine Tune
- Press OK or RIGHT navigation button to enter submenu and press LEFT/RIGHT
navigation button to fine tune it.
3.65 Color System
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
button to select preferred color syste m.
Available options: Auto, PAL, SECAM.
3.66 Sound System
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
button to select preferred sound system.
Available options: BG, DK, I, L, L’.
NOTE: The Sound System options may vary due to different Color System settings.
3.7 LCN On/Off
This item is used to turn on/off LCN (Logic Channel Number).
NOTE: This item may not be adjustable if your country doesn’t support LCN.
Page 34
33

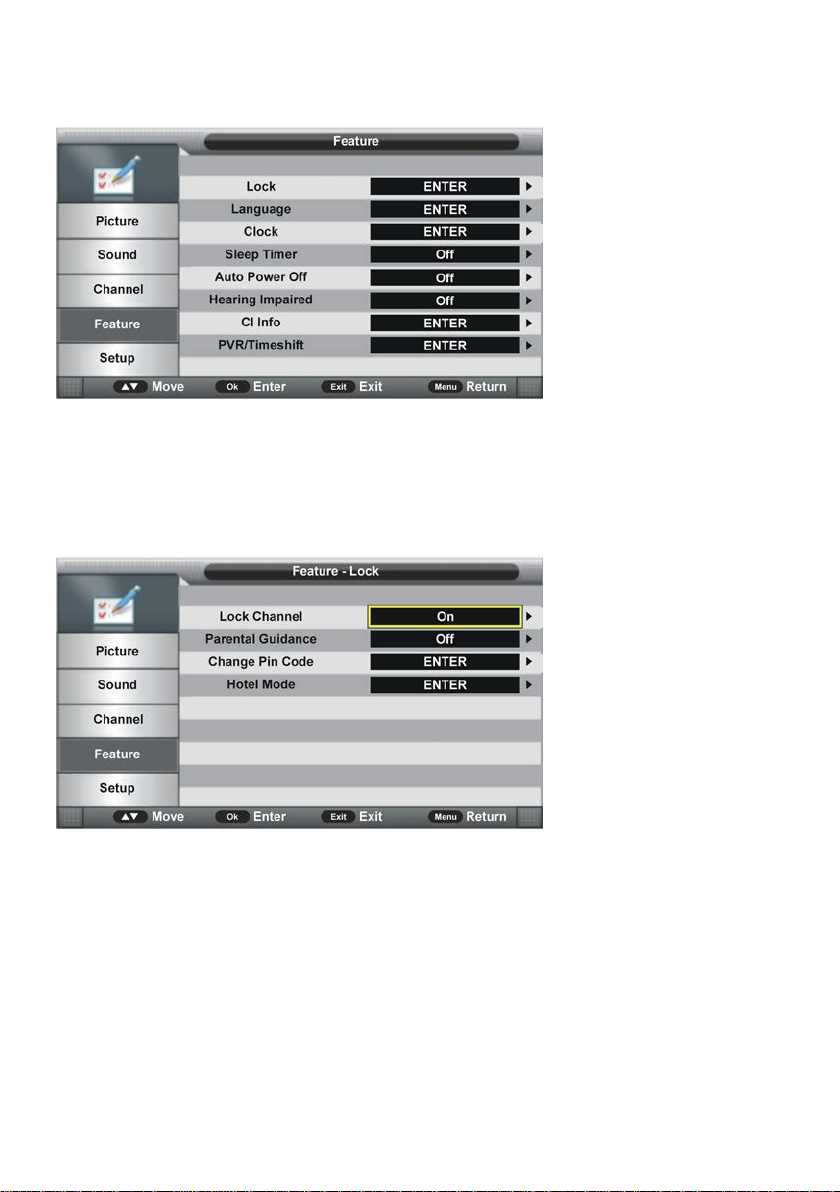

4. Feature
4.1 Lock
- Press OK or RIGHT navigation button to enter submenu.
- Input the factory default password “0000” using number buttons on remote control.
NOTE: If you forget the password, please use the universal password “4711”.
- Press UP/DOWN navigation button to select prefe rr ed ite m.
4.11 Lock Channel
This item is used to turn on/off Lock Channel function.
4.12 Parental Guidance
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
button to select preferred option.
Available options: Off, 4 to 18.

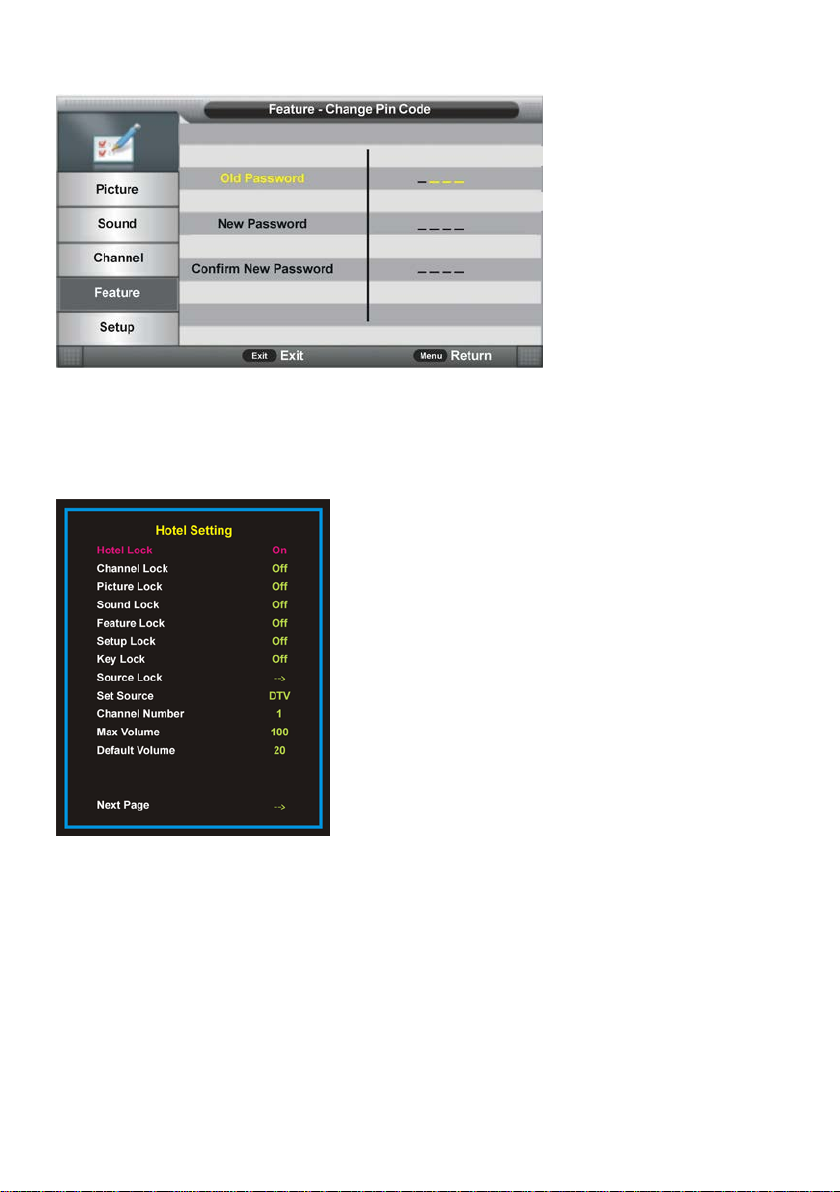

4.13 Change Pin Code
- Press OK or RIGHT navigation button to enter submenu.
Page 35
34
- Input the Old Password, New Password, and Confirm New Password in turn. After that,
this unit will save the new password automatically.
4.14 Hotel Mode
- Press OK or RIGHT navigation button to enter submenu.
- Press UP/DOWN navigation button to select de sired
item.
- Press LEFT/RIGHT navigation button to adjust the
value.
- Press OK or RIGHT navigation button to enter
submenu.
- Press MENU button to return to previous page.
Warm Tip: We strongly advise that you use Hotel
Mode in hotels and you should just ignore it if take this
TV for home use only.
Hotel Lock: Turn on/off Hotel Lock.
Channel Lock: Turn on/off Channel menu lock.
Picture Lock: Turn on/off Picture menu lock.
Sound Lock: Turn on/off Sound menu lock.
Feature Lock: Turn on/off Feature menu lock.
Setup Lock: Turn on/off Setup menu lock.
Key Lock: Turn on/off Key Lock.
Source Lock: Turn on/off the lock of all available sources.
Set Source: Select desired source.
Channel Number: Select desired channel.
Page 36
35
Max Volume: Set the maximum volume.
Default Volume: Set the default volume.
Clear Lock: Clear above setti ngs.
DataBase Export: Export database to other devices.
DataBase Import: Import database from other devices.
4.2 Language
- Press OK or RIGHT nav igat ion butto n to ent er sub menu. T hen select preferred OSD menu
language, subtitle language, audio language, and DTV/ATV TELETEXT language using
navigation buttons.

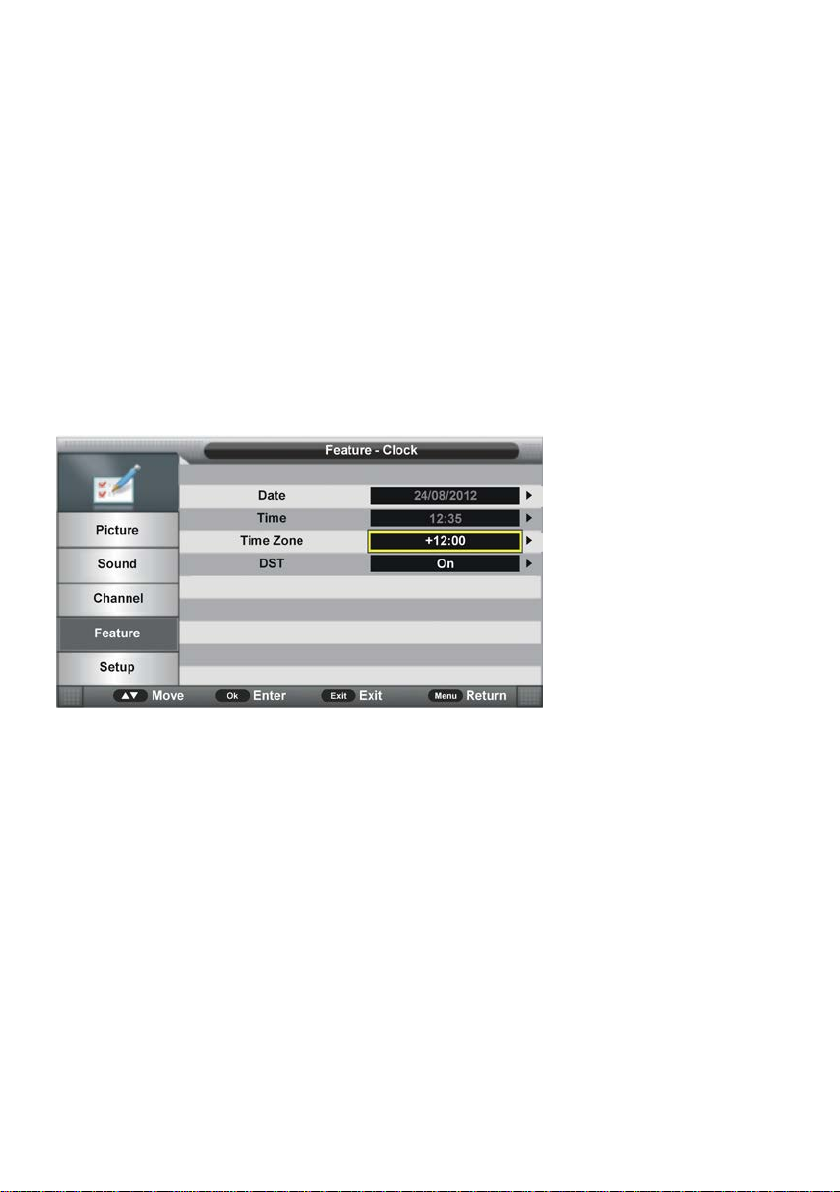

4.3 Clock
- Press OK or RIGHT navigation button to enter submenu.
- Press UP/DOWN navigation button to select prefe rr ed ite m.
4.31 Date
When auto searching is done, this unit will get the date from the signal and save it
automatically.
4.32 Time
When auto searching is done, this unit will get the time from the signal and save it
automatically.
4.33 Time Zone
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
button to select preferred option.
4.34 DST (Daylight Saving Time)
This item is used to turn on/off DST function.
Page 37
36
4.4 Sleep Timer
This item is used to set the automatic sleep time in standby mode.
Available options: Off, 10 Mins, 20 Mins, 30 Mins, 60 Mins, 90 Mins, 120 Mins, 180 Mins, 240
Mins.
4.5 Auto Power Off
This item is used to set the Auto Power Off time.
Available options: Off, 1 Hour, 2 Hours, 4 Hours.
4.6 Hearing Impaired
This item is used to turn on/off Hearing Impaired function. For Hearing Impaired users, this
function can assist them to know a certain scene or action through the caption, instead of
hearing it.
NOTE: Hearing Impaired function works only when you are viewing programs that contain
related caption information.
4.7 CI Info
This item is used to display the CI information.
Page 38
37
4.8 PVR/Timeshift
- Press OK or RIGHT navigation button to enter submenu.
- Press UP/DOWN navigation button to select prefe r red ite m.
4.81 Partition Select
- Press OK or RIGHT navigation button to enter submenu.
- Press RED button to enter a dialog box and then select OK to format your USB memory
device.
- Press GREEN button to set default partition.
4.82 Auto Timeshift
This item is used to turn on/off Auto Timeshift func tion.
Page 39
38
4.83 Timeshift Buffer
This item is used to selec t desired time shift buffer duration.
Available options: Auto, 30Mins, 1hr, 2hr.

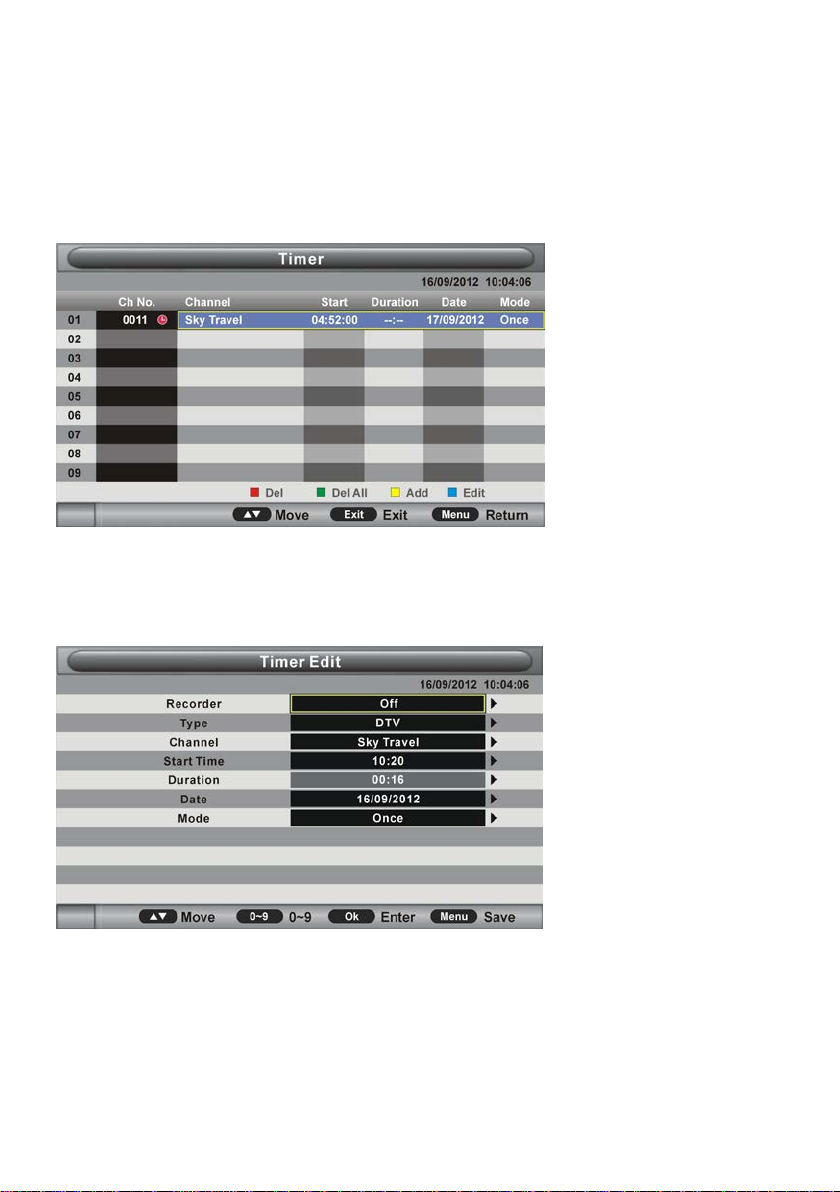

4.84 Timer
- Press OK or RIGHT navigation button to enter submenu.
- Press RED button on remote control to delete highlighted option.
- Press GREEN button on remote control to delete all .
- Press BLUE button on remote control to enter Edit page.
- Press YELLOW button on remote control to enter Add page.
Page 40
39
Recorder: Turn on/off Recorder.
Type: Select your recording type: DTV, Radio.
Channel: Select a channel you want to record.
Start Time: Set the recording start time.
Duration: Set the recording duration.
Date: Set the date of recording.
Mode: Set the recording mode.
NOTE: To change the numerical display of above items, press OK button to enter it and
then use LEFT/RIGHT navigation button to move the cursor; us e number buttons to input
your desired value and press OK button to confirm your setti ng.
4.85 Record List
- Press OK or RIGHT navigation button to enter submenu.
- Press UP/DOWN navigation button to select recorded files and press OK button to start
playback.
4.86 Recorder Start
This item is used to start recording when watching an available digital program.
NOTE: Before recording, insert your USB memory device into USB slot first.
Page 41
40
5. Setup

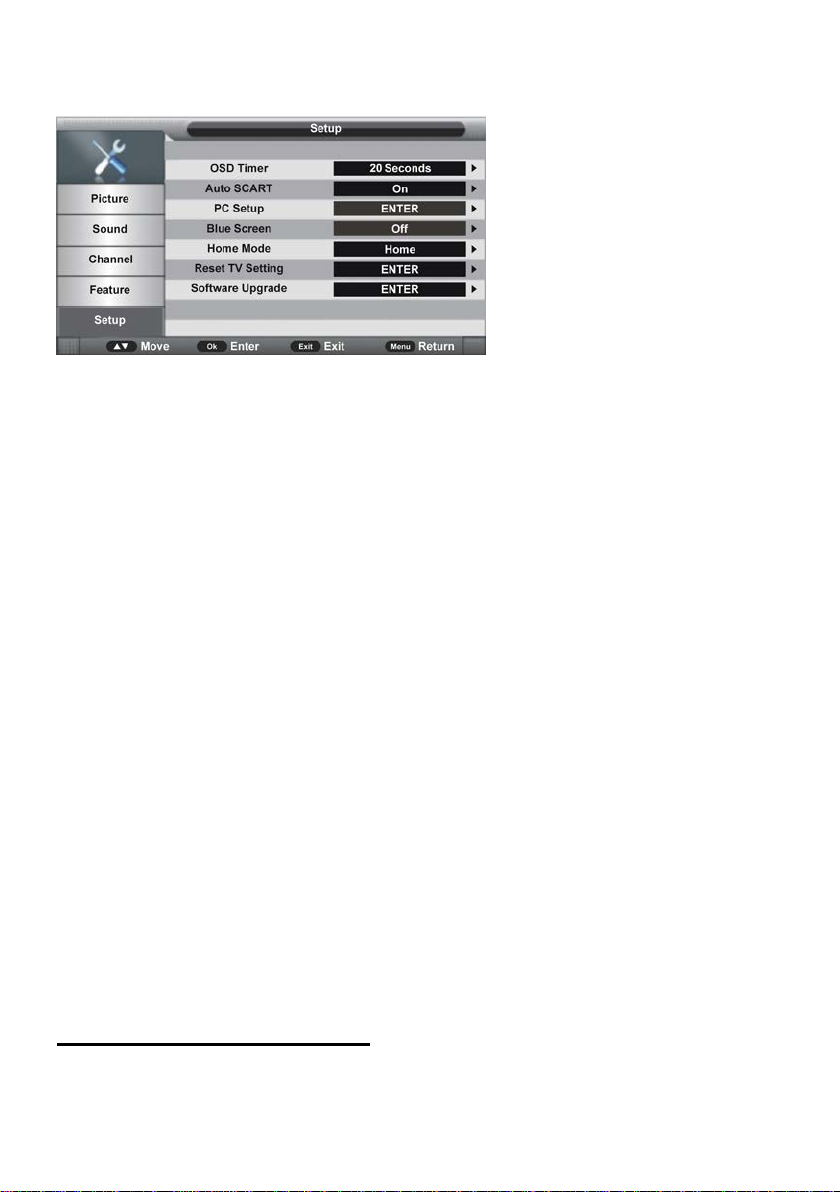

5.1 OSD Timer
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
button to select preferred option.
Available options: 5/10/15/20/25/30 Seconds and Never.
5.2 Auto SCART
This item is used to turn on/ of f Auto SCART function . If Auto SCART is on, you can v iew the
programs by SCART automatically when SCART cable is connected.
5.3 PC Setup (for PC input source only)
This item is adjustable only with PC input signal.
5.4 Blue Screen
This item is used to turn on/off blue background function. The screen background will turn
blue at very weak or no signal condition, if Blue Screen is ON.
NOTE: This item is not adjustable in DTV mode.
5.5 Home Mode
This item is used to selec t desired picture mode.
Available options: Home, Dynamic, Standard, Mild.
5.6 Reset TV Setting
This item is used to reset to factory default settings.
5.7 Software Upgrade
This item is used to upgrade the TV software through USB memory device.
ATV AND OTHER MODES
- Press SOURCE button on the unit or remote control to select desired input source.
- For these modes, please refer to the menu operations of DTV mode.
Page 42
41
PC MODE
- Connect a personal computer to this unit.
- Power on your computer and this unit.
- Press SOURCE button on the unit or remote control to select PC input source.

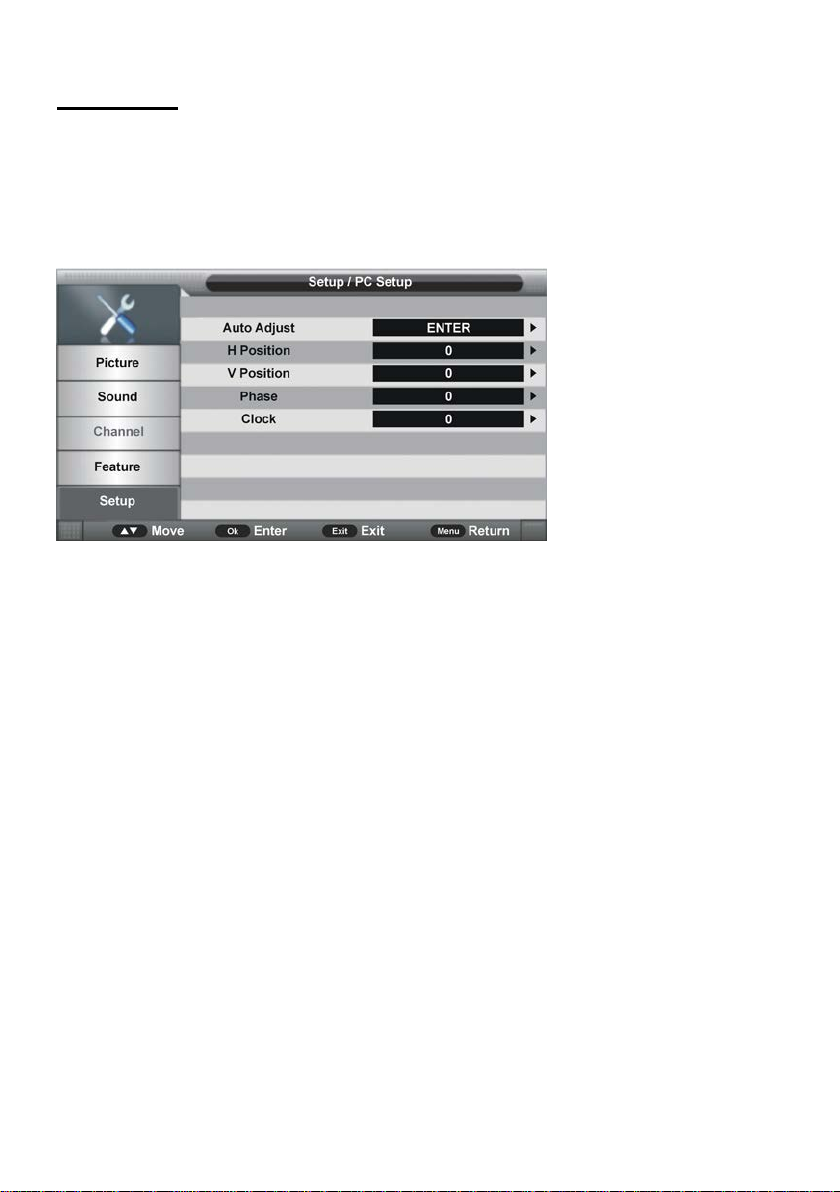

- Press MENU button to display the main menu. Select Setup using UP/DOWN navigation
button. Then press OK or RIGHT navigation button to enter submenu.
- Select PC Setup and enter it.
- Press UP/DOWN navigation button to select prefe rr ed ite m.
- Press OK or RIGHT navigation button to enter submenu. Press LEFT/RIGHT navigation
button to adjust the value.
1. Auto Adjust
This item is used to ad just the PC screen automa tically.
2. H Position
This item is used to ad just the value of horizontal position.
3. V Position
This item is used to adjus t the value of vertical position.
4. Phase
This item is used to adjust the picture apply to the TV.
5. Clock
This item is used to adjust the signals transfer speed.
NOTE: For other menus, please refer to the menu operations of DTV mode.
Page 43
42
MAINTENANCE
WALL MOUNTING
● Be sure to press POWER button to set the player to the standby mode and disconnect
the power plug before maintaining the player.
● Wipe the player with a dry, soft cloth.
● If the surface is extremely dirty, wipe clean with a clot h w hich ha s be en dipped in a weak
soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
● Never use alcohol, benzene, thinner, c leaning fluid or other chemicals. And do not use
compressed air to remove dust.
● Contact a professional for assistance when wall mounting your TV. We are not
responsible for any damage to the product or injury to yourself, if you mount the TV on your
own.
● Do not wall mount the TV while TV is turned on. It may cause personal injury due to
electric s hock.

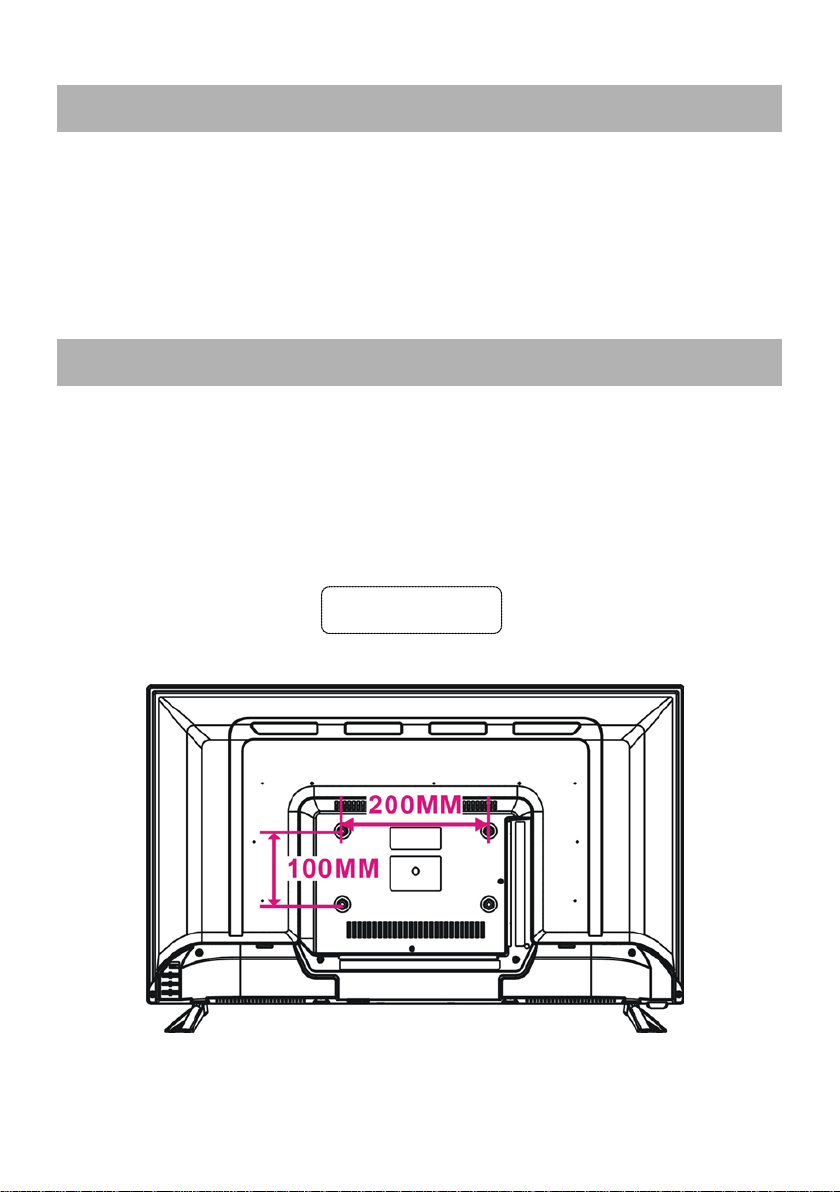

● Use standard M6*12mm screws (4 pieces) to mount this TV.
Back of your TV
Page 44
43
ST AND INSTA LLATION
Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV,
please carry out the Stand Installation accord ing to the instructions below.

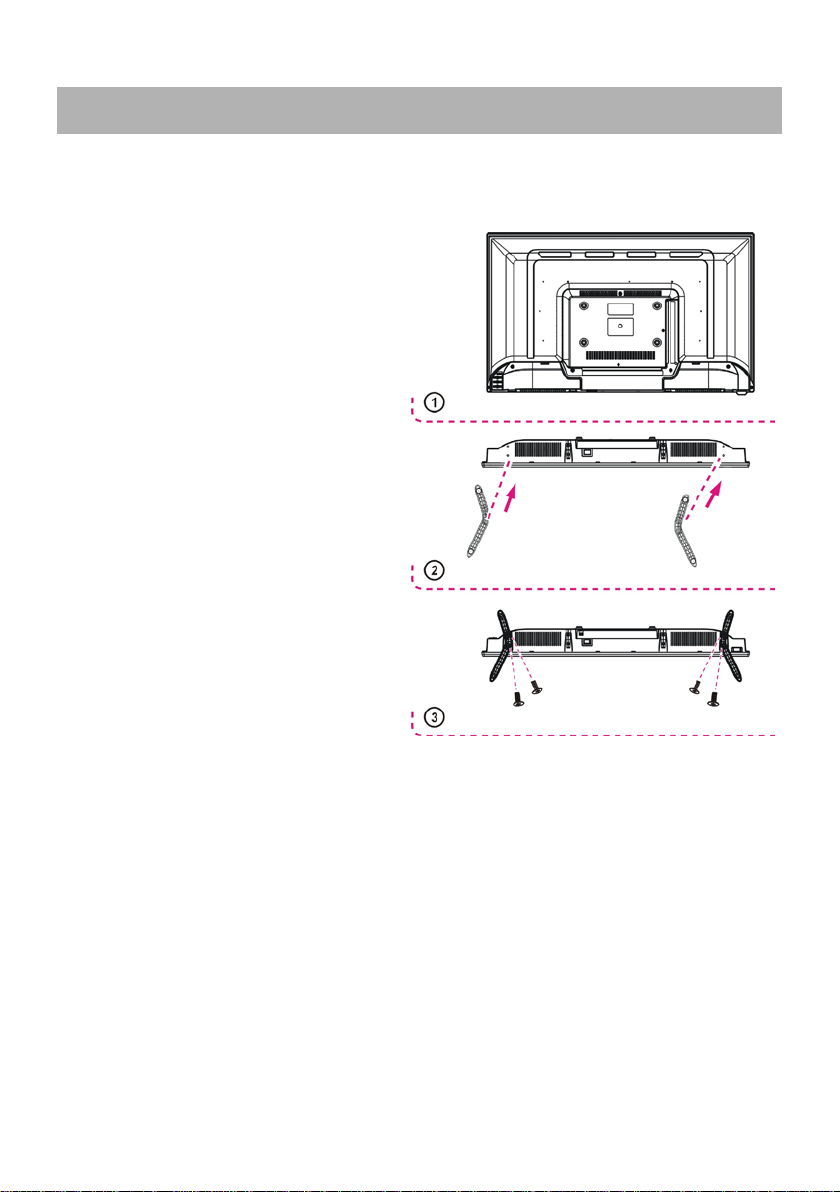

Step 1
Place the TV faced dow n on a sof t clo th or
cushion to prevent the panel from being
damaged.
Step 2
Align the Stand with TV bottom and then
force the end of stand until the TV is fully
seated on the stand.
Step 3
Tighten the included screws with a screw
driver.
NOTES:
- Unplug the power plug first when
installing or removing the TV Stand.
- Contact one or more partner for
assistance when in st al lin g or removing the
TV stand.
Page 45
44
Power Consumption
SPECIFICATIONS
Display Device
Resolution 1366×768
Display Colors 16.7M
Contrast Ratio 3500:1
Aspect Ratio 16:9
32 inch LED TV
Life Time
USB Multimedia
Playback Format
Power Source AC 100-240V, 50/60Hz
Operation Temperature
Measurement 732 (W)×200(D)×476(H) mm
Weight Approx. 4.1 kg
30,000 Hrs
Movie: AVI, MPG, MKV
Music: MP3
Photo: JPG/JPEG
Text: TXT
<60W
-5℃ to 45℃
Specifications are subject to change without notice.
Page 46
45
Symptom[COMMON]
Remedy
No power.
Insert the power plug securely into the power outlet.
No picture.
Ensure that the equipment is connected properly.
Ensure that the equipment is connected properly.
VOLUME +/- button.
remote control sensor.
No key operation (by the
effective.
Symptom[TV]
Remedy
Adjust antenna or use an external antenna.
Try another channel.
Unplug the headphone.
Electronic equipment near the unit is causing interface. Relocate
the unit or move the equipment.
GENERAL TROUBLESHOOTING
Check the following points before assuming malfunctions of this unit:
●
● No sound.
● Distorted sound.
No operations can be
performed with the
remote control unit.
● Ensure that the input setting for the TV and stereo system are
correct.
●
Adjust the master volume to a suitable volume by pressing
● Check the batteries are installed with the correct polarities.
● The batteries are exhausted: replace them with new ones.
● Point remote control at the remote control sensor and operate
it again.
● Operate the remote control unit at a distance of no more than
6m from the remote control sensor.
●
Remove the obstacles between the remote control and
main unit and/or the
remote control unit) is
No or poor picture.
No sound or poor sound.
Noise or other interface.
Disconnect the power plug and then reconnect it.(The player may
not be operating properly due to lightning, static electricity or
some other factors.)
●
● Relocate the unit near a window (if inside a building).
● Move units away from this product that causes interference.
● Do Auto Tuning again.
●
● Check the audio settings.
● Press MUTE button on remote control to cancel mute
function.
●
Page 47
Product Fiche
Commercial Brand: LINSAR
Product No.
Model No.
Energy eciency class
Visible screen size
(diagonal, approx.) (inch/cm)
On mode average power
consumpon (Wa)
Annual energy consumpon
(kWh/annum)
Standby power consumpon
(Wa)
O mode power consumpon
(Wa)
Display resoluon (px)
32”HD LED TV
DG-320H / D-320H-S-0516
A
32inch
33
48
<0.5
1366 x 768
81.0cm
0
Page 48
32” Widescreen LED TV
SAORVIEW
MODEL NO.: DGTEC D-320H-S-0516
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.
Loading...
