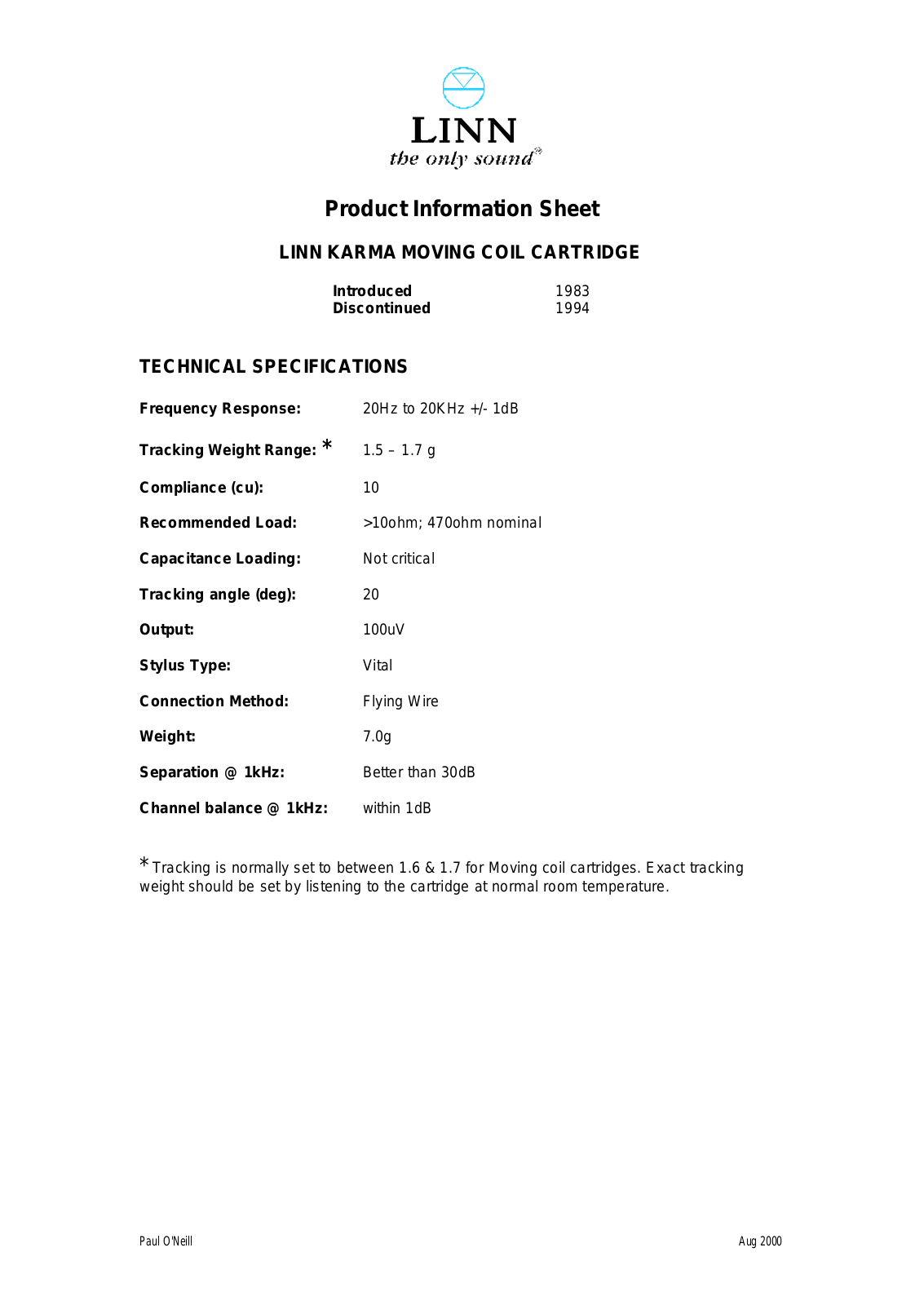

Product Information Sheet
LINN KARMA MOVING COIL CARTRIDGE
Introduced |
1983 |
Discontinued |
1994 |
TECHNICAL SPECIFICATIONS
Frequency Response: |
20Hz to 20KHz +/- 1dB |
Tracking Weight Range: * |
1.5 – 1.7 g |
Compliance (cu): |
10 |
Recommended Load: |
>10ohm; 470ohm nominal |
Capacitance Loading: |
Not critical |
Tracking angle (deg): |
20 |
Output: |
100uV |
Stylus Type: |
Vital |
Connection Method: |
Flying Wire |
Weight: |
7.0g |
Separation @ 1kHz: |
Better than 30dB |
Channel balance @ 1kHz: |
within 1dB |
* Tracking is normally set to between 1.6 & 1.7 for Moving coil cartridges. Exact tracking weight should be set by listening to the cartridge at normal room temperature.
Paul O'Neill |
Aug 2000 |
