LINKSYS WRT54GV81 Users Manual

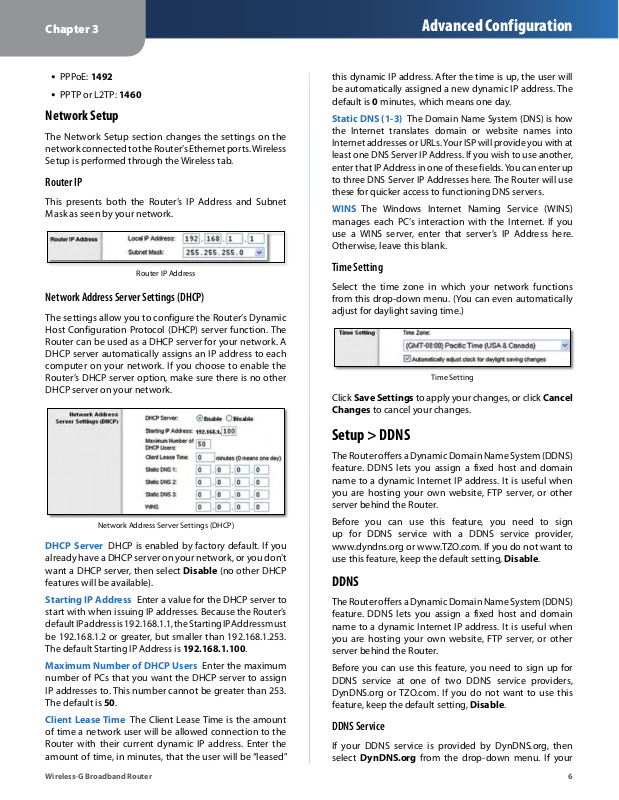

Chapter 3

Advanced Configuration

• PPPoE: 1492

• PPTP or L2TP: 1460

Network Setup

The Network Setup section changes the settings on the
network connected to the Router’s Ethernet ports. Wireless
Setup is performed through the Wireless tab.

Router IP

This presents both the Router’s IP Address and Subnet
Mask as seen by your network.

Router IP Address

Network Address Server Settings (DHCP)

The settings allow you to configure the Router’s Dynamic
Host Configuration Protocol (DHCP) server function. The
Router can be used as a DHCP server for your network. A
DHCP server automatically assigns an IP address to each
computer on your network. If you choose to enable the
Router’s DHCP server option, make sure there is no other
DHCP server on your network.

this dynamic IP address. After the time is up, the user will
be automatically assigned a new dynamic IP address. The
default is 0 minutes, which means one day.

Static DNS (1-3)

the Internet translates domain or website names into
Internet addresses or URLs. Your ISP will provide you with at
least one DNS Server IP Address. If you wish to use another,
enter that IP Address in one of these fields. You can enter up
to three DNS Server IP Addresses here. The Router will use
these for quicker access to functioning DNS servers

WINS The Windows Internet Naming Service (WINS)

manages each PC’s interaction with the Internet. If you
use a WINS server, enter that server’s IP Address here.
Otherwise, leave this blank.

The Domain Name System (DNS) is how

.

Time Setting

Select the time zone in which your network functions
from this drop-down menu. (You can even automatically
adjust for daylight saving time.)

Time Setting

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Network Address Server Settings (DHCP)

DHCP Server DHCP is enabled by factory default. If you

already have a DHCP server on your network, or you don’t
want a DHCP server, then select Disable (no other DHCP
features will be available).

Starting IP Address Enter a value for the DHCP server to

start with when is
default IP address is 192.168.1.1, the Starting IP Address must
be 192.168.1.2 or greater, but smaller than 192.168.1.253.
The default Starting IP Address is 192.168.1.100

Maximum Number of DHCP Users Enter the maximum

number of PCs that you want the DHCP server to assign
IP addresses to. This number cannot be greater than 253.
The default is 50.

Client Lease Time The Client Lease Time is the amount

of time a network user will be allowed connection to the
Router with their current dynamic IP address. Enter the
amount of time, in minutes, that the user will be “leased”

suing IP addresses. Because the Router’s

.

Setup > DDNS

The Router offers a Dynamic Domain Name System (DDNS)
feature. DDNS lets you assign a fixed host and domain
name to a dynamic Internet IP address. It is useful when
you are hosting your own website, FTP server, or other
server behind the Router.

Before you can use this feature, you need to sign
up for DDNS service with a DDNS service provider,
www.dyndns.org or www.TZO.com. If you do not want to
use this feature, keep the default setting, Disable.

DDNS

The Router offers a Dynamic Domain Name System (DDNS)
feature. DDNS lets you assign a fixed host and domain
name to a dynamic Internet IP address. It is useful when
you are hosting your own website, FTP server, or other
server behind the Router.

Before you can use this feature, you need to sign up for
DDNS service at one of two DDNS service providers,
DynDNS.org or TZO.com. If you do not want to use this
feature, keep the default setting, Disable.

DDNS Service

If your DDNS service is provided by DynDNS.org, then
select DynDNS.org from the drop-down menu. If your

Wireless-G Broadband Router

6

Chapter 3

Advanced Configuration

DDNS service is provided by TZO, then select TZO.com.
The features available on the DDNS screen will vary,
depending on which DDNS service provider you use.

DynDNS.org

Setup > DDNS > DynDNS

User Name Enter the User Name for your DDNS account.

Password Enter the Password for your DDNS account.

Host Name The is the DDNS URL assigned by the DDNS

service.

Internet IP Address The Router’s Internet IP address is

displayed here. Because it is dynamic, it will change.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Setup > MAC Address Clone

A MAC address is a 12-digit code assigned to a unique
piece of hardware for identification. Some ISPs will require
you to register a MAC address in order to access the
Internet. If you do not wish to re-register the MAC address
with your ISP, you may assign the MAC address you have
currently registered with your ISP to the Router with the
MAC Address Clone feature.

Setup > MAC Address Clone

Status The status of the DDNS service connection is

displayed here.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

TZO.com

Setup > DDNS > TZ O

E-mail Address, TZO Key, and Domain Name Enter the

settings of the account you set up with TZO.

MAC Address Clone

Enable/Disable To have the MAC Address cloned, select

Enable.

User Defined Entry Enter the MAC Address registered

with your ISP here.

Clone Your PC’s MAC Clicking this button will clone the

MAC address of the computer you are using.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Setup > Advanced Routing

This screen is used to set up the Router’s advanced routing
functions. NAT routes the host Router ‘s network connection
to the Internet. Dynamic Routing automatically adjusts
how packets travel on your network. Static Routing sets
up a fixed route to another network destination.

Internet IP Address The Router’s Internet IP address is

displayed here. Because it is dynamic, it will change.

Status The status of the DDNS service connection is

displayed here.

Wireless-G Broadband Router

7

Chapter 3

Setup > Advanced Routing (Gateway)

Advanced Configuration

the Internet. Finally, selecting Both enables dynamic
routing for both networks, as well as data from the
Internet.

Select set number To set up a static route between the

Router and another network, select a number from the
Static Routing drop-down list. (A static route is a pre­determined pathway that network information must travel
to reach a specific host or network.) Enter the information
described below to set up a new static route. (Click the
Delete This Entry button to delete a static route.)

Enter Route Name Enter a name for the Route here,

using a maximum of 25 alphanumeric characters.

Destination LAN IP The Destination LAN IP is the address

of the remote network or host to which you want to assign
a static route.

Subnet Mask The Subnet Mask determines which

portion of a Destination LAN IP address is the network
portion, and which portion is the host portion.

Setup > Advanced Routing (Router )

Advanced Routing

Operating Mode Select the mode in which this Router

will function. If this Router is hosting your network’s
connection to the Internet, select Gateway. If another
Router exists on your network, select Router. When
Router is chosen, Dynamic Routing will be available as
an option.

Dynamic Routing

Default Gateway This is the IP address of the gateway

device that allows for contact between the Router and the
remote network or host.

Interface This interface tells you whether the Destination

IP Address is on the LAN & Wireless (Ethernet and wireless
networks) or the WAN (Internet).

Delete This Entry To delete a route, select its number

from the drop-down menu, and click this button.

Show Routing Table Click Show Routing Table to open

a screen displaying how data is routed through your local
network. For each route, the Destination LAN IP address,
Subnet Mask, Gateway, and Interface are displayed. Click
Refresh to update the information. Click Close to exit this
screen.

Routing Table

Click Save Settings to apply your changes, or click Cancel

Changes to cancel your changes.

RIP This feature enables the Router to automatically

adjust to physical changes in the network’s layout and
exchange routing tables with the other router(s). The
Router determines the network packets’ route based on
the fewest number of hops between the source and the
destination. This feature is Disabled by default. From the
drop-down menu, you can also select LAN & Wireless,
which performs dynamic routing over your Ethernet and
wireless networks. You can also select WAN (Internet),
which performs dynamic routing with data coming from

Wireless-G Broadband Router

Wireless > Basic Wireless Settings

The basic settings for wireless networking are set on this
screen.

8

Chapter 3

Wireless Network

Basic Wireless Settings

Advanced Configuration

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Wireless > Wireless Security

The Wireless Security settings configure the security of
your wireless network. There are six wireless security
mode options supported by the Router: WPA Personal,
WPA Enterprise, WPA2 Personal, WPA2 Enterprise, RADIUS,
and WEP. (WPA stands for Wi-Fi Protected Access, which is
a security standard stronger than WEP encryption. WPA2
is a more advanced, more secure version of WPA. WEP
stands for Wired Equivalent Privacy, and RADIUS stands
for Remote Authentication Dial-In User Service.) These
six are briefly discussed here. For detailed instructions
on configuring wireless security for the Router, refer to
“Chapter 2: Wireless Security.”

The basic settings for wireless networking are set on this
screen.

Wireless Network Mode From this drop-down menu,

you can select the wireless standards running on your
network. If you have both 802.11g and 802.11b devices
in your network, keep the default setting, Mixed. If you
have only 802.11g devices, select G-Only. If you have
only 802.11b devices, select B-Only. If you do not have
any 802.11g and 802.11b devices in your network, select

Disable.

Wireless Network Name (SSID) The SSID is the network

name shared among all devices in a wireless network.
The SSID must be identical for all devices in the wireless
network. It is case-sensitive and must not exceed 32
characters (use any of the characters on the keyboard).
Make sure this setting is the same for all devices in your
wireless network. For added security, you should change
the default SSID (linksys) to a unique name.

Wireless Channel channel from the list

provided to correspond with your network settings. All
devices in your wireless network must be broadcast on
the same channel in order to function correctly.

Wireless SSID Broadcast When wireless clients survey

the local area for wireless networks to associate with, they
will detect the SSID broadcast by the Router. To broadcast
the Router’s SSID, keep the default setting, Enable. If you
do not want to broadcast the Router’s SSID, then select

Disable.

SecureEasySetup If you did not utilize this network

connection feature during the Setup Wizard, you may use
it here by clicking the green logo. When you are prompted
to start the push button setup, click OK.

Reset Security Use this button to reset the security

settings on your network. You will need to run
SecureEasySetup again on each device on your network
to re-associate it to your network.

Wireless Security

Security Mode

Select the security method for your wireless network. If
you do not want to use wireless security, keep the default,
Disabled.

WPA Personal

NOTE: If you are using WPA, always remember

that each device in your wireless network MUST
use the same WPA method and shared key, or
else the network will not function properly.

Security Mode > WPA Personal

WPA Algorithm WPA supports two encryption methods,

TKIP and AES, with dynamic encryption keys. Select
the type of algorithm, TKIP or AES. (AES is a stronger
encryption method than TKIP.)

WPA Shared Key Enter the key shared by the Router and

your other network devices. It must have 8-63 characters.

Group Key Renewal Enter a Key Renewal period, which

tells the Router how often it should change the encryption

Wireless-G Broadband Router

9

Chapter 3

Advanced Configuration

keys. The default Group Key Renewal period is 3600
seconds.

WPA Enterprise

This option features WPA used in coordination with a
RADIUS server. (This should only be used when a RADIUS
server is connected to the Router.)

Security Mode > WPA Enterprise

WPA Algorithm WPA supports two encryption m ethods,

TKIP and AES, with dynamic encryption keys. Select
the type of algorithm, TKIP or AES. (AES is a stronger
encryption method than TKIP.)

Select the type of algorithm, AES, or TKIP + AES. The
default selection is AES.

WPA Shared Key Enter a WPA Shared Key of 8-63

characters.

Group Key Renewal Enter a Group Key Renewal period,

which instructs the Router how often it should change the
encryption keys. The default Group Key Renewal period is
3600 seconds.

WPA2 Enterprise

This option features WPA2 used in coordination with a
RADIUS server. (This should only be used when a RADIUS
server is connected to the Router.)

RADIUS Server Address Enter the IP Address of the

RADIUS server.

RADIUS Port Enter the port number of the RADIUS

server. The default value is 1812.

Shared Key Enter the key shared between the Router

and the server.

Key Renewal Timeout Enter a Key Renewal Timeout

period, which instructs the Router how often it should
change the encryption keys. The default Key Renewal
Timeout period is 3600 seconds.

WPA2 Personal

Security Mode > WPA2 Personal

WPA Algorithm WPA2 supports two encryption

methods, TKIP and AES, with dynamic encryption keys.

Security Mode > WPA2 Enterprise

WPA Algorithm WPA2 supports two encryption

methods, TKIP and AES, with dynamic encryption keys.
Select the type of algorithm, AES, or TKIP + AES. The
default selection is AES

RADIUS Server Address Enter the IP Address of the

RADIUS server.

RADIUS Port Enter the port number of the RADIUS

server. The default value is 1812.

Shared Key Enter the key shared between the Router

and the server.

Key Renewal Timeout Enter a Key Renewal Timeout

period, which instructs the Router how often it should
change the encryption keys. The default Key Renewal
Timeout period is 3600 seconds.

RADIUS

This option features WEP used in coordination with a
RADIUS server. (This should only be used when a RADIUS
server is connected to the Router.)

Wireless-G Broadband Router

10

Chapter 3

Advanced Configuration

Security Mode > WEP

Security Mode > RADIUS

IMPORTANT: If you are using WEP encryption,

always remember that each device in your
wireless network MUST use the same WEP
encryption method and encryption key, or else
your wireless network will not function properly.

RADIUS Server Address Enter the IP Address of the

RADIUS server.

RADIUS Port Enter the port number of the RADIUS

server. The default value is 1812.

Shared Key Enter the key shared between the Router

and the server.

Default Transmit Key Select a Default Transmit Key

(choose which Key to use). The default is 1.

WEP Encryption Select a level of WEP encryption,

64 bits 10 hex digits or 128 bits 26 hex digits. The
default is 64 bits 10 hex digits.

Passphrase Enter a Passphrase to automatically generate

WEP keys. Then click Generate.

Key 1-4 If you did not enter a Passphrase, enter the WEP

key(s) manually.

Default Transmit Key Select a Default Transmit Key

(choose which Key to use). The default is 1.

WEP Encryption Select a level of WEP encryption, 64 bits

10 hex digits or 128 bits 26 hex digits. The default is
64 bits 10 hex digits.

Passphrase Enter a Passphrase to automatically generate

WEP keys. Then click Generate.

Key 1-4 If you did not enter a Passphrase, enter the WEP

key(s) manually.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Wireless > Wireless MAC Filter

Wireless access can be filtered by using the MAC addresses of
the wireless devices transmitting within your network’s radius.

WEP

WEP is a basic encryption method, which is not as secure
as WPA.

Wireless-G Broadband Router

Wireless > Wireless MAC Filter

Wireless MAC Filter

Wireless MAC Filter

either permitting or blocking access, click Enable. If you do
not wish to filter users by MAC Address, keep the default
setting, Disable

Prevent Select this to block wireless access by MAC

Address. This button is selected by default.

To filter wireless users by MAC Address,

.

11

Chapter 3

Advanced Configuration

Permit Only Select this to allow wireless access by MAC

Address. This button is not selected by default.

Edit MAC Filter List

Filter List screen. On this screen, you can list users, by MAC
Address, to whom you wish to provide or block access. For
easy reference, click Wireless Client MAC List to display a list
of network users by MAC Address

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Click this to open the MAC Address

.

MAC Address Filter List

Advanced Wireless

Authentication Type The default is set to Auto, which

allows either Open System or Shared Key authentication
to be used. With Open System authentication, the sender
and the recipient do NOT use a WEP key for authentication.
With Shared Key authentication, the sender and recipient
use a WEP key for authentication.

Basic Rate The Basic Rate setting is not actually one rate

of transmission but a series of rates at which the Router
can transmit. The Router will advertise its Basic Rate to the
other wireless devices in your network, so they know which
rates will be used. The Router will also advertise that it will
automatically select the best rate for transmission. The
default setting is Default, when the Router can transmit
at all standard wireless rates (1-2Mbps, 5.5Mbps, 11Mbps,
18Mbps, and 24Mbps). Other options are 1-2Mbps, for
use with older wireless technology, and All, when the
Router can transmit at all wireless rates. The Basic Rate
is not the actual rate of data transmission. If you want to
specify the Router’s rate of data transmission, configure
the Transmission Rate setting.

Transmission Rate The rate of data transmission should

be set depending on the speed of your wireless network.
You can select from a range of transmission speeds, or you
can select Auto to have the Router automatically use the
fastest possible data rate and enable the Auto-Fallback
feature. Auto-Fallback will negotiate the best possible
connection speed between the Router and a wireless
client. The default value is Auto.

Wireless > Advanced Wireless Settings

This Wireless > Advanced Wireless Settings screen is used
to set up the Router’s advanced wireless functions. These
settings should only be adjusted by an expert administrator
as incorrect settings can reduce wireless performance.

Wireless > Advanced Wireless Settings

CTS Protection Mode CTS (Clear-To-Send) Protection

Mode should remain disabled unless you are having severe
problems with your Wireless-G products not being able
to transmit to the Router in an environment with heavy

802.11b traffic. This function boosts the Router’s ability
to catch all Wireless-G transmissions but will severely
decrease performance.

Frame Burst Enabling this option should provide your

network with greater performance, depending on the
manufacturer of your wireless products. To turn on the
Frame Burst option, select Enable. The default is Disable.

Beacon Interval The default value is 100. Enter a value

between 1 and 65,535 milliseconds. The Beacon Interval
value indicates the frequency interval of the beacon. A
beacon is a packet broadcast by the Router to synchronize
the wireless network.

DTIM Interval This value, between 1 and 255, indicates

the interval of the Delivery Traffic Indication Message
(DTIM). A DTIM field is a countdown field informing
clients of the next window for listening to broadcast
and multicast messages. When the Router has buffered
broadcast or multicast messages for associated clients, it
sends the next DTIM with a DTIM Interval value. Its clients

Wireless-G Broadband Router

12

Chapter 3

Advanced Configuration

hear the beacons and awaken to receive the broadcast
and multicast messages. The default value is 1.

Fragmentation Threshold This value specifies the

maximum size for a packet before data is fragmented
into multiple packets. If you experience a high packet
error rate, you may slightly increase the Fragmentation
Threshold. Setting the Fragmentation Threshold too low
may result in poor network performance. Only minor
reduction of the default value is recommended. In most
cases, it should remain at its default value of 2346.

RTS Threshold Should you encounter inconsistent data

flow, only minor reduction of the default value, 2347, is
recommended. If a network packet is smaller than the
preset RTS threshold size, the RTS/CTS mechanism will
not be enabled. The Router sends Request to Send (RTS)
frames to a particular receiving station and negotiates
the sending of a data frame. After receiving an RTS, the
wireless station responds with a Clear to Send (CTS) frame
to acknowledge the right to begin transmission. The RTS
Threshold value should remain at its default value of

2347.

AP Isolation This isolates all wireless clients and wireless

devices on your network from each other. Wireless devices
will be able to communicate with the Router but not with
each other. To use this function, select On. AP Isolation is
turned Off by default.

SecureEasySetup This feature allows you to enable or

disable the SecureEasySetup feature. Select Disabled to
disable the feature and turn off the button’s light. The
feature is Enabled by default.

Firewall

Firewall Protection To use firewall protection, keep the

default selection, Enable. To turn off firewall protection,
select Disable.

Block WAN Requests

Block Anonymous Internet Requests This feature

makes it more difficult for outside users to work their
way into your network. This feature is selected by default.
Deselect the feature to allow anonymous Internet
requests

Filter Multicast Multicasting allows for multiple

transmissions to specific recipients at the same time. If
multicasting is permitted, then the Router will allow IP
multicast packets to be forwarded to the appropriate
computers. This feature is selected by default. Deselect
this feature to disable it.

Filter Internet NAT Redirection This feature uses

port forwarding to block access to local servers from
local networked computers. Select Filter Internet NAT
Redirection to filter Internet NAT redirection. This feature
is not selected by default.

Filter IDENT (Port 113) This feature keeps port 113 from

being scanned by devices outside of your local network.
This feature is selected by default. Deselect this feature to
disable it.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Security > Firewall

The Security > Firewall screen is used to configure a firewall
that can filter out various types of unwanted traffic on the
Router’s local network.

Security > Firewall

Security > VPN Passthrough

The Security > VPN Passthrough screen allows you to enable
VPN tunnels using IPSec, PPTP, or L2TP protocols to pass
through the Router’s firewall.

Security > VPN Passthrough

VPN Passthrough

IPSec Passthrough Internet Protocol Security (IPSec) is

a suite of protocols used to implement secure exchange
of packets at the IP layer. To allow IPSec tunnels to pass
through the Router, keep the default, Enable.

Wireless-G Broadband Router

13

Chapter 3

PPTP Passthrough Point-to-Point Tunneling Protocol

(PPTP) allows the Point-to-Point Protocol (PPP) to be
tunneled through an IP network. To allow PPTP tunnels to
pass through the Router, keep the default, Enable.

L2TP Passthrough Layer 2 Tunneling Protocol is the

method used to enable Point-to-Point sessions via the
Internet on the Layer 2 level. To allow L2TP tunnels to pass
through the Router, keep the default, Enable.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Advanced Configuration

Internet Policy Summary

Status Policies are disabled by default. To enable a policy,

select the policy number from the drop-down menu, and
select Enable.

Access Restrictions > Internet Access

The Access Restrictions > Internet Access screen allows you
to block or allow specific kinds of Internet usage and
traffic, such as Internet access, designated services, and
websites during specific days and times.

To create an Internet Access policy:

1. Select a number from the Internet Access Policy drop­down menu.

2. To enable this policy, select Enable.

3. Enter a Policy Name in the field provided.

4.

Click Edit List of PCs to select which PCs will be affected
by the policy. The List of PCs screen appears. You can
select a PC by MAC Address or IP Address. You can also
enter a range of IP Addresses if you want this policy
to affect a group of PCs. After making your changes,
click Save Settings to apply your changes or Cancel
Changes to cancel your changes. Then click Close.

Access Restrictions > Internet Access

Internet Access

Internet Access Policy Access can be managed by a

policy. Use the settings on this screen to establish an
access policy (after Save Settings is clicked). Selecting a
policy from the drop-down menu will display that policy’s
settings. To delete a policy, select that policy’s number
and click Delete. To view all the policies, click Summary.
(Policies can be deleted from the Summary screen by
selecting the policy or policies and clicking Delete. To
return to the Internet Access tab, click Close.)

Wireless-G Broadband Router

List of PCs

5. Select the appropriate option, Deny or Allow,
depending on whether you want to block or allow
Internet access for the PCs you listed on the List of PCs
screen.

6. Decide which days and what times you want this policy
to be enforced. Select the individual days during which
the policy will be in effect, or select Everyday. Then
enter a range of hours and minutes during which the
policy will be in effect, or select 24 Hours.

7. Select any Blocked Services or Website Blocking you
wish to use.

8. Click Save Settings to save the policy’s settings, or
click Cancel Changes to cancel the policy’s settings.

14

Chapter 3

Advanced Configuration

Blocked Services

You can filter access to various services accessed over the
Internet, such as FTP or telnet, by selecting services from
the drop-down menus next to Blocked Services. (You can
block up to 20 services.) Then enter the range of ports you
want to filter.

If the service you want to block is not listed or you want to
edit a service’s settings, then click Add/Edit Service. Then
the Port Services screen will appear.

Port Services

To add a service, enter the service’s name in the Service
Name field. Select its protocol from the Protocol drop­down menu, and enter its range in the Port Range fields.
Then click Add.

To modify a service, select it from the list on the right.
Change its name, protocol setting, or port range. Then
click Modify.

To delete a service, select it from the list on the right. Then
click Delete.

When you are finished making changes on the Port
Services screen, click Apply to save the changes. If you
want to cancel your changes, click Cancel. To close the
Port Services screen and return to the Access Restrictions
screen, click Close.

Website Blocking by URL Address

If you want to block websites with specific URL addresses,
enter each URL in a separate field next to Website Blocking
by URL Address.

Website Blocking by Keyword

If you want to block websites using specific keywords,
enter each keyword in a separate field next to Website
Blocking by Keyword.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Applications and Gaming > Port Range

any applications that use Internet access to perform functions
such as videoconferencing or online gaming. Some Internet
applications may not require any forwarding.)

Applications and Gaming > Port Range Forward

Port Range Forward

To forward a port, enter the information on each line for
the criteria required.

Application In this field, enter the name you wish to give

the application. Each name can be up to 12 characters.

Start/End This is the port range. Enter the number that

starts the port range in the Start column and the number
that ends the range in the End column.

Protocol Select the protocol used for this application,

either TCP or UDP, or Both.

IP Address For each application, enter the IP Address of

the PC running the specific application.

Enable Select Enable to enable port forwarding for the

relevant application.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Applications & Gaming > Port Triggering

The Applications & Gaming > Port Triggering screen allows
the Router to watch outgoing data for specific port
numbers. The IP address of the computer that sends the
matching data is remembered by the Router, so that when
the requested data returns through the Router, the data is
pulled back to the proper computer by way of IP address
and port mapping rules.

Forward

The Applications & Gaming > Port Range Forward screen
allows you to set up public services on your network, such as
web servers, ftp servers, e-mail servers, or other specialized
Internet applications. (Specialized Internet applications are

Wireless-G Broadband Router

15

Chapter 3

Applications and Gaming > Port Triggering

Port Triggering

Application Enter the application name of the trigger.

Triggered Range

For each application, list the triggered port number range.
Check with the Internet application documentation for
the port number(s) needed.

Start Port Enter the starting port number of the Triggered

Range.

Advanced Configuration

while DMZ hosting opens all the ports of one computer,
exposing the computer to the Internet.

Applications and Gaming > DMZ

DMZ

Any PC whose port is being forwarded must have its DHCP
client function disabled and should have a new static IP
address assigned to it because its IP address may change
when using the DHCP function.

To expose one PC, select Enable. Then, enter the
computer’s IP address in the DMZ Host IP Address field. This
feature is disabled by default.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Applications and Gaming > QoS

End Port Enter the ending port number of the Triggered

Range.

Forwarded Range

For each application, list the forwarded port number
range. Check with the Internet application documentation
for the port number(s) needed.

Start Port Enter the starting port number of the

Forwarded Range.

End Port Enter the ending port number of the Forwarded

Range.

Enable Select Enable to enable port triggering for the

applicable application.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Applications and Gaming > DMZ

The DMZ feature allows one network computer to be
exposed to the Internet for use of a special-purpose
service such as Internet gaming or videoconferencing.
DMZ hosting forwards all the ports at the same time to
one PC. The Port Range Forward feature is more secure
because it only opens the ports you want to have opened,

Quality of Service (QoS) ensures better service to
high-priority types of network traffic, which may
involve demanding, real-time applications, such as
videoconferencing.

There are three types of QoS available: Device Priority,
Ethernet Port Priority, and Application Priority.

QoS

Enable/Disable To enable QoS, select Enable. Otherwise,

select Disable. QoS is disabled by default.

Upstream Bandwidth Select Auto or Manual from

the drop-down menu. Manual allows you to specify the
maximum outgoing bandwidth that applications can
utilize.

Wireless-G Broadband Router

16

Chapter 3

Advanced Configuration

to have a higher priority. These games include, but are
not limited to: Counter-Strike, Half-Life, Age of Empires,
Everquest, Quake2/Quake3, and Diablo II. The default
setting is unselected.

Application Name Enter the name you wish to give the

application in the Application Name field.

Priority Select High or Low to assign priority to the

application. The default selection is Low.

Specific Port # Enter the port number for the

application.

Wireless QoS

WMM Support Wi-Fi Multimedia (WMM), formerly

known as Wireless Multimedia Extensions (WME), is
a Wi-Fi Alliance certified feature, based on the IEEE

802.11e standard. This feature provides QoS to wireless

networks. It is especially suitable for voice, music and
video applications; for example, Voice over IP (VoIP), video
streaming, and interactive gaming. If you have other
devices on your wireless network that support WMM,
select Enabled. Otherwise, keep the default, Disabled.

Applications and Gaming > QoS

Device Priority

Enter the name of your network device in the Device name
field, enter its MAC Address, and then select its priority
from the drop-down menu.

Ethernet Port Priority

Ethernet Port Priority QoS allows you to prioritize
performance for the Router’s four ports, LAN Ports 1-4. For
each port, select the priority and flow control setting.

Priority Select High or Low in the Priority column. The

Router’s four ports have been assigned low priority by
default.

Flow Control If you want the Router to control the

transmission of data between network devices, select
Enabled. To disable this feature, select Disabled. Ethernet
Port Priority QoS does not require support from your ISP
because the prioritized ports LAN ports 1-4 are in your
network. This feature is enabled by default.

No Acknowledgement This feature prevents the Router

from re-sending data if an error occurs. To use this feature,
select Enabled. Otherwise, keep the default setting,
Disabled.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Administration > Management

The Administration > Management screen allows the
network’s administrator to manage specific Router
functions for access and security.

Application Priority

Application Priority QoS manages information as it is
transmitted and received. Depending on the settings of
the QoS screen, this feature will assign information a high
or low priority for the applications that you specify.

Optimize Gaming Applications Select this to

automatically allow common game application ports

Wireless-G Broadband Router

Administration > Management

17

Chapter 3

Advanced Configuration

Router Password

Local Router Access

Router Password Enter a new Password for the Router.

Re-enter to confirm Enter the Password again to confirm.

Web Access

Access Server HTTP (HyperText Transport Protocol) is

the communications protocol used to connect to servers
on the World Wide Web. HTTPS uses SSL (Secured Socket
Layer) to encrypt data transmitted for higher security.
Select HTTP or HTTPS. The default selection is HTTP.

Wireless Access Web If you are using the Router in

a public domain where you are giving wireless access
to your guests, you can disable wireless access to the
Router’s web-based utility. You will only be able to access
the web-based utility via a wired connection if you disable
the setting. Keep the default, Enable, to enable wireless
access to the Router’s web-based utility, or select Disable
to disable wireless access to the utility.

Remote Router Access

Log

Log To disable the Log function, keep the default setting,

Disable. To monitor traffic between the network and the

Internet, select Enable.

When you wish to view the logs, click Incoming Log or
Outgoing Log, depending on which you wish to view.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Administration > Diagnostics

The diagnostic tests (Ping and Traceroute) allow you to
check the connections of your network components.

Remote Management To access the Router remotely,

from outside the network, select Enable.

Management Port Enter the port number that will be

open to outside access. You will need to enter the Router’s
password when accessing the Router this way, as usual.

Use https To require the use of HTTPS for remote access,

select this feature.

UPnP

UPnP Keep the default, Enable to enable the UPnP

feature; otherwise, select Disable.

Click Save Settings to apply your changes, or click Cancel
Changes to cancel your changes.

Administration > Log

The Router can keep logs of all traffic for your Internet
connection.

Administration > Diagnostics

Ping Test

Ping The Ping test checks the status of a connection.

Click Ping to open the Ping Test screen. Enter the address
of the PC whose connection you wish to test and how
many times you wish to test it. Then, click Ping. The Ping
Test screen will show if the test was successful. To stop the
test, click Stop. Click Clear Log to clear the screen. Click
Close to return to the Diagnostics screen.

Administration > Log

Wireless-G Broadband Router

The Ping Test

Traceroute Test

Traceroute To test the performance of a connection,

click Traceroute to open the Traceroute Test screen. Enter
the address of the PC whose connection you wish to test

18

Chapter 3

and click Traceroute. The Traceroute Test screen will show
if the test was successful. To stop the test, click Stop. Click
Clear Log to clear the screen. Click Close to return to the
Diagnostics screen.

The Traceroute Test

Advanced Configuration

Administration > Upgrade Firmware

Before upgrading the firmware, download the Router’s
firmware upgrade file from the Linksys website, www.
linksys.com. Then extract the file.

Administration > Factory Defaults

The Administration > Factory Defaults screen allows you
to restore the Router’s configuration to its factory default
settings.

Factory Defaults

Restore Factory Defaults To reset the Router’s settings

to the default values, select Yes, and then click Save
Settings. Any settings you have saved will be lost when

the default settings are restored.

Administration > Factory Defaults

Upgrade Firmware

Please select a file to upgrade Click Browse and select

the extracted firmware upgrade file. Then c
and follow the on-screen instructions.

lick Upgrade

Administration > Config Management

This screen is used to back up or restore the Router’s
configuration file.

Administration > Upgrade Firmware

The Administration > Upgrade Firmware screen allows you
to upgrade the Router’s firmware. Do not upgrade the
firmware unless you are experiencing problems with the
Router or the new firmware has a feature you want to use.

Wireless-G Broadband Router

Administration > Config Management

Backup Configuration

To back up the Router’s configuration file, click Backup.
Then follow the on-screen instructions.

Restore Configuration

Please select a file to restore Click Browse and select

the configuration file. Then click Restore.

Status > Router

The Status > Router screen displays the Router’s current
status.

19

Chapter 3

Router Information

Status > Router

Advanced Configuration

Status > Local Network

Local Network

MAC Address This is the Router’s MAC Address, as seen

on your local, Ethernet network.

IP Address This shows the Router’s IP Address, as it

appears on your local, Ethernet network.

Firmware Version This is the Router’s current firmware.

Current Time This shows the time, as you set on the

Setup tab.

MAC Address This is the Router’s MAC Address, as seen

by your ISP.

Router Name This is the specific name for the Router,

which you set on the Setup tab.

Host Name If required by your ISP, this would have been

entered on the Setup tab.

Domain Name If required by your ISP, this would have

been entered on the Setup tab.

Internet

Configuration Type

This section shows the current network information
stored in the Router. The information varies depending on
the Internet connection type selected on the Setup > Basic
Setup screen.

Click Refresh to update the on-screen information.

Subnet Mask This shows the current subnet mask being

configured for your local network.

DHCP Server If you are using the Router as a DHCP server,

that will be displayed here.

Start IP Address For the range of IP Addresses used by

devices on your local, Ethernet network, the beginning of
that range is shown here.

End IP Address For the range of IP Addresses used by

devices on your local, Ethernet network, the end of that
range is shown here.

DHCP Clients Table Clicking this button will open a

screen to show you which PCs are utilizing the Router as a
DHCP server. You can delete PCs from that list, and sever
their connections, by checking a Delete box and clicking
the Delete button.

Status > Local Network

The Status > Local Network screen displays the status of
your network.

Wireless-G Broadband Router

DHCP Clients Table

Click Refresh to update the on-screen information.

20

Chapter 3

Status > Wireless

The Status > Wireless screen displays the status of your
wireless network.

Status > Wireless

Wireless

MAC Address This is the Router’s MAC Address, as seen

on your local, wireless network.

Advanced Configuration

Mode As selected from the Wireless > Basic Wireless

Settings screen, this displays the wireless mode (Mixed, G-

Only, or Disabled) used by the network.

SSID As entered on the Wireless > Basic Wireless Settings

screen, this displays the wireless network name or SSID.

DHCP Server The status of the DHCP server function is

displayed here.

Channel As entered on the Wireless > Basic Wireless

Settings screen, this displays the channel on which your

wireless network is broadcasting.

Encryption Function As selected on the Wireless >

Wireless Security screen, this displays the status of the

Router’s wireless security.

Click Refresh to update the on-screen information.

Wireless-G Broadband Router

21

Appendix A

Troubleshooting

Appendix A:
Troubleshooting

Your computer cannot connect to the Internet.

Follow these instructions until your computer can connect
to the Internet:

• Make sure that the Router is powered on. The Power

LED should be green and not flashing.

• If the Power LED is flashing, then power off all of

your network devices, including the modem, Router,
and computers. Then power on each device in the
following order:

1. Cable or DSL modem

2. Router

3. Computer

• Check the cable connections. The computer should

be connected to one of the ports numbered 1-4 on
the Router, and the modem must be connected to the
Internet port on the Router.

The modem does not have an Ethernet port.

The modem is a dial-up modem for traditional dial-up
service. To use the Router, you need a cable/DSL modem
and high-speed Internet connection.

When you double-click the web browser, you are
prompted for a username and password. If you want to
get rid of the prompt, follow these instructions.

Launch the web browser and perform the following steps
(these steps are specific to Internet Explorer but are similar
for other browsers):

1. Select Tools > Internet Options.

2. Click the Connections tab.

3. Select Never dial a connection.

4. Click OK.

The Router does not have a coaxial port for the cable
connection.

The Router does not replace your modem. You still need
your cable modem in order to use the Router. Connect your
cable connection to the cable modem, insert the setup
CD into your computer, and then follow the on-screen
instructions.

The computer cannot connect wirelessly to the network.

Make sure the wireless network name or SSID is the same
on both the computer and the Router. If you have enabled
wireless security, then make sure the same security
method and key are used by both the computer and the
Router.

You need to modify the settings on the Router.

You cannot use the DSL service to connect manually to
the Internet.

After you have installed the Router, it will automatically
connect to your Internet Service Provider (ISP), so you no
longer need to connect manually.

The DSL telephone line does not t into the Router’s
Internet port.

The Router does not replace your modem. You still need
your DSL modem in order to use the Router. Connect
the telephone line to the DSL modem, insert the setup
CD into your computer, and then follow the on-screen
instructions.

Open the web browser (for example, Internet Explorer or
Firefox), and enter the Router’s IP address in the address
field (the default IP address is 192.168.1.1). When
prompted, leave the User name field blank and enter the
password to the Router (the default is admin). Click the
appropriate tab to change the settings.

WEB: If your questions are not addressed here,

refer to the Linksys website, www.linksys.com.

Wireless-G Broadband Router

22

Appendix B

Appendix B:
Specifications

Model WRT54G ver. 8.1
Standards IEEE 802.3, IEEE 802.3u,

IEEE 802.11g, IEEE 802.11b

Channels 11 Channels (US, Canada)

13 Channels (Europe, Japan)

Ports Internet: One 10/100 RJ-45 Port

LAN: Four 10/100 RJ-45 Switched
Ports

One Power Port
Button Reset, SecureEasySetup
Cabling Type CAT5
LEDs Power, DMZ, WLAN, LAN (1-4),

Internet, SecureEasySetup
RF Power Output 18 dBm
UPnP able/cert Able
Security Features Stateful Packet Inspection (SPI)

Firewall, Internet Policy
Wireless Security Wi-Fi Protected Access™2 (WPA2),

WEP, Wireless MAC Filtering

Specifications

Environmental

Dimensions 7.32" x 1.89" x 6.06"

(186 x 48 x 154 mm)
Weight 11.2 oz (317 g)
Power External, 12V DC, 0.5A
Certications FCC, ICES-003, CE, Wi-Fi (802.11b,

802.11g), WPA2, WMM
Operating Temp. 32 to 104ºF (0 to 40ºC)
Storage Temp. -4 to 158ºF (-20 to 70ºC)
Operating Humidity 10 to 85%, Noncondensing
Storage Humidity 5 to 90%, Noncondensing

Wireless-G Broadband Router

23

Appendix C

Warranty and Regulatory Information

Appendix C:
Warranty and Regulatory
Information

Limited Warranty

Linksys warrants to You that, for a period of one year
(the "Warranty Period"), your Linksys Product will be
substantially free of defects in materials and workmanship
under normal use. Your exclusive remedy and Linksys’
entire liability under this warranty will be for Linksys at
its option to repair or replace the Product or refund Your
purchase price less any rebates. This limited warranty
extends only to the original purchaser.

If the Product proves defective during the Warranty
Period call Linksys Technical Support in order to obtain
a Return Authorization Number, if applicable. BE SURE
TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN
CALLING. If You are requested to return the Product, mark
the Return Authorization Number clearly on the outside
of the package and include a copy of your original proof
of purchase. RETURN REQUESTS CANNOT BE PROCESSED
WITHOUT PROOF OF PURCHASE. You are responsible
for shipping defective Products to Linksys. Linksys pays
for UPS Ground shipping from Linksys back to You only.
Customers located outside of the United States of America
and Canada are responsible for all shipping and handling
charges.

TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT
WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE
OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL,
INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE
THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING
OUT OF OR RELATED TO THE USE OF OR INABILITY TO
USE THE PRODUCT (INCLUDING ANY SOFTWARE), EVEN
IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN NO EVENT WILL LINKSYS’ LIABILITY
EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT.
The foregoing limitations will apply even if any warranty or
remedy provided under this Agreement fails of its essential
purpose. Some jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to You.

Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine,
CA 92623.

ALL IMPLIED WARRANTIES AND CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED TO THE DURATION OF
THE WARRANTY PERIOD. ALL OTHER EXPRESS OR
IMPLIED CONDITIONS, REPRESENTATIONS AND
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
NON-INFRINGEMENT, ARE DISCLAIMED. Some jurisdictions
do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to You. This
warranty gives You specific legal rights, and You may also
have other rights which vary by jurisdiction.

This warranty does not apply if the Product (a) has been
altered, except by Linksys, (b) has not been installed,
operated, repaired, or maintained in accordance with
instructions supplied by Linksys, or (c) has been subjected
to abnormal physical or electrical stress, misuse,
negligence, or accident. In addition, due to the continual
development of new techniques for intruding upon and
attacking networks, Linksys does not warrant that the
Product will be free of vulnerability to intrusion or attack.

Wireless-G Broadband Router

24

Appendix C

Warranty and Regulatory Information

User Information for Consumer Products
Covered by EU Directive 2002/96/EC on
Waste Electric and Electronic Equipment
(WEEE)

This document contains important information for users
with regards to the proper disposal and recycling of
Linksys products. Consumers are required to comply with
this notice for all electronic products bearing the following
symbol:

English - Environmental Information for Customers in
the European Union

European Directive 2002/96/EC requires that the equipment
bearing this symbol on the product and/or its packaging must
not be disposed of with unsorted municipal waste. The symbol
indicates that this product should be disposed of separately
from regular household waste streams. It is your responsibility to
dispose of this and other electric and electronic equipment via
designated collection facilities appointed by the government or
local authorities. Correct disposal and recycling will help prevent
potential negative consequences to the environment and
human health. For more detailed information about the disposal
of your old equipment, please contact your local authorities,
waste disposal service, or the shop where you purchased the
product.

Български (Bulgarian) - Информация относно
опазването на околната среда за потребители в
Европейския съюз

Европейска директива 2002/96/EC изисква уредите, носещи
този символ върху изделието и/или опаковката му, да не
се изхвърля т с несортирани битови отпадъци. Символът
обозначава, че изделието трябва да се изхвърля отделно от
сметосъбирането на обикновените битови отпадъци. Ваша
е отговорността този и другите електрически и електронни
уреди да се изхвърлят в предварително определени от
държавните или общински органи специализирани пунктове
за събиране. Правилното изхвърляне и рециклиране
ще спомогнат да се предотвратят евентуални вредни за
околната среда и здравето на населението последствия. За
по-подробна информация относно изхвърлянето на вашите
стари уреди се обърнете към местните власти, службите за
сметосъбиране или магазина, от който сте закупили уреда.

Ceština (Czech) - Informace o ochraně životního
prostředí pro zákazníky v zemích Evropské unie

Evropská směrnice 2002/96/ES zakazuje, aby zařízení označené
tímto symbolem na produktu anebo na obalu bylo likvidováno
s netříděným komunálním odpadem. Tento symbol udává,
že daný produkt musí být likvidován odděleně od běžného
komunálního odpadu. Odpovídáte za likvidaci tohoto produktu
a dalších elektrických a elektronických zařízení prostřednictvím
určených sběrných míst stanovených vládou nebo místními
úřady. Správná likvidace a recyklace pomáhá předcházet
potenciálním negativním dopadům na životní prostředí a lidské
zdraví. Podrobnější informace o likvidaci starého vybavení si
laskavě vyžádejte od místních úřadů, podniku zabývajícího se
likvidací komunálních odpadů nebo obchodu, kde jste produkt
zakoupili.

Dansk (Danish) - Miljøinformation for kunder i EU

EU-direktiv 2002/96/EF kræver, at udstyr der bærer dette symbol

på produktet og/eller emballagen ikke må bortskaffes som
usorteret kommunalt affald. Symbolet betyder, at dette produkt
skal bortskaffes adskilt fra det almindelige husholdningsaffald.
Det er dit ansvar at bortskaffe dette og andet elektrisk og
elektronisk udstyr via bestemte indsamlingssteder udpeget
af staten eller de lokale myndigheder. Korrekt bortskaffelse
og genvinding vil hjælpe med til at undgå mulige skader for
miljøet og menneskers sundhed. Kontakt venligst de lokale
myndigheder, renovationstjenesten eller den butik, hvor du
har købt produktet, angående mere detaljeret information om
bortskaffelse af dit gamle udstyr.

Deutsch (German) - Umweltinformation für Kunden
innerhalb der Europäischen Union

Die Europäische Richtlinie 2002/96/EC verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit
diesem Symbol versehen ist , nicht zusammen mit unsortiertem
Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf
hin, dass das Produkt von regulärem Haushaltmüll getrennt
entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses
Gerät und andere elektrische und elektronische Geräte über
die dafür zuständigen und von der Regierung oder örtlichen
Behörden dazu bestimmten Sammelstellen zu entsorgen.
Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche
Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur
Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an
die örtlichen Behörden oder städtischen Entsorgungsdienste
oder an den Händler, bei dem Sie das Produkt erworben haben.

Wireless-G Broadband Router

26

Appendix C

Warranty and Regulatory Information

Eesti (Estonian) - Keskkonnaalane informatsioon
Euroopa Liidus asuvatele klientidele

Euroopa Liidu direktiivi 2002/96/EÜ nõuete kohaselt on
seadmeid, millel on tootel või pakendil käesolev sümbol ,
keelatud kõrvaldada koos sorteerimata olmejäätmetega. See
sümbol näitab, et toode tuleks kõrvaldada eraldi tavalistest
olmejäätmevoogudest. Olete kohustatud kõrvaldama käesoleva
ja ka muud elektri- ja elektroonikaseadmed riigi või kohalike
ametiasutuste poolt ette nähtud kogumispunktide kaudu.
Seadmete korrektne kõrvaldamine ja ringlussevõtt aitab vältida
võimalikke negatiivseid tagajärgi keskkonnale ning inimeste
tervisele. Vanade seadmete kõrvaldamise kohta täpsema
informatsiooni saamiseks võtke palun ühendust kohalike
ametiasutustega, jäätmekäitlusfirmaga või kauplusega, kust te
toote ostsite.

Español (Spanish) - Información medioambiental para
clientes de la Unión Europea

La Directiva 2002/96/CE de la UE exige que los equipos que
lleven este símbolo en el propio aparato y/o en su embalaje
no deben eliminarse junto con otros residuos urbanos no
seleccionados. El símbolo indica que el producto en cuestión
debe separarse de los residuos domésticos convencionales con
vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de
los puntos de recogida que ponen a su disposición el gobierno y
las autoridades locales. Al desechar y reciclar correctamente estos
aparatos estará contribuyendo a evitar posibles consecuencias
negativas para el medio ambiente y la salud de las personas. Si
desea obtener información más detallada sobre la eliminación
segura de su aparato usado, consulte a las autoridades locales,
al servicio de recogida y eliminación de residuos de su zona o
pregunte en la tienda donde adquirió el producto.

ξλληνικά (Greek) - Στοιχεία περιβαλλοντικής
προστασίας για πελάτες εντός της Ευρωπαϊκής
Ένωσης

Η Κοινοτική Οδηγία 2002/96/EC απαιτεί ότι ο εξοπλισμός ο οποίος
φέρει αυτό το σύμβολο στο προϊόν και/ή στη συσκευασία
του δεν πρέπει να απορρίπτεται μαζί με τα μικτά κοινοτικά
απορρίμματα. Το σύμβολο υποδεικνύει ότι αυτό το προϊόν θα
πρέπει να απορρίπτεται ξεχωριστά από τα συνήθη οικιακά
απορρίμματα. Είστε υπεύθυνος για την απόρριψη του παρόντος
και άλλου ηλεκτρικού και ηλεκτρονικού εξοπλισμού μέσω των
καθορισμένων εγκαταστάσεων συγκέντρωσης απορριμμάτων οι
οποίες παρέχονται από το κράτος ή τις αρμόδιες τοπικές αρχές.
Η σωστή απόρριψη και ανακύκλωση συμβάλλει στην πρόληψη
πιθανών αρνητικών συνεπειών για το περιβάλλον και την υγεία.
Για περισσότερες πληροφορίες σχετικά με την απόρριψη του
παλιού σας εξοπλισμού, παρακαλώ επικοινωνήστε με τις τοπικές
αρχές, τις υπηρεσίες απόρριψης ή το κατάστημα από το οποίο
αγοράσατε το προϊόν.

Français (French) - Informations environnementales
pour les clients de l’Union européenne

La directive européenne 2002/96/CE exige que l’équipement
sur lequel est apposé ce symbole sur le produit et/ou son
emballage ne soit pas jeté avec les autres ordures ménagères. Ce
symbole indique que le produit doit être éliminé dans un circuit
distinct de celui pour les déchets des ménages. Il est de votre
responsabilité de jeter ce matériel ainsi que tout autre matériel
électrique ou électronique par les moyens de collecte indiqués
par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme
ont pour but de lutter contre l’impact néfaste potentiel de ce
type de produits sur l’environnement et la santé publique. Pour
plus d’informations sur le mode d’élimination de votre ancien
équipement, veuillez prendre contact avec les pouvoirs publics
locaux, le service de traitement des déchets, ou l’endroit où vous
avez acheté le produit.

Italiano (Italian) - Informazioni relative all’ambiente
per i clienti residenti nell’Unione Europea

La direttiva europea 2002/96/EC richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o
sull’imballaggio non siano smaltite insieme ai rifiuti urbani
non differenziati. Il simbolo indica che questo prodotto non
deve essere smaltito insieme ai normali rifiuti domestici. È
responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante
le specifiche strutture di raccolta indicate dal governo o dagli
enti pubblici locali. Il corretto smaltimento ed il riciclaggio
aiuteranno a prevenire conseguenze potenzialmente negative
per l’ambiente e per la salute dell’essere umano. Per ricevere
informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli
enti pubblici di competenza, il servizio di smaltimento rifiuti o il
negozio nel quale avete acquistato il prodotto.

Latviešu valoda (Latvian) - Ekoloģiska informācija
klientiem Eiropas Savienības jurisdikcijā

Direktīvā 2002/96/EK ir prasība, ka aprīkojumu, kam pievienota
zīme uz paša izstrādājuma vai uz tā iesaiņojuma, nedrīkst
izmest nešķirotā veidā kopā ar komunālajiem atkritumiem
(tiem, ko rada vietēji iedzīvotāji un uzņēmumi). Šī zīme nozīmē
to, ka šī ierīce ir jāizmet atkritumos tā, lai tā nenonāktu kopā ar
parastiem mājsaimniecības atkritumiem. Jūsu pienākums ir šo
un citas elektriskas un elektroniskas ierīces izmest atkritumos,
izmantojot īpašus atkritumu savākšanas veidus un līdzekļus, ko
nodrošina valsts un pašvaldību iestādes. Ja izmešana atkritumos
un pārstrāde tiek veikta pareizi, tad mazinās iespējamais
kaitējums dabai un cilvēku veselībai. Sīkākas ziņas par
novecojuša aprīkojuma izmešanu atkritumos jūs varat saņemt
vietējā pašvaldībā, atkritumu savākšanas dienestā, kā arī veikalā,
kur iegādājāties šo izstrādājumu.

Wireless-G Broadband Router

27

Appendix C

Warranty and Regulatory Information

Lietuvškai (Lithuanian) - Aplinkosaugos informacija,
skirta Europos Sąjungos vartotojams

Europos direktyva 2002/96/EC numato, kad įrangos, kuri ir
kurios pakuotė yra pažymėta šiuo simboliu (įveskite simbolį),
negalima šalinti kartu su nerūšiuotomis komunalinėmis
atliekomis. Šis simbolis rodo, kad gaminį reikia šalinti atskirai
nuo bendro buitinių atliekų srauto. Jūs privalote užtikrinti, kad
ši ir kita elektros ar elektroninė įranga būtų šalinama per tam
tikras nacionalinės ar vietinės valdžios nustatytas atliekų rinkimo
sistemas. Tinkamai šalinant ir perdirbant atliekas, bus išvengta
galimos žalos aplinkai ir žmonių sveikatai. Daugiau informacijos
apie jūsų senos įrangos šalinimą gali pateikti vietinės valdžios
institucijos, atliekų šalinimo tarnybos arba parduotuvės, kuriose
įsigijote tą gaminį.

Malti (Maltese) - Informazzjoni Ambjentali għal Klijenti
fl-Unjoni Ewropea

Id-Direttiva Ewropea 2002/96/KE titlob li t-tagħmir li jkun fih is­simbolu fuq il-prodott u/jew fuq l-ippakkjar ma jistax jintrema
ma’ skart muniċipali li ma ġiex isseparat. Is-simbolu jindika
li dan il-prodott għandu jintrema separatament minn ma’ l­iskart domestiku regolari. Hija responsabbiltà tiegħek li tarmi
dan it-tagħmir u kull tagħmir ieħor ta’ l-elettriku u elettroniku
permezz ta’ faċilitajiet ta’ ġbir appuntati apposta mill-gvern jew
mill-awtoritajiet lokali. Ir-rimi b’mod korrett u r-riċiklaġġ jgħin
jipprevjeni konsegwenzi negattivi potenzjali għall-ambjent u
għas-saħħa tal-bniedem. Għal aktar informazzjoni dettaljata
dwar ir-rimi tat-tagħmir antik tiegħek, jekk jogħġbok ikkuntattja
lill-awtoritajiet lokali tiegħek, is-servizzi għar-rimi ta’ l-iskart, jew
il-ħanut minn fejn xtrajt il-prodott.

Nederlands (Dutch) - Milieu-informatie voor klanten
in de Europese Unie

De Europese Richtlijn 2002/96/EC schrijft voor dat apparatuur die
is voorzien van dit symbool op het product of de verpakking,
niet mag worden ingezameld met niet-gescheiden huishoudelijk
afval. Dit symbool geeft aan dat het product apart moet worden
ingezameld. U bent zelf verantwoordelijk voor de vernietiging
van deze en andere elektrische en elektronische apparatuur via de
daarvoor door de landelijke of plaatselijke overheid aangewezen
inzamelingskanalen. De juiste vernietiging en recycling van
deze apparatuur voorkomt mogelijke negatieve gevolgen voor
het milieu en de gezondheid. Voor meer informatie over het
vernietigen van uw oude apparatuur neemt u contact op met
de plaatselijke autoriteiten of afvalverwerkingsdienst, of met de
winkel waar u het product hebt aangeschaft.

Norsk (Norwegian) - Miljøinformasjon for kunder i EU

EU-direktiv 2002/96/EF krever at utstyr med følgende symbol

avbildet på produktet og/eller pakningen, ikke må kastes
sammen med usortert avfall. Symbolet indikerer at dette
produktet skal håndteres atskilt fra ordinær avfallsinnsamling
for husholdningsavfall. Det er ditt ansvar å kvitte deg med
dette produktet og annet elektrisk og elektronisk avfall via egne
innsamlingsordninger slik myndighetene eller kommunene
bestemmer. Korrekt avfallshåndtering og gjenvinning vil
være med på å forhindre mulige negative konsekvenser for
miljø og helse. For nærmere informasjon om håndtering av
det kasserte utstyret ditt, kan du ta kontakt med kommunen,
en innsamlingsstasjon for avfall eller butikken der du kjøpte
produktet.

Magyar (Hungarian) - Környezetvédelmi információ az
európai uniós vásárlók számára

A 2002/96/EC számú európai uniós irányelv megkívánja, hogy
azokat a termékeket, amelyeken, és/vagy amelyek csomagolásán
az alábbi címke megjelenik, tilos a többi szelektálatlan lakossági
hulladékkal együtt kidobni. A címke azt jelöli, hogy az adott
termék kidobásakor a szokványos háztartási hulladékelszállítási
rendszerektõl elkülönített eljárást kell alkalmazni. Az Ön
felelõssége, hogy ezt, és más elektromos és elektronikus
berendezéseit a kormányzati vagy a helyi hatóságok által
kijelölt gyűjtõredszereken keresztül számolja fel. A megfelelõ
hulladékfeldolgozás segít a környezetre és az emberi egészségre
potenciálisan ártalmas negatív hatások megelõzésében. Ha
elavult berendezéseinek felszámolásához további részletes
információra van szüksége, kérjük, lépjen kapcsolatba a helyi
hatóságokkal, a hulladékfeldolgozási szolgálattal, vagy azzal
üzlettel, ahol a terméket vásárolta.

Polski (Polish) - Informacja dla klientów w Unii
Europejskiej o przepisach dotyczących ochrony
środowiska

Dyrektywa Europejska 2002/96/EC wymaga, aby sprzęt
oznaczony symbolem znajdującym się na produkcie i/lub jego
opakowaniu nie był wyrzucany razem z innymi niesortowanymi
odpadami komunalnymi. Symbol ten wskazuje, że produkt
nie powinien być usuwany razem ze zwykłymi odpadami z
gospodarstw domowych. Na Państwu spoczywa obowiązek
wyrzucania tego i innych urządzeń elektrycznych oraz
elektronicznych w punktach odbioru wyznaczonych przez władze
krajowe lub lokalne. Pozbywanie się sprzętu we właściwy sposób
i jego recykling pomogą zapobiec potencjalnie negatywnym
konsekwencjom dla środowiska i zdrowia ludzkiego. W celu
uzyskania szczegółowych informacji o usuwaniu starego sprzętu,
prosimy zwrócić się do lokalnych władz, służb oczyszczania
miasta lub sklepu, w którym produkt został nabyty.

Wireless-G Broadband Router

28

Appendix C

Warranty and Regulatory Information

Português (Portuguese) - Informação ambiental para
clientes da União Europeia

A Directiva Europeia 2002/96/CE exige que o equipamento
que exibe este símbolo no produto e/ou na sua embalagem
não seja eliminado junto com os resíduos municipais não
separados. O símbolo indica que este produto deve ser
eliminado separadamente dos resíduos domésticos regulares.
É da sua responsabilidade eliminar este e qualquer outro
equipamento eléctrico e electrónico através dos instalações
de recolha designadas pelas autoridades governamentais ou
locais. A eliminação e reciclagem correctas ajudarão a prevenir
as consequências negativas para o ambiente e para a saúde
humana. Para obter informações mais detalhadas sobre a
forma de eliminar o seu equipamento antigo, contacte as
autoridades locais, os serviços de eliminação de resíduos ou o
estabelecimento comercial onde adquiriu o produto.

Română (Romanian) - Informaţii de mediu pentru
clienţii din Uniunea Europeană

Directiva europeană 2002/96/CE impune ca echipamentele care
prezintă acest simbol pe produs şi/sau pe ambalajul acestuia să
nu fie casate împreună cu gunoiul menajer municipal. Simbolul
indică faptul că acest produs trebuie să fie casat separat de
gunoiul menajer obişnuit. Este responsabilitatea dvs. să casaţi
acest produs şi alte echipamente electrice şi electronice prin
intermediul unităţilor de colectare special desemnate de guvern
sau de autorităţile locale. Casarea şi reciclarea corecte vor ajuta
la prevenirea potenţialelor consecinţe negative asupra sănătăţii
mediului şi a oamenilor. Pentru mai multe informaţii detaliate
cu privire la casarea acestui echipament vechi, contactaţi
autorităţile locale, serviciul de salubrizare sau magazinul de la
care aţi achiziţionat produsul.

Slovenčina (Slovak) - Informácie o ochrane životného
prostredia pre zákazníkov v Európskej únii

Podľa európskej smernice 2002/96/ES zariadenie s týmto
symbolom na produkte a/alebo jeho balení nesmie byť
likvidované spolu s netriedeným komunálnym odpadom.
Symbol znamená, že produkt by sa mal likvidovať oddelene
od bežného odpadu z domácností. Je vašou povinnosťou
likvidovať toto i ostatné elektrické a elektronické zariadenia
prostredníctvom špecializovaných zberných zariadení určených
vládou alebo miestnymi orgánmi. Správna likvidácia a recyklácia
pomôže zabrániť prípadným negatívnym dopadom na životné
prostredie a zdravie ľudí. Ak máte záujem o podrobnejšie
informácie o likvidácii starého zariadenia, obráťte sa, prosím, na
miestne orgány, organizácie zaoberajúce sa likvidáciou odpadov
alebo obchod, v ktorom ste si produkt zakúpili.

Slovenčina (Slovene) - Okoljske informacije za stranke
v Evropski uniji

Evropska direktiva 2002/96/EC prepoveduje odlaganje opreme,
označene s tem simbolom – na izdelku in/ali na embalaži – med
običajne, nerazvrščene odpadke. Ta simbol opozarja, da je treba
izdelek odvreči ločeno od preostalih gospodinjskih odpadkov.
Vaša odgovornost je, da to in preostalo električno in elektronsko
opremo odnesete na posebna zbirališča, ki jih določijo
državne ustanove ali lokalna uprava. S pravilnim odlaganjem
in recikliranjem boste preprečili morebitne škodljive vplive na
okolje in zdravje ljudi. Če želite izvedeti več o odlaganju stare
opreme, se obrnite na lokalno upravo, odpad ali trgovino, kjer
ste izdelek kupili.

Suomi (Finnish) - Ympäristöä koskevia tietoja EU­alueen asiakkaille

EU-direktiivi 2002/96/EY edellyttää, että jos laitteistossa on tämä
symboli itse tuotteessa ja/tai sen pakkauksessa, laitteistoa
ei saa hävittää lajittelemattoman yhdyskuntajätteen mukana.
Symboli merkitsee sitä, että tämä tuote on hävitettävä erillään
tavallisesta kotitalousjätteestä. Sinun vastuullasi on hävittää
tämä elektroniikkatuote ja muut vastaavat elektroniikkatuotteet
viemällä tuote tai tuotteet viranomaisten määräämään
keräyspisteeseen. Laitteiston oikea hävittäminen estää
mahdolliset kielteiset vaikutukset ympäristöön ja ihmisten
terveyteen. Lisätietoja vanhan laitteiston oikeasta hävitystavasta
saa paikallisilta viranomaisilta, jätteenhävityspalvelusta tai siitä
myymälästä, josta ostit tuotteen.

Svenska (Swedish) - Miljöinformation för kunder i
Europeiska unionen

Det europeiska direktivet 2002/96/EC kräver att utrustning med
denna symbol på produkten och/eller förpackningen inte får
kastas med osorterat kommunalt avfall. Symbolen visar att denna
produkt bör kastas efter att den avskiljts från vanligt hushållsavfall.
Det faller på ditt ansvar att kasta denna och annan elektrisk och
elektronisk utrustning på fastställda insamlingsplatser utsedda
av regeringen eller lokala myndigheter. Korrekt kassering och
återvinning skyddar mot eventuella negativa konsekvenser
för miljön och personhälsa. För mer detaljerad information om
kassering av din gamla utrustning kontaktar du dina lokala
myndigheter, avfallshanteringen eller butiken där du köpte
produkten.

WEB: For additional information, please visit

www.linksys.com

Wireless-G Broadband Router

7051180NC-BW

29

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the intended
destination. The firmware setting is not accessible by the end user.

2006/8/16 v1.0
