Chapter 1: Introduction
r
Whether you’re giving presentations in the conference room or the board room,
the Instant W ireless™ Presentation Player brings you the convenience and reliability of wireless networking! Not only are wires no longer a prob lem but neither is location. Connect to the Instant Wireless™ Presentation Player from
your wireless laptop via Infrastructure mode or from any 802.11b wireless PC
that’s in line of sight via Infrastr ucture mode, making multimedia easier than
it's ever been before!
The Instant Wireless™ Presentation Player can be placed within your conference room or anywhere near the projector. A high-powered, built-in antenna
means that you're ready to present from anywhere within line of sight, eliminating the need for cumbersome cables. So, you've got the flexibility and performance you need to make great presentations combined with the ease of
wireless networking as only Linksys can provide.
• Multiple presentation options - remote control, upload presentation, wired
or wireless
• Support for display resolutions up to 1024 x 768 with 24-bit color
• Built-in 802.11b wireless access point
• Easy configuration (Setup Wizard or web-based utility)
• 32Mb non-volatile RAM allows presentations to be saved directly to the
Presentation Player
• Up to 128-bit WEP with Passphrase
• Infrared remote control with built-in laser pointer
• RF Output 16dBm (40mW)
• Free Technical Support—24 Hours a Day, 7 Days a Week, Toll-Free US
Calls
• 1-Year Limited Warranty
Presentation Player
The Linksys Presentation Player
Features
1
Chapter 2: Getting to Know the
Presentation Player
DC-IN This is the jack where you will connect your power
adapter.
Power Switch This switch is used for turning the Player on and
off.
TO Monitor/Projector At this port, you will connect the VGA cable from
the monitor or projector where your presentation
will be displayed.
Reset To reset the Presentation Player to its factory
default settings, hold the Reset button in for about
ten seconds.
LAN This is where you will connect the Category 5
Ethernet network cable from your PC’s Ethernet
adapter.
• One Instant WirelessTMPresentation Player
• Two Removable Antennas
• One Pow er Adapter
• One Remote Control with Built-in Laser Pointer (two AAA batteries
included)
• One Setup CD-ROM with User Guide
• Registration Card and Quick Installation (not shown)
• One 200 MHz PC Running Windows 98, Me, 2000 or XP
• One CD-ROM Drive
• 128 Mb Ram
• 802.11b Wireless Adapter or Ethernet Connection (for remote presentations)
• Microsoft PowerPoint (needed to Upload presentations to the Presentation
Player)
Package Contents
The Presentation Player’s Ports
Instant WirelessTMSeries
Presentation Player
2 3
Figure 1-1
Figure 2-1
Minimum Requirements
Presentation Player
Stop Use to stop your presentation or connection.
Play Use to star t your presentation from the Presentation List.
Pointer Use for the laser pointer.
Connect Use to connect a new user to the Player while in the
Presentation List.
List Takes you to the Presentation List.
Home Takes you to the Home page.
Info Shows the system information for the Player: the identifica-
tion, network settings, and wireless LAN configuration.
User Shows a list of the connected remote users by using the
names of their computers.
5
Power Red. The Power LED will light up when the Presentation
Player is powered on.
WLAN Act Green. The WLAN Act LED blinks when the Presentation
Player is active.
WLAN Link Yellow. The WLAN Link LED indicates the status of the
wireless link. The WLAN Link LED will be lit steadil y w hen
the Presentation Player is connected to the wireless network.
LAN Act Green. The LAN Act LED blinks when the Presentation
Player is active.
LAN Link Yellow. The LAN Link LED indicates the status of the wired
link. The LAN Link LED will be lit steadily when the
Presentation Player is connected to the wired network.
The Presentation Player’s LEDs
Instant WirelessTMSeries
4
Figure 2-2
The Remote Control’s Buttons
Figure 2-2
Presentation Player
Chapter 3: Connecting the
Presentation Player
1. Connect the VGA cable from your monitor or projector to the Presentation
Player’s “TO Monitor/Projector” port.
2. Make sure that the Presentation Player is turned off. Plug the supplied
power adapter into the jack on the Presentation Player’s back panel. Then,
plug the other end into a power outlet (surge protection recommended).
Turn on the Presentation Player. Only use the power adapter supplied with
the Presentation Player. Use of a different adapter can result in product
damage.
7
Instant WirelessTMSeries
Back Goes back to the previous slide.
Center Round Button Use like a mouse pad to move the cursor on the
screen.
Left and Right Buttons Use like left and right mouse buttons. Also acts as
Next and Previous slide buttons when in the
Presentation List.
Delete Only way to delete your presentation from the
Player.
Left and Right Arrows Use to navigate left and right when in the
Presentation List.
Up and Down Arrows Use to navigate up and down.
Mode Toggles between high and low resolutions.
6
Figure 3-1
Figure 3-2
Presentation Player
9
Instant WirelessTMSeries
8
Chapter 4: Installing The
Presentation Player’s Setup Utility
The Presentation Player can play from any PC in your wireless network. You will
need to install this utility in each PC that will be used with the Presentation Player –
once installed, it will not need to be done again.
1. Insert the Setup CD-ROM into your CD-ROM drive. The CD’s InstallShield
Wizard should start automatically. If it does not star t automatically, click the
Start button, select Run, and type d:\setup.exe (wher e “d” is the letter of y our
CD-ROM drive) in the Open field to start the autorun program.
2. The Welcome page for the Setup Utility will appear (as shown in Figure 4-1.).
Click the Install tab to start the installation procedure and place the Setup Utility
on your current PC. Click Uninstall to begin a simple procedure for removing
the Setup Utility. Click the User Guide tab to use this User Guide. If you need
to contact Linksys for technical support, click the Contact Us tab for that information. Click the Exit tab to close the Setup Utility.
Overview
Figure 4-1
3. To have a wired connection, connect one end of the Category 5 Ethernet
network cable to your PC’s Ether net adapter. Connect the other end to the
Ethernet port on the back of the Presentation Player.
4. Place the Player near the monitor or projector facing the presenters so the
infra red in the remote control will have access to the Player.
5 For a wireless connection, fix the direction of the antennas. Try to place it
in a position which can best cover your wireless network. Normally, the
higher you place the antenna, the better the wireless performance will be.
The antenna’s position enhances the receiving sensitivity. Both antennas
should be perpendicular to the ground and parallel to each other.
Note:If y ou click Cancel at an y time, y ou will ha v e to re-start the
installation procedure.
Figure 3-3
Presentation Player
5. The next screen, like that shown in Figure 4-4, will allow you to choose
where the Setup Utility will be installed. By default, the destination folder
is C:\Program Files\WPG12 Presentation Player.
If you want to change the location, click the Browsebutton and select anoth-
er destination where it will be installed. Click the Next button to continue.
6. The InstallShield Wizard will now be ready to begin copying the program
files. Review the screen shown in Figure 4-5. Click the Nextbutton to continue. Click Back if you want to change your settings.
11
Instant WirelessTMSeries
3. Click the Install tab and the InstallShield Wizard will begin the installation
procedure, bringing up a screen like that shown in F igure 4-2. Click the Next
button to continue the installation procedure.
4. The next screen is the Warranty Policy (as shown in Figure 4-3.) Please read
the entire policy. Press your Page Down key to view the end of the policy.
T o accept the terms of the policy and continue with the installation, click the
Yes button. If you click the No button, the installation will end.
10
Installation
Figure 4-2
Figure 4-3
Figure 4-4
Figure 4-5
Presentation Player
13
Chapter 5: Using The
Presentation Player’s Webbased Utility
The Presentation Player has been designed to function with the default settings
in the Setup Utility. However, if you’d like to change these settings, the
Presentation Player can be configured through your web bro wser with the WebBased Utility . This chapter explains how to configure the Presentation Player in
this manner.
To access the Web-based Utility, you will need the Presentation Player’s IP
Address. To find the Player’s IP Address, make sure that the Presentation Pla yer
is connected to the projector or monitor and that both devices are powered on.
The IP Address will be visible on the Home page, which is the first screen that
appears. Open your web browser and enter the Player’s IP Address in the
Address box. Press the Enter key and the following screen, shown in Figure 5-
1, will appear.
1. The first time you open the Web-Based Utility, enter the default password
admin into the Password f ield. Click the OK button. You can later set a
new password using the Password tab, as shown in Figure 5-4.
Figure 5-1
Instant WirelessTMSeries
7. When you see this screen, the installation of the Setup Utility onto your
computer has been completed.
12
Figure 4-6
Presentation Player
IP Address - This is the Internet Protocol Address that is assigned to the
Presentation Player. Click Obtain an IP Address Automatically or Specify
an IP Address. Choose Obtain an IP Address Automatically to allow
your Presentation Player to automatically obtain a dynamic IP address from
a DHCP server. Or, choose Specify an IP Address where you will assign
all the devices a permanent IP Address and enter the fixed IP address in the
fields provided. Then, enter the Subnet Mask into the fields provided. No
DHCP changes will take effect until the Presentation Player has been powered down and powered up again. The IP Address will only be used to
remotely configure or control the Presentation Player. You need not reconfigure it if you are traveling to remote locations and plan to use the handheld remote control.
Wireless - This section contains all of your wireless settings.
• SSID - This stands for Service Set IDentifier. The SSID, also called the
Network Name, is a unique name that identifies a wireless network. In
order to connect to the Presentation Player, all of your wireless computer's settings must be identical to the SSID you define here. The SSID is
case sensitive, must not exceed 30 characters, including WPG12-, but
may consist of any keyboard character. Make sure this setting is the
same for all wireless nodes communicating with the Presentation Player.
You should change the default SSID of "linksys" to a name unique to
your network.
• Channel - Each Access Point and/or Presentation Player on your net-
work should be assigned a unique channel. The channel is a common
number that sets the actual frequency this particular device will use to
communicate with wireless clients. For example, TV and Radio Stations
refer to particular channels, which are actually frequencies at which
radio waves are transmitted.
If you experience poor performance, you may be encountering interference from another wireless device. Try changing the channel, as this
may eliminate interference and increase performance. Channels 1, 6 and
11 are preferred.
15
Instant WirelessTMSeries
14
2. The Setup tab, as shown in Figure 5-2, has your available basic setup functions. Most users can use the default settings, but you can change them here
if you want. Your wireless security functions are located here.
Firmware Version - This field displays the current firmware version of the
Presentation Player. Firmware upgrades, when available, may be downloaded from the Linksys web site at no charge. If you are not experiencing
any problems with the Presentation Player, you should not upgrade the
fir mware. Make sure to review the release notes of any fir mware version
before attempting an upgrade.
System Name - This is a common name that you assign to the Presentation
Player. This field is limited to 32 characters. By default, four alphanumeric characters follow the device name. These represent the last four characters of the Presentation Player's MAC (Ethernet) address. The MA C address
is printed on the bottom of the Presentation Player. Assigning unique and
memorable names is helpful, especially if you are employing multiple
Presentation devices on the same network.
Figure 5-2
Note:WPG12- is a permanent part of the SSID for this device. You
many enter any characters following WPG12-, but wireless PCs
must have the full SSID, including WPG12-, to communicate with
the Presentation Player. In most cases, the Control Utility will
configure this setting for you.
Presentation Player
3. The Password tab, as shown in Figure 5-4, is where you change your pass-
word and restore the factory default settings for the Presentation Player.
Choose an alphnumeric password between 4 and 16 characters and without
spaces. Enter the password into the Enter New Password field, then repeat
it in the Re-enter to Confirm field.
T o clear all of the settings on the Presentation Pla y er and restore them to the
factory default settings, click the Yes button.
Click the Apply button.
17
Instant WirelessTMSeries
16
• WEP - An acron ym for Wired Equivalent Privacy, WEP is an encryption
method used to protect your wireless communications and prevent unauthorized access to the Presentation Player and/or your network.
In order to utilize WEP encryption, click the radio button next to Enable.
Next, click the WEP Key Setting button to further def ine your encryption
settings, shown in Figure 5-3. All wireless devices communicating with the
Presentation Player must use the same WEP encryption settings. When
WEP is enabled , there will be a slight de gradation in performance when presenting from a remote wireless computer.
• WEP Encryption - Select 64 Bit or 128 Bit. Selecting the higher wire-
less security of 128 Bit could slow your presentation.
• Passphrase - There are two ways to create WEP Encryption keys. The
first method is to enter a Passphrase with a maximum of 16
Hexadecimal characters (letters “A”-“F” and the numbers “0”-“9”) and
click the Generate button. This will generate WEP Encryption keys
based upon that passphrase. A second method is to manually enter a 10digit key for 64-bit or a 26-digit key for 128-bit WEP Encryption into the
field for Key 1. Click the Apply button. Click the Clear button to erase
anything you have entered in error. Click the Close button to close the
screen.
Figure 5-3
Figure 5-4
Instant WirelessTMSeries
18
4. The Status tab will display the Presentation Player’s cur rent settings and
activity. It will list your Current IP Address, Subnet Mask, and Gateway.
The LAN Transfer, LAN Receive, WLAN Transfer, and WLAN Receive
entries display your network’s performance levels.
5. The Help tab (see Figure 5-6) has links to the Presentation Player’s support
documentation, including the application that upgrades the f ir mware.
New firmware versions are posted at the Linksys website and can be downloaded for free. After you download the new firmware, click the Upgrade
Firmware link. Enter the Password, then enter the location of the file in
the File Path or click the Browsebutton to find the file. Click the Upgrade
button to upgrade the f ir mware.
Figure 5-5
Figure 5-6
Presentation Player
Chapter 6: Using The Control
Utility of the Presentation Player
The control utility may be used from any wired or wireless notebook or desktop PC with a connection to the Wireless Presentation Player. It is a good idea
to place the Wireless Presentation Player on or near the monitor or projection
area. The Infrared sensor is located on the front panel of the unit and the
remote control must be in line-of-sight in order to function properly.
Make sure that the Presentation Player is connected to the projector or monitor
and that both devices are powered on. Click on the Presentation Player
Control Utility button on the screen that appears.

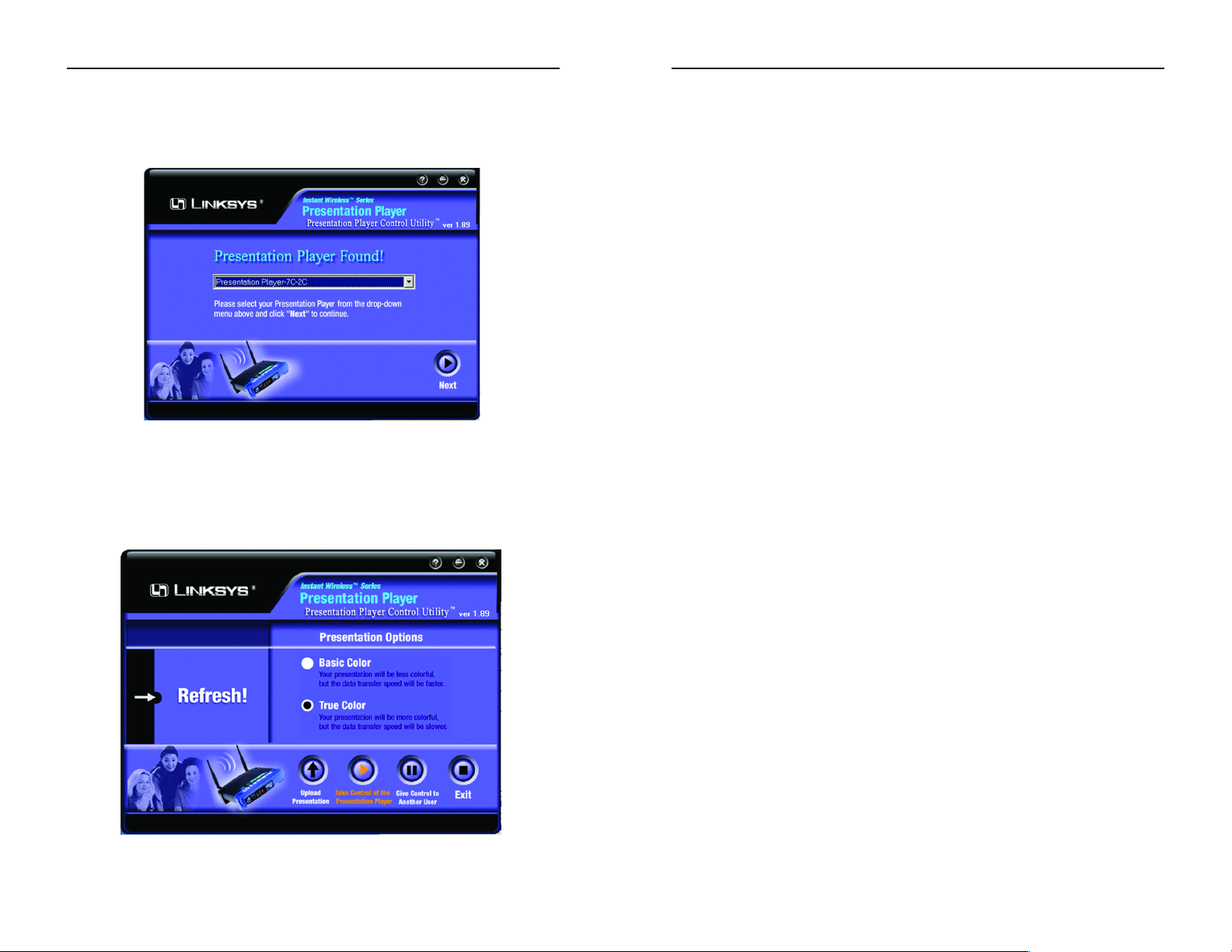

1. The welcome screen will appear
first. Click Next.
If the screen in Figure 6-2
appears, try these steps:
1. Turn off the Presentation
Player and projector, then
turn them back on.
2. Click the Search Again button. Try this at least three
times.
3. If the Presentation Player still
cannot be found, continue to
steps 4 and 5.
4. The Presentation Player settings will appear at the bottom of the projector screen.
5. Manually enter the proper IP
address, subnet mask, SSID,
and channel information to
the wireless adapter in your
notebook or desktop.
19
Figure 6-1
Figure 6-2
Presentation Player
Refresh! - Click this button if you need to search for the Player.
Next, choose your presentation option from the following buttons at the bottom
of the screen.
• Upload Presentation - This option allows you to upload a PowerPoint
presentation to the Presentation Player. Once uploaded, you can display
the entire presentation using the hand-held remote control. While this
feature allows great freedom and mobility, please consider the following
when uploading a presentation to the Presentation Player:
K Once uploaded, anyone can use the remote control to view the presen-
tation on a monitor, so take precautions if your presentation contains
sensitive or confidential material.
K The PC attempting to upload a presentation must have Microsoft
PowerPoint 97 or later installed.
K Some features, such as animation, hyperlinks, and sound will not be
available once your presentation is uploaded.
K The Presentation Player comes with 32Mb of storage for your presen-
tations. This should allow enough room for users to store several presentations. However, be sure to remove your presentations when they
are no longer needed to make room for newer files.
• Take Control of the Presentation Player - This feature allows you to
conveniently transfer the contents of your local PC screen to the projector or monitorthat is connected to the Player where the presentation will
be displayed. You may notice some delay in mouse and keyboard function. Such a delay is normal for this mode of operation. Only one user
at a time can control the Presentation Player. The supported display resolutions are 800 x 600 or 1024 x 768. Please see your Windows documentation for more information on changing your display settings.
• Give Control to Another User (Pause) - To pause your presentation or
change presenters, click this button.
• Exit (Stop) - To exit the Control utility, click this button.
If you hav e minimized the Control Utility during y our presentation, y ou can
quickly restore it by double-clicking the Control Utility icon on your
Windows Status bar that is near the clock.
21
Instant WirelessTMSeries
2. When the Presentation Play er is found, this screen in Figure 6-3 will appear.
Select your Presentation Player from the drop-down menu and click the
Next button. If the Player cannot be found, refer to Appendix A:
Troubleshooting.
3. When you see the screen shown in Figure 6-4, you will choose a color setting.
Select the default True Colorto have the optimum color option. If the action is
very slow or your presentation is mostly text, you may want to select Basic
Color. You will still have color and your speed will increase.
20
Figure 6-4
Figure 6-3
Presentation Player
5. The screen shown in Figure 6-7 will appear next if you have WEP enabled
on the Presentation Player. This screen allows you to set the security for
your wireless client. You will need to set the identical security settings that
you used for the Presentation Player in “Chapter 5: Using the Presentation
Player’s Web-based Utility.”
Select the level of Encryption used for the Player. Select 64 Bits or 128
Bits in the drop-down box for Encryption.
Enter the Passphrase used for the Player into the field for Passphrase. A
key will automatically populate the Key field. Or, if manually entered for
the Player, you can manually enter the 10-digit key for 64-bit or a 26-digit
key for 128-bit WEP Encryption into the f ield for Key.
Click the Next button.
23
Instant WirelessTMSeries
4. If you click the Upload Presentation button, the screen in Figure 6-5 will
appear. Click the Browse button to search for your file.
The screen in Figure 6-6 will appear. After you find your presentation,
select it, then click the Open button. After you click the Open button, your
file will appear in the Browse field of Figure 5-5. Click Upload. Your file
will be automatically converted and loaded onto the Presentation Player.
22
Figure 6-5
Figure 6-6
Figure 6-7
Presentation Player
Remote Users
If you click on the Remoter Users button from Figure 7-1, you will see the
screen in Figure 7-2. It will list the remote users who are connected to the
Player showing a presentation from the desktop of their PC.
Connect - Click this button after using the mousepad to select the user who
wants to connect and give their presentation.
Delete - Click this button after selecting the user you want to remove from the
list.
Delete All - Click this button to delete all the users.
Back - Click this button to go back to the previous screen.
Home - Click this button to go the the Home page.
Presentation List
If you click the Presentation List button from Figure 7-1, or the List button on the remote control, you will see the screen shown in Figure 7-3. You
can view the presentation files that are loaded onto the Player. They are listed in folders that match the name of the user’s computer.
25
Instant WirelessTMSeries
Chapter 7:Using the Remote
Display Presentation Function
The Presentation Player has a built-in image vie w er and internal storage, so you
can give a presentation without an attached PC. All you need to do is load the
presentation files onto the system in advance, then you can deliver a presentation using the remote control. The Player also has a the remote display function to switch users during a presentation.
1. T o load y our presentation, go to the Upload Presentation Section of Chapter
5: Using the Presentation Player’s Web-Based Utility. To learn about the
Remote Control, go to The Remote Control’s Buttons in Chapter 2.
2. Make sure that the Presentation Player is connected to the projector or monitor and that both devices are powered on. The screen in Figure 7-1 will
appear. It is referred to as the Home page. If you click on a screen’s Home
button, you will return here.
The three buttons on this screen are described below and in the following
paragraphs.
Remote Users - Click this button to view and connect to the remote users.
Presentation List- Click this button to view the list of loaded presentations.
System Info - Click this button to view the Player’s identification, network
settings, and wireless LAN configuration.
24
Figure 7-2
Figure 7-1
Presentation Player
27
Instant WirelessTMSeries
Play - Click this button after selecting a presentation file to start the presentation.
Delete - Click this button after selecting a presentation file you want to delete
from the list.
Back - Click this button to go back to the previous screen.
Home - Click this button to go the the Home page.
System Info
If you click the System Info button from Figure 7-1, you will see a screen
like that shown in Figure 7-4. You can view the Player’s system infor mation,
including identification, network settings, and wireless LAN configuration.
Back - Click this button to go back to the previous screen.
Home - Click this button to go the the Home page.
26
Appendix A: Troubleshooting
This section provides possible solutions to problems regarding the installation
and operation of the Presentation Player. If you can’t find an answer here, check
the Linksys website at www.linksys.com.
Can I run an application from a remote computer over the wireless network?
This will depend on whether or not the application is designed to be used over
a network. Consult the application’s user guide to determine if it supports operation over a network.
Can I use the Presentation Player with non-Linksys wireless equipment?
Yes, as long as you use it with wireless equipment that complies with the IEEE
802.11b standard.
What is the IEEE 802.11b standard?
It is the IEEE standard for wireless networks. This standard allows wireless
LAN hardware from different manufacturers to communicate.
What IEEE 802.11b features are supported?
The product supports the following IEEE 802.11 functions:
• CSMA/CA plus Acknowledge protocol
• Multi-Channel Roaming
• Automatic Rate Selection
• RTS/CTS feature
• Fragmentation
• Power Management
The Presentation Player’s Control Utility cannot detect the Presentation
Player.
Verify that the Presentation Player’s power is on and all of your wireless equipment complies with the 802.11B standard and that you are correctly connected
to the Player with a Category 5 Ethernet network cable.
Figure 7-4
Figure 7-3
Presentation Player
What is a BSS ID?
A specific Ad-hoc LAN is called a Basic Service Set (BSS). Computers in a
BSS must be configured with the same BSS ID.
What is an ESS ID?
An Infrastructure configuration could also support roaming capability for
mobile workers. More than one BSS can be configured as an Extended Service
Set (ESS). Users within an ESS could roam freely between BSSs while maintaining a continuous connection to the wireless network stations and Wireless
Network Access Points.
What is ISM band?
The FCC and their counterparts outside of the U.S. have set aside bandwidth
for unlicensed use in the ISM (Industrial, Scientific and Medical) band.
Spectrum in the vicinity of 2.4 GHz, in particular, is being made available
worldwide. This presents a truly revolutionary opportunity to place convenient
high speed wireless capabilities in the hands of users around the globe.
What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability,
integrity, and security. In other words, more bandwidth is consumed than in the
case of narrowband transmission, but the trade-off produces a signal that is, in
effect, louder and thus easier to detect, provided that the receiver knows the
parameters of the spread-spectrum signal being broadcast. If a receiver is not
tuned to the right frequency, a spread-spectrum signal looks like background
noise. There are two main alternatives, Direct Sequence Spread Spectrum
(DSSS) and Frequency Hopping Spread Spectrum (FHSS).
29
Instant WirelessTMSeries
What is Ad-hoc?
An Ad-hoc wireless LAN is a group of computers, each with a WLAN adapter,
connected as an independent wireless LAN. An Ad-hoc wireless LAN is applicable at a departmental scale for a branch or SOHO operation.
What is Infrastructure?
An integrated wireless and wired LAN is called an Infrastructure conf iguration. Infrastructure is applicable to enterprise scale for wireless access to a central database, or wireless application for mobile workers.
What is Roaming?
Roaming is the ability of a portable computer user to communicate continuously while mo ving freel y throughout an area greater than that co vered b y a single Wireless Network Access Point. Before using the roaming function, the
workstation must make sure that it is the same channel number as the Wireless
Network Access Point of the dedicated coverage area.
To achieve true seamless connectivity, the wireless LAN must incor porate a
number of different functions. Each node and Wireless Network Access Point,
for example, must always acknowledge receipt of each message. Each node
must maintain contact with the wireless network even when not actually transmitting data. Achieving these functions simultaneously requires a dynamic RF
networking technology that links Wireless Network Access Points and nodes.
In such a system, the user’s end node under takes a search for the best possible
access to the system. First, it ev aluates such factors as signal strength and quality, as well as the message load currently being carried by each Wireless
Network Access Point and the distance of each Wireless Network Access Point
to the wired backbone. Based on that information, the node next selects the
right W ireless Netw ork Access P oint and re gisters its address. Communications
between end node and host computer can then be transmitted up and down the
backbone.
As the user moves on, the end node’s RF transmitter regularly checks the system to determine whether it is in touch with the original Wireless Network
Access Point or whether it should seek a new one. When a node no longer
receives acknowledgment from its original Wireless Network Access Point, it
undertakes a new search. Upon finding a new Wireless Network Access Point,
it then re-registers, and the communication process continues.
28
Presentation Player
Appendix B: Planning Yo u r
Wireless Network
Network Topology
A wireless LAN is exactly like a regular LAN, except that each netw ork device in
the LAN uses wireless technology to connect to the network. Computers in a wireless LAN must be configured to share the same radio channel.
Wireless components pro vides LAN access for wireless network devices. An integrated wireless and wired LAN is called an Infrastructure configuration. A group
of wireless users and an access point compose a Basic Service Set (BSS). Each
PC equipped with a wireless adapter in a BSS can talk to any computer in a wired
LAN infrastructure.
An infrastructure conf iguration extends the accessibility of a wireless user to a
wired LAN, and doubles the effective wireless transmission range for wireless
PCs. Since the access point is able to forward data within its BSS, the effective
transmission range in an infrastructure LAN is doubled.
The use of a unique ID in a Basic Service Set is essential.
The W ireless LAN Infrastructure configuration is appropriate for enterprise-scale
wireless access to a central database, or as a wireless application for mobile users.
Roaming
Infrastructure mode also supports roaming capabilities for mobile users. More
than one BSS can be configured as an Extended Service Set (ESS). This continuous network allows users to roam freely within an ESS. All wireless PCs within
one Extended Service Set must be configured with the same SSID.
Selecting a feasible radio channel and optimum access point position is recommended. Proper access point positioning combined with a clear radio signal will
greatly enhance performance.
31
Instant WirelessTMSeries
30
What is DSSS? What is FHSS? And what are their differences?
Frequency Hopping Spread Spectrum (FHSS) uses a narrowband carrier that
changes frequency in a pattern that is known to both transmitter and receiver.
Properly synchronized, the net effect is to maintain a single logical channel. To
an unintended receiver, FHSS appears to be short-duration impulse noise.
Direct Sequence Spread Spectrum (DSSS) generates a redundant bit pattern for
each bit to be transmitted. This bit pattern is called a chip (or chipping code).
The longer the chip, the greater the probability that the original data can be
recovered. Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can recover the original data
without the need for retransmission. To an unintended receiver, DSSS appears
as low power wideband noise and is rejected (ignored) by most narrowband
receivers.
Would the information be intercepted while transmitting on air?
WLAN features two-fold protection in security. On the hardware side, as with
Direct Sequence Spread Spectrum technology, it has the inherent security feature of scrambling. On the software side, the WLAN series offers the encryption function (WEP) to enhance security and access control. Users can set it up
depending upon their needs.
Can Instant Wireless products support f ile and printer sharing?
Instant Wireless products perform the same function as LAN products.
Therefore, Instant Wireless products can work with NetWare, Windows
NT/2000, or other LAN operating systems to support printer or f ile sharing.
I am using 802.11b-compliant wireless equipment but still cannot connect
to my wireless network.
Verify that you are using the same IP domain as that of your wireless network.
Presentation Player
Appendix C: Upgrading the
Presentation Player’s Firmware
The Presentation Player functions with the use of firmware, programming written in the unit’s internal memory. It is this firmware that enables the
Presentation Player to function and makes it easy to use.
Occasionally, this firmware will be upgraded, which could increase the
Presentation Player’s stability or make it easier to use. New versions of the
fir mware can be found on the Linksys web site at www.linksys.com.
To upgrade this f ir mware, download it from the website and then double-click
the file wherever it has been saved. You will be walked through instructions on
how to upgrade the firmware.
33
Instant WirelessTMSeries
Ad-hoc versus Infrastructure Mode
Unlike wired networks, wireless networks have two different modes in which
they may be set up: Infrastructure and Ad-hoc. Choosing between these two
modes depends on whether or not the wireless network needs to share data or
peripherals with a wired network or not.
If the computers on the wireless network need to be accessible b y a wired network
or need to share a peripheral, such as a printer, with the wired netw ork computers,
the wireless network should be set up in the Infrastructure mode, as shown in
Figure A-1. The basis of Infrastructure mode centers around an access point,
which serves as the main point of communications in a wireless network. Access
points transmit data to PCs equipped with wireless network card, which can
roam within a certain
radial range of the
access point.
Multiple access
points can be
arranged to work in
succession to extend
the roaming range,
and can be set up to
communicate with
your Ethernet hardware as well.
If the wireless network is relatively small and needs to share resources only
with the other computers on the wireless network, then the Ad-hoc mode can
be used, as shown in Figure A-2. Ad-hoc mode allows computers equipped
with wireless transmitters and receivers to communicate directly with each
other, eliminating the need for an access point. The drawback of the Ad-hoc
mode is that wireless-equipped computers are not able to communicate with
computers on a wired network. In addition, communication between the wire-
less-equipped computers is limited by the
distance and interference directly between
them.
32
Figure A-1
Figure A-2
Presentation Player
35
Instant WirelessTMSeries
34
Driver - A workstation software module that provides an interface between a
network interface card and the upper-layer protocol software running in the
computer; it is designed for a specific NIC, and is installed during the initial
installation of a network-compatible client operating system.
DSSS (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit
pattern for all data transmitted. This bit pattern is called a chip (or chipping
code). Even if one or more bits in the chip are damaged during transmission,
statistical techniques embedded in the receiver can recover the original data
without the need for retransmission. To an unintended receiver, DSSS appears
as low power wideband noise and is rejected (ignored) by most narrowband
receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS signal is recognized as the only valid signal, and interference
is inherently rejected (ignored).
Encryption - A security method that applies a specific algorithm to data in
order to alter the data's appearance and prevent other devices from reading the
information.
ESS (Extended Service Set) - A set of more than two or more BSSs (multiple
access points) forming a single network.
Ethernet - IEEE standard network protocol that specifies how data is placed
on and retrieved from a common transmission medium. Has a transfer rate of
10 Mbps. Forms the underlying transport vehicle used by several upper-level
protocols, including TCP/IP and XNS.
FHSS (Frequency Hopping Spread Spectrum) - FHSS continuously changes
(hops) the carrier frequency of a conventional carrier several times per second
according to a pseudo-random set of channels. Because a fixed frequency is not
used, and only the transmitter and receiver know the hop patterns, interception
of FHSS is extremely difficult.
Firmware - Code that is written onto read-only memory (ROM) or programmable read-only memory (PROM). Once firmware has been written onto the
ROM or PROM, it is retained even when the device is turned off.
Fragmentation- Breaking data into smaller units when transmitting ov er a network medium that cannot support the original size of the data.
Gateway - A device that interconnects networks with different, incompatible
communications protocols.
Appendix D: Glossary
Adapter - Printed circuit board that plugs into a PC to add to capabilities or
connectivity to a PC. In a networked environment, a network interface card
(NIC) is the typical adapter that allows the PC to connect to the intranet and/or
Internet.
Ad-hoc Network - An ad-hoc network is a group of computers, each with a
wireless adapter, connected as an independent 802.11 wireless LAN. Ad-hoc
wireless computers operate on a peer-to-peer basis, communicating directly
with each other without the use of an access point. Ad-hoc mode is also
referred to as an Independent Basic Service Set (IBSS) or as peer-to-peer
mode, and is useful at a departmental scale or SOHO operation.
Backbone - The part of a network that connects most of the systems and networks together and handles the most data.
Bandwidth - The transmission capacity of a given facility, in terms of how
much data the facility can transmit in a fixed amount of time; expressed in bits
per second (bps).
Bit - A binary digit. The value - 0 or 1-used in the binary numbering system.
Also, the smallest form of data.
BSS (Basic Service Set) - An infrastructure network connecting wireless
devices to a wired network using a single access point.
CSMA/CA (Carrier Sense Multiple Access/Collision Avoidance) - In local
area networking, this is the CSMA technique that combines slotted time-division multiplexing with carrier sense multiple access/collision detection
(CSMA/CD) to avoid having collisions occur a second time.
CTS (Clear To Send) - An RS-232 signal sent from the receiving station to the
transmitting station that indicates it is ready to accept data.
Database - A database is a collection of data that is organized so that its contents can easily be accessed, managed, and updated.
Download - To receive a file transmitted over a network. In a communications
session, download means receive, upload means transmit.
Presentation Player
Network- A system that transmits any combination of v oice, video and/or data
between users.
Node - A network junction or connection point, typically a computer or work
station.
Port - A pathway into and out of the computer or a network device. For example, the serial and parallel ports on a personal computer are external sockets for
plugging in communications lines, modems and printers.
Roaming - In an infrastructure mode wireless network, this refers to the ability to move out of one access point's range and into another and transparently
reassociate and reauthenticate to the new access point. This reassociation and
reauthentication should occur without user intervention and ideally without
interruption to network connectivity. A typical scenario would be a location
with multiple access points, where users can physically relocate from one area
to another and easily maintain connectivity.
RTS (Request To Send) - An RS-232 signal sent from the transmitting station
to the receiving station requesting permission to transmit.
SOHO (Small Office/Home Office) - Market segment of professionals who
work at home or in small offices.
Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency
for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces
a signal that is, in effect, louder and thus easier to detect, provided that the
receiver knows the parameters of the spread-spectrum signal being broadcast.
If a receiver is not tuned to the right frequency, a spread-spectr um signal looks
like background noise. There are two main alternatives, Direct Sequence
Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).
SSID (Service Set IDentifier) - A unique name shared among all points in a
wireless network. The SSID must be identical for each point in the wireless network and is case-sensitive. Also known as "ESS ID."
37
Instant WirelessTMSeries
Hardware - Hardware is the physical aspect of computers, telecommunications, and other information technology devices. The term arose as a wa y to distinguish the "box" and the electronic circuitry and components of a computer
from the program you put in it to make it do things. The program came to be
known as the software.
Hop - The link between two network nodes.
IEEE (The Institute of Electrical and Electronics Engineers) - The IEEE
describes itself as "the world's largest technical professional society, promoting
the development and application of electrotechnology and allied sciences for
the benefit of humanity, the advancement of the profession, and the well-being
of our members."
The IEEE fosters the development of standards that often become national and
international standards. The organization publishes a number of journals, has
many local chapters, and several large societies in special areas, such as the
IEEE Computer Society.
Infrastructure Network - An infrastructure network is a group of computers
or other devices, each with a wireless adapter, connected as an 802.11 wireless
LAN. In infrastructure mode, the wireless devices communicate with each
other and to a wired network by first going through an access point. An infrastructure wireless network connected to a wired network is referred to as a
Basic Service Set (BSS). A set of two or more BSS in a single network is
referred to as an Extended Service Set (ESS). Infrastr ucture mode is useful at
a corporation scale, or when it is necessary to connect the wired and wireless
networks.
ISM band - The FCC and their counterparts outside of the U.S. have set aside
bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical)
band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around the globe.
LAN - A local area network (LAN) is a group of computers and associated
devices that share a common communications line and typically share the
resources of a single processor within a small geographic area (for example,
within an office building).
Mbps (MegaBits Per Second) - One million bits per second; unit of measure-
ment for data transmission.
36
Presentation Player
Appendix E: Specifications
Standard IEEE 802.11b
Channels 11 Channels (US,Canada)
13 Channels (Europe)
14 Channels (Japan)
Operating Range Up to 100m (328 ft.)
LEDs
Power,WLAN Act,WLAN Link
Dimensions 7.3” x 6.5” x 1.9” (186 mm x 165 mm x 48 mm)
Unit Weight 16 oz. (0.46 kg)
Power External, 5V AC 2.5A
Certifications FCC Class B,CE Mark
Operating Temp. 32°F to 131°F (0°C to 55°C)
Storage Temp. 14°F to 149°F (-10°C to 65°C)
Operating Humidity 10% to 90% Non-Condensing
Storage Humidity 10% to 90% Non-Condensing
39
Instant WirelessTMSeries
TCP/IP (Transmission Control Protocol/Internet Protocol) - The basic com-
munication language or set of protocols for communications over a network
(developed specifically for the Internet). TCP/IP defines a suite or group of
protocols and not only TCP and IP.
Topology - A network's topology is a logical characterization of how the
devices on the network are connected and the distances between them. The
most common network devices include hubs, switches, routers, and gateways.
Most large networks contain several levels of interconnection, the most important of which include edge connections, backbone connections, and wide-area
connections.
Upgrade - To replace existing software or firmware with a newer version.
Upload - To transmit a file over a network. In a communications session,
upload means transmit, download means receive.
WAN (Wide Area Network)- A communications network that covers a rela-
tively lar ge geo graphic area, consisting of two or more LANs. Broadband communication over the WAN is often through public networks such as the telephone (DSL) or cable systems, or through leased lines or satellites. In its most
basic definition, the Inter net could be considered a WAN.
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-
bit or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.
WLAN (Wireless Local Area Network) - A group of computers and associated
devices that communicate with each other wirelessly.
Workgroup - Two or more individuals that share files and databases.
38
Environmental
Presentation Player
Appendix G: Contact
Information
For help with the installation or operation of this product, contact Linksys
Customer Support at one of the phone numbers or Internet addresses below.
Sales Information 800-546-5797 (LINKSYS)
Tech Support 800-326-7114
RMA Issues 949-261-1288
Fax 949-261-8868
Email support@linksys.com
Web http://www.linksys.com
FTP Site ftp.linksys.com
41
Instant WirelessTMSeries
40
Appendix F: Warranty
Information
BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE
FROM THE PRODUCT'S PACKAGING ON HAND WHEN CALLING.
RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF
PURCHASE.
IN NO EVENT SHALL LINKSYS’LIABILITY EXCEED THE PRICE PAID
FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCUMENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY PRODUCT.
LINKSYS OFFERS CROSS SHIPMENTS, A FASTER PROCESS FOR PROCESSING AND RECEIVING YOUR REPLACEMENT. LINKSYS PAYS
FOR UPS GROUND ONLY. ALL CUSTOMERS LOCATED OUTSIDE OF
THE UNITED STATES OF AMERICA AND CANADA SHALL BE HELD
RESPONSIBLE FOR SHIPPING AND HANDLING CHARGES. PLEASE
CALL LINKSYS FOR MORE DETAILS.
© Copyright 2002 Linksys,All Rights Reserved.
http://www.linksys.com
Loading...
