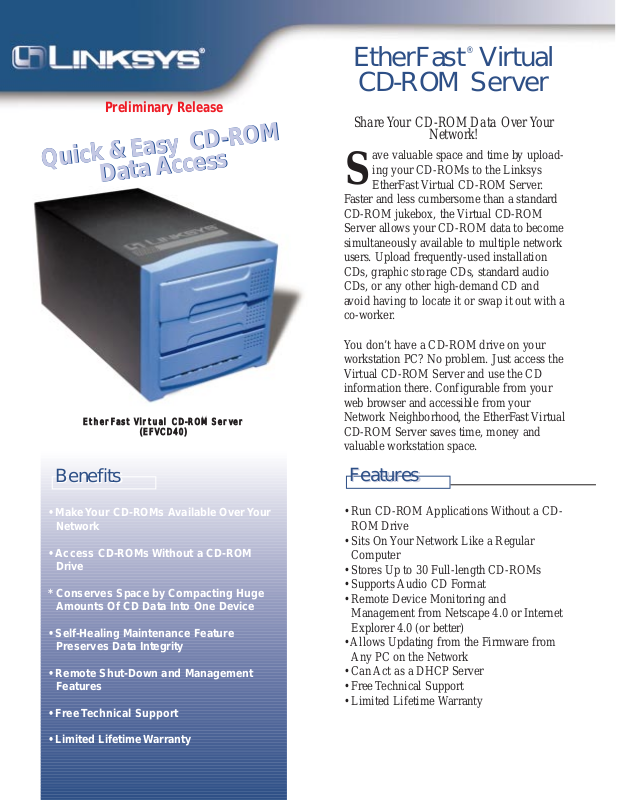

Linksys EFVCD40 User Manual
Quick & Easy CD-ROM
Data Access
EtherFast®V irtual
CD-ROM Server
ave valuable space and time by uploading your CD-ROMs to the Linksys
EtherF ast V irtual CD-ROM Server.
Faster and less cumbersome than a standard
CD-ROM jukebox, the Virtual CD-ROM
Server allows your CD-ROM data to become
simultaneously available to multiple network
users. Upload frequently-used installation
CDs, graphic storage CDs, standard audio
CDs, or any other high-demand CD and
avoid having to locate it or swap it out with a
co-worker.
You don’t have a CD-ROM drive on your
workstation PC? No problem. Just access the
Virtual CD-ROM Server and use the CD
information there. Conf igurable from your
web browser and accessible from your
Network Neighborhood, the EtherFast Virtual
CD-ROM Server saves time, money and
valuable workstation space.
• Run CD-ROM Applications Without a CD-
ROM Drive
• Sits On Your Network Like a Regular
Computer
• Stores Up to 30 Full-length CD-ROMs
• Supports Audio CD Format
• Remote Device Monitoring and
Management from Netscape 4.0 or Internet
Explorer 4.0 (or better)
• Allows Updating from the Firmware from
Any PC on the Network
• Can Act as a DHCP Server
• Free Technical Suppor t
• Limited Lifetime War ranty
• Make Your CD-ROMs Available Over Your
Network
• Access CD-ROMs Without a CD-ROM
Drive
* Conserves Space by Compacting Huge
Amounts Of CD Data Into One Device
• Self-Healing Maintenance Feature
Preserves Data Integrity
• Remote Shut-Down and Management
Features
• Free Technical Support
• Limited Lifetime Warranty
EEtthheerrFFaasstt VViirrttuuaall CCDD--RROOMM SSeerrvveerr
((EEFFVVCCDD4400))
S
Share Your CD-ROM Data Over Your
Network!
Features
Features
Benefits
Benefits
Preliminary Release
Quick & Easy CD-ROM
Data Access
Specifications
Model Number EFVCD40
Standards IEEE 802.3, IEEE 802.3u
Protocols SMB/CIFS over TCP/IP
Port Speed 1 Auto-Sensing RJ-45 Port
Cabling Type 10BaseT: Category 3 or 5 UTP
100BaseT: Category 5 UTP
Topology Star
LED Indicators
Switches Power, Reset, Uplink
Storage Capacity 2 Hard
Environmental
Dimensions 330 x 180 x 166 mm (13.0 x 7.1 x 6.5 in.)
Weight 4.5 kg. (12 lbs.)
Power Input 100-240 V AC
Certifications FCC Class A, CE Mark Commercial,
VCCI, UL & cUL Listed, T-Mark
Operating Temp. 41° F to 104° F (5° C to 40° C)
Storage Temp. 14° F to 140° F (-10° C to 60° C)
Operating Hum. 10% to 85% Non-condensing
Storage Hum. 5% to 90% Non-condensing
Package Contents
Sales (800) 546-5797
Support (800) 326-7114
Fax (949) 261-8868
Email sales@linksys.com
Web www.linksys.com
• One EtherFast Virtual CD-ROM Server
• One Setup CD-ROM
• One User Guide and Registration Card
Model Number: EFVCD40
