SUPERVISED WIRELESS SECURITY CONSOLE

Installation & Programming Instructions

(760) 438-7000 • FAX (760) 438-7043

USA & Canada (800) 421-1587 & (800) 392-0123

Toll Free FAX (800) 468-1340

Page 2

INTRODUCTION

CONGRATULATIONS for selecting Linear’s DVS-1200 Security System. The DVS-1200 Console incorporates many advanced and sophisticated features. The system can be expanded and customized to fit the installation’s specific needs.

The DVS-1200 Console and its accessories are designed and manufactured by the oldest wireless security company in North America. You can look ahead to many years of reliable service with this Console and its accessories.

Many insurance companies offer discounts on homeowners and renters policies when a security system is installed. Discount credits vary with different companies and generally increase in savings with an increase in the level of protection. Inform the user to ask their insurance agent about savings available.

The DVS-1200 Console is UL Listed. For a UL smoke alarm system, there must be at least one smoke detector programmed into the Console to meet National Fire Protection Association (NFPA) Rule 72 Chapter 2 and UL 217 requirements. Many insurance companies require you to meet these requirements to qualify for a discount. Only use the Model DXS-71 or DXS-72 smoke detectors with this Console for a UL smoke alarm system.

NOTE: Some cities and municipalities may require an alarm system permit. Check with your local authorities before installing this system.

In this manual, the bullets preceding the text help to define the step. For example:

◆ This symbol indicates a feature.

This symbol indicates an action to perform and provides a box to check when the action is completed.

❇ This symbol is for lit indications or system

sounds.

✍

This symbol is for important notes.

UL Listed as a Single Station Smoke Detector Accessory, also suitable as a Residential Security System Receiver.

UL Category CCN UTGT & TETD.

Page 3

TABLE OF CONTENTS

1. THE DVS-1200 SECURITY SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . 2

CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

DOOR/WINDOW SENSORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

WIRELESS KEYPAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

SMOKE DETECTORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

REMOTE CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

PANIC BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BILL TRAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

PASSIVE INFRARED MOTION DETECTOR . . . . . . . . . . . . . . . . . . . . . 3

GLASS BREAK DETECTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. SECURITY SYSTEM FLOOR PLAN . . . . . . . . . . . . . . . . . . . . . . . . . . 4

EXAMPLE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

DESIGN THE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3. TYPICAL SYSTEM SENSORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

DOOR/WINDOW SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

WIRELESS KEYPAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4. CONSOLE FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5. CONSOLE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CONSOLE LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CASE LOCKING SCREW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

WALL MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

EXTERNAL CONSOLE SPEAKER CONNECTION (OPTIONAL) . . . . . . . . . . . 9

EXTERNAL ALARM SIREN CONNECTION (OPTIONAL) . . . . . . . . . . . . . . 9

TELEPHONE LINE CONNECTION (OPTIONAL) . . . . . . . . . . . . . . . . . . 10

AUTOMATION OUTPUT CONNECTION (OPTIONAL) . . . . . . . . . . . . . . . 10

CONSOLE POWER CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . 11

BACKUP BATTERY INSTALLATION (OPTIONAL) . . . . . . . . . . . . . . . . . 11

6. BASIC CONSOLE PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . 12

CREATE THE MASTER USER CODE . . . . . . . . . . . . . . . . . . . . . . . 12

PROGRAM THE SENSORS INTO THE CONSOLE’S MEMORY . . . . . . . . . . 12

PROGRAMMING DIFFERENT SENSOR TYPES . . . . . . . . . . . . . . . . . . 13

7. BASIC SENSOR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DXS-10 WIRELESS KEYPAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DXS-31 DOOR/WINDOW S ENSORS . . . . . . . . . . . . . . . . . . . . . . . . 15

TEST SENSORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

8. CUSTOMIZING THE CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

LABELING THE SENSORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

9. CONSOLE OPERATING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

OFF MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CHIME MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

HOME MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SECURE EXIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

HOME INSTANT MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

MANUAL BYPASSING OF SENSORS . . . . . . . . . . . . . . . . . . . . . . . 18

AWAY MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

MANUAL BYPASSING OF SENSORS . . . . . . . . . . . . . . . . . . . . . . . 19

TEST MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

10. SYSTEM TROUBLE INDICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 21

CONSOLE LOW BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

SENSOR LOW BATTERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

SENSOR RADIO TROUBLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

11. CUSTOMIZING THE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

ADDING SENSORS TO THE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . 22

REMOVING SENSORS FROM THE SYSTEM . . . . . . . . . . . . . . . . . . . 22

MAKING A SENSOR A 24-HOUR DOOR CHIME . . . . . . . . . . . . . . . . . . 23

MAKING A SENSOR INTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . . 23

MAKING A SENSOR ACTIVATE A DIFFERENT ZONE . . . . . . . . . . . . . . 24

12. ADVANCED PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

SETUP MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

CHANGING A SENS ORS SUPERVISION . . . . . . . . . . . . . . . . . . 26

CHANGING A SENSORS RESTORE REQUIREMENTS . . . . . . . . . . . 26

ENTRY DELAY TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

EXIT DELAY TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

BURGLARY SIREN TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

EMERGENCY SIREN TIME . . . . . . . . . . . . . . . . . . . . . . . . . . 26

FIRE SIREN TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

AUTOMATION OUTPUT TIME . . . . . . . . . . . . . . . . . . . . . . . . 27

REMOTE CONTROL ARMING LEVEL . . . . . . . . . . . . . . . . . . . . 27

REMOTE CONTROL DISARMING LEVEL . . . . . . . . . . . . . . . . . . 27

ENTRY DELAY BEEPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

EXIT DELAY BEEPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

SILENT BURGLARY ALARMS . . . . . . . . . . . . . . . . . . . . . . . . 28

SILENT EMERGENCY ALARMS . . . . . . . . . . . . . . . . . . . . . . . 28

DISABLING QUICK ARMING . . . . . . . . . . . . . . . . . . . . . . . . . 28

AUTOMATIC RESTORAL OF BYPASSED SENSORS . . . . . . . . . . . . 28

AUTOMATIC BYPASSING OF OPEN SENSORS . . . . . . . . . . . . . . . 28

AUTOMATION OUTPUT MODE DURING ALARM . . . . . . . . . . . . . . 29

AUTOMATION ACTIVATION TONE . . . . . . . . . . . . . . . . . . . . . . 29

REMOTE CONTROL ARM/DISARM CHIRP . . . . . . . . . . . . . . . . . 29

AUTOMATION OUTPUT FLASHES DURING AND AFTER ALARM . . . . . 29

AUTOMATION OUTPUT ON DU RING ALARM . . . . . . . . . . . . . . . . 29

AUTOMATION OUTPUT WHILE ARMED . . . . . . . . . . . . . . . . . . . 30

AUTOMATION OUTPUT DURING EXIT/ENTRY DELAYS . . . . . . . . . . 30

AUTOMATION OUTPUT POLARITY . . . . . . . . . . . . . . . . . . . . . 30

REMOTE ACCESS PASSWORD . . . . . . . . . . . . . . . . . . . . . . . 30

DURESS CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

MASTER USER CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

ADDITIONAL USER CODES . . . . . . . . . . . . . . . . . . . . . . . . . 31

REMOVING USER CODES . . . . . . . . . . . . . . . . . . . . . . . . . . 31

CONSOLE MASTER RESET . . . . . . . . . . . . . . . . . . . . . . . . . 31

13. COMMUNICATOR PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . 32

SETUP MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

GENERAL COMMUNICATOR OPTIONS . . . . . . . . . . . . . . . . . . . . . . 33

COMMUNICATOR ENABLE . . . . . . . . . . . . . . . . . . . . . . . . . . 33

2-WAY AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

VOICE RESPONSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

REMOTE LOCKOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

CALL LIMITER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

DIALING DELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

DIALING METHOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

COMMUNICATOR REPORTING OPTIONS . . . . . . . . . . . . . . . . . . . . . 35

REPORTING FORMAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

CALL ROUTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

ACCOUNT NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

PRIMARY TELEPHONE NUMBER . . . . . . . . . . . . . . . . . . . . . . 36

SECONDARY TELEPHONE NUMBER . . . . . . . . . . . . . . . . . . . . 36

SUPERVISORY/PAGER TELEPHONE NUMBER . . . . . . . . . . . . . . 36

REPORT CONSOLE TROUBLE . . . . . . . . . . . . . . . . . . . . . . . . 37

REPORT FORCE ARMING . . . . . . . . . . . . . . . . . . . . . . . . . . 37

OPENING AND CLOSING REPORTS . . . . . . . . . . . . . . . . . . . . . 37

POINT ID REPORTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

COMMUNICATOR REPORTING CODES . . . . . . . . . . . . . . . . . . . . . . 38

GENERAL REPORTING CODES . . . . . . . . . . . . . . . . . . . . . . . 38

SYSTEM REPORTING CODES . . . . . . . . . . . . . . . . . . . . . . . . 38

FORCE ARMING REPORTING CODE . . . . . . . . . . . . . . . . . . . . 39

DURESS REPORTING CODE . . . . . . . . . . . . . . . . . . . . . . . . . 39

4 BY 2 FORMAT POINT ID REPORTING CODES . . . . . . . . . . . . . . . . . 40

4 BY 2 FORMAT POINT ID ALARM REPORT CODES . . . . . . . . . . . . 40

4 BY 2 FORMAT POINT ID TROUBLE REPORT CODES . . . . . . . . . . 40

IMPORTANT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

LINEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

WIRELESS PRODUCT NOTICE . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

FCC NOTICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

FCC TELEPHONE RULE S AND REGULATIONS . . . . . . . . . . . . . . . . . . 42

FIRE EVACUATION PLANNING . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

INDUSTRY CANADA NOTICES . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Page 4

1. THE DVS-1200 SECURITY SYSTEM

DVS-1200 CONSOLE

DXS-31

DOOR/WINDOW

SENSOR

DXS-10

WIRELESS

KEYPAD

DXS-81

BILL TRAP †

CONSOLE

The DVS-1200 Console is the heart of the system. It monitors all of the system’s wireless sensors and controls the alarm sirens.

The Console constantly monitors the condition of the system’s sensors, displaying which protected doors and windows are open or closed. If an alarm occurs, the Console displays which sensor(s) caused it. When a sensor has a low battery, the Console displays which sensor needs a new battery. Sensors that send hourly status transmissions keep the Console informed of their operating condition.

Up to eight different custom user codes can be used to operate the system. For security, a user code must be entered to disarm (turn off) the system. The system can be armed (turned on) by entering a user code, or with the unique “Quick Arm” feature. The five restricted user codes and the special page alert user code can only arm and disarm the system, no programming changes are allowed. The master user code is allowed to program the Console, and a duress code can be selected for emergency disarming of the system with a duress report to the Central Station. The page alert user code can dial a pager number to inform the pager wearer when the Console is disarmed.

The Console’s memory will retain the user codes, the system’s mode, and all of the system’s programming, even during a total power loss. An optional backup battery can be installed to power the system during short power failures.

The built-in digital communicator connects the Console to a Central Alarm Monitoring Station through the telephone. With a monitored system, the central station can dispatch authorities in case of burglary, fire or other emergency. The central station can also call family, friends, neighbors, or anyone else designated on a custom call list.

Each sensor can report directly to the Central Station using the digital communicator’s Point ID feature. If a sensor triggers an alarm or experiences supervisory trouble, a unique report code can be sent for immediate identification of the event.

The optional Models VB-2 or VB-3 digital voice synthesis modules can be installed in the Console. The VB-2 module

DXT-61

REMOTE †

DXS-71

SMOKE DETECTOR

are not listed by UL.

DXT-41 & DXT-42

REMOTES

DXS-54

PIR

DXT-21 & DXT-23

REMOTES †

DXS-72

SMOKE DETECTOR

DXS-91 GLASS

BREAK DETECTOR †

† NOTE: These accessories

provides three exciting features: 2-way audio monitoring capability at the Central Station through the communicator, local human voice prompts from the Console’s speaker, and voice prompted remote system control using in-house or off-site pushbutton telephones. The economy Model VB-3 is the same as the VB-2 without 2-way Central Station audio capability.

The Console has 24-hour capabilities that are always ready to operate, even when the Console is disarmed. They can be triggered by buttons on the Console, the Wireless Keypad, portable remote controls and smoke detectors. Pressing the [

EMERGENCY

] or [

] button for two seconds

FIRE

will cause an immediate siren and call the central station.

IMPORTANT: For personal emergency use only. Not for use as a UL Listed Medical Alert System.

The Console’s Environmental Zone is a 24-hour zone that can be triggered with sensors connected to devices such as water flow detectors, over/under temperature sensors, flood sensors, toxic gas detectors, etc. The Environmental Zone activates the chime annunciator without sounding the siren. The Environmental Zone does not send communicator reports.

An Automation Output in the Console provides an easy way to connect external devices to the Console. The output is fully programmable to activate on a variety of conditions, such as when the system is armed, during alarms, and during exit/entry delays. The Automation Output can connect to lighting control modules, relays, noisemakers, and indicators. The Console’s and wireless keypad’s (A) key and transmitters can control the Automation Output.

The Console can be programmed locally using its own keypad, or remotely, using Linear’s Model RA-2400 Remote Access software program. The RA-2400 upload/download program is a Windows application that runs on a personal computer and communicates with the Console through a modem, connected directly to the Console, or through the telephone line.

A total of 12 sensors of the types listed on the next page can be used with each DVS-1200 Console. Each burglary sensor can trigger the siren (and report to the Central Station) once per arming cycle. 24-hour sensors have unlimited alarm and reporting capacity.

Page 5

DOOR/WINDOW SENSORS

The DXS-31 sensors monitor doors and windows. They send radio signals to the Console. One type of signal is sent when the door or window is opened, and a different type of signal is sent when the door or window is closed. If the Console is armed, a sensor can trigger the Console’s burglary siren when its door or window is opened. The DXS-31 is supervised, it sends hourly status reports and monitors its battery condition.

DXS-31 †

PANIC BUTTONS

The DXT-21 and DXT-23 transmitters can be used as portable “panic buttons”. Pressing the front or top button o n the DXT-21 at any time will trigger the emergency siren. Pressing both front buttons simultaneously on the DXT-23 at any time will trigger the emergency siren. Both transmitters can be programmed to activate various other Console zones. These transmitters are not supervised.

WIRELESS KEYPAD

The DXS-10 wireless keypad is used to control the Console remotely. It can be placed in a convenient spot so the user doesn’t have to go to the Console to control the system. The wireless keypad can also trigger the emergency or fire siren and actuate the Automation Output. Pressing the [∗] key will cause the Console to sound beeps corresponding to the current operating mode. The DXS-10 is supervised, it sends hourly status reports and monitors its battery condition. IMPORTANT:

For personal emergency use only. Not for use as a UL Listed Medical Alert System.

DXS-10 †

SMOKE DETECTORS

The DXS-71 and DXS-72 are high quality smoke detectors with built-in radio transmitters. As soon as smoke is detected, the unit will sound its local noisemaker. Then, 20 seconds after the local noisemaker sounds, the transmitter sends an alarm signal to the Console. The alarm signal will be repeated every 20 seconds as long as smoke is still present. A restoral signal will be sent when the smoke detection chamber clears. The DXS-71 and DXS-72 are supervised, they send hourly status reports and monitor their battery condition.

NOTE: A Model DXS-71 or DXS-72 Smoke Detector is

☞

required to create a UL Listed smoke alarm system. See Page 22 for details on adding a smoke detector sensor to the system.

DXT-21 ‡

DXT-23 ‡

BILL TRAP

The DXS-81 bill trap can be used with the Console in non-UL small commercial hold-up installations. The unit is concealed in a cash drawer under a stack of currency, with a single “bait” bill secured in its money clip. During a hold-up, the cashier removes the stack of currency along with the “bait” bill. When a “bait” bill is removed, the transmitter sends a signal to the Console. Four additional signals are sent within the first minute after the “bait” bill is removed. When the “bait” bill is replaced, a restore signal is sent. The DXS-81 is supervised, it can send hourly status reports (optional) and monitors its battery condition.

DXS-81 ‡

PASSIVE INFRARED MOTION DETECTOR

The DXS-54 is a passive infrared (PIR) motion detector with a built-in radio transmitter. The PIR detects motion in its detection pattern by measuring the infrared emission levels of objects that it “sees”. If the infrared levels change quickly, as when a person moves across the detection pattern, the PIR will recognize the change as an intrusion and send an alarm signal to the Console. An alarm will be triggered if the Console is in the Away Mode. The DXS-54 is supervised, it sends hourly status reports and monitors its battery condition.

DXS-71 †

DXS-72 †

REMOTE CONTROLS

The DXT-41, DXT-61 single-button and DXT-42 two-button remote controls can be used to remotely arm and disarm the Console. The DXT-42’s right button controls the Console’s automation output. Pressing both buttons simultaneously on the DXT-23 will trigger the emergency siren. Each transmitter can be programmed to activate various other Console zones. These transmitters are not supervised.

DXT-41 †

DXT-61 ‡

DXT-42 †

† NOTE: These accessories UL Listed under Residential Security Devices

‡ NOTE: These accessories not listed by UL.

DXS-54 †

GLASS BREAK DETECTOR

The DXS-91 is a glass break detector with an audio sound discriminator and a built-in radio transmitter. The unit “listens” for the sound of breaking glass. When glass breakage is detected, the unit sends an alarm signal to the Console. The DXS-91 is supervised, it sends hourly status reports and monitors its battery condition.

DXS-91 ‡

Page 6

2. SECURITY SYSTEM FLOOR PLAN

EXAMPLE SYSTEM

◆ The example shows a typical DVS-1200

system.

◆ Any or all of the accessories shown can be

used.

◆ A total of 12 sensors (including keypads) can

be used with each Console.

DESIGN THE INSTALLATION

Create a floor plan of the installation. Consider the security needs of the premises. Determine which doors and windows are

vulnerable to intrusion. Figure which interior areas an intruder might

go to if unlawful entrance is gained. Indicate locations for door/window sensors,

interior motion detectors, keypads, glass break detectors and external siren speakers.

Decide on a centralized location for the security Console.

LIVING

BED

BATH

NOTE: IN SMOKE DETECTOR LOCATED AS WELL AS A SMOKE DETECTOR ON EACH LEVEL.

NEW

CONSTRUCTION, NFPA 71 REQUIRES A

BED

ENTRY

DINING

INSIDE

CON

EACH BEDROOM

KITCHEN

Example Residential Security System Floor Plan

CON - CONSOLE S - DOOR/WINDOW SENSOR WK - WIRELESS KEYPAD MD - MOTION DETECTOR ES - EXTERNAL SIREN SD - SMOKE DETECTOR GB - GLASS BREAK SENSOR MS - EXTERNAL MAGNETIC SWITCH

Page 7

3. TYPICAL SYSTEM SENSORS

DOOR/WINDOW SENSOR

◆ Sensor mounts on door or window with

adjacent magnet.

◆ Opening door or window moves magnet away,

triggering sensor.

◆ Pressing the case causes sensor to send a test

signal.

◆ Jumper inside for INSTANT or DELAYED

alarm setting.

◆ Press the case for testing, the red transmit

light shows that battery is in good condition.

◆ Internal lithium batteries are monitored by the

Console.

◆ Sends hourly status reports to the Console.

Up to 3 years battery life (depends on

◆

frequency of activation). (UL tested for 1 year minimum.)

◆ Sensor contains internal terminals for

connection to glass break detector and external switches.

WIRELESS KEYPAD

◆ For controlling the system without having to

go to the Console.

◆ Emergency and fire alarm can be triggered

from wireless keypad at any time.

UL NOTE: For personal emergency use only. Not

✍

for use as a UL Listed Medical Alert System.

◆ Green operation light.

◆ Internal 9-volt battery is monitored by the

Console.

◆ Keypad’s beeper will buzz during

transmissions when the battery is low. Up to 3 years battery life (depends on

◆

frequency of activation). (UL tested for 1 year minimum.)

◆ Sends hourly status reports to the Console.

◆ Press the [(A)] key to activate the automation

output.

◆ Pressing [

◆ Holding [

beeps from the Console.

Off Mode: 1 “Gong”

✔

Chime Mode: 1 “Gong” & 1 “Beep”.

✔

Home Mode: 1 “Gong” & 2 “Beeps”.

✔

Away Mode: 1 “Gong” & 3 “Beeps”.

✔

Test Mode: 1 “Bing” & 4 “Beeps”.

✔

] clears the keypad.

∗

] for two seconds sounds the mode

∗

Page 8

4. CONSOLE FEATURES

1 24-HOUR BUTTONS

2 MODE BUTTONS

★

Pressing the [ a “fire” message to a central monitoring station through the digital communicator (if the system is monitored).

★

Pressing the [ emergency siren and sends an “emergency” message to a central monitoring station through the digital communicator (if the system is monitored).

★

Both work even when system is disarmed.

IMPORTANT: For personal emergency use only. Not for use as a UL

★

Listed Medical Alert System.

★

Used to control the Console.

OFF

★

Off Mode disarms the system.

★

Switching to Off Mode stops the alarm siren.

✔

Multiple beeps sound and status lights flash if an alarm has occurred.

☞

Multiple beeps mean caution. AN INTRUDER MAY STILL BE PRESENT.

CHIME

★

Chime Mode disarms the system.

★

Switching to Chime Mode stops the alarm siren.

✔

Multiple beeps sound and status lights flash if an alarm has occurred.

☞

Multiple beeps mean caution. AN INTRUDER MAY STILL BE PRESENT.

★

Chime Mode is for monitoring doors and windows.

✔

Use this mode as an “automatic door chime” when at home.

✔

Opening any protected door or window causes Console to “ding-dong”.

HOME

★

Home Mode arms the perimeter sensors, but not the interior sensors.

✔

Use this mode when anyone is staying behind.

✔

Interior motion detectors and interior door sensors are not armed.

✔

Home secure mode makes all delayed perimeter sensors instant.

✔

Secure exit mode starts an exit delay while remaining in Home Mode.

✔

Re-entering during the exit delay restarts the exit delay (one time only).

AWAY

★

Away Mode arms the entire system.

✔

Use this mode when leaving home.

✔

Door sensors set for delayed will have a delay that allows you to leave and enter the premises without sounding the alarm.

✔

Re-entering during the exit delay restarts the exit delay (one time only).

✔

Entry Delay beeps warn you to disarm the system before the siren starts.

TEST

★

Test Mode is for testing the system sen sors.

✔

All sensor status lights blink when the Test Mode is entered.

✔

Each sensor status light will stop blinking when its sensor is tested.

★

Hold the [

TEST

] button for two seconds sounds the fire siren and sends

FIRE

EMERGENCY

] button down to test all of the Console’s indicator lights.

] button for two seconds sounds t he

3 MODE INDICATORS

4 CONSOLE STATUS INDICATORS

5 SIREN SPEAKER

6 STATUS INDICATORS

7 CASE ACCESS SCREW (HIDDEN)

8 KEYPAD

★

Specific indicator will light showing the mode the Console is in.

★

HOME indicator will blink during secure exit and home instant modes.

★

AWAY indicator will blink during the exit delay in the Away Mode.

★

Show the current status of the Console.

POWER LIGHT

★

Glows when AC power is on.

★

Dims when AC power is off and backup battery is installed.

★

Blinks when the backup battery is low, recharging or missing.

★

Off when AC power is off and no backup battery is installed (system disabled).

BATTERIES LIGHT

★

Blinks when one or more sensors has a low battery.

★

Press [∗] key for one second to view sensor status. Sensor status indicator for any sensor with a low battery will light along with the BATTERIES indicator. Any trouble in dications will follow during the five second status cycle.

★

Switch to Test Mode after replacing the sensor battery and completely test the system (see Test Mode). Switching to Test Mode clears the low battery indication.

TROUBLE LIGHT

★

Blinks when one or more sensors have not reported status during the eight hour status time window.

★

Press [∗] key for one second to view sensor status. Sensor status indicator for any sensor that has not reported in will light along with the TROUBLE indicator. Any low ba ttery indications will follow d u ring the five second status cycle.

★

Switch to Test Mode after servicing the sensor and completely test the system (see Test Mode). Switching to Test Mode clears the trouble indication.

★

Makes unique sounds for burglary, fire and emergencies.

★

Alarm sirens stop automatically after five minutes.

★

Sounds advisory tones to confirm keystrokes from the Console.

★

Sounds mode selections tones.

★

Sounds alarm memory tones.

★

Beeps when Automation Output is activated.

★

Terminals available for an external siren.

★

Indicates the status of each of the system’s sensors.

★

Lights show which doors and windows are open.

★

Lights flash to display sensors that have caused an alarm.

★

Stick-on labels are provided to identify the custom sensor locations.

★

Remove clear display window and sensor identification card to gain access to the screw.

★

Remove case access screw to unlock case. Case hinges open to the left.

★

For entering the user’s user code (numerically or alphabetically).

★

Used when programming system options.

★

Press [

★

Press the [∗] key to clear keypad if the wrong key is pressed.

★

Press and hold the [∗] key for one second to view sensor battery and supervisory status (see BATTERIES and TROUBLE indicator description).

] key to activate Automation Output.

(A)

Page 9

10 AUXILIARY FUSE

11 MAIN TERMINAL BLOCK

12 BATTERY FUSE

13 TELEPHONE TERMINAL BLOCK

14 INTERNAL SPEAKER CONNECTOR

15 ANTENNA TERMINALS

16 OPTIONAL BACKUP BATTERY

17 WIRING ACCESS HOLE

18 WALL-MOUNT SLOTS

★

Type 2AG, 1-amp fuse.

★

Protects the external relay output when used with wet contacts (12 VDC switched out).

★

Fuse will blow when load exceeds 1 amp.

WARNING: For continued protection against the risk of fire, replace

✍

only with the same type and rating of fuse.

★

Terminals for connection to the plug-in AC transformer.

★

Terminals for connection to an external siren speaker.

★

Automation Output to connect to an automation controller.

★

External relay output for “wet” contacts (switched 12 volts) or “dry” contacts (normally open 1 amp @ 24 volts maximum).

★

Type 2AG, 3-amp fuse for the backup battery.

★

If the POWER light is flashing and the optional backup battery is installed and charged, check this fuse.

WARNING: For continued protection against the risk of fire, replace

✍

only with the same type and rating of fuse.

★

Provides telephone connections for the digital communicator.

★

Provides seized ring and tip connections for local telephone instruments. Communicator will disconnect local telephones while on-line.

★

Connects the internal speaker to the Console circuit board.

★

2-pin connector, non-polarized.

★

Antenna and ground terminals for receiving signals from the system’s sensors.

★

Pre-wired to the Console’s internal wire dipole antenna.

★

Alternately connects to the Model LA-P local whip and remote antenna kit.

★

Space for 12-volt, 1.2 amp/hour backup battery. (Highly recommended.)

★

Backup battery is automatically charged and monitored by the Console.

★

Backup battery can power the Console for up to 6 hours.

UL NOTE: Normal estimated battery life should be 3 to 4 years.

★

Provides access to recessed wiring trough in base of Console.

★

Route cables for power, telephon e, external speaker, etc. through this hole.

★

Loop for zip-tie strain relief provided next to hole.

★

Used when mounting Console recessed in the wall.

★

Two mounting brackets (supplied) slide through slots and are retained by screws, clamping the unit to the wall.

19 RADIO TEST POINTS

20 MICROPHONE (WITH MODEL VB-2 INSTALLED ONLY)

21 ANNUNCIATOR VOLUME CONTROL

22 DIGITAL VOICE SYNTHESIS MODULE (OPTIONAL)

★

Used to monitor the Console’s radio receiver during troubleshooting.

★

Provides connection for an audio amplifier to listen to the receiver’s output.

★

Helpful to determine sources of radio interference.

★

High sensitivity microphone.

★

Detects room audio when communicator is reporting to the Central Station in 2-way audio mode (Model VB-2 must be installed).

★

Varies the volume of the advisory tones that come from the speaker.

★

Does not affect internal or external sirens (they are always full volume).

★

Two voice synthesis modules are available, the Model VB-2 and VB-3.

★

Both modules allow remote command of the Console using a standard pushbutton telephone, on or off site.

★

Both modules provide optional human voice prompts from the Console’s speaker.

★

The Model VB-2 gives the Console’s digital communicator listen-only, manual 2-way and full duplex 2-way audio capability with the Central Station.

Page 10

5. CONSOLE INSTALLATION

CONSOLE LOCATION

✍

NOTE: Sensor signals must be able to reach the Console.

Try to centrally locate the Console.

✔

Keep Console away from large metal

✔

appliances. Maximum recommended sensor range is

✔

400 feet (system tested at 1000 feet).

✍

NOTE: If you don’t use the Wireless Keypad, the Console should be easily accessible to the usual entrance.

When the Console is set in the Away Mode,

✔

the user has 30 seconds to switch to Off Mode before the burglary siren sounds.

✍

NOTE: Make sure the Console is in a place where the alarm can be heard during the night hours.

Optional remote external sirens (up to 150

✔

feet from the Console) can be used to make alarms louder and remote their location.

Locate the Console near a 115 VAC outlet that’s not controlled by a light switch.

Locate the Console near a telephone outlet (if using the digital communicator).

USE A PAPER CLIP TO REMOVE THE CLEAR DISPLAY WINDOW

REMOVE SENSOR NAMEPLATE TO ACCESS CASE SCREW

REMOVE CASE LOCKING SCREW TO ACCESS INTERNAL COMPONENTS

CASE LOCKING SCREW

◆ To access the Console’s internal components

or to prepare the Console for wall mounting, the case locking screw needs removing.

Use a paper clip to remove the clear plastic display window.

Remove the sensor number nameplate. Remove the case locking screw.

WALL MOUNTING

◆ If desired, the Console can be surface

mounted or recessed into the wall.

Surface Mounting

For surface mounting, use the Console’s case bottom as a template and mark the locations for the four mounting screws.

Use four screws and appropriate screw anchors to temporarily mount the unit to the wall (the unit will need to be removed to complete the recessed wiring hook up).

Recessed Mounting

For recessed wall mounting, cut a 10" by 6-3/4" hole, centered between studs, in the mounting wall at a convenient height.

Slide the unit into the mounting hole and temporarily secure it with the two retaining clamps and screws provided (the unit will need to be removed to complete the recessed wiring hook up).

FOR RECESSED

WALL MOUNTING ONLY

CUT A 10" x 6 3/4" HOLE CENTERED BETWEEN STUDS IN MOUNTING WALL AT A CONVENIENT HEIGHT

FOR RECESSED

WALL MOUNTING ONLY

SLIDE CONSOLE INTO WALL OPENING

FOR RECESSED

WALL MOUNTING ONLY

10"

6 3/4"

SECURE CONSOLE TO WALL USING THE TWO CLAMPS AND SCREWS PROVIDED

Page 11

EXTERNAL CONSOLE SPEAKER CONNECTION (OPTIONAL)

◆ An external console speaker sounds system

tones and alerts occupants with a loud siren during alarm.

◆ With the VB-2 module installed, the Central

Station can talk to the occupants through the external console speaker.

◆ Use an 8-ohm, 10 watt minimum rated

speaker. Do not use a horn/siren with a built-in siren driver.

Up to two 8-ohm speakers can be used with

◆

each Console.

◆ Up to 150 feet of 22 AWG wire can be used

with each speaker. Mount the external speaker. Route the speaker wires from the external

speaker to the Console. Open the Console top cover and locate the

main terminal block. Route the speaker wires up through the wiring

access hole. Remove the wire jumper from the EXT. SPKR

& (-) terminals. Connect the speaker wires to the EXT. SPKR

& (-) terminals.

✍

NOTE: If connecting two external speakers, connect the second speaker in parallel, to the same EXT. SPKR & (-) terminals as the first speaker.

The system tone volume can be adjusted with the annunciator volume control.

EXTERNAL ALARM SIREN CONNECTION (OPTIONAL)

◆ An external siren alerts occupants and

neighbors with a loud siren during alarm.

◆ Use a 12 volt, 1 amp maximum rated

weather-resistant horn speaker with a built-in siren driver. Do not use a plain speaker.

✍

NOTE: Connection of an electromechanical bell or motor bell is not recommended because of the radio interference generated when the bell is running.

✍

UL NOTE: Only one external siren is allowed in UL installations.

Mount the external siren. Route the wires from the external siren to the

Console. Open the Console top cover and locate the

main terminal strip. Route the siren wires up through the wiring

access hole. Connect the siren wires to the RELAY N.O. &

(-) terminals.

✍

NOTE: By removing the Console’s auxiliary fuse, the relay contacts will become isolated. Use the RELAY N.O. & RELAY DRY terminals to switch an externally powered load.

MAIN

TERMINAL

BLOCK

REMOVE JUMPER

MAIN

TERMINAL

BLOCK

LINEAR SECURITY CONSOLE MODEL DVS-1200

ANNUNCIATOR

VOLUME

CONTROL

OPTIONAL

VOICE MODULE

MODEL: VB-4

CONNECT SPEAKER LEADS TO EXT. SPKR & (-) TERMINALS

LINEAR SECURITY CONSOLE MODEL DVS-1200

OPTIONAL

VOICE MODULE

MODEL: VB-4

MAIN TERMINAL BLOCK

EXT. SPKR(S)

8 OHM/10 WATT

2 SPKRS MAX.

NOTE: REMOVE

JUMPER FOR

EXT. SPEAKERS

MAIN TERMINAL BLOCK

EXTERNAL SIREN

12 VDC 1 AMP

MAXIMUM

EXTERNAL

CONSOLE

SPEAKER

AC AC EXT. SPKR (-) H/A H/A + RELAY N.O. RELAY DRY

EXTERNAL

CONSOLE SPEAKER

8 OHM, 10 WATT

MINIMUM

EXTERNAL

ALARM

SIREN

AC AC EXT. SPKR (-) H/A H/A + RELAY N.O. RELAY DRY

EXTERNAL

ALARM RELAY

12 VDC 1 AMP

MAXIMUM

CONNECT SIREN LEADS TO (-) & RELAY N.O. TERMINALS

Page 12

TELEPHONE LINE CONNECTION (OPTIONAL)

◆ Connect the Console to the telephone line if

the system is monitored, requires 2-way audio, or requires telephone remote command.

◆ Telephone ring & tip terminals are for

connection to the incoming telephone line.

◆ Seized telephone ring & tip are for connection

to local telephone sets. When the communicator activates, all the local telephone sets will be disconnected to prevent an off-hook telephone on the premises from blocking the communicator call.

Install a USOC RJ31-X or RJ38-X jack to the telephone system near the Console.

Route an appropriate modular telephone line cord from the jack to the Console.

Route the line cord through the Console’s wiring access hole.

Connect the incoming telephone line wires to the Console’s telephone terminal block TIP and RING terminals.

Connect the local telephone set wires to the Console’s telephone terminal block SEIZED TIP and SEIZED RING terminals.

◆ When directly connecting (without a telephone

line) to the DVS-1200 with the RA-2400 remote access software (Version 1.3 or later), disconnect the incoming telephone line and connect the modem to the panel’s TIP and RING terminals (with the modem’s red & green phone line wires). Press the [

EMERGENCY

cause the panel to connect to the modem.

] key while in Test Mode to

TELEPHONE

TERMINAL

BLOCK

DVS-1200

TELEPHONE

TERMINAL

BLOCK

8-POSITION

USOC RJ31-X

(OR RJ38-X)

JACK

TO TELEPHONE NETWORK

LINEAR SECURITY CONSOLE MODEL DVS-1200

OPTIONAL

VOICE MODULE

MODEL: VB-4

8-PIN

MODULAR

PHONE CORD

SEIZED TIP (T1)

BROWN

GRAY

SEIZED

RING (R1)

1324567

TIP (T)

TELEPHONE TERMINAL BLOCK

SEIZED RING

SEIZED TIP

TO LOCAL

PHONES

LINE

RING (R)

GREEN

BLUE, ORANGE BLACK, AND YELLOW NOT USED

SHORTING BAR SHORT REMOVED ON PLUG

INSERTION

RED

TO PHONE

RTR1

LINE

TO LOCAL TELEPHONE SETS

TIP

RING

AUTOMATION OUTPUT CONNECTION (OPTIONAL)

◆ The Console provides a Automation Output to

control lights, devices and appliances.

◆ Automation Output can connect to most

popular home automation devices and other simple electronic devices (see Figure).

Press [ press [

] to turn the Automation Output on,

(A)

] again to turn it off.

(A)

Programmable Options

◆ There are many programmable options for the

Automation Output.

◆ The Automation Output can be programmed

for a variety of useful functions, such as: flashing during alarm, flashing after an alarm, on while armed, or, on during exit/entry delays.

◆ See the “Advanced Programming” section of

this manual for details on changing the function of the Automation Output.

MAIN

TERMINAL

BLOCK

X-10

H/A + H/A -

CONNECT TELEPHONE LINE TO THE TELEPHONE TERMINAL BLOCK

MINUS H/A TERMINAL WILL SWITCH TO GROUND WHEN AUTOMATION

LINEAR SECURITY CONSOLE MODEL DVS-1200

OPTIONAL

VOICE MODULE

MODEL: VB-4

EXAMPLE AUTOMATION OUTPUT HOOK-UPS

X-10 BURGLAR ALARM INTERFACE (CAN CONTROL HOUSE LIGHTS THROUGH X-10 SYSTEM)

LINEAR RB-90

RELAY MODULE

H/A + H/A - H/A + H/A -

OUTPUT IS ACTIVATED

POSITIVE H/A TERMINAL PROVIDES +12 VOLTS DC AND IS CURRENT LIMITED AT 30 MILLIAMPS MAXIMUM

MAIN TERMINAL BLOCK

LIGHT EMITTING DIODE (L.E.D.)

YOUR LOAD

POWER

SOURCE

AC AC EXT. SPKR (-) H/A H/A + RELAY N.O. RELAY DRY

LIGHT EMITTING DIODE (L.E.D.)

Page 13

CONSOLE POWER CONNECTION

◆ The Console is powered by a low voltage

plug-in transformer.

◆ Use up to 25 feet of 20 AWG or larger

two-conductor wire to connect the transformer to the Console.

Route the power wires from the plug-in transformer to the Console.

Connect the wires to the transformer terminals

(do not plug the transformer in until the wiring is complete).

Route the power wires through the Console’s wiring access hole.

Connect the power wires from the transformer to the Console’s main terminal block AC & AC terminals.

Secure all of the wires entering the Console with a zip-tie to the Console’s strain relief loop.

Plug transformer into an unswitched AC outlet. Secure transformer with screw to prevent

un-plugging.

MAIN

TERMINAL

BLOCK

LINEAR SECURITY CONSOLE MODEL DVS-1200

OPTIONAL

VOICE MODULE

MODEL: VB-4

CONNECT TRANSFORMER LEADS TO AC POWER TERMINALS

PLUG TRANSFORMER INTO 115 VAC OUTLET THAT IS NOT CONTROLED BY A LIGHT SWITCH

MAIN TERMINAL BLOCK

PLUG-IN TRANSFORMER

16 VAC, 28 VA

AC AC EXT. SPKR (-) H/A H/A + RELAY N.O. RELAY DRY

BACKUP BATTERY INSTALLATION (OPTIONAL)

◆ A 12 volt backup battery may be installed and

is highly recommended.

◆ The backup battery will power the Console for

up to 6 hours during AC power loss.

◆ The backup battery is automatically charged

by the Console when AC power is present. A low backup battery will cause the Console

◆

POWER indicator to flash as it is being charged.

To install the battery, slide the battery between the retaining clamps and under the battery holder.

Position the battery until the clamps snap in place. The battery terminals should be facing the center of the Console case bottom.

Connect the black battery lead to the black battery terminal.

Connect the red battery lead to the red battery terminal.

✍

WARNING: DO NOT REVERSE THE BATTERY LEADS! THE BATTERY FUSE WILL BLOW.

SCREW

TRANSFORMER

SLIDE BACKUP BATTERY INTO BATTERY CLAMPS

CONNECT RED BATTERY LEAD TO RED TERMINAL CONNECT BLACK BATTERY LEAD TO BLACK TERMINAL

CAUTION: DO NOT REVERSE BATTERY LEADS BATTERY FUSE WILL BLOW

115 VAC OUTLET

Page 14

6. BASIC CONSOLE PROGRAMMING

◆ In a new installation, when power is first applied,

the Console’s master user code is “1234”.

CHANGE THE MASTER USER CODE

✍

NOTE: Local programming must be entered on the Console’s keypad, not on a wireless remote keypad.

Press [∗] (clears keypad if any other keys have been pressed).

Place the Console in Test Mode (enter 1234 and press [

❇ A “gong” and four “beeps” will sound.

Enter the Setup Mode from Test Mode, enter the 1234 then press [

❇ A “gong” and five “beeps” will sound.

Enter 99 then press [ Enter any combination of 1-5 digits for the

new master user code, then press [

NOTE: For maximum security, a three to five digit

✍

code is recommended.

Press and hold the [ exit program mode.

Test the new master user code by entering it then pressing [

Log the master user code in the box below.

MASTER USER CODE

NOTE: The master user code can be used to enter

✍

Setup Mode. The restricted user codes cannot. To create restricted user codes, see the “Advanced Programming” section of this manual.

TEST

]).

TEST

HOME

] key for 3 seconds to

OFF

AWAY

ENTERING

SETUP

MODE

START IN OFF

CLEARS KEYPAD

DEFAULT MASTER USER CODE

1 GONG & 4 BEEPS (TEST MODE)

DEFAULT MASTER USER CODE

1 GONG & 5 BEEPS (SETUP MODE)

SETTING A

NEW MASTER

USER CODE

START IN SETUP

PROGRAMMING STEP #99

PROGRAM

NEW MASTER USER CODE

STORE CODE

HOLD FOR 3 SECONDS TO EXIT SETUP

DONE

PROGRAM THE SENSORS INTO THE CONSOLE’S MEMORY

◆ Each wireless sensor that is going to be used

with the Console must be programmed into the Console’s memory.

Start with the Console in Test Mode (enter any user code and press [

TEST

]).

Enter the Setup Mode from Test Mode, enter the master user code then press [

TEST

❇ A “gong” and five “beeps” will sound.

The sensor status indicators will light for any

❇

sensors programmed into the Console. Enter an unused sensor number from 01-12

(you must enter two digits, example: 5 = 05)

❇ The sensor indicator light will flash for the

sensor number selected. Activate the sensor by sending a test or alarm

signal (be sure the sensor’s battery is connected or that its battery protection strip is removed).

❇ A single “bing” tone will sound and the sensor

status indicator for that sensor will stay lit. Enter another sensor number or exit Setup

Mode by holding the [OFF] key for three seconds.

START IN TEST

MASTER USER CODE

1 GONG &

TEST

5 BEEPS

NEW SENSOR NUMBER

ACTIVATE SENSOR

DONE

Page 15

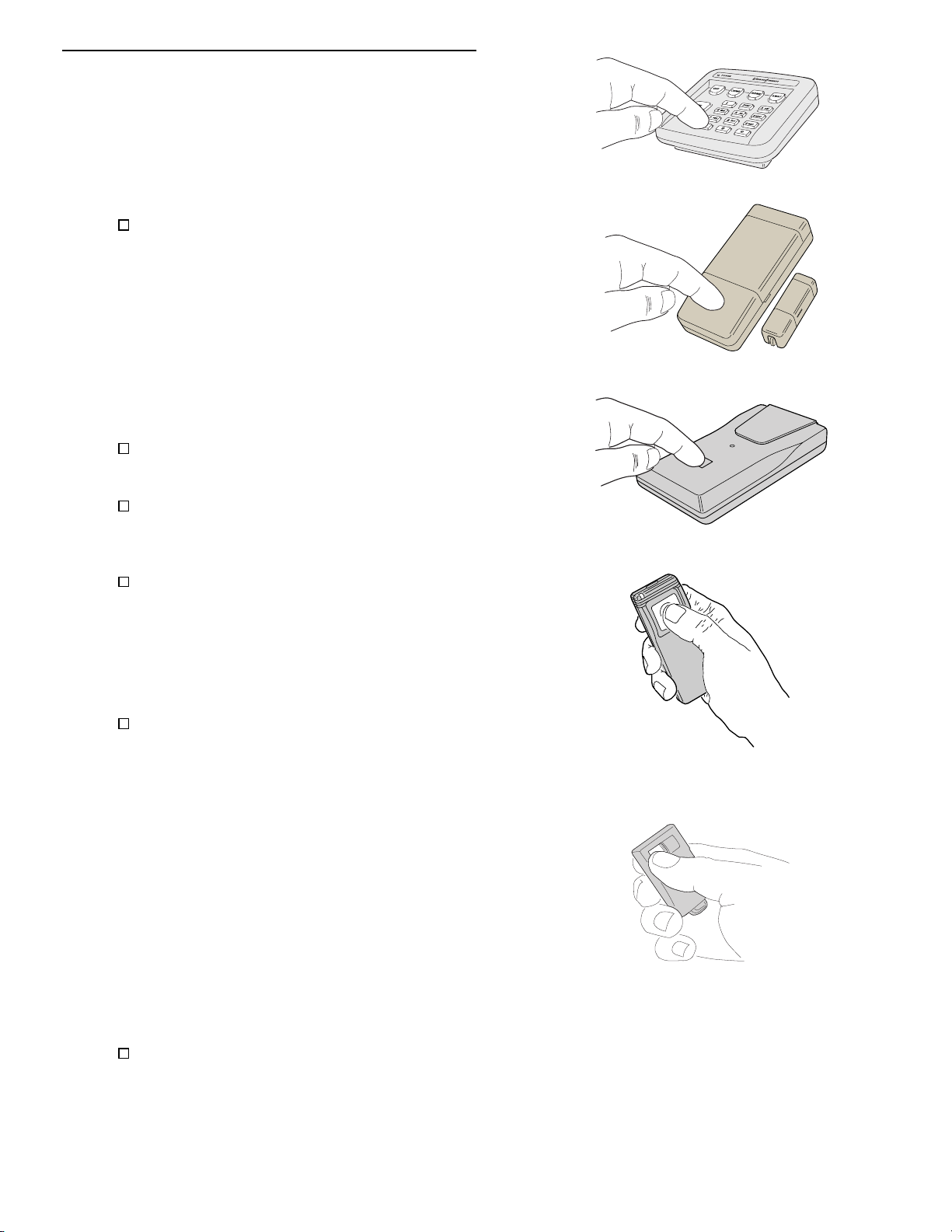

PROGRAMMING DIFFERENT SENSOR TYPES

◆ Follow the instructions on the previous page

to select a sensor number to program the sensor into.

✍

NOTE: A sensor can be programmed into more than one location. Be sure to choose an unused sensor number. If a sensor gets entered into more than one location, delete the duplicates using the remove sensor function.

To add DXS-10 wireless keypads, press and hold the keypad’s [∗] key until programmed into the Console.

✍

IMPORTANT NOTE: The DXS-31 door/window sensors are pre-set at the factory for delayed burglary response. If the sensor is going to be used on a non-entry portal (window, sliding glass door, etc.) a jumper can be changed in the sensor to select instant response. The jumper should be changed before learning the sensor so the Console will program the sensor to the proper zone. See the “Basic Sensor Installation” section of this manual for details on changing the jumper.

For DXS-31 door/window sensors, press the case or move the magnet away from the side of the sensor.

For DXS-81, DXS-91, DXS-54, DXS-71 & DXS-72 accessory sensors, simply send a test transmission (refer to the sensor’s instructions for details on sending a test transmission).

For DXT-61, DXT-21 & DF-41 single-button remotes, simply press the unit’s button. The unit will function as an arm/disarm remote.

✍

NOTE: After the Console “learns” the transmitter, single-button remotes can easily be re-programmed as “panic buttons” or home automation controllers. Refer to the “Customizing the System” section of this manual.

For DXT-23 & DF-42 two-button remotes: Learn the transmitter by pressing the left button. The remote will arm/disarm the Console with the left button and activate/deactivate the home automation output with the right button. Labels are provided with the DF-42 for identifying the buttons.

✍

NOTE: After the Console “learns” the transmitter, two-button remotes can easily be re-programmed to have the left button arm the Console and the right button disarm the Console. Refer to the “Advanced Programming” section of this manual.

❇ A single “bing” tone will sound and the sensor

status indicator will stay lit when the sensor is learned by the Console.

❇ A double “buzz” tone will sound if there is

already another sensor programmed to that sensor number.

Exit Setup Mode by holding the [ two seconds. Reminder: The Console will automatically exit the Setup Mode and return to Off Mode after 3 minutes of keypad inactivity.

✍

NOTE: To remove sensors from the Console’s memory, see the “Customizing the System” section of this manual.

] button for

OFF

SEND SIGNAL WITH LEFT BUTTON

LEFT = ARM/DISARM RIGHT = AUTOMATION BOTH = EMERGENCY

Page 16

7. BASIC SENSOR INSTALLATION

◆ Each accessory sensor is packaged with its

own set of installation instructions specific to the model of sensor.

◆ Refer to the sensor’s instructions for details on

installing, operating, and testing of the sensor.

◆ Following are basic instructions for installing

two popular DVS-1200 accessories: The Model DXS-10 Wireless Remote Keypad and the Model DXS-31 Door/Window Transmitter.

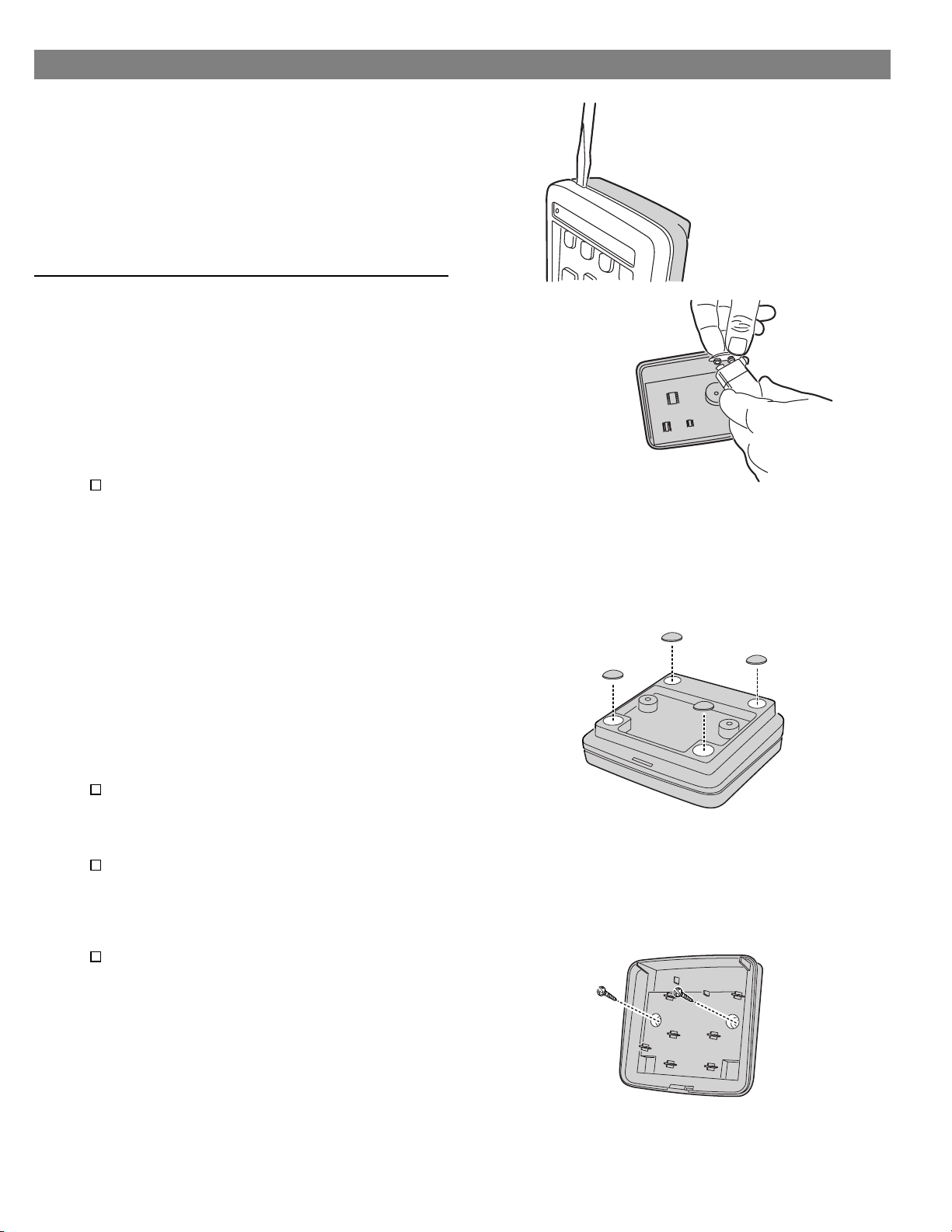

DXS-10 WIRELESS KEYPAD

◆ The DXS-10 is used to remotely command the

Console.

◆ The keypad can be simply set on a table or

mounted to a flat surface.

TABLE-TOP USE

◆ Four anti-mar pads are provided as scratch

deterrent “feet” for the keypad.

✍

NOTE: Do not use the adhesive “feet” if the keypad is going to be wall mounted.

Peel off the adhesive tape backing on the “feet” and stick them to the back of the keypad.

◆ The wireless keypad can be used as a

portable keypad. Because of the hourly supervisory transmissions, if the unit is taken out of range from the Console for more than eight hours, the Console will indicate “radio trouble” for the keypad. The keypad’s sensor number can be programmed for “non-supervised” if required. See the “Advanced Programming” section of this manual.

WALL MOUNT USE

◆ The wireless keypad can be wall mounted in a

convenient location. Open the keypad by inserting a small

screwdriver in one of the top slots in the keypad case. Gently twist the screwdriver until the case pops open.

Attach the rear case to the wall using the two screws provided.

✍

NOTE: For best signal transmission, the keypad should be mounted at least three feet above ground level.

Hook the top edge of the keypad case together and snap the keypad onto the rear case.

✍

WARNING: The wireless keypad is designed for indoor use only.

FROM TOP OF CASE TWIST SCREWDRIVER BETWEEN CASE HALVES UNTIL IT POPS OPEN

CONNECT BATTERY TO BATTERY CLIPS

USE THE FOUR SCRATCH DETERRENT PADS PROVIDED FOR TABLE-TOP USE

ATTACH REAR CASE TO WALL WITH THE TWO SCREWS PROVIDED

MOUNT AT A CONVENIENT LOCATION NEAR PRIMARY ENTRY/EXIT DOOR

Page 17

DXS-31 DOOR/WINDOW SENSORS

◆ The DXS-31 sensors can be used to monitor

doors, windows, cabinets, crawl space doors, gates, freezer doors, and many other moving objects that could be used for intrusion or need to be monitored.

◆ A built-in magnetic switch triggers the sensor

when its magnet (mounted on the moving part or the door or window) moves away from the sensor.

◆ External normally closed switches can be

wired to the sensor for remote triggering.

◆ The door/window sensor can connect directly

to a glass break detector.

SET SENSOR JUMPER

◆ A jumper inside the door/window sensor

selects instant or delayed response. If the sensor is going to be used on the

primary entry/exit door make sure that the jumper is in the DELAY position.

If the sensor is going to be used on a window or a door that is not going to be used to enter and exit the premises, set the jumper to the INSTANT position.

APPLY DOUBLE-STICK TAPE

Apply double-stick tape (supplied) to back of sensors and magnets.

◆ Screws are also provided to mount sensors

and magnets.

◆ Screws are preferred over the double-stick

tape in permanent installations.

✍

UL NOTE: Double-stick tape is not allowed in UL installations.

ATTACH SENSORS AND MAGNETS

On doors, mount sensor to door frame and magnet to door.

NOTE: Magnet must line up with mark on sensor

✍

case both horizontally & vertically.

Allow a maximum of 1/2" between magnet and sensor when door/window is closed.

Snap sensor onto mounting plate. On windows, mount sensor to window frame

and magnet to window. Snap sensor onto mounting plate. The magnet height is adjustable and an

optional magnet spacer is provided for uneven surfaces.

TEST SENSORS

❇ Console in Chime Mode should “ding-dong”

when the sensor sends signal. Open door or window.

❇ Verify that light on the sensor glows

momentarily when door/window is opened.

❇ Status indicator on Console should remain lit

for each door/window sensor that is left open.

LEFT OPENING DOOR

TRANSMITTER MOUNTED ON DOOR JAMB

(NOTE: SMALL END OF TRANSMITTER UP)

MAGNET MOUNTED ON DOOR

INPUT SELECT JUMPER

TRANSMIT INDICATOR

TEST SWITCH

INSTANT/DELAY

OPTION JUMPER

SELECTS DELAY

NOTE: ATTACHING THE TRANSMITTER WITH DOUBLE-STICK TAPE IS NOT ALLOWED IN UL INSTALLATIONS

OPEN DOOR, TRANSMIT INDICATOR SHOULD LIGHT

EXAMPLE INSTALLATIONS

SLIDING WINDOW

MAGNET MOUNTED ON WINDOW FRAME

RIGHT OPENING DOOR

TRANSMITTER MOUNTED ON DOOR JAMB

(NOTE: SMALL END OF TRANSMITTER DOWN)

MAGNET MOUNTED ON DOOR

INSTANT/DELAY OPTION JUMPER

MAGNET ALIGNMENT MARK

ATTACH MOUNTING PLATES USING THE SCREWS OR DOUBLE-STICK TAPE PROVIDED

ANTENNA

EXTERNAL INPUT TERMINALS

TWO TYPE 2032 BATTERIES

BATTERY CLAMP SCREW

BATTERY CLAMP

SELECTS INSTANT

1. PLACE RECEIVER INTO PROGRAM OR "LEARN" MODE

2. ACTIVATE TRANSMITTER BY OPENING DOOR OR WINDOW

3. VERIFY THAT THE RECEIVER ACCEPTED THE SIGNAL

4. REPLACE TRANSMITTER COVER WHEN FINISHED

NOTE: THE TRANSMIT INDICATOR WILL ONLY LIGHT DURING TRANSMISSIONS WHEN THE CASE IS OPEN (EXCEPT WHEN PUSHING THE CASE FOR TESTING)

TRANSMITTER MOUNTED ON WINDOW SILL

DOUBLE-HUNG WINDOW

TRANSMITTER MOUNTED ON WINDOW FRAME

MAGNET MOUNTED ON WINDOW SASH STILE

Page 18

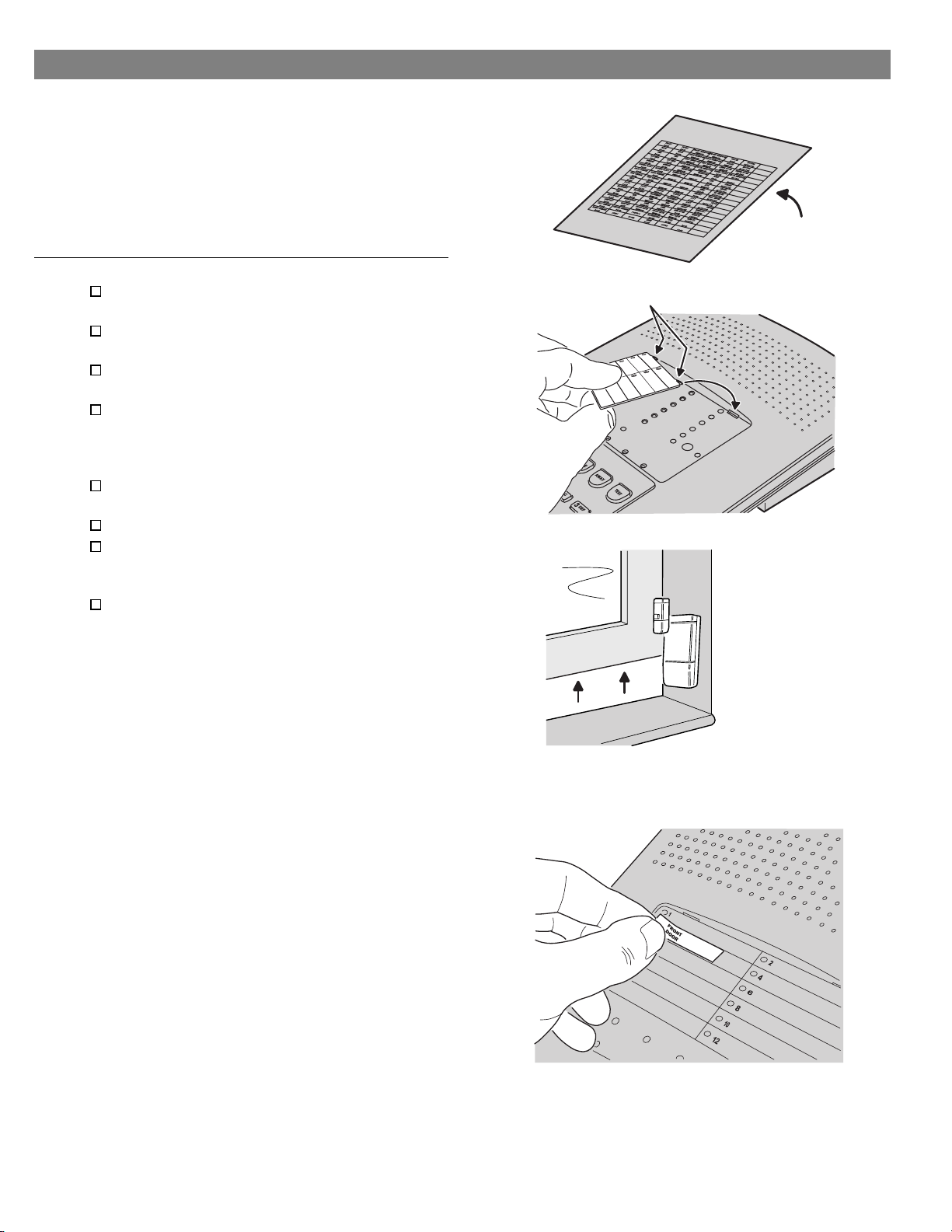

8. CUSTOMIZING THE CONSOLE

◆ The Console can be customized for the

specific installation.

◆ A label sheet with sensor location names is

provided with the Console.

◆ Labeling the sensors allows quick and easy

identification of where any alarms have occurred, where a sensor with a low battery is, where a sensor with radio trouble is, etc.

LABELING THE SENSORS

Use a paper clip to remove the clear display window.

Bend down the tabs on the sensor number card and fit it onto the Console.

Open one protected door/window to light its sensor status light on the Console.

Choose a label that describes the sensor location, or write the location on a blank label, and stick it in the area to the right of the sensor light.

Close the protected opening that you just labeled.

Repeat for each protected opening. Stick the WIRELESS KEYPAD label in the

sensor number location for the wireless keypad (if used).

Replace the clear display window when finished.

USE SENSOR LABELS PROVIDED

BEND TABS DOWN AND INSERT IN SLOTS

WRITE IN SPECIAL LOCATIONS ON BLANK LABELS

OPEN DOOR OR WINDOW TO LIGHT SENSOR STATUS INDICATOR ON CONSOLE

APPLY SENSOR IDENTIFICATION LABELS TO THE APPROPRIATE SENSOR LOCATIONS

Page 19

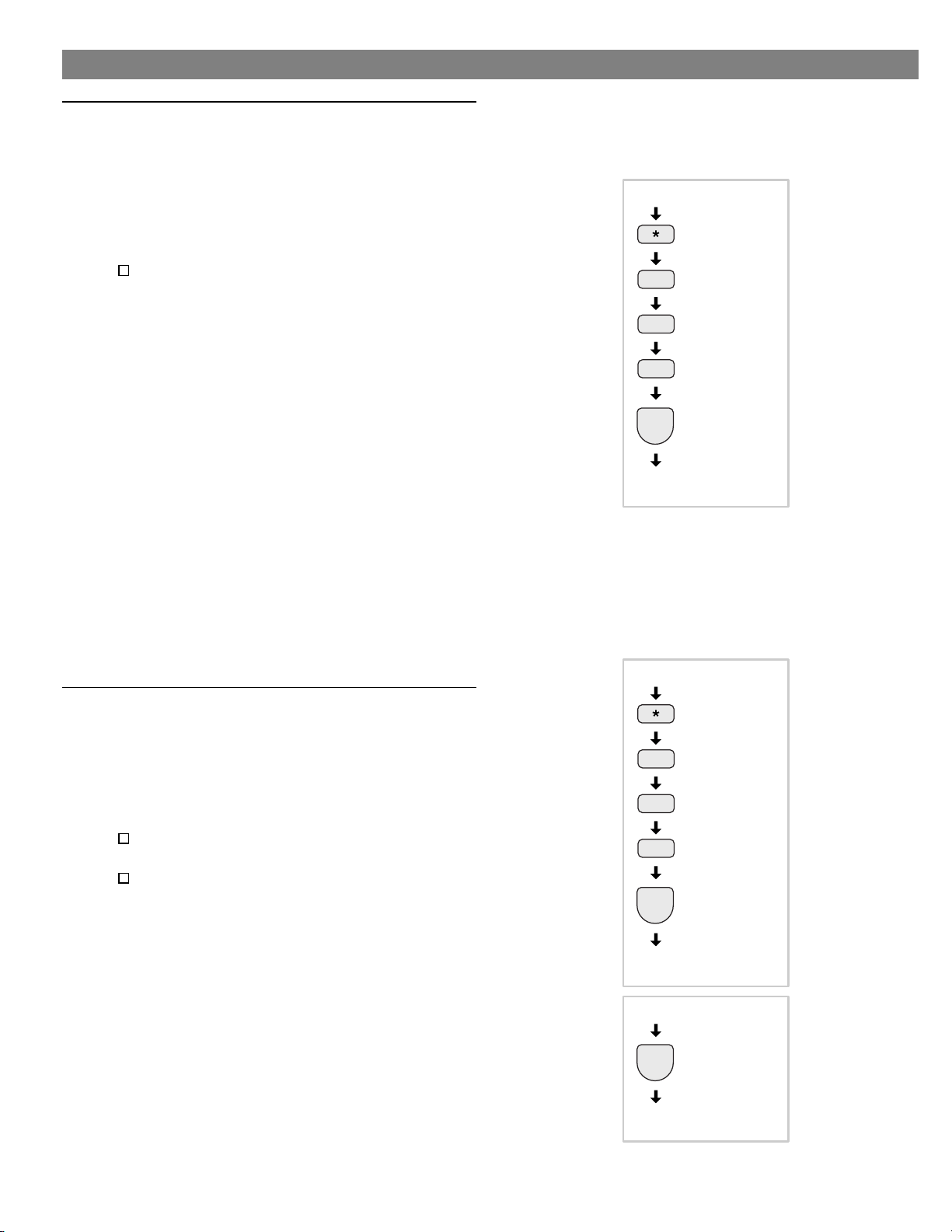

9. CONSOLE OPERATING MODES

OFF MODE

◆ Use this mode to disarm the burglary portion

of the system.

◆ Switching to Off Mode stops any alarms in

progress.

◆ The 24-hour functions are still active in Off

Mode and can be triggered by pressing the [

] or [

FIRE

Switch to Off Mode by entering the user code, and pressing [

When the system is disarmed to Off Mode, the

❇

Console will sound one “Gong”.

EMERGENCY

OFF

❇ If an alarm has occurred, multiple beeps will

sound after disarming and the sensor light for the sensor(s) that caused the alarm will flash.

✍

NOTE: In Off Mode, protected doors and windows cannot trigger the burglary alarm.

] button.

OFF MODE

START HERE

(OPTIONAL)

YOUR USER CODE

OFF

1 GONG

DONE

CHIME MODE

◆ Chime Mode is for monitoring entries and exits

without causing alarms.

◆ Use Chime Mode as an “automatic door

chime” when at home.

❇ Opening any protected door or window causes

the Console to sound a “ding-dong”. Select the Chime Mode by entering a user

code, then press [ The user can enter Chime Mode from Off

Mode by holding down the [ two seconds.

When the system is switched to the Chime

❇

Mode, the Console will sound a “Gong” and one “Beep”.

◆ Going to Chime Mode disarms the system and

stops any alarms in progress.

✍

NOTE: In Chime Mode, protected doors and windows cannot trigger the burglary alarm.

CHIME

] key for

CHIME MODE

START HERE

(OPTIONAL)

YOUR USER CODE

CHIME

1 GONG & 1 BEEP

DONE

START IN OFF

HOLD DOWN

1 GONG & 1 BEEP

DONE

Page 20

HOME MODE

◆ Use this mode when sleeping or when anyone

is staying inside.

◆ Home Mode causes an instant alarm when

any perimeter sensor is triggered.

◆ Home Mode causes a delayed alarm when any

exit/entry sensor is triggered (except in Home Instant Mode when they are instant).

Alarm siren stops automatically after five

◆

minutes and the system will remain armed.

◆ Home Mode ignores all interior sensors

(motion detectors, etc.). Arm to Home Mode by entering a user code,

and pressing [ The user can “Quick Arm” to Home Mode from

Off or Chime Mode by holding down the [HOME] key for two seconds. (Quick arming can be disabled; see the “Advanced Programming” section of this manual.)

❇ When the system is armed to the Home Mode,

the Console will sound a “Gong” and two “Beeps”. Enter a user code and press [

disarm from Home Mode and/or stop the alarm siren.

❇ If an alarm has occurred, multiple beeps will

sound after disarming and the sensor light for the sensor(s) that caused the alarm will flash (switch to Off Mode again or re-arm the Console to stop the flashing alarm memory light).

SECURE EXIT

If the system is already in the Home Mode and the user wants to exit the premises while leaving someone inside with the system still in Home Mode, enter a user code and press the [

HOME

❇ A “gong” and two “beeps” will sound and the

HOME light will blink for 60 seconds. No exit delay beeps will sound during the Exit Delay.

◆ The user can leave through a door with a delayed

perimeter sensor during the 60 second Exit Delay without causing the Console to begin an Entry Delay.

◆ Re-entering during the silent Exit Delay will

extend the Exit Delay another 60 seconds (one time only).

✍

NOTE: The Exit Delay time can be changed; see the “Advanced Programming” section of this manual.

] key.

HOME

MANUAL BYPASSING OF SENSORS

◆ Manual bypassing of sensors in the Home

Mode allows arming of the system at night with open windows, while still having perimeter protection with other closed doors and windows.

◆ The Console will resist arming with open door

or window sensors.

❇ Four high-low beeps to warn the user that

something is open and the system will remain in the previous mode.

❇ Lit sensor status indicators show which

sensors are open.

To manually bypass the open sensors, arm the system again within 5 seconds.

❇ A “gong” and two “beeps” will sound, the

HOME indicator will light, and the open sensors will be bypassed.

✍

WARNING: Bypassed sensors cannot cause an alarm.

OFF

] or [

CHIME

] to

HOME MODE

START IN OFF

OR CHIME MODE

(OPTIONAL)

YOUR USER CODE

1 GONG

HOME

& 2 BEEPS

DONE

SECURE EXIT

START IN

HOME MODE

(OPTIONAL)

YOUR USER CODE

1 GONG

HOME

& 2 BEEPS

DONE

HOME INSTANT MODE

If the system is already in the Home Mode and the user wants to make all exit/entry sensors instant, press the [

Two “gongs” and two “beeps” will sound and

❇

the HOME light will blink continuously.

◆ Because all exit/entry sensors will now cause an

instant alarm when in Home Mode, the Console must be disarmed before opening any exit/entry delay door.

] key for 2 seconds.

HOME

QUICK ARM

START IN OFF

OR CHIME MODE

HOLD DOWN

HOME

1 GONG & 2 BEEPS

DONE

HOME INSTANT

MODE

START IN

HOME MODE

HOLD DOWN

HOME

2 GONGS & 2 BEEPS

DONE

Page 21

AWAY MODE

◆ Use this mode when no one will be staying home.

◆ Each burglary sensor can trigger the siren once

per arming period.

◆ Away Mode causes an instant alarm when any

perimeter sensor is triggered.

◆ Away Mode causes a delayed alarm when any

exit/entry sensor is triggered.

◆ Away Mode causes an instant alarm when any

interior sensors (motion detectors, etc.) are triggered. The interior sensors will be delayed if a perimeter delayed sensor is triggered first.

◆ Alarm siren stops automatically after five minutes

and the system will remain armed. Arm to Away Mode by entering a user code, and

pressing [ The user can “Quick Arm” to Away Mode from

Home, Chime or Off Mode by holding down the [ be disabled; see the “Advanced Programming” section of this manual.)

EXIT DELAY (For Leaving the Premises)

❇ When the system is armed to the Away Mode, the

Console will sound a “Gong” and three “Beeps”.

❇ During the 60 second Exit Delay, the Console will

sound “beeps” (double beeps last 10 seconds) and the AWAY light will blink.

◆ The Exit Delay gives the user 60 seconds to leave

the premises triggering an alarm.

◆ Re-entering during the Exit Delay will extend the

Exit Delay another 60 seconds (one time only).

❇ When the Exit Delay is over, the Console will

sound one “gong” to warn the user that the system is fully armed.

✍

NOTE: The Exit Delay time can be changed; see the “Advanced Programming” section of this manual.

AWAY

] key for two seconds. (Quick arming can

AWAY

through an exit/entry door without

MANUAL BYPASSING OF SENSORS

◆ Manual bypassing of sensors in the Away

Mode allows arming of the system with open doors and windows, while still having perimeter protection with other closed doors and windows.

◆ The Console will resist arming with open door

or window sensors.

❇ Four high-low beeps to warn the user that

something is open and the system will remain in the previous mode.

❇ Lit sensor status indicators show which

sensors are open. To manually bypass the open sensors, arm

the system again within 5 seconds.

❇ A “gong” and three “beeps” will sound, the

AWAY indicator will light, and the open sensors will be bypassed.

✍

WARNING: Bypassed sensors cannot cause an alarm.

AWAY MODE

START HERE

(OPTIONAL)

YOUR USER CODE

ENTRY DELAY (For Entering the Premises)

◆ The Entry Delay gives the user 30 seconds to

enter the premises without triggering an alarm.

through an exit/entry door

◆ If a exit/entry sensor is triggered, starting the Entry

Delay, the interior sensors will also become delayed (this allows motion in the premises during the Entry Delay).

❇ During the 30 second Entry Delay, the Console

will sound “beeps”.

◆ When the Entry Delay is over, the Console will go

into full alarm and sound the siren if it is not disarmed to the Off or Chime Mode.

❇ If an alarm has occurred while the user was gone,

multiple beeps will sound after disarming and the sensor light for the sensor(s) that caused the alarm will flash (switch to Off Mode again or re-arm the Console to stop the flashing alarm memory light).

✍

NOTE: The Entry Delay time can be changed; see the “Advanced Programming” section of this manual.

1 GONG

AWAY

& 3 BEEPS

DONE

QUICK ARM

START HERE

HOLD DOWN

AWAY

1 GONG & 3 BEEPS

DONE

Page 22

TEST MODE

◆ Even though this is a self-monitoring

supervised system, the National Burglar and Fire Alarm Association recommends that all security systems should be tested manually on a regular basis.

◆ The Console must be in Off Mode before going

to Test Mode. Switch the Console into Test Mode by entering

a user code and pressing [

TEST

❇ When the system is switched to the Test

TEST MODE

START IN OFF

(OPTIONAL)

Mode, the Console will sound a “Gong” and four “Beeps”.

Holding down the [ will light all of the Console’s indicators.

❇ The sensor status lights will flash for each

sensor programmed into the Console.

] button in Test Mode

TEST

YOUR USER CODE

Go to each sensor and press its test button or open and close the protected opening.

To test the wireless keypad, press the [

❇ The Console will make a “bing” sound as each

(A)

] key.

TEST

1 GONG & 4 BEEPS

sensor is tested.

❇ As each sensor is tested, the sensor status

light for the sensor will stop flashing and

DONE

return to showing the current status of the sensor.

Continue testing until there are no flashing status lights.

✍

NOTE: If the Console is left unattended in Test Mode, it will automatically switch back to Off Mode after 3 minutes.

◆ When directly connecting (without a telephone

line) to the DVS-1200 with the RA-2400 remote access software (Version 1.3 or later), press the [

EMERGENCY

Mode to cause the Console to connect to the modem.

SENSOR TYPE OFF MODE CHIME MODE HOME MODE AWAY MODE

AUTOMATION ACTIVATES AND DEACTIVATES THE AUTOMATION OUTPUT EMERGENCY ARMED 24-HOURS - TRIGGERS EMERGENCY ALARM PANIC ARMED 24-HOURS - TRIGGERS SILENT PANIC ALARM FIRE ARMED 24-HOURS - TRIGGERS FIRE ALARM PERIMETER DEACTIVATED CHIME INSTANT BURGLARY ALARM EXIT/ENTRY DEACTIVATED CHIME DELAYED BURGLARY ALARM

INTERIOR DEACTIVATED DEACTIVATED DEACTIVATED

CHIME CHIME 2-BUTTON ARM/DISARM (LEFT)

2-BUTTON AUTOMATION (RIGHT) EMERGENCY (BOTH)

2-BUTTON ARM (LEFT) 2-BUTTON DISARM (RIGHT)

ENVIRONMENTAL ARMED 24-HOURS - TRIGGERS ANNUNCIATION ONLY

LEFT BUTTON SWITCHES CONSOLE TO AWAY OR HOME MODE

IF ALARM MEMORY IS ACTIVE, SWITCHES CONSOLE TO OFF OR

LEFT BUTTON SWITCHES CONSOLE TO AWAY OR HOME MODE

IF ALARM MEMORY IS ACTIVE, SWITCHES CONSOLE TO OFF OR

] key while in Test

SENSOR FUNCTION IN EACH CONSOLE MODE

(PROGRAMMING FUNCTION 50)

CHIME MODE (PROGRAMMING FUNCTION 51)

(PROGRAMMING FUNCTION 50)

CHIME MODE (PROGRAMMING FUNCTION 51)

(INSTANT BURGLARY ALARM UNLESS ACTIVATED DURING

ENTRY DELAY)

LEFT BUTTON SWITCHES TO OFF OR CHIME MODE

(PROGRAMMING FUNCTION 51)

RIGHT BUTTON SWITCHES TO OFF OR CHIME MODE

(PROGRAMMING FUNCTION 51)

FOLLOWER

Console Zone Table

Page 23

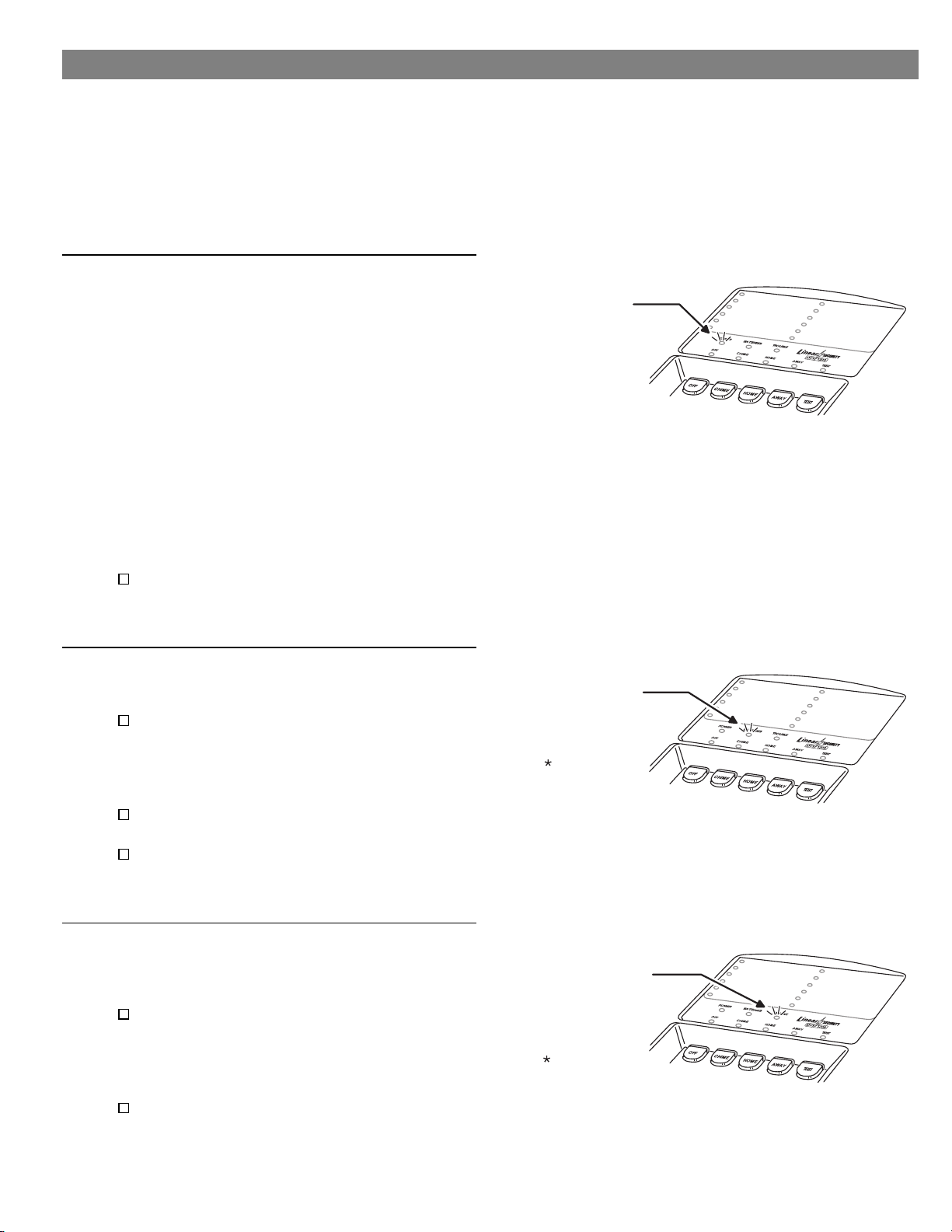

10. SYSTEM TROUBLE INDICATIONS

◆ The DVS-1200 Console is a self-monitoring

supervised wireless system.

◆ If the Console detects a problem with any of the

supervised system sensors or backup battery, it will display the appropriate trouble indication and, if monitored, report the trouble to the Central Station through the communicator (depending on communicator programming).

CONSOLE LOW BATTERY

◆ The Console constantly charges and monitors

the optional backup battery (if installed).

◆ If the backup battery condition is abnormal, the

Console’s POWER light will indicate the trouble.

❇ The POWER indicator normally glows when

AC power is on.

❇ With a charged backup battery installed, if the

Console looses AC power, the POWER indicator will dim as the Console runs on the backup battery.

❇ If the backup battery is low, recharging, or not

installed, the POWER indicator blinks when AC power is present.

❇ If the AC power is off and no backup battery is

installed, the POWER indicator will be off (in this case the system has no power and is disabled).

Normal battery life for the type of backup battery used in the Console is 3-4 years. If the battery does not take a charge in 72 hours, it should be replaced.

SENSOR LOW BATTERIES

❇ When the BATTERIES indicator on the Console

blinks, one or more sensors have a low battery. Press [∗] key for one second to view sensor

status. Sensor status indicator for any sensor with a low battery will light along with the BATTERIES indicator. Any trouble indications will follow during the five second status cycle.

Replace the sensor’s battery as described in their instructions.

Switch to Test Mode after replacing the sensor battery and completely test the system (see Test Mode). Switching to Test Mode clears the low battery indication.

POWER INDICATOR

ON WITH AC POWER AND CHARGED BACKUP BATTERY

BLINKS WITH LOW, RECHARGING OR MISSING BACKUP BATTERY

DIM WHEN AC POWER IS ABSENT AND CONSOLE IS RUNNING ON BACKUP BATTERY

BATTERIES INDICATOR

BLINKS WHEN ONE OR MORE SENSORS HAVE A LOW BATTERY

LIGHTS WITH SENSOR INDICATOR DURING LOW BATTERY STATUS CHECK (PRESS FOR 1 SECOND)

SENSOR RADIO TROUBLE

❇ When the TROUBLE indicator blinks, one or

more sensors have not reported status during the eight hour status time window.

Press [∗] key for one second to view sensor status. Sensor status indicator for any sensor that has not reported in will light along with the TROUBLE indicator. Any low battery indications will follow during the five second status cycle.

Switch to Test Mode after servicing the sensor and completely test the system (see Test Mode). Switching to Test Mode clears the trouble indication.

TROUBLE INDICATOR

BLINKS WHEN ONE OR MORE SENSORS HAVE NOT REPORTED STATUS DURING THE EIGHT HOUR STATUS TIME WINDOW

LIGHTS WITH SENSOR INDICATOR DURING TRANSMITTER STATUS CHECK (PRESS FOR 1 SECOND)

Page 24

11. CUSTOMIZING THE SYSTEM

◆ Adding additional sensors will increase the

protection provided by the system.

◆ All ground-level perimeter openings and

accessible upper-story openings need protection.

◆ Motion detectors can protect interior areas

and areas where valuables are kept.

ADDING SENSORS TO THE SYSTEM

Always start with the Console in Test Mode (enter a user code and press [

Enter the master user code then press the [

] button.

TEST

❇ A “gong” and five “beeps” will sound. ❇ The sensor status indicators will light for each

sensor programmed into the Console. Enter an unused sensor number from 01-12

(you must enter two digits, example: 5 = 05).

✍

NOTE: A sensor can be learned into more than one location. Be sure to choose an number. If a sensor gets entered into more than one location, delete the duplicates using the remove sensor function.

❇ The sensor indicator light will flash for the

sensor number selected. Activate the sensor. (To add a wireless

keypad, press the keypad’s [∗] key.)

❇ A single “bing” tone will sound when the

sensor is learned by the Console and the sensor status indicator will stay lit.

Enter another sensor number or exit Setup Mode by holding the [

REMOVING SENSORS FROM THE SYSTEM

If a previously learned sensor isn’t going to be

◆

used with the system anymore, or it’s a duplicate that has been entered into more than one sensor location, it should be removed from the Console’s memory.

] button for three seconds.

OFF

◆ Start with the Console in Test Mode.

Enter the master user code then press the [ button.

❇ A “gong” and five “beeps” will sound. ❇ The sensor status indicators will light for each

sensor programmed into the Console. Enter the sensor number (from 01-12) that

you want to remove (you must enter two digits, example: 5 = 05).

❇ The sensor indicator light will flash for the

sensor number selected. Press the [

TEST

] button.

❇ A single “bing” tone will sound when the

sensor has been removed and the sensor status indicator will turn off.

Enter another sensor number or exit Setup Mode by holding the [ seconds.

] button for three

OFF

TEST

]).

unused

sensor

TEST

START IN TEST

MASTER USER CODE

1 GONG &

TEST

5 BEEPS

NEW SENSOR NUMBER

ACTIVATE SENSOR

DONE

START IN TEST

MASTER USER

]

TEST

CODE

1 GONG & 5 BEEPS

SENSOR NUMBER TO REMOVE

1 BING

TEST

DONE

Page 25

MAKING A SENSOR A 24-HOUR DOOR CHIME

◆ Sensors can be programmed to cause the

Console to chime any time they’re activated.

◆ Chime-only sensors will not be able to trigger

the alarm in any Console mode.

◆ The sensor must have already been learned

by the Console (see “Adding sensors to the System” for details).

Start with the Console in Test Mode. Enter the master user code then press the

[

] button.

TEST

❇ A “gong” and five “beeps” will sound. ❇ The sensor status indicators will light for each

sensor programmed into the Console. Enter the sensor number from 01-12 (you

must enter two digits, example: 5 = 05).

❇ The sensor indicator light will flash for the

sensor number selected. Press [

will sound. Enter another sensor number or exit Setup

Mode by holding the [ seconds.

MAKING A SENSOR INTERIOR

HOME

], 8, then [

]. A “bing” tone

AWAY

] button for three

OFF

◆ Motion detectors are automatically

programmed as interior sensors. Any other sensor can also be programmed as an interior sensor.

◆ Interior sensors can only trigger an alarm

when the Console is in Away Mode.

◆ The sensor must have already been learned

by the Console (see “Adding sensors to the System” for details).

Start with the Console in Test Mode. Enter the master user code then press the

[

] button.

TEST

❇ A “gong” and five “beeps” will sound. ❇ The sensor status indicators will light for each

sensor programmed into the Console. Enter the sensor number from 01-12 (you

must enter two digits, example: 5 = 05).

❇ The sensor indicator light will flash for the

sensor number selected. Press [

will sound. Enter another sensor number or exit Setup

Mode by holding the [ seconds.

HOME

], 7, then [

]. A “bing” tone

AWAY

] button for three

OFF

START IN TEST

MASTER USER CODE

1 GONG &

TEST

5 BEEPS

SENSOR NUMBER FOR CHIME

HOME

8 FOR

TUV

CHIME ZONE

AWAY

1 BING

DONE

START IN TEST

MASTER USER CODE

1 GONG &

TEST

5 BEEPS

SENSOR NUMBER FOR INTERIOR

HOME

PRS

AWAY

DONE

7 FOR INTERIOR ZONE

1 BING

Page 26

MAKING A SENSOR ACTIVATE A DIFFERENT ZONE

◆ Any sensor can be reprogrammed to activate

any of the Console’s zones.

◆ The sensor must have already been learned

by the Console (see “Adding sensors to the System” for details).

Start with the Console in Test Mode. Enter the master user code then press the

[

] button.

TEST

❇ A “gong” and five “beeps” will sound. ❇ The sensor status indicators will light for each

sensor programmed into the Console. Enter the sensor number from 01-12 (you

must enter two digits, example: 5 = 05). The sensor indicator light will flash for the

❇

sensor number selected. Choose a zone number from the Console Zone

Table. Press [

[

AWAY

Enter another sensor number or exit Setup Mode by holding the [ seconds.

], the new zone number, then

HOME

]. A “bing” tone will sound.

] button for three

OFF

START IN TEST

MASTER USER CODE

1 GONG &

TEST

5 BEEPS

SENSOR NUMBER FOR ZONE CHANGE

HOME

ZONE NUMBER

AWAY

1 BING

DONE

PROGRAMMING INFORMATION SENSOR FUNCTION IN EACH CONSOLE MODE

ZONE # SENSOR TYPE OFF MODE CHIME MODE HOME MODE AWAY MODE

1 AUTOMATION ACTIVATES AND DEACTIVATES THE AUTOMATION OUTPUT 2 EMERGENCY ARMED 24-HOURS - TRIGGERS EMERGENCY ALARM 3 PANIC ARMED 24-HOURS - TRIGGERS SILENT PANIC ALARM 4FIRE ARMED 24-HOURS - TRIGGERS FIRE ALARM 5 PERIMETER DEACTIVATED CHIME INSTANT BURGLARY ALARM 6 EXIT/ENTRY DEACTIVATED CHIME DELAYED BURGLARY ALARM

FOLLOWER

7 INTERIOR DEACTIVATED DEACTIVATED DEACTIVATED

8CHIME CHIME

2-BUTTON ARM/DISARM (LEFT)

2-BUTTON AUTOMATION (RIGHT)

2-BUTTON ARM (LEFT)

2-BUTTON DISARM (RIGHT)

11 ENVIRONMENTAL ARMED 24-HOURS - TRIGGERS ANNUNCIATION ONLY

LEFT BUTTON SWITCHES CONSOLE TO AWAY OR HOME

MODE (PROGRAMMING FUNCTION 50)

IF ALARM IS ACTIVE, SWITCHES CONSOLE TO OFF OR

CHIME MODE (PROGRAMMING FUNCTION 51)

LEFT BUTTON SWITCHES CONSOLE TO AWAY OR HOME

MODE (PROGRAMMING FUNCTION 50)

IF ALARM IS ACTIVE, SWITCHES CONSOLE TO OFF OR

CHIME MODE (PROGRAMMING FUNCTION 51)

LEFT BUTTON SWITCHES TO OFF OR CHIME MODE

(PROGRAMMING FUNCTION 51)

RIGHT BUTTON SWITCHES TO OFF OR CHIME MODE

(PROGRAMMING FUNCTION 51)

(INSTANT BURGLARY ALARM UNLESS ACTIVATED DURING

ENTRY DELAY)

Console Zone Table

Page 27

12. ADVANCED PROGRAMMING

◆ To perform any of the advanced programming

steps, the Console must be in the Setup Mode.

◆ Each programming function is performed with

similar keystrokes. After the Console is in Setup Mode, enter the programming step number, press the [ program), enter the new value, and press the [

] key (AWAY = store). Follow the

AWAY

figures next to the programming steps.

] key (HOME =

HOME

SETUP MODE

Start with the Console in Test Mode (Setup Mode cannot be reached from any other mode).

From Test Mode, enter the master user code then press [

✍

NOTE: Only the master user code can be used to put the Console into the Setup Mode. The restricted user codes cannot access Setup Mode.

TEST

❇ A “gong” and five “beeps” will sound,

HOME

= PROGRAM

AWAY

= STORE

STEP # PROGRAMMING FUNCTION POSSIBLE VALUES FACTORY VALUE INSTALLATION VALUE

25 ENTRY DELAY 20-255 SECONDS 30 26 EXIT DELAY 20-255 SECONDS 60 30 BURGLARY SIREN TIME 1-30 MINUTES 5 31 EMERGENCY SIREN TIME 1-30 MINUTES 5 32 FIRE SIREN TIME 1-30 MINUTES 5 40 AUTOMATION OUTPUT TIME 0-2500 SECONDS (0 = TOGGLE ON/OFF) 0 50 REMOTE ARMING MODE 2 = HOME MODE; 3 = AWAY MODE 3 51 REMOTE DISARMING MODE 0 = OFF MODE; 1 = CHIME MODE 0 61 ENTRY DELAY BEEPS 0 = OFF; 1 = ON 1 62 EXIT DELAY BEEPS 0 = OFF; 1 = ON 1 63 SILENT BURGLARY ALARM 0 = AUDIBLE; 1 = SILENT 0 64 SILENT EMERGENCY ALARM 0 = AUDIBLE; 1 = SILENT 0 65 QUICK ARMING 0 = OFF; 1 = ON 1 66 AUTO RESTORE 0 = OFF; 1 = ON 0 67 AUTO BYPASS 0 = OFF; 1 = ON 0

68 AUTOMATION MODE DURING ALARM

69 AUTOMATION BING TONE

70 REMOTE ARM/DISARM CHIRP

71 AUTOMATION FLASHES AFTER ALARM

72 AUTOMATION ACTIVE DURING ALARM

73 AUTOMATION ON WHILE ARME D

74 AUTOMATION ON DURING EXIT/ENTRY 75 AUTOMATION POLARITY 0 = + WHEN OFF; 1 = + WHEN ON 1

87 REMOTE ACCESS PASSWORD 6 DIGITS 987654 92 DURESS CODE 1-5 DIGITS REMOVED 93 RESTRICTED USER CODE #1 1-5 DIGITS REMOVED 94 RESTRICTED USER CODE #2 1-5 DIGITS REMOVED 95 RESTRICTED USER CODE #3 1-5 DIGITS REMOVED 96 RESTRICTED USER CODE #4 1-5 DIGITS REMOVED 97 RESTRICTED USER CODE #5 1-5 DIGITS REMOVED 98 PAGE ALERT USER CODE 1-5 DIGITS REMOVED 99 MASTER USER CODE 1-5 DIGITS 1234

TEST

= REMOVE

CONSOLE PROGRAMMING OPT IONS

0 = FLASH (ENABLED BY FUNCTION 72) 1 = STEADY (ENABLED BY FUNCTION 72)

0 = NO BINGS 1 = BINGS

0 = NO CHIRPS 1 = CHIRPS (1 CHIRP = ARMED, 2 CHIRPS = DISARMED)

0 = STANDARD 1 = FLASHING AFTER ALARM

0 = STANDARD 1 = AUTOMATION ACTIVE DURING ALARM (FLASH OR STEADY PROGRAMMED BY FUNCTION 68)

0 = STANDARD 1 = ON WHILE ARMED

0 = STANDARD 1 = ON DURING EXIT/ENTRY DELAYS

signaling that the Console is in Setup Mode. Hold the [

] key for three seconds when

OFF

you want to exit Setup Mode.

✍

NOTE: If the Console is left unattended in Setup Mode, it will automatically switch back to Off Mode after three minutes.

Console Programming Table

Page 28

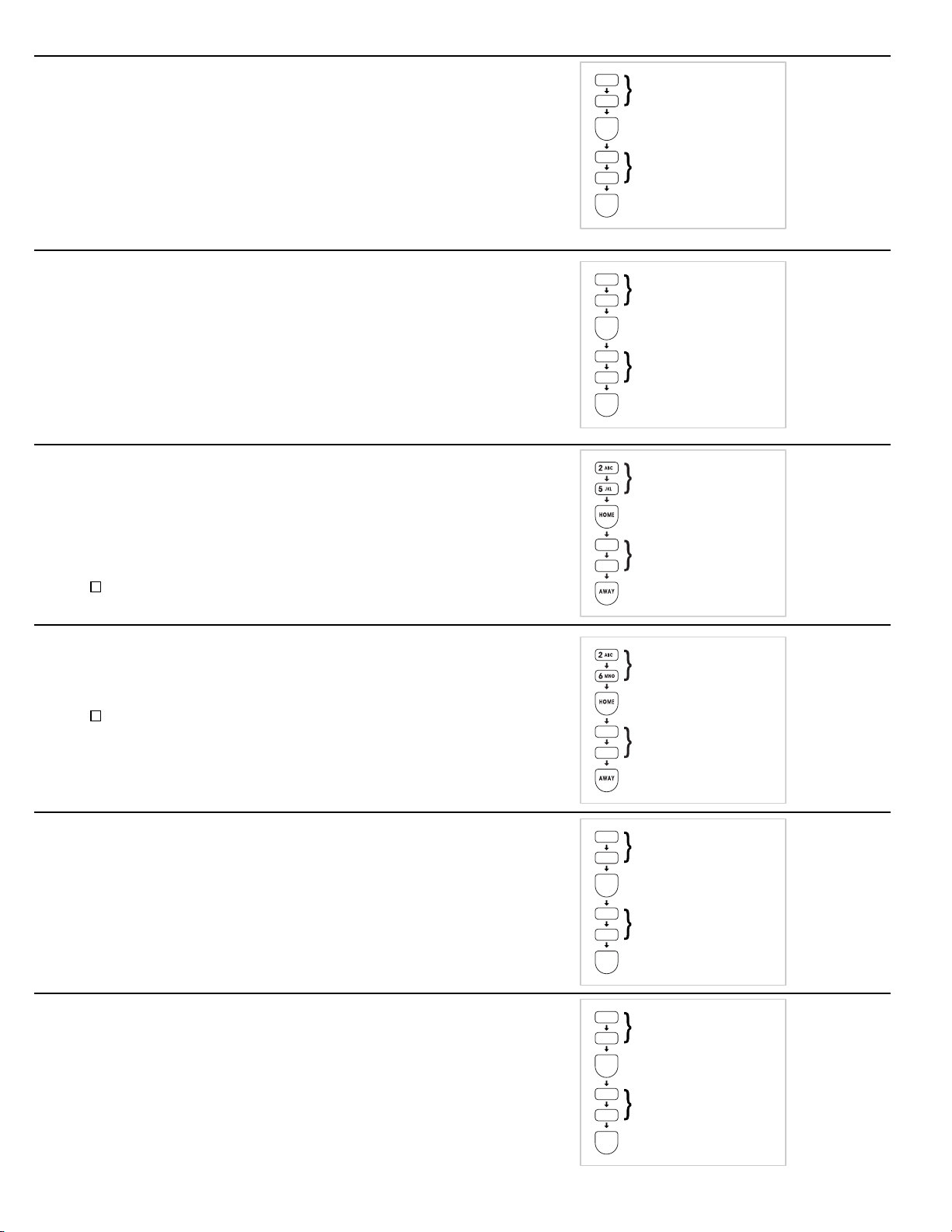

CHANGING A SENSORS SUPERVISION

◆ When a sensor is programmed, the Console

automatically recognizes it as supervised or non-supervised.

◆ The Console expects hourly status transmissions

from any sensor programmed as supervised.

◆ Any sensor can be programmed as supervised

or non-supervised.

✍

NOTE: Don’t program a sensor that doesn’t send status transmissions as supervised.

CHANGING A SENSORS RESTORE REQUIREMENTS

◆ When a sensor is programmed, the Console

automatically recognizes it as manually or automatically restoring.

◆ The Console expects restoral signals from any

sensor programmed as manual restore.

◆ Any sensor can be programmed as manual or

automatic restore.

✍

NOTE: Don’t program a sensor that doesn’t send restoral transmissions as manual restore.

ENTRY DELAY TIME

◆ The factory-set Entry Delay time is 30 seconds.

◆ The Entry Delay time can be adjusted from 20

to 255 seconds.

✍

NOTE: Don’t make the Entry Delay to o short. The user may not have enough time to disarm the system before an alarm.

Write the new Entry Delay time in the User’s Guide.

SENSOR NUMBER TO CHANGE

HOME

PROGRAM

16 FOR NON-SUPERVISED 17 FOR SUPERVISED

AWAY

STORE PROGRAM

SENSOR NUMBER TO CHANGE

HOME

PROGRAM

18 FOR MANUAL RESTORE 19 FOR AUTO RESTORE

AWAY

STORE PROGRAM

PROGRAMMING STEP #25

PROGRAM

TIME IN SECONDS (20-255)

STORE PROGRAM

EXIT DELAY TIME

◆ The factory-set Exit Delay time is 60 seconds.

◆ The Exit Delay time can be adjusted from 20

to 255 seconds. Write the new Exit Delay time in the User’s Guide.

BURGLARY SIREN TIME

◆ The factory-set burglary siren time is five

minutes (UL installation maximum).

◆ The burglary siren time can be adjusted from

one to 30 minutes.

EMERGENCY SIREN TIME

◆ The factory-set emergency siren time is five

minutes (UL installation maximum).

◆ The emergency siren time can be adjusted

from one to 30 minutes.

PROGRAMMING STEP #26

PROGRAM

TIME IN SECONDS (20-255)

STORE PROGRAM

DEF

PROGRAMMING STEP #30

HOME

PROGRAM

TIME IN MINUTES (1-30)

AWAY

STORE PROGRAM

DEF

PROGRAMMING STEP #31

HOME

PROGRAM

TIME IN MINUTES (1-30)

AWAY

STORE PROGRAM

Page 29

FIRE SIREN TIME

◆ The factory-set fire siren time is five minutes

(UL installation maximum).

◆ The fire siren time can be adjusted from one

to 30 minutes.

DEF

PROGRAMMING STEP #32

ABC

HOME

PROGRAM

TIME IN MINUTES (1-30)

AWAY

STORE PROGRAM

AUTOMATION OUTPUT TIME

◆ The factory setting causes the Automation

Output to toggle between on and off with each activation.

The Automation Output can be programmed

◆

to turn on, then automatically turn off after one to 2500 seconds (42 minutes).

REMOTE CONTROL ARMING LEVEL

The factory setting causes the portable remote

◆

controls to arm to the Away Mode.

◆ Alternately, the portable remote controls can

arm to the Home Mode.

◆ Changing this setting will affect all the

portable remote controls used with the system.

REMOTE CONTROL DISARMING LEVEL

◆ The factory setting causes the portable remote

controls to disarm to the Off Mode.

◆ Alternately, the remote controls can disarm to

the Chime Mode.

◆ Changing this setting will affect all the

portable remote controls used with the system.

GHI

PROGRAMMING STEP #40

HOME

PROGRAM

TIME IN SECONDS (1-2500) 0 = TOGGLE ON & OFF

AWAY

STORE PROGRAM

JKL

PROGRAMMING STEP #50

HOME

PROGRAM

2 FOR HOME MODE 3 FOR AWAY MODE

AWAY

STORE PROGRAM

JKL

PROGRAMMING STEP #51

HOME

PROGRAM

0 FOR OFF MODE 1 FOR CHIME MODE

AWAY

STORE PROGRAM

ENTRY DELAY BEEPS

◆ The factory setting causes the Console to

beep during Entry Delays.

◆ Alternately, the Entry Delay beeps can be

silenced.

◆ With the Entry Delay beeps off, the Console

will be silent after a delayed sensor is triggered until the Entry Delay expires, then the alarm siren will sound.

EXIT DELAY BEEPS

◆ The factory setting causes the Console to

beep during Exit Delays. Alternately, the Exit Delay beeps can be

◆

silenced.

◆ With the Exit Delay beeps off, the Console will

be silent after arming to the Away Mode until the Exit Delay expires, then a single “gong” tone will sound.

MNO

PROGRAMMING STEP #61

HOME

PROGRAM

0 FOR ENTRY BEEPS OFF 1 FOR ENTRY BEEPS ON

AWAY

STORE PROGRAM

MNO

PROGRAMMING STEP #62

ABC

HOME

PROGRAM

0 FOR EXIT BEEPS OFF 1 FOR EXIT BEEPS ON

AWAY

STORE PROGRAM

Page 30

SILENT BURGLARY ALARMS

◆ The factory setting causes audible burglary

alarms.

◆ Alternately, the Console can be programmed

for silent burglary alarms.

SILENT EMERGENCY ALARMS

◆ The factory setting causes audible emergency

alarms.

◆ Alternately, the Console can be programmed

for silent emergency alarms.

DISABLING QUICK ARMING

◆ The factory setting allows the Console to be

armed by holding down the mode keys for two seconds.

◆ Alternately, the Console can be programmed

to not allow quick arming.

◆ If quick arming is disabled, a user code must

be entered before pressing the mode buttons.

✍

NOTE: For commercial installations, it is recommended to disable quick arming to prevent customers from arming the system.

✍

NOTE: If quick arming is disabled the Home Instant Mode is unavailable.

MNO

PROGRAMMING STEP #63

DEF

HOME

PROGRAM

0 FOR AUDIBLE BURG 1 FOR SILENT BURG

AWAY

STORE PROGRAM

MNO

PROGRAMMING STEP #64

GHI

HOME

PROGRAM

0 FOR AUDIBLE EMERGENCY 1 FOR SILENT EMERGENCY

AWAY

STORE PROGRAM

MNO

PROGRAMMING STEP #65

JKL

HOME

PROGRAM

0 FOR QUICK ARMING OFF 1 FOR QUICK ARMING ON

AWAY

STORE PROGRAM

AUTOMATIC RESTORAL OF BYPASSED SENSORS

Bypassed sensors are ignored by the Console

◆

and cannot cause an alarm.

◆ The factory setting causes the Console to not

automatically restore (remove the bypass from) sensors that close. Bypassed sensors will remain bypassed until the system is disarmed.

◆ Alternately, the Console can be programmed

to automatically restore any bypassed sensor when the sensor closes. After it’s restored, the sensor is ready to cause an alarm the next time it is opened.

AUTOMATIC BYPASSING OF OPEN SENSORS

◆ The factory setting requires the user to

manually bypass any open sensors when the system is armed.

◆ If arming is attempted with open sensors, the

Console will sound five two-tone beeps and will not arm.

◆ Arming to the same mode again within five

seconds will bypass any open sensors and arm the Console.

◆ Alternately, the Console can be programmed

to automatically bypass any open sensors when the system is armed.

MNO

PROGRAMMING STEP #66

MNO

HOME

PROGRAM

0 FOR AUTO RESTORAL OFF 1 FOR AUTO RESTORAL ON

AWAY

STORE PROGRAM

MNO

PROGRAMMING STEP #67

PRS

HOME

PROGRAM

0 FOR AUTO BYPASS OFF 1 FOR AUTO BYPASS ON

AWAY

STORE PROGRAM

Page 31

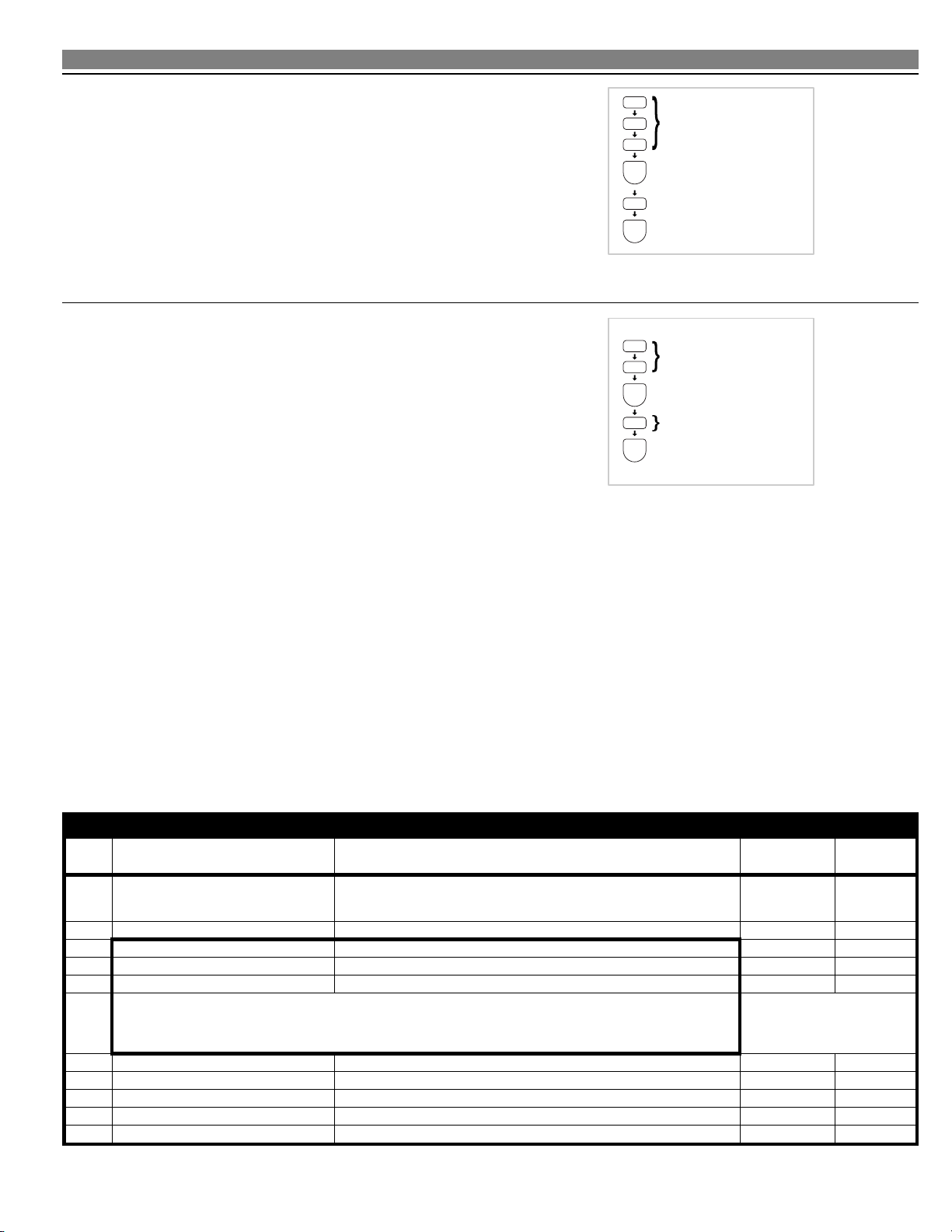

AUTOMATION OUTPUT MODE DURING ALARM

NOTE: For the Automation Output to activate

✍

during an alarm, that function must be enabled with Programming Step 71 or 72.

◆ If the Automation output is programmed to

activate during an alarm, it can be programmed to flash or be steady.

AUTOMATION ACTIVATION TONE

◆ The factory setting causes the Console to

sound a “bing” when the Automation Output is activated by pressing the [

] key, or when

(A)

it’s triggered with a two-button remote control.

◆ Alternately, this sound can be silenced.

REMOTE CONTROL ARM/DISARM CHIRP

◆ When arming with the portable remote

control, the factory setting causes the Console to “chirp” once when armed, twice when disarmed, and three times when arming with sensors bypassed.

◆ Alternately, these chirps can be silenced. ✍

NOTE: If these chirps are silenced, it is recommended to program the Automation Output to be active when the system is armed, so a light can be triggered displaying the arming status of the Console.

MNO

PROGRAMMING STEP #68

TUV

HOME

PROGRAM

0 FOR FLASHING OUTPUT ON ALARM 1 FOR STEADY OUTPUT ON ALARM

AWAY

STORE PROGRAM

MNO

PROGRAMMING STEP #69

WXY

HOME

PROGRAM

0 FOR BING TONE OFF 1 FOR BING TONE ON

AWAY

STORE PROGRAM

PRS

PROGRAMMING STEP #70

HOME

PROGRAM

0 FOR CHIRPS OFF 1 FOR CHIRPS ON

AWAY

STORE PROGRAM

AUTOMATION OUTPUT FLASHES DURING AND AFTER ALARM

The factory setting causes the Console’s

◆

Automation Output to activate when pressing the [

] key, or when it’s triggered with a

(A)

two-button remote control.

◆ In addition, the Console can be programmed

to flash the Automation Output during and after any alarms.

◆ The output will continue to flash until the

flashing status lights are cleared.

AUTOMATION OUTPUT ON DURING ALARM

◆ The factory setting causes the Console’s

Automation Output to activate when pressing the [

] key, or when it’s triggered with a

(A)

two-button remote control.

◆ In addition, the Console can be programmed

to activate the Automation Output during alarms.

✍

NOTE: The Automation Output can be programmed to flash or be steady during alarm, see Programming Step 68.

PRS

PROGRAMMING STEP #71

PROGRAM

HOME

0 FOR STANDARD TRIGGER 1 FOR FLASHING DURING & AFTER ALARM

AWAY

STORE PROGRAM

PRS

PROGRAMMING STEP #72

ABC

HOME

PROGRAM

0 FOR STANDARD TRIGGER 1 FOR OUTPUT DURING ALARM

AWAY

STORE PROGRAM

Page 32

AUTOMATION OUTPUT WHILE ARMED

◆ The factory setting causes the Console’s

Automation Output to activate when pressing the [

] key, or when it’s triggered with a

(A)

two-button remote control.

◆ In addition, the Console can be programmed

to activate the Automation Output when the system is armed.

PRS

PROGRAMMING STEP #73

DEF

HOME

PROGRAM

0 FOR STANDARD TRIGGER 1 FOR OUTPUT WHEN ARMED

AWAY

STORE PROGRAM

AUTOMATION OUTPUT DURING EXIT/ENTRY DELAYS

◆ The factory setting causes the Console’s

Automation Output to activate when pressing the [

] key, or when it’s triggered with a

(A)

two-button remote control.

◆ In addition, the Console can be programmed

to activate the Automation Output during the exit and Entry Delays.

AUTOMATION OUTPUT POLARITY

◆ The factory setting causes the Console’s

Automation Output to provide a current limited voltage source when activated.

◆ Alternately, the Console can be programmed

so the Automation Output provides a current limited voltage source when deactivated.

REMOTE ACCESS PASSWORD

◆ This is the password used to gain access to

the Console when using the RA-2400 remote access software.

◆ The password must be 6-digits long.

Log the remote access password in the box below.

REMOTE ACCESS PASSWORD

PRS

PROGRAMMING STEP #74

GHI

PROGRAM

HOME

0 FOR STANDARD TRIGGER 1 FOR OUTPUT DURING EXIT/ENTRY DELAYS

AWAY

STORE PROGRAM

PRS

PROGRAMMING STEP #75

JKL

HOME

PROGRAM

0 FOR VOLTAGE WHEN OFF 1 FOR VOLTAGE WHEN ON

AWAY

STORE PROGRAM

TUV

PROGRAMMING STEP #87

PRS

HOME

PROGRAM

6-DIGIT REMOTE ACCESS PASSWORD

AWAY

STORE PROGRAM

DURESS CODE

◆ The duress code will disarm the system, without

any special indications or sounds, but will send the programmed duress code to the Central Station.

◆ The duress code should be two or more digits

different than any user code.

Log the duress code in the box below.

DURESS CODE

MASTER USER CODE

◆ The master user code is 1234 when power is

first applied to the Console.

◆ The master user code can be changed to any

1-5 digit code. Only the master user code can access Setup Mode, restricted user codes cannot.

✍

NOTE: For maximum security, a 3-5 digit code is recommended.

Log the master user code in the box below.

MASTER USER CODE

WXY

PROGRAMMING STEP #92

ABC

HOME

PROGRAM

1-5 DIGIT DURESS CODE (3-5 DIGITS RECOMMENDED)

AWAY

STORE PROGRAM

WXY

PROGRAMMING STEP #99

WXY

HOME

PROGRAM

1-5 DIGIT MASTER CODE (3-5 DIGITS RECOMMENDED)

AWAY

STORE PROGRAM

Page 33

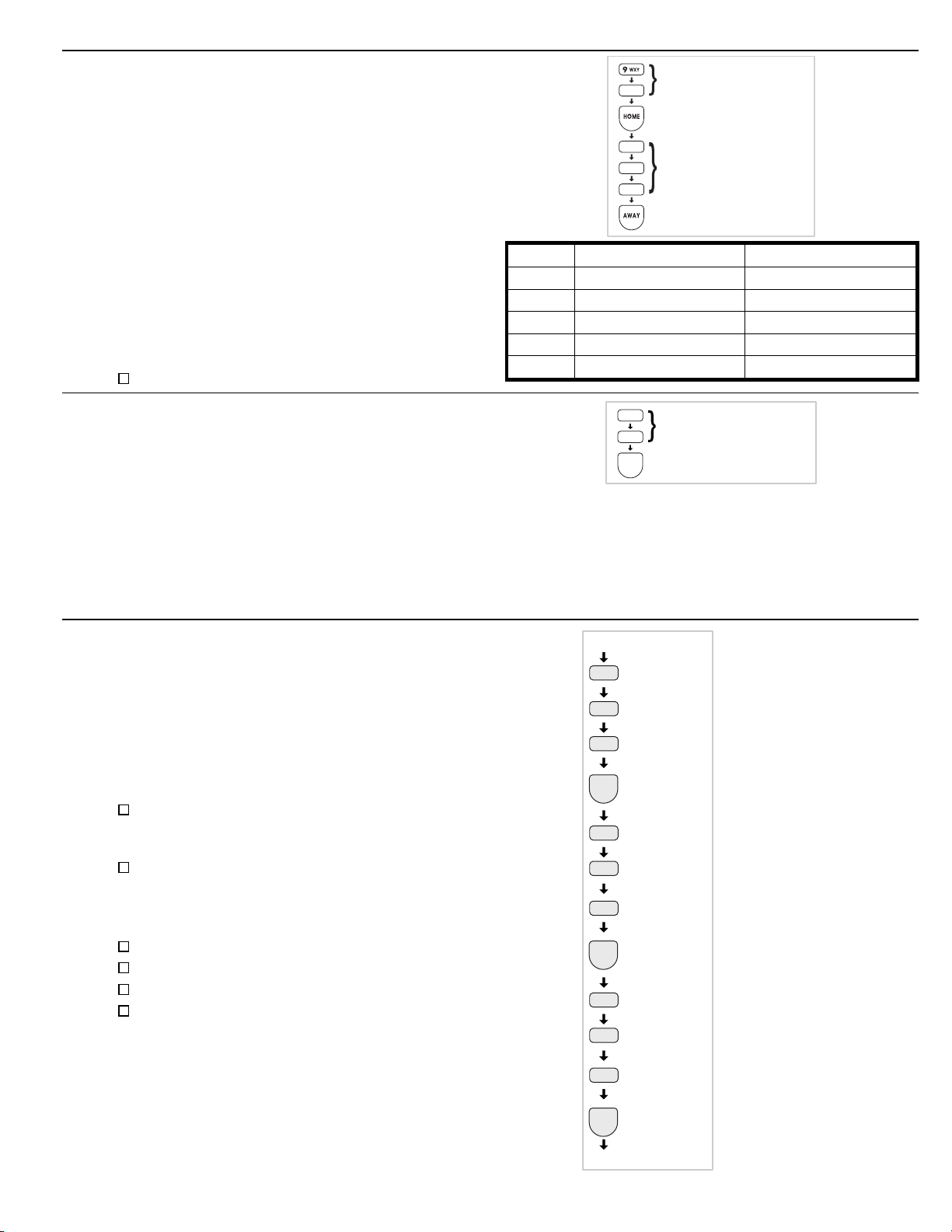

ADDITIONAL USER CODES

◆ The Console can be programmed with five

restricted user codes and one page alert user code.

◆ The additional codes operate the system as

usual, but cannot access Setup Mode.

◆ The additional codes can access a special

Code Mode that can be used to change or remove any of the five restricted user codes, the page alert user code, or the duress code.

◆ The page alert user code dials the supervisory

number (programmed for a pager) when it is used to disarm the system.

✍

NOTE: For maximum security, a 3-5 digit code is recommended.

✍

WARNING: NEVER PROGRAM ANY RESTRICTED OR PAGE ALERT USER CODE THE SAME AS THE MASTER USER CODE!

Log the user codes in the boxes to the right.

REMOVING USER CODES

◆ Any restricted, duress or page alert user code

can be removed from the Console.

◆ Because access to programming would be

impossible without a master user code, it cannot be removed using these steps.

◆ The master user code can be changed using

programming Step #99.

✍

NOTE: The master user code can be removed using the Console master reset, although all other system programming with be reset to factory values and all sensors programmed will be erased.

PROGRAMMING STEPS #93 TO 98

PROGRAM

1-5 DIGIT CODE (3-5 DIGITS RECOMMENDED)

STORE PROGRAM

STEP # 93 RESTRICTED USER CODE #1 STEP # 94 RESTRICTED USER CODE #2 STEP # 95 RESTRICTED USER CODE #3 STEP # 96 RESTRICTED USER CODE #4 STEP # 97 RESTRICTED USER CODE #5 STEP # 98 PAGE ALERT USER CODE

KEYPAD CODE

WXY

PROGRAMMING STEPS #92 TO 98

TEST

REMOVE

CONSOLE MASTER RESET

◆ Master resetting the Console will set all of the

programming options back to the factory values. The master user code will be reset to

1234.

✍

CAUTION: Master resetting the Console will erase the user codes, and remove all programmed sensors. All Console and communicator programming values will be reset to the factory defaults.

Start with the system in Test Mode (Setup Mode cannot be reached from any other mode).

From the Test Mode, enter the master user code then press [TEST].

❇ A “Gong” and five “Beeps” will sound,

signaling that the system is in Setup Mode. Enter programming Step #999. Press [TEST]. Enter the numbers 999 again. Press [TEST] again.

❇ A “Bing” will sound to indicate the beginning

of the reset process. This process will take up to 10 seconds while the memory is being reset.

The system will revert to the first time

◆

power-up condition and the master user code will be 1234. Go to the “Basic Console Programming” section of this manual to begin re-programming the system.

START IN TEST

MASTER USER CODE

1 GONG &

TEST

5 BEEPS

WXY

STEP #999 FOR

WXY

MASTER RESET

WXY

PRESS

TEST

WXY

ENTER 999 TO OK THE

WXY

MASTER RESET

WXY

PRESS TEST, 1 BING SOUNDS,

TEST

WAIT ABOUT 10 SECONDS

DONE

USE THESE EXACT KEYSTROKES TO PERFORM A MASTER RESET

Page 34

13. COMMUNICATOR PROGRAMMING

SETUP MODE

◆ To perform any of the communicator

programming steps, the Console must be in the Setup Mode.

◆ Each programming function is performed with

similar keystrokes. After the Console is in Setup Mode, enter the programming step number, press the [ program), enter the new value, and press the [

] key (AWAY = store). Follow the

AWAY

figures next to the programming step. Start with the Console in Test Mode (Setup

Mode cannot be reached from any other mode).

From Test Mode, enter the master user code then press [

✍

NOTE: Only the master user code can be used to put the Console into the Setup Mode. The restricted user codes cannot access Setup Mode.

TEST

❇ A “gong” and five “beeps” will sound,

signaling that the Console is in Setup Mode. Hold the [

you want to exit Setup Mode.

✍

NOTE: If the Console is left unattended in Setup Mode, it will automatically switch back to Off Mode after three minutes.

] key for three seconds when

OFF

] key (HOME =

HOME

SETUP MODE

START IN TEST

MASTER USER CODE

1 GONG &

TEST

5 BEEPS

GENERAL COMMUNICATOR OPTION S

STEP #

76 2-WAY AUDIO 0 = NONE; 1 = LISTEN; 2 = 2-WAY MANUAL; 3 = 2-WAY FULL DUPLEX 0

VOICE RESPONSE FROM CONSOLE SPEAKER

(AND REMOTE SPEAKER IF USED) 100 REMOTE PROGRAMMING LOCKOUT 0 = UNLOCK; 1 = LOCK 0 101 CALL LIMITER 0 = OFF; 1 = FIVE CALLS PER ARMING PERIOD 0 103 DIALING DELAY 0 = NO DELAY; 1 = 30 SECOND DELAY 0 104 DIALING METHOD 0 = TONE; 1 = PULSE 0 107 COMMUNICATOR ENABLE 0 = COMMUNICATOR OFF, 1 = COMMUNICATOR ON 0

PROGRAMMING

FUNCTION

0 = VOICE RESPONSE DISABLED 1 = VOICE RESPONSE ENABLED

POSSIBLE

VALUES

General Communicator Programming Table

FACTORY

VALUE

INSTALLATION

VALUE

Page 35

GENERAL COMMUNICATOR OPTIONS

COMMUNICATOR ENABLE

◆ The factory setting for the Console disables

the communicator. If the system is going to be a non-monitored, local alarm only, leave the communicator disabled.

◆ If the system is going to be monitored by a

Central Station, enable the communicator with this programming step.

2-WAY AUDIO

◆ When the Model VB-2 audio module is

installed, the communicator can provide 2-way audio capability.

◆ The audio module can be programmed for

listen only, 2-way manual operation (using a pushbutton telephone at the Central Station), and 2-way full duplex hands free operation.

◆ Refer to the VB-2 installation instructions for

details on operating the audio module.

✍

NOTE: The Model VB-2 Digital Voice Synthesis module must be installed for this option to function.

◆ The factory setting for the VB-2 audio module

is OFF.

◆ Alternately, the audio module can be set for

(1) listen-only, (2) 2-way manual, (3) 2-way full duplex.

VOICE RESPONSE

◆ The Console can be programmed to allow its

speaker to play audio produced by the VB-2 or VB-3 digital voice synthesis modules.

◆ This selection can also be used when a remote

speaker is connected to the Console.

◆ The factory setting is to disable the Console’s

speaker from playing voice module audio.

◆ Alternately, the Console can be programmed

to enable voice module audio.

✍

NOTE: Turning voice response OFF with this programming step will only effect the audio produced by the voice module. It will not stop the Console’s speaker from sounding local sirens and tones.

✍

NOTE: A Model VB-2 or VB-3 Digital Voice Synthesis module must be installed for this option to function.

REMOTE LOCKOUT

◆ The factory setting for the communicator is to

allow remote connection to the Console with Linear’s RA-2400 Remote Access Software and a modem (unlocked).

◆ Alternately, the Console can be programmed

to not answer incoming calls, thereby, not allowing remote access (locked).

PROGRAMMING STEP #107

PRS

HOME

PROGRAM

0 FOR COMMUNICATOR OFF 1 FOR COMMUNICATOR ON

AWAY

STORE PROGRAM

PRS

PROGRAMMING STEP #76

MNO

HOME

PROGRAM

0 FOR NO AUDIO MONITORING 1 FOR LISTEN-ONLY 2 FOR 2-WAY MANUAL 3 FOR 2-WAY FULL DUPLEX

AWAY

STORE PROGRAM

PRS

PROGRAMMING STEP #78

TUV

HOME

PROGRAM

0 FOR NO VOICE RESPONSE 1 FOR VOICE RESPONSE

AWAY

STORE PROGRAM

PROGRAMMING STEP #100

HOME

PROGRAM

0 FOR UNLOCK 1 FOR LOCK

AWAY

STORE PROGRAM

Page 36

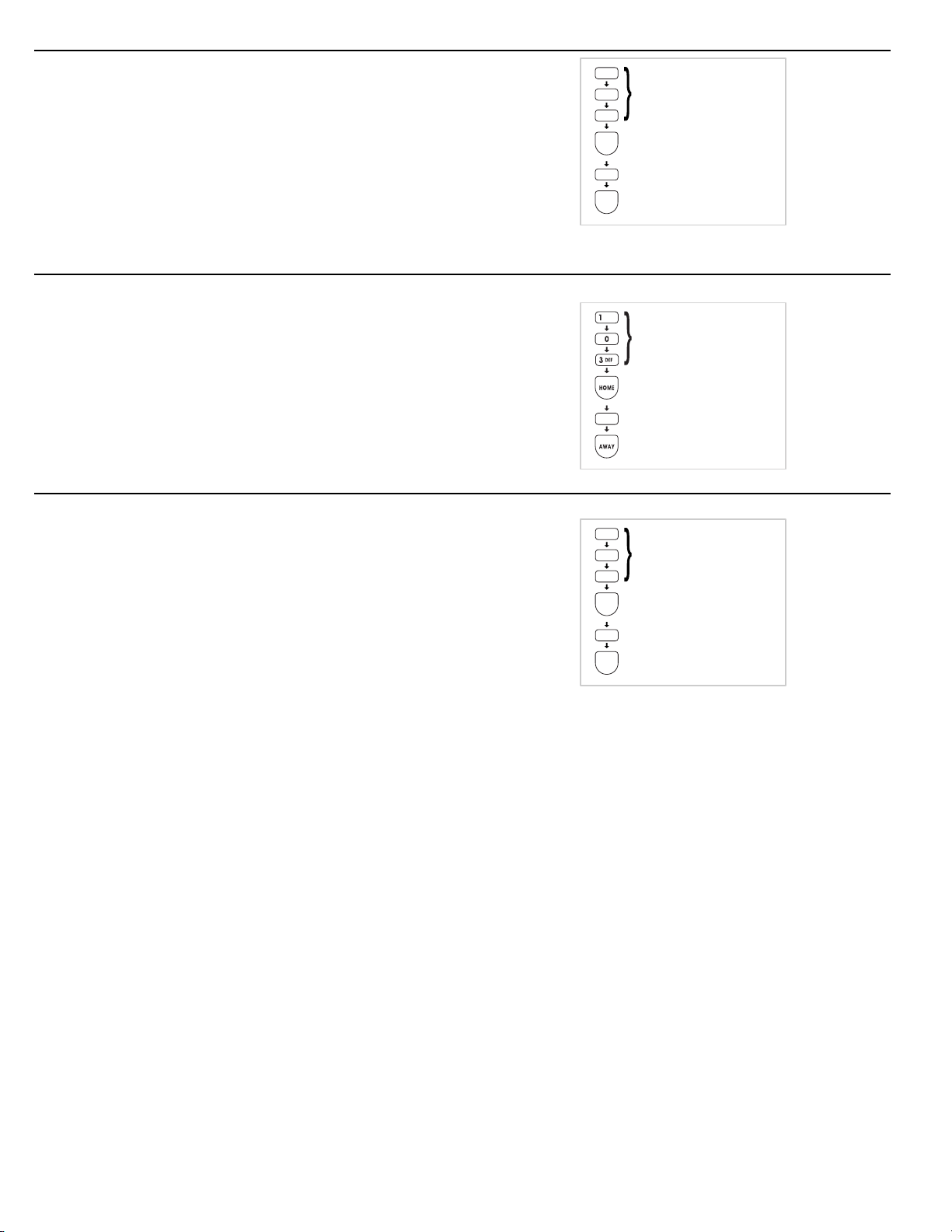

CALL LIMITER

◆ The factory setting for the call limiter is OFF.

This allows the communicator to report burglary alarms, once for each sensor, as many times as they are triggered.

◆ Optionally, the Console can be programmed

to only allow five burglary reports total per arming period.

✍

NOTE: Sensors programmed to 24-hour zones (Emergency, Panic, Fire) always send a Central Station Report and always sound the local siren regardless of the Call Limiter setting.

DIALING DELAY

◆ The factory setting will cause the

communicator to dial the Central Station instantly when an alarm or supervisory event occurs.

◆ Alternately, the communicator can be

programmed to wait 30 seconds before dialing. This gives the user time to disarm the system and prevent communications in the case of a subscriber generated false alarm.

DIALING METHOD

The factory setting causes the communicator

◆

to dial using DTMF (dual-tone multi-frequency) tone dialing.

◆ Alternately, the communicator can be

programmed to use pulse (rotary) dialing. Use this option if the telephone line in the installation does not support tone dialing.

PROGRAMMING STEP #101

HOME

PROGRAM

0 FOR OFF (UNLIMITED) 1 FOR ON (5 VIOLATIONS)

AWAY

STORE PROGRAM

PROGRAMMING STEP #103

PROGRAM 0 = FOR 0 SECOND DELAY

1 = FOR 30 SECOND DELAY STORE PROGRAM

PROGRAMMING STEP #104

GHI

HOME

PROGRAM

0 FOR TONE DIALING 1 FOR PULSE DAILING

AWAY

STORE PROGRAM

Page 37

COMMUNICATOR REPORTING OPTIONS

REPORTING FORMAT

◆ The factory setting causes the communicator

to report using the 4 by 2 format. This format allows four-digit account numbers from 0000 to 9999 and provides two-digit alarm codes.

◆ Alternately ADEMCO CONTACT ID can be

chosen as a reporting format. This format allows 4-digit account numbers from 0000 to 9999 and provides verbose report descriptions with

PROGRAMMING STEP #105

JKL

PROGRAM

HOME

0 FOR 4 BY 2 1 FOR ADEMCO CONTACT ID

AWAY

STORE PROGRAM

Ademco Contact ID compatible Central Stations.

CALL ROUTING

◆ The factory setting for the communicator is to

route all calls to the primary telephone number. If communication is unsuccessful after five attempts to the primary number, the secondary number will be dialed for an additional five attempts. If the secondary number cannot be reached, the communicator will “sleep” for five minutes before starting the

TUV

PROGRAMMING STEP #86

MNO

PROGRAM

HOME

0 FOR ALL TO PRIMARY/SECONDARY 1 FOR ALARMS ONLY TO PRIMARY/SECONDARY

AWAY

STORE PROGRAM

call process over again. A total of five sleep cycles (50 call attempts) can occur before the communicator stops calling.

◆ Alternately, the communicator can be

programmed to report supervisory events (low batteries, radio trouble, AC failure, etc.) to the supervisory telephone number instead of the primary or secondary telephone numbers.

✍

CAUTION: If the page alert user code feature is going to be used, the supervisory number is reserved for the pager number. DO NOT SET THE CALL ROUTING OPTION TO “1”.

◆ To disable supervisory reports, set call routing

option to “1” and remove the supervisory telephone number or in 4 by 2 set the report to “0”.

✍

NOTE: Do not program the primary and secondary telephone numbers the same. See the FCC Telephone Rules and Regulations on the rear cover of this manual.

COMMUNICATOR REPORTING OPTIONS

STEP #

86 CALL ROUTING

88 ACCOUNT NUMBER 4 DIGITS EMPTY 89 PRIMARY PHONE NUMBER UP TO 20 DIGITS EMPTY 90 SECONDARY PHONE NUMBER UP TO 20 DIGITS EMPTY 91 SUPERVISORY/ PAGER PHONE NUMBER UP TO 20 DIGITS EMPTY

FOR ALL PHONE NUMBERS

105 REPORTING FORMAT 0 = 4 BY 2; 1 = ADEMCO 0 108 REPORT CONSOLE TROUBLE 0 = NO; 1 = YES 0 110 REPORT FORCE ARMING 0 = NO; 1 = YES 0 111 OPEN/CLOSE 0 = NO; 1 = YES; 2 = MASTER PAC ONLY 0 113 POINT ID REPORTING FOR 4 BY 2 FORMAT 0 = NO; 1 = YES 1

PROGRAMMING

FUNCTION

⇒⇒⇒⇒

0 = ALL CALLS TO PRIMARY OR SECONDARY NUMBER 1 = ALL ALARM CALLS TO PRIMARY OR SECONDARY NUMBER AND ALL OTHERS TO SUPERVISORY NUMBER

PRESSING THE (A) KEY INSERTS A 1-SECOND DELAY THE [FIRE] KEY INSERTS A 5-SECOND DELAY THE [CHIME] KEY INSERTS A “ THE (A) KEY INSERTS A “#” IF IT IS THE LAST DIGIT OF THE PHONE NUMBER

”

POSSIBLE

VALUES

FACTORY VALUE

INSTALLATION

VALUE

Communicator Reporting Option Table

Page 38

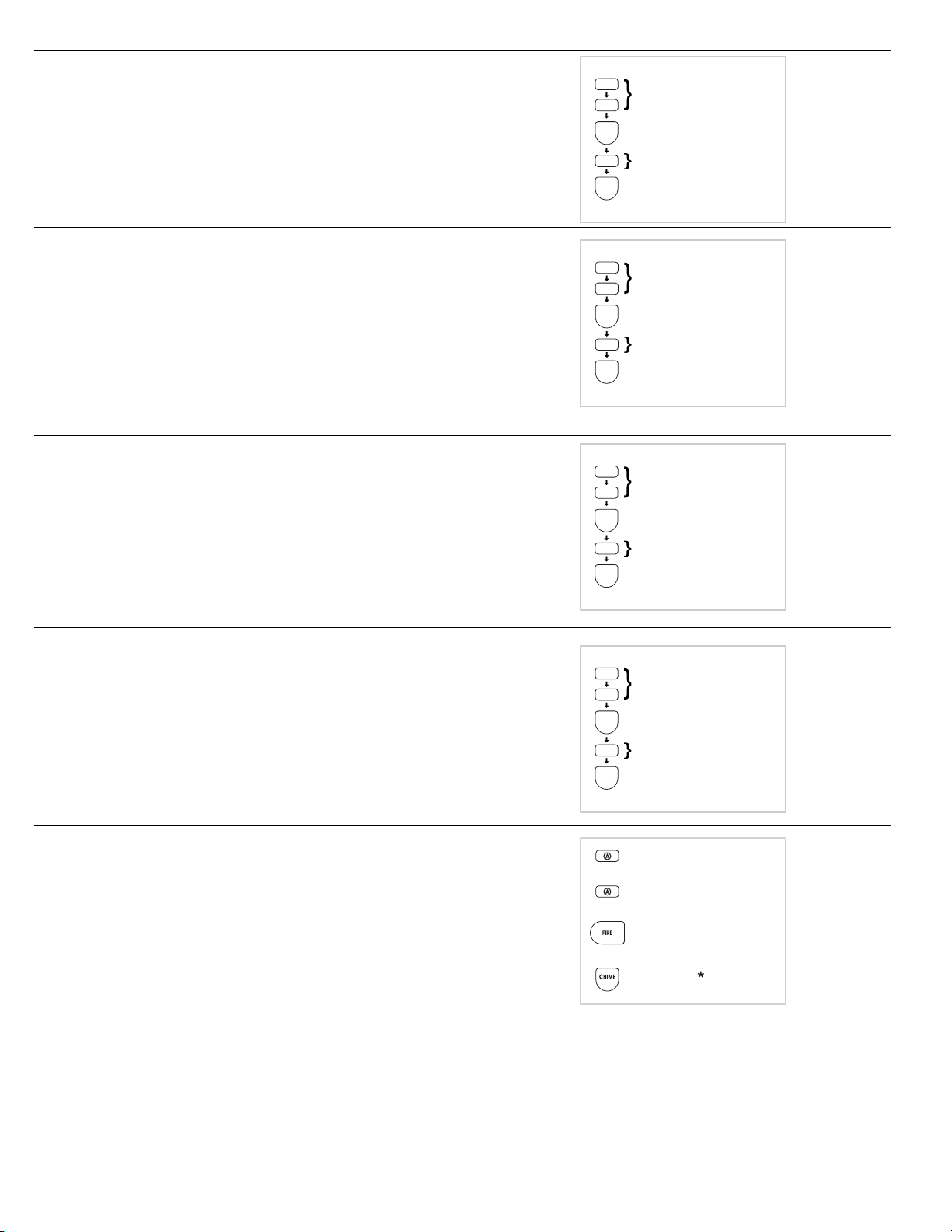

ACCOUNT NUMBER

◆ The communicator’s account number entered

must be 4-digits long.

◆ The factory setting for the account number is

0000.

◆ Enter an account number from 0000 to 9999.

PRIMARY TELEPHONE NUMBER

◆ The primary Central Station telephone number

can be up to 20-digits long.

◆ Digits 0-9 can be used.

◆ Delays and special characters can be entered

in the telephone number (see below).

SECONDARY TELEPHONE NUMBER

The secondary Central Station telephone

◆

number can be up to 20-digits long.

◆ Digits 0-9 can be used.

◆ Delays and special characters can be entered

in the telephone number (see below).

NOTE: To remove the secondary telephone

✍

number, program Step # then press [TEST].

TUV

PROGRAMMING STEP #88

TUV

HOME

PROGRAM

4 DIGIT ACCOUNT NUMBER

AWAY

STORE PROGRAM

TUV

PROGRAMMING STEP #89

WXY

HOME

PROGRAM

ENTER UP TO 20 DIGITS FOR PRIMARY NUMBER

AWAY

STORE PROGRAM

WXY

PROGRAMMING STEP #90

HOME

PROGRAM

ENTER UP TO 20 DIGITS FOR SECONDARY NUMBER

AWAY

STORE PROGRAM

SUPERVISORY/PAGER TELEPHONE NUMBER

◆ The supervisory Central Station or pager

telephone number can be up to 20-digits long.

◆ Digits 0-9 can be used.

◆ Delays and special characters can be entered

in the telephone number (see below).

✍

NOTE: To remove the supervisory/pager telephone number, program Step # then press [TEST].

TELEPHONE NUMBER DELAYS AND SPECIAL CHARACTERS

◆ When creating telephone numbers with

programming Steps 89, 90, & 91, use the following keys to add dialing delays or special characters.

◆ Press the (A) key to place a 1-second dialing

delay at the start or anywhere in the middle of the telephone number.

◆ Pressing the (A) key as the last digit of the

telephone number will place a pound (#) character at the end of the telephone number.

Press the [

◆

dialing delay anywhere in the telephone number.

◆ Press the [

character anywhere in the telephone number.

] key to place a 5-second

FIRE

CHIME

] key to place a star (*)

WXY

PROGRAMMING STEP #91

HOME

PROGRAM

ENTER UP TO 20 DIGITS FOR SUPERVISORY NUMBER

AWAY

STORE PROGRAM

ADDS A 1-SECOND DELAY (START OR MIDDLE OF NUMBER)

ADDS A POUND (#) CHARACTER (END OF NUMBER)

ADDS A 5-SECOND DELAY (ANYWHERE IN NUMBER)

ADDS A STAR ( ) CHARACTER (ANYWHERE IN NUMBER)

Page 39

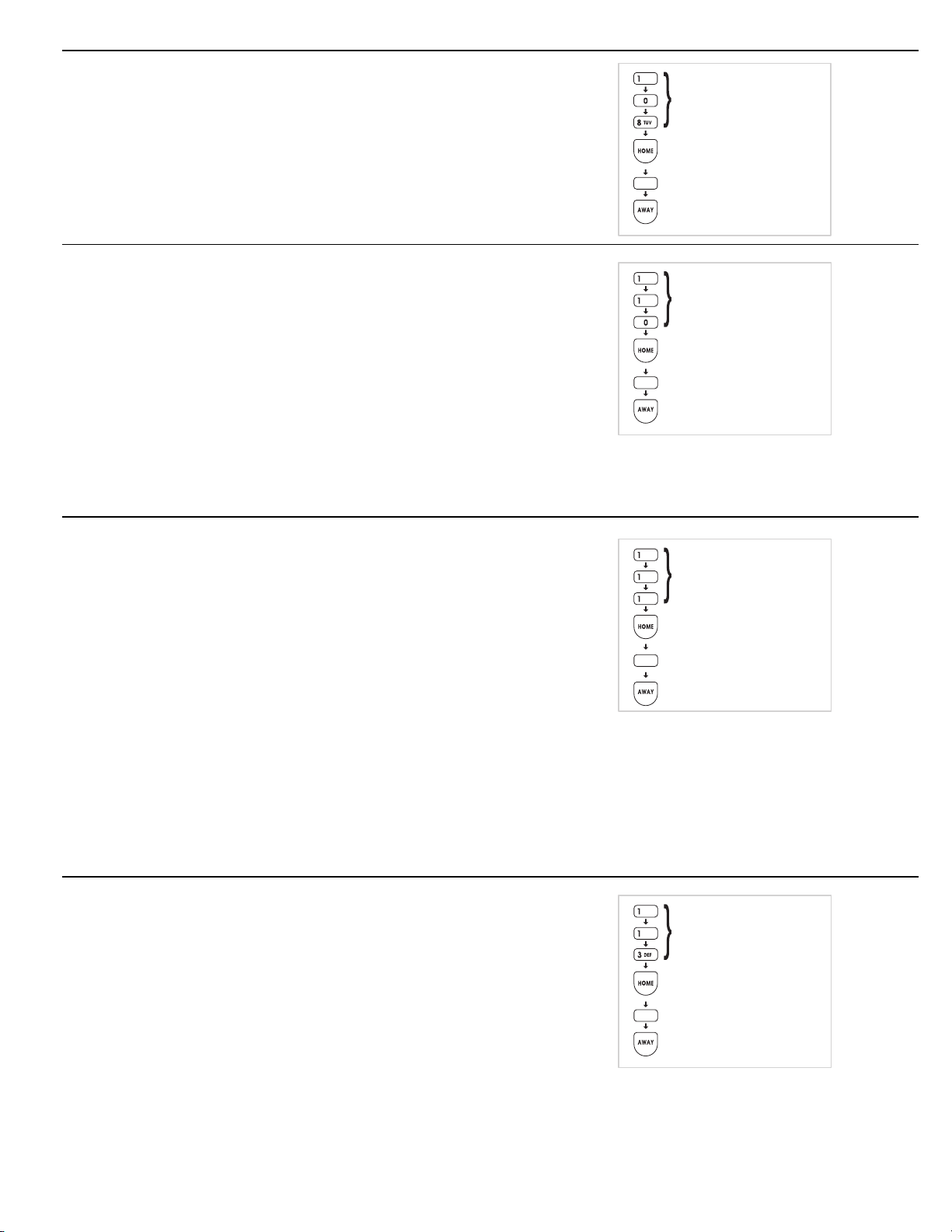

REPORT CONSOLE TROUBLE

◆ The factory setting does not report Console

trouble events to the Central Station.

◆ Alternately, the communicator can be

programmed to report Console trouble events. These include all conditions that light the Console’s BATTERIES or TROUBLE indicator. It also includes low Console backup battery.

REPORT FORCE ARMING

◆ The factory setting does not send force arming

reports.

◆ Alternately, the communicator can be

programmed to report force arming anytime the Console is armed with one or more bypassed sensors.

◆ The factory set reporting code for force

arming is “65” (Code 574 with Ademco).

✍

NOTE: If force arming is enabled, and the Console is force armed (armed with an open sensor) remotely by telephone, or with the RA-2400 Remote Access software, the caller will be disconnected if the communicator is enabled.

PROGRAMMING STEP #108

PROGRAM

0 FOR NO CONSOLE TROUBLE 1 FOR CONSOLE TROUBLE

STORE PROGRAM

PROGRAMMING STEP #110

PROGRAM

0 FOR NO FORCE ARMING RPTS. 1 FOR FORCE ARMING RPTS.

STORE PROGRAM

OPENING AND CLOSING REPORTS

◆ The factory setting does not send opening and

closing reports

◆ Alternately, the communicator can be

programmed to send an opening report when the system is disarmed, and a closing report when the system is armed for all users, or just the master user.

✍

NOTE 1: For commercial installations using opening and closing reports, it is recommended to disable quick arming to prevent customers from arming the system.

NOTE 2: The reporting codes are fixed for opening

✍

and closing. A unique code is reserved for the master user code and each of the five restricted user codes.

✍

NOTE 3: The page alert user code has a closing code reserved. Disarming with the page alert user code dials the supervisory number, no opening report is sent.

POINT ID REPORTING

◆ The factory setting enables Point ID and

allows the communicator to send two-digit alarm and trouble codes for each sensor. The individual sensor that causes an alarm or trouble report can be identified at the Central Station.

◆ Alternately, Point ID can be disabled. The

Central Station will only receive general alarm and trouble reports.

PROGRAMMING STEP #111

PROGRAM

0 FOR NO OPEN/CLOSE REPORTS 1 FOR O/C RPTS. FOR ALL USERS 2 FOR O/C RPTS. FROM MASTER USER ONLY

STORE PROGRAM

PROGRAMMING STEP #113

PROGRAM

0 FOR GENERAL REPORTS ONLY 1 FOR POINT ID REPORTING

STORE PROGRAM

Page 40

COMMUNICATOR REPORTING CODES

◆ The two-digit communicator reporting code

for each event has a factory set value. These values may be customized to fit the specific installation and the reporting requirements of the Central Station monitoring the system.

If Point ID reporting is enabled (the factory

◆

default setting), each sensor can report a unique alarm and trouble code.

◆ If Point ID is disabled, the “general” reporting

codes for each event type will be used. Each programming function is performed with

◆

similar keystrokes. After the Console is in Setup Mode, enter the programming step number, press the [

] key (HOME =

HOME

program), enter the new value, and press the [

] key (AWAY = store).

AWAY

◆ Making a value 0 causes event to not

communicate to central station.

✍

NOTE: The reporting codes are fixed for opening and closing. A unique code is reserved for the master, the five restricted, and page alert user codes. See the Opening & Closing Reporting Codes Table.

HOME

= PROGRAM

AWAY

= STORE

TEST

= REMOVE

GENERAL REPORTING CODES

◆ Program Steps #201 - 206 for the

communicator reporting codes when Point ID is disabled.

Refer to the Console & General Reporting Codes

◆

table to view/edit the reporting codes for each of the five events. The factory settings are listed, along with a blank area to write in the new installation values.

◆ Any value from 0-99 can be programmed for

each event (0 = no report).

✍

NOTE: Be careful not to duplicate codes unless the Central Station requires specific codes for certain types of events.

SYSTEM REPORTING CODES

◆ Program Steps #261 - 266 for the Console

reporting codes.

◆ Refer to the System Reporting Codes table to

view/edit the reporting codes for the keypad [FIRE] and [EMERGENCY] buttons and for each of the four Control Panel conditions. The factory settings are listed, along with a blank area to write in the new installation values.

ABC

PROGRAMMING STEPS

#201 TO #206

HOME

PROGRAM

0 - 99 FOR GENERAL ALARM REPORTING CODE

AWAY

STORE PROGRAM

ABC

PROGRAMMING STEPS

MNO

#261 TO #266

HOME

PROGRAM

0 - 99 FOR SYSTEM REPORTING CODE

AWAY

STORE PROGRAM

GENERAL REPORTING CODES

STEP #

201 GENERAL FIRE REPORT CODE 0 - 99 1 202 GENERAL EMERGENCY REPORT CODE 0 - 99 2 203 GENERAL SILENT PANIC REPORT CODE 0 - 99 3 204 GENERAL BURGLARY REPORT CODE 0 - 99 4 206 GENERAL TROUBLE REPORT CODE 0 - 99 6

PROGRAMMING

FUNCTION

POSSIBLE

VALUES

General Reporting Codes Table

FACTORY

VALUE

INSTALLATION

VALUE

Page 41

FORCE ARMING REPORTING CODE

◆ Programming Step #258

◆ The factory set reporting code for force

arming is “65” (Code 574 with Ademco).

◆ Any value from 0-99 can be programmed for

this event (0 = no report).

✍

NOTE: For force arming reporting, force arming reports must be enabled. See Page 37.

ABC

JKL

PROGRAMMING STEP #258

TUV

HOME

PROGRAM

0 - 99 FOR FORCE ARMING REPORTING CODE

AWAY

STORE PROGRAM

DURESS REPORTING CODE

◆ Programming Step #259

◆ The factory set reporting code for Duress is

“66” (Code 121 with Ademco).

◆ Any value from 0-99 can be programmed for

this event (0 = no report).

NOTE: For duress code reporting a keypad duress

✍

code must be programmed. See Page 30.

ABC

JKL

PROGRAMMING STEP #259

WXY

HOME

PROGRAM

0 - 99 FOR DURESS CODE

AWAY

STORE PROGRAM

SYSTEM REPORTING CODES

STEP #

PROGRAMMING

FUNCTION

POSSIBLE

4 x 2 VALUES

FACTORY

4 x 2 VALUE

ADEMCO

VALUE

INSTALLATION

4 x 2 VALUE

261 SYSTEM FIRE REPORT CODE 0 - 99 68 110 262 SYSTEM EMERGENCY REPORT CODE 0 - 99 69 120 263 SYSTEM TEST/CANCEL REPORT CODE 0 - 99 70 406 264 SYSTEM LOW BATTERY RESTORAL REPORT CODE 0 - 99 71 R302 266 SYSTEM LOW BATTERY REPORT CODE 0 - 99 73 E302 258 FORCE ARMING REPORT CODE 0 - 99 65 574 259 DURESS REPORT CODE 0 - 99 66 121

System Reporting Codes Table

OPENING & CLOSING REPORTING COD ES TA BLE

USER CODE

4 x 2 CLOSING

(ARMING) CODE

4 x 2 OPENING

(DISARMING) CODE

ADEMCO CLOSING

(ARMING) CODE

ADEMCO OPENING (DISARMING) CODE

MASTER USER CODE 74 82 CLOSE U000 OPEN U000 RESTRICTED USER CODE #1 75 83 CLOSE U001 OPEN U001 RESTRICTED USER CODE #2 76 84 CLOSE U002 OPEN U002 RESTRICTED USER CODE #3 77 85 CLOSE U003 OPEN U003 RESTRICTED USER CODE #4 78 86 CLOSE U004 OPEN U004 RESTRICTED USER CODE #5 79 87 CLOSE U005 OPEN U005 PAGE ALERT USER CODE 80 CLOSE U006 REMOTE/HARDWIRE ARM (SENSOR TYPE 9) & QUICK ARM 81 R407 U007 REMOTE/HARDWIRE DISARM (SENSOR TYPE 9) 89 E407 U007

Opening & Closing Reporting Codes Table

Page 42

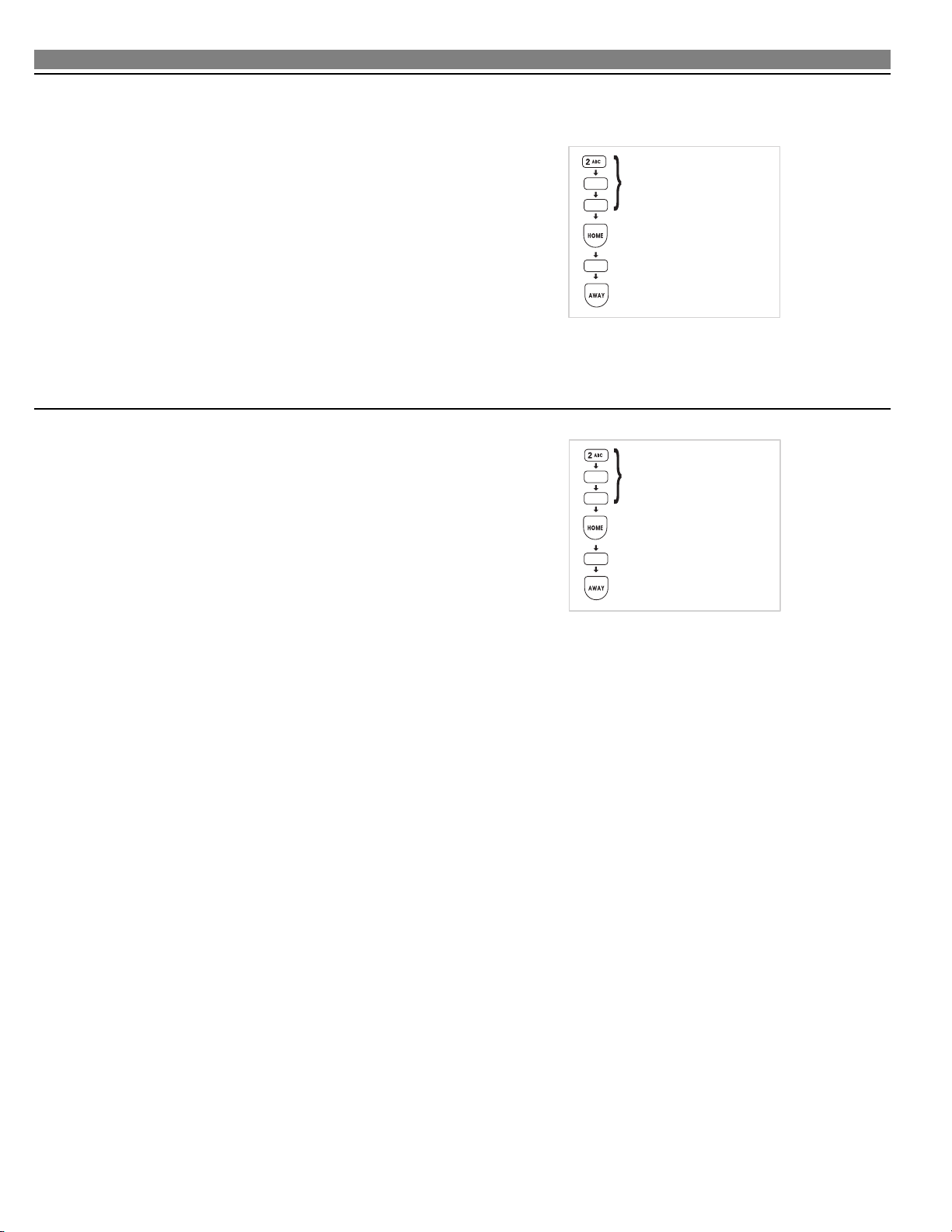

4 BY 2 FORMAT POINT ID REPORTING CODES

4 BY 2 FORMAT POINT ID ALARM REPORT CODES

◆ Refer to the 4 by 2 Format Point ID Reporting

Code table to view/edit the alarm reporting codes for each of the 12 sensors. The communicator will send these codes if Point ID is enabled and any sensor triggers an alarm. The factory settings are listed, along with a blank area to write in the new installation values.

✍

NOTE: Be careful not to duplicate codes unless the Central Station requires specific codes for certain types of sensors.

◆ Each programming function is performed with

similar keystrokes. After the system is in Setup Mode, enter the programming step number, press the [

] key (HOME =

HOME

program), enter the new value, and press the [

] key (AWAY = store).

AWAY

4 BY 2 FORMAT POINT ID TROUBLE REPORT CODES

◆ Refer to the 4 by 2 Format Point ID Reporting

Code table to view/edit the trouble reporting codes for each of the 12 sensors. The communicator will send these codes if Point ID is enabled and any sensor has a low battery or trouble condition. The factory settings are listed, along with a blank area to write in the new installation values.

✍

NOTE: Be careful not to duplicate codes unless the Central Station requires specific codes for certain types of sensors.

◆ Each programming function is performed with

similar keystrokes. After the Console is in Setup Mode, enter the programming step number, press the [ program), enter the new value, and press the [

] key (AWAY = store).

AWAY

] key (HOME =

HOME

DVS12K24.EPS

PROGRAMMING STEPS #210 TO #221

PROGRAM 0 - 99 FOR SENSOR

ALARM CODE (0 = NO REPORT)

STORE PROGRAM

PROGRAMING STEPS #234 TO 245

PROGRAM

0 - 99 FOR SENSOR TROUBLE CODE (0 = NO REPORT)

STORE PROGRAM

Page 43

POINT ID REPORTING CODES

STEP #

210 SENSOR 1 ALARM REPORT CODE 0 - 99 11 211 SENSOR 2 ALARM REPORT CODE 0 - 99 12 212 SENSOR 3 ALARM REPORT CODE 0 - 99 13 213 SENSOR 4 ALARM REPORT CODE 0 - 99 14 214 SENSOR 5 ALARM REPORT CODE 0 - 99 15 215 SENSOR 6 ALARM REPORT CODE 0 - 99 16 216 SENSOR 7 ALARM REPORT CODE 0 - 99 17 217 SENSOR 8 ALARM REPORT CODE 0 - 99 18 218 SENSOR 9 ALARM REPORT CODE 0 - 99 19 219 SENSOR 10 ALARM REPORT CODE 0 - 99 20 220 SENSOR 11 ALARM REPORT CODE 0 - 99 21 221 SENSOR 12 ALARM REPORT CODE 0 - 99 22 234 SENSOR 1 TROUBLE REPORT CODE 0 - 99 41 235 SENSOR 2 TROUBLE REPORT CODE 0 - 99 42 236 SENSOR 3 TROUBLE REPORT CODE 0 - 99 43 237 SENSOR 4 TROUBLE REPORT CODE 0 - 99 44 238 SENSOR 5 TROUBLE REPORT CODE 0 - 99 45 239 SENSOR 6 TROUBLE REPORT CODE 0 - 99 46 240 SENSOR 7 TROUBLE REPORT CODE 0 - 99 47 241 SENSOR 8 TROUBLE REPORT CODE 0 - 99 48 242 SENSOR 9 TROUBLE REPORT CODE 0 - 99 49 243 SENSOR 10 TROUBLE REPORT CODE 0 - 99 50 244 SENSOR 11 TROUBLE REPORT CODE 0 - 99 51 245 SENSOR 12 TROUBLE REPORT CODE 0 - 99 52

PROGRAMMING

FUNCTION

POSSIBLE

VALUES

FACTORY

VALUE

INSTALLATION

VALUE

Point ID Reporting Codes Table

Page 44

IMPORTANT INFORMATION

LINEAR LIMITED WARRANTY

This Linear product is warranted against defects in material and workmanship for twelve (12) months. The Warranty Expiration Date is labeled on the product. direct from Linear or through Linear’s normal distribution channels.

does not warrant this product to consumers.

from their selling dealer as to the nature of the dealer’s warranty, if any.

are no obligations or liabilities on the part of Linear Corporation for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation, or reinstallation.

merchantability and implied warranties for fitness, are valid only until Warranty Expiration Date as labeled on the product.

Warranty is in lieu of all other warranties express or implied.

All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Linear Technical Services at 1-800-421-1587 for an RPA# and other important details.

This warranty extends only to wholesale customers

Consumers should inquire

All implied warranties, including implied warranties for

This Linear Corporation

who buy

Linear

There

WIRELESS PRODUCT NOTICE

Linear radio controls provide a reliable communications link and fill an important need in portable wireless signaling. However, there are some limitations which must be observed.

✶

For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15 devices. As such, they have limited transmitter power and therefore limited range.

✶

A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that occur on or near their operating frequencies, regardless of code settings.

✶

Changes or modifications to the device may void FCC compliance.

✶

Infrequently used radio links should be tested regularly to protect against undetected interference or fault.

✶

A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or dealer, and th ese facts should be communicated to the ultimate users.

FCC NOTICE

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It has been type tested and found to com ply with the limits for a Class B computing device in accordance with Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

✶

Relocate the Console away from the TV/radio receiver.

✶

Plug the Console into a different wall outlet so that the Console is on a different branch circuit.

✶

Re-orient the TV/radio antenna.

✶

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions.

FCC TELEPHONE RULES AND REGULATIONS

The FCC requires that this alarm dialer system not make more than 15 repetitive dialing attempts to a single telephone number. There are no limitations when the calls are made sequentially to two or m ore alternative numbers, or when these calls are spaced 10 minutes apart to a single number. The FCC Rules and Regulations do not specify the re-attempt period as this can vary for specific applications. When setting this period, take into consideration local, interstate, foreign and special network call completion characteristics, network processing time, a sufficient number of rings and busy/don’t answer modes.

FIRE EVACUATION PLANNING

For systems that include fire protection, UL requires that the following information be available to the users of the system.

✶

Draw up a floor plan showing two exits for each room.

The following procedures are to be discussed with the family:

➀

Status of bedroom doors.

➁

Familiarity with alarm signals.

➂

Testing of door during a fire and use of alternate escape route if door is hot to touch.

➃

Crawling and holding breath.

➄

Escape fast. No stopping for packing.

➅

Meet at designated outdoor spot.

➆

Emphasize that no one is to return to a burning house.

➇

Fire department notification from a neighbor’s phone.

➈

Periodic rehearsal is to be conducted.

INDUSTRY CANADA NOTICES

NOTICE

device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the ringer equivalence numbers of all the devices does not exceed 5.

NOTICE

certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Departmen t does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION

but should contact the appropriate electric inspection authority, or electrician, as appropriate.

: The ringer equivalence number (REN) assigned to each terminal

: The Industry Canada label identifies certified equipment. This

: Users should not attempt to make such connections themselves,
