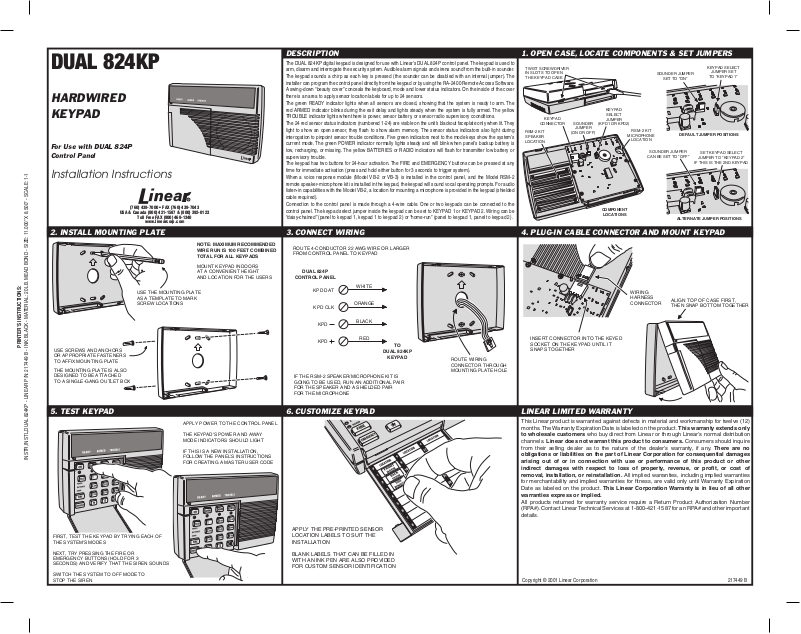

Linear DUAL 824KP User Manual

DUAL 824KP

HARDWIRED
KEYPAD

For Use with DUAL 824P
Control Panel

Installation Instructions

[phone] • FAX [phone]

USA & Canada [phone] & [phone]

Toll Free FAX [phone]

www.linearcorp.com

DESCRIPTION

The DUAL 824KP digital keypad is designed for use with Linear’s DUAL 824P control panel. The keypad is used to
arm, disarm and interrogate the security system. Audible alarm signals and sirens sound from the built-in sounder.
The keypad sounds a chirp as each key is pressed (the sounder can be disabled with an internal jumper). The
installer can program the control panel directly from the keypad or by using the RA-2400 Remote Access Software.
A swing-down “beauty cover” conceals the keyboard, mode and lower status indicators. On the inside of the cover
there is an area to apply sensor location labels for up to 24 sensors.
The green READY indicator lights when all sensors are closed, showing that the system is ready to arm. The
red ARMED indicator blinks during the exit delay and lights steady when the system is fully armed. The yellow
TROUBLE indicator lights when there is power, sensor battery, or sensor radio supervisory coonditions.
The 24 red sensor status indicators (numbered 1-24) are visible on the unit’s blackout faceplate only when lit. They
light to show an open sensor, they fl ash to show alarm memory. The sensor status indicators also light during
interogation to pinpoint sensor trouble conditions. Five green indicators next to the mode keys show the system’s
current mode. The green POWER indicator normally lights steady and will blink when panel’s backup battery is
low, recharging, or missing. The yellow BATTERIES or RADIO indicators will fl ash for transmitter low battery or
supervisory trouble.
The keypad has two buttons for 24-hour activation. The FIRE and EMERGENCY buttons can be pressed at any
time for immediate activation (press and hold either button for 3 seconds to trigger system).
When a voice response module (Model VB-2 or VB-3) is installed in the control panel, and the Model RSM-2
remote speaker-microphone kit is installed in the keypad, the keypad will sound vocal operating prompts. For audio
listen-in capabilities with the Model VB-2, a location for mounting a microphone is provided in the keypad (shielded
cable required).
Connection to the control panel is made through a 4-wire cable. One or two keypads can be connected to the
control panel. The keypad select jumper inside the keypad can be set to KEYPAD 1 or KEYPAD 2. Wiring can be
“daisy-chained” (panel to keypad 1, keypad 1 to keypad 2) or “home-run” (panel to keypad 1, panel to keypad 2).

1. OPEN CASE, LOCATE COMPONENTS & SET JUMPERS

TWIST SCREWDRIVER
IN SLOTS TO OPEN
THE KEYPAD CASE

KEYPAD

CONNECTOR

RSM-2 KIT
SPEAKER

LOCATION

SOUNDER

JUMPER

(ON OR OFF)

KEYPAD
SELECT
JUMPER

(KPD1 OR KPD2)

COMPONENT

LOCATIONS

RSM-2 KIT

MICROPHONE

LOCATION

CAN BE SET TO "OFF"

SOUNDER JUMPER

SET TO "ON"

SOUNDER JUMPER

ALTERNATE JUMPER POSITIONS

KEYPAD SELECT

JUMPER SET

TO "KEYPAD 1"

DEFAULT JUMPER POSITIONS

SET KEYPAD SELECT

JUMPER TO "KEYPAD 2"

IF THIS IS THE 2ND KEYPAD

2. INSTALL MOUNTING PLATE 3. CONNECT WIRING 4. PLUG-IN CABLE CONNECTOR AND MOUNT KEYPAD

USE SCREWS AND ANCHORS
OR APPROPRIATE FASTENERS
TO AFFIX MOUNTING PLATE

THE MOUNTING PLATE IS ALSO
DESIGNED TO BE ATTACHED
TO A SINGLE-GANG OUTLET BOX

USE THE MOUNTING PLATE
AS A TEMPLATE TO MARK
SCREW LOCATIONS

NOTE: MAXIMUM RECOMMENDED
WIRE RUN IS 100 FEET COMBINED
TOTAL FOR ALL KEYPADS

MOUNT KEYPAD INDOORS
AT A CONVENIENT HEIGHT
AND LOCATION FOR THE USERS

ROUTE 4-CONDUCTOR 22 AWG WIRE OR LARGER
FROM CONTROL PANEL TO KEYPAD

DUAL 824P

CONTROL PANEL

KPD DAT

KPD CLK

KPD

KPD

IF THE RSM-2 SPEAKER/MICROPHONE KIT IS
GOING TO BE USED, RUN AN ADDITIONAL PAIR
FOR THE SPEAKER AND A SHIELDED PAIR
FOR THE MICROPHONE

WHITE

ORANGE

BLACK

RED

TO

DUAL 824KP

KEYPAD

ROUTE WIRING
CONNECTOR THROUGH
MOUNTING PLATE HOLE

INSERT CONNECTOR INTO THE KEYED
SOCKET ON THE KEYPAD UNTIL IT
SNAPS TOGETHER

WIRING
HARNESS
CONNECTOR

ALIGN TOP OF CASE FIRST,
THEN SNAP BOTTOM TOGETHER

5. TEST KEYPAD 6. CUSTOMIZE KEYPAD LINEAR LIMITED WARRANTY

This Linear product is warranted against defects in material and workmanship for twelve (12)
months. The Warranty Expiration Date is labeled on the product. This warranty extends only
to wholesale customers who buy direct from Linear or through Linear’s normal distribution
channels. Linear does not warrant this product to consumers. Consumers should inquire

from their selling dealer as to the nature of the dealer’s warranty, if any. There are no
obligations or liabilities on the part of Linear Corporation for consequential damages
arising out of or in connection with use or performance of this product or other
indirect damages with respect to loss of property, revenue, or profi t, or cost of
removal, installation, or reinstallation. All implied warranties, including implied warranties

for merchantability and implied warranties for fi tness, are valid only until Warranty Expiration
Date as labeled on the product. This Linear Corporation Warranty is in lieu of all other

warranties express or implied.

All products returned for warranty service require a Return Product Authorization Number
(RPA#). Contact Linear Technical Services at 1-800-421-1587 for an RPA# and other important
details.

Copyright © 2001 Linear Corporation 217449 B

FIRST, TEST THE KEYPAD BY TRYING EACH OF
THE SYSTEM'S MODES

NEXT, TRY PRESSING THE FIRE OR
EMERGENCY BUTTONS (HOLD FOR 3
SECONDS) AND VERIFY THAT THE SIREN SOUNDS

SWITCH THE SYSTEM TO OFF MODE TO
STOP THE SIREN

APPLY POWER TO THE CONTROL PANEL

THE KEYPAD'S POWER AND AWAY
MODE INDICATORS SHOULD LIGHT

IF THIS IS A NEW INSTALLATION,
FOLLOW THE PANEL'S INSTRUCTIONS
FOR CREATING A MASTER USER CODE

APPLY THE PRE-PRINTED SENSOR
LOCATION LABELS TO SUIT THE
INSTALLATION

BLANK LABELS THAT CAN BE FILLED IN
WITH AN INK PEN ARE ALSO PROVIDED
FOR CUSTOM SENSOR IDENTIFICATION
