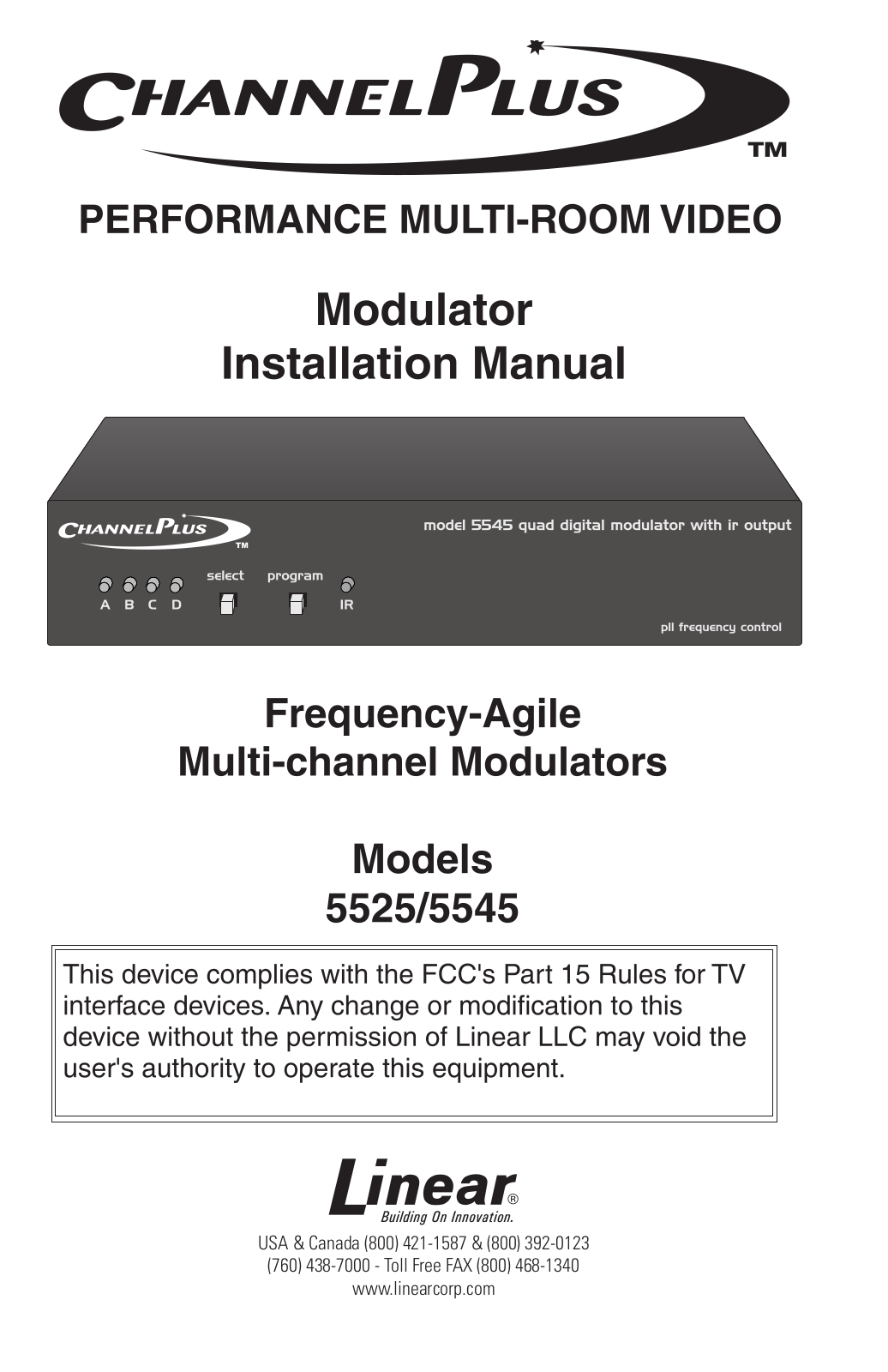

Linear 5525, 5545 User Manual

USA & Canada [phone] & [phone]

[phone] - Toll Free FAX [phone]

www.linearcorp.com

23345

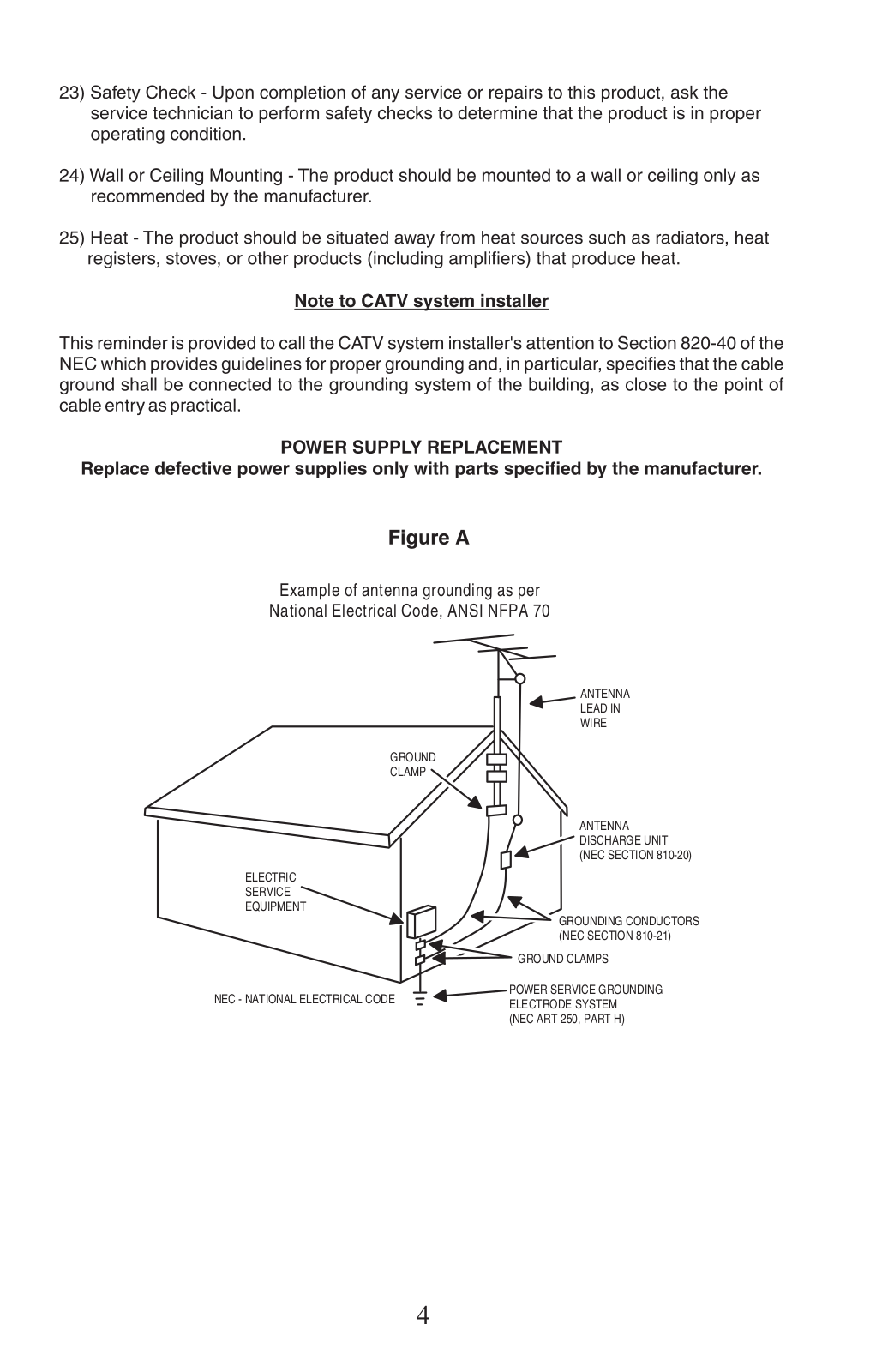

Example of antenna grounding as per

National Electrical Code, ANSI NFPA 70

ANTENNA
LEAD IN
WIRE

GROUND
CLAMP

ELECTRIC
SERVICE
EQUIPMENT

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
