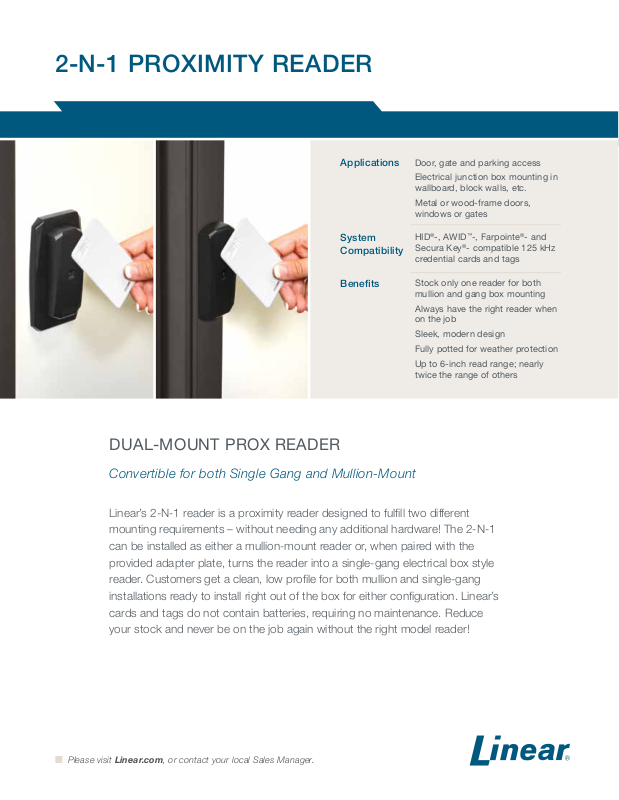

Linear 2-n-1 Proximity reader Specsheet

2-N-1 PROXIMITY READER

DUAL-MOUNT PROX READER

Applications

System
Compatibility

Benets

Door, gate and parking access

Electrical junction box mounting in
wallboard, block walls, etc.

Metal or wood-frame doors,
windows or gates

HID®-, AWID™-, Farpointe®- and
Secura Key®- compatible 125 kHz
credential cards and tags

Stock only one reader for both
mullion and gang box mounting

Always have the right reader when
on the job

Sleek, modern design

Fully potted for weather protection

Up to 6-inch read range; nearly
twice the range of others

Convertible for both Single Gang and Mullion-Mount

Linear’s 2-N-1 reader is a proximity reader designed to fulll two different
mounting requirements – without needing any additional hardware! The 2-N-1
can be installed as either a mullion-mount reader or, when paired with the
provided adapter plate, turns the reader into a single-gang electrical box style
reader. Customers get a clean, low prole for both mullion and single-gang
installations ready to install right out of the box for either conguration. Linear’s
cards and tags do not contain batteries, requiring no maintenance. Reduce
your stock and never be on the job again without the right model reader!

n Please visit Linear.com, or contact your local Sales Manager.

2-N-1 Proximity reader SPECIFICATIONS & TECHNOLOGY

SYSTEM SPECIFICATIONS

Reader Type: Proximity; 26- to 37-bit Wiegand

Frequency: 125 kHz

Mounting: Mullion or Single Gang

Dimensions
(H x W x D):

Weight: 3 oz. (85g)

IP Code: IP67

Voltage

1

: +5 to +16 VDC

Current Draw2: 30 mA typical, 75 mA peak @ 12VDC

Read Range3: Up to 6 inches (152 mm)

Cabling4: 24 AWG minimum, multi-conductor

Interface: Wiegand ABA Track II

Single-Gang: 4.77" x 2.96" x 1.33"

(121.1 x 75.1 x 33.7 mm)
Mullion: 3.92" x 1.74" x 0.98"
(99.5 x 44.2 x 24.9 mm)

stranded with an overall foil shield 500’

MODELS AND TECHNOLOGIES SUPPORTED

Single Gang Mullion

Order # 620-100451 (2-N-1ProxHAF)

Operating

-40° F to 149° F, (-40° C to +65° C)

Temperature:

Color: Black

Audio Tone: Sounder included

Indoor & Outdoor
Installation:

Electronics sealed in weather and
tamper-resistant epoxy potting

Designed for these credentials:

• HID® 125 kHz Proximity protocols*

• AWID™ 125 kHz Proximity protocols*

• Farpointe® Data Pyramid Series Proximity Cards and Tags*

Order # 620-100452 (2-N-1ProxHAS)

Designed for these credentials:

Warranty: Limited lifetime warranty

LED: Four-state indicator (red, green, amber, off)

Certication: ETL listed to UL294, FCC,

• HID® 125 kHz Proximity protocols*

• AWID™ 125 kHz Proximity protocols*

• SecuraKey® Series Proximity Cards and Tags

ICC, CE, C-Tick

*Other compatible credential models include: Farpointe PSC-1, PSI-4,

PSM-2, PSK-3, and PDT-1; HID ProxCard® II, ISOProx® II and ProxKey® II,

1 Linear brand power supplies are recommended for best operation
2 Using PSC-1 Standard Light Proximity Card with 12VDC at the reader
3 Self-evaluated
4 For example, Belden® 9535 or similar

Linear LLC | 1950 Camino Vida Roble | Suite 150 | Carlsbad, CA 92008 | 800.421.1587 |

Copyright © 2014 Linea r LLC. HID® is a regis tered tr adema rk of HID G lobal C orporation /ASSA ABLOY AB. AWI D™ is a trade mark of A pplied Wire less
Identi fications Gr oup, Inc. Se cura Key i s a trade mark of S ecura Key, a divisio n of Soun dcraf t, Inc. Be lden
products or name brands are trademarks of their respective holders. Specifications and product availability subject to change without notice. Please contact
your Linear sales representative for more information.

and AWID models CS Prox Card, GR (ISO) Graphics Quality Prox Card
and KT Key Tag

www.linearcorp.com

®

is a regis tered tr adema rk of Bel den, In c. All othe r

A Nortek Company

P/N 237020A X2
