Lincoln POWER-ARC 4000 User Manual

OPERATOR’S MANUAL

Safety Depends on You

Lincoln arc welding and cutting equipment is designed and built with safety in mind. However, your overall safety can be increased by proper installation ... and thoughtful operation on your part. DO

NOT INSTALL, OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL AND THE SAFETY PRECAUTIONS CONTAINED THROUGHOUT. And, most

importantly, think before you act and be careful.

POWER-ARC ™4000

For Machines with Code Number 10083, 10179, 10200, 10211, 10202, 10243, 10244, 10585, 10667,

10671, 10672, 10673, and 10866

IM488-E

February, 2004

Various engine configurations are available and machine appearance will vary accordingly.

• Sales and Service through Subsidiaries and Distributors Worldwide •

Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com

• World's Leader in Welding and Cutting Products •

RETURN TO MAIN INDEX

ISO 9001

ANSI RAB

QMS

Designed and Manufactured Under a

Quality Program Certified by ABS Quality Evaluations, Inc.

to ISO 9001 Requirements.

CERTIFICATE NUMBER: 30273

FOR ENGINE powered equipment.

1.a. Turn the engine off before troubleshooting and maintenance work unless the maintenance work requires it to be running.

____________________________________________________

1.b. Operate engines in open, well-ventilated areas or vent the engine exhaust fumes outdoors.

____________________________________________________

1.c. Do not add the fuel near an open flame welding arc or when the engine is running. Stop the engine and allow it to cool before refueling to prevent spilled fuel from vaporizing on contact with hot engine parts and igniting. Do not spill fuel when filling tank. If fuel is spilled, wipe it up and do not start engine until fumes have been eliminated.

____________________________________________________

1.d. Keep all equipment safety guards, covers and devices in position and in good repair.Keep hands, hair, clothing and tools away from V-belts, gears, fans and all other moving parts when starting, operating or repairing equipment.

____________________________________________________

1.e. In some cases it may be necessary to remove safety

guards to perform required maintenance. Remove guards only when necessary and replace them when the maintenance requiring their removal is complete. Always use the greatest care when working near moving parts.

___________________________________________________

1.f. Do not put your hands near the engine fan. Do not attempt to override the governor or idler by pushing on the throttle control rods while the engine is running.

___________________________________________________

1.g. To prevent accidentally starting gasoline engines while turning the engine or welding generator during maintenance work, disconnect the spark plug wires, distributor cap or magneto wire as appropriate.

SAFETY

ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING.

Read and understand the following safety highlights. For additional safety information, it is strongly recommended that you purchase a copy of “Safety in Welding & Cutting - ANSI Standard Z49.1” from the American Welding Society, P.O. Box 351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.

BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE PERFORMED ONLY BY QUALIFIED INDIVIDUALS.

WARNING

Mar ‘95

ELECTRIC AND MAGNETIC FIELDS may be dangerous

2.a. Electric current flowing through any conductor causes localized Electric and Magnetic Fields (EMF). Welding current creates EMF fields around welding cables and welding machines

2.b. EMF fields may interfere with some pacemakers, and welders having a pacemaker should consult their physician before welding.

2.c. Exposure to EMF fields in welding may have other health effects which are now not known.

2.d. All welders should use the following procedures in order to minimize exposure to EMF fields from the welding circuit:

2.d.1.

Route the electrode and work cables together - Secure them with tape when possible.

2.d.2. Never coil the electrode lead around your body.

2.d.3. Do not place your body between the electrode and

work cables. If the electrode cable is on your right side, the work cable should also be on your right side.

2.d.4. Connect the work cable to the workpiece as close as

possible to the area being welded.

2.d.5. Do not work next to welding power source.

1.h. To avoid scalding, do not remove the radiator pressure cap when the engine is hot.

CALIFORNIA PROPOSITION 65 WARNINGS

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

The

Above For Diesel Engines

The Above For Gasoline Engines

SAFETY

ARC RAYS can burn.

4.a. Use a shield with the proper filter and cover plates to protect your eyes from sparks and the rays of the arc when welding or observing open arc welding. Headshield and filter lens should conform to ANSI Z87. I standards.

4.b. Use suitable clothing made from durable flame-resistant material to protect your skin and that of your helpers from the arc rays.

4.c. Protect other nearby personnel with suitable, non-flammable screening and/or warn them not to watch the arc nor expose themselves to the arc rays or to hot spatter or metal.

ELECTRIC SHOCK can kill.

3.a. The electrode and work (or ground) circuits are electrically “hot” when the welder is on. Do not touch these “hot” parts with your bare skin or wet clothing. Wear dry, hole-free

gloves to insulate hands.

3.b. Insulate yourself from work and ground using dry insulation. Make certain the insulation is large enough to cover your full area of physical contact with work and ground.

In addition to the normal safety precautions, if welding must be performed under electrically hazardous conditions (in damp locations or while wearing wet clothing; on metal structures such as floors, gratings or scaffolds; when in cramped positions such as sitting, kneeling or lying, if there is a high risk of unavoidable or accidental contact with the workpiece or ground) use the following equipment:

• Semiautomatic DC Constant Voltage (Wire) Welder.

• DC Manual (Stick) Welder.

• AC Welder with Reduced Voltage Control.

3.c. In semiautomatic or automatic wire welding, the electrode, electrode reel, welding head, nozzle or semiautomatic welding gun are also electrically “hot”.

3.d. Always be sure the work cable makes a good electrical connection with the metal being welded. The connection should be as close as possible to the area being welded.

3.e. Ground the work or metal to be welded to a good electrical (earth) ground.

3.f.

Maintain the electrode holder, work clamp, welding cable and welding machine in good, safe operating condition. Replace damaged insulation.

3.g. Never dip the electrode in water for cooling.

3.h. Never simultaneously touch electrically “hot” parts of electrode holders connected to two welders because voltage between the two can be the total of the open circuit voltage of both welders.

3.i. When working above floor level, use a safety belt to protect yourself from a fall should you get a shock.

3.j. Also see Items 6.c. and 8.

FUMES AND GASES can be dangerous.

5.a. Welding may produce fumes and gases hazardous to health. Avoid breathing these fumes and gases.When welding, keep your head out of the fume. Use enough ventilation and/or exhaust at the arc to keep

fumes and gases away from the breathing zone. When

welding with electrodes which require special ventilation such as stainless or hard facing (see instructions on container or MSDS) or on lead or cadmium plated steel and other metals or coatings which produce highly toxic fumes, keep exposure as low as possible and below Threshold Limit Values (TLV) using local exhaust or mechanical ventilation. In confined spaces or in some circumstances, outdoors, a respirator may be required. Additional precautions are also required when welding on galvanized steel.

5.b.

Do not weld in locations near chlorinated hydrocarbon

vapors coming from degreasing, cleaning or spraying operations. The heat and rays of the arc can react with solvent vapors

to form phosgene, a highly toxic gas, and other irritating products.

5.c. Shielding gases used for arc welding can displace air and cause injury or death. Always use enough ventilation, especially in confined areas, to insure breathing air is safe.

5.d. Read and understand the manufacturer’s instructions for this

equipment and the consumables to be used, including the material safety data sheet (MSDS) and follow your employer’s safety practices. MSDS forms are available from your welding distributor or from the manufacturer.

5.e. Also see item 1.b.

Mar ‘95

FOR ELECTRICALLY powered equipment.

8.a. Turn off input power using the disconnect switch at the fuse box before working on the equipment.

8.b. Install equipment in accordance with the U.S. National Electrical Code, all local codes and the manufacturer’s recommendations.

8.c. Ground the equipment in accordance with the U.S. National Electrical Code and the manufacturer’s recommendations.

CYLINDER may explode if damaged.

7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and

pressure used. All hoses, fittings, etc. should be suitable for the application and maintained in good condition.

7.b. Always keep cylinders in an upright position securely chained to an undercarriage or fixed support.

7.c. Cylinders should be located:

• Away from areas where they may be struck or subjected to

physical damage.

• A safe distance from arc welding or cutting operations and

any other source of heat, sparks, or flame.

7.d. Never allow the electrode, electrode holder or any other electrically “hot” parts to touch a cylinder.

7.e. Keep your head and face away from the cylinder valve outlet when opening the cylinder valve.

7.f. Valve protection caps should always be in place and hand tight except when the cylinder is in use or connected for use.

7.g. Read and follow the instructions on compressed gas cylinders, associated equipment, and CGA publication P-l, “Precautions for Safe Handling of Compressed Gases in Cylinders,” available from the Compressed Gas Association 1235 Jefferson Davis Highway, Arlington, VA 22202.

iii

SAFETY

iii

Mar ‘95

WELDING SPARKS can cause fire or explosion.

6.a.

Remove fire hazards from the welding area.

If this is not possible, cover them to prevent

the welding sparks from starting a fire.

Remember that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas. Avoid welding near hydraulic lines. Have a fire extinguisher readily available.

6.b. Where compressed gases are to be used at the job site, special precautions should be used to prevent hazardous situations. Refer to “Safety in Welding and Cutting” (ANSI Standard Z49.1) and the operating information for the equipment being used.

6.c. When not welding, make certain no part of the electrode circuit is touching the work or ground. Accidental contact can cause overheating and create a fire hazard.

6.d. Do not heat, cut or weld tanks, drums or containers until the proper steps have been taken to insure that such procedures will not cause flammable or toxic vapors from substances inside. They can cause an explosion even

though

they have been “cleaned”. For information, purchase “Recommended Safe Practices for the

Preparation

for Welding and Cutting of Containers and Piping That Have Held Hazardous Substances”, AWS F4.1 from the American Welding Society

(see address above).

6.e. Vent hollow castings or containers before heating, cutting or welding. They may explode.

6.f.

Sparks and spatter are thrown from the welding arc. Wear oil free protective garments such as leather gloves, heavy shirt, cuffless trousers, high shoes and a cap over your hair. Wear ear plugs when welding out of position or in confined places. Always wear safety glasses with side shields when in a welding area.

6.g. Connect the work cable to the work as close to the welding area as practical. Work cables connected to the building framework or other locations away from the welding area increase the possibility of the welding current passing through lifting chains, crane cables or other alternate circuits. This can create fire hazards or overheat lifting chains or cables until they fail.

6.h. Also see item 1.c.

SAFETY

Mar. ‘93

PRÉCAUTIONS DE SÛRETÉ

Pour

votre propre protection lire et observer toutes les instructions et les précautions de sûreté specifiques qui parraissent dans ce manuel aussi bien que les précautions de sûreté générales suivantes:

Sûreté Pour Soudage A L’Arc

1. Protegez-vous contre la secousse électrique:

a. Les circuits à l’électrode et à la piéce sont sous tension

quand la machine à souder est en marche. Eviter toujours tout contact entre les parties sous tension et la peau nue ou les vétements mouillés. Porter des gants secs et sans trous pour isoler les mains.

b. Faire trés attention de bien s’isoler de la masse quand on

soude dans des endroits humides, ou sur un plancher metallique ou des grilles metalliques, principalement dans

les positions assis ou couché pour lesquelles une grande partie du corps peut être en contact avec la masse.

c. Maintenir le porte-électrode, la pince de masse, le câble

de soudage et la machine à souder en bon et sûr état defonctionnement.

d.Ne jamais plonger le porte-électrode dans l’eau pour le

refroidir.

e. Ne jamais toucher simultanément les parties sous tension

des porte-électrodes connectés à deux machines à souder parce que la tension entre les deux pinces peut être le total de la tension à vide des deux machines.

f. Si on utilise la machine à souder comme une source de

courant pour soudage semi-automatique, ces precautions pour le porte-électrode s’applicuent aussi au pistolet de soudage.

2. Dans le cas de travail au dessus du niveau du sol, se protéger contre les chutes dans le cas ou on recoit un choc. Ne jamais enrouler le câble-électrode autour de n’importe quelle partie du corps.

3. Un coup d’arc peut être plus sévère qu’un coup de soliel, donc:

a. Utiliser un bon masque avec un verre filtrant approprié

ainsi qu’un verre blanc afin de se protéger les yeux du rayonnement de l’arc et des projections quand on soude ou quand on regarde l’arc.

b. Porter des vêtements convenables afin de protéger la

peau de soudeur et des aides contre le rayonnement de l‘arc.

c. Protéger l’autre personnel travaillant à proximité au

soudage à l’aide d’écrans appropriés et non-inflammables.

4. Des gouttes de laitier en fusion sont émises de l’arc de soudage. Se protéger avec des vêtements de protection libres de l’huile, tels que les gants en cuir, chemise épaisse, pantalons sans revers, et chaussures montantes.

5. Toujours porter des lunettes de sécurité dans la zone de soudage. Utiliser des lunettes avec écrans lateraux dans les zones où l’on pique le laitier.

6. Eloigner les matériaux inflammables ou les recouvrir afin de prévenir tout risque d’incendie dû aux étincelles.

7. Quand on ne soud

e pas, poser la pince à une endroit isolé de la masse. Un court-circuit accidental peut provoquer un échauffement et un risque d’incendie.

8. S’assurer que la masse est connectée le plus prés possible de la zone de travail qu’il est pratique de le faire. Si on place la masse sur la charpente de la construction ou d’autres endroits éloignés de la zone de travail, on augmente le risque de voir passer le courant de soudage par les chaines de levage, câbles de grue, ou autres circuits. Cela peut provoquer des risques d’incendie ou d’echauffement des chaines et des câbles jusqu’à ce qu’ils se rompent.

9. Assurer une ventilation suffisante dans la zone de soudage. Ceci est particuliérement important pour le soudage de tôles galvanisées plombées, ou cadmiées ou tout autre métal qui produit des fumeés toxiques.

10. Ne pas souder en présence de vapeurs de chlore provenant d’opérations de dégraissage, nettoyage ou pistolage. La chaleur ou les rayons de l’arc peuvent réagir avec les vapeurs du solvant pour produire du phosgéne (gas fortement toxique) ou autres produits irritants.

11. Pour obtenir de plus amples renseignements sur la sûreté, voir le code “Code for safety in welding and cutting” CSA Standard W 117.2-1974.

PRÉCAUTIONS DE SÛRETÉ POUR LES MACHINES À SOUDER À TRANSFORMATEUR ET À REDRESSEUR

1. Relier à la terre le chassis du poste conformement au code de l’électricité et aux recommendations du fabricant. Le dispositif de montage ou la piece à souder doit être branché à une bonne mise à la terre.

2. Autant que possible, I’installation et l’entretien du poste seront effectués par un électricien qualifié.

3. Avant de faires des travaux à l’interieur de poste, la debrancher à l’interrupteur à la boite de fusibles.

4. Garder tous les couvercles et dispositifs de sûreté à leur place.

Thank You

for selecting a QUALITY product by Lincoln Electric. We want you to take pride in operating this Lincoln Electric Company product

••• as much pride as we have in bringing this product to you!

Read this Operators Manual completely before attempting to use this equipment. Save this manual and keep it handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection. The level of seriousness to be applied to each is explained below:

WARNING

This statement appears where the information must be followed exactly to avoid serious personal injury or loss of life.

This statement appears where the information must be followed to avoid minor personal injury or damage to this equipment.

CAUTION

Please Examine Carton and Equipment For Damage Immediately

When this equipment is shipped, title passes to the purchaser upon receipt by the carrier. Consequently, Claims for material damaged in shipment must be made by the purchaser against the transportation company at the time the shipment is received.

Please record your equipment identification information below for future reference. This information can be found on your machine nameplate.

Product _________________________________________________________________________________

Model Number ___________________________________________________________________________

Code Number or Date Code_________________________________________________________________

Serial Number____________________________________________________________________________

Date Purchased___________________________________________________________________________

Where Purchased_________________________________________________________________________

Whenever you request replacement parts or information on this equipment, always supply the information you have recorded above. The code number is especially important when identifying the correct replacement parts.

On-Line Product Registration

- Register your machine with Lincoln Electric either via fax or over the Internet.

• For faxing: Complete the form on the back of the warranty statement included in the literature packet accompanying this machine and fax the form per the instructions printed on it.

• For On-Line Registration: Go to our

WEB SITE at www.lincolnelectric.com. Choose “Quick Links” and then

“Product Registration”. Please complete the form and submit your registration.

Page

Safety.................................................................................................................................................i-iv

Installation .............................................................................................................................Section A

Technical Specifications .............................................................................................................A-1

Safety Precautions......................................................................................................................A-2

Location and Ventilation .............................................................................................................A-2

Pre-operation Engine Service .....................................................................................................A-3

Electrical Output Connections ....................................................................................................A-5

Operation...............................................................................................................................Section B

Safety Instructions ......................................................................................................................B-1

General Description ....................................................................................................................B-1

Recommended Applications.......................................................................................................B-2

Operational Features and Controls.............................................................................................B-2

Design Features and Advantages...............................................................................................B-2

Welding Capability......................................................................................................................B-2

Limitations .................................................................................................................................B-2

Controls and Settings .................................................................................................................B-3

Engine Operation ........................................................................................................................B-5

Welding Operation ......................................................................................................................B-9

Accessories...........................................................................................................................Section C

Maintenance..........................................................................................................................Section D

Safety Precautions ............................................................................................................................D-1

Routine and Periodic Maintenance ...................................................................................................D-1

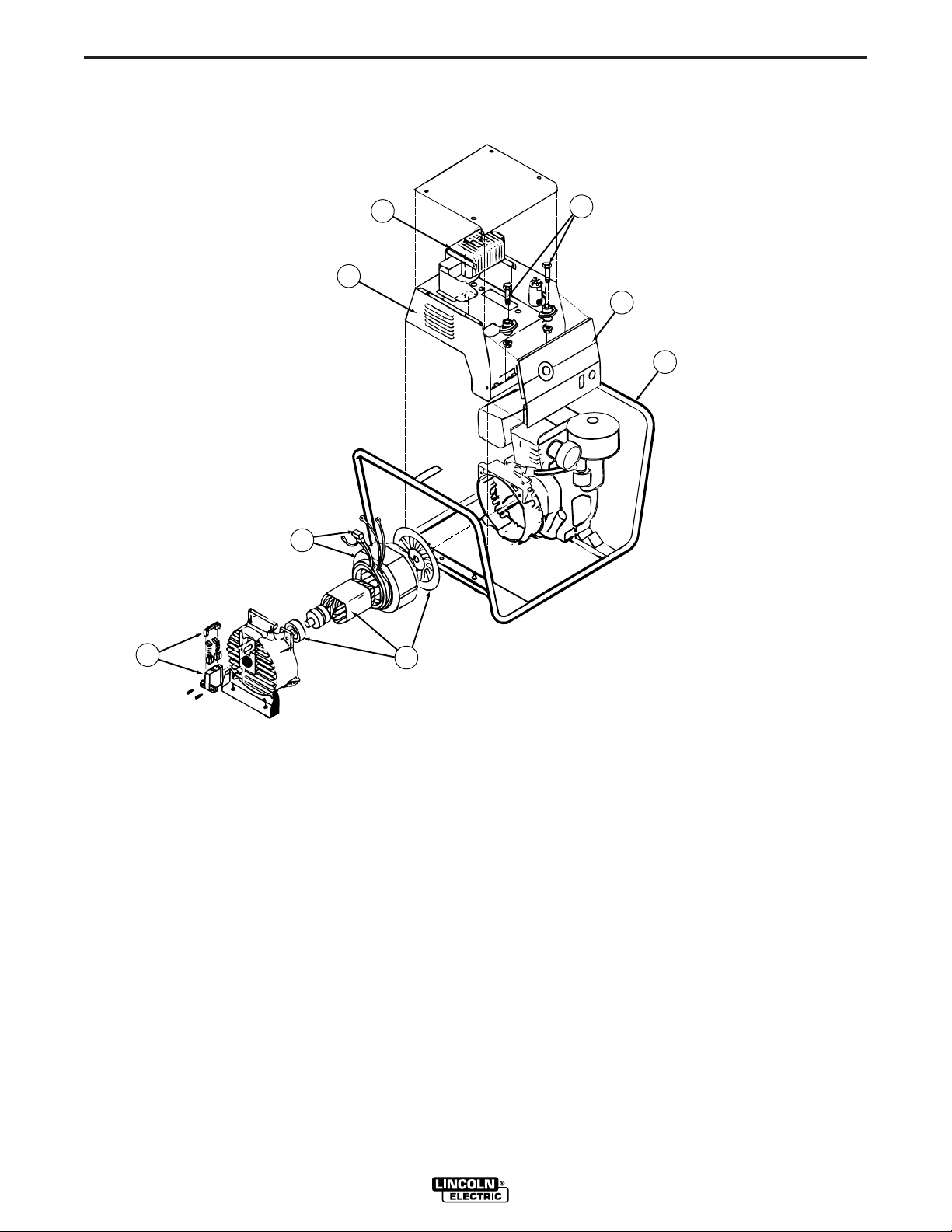

General Assembly Exploded View ....................................................................................................D-6

Troubleshooting and Repair ................................................................................................Section E

Electrical Diagrams...............................................................................................................Section F

Parts Manual (B&S 8 HP & Honda Engines)....................................................................P233 Series

Parts Manual (B&S 9 HP Vanguard Engine)....................................................................P352 Series

MASTER TABLE OF CONTENTS FOR ALL SECTIONS

vi vi

POWER-ARC 4000

TECHNICAL SPECIFICATIONS - POWER-ARC 4000

INPUT - BRIGGS KOOL-BORE® GASOLINE ENGINE

Manufacturer Description Speed Displacement Ignition Capacities

Briggs & 1 cyl., 3700 RPM 19.4 cu. in. Manual, Fuel: 1.0 gal. (3.8 l)

Stratton Kool- 4 cycle ± 50 RPM (319 cc) Recoil

Bore

Plus air-cooled at no load start; Manual Oil: 1.4 qt. (1.3 l)

gasoline choke

8 HP @

3750 RPM

INPUT - BRIGGS VANGUARD® GASOLINE ENGINE

Briggs & 1 cyl., 3700 RPM 18.06 cu. in. Manual, Fuel: 1.6 gal. (6.0 l)

Stratton 4 cycle ± 50 RPM (296 cc) Recoil

Vanguard® air-cooled OHV at no load start; Manual Oil: 1.25 qt. (1.2 l)

Model 185432 gasoline choke

9 HP @

3750 RPM

INPUT - HONDA GASOLINE ENGINE

Honda 1 cyl., 3700 RPM 16.5 cu. in. Manual, Fuel: 1.59 gal. (6.0 l)

GX 270 VA2 4 cycle ± 50 RPM (270 cc) Recoil

air-cooled OHV at no load start; Manual Oil: 1.16 qt. (1.11 l)

gasoline choke

9 HP @

3750 RPM

RATED OUTPUT - WELDER

Duty Cycle Amps Volts at Rated Amperes

30% Duty Cycle 125 20 VAC

60% Duty Cycle 100 25 VAC

OUTPUT - WELDER AND GENERATOR

Welding Ranges Welder Open Circuit Voltage AC Auxiliary Power

70 - 125 Amps 62 VAC Max. 4000 Continuous Watts

4400 Surge Watts

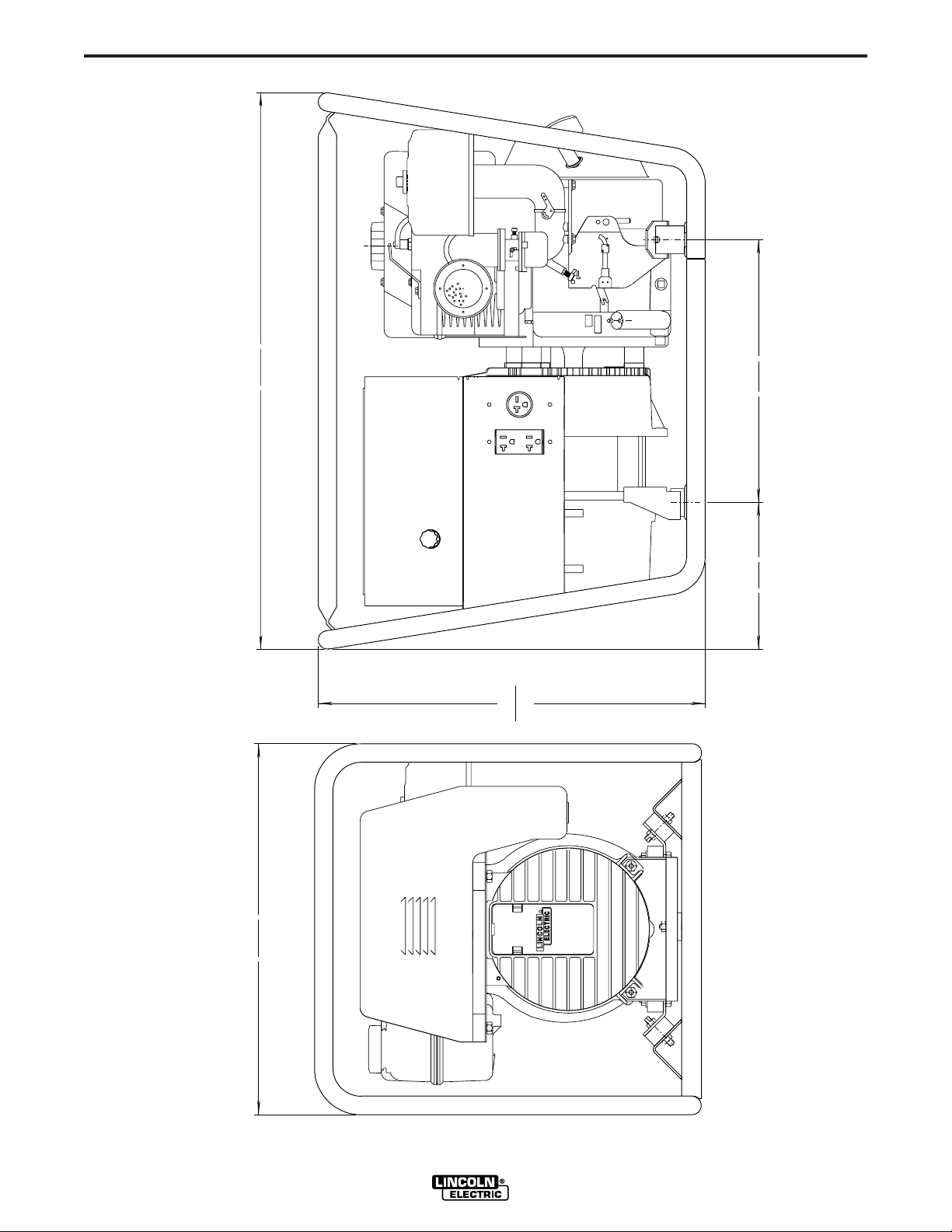

PHYSICAL DIMENSIONS

Height Width Depth Weight

20.9 in. 20 in. 30 in. 160 lb.

530 mm 508 mm 762 mm 72.5 kg

A-1

INSTALLATION

POWER-ARC 4000

A-1

A-2

INSTALLATION

POWER-ARC 4000

A-2

Read this entire installation section before you start installation.

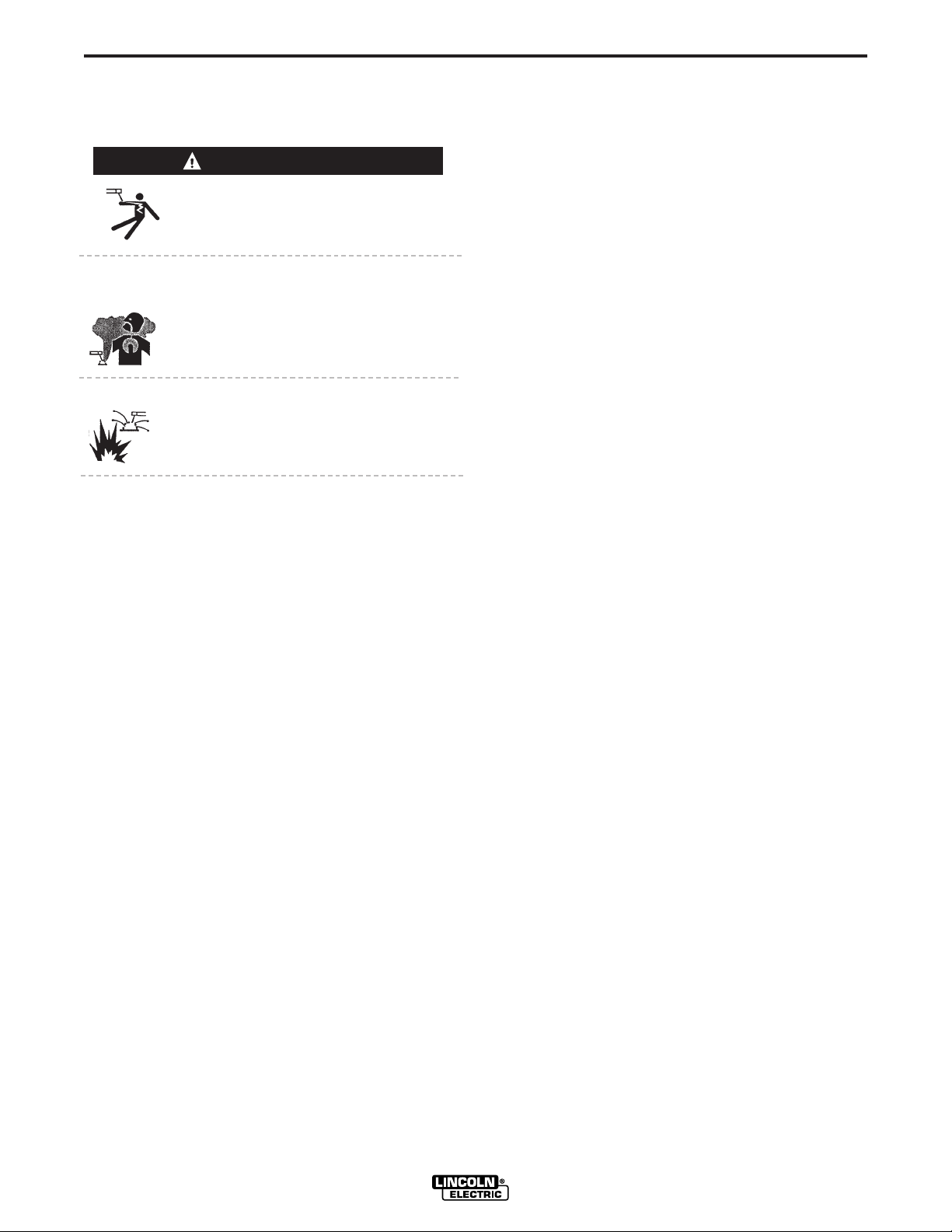

SAFETY PRECAUTIONS

Do not attempt to use this equipment until you have thoroughly read all the operation and maintenance manuals supplied with your machine. They include important safety precautions; detailed engine starting, operating, and maintenance instructions; and parts lists.

ELECTRIC SHOCK can kill.

• Do not touch electrically live parts or electrodes with your skin or wet clothing.

• Insulate yourself from the

work and ground.

•Always wear dry insulating gloves.

ENGINE EXHAUST can kill.

• Use in open, well ventilated areas or vent exhaust to the outside.

• Do not stack anything on or

near the engine.

MOVING PARTS can injure.

• Do not operate this equipment with any of its doors open or guards off.

• Stop the engine before servicing it.

• Keep away from moving parts.

Only qualified personnel should install, use, or service this equipment.

LOCATION AND VENTILATION

Whenever you use the POWER-ARC 4000, be sure that clean cooling air can flow through the machine’s gasoline engine and the generator. Avoid dusty, dirty areas. Also, keep the machine away from heat sources. Do not place the back end of the generator anywhere near hot engine exhaust from another machine. And of course, make sure that engine exhaust is ventilated to an open, outside area.

The POWER-ARC 4000 may be used outdoors. Do not set the machine in puddles or otherwise submerge it in water. Such practices pose safety hazards and cause improper operation and corrosion of parts.

Always operate the POWER-ARC 4000 with the case roof on and all machine components completely assembled. This will protect you from the dangers of moving parts, hot metal surfaces, and live electrical devices.

STORING

1. Store the machine in a cool, dry place when it’s not in use. Protect it from dust and dirt. Keep it where it can’t be accidentally damaged from construction activities, moving vehicles, and other hazards.

2. If you will be storing the machine for over 30 days, you should drain the fuel to protect fuel system and carburetor parts from gum deposits. Empty all fuel from the tank and run the engine until it stops from lack of fuel.

3. You can store the machine for up to 24 months if you use Briggs & Stratton Gasoline Additive, Part No. 5041 (available from any Authorized Briggs & Stratton Service Center), in the fuel system. Mix the additive with the fuel in the tank and run the engine for a short time to circulate the additive through the carburetor.

4. While the engine is still warm, drain the oil and refill with fresh oil per the engine manual.

5. Remove the spark plug and pour approximately 1/2 ounce (15 ml) of engine oil into the cylinder. Replace the spark plug and crank the engine slowly to distribute the oil.

6. Clean any dirt and debris from the cylinder and cylinder head fins and housing, rotating screen, and muffler areas.

7. Store in a clean, dry area.

WARNING

A-3

INSTALLATION

POWER-ARC 4000

A-3

STACKING

POWER-ARC 4000 machines CANNOT be stacked.

TILTING

Place the machine on a secure, level surface whenever you use it or store it. Any surfaces you place it on other than the ground must be firm, non-skid, and structurally sound.

The gasoline engine is designed to run in a level position for best performance. It can operate at an angle, but this should never be more than 15 degrees in any direction. If you do operate it at a slight angle, be sure to check the oil regularly and keep the oil level full. Also, fuel capacity will be a little less at an angle.

LIFTING

The POWER-ARC 4000 should be lifted by two people. (It weighs 160 lbs/72.5 kg.) Its welded tube roll cage is designed to make lifting easy.

ANGLE OF OPERATION

Internal combustion engines are designed to run in a level condition to achieve optimum performance. The maximum angle of operation for the engine is 15 degrees from horizontal in any direction. Be certain to place the machine on a firm, non-skid, structural supporting surface. Anchor unit if necessary.

If you are operating the engine at a slight angle, be certain to check the oil regularly and maintain a level, full oil condition. The effective fuel capacity will also be slightly less than the specified 1.00 gallon (3.8 liters).

PRE-OPERATION ENGINE SERVICE

Read and understand the information about the gasoline engine in the OPERATION and MAINTENANCE sections of this manual and the engine owner’s manual before you operate the POWER-ARC 4000.

• Keep hands away from the engine muffler or HOT engine parts.

• Stop the engine when fueling.

• Do not smoke when fueling.

• Remove the fuel cap slowly to release pressure.

• Do not overfill the fuel tank.

• Wipe up spilled fuel and allow the fumes to clear before starting the engine.

• Keep sparks and flame away from the fuel tank.

OIL

The Power-Arc 4000 with the Briggs and Stratton 8 HP engine produced after August 1998 and the Power-Arc 4000 with the Honda 9 HP engine are supplied with low oil shutdown protection. The PowerArc 4000 with the Briggs and Stratton 8 HP engine produced before August 1998 is NOT equipped with an "Oil Gard"® low oil shutdown protection device. Oil must be regularly checked and added as needed. However, the engine block is equipped to accept an "Oil Gard"® accessory kit available from authorized Briggs and Stratton Distributors. An installed kit will sense low oil levels and will automatically shut down the engine. The engine cannot be restarted until sufficient oil is added.

The POWER-ARC 4000 is shipped with the engine filled with SAE 10W-30 oil. CHECK THE OIL LEVEL BEFORE YOU START THE ENGINE. This is an added precaution. When full, the oil level should be at the top of the fill plug hole. If it is not full, add enough oil to fill it. Be sure the fill plug is tight. Change oil after the first 5 hours of operation.

For more oil fill and service information, see the Engine owner’s manual.

FUEL

Fill the fuel tank with clean, fresh, regular grade lead-free gasoline. DO NOT MIX

OIL WITH THE GASOLINE.

The POWER-ARC 4000 has a fuel tank mounted on the engine. See the engine owner’s manual for more details about fuel.

WARNING

A-4

INSTALLATION

POWER-ARC 4000

A-4

MUFFLER DEFLECTOR

The POWER-ARC 4000, depending on model, may or may not be shipped with an exhaust deflector. If you received one, you can mount it on the gasoline engine if your needs so require.

To install the deflector, do the following:

• Align the holes on the deflector plate with the holes on the muffler.

•

Position the deflector so that the opening points either right, left, or downward, away from the operator.

Never position the deflector upward. Moisture or debris can enter the engine and damage it. As a general safety practice, position the deflector to direct exhaust gases away from the operator’s face and eyes.

• Fasten the deflector onto the muffler with the screws provided.

NOTE: The deflector reduces generator output

power up to 100 watts.

SPARK ARRESTER

Gasoline engine mufflers may emit sparks when the engine is running. Some federal, state, or local laws require spark arresters in locations where unarrested sparks could present a fire hazard.

Standard mufflers and deflectors (like the ones included with the POWER-ARC 4000 Briggs & Stratton engines) do not act as spark arresters. When local laws require it, a spark arrester must be installed on the machine and properly maintained

An optional spark arrester kit is available for your POWER-ARC 4000 Briggs & Stratton 8 HP Kool-Bore engine. See the ACCESSORIES section of this manual for more information.

An incorrect spark arrester may lead to damage to the engine or reduce performance. A suitable spark arrester for the Briggs & Stratton 8 HP Kool Bore

engine is available as a Lincoln field-

installed option.

A spark arrester is available for your POWER-ARC 4000 Briggs & Stratton 9 HP Vanguard engine from your local Briggs & Stratton engine dealer.

The Power-Arc 4000 with the Honda engine comes with a spark arrester as standard equipment. Refer to the engine owner’s manual for proper maintenance.

CAUTION

No Load 3700 RPM ±50 R.P.M. AC CC Weld Output 125 Amps @ 18 Volts AC CC Weld Output 100 Amps @ 25 Volts Auxiliary Power 4000 Watts (120/240 Volts)

B&S 8 HP Carb. Certified

Kool Bore® Plus

0.36 Gallons/Hour (1.37 Liters/Hour)

0.69 Gallons/Hour (2.63 Liters/Hour)

0.64 Gallons/Hour (2.41 Liters/Hour)

0.77 Gallons/Hour (2.92 Liters/Hour)

B&S 9 HP

Vanguard®

0.33 Gallons/Hour (1.25 Liters/Hour)

0.76 Gallons/Hour

(2.9 Liters/Hour)

0.63 Gallons/Hour

(2.4 Liters/Hour)

0.76 Gallons/Hour

(2.9 Liters/Hour)

Honda 9 HP

Carb. Certified

0.30 Gallons/Hour (1.14 Liters/Hour)

0.58 Gallons/Hour (2.18 Liters/Hour)

0.55 Gallons/Hour

(2.1 Liters/Hour)

0.67 Gallons/Hour (2.54 Liters/Hour)

Power-Arc 4000 Typical Fuel Consumption

A-5

INSTALLATION

POWER-ARC 4000

A-5

ELECTRICAL OUTPUT CONNECTIONS

See Figure A.1 for the location of the current control dial, weld output terminals, ground stud, circuit breakers, 240 and 120 volt receptacles.

WELDING CABLE CONNECTIONS

Cable Size and Length

Be sure to use welding cables that are large enough. The correct size and length becomes especially important when you are welding at a distance from the welder.

Table A.1 lists recommended cable sizes and lengths for rated current and duty cycle. Length refers to the distance from the welder to the work and back to the welder. Cable diameters are increased for long cable lengths to reduce voltage drops.

TABLE A.1

RECOMMENDED WELDING CABLE

SIZE AND LENGTH

TOTAL COMBINED LENGTH OF ELECTRODE AND

WORK CABLES

Cable Size for

125 amp/

Cable Length 30% Duty Cycle

0-50 feet (0-15 meters) 6 AWG

50-100 feet (15-39 meters) 4 AWG

100-150 feet (30-46 meters) 3 AWG

150-200 feet (46061 meters) 2 AWG

200-250 feet (61-76 meters) 1 AWG

FIGURE A.1 - POWER-ARC 4000 OUTPUT CONNECTIONS

1. CURRENT CONTROL DIAL

2. WELD OUTPUT TERMINALS (2)

3. GROUND STUD

4. CIRCUIT BREAKERS (2) - 20 AMP

5. RECEPTACLE - 240 VOLT, 20 AMP

6. DUPLEX RECEPTACLE - 120 VOLT, 20 AMP

AMPS

125

AMPS

GENERATOR

100

AMPS

WARNING

ELECTRODE SELECTION GUIDE

POWER ARC 4000

AMPS

A-6

INSTALLATION

POWER-ARC 4000

A-6

Cable Installation

Install the welding cables to your POWER-ARC 4000 as follows. See Figure A.1 for the location of parts.

1. The gasoline engine must be OFF to install welding cables.

2. Remove the 1/2 - 13 flanged nuts from the output terminals.

3. Connect the electrode holder and work cables to the weld output terminals. You can connect either cable to either terminal, since the POWERARC 4000 provides AC weld current.

4. Tighten the flanged nuts securely.

5. Be certain that the metal piece you are welding (the “work”) is securely connected to the work clamp and cable.

6. Check and tighten the connections periodically.

• Loose connections will cause the output termi-

nals to overheat. The terminals may eventually melt.

• Do not cross the welding cables at the output

terminal connection. Keep the cables isolated and separate from one another.

Lincoln Electric offers a welding accessory kit with the properly specified welding cables. See the ACCESSORIES section of this manual for more information.

MACHINE GROUNDING

Because the POWER-ARC 4000 creates its own power from its gasoline-engine driven generator, you do not need to connect the machine frame to an earth

ground. However, for best protection against electrical shock, connect a heavy gauge wire from the ground stud located on the bottom center of the output panel (see Figure A.1) to a suitable earth ground such as a metal pipe driven into the ground.

Do not ground the machine to a pipe that carries explosive or combustible material.

When the POWER-ARC 4000 is mounted on a truck or a trailer, the machine generator ground stud MUST be securely connected to the metal frame of the vehicle. See Figure A.1. The ground stud is marked with the symbol.

PLUGS AND HAND-HELD EQUIPMENT

For further protection against electric shock, any electrical equipment connected to the generator receptacles must use a three-blade, grounded type plug or an Underwriter’s Laboratories (UL) approved double insulation system with a two-blade plug. Lincoln offers an accessory plug kit that has the right type of plugs. See the ACCESSORIES section of this manual for details.

Ground fault protection is needed for hand held equipment.

Never operate this machine with damaged or defective cords. All electrical equipment must be in safe condition.

AUXILIARY POWER RECEPTACLES

The control panel of the POWER-ARC 4000 features two auxiliary power receptacles:

• A 20 amp, 120 volt duplex (double outlet) receptacle

• A 20 amp 240 volt simplex (single outlet) receptacle.

See Figure A.1.

Through these receptacles the machine can supply up to 4,000 rated continuous watts and 4,400 surge watts of single-phase AC power.

CAUTION

WARNING

A-7

INSTALLATION

POWER-ARC 4000

A-7

PREMISES WIRING

The POWER-ARC 4000 three-wire, grounded neutral generator allows it to be connected to premises wiring. However, the wiring procedure needed to meet the National Electric Code (NEC) regulations as well as city ordinances and can be confusing. The connections could vary from a "commonly grounded" to a "separately derived" system depending on whether you want the unit to be "hard wired" or temporary to the premises.

Only a licensed, certified, trained electrician should install the machine to a premises or residential electrical system. Be certain that:

• The premises is isolated and no feed backing into the utility system can occur. Certain state and local laws require the premises to be isolated before the generator is linked to the premises. Check your state and local requirements.

• A double pole, double throw transfer switch in conjunction with the properly rated double throw circuit breaker is connected between the generator power and the utility meter.

The POWER-ARC 4000 does not have a combined 120/240 volt twist-lock receptacle and cannot be connected to a premises as described in other Lincoln literature.

Remember that the POWER-ARC 4000 is intended only for backup, intermittent use power. Oil level must be checked after every 5 hours of use. The Briggs & Stratton engines used on the Power-Arc 4000 before August 1998 did not include a low oil shutdown option as standard equipment. It cannot withstand long-term use without proper maintenance. See the MAINTENANCE section of this manual and the engine owner’s manual for more information.

Certain electrical devices cannot be powered by the POWER-ARC 4000. Refer to Table A.2 for these devices.

CIRCUIT BREAKERS

The POWER-ARC 4000 has its own 20 amp circuit breakers for overload protection. When the machine is operated in high temperature environments, the breakers may tend to trip at lower loads than normally.

Never bypass the circuit breakers. Without overload protection, the power-arc 4000 could overheat and/or cause damage to the equipment being used.

WARNING

CAUTION

A-8

INSTALLATION

POWER-ARC 4000

A-8

CAUTION

Certain Electrical devices cannot be powered by the POWER-ARC 4000. See Table A.2.

TABLE A.2

ELECTRICAL DEVICE USE WITH THE POWER-ARC 4000.

Type Common Electrical Devices Possible Concerns

Resistive Heaters, toasters, incandescent NONE

light bulbs, electric range, hot pan, skillet, coffee maker.

Capacitive TV sets, radios, microwaves, Voltage spikes or high voltage

appliances with electrical control. regulation can cause the capaci-

tative elements to fail. Surge protection, transient protection, and additional loading is recommended for 100% fail-safe operation. DO NOT RUN

THESE DEVICES WITHOUT ADDITIONAL RESISTIVE TYPE LOADS.

Inductive Single-phase induction motors, These devices require large

drills, well pumps, grinders, small current inrush for starting. (See refrigerators, weed and hedge Table B.3, GENERATOR POWER trimmers APPLICATIONS, in the OPERA-

TION section of this manual for required starting wattages.) Some synchronous motors may be frequency sensitive to attain maximum output torque, but they SHOULD BE SAFE from any frequency induced failures.

Capacitive/Inductive Computers, high resolution TV sets, An inductive type line condition-

complicated electrical equipment. er along with transient and

surge protection is required, and liabilities still exist. DO NOT

USE THESE DEVICES WITH A POWER-ARC 4000.

The Lincoln Electric Company is not responsible for any damage to electrical components improperly connected to the POWER-ARC 4000.

B-1

OPERATION

B-1

OPERATING INSTRUCTIONS

Read and understand this entire section before operating your POWER-ARC 4000.

SAFETY INSTRUCTIONS

ELECTRIC SHOCK can kill.

• Do not touch electrically live parts or electrodes with your skin or wet clothing.

• Insulate yourself from the work and ground.

• Always wear dry insulating gloves.

FUMES AND GASES can be dangerous.

• Keep your head out of fumes.

• Use ventilation or exhaust to remove fumes from breathing zone.

WELDING SPARKS can cause fire or explosion.

• Keep flammable material away.

• Do not weld on containers that have held combustibles.

ARC RAYS can burn.

• Wear eye, ear, and body protection.

ENGINE EXHAUST can kill.

• Use in open, well ventilated areas or vent exhaust to the outside.

• Do not stack anything on or near the engine.

MOVING PARTS can injure.

• Do not operate this equipment with any of its doors open or guards off.

• Stop the engine before servicing it.

• Keep away from moving parts.

Only qualified personnel should install, use, or service this equipment.

GENERAL DESCRIPTION

The POWER-ARC 4000 is a generator/welder designed for home use and other non-commercial applications. As a generator it can supply up to 4,000 continuous watts (or 4,400 surge watts) of 120/240 volt, single-phase AC power. As a welder it provides 125 amps of AC constant current for welding with AC stick electrodes. A single dial provides continuous adjustment of welding output. The machine is lightweight, portable, and can be lifted by two people.

POWER-ARC 4000

WARNING

B-2

OPERATION

B-2

The Lincoln warranty covers the Power Arc 4000 (excluding the engine) for 2 years from the date of purchase. The engine is covered by the engine manufacturer’s warranty policy.

RECOMMENDED APPLICATIONS

GENERATOR

The POWER-ARC 4000 gives AC generator output for medium use, non-commercial demands. For more details on operating the generator, see GENERATOR OPERATION in the OPERATION section of this manual.

WELDER

The POWER-ARC 4000 provides excellent constant current AC welding output for stick (SMAW) welding. For more details on using the machine as a welder, see WELDING OPERATION in the OPERATION section of this manual.

OPERATIONAL FEATURES AND CONTROLS

The POWER-ARC 4000 was designed for simplicity. Therefore, it has very few operating controls. A single dial on the control panel lets you select either generator or welding use. For welding, the same dial selects continuous current output over the machine’s 70 to 125 amp range.

The gasoline engine controls include a recoil starter, choke, and rotary stop switch. See ENGINE OPERATION in the OPERATION section of this manual and the engine owner’s manual for details about starting, running, stopping, and breaking in the gasoline engine.

DESIGN FEATURES AND ADVANTAGES

• Stick welding (SMAW) process capability with output range from 70 - 125 amps.

• Single-dial current output selection.

• Work and Electrode welding cable mounting terminals.

• Separate ground stud for safe connection of case to earth ground. Single 20 amp, 240 volt generator receptacle.

• Duplex 20 amp, 120 volt generator receptacle.

• Integrated generator output overload protection through two 20 amp circuit breakers.

• Welded-tube, full roll cage frame protects engine and generator/welder.

• Lightweight, portable design.

• Rubber mounting isolates engine and generator from frame to prevent machine “walking” during use.

• Low noise engine muffler for quieter operation. (A Super Lo-Tone

muffler is available for the Briggs &

Stratton 8 HP Kool Bore engine.)

• Easy-starting, No Maintenance, Electronic ignition.

• Low oil level engine shutdown protection is standard equipment on machines produced after August 1998. On earlier engines an optional Oil Gard® kit is available from Briggs & Stratton.

WELDING CAPABILITY

The POWER-ARC 4000 is rated 125 amps, 20 volts at 30% duty cycle on a ten-minute basis. This means that you can load the welder to 125 amps for three minutes out of every ten-minute period. The machine is also capable of higher duty cycles at lower output currents. You can load the welder to 100 amps for six minutes out of ten for a 60% duty cycle.

The current is continuously variable from 70 to 125 amps AC. The POWER-ARC 4000 can weld with all 3/32 and most 1/8 inch diameter Lincoln AC electrodes.

LIMITATIONS

• The POWER-ARC 4000 is not recommended for any processes besides those that are normally performed using stick welding (SMAW) procedures.

• The POWER-ARC 4000 is not recommended for pipe thawing.

• During welding, generator power is limited to 100 watts, and output voltages can drop from 120 to 80 volts and 240 to 160 volts. Therefore, DO NOT OPERATE ANY SENSITIVE ELECTRICAL EQUIPMENT WHILE YOU ARE WELDING.

POWER-ARC 4000

B-3

OPERATION

B-3

CONTROLS AND SETTINGS

All generator/welder controls are located on the Output Control Panel. Gasoline engine controls are mounted on the engine. See Figures B.1 and B.2 and the explanations that follow.

GENERATOR/WELDER CONTROLS

See Figure B.1 for the location of the following features:

1. CURRENT CONTROL DIAL: Adjusts continuous current output. The amperages on the dial correspond to the average amperages needed for specific Lincoln welder rods.

2. ELECTRODE SELECTION GUIDE: Provides recommended electrode type, size, and welder output setting based on the thickness of the work.

3. WELD OUTPUT TERMINAL (TO ELECTRODE HOLDER) WITH 1/2 - 13 FLANGE NUT: Provides the connection point for either the electrode holder or the work cable. (Because the POWER-ARC 4000 is an AC output machine, either output terminal can be used for either cable.)

4. WELD OUTPUT TERMINAL (TO WORK) WITH 1/2

- 13 FLANGE NUT: Provides the connection point for either the electrode holder or the work cable. (Because the POWER-ARC 4000 is an AC output machine, either output terminal can be used for either cable.)

POWER-ARC 4000

FIGURE B.1 – OUTPUT PANEL CONTROLS

1. CURRENT CONTROL DIAL

2. ELECTRODE SELECTION GUIDE

3. WELD OUTPUT TERMINAL (TO ELECTRODE HOLDER) WITH 1/2 - 13 FLANGE NUT

4. WELD OUTPUT TERMINAL (TO WORK) WITH 1/2 - 13 FLANGE NUT

5. GROUND STUD

6. 20 AMP CIRCUIT BREAKERS (2)

7. 20 AMP, 240 VOLT RECEPTACLE

8. 20 AMP, 120 VOLT DUPLEX RECEPTACLE

AMPS

125

AMPS

GENERATOR

WARNING

ELECTRODE SELECTION GUIDE

AMPS

100

AMPS

POWER ARC 4000

B-4

OPERATION

B-4

5. GROUND STUD: Provides a connection point for connecting the machine case to earth ground for the safest grounding procedure.

6. 20 AMP CIRCUIT BREAKERS (2): Provide separate overload current protection for the 120 volt and 240 volt receptacles.

7. 20 AMP, 240 VOLT RECEPTACLE: Connection point for supplying 240 volt power to operate one electrical device.

8. 20 AMP, 120 VOLT DUPLEX RECEPTACLE: Connection point for supplying 120 volt power to operate one or two electrical devices.

GASOLINE ENGINE CONTROLS

Refer to your engine manual for the location of the following features:

1. FUEL SHUTOFF VALVE: Stops the flow of gasoline from the fuel tank to the carburetor. Should be closed whenever you are finished using the POWER-ARC 4000. Must be opened before you start the engine.

2. FUEL TANK AND CAP: See TECHNICAL SPECIFICATIONS for capacity.

NOTE: If you use any other alternate fuel tank or

supply, be sure to use a recommended inline fuel filter.

3. MUFFLER: Reduces engine noise output. Briggs & Stratton muffler does not serve as a spark arrester. Honda muffler does. See SPARK ARRESTER in the INSTALLATION section of this manual.

4. ROTARY STOP SWITCH: Stops the engine by grounding the ignition circuit.

5. AIR CLEANER: Filters intake air to the carburetor. See ENGINE MAINTENANCE in the MAINTE- NANCE section of the engine owner’s manual for details about the specific type of air cleaner to use.

6. CHOKE: Provides a richer air/fuel mixture for cold engine starting conditions. See the topic ENGINE OPERATION, below, for details on setting the choke.

7. RECOIL STARTER: Manual, rope-type starter. The handle position allows easy starting from either ground level or pickup-truck level.

8. OIL DRAIN PLUG: Permits convenient draining of engine oil during maintenance. Both sides of the engine are equipped with an oil drain plug.

9. OIL FILL PLUG: Permits convenient filling of engine oil during maintenance. Both sides of the engine are equipped with an oil fill plug.

POWER-ARC 4000

B-5

OPERATION

B-5

ENGINE OPERATION

DO NOT RUN THE ENGINE AT EXCESSIVE SPEEDS. The maximum allowable high idle speed for the POWER-ARC 4000 is 3750 RPM, no load. Do NOT adjust the governor screw on the engine. Severe personal injury and damage to the machine can result if it is operated at speeds above the maximum rated speed.

Read and understand all safety instructions included in the engine manufacturer’s Operating and Maintenance Instructions manual that is shipped with the POWER-ARC 4000.

BEFORE STARTING THE ENGINE

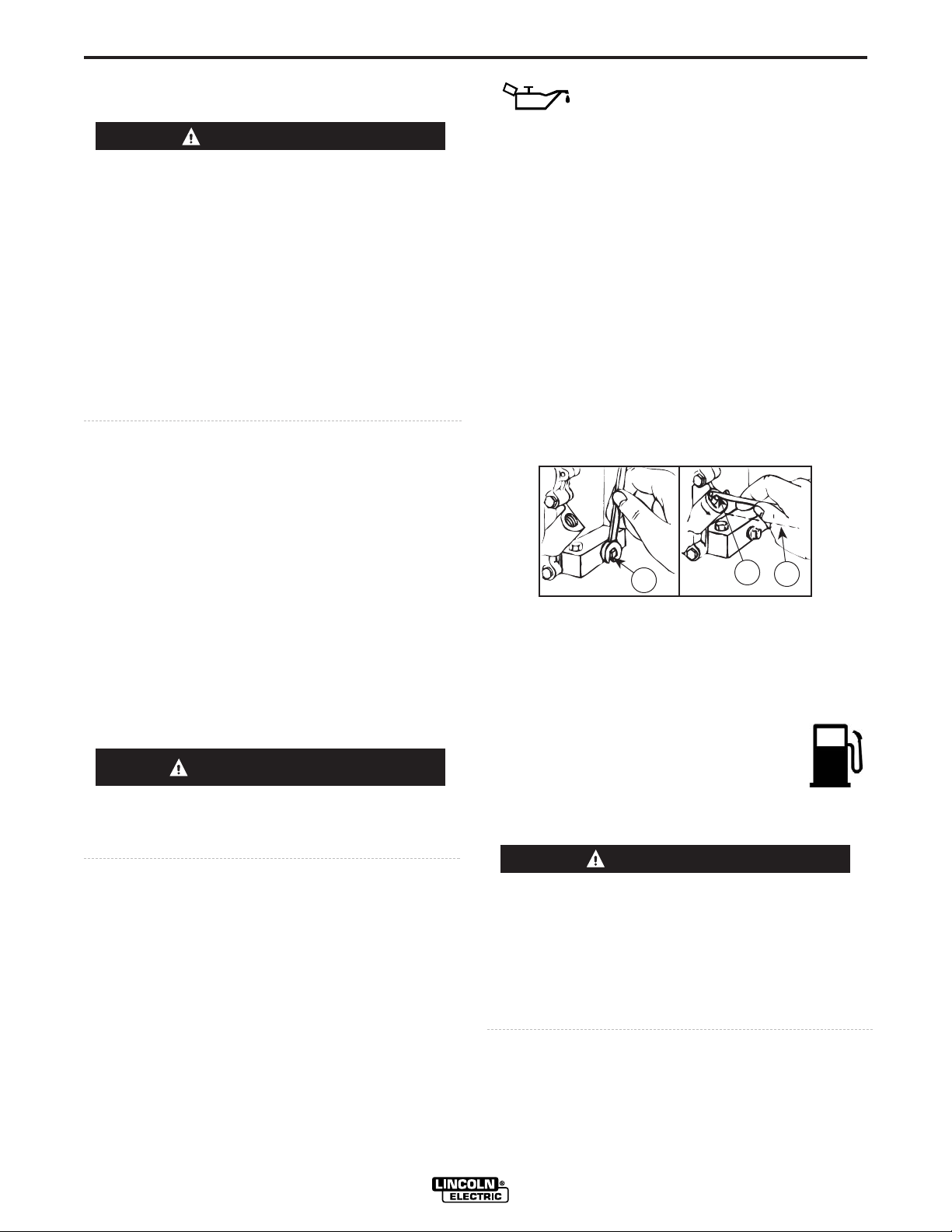

CHECK AND FILL THE ENGINE OIL LEVEL:

1. Place the machine on a level surface.

2. Open the oil fill plug.

3. Fill (if necessary) until oil flows out the top of the fill plug hole.

4. Replace the fill plug and tighten securely.

CHECK AND FILL THE ENGINE FUEL TANK:

1. Remove the fuel tank cap.

2. Fill the tank to allow approximately 1/4 inch (5 mm) of tank space for fuel expansion. DO NOT FILL THE TANK TO THE POINT OF OVERFLOW.

3. Replace the fuel tank cap and tighten securely.

NOTE: The engine will operate satisfactorily on any

gasoline meant for automotive use. A minimum of 87 octane is recommended. DO NOT MIX OIL WITH THE GASOLINE.

Use clean, fresh, lead-free gasoline. Leaded gasoline may be used if lead-free is not available. However, lead-free gasoline leaves fewer combustion deposits and gives longer valve life. Purchase gasoline in quantities that will be used within 30 days, to assure freshness.

NOTE: We DO NOT recommend using gasoline that

contains alcohol, such as gasohol. However, if gasoline with alcohol is used, it MUST NOT contain more than 10% Ethanol and MUST be removed from the engine during storage. DO NOT use gasoline containing Methanol.

STARTING THE ENGINE

NOTE: Remove all loads connected to the AC power

receptacles before starting the gasoline engine. Turn the Rotary Stop Switch to the “ON” position.

FOR A “COLD” ENGINE:

1. Open the fuel shutoff valve.

2. Place the choke lever in the “CHOKE” position.

3. Pull slightly on the recoil starter handle until resistance is felt.

POWER-ARC 4000

WARNING

B-6

OPERATION

B-6

4. Pull the cord rapidly.

5. If the engine does not start, open the choke slightly and pull the starter cord rapidly again.

When the engine starts, gradually open the choke to the “RUN” position. To open the choke fully requires an engine warm-up period of several seconds to several minutes, depending on the temperature. After starting the engine, first open the choke (toward RUN) until the engine just begins to run smoothly. Then open the choke in small steps, allowing the engine to accept small changes in speed and load, until the choke is fully open (in RUN). During engine warm-up the equipment can be operated.

FOR A “HOT” ENGINE:

1. Open the fuel shutoff valve.

2. Place the choke lever in the “RUN” position. Closing the choke of a hot engine will flood the carburetor and prevent starting.

3. Pull slightly on the recoil starter handle until resistance is felt.

4. Pull the cord rapidly.

FOR BEST ENGINE STARTING:

• Always use fresh gasoline and be sure the filter is

clean and properly maintained.

• If you use an alternate fuel tank or supply, be sure

to install an in-line fuel filter.

• Do not pull the recoil starter with the

choke in the “CHOKE” position more than one time. Repeated pulls on a choked engine will flood the carburetor.

• If the engine will not start, see the TROU-

BLESHOOTING section of this or the engine owner’s manual.

STOPPING THE ENGINE

1. Remove all welding and generator power loads and let the engine cool by running it for several minutes.

2. Stop the engine by placing the ignition switch in the “OFF” position.

3. Close the fuel shutoff valve.

Close the fuel valve when the machine is transported to prevent fuel leakage from the carburetor. Drain the tank before transporting the machine in a vehicle.

For long periods of storage, turn off the fuel shutoff valve (lowest, downward position) and let the engine run until there is no more fuel in the line. Use a fuel additive such as Sta-Bil to minimize fuel gum deposits.

RUNNING THE ENGINE

The engine is set at the factory to run at high idle speed when not under load. You should not adjust this setting yourself.

BREAK-IN PERIOD

The engine will use a greater amount of oil during its “break-in” period. Check the oil frequently during break-in. For more details, see the MAINTENANCE section in the engine owner’s manual.

During break-in, subject the POWER-ARC 4000 to only moderate loads. Avoid long periods running at idle. Before stopping the engine, remove all loads and allow the engine to cool several minutes.

POWER-ARC 4000

WARNING

CAUTION

B-7

OPERATION

B-7

GENERATOR OPERATION

Be sure that any electrical equipment plugged into the generator’s AC power receptacles can withstand a ±10% voltage and a ±4% frequency variation. Some electronic devices cannot be powered by the POWER-ARC 4000. Refer to Table A.2, ELECTRICAL DEVICE USE WITH THE POWERARC 4000, in the INSTALLATION section of this manual.

GENERAL INFORMATION

The POWER-ARC 4000 generator is rated at 4000 continuous watts (4400 surge watts). It provides both 120 volt and 240 volt power. You can draw up to 20 amps from either side of the 120 volt duplex receptacle, but no more than 37 amps from both sides at once. Up to 18 amps can be drawn from the single 240 volt receptacle.

Electrical loads in watts are calculated by multiplying the voltage rating of the load by the number of amps

it draws. (This information is given on the load device nameplate.) For example, a device rated 115 volts, 2 amps will need 230 watts of power (115 x 2 = 230).

You can use Table B.3, GENERATOR POWER APPLICATIONS, to determine the wattage requirements of the most common types of loads you can power with the POWER-ARC 4000. Be sure to read the notes at the bottom of the table.

TO USE THE GENERATOR AS AN AUXILIARY POWER SUPPLY:

1. Start the gasoline engine. See ENGINE OPERATION in this section of the manual and the engine

owner’s manual.

2. Set the current control dial on the output control panel to “GENERATOR.” See Figure B.1.

3. Plug the load(s) into the appropriate 120 volt or 240 volt power receptacle.

NOTE: During welding, the maximum generator out-

put for auxiliary loads is 100 watts.

NOTE: You can supply multiple loads as long as the

total load does not exceed 4,000 watts. Be sure to start the largest loads first.

POWER-ARC 4000

CAUTION

TABLE B.3

GENERATOR POWER APPLICATIONS

Suggested Power Applications Running Watts *Start-up Watts

*Air Compressor - 1 HP 2,000 4,000 - 8,000

*Air Compressor - 3/4 HP 1,250 3,100 - 5,000

*Airless Sprayer - 1/3 HP 600 1,500 - 2,400

Chain Saw 1,200

Circular Saw 1,200

Coffee Maker 1,000

*Deep Freezer 500 750 - 2,000

*Electric Motor - 1 HP 1,000 2,500 - 4,000

Electric Range (1 element) 1,500

Electric Skillet 1,250

*Furnace Fan - 1/3 HP 1,200 3,000 - 4,800

Portable Grinder (4 1/2”) 600

Portable Grinder (7”) 2,000

Halogen Work Light 500

Hand Drill - 1/4” 500

Hand Drill - 3/8” 700

1500 Watt Heater 1,750

Hedge Trimmer 450

Light Bulb 100

Reciprocating Saw 900

Radial Arm Saw 2,600

Radio 50

*Refrigerator/Freezer (small) 600 1,500 - 2,400

Slow Cooker 200

*Submersible Pump - 1 HP 1,000 2,500 - 4,000

*Sump Pump 600 1,500 - 2,400

Toaster 1,100

Weed Trimmer 500

Lincoln 100 or 125 Amp Wire Feeder/Welder 4,000

B-8

OPERATION

B-8

POWER-ARC 4000

NOTES:

Wattages listed are approximate. Check your equipment for actual wattage.

Equipment with unusually high *START-UP WATTS are listed. For start-up of other tabled equipment, allow up to 2 times the running watts shown above. For example a 1 HP motor requires approximately 1000 watts of power when running but may require (2.5 X 1000) = 2500 watts or (4.0 X 1000) = 4000 watts to start.

Multiple loads can be used as long as the total load does not exceed 4,000 watts. Be certain to start the largest loads first.

Output rating in watts is equivalent to volt-amperes at unity power factor (resistive load) and is calculated as: WATTS = VOLTS X AMPS DRAWN. for example a 115 volt device which is rated on its nameplate to draw 2 amps will need (115 VOLTS) X (2 AMPS) = 230 WATTS OF POWER. 1 KW = 1000 WATTS.

B-9

OPERATION

B-9

WELDING OPERATION

GENERAL INFORMATION

Do not touch electrically live parts or electrodes with your skin or wet clothing.

Do not breathe welding fumes or gases.

Use ventilation or exhaust to remove welding fumes from the breathing area.

Keep flammable material away.

Wear eye, ear, and body protection.

The POWER-ARC 4000 generator/welder can deliver from 70 to 125 amps of continuous welding output current . Output can be adjusted by setting the current control dial on the output control panel.

You can get maximum welding output by setting the dial to 125 AMPS. At high current settings like this, some output may decrease as the machine is used. If you are welding for a long time, you may need to turn the dial slightly upward to maintain the same results.

The numbers on the dial correspond to the average amps needed to weld using specific Lincoln welding rods. Table B.4, WELDING APPLICATIONS, gives you the recommended dial settings based on the thickness of the work and the size and type of rod you’re using.

TO USE THE POWER-ARC 4000 FOR WELDING:

1. Remove the flange nuts from the weld output terminals and place the work and electrode welding cables over the terminals. See Figure B.1. Replace and tighten the flange nuts securely. Be sure the connections are tight.

2. Select the appropriate electrode. See Table B.4, WELDING APPLICATIONS, or the ELECTRODE SELECTION GUIDE on the machine Output Control Panel.

3. Attach the work clamp securely to the work you are welding.

4. Insert the electrode into the electrode holder.

5. Set the current control dial to the desired output current.

6. Start the gasoline engine. See ENGINE OPERA- TION in this section of the manual.

7. Strike an arc and begin welding. For information on welding techniques, see WELDING GUIDE- LINES in this section of the manual.

AFTER YOU FINISH THE WELD:

1. Stop the gasoline engine. See ENGINE OPERATION in this section of the manual.

2. Allow the electrode and work to cool completely.

3. Remove the work clamp from the work.

4. Remove any remaining piece of electrode from the electrode holder.

5. If you are finished using the POWER-ARC 4000 for welding, disconnect the welding cables from the weld output terminals. Reattach the flange nuts and leave them on the terminals.

NOTE: 1. Welding current is continuously variable

with 60% duty cycle applying to output currents 100 Amps and less and 30% duty cycle applying to currents above 100 Amps.

2. Duty cycle is based on a ten minute period. The welder can be loaded to 125 Amps for three minutes out of every ten minute period or to 100 Amps for six minutes out of every ten minute period.

CONTROL FUNCTION / OPERATION “Current Control Dial”

Provides welding current adjustment from 70 through 125 Amps.

To obtain maximum weld output, turn the “Current Control Dial” to “125 Amps” for either a cold or hot engine. As the machine is used, some welding voltage may decrease at high current settings. If you are welding for long periods of time, the dial may need to be slightly turned upward to provide the same welding results as when the machine was cold.

The numbers listed on the dial correspond to the average amperage needed to weld specific Lincoln rods. Refer to Table 2 “Welding Application Chart” and “Electrode Selection Guide” listed on the machine nameplate for proper current and electrode settings.

POWER-ARC 4000

WARNING

B-10

OPERATION

B-10

POWER-ARC 4000

TABLE B.4

WELDING APPLICATIONS/ELECTRODE SELECTION GUIDE

Material Thickness Electrode Type Size Setting

1/8” and thinner FLEETWELD

37 3/32” 90 amps

AWS E6013 FLEETWELD®180 70 amps AWS E6011 Lincoln 7018 AC 90 amps AWS E7018

3/16” Maximum FLEETWELD

37 1/8” 125 amps

AWS E6013

5/16” Maximum FLEETWELD®180 1/8” 90 amps

AWS E6011

Any Thickness WEARSHIELD® ABR 1/8” 100 amps

NOTES:

The values listed are suggested settings. Actual setting may vary depending on individual preference and/or specific application. Beginners should use Lincoln E7018 AC.

For electrodes not listed, follow tables that are packed with the electrodes.

Ask for the Lincoln WELD DIRECTORY (Publication M210) for a complete listing of all Lincoln stick electrodes available.

AWS = American Welding Society

WELDING GUIDELINES

B-11

OPERATION

B-11

POWER-ARC 4000

Stick welding is probably the most familiar welding process known. A coated ELECTRODE, the weld rod, is clamped into an ELECTRODE HOLDER, an insulated clamping device, which in turn connects to the ELECTRODE CABLE, a heavy wire. The WORK, the metal piece to be welded, is connected to the WORK CABLE, a heavy wire which contains the WORK CLAMP. Quality Lincoln cables use many fine copper wires with a very flexible insulating covering for the electrode and work cables. When properly connected to the OUTPUT STUDS of a high current power source, the electrode melts and bonds the metal being repaired. Refer to Figure 3 to see the circuit. See “Cable Installation” section for proper cable connection to a Power-Arc.

The Power-Arc provides excellent weld output characteristics when used in combination with Lincoln AC electrodes. Other AC electrodes may also be used.

Follow the settings listed in Table 2 “Welding Application Chart” and the “Electrode Selection Guide” found on the nameplate of the machine.

ARC RAYS can burn.

• When using an open arc process, it is necessary to use correct eye, head and body protection.

WARNING

Stick Welding

Semi-automatic, MIG Welding With a Lincoln Weld Pak 100 or Weld Pak 125

The Power-Arc generator power can be used to supply power to a Lincoln Weld-Pak 100 or Weld-Pak 125 wire feed welder.

The Weld-Pak is equipped with all the supplies needed for Flux-Cored Arc Welding (FCAW), and is available where Lincoln products are sold.

A K610-1 MIG Conversion Kit is also available for the Weld-Pak which provides all the essentials needed for Gas Metal Arc Welding, GMAW, or MIG processes. Contact your local authorized Lincoln representative

for

more details.

Learning To Stick Weld

The serviceability of a product or structure utilizing this type of information is and must be the sole responsibility of the builder/user. Many variables beyond the control of The Lincoln Electric Company affect the results obtained in applying this type of information. These variables include, but are not limited to, welding procedure, plate chemistry and temperature, weldment design, fabrication methods and service requirements.

No one can learn to weld simply by reading about it. Skill comes only with practice. The following pages will help the inexperienced welder understand welding and develop his skill. For more detailed information, order a copy of the book “New Lessons in Arc Welding.”

(See Book Division section at rear of manual).

The operator’s knowledge of arc welding must go beyond the arc itself. He must know how to control the arc, and this requires a knowledge of the welding circuit and the equipment that provides the electric current used in the arc. Figure 3 is a diagram of the welding circuit. The circuit begins where the electrode cable is attached to the welding machine and ends where the work cable cable is attached to the machine. Current flows through the electrode cable to the electrode holder, through the electrode holder to the electrode and across the arc. On the work side of the arc, the current flows through base metal to the work cable and back to the welding machine. The circuit must be complete for the current to flow. To weld, the work clamp must be tightly connected to clean base metal. Remove paint, rust,etc. as necessary to get a good connection. Connect the work clamp as close as possible to the area you wish to weld. Avoid allowing the welding circuit to pass through hinges, bearings, electronic components or similar devices that can be damaged.

B-12

OPERATION

B-12

POWER-ARC 4000

The Power-Arc 4000 has a voltage output of up to 62 volts which can shock.

The electric arc is made between the work and the tip end of a small metal wire, the electrode, which is clamped in a holder that is held by the welder. A gap is made in the welding circuit (see Figure 3) by holding the tip of the electrode 1/16 - 1/8” (1.6-3.2mm) away from the work or base metal being welded. The electric arc is established in this gap and is held and moved along the joint to be welded, melting the metal as it is moved.

Arc welding is a manual skill requiring a steady hand, good physical condition, and good eyesight. The operator controls the welding arc and, therefore, the quality of the weld made.

What Happens in the Arc?

Figure 4 illustrates the action that takes place in the electric arc. It closely resembles what is actually seen during welding.

The “arc stream” is seen in the middle of the picture. This is the electric arc created by the electric current flowing through the space between the end of the electrode and the work. The temperature of this arc is about 6000°F (3316°C) which is more than enough to melt metal. The arc is very bright, as well as hot, and

cannot be looked at with the naked eye without risking painful and possibly permanent injury. A very dark lens, specifically designed for arc welding must be used with the handshield or headshield whenever viewing the arc.

The arc melts the base metal and actually digs into it, much like water through a garden hose nozzle digs into the earth. The molten metal forms a pool or crater and tends to flow away from the arc. As it moves away from the arc, it cools and solidifies. Slag forms on top of the weld to protect it during cooling.

The function of the covered electrode is much more than simply to carry current to the arc. The electrode is composed of a core metal wire around which has been extruded and baked a chemical covering. The core wire melts into the arc and tiny droplets of molten metal shoot across the arc into the molten pool. The electrode provides additional filler metal for the joint to fill the groove or gap between the two pieces of the base metal. The covering also melts or burns in the arc. It has several functions. It makes the arc steadier, provides a shield of smoke-like gas around the arc to keep oxygen and nitrogen in the air away from the molten metal, and provides a flux for the molten pool. The flux picks up impurities and forms a protective slag. The principle differences between the various types of electrodes are in their coatings. By varying the coating, it is possible to greatly alter the operating characteristics of electrodes. By understanding the differences in the various coatings, you will gain a better understanding of selecting the best electrode for the job you have at hand. In selecting an electrode, you should consider:

1. The type of deposit you want, e.g., mild steel, stainless, low alloy, hardfacing.

2. The thickness of the plate you want to weld.

3. The position it must be welded in (downhand, out-of-position).

4. The surface condition of the metal to be welded.

5. Your ability to handle and obtain the desired electrode.

Four simple manipulations are of prime importance. Without complete mastery of these four, further attempts at welding are futile. With complete mastery of the four, welding will be easy.

ELECTRIC SHOCK can kill.

• Do not touch electrically live parts or electrode with skin or wet clothing.

• Insulate yourself from work and

ground.

• Always wear dry insulating gloves.

WARNING

ENGINE EXHAUST can kill.

• Use in open, well ventilated areas or vent exhaust outside.

• Do not stack anything on or near the engine.

MOVING PARTS can injure.

• Do not operate with doors open or guards off.

• Stop engine before servicing.

• Keep away from moving parts.

Only qualified personnel should install, use, or service this equipment.

Covering

Electrode

Shielding Gases

Arc

Solidified Slag

Weld Metal

Base Metal

FIGURE 4 - The welding arc.

B-13

OPERATION

B-13

POWER-ARC 4000

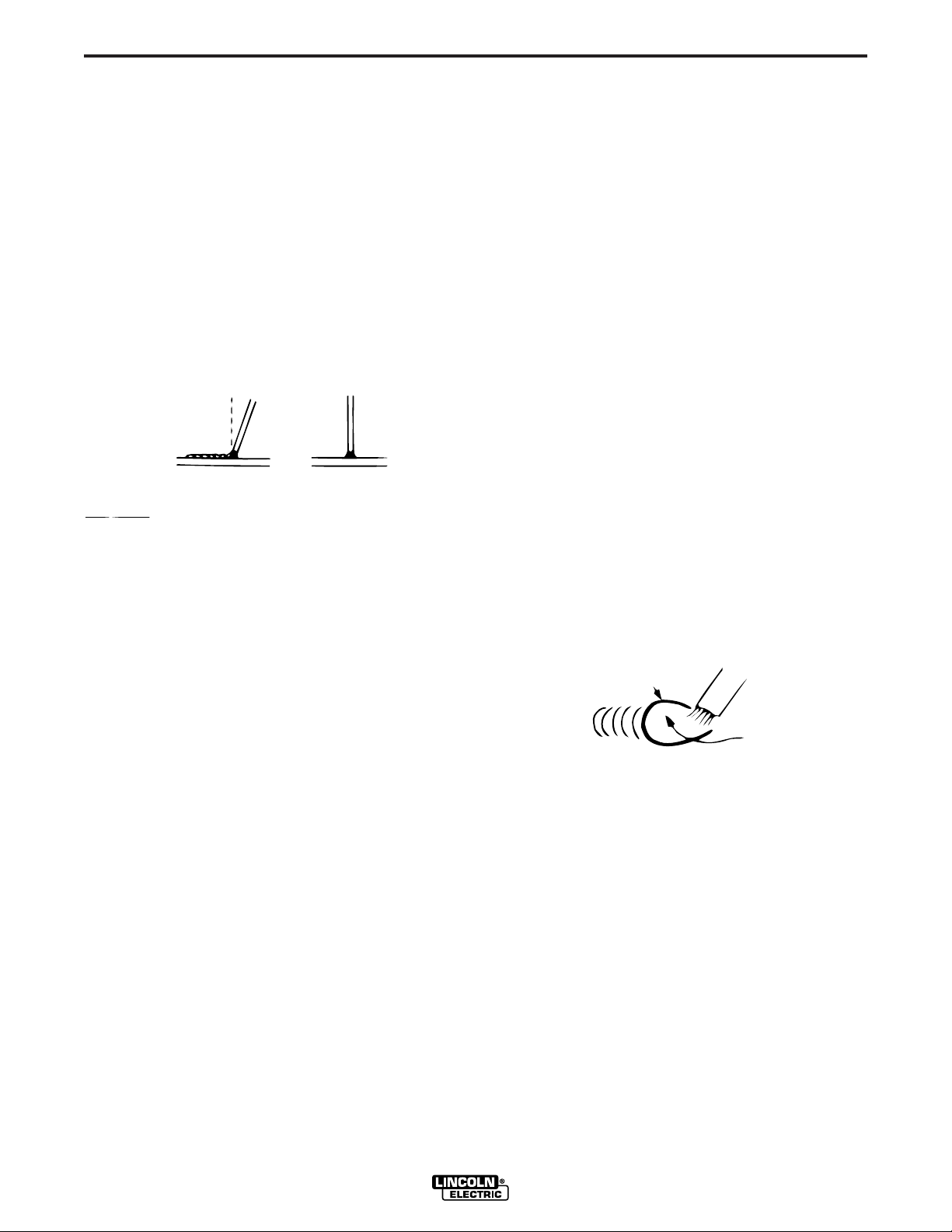

1. The Correct Welding Position

Illustrated is the correct welding position for right-handed people. (For left-handed people it is opposite.)

Whenever possible, weld from left to right (if righthanded). This enables you to see clearly what you are doing.

Hold the electrode at a slight angle as shown in Figure 5.

Figure 5

2. The Correct Way to Strike An Arc

Be sure the work clamp makes good electrical contact to the work.

Lower your headshield and scratch the electrode slowly over the metal, and you will see sparks fly. While scratching, lift the electrode 1/8” (3.2mm) and the arc is established.

NOTE: If you stop moving the electrode while scratching, the electrode will stick.

NOTE: Most beginners try to strike the arc by a fast jabbing motion down on the plate. Result: They either stick their electrode or their motion is so fast that they break the arc immediately.

3. The Correct Arc Length

The arc length is the distance from the tip of the electrode core wire to the base metal.

Once the arc has been established, maintaining the correct arc length becomes extremely important. The arc should be short, approximately 1/16 to 1/8” (1.6-

3.2mm) long. As the electrode burns off, the electrode must be fed to the work to maintain correct arc length.

The easiest way to tell whether the arc has the correct length is by listening to its sound. A nice, short arc has a distinctive, “crackling” sound, very much like eggs frying in a pan. The incorrect, long arc has a hollow, blowing or hissing sound.

4. The Correct Welding Speed

The important thing to watch while welding is the puddle of molten metal right behind the arc. DO NOT WATCH THE ARC ITSELF. The appearance of the puddle and the ridge where the molten puddle solidifies indicates correct welding speed. The ridge should be approximately 3/8” (9.5mm) behind the electrode.

Most beginners tend to weld too fast, resulting in a thin, uneven, “wormy” looking bead. They are not watching the molten metal.

IMPORTANT: It is not generally necessary to weave the arc forward, backward or sideways. Weld along at a steady pace, and you will have an easier time.

NOTE: When welding on thin plate, you will find that you have to increase the welding speed, whereas when welding on heavy plate, it is necessary to go more slowly to ensure fusion and penetration.

15-20°

90°

side view

end view

Correct Welding Position

Ridge where puddle solidifies

Molten puddle

B-14

OPERATION

B-14

POWER-ARC 4000

PRACTICE

The best way of getting practice in the four skills that enable you to maintain:

1. Correct Welding Position.

2. Correct Way to Strike An Arc.

3. Correct Arc Length.

4. Correct Welding Speed.

is to spend a little more time on the following exercise.

Use the following:

Mild Steel Plate: 3/16” (4.8mm), or heavier.

Electrode: 1/8” (3.2mm) AWS 6011

(Fleetweld® 180)

Current Setting: 90-125 Amps AC

Do the following:

1. Learn to strike the arc by scratching the electrode over the plate. Be sure the angle of the electrode is right and be sure to use both hands.

2. When you can strike an arc without sticking, practice the correct arc length. Learn to distinguish it by its sound.

3. When you are sure that you can hold a short, crackling arc, start moving. Look at the molten puddle constantly, and look for the ridge where the metal solidifies.

4. Run beads on a flat plate. Run them parallel to the top edge (the edge farthest away from you). This gives you practice in running straight welds, and also, it gives you an easy way to check your progress. The 10th weld will look considerably better than the first weld. By constantly checking on your mistakes and your progress, welding will soon be a routine matter.

Common Metals

Most metals found around the farm or small shop are low carbon steel, sometimes referred to as mild steel. Typical items made with this type of steel include most sheet metal, plate, pipe and rolled shapes such as channels, angle irons and “I” beams. This type of steel can usually be easily welded without special precautions. Some steel, however, contains higher carbon. Typical applications include wear plates, axles, connecting rods, shafts, plowshares and scraper blades.

These higher carbon steels can be welded successfully in most cases; however, care must be taken to follow proper procedures, including preheating the metal to be welded and, in some cases, carefully controlling the temperature during and after the welding process. For further information on identifying various types of steel and other metals, and for proper procedures for welding them, we suggest you purchase a copy of “New Lessons in Arc Welding” (See Book Division section).

Regardless of the type of metal being welded, in order to get a quality weld, it is important that it be free of oil, paint, rust or other contaminants.

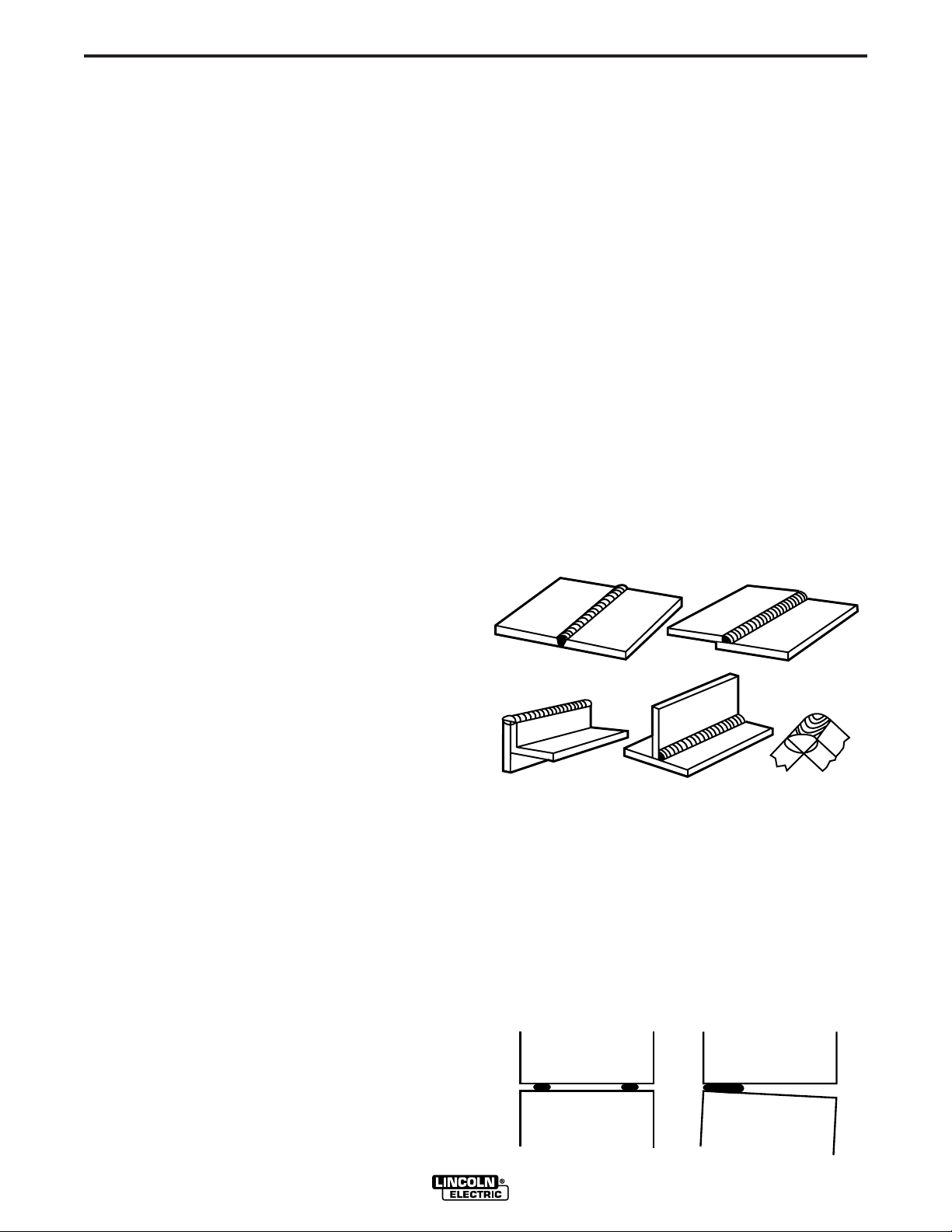

Types of Welds

Five types of welding joints are: Butt Welds, Fillet Welds, Lap Welds, Edge Welds and Corner Welds.

Of these, the Butt Weld and Fillet Weld are the most common.

Butt Welds

Butt Welds are the most widely used welds. Place two plates side by side, leaving 1/16” (1.6mm) for thin metal to 1/8” (3.2mm) for heavy metal space between them in order to get deep penetration.

Tack the plates at both ends, otherwise the heat will cause the plates to move apart. (See drawing).

Butt Weld

Lap Weld

Edge Weld

Fillet Weld

Corner Weld

B-15

OPERATION

B-15

POWER-ARC 4000

Now weld the two plates together. Weld from left to right (if right-handed). Point the electrode down in he gap between the two plates, keeping the electrodes slightly tilted in the direction of travel.

Watch the molten metal to be sure it distributes itself evenly on both edges and in between the plates.

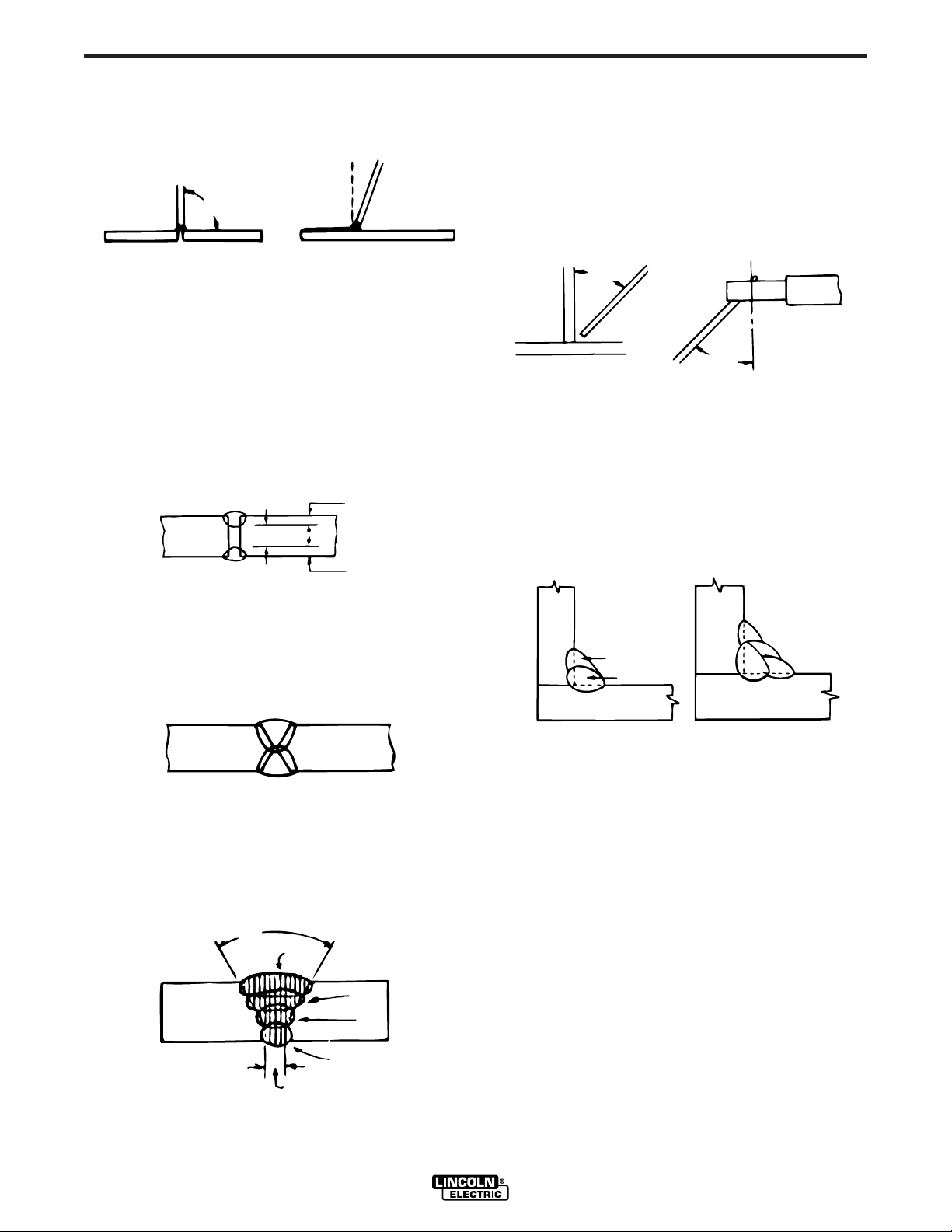

Penetration

Unless a weld penetrates close to 100%, a butt weld will be weaker than the material welded together.

In this example, the total weld is only 1/2 the thickness of the material; thus, the weld is only approximately half as strong as the metal.

In this example, the joint has been flame beveled or ground prior to welding so that 100% penetration could be achieved. The weld, if properly made, is as strong or stronger than the original metal.

Successive passes must be used to build up butt welds on heavier metal.

Fillet Welds

When welding fillet welds, it is very important to hold the electrode at a 45° angle between the two sides, or the metal will not distribute itself evenly.

To make it easier to get the 45° angle, it is best to put the electrode in the holder at a 45° angle, as shown.

Multiple Pass Welds

Make multiple pass horizontal fillets as shown in the sketch. Put the first bead in the corner with fairly high current. Hold the electrode angle needed to deposit the filler beads as shown putting the final bead against the vertical plate.

Welding in the Vertical Position

Welding in the vertical position can be done either vertical-up or vertical-down. Vertical-up is used whenever a large, strong weld is desired. Vertical-down is used primarily on sheet metal for fast, low penetrating welds.

end view side view

20°

90°

Poor

1/2"

(12mm)

1/4"

(6mm)

1/4"

(6mm)

Good

60°

1/8" (3.2mm)

45°

B-16

OPERATION

B-16

POWER-ARC 4000

Vertical-Up Welding

The problem, when welding vertical-up, is to put the molten metal where it is wanted and make it stay there. If too much molten metal is deposited, gravity will pull it downwards and make it “drip”. Therefore, a certain technique has to be followed:

1. Use 1/8” (3.2mm) 90-115 amps or 3/32” (2.5mm) 70 amps AWS 6011.

2. When welding, the electrode should be kept horizontal or pointing slightly upwards. (See drawing above).

3. The arc is struck and metal deposited at the bottom of the two pieces to be welded together.

4. Before too much molten metal is deposited, the arc is SLOWLY moved 1/2-3/4” (12-20mm) upwards. This takes the heat away from the molten puddle, which solidifies. (If the arc is not taken away soon enough, too much metal will be deposited, and it will “drip”.)

5. The upward motion of the arc is caused by a very slight wrist motion. Most definitely, the arm must not move in and out, as this makes the entire process very complicated and difficult to learn.

6. If the upward motion of the arc is done correctly with a wrist motion, the arc will automatically become a long arc that deposits little or no metal. (See drawing above.)

7. During this entire process, the ONLY thing to watch is the molten metal. As soon as it has solidified, the arc is SLOWLY brought back, and another few drops of metal are deposited. DO NOT FOLLOW THE UP AND DOWN MOVEMENT OF THE ARC WITH YOUR EYES. KEEP THEM ON THE MOLTEN METAL.

8. When the arc is brought back to the now solidified puddle, IT MUST BE SHORT, otherwise no metal will be deposited, the puddle will melt again, and it will “drip”.

9. It is important to realize that the process consists of SLOW, DELIBERATE movements. There are no fast motions.

Vertical-Down Welding

Vertical-down welds are applied at a fast pace. These welds are therefore shallow and narrow, and are excellent for sheet metal. Do not use the verticaldown technique on heavy metal. The welds will not be strong enough.

1. Use 1/8” (3.2m) or 3/32” (2.5mm) AWS 6011.

2. On thin metal use 70-75 amps. (14 ga. 75 A - 16 ga. 60 A.)

3. Hold the electrode in a 30-45° angle with the tip of the electrode pointing upwards.

4. Hold a VERY SHORT arc, but do not let the electrode touch the metal.

5. An up and down whipping motion will help prevent burn-through on very thin plate.

6. Watch the molten metal carefully.

The important thing is to continue lowering the entire arm as the weld is made so the angle of the electrode does not change. Move the electrode fast enough so that the slag does not catch up with the arc.

Long arc

Short arc

NOTE: Holder end of electrode is lower than arc.

Very

short

arc

30°-40°

B-17

OPERATION

B-17

POWER-ARC 4000

Overhead Welding

Various techniques are used for overhead welding. However, in the interest of simplicity for the inexperienced welder, the following technique will probably take care of his needs for overhead welding:

1. Use 1/8” (3.2mm) 90-105 A or 3/32” (2.5mm) 70 A AWS 6011 electrode on AC.

2. Put the electrode in he holder so it sticks straight out.

3. Hold the electrode at an angle approximately 30° off vertical, both seen from the side and seen from end. (See drawing below.)

It is important to hold a VERY SHORT arc. (A long arc will result in falling molten metal; a short arc will make the metal stay.)

If necessary, and this is dictated by the appearance of the molten puddle, a slight back and forth whipping technique may be used to prevent “dripping”.

Welding Sheet Metal

Welding sheet metal presents an additional problemburn through. Follow these simple rules:

1. Hold a very short arc. This, together with the proper travel speed, will eliminate burn through.

2. Use 1/8” (3.2mm) or 3/32” (2.5mm) AWS 6011.

3. Use low amperage. 75 A for 1/8” (3.2mm) electrode, 70 A for 3/32” (2.5mm) electrode.

4. Move rapidly enough to stay ahead of the molten slag. A whipping technique may be used to further minimize burn through.

5. If you have a choice, use lap joints rather than fillets or butts; the double thickness effect of a lap joint makes it much easier to weld without burning through.

Hardfacing (To Reduce Wear)

There are several kinds of wear. The two most often encountered are:

1. Metal to Ground Wear: Plowshares, bulldozer blades, buckets, cultivator shares, and other metal parts moving in the soil.

2. Metal to Metal Wear: Trunnions, shafts, rollers and idlers, crane and mine car wheels, etc.

Each of these types of wear demands a different kind of hardfacing electrode.

When applying the proper electrode, the service life of the part will in most cases be more than double. For instance, hardfacing of plowshares results in 3-5 times more acreage plowed.

How to Hardface the Sharp Edge (Metal to Ground Wear)

1. Grind the share, approximately one inch along the edge, so the metal is bright and clean.

2. Place the share on an incline of approximately 20-30°. The easiest way to do this is to put one end of the share on a brick. (See drawings) Most users will want to hardface the underside of the share, but some might find that the wear is on the top side. The important thing is to hardface the side that wears.

3. Use 1/8” (3.2mm) Wearshield at 80-100 A. Strike the arc about one inch from the sharp edge.

Side View

End View

30°

B-18

OPERATION

B-18

POWER-ARC 4000

4. The bead should be put on with a weaving motion, and it should be 1/2-3/4” (12.7-19.0mm) wide. Do not let the arc blow over the edge, as that will dull the edge. (See drawing below.)

5. Use the back-stepping method. Begin to weld 3” (76mm) from the heel of the share and weld to the heel. The second weld will begin 6” (152mm) from the heel, the third weld 9” (229mm) from the heel, etc.

Backstepping greatly reduces the chances for cracking of the share, and it also greatly reduces warping.

NOTE: The entire process is rather fast. Many beginners go much too slowly when hardfacing plowshares, running the risk of burning through the thin metal.

Welding Cast Iron

When welding on a piece of cold cast iron, the tremendous heat from the arc will be absorbed and distributed rapidly into the cold mass. This heating and sudden cooling creates WHITE, BRITTLE cast iron in the fusion zone. (See drawing below.)

This is the reason why welds in cast iron break. Actually, one piece of the broken cast iron has the entire weld on it and the other piece has no weld on it. (See drawing below.)

To overcome this, the welding operator has two choices:

1. Preheat the entire casting to 500-1200°F (260649°C). If the cast iron is hot before welding, there will be no sudden chilling which creates brittle white cast iron. The entire casting will cool slowly.

2. Weld 1/2” (12.7mm) at a time, and do not weld at that spot again until the weld is cool.

This way, no large amount of heat is put into the mass.

Most inexperienced welders will probably use the second method, because they have no way of preheating large castings. Smaller castings can easily (and should) be preheated before welding. A forge, stove, fire, or the Arc Torch are all excellent means of preheating.

When using the 1/2” (12.7mm) at a time method, it is recommended to start 1/2” (12.7mm) away from the previous bead and weld into the previous bead. This is called backstepping.

After welding Cast Iron, protect the casting against fast cooling. Put it in a container of warm, dry sand or lime.

If sand or lime is not available, cover it with sheet metal or any other non-flammable material that will diminish drafts and retain heat.

Cast Iron Plate Preparation

Wherever practical, the joint to be welded should be “veed” out by grinding or filing to give complete penetration as shown in figures (a), (b) and (c) below. This is especially important on thick castings where maximum strength is required.

Work Table

Strike Arc Here

Sharp Edge

Weaving Motion

Plow Share

Positioning of Share

Brick

1/2-3/4" width (12-20mm)

hot

cold

White brittle cast iron

When breaking the weld stays on one piece

First weld from A to B; then from C to A; then from D to C; then from E to D; and so on.

BACKSTEPPING

(75mm)

B-19

OPERATION

B-19

POWER-ARC 4000

High-Speed Group (AWS E6013)

This group includes electrodes which have a moderately forceful arc and deposit rates between those of the out-of-position and high-deposit electrodes.

They are primarily general purpose production electrodes especially for downhill fillets and laps or short and irregular welds that change direction or position. They are also widely used in maintenance and recommended for sheet metal fillet and lap welds. Motion “D” (see drawing) is generally used for vertical-up welding, but motions “A” and “B” are also suitable.

Low Hydrogen Group (Stable-Arc E7018)

These electrodes are generally called “low hydrogen”. The name comes from the fact that their coating contains little hydrogen in either moisture or chemical form. Low hydrogen electrodes offer these benefits: outstanding crack resistance, lowest porosity on sulphur bearing steels, and X-ray quality deposit capability. Thus, they are the first choice when welding “problem” steels. E7018 can be used in all positions, with Motion “C” (below) recommended for the first pass on vertical-up welds. NEVER use a whipping technique or a long arc with these electrodes. ALWAYS fill craters by drawing electrode away slowly. ALWAYS keep these electrodes dry. Electrodes, when not used within a few hours after a container is opened, must be stored in heated cabinets.

In some instances a back-up strip may be used and plates may be gapped 1/8” (3.2mm) or more, as shown in figure (b).

On sections where only a sealed joint is required and strength is not important, the joint may be welded after slightly veeing out the seam as shown in figure (d) below.

Selecting Electrodes

Which electrode is best for the particular job . . . how do you use it? These are important questions because the cost, quality, and appearance of your work depends on proper electrode selection and application. MILD STEEL ELECTRODES may be classified into the following groups:

Out-of-Position Group (AWS E6011)

This group includes electrodes which have a snappy, deep penetrating arc and fast freezing deposits.

These electrodes are used for general purpose, allposition fabrication and repair welding. They are also the best choice for pipe welding and sheet metal butt, corner, and edge welds. They can be used for repair work when dirt, grease, plating or paint cannot be completely cleaned from the steel. These electrodes are typically used with motions “A” and “B” (see drawing) for the first pass on vertical-up welds.

Three ways to prepare plates where complete penetration is necessary.

Scrap steel back-up strip

(a)

(b)

(c)

Single and double beads, with and without

beveling for tight, partial strength joints.

(d)

(e)

Motions

START

SIDE VIEW

C-1

ACCESSORIES

C-1

OPTIONS/ACCESSORIES

LINCOLN ELECTRIC ACCESSORIES

The following options/accessories are available for your POWER-ARC 4000 from your local Lincoln Distributor.

Accessory Set (K875) – Includes the following:

• Twenty feet (6.1 meters) of #6 AWG electrode cable

• Fifteen feet (4.6 meters) of #6 work cable

• Headshield with No. 10 filter

• Work clamp

• Insulated electrode holder

• Sample electrodes

The cables are rated at 150 amps, 40% duty cycle.

Power Plug Kit (K802U) – Provides three plugs, two for the 120 volt duplex receptacle and one for the 240 volt receptacle. (Order K802T power plug kit for CSA model)

GFCI Receptacle Kit (K896-3) - Includes one UL approved 115 volt ground fault circuit interrupter duplex type receptacle with cover and installation instructions. Replaces the factory installed 115 volt duplex receptacle. Each side of the GFCI duplex is rated at 15 amps but the maximum total current from the GFCI duplex is limited to 20 amps. (15 Amps for CSA model)

Undercarriage (K882-2) - 2- wheeled, hand movable undercarriage available for field installation.

Rotor Removal Kit (S20925) – A service kit with thru and impact bolts for removing the generator rotor from the tapered engine crankshaft.

BRIGGS AND STRATTON ACCESSORIES (FOR THE 8 HP KOOL BORE ENGINE ONLY)

The following options/accessories are available for your POWER-ARC 4000 from your local Briggs & Stratton Distributor. Check with the distributor for availability of options/accessories for the 9 HP Vanguard engine.

Foam Pre-cleaner (B&S No. 492889) - Provides a foam pre-cleaner for placement around the paper cartridge air cleaner. Increases protection in extremely dusty or dirty environments.

Oil Gard

Low Oil Shutdown Kit (B&S No. 398182) –

Installs in the crankcase access port. Senses low oil conditions and automatically stops the engine. The engine cannot be restarted until sufficient oil is added. It is recommended that the Oil Gard Kit be installed on Power Arc machines where the machine is subject to long periods of continuous running.

Super Lo-Tone

Muffler - Square (B&S No. 494221)

– Replaces the round Lo-Tone muffler that comes installed on the engine. Limits exhaust noise but reduces maximum generator output by 100-200 watts.

Muffler Guard (B&S No. 494868) - This guard installs onto the muffler via a supplied bracket and protects against incidental contact with a “HOT” muffler. Do

not use this guard in tandem with both a deflector and spark arrester.

SEMIAUTOMATIC MIG WELDING WITH A LINCOLN WELD-PAK 100 OR WELD-PAK 125

In addition to using the accessories/options listed above, the POWER-ARC 4000 generator can supply power to a Lincoln ELectric Weld-Pak 100 or WeldPak 125 wire feed welder. The Weld-Pak comes with all the supplies needed for Flux-Cored Arc Welding (FCAW).

A K610-1 MIG (Metal Inert Gas) Conversion Kit is also available for the Weld-Pak. The kit provides everything needed for Gas Metal Arc Welding (GMAW) or MIG processes. Contact your local authorized Lincoln representative for details about the Weld-Pak and MIG Conversion Kit.

POWER-ARC 4000

D-1

MAINTENANCE

D-1

SAFETY PRECAUTIONS

• Have qualified personnel do all maintenance and troubleshooting work.

• Turn the engine off before working inside the machine.

• Remove guards only when necessary to perform maintenance and replace them when the maintenance requiring their removal is complete.

• If guards are missing from the machine, get replacements from a Lincoln Distributor. See the EXPLODED VIEW AND PARTS LIST at the back of this manual.

Read the Safety Precautions in the front of this manual and in the engine owner’s manual before working on the POWER-ARC 4000.

Keep all equipment safety guards, covers, and devices in position and in good repair. Keep your hands, hair, clothing, and tools away from the recoil housing, fans, and all other moving parts when starting, operating, or repairing this machine.

ROUTINE AND PERIODIC MAINTENANCE

ENGINE MAINTENANCE

To prevent the engine from accidentally starting, disconnect the spark plug lead before servicing the engine.

See the engine owner’s manual for a summary of maintenance intervals for the items listed below. Follow either the hourly or the calendar intervals, whichever come first. More frequent service may be required, depending on your specific application and operating conditions. Table D.1 shows engine maintenance replacement parts and numbers.

OIL: Check the oil level after every 5 hours of operation or daily. BE SURE

TO MAINTAIN THE OIL LEVEL. Change the oil the first time after 5 hours of operation. Then, under normal operating conditions, change the oil after every 50 hours or once a year, whichever occurs first. If the engine is operated under heavy load or in high ambient temperatures, change the oil every 25 hours.

Drain the oil from the drain plug located on either side of the engine bottom, as shown in Figure D.1. Refill through the oil fill plug until the oil reaches the top of the fill hole. Use the grade and viscosity recommended in the engine owner’s manual.

FIGURE D.1 - OIL DRAIN AND

REFILL LOCATION

1. OIL DRAIN PLUG

2. OIL FILL PLUG

3. OIL LEVEL

FUEL: At the end of each day’s use, refill the fuel tank to minimize moisture condensation and dirt contamination in the fuel line.

ENGINE ADJUSTMENTS

OVERSPEED IS HAZARDOUS - The maximum allowable high idle speed for this machine is 3750 RPM, no load. DO NOT tamper with the governor components or setting or make any other adjustments to increase the maximum speed. Severe personal injury and damage to the machine can result if operated at speeds above maximum.

Adjustments to the engine are to be made only by a Lincoln Service Center or an authorized Field Service Shop.

POWER-ARC 4000

WARNING

CAUTION

D-2

MAINTENANCE

D-2

Do not use petroleum solvents such as kerosene to clean the air cleaner. They may cause deterioration of the air cleaner. DO NOT OIL THE AIR CLEANER OR USE PRESSURIZED AIR TO CLEAN OR DRY THE AIR CLEANER.

To service the pre-cleaner:

1. Wash in liquid detergent and water.

2. Squeeze dry in a clean cloth.

3. Saturate in clean engine oil.

4. Squeeze in a clean, absorbent cloth to remove all excess oil.

CLEAN ENGINE: Remove dirt and debris with a cloth or a brush. Do not clean with a forceful spray of water. Water might contaminate the fuel system.

Periodically clean the muffler area to remove combustible debris.

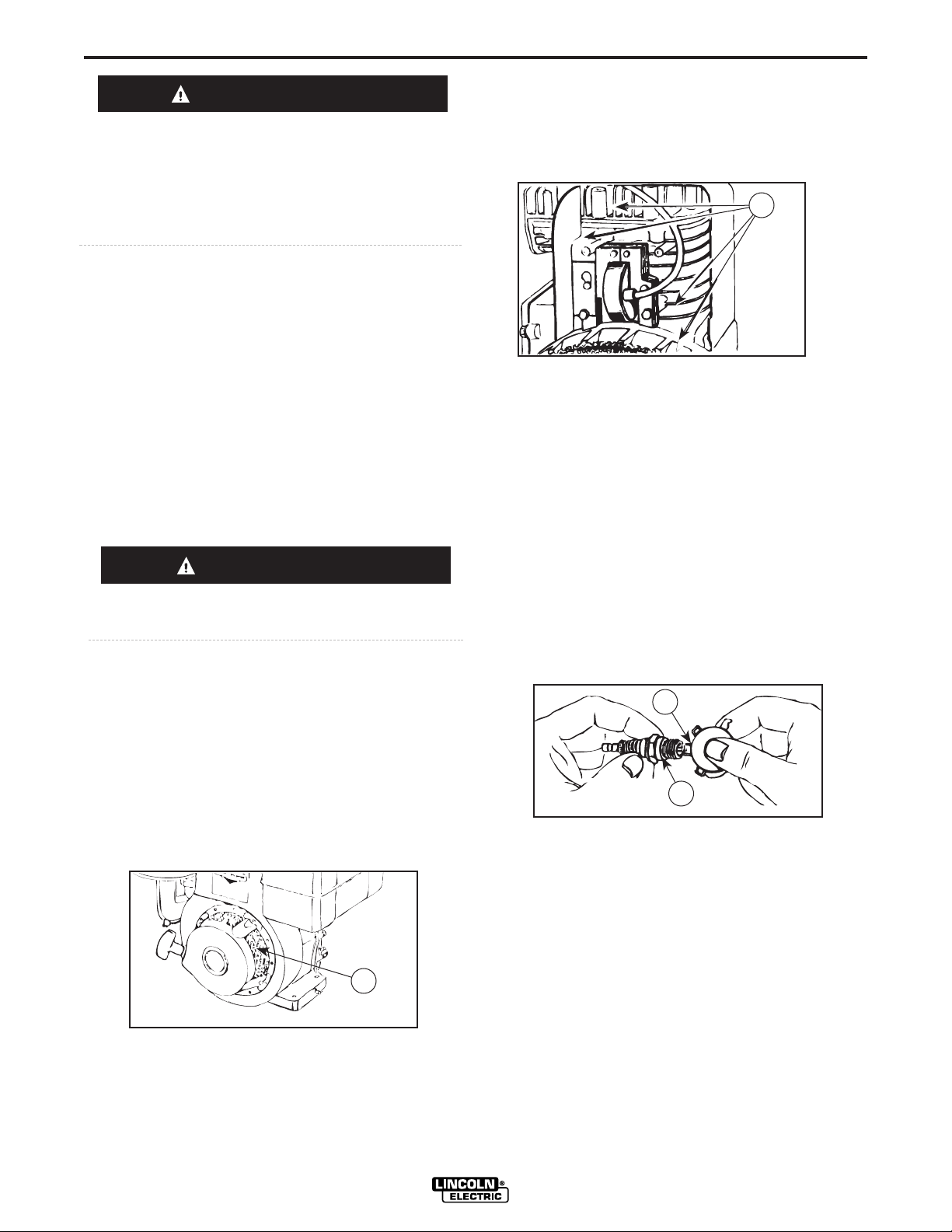

Clean Rotating Screen: If your POWER-ARC 4000 is

equipped with an engine that has a rotating screen, you should clean it as often as needed, to remove dirt or debris that may collect on the screen. A dirty screen can result in engine overheating and damage. (See Figure D.2).

FIGURE D.2 - CLEAN ROTATING

SCREEN/FINGER GUARD/DEBRIS GUARD

1. ROTATING SCREEN

CLEAN COOLING SYSTEM: See Figure D.3. Clean the internal cooling fins and surfaces to prevent overspeeding, overheating, and engine damage. Clean every 100 operating hours or as often as necessary.

FIGURE D.3 - CLEAN COOLING SYSTEM

1. REMOVE DIRT FROM THESE AREAS.

CLEAN OR REPLACE SPARK PLUG: Clean or replace the spark plug after every 100 hours of operation or every season, whichever comes first. Do not blast the spark plug clean with an abrasive cleaning device. Clean the plug by scraping it or by using a wire brush. Wash the plug with a commercial solvent. After cleaning or when installing a new spark plug, set the terminal gap to .030 inch (.76 mm) with a

feeler gauge. See Figure D.4.

FIGURE D.4 - SET SPARK PLUG GAP

Use the engine owner’s manual for latest Plug Gap Info.

CLEAN SPARK ARRESTER SCREEN: If the muffler has the spark arrester assembly, refer to the engine owner’s manual that was shipped with your POWERARC 4000 for the proper cleaning instructions.

POWER-ARC 4000

CAUTION

Part

B&S 8 HP Kool Bore Part # B&S 9 HP Vanguard Part # Honda Part #

SPARK PLUG B&S 802592 B&S 491055 NGK BPR6ES

(RESISTOR) CHAMPION RJ19LM CHAMPION RC12YC DENSO W20EPR-U

AUTOLITE 3924

FUEL FILTER B&S 394358 NONE NONE

AIR CLEANER PANEL B&S 494511 B&S 710266 5266721 (17210-ZE2-505)

(Pleated Paper)

AIR PRE-CLEANER B&S 492889 B&S 710268 2538429 (17218-ZE2-821)

(AS NEEDED) (CAN BE CLEANED AND REUSED AS NEEDED)

D-3

MAINTENANCE

D-3

POWER-ARC 4000

TABLE D.1

ENGINE MAINTENANCE PARTS

Refer to Table D.1 for engine maintenance parts. The part numbers are accurate at the time of printing. (Verify the current part number by referring to the engine owner’s manual.

Replace or clean engine maintenance parts per the interval outlined in the engine owner’s manual.

D-4

MAINTENANCE

D-4

POWER-ARC 4000

GENERATOR/WELDER MAINTENANCE

STORAGE: Store the POWER-ARC 4000 in clean, dry, protected areas.

CLEANING: Blow out the generator and controls periodically with low pressure air. Do this at least once a week in particularly dirty areas.

BRUSH REMOVAL AND REPLACEMENT: See Figure D.5. It’s normal for the brushes and slip rings to wear and darken slightly. Inspect the brushes when a general overhaul is necessary. Remove the brushes and clean the slip rings with fine grit emery paper.

Do not attempt to polish slip rings while engine is running.

To reinstall the brushes, press them upward and slide a cable tie or wooden stick through the brush holder tabs. Install the brush holder into the bearing end bracket and secure with the screws previously removed. Remove the cable tie or wooden stick and the brushes will seat onto the slip rings.

RECEPTACLES: Keep the electrical receptacles in good condition. Remove any dirt, oil, or other debris from their surfaces and holes.

CABLE CONNECTIONS: Check the welding cable connections at the weld output terminals often. Be sure that the connections are always tight.

NOTE: Lincoln offers a rotor removal kit for any service which requires removal of the rotor from the engine. See the ACCESSORIES section for further details.

Removal of engine/generator assembly from the cradle can be achieved as follows:

• Remove the two 5/16-18 hex head cap screws from the engine block via the access hole located in the cradle cross support channel. Leave all other engine mountings intact.

• Remove the two hex nuts from the isolator threaded posts at the stator support bracket located opposite the engine. Leave all other stator mountings intact.

• With a jib hoist or crane, lift the unit upward and remove loose cradle from engine/generator assembly.

FIGURE D.5. – BRUSH REMOVAL AND REPLACEMENT

1. GENERATOR END BRACKET

2. BRUSH HOLDER ASSEMBLY

3. COVER

4. SCREWS (2)

5. BRUSHES

6. CABLE TIE

CAUTION

D-5

MAINTENANCE

D-5

POWER-ARC 4000

1 . CRADLE ASSEMBLY

2. ROTOR, BLOWER, AND BEARING ASSEMBLY

3. STATOR ASSEMBLY

4. BRUSH AND BRUSH HOLDER ASSEMBLY

5. CONTROL BOX WELDED ASSEMBLY

6. REACTOR ASSEMBLY

7. OUTPUT TERMINAL ASSEMBLY

8. OUTPUT PANEL ASSEMBLY

FIGURE D.6. - MAJOR COMPONENT LOCATIONS

POWER-ARC 4000

E-1

TROUBLESHOOTING

E-1

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

CAUTION

This Troubleshooting Guide is provided to help you locate and repair possible machine malfunctions. Simply follow the three-step procedure listed below.

Step 1. LOCATE PROBLEM (SYMPTOM).

Look under the column labeled “PROBLEM (SYMPTOMS)”. This column describes possible symptoms that the machine may exhibit. Find the listing that best describes the symptom that the machine is exhibiting.

Step 2. POSSIBLE CAUSE.

The second column labeled “POSSIBLE CAUSE” lists the obvious external possibilities that may contribute to the machine symptom.

Step 3. RECOMMENDED COURSE OF ACTION

This column provides a course of action for the Possible Cause, generally it states to contact your local Lincoln Authorized Field Service Facility.

If you do not understand or are unable to perform the Recommended Course of Action safely, contact your local Lincoln Authorized Field Service Facility.

HOW TO USE TROUBLESHOOTING GUIDE

Service and Repair should only be performed by Lincoln Electric Factory Trained Personnel. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical Shock, please observe all safety notes and precautions detailed throughout this manual.

__________________________________________________________________________

WARNING

E-2

TROUBLESHOOTING

E-2

POWER-ARC 4000

Observe all Safety Guidelines detailed throughout this manual

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

CAUTION

PROBLEMS

(SYMPTOMS)

POSSIBLE AREAS OF

MISADJUSTMENT(S)

RECOMMENDED

COURSE OF ACTION

No generator power or welding output.

Generator power is available but unit will not weld.

1. Disconnect anything plugged into auxiliary receptacles and weld loads.

2. Open lead in flashing or field circuit.

3. Open flashing diode (D1)

4. Faulty brushes.

5. Faulty rheostat (R1).

6. Faulty field rectifier (D1).

7. Faulty capacitor (C1).

8. Faulty stator field winding.

9. Faulty rotor.

10. Dirty slip rings, clean slip rings when

not in use.

1. Loose connection to output stud.

2. Work not connected.

3. Electrode holder loose.

4. No open circuit voltage at output studs. Open lead in weld circuit.

5. Faulty reactor (L1).

6. Rheostat (R1) lead broke

If all recommended possible areas of misadjustment have been checked and the problem persists,

Contact your local Lincoln Authorized Field Service Facility.

E-3

TROUBLESHOOTING

E-3

POWER-ARC 4000

Observe all Safety Guidelines detailed throughout this manual

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

CAUTION

PROBLEMS

(SYMPTOMS)

POSSIBLE AREAS OF

MISADJUSTMENT(S)

RECOMMENDED

COURSE OF ACTION

Unit will weld but low or no generator power is available.

Engine runs erratically or stops running.

Engine sputters but will not start.

1. Circuit breaker open.

2. Loose or open connection with elec-

trical plug-in component.

3. Current control dial not at “125”.

4. No open circuit voltage at receptacle.

Open lead in receptacle circuit.

5. No open circuit voltage at receptacle.

Bad receptacle.

6. Rheostat (R1) lead broke.

1. Engine is not fully warmed-up and

engine choke is in the fully open (RUN) position.

2. Engine requires service to head, car-

buretor, filters, oil, spark plug and/or gas.

1. Bad gas, bad filter, air cleaner, spark

plug, and/or breather.

If all recommended possible areas of misadjustment have been checked and the problem persists,

Contact your local Lincoln Authorized Field Service Facility.

E-4

TROUBLESHOOTING

E-4

POWER-ARC 4000

Observe all Safety Guidelines detailed throughout this manual

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

CAUTION

PROBLEMS

(SYMPTOMS)

POSSIBLE AREAS OF

MISADJUSTMENT(S)

RECOMMENDED

COURSE OF ACTION

Engine will not start. 1. Spark plug boot or wire off, loose or

wet.

2. Fuel shutoff valve is closed.

3. Low oil and engine low oil shutdown

protection will not allow unit to start. Light in On-Off switch will flash when engine is cranked. (Engines equipped with low oil shutdown protection only).

4. Choke left in full choke position and

carburetor flooded.

5. Fuel line clogged or closed.

6. Recoil start will not engage with

engine.

7. Fouled spark plug.

8. Engine requires service to head,

head gasket, and/or valves.

9. Float open in carburetor & gas leak-

ing from bowl.

10. Engine operated with low oil level.

Engine is seized and recoil start will not move.

If all recommended possible areas of misadjustment have been checked and the problem persists,

Contact your local Lincoln Authorized Field Service Facility.

F-1

DIAGRAMS

F-1

POWER-ARC 4000

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside

the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number.

202B RED

202

CCW

3.3

RED

100W

202

200A

RED

(+)

200 RED

600 FD

(+)

(-)

201

BLACK

202C BROWN

ENGINE WIRING

SWITCH

RUN/STOP

SWITCH

LOW OIL

PROTECTION

MAG

BLACK WIRE

3C IS REMOVED

& DISCARDED

HOT

LINE

(IF INSTALLED)

6C BLACK

GFCI RECEPTACLE

LINE

WHITE

GREEN

WHITE WIRES

9-4-98H

S22160

OPTION

PER E1537.

ELECTRICAL

SYMBOLS

BLACK

REACTOR

ROTOR

BLACK

(+)

STATOR

GNDC

RED

202A

(-)

201A

BLACK

GREEN

GNDC

20A

WHITE

CB2

20A

GREEN

CB1

WHITE

GNDA

YELLOW

GREEN

GNDB

GREEN

BLACK

201B

BLACK

5A WHITE

BLACK

NOTE:

ALL CASE FRONT COMPONENTS

W1A

BLACK

WIRING DIAGRAM - POWER ARC 4000 (Codes, 10200, 10202, 10244, 10585, 10673, 10672, 10667)

OUTPUT STUDS

STATOR END

BRACKET

GROUND

SHOWN VIEWED FROM REAR.

F-2

DIAGRAMS

F-2

POWER-ARC 4000

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside

the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number.

1N 00

-9-2 11

FLYWHEEL

ALTERNATOR

RED

BLACK WIRE

3C IS REMOVED

& DISCARDED

600 FD

201A

BLACK

(-)

201

BLACK

ENGINE WIRING

MAG

RUN/STOP

LOW OIL

SWITCH

HOT

LINE

SWITCH

PROTECTION

6C BLACK

(IF INSTALLED)

WHITE

GREEN

GFCI RECEPTACLE

LINE

OPTION

WHITE WIRES

OHM

3.3

100W

200A

(+)

202A

200 RED

RED

(-)

50 OHM

CCW

202B

RED

S25341

ROTOR

379

STATOR

WIRING DIAGRAM - POWER ARC 4000 (CODES 10671, 10866)

BLACK

GNDC

GREEN

REACTOR

W1A

BLACK

OUTPUT STUDS

STATOR END

BRACKET

GROUND

GNDC

20A

CB2

GREEN

WHITE

20A

CB1

WHITE

YELLOW

GNDA

GREEN

GND D

201B

BLACK

5A WHITE

BLACK

GNDB

GREEN

BOLT AT

ENGINE

BLOCK

ELECTRICAL SYMBOLS PER E1537.

NOTE:

ALL CASE FRONT COMPONENTS

SHOWN VIEWED FROM REAR.

F-3

DIAGRAMS

F-3

POWER-ARC 4000

REF.

30.00

762

8-19-94

17196

14.16

360

REF.

POWER ARC 4000

REF.

508

20.00

20.88

530

DIMENSION PRINT

REF. REF.

7.92

mm mm

201

NOTES

POWER-ARC 4000

NOTES

POWER-ARC 4000

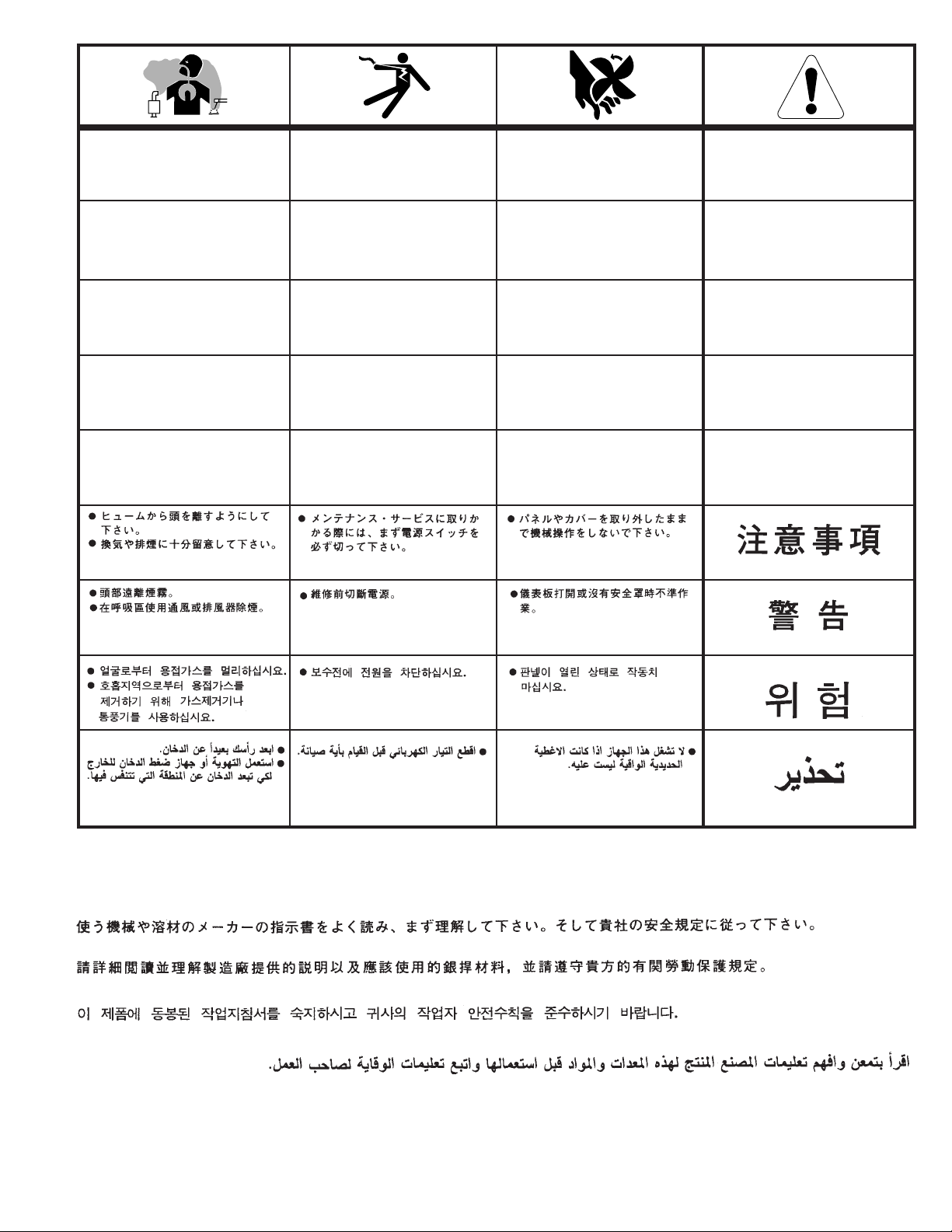

WARNING

AVISO DE

PRECAUCION

ATTENTION

WARNUNG

ATENÇÃO

Spanish

French

German

Portuguese

Japanese

Chinese

Korean

Arabic

READ AND UNDERSTAND THE MANUFACTURER’S INSTRUCTION FOR THIS EQUIPMENT AND THE CONSUMABLES TO BE USED AND FOLLOW YOUR EMPLOYER’S SAFETY PRACTICES.

SE RECOMIENDA LEER Y ENTENDER LAS INSTRUCCIONES DEL FABRICANTE PARA EL USO DE ESTE EQUIPO Y LOS CONSUMIBLES QUE VA A UTILIZAR, SIGA LAS MEDIDAS DE SEGURIDAD DE SU SUPERVISOR.

LISEZ ET COMPRENEZ LES INSTRUCTIONS DU FABRICANT EN CE QUI REGARDE CET EQUIPMENT ET LES PRODUITS A ETRE EMPLOYES ET SUIVEZ LES PROCEDURES DE SECURITE DE VOTRE EMPLOYEUR.

LESEN SIE UND BEFOLGEN SIE DIE BETRIEBSANLEITUNG DER ANLAGE UND DEN ELEKTRODENEINSATZ DES HERSTELLERS. DIE UNFALLVERHÜTUNGSVORSCHRIFTEN DES ARBEITGEBERS SIND EBENFALLS ZU BEACHTEN.

● Do not touch electrically live parts or

electrode with skin or wet clothing.

● Insulate yourself from work and

ground.

● No toque las partes o los electrodos

bajo carga con la piel o ropa mojada.

● Aislese del trabajo y de la tierra.

● Ne laissez ni la peau ni des vête-

ments mouillés entrer en contact avec des pièces sous tension.

● Isolez-vous du travail et de la terre.

● Berühren Sie keine stromführenden

Teile oder Elektroden mit Ihrem Körper oder feuchter Kleidung!

● Isolieren Sie sich von den

Elektroden und dem Erdboden!

● Não toque partes elétricas e elec-

trodos com a pele ou roupa molhada.

● Isole-se da peça e terra.

● Keep flammable materials away.

● Mantenga el material combustible

fuera del área de trabajo.

● Gardez à l’écart de tout matériel

inflammable.

● Entfernen Sie brennbarres Material!

● Mantenha inflamáveis bem guarda-

dos.

● Wear eye, ear and body protection.

● Protéjase los ojos, los oídos y el

cuerpo.

● Protégez vos yeux, vos oreilles et

votre corps.

● Tragen Sie Augen-, Ohren- und Kör-

perschutz!

● Use proteção para a vista, ouvido e

corpo.

WARNING

AVISO DE

PRECAUCION

ATTENTION

WARNUNG

ATENÇÃO

Spanish

French

German

Portuguese

Japanese

Chinese

Korean

Arabic

LEIA E COMPREENDA AS INSTRUÇÕES DO FABRICANTE PARA ESTE EQUIPAMENTO E AS PARTES DE USO, E SIGA AS PRÁTICAS DE SEGURANÇA DO EMPREGADOR.

● Keep your head out of fumes.

● Use ventilation or exhaust to

remove fumes from breathing zone.

● Los humos fuera de la zona de res-

piración.

● Mantenga la cabeza fuera de los

humos. Utilice ventilación o aspiración para gases.

● Gardez la tête à l’écart des fumées.

● Utilisez un ventilateur ou un aspira-

teur pour ôter les fumées des zones de travail.

● Vermeiden Sie das Einatmen von

Schweibrauch!

● Sorgen Sie für gute Be- und

Entlüftung des Arbeitsplatzes!

● Mantenha seu rosto da fumaça.

● Use ventilação e exhaustão para

remover fumo da zona respiratória.

● Turn power off before servicing.

● Desconectar el cable de ali-

mentación de poder de la máquina antes de iniciar cualquier servicio.

● Débranchez le courant avant l’entre-

tien.

● Strom vor Wartungsarbeiten

abschalten! (Netzstrom völlig öffnen; Maschine anhalten!)

●

Não opere com as tampas removidas.

●

Desligue a corrente antes de fazer serviço.

●

Não toque as partes elétricas nuas.

● Do not operate with panel open or

guards off.

● No operar con panel abierto o

guardas quitadas.

● N’opérez pas avec les panneaux

ouverts ou avec les dispositifs de protection enlevés.

● Anlage nie ohne Schutzgehäuse

oder Innenschutzverkleidung in Betrieb setzen!

● Mantenha-se afastado das partes

moventes.

● Não opere com os paineis abertos

ou guardas removidas.
