Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Lincoln. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,600 km (1,000 miles) of new vehicle operation. Vary your speed to allow parts to adjust themselves to other parts.

Drive your new vehicle at least 800 km (500 miles) before towing a trailer.

Do not add friction modifier compounds or special break-in oils during the first few thousand kilometers (miles) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and specifications chapter for more information on oil usage.

Introduction

SPECIAL NOTICES Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Data Recording

Computers in your vehicle are capable of recording detailed data potentially including but not limited to information such as:

• the use of restraint systems including seat belts by the driver and passengers,

• information about the performance of various systems and modules in the vehicle, and

• information related to engine, throttle, steering, brake or other system status.

Any of this information could potentially include information regarding how the driver operates the vehicle potentially including but not limited to information regarding vehicle speed, brake or accelerator application or steering input. This information may be stored during regular operation or in a crash or near crash event.

This stored information may be read out and used by:

• Ford Motor Company.

• service and repair facilities.

• law enforcement or government agencies.

• others who may assert a right or obtain your consent to know such

information.

Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental Restraint System (SRS) in the Seating and safety restraints chapter. Failure to follow

the specific warnings and instructions could result in personal injury.

Front seat mounted rear facing child or infant seats should NEVER be used in front of a passenger side air bag unless the

air bag can be and is turned OFF.

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Be sure to read Driving off road in the Driving chapter.

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner

Guide for all other required information and warnings.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Traction Control AdvanceTrac娂

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Jack

Check fuel cap Low tire warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have

the respective system inspected immediately.

Service engine soon

The ensure the system is functional. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

Light remains on:

Temporary malfunctions may cause your Examples are:

1. The vehicle has run out of fuel.

2. Poor fuel quality or water in the fuel.

3. The fuel cap may not have been properly installed and securely

tightened. These temporary malfunctions can be corrected by filling the fuel tank

with high quality fuel of the recommended octane and/or properly installing and securely tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

light illuminates briefly to

light to illuminate.

Instrument Cluster

If the light remains on, have your vehicle serviced at the first available opportunity.

Note: The with the engine running.

Never refuel vehicle with the engine running.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior

floor coverings or other vehicle components, possibly causing a fire.

Brake system warning

To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to START position, the light will momentarily illuminate prior to reaching the START position). It also illuminates if the parking brake is engaged. If the brake system warning light does not illuminate as described, seek service immediately. Illumination after the parking brake is released indicates low brake fluid level or a brake system malfunction and the brake system should be serviced immediately by a qualified technician.

Refer to Brakes in the Driving chapter for more information.

light will illuminate if vehicle refueling is conducted

BRAKE

Anti-lock brake system (ABS)

To confirm the anti-lock brake system (ABS) warning light is functional it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON

ABS

Instrument Cluster

position to the START position, the light will momentarily illuminate just prior to reaching the START position). If the light remains on, continues to flash or fails to illuminate, have the ABS serviced immediately. If the ABS light remains on, it means the anti-lock brake system has malfunctioned and is disabled, however, the normal brake system will still function unless the brake warning light also remains illuminated and parking brake is off. Refer to Brakes in the Driving chapter for more information.

Safety belt

Illuminates to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Air bag readiness

Illuminates to confirm that the air bags (front or side) are operational. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Charging system

Illuminates when the battery is not charging properly.

AdvanceTrac姟 (if equipped)

Flashes when the AdvanceTrac娂 system is active. If the light remains on, have the system serviced immediately.

For more information, refer to the Driving chapter.

Engine oil pressure

Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and specifications chapter.

Instrument Cluster

Speed control

Illuminates when the speed control is activated.

Engine coolant temperature

Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as safely possible, switch off the engine and let it cool.

Never remove the coolant recovery cap while the engine is running or hot.

Refer to Engine coolant in the Maintenance and specifications chapter. If light stays on or continues to turn on after the vehicle warms up, have your vehicle serviced.

T urn signals

Illuminates when the turn signals or the hazard lights are turned on. If the lights stay on continuously or flash faster, check for a burned-out bulb.

High beams

Illuminates when the high beam headlamps are turned on.

O/D off

Illuminates when the overdrive function has been turned OFF using the Transmission Control Switch (TCS) on the gearshift. If the light does not come on or the light flashes steadily, have your vehicle serviced as soon as possible, otherwise damage to the transmission could occur.

Instrument Cluster

Four wheel drive low (if equipped)

Illuminates when four-wheel drive low is engaged. If the light continues to flash have the system serviced.

Four wheel drive high (if equipped)

Illuminates when four-wheel drive is put in high range. If the light continues to flash have the system serviced.

Safety belt warning chime

Sounds to remind you to fasten your safety belts.

BeltMinder姟 chime

Sounds intermittently to remind you to fasten your safety belts.

Supplemental restraint system (SRS) warning chime

Sounds when a malfunction in the supplemental restraint system (front or side airbags) has been detected. Have the supplemental restraint system inspected immediately.

Headlamps on warning chime

Sounds when the headlamps or parking lamps are on, the key is removed from the ignition and the driver’s door is opened.

4x4

LOW

4x4

HIGH

Key-in-ignition warning chime

Sounds when the key is left in the ignition and the driver’s door is opened.

Door ajar warning chime

Sounds when any door or liftgate is opened (or not fully closed).

Instrument Cluster

GAUGES

MPH

120

100

150

km/h

180

210

140

120

LOW

HIGH

BRAKE

4X4

RPM X 1000

Engine coolant temperature gauge

Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and specifications chapter.

Never remove the coolant reservoir cap while the engine is running or hot. Steam and scalding liquid from a hot cooling

system can burn you badly.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the oil pressure/engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and specifications chapter.

Instrument Cluster

Fuel gauge

Displays approximately how much fuel is in the fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

If the key is left in the ON position during fueling, a minimum of 22.2 L (six gallons) must be added to the fuel tank in order for the gauge to instantaneously update. If less than six gallons is added, the gauge will take between five to twenty minutes to update.

Speedometer

Indicates the current vehicle speed.

Odometer

Registers the total kilometers (miles) of the vehicle.

Trip odometer

Registers the kilometers (miles) of individual journeys. Press and release the message center INFO button until TRIP mode appears in the display. Press the message center RESET button to reset.

T achometer

Indicates the engine speed in revolutions per minute.

Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Instrument Cluster

Entertainment Systems

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD

1. EJ (Eject): Press to stop and

eject a tape.

2. EJ (Eject): Press to stop and

eject a CD.

3. BASS: Allows you to increase or

decrease the audio system’s bass output. Press BASS then press SEL

to decrease

TREB (Treble): Allows you to increase or decrease the audio system’s treble output. Press TREB

then press SEL to decrease

or increase the bass levels.

or increase the treble levels.

Entertainment Systems

4. BAL (Balance): Allows you to

shift speaker sound between the right and left speakers. Press BAL

then press SEL to shift sound to the left

FADE: Allows you to shift speaker sound between the front and rear speakers. Press FADE then press

SEL to shift the sound to the rear

5. COMP (Compression): In CD

mode, press to bring soft and loud passages together for a more consistent listening level. Press again to deactivate.

SHUF (Shuffle): Press to play CD tracks in random order. Press again to deactivate random play.

6. Memory preset stations: To set

a memory preset station, tune the radio to the desired station, then press and hold the memory preset control until the sound returns.

7. SEL (Select): Use to adjust

bass, treble, balance and fade levels.

or right .

or the front .

8. SIDE: Press to play the alternate

side of the tape.

Dolby: reduction: Reduces tape noise and

hiss; press to activate/deactivate. The Dolby威 noise reduction system is manufactured under license from

Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby威 Laboratories Licensing Corporation.

9. REW (Rewind): Works in tape

and CD modes.

In tape mode, radio play continues until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

Dolby威 noise

Entertainment Systems

In CD mode, REW control reverses the CD within the current track.

FF (Fast Forward): Works in tape and CD modes.

In the tape mode, tape direction automatically reverses when the end of the tape is reached.

In CD mode, FF advances the CD within the current track.

10. MUTE: Press to mute the

playing media. Press again to return to playing media.

Note: If your vehicle is equipped with the Reverse Sensing System, the audio volume (if set above a certain level) will be lowered to a preset value when the Backup aid tone is sounded.

RDS: (Radio Data System): Press RDS to access the clock mode and the RDS features.

RDS must be turned ON to activate the Traffic, Find Program Type and Show functions. To turn RDS ON, put the radio in FM mode then press the RDS button until RDS OFF appears then press SEL control to toggle function ON.

• Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data). Traffic information is not available in most U.S. markets. To activate, press RDS until TRAFFIC OFF appears in the display then use SEL to toggle function ON.

• FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Press RDS until FIND appears in the display then use the SEL control to scroll through the desired music types. Press SEEK or SCAN to find program type.

• Show TYPE: Allows you to display radio station call sign or format. To activate, press RDS until SHOW appears in the display, then use the SEL to select NAME or TYPE.

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired.

Setting the clock: Your vehicle is equipped with a separate analog clock. Refer to Setting the clock in the Driver Controls Chapter.

Entertainment Systems

11. AUTOSET: Press to set first six

strong stations into AM, FM1 or FM2 memory buttons; press again to return to the original preset stations. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

12. SCAN: Works in radio, tape and

CD modes. Press SCAN for a brief sampling of radio stations, tape selections or CD tracks. Press again to deactivate scan mode.

13. SEEK: Works in radio, tape and

CD modes. Press to access the previous radio station, tape selection or CD track.

14. TUNE: Works in radio mode.

Press down/up the frequency band.

15. AM/FM/CD: Press AM/FM to

select a radio frequency. Press while in tape or CD mode to return to radio mode. Press CD to enter CD mode and to play a CD already in the system. Press AM/FM to switch between AM, FM1, or FM2 memory preset stations. Press the CD control to toggle between CD and DVD (if equipped).

16. Power/volume: Press to turn

the system on/off. Turn to raise/lower the volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. Audio power can also be turned on by pressing the AM/FM select control or the TAPE/CD select control.

Speed sensitive volume (if equipped): Automatically changes the volume slightly with vehicle speed to compensate for road and wind noise. The recommended level is 1–3. Level 0 turns the speed sensitive volume off and level 7 is the maximum setting. To engage the speed sensitive volume feature, press and hold the volume control for five seconds (with the radio on). Press SEL to

increase will appear in the display.

or next listenable

/ to manually advance

/decrease volume compensation levels. The selected level

Entertainment Systems

17. TAPE: Press to begin tape play.

Press during fast forward or rewind to stop fast forward or rewind function.

18. CD door: Insert the disc with the playing side down and printed side

up.

CD units are designed to play commercially pressed 12 cm (4.75 in) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

19. Tape door: Insert the tape facing the right.

AUDIOPHILE IN-DASH SIX CD SOUND SYSTEM

1. SEEK: Works in radio or CD

mode. Press and release SEEK strong station, or track of current disc.

/ for previous/next

Entertainment Systems

2. REW (Rewind): Press for a slow

rewind, press and hold for a fast rewind.

FF (Fast forward): Press for a slow advance, press and hold for a fast advance.

3. DSP (Digital Signal Processing): Your vehicle will have one of the

following Digital Signal Processing (DSP) features:

• DSP ambiance: This feature gives the feeling of “being there”, creating increased clarity as well as an open and spacious feel to the music. Press DSP to access the ambiance menu. Press SEL to engage/disengage. Turn the volume control to increase/decrease the level of ambiance.

• DSP: Press to enter DSP mode. Press SEL to select the desired signal modes, (i.e., JAZZ CLUB, HALL, CHURCH, or STADIUM).

Both DSP features allow you to choose the occupancy mode you want. Press DSP twice then use the SEL control to scroll the occupancy mode to optimize sound for:

• ALL SEATS

• DRIVER SEAT

• REAR SEATS

4. MUTE: Press to MUTE playing

media; press again return to playing media. In CD mode, MUTE acts as a pause feature.

Note: If your vehicle is equipped with the Extended Rear Park Assist, the audio volume (if set above a certain level) will be lowered to a preset value when the Reverse Sensing tone is sounded.

5. EJ (Eject): To eject a single

disc, press EJ and the corresponding preset button number. Press and hold to eject all loaded discs. The eject feature is active whether the ignition is on or off.

Entertainment Systems

6. BASS: Press BASS; then press

SEL the bass output.

TREB (Treble): Press TREB; then press SEL decrease/increase the treble output.

7. SEL (Select): Use with Bass,

Treble, Balance and Fade controls to adjust levels. Use with MENU to engage RDS.

8. BAL (Balance): Press BAL; then

press SEL the left/right speakers.

FADE: Press FADE; then press SEL rear/front speakers.

9. MENU: Press MENU to access

RDS features and compression status.

RDS must be turned ON to activate Traffic, Find Program Type and Show functions. To turn RDS ON, put the radio in FM mode then press the MENU button until RDS OFF appears then press SEL control to toggle function ON.

• Traffic: Allows you to hear traffic broadcasts. With the feature ON,

• FIND Program type: Allows you to search RDS-equipped stations for

• Show TYPE: Allows you to display radio station call sign or format.

/ to decrease/increase

/ to

/ to shift sound to

/ to shift sound to the

press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data). Traffic information is not available in most U.S. markets. To activate, press MENU until TRAFFIC OFF appears in the display then use SEL to toggle function ON.

a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Press RDS until FIND appears in the display then use the SEL control to scroll through the desired music types. Press SEEK or SCAN to find program type.

To activate, press MENU until SHOW appears in the display, then use the SEL to select NAME or TYPE.

Entertainment Systems

• Compression: Brings soft and loud CD passages together for a more consistent listening level. To activate, press MENU until COMPRESS OFF appears and use SEL control to toggle function ON.

Setting the clock: Your vehicle is equipped with a separate analog clock. Please refer to Setting the Clock in the Driver controls section.

10. Memory presets: To set a

station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. In CD mode, press to move between CDs. This radio is equipped with six station memory preset controls which allow you to set up to six AM stations and 12 FM stations (six in FM1 and six in FM2).

11. CD: Press to select CD mode.

Press CD to toggle between CD and DVD (if equipped).

12. AM/FM: Press to select a

frequency band in radio mode. Press AM/FM to switch between AM, FM1, or FM2 memory preset stations.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM. AUTOSET will flash on the display. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press again to disengage.

13. PUSH ON (Power/volume):

Press to turn ON/OFF; turn to increase or decrease volume levels.

Entertainment Systems

Speed sensitive volume (if equipped): Automatically changes the volume with vehicle speed to compensate for road and wind noise. The recommended level is 1–3. Level 0 turns the speed sensitive volume off and level 7 is the maximum setting. To engage the speed sensitive volume feature, press and hold the volume control for five seconds (with the radio on). Press SEL to

increase will appear in the display.

14. LOAD: To load a single disc,

press LOAD then the corresponding preset number. Press and hold to load up to six discs. The load function is active whether the ignition is on or off.

CD display description: Six circles are always lit in the digital display. These signify the six CD slots in the audio system. When a disc is loaded into a particular slot (1–6), the number inside that specific circle lights. If the circle is empty, there is no CD in that particular slot.

This six disc CD player is equipped with a CD door. Compact discs should only be inserted into the player after the door has been opened by the player. Do not attempt to force the door open. Compact discs should only be loaded by pressing the LOAD control.

15. SHUF (Shuffle): Press to play

tracks in random order. Press again to deactivate random play.

16. SCAN: Press to hear a brief

sampling of radio stations or CD tracks. Press again to stop.

17. DISC TUNE: Radio: Press

or to manually tune down or up the frequency band.

In CD mode: Press next disc.

18. CD door: Insert a CD label side

up.

/decrease volume compensation levels. The selected level

to select the previous disc or to select the

Entertainment Systems

REAR SEAT RADIO CONTROLS (IF EQUIPPED)

If your vehicle is equipped with a front row console, then it is also equipped with rear seat radio controls. This feature allows front and middle seat passengers to listen to different media sources (radio, cassette, CD or DVD) simultaneously. (However, the front and middle-seat passengers cannot listen to two different radio stations at the same time.)

When the rear seat controls are activated, rear seat passengers can use the controls to change the playing media for all passengers (Single Play mode). In this mode, all speakers will play audio from the same media source for all passengers to hear. To activate the rear seat radio controls:

• Press the memory preset controls 3 and 5 at the same time. A headphone icon

will illuminate

in the radio display, indicating the rear seat radio controls are active.

• Press memory preset controls 3 and 5 a second time to deactivate the rear seat controls. The headphone icon display.

If there is a discrepancy between the rear seat controls and the front audio controls (such as both trying to listen to the same playing media), the front audio system will receive the desired selection.

VOLUME +MODE

SEEK MEMORY

will turn off in the radio

Entertainment Systems

To activate Dual Play mode (rear

seat passengers listen to a different

VOLUME +MODE

playing media than the front seat passengers):

• Press the speaker/headphone

SEEK MEMORY

control.

• Press the MODE control to change audio sources (for headphone mode only)

• Use the SEEK, VOLUME and MEMORY controls to make adjustments to the playing media.

• Dual Play mode may also be activated by pressing memory

1 2 3 4 5 6

presets 2 and 4 simultaneously on the front audio controls.

The rear speakers mute and rear seat passengers have audio (for their selected media) available through their headphones.

To adjust the volume

The volume control allows the rear seat passengers to adjust the volume level of the audio system.

Press the + control to increase

volume.

VOLUME +MODE

Press the - control to decrease volume.

SEEK MEMORY

From the rear seat controls, volume control can be set no higher than the current radio setting unless the speakers are turned off.

Entertainment Systems

Turning the rear speakers on and off

Press the headphone/speaker control to turn the rear speakers on (Single Play mode) or off (Dual Play mode).

Using headphones/Dual Play mode

Plug a 3.5 mm headphone (not included) into the speaker on/off control to operate the headphones. DUAL PLAY illuminates in the radio display and the fade control is disabled, signaling that Dual Play has been activated.

The rear speakers will cut out once the speaker on/off control is pressed. The front speaker will remain playing for the front passengers. Press the control again to deactivate the headphones. SINGLE PLAY illuminates in the radio display and the fade control is enabled, signaling that Dual Play mode has been deactivated.

To enable Dual Play, the rear seat controls must be active and

illuminated in the radio display.

Mode select

Push the MODE control to toggle between AM, FM1, FM2, tape (if equipped), CD, CD changer (if equipped) or DVD (if equipped). If in Dual Play mode, SHARED illuminates in the radio display when the front and rear modes are set to the same media.

VOLUME +MODE

SEEK MEMORY

jack. Press the

VOLUME +MODE

SEEK MEMORY

Entertainment Systems

Memory preset control

Push the MEMORY control successively to allow rear seat passengers to scroll through the 6 memory presets in AM, FM1 or FM2.

Push the MEMORY control in CD mode (if equipped) to advance to the next disc.

Seek function

• In radio mode, press

to find the next listenable station down the frequency band.

• In radio mode, press

to find the next listenable station up the frequency band.

• In tape mode (if equipped), use the SEEK function to access the

or previous

selection.

• In CD mode (if equipped), use the SEEK function to access the next

or previous selection.

Parental control

Press the memory preset controls 3 and 5 simultaneously on the front audio controls to disable the rear seat controls. They will remain disabled until the front seat passengers “enable” them again by simultaneously pressing the 3 and 5 preset controls. The settings of the front seat controls will always override those of the rear seat controls.

VOLUME +MODE

SEEK MEMORY

VOLUME +MODE

SEEK MEMORY

Entertainment Systems

RADIO FREQUENCIES

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM - 530, 540–1700, 1710 kHz

FM- 87.7, 87.9–107.7, 107.9 MHz

RADIO RECEPTION FACTORS

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CASSETTE/PLAYER CARE

Do:

• Use only cassettes that are 90 minutes long or less.

• Tighten very loose tapes by inserting a finger or pencil into the hole

and turning the hub.

• Remove loose labels before inserting tapes.

• Allow tapes which have been subjected to extreme heat, humidity or

cold to reach a moderate temperature before playing.

• Clean the cassette player head with a cassette cleaning cartridge after 10–12 hours of play to maintain good sound/operation.

Don’t:

• Expose tapes to direct sunlight, extreme humidity, heat or cold.

• Leave tapes in the cassette player for a long time when not being

played.

Entertainment Systems

CD/CD PLAYER CARE

Do:

• Handle discs by their edges only. Never touch the playing surface.

• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Insert more than one disc into each slot of the CD changer magazine.

• Clean using a circular motion.

AUDIO SYSTEM WARRANTY AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

Whenever a warning is received, the radio volume will be lowered to a volume that will allow the tones to be heard. The radio volume will return to the previous level after the warning goes away.

REAR SEAT ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Rear Seat Entertainment DVD System which allows you to watch DVDs, play music CDs and to plug in and play video game systems. Please review this material to become familiar with the system features and safety information.

Entertainment Systems

DVD player controls

1. MAIN control

• NEXT — Press to access the next track on the CD, the next chapter on the DVD, or to go up in cursor mode.

• PREV — Press to access the previous track on the CD, the previous chapter on the DVD, or to go down in cursor mode.

• REV — Press to reverse in CD and DVD play modes or to move the cursor left in the menu active mode.

• FWD —Press to advance in CD and DVD play modes or to move the cursor right in the menu active mode.

2. PLAY/PAUSE control

Press to playback or pause the DVD.

3. DIM control

Adjust to increase (+) or decrease (-) the amount of brightness on the screen.

4. ENTER control

Press to select the function pointed to within the active menu. May also be used by some user interactive discs during movie play.

5. MENU control

Press to bring up the disc menu.

6. AUX control

Press to switch DVD player from play mode to auxiliary mode.

Entertainment Systems

7. Auxiliary jacks

Insert lines for standard video game players.

8. STOP/EJECT control

Press once to stop DVD play. Press again to eject the DVD.

9. DISPLAY (DISP) control

Press to enable on screen display of player menu and user display adjustments.

DVD control features

Menu control

Press the MENU control to enter into MENU mode. This allows you to move and choose within the DVD generated menu structure. Once in MENU mode:

• Press the NEXT control to move the cursor one position upward

• Press the PREV control to move the cursor one position downward

REV

NEXT PREV

FWD

• Press the REV control to move the cursor left one position

REV

NEXT PREV

FWD

Entertainment Systems

• Press the FWD control to move the cursor right one position

Next/Previous control

The NEXT (up) and PREV (down) controls allow you to access the next or previous track on a CD or chapter on a DVD. When pressed, the playing audio will mute momentarily while the next chapter is accessed. Press and hold to advance or reverse multiple tracks or chapters.

REV/FWD control

Press the REV/FWD control during playback mode to reverse or advance at a normal speed. Press the REV/FWD control again to disengage the reverse/advance action and return to normal playback mode

Enter control

The ENTER control allows you to select items when in MENU mode.

Press the ENTER control to select the desired highlighted item.

CD play mode

Press NEXT during CD play to advance to the next track. If you press NEXT during the last track, the system will wrap around to the first track and begin play.

REV

FWD

ENTER

FWD

Slow play mode

To enter slow play mode, press the PLAY/PAUSE control. Once the system is in pause mode, press the

Entertainment Systems

FWD or REV control for slow motion playback. Three different speeds are available depending on how long the control is held. Press the control once for slow motion playback. Press the control again to disengage slow motion playback. Press the PLAY/PAUSE control to return to normal playback mode.

User menu mode

To adjust the display setting, press DISP once and the player menu will appear. Press DISP again to adjust the display setting. Use the arrow controls and the ENTER controls to select the various screen settings. (Available screen selections are 16x9, Normal, 4x3 and Zoom).

The DVD player will read the disc type and configure the display accordingly. Some movies have a wide screen movie format to fit a normal 4x3 screen. In this case, the movie will have black bars on the top and bottom. When shown on the screen, it may appear as a small screen within the wide screen. It may be desirable to view this type of movie in zoom mode. To enter zoom mode, press DISP once for the player menu and again to adjust the display setting. Select zoom from the screen settings by using the arrow and ENTER controls.

Remote control

DISP

REV

MNU

MODE

FWD

SEEKVOL

DISP

ENT

MEMORY

1. REWIND control

Press to reverse the direction of the DVD movie.

5 6

Entertainment Systems

2. FAST FORWARD control

Press to advance the direction of the DVD movie.

3. PLAY/STOP control

Press to play or stop the DVD movie.

4. SEEK control

Press to reverse or advance the chapter of the DVD or the track of the CD.

5. DISPLAY (DISP) control

Press to enable on screen display of player menu and user display adjustments. Once the display is on, use SEEK to choose the desired screen setting.

6. ENTER (ENT) MEMORY control

In DVD playback mode, press the control to select a designated item in menu mode.

In stop mode, press the control to select the next radio memory preset.

7. MNU/MODE control

In DVD playback mode, press to access the disc menu.

In stop mode, press to change to a different playing media (e.g. AM, FM, CD...)

8. VOLUME control

Press to increase (+) or decrease (-) volume level.

Battery replacement

Batteries are supplied with the remote control unit. Since all batteries have a limited shelf life, replace them when the unit fails to control the DVD player. There is a LED indicator light on the remote control that will illuminate when any control is pressed.

Slide the battery cover off as shown on the remote control to access the batteries.

The remote control unit uses two AAA batteries.

Entertainment Systems

Parental control

To enable or disable your Rear Seat Entertainment DVD System, simultaneously press the memory preset controls 3 and 5 on the radio face.

For further information about the Rear Seat Controls, refer to Rear Seat Controls section in this chapter.

Wireless headphones

Your system is equipped with 2 sets of wireless headphones. (Two AAA batteries are needed to operate the headphones.) Batteries are included.

To install the batteries, lightly press down on the top of the left earpiece and slide the cover off.

When replacing the batteries, use two new batteries (alkaline recommended) and install them with the correct (+) and (-) orientation.

ON OFF

Entertainment Systems

Wireless headphone operation

To operate the headphones:

• Press the ON/OFF button on the left-hand earpiece. The LED light on the right-hand earpiece will illuminate. Press again to turn off.

• Adjust the headphones to comfortably fit your head.

• Adjust the volume control to a comfortable listening level.

Note: The volume level of the wireless headphones can only be controlled by the thumbwheel. Neither the remote control nor the rear seat controls will affect the volume output of the wireless headphones.

When not using the headphones, shut them off to preserve battery power. The headphones will automatically turn off after five minutes if they have not received an infrared audio signal from the overhead pod.

Ensure that the line of sight between the headphone and infrared transmitter (mounted on the DVD housing) is not obstructed.

ON OFF

R E

Liquid Crystal Display (LCD) flip-down screen

The screen rotates down to view and into the housing to store when not in use. Be sure the screen is latched into the housing when being stored.

Entertainment Systems

1. 7.0” (diagonal) active matrix liquid crystal display (LCD) screen.

2. Screen housing.

3. Dimmer switch. Press +/- to increase/decrease the brightness of the

screen.

Playback and format

• The DVD player of your Rear Seat Entertainment DVD System can only be used in the “playback” mode. (The DVD player does not offer a record feature.)

• The system plays standard CDs or DVDs.

• The DVD player is only capable of playback of DVDs and CDs. The

player is not compatible with CDR/RW media.

Rear Seat Entertainment DVD System protection circuits

High temperature sensor circuit

• Excessively high temperatures may cause damage to the DVD player.

• When the temperature of the DVD player becomes too hot, the high

temperature sensor circuit stops machine operation. DVD/CD HOT will illuminate in the radio display.

• The DVD player will remain inactive until it cools to a normal operating temperature. Length of time to cool will vary depending on conditions.

General operating tips

• When the engine is not running, use the system sparingly. Otherwise, it will run the battery down.

Entertainment Systems

• When the ignition is turned to OFF, the Rear Seat Entertainment DVD System is also turned OFF. When the ignition is turned ON, the system will begin playback from the last selected media source when the play control is pressed.

• To disable the DVD player, simultaneously press the 3 and 5 memory presets on the radio face. To enable the DVD player again, press the 3 and 5 presets simultaneously.

• The DVD player is only capable of reading the bottom side of a disc. When inserting a single sided disc, the label should be up. For a multi-sided disc, the desired play side should be down when the disc is inserted into the player.

• The DVD player is only capable of playback of DVDs and CDs. The player is not compatible with CDR/RW media.

• DVDs are formatted by regions. This DVD system can only play region 1 DVDs (DVDs manufactured for U.S. and Canada).

This unit is designed to play commercially pressed 12 cm (4.75 in) audio compact discs and DVDs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford DVD/CD players. Irregular shaped discs, discs with a scratch protection film attached, and discs with homemade paper (adhesive) labels should not be inserted into the player. The label may peel and cause the disc to become jammed. It is recommended that homemade discs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage discs. Please contact your dealer for further information.

Inserting a CD/DVD

Inserting a CD/DVD into the DVD player automatically turns the power ON and playback should begin.

The counter is automatically reset to 0:00:00.

Removing a CD/DVD

1. Press the STOP/EJECT control to stop playback.

2. Press the STOP/EJECT control again to eject the CD/DVD.

If the CD/DVD is not removed within the allotted time, the system will pull the CD/DVD back into the system for safety purposes. If the CD/DVD will not eject from the system, press and hold the EJECT control for approximately 2 seconds. The disc should eject whether the vehicle ignition is ON or OFF.

Entertainment Systems

Playing a video game/auxiliary device

1. Connect the video line from your video game device to the YELLOW

auxiliary input jack.

2. Connect the left and right audio lines to the WHITE and RED auxiliary

input jacks respectively.

3. Press the MODE control until DVD/CD AUX (no disc in player) or

DVD/CD play (disc in player) illuminates in the radio display. If a disc is in the system, playback should begin. To enable the aux inputs, press the STOP control or press the AUX control on the DVD player.

On-screen indicators

Each time a control is pressed, the operational status of the DVD player is shown on the screen. The following are some possible indicators:

1. CD track

2. DVD chapter

3. SYSTEM COUNTER — displays current viewing time of desired media.

(HOURS:MINUTES:SECONDS)

4. DVD/ CD STATUS (PLAY/FF/REW/PAUSE)

5. AUDIO OUTPUT (not changeable)

6. Subtitles (specific language type - English or Spanish, dependent on

disc capability and ON/OFF selection.)

7. Camera angle (of picture) - Adjustable with cursor controls and

ENTER control.

Safety information

Read all of the safety and operating instructions before operating the system and retain for future reference.

Entertainment Systems

Do not attempt to service, repair or modify the Rear Seat Entertainment DVD System. See your Ford or Lincoln Mercury dealer.

Do not insert foreign objects into the DVD compartment.

The front glass on the liquid crystal display (LCD) flip-down

screen may break when hit with a hard surface. If the glass breaks, do not touch the liquid crystalline material. In case of contact with skin, wash immediately with soap and water.

Do not expose the liquid crystal display (LCD) flip-down screen to direct sunlight or intensive ultraviolet rays for extensive periods of time. Ultraviolet rays deteriorate the liquid crystal.

Be sure to review User Manuals for video games and video game equipment when used as auxiliary inputs for your Rear Seat Entertainment DVD System.

Do not operate video games or video equipment if the power cords and/or cables are broken, split or damaged. Carefully place cords and/or cables where they will not be stepped on or interfere with the operation of seats and/or compartments.

Disconnect video games and video equipment power cords and/or cables when not in use.

Avoid touching auxiliary input jacks with your fingers. Do not blow on them or allow them to get wet or dirty.

Do not clean any part of the DVD player with benzene, paint thinner or any other solvent.

Whenever a warning is received, the radio volume will be lowered to a volume that will allow the tones to be heard. The radio volume will return to the previous level after the warning goes away.

Federal Communication Commission (FCC) Compliance

Changes or modifications not approved by Ford Lincoln Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications.

Entertainment Systems

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

Care and service of the DVD player

Environmental extremes

DVD players that are subjected to harsh environmental conditions may be damaged or perform at less than maximum capability. To avoid these outcomes, whenever possible avoid exposing your DVD player to:

• extremely hot or cold temperatures.

• direct sunlight.

• high humidity.

• a dusty environment.

• locations where strong magnetic fields are generated.

Temperature extremes

When the vehicle is parked under direct sunlight or in an extremely cold place for a long period of time, wait until the cabin temperature of the vehicle is at normal temperature before operating the system.

Humidity and moisture condensation

Moisture in the air will condense in the DVD player under extremely humid conditions or when moving from a cold place to a warm one. If moisture condensation occurs, do not insert a CD or DVD into the player. If one is already in the player, remove it. Turn the DVD player ON to dry the moisture before inserting a DVD. This could take an hour or more.

Cleaning the liquid crystal display (LCD) flip-down screen

Clean the display screen by applying a small amount of water or any ammonia-based household glass cleaner directly to a soft cloth. Rub the screen gently until the dust, dirt or fingerprints are removed. Do not spray the screen directly with water or glass cleaning solvents. Overspray from these fluids could drip down into the internal electronics of the screen and cause damage. Do not apply excessive pressure while cleaning the screen.

Entertainment Systems

Foreign substances

Exercise care to prevent dirt and foreign objects from entering the DVD player compartment. If liquid is accidentally spilled onto the system, immediately turn the system OFF and consult a qualified service technician.

Cleaning compact discs

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

Cleaning the DVD player

Clean the exterior of the DVD player with a damp cloth. Do not use CD cleaning kits or CDs intended to clean the interior of your DVD player. Use of these products may damage your system.

LINCOLN NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Lincoln Navigation System which allows you to listen to the radio, play CDs and also navigate the vehicle using a navigation DVD.

Your system has a large range of features, yet is easy to use. Guidance is shown on the display screen and is supplemented with voice prompts. The display screen provides full information for operating the system through use of menus, text screens and map displays. Screen selections are made by touching the desired selection on the screen.

Entertainment Systems

1. VOL-PUSH: Press to turn the system ON/OFF. Turn to adjust the audio volume level.

2. AUDIO: Press to enter audio mode and access radio, CD, CDDJ, DVD (if equipped) settings.

3. MAP: Press to enter map mode and view your current vehicle position on the map. Press and hold to obtain additional position information.

4. DEST: Press to enter Destination Entry mode. This allows you to enter a destination and route to it. With an active route, pressing DEST allows the user to request a Detour, display entire route, select route preferences, or change or cancel the destination.

5. MENU: Press to access system settings such as display, brightness, clock mode, etc.

6. CD OPEN CLOSE: Press to open/close the display screen and access the CD player.

Cold temperature advisory

When operating the system below 32° Fahrenheit (0° Celsius), the display screen requires 20–30 minutes warm-up to achieve maximum brightness. Ensure that the system display setting is set to DAY mode until maximum brightness is achieved (refer to Menu mode section). Once maximum brightness is achieved, revert to AUTO mode display setting.

Initial map display

After pressing AGREE to the initial WARNING screen, you will move into the initial map screen which shows the current vehicle location. Pressing the globe icon will take you to the user settings — audible feedback, navigation units, language and clock.

Quick Start — How to get going

To play a radio station:

1. Ensure that the vehicle ignition is on.

2. Press AUDIO.

Entertainment Systems

3. Select AM, FM1 or FM2.

4. Press TUNE to adjust manually up ( band.

5. Press SEEK to find the next strong station up (

Note: If PTY (program type) is selected, the station selection will be limited. Refer to Program Type (PTY) for further information.

To play a previously loaded CD:

1. Ensure that the vehicle ignition is on.

2. Press AUDIO.

3. Press CD to select a CD which is already loaded. (NO CD will appear in the display if there are no CDs loaded into the system). Use the controls (1–6) to select the desired CD.

4. CD will begin to play.

To load CDs:

1. Press CD OPEN CLOSE at the bottom of the screen to load a CD. (The screen will open).

2. Press LOAD and select the desired slot. Or, press and hold LOAD to auto load all available slots. The slot indicator lights blink rate will increase when the system is ready to accept a disc. Push CD OPEN CLOSE to close the screen. Once closed, the CD will begin to play.

3. Use the touch controls to advance tracks, scan, pause, etc. The small red lights below the CD slot will blink faster when the system is ready to accept a disc.

) or down ( ) the frequency

) or down ( ).

Entertainment Systems

To use the Navigation system:

1. Ensure that the vehicle ignition is on, and the navigation DVD is loaded into the navigation DVD player. Refer to Loading the map DVD for navigation DVD locations.

2. Press DEST. The warning screen will appear. After reading, press AGREE. The screen will show a map with your current location. Press DEST again.

VOL PUSH

AUDIO

MAP

DEST

Most functions are unavailable while vehicle is in motion. Please read the navigation handbook for operating instructions. Always drive safely and obey traffic laws.

CD OPEN • CLOSE

WARNING

Agree

3. Select the desired type of destination entry; Address, Point of Interest; Previous Dest; Special Memory Point; Select from map; Memory Point and Freeway Ent/Exit. Enter the required information.

4. Press DEST at the bottom of the map screen.

5. Choose the desired route by pressing the NEXT button (if it appears). There can be up to three alternative routes.

6. Press START to begin the navigation guidance.

Entertainment Systems

To adjust the voice guidance volume:

Press On/Off to turn the voice guidance option on/off. Use the numeric keys (1–7) to determine the volume level of the guidance voice prompts.

Voice activated commands (if equipped)

Your Lincoln Navigation System (LNS) may be equipped with a voice activated feature which allows you to “speak” certain commands to the system. Speaking clearly will help to ensure that the system correctly responds to your commands.

At any time, you may say these commands:

• AM

• FM1

• FM2

• CD

• DVD (if equipped)

During normal radio operation, you may say:

• Seek up

• Seek down

During CD play with the in-dash 6 disc player:

• Track up

• Track down

• Disc up

• Disc down

While in navigation map mode, the following commands are available by voice activation:

• Zoom in

• Zoom out

• Minimum scale

• Maximum scale

While in navigation destination (DEST) mode, the following commands are available by voice activation:

• Home

• Detour

Entertainment Systems

While in navigation map mode, the following commands are available by voice activation:

• Gas station

• Gas

• Hospital

• Police station

• Restaurant

• Hotel

Audio mode

Your Lincoln Navigation Audio System has many features including a full range of audio functions. To access these functions, press AUDIO on the main bezel. This will take you into audio mode.

Volume/power control

Press knob to turn the audio system on/off. Turn to raise or lower volume. The levels will be displayed on the screen.

To activate the navigation mode, press MAP or DEST.

To adjust the navigation voice output level, select the NAV MENU button via the map screen.

Entertainment Systems

Speed compensated volume (SCV)

With this feature, radio volume changes automatically with vehicle speed to compensate for road and wind noise. To engage the SCV feature:

1. Press AUDIO.

2. Press SOUND.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

106.3 107.9

SET PTY

SOUND

AM FM1 FM2

3. SCV is located in the middle of the screen. Press to turn on.

4. Select setting 1 to 7 or turn off.

The recommended level for the speed compensated volume is from level 1 through level 3. When activated, level 1 is the minimum setting and level 7 is the maximum setting.

Entertainment Systems

The AM/FM control works in radio, CD and navigation modes.

AM/FM select in radio mode

Press AM/FM1/FM2 to switch between AM/FM1/FM2 memory preset stations.

AM/FM select in CD mode

Press to stop CD play and begin radio play.

AM/FM select in navigation mode

The radio will continue to play in the background of the navigation screens. To access, press AUDIO then AM/FM1/FM2.

Sound functions

To access settings for Bass, Treble, Balance, Fade, DSP (Digital Signal Programing), SCV (Speed Compensated Volume), and Occupancy modes:

1. Press AUDIO.

2. Press SOUND.

3. Select from Bass/Treb; Bal/Fade; DSP/SCV.

4. Press +/— to increase/decrease the levels.

Bass : Allows you to increase or decrease the audio system’s bass output.

Treble : Allows you to raise or lower the audio system’s treble output.

Fade : Allows you to adjust the amount of sound emitted from the front and rear speakers.

Balance : Allows you to adjust the sound distribution between the right and left speakers.

SCV (Speed Compensated Volume): Automatically compensates for road wind and noise. Refer to Speed compensated volume earlier in this chapter.

DSP Occupancy mode: Use to optimize the sound based upon the occupants in the vehicle. Select from ALL SEATS, REAR SEATS or DRIVER SEAT.

Entertainment Systems

CNTR

Setting memory preset stations

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

1. Select the frequency band with the AM/FM1/FM2 touch controls.

2. Select a station.

3. Press and hold a memory preset until the sound returns. The frequency will appear in the preset.

Entertainment Systems

Seek

• Press listenable station up/down the

frequency band.

• Press next/previous track on a CD.

Tune adjust

Press TUNE to manually move down/up ( band.

In CD mode, press TRACK to select the previous/next (

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autoset memory preset

1. Select a frequency band using

AM/FM1/FM2.

/ to find the next

/ to advance to the

/ ) the frequency

/ ).

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

SET PTY

106.3 107.9

SOUND

AM FM1 FM2

2. Press AUTO SET.

3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing.

Entertainment Systems

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO SET again.

Scan

Press SCAN for a brief sampling of all listenable stations and CD tracks. Press again to disable and remain on the current selection.

Preset scan

Press PRESET SCAN to scan the stations stored in the memory presets.

SCAN

RDS

87.9

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

INFO PTY

98.5

TUNE

AUTO SET

106.3 107.9

TUNE

AUTO SET

106.3 107.9

SET PTY

SOUND

AM FM1 FM2

SOUND

AM FM1 FM2

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations such as such as station call letters, program type, etc. When in FM mode, press RDS to activate/deactivate.

Entertainment Systems

Traffic function

Select TRAFFIC for traffic information broadcast from certain stations which will automatically

SCAN

SEEK

PRESET SCAN

TUNE

AUTO SET

interrupt radio or CD playback at a

RDS

TRAFFIC

89.9

INFO PTY

98.1

98.5

106.3 107.9

preset volume level.

87.9

Traffic information not available in most U.S. markets.

Information feature

Press INFO to view the frequency, call letters and PTY category of the selected FM station.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

106.3 107.9

Program type (PTY)

This feature allows you to search for Radio Data System (RDS) stations selectively by their program type.

Ensure that the RDS function is turned on. Press PTY to turn the feature on/off.

SET PTY

SOUND

AM FM1 FM2

SOUND

AM FM1 FM2

To set/change PTY:

Ensure that the RDS function is turned on. Press SET PTY to select from the following program types:

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

SET PTY

106.3 107.9

SOUND

AM FM1 FM2

Entertainment Systems

• All

• Classical

• Country

• Information

• Jazz

• Religious

• Rock

• Soft

• Top 40

Once PTY has been programmed, press SEEK ( initiate a search up or down the

frequency. Preset scan and Autoset also initiate PTY searches. The search will stop when the desired program type has been reached. If no program type is found, a message will display.

CD mode

/ ) or SCAN to

Entertainment Systems

Playing a previously loaded CD:

To begin CD play (if a CD is already loaded), press AUDIO hard button and then CD.

Press CD. CD play will begin where it stopped last.

Loading a CD:

1. Press CD OPEN CLOSE on the bezel.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

SET PTY

106.3 107.9

SOUND

AM FM1 FM2

2. The navigation screen will fold down, allowing you access to the in-dash six CD system.

3. Press LOAD and the desired CD slot number. The indicator light will blink slowly at first, then quickly, signaling the system is ready.

4. Insert a disc.

Entertainment Systems

5. To load more than one disc, press and hold LOAD. This will initiate autoload and will allow you to load all open CD slots. After an allotted time, the screen will close automatically or you may press CD OPEN CLOSE on the bezel again.

6. Once the screen closes, the system will start playing the last CD loaded.

Track

Press next/previous track.

Rewind/fast forward in CD mode

Press to reverse or advance (

/ to advance to the

/ ) in the current CD track.

Scan feature in CD mode

Press SCAN to hear a brief sampling of all tracks on the current CD. Press again to disengage and remain with the current track.

Entertainment Systems

Shuffle feature in CD mode

When in CD (or CDDJ mode), press SHUFFLE to engage the shuffle feature. Press to select from shuffling between tracks (SHUFFLE TRACK) on the current CD or between all tracks on all CDs (SHUFFLE DISC). All tracks will be played in random order. Press again to disengage (SHUFFLE OFF).

Compression feature

The compression feature works in CD mode and boosts more quiet music and lowers louder music to minimize the need for volume adjustments.

When in CD or CDDJ mode, press COMPRESS to engage or disengage the compression feature.

Pause

In CD mode, press PAUSE to pause the current track. Press again to continue playing.

Entertainment Systems

Map mode

Map display information

To access the map display, press MAP on the bezel.

Once pressed, the current map display will appear on the screen showing the current vehicle location.

Zoom control

When ’Zoom’ is pressed, the scale indicator is shown on the screen. The scale markings are: 1/32, 1/16,1/4, 1/8, 1/2, 1, 2, 4, 8, 16, 32, 64, 128 miles. The control can be used in a number of ways:

• touch and hold one of the arrow buttons for the map to be displayed again at each zoom level.

• touch one of the arrow buttons repeatedly for the map to be displayed again at the final zoom level.

• touch one of the segments of the scale indicator for the map to be displayed at the selected zoom level.

Entertainment Systems

Additional map function buttons

To initiate the display of additional map function buttons, tap the map anywhere on the screen. The following buttons will appear:

• STORE - stores current vehicle location as a memory point. Refer to Memory Points for further information.

• POI (Point of Interest)- brings up the Quick POI menu which allows the user to perform two functions: Display POI icons on the map for one category. Select local map area POIs as destinations or waypoints. The list of local area POIs can be sorted by distance, name, or icon. Refer to Points of Interest for further information.

• NEXT - Press for the system to step through a list of the POIs requested and display them on the map.

• INFO - Press to access the address and phone number of a selected POI.

If home has been previously programmed in the “Nav Menu”, the home icon (house) will appear on the screen and is able to be selected as a destination.

To delete POI icons from the map, touch the map again and press the POI off button.

Screen symbols

Navigation symbol — Indicates the current vehicle position and points to the direction in which the vehicle is currently traveling.

Entertainment Systems

Destination symbol — Indicates the current route destination.

Next turn symbol — Shows the next maneuver that will need to be taken on the current route.

North up button — Indicates that the map is displayed with north to the top of the screen. Press to toggle between “North up” and “Heading up” map display states.

Heading up button — Indicates that the map is displayed with the vehicle heading to the top of the screen. The position of the pointer indicates the direction of north on the map. Press to toggle between “North up” and “Heading up” map display states.

Avoid areas or points — The left-hand symbol indicates an area to be avoided in route calculations. The right-hand symbol indicates an avoid point.

If the avoid point is enlarged to an avoid area, it will appear on the screen as a shaded box.

Way point symbol — Indicates the location of a way point (locations you wish to visit in route to your ultimate destination) on the map.

Entertainment Systems

Home position symbol — Indicates the location on the map, currently stored as the home position.

Stored location symbol — Indicates the location of a memory point. This is the default symbol used when the point is stored. (If desired, an icon of your own choice can be selected from the 15 icons available.) Refer to Choosing from the icon list.

GPS symbol— Indicates that insufficient GPS satellite signals are being received for accurate map positioning. The symbol is not displayed under normal operation.

Speaker icon symbol— Press to turn voice guidance on/off.

Navigation menu

To access the Navigation Menu, press NAV MENU at the bottom of the map screen.

Once pressed, the Navigation Menu will display showing the following options:

• Route Options/Preferences

• Navigation Set Up

• Display Options

• Stored Locations

• On Route Scroll

• Voice Guidance/Volume

Depending upon whether or not a route is active will determine if route options/route preferences is contained on the Navigation Menu.

Entertainment Systems

Route options (destination entered)

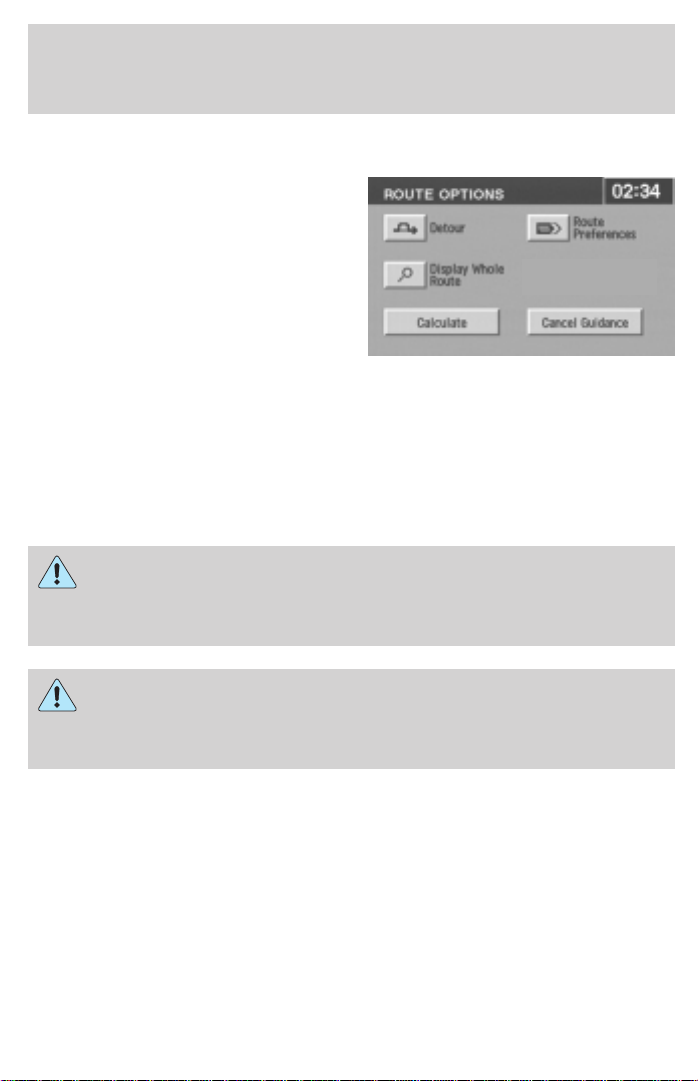

Once in navigation mode and a route is currently active, press “Chng. route” to access the ROUTE OPTIONS screen. Choose from the following selections:

• Detour: Press to select a detour around the current route. Refer to Detour options later in this chapter for further information.

• Route Preferences: When creating a destination, select from: Minimize Time/Distance, Use Major Roads, Use Toll Roads, Use Ferries.

• Display Whole Route: Will enter MAP mode and display your entire chosen route.

Note: Route preference appears on the Nav menu when no destination is entered.

While driving under route guidance, only follow an instruction

when it is safe to do so as the system cannot be aware of changing conditions. Use voice guidance as much as possible, and only view the display when driving conditions permit.

Ensure that you follow highway code restrictions and do not

take any risks. For example, if you are unable to make a U-turn, continue on your journey. The navigation system will recalculate your route to get you back to an appropriate road to your destination.

Entertainment Systems

Route preferences

After entering a destination, the Route options will appear on the screen showing what is currently selected. You may choose to activate/deactivate selections which the system will factor in when calculating your route. Those options are:

• Minimize Time/Distance

• Use Major Roads

• Use Toll Roads

• Use Ferries

Navigation set up

The Navigation Set up screen will allow you to make adjustments to the navigation displays.

Average speed settings

Allows you to set approximate speeds you drive. These speeds enable the navigation system to aid in calculating timing for routes.

Quick POI (Point of Interest)

Allows you to change the Quick POI menu settings. Select the desired Quick POI (Gas, ATM, etc.) and then press ’List Categories’ for further categories, or ’Map Area POIs’ to show the desired POIs on your current map.

Restore system defaults

Resets all system user-selectable options to the default (automatic) values (i.e, guidance, voice, search area and route preferences).

Entertainment Systems

Calibration

This feature is helpful if the car has been towed, or if you notice it is not registering at the correct vehicle location on the map. Press “Position” to reposition the vehicle location. Press the screen to scroll the map to the desired location and press OK to confirm. Press “Distance” to calibrate by distance and improve the navigation accuracy. It is recommended to activate this function after every tire replacement. When the button is highlighted, calibration is in process and will turn off automatically when complete.

DVD map version

Displays the version of the inserted navigation DVD. Refer to Ordering additional map DVDs for further information.

Display Options

The Display Options screen will allow you make adjustments to the navigation display screen. You can choose from:

• Map Mode (Dual or Full)

• Guidance Mode (Arrows or Turn

list)

• Guidance Display (On or Off)

• Time to destination (Show or Hide)

Stored locations

The Stored locations screen will allow you to choose from destinations that have been saved into the navigation system.

In this screen, you can select from Memory Points, Special Memory Points, Home, Avoid Area, Destination and Way Point, or Previous Destination. Please refer to the Destination menu section for a complete description of the functions.

Entertainment Systems

On route scroll

The system automatically scrolls through the entire planned navigation route either forwards or backwards. To activate, press the arrow buttons at the bottom left of the map screen.

Voice guidance/volume

Allows you to turn the voice guidance option on/off and to determine the volume level of the guidance voice prompts.

Destination menu

Press DEST on the main bezel to access the navigation mode.

Entertainment Systems

Initial map display

Note: There may be a slight time delay between the soft key and the hard key functions.

Route options

Once in navigation mode and a route is currently active, the ROUTE OPTIONS screen will appear and allow you to choose from the following selections:

• Detour — Press to select a detour around the current route.

• Route Preferences — When creating a destination, select from:

Minimize Time/Distance, Use Major Roads, Use Toll Roads, Use Ferries.

• Display Whole Route: Will enter MAP mode and display your entire chosen route.

• Destination Entry: Allows you to enter a new destination or select from entries in: Address book, Points of Interest, Previous Destinations, and Intersections.

While driving under route guidance, only follow an instruction

when it is safe to do so as the system cannot be aware of changing conditions. Use voice guidance as much as possible, and only view the display when driving conditions permit.

Entertainment Systems

Ensure that you follow highway code restrictions and do not

Destination entry Selecting a destination

Press DEST to set a destination. From this menu, you may select from the following options:

• Address— Use to select a

destination based on a known street address or intersection.

• Point of Interest— Use to

select a destination that is a point of interest location (i.e., airport, restaurant, hospital).

• Select from map —Use to select a place on the map.

• Previous Destination — Use to select a destination from among the

last 20 entered destinations

Press more selections:

• Memory point — Use to select

from a memory point.

• Freeway exit/entrance — Use

to select a certain freeway exit or entrance.

• Special Memory Points — Use

to select a destination from previously stored entries.

’Next Page’ to access

Entertainment Systems

Search area

Your navigation system uses a regional search area. This area is the area from which navigational directions will be used. To check your area or reset, press CHANGE under the search area listing. The map will open and allow you to select another regional area. Ensure that your search area is correct prior to setting your destination.

Points of interest (POI)

Select “Point of Interest” from the Destination Entry Menu. In this next menu, you will have the following options:

• By Name— Enter POI name on

the keyboard. Touch “List” to display the list of matching points of interest. If there are too many matches being listed, try entering the town name first.

• By Category — Press “Category”. Scroll down the list to select the

category, then sub-category desired. Once you have selected a category, your entry of the POI will be restricted to that category.

Previous destination

Press “Previous Destination” on the Destination Entry Menu.

• Select (touch) the desired item from the list of destinations previously reached. The item details will be listed.

• Confirm destination details.

Entertainment Systems

Deleting previous destination

• Press “Delete”. The list of previous destinations is displayed showing “Delete Previous Destination” at the top of the screen.

• Select (touch) the entry to be deleted. The item details will be listed.

• Press YES to confirm the deletion.

• Press DELETE ALL to delete all previous destination.

Memory point

Your navigation system allows you to save special destinations you may wish to again visit. Select “Memory Point” from the Destination Entry Menu.

• Select the desired item from the list of stored memory points.

• Confirm destination details.

Note: The list can be sorted by date, name or icon by pressing the appropriate button.

STORE MEMORY POINT

Entertainment Systems

Adding a memory point

• Once in the Store Memory Point Menu, press ADD.

• Select (touch) the desired menu item.

• Enter/select any required details. The new point will be added to the

stored list of memory points.

To give the new memory point a name:

• Select it from the list.

• Press NAME.

• Enter the desired name.

Accessing memory point lists

• Press LIST

• Select the desired entry to view

its location details.

Sorting memory point lists

• Access the desired list.

• Press the button to sort the list

as desired (i.e. date, name, or icon).

When sorted by distance, the points are ordered by distance from the current vehicle location. When sorting by icon, the icons are listed in the order they appear on the icon selection screen.

Entertainment Systems

Choosing from the icon list

After choosing ICON to edit, 15 normal and three audible icons will be displayed. Press the icon you wish to use.

The normal icons will be displayed on the map to indicate the map location identified with that icon. The audible icon will sound a distinctive chime when the vehicle is approaching the memory point associated with that icon.

Deleting a memory point

• In the Memory Point Menu, press DELETE.

• Select the entry to be deleted.

• The system will ask you to

confirm deletion. Press YES to confirm.

The screen will briefly show “Memory Point Deleted”.

Deleting all memory points

• In the Memory Point Menu, press DELETE ALL.

• The system will ask you to confirm deletion. Press YES to confirm.

The screen will briefly show “All Memory Points Deleted”.

Home

To set home for the first time:

• Press MAP.

• Press “Nav. Menu”.

• Press “Stored Locations.”

• Press “Home”.

• Press “Add”. Set home by

selecting the correct address, POI, Previous destination, or selecting from the map.

Entertainment Systems

To view home, press the home icon (house) on the Destination Entry screen.

Once home is set, you may select home as a destination.

Entertainment Systems

Adding a home location

• Select the desired menu item you wish to set as Home (Address, Memory Point, Point of Interest, Previous Destination).

• Enter the required details.

• Press OK to set the home

position.

To view the set home position:

From the stored locations menu with home selected, press LIST to view the location of the stored home position.

SET HOME

Deleting a home location

• Once in the stored locations menu with home selected, press DELETE.

• The system will ask you to confirm.

• Press YES to confirm.

Entertainment Systems

Freeway Entrance/Exit

Select “Freeway Entrance/Exit” from the second page of the Destination Entry menu. Follow these steps:

1. Enter freeway name— Enter

the freeway name using the keyboard. Press “List” to select a freeway from those displayed.

To enter numbers in the freeway name, press “Sym”.

2. Select entrance/exit— Press

“Entrance” if you wish to join the freeway at this junction. Press “Exit” if you wish to leave the freeway at this junction.

3. Select Junction— The screen

will display a list of junctions on the freeway. They can be listed either by distance, (from the current vehicle location), by pressing the “Dist” button or alphabetically by pressing the “A-Z” button. Select the desired entrance or exit.

The destination details are displayed for confirmation.

Entertainment Systems

Special memory points

There are five possible memory points that you can set.

To set a memory point:

• Press MAP.

• Press “Nav Menu”.

• Press “Stored locations”.

• Press “Special Memory Point”.

• Select “Add” and input destination.

• Press OK to confirm.

To delete a memory point:

• Press “Delete”. The list will display.

• Select the special memory point to delete.

• Press “Del. all” to delete all entered special memory points.

• Press “Yes” to confirm.

Once all five special memory points are entered, the “Add” control will read as “Full”. You must delete points before more can be added.

Destination and way points

The Store Dest. & Way Point menu is used after a destination or way point has been entered for the first time using the Destination Entry menu. You can store and delete destinations and way points (locations you wish to visit in route to your ultimate destination). You can also select the order in which you visit them.

Entertainment Systems

Adding (storing) a destination or way point

• Once a destination is entered, press ADD to store the location. The Store Dest. & Way Point menu is displayed.

• Select whether you want to store an Address, Point of Interest or Previous Destination.

• Enter the necessary details for the selection.

• If a destination was entered, it will be stored as the current location. If a way point was entered, it will be added to the list of way points.

Listing destinations and way points

Press LIST to display the stored way points and destination (if entered).

The first way point to be visited is at the bottom of the list and the destination is at the top.

You may view the map location of any entry. On the map, location details for the entry are displayed at the top of the screen.

To adjust the position of the way point (or destination), scroll the map as required.

Press OK.

Entertainment Systems

Editing and changing order of way points and destination

Press “Chg. Order” to change the order in which the way points are visited. The points are listed chronologically from bottom up, the destination being on the top.

Press the MAP button to edit the way point location on the map display.

Press OK to confirm.

Deleting way points and destination

After pressing DELETE, the list of way points and the destination (if entered) is displayed, showing the ’Delete Dest. &Way Pt.’ menu.

Select the entry to be deleted. Press YES to confirm.

Press DELETE ALL to delete all way points. Press YES to confirm.

Selecting route criteria

Once you have selected a destination, you may change the routing criteria by pressing “Change” in the route preferences screen. Refer to Route preferences for further information.

Entertainment Systems

Route calculation

Once the route criteria is selected, the navigation system automatically calculates the selected destination. The route appears on the display screen and a voice prompt provides instructions.

The system may calculate up to four routes for the desired destination. Press “Next” to scroll through the various planned routes. Press “Start” to confirm the route selection and begin route guidance.

Detour options

You may engage the detour option when on the map display by going to the “Nav menu” and selecting “Route Options”.

Press DETOUR to activate. Use the soft controls to select and enter the number of miles you want to deviate off of the current road.

Press NEW ROUTE if you would like the system to plan a different route.

Press DETOUR to confirm the selection.

Entertainment Systems

Route interruptions

In the course of your destination, you may decide to temporarily leave your planned route for gas, food, etc. If you turn off the ignition, the option to continue the route guidance will be displayed when the ignition is turned on again. The route can be accessed once again after you press “Agree” on the warning screen.

Route alterations or cancellations

To cancel or change your current route from the map, press DEST or select “Nav Menu” and “Route Options”. You may then select from Detour, Display whole route, change route preferences or cancel guidance.

Avoiding an area while under guidance

For one reason or another, you may choose to avoid a certain area while in route to your destination. To select the area to avoid:

• From the MAP screen, press Nav Menu.

• Select Route Options, then Display Whole Route

• Press Turn List

• Press Avoid next to the street to

be avoided

• Choose OK to confirm

• Press Reroute to activate

The new area is added to the list of stored avoid areas.

Note: In some circumstances, it may not be possible to avoid all selected areas.

STORE AVOID AREA

Entertainment Systems

Listing areas to avoid

You can list all areas noted as “avoid”.

• Press “Nav Menu”.

• Press “Stored locations”.

• Press “Avoid area”.

• Press LIST to view all previously

stored selections.

• Select the desired one. The map screen will be displayed, showing the location and address of the selected area.

Press Enlarge or Reduce to adjust the size of the visible area. Scroll the map as required.

Deleting areas to avoid

To delete a selection from the “Avoid area” list:

• From the stored locations menu, select “Avoid area”.

• Press DELETE

• Select the desired area to be

deleted.

• Press DEL. ALL to delete all stored areas.

• Press YES to confirm.

Entertainment Systems

To access menu mode, press the MENU hard control.

Menu mode allows you to access:

• System Set-up

• Information — Gives you the

Lincoln Customer Assistance Center information.

• Brightness/Contrast — Allows you to adjust the brightness and contrast on the screen.

Entertainment Systems

• Screen off — Allows you to turn off the navigation screen.

System setup

The system set up menu contains the following user settings:

• Audible Feedback — Press to activate audible voice navigation commands. Press again to deactivate.

• Navigation Units — Press to toggle between Metric/English units.

• Language — Press to toggle between English, French, or Spanish.

DVD interaction (if equipped)

Your vehicle may be equipped with a DVD player. Your Lincoln Navigation System (LNS) will interact with your DVD player, providing you access and messages to the status of the system.

Entertainment Systems

• Press AUDIO.

• Press DVD to access the DVD

screen.

You may select from different chapters, rewind or fast forward within the current chapter, stop, play or pause the DVD. You may also select DVD AUX mode (which would allow you to plug in and play games), to enable/disable headphones, or to enable/disable rear seat controls. For further information, refer to Rear seat audio controls (if equipped) and Family entertainment DVD system (if equipped)earlier in this chapter.

Voice activated commands (if equipped)

At any time, you may say these commands:

• AM

• FM1

• FM2

• CD

• DVD (if equipped)

During normal radio operation, you may say:

• Seek up

• Seek down

During CD play with the in-dash 6 disc player:

• Track up

• Track down

• Disc up

• Disc down

Entertainment Systems

While in navigation map mode, the following commands are available by voice activation:

• Zoom in

• Zoom out

• Minimum scale

• Maximum scale

While in navigation destination (DEST) mode, the following commands are available by voice activation:

• Home

• Detour

While in navigation map mode, the following commands are available by voice activation:

• Gas station

• Gas

• Hospital

• Police station

• Restaurant

• Hotel

General information

Safety information

Please read and follow all stated safety precautions. Failure to do so may increase your risk of collision and personal injury. Ford Motor Company shall not be liable for any damages of any type arising from failure to follow these guidelines.

Do not attempt to service, repair or modify the system. See your Ford or Lincoln Mercury dealer.

The driver must not attempt to operate any detailed operation of

the navigation system while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road and park in a safe place before performing detailed operations.

If the system is used for an extended period of time with the

vehicle stationary, ensure that the engine is running to avoid draining the battery.

Entertainment Systems

Do not apply pressure to the display screen.

The navigation system is not a substitute for your personal judgement.

Route suggestions should not supersede local traffic regulations or safe driving practices.

Do not follow route suggestions if they direct you to perform an unsafe or illegal maneuver, would place you in an unsafe situation, or would route you into an area that you consider unsafe.

Drivers should not rely on screen displays while their vehicle is in motion. Let the voice guide you. If viewing is necessary, pull off the road to a safe location.

Do not use the navigation system to locate emergency services.

For road safety reasons, the driver should program the system only when the vehicle is stationary. Certain functions will therefore not operate while the vehicle is in motion.

The map database DVD does not reflect road detours, closures or construction, road characteristics such as rough road surface, slope or grade, weight or height restrictions, traffic congestion, weather or similar conditions.

To use the system as effectively and safely as possible, obtain up-to-date map database DVD whenever they become available.

Set the volume level so that you can hear directions clearly.

Do not disassemble or modify the system as this may lead to damage and void your warranty. If a problem occurs, stop using the system immediately and contact your Ford or Lincoln Dealer.

Federal Communication Commission (FCC) Compliance

Entertainment Systems

equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

The database reflects reality as existing before you received the

database and it comprises data and information from government and other sources, which may contain errors and omissions. Accordingly, the database may contain inaccurate or incomplete information due to the passage of time, changing circumstances, and due to the nature of the sources used. The database does not include or reflect information on neighborhood safety, law enforcement, emergency assistance, construction work, road or land closures, vehicle or speed restrictions, road slope or grade, bridge height, weight or other limits, road or traffic conditions, special events, traffic congestion, or travel time.

Radio reception factors

There are certain factors that may effect your radio reception.

• Distance/strength. The further an FM signal travels, the weaker it is.

The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s

antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger

signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

Principles of GPS (global positioning system) operation

Your system directs you based on information derived from global positioning satellites, road maps stored on the DVD, sensors in your vehicle and the desired destination. The system compiles all necessary information to guide you to your selected destination. Space satellites determine the vehicle’s current location and transmit position and time signals to your car.

If the vehicle has been parked for a long period of time, the navigation function may be temporarily unresponsive. The navigation system will operate reliably again once GPS reception is available for a few minutes.

Entertainment Systems

Limited GPS reception

System performance may be adversely affected if GPS reception is interrupted or interference occurs over a distance of several miles. The following are possible causes for GPS reception being interrupted. If the vehicle is:

• in multi-story parking garages

• in tunnels and under bridges

• inside or in between buildings

• by forests or tree-lined avenues

• in heavy rain showers and thunderstorms

• in valleys and in mountainous regions

• roads under cliffs

Ensure that you do not have any metal objects on the rear parcel shelf and that if your windows are tinted, they use non-metal tinting instead of metal oxide tinting. Both of these factors can also interrupt GPS reception.

Cleaning the display

Do not spray cleaning fluid directly onto the unit. Instead, spray onto a soft cloth and gently wipe the unit. Only recommended products should be used.

Do not clean any part of the system with benzene, paint thinner or any other solvent.

Do not spill liquids of any kind onto the unit.

Loading the map DVD

• Your navigation DVD unit is either located: in the front lower center stack area by the passenger’s feet (access door), in the trunk, or in the jack compartment.

• Ensure that the vehicle ignition is ON.

• If a DVD is already loaded in the Navigation unit, push the eject

button.

• Load the DVD with the printed side up. Do not allow moisture or foreign objects to enter the slot.

Entertainment Systems

The navigation system utilizes a database stored in a special format on a DVD. It is recommended always to use the latest update of this map DVD.

• The navigation system will only work with DVDs specifically intended for your navigation system.

• Always store the map DVDs in their protective cases when not in use.

Ordering additional map DVDs

If you wish to order a replacement or additional map, please call 1–888–NAV-MAPS (1–888–628–6277) or to log onto www.navtech.com.

Latest map DVDs

The map content is constantly changing due to new roads, traffic restrictions, etc. . Therefore, it is not always possible to exactly match the DVD map with the current roadways. For best results, always use the latest version of the map DVD. Map information is regularly updated, but all areas are not necessarily covered to the same level of detail. Some areas, in particular private roads, may not be included on the database. To help with accuracy, always use the latest DVD version for navigation.

Customer service

If you need help operating your navigation/audio system, want to report a map database error or want to obtain a map DVD, please call 1 (888) 628–6277 (NAV-MAPS) or log onto www.navtech.com.

Climate Controls

DUAL ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (DEATC) SYSTEM (IF EQUIPPED)

EXT

F C

F F

A/C

DUAL

789101112 4

10. Panel control

11. OFF control

12. AUTO control

13. Driver temperature control

14. Fan speed control

15. Exterior temperature control

16. Temperature conversion control

AUTO

OFF

1. A/C control

2. Recirculated air control

3. Passenger temperature control

4. Rear defrost control

5. DUAL control

6. Defrost control

7. Floor & Defrost control

8. Floor control

9. Panel & Floor control

The DEATC system will maintain a selected temperature setting and automatically control the fan speed and airflow location.

The dual temperature zone feature allows the driver and front passenger to set their own independent temperature set points for individual comfort. The system uses common controls for air distribution and fan speed for both driver and passenger.

Climate Controls

AUTOMATIC OPERATION

Press AUTO and select the desired temperature. The system will either heat or cool the vehicle to achieve the selected temperature. The system will automatically determine fan speed, airflow location and whether outside or recirculated air is required.

AUTO

When in automatic operation and weather conditions require heat, the air will be sent to the floor ducts. However, until the engine is warmed, the fan speed will operate at a low speed and airflow will be directed to the windshield defroster ducts. Upon engine warm up, the system will automatically direct airflow to the floor ducts and operate at the required fan speed to achieve the selected temperature.

If unusual conditions exist (i.e. window fogging, etc.), the manual overrides allow you to select airflow locations and fan speed. To return to automatic operation, press AUTO.

T EMPERATURE ZONE

Press DUAL to enable or disable the dual zone temperature feature. When DUAL is pressed, the display window indicates the current temperature setting for the driver and the last temperature setting for the passenger. In addition to the DUAL control, the passenger may manually enable the dual zone temperature feature by pressing the passenger temperature control.

When DUAL has been enabled, the DUAL indicator will be illuminated.

EXT

F C

OFF

TEMPERATURE SELECTION

To control the temperature for the driver and for the passenger, select the desired temperature by pressing the driver or passenger temperature controls.

Climate Controls

T EMPERATURE CONVERSION

Press the F/C control to switch between Fahrenheit and Celsius temperature on the display. The temperature in Celsius will be displayed in half-degree increments.

The English/Metric control on the trip computer and message center (if equipped) will not change the temperature display.

AUTO

OFF

EXT

F C

FAN SPEED (

)

When in automatic operation, fan speed operates as necessary to achieve the selected temperature. If

EXT

desired, the fan speed can be adjusted manually through the use

F C

of the fan speed control. When the fan speed is adjusted while in automatic operation, the AUTO indicator will remain lit and the

AUTO

OFF

system will remain in automatic operation. To return to automatic fan operation, press AUTO.

• A/C control

A/C

(air conditioning) — Used to manually enable or disable air conditioning in all modes except Defrost. However, the A/C will only function if the outside temperature is above approximately 2°C (35°F). In Defrost, the A/C will operate automatically if the outside temperature is above approximately 2°C (35°F); however, the A/C indicator will not be lit.

Climate Controls

In automatic operation, the air conditioning operates as necessary to achieve the selected temperature and the A/C indicator will be lit. If desired, the air conditioning can be controlled manually through the use of the A/C control. When the air conditioning is controlled while in automatic operation, the AUTO indicator will remain lit and the system will remain in automatic operation. To return to automatic air conditioning operation, press AUTO.

Since the air conditioner removes moisture from the air, it is considered normal operation if clear water drips on the ground under the air conditioner drain.

• Recirculation control

(recirculated air) — Used to manually enable or disable the operation of recirculated air in all modes except Defrost. When the air conditioning is operating, recirculated air helps to reduce the amount of time required to cool the inside of the vehicle. Recirculated air will reduce undesirable odors from entering the vehicle.

The recirculated air cannot be selected in Defrost, as interior fogging may occur. To reduce the risk of fogging while in Floor & Defrost, the recirculated air can be enabled for approximately 4 minutes and the recirculated air indicator will be lit. After approximately 4 minutes of recirculated air operation while in Floor & Defrost, the DEATC (Dual Electronic Automatic Temperature Control) will automatically disable the recirculation control and the recirculated air indicator will not be lit.

In automatic operation, the recirculated air operates automatically as necessary to achieve the selected temperature. If desired, the recirculation control can be controlled manually through the use of the recirculated air. When the recirculated air is controlled while in automatic operation, the AUTO indicator will remain lit and the system will remain in automatic operation. To return to automatic recirculated air, press AUTO.

Under cold or damp conditions, do not leave the climate control system in recirculated air for extended periods of time as this may cause interior fogging of the windows.

Climate Controls

MANUAL OVERRIDE CONTROLS

A/C

DUAL

AUTO

EXT

F F

F C

OFF

The manual override controls allow you to determine where airflow is directed. To return to full automatic control, press AUTO.

The A/C compressor will only function if the outside temperature is above approximately 2°C (35°F).

• OFF-Outside air is shut out and the fan will not operate. This mode

will reduce undesirable odors from entering the vehicle but may increase the possibility of interior window fogging.

•

(Panel) - Distributes outside or recirculated air through the instrument panel registers. The system will allow some airflow through the floor ducts.

•

(Panel & Floor) - Distributes outside or recirculated air through the instrument panel registers and the floor ducts, and side window demisters. The air distributed through the floor ducts will be slightly warmer than that sent to the instrument panel registers.

•

(Floor) - Distributes outside or recirculated air through the floor

ducts and side window demisters.

•

(Floor & Defrost) - Distributes outside air through the floor ducts, windshield defroster ducts and the side window demisters. The air distributed through the floor ducts will be slightly warmer than that sent to the windshield defroster ducts and the side window demisters.

•

(Defrost) - Distributes outside air through the windshield defroster ducts and the side window demisters. However, the A/C indicator will not be lit. This mode will clear ice and fog from the windshield. The system will allow some airflow through the floor ducts.

Climate Controls

OPERATING TIPS

• To reduce fogging in humid weather conditions, unless in Defrost or Floor & Defrost, press the A/C control before driving as the air conditioning removes moisture form the air.

•

To reduce humidity buildup inside the vehicle in warm weather conditions, do not drive with the climate control system in the Off mode.

• To reduce humidity buildup inside the vehicle in cold weather conditions, don’t drive with the climate control system in recirculation mode or Off mode.

•

Remove any snow, ice or leaves from the exterior base of the windshield.

•

To increase the efficiency of the A/C, drive with the windows slightly open for 2–3 minutes after start up or until the vehicle has been “aired out.”

• Do not place objects under the front seat or over the defroster ducts. They may reduce visibility, fall into the ducts, or degrade the performance of your climate control system.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

AUXILIARY CLIMATE CONTROLS (IF EQUIPPED)

The auxiliary climate control feature provides increased capacity to quickly heat or cool the vehicle. Auxiliary climate controls are located in the first row overhead console.

and in the floor console on the back of the front row console (if equipped).

The auxiliary climate control system is dependent on the main climate control system. If the main climate control system is in the Off position, the auxiliary climate control will not operate. If the main climate control system is on, the auxiliary air will not be cooled unless the air conditioning is functioning on the main climate control system.

Climate Controls

The auxiliary unit can be controlled either by the front seat using the front auxiliary control or by the rear seat passenger(s) using the rear auxiliary control but not both. To control the auxiliary unit using the rear control, the front control must be in the REAR position.

FAN SPEED CONTROL

Controls the fan speed in the rear of the vehicle.

TEMPERATURE CONTROL

Controls the temperature of the airflow in the rear of the vehicle.

MODE SELECTOR

Press the mode selector once to select air distribution through the overhead vents. The Panel icon will illuminate on the temperature control selector. Press the mode selector again to select air distribution through the floor vents. The Floor icon will illuminate on the temperature control selector. Only the auxiliary control head (front or rear) that is active will have the icons illuminated.

REAR WINDOW DEFROSTER

Used to manually enable or disable rear window defrost in all modes.

After approximately 10 minutes of rear defrost operation, the climate control system will automatically disable the rear defrost operation. If desired, the rear defrost can be manually disabled through the use of the rear defrost button. When operating, the rear defrost indicator will be lit.

100

Lincoln NAVIGATOR 2003 Owner Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

T able of Contents

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls
