Introduction

GENERAL INFORMATION

• After transport of the vehicle by a tow truck, car train or in a car ferry, the navigation system may need a few minutes outdoors for exact repositioning.

• After the vehicle battery has been disconnected, the system may need up to 15 minutes for exact repositioning. The vehicle has to be situated outdoors and the system has to be switched on to receive the GPS satellites.

• The system is fully operational even without valid GPS data, but the accuracy of positioning may decrease.

• As soon as sufficient GPS data is received, the color of the satellite icon in the GPS window changes from red to green.

• On highways, the distance indications of the navigation system for exits are different from those on the highway signs. The highway signs refer to the distance to the beginning of the exit, whereas the navigation system refers to the end of the exit. This is the point where you must turn.

• When the vehicle is moving, only the five buttons on the console will be active. The rotary button will be active only after selecting one of the five buttons and only if applicable to the menu available.

Introduction

HOW DOES THE NAVIGATION SYSTEM WORK?

The navigation system is a tool to assist the driver in daily traffic. The system allows you to enter the destination and activate “Guidance”, and the system provides guidance advice through both audio and visual advice.

Determination of the vehicle position

The movement of the vehicle is measured by sensors which are integrated into the navigation system. The distance driven is recorded by an electronic signal from the speedometer and the rotary movements of turns by the gyroscope (a rotary measurement system). The information from these sensors is, however, not always exact as the values can be affected by tire slippage, varying tire pressure due to changes in temperature, etc.

Data from the sensors, in conjunction with positional information received from the global positioning system is transmitted to the navigation computer. The resultant calculated position is then compared against the road network data stored on the CD-ROM in order to display the current vehicle position.

GPS (global positioning system)

The global positioning system is based on the reception of navigation signals from a total of 24 GPS satellites at a height of 20 920 km (13 000 miles).

Signals from at least four satellites must be received to determine the vehicle position with sufficient accuracy. The GPS receiver can handle up to eight satellite signals simultaneously. This allows an accuracy of approximately 100 m (328 ft), which is further improved by other sensors so that a final accuracy of approximately6mto18m (20 ft to 60 ft) can be reached.

When the vehicle is parked for a long period of time, the satellites change their orbital positions. Therefore, when the ignition is turned on again it can take a few minutes before the navigation system can pick up enough satellites and evaluate the received signals.

• Sufficient reception is indicated by the green symbol that appears in the system’s display. If the satellite symbol remains red, the GPS reception is not sufficient.

Introduction

When starting up, the navigation system may tell you: “You are leaving the digitized area”. The displayed map will then show the vehicle position off the road. If there are other roads in this area, the navigation system may send inappropriate messages. This means that the system assumes the vehicle is on one of the other roads.

• When the vehicle has been parked for a long period of time, the navigation function may be temporarily unresponsive. The navigation system will operate reliably again once GPS reception is available for a few minutes.

Limited GPS reception

System performance may be adversely affected if GPS reception is interrupted or interference occurs over a distance of several miles. The following are possible causes for GPS reception being interrupted. If the vehicle is:

• in multi-story parking garages,

• in tunnels and under bridges,

• in between high buildings,

• by forests or tree-lined avenues,

• in heavy rain showers and thunderstorms,

• in valleys and in mountainous regions.

The digital road map

In order to plan a route, the current car position, destination location, as well as all the roads in between are needed. This information is available on digital road map CDs which you insert into your navigation computer.

Real road network

Introduction

Line pattern of the digital map

On the map CD, the road network is stored as a line pattern, which means that even extensive junctions only have one center point all roads lead to. That is why the navigation system indicates the distance to the next turn as the distance to the center of the junction. Therefore, the distance indications for freeway exits given by the navigation system may be different from those on the freeway signs. The freeway signs refer to the distance to the beginning of the exit.

Latest map CDs

Approximately 10–15% of the traffic network is changing annually. Due to these constantly changing conditions (new roads, traffic restrictions, etc.) a 100% correspondence of the digital road map with reality cannot be achieved under all circumstances. We recommend to always use the latest version of the map CD for Navigation.

Updated CDs are available twice per year through Navigation Technologies. Refer to the Ordering additional map CDs section in the Map CD chapter for more information.

Controls

CONTROLS

The navigation system color display and the system controls are located in the center console.

Turn the rotary button clockwise or counterclockwise to move the cursor

on the screen. In this user manual, it will be referred to as SELECT.

Press the rotary button to enter (confirm a selection) the selection highlighted by the cursor. In this

PUSH TO

ENTER

user manual it will be referred to as ENTER.

To CHOOSE a menu option means to SELECT (by turning the rotary control) the option you desire and ENTER it (by pressing the rotary control).

Controls

SHORT-CUTS

The navigation system has five “short-cut” buttons that can be found on the center console control unit.

REPEAT

Press “repeat” to receive the last vocal guidance advice. This will only give advice if the “guidance” has been activated.

MAP

In certain screens the “Map” button has a screen toggle effect.

• On a digitized road it is possible to switch between Guidance Screen, Map display and Split screen.

DETOUR

When the “detour” button is pressed, the system checks whether or not the “guidance” is activated. If the system is in guidance mode, the detour entry screen is shown. This screen only allows use of the rotary control to select “detour distance”. The “Repeat” and “On/Off” buttons are the only other functional buttons during this operation.

Refer to the Alternative Route chapter for more information on selecting an alternative route.

VOLUME

When the “Volume” button is pressed, the volume adjustment screen is shown. The “Repeat” and “On/Off” buttons are the only buttons that are functional when the volume screen is active.

Refer to the Volume section of the System Settings chapter for more information on volume settings.

REPEAT

MAP

DETOUR

VOLUME

Controls

ON/OFF

When this button is pressed, the display will shut off and any programmed guidance will be canceled. If the display is dark and the ignition is On, pressing “On/Off” button turns on the display and the Start Menu screen is shown.

SWITCHING ON/OFF

The navigation system can only navigate when the ignition switch is in the ON or ACC position. Refer to the Positions of the ignition section in the Driver controls chapter of your Owner’s guide for more information.

• The display first shows a start-up screen that will only be on for a few seconds. This is followed by:

• The legal disclaimer screen for usage of the system. Read this notification and accept by pressing ENTER.

Stand-by mode

If the brightness of the display screen is disturbing, for example by night or in tunnels, the display can be switched off.

1. CHOOSE “Stand-By” in the Start menu.

• The display is switched off.

• You will still hear the guidance advice from the speaker.

2. Press or rotate ENTER or press the “ON/OFF” button to turn on the

display screen.

• If the navigation system was turned off while in stand-by mode, it will restart in stand-by mode when the ignition is turned on again.

ON/OFF

Menus

MENUS

The individual functions are represented in the menus (identified by titles in the oval field at the top of the screen) as labeled, rectangular buttons. The current cursor position is marked in red.

1. Menu title

2. Buttons: Highlighted options can

be selected. Options, which are currently not available, are skipped automatically.

3. Status line: The following

information is available to be displayed on the left or right of the status line (only two of the following can be selected at once, one on the left of the screen and one on the right of the screen):

• Clock

• Date

• Estimated time of arrival (for example “* 9:28”)

• Remaining travel time (for example “ *0:46h”)

Further information that is always displayed by the system:

: hour-glass (system is calculating; for example during route

•

planning)

• : audible info (voice messages) disabled

: route planning criterion

•

• :

For further information on the status line and additional selections refer to the Route Selection in the System Settings chapter.

4. Selected function: (cursor position). By turning the rotary control,

the cursor will move to the next button.

motion lockout active

Menus

POP—UP MENU

After selecting a function, a pop-up menu in the form of a rectangle may appear. You may select from the available options.

To activate a particular option/function:

1. Move the cursor to the desired

option/function by turning the rotary control.

2. Press ENTER to confirm the function.

These two actions are designated on the following pages of these operating instructions as selection of an option/function.

FUNCTION LIST (PULL-DOWN MENU)

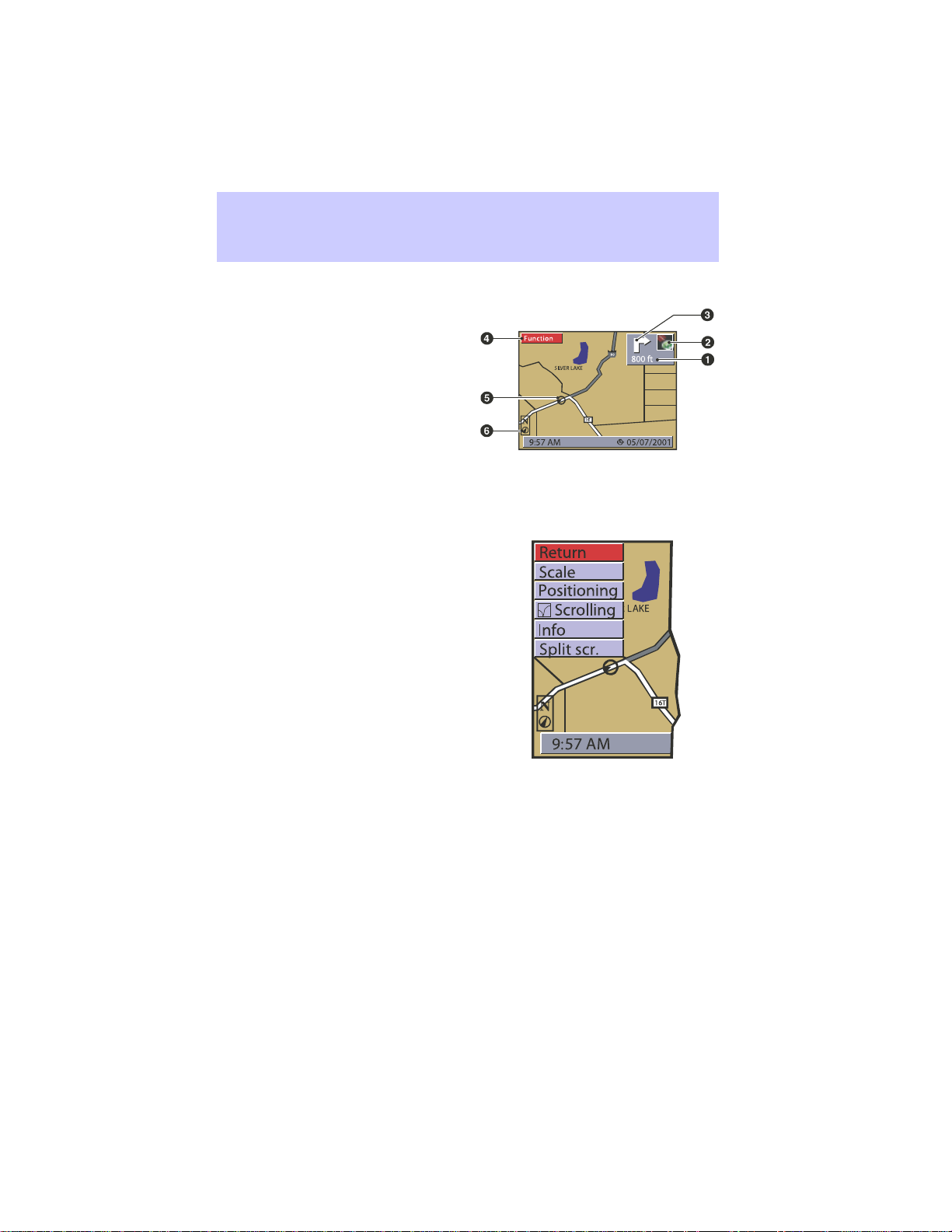

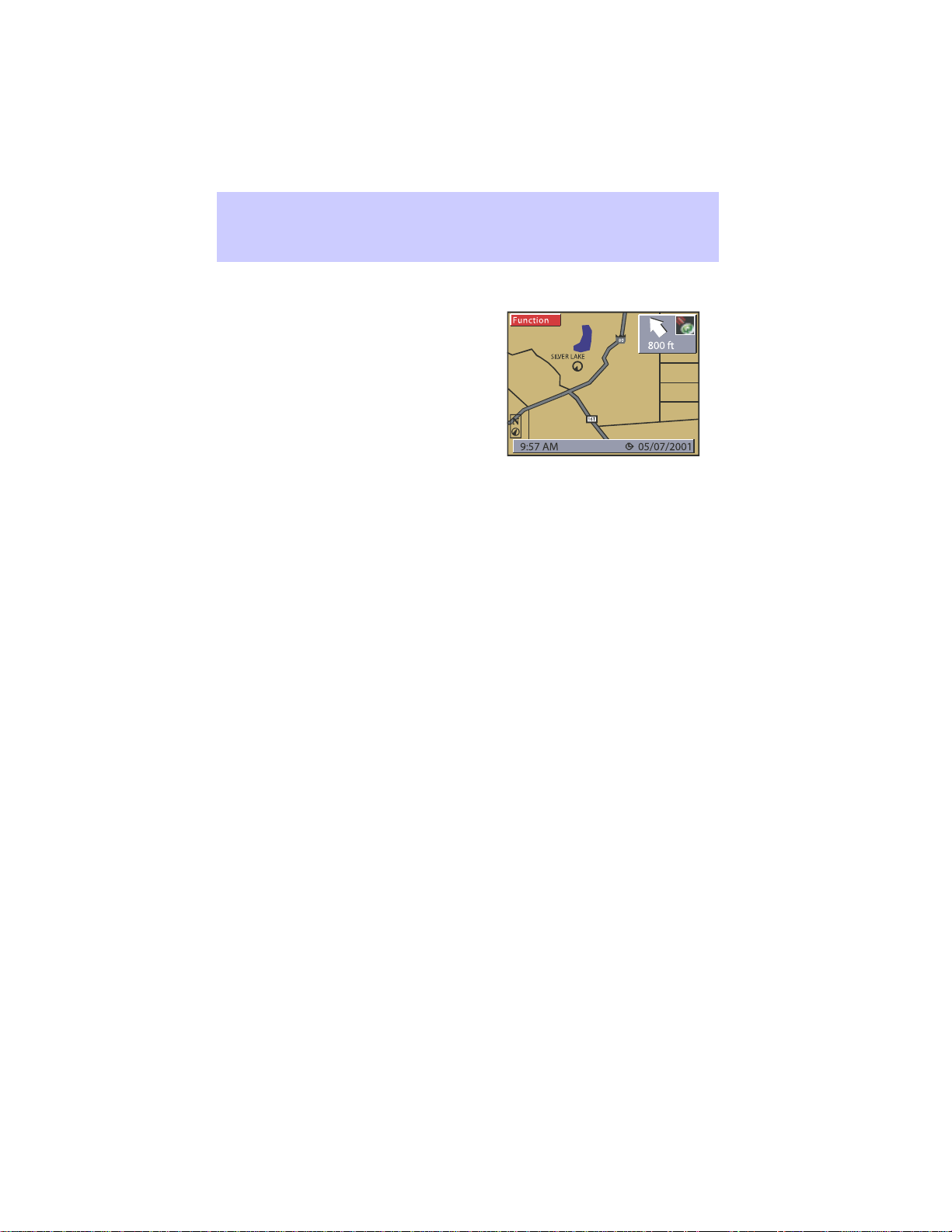

E.g. for map displays, “function” appears as a red button on the screen. After confirming the selection, the selectable functions are displayed. The function list closes automatically after several seconds if nothing was selected.

LIST SCREENS

A list appears on the right in the display for different options. If all list entries cannot be shown then the cursor can be used to scroll further down by turning the rotary control to the right (clockwise). Turning the rotary control to the left (counterclockwise), you can scroll up.

Menus

To quit the list screen, move the cursor to “Quit” and press ENTER to confirm the selection. If further information on an entry can be invoked, “-” appears to the right of the list entry. To view this information: Press ENTER. By selecting the option “Quit,” you will return to the previous menu without selecting a list entry.

KEYBOARD ENTRIES

A so-called keyboard is shown for entering data.

To enter a particular character SELECT the desired character and then press ENTER. Here a city name starting with “FRAN” is entered, but not completed.

The characters entered are compared with the data on the CD. Character sequences for which no names exist cannot be selected.

The entry is automatically supplemented if only certain CD data exists for the character sequence that has already been entered.

If there are several items of CD data with the same name, then the desired entry and displayed additional information can be selected via the “List” function.

Start menu

START MENU

After turning the ignition on, the start-up screen will appear and then the legal disclaimer will be displayed. The legal disclaimer screen must be confirmed by pressing ENTER before going forward to the Start Menu.

Acquaint yourself with the navigation functions by selecting menu options and watch the reaction of the system. This will not damage the system. SELECT the desired menu option and confirm by pressing ENTER. The cursor automatically skips options, which are not available. You can select the following menu options in the Start Menu.

1. Navigation: This option enters the “Navigation” menu. CHOOSE this

option to enter the city, road, intersection or the special facility of your chosen destination. For details see Navigation menu.

2. Map: This option displays a map

with the area around the current vehicle position. This can also be selected by pressing the “Map” button. Press “Map” again to return to the last displayed screen.

3. Settings: This option enters the System settings menu. CHOOSE

this option to set your own preferences.

4. Trip Computer: This option enters the Trip computer menu.

5. Address book: This option enters the Address book menu.

6. Emergency: This option enters the Emergency screen to display the

current vehicle position and emergency phone numbers.

7. Stand by: This option switches off the display screen. The navigation

functions of the system remain active.

MAP

Navigation menu

NAVIGATION MENU

• CHOOSE “Navigation” from the Start menu.

• The Navigation menu is brought to the display.

The following options are available:

Country: To enter or change the destination country*. In case a country is already selected, the word Country disappears and the selected country is displayed, i.e. United States. You do not need to reenter the country if you don’t want to change it.

* — only if more than one country is available on the map CD. The country code of the selected country or the country available on the CD is shown in the upper left corner of the display screen.

City: To enter or change the city of the destination address. In case a city is already selected, the word City disappears and the selected city is displayed.

Road: To enter or change the road name. In case a road is already selected, the word Road disappears and the selected road is displayed.

No: To enter the address number. You must enter the road name prior to the address number.

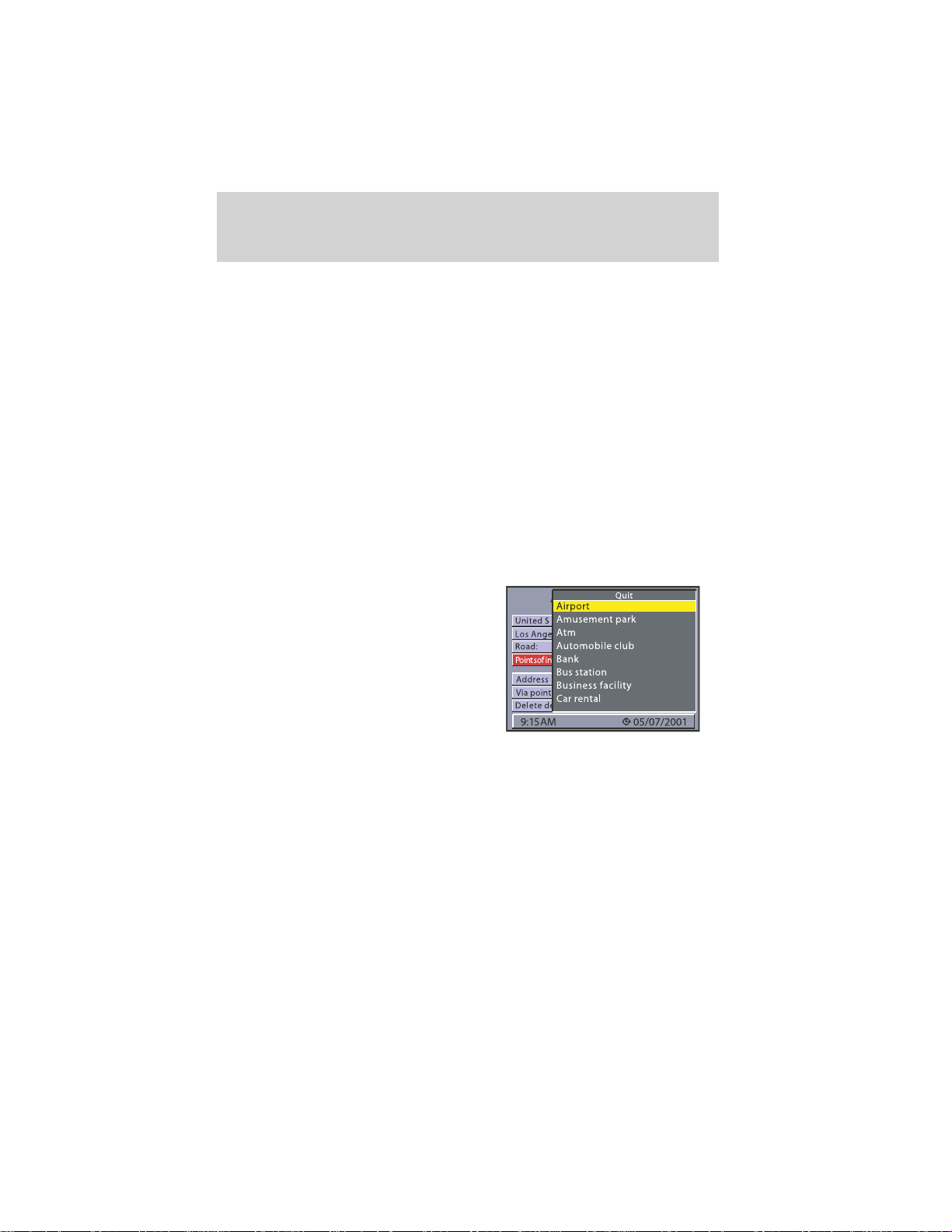

Points of interest: To select a facility stored in the database (such as airports, hotels, restaurants, gas stations, etc.) as the destination. Once a road is entered, the field will be named “Points of int/Inters.:”.By selecting this field, a pop-up menu will appear and you may choose either Points of interest or Intersection. In case a Point of interest or an intersection has already been selected, that selection is displayed.

Destination map: To enter a destination by means of a map.

Guidance: To go to the “Guidance” menu and to activate guidance. To

select the “Guidance” option, you first have to enter at least a city name as the destination address.

Navigation menu

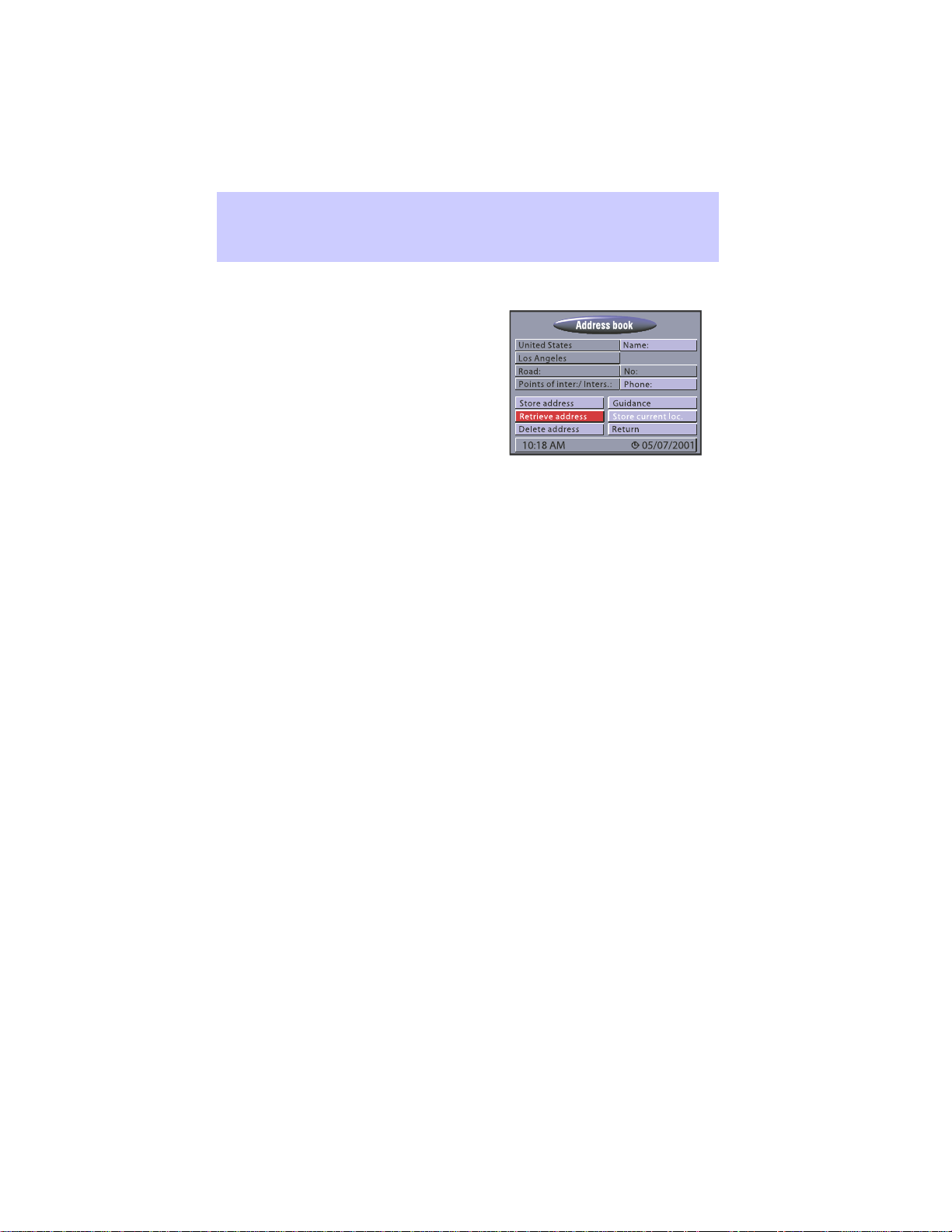

Address book: To store or recall destination addresses from a private or business database. It also allows the last 10 used destination addresses on a first in first out basis.

Via points: To specify via points (intermediate stops) along the way to the entered destination address.

Delete destination: To delete the last entered destination address.

Return: To return to the Start Menu.

How to enter a destination address

Most features are locked out while the vehicle is moving, however the five buttons on the console and the directly supporting features remain active. The destination address can be entered four different ways:

• Letter-by-letter by means of a “keyboard” (the keyboard is displayed on the screen and selections are made by turning the rotary control and pressing ENTER).

• CHOOSE points of interest (hotels, gas stations, etc.) from the map CD

• Input by means of a map and crosshairs

• CHOOSE from the Address Book.

Direct entry of destination address

With the keyboard, you can enter the city, road and the address number letter by letter. Alternatively you may choose a nearby intersection. Here a city name starting with “FRAN” is entered by not completed.

1. CHOOSE “Navigation” in the Start menu. The “Navigation” menu

appears.

2. CHOOSE “Country” only if you wish to change it.

3. CHOOSE “City” or the displayed city name. The keyboard window will

open.

4. Enter the city name.

5. To delete a character previously entered, choose “Delete”.

Navigation menu

6. To insert a space, CHOOSE “Space” from the “keyboard.”

7. If you know the destination address exactly, enter the road and

intersection the same way by using the options “Road” and “Intersection” in the Navigation menu.

• You can only input the city name and the navigation system will then guide you to the city boundary.

• Unincorporated county listings require a street or a point of interest to activate guidance.

8. CHOOSE “Guidance.”

• The guidance screen appears.

• The system plans a route to the desired destination.

Features of the database

• When using the “keyboard,” the previously entered characters are compared with all database entries. Only valid characters (highlighted) can be selected. If there is a unique entry in the database, the system completes the name automatically and “OK” becomes selectable.

• If there is more than one database entry with the same name, the cursor is automatically placed on “List”. CHOOSE the entry from the list. If the number of data entries is very large, setting up the list may take a few seconds.

• If a city name, road name or facility name entered is not unique in the database, the navigation system presents you a list of all identical entries distinguished by additional information. If, for example, a city name is not unique, a list of all matching cities in the database will be presented.

• In completely mapped areas, house numbers are available in the database. When entering the road name with the “keyboard,”, you can also enter the desired house number after the road name is entered. The visual and audible advice that notifies you that you have arrived at the destination may not notify you at the exact driveway of the house number due to system restrictions.
