This manual contains important safety and installation-operation instructions.
Require all operators to read this manual thoroughly before installing,
operating or servicing this equipment.
WARNING:
!
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before installing or servicing this
equipment.
WARNING:
!
This appliance is not intended for use by young children or infirm persons
unless they have been adequately supervised by a responsible person to
ensure that they can use the appliance safely. Young children should be
supervised to ensure that they do not play with the appliance.
DANGER!
!
Do not work around conveyor belt with long hair, loose clothing, or dangling
jewelry. Getting caught in the belt could result in serious injury.
DANGER!
!
!
!
!
· Obtain from your local gas provider and post in a prominent location instructions to be followed in the event gas
odors are detected.
· It is required that the oven be placed under a ventilation hood to provide for adequate air supply and ventilation.
· Minimum clearances must be maintained from all walls and combustible materials. See “spacing instruction”
section for more information.
· Keep the oven free and clear of combustible material.
· Adequate clearance for air openings to the combustion control chamber on the right side of the oven is required.
· Do not obstruct the ventilation holes in the control panels, as these provide the combustion air for the burner and
cooling air for the controls.
· The oven is to be operated only on the type of gas and/or electricity as shown on the specification plate.
· The power burner will not operate and gas will not flow through the burner without electrical power.
· This manual should be retained for future reference.
· The electrical wiring diagram is located under the control box covers.
DANGER!
DANGER!
DANGER!
For your safety, do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
Do not spray aerosols in the vicinity of this appliance while it is in
operation.
If the power supply cord appears to be damaged, do not attempt to operate
the unit. Contact a service agent or qualified electrician to repair!
Do not use parchment paper when placing food product through the toaster!
Use of such materials may cause a fire and should never be placed in the
toaster.
2
Impinger 3255 & 3270 Operator Manual
PURCHASER’S RESPONSIBILITY
It is the responsibility of the purchaser:
1. To see that the gas and electric services for the oven are installed on site in accordance with the manufacturers
specification.
2. To unload, uncrate, and install the oven in its proper location; in accordance with this installation / operation
manual.
3. To see that the gas and electric services are connected properly by a qualified installer of your choice. For
installation in the State of Massachusetts: Installation of this oven must be performed by a licensed plumber or
gas fitter. All such connections must be in accordance with applicable code requirements. Refer to “Code
References” section for specific information.
4. To arrange for inspection and operation check-out by an Authorized Service Technician as described below:
Do not attempt to operate the oven until connection of utility service has been fully inspected by an Authorized Service Technician or a Lincoln Foodservice Products, LLC Service Representative. This service is required
by Lincoln Foodservice Products, LLC in order to assist the purchaser in proper start-up of the oven on site. Please
note the specific details on the Warranty and make certain connections are made to proper utility services.
The warranty shall not apply if the oven(s) are started up and operated prior to the utilities and oven being
inspected and check out made by an Authorized Service Technician or a Lincoln Foodservice Products,
LLC Service Representative.
TABLE OF CONTENTS
WARNING AND SAFETY INFORMATION……………………………………………………………………...… 2
PURCHASER’S RESPONSIBILITY……………………………………………………………………………...… 3
FEATURES AND OPTIONS…………………………………………………………………………………… …… 4
EXTERIOR DIMENSIONS…………………………………………….…………………………………………..… 6
SPACING REQUIREMENTS……………………………………………………………………………………...… 8
VENTILATION GUIDELINES…………………………………………………………………...…………………... 8
AMBIENT TEMPERATURE REQUIREMENTS…………………….…………………………………………….. 8
CANOPY VENTILATION RECOMMENDATIONS………………………………………………………………... 9
UNLOADING AND UNCRATING …………..…………………………………………………………………….... 11
Electrical Supply for Australia:
Single Phase: 240VAC, 50Hz / 20 Amp: one neutral & one earth/ground.
Three Phase: 240/415 VAC / 20 Amp; three active, one neutral & one earth/ground.
** In Australia, use a 10 Amp General Purpose Outlet
All ovens require separate service and dedicated neutral.
GAS PRESSURE CONVERSION CHART
Inches of
Water Column
3.5
4.5
7
10
10.5
11
14
14.5
KPa m-Bar
0.87
1.12
1.74
2.48
2.61
2.73
3.48
3.61
8.70
11.2
17.40
24.87
26.11
27.36
34.81
36.05
Millimeters of
Water Column
88.9
114.3
177.8
254.0
266.7
279.4
355.6
368.3
Gas Supply Pressure
Inches, Water Column
Gas Supply Pressure
Inches, Water Column
***NOTE: For proper operation, the gas valve
requires a nominal inlet pressure of 7 inches H
column for natural gas and 11 inches of H
O column
2
for L.P. gas. A minimum inlet pressure of 1.0 inch of
above the manifold setting (NAT. manifold 3.5”
2O
H
H
O, L.P. manifold 10” H2O) must be maintained with
2
no pressure drop from the no load to full load
condition. The maximum inlet pressure must be
maintained at or below ½ PSIG (14.5 inches H
column). Refer to the chart on the left for pressure
conversions.

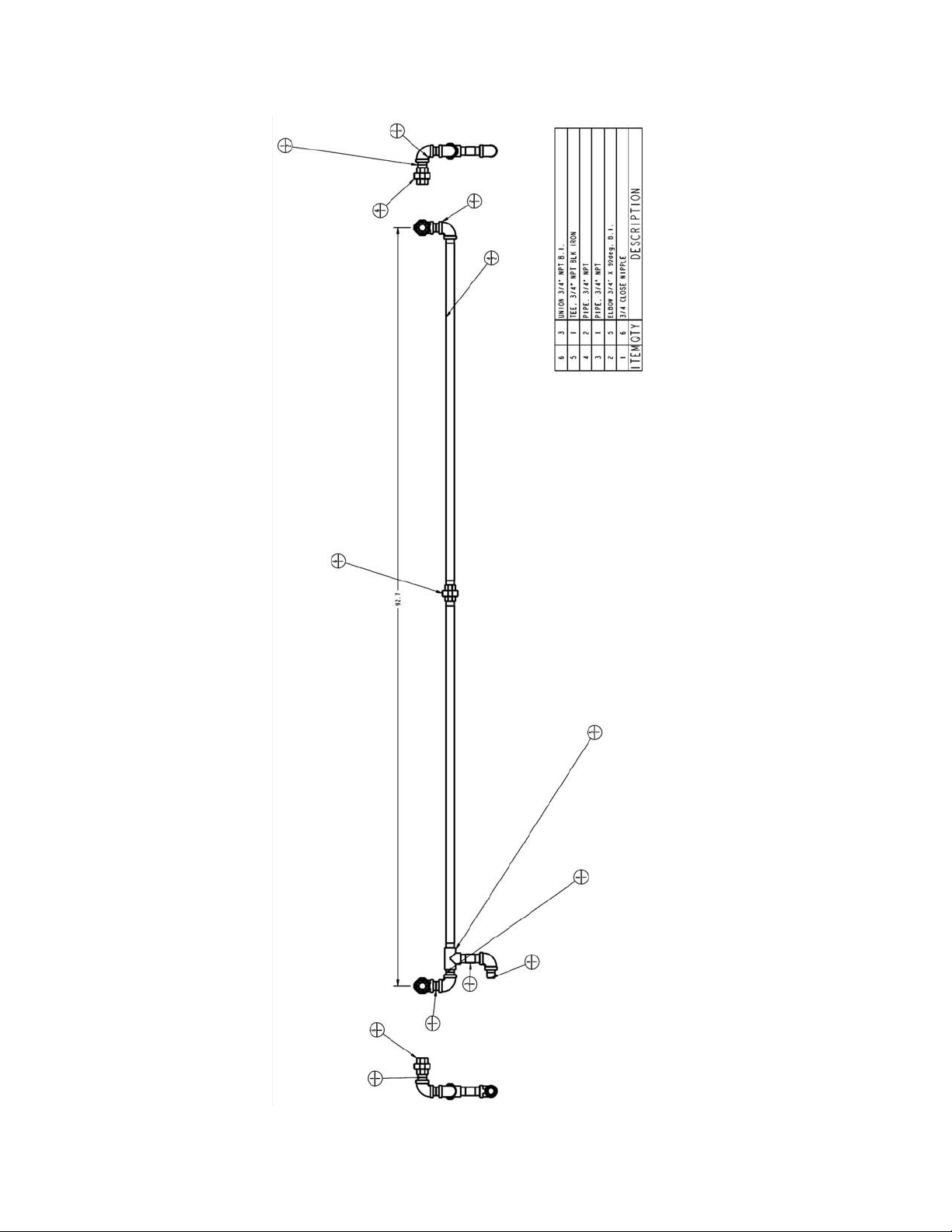

Gas Pipe
Size (NPT)
1 ¼“
1 ½“
Gas Pipe
Size (NPT)
O
2
O
2
1”
4
Impinger 3255 & 3270 Operator Manual

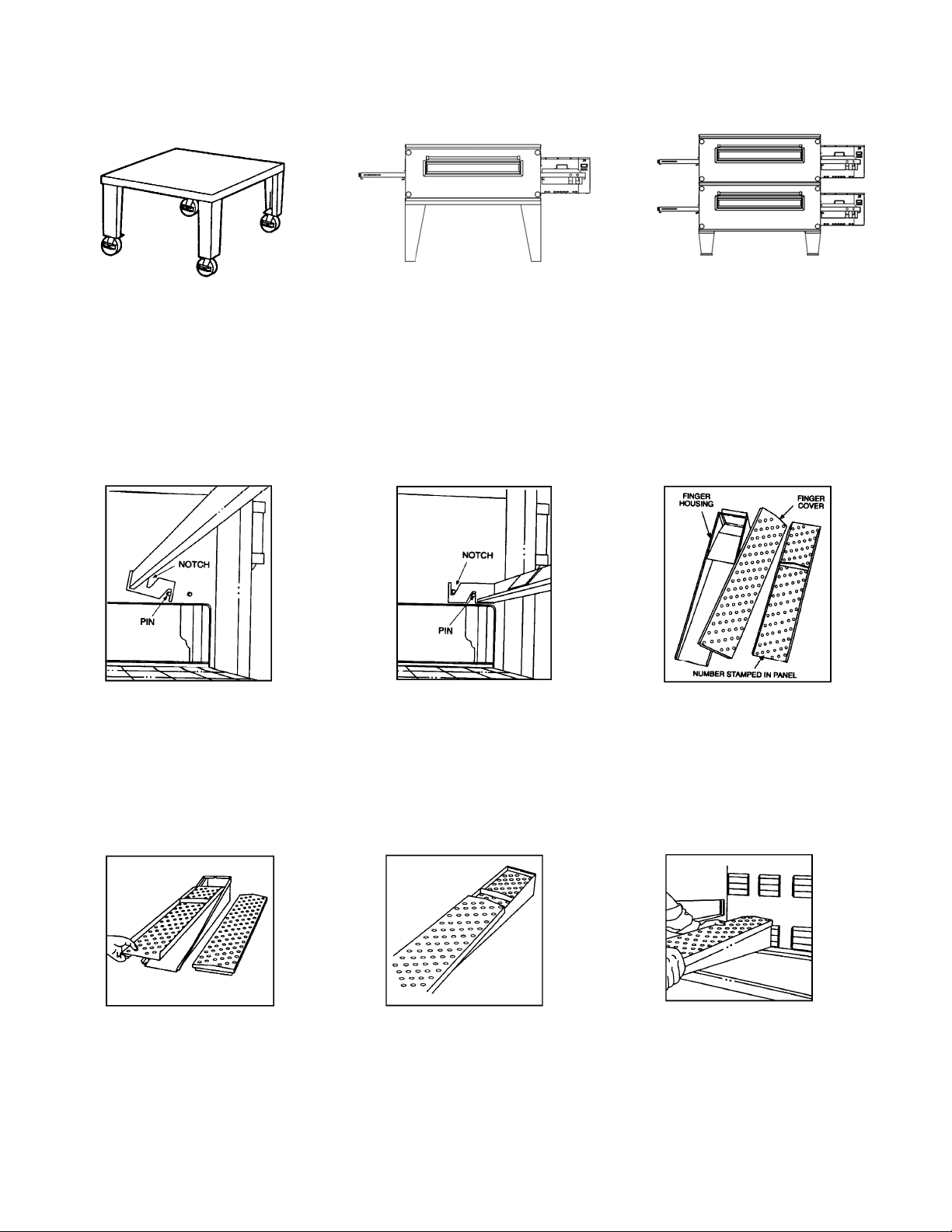

FEATURES AND OPTIONS – 3270
STANDARD FEATURES
• Faster bake times improve time of service.
• Advanced Air Impingement Technology enhances bake quality and uniformity.
• Improved product flow during cooking reduces operation costs.
• Research and Applications support for continued operational success.
• Enodis Star service support is committed to ongoing customer satisfaction.
• New FastBake™ Technology designed to bake up to 35% faster than other conveyor ovens without increased
noise levels or loss of product quality!
ELECTRICAL SERVICE
Voltage (AC) Phase Hz. Amps
Single Oven 120 1 60 14.0
Double Stack 120 1 60 28.0
Triple Stack 120 1 60 42.0
GENERAL INFORMATION – 3270 NATURAL GAS OVENS
Model Energy Power Voltage Current Phase Hz
Single Oven Nat. Gas 150,000 BTU 120 VAC 14 Amps 1 60 Hz 8 – 14
Electrical Supply for Australia:
Single Phase: 240VAC, 50Hz / 20 Amp: one neutral & one earth/ground.
Three Phase: 240/415 VAC / 20 Amp; three active, one neutral & one earth/ground.
** In Australia, use a 10 Amp General Purpose Outlet
All ovens require separate service and dedicated neutral.
GAS PRESSURE CONVERSION CHART
Inches of
Water Column
3.5
4.5
7
10
10.5
11
14
14.5
KPa m-Bar
0.87
1.12
1.74
2.48
2.61
2.73
3.48
3.61
8.70
11.2
17.40
24.87
26.11
27.36
34.81
36.05
Millimeters of
Water Column
88.9
114.3
177.8
254.0
266.7
279.4
355.6
368.3
Gas Supply Pressure
Inches, Water Column
Gas Supply Pressure
Inches, Water Column
***NOTE: For proper operation, the gas valve
requires a nominal inlet pressure of 7 inches H
column for natural gas and 11 inches of H
O column
2
for L.P. gas. A minimum inlet pressure of 1.0 inch of
above the manifold setting (NAT. manifold 3.5”
H
2O
O, L.P. manifold 10” H2O) must be maintained with
H
2
no pressure drop from the no load to full load
condition. The maximum inlet pressure must be
maintained at or below ½ PSIG (14.5 inches H
column). Refer to the chart on the left for pressure
conversions.
Gas Pipe
Size (NPT)
1 ¼“
1 ½“
Gas Pipe
Size (NPT)
O
2
O
2
1”
Impinger 3255 & 3270 Operator Manual
5
EXTERIOR DIMENSIONS – 3255
6
Impinger 3255 & 3270 Operator Manual
EXTERIOR DIMENSIONS – 3270
Impinger 3255 & 3270 Operator Manual
7
SPACING
The oven must have 6 inches (152 mm) of clearance from combustible surfaces. In case other equipment is
located on the right side of oven, a minimum clearance of 24 inches (609 mm) is required from that equipment.
FOR ALL OVENS: A 24-inch (609 mm) clearance at the rear of the oven must be obtainable for service access.
FOR PERMANENTLY INSTALLED OVENS: A permanently installed (unmovable) oven requires a minimum of 13
feet clearance on the right hand side to allow for conveyor removal, cleaning, and servicing.
NOTE: Do not install this (these) oven(s) in any area with an ambient temperature in excess of 95° F / 35° C.
Doing so will cause damage to the unit.
!
CAUTION:
This oven must be operated on approved basis only.
VENTILATION
A VENT IS REQUIRED: Local codes prevail. These are the “authority having jurisdiction” as stated by the
NATIONAL FIRE PROTECTION ASSOCIATION, INC. in NFPA 96 latest edition. In addition, to be in compliance
with the NFPA 54 Section 10.3.5.2, this unit must be installed with a ventilation hood interlock that prevents the unit
from operating when the ventilation hood is off. For further ventilation information, see below.
VENTILATION GUIDELINES
A ventilation hood is required to remove heat and cooking odors. For gas ovens, a ventilation hood is also required
to remove the products of combustion. The hood and HVAC installation must meet local codes to gain approval by
the authority having jurisdiction. Requirements may vary throughout the country depending on the location by city,
county, and state. Obtain information from the authority having jurisdiction to determine the requirements for your
installation. (Note: This oven is considered as “Light Duty for Baking” when evaluated for code vent requirements.)
Obtain information and review copies of codes or documents that will be used to inspect and approve your
installation. Your ventilation hood supplier and HVAC contractor should be contacted to provide guidance. A
properly engineered and installed ventilation hood and HVAC system will expedite approval and reduce oven
maintenance costs. Proper ventilation is the oven owner’s responsibility.
The ventilation hood must operate in harmony with the building HVAC system. It typically requires between 1600
and 2800 CFM exhaust or more with 70% make-up air. (The “Efficiency” of various hood designs makes it
necessary to specify such a wide range of ventilator CFM.) Make up air must be supplied by either a hood design
or the HVAC system. This will vary with hoods from various manufacturers.
CAUTION: Prevent airflow through the cooking tunnel. Air must NOT be directed onto the oven front or at
side of cooking area or rear of oven.
Performance will be evaluated during Start-up Checkout by conducting a smoke candle test. The hood must
capture all smoke from the oven. This is required to assure proper performance of the oven and to eliminate
additional service calls that occur when ambient temperatures are too high. In all cases, the ambient temperature
around the oven must be less than 95° F / 35° C when the oven is operating. In certain localities, other chemical or
gaseous methods of detecting adequate capture will be the requirement to meet the local code authority.
For an illustration noting typical guideline information, see “canopy ventilation recommendations” section. Please
note, however, that this is not a rigid specification but a guideline. Hood dimensions and the positioning of the hood
over the oven will vary with hood manufacturers.
NOTE: Lincoln can provide oven spec sheets that show the dimensions of the oven, KW or BTU ratings and other
information that will be useful to both the ventilation hood supplier and the HVAC contractor.
IN AUSTRALIA: Refer to Standard AS 5601. This standard specifies the requirements for piping, flueing,
ventilation and appliance installation associated with use of or intended use of fuel gases. The requirements of AS
5601 are to be used in conjunction with, but do not take precedence over, any statutory regulations that may apply
in any area.
8
Impinger 3255 & 3270 Operator Manual
