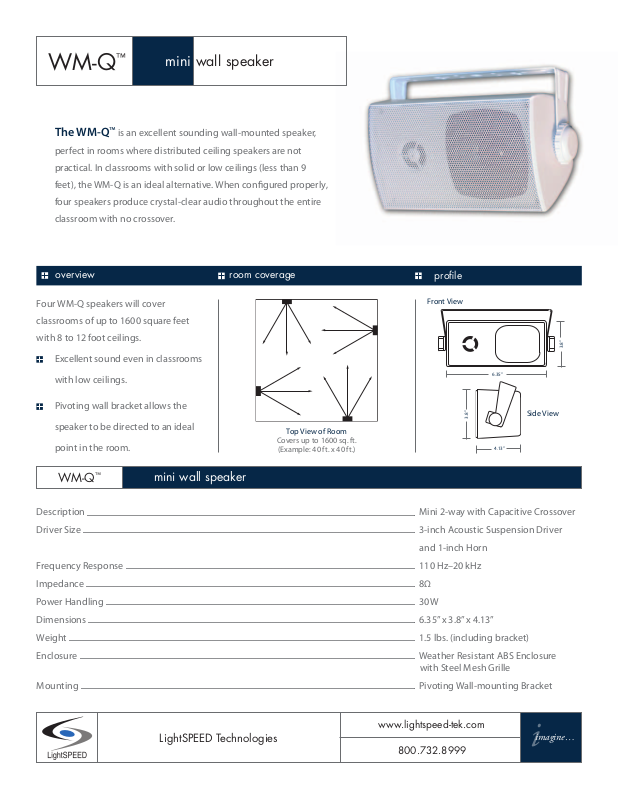

LightSpeed Technologies WM-Q User Manual
WM-Q
i
™
mini wall speaker
The WM-Q
perfect in rooms where distributed ceiling speakers are not
practical. In classrooms with solid or low ceilings (less than 9
feet), the WM-Q is an ideal alternative. When configured properly,
four speakers produce crystal-clear audio throughout the entire
classroom with no crossover.
overview
Four WM-Q speakers will cover
classrooms of up to 1600 square feet
with 8 to 12 foot ceilings.
• Excellent sound even in classrooms
with low ceilings.
• Pivoting wall bracket allows the
speaker to be directed to an ideal
point in the room.
™
is an excellent sounding wall-mounted speaker,
room coverage
Covers up to 1600 sq. ft.
(Example: 40 ft. x 40 ft.)
Top View of Room
profile
Front View
3.8”
6.35”
3.8”
4.13”
Side View
WM-Q
Description Mini 2-way with Capacitive Crossover
Driver Size
and 1-inch Horn
Frequency Response 110 Hz
Impedance 8Ω
Power Handling 30W
Dimensions 6.35” x 3.8” x 4.13”
Weight 1.5 lbs. (including bracket)
Enclosure Weather Resistant ABS Enclosure
with Steel Mesh Grille
Mounting Pivoting Wall-mounting Bracket
™
3-inch Acoustic Suspension Driver
mini wall speaker
LightSPEED Technologies
–20 kHz
www.lightspeed-tek.com
imagine…
800.732.8999
