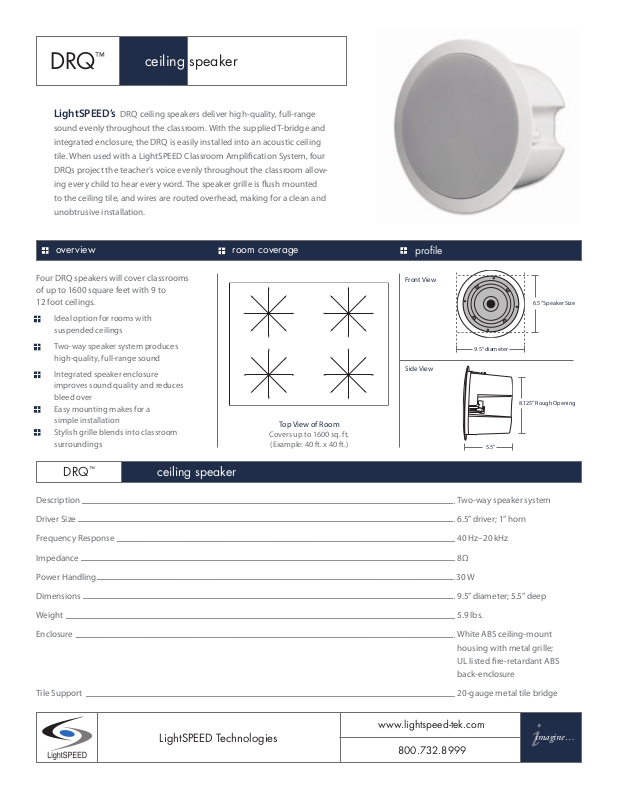

LightSpeed Technologies DRQ User Manual

DRQ

i

™

ceiling speaker

LightSPEED’s DRQ ceiling speakers deliver high-quality, full-range

sound evenly throughout the classroom. With the supplied T-bridge and

integrated enclosure, the DRQ is easily installed into an acoustic ceiling

tile. When used with a LightSPEED Classroom Amplification System, four

DRQs project the teacher’s voice evenly throughout the classroom allow

ing every child to hear every word. The speaker grille is flush mounted

to the ceiling tile, and wires are routed overhead, making for a clean and

unobtrusive installation.

-

overview

Four DRQ speakers will cover classroom
of up to 1600 square feet with 9 to
12 foot ceilings.

• Ideal option for rooms with
suspended ceilings

• Two-way speaker system produces
high-quality, full-range sound

• Integrated speaker enclosure
improves sound quality and reduces
bleed over

• Easy mounting makes for a
simple installation

• Stylish grille blends into classroom
surroundings

Description Two-way speaker system

Driver Size

Frequency Response

™

DRQ

6.5” driver; 1” horn

40 Hz–20 kHz

ceiling speaker

s

room coverage

Top View of Room

Covers up to 1600 sq. ft.

(Example: 40 ft. x 40 ft.)

profile

Front View

6.5” Speaker Size

9.5” diameter

Side View

8.125” Rough Opening

5.5”

Impedance

Power Handling

Dimensions 9.5” diameter; 5.5” deep

Weight

Enclosure White ABS ceiling-mount

housing with metal grille;

UL listed fire-retardant ABS

back-enclosure

Tile Support 20-gauge metal tile bridge

8Ω

30 W

5.9 lbs.

www.lightspeed-tek.com

LightSPEED Technologies

800.732.8999

imagine…
