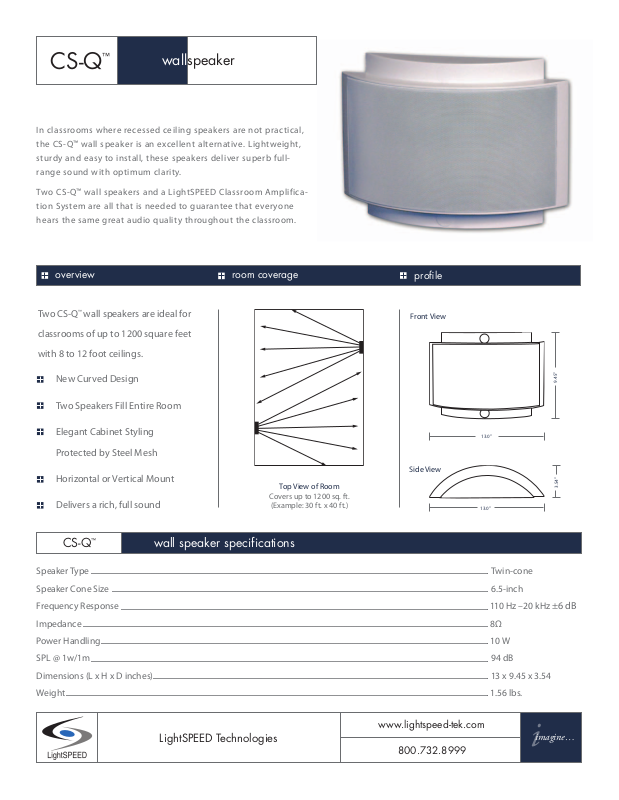

CS-Q

In classrooms where reces sed ceiling speakers a re not practical,

the CS-

sturdy and easy to install, these sp eakers deli ver super b full-

range sound with optimum clarit y

Q™ wall speaker is an excellent altern ative. Lightweig ht,

wallspeaker

.

Two CS-

tion System are all that is needed to guarantee that everyone

hears the same great audio quality throughout the classroo m.

Two CS-Q

classrooms of up to 1200 square feet

with 8 to 12 foot ceilings.

•

•

•

Protected by Steel Mesh

•

•

Q™ wall speakers and a LightSPE ED Classroom Amplifi ca-

overview

™

wall speakers are ideal for

room coverage

New Curved Design

Two Speakers Fill Entire Room

Elegant Cabinet Styling

Horizontal or Vertical Mount

Delivers a rich, full sound

Top View of Room

Covers up to 1200 sq. ft.

(Example: 30 ft. x 40 ft.)

profile

Front View

Side View

9.45”

13.0”

3.54”

13.0”

™

CS-Q

Speaker Type Twin-cone

Speaker Cone Size 6.5-inch

Frequency Response 110 Hz –20 kHz ±6 dB

Impedance 8Ω

Power Handling

SPL @ 1w/1m 94 dB

Dimensions (L x H x D inches) 13 x 9.45 x 3.54

1.56 lbs.

Weight

10 W

wall speaker specifications
