Lightspeed HDs3D-1 Product Sheet

HDs3D-1

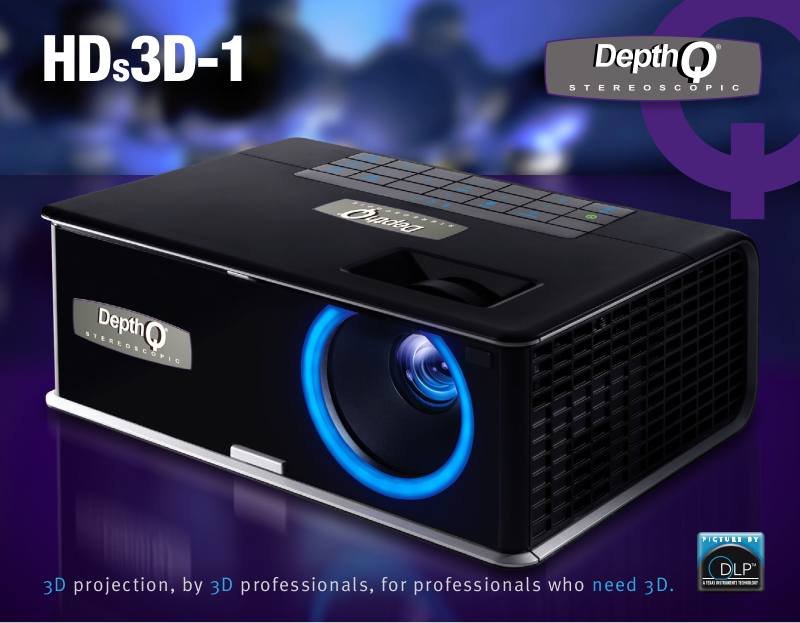

3D projection, by 3D professionals, for professionals who need 3D.

Presenting

The

DepthQ® HDs3D-1

Stereoscopic Projector

HDMI & VGA Input
120 Hz page-flip s3D
Up to 2700 ANSI lm in 3D
1280 x 720/120P

16.7 million Colors
Factory Warranty:
5 yr. parts
6 mo. on lamp

Bright. Clear. Precision HDs3D.

HDs3D-1

Auto Keystone



BrilliantColor™



Built-In Network Services



ProjectorNet™ 3.0 Ready



Dust Resistant Design



HDMI 1.3



Lens Cap Slider



LiteTouch™ Touchsense Keypad



Low Power Standby (<1 W)



RJ45



2D-Specific Features

Closed Captioning



DisplayLink™ Plug & Play



Dynamic Messaging System (DMS)



LitePort™ USB JPEG Player



LiteSwitch™ Instant On/Off



LiteShow II™ Wireless Ready



Logo Capture



Co-developed by

Lightspeed Design, Inc.

and InFocus Corporation

©2010 Lightspeed Design, Inc. & InFocus Corporation. All rights reserved. Specifications are subject to change without further notice.

InFocus and InFocus Bright Ideas Made Brilliant are either trademarks or registered trademarks of InFocus Corporation

in the United States and other countries. DLP, the DLP logo, and the DLP medallion are trademarks of Texas Instruments.

All trademarks are used with permission or are for identification purposes only and are the property of their respective companies.

DepthQ and DepthQ Stereoscopic are registered trademarks of Lightspeed Design, Inc.

1

Excludes power supply, fans, color wheel and light tunnel which are covered for two (2) years.

2

12.4 in

315 mm

9.5 in
241 mm

4.6 in
117 mm

1

- 2 yr. labor

D E S I G N

2

Lightspeed Design, Inc.

1611 116th Ave NE, Suite 112

Bellevue, WA 98004, USA

Phone: [phone]

www.depthq.com

Labour is covered for two (2) years from date of proof of purchase.

3D Native Re solution
Display Technology - DMD
Stereoscopic Compatibility

Delay
Brightness

Lamp Life**
Contrast Ratio
Audible Noise
Computer Compatibility
Keystone Correction
Number of Colors 16.7 Million, True Color
Aspect Ratio
Lamp Power
Power Supply
3D Sync - Ho r. Scan Freq.

Vert. Scan Freq.
Throw Ratio

3D Compatibility
2D Compatibility

Audio
3D Input Sources
2D Input Sources

Output Sources
Control
Projection Distance
Image Offset
Projection Methods
Product Weight
Product Dimensions
Product Color
Shipping Dimension
Shipping Weight 14.3 lbs / 6.48 kg

Maximum Altitude

Remote Control
Ships With - Accessories

Menu Languag es

Lamp

(particle)

Limited Fact ory Warranty

Accessories Warranty 90 Days

Approvals

Security

* P roduct availability, specifications, t erms, and offerings are subject to cha nge at any time without notice.
** Actual lamp life may vary base d on the ambient environment and p rojector usage. Cond itions that may

affe ct lamp life include temperature, alti tude, and rapidl y switching the proj ector on and off.

*** Tested to contain p articles larger tha n the specified si ze in any dimension.

Containment

WXGA 1280 × 720

®

Technology .65” LVDS DDP2431 with BrilliantColor

DLP
120 Hz verti cal sync page flip acti ve stereo

8.33 ms (one frame)

3D - Up to 2 700 ANSI lm depending o n configuration
2D - 3500 AN SI lm (2800 lm Eco Mode )

4000 Hrs Eco Mode (3000 Hrs Normal)
2100:1 Typic al
30 dB Eco Mo de (34 dB High Power)
PC, MAC
Automatic, + /-30 degrees

Native 16:9 (4:3, 5:4 Su pported)
280 W
100 ~ 240 Vac, 50/60 Hz
15 - 100 kHz (video/PC)

120 Hz (Vid eo/PC)

Approximately 1.5 ~ 1.8

WXGA (1280x7 20), XGA (1024x768), SV GA (800x600)
NTSC / NTSC4.43 / PAL / PAL-M / PAL-N / SECAM
SDTV: 480i, 576i
EDTV: 480p, 576p
HDTV: 720p, 1080i, 1080p
10 W (2 × 5 W)
HDMI 1.3 × 1, V GA (HD15) × 2
VGA (HD15) × 2, S-Video × 1, Composite Video × 1,
DisplayLink™ × 1, HDMI 1.3 × 1,
Audio × 4 (3 .5 mm × 2, DisplayLink™ × 1,
HDMI 1.3 × 1 ), LitePort™ × 1
VGA (HD15) × 1, Audio × 1 (3.5 mm), Wireless Ready × 1
LAN (RJ45), RS232, DisplayLink™ (USB )

3.94 ft ~ 32.8 ft / 1.2 m ~ 10 m
15%
Front, Rear, Ceiling Front, Ceiling Rear
7 lbs / 3.17 kg

- W×D×H

12.4 × 9.5 × 4.6 in / 315 × 241 × 1 17 mm
Black with Silver trim

- W×D×H

16.5 × 12.8 × 9.0 in / 419 × 325 × 229 mm

10,000 ft / 3,000 m

Navigator - 3
Quick Start Guide, Remote,
DVI to HDMI Cable, VGA Cable, USB C able,
Power Cord, Carry Case

English, French, German, Italian, Korean, Norwegian,
Portuguese, Russian, Spanish, Traditional Chinese,
Simplified Chinese, Swedish, Finnish,
Danish, Dutch, Polish, Turkish
Tested to contain particles larger than 0.8 mm ***
5 years on parts

C-Tick (Australia), NOM (Mexico), CE (Europe),
cMETus (USA & Canada), FCC (USA), IRAM (Argentina),
GOST (Russia), MIC & eK (South Korea), CCC (China),
PSB (Singapore)

Kensington Lock

1

- 2 years on labor

2

- 6 months on lamp
