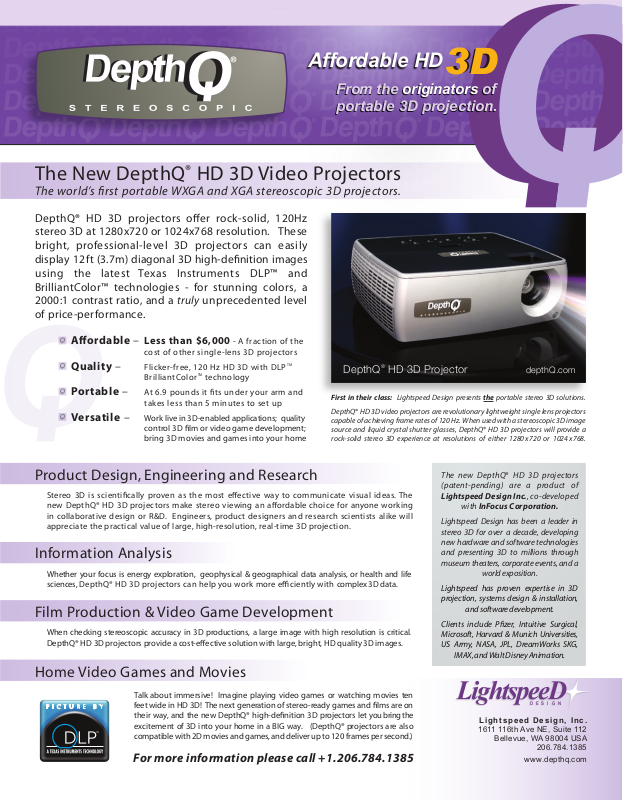

Lightspeed DQ-XGA, DQ-WXGA Product Sheet
From the originators of
portable 3D projection.
Affordable HD
From the originators of
portable 3D projection.
The New DepthQ® HD 3D Video Projectors
The world’s rst portable WXGA and XGA stereoscopic 3D projectors.
DepthQ® HD 3D projectors oer rock-solid, 120Hz
stereo 3D at 1280x720 or 1024x768 resolution. These
bright, professional-level 3D projectors can easily
display 12 ft (3.7m) diagonal 3D high-denition images
using the latest Texas Instruments DLP™ and
BrilliantColor™ technologies - for stunning colors, a
2000:1 contrast ratio, and a truly unprecedented level
of price-performance.
3D
3D
Aordable –
Quality –
Portable –
Versatile –
Less than $6,000 - A fraction of the
cost of other single-lens 3D projectors
Flicker-f ree, 120 Hz HD 3D with DLP
BrilliantColor
At 6.9 pounds it ts under yo ur a rm a nd
takes less than 5 minutes to set up
Work live in 3D-enabled applications; quality
control 3D lm or video game development;
bring 3D movies and games into your home
TM
technology
TM
DepthQ® HD 3D Projector depthQ.com
First in their class: Lightspeed Design presents the por table stereo 3D solutions.
DepthQ® HD 3D video projectors are revolutionary lightweight single lens projectors
capable of achieving frame rates of 120 Hz. When used with a stereoscopic 3D image
source and liquid cr ystal shutter glasses, DepthQ® HD 3D projectors will provide a
rock-solid stereo 3D experience at resolutions of either 1280x720 or 1024x 768.
Product Design, Engineering and Research
Stereo 3D is scientically proven as the most eective way to communicate visual ideas. The
new DepthQ® HD 3D projectors make stereo viewing an aordable choice for anyone working
in collaborative design or R&D. Engineers, product designers and research scientists alike will
appreciate the practical value of large, high-resolution, real-time 3D projection.
Information Analysis
Whether your focus is energy exploration, geophysical & geographical data analysis, or health and life
sciences, DepthQ® HD 3D projectors can help you work more eciently with complex 3D data.
Film Production & Video Game Development
When checking stereoscopic accuracy in 3D productions, a large image with high resolution is critical.
DepthQ® HD 3D projectors provide a cost-eective solution with large, bright, HD quality 3D images.
The new DepthQ® HD 3D projectors
(patent-pending) are a product of
Lightspeed Design Inc., co-developed
with InFocus Corporation.
Lightspeed Design has been a leader in
stereo 3D for over a decade, developing
new hardware and software technologies
and presenting 3D to millions through
museum theaters, corporate events, and a
world exposition.
Lightspeed has proven expertise in 3D
projection, systems design & installation,
and software development.
Clients include Pzer, Intuitive Surgical,
Microsoft, Harvard & Munich Universities,
US Army, NASA, JPL, DreamWorks SKG,
IMAX, and Walt Disney Animation.
Home Video Games and Movies
Talk about immersive! Imagine playing video games or watching movies ten
feet wide in HD 3D! The next generation of stereo-ready games and lms are on
their way, and the new DepthQ® high-denition 3D projectors let you bring the
excitement of 3D into your home in a BIG way. (DepthQ® projectors are also
compatible with 2D movies and games, and deliver up to 120 frames per second.)
For more information please call +1.206.784.1385
D E S I G N
Lightspeed Design, Inc.
1611 116th Ave NE, Suite 112
Bellevue, WA 98004 USA
206.784.1385
www.depthq.com
DepthQ-WXGA and DepthQ-XGA
DepthQ-WXGA and DepthQ-XGA
H I G H D E F I N I T I O N 3 D V I D E O P R O J E C T O R S
◊
Technical Specifications
Display
3D Aspect Ratio: 16:9 (DepthQ-WXGA) or 4:3 (DepthQ-XGA) 2D Supported Aspect Ratios: 16:9, 4:3, 5:4, 16x10
Display Technology: DLP by Texas Instruments: 0.55" LVDS DDP2230 with Brilliant Color
Stereoscopic Compatibility: 120 Hz sync, page ip, two frame delay
Brightness: approximately 2000 Lumens Eco Mode: 1440 Lumens
Contrast Ratio: 2000:1 Full On/Full O
3D Data Compatibility: 1280x720 (Model DepthQ-WXGA) or 1024x768 (Model DepthQ-XGA)
2D Data Compatibility: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024),
SXGA (1400x1050), WXGA (1280x800), WXGA+ (1440x900)
2D Video Compatibility: NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i
2D V-Sync Range: 50-120Hz 2D H-Sync Range: 31-93kHz 3D V-Sync: 120Hz 3D H-Sync: 93kHz
Color Wheel (DLP Only): 5-segment
Native Resolution: WXGA (Model DepthQ-WXGA) or XGA (Model DepthQ-XGA)
Projector Placement: Ceiling Projection, Front Projection, Rear Projection
Lamp Wattage: High Bright: 200 Watts Eco Mode: 170 Watts
Lamp Life‡: High Bright: 2500 Hours Eco Mode: 3000 Hours
Standard Lens Zoom: 1.1 : 1
Inputs and Outputs
2D/3D VESA (HD15): Number of Inputs: 2; 15-pin VGA
2D S-Video: Number of Inputs: 1; 4-pin mini-DIN
2D Composite (RCA): Number of Inputs: 1
2D Component (RCA): Number of Inputs: 2 requires optional VGA to Component adapter.
2D Standard Denition TV: Composite RCA, S-Video
2D Enhanced Denition TV, High Denition TV: VGA
Projector Control: Projector Keypad, Remote, USB, RS-232
Audio: Stereo 3.5 mm Mini-jacks (input and output)
Monitor Output: 2.0 Watt mono speaker
General
Audible Noise: 35 dB
Power Supply: 100 - 240 Volts at 50 - 60 Hz
Typical Power Consumption: 220 Watts Maximum Power Consumption: 250 Watts
Weight: 6.9 lbs (3.13 kg)
Dimensions: Height: 3.9 in (9.91 cm) Length: 9 in (22.86 cm) Width: 11.7 in (29.72 cm)
Projector Warranty: 2 years Lamp Warranty: 6 months Accessories Warranty: 90 days
Approvals: UL and c-UL (US/Canada), FCC-A (US/Canada), CE (CE member countries), GOST (Russia),
TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), C-Tick (Australia), MIC & eK (South Korea), PSB (Singapore)
Projection Distances / Image Sizes / Throw Ratios
Max Diagonal Image SizeMin Diagonal Image SizeDistance to Screen
XGA (dtr 1.20)* WXGA (dtr 1.30)*XGA (dtr 1.46)* WXGA (dtr 1.59)*
0.5m
0.5m
.8m
2.5’
1.5m
5’
3m
10’
4.6m
15’
6.1m
20’
*
App roximate values. Di agonal throw ratio (dtr) = (di stance /diag onal i mage s ize)
Horizo ntal throw ratio (ht r) = (distance/horizo ntal image size)
◊
L ightsp eed D esign, Inc. and In Focus C orporat ion re serve the r ight t o alte r prod uct o ering s and speci cation s at a ny tim e with out no tice.
‡
Actu al lam p life may v ary b ased o n the ambien t envi ronmen t.
Condi tions that m ay a ect la mp lif e incl ude te mperat ure, a ltitud e or ra pidly switc hing t he proj ector on an d o.
Depth Q is a trad emark of L ightspeed Design, In c. InFocus is a regis tered tradem ark of InFo cus Corporat ion or its subsidiar ies in the United St ates
and other c ountrie s. Dig ital Li ght Pro cessing , DLP, Bril liantCo lor, and the DL P Medal lion a re trade marks o f Texas I nstrume nts. A ll othe r trade mark s are used wi th per missio n or a re for identi cation purpo ses on ly and are th e prope rty o f thei r resp ective compan ies. A ll rig hts re served.
20.5”
41.0”
82.1”
123.1”
164.2”
1.0m
2.1m
3.1m
4.2m
18.8”
37.7”
75.4”
113.0”
150.7”
1.0m
1.9m
2.9m
3.8m
25.1”
50.2”
100.4”
150.6”
200.8”
0.6m
1.3m
2.6m
3.8m
5.1m
23”
46.1”
92.2”
138.2”
184.3”
Min Horizontal Image Size
(htr 1.83)*
0.6m
1.2m
2.3m
3.5m
4.7m
16.4”
32.8“
65.7”
98.5”
131.3”
*
0.4m
0.8m
1.7m
2.5m
3.3m
Max Horizontal Image Size
(htr 1.49)*
0.5m
20.1”
1.0m
40.2“
2.0m
80.3”
120.5”
160.6”
Lightspeed Design, Inc.
1611 116th Ave NE, Suite 112
Bellevue, WA 98004 USA
3.1m
4.1m
D E S I G N
206.784.1385
www.depthq.com
