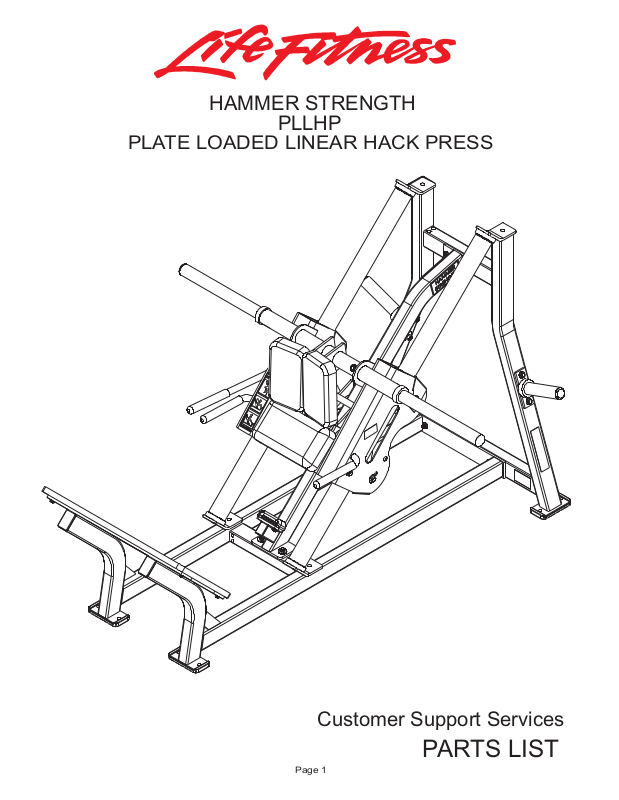

HAMMER STRENGTH
PLLHP
PLATE LOADED LINEAR HACK PRESS
Customer Support Services
PARTS LIST
Page 1
PLLHP PLATE LOADED LINEAR HACK PRESS
PAGE
COMPONENT ASSEMBLY 3
COMPONENT ASSEMBLY LEGEND 4
BASE FRAME ASSEMBLY 5
CENTER FRAME ASSEMBLY 6
BACK FRAME ASSEMBLY 7
CARRIAGE ASSEMBLY 8
HOOK ASSEMBLY 9
RELEASE HANDLE ASSEMBLY 10
IMAGE 11
CONTENTS
________________________________________
Page 2
PLLHP PLATE LOADED LINEAR HACK PRESS
18
8
10
9
20
19
7
6
17
16
15
26
25
4
3
2
1
14
13
24
23
12
11
22
21
11
5
11
12
14
17
4
10
10
12
12
12
13
13
11
14
14
28
29
27
COMPONENT ASSEMBLY
________________________________________
SEE PAGE 4 FOR LEGEND
Page 3
PLLHP PLATE LOADED LINEAR HACK PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7676301 ASSY, PLLHP BASE FRAME
2 1 7677401 ASSY, PLLHP CENTER FRM TX
3 1 7678201 ASSY, PLLHP BACK FRM BX
4 2 7961001 TUBE, PLLHP, RAIL
5 1 7678701 ASSY, PLLHP ROLLER CARRIAGE
6 4 3236203 SCREW, M10 X1.5 30MM
7 12 3236601 WASHER, 3/8 SAE SS
8 1 7450901 BOARD, PSSLP LINEXED
9 1 UROW ROW CHEST PAD
10 6 H-BACK-WASH BACKING WASHER
11 10 3102502 WASHER, TYPE A PLAIN
12 12 3102804 NUT, NYLOCK-JAM 1/2-13 ST ZN
13 6 3239313 1/2-13 X 3.25 UNS HEX FHB G5 ZN
14 12 3102507 WASHER, TYPE A PLAIN
15 8 3223303 3/8-16 X 1.50 HEX HEAD BOLT
16 4 3251501 ROLLER ASSY
17 4 7680001 BRKT, PLLHP ROLLER GUARD
18 4 3239319 1/2-13 X 4.75 UNS HEX FHB G5 ZN
19 1 8561301 ASSY, PLLHP HOOK
20 1 7773601 WLDMT, PLLHP HOOK MOUNT
21 1 8062701 SHAFT, PLLHP, HOOK
22 1 8561201 ASSY, PLLHP REL HNDL
23 1 8062601 SHAFT, PLLHP, REL HANDLE
24 2 3239318 1/2-13 X 4.50 UNS HEX FHB G5 ZN
25 2 3102801 NUT, NYLOCK 1/2-13 ST ZN
26 2 3242901 SCREW, SET BO
27 1 U10-4.5 PAD, 10-4.5
28 4 7388201 FOOTPAD, PS RUBBER
29 2 M051-00289-A000 HAMMER STRENGTH NAME PLATE
COMPONENT ASSEMBLY LEGEND
________________________________________
Page 4
PLLHP PLATE LOADED LINEAR HACK PRESS
4
3
2
1
4
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7676401 WLDMT, PLLHP BASE
2 2 7352301 CAP, END 2 X 3
3 2 7444601 BUMBER, DONUT
4 12 3237402 PLUG, HOLE

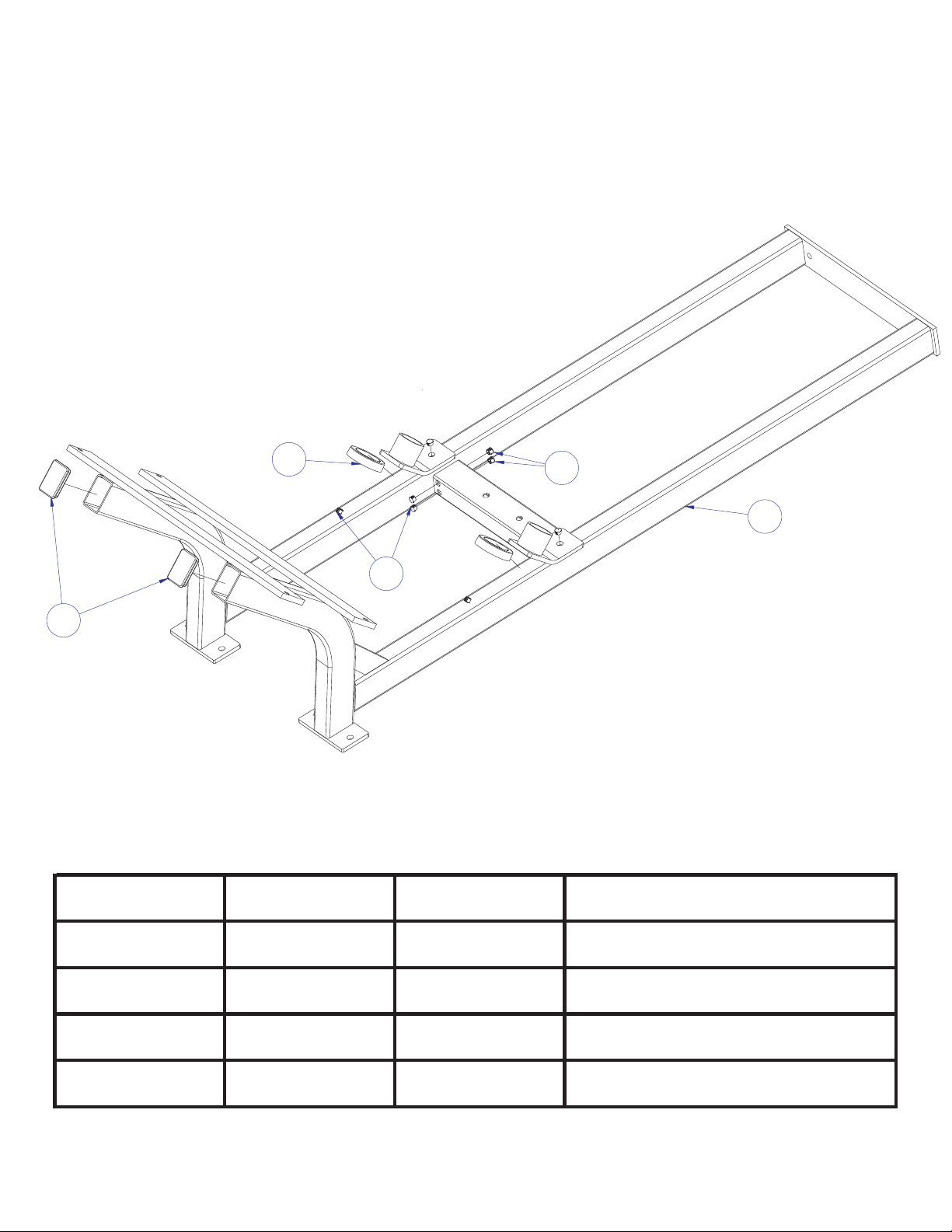

BASE FRAME ASSEMBLY - 7676301
________________________________________
Page 5
8
10
9
7
6
5
4
3
2
1
12
11
PLLHP PLATE LOADED LINEAR HACK PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7677501 WLDMT, PLLHP CENTER FRM TX
2 4 3248401 CAM FOLLOWER TORRINGTON YCR-20
3 1 7352001 BUMPER, 2-1/8 X 4-5/8
4 1 7352201 CAP, END 1-1/2 X 2
5 2 3223319 3/8-16 X 6.00 HEX HEAD BOLT
6 4 3236601 WASHER, 3/8 SAE SS
7 2 3102802 NUT, NYLOCK 3/8-16
8 2 3102507 WASHER, TYPE A PLAIN
9 2 3102804 NUT, NYLOCK-JAM 1/2-13 ST ZN
10 2 3239306 1/2-13 X 1.50 UNS HEX FHB G5 ZN
11 2 3239505 WSH, .500 IN-D ST ZN
12 2 7681601 SPACER, PLLH LINK

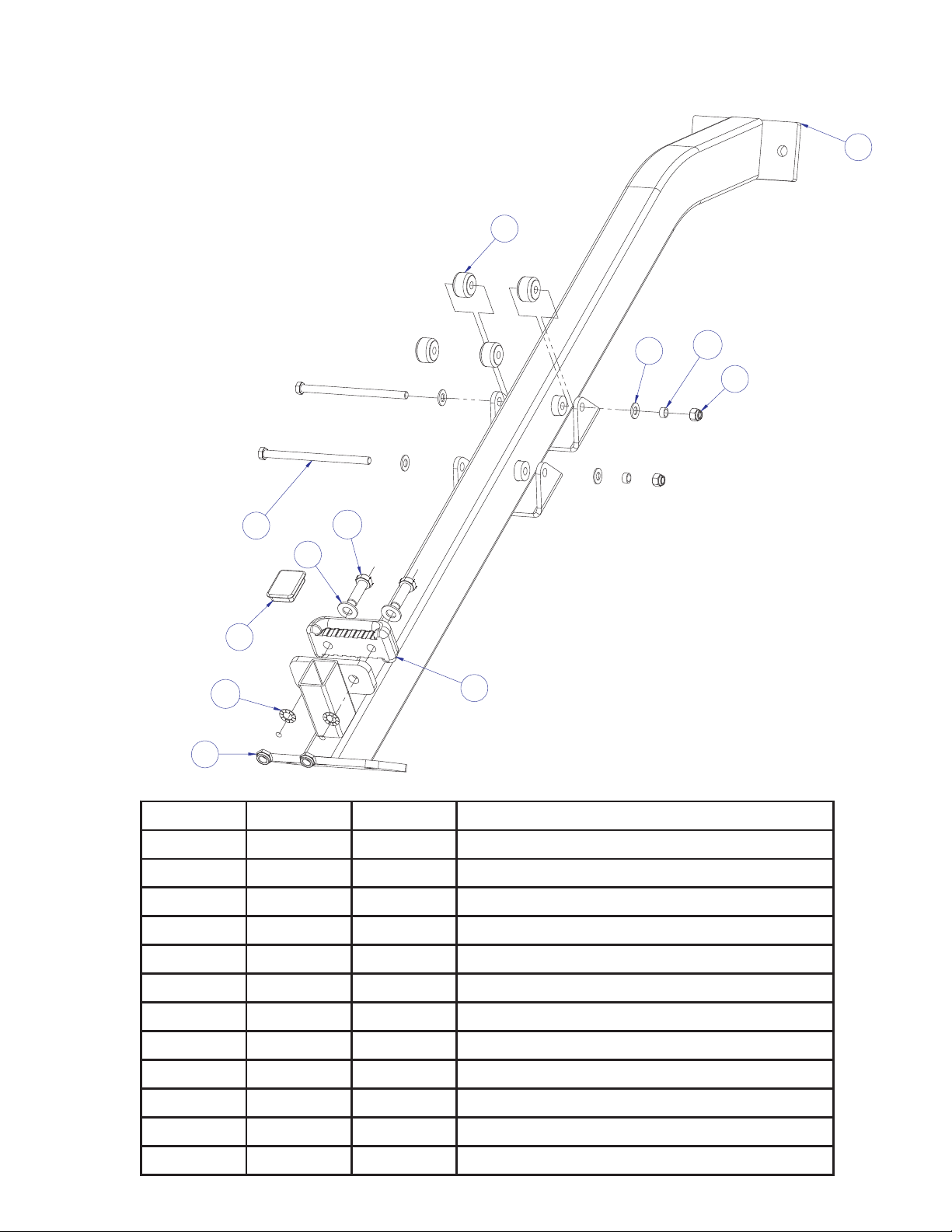

CENTER FRAME ASSEMBLY - 7677401
________________________________________
Page 6
8
10
9
7
6
5
4
3
2
1
11
3
3
3
PLLHP PLATE LOADED LINEAR HACK PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7678301 WLDMT, PLLHP BACK FRM BX
2 2 7444601 BUMBER, DONUT
3 12 3237404 PLUG, 9/16" HOLE
4 2 7760201 ASSY, WEIGHT HORN
5 4 3239313 1/2-13 X 3.25 UNS HEX FHB G5 ZN
6 4 3102507 WASHER, TYPE A PLAIN
7 4 3102801 NUT, NYLOCK 1/2-13 ST ZN
8 4 H-BACK-WASH Backing Washer
9 1 7422004 LABEL, 2" ASTM WARN
10 1 M051-00299-A000 HAMMER PATENT DECAL
11 1 7571302 LABEL, SERIAL NUMBER HAMMER

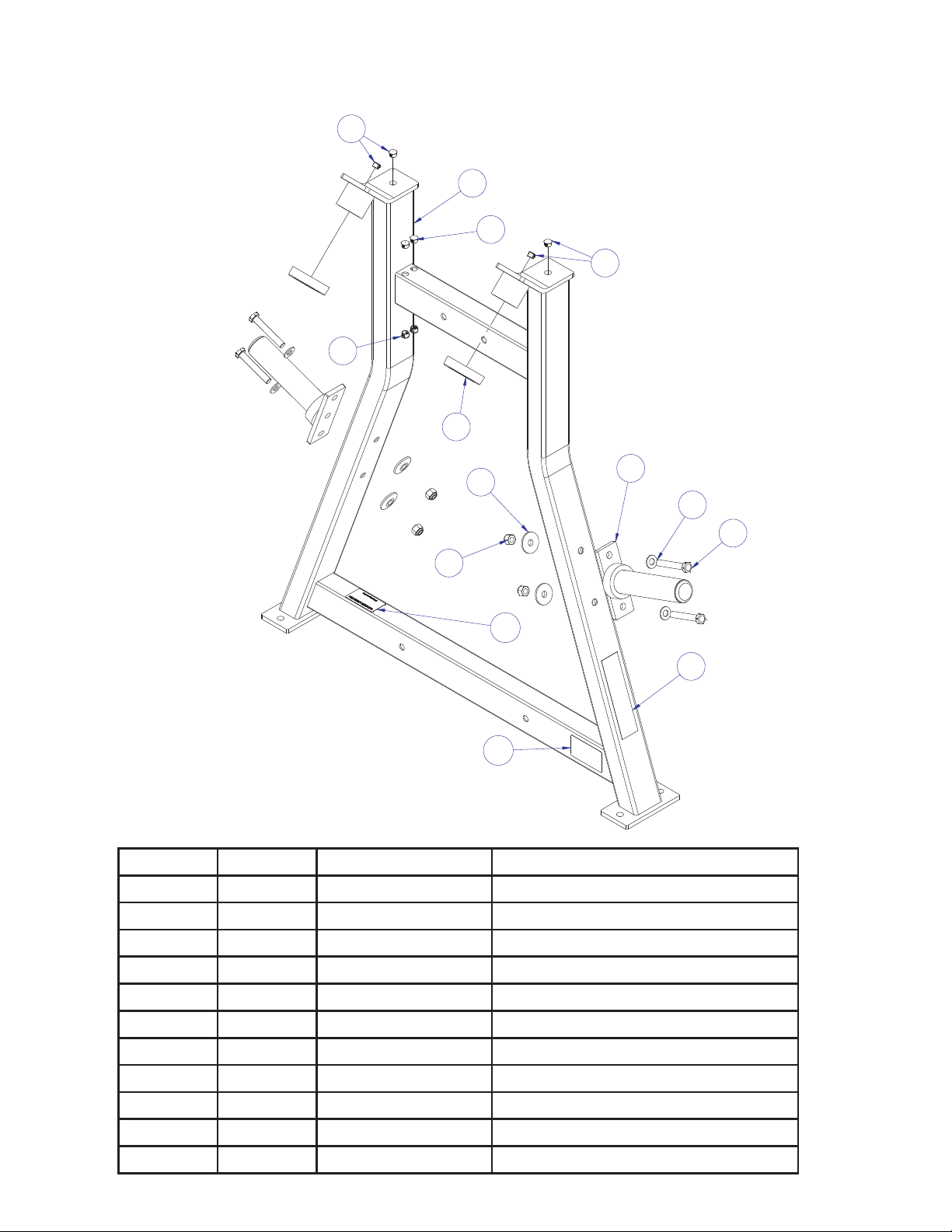

BACK FRAME ASSEMBLY - 7678201
________________________________________
Page 7
8
10
9
7
6
5
4
3
2
1
13
11
5
5
5
15
14
10
12
6
-
3
/
4
"
PLLHP PLATE LOADED LINEAR HACK PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7678801 WLDMT, PLLHP CARRIAGE
2 4 3251501 ROLLER ASSY
3 2 7767301 TUBE, PLLHP WEIGHT BAR
4 2 H-BENDCAP BULLET CAP
5 12 3102507 WASHER, TYPE A PLAIN
6 4 3102801 NUT, NYLOCK 1/2-13 ST ZN
7 4 3239319 1/2-13 X 4.75 UNS HEX FHB G5 ZN
8 2 7671601 MM5 RING
9 8 3237402 PLUG, HOLE
10 1 7570801 GUARD, PAINT 1.25"x.75"x.25"
11 2 H-GRIP HAND GRIP
12 2 7422003 LABEL, MOVING PARTS
13 1 7943801 PLACARD, PLLHP
14 2 3239310 1/2-13 X2.50 UNS HEX FHB G5 ZN
15 2 3102804 NUT, NYLOCK 1/2-13 LOW HT
CARRIAGE ASSEMBLY - 7678701
________________________________________
Page 8
PLLHP PLATE LOADED LINEAR HACK PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8544001 WLDMT, PLLHP STOP LOCK
2 1 3248401 CAM FOLLOWER TORRINGTON YCR-20
3 1 3236601 WASHER, 3/8 SAE SS
4 1 3223303 3/8-16 X 1.50 HEX HEAD BOLT
3
4
2
1

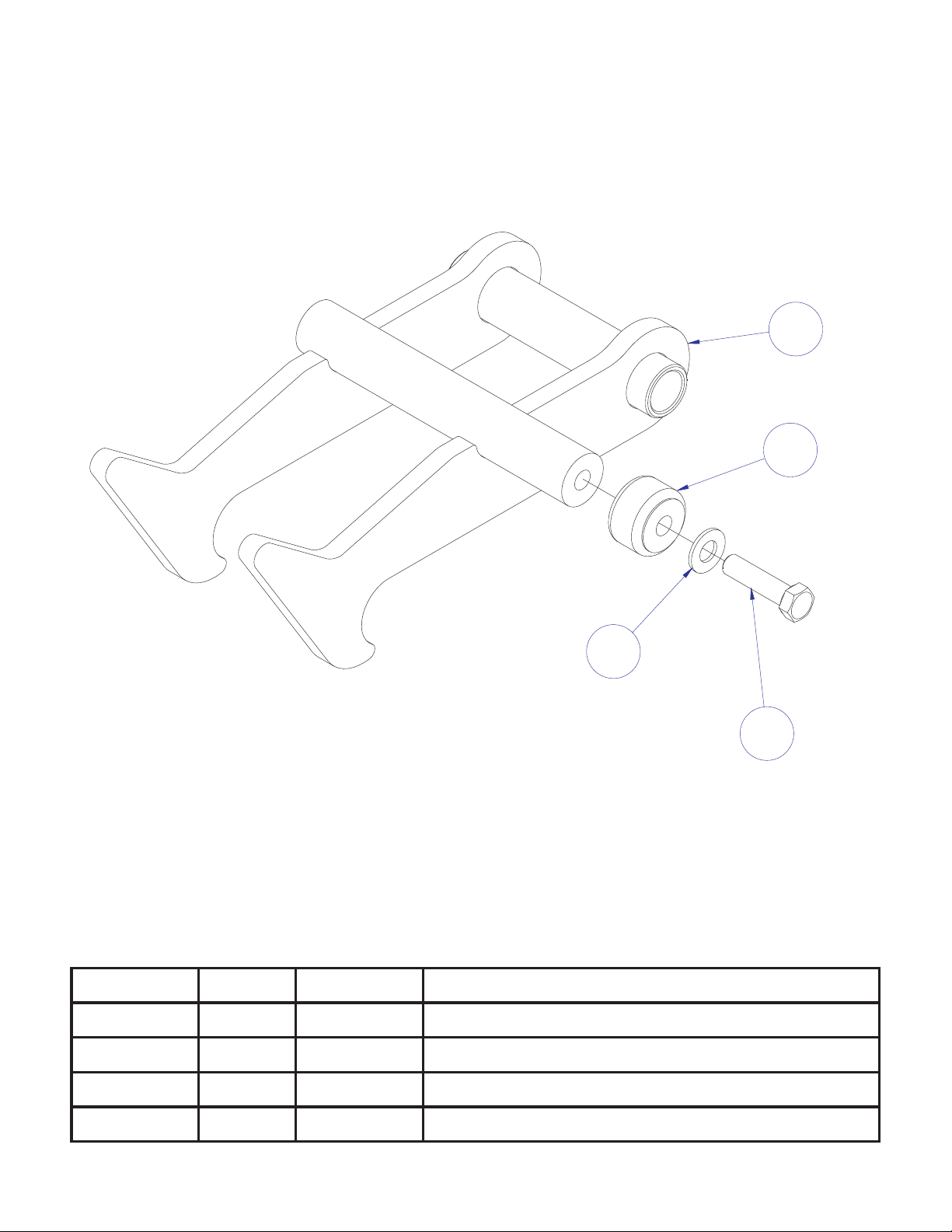

HOOK ASSEMBLY - 8561301
________________________________________
Page 9
PLLHP PLATE LOADED LINEAR HACK PRESS
2
1
L
E
N
G
T
H
6
3
/
4
"
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8543401 WLDMT, PLLHP REL HNDL
2 1 H-GRIP HAND GRIP
RELEASE HANDLE ASSEMBLY - 8561201
________________________________________
Page 10

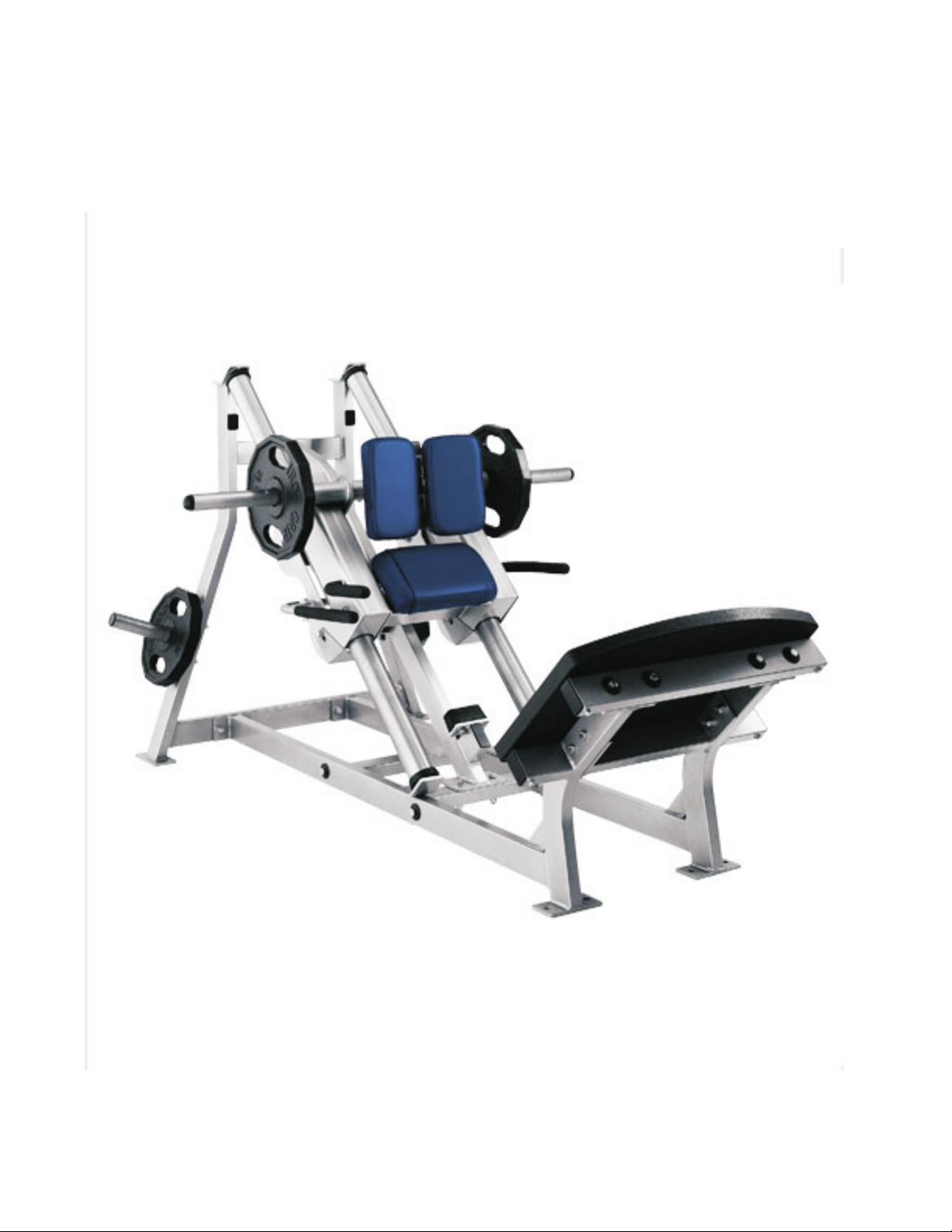

PLLHP PLATE LOADED LINEAR HACK PRESS
