HAMMER STRENGTH
MTSRW
ROW
Customer Support Services
PARTS LIST
Page 1
MTSRW ROW
COMPONANT ASSEMBLY pg.3
COMPONANT ASSEMBLY II 4
COMPONANT ASSEMBLY LEGEND 5
RIGHT FRAME ASSEMBLY 6
RIGHT SIDE ASSEMBLY LEGEND 7
RIGHT WORK ARM ASSEMBLY 8
TOP FRAME ASSEMBLY 9
SEAT FRAME ASSEMBLY 10
SEAT ASSEMBLY 11
LEFT SIDE ASSEMBLY 12
LEFT SIDE ASSEMBLY LEGEND 13
LEFT WORK ARM ASSEMBLY 14
150 LBS. WEIGHT STACK ASSEMBLY 15
INCREMENT WEIGHT ASSEMBLY 16
IMAGE 17
Contents
________________________________________
Page 2
3
9
9
9
9
9
9
9
9
2
5
6
7
9
13
14
14
14
14
14
14
14
14
14
15
12
12
11
11
11
11
11
10
10
10
10
10
10
23
24
1
4
11
9
15
8
MTSRW ROW
COMPONENT ASSEMBLY
________________________________________
SEE PAGE 5 FOR LEGEND
Page 3
1
17
21
22
20
19
18
20
8
16
4
MTSRW ROW
COMPONENT ASSEMBLY II
________________________________________
SEE PAGE 5 FOR LEGEND
Page 4
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7556401 WLDMT, MTRW, BOTTOM FRAME
2 1 7559201 ASSY, MTRW, RIGHT SIDE
3 1 7558901 ASSY, MTRW, LEFT SIDE
4 1 7558501 WLDMT, MTRW FRONT FRAME
5 1 7559001 ASSY, MTRW, TOP FRAME
6 1 7559101 ASSY, MTRW, ARM LEFT
7 1 7559301 ASSY, MTRW, ARM RIGHT
8 1 7559401 ASSY, MTRW, SEAT
9 30 3239505 WSH, .500 IN-D ST ZN
10 16 7434001 WASHER, MTS, HAMMER HEAD
11 15 3239311 1/2-13 X 2.75 UNS HEX FHB G5 ZN
12 4 3239312 1/2-13 X 3.00 UNS HEX FHB G5 ZN
13 8 3239317 1/2-13 X 4.25 UNS HEX FHB G5 ZN
14 27 3102801 NUT, NYLOCK 1/2-13 ST ZN
15 4 7388201 Footpad, PS Rubber
16 2 0017-00042-1045 1.875 X 9.25 FRAME GUARD
17 4 0017-00042-1046 2.75 X 9.25 FRAME GUARD
18 1 7501001 PAD, 15 X 7-3/4
19 1 7398901 PAD, SEAT 13-1/4 X 8-1/4
20 6 3236601 WASHER, 3/8 SAE SS
21 4 3236204 SCREW, M10 X1.5 35MM
22 2 3236210 SCREW, M10 X1.5 65MM
23 2 M051-00289-A000 HAMMER STRENGTH NAME PLATE
24 2 0017-00042-1044 1.375 X 9.25 FRAME GUARD
MTSRW ROW
COMPONENT ASSEMBLY LEGEND
________________________________________
Page 5
26
3
5
2
6
8
7
9
1
4
17
16
18
18
16
16
19
12
12
13
13
11
15
14
10
22
21
29
27
23
23
25
21
22
20
20
24
28
MTSRW ROW
RIGHT SIDE ASSEMBLY - 7559201
________________________________________
SEE PAGE 7 FOR LEGEND
Page 6
MTSRW ROW
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7557501 WLDMT, MTRW R SIDE FRAME
2 2 7352101 CUSHION, WEIGHT STACK
3 2 3102806 NUT, NYLOCK 1/4-20 ZN
4 2 7594601 PULLEY, MTS, 3" BELT
5 1 7464701 ASSY, MTS, 150 LB STACK
6 2 7328606 GUIDE ROD, .75 OD SOLID 59.63
7 2 3242701 CAP, END, .75 X .50. RD, BLACK
8 2 3103301 SHAFT COLLAR, 3/4 I.D. ZINC
9 1 7459901 ASSY, MTS, INCREMENT WEIGHT
10 1 7436595 WLDMT, MTS, BELT ATTACH LH
11 1 7435295 PLATE, MTS, BELT CLAMP
12 4 3223302 3/8-16 X 1.25 HEX HEAD BOLT
13 4 3239503 WSH, .375 IN-D ST ZN
14 1 7435101 SHAFT, 3/8" DIA SS, BELT WRAP
15 2 3102807 NUT, NYLOCK 3/8-16 LOW HT
16 6 3239505 WSH, .500 IN-D ST ZN
17 2 3239313 1/2-13 X 3.25 UNS HEX FHB G5 ZN
18 4 3102801 NUT, NYLOCK 1/2-13 ST ZN
19 1 7435701 BELT, SPOOLED, W15/16, T.09
20 2 7465105 SHROUD, MTS, SIDE 59.00" SGRY
21 2 7434001 WASHER, MTS, HAMMER HEAD
22 2 3239303 1/2-13 X .75 UNS HEX FHB G5 ZN
23 2 7564101 LABEL, MTS, .625 DIA HOLE COVER
24 2 0017-00101-1587 SHIELD RIVET
25 2 3239315 1/2-13 X 3.75 UNS HEX FHB G5 ZN
26 1 7422003 LABEL, MOVING PARTS
27 1 7435606 PANEL, MTS, PLASTIC 59.00"
28 1 7422004 LABEL, 2" ASTM WARN
29 1 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
RIGHT SIDE LEGEND
________________________________________
Page 7
3
5
8
9
7
6
2
3
1
4
13
12
15
14
14
15
16
11
10
17
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7557301 WLDMT, MTRW, R MOVE ARM
2 1 7594601 PULLEY, MTS, 3" BELT
3 2 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
4 1 7559695 PLATE, MTS, STRAP TAPPED
5 2 7559701 SPACER, MTS, .5ID X .75OD X.31
6 2 3223302 3/8-16 X 1.25 HEX HEAD BOLT
7 2 3239503 WSH, .375 IN-D ST ZN
8 1 3102801 NUT, NYLOCK 1/2-13 ST ZN
9 1 3239505 WSH, .500 IN-D ST ZN
10 1 3235801 MTDP GRIP, SHADOW GRAY, 10.72"
11 1 7662901 CAP, GRIP 1.25 OD
12 1 3239318 1/2-13 X 4.50 UNS HEX FHB G5 ZN
13 1 7434001 WASHER, MTS, HAMMER HEAD
14 2 6912804 SLEEVE, ACCRDN 1.0 ID X 2
15 2 3239901 BEARING, 2 HOLE FLANGE, 1" ID
16 2 3247701 M4 X .7 HXS NO CUP ST BO
17 1 M051-00334-A000 HAND PLACEMENT DECAL (RIGHT)
MTSRW ROW
RIGHT WORK ARM ASSEMBLY - 7559301
________________________________________
Page 8
3
1
2
2
5
7
6
4

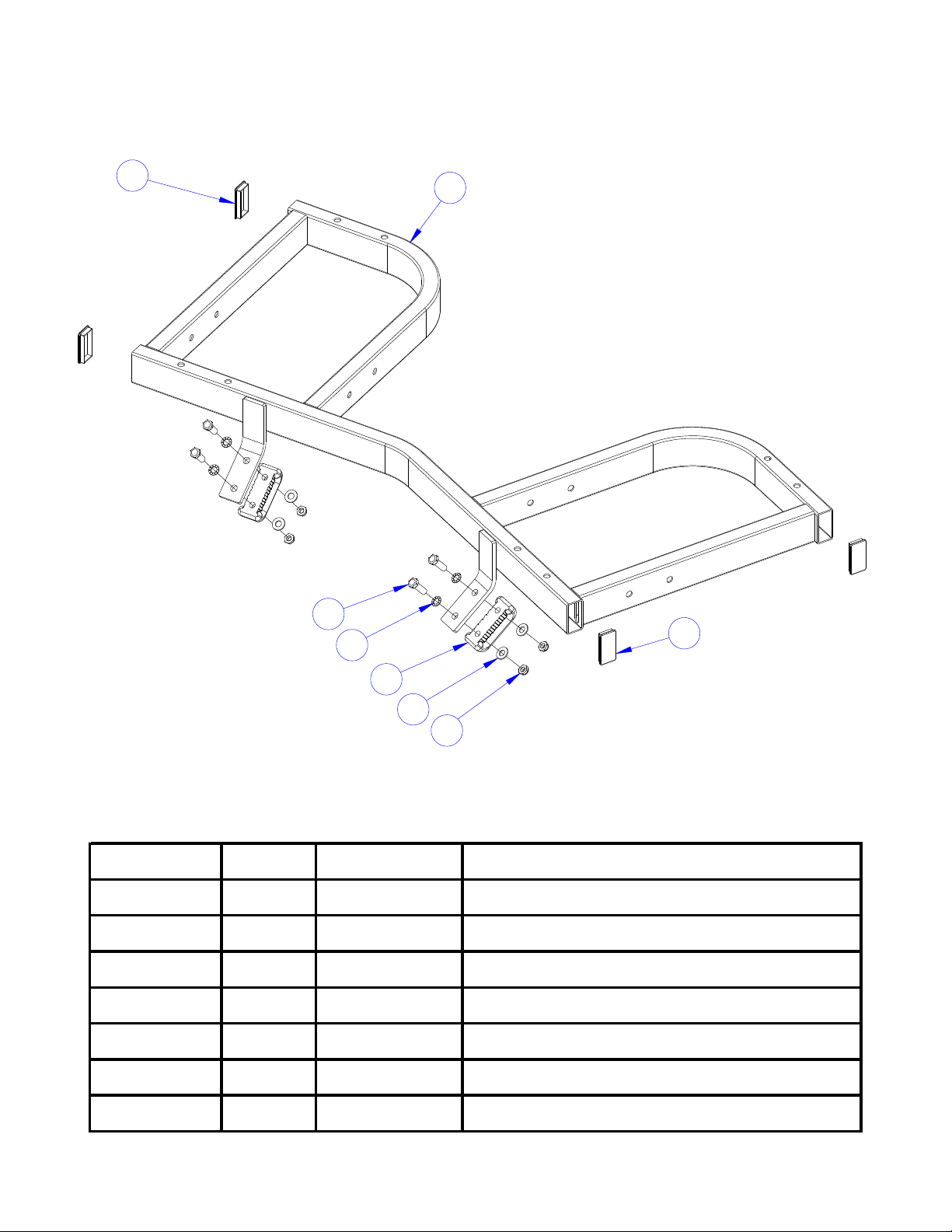

ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7556801 WLDMT, MTRW, TOP FRAME
2 4 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
3 2 7352001 BUMPER, 2-1/8 X 4-5/8
4 4 3239306 1/2-13 X 1.50 UNS HEX FHB G5 ZN
5 4 3102804 NUT, NYLOCK-JAM 1/2-13 ST ZN
6 4 3239505 WSH, .500 IN-D ST ZN
7 4 3102507 WASHER, TYPE A PLAIN
MTSRW ROW
TOP FRAME ASSEMBLY - 7559001
________________________________________
Page 9
3
2
9
9
8
1
7
6
6
2
5
4
15
11
20
19
12
14
10
13
17
16
18
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7558201 WLDMT, MTRW, SEAT FRAME
2 2 7352201 CAP, END 1-1/2 X 2
3 2 7453901 PLATE, MTS, CHEST PAD STOP
4 4 0017-00104-0390 WASHER, FLAT, WHT NYLON
5 2 3239313 1/2-13 X 3.25 UNS HEX FHB G5 ZN
6 4 3239505 WSH, .500 IN-D ST ZN
7 2 3102801 NUT, NYLOCK 1/2-13 ST ZN
8 1 7452501 WLDMT, MTS, CHEST PAD
9 2 7477501 CAP, END, 1-3/4 SQ, 11GA SGRY
10 1 7564301 SEATRACK, ROLLER SERRATED
11 1 7564401 SEATRACK, FLAT
12 1 3238312 M10x1.5x75mm
13 1 3236210 SCREW, M10 X1.5 65MM
14 1 7464301 ASSY, MTS, 83 SEAT
15 1 3236801 NUT, M10 HEX NYLOCK SS
16 1 7422002 LABEL, SEAT ADJUST
17 1 7422001 LABEL, SEAT INST
18 1 7442601 SPRING, PRO2 ROLLER SEAT
19 1 7570601 STOP, ROLLER SEAT
20 1 3235802 GRIP, SHADOW GRAY, 1.5"
MTSRW ROW
SEAT FRAME ASSEMBLY - 7559401
________________________________________
Page 10
MTSRW ROW
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7464401 WLDMT, MTS, 83 SEAT
2 1 7387595 WELDMNT, PS-ROLLER SEAT HANDLE
3 1 7442701 SPRNG, PRO2 HANDLE TORSION
4 3 7564201 ASSY, SEAT ROLLER
5 5 3236217 SCREW, M10 X1.5 100MM
6 5 3236801 NUT, M10 HEX NYLOCK SS
7 5 3236601 WASHER, 3/8 SAE SS
8 2 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
9 1 3238502 CAP, 1/2 X 3
SEAT ASSEMBLY - 7464301
________________________________________
Page 11
3
5
9
6
8
7
2
1
4
17
18
16
12
13
15
19
19
14
17
17
11
11
10
10
22
23
28
24
21
25
23
22
21
27
26
20
MTSRW ROW
LEFT SIDE ASSEMBLY - 7558901
________________________________________
SEE PAGE 13 FOR LEGEND
Page 12
MTSRW ROW
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7557601 WLDMT, MTRW L SIDE FRAME
2 2 7352101 CUSHION, WEIGHT STACK
3 2 3102806 NUT, NYLOCK 1/4-20 ZN
4 2 7594601 PULLEY, MTS, 3" BELT
5 1 7464701 ASSY, MTS, 150 LB STACK
6 2 7328606 GUIDE ROD, .75 OD SOLID 59.63
7 2 3242701 CAP, END, .75 X .50. RD, BLACK
8 2 3103301 SHAFT COLLAR, 3/4 I.D. ZINC
9 1 7434895 WLDMT, MTS, BELT ATTACH
10 4 3239503 WSH, .375 IN-D ST ZN
11 4 3223302 3/8-16 X 1.25 HEX HEAD BOLT
12 1 7435295 PLATE, MTS, BELT CLAMP
13 2 3102807 NUT, NYLOCK 3/8-16 LOW HT
14 1 7459901 ASSY, MTS, INCREMENT WEIGHT
15 1 7435101 SHAFT, 3/8" DIA SS, BELT WRAP
16 1 7435701 BELT, SPOOLED, W15/16, T.09
17 6 3239505 WSH, .500 IN-D ST ZN
18 2 3239313 1/2-13 X 3.25 UNS HEX FHB G5 ZN
19 4 3102801 NUT, NYLOCK 1/2-13 ST ZN
20 1 7422003 LABEL, MOVING PARTS
21 2 7465105 SHROUD, MTS, SIDE 59.00" SGRY
22 2 7434001 WASHER, MTS, HAMMER HEAD
23 2 3239303 1/2-13 X .75 UNS HEX FHB G5 ZN
24 2 3239315 1/2-13 X 3.75 UNS HEX FHB G5 ZN
25 2 7564101 LABEL, MTS, .625 DIA HOLE COVER
26 2 0017-00101-1587 SHIELD RIVET
27 1 7435606 PANEL, MTS, PLASTIC 59.00"
28 1 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
LEFT SIDE ASSEMBLY LEGEND
________________________________________
Page 13
3
6
5
2
7
1
9
8
4
14
15
15
16
16
11
10
12
13
4
17
MTSRW ROW
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7555801 WLDMT, MTRW, L MOVE ARM
2 2 7559701 SPACER, MTS, .5ID X .75OD X.31
3 1 7594601 PULLEY, MTS, 3" BELT
4 2 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
5 2 3239503 WSH, .375 IN-D ST ZN
6 2 3223302 3/8-16 X 1.25 HEX HEAD BOLT
7 1 3102801 NUT, NYLOCK 1/2-13 ST ZN
8 1 3235801 MTDP GRIP, SHADOW GRAY, 10.72"
9 1 7662901 CAP, GRIP 1.25 OD
10 1 7434001 WASHER, MTS, HAMMER HEAD
11 1 3239318 1/2-13 X 4.50 UNS HEX FHB G5 ZN
12 1 7559695 PLATE, MTS, STRAP TAPPED
13 1 3239505 WSH, .500 IN-D ST ZN
14 2 3247701 M4 X .7 HXS NO CUP ST BO
15 2 6912804 SLEEVE, ACCRDN 1.0 ID X 2
16 2 3239901 BEARING, 2 HOLE FLANGE, 1" ID
17 1 M051-00333-A000 HAND PLACEMENT DECAL (LEFT)
LEFT WORK ARM ASSEMBLY - 7559101
________________________________________
Page 14
MTSRW ROW
1
2
3
4
8
6
5
7
9
Weight Stack Labels
PART NO. DESCRIPTION
8072201 LABEL, MTS, WGHT STK, 150 LBS
8072101 LABEL, MTS, WGHT STK, 80 KG
ITEM NO. QTY. PART NO. DESCRIPTION
1 14 7353701 ASSY, 10 LB PLATE
2 1 7464801 BAYONET, MTS, 15 HOLE
3 1 3236001 BUSHING, SPRING PIN
4 1 7356501 PLUG, LANYARD ATTACHMENT
5 1 7353001 ASSY, SELECTOR PIN
6 1 7434401 HEAD PLATE, MTS
7 2 7338001 BUSHING, HEADPLATE
8 1 7523601 CRIMP, CABLE
9 2 7767601 BUMPER, PS INCREMENT WT
150 LBS. WEIGHT STACK ASSEMBLY - 7464701
________________________________________
Page 15
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7459801 BLOCK, MTS, INCREMENT WEIGHT
2 1 7351401 KNOB, TULIP STYLE
3 4 7560001 BUSHING, MTS, INC WEIGHT
4 1 7447001 SPRING, COMPRESSION
5 1 7446901 PIN, RETAINING
MTSRW ROW
INCREMENT WEIGHT ASSEMBLY - 7459901
________________________________________
Page 16
MTSRW ROW
________________________________________
Page 17
