Use and
Care Manual
For Beverage Cooler
RU 500
7081 619-01
Congratulations on your purchase. Choosing this appliance means you want
all the benefits of state-of-the-art refrigeration technology, guaranteeing you top
quality, a long appliance life span and excellent reliability.
The features on your appliance have been designed to ensure maximum
convenience - day in, day out.
This appliance has been manufactured with recyclable materials using an
environmentally friendly process, so together we’re making an active contribution
to the preservation of our environment.
To get to know all the benefits of your new appliance, please read the information
contained in these operating instructions carefully.
We know you will be pleased with your new appliance.
Additional benefits
• CFC-free
• Energy-optimized refrigerant circuit
• Energy-efficient insulation
• Low energy consumption
• User-friendly electronic controls
• Display of functions switched on
• Temperature can be controlled within climate rating
range, regardless of room temperature
• Big capacity
• Variable and practical features
• Audible door open alarm
• Easy to clean
• Door hinges can be changed over
2
TABLE OF CONTENTS
Keep these operating instructions in a safe place and pass them on to the
next owner, where applicable.
Contents Page
Safety .......................................................................................................... 4
Disposal of Old Appliance .................................................................... 4
Important Safety Information ................................................................ 5
Electrical Safety .................................................................................... 5
Unpacking ................................................................................................... 6
Safety Instructions and Warnings ......................................................... 6
Disposal of Carton ................................................................................ 6
Safety Regulations ................................................................................. 7
Installation .................................................................................................... 8
Fitting Dimensions ................................................................................. 8
Installation and Fitting ............................................................................ 8
Reversing the Door Hinges ................................................................... 9
Operation ...................................................................................................10
Operating and Control Elements .........................................................10
Turning the Appliance ON and OFF .................................................... 10
Setting the Temperature ...................................................................... 10
Ventilation Button ................................................................................. 10
Additional Functions ............................................................................ 11
Audible Warning Signal ........................................................................ 11
Beverage Compartment ............................................................................. 12
Interior Light ......................................................................................... 12
Additional Features .............................................................................. 12
Pull-out Racks ...................................................................................... 12
Defrosting/Cleaning ...................................................................................13
Defrosting ............................................................................................. 13
Cleaning ............................................................................................... 13
Troubleshooting .......................................................................................... 14
Customer Service ................................................................................ 14
Appliance Information .......................................................................... 14
Warranty ..................................................................................................... 15
IMPORTANT
All types and models are subject to continuous improvement. The manufacturer reserves the right to
make modifications in the shape, equipment and technology.
3
SAFETY
Read and follow all the safety rules and operating
instructions before using this appliance. Save these
instructions for future reference. Throughout this
instruction manual are specific Important instructions, Cautions and Warnings.
States a hazard will cause serious injury
or death if precautions are not followed.
States a hazard which may cause serious
injury or death if precautions are not followed.
Signals a situation where minor injury or
product damage may occur if you do not
follow instructions.
IMPORTANT
This highlights information that is especially
relevant to a problem-free installation.
Disposal of Old Appliance
Be sure to follow your local requirements for disposal of appliances. Discarded appliances can be
dangerous.
Risk of child entrapment. Before you discard old appliances:
• Be sure to follow your local requirements for disposal of appliances. Discarded appliances can be dangerous.
• Remove the doors.
• Leave the shelves in place so that children may not easily climb inside.
• Cut off the prongs from the power cable
plug and discard them.
• Cut off the power cable from the discarded refrigerator. Discard separately
from the refrigerator.
Following these instructions reduces the
possibility of causing personal injury,
especially to children playing.
Contact the trash collection agency in
your area for additional information.
4
SAFETY
Important Safety Information
This appliance is intended for domestic use only.
Use the appliance only for its intended purpose; the
storage of beverages.
Do not store perishable foods in this unit.
Follow the cautions and safety warnings throughout
this instruction manual including the following:
• To prevent injury to you or damage to the unit,
the appliance should be unpacked and set up by
two people.
• If the appliance is damaged on delivery, contact
the supplier immediately before connecting to
the power source.
• To guarantee safe operation, ensure that appliance is set up and connected as described in
these operating instructions.
• Disconnect the appliance from the power source
if a fault occurs. Pull out the plug, turn off or disable the power source.
• When disconnecting the appliance, use the plug.
Do not pull on the cable.
• Any repairs and work on the appliance should
only be performed by the customer service
department. Unauthorized work may be dangerous to the user. Changing the power source
cable should only be done by the customer service department.
• Do not store explosives or sprays using combustible propellants such as butane, propane,
pentane, etc. in the appliance. Electrical components might cause leaking gas to ignite. You may
identify such sprays by the printed contents or a
flame symbol.
• To prevent possible injury due to broken glass,
use hand protection when replacing the interior
light.
• To avoid injury or damage to the appliance, do
not use steam cleaning equipment to clean the
appliance.
• Do not operate the appliance in the presence of
explosive fumes.
• In the event of a power outage, minimize opening the door.
• To protect the appliance from possible damage, allow the appliance to stand 1/2 to 1 hour
in place before turning the electricity on. This
allows the refrigerant and system lubrication to
reach equilibrium.
Electrical Safety
Connect this appliance to a 110-120 VAC, 15 amp
circuit that is controlled by a circuit breaker or
fuse. This appliance should have its own separate
grounded circuit. Do not use an extension cord.
The power cord is equipped with a three-prong
(grounding) plug for your protection against possible shock hazards. To maintain this protection:
• Do not modify the plug by removing the round
grounding prong.
• Do not use a two-prong adapter. Where a twoprong wall receptacle is encountered, contact
a qualified electrician and have it replaced with
a three-prong receptacle in accordance with all
local codes and ordinances.
• Do not use a power cord that is frayed or damaged.
• Do not use electrical appliances inside the appliance.
• Do not allow children to play with the appliance.
Children must not climb, sit or stand on the racks
or door.
• To prevent possible injury due to an electrical
shock, be sure to disconnect the power cord or
turn off the circuit breaker before replacing the
interior light or cleaning the appliance.
5
UNPACKING
Safety Instructions and Warnings
To avoid risk of personal injury or property damage, have two people unpack and
move this appliance into place.
Protect the finished floor surface before
you uncrate the unit.
Avoid placing the appliance in direct sunlight or
near the stove, range top, radiators and similar heat
sources.
The floor under the appliance should be flat and
level.
Keep the appliance out of the weather. The ventilation grille should not be obstructed. Always ensure
there is good ventilation in front of the appliance.
Disposal of Carton
The packaging is designed to protect the appliance
and individual components during moving and is
made of recyclable materials.
• Corrugated board/board
• Molded polystyrene (foamed, CFC-free polystyrene)
• Polythene bags and sheets
• Polypropylene straps
Keep packaging materials away from
children. Polythene sheets and bags can
cause suffocation!
• Please take the packaging material to your local
recycling facility.
As soon as you uncrate the unit:
• Examine the unit and packaging for shipping
damage. Contact the carrier immediately if you
suspect there is any damage.
•
Note the type (model number), index, serial number, date of purchase and where purchased on
the spaces provided in the back of this manual.
6
Safety Regulations
The appliance is set to operate within specific
ambient temperature limits according to its climate
rating. These temperature limits should not be
exceeded. The correct climate rating for your appliance is indicated on the model plate.
This is explained as follows:
Climate
Rating Set for Ambient Temperatures of
SN 50°F to 90°F (10°C to 32°C)
N 61°F to 90°F (16°C to 32°C)
ST 65°F to 100°F (18°C to 38°C)
- The refrigerant circuit has been tested for leaks.
- The appliance complies with current safety regulations UL250 and CSA C22.2 #63.
We recommend cleaning the appliance before turning it ON for the first time. See Cleaning. Turn ON
the appliance several hours before loading it.
UNPACKING
Do not allow children to play with the
appliance. Children must not climb, sit or
stand on the racks or door.
Failure to follow these instructions may
result in death or serious injury.
7
INSTALLATION
Fitting Dimensions - Figure 1
Figure 1
* Overall height can be increased by 2 inch (50
mm) by adjusting the feet.
Adjust to recess height using the four adjustable
feet on the underside of the appliance.
Installation and Fitting - Figure 3
Figure 3
1. Connect the appliance to the dedicated outlet.
2. Slide the appliance into the recess.
3. Secure the appliance in the recess using
4 x 14 mm screws supplied with the appliance.
The screws can be installed into the counter or into
the cabinet or frame on the sides of the appliance,
or in any combination. Four screws must be used.
The appliance is adapted with a door opening limiter. The maximum opening angle is 100°.
Put the electrical outlet in a location where it does
not interfere when the appliance is placed into its
recess.
IMPORTANT
The fitting dimensions are actual, allow for
additional clearance for sliding the appliance
into its recess based on how you chose the
final installation to look. Make sure your installation does not block the ventilation grille.
(Figure 2)
The appliance must be attached to the
cabinet or counter before it is used.
Figure 2
8
Reversing the Door Hinges - Figure 4
Unscrew hinge pin.
Lift off the door.
INSTALLATION
Insert screws again.
Reassemble lower hinge plate
on the left side of the unit.
Unscrew upper hinge plate,
turn it 180° and screw on the
opposite side.
Unscrew lower hinge plate.
Remove screws.
Pull out sleeve
and reassemble.
Transfer both pins of the
hinge plate to the opposite side.
Transfer plug to the opposite side of the door.
Suspend door on
hinge pin and close.
Insert hinge pin and tighten.
Transfer handle and plugs
to the opposite side.
Figure 4
9
OPERATION
Operating and
Control Elements - Figure 5
Figure 5
1. Temperature display
2. Temperature setting buttons
3. Alarm ON/OFF button
4. Interior light ON/OFF button
5. Childproof Lock
6. ON/OFF button
7. Fan switch
8. Fan symbol
Setting the Temperature - Figure 7
To reduce the temperature: Press the “DOWN“
button;
To increase the temperature: Press the “UP“ button.
- While you are entering the temperature, the set
temperature will flash on the display.
- You can change the settings in increments of
1°F (1°C) by briefly pressing the button again.
The electronic controls will switch over automatically about five seconds after the last time you
pressed the button. The actual temperature displays.
Figure 7
If F0 or F1 appears in the display, the appliance has
a fault. Contact your nearest customer service representative, indicate the type of appliance, index
and Appliance / serial number.
Turning the Appliance
ON and OFF - Figure 6
Clean the appliance before turning it on for the first
time. See Cleaning. Connect the appliance to the
dedicated outlet - the appliance is turned on.
• To turn the appliance off: Keep the ON / OFF
button pressed for three seconds so that the temperature display goes out.
• To turn the appliance on: Press the ON / OFF
button until the display lights up.
Figure 6
Fan switch - Figure 8
The fan switch can be used to increase the relative
humidity in the interior.
• To switch on: Press buttons 3and 4 simulta-
neously. The fan symbol will be shown in the display. The fan is permanently in operation = higher
humidity.
• To switch off: Press the buttons again so that
the fan symbol goes dark.
The fan runs in parallel to the compressor = lower
humidity.
Note:
- The energy consumption will increase when the
fan is switched on.
- To save energy, the fan will switch off automatically when the door is open.
10
Figure 8
OPERATION
Additional Functions - Figures 9 - 12
In setup mode you can set the Childproof Lock,
adjust the brightness of the display and choose
the unit of temperature for the display in degrees
Fahrenheit or degrees Celsius. The childproof lock
is designed to protect the appliance from being
switched off accidentally by children.
Activating set-up mode:
• Press the “Light“ button for approximately five
seconds
- the “Light“ button flashes - the display shows C
for childproof lock.
Note: the value to be altered flashes.
Figure 9
• Select the required function by pressing the
/(UP/DOWN) button:
C = Childproof Lock, = brightness
or = changing the temperature display.
For = brightness, press /(UP/DOWN) but-
ton to select
1 = minimum to
5 = maximum brightness and acknowledge
with “Light“ button.
Figure 11
For = unit of temperature, press / (UP/
DOWN) button to select °C= to display degrees
Celsius, °F = to display degrees Fahrenheit
for temperature display and acknowledge with
“Light“ button.
Figure 12
• Now select ON or OFF by pressing the “Light“
button briefly:
For C = childproof lock, press the /(UP/
DOWN) button to select
C 1 = childproof lock on or
C 0 = childproof lock off and acknowledge with
the “Light“ button.
When the symbol is lit, the childproof lock is
activated.
Figure 10
Exit set-up mode:
• Exit the setup mode by pressing the ON/OFF
button; after two minutes the electronic system
switches over automatically. The normal operating
mode is activated again.
Audible Warning Signal - Figure 13
The audible warning signal helps to protect your
beverage against excessive temperature fluctuations.
- The audible warning signal sounds
when the door is open for longer
than about 180 seconds. The audible warning device is turned off by
pressing the Alarm button.
- The audible warning signal sounds
when the interior gets too warm or
too cold. The temperature display
will also flash. The audible warning
device is turned off by pressing the Alarm button. The temperature display will continue to flash
until the cause of the alarm has been rectified.
Figure 13
11
BEVERAGE COMPARTMENT
Interior Light - Figure 14
The light is located behind the cover in the top of
the interior.
The interior light can be turned on and off
using the Light button. (Figure 14)
The light button indicator is illuminated when the
interior light is turned ON.
Figure 14
Replacing the tube - Figure 15
To prevent possible injury due to an
electrical shock, be sure to disconnect the power cord or turn OFF the
circuit breaker before replacing the
interior light tube or cleaning the
appliance.
Additional Features
Pull-out Racks - Figure 16
The pull-out racks allows bottles of wine to be
viewed and removed more easily.
Figure 16
Air Exchange with Activated
Charcoal Filter - Figure 17
Your Liebherr beverage cooler is getting it’s fresh
air through an active charcoal filter which is located
in the back bottom right hand corner.
To prevent possible injury due to broken
glass, use hand protection when replacing
the interior light tube.
• Unscrew the cover panel.
• Change the fluorescent tube.
• Replace cover panel and screw into place.
Figure 15
We recommend you replace the filter at least once
a year. Filters can be obtained from your Liebherr
Dealer or Distributor.
Removing the filter: Hold the filter by the handle.
Turn it 90° to the left or right and remove.
Reinstalling the filter: Insert with the handle in a
vertical position. Turn it 90° to the left or right until it
clicks into place.
12
Figure 17
DEFROSTING/CLEANING
Defrosting
The beverage compartment defrosts automatically.
The water that forms on the rear wall drains into a
reservoir at the back of the appliance and evaporates automatically through the compressor heat.
Cleaning
• To prevent possible injury due to an
electrical shock, be sure to disconnect
the power cord or turn OFF the circuit
breaker before replacing the interior
light tube or cleaning the appliance.
• To avoid injury or damage, DO NOT
use steam cleaning equipment to
clean the appliance.
Clean the appliance by hand with lukewarm water
and a little detergent.
DO NOT use abrasive or scouring sponges. DO
NOT use concentrated cleaning agents. NEVER
use abrasive or acid cleaners or chemical solvents
or steam cleaners.
• Ensure no cleaning water penetrates into the
electrical components or ventilation grille.
• Dry all parts well with a cloth.
Keep your stainless steel looking new by cleaning
with a good quality stainless steel cleaner or polish
monthly. High quality stainless steel cleaners and
conditioners are commercially available.
DO NOT CLEAN WITH STEEL WOOL PADS or
ABRASIVE PADS. DO NOT use cleaners that
are not for use on stainless steel, such as glass
cleaners, tile cleaners or cleaners used to clean
counter tops. These types of cleaners can damage the surface permanently.
Stainless steel that is exposed to chlorine gas and
moisture may have some discoloration. This discoloration is normal. If your unit is used in this environment, clean and polish your stainless steel more
often.
If the surface discolors or rusting appears, clean
it quickly with a non-abrasive cloth and protect it.
Always clean and polish in the direction of the grain
and finish.
IMPORTANT
Mold can form on the bottles and labels
depending on the type of adhesive used on
the labels. This can be prevented by carefully cleaning any adhesive residues off the
bottles.
• DO NOT damage or remove the model plate on
the inside of the appliance. It is very important for
servicing your appliance.

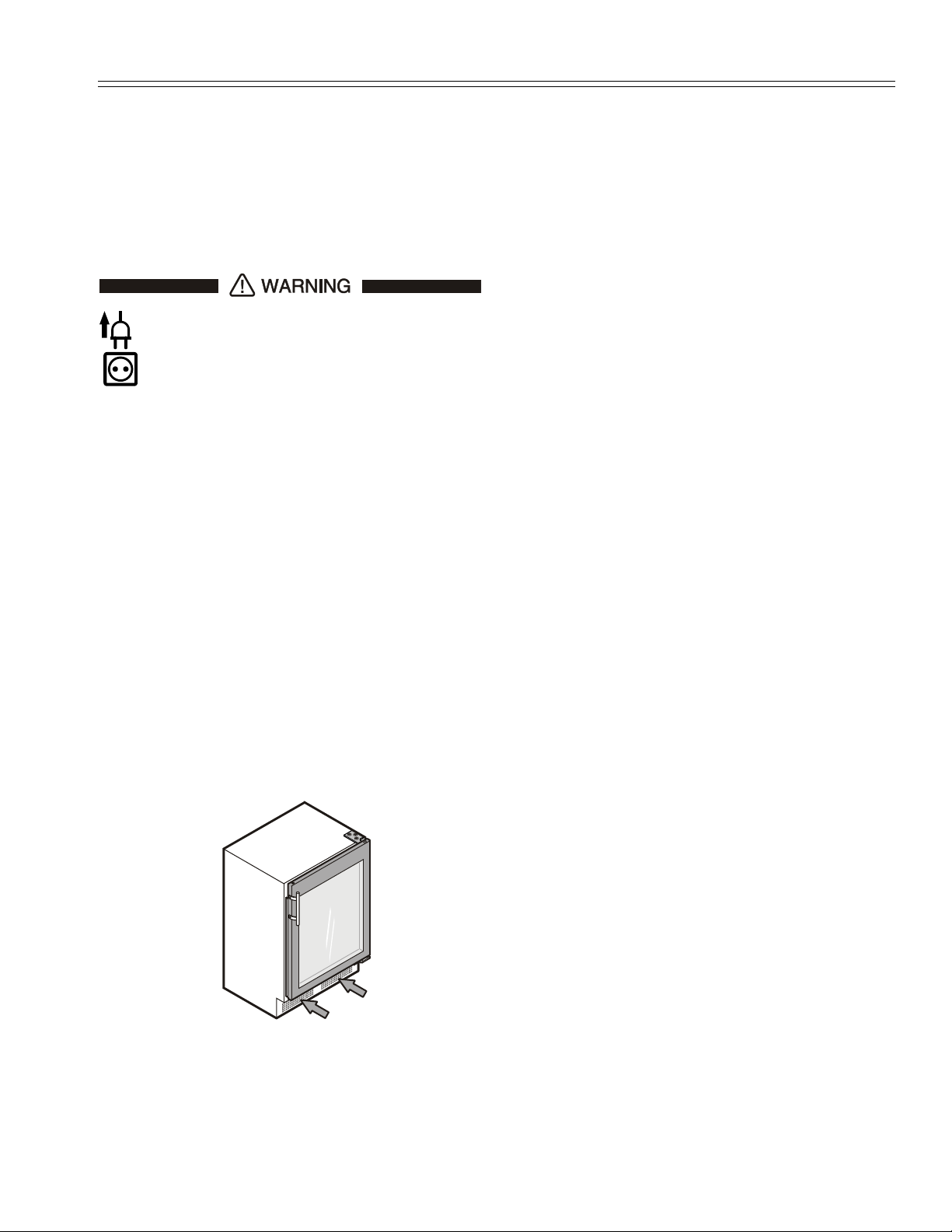

Remove any dust from the outside of the ventilation
grille (Figure 18) with a vacuum cleaner.
Figure 18
13
TROUBLESHOOTING
Your appliance is designed and manufactured for a long life and reliable operation.
If a problem occurs during operation, check whether it is due to an operating error. Please note that even
during the warranty period, some repair costs may be your responsibility.
You may be able to correct the following faults by checking the possible causes yourself:
Problem Possible Cause and Remedy
Appliance does not work,
display is off
The interior light does
not come on
Loud running noise
Motor seems to
run too long
The temperature is
not cold enough
F 0 or F 1 appears in the
display
- Is the appliance turned on properly?
- Is the power cord properly inserted in the outlet?
- Is the circuit breaker or fuse in operating condition?
- Is the appliance turned on?
- Is the interior light turned on?
- The bulb is defective. Contact your Liebherr Dealer or Representative.
- Is the appliance placed firmly on the floor, or does the compressor
cause nearby items of furniture or objects to vibrate? If necessary, move
the appliance slightly, align by adjusting the adjustable feet, or adjust
bottles.
- Is the ambient temperature too hot? See Safety Regulations.
- Has the appliance been opened too often or left open too long?
- Is the temperature setting correct? See Setting The Temperature.
- Has an excessive amount of beverages been placed in the appliance?
- Does a separately installed thermometer show the correct reading?
- Is the ventilation system working properly?
- Is the appliance set up too close to a heat source?
The appliance has a fault. Contact your nearest customer service
representative, indicate the type of appliance, index and appliance
/ serial number.
Customer Service
If none of the above possible causes apply,
and you can not rectify the fault yourself,
contact your nearest customer service representative. Indicate the type (1) of appliance, service
number (2) and the appliance / serial number (3)
as indicated on the model plate. The model plate is
located on the left-hand inside wall.
14
Appliance Information
Record this information when the appliance is
installed.
Type Designation: _________________________
Service Number: __________________________
Appliance / serial number: ___________________
Date of Purchase: _________________________
Where Purchased: _________________________
WARRANTY
LIEBHERR WARRANTY PLAN
FULL TWO YEAR WARRANTY - For two years from the date of original purchase, your Liebherr warranty
covers all parts and labor to repair or replace any part of the product which proves to be defective in materials or workmanship.
FULL FIVE YEAR WARRANTY - For five years from the date of original purchase, your Liebherr warranty
covers all parts and labor to repair or replace any components that prove to be defective in materials or
workmanship in the sealed system. The “Sealed System” means only the compressor, condenser, evaporator, drier and all connecting tubing.
LIMITED 6TH THROUGH 12TH YEAR WARRANTY - From the 6th through 12th year from the date of original purchase, your Liebherr warranty covers all parts that prove to be defective in materials or workmanship in the Sealed System (parts only).
TERMS APPLICABLE TO EACH WARRANTY
All service provided by Liebherr under the warranty must be performed by authorized Liebherr service representatives, unless otherwise specified by Liebherr. Service will be provided in the home during normal
business hours. This warranty applies only to products installed for normal residential use. Details regarding a non-residential warranty are available on request.
The warranty applies only to products installed in canada and any one of the fifty states of the United
States or the District of Columbia.This warranty does not cover any parts or labor to correct any defect
caused by negligence,accident or improper use,maintenance,installation,service or repair,including but not
limited to improper removal and reinstallation of the condensing unit.
The remedies described above for each warranty are the only ones which Liebherr will
provide,either under these warranties or under any warranty arising by operation of law.Liebherr
will not be responsible for any consequential or incidental damages arising from the breach of
these warranties or any other warranties, whether express, implied or statutory.
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above
limitation or exclusion may not apply to you.This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
To receive parts and/or service and the name of the Liebherr authorized service representative nearest
you, contact your Liebherr dealer or distributor or contact the Liebherr designated national service provider:
in the US:Liebherr@adcoservice.com,or call 1-866-LIEBHERR or 1-866-543-2437
in Canada:www.euro-parts.ca,or call 1-888-LIEBHERR,1-888-543-2437.
15
Loading...
