Use and
Care Manual
For “NoFrost” Combined
Refrigerator-Freezers with IceMaker
CS 2092
7082 992-00
T
able of
C
onTenTs
Congratulations on your purchase. Choosing this
appliance means you want all the benefits of state-ofthe-art refrigeration technology, guaranteeing you top
quality, a long appliance life span and excellent reliabilit y.
The features on your appliance have been designed to
ensure maximum convenience - day in, day out.
This appliance has been manufactured with recyclable
materials using an environmentally friendly process, so
together we’re making an active contribution to the preservation of our environment.
To get to know all the benefits of your new appliance,
please read the information contained in these operating instructions carefully.
We know you will be pleased with your new appliance.
Additional benefits
• CFC-free
• Energy-optimized refrigerant circuit
• Energy-efficient insulation
• Low energy consumption
• User-friendly electronic controls
• Display of functions switched on
• Temperature can be controlled within climate rating
range, regardless of room temperature
• Refrigerator and freezer compartments defrost automatically - no need to spend time defrosting
• Big net refrigerator capacity
• Variable and practical features
• Safety-glass storage shelves
• Big net freezer capacity
• Automatic ice maker
• Water filter for good water quality ice production
• Freezer temperature increase alarm
• Audible door open alarm
• Power failure/“frost-control” display
• Fresh food can be fast-frozen as required
• All drawers suitable for fast freezing
• Integrated transport grips on appliance housing
• Transport castors
• Easy to clean
• This unit is certified as Sabbath compliant by the
Star-K organization thus allowing the appliance to be
used during religious holidays. For more information
please visit Star-K on the web at www.star-k.org.
Contents Page
Please Read and Follow these Instructions .................. 3
California Proposition 65 ................................................ 3
Disposal of Old Appliance ............................................. 3
Disposal of this Appliance ............................................. 3
Disposal of Packaging Material ..................................... 4
Important Safety Information ......................................... 4
R600a Refrigerant.......................................................... 6
Electrical Safety ............................................................. 6
Safety Regulations ......................................................... 6
Water Filter - Figure 1 .................................................... 7
Installing the Water Filter ............................................... 7
Removing the Water Filter ............................................. 7
Description of Appliance and Equipment ...................... 8
Operating and Control Elements ................................... 9
Turning the Appliance On and Off ................................10
Power Failure/Frost-Control Display .............................11
Setup Mode ...................................................................12
Setup Mode ...................................................................14
Arranging Food .............................................................16
Shelf Arrangement ........................................................16
Interior Light ..................................................................17
Freezer Compartment Description ...............................18
Removing the Freezer Compartment Containers ........18
Freezing ........................................................................19
Freezing with Superfrost ...............................................19
Freezing and Storage....................................................19
Safety Instructions and Warnings for the Automatic Ice
Maker .......................................................................... 20
Turning the Ice Maker On and Off ............................... 20
Ice Maker Description ................................................ 20
Defrosting ......................................................................21
Cleaning ........................................................................21
Cleaning the Air Filter ................................................... 22
Vacation Tips ............................................................... 23
Troubleshooting ............................................................24
Ice Maker Troubleshooting .......................................... 25
Appliance Information .................................................. 25
IMPORTANT
All types and models are subject to continuous
improvement. The manufacturer reserves the right
to make modifications to the shape, equipment, and
technology.
2
s
afeTy
Please Read and Follow these
Instructions
These instructions contain Danger, Warning, and
Caution notes.
This information is important for safe and efficient installation and operation.
Always read and comply with all Danger, Warning, and
Caution notes!
DANGER!
Danger indicates a hazard which
will cause serious injury or death if
precautions are not followed.
WARNING!
Warning indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION!
Caution indicates a potentially hazardous
situation which, if not avoided, may result
in minor or moderate injury.
Disposal of Old Appliance
WARNING!
Risk of child entrapment.
Child entrapment and suffocation are not problems of
the past.
Junked or abandoned refrigerators are still dangerous –
even if they will sit for “just a few days.”
If you are getting rid of your old refrigerator, please
follow these instructions to help prevent accidents.
Before you discard old appliances:
• Take off the doors.
• Leave the shelves in place so that children
may not easily climb inside.
• Cut off the power cord from the discarded
appliance. Discard separately from the
appliance.
• Be sure to follow your local requirements for
disposal of appliances.
Contact the trash collection agency in
your area for additional information.
IMPORTANT
This indicates information that is especially relevant
to a problem-free installation and operation.
California Proposition 65
- WARNING: This product can expose you to
chemicals including Diisononyl Phthalate
(DINP), which is known to the State of
California to cause cancer, and Di-isodecyl
Phthalate (DIDP), which is known to the State
of California to cause birth defects or other
reproductive harm. For more information, go
to www.P65Warnings.ca.gov
Disposal of this Appliance
This appliance contains flammable gases within
the refrigeration circuit and insulation foam.
Contact the municipality or disposal company
in your area for information on approved
recycling or disposal.
3
s
afeTy
The symbol may be located on the
compressor. It refers to the oil in the
compressor and refers to the following danger: Can be fatal if swallowed
or inhaled. This notice only applies for
recycling. There is no danger during
normal operation.
WARNING: Risk of fire / flammable
materials. The symbol is located on
the compressor and indicates the
danger from flammable materials. Do
not remove the label.
This label or a similar one can be located on the rear of the appliance. It refers
to the foamed-in panels in the door
and/or the housing. This notice only
applies for recycling. Do not remove
the label.
Disposal of Packaging Material
The packaging is designed to protect the appliance and
individual components during transport and is made of
recyclable materials.
WARNING!
Keep packaging materials away from
children. Polythene sheets and bags can
cause suffocation!
If possible, please recycle packaging material at a recycling facility.
Important Safety Information
• WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.
• WARNING: Do not damage the refrigerant
circuit.
• WARNING: The power cord must not be
damaged while installing the appliance.
• WARNING: Multi-sockets or distributor strips
and other electronic devices (such as halogen transformers) must not be positioned
and operated at the rear of appliances.
• WARNING: Danger of injury through electric
shock! There are live parts under the cover.
Only have the interior LED light replaced or
repaired by customer service staff or trained
personnel.
• WARNING: Risk of injury from the LED lamp.
The light intensity of the LED light complies
with risk group RG 2. If the cover is defective,
do not look directly at the light through optical
lenses from close distance. This may damage your eyes.
• WARNING: This appliance must be secured
as described in the Use and Care Manual
(Installation Instructions) to rule out any
potential risks due to its instability.
• WARNING: Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
4
s
afeTy
• Any repairs and work on the appliance
should only be performed by the customer
service department. Unauthorized work may
be dangerous to the user. The power source
cable should only be changed or replaced
by the customer service department.
Component parts and power cords shall be
replaced with like components performed by
factory authorized service personnel only.
• Do not stand on the toe kick, drawers or
doors or use them to support anything else.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of
experience and knowledge unless they have
been given initial supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should
be supervised to ensure that they do not play
with the appliance.
• Do not store explosive substances such as
aerosol cans with a flammable propellant in
this appliance.
• To prevent injury and damage to property,
the appliance should only be installed by four
people.
• Only install, connect, and dispose of the
appliance as described in this Use and Care
Manual.
• In the event of a fault, pull out the plug or
switch off the fuse.
• When disconnecting the appliance from the
power source, pull it out by the plug, never
pull on the cable.
• If you have a lockable appliance, do not keep
the key near the appliance or within reach of
children.
• The appliance is designed for use in
enclosed rooms. Do not operate the appliance outdoors or in areas where there is
moisture or splashing water.
• Do not use the interior LED light to light the
room. The interior LED light is only designed
to illuminate the interior of the appliance.
• Do not allow naked flames or ignition sources
to enter the appliance.
• Alcoholic drinks or other vessels containing
alcohol should be sealed tightly for storage.
• Check the appliance for signs of damage
after unpacking. Contact the supplier if it is
damaged. Do not connect the appliance to
the mains power supply.
• Avoid prolonged skin contact with cold surfaces (e.g., chilled/frozen products). If necessary, take safety action (e.g., gloves).
• Do not consume food which has been stored
for too long; it could cause food poisoning.
• Any repairs and work on the appliance
should only be performed by the customer
service department or other trained personnel. The same applies to changing the power
cord.
• Only perform repair and other work on the
appliance when the plug has visibly been disconnected.
5
s
afeTy
R600a Refrigerant
WARNING!
The refrigerant R600a contained within
the appliance is environmentally friendly,
but flammable. Leaking refrigerant can
ignite.
Electrical Safety
Connect this appliance to a 15 amp or 20 amp, 110120 VAC, circuit which is grounded and protected by a
circuit breaker or fuse.
We recommend using a dedicated circuit for this appliance to prevent circuit overload and the chance of interruption to the appliance.
This appliance is equipped with a three-prong (grounding) polarized plug for your protection against possible
shock hazards.
Where a two-prong wall receptacle is encountered,
contact a qualified electrician and have it replaced with
a properly grounded three-prong receptacle in accordance with all local codes and ordinances.
WARNING!
Electrocution hazard.
Electrical grounding required.
Do not remove the round grounding
•
prong from the plug.
Do not use extension cords or
•
ungrounded (two prong) adapters.
• Do not use a power cord that is
frayed or damaged.
Safety Regulations
This appliance is intended to be used in household and
similar applications.
This includes, for example, use
- in staff kitchenettes, bed and breakfast establishments,
- by guests in cottages, hotels, motels and other forms
of accommodation,
- in catering and similar services in the wholesale
trade.
IMPORTANT
The appliance is not intended for outdoor use.
The appliance is manufactured to operate within specific ambient temperature limits according to its climate
rating.
The climate rating indicates the ambient temperature
at which the appliance may be operated in order to
achieve full refrigeration performance.
Climate Rating Ambient Temperature
SN-T 50°F to 109°F (10°C to 43°C)
IMPORTANT
Do not operate the appliance outside the specified
ambient temperature range.
- The refrigerant circuit has been tested for leaks.
- The appliance complies with current safety regulations
CAN/CSA C22.2 No. 60335-2-24 / UL 60335-2-24
CAN/CSA C22.2 No. 60335-1 / UL 60335-1
We recommend cleaning the appliance before turning it
on for the first time. See „Cleaning“.
Turn on the appliance several hours before loading it.
• Do not use a power strip.
Failure to follow these instructions may
result in fire, electrical shock or death.
6
WARNING!
Do not allow children to play with the
appliance. Children must not climb, sit or
stand on the shelves or door.
Failure to follow these instructions may
result in death or serious injury.
W
aTer
f
ilTer
Water Filter - Figure 1
Before turning on the appliance install the water filter
provided in the interior rear wall of the refrigerator compartment. This ensures good ice cube quality and keeps
the water circuit free of solids such as sand.
Water filter location
Figure 1
Replace the filter when the drop
symbol appears on the temperature display.
Filters can be obtained from your
Liebherr Dealer or Distributor.
Installing the Water Filter -
Figure 2 and Figure 3
1. Remove cover of the
filter socket.
Figure 2
2. Insert the filter and
turn it 90° clockwise.
WARNING!
To avoid the risk of
water filter must be changed when the
waterdrop symbol appears on the display!
IMPORTANT NOTE
It is not necessary to turn off the water supply
when removing or installing the water filter.
bacteria growth,
the
Figure 3
Removing the Water Filter - Figure 4
3. Turn the filter 90°
counterclockwise
and remove.
Figure 4
7
f
eaTures
Description of Appliance and Equipment - Figure 5
Description of Refrigerator
(1) Operating and Control Elements
(2) Adjustable Door Racks
(3) Adjustable Shelves
(4) Gallon Rack
(5) Model Plate (behind the Vegetable Bin on the left
hand side)
(6) Drawer
(7) Vegetable Drawers
(8) Water Filter
Figure 5
Description of Freezer
(9) Upper Freezer Drawer
(10) Lower Freezer Drawer
(11) Ice Maker (in the interior of the Upper Freezer
Drawer)
(12) Ventilation Grille
(13) Adjustable-Height Unit (behind the Ventilation
Grille
8
f
eaTures
Operating and Control Elements - Figure 6, Figure 7
The electronic control panel has the “Touch capacitance technology”. Any function can be activated by a fingertip
on the symbol of the operating icons.
The exact contact point is between the symbol and its label
Refrigerator
operating icons
Refrigerator operating icons
Alarm mute (refrigerator and
freezer)
Supercool
Refrigerator On/Off
Temperature Up control (to
increase the refrigerator temperature)
Temperature Down control (to
reduce the refrigerator temperature)
Appliance
control icons
Figure 6
Appliance control icons
Power Failure LED
Air Filter LED
When this LED lights up the air
filter in the toe kick area has to be
cleaned.
Supercooling LED
Child Lock LED
Alarm LED
IceMaker on LED
Superfrost LED
Freezer
operating icons
Freezer operating icons
Temperature Up control (to
increase the freezer temperature)
Temperature Down control (to
reduce the freezer temperature)
Freezer On/Off
Superfrost
IceMaker On/Off
Water filter has to be changed
Sabbath mode is activated
Menu mode is activated
(for setting additional functions)
Temperature and control display
Display mode degrees Celsius
Refrigerator temperature display
Freezer temperature display
Display mode degrees Fahrenheit
Figure 7
9
o
peraTion
Turning the Appliance On and Off -
Figure 8
Clean the appliance before turning it on for the first time.
See Cleaning.
Do not place frozen food in the freezer until the temperature shows at least 0°F / -18°C. The refrigerator and
freezer compartments can be operated separately.
1. Turning on:
Touch the Refrigerator On/Off icon
and the Freezer On/Off icon
so the Temperature Displays light up.
The interior light will turn on if one of the
refrigerator doors or freezer drawers are open.
2. Turning off: To turn off the refrigerator or freezer,
touch the corresponding On/off icon for approximately
3 seconds so the temperature display and interior
lights go out.
Setting the Temperature - Figure 8
The appliance is pre-set for normal operation. We recommend temperatures of 38°F (3°C) in the refrigerator
and 0°F (-18°C) in the freezer.
To reduce the temperature:
Touch the DOWN icon on the left to reduce the refrigerator temperature and the DOWN icon on the right to
reduce the freezer temperature.
To increase the temperature:
Touch the UP icon on the left to increase the refrigerator temperature and on the right to increase the freezer
temperature.
1. While you are entering the temperature, the set tem-
perature will flash on the display.
2. When you touch the temperature setting icons for the
first time, the most recent setting is displayed.
3. You can change the settings in increments of 1°F
(1°C) by briefly touching the icons again. If the icons
are held the temperature setting will change faster.
4. Approximately five seconds after the icon has been
released, the display will automatically show the actual freezing or cooling temperature.
Temperature control icons - Refrigerator
Refrigerator On/Off icon
SuperCool icon
Alarm icon
SuperCool LED
Freezer temperature display
5. You can change the temperatures:
• In the refrigerator – between 36°F and 44°F (2°C
and 6°C) and
• In the freezer – between -15°F and 7°F
(-27°C and -14°C).
Power failure LED
Alarm LED
Temperature control icons - Freezer
Freezer On/Off icon
10
Figure 8
o
peraTion
Temperature Display - Figure 8
In normal operation, the following settings will be
displayed:
• the average refrigerator temperature
• the warmest frozen food temperature.
When starting up for the first time or when
the appliance is warm, dashes will appear
in the freezer temperature display, until the
temperature in the freezer compartment is
32°F (0°C).
It will take between three and eight hours for the
required temperature, 0°F or 38°F (-18°C or 3°C) to
be reached and displayed permanently in the display,
depending on the ambient conditions and the temperature setting.
The display will flash:
• if you change the temperature or
• if the temperature rises by several degrees, indicating
cold loss, e.g. if you place fresh, “warm” food in the
freezer or if you remove or repack frozen food, the
temperature may rise for a short time due to warm air
flowing into the freezer.
• If “F1” to “F5” appears in the display, the appliance
has a fault. Have the fault number available when you
contact the customer service department.
Audible Alarm Signal - Figure 8
The audible alarm signal helps to protect frozen food
and to save energy.
The audible alarm signal is switched o by touching
the alarm icon.
Audible door alarm
This sounds when the door has been left open for
longer than about 180 seconds. The sound switch-
o function is active as long as the door is left open.
The alarm automatically switches back to standby
when the door is shut.
Audible/visual temperature alarm
It always sounds if the freezer temperature is not
low enough. The temperature display and the alarm
LED
This can be caused by:
- warm, fresh food being placed in the freezer;
- too much warm air from the outside entering
- a fault in the appliance.
The temperature display will continue to ash until
the cause of the alarm has been rectied. It will then
stop ashing and light up continually. The audible
warning signal is now automatically reset.
ashes at the same time.
when re-arranging or removing frozen food,
Power Failure/Frost-Control Display -
Figure 8
If the power failure LED is lit, this means the freezer
temperature has risen too high during the last few hours
or days due to a power failure. The freezer temperature
display flashes at the same time.
• If you touch the Alarm icon now, the highest temperature registered during the power failure will be
displayed.
• Check the quality of the food in case it has become
too warm or even defrosted.
• The highest temperature will appear for approximately one minute. After that, the actual temperature in the
freezer will reappear.
The display can be turned off by touching the Alarm
icon again.
Supercool - Figure 8
Touching the Supercool icon switches the refrigerator
compartment to maximum cooling. It is recommended
particularly if you wish to cool large quantities of food,
drinks, freshly baked goods or meals rapidly.
• Turning on: Touch the Supercool icon briefly so the
LED
drop to its lowest value.
The Supercool function uses slightly more
energy. After approximately six hours, however,
the refrigerator switches back automatically to
normal energy-saving operation. If required, the
Supercooling function can be turned off sooner.
• Turning off: Touch the Supercool icon again until the
LED
turns on. The refrigerator temperature will
IMPORTANT
turns off.
11
o
peraTion

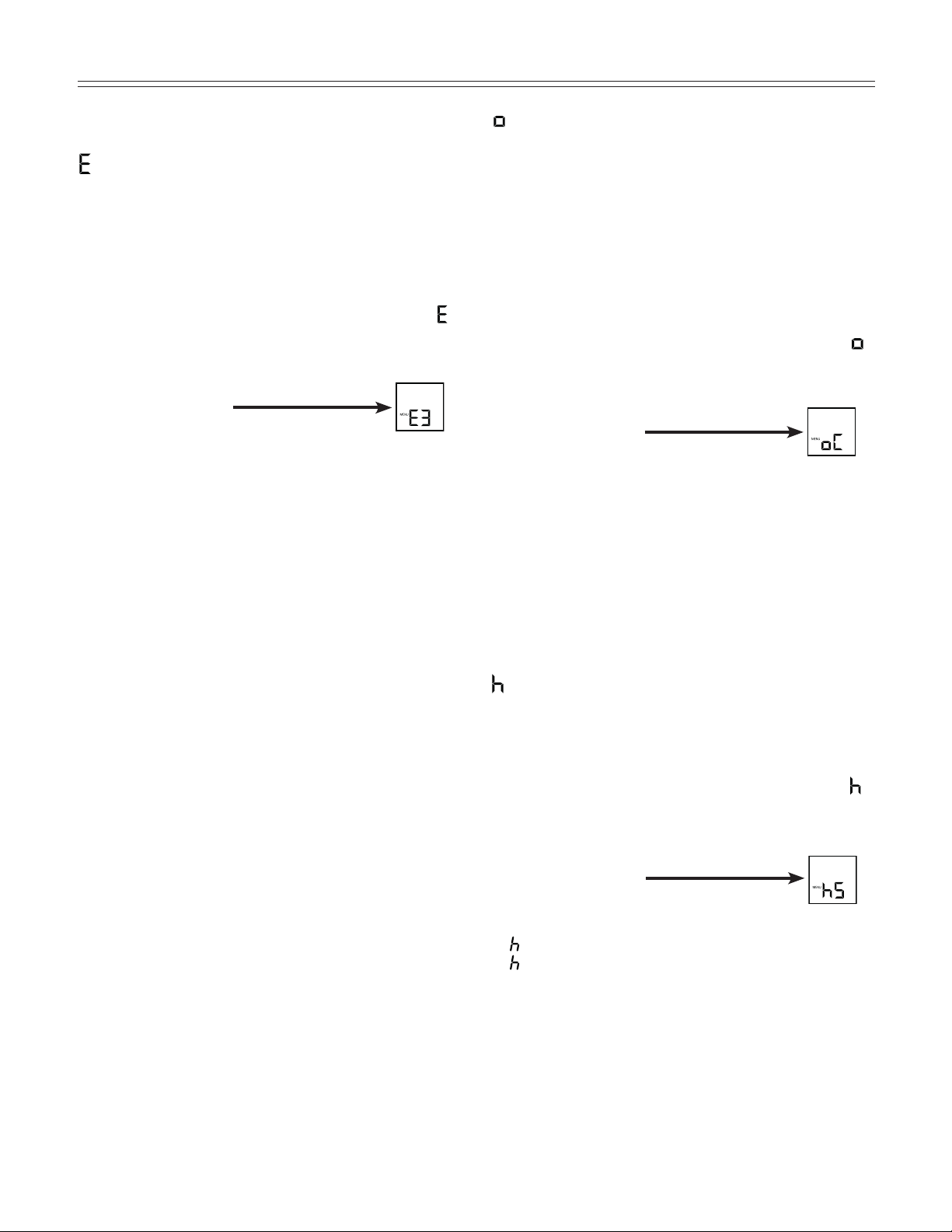

Setup Mode
In the setup mode you can activate the following functions:
= Sabbath mode
= Child lock
= Drop symbol reset
= Ice maker function test (for service personnel only)
= Water quantity for Ice cube tray
= Temperature display mode
= Display brightness
= Door gasket heating control
= Reset Air filter LED
How to activate the setup mode - Figure 9
• Touch the Superfrost icon for approximately five
seconds
- the Superfrost LED
- after 5 seconds
The appliance is in the setup mode now.
will flash in the display.
turns on for 5 seconds
= Sabbath mode
This feature considers the Religious requirements on
Sabbath or Holidays. When the Sabbath mode is active
some functions of the electronic controls are switched
off.
The door can be opened and closed at any
time.
• The lighting remains off.
• The cooling fan remains in its actual state: If it is on it
remains on, if it is off it remains off.
• There is no door alarm.
• There is no temperature alarm.
• Defrost cycles are independent of the number of
times and length of door openings.
• The unit will return into Sabbath Mode after a power
failure.
How to activate the Sabbath mode
• Activate the setup mode by touching the SuperFrost
icon for 5 seconds.
- the display shows
• Touch the SuperFrost icon
- the display shows
You can select the setup mode functions by touching
the freezer compartment Up/Down icons.
Note
In the setup mode the display will flash continuously.
Exit setup mode:
• Touch the freezer compartment On/Off icon. The
appliance will change back to normal operation.
• Touch the SuperFrost icon again
- the display shows
- the Sabbath mode is activated.
• Exit setup mode by touching the
freezer compartment On/Off icon.
Sabbath mode switches off automatically after
120 hours if it is not manually switched off beforehand.
How to deactivate the Sabbath mode
• Activate the setup mode by touching the SuperFrost
icon for 5 seconds.
- the display shows
• Touch the SuperFrost icon
- the display shows
• Touch the SuperFrost icon again
symbol
- the
in the display disappears,
the Sabbath mode is deactivated.
• Exit setup mode by touching the
freezer compartment On/Off icon.
12
o
peraTion
= Child lock
The child lock is designed to protect the appliance
from being turned off accidentally.
How to activate the child lock
• Activate the setup mode by touching the Superfrost
icon for 5 seconds
• Touch the freezer compartment Down icon until
appears in the freezer temperature display.
• Touch the Superfrost icon
- the display shows
• Touch the Superfrost icon again
- the LED
• Exit setup mode by touching the freezer compartment
On/Off icon.
is lit and the child lock is activated.
How to deactivate the child lock
• Activate the setup mode by touching the Superfrost
icon for 5 seconds.
= Drop symbol reset
After the Water filter has been
changed the drop symbol on the
display must be reset.
How to reset the drop symbol
• Activate the setup mode by touching the Superfrost
icon for 5 seconds.
• Touch the freezer compartment Down icon until
appears in the freezer temperature display.
• Touch the Superfrost icon
- the display shows
• Touch the Superfrost icon again
- the display shows
• The drop symbol disappears.
• Exit setup mode by touching the freezer compartment
On/Off icon.
- the display shows
• Touch the Superfrost icon
- the display shows
• Touch the Superfrost icon again
- the LED
• Exit setup mode by touching the freezer compartment
On/Off icon.
goes out. The child lock is deactivated.
Child lock LED
= Ice maker function test
Activation by service personnel only.
Freezer compartment Up/Down icons
SuperFrost icon
Figure 9
Freezer On/Off icon
13
o
peraTion
Setup Mode - Figure 10
= Water quantity for Ice cube tray
If the produced ice cubes of the Ice Maker are too small,
the inflowing water quantity can be adjusted.
How to adjust the water quantity
• Activate the setup mode by touching the Superfrost
icon for 5 seconds.
• Touch the freezer compartment Down icon until
appears in the freezer temperature display.
• Touch the Superfrost icon
- the display shows
• Touch freezer compartment Up icon
once only so
E 4 appears in the display.
IMPORTANT
Do not increase for more than one step. If the
adjusted value is too high the ice cube tray of the Ice
Maker could overflow.
• Touch the Superfrost icon again.
• Exit setup mode by touching the freezer compartment
On/Off icon.
= Temperature display mode
You can choose the unit of temperature for the display
in degrees Fahrenheit or degrees Celsius.
Note
The factory setting is degrees Fahrenheit.
How to change the temperature display to
degrees Celsius
• Activate the setup mode by touching the Superfrost
icon for 5 seconds.
• Touch the freezer compartment Down icon until
appears in the freezer temperature display.
• Touch the Superfrost icon
- the display shows
• Touch the Superfrost icon again
- the temperature reading is now displayed in degree
Celsius.
• Exit setup mode by touching the freezer compartment
On/Off icon.
Note
To change the temperature display back to degrees
Fahrenheit, follow the steps above.
Check the ice cube size within the next days. If the ice
cubes are still smaller as desired, follow the steps above
again.
= Display brightness
How to adjust the display brightness
• Activate the setup mode by touching the Superfrost
icon for 5 seconds.
• Touch the freezer compartment Down icon until
appears in the freezer temperature display.
• Touch the Superfrost icon
- the display shows
• Touch freezer compartment
Up/Down icons to select
0 = minimum to
5 = maximum brightness
• Touch the Superfrost icon at the desired value.
• Exit setup mode by touching the freezer compartment
On/Off icon.
14
o
peraTion
= Door gasket heating control
Condensed water on the gasket of the refrigerator doors
can be eliminated by activating the door gasket heating.
How to activate the door gasket heating
• Activate the setup mode by touching the Superfrost
icon for 5 seconds
• Touch the freezer compartment Down icon until
appears in the freezer temperature display.
• Touch the Superfrost icon
- the display shows
• Touch freezer compartment
Up/Down icons to select
= at slight condensation of the gasket
= at heavy condensation of the gasket
= heating off
• Touch the Superfrost icon at the desired value.
• Exit setup mode by touching the freezer compartment
On/Off icon.
= Reset air filter LED
After the air filter in the toe kick area has been cleaned
the air filter LED must be reset. For how to clean the air
filter refer to chapter “Cleaning”.
How to reset the air filter LED
• Activate the setup mode by touching the Superfrost
icon for 5 seconds.
• Touch the freezer compartment Down icon until
appears in the freezer temperature display.
• Touch the Superfrost icon
- the display shows
• Touch the Superfrost icon again
- the display shows
• The air filter LED disappears.
• Exit setup mode by touching the freezer compartment
On/Off icon.
Freezer compartment Up/Down icons
Freezer temperature
display
SuperFrost icon
Freezer On/Off icon
Figure 10
15
r
efrigeraTor
r
efrigeraTor
C
omparTmenT
C
omparTmenT
Arranging Food - Figure 11
Shelf Arrangement
WARNING!
To avoid possible injury, only adjust an
empty shelf or door rack. Do not attempt
to adjust a shelf or door rack with food on
it.
You can rearrange the height
of the shelves and door racks
as required.
Repositioning the door
racks - Figure 12
Slide the door rack up, pullout
toward you and replace in
reverse order.
To remove the vegetable drawer
Pull the drawer straight out, grip at the back and lift out Figure 13.
Figure 12
Figure 11
(1) Butter, cheese
(2) Eggs
(3) Gallon containers, cans, drinks, bottles
(4) Frozen food, ice cubes
(5) Meat and sausage products, dairy products
(6) Baked goods, pre-cooked meals
(7) Fruit, vegetables, salad
IMPORTANT
• Liquids and food which give off or absorb odors and
flavors should always be stored covered or in closed
containers.
• High-percentage alcohols should be tightly sealed
and stored upright.
• Fruit, vegetables and salad can be stored unpacked
in the bins.
To install the vegetable drawer
Place the drawer on the rails. The rails must be fully
extended and aligned with the front of the drawer. Slide
the drawer in.
Figure 13
16
r
efrigeraTor
C
omparTmenT
Repositioning the shelves - Figure 14
1. Hold the shelf underneath with your hand to avoid
from tipping down backwards when removing.
2. Lift the shelf at the front.
3. Remove the shelf forward until the circular cutout of
the shelf is in line with the interior light cover.
4. Lift the shelf up or down and replace in the desired
position.
Interior light cover
Figure 14
Removing the shelves - Figure 15
1. Follow the first three steps in the chapter above.
2. Lift the shelf down and stop just over the upper vegetable bin.
3. Move the front of the shelf upwards until the shelf is in
a vertical position.
4. Turn the shelf out at left and remove.
Interior Light
The interior light is located at the left, right and top in the
refrigerator compartment (Figure 16) and above each
drawer in the freezer comartment. It turns on if one of
the doors or one freezer drawer is opened.
The light turns off automatically if one of the doors or
one freezer drawer has been opened for approximately
15 minutes. The audible alarm sounds at the same time.
The light intensity of the LED light corresponds to
laser class 1/1M.
IMPORTANT
The light cover may only be removed by customer
service staff.
CAUTION!
Risk of eye damage.
If the cover is removed, do not look
directly at the light through optical lenses
from a close distance.
WARNING!
To avoid it falling down, always hold the shelf
with both hands when removing.
Figure 15
Figure 16
17
f
reezer
C
omparTmenT
Freezer Compartment Description
The ice maker is located in the upper drawer on the right
side.
The ice cubes fall out of the ice maker into the drawer.
The upper drawer is divided by a partition wall for storing ice cubes in the right part of the drawer (Figu r e 17).
If you need more ice cube storage space, pull up the
partition wall and refit on the adjacent rail (Figure 17 ).
If you need the whole upper drawer for freezing and
storing food, turn off the ice maker (see chapter “Turning
the Ice Maker On and Off”).
The bottom drawer is intended for freezing and storing
food. Ice cubes can also be stored in this drawer.
Space for ice cubes
Removing the Freezer Compartment
Containers
The containers of both freezer drawers can be removed.
• Unlatch the container on the left and right corners by
pulling upwards (1) - Figure 18.
• Slide the container backwards (2) - Figure 18.
Figure 18
Fi g ure 17
• Tilt the container at an angle and remove - Figure 19.
Figure 19
Install the container in the reverse order.
18
f
reezer
C
omparTmenT
Freezing
Fresh food should be frozen completely and as rapidly
as possible. This is provided by the Superfrost feature
and ensures that the nutritional value, appearance and
flavor of the food remains intact.
Freezing with Superfrost - Figure 20
• Touch the Superfrost icon briefly so the LED
turns on.
• Wait 24 hours.
• Then place the fresh food inside the freezer.
• The Superfrost function turns off automatically.
Depending on the quantity of food placed in the
freezer, this will normally be between 30 and maximum of 65 hours.
The freezing process is now complete; the Superfrost
LED
to normal energy-saving operation.
You should not turn on the Superfrost function:
• when placing frozen food in the freezer;
• when freezing up to approximately 4-1/2 lbs (2 kg)
fresh food daily.
will turn off, and the freezer will change back
IMPORTANT
SuperFrost icon
Freezing and Storage
• Pack frozen food in standard freezer bags or reusable
plastic, metal or aluminum containers.
• Do not allow fresh food which is to be frozen to come
into contact with food already frozen. Always keep
packages dry in order to avoid them sticking together.
• Always write the date and contents on the package
and do not exceed the stated storage time for the
food. This prevents spoiling.
• Pack food which you are freezing yourself in quantities right for your household. To ensure the food
freezes right through quickly, the following quantities
should not be exceeded per package:
- fruit, vegetables: up to 2-1/4 lbs (1 kg);
- meat: up to 5-1/2 lbs (2.5 kg).
• Do not freeze bottles and cans which contain carbonated drinks as they might burst. Drinks can be cooled
down quickly, but take the bottles out of the freezer
compartment after an hour at the most.
• Only take out as much food as needed for thawing.
Cook food which has been thawed as quickly as
possible. Frozen food can be thawed in the following
ways:
- in a microwave oven
- in the refrigerator: the safer way to thaw food because
there is less chance of bacteria growth. Use this method for high density food such as roasts or poultry.
SuperFrost LED
Figure 20
19
i
Ce
m
aker
Safety Instructions and Warnings for
the Automatic Ice Maker
• The ice maker is designed exclusively to make ice
cubes in quantities needed by a household.
• All repairs and work on the ice maker may only be
done by customer service personnel or other appropriately trained personnel.
• Do not consume or use the first three batches
of ice. This applies both to using the appliance
for the first time and also using it after it has not
been used for a long period of time.
• The manufacturer cannot accept liability for
damage caused by equipment or water lines
between the solenoid valve and the water supply.
• The ice maker will only make ice cubes if the freezer
compartment is operating and both freezer drawers
are completely closed.
Ice Maker Description
After you start the ice maker for the first time, it may take
up to 24 hours before the first ice cubes are ready.
The ice cubes fall out of the ice maker into the drawer
(see chapter “Freezer compartment description”).
IMPORTANT
The first three batches of ice must not be consumed
or used.
When the ice reaches a certain level in the drawer, the
appliance stops producing ice automatically.
The production capacity is 100 - 120 ice cubes in
24 hours at a temperature of 0°F (-18°C) inside the
freezer compartment.
To have the maximum capacity of approx. 150 ice cubes
in 24 hours, activate the SuperFrost function.
Be aware that this increases the energy consumption because the compressor will run constantly.
Turning the Ice Maker On and Off
(F i g u r e 21)
To turn the ice maker on
• Touch the IceMaker icon so the IceMaker LED
comes on.
To turn the ice maker off
If you do not need any ice cubes, the ice maker can be
turned off independently of the freezer compartment.
• Touch the IceMaker icon so the IceMaker LED goes
out.
Ice maker at vacations
See chapter “Vacation tips”
Note
If the IceMaker LED flashes, the ice maker is not
being supplied with water. Check if the shut off valve
of the water supply is opened.
Freezer compartment Up/Down icons
IceMaker icon
IceMaker LED
SuperFrost icon
Figure 21
20
Defrosting
D
efrosTing
/C
leaning
Refrigerator compartment
The refrigerator compartment defrosts automatically.
The water that forms on the rear wall drains into a reservoir at the back of the appliance and evaporates automatically through the compressor heat.
Freezer compartment
The NoFrost system automatically defrosts the freezer
compartment. Any moisture will collect on the evaporator and freeze. It will periodically defrost and evaporate.
Cleaning
WARNING!
• To prevent possible injury due to an
electrical shock, be sure to disconnect the
power cord or turn off the circuit breaker
before cleaning the appliance.
• To avoid injury or damage, do not use steam
cleaning equipment to clean the appliance.
• Dry all parts well with a cloth.
• Do not damage or remove the model plate on the
inside of the appliance. It is very important for servicing your appliance.
• Install all equipment parts and replace the food in the
appliance.
• Turn the appliance on.
Cleaning instructions for stainless steel
panels
Keep your stainless steel looking new by cleaning with
a good quality stainless steel cleaner or polish monthly.
High quality stainless steel cleaners and conditioners
are commercially available.
Do not clean with steel wool pads or abrasive
pads. Do not use cleaners that are not for use on
stainless steel, such as glass, tile or counter cleaners. These types of cleaners can damage the surface permanently.
• To avoid short-circuits, ensure no cleaning
water penetrates into the electrical
components when cleaning the appliance.
Do not use a sponge or cloth that is overly
wet.
Do not use abrasive or scouring sponges. Do not use
concentrated cleaning agents. Never use abrasive or
acid cleaners or chemical solvents.
• Remove all food from the refrigerator and freezer
compartments and store in a cool place temporarily.
Store frozen food in other freezers if available.
• Remove the door racks as shown in Figure 12.
• Remove vegetable drawers as shown in Figure 13.
• Remove glass shelves as shown in Figure 15.
• Remove the freezer drawer containers as shown in
Figure 18 and Figure 19.
• A compound of lukewarm water and dishwasher
detergent is recommended for cleaning the appliance
and equipment parts.
IMPORTANT
Do not clean the equipment parts in a dishwasher.
Strips of these parts could get loose.
21
C
leaning
Cleaning the Air Filter
• Open the bottom freezer drawer and remove the ventilation grille by pulling forwards - Figure 22.
Figure 22
• Push down the button of the air filter, tilt to the front
and remove - Figure 23.
• Clean the filter in a dishwasher or by hand with lukewarm water and dishwasher detergent.
• Install the air filter in the reverse order.
• Install the ventilation grille.
• Install all equipment parts and replace the food in the
appliance.
• Turn the appliance on.
• Reset the air filter LED.
Refer to chapter Setup Mode -
LED
= Reset air filter
22
Figure 23
Vacation Tips (Figure 24)
V
aCaTion
Short vacations
It is not necessary to turn off the refrigerator and freezer
if you will be away for less than four weeks.
• Shut off the water supply to the ice maker.
> When the IceMaker LED starts blinking, the remain-
ing water in the supply line is in the ice maker.
• Leave the ice maker on and working for one day so
that the remaining ice cubes are ejected.
• Touch the IceMaker icon so that the IceMaker LED
goes out.
• Transfer all ice cubes to the right part of the drawer or
to the bottom drawer.
• Use all perishables.
• Freeze other items.
Long vacations
If you will be away for a month or more:
Turning on the ice maker after vacation
• Open the water suppy to the ice maker.
• Touch the IceMaker icon so that the IceMaker LED
comes on.
IMPORTANT
Do not consume or use the first three batches of
ice after the ice maker has not been used for longer
than one week.
IceMaker icon
IceMaker LED
Figure 24
• Shut off the water supply to the ice maker.
> When the IceMaker LED starts blinking, the remain-
ing water in the supply line is in the ice maker.
• Leave the ice maker on and working for one day so
that the remaining ice cubes are ejected.
• Touch the IceMaker icon so that the IceMaker LED
goes out.
• Remove all ice cubes from the drawer and dispose of
them.
• Remove all food from the refrigerator and freezer
compartments.
• Turn off the refrigerator and freezer compartments.
• Clean the appliance. Refer to Cleaning.
• Leave the door and both freezer drawers open to prevent unpleasant odors. This will also keep mold from
building up.
23
T
roubleshooTing
Troubleshooting
Your appliance is designed and manufactured for a long life and reliable operation.
If a problem occurs during operation, check whether it is due to an operating error. Please note that even during the
warranty period, some repair costs may be your responsibility.
You may be able to correct the following faults by checking the possible causes yourself:
Problem Possible Cause and Remedy
Appliance does not
work, display is off
The interior light does
not come on
Motor seems to
run too long
The temperature is
not cold enough
Freezer temperature
display shows two
dashes ‘‘- -”.
- Is the appliance turned on properly?
- Is the power cord properly inserted in the outlet?
- Is the circuit breaker or fuse in operating condition?
- Is the appliance turned on?
- Is the ambient temperature too hot? See Safety Regulations.
- Has the appliance been opened too often or left open too long?
- A large amount of food has been added.
- Unit is in SuperCool mode. Verify unit is in normal operation mode.
- Is the temperature setting correct? See Setting The Temperature.
- Has an excessive amount of fresh food been placed in the appliance?
- Does a separately installed thermometer show the correct reading?
- Is the ventilation system working properly?
- Is the appliance set up too close to a heat source?
The freezer temperature display will only show temperatures that are below freezing.
When initially starting the freezer, it will not be below freezing. It will take three to five hours
(depending on ambient conditions) for freezing temperatures to be achieved and thus displayed numerically.
This may also occur after a power failure.
24
T
roubleshooTing
Ice Maker Troubleshooting
You may be able to correct the following faults yourself:
Problem Possible Cause and Remedy
Ice maker cannot be turned on - Is the appliance connected to the electrical outlet?
Ice maker is not making any ice - Is the ice maker turned on?
- Is the water supply line open?
- Are both freezer drawers closed properly?
Customer Service
If none of the above possible causes apply, and you
can not rectify the fault yourself, contact your nearest
customer service representative.
Indicate the type (1) of
appliance, service number (2) and the appliance
/ serial number (3) as
indicated on the model
plate.
The position of the model plate is shown in the section
entitled Description of the Appliance.
Appliance Information
Record this information when the appliance is installed.
Type Designation: _____________________________
Service Number: ______________________________
Appliance / Serial Number: ______________________
Date of Purchase: _____________________________
Where Purchased: _____________________________
25
For Service in the U.S.
Liebherr Service Center
Toll Free: 1-866-LIEBHER or 1-866-543-2437
Email: Service-appliances.us@liebherr.com
PlusOne Solutions, Inc.
3501 Quadrangle Blvd, Suite 120
Orlando, FL 32817
For Service in Canada
Liebherr Service Center
Toll Free: 1-888-LIEBHER or 1-888-543-2437
www.euro-parts.ca
EURO-PARTS CANADA
39822 Belgrave Road
Belgrave, Ontario, N0G 1E0
Phone: (519) 357-3320
Fax: (519) 357-1326
