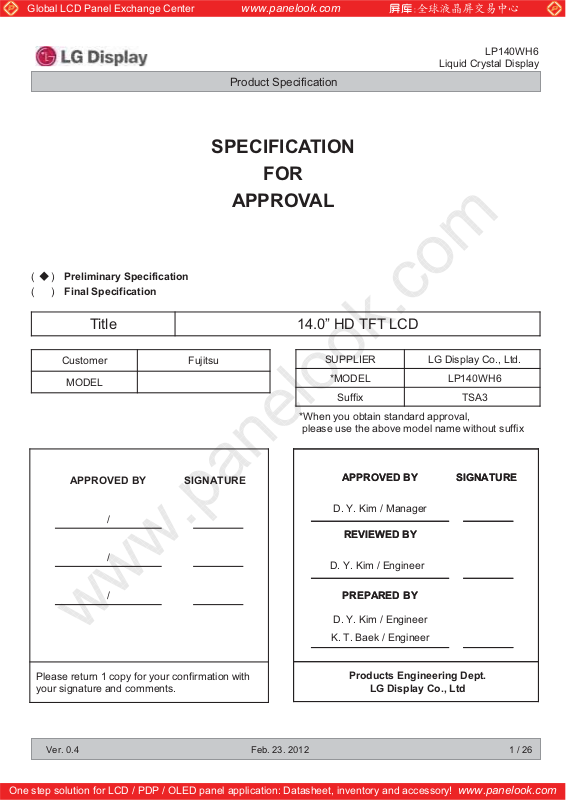

LP140WH6

Liquid Crystal Display

Product Specification

SPECIFICATION

FOR

APPROVAL

Title 14.0” HD TFT LCD

Customer Fujitsu

MODEL

SIGNATUREAPPROVED BY

/

/

/

SUPPLIER LG Display Co., Ltd.

*MODEL LP140WH6

Suffix TSA3

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

APPROVED BY

D. Y. Kim / Manager

REVIEWED BY

REVIEWED BY

D. Y. Kim / Engineer

PREPARED BY

PREPARED BY

SIGNATURE

SIGNATURE

D. Y. Kim / Engineer

K. T. Baek / Engineer

Please return 1 copy for your confirmation with
your signature and comments.

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Products Engineering Dept.

LG Display Co., Ltd

1/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

Contents

No

1

2

3

3-1

3-2

3-3

3-4

3-5

3-6

COVER

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL SPECIFICATIONS

ELECTRICAL CHARACTREISTICS

INTERFACE CONNECTIONS

eDP SIGNAL TIMING SPECIFICATION

SIGNAL TIMING SPECIFICATIONS

SIGNAL TIMING WAVEFORMS

COLOR INPUT DATA REFERNECE

ITEM

Page

1

2

3

4

5

6

7-8

9

10

10

11

4

5

6

7

8

9

3-7

7-1

7-2

7-3

8-1

8-2

8-3

POWER SEQUENCE

OPTICAL SFECIFICATIONS

MECHANICAL CHARACTERISTICS

RELIABLITY

INTERNATIONAL STANDARDS

SAFETY

EMC

Environment

PACKING

Designation of Lot Mark

PACKING FORM

Label Description

PRECAUTIONS

12

13-15

16-18

19

19

19

19

20

20

21

22-23

A APPENDIX. Enhanced Extended Display Identification Data

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24-26

2/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

RECORD OF REVISIONS

Revision No Revision Date Page Description

0.0 Nov.17. 2011 - First Draft (Preliminary Specification)

0.1 Dec.15.2011 17,18 Update mechanical drawing

0.2 Dec. 29.2011 6 Update Electrical Characteristics

7 Update interface connection

24-26 Update EDID 0.1

0.3 Jan.30.2012 24-26 Update EDID 0.2

0.4 Feb.23.2012 6 Update Electrical Characteristics

0.5 Mar. 9. 2012 13 Update Color Coordinates, Contrast Ratio

24-26 Update EDID 0.3

EDID

ver

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

1. General Description

The LP140WH6 is a Color Active Matrix Liquid Crystal Display. The matrix employs a-Si Thin Film
Transistor as the active element. It is a transmissive type display operating in the normally white mode. This
TFT-LCD has 14.0 inches diagonally measured active display area with HD resolution (1366 horizontal by
768 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are
arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit
gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP140WH6 has
been designed to apply the interface method that enables low power, high speed, low EMI. The LP140WH6
is intended to support applications where thin thickness, low power are critical factors and graphic displays
are important. In combination with the vertical arrangement of the sub-pixels, the LP140WH6 characteristics
provide an excellent flat display for office automation products such as Notebook PC.

ڜڰڳ

User connector

30

Pin

eDP

1Lane

VCC

eDP Timing Control

(Tcon) Block

DVCC

Power

Block

TCLKs

VOUT_LED

FB1~3

1

768

DVCC, AVDD

VGH, VGL, GMA

GIP CLKs, DSC

LED Backlight Ass’y

Control & Data Power EDID signal & Power

General Features

Active Screen Size 14.0 inches diagonal

Outline Dimension

Pixel Pitch

Pixel Format 1366 horiz. by 768 vert. Pixels RGB strip arrangement

Color Depth 6-bit, 262,144 colors

Power Consumption

Luminance, white
Weight 320 g (Max.)

Display Operating Mode Transmissive mode, normally white

Surface Treatment Anti-Glare treatment (3H) of the front Polarizer

RoHS Compliance Yes

BFR / PVC / As Free Yes for all

Ver. 0.4 Feb. 23. 2012

1) LCM (W/O PCB) : 323.90(H, Typ.) Ý 199.83(V, Typ.) [mm]

2) LCM (With PCB) : 323.90(H, Typ.) Ý 212.10(V, Typ.) [mm]

0.2265mm Ý 0.2265 mm

Total 3.4 W (Typ.) Logic : 1.05 W (Typ.@ Mosaic), B/L : 2.35 W

200cd/m2 (Typ. 5 point)

1366

TFT-LCD Panel

(HD, GIP, TN)

Source Driver

(Bottom)

4/ 26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

୅

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage

Operating Temperature

Storage Temperature

Operating Ambient Humidity

Storage Humidity

VCC -0.3 4.0 Vdc at 25 r 5qC

TOP 050qC1

HST -20 60 qC1,2

HOP 10 90 %RH 1

HST 10 90 %RH 1,2

Values

Units Notes

Min Max

Note : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39

qC Max, and no condensation of water.

Note : 2. Storage Condition is guaranteed under packing condition.

90% 80%

60%

Humidity[(%)RH]

Storage

Wet Bulb
Temperature [

60

50

]

40

30

20

10

0

-20

10

20 30 40 50

60 70 800

Dry Bulb Temperature [୅]

Ver. 0.4 Feb. 23. 2012

40%

Operation

20%

10%

5/ 26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

The LP140WH6 requires one power inputs. The first logic is employed to power the LCD electronics and to
drive the TFT array and liquid crystal.

Table 2. ELECTRICAL CHARACTERISTICS

Values

Parameter Symbol

Min Typ Max

LOGIC :

Unit Notes

Power Supply Input Voltage V

Power Supply Input Current

CC 3.0 3.3 3.6 V 1

CC - 318 367 mA

I

Mosaic

Power Consumption P

Power Supply Inrush Current I

eDP Impedance Z

CC - 1.05 1.21 W

CC_P - - 1500 mA 3

eDP TBD TBD TBD  4

LED : W/O LED Driver

LED Output Voltage V

LED Output Current I

OUT 32 34 V

OUT 72 73.5 mA

LED Power Consumption Full Duty POUT 2.35 2.5 W

Note)

1. The measuring position is the connector of Board Ass’y

and the test conditions are under 25୅, fv = 60Hz, Black pattern.

2. The specified Icc current and power consumption are under the

Vcc = 3.3V , 25୅, fv = 60Hz condition.

3. This Spec. is the max load condition for the cable impedance designing.

Mosaic Pattern

2

1string : 24 mA

4. This impedance value is needed for proper display and measured form eDP Tx to the mating connector.
** The below figures are the measuring Vcc condition and the Vcc control block LGD used.

The Vcc condition is same as the minimum of T1 at Power on sequence.

Rising time
Vcc

0V

10%

90%

3.3V

0.5ms

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

3-2. Interface Connections

This LCD employs two interface connections, a 30 pin connector is used for the module electronics interface
and the other connector is used for the integral backlight system.

The electronics interface connector is a model CABLINE-VS RECE ASS’Y.

Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)

Pin Symbol Description

1

NC No Connection (Reserved)

2

H_GND High Speed (Main Link) Ground

3

NC No Connection (Reserved)

4

NC No Connection (Reserved)

5

H_GND High Speed (Main Link) Ground

6

ML0- Complement Signal-Lane 0

7

ML0+ True Signal-Main Lane 0

8

H_GND High Speed (Main Link) Ground

9

AUX+ True Signal-Auxiliary Channel

10

AUX- Complement Signal-Auxiliary Channel

11

H_GND High Speed (Main Link) Ground

12

VCC LCD Logic and driver power (3.3V Typ.)

13

VCC LCD Logic and driver power (3.3V Typ.)

14

BIST Built-In Self Test (active high)

15

GND Ground

16

GND Ground

17

HPD HPD signal pin

18

GND Ground

19

GND Ground

20

NC No Connection (Reserved)

21

FB3 Regulated Current sink

22

FB2 Regulated Current sink

23

FB1 Regulated Current sink

24

NC No Connection (Reserved – Use P-vcom)

25

NC No Connection (Reserved – Use P-vcom)

Notes

[Interface Chip]

1, Interface chips

1.1 LCD :Analogix (LCD Controller)
including eDP Receiver

1.2 System : GM60028 or ANX9804

or equivalent

* Pin to Pin compatible with eDP

[Connector]

HD2S030HA1, JAE or I-PEX(CABLINE-VS)

[Mating Connector]

CABLINE-VS PLUG CABLE ASS’Y, I-PEX
or equivalent.

[LED Block]

LED block move to system set base

[Connector pin arrangement]

Check B/Ass’y drawing (Page 18)

26

VOUT Boost output voltage

27

VOUT Boost output voltage

28

VOUT Boost output voltage

29

NC No Connection (Reserved)

30

NC No Connection (Reserved)

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

Table 3-1. FPC CONNECTOR PIN CONFIGURATION (CN2)

Pin Symbol Description Notes

1 VOUT_LED LED Anode(Positive)

2 FB1 LED Cathode (Negative)

3 VOUT_LED LED Anode(Positive)

4 FB2 LED Cathode (Negative)

5 VOUT_LED LED Anode(Positive)

LP140WH6

Liquid Crystal Display

]X

6 FB3 LED Cathode (Negative)

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

3-3. eDP Signal Timing Specifications

3-3-1. DC Specification

The VESA Display Port related AC specification is compliant with the VESA Display Port Standard v1.1a.

Description Symbol Min Max Unit Notes

Differential peak-to-peak Input voltage

Rx DC common mode voltage V

VDIFF p-p

120 -

mV

40 - For reduced bit rate

CM 0 2.0 V -

For high bit rate

3-3-2. AC Specification

The VESA Display Port related AC specification is compliant with the VESA Display Port Standard v1.2.

Description Symbol Min Typ Max Unit Notes

Unit Interval for high bit rate
(2.7Gbps/lane)

Unit Interval for high bit rate
(1.62Gbps/lane)

UI_High_Rate - 370 - ps

UI_Low_Rate - 617 - ps

Range is nominal ·350ppm.
DisplayPort Link Rx does not
require local crystal for link
clock generation

Lane-to-Lane skew

Lane intra-pair skew

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

V Rx-SKEW­INTER_PAIR

V Rx-SKEW­INTRA_PAIR

- - 5200 ps -

- - 100 ps For high bit rate

- - 300 ps For reduced bit rate

9/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

3-4. Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications and specifications of eDP Tx/Rx for its proper operation.

Table 4. TIMING TABLE

ITEM Symbol Min Typ Max Unit Note

DCLK Frequency f

Period

Hsync

Width t

Width-Active t

Period t

Vsync

Width-Active t

Horizontal back porch t

Data

Enable

Horizontal front porch t

Vertical back porch t

Vertical front porch t

3-5. Signal Timing Waveforms

Data Enable, Hsync, Vsync

CLK

t

HP

WH

WHA

VP

WV

WVA

HBP

HFP

VBP

VFP

High: 0.7VCC

Low: 0.3VCC

68.1 70.0 73.0

1462 1492 1536

32 48 62

1366 1366 1366

776 782 792

25 8

768 768 768

32 42 68

32 36 40

4612

23 4

Condition : VCC =3.3V

MHz

tCLK

tHPWidth t

tCLK

tHP

DCLK

Hsync

t

tCLK

WH

t

HBP

0.5 Vcc

t

HP

tWHA

Data Enable

t

VP

t

WV

Vsync

t

VBP

tWVA

Data Enable

Ver. 0.4 Feb. 23. 2012

t

HFP

t

VFP

10 / 26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

3-6. Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for the
color ; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.

Table 5. COLOR DATA REFERENCE

Input Color Data

Basic
Color

RED

Color

Black

Red

Green

Blue

Cyan

Magenta

Yellow

White

RED (00)

RED (01)

RED (62)

RED (63)

…

RED

MSB LSB

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B 2 B1 B0

000000000000000000

111111000000000000

000000111111000000

000000000000111111

000000111111111111

111111000000111111

111111111111000000

111111111111111111

000000000000000000

000001000000000000

…… …

111110000000000000

111111000000000000

MSB LSB

GREEN

BLUE

MSB LSB

000000000000000000

000000000001000000

…… …

000000111110000000

000000111111000000

000000000000000000

000000000000000001

…… …

000000000000111110

000000000000111111

GREEN

BLUE

GREEN (00)

GREEN (01)

...

GREEN (62)

GREEN (63)

BLUE (00)

BLUE (01)

…

BLUE (62)

BLUE (63)

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

11 / 26

www.panelook.com

Global LCD Panel Exchange Center

3-7. Power Sequence

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

Power Supply Input

VCC

eDP Display

HPD from Sink

Sink Aux CH

Source Main Link

Data

LED on/off
control Signal

LED_EN

90%

10%

Table 6-1. POWER SEQUENCE TABLE

Parameter

T1 0.5 - 10 ms
T2 0 - 200 ms
T3 0 - 200 ms
T4 - - - ms
T5 - - - ms
T6 - - - ms
T7 0 - 50 ms
T8 200 - - ms

T9 200 - - ms
T10 0 - 500 ms
T11 3 - 10 ms
T12 500 - - ms

Min Typ Max

Values

Units

Note)

1. Please avoid floating state of interface signal at invalid period.

2. When the interface signal is invalid, be sure to pull down the power supply for LCD VCC to 0V.

3. LED power must be turn on after power supply for LCD and interface signal are valid.

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

12 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 20 minutes in
a dark environment at 25
at a viewing angle of
FIG. 1 presents additional information concerning the measurement equipment and method.

qC. The values specified are at an approximate distance 50cm from the LCD surface

) and 4 equal to 0q.

FIG. 1 Optical Characteristic Measurement Equipment and Method

Optical Stage(x,y)

Table 7. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 200 300 - 1

Surface Luminance, white L

Luminance Variation(13points) G

Response Time Tr

Color Coordinates

RED RX

GREEN GX

BLUE BX

WHITE WX

Viewing Angle 5

x axis, right()=0q) 4r 40 45 - degree

x axis, left ()=180q) 4l 40 45 - degree

y axis, up ()=90q) 4u 10 15 - degree

y axis, down ()=270q) 4d 30 35 - degree

Gray Scale 6

Color Gamut C/G - 45 - %

LCD Module

500mm·50mm

WH

WHITE

R + TrD

0.554 0.584 0.614

RY

GY

BY

WY

0.319 0.349 0.379

0.309 0.339 0.369

0.532 0.562 0.592

0.129 0.159 0.189

0.084 0.114 0.144

0.283 0.313 0.343

0.299 0.329 0.359

Ta=25qC, VCC=3.3V, fV=60Hz, f

Values

Min Typ Max

170 200 2

1.4 1.6 3

-1625ms 4

Equipment

CLK

Units Notes

= 70 MHz

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Liquid Crystal Display

Product Specification

Notes)

1. Contrast Ratio(CR) is defined mathematically as
Surface Luminance with all white pixels

Contrast Ratio =

Surface Luminance with all black pixels

2. Surface luminance is the 5point (1~5)average across the LCD surface 50cm from the surface
with all pixels displaying white. For more information see FIG 2.
When I

3. The variation in surface luminance , The panel total variation (

at each test position 1 through 13 and then defined as followed numerical formula.

For more information see FIG 2.

= 24 mA, LWH=200cd/m2(Typ.)

LED

G

) is determined by measuring L

WHITE

LP140WH6

N

Maximum(L

G

WHITE

=

Minimum(L

4. Response time is the time required for the display to transition from white to black (rise time, Tr
from black to white(Decay Time, Tr

). For additional information see FIG 3.

D

1,L2

1,L2

, … L13)

, … L13)

) and

R

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined

for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the

LCD surface. For more information see FIG 4.

6. Gray scale specification * f

=60Hz

V

Gray Level Luminance [%] (Typ)

L0 TBD

L7 TBD

L15 TBD

L23 TBD

L31 TBD

L39 TBD

L47 TBD

L55 TBD

L63 TBD

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14 / 26

www.panelook.com

Global LCD Panel Exchange Center

FIG. 2 Luminance

<Measuring point for Average Luminance & measuring point for Luminance variation>

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

H

10mm

B

V

FIG. 3 Response Time

678

910

11 12

A

10mm

2

1

4

3

5

13

Active Area

: ACTIVE AREA

H,V

: H/4 mm

A

: V/4 mm

B

POINTS: 13 POINTS

The response time is defined as the following figure and shall be measured by switching the input signal

for “black” and “white”.

Tr

Tr

R

D

%

100

90

Optical

Response

10

0

FIG. 4 Viewing angle

I

= 180

q

I

= 270

L

white

,

eft

q

Down

black

N

ormal

<Dimension of viewing angle range>

T

I

,

Eye

Y

white

I

= 90

I

= 0

q

,

Up

,

q

R

ight

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model LP140WH6. In addition the figures
in the next page are detailed mechanical drawing of the LCD Module.

Horizontal (A) 323.90 mm

Outline Dimension

Active Display Area

Weight

Surface Treatment Hard Coating(3H), Glare treatment of the front polarizer

Vertical (B) 212.10 mm

Thickness 3.9 mm (Typ.) 4.2 mm (Max.)

Horizontal 309.40 mm

Vertical 173.95 mm

320 g (Max.)

A

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

B

16 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

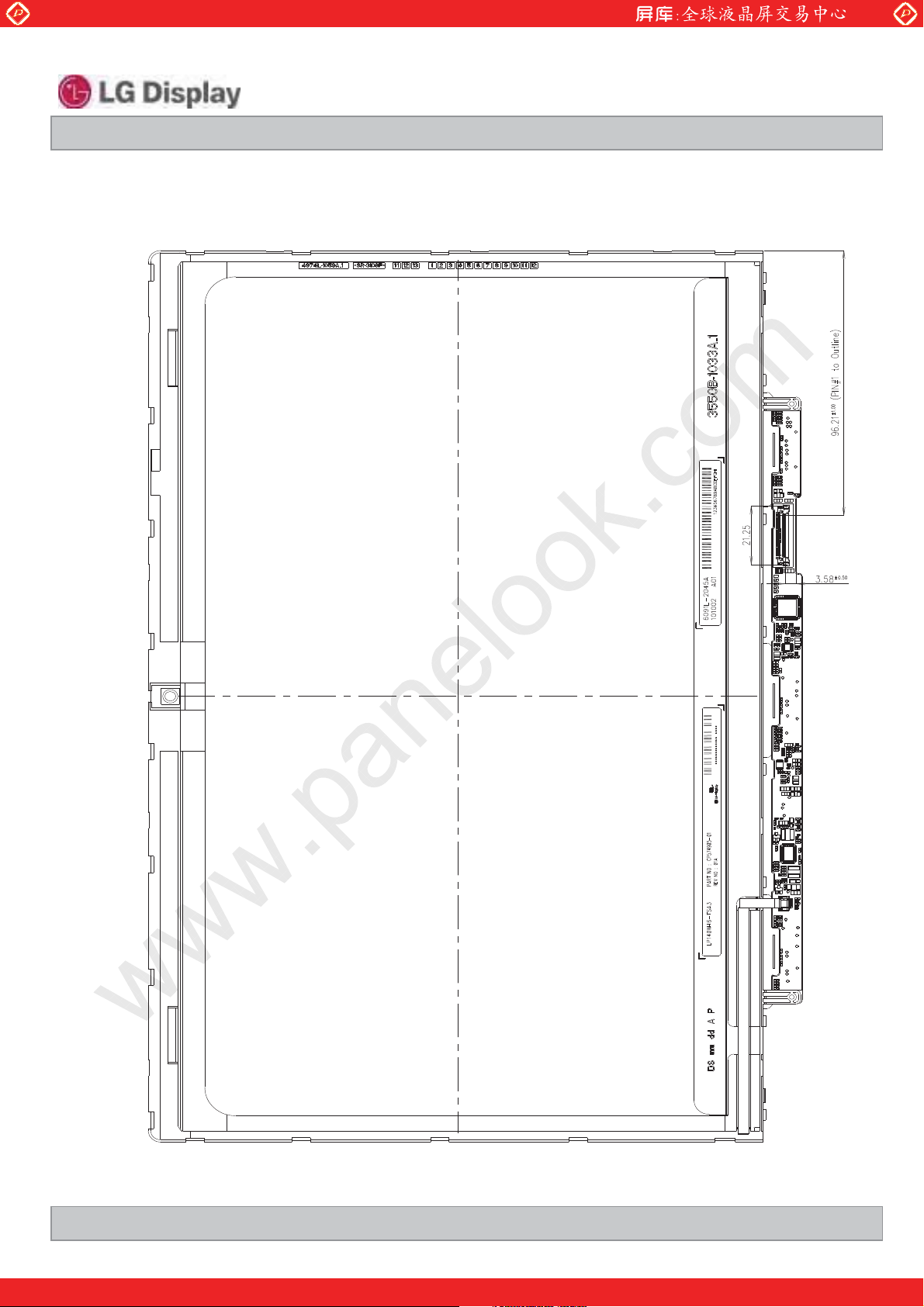

<FRONT VIEW>

Note) Unit:[mm], General tolerance:

r 0.3mm

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

<SECTION VIEW>

Note) Unit:[mm], General tolerance:

r 0.3mm

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18 / 26

www.panelook.com

Global LCD Panel Exchange Center

6. Reliability

Environment test condition

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

No

.

1 High temperature storage test Ta= 60qC, 240h

2 Low temperature storage test Ta= -20qC, 240h

3 High temperature operation test Ta= 50qC, 50%RH, 240h

4 Low temperature operation test Ta= 0qC, 240h

5 Vibration test (non-operating) Sine wave, 5 ~ 150Hz, 1.5G, 0.37oct/min,3 axis, 30min/axis

6 Shock test (non-operating) - No functional or cosmetic defects following a shock to all 6

7 Altitude operating

{ Result Evaluation Criteria }

There should be no change which might affect the practical display function when the display quality

test is conducted under normal operating condition.

Test Item Conditions

sides delivering at least 180 G in a half sine pulse no longer
than 2 ms to the display module

- No functional defects following a shock delivering at least
200 g in a half sine pulse no longer than 2 ms to each of 6
sides. Each of the 6 sides will be shock tested with one each
display, for a total of 6 displays

0 ~ 10,000 feet (3,048m) 24Hr

storage / shipment

0 ~ 40,000 feet (12,192m) 24Hr

7. International Standards

7-1. Safety

a) UL 60950-1, Underwriters Laboratories Inc.

Information Technology Equipment - Safety - Part 1 : General Requirements.

b) CAN/CSA C22.2 No.60950-1-07, Canadian Standards Association.

Information Technology Equipment - Safety - Part 1 : General Requirements.

c) EN 60950-1, European Committee for Electrotechnical Standardization (CENELEC).

Information Technology Equipment - Safety - Part 1 : General Requirements.

d) IEC 60950-1, The International Electrotechnical Commission (IEC).

Information Technology Equipment - Safety - Part 1 : General Requirements.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19 / 25

www.panelook.com

Global LCD Panel Exchange Center

8. Packing

8-1. Designation of Lot Mark

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

Note

1. YEAR

Year

Mark

CBA

2014E2015

D

201320122011

2016G2017H2018J2019

F

2. MONTH

Month

Mark

Apr5May

4

Jun

6

Jul

7

Aug9Sep

8

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one box : 20 pcs

2020

K

Oct

A

Nov

B

DecMarFebJan

C321

b) Box Size : 478 mm X 365 mm X 288 mm

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20 / 25

www.panelook.com

Global LCD Panel Exchange Center

8-3. Label Description

Model Name

www.panelook.com

Product Specification

Fujitsu CODE

LP140WH6

Liquid Crystal Display

LGD CODE

Lot Mark

LGD Code

(1) Model Name : L P 1 4 0 W H 6 - T S A 3

(2) Lot Mark : 1 4 0 A B C 0 0 0 0 0 0 1

Fujitsu Code

Revision Code
Product Type
Display Mode
Basic Model Serial No.
Resolution : HD

Size (inch) : 15.6”

Application : NBPC
LGD Brand Initial: L

SERIAL NO.

MONTH
YEAR
SIZE

1)P/N : CP574905-01

2) REV NO : 01A

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1. MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to
the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=· 200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on) becomes

longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference.

Ver. 0.4 Feb. 23. 2012

22 / 26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

9-3. ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5. STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5qCand 35qC at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well
ion-blown equipment or in such a condition, etc.

(2) The protection film is attached to the polarizer with a small amount of glue. If some stress is applied

to rub the protection film against the polarizer during the time you peel off the film, the glue is apt to
remain on the polarizer.
Please carefully peel off the protection film without rubbing it against the polarizer.

(3) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the polarizer after the protection film is peeled off.

(4) You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is

recognized, please wipe them off with absorbent cotton waste or other soft material like chamois
soaked with normal-hexane.

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23 / 26

www.panelook.com

Global LCD Panel Exchange Center

Featu

re Support (no_DPMS, no_Active Off/Very Low Power, RGB color display, Timing BLK 1,no_

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 1/3

yte

Byte

B

(Dec)

(Hex)

0

00

1

01

2

02

3

03

4

04

5

05

6

06

7

07

8

08

9

09

10

0A

11

0B

12

0C

13

0D

14

Version

Vendor / Product EDID

Display

Parameters

Panel Color Coordinates

0E

15

0F

16

10

17

11

18

12

19

13

20

14

21

15

22

16

23

17

24

18

25

19

26

1A

27

1B

28

1C

29

1D

30

1E

31

1F

32

20

33

21

34

22

35

23

der

Hea

Header

Header

Header

Header

Header

Header

Header

EISA manufacture code ( 3 Character ID ) LGD

EISA manufacture code (Compressed ASCซ)

Panel Supplier Reserved - Product Code 036Bh

( Hex. LSB first )

LCD Module Serial No - Preferred but Optional ("0" If not used)

LCD Module Serial No - Preferred but Optional ("0" If not used)

LCD Module Serial No - Preferred but Optional ("0" If not used)

LCD Module Serial No - Preferred but Optional ("0" If not used)

Week of Manufacture 00 weeks

Year of Manufacture 2012 years

EDID structure version # = 1

EDID revision # = 4

eo input Definition = Input is a Digital Video signal Interface , Colo Bit Depth : 6 Bits per Primary

Vid
Color , Digital Video Interface Standard Supported: DisplayPort is supported

x H image size (Rounded cm) = 31 cm

Ma

Max V image size (Rounded cm) = 17 cm

Display gamma = (gamma*100)-100 = Example:(2.2*100)-100=120 = 2.2 Gamma

Red/Green Low Bits (RxRy/GxGy)

Blue/White Low Bits (BxBy/WxWy)

Red X Rx = 0.584

Red Y Ry = 0.349

Green X Gx = 0.339

Green Y Gy = 0.562

Blue X Bx = 0.159

Blue Y By = 0.114

White X Wx = 0.313

White Y Wy = 0.329

Established timing 1 (00h if not used)

www.panelook.com

Product Specification

Field Name and Comments

LP140WH6

Liquid Crystal Display

Value
(Hex)

00
FF
FF
FF
FF
FF
FF

00

30
E4
6B

03

00

00

00

00

00

16

01

04

95

1F

11

78
0A

9F
D5

95

59

56

8F

28
1D

50

54

00

Value

(Bin)

00000000

11111111

11111111

11111111

11111111

11111111

11111111

00000000

00110000

11100100

01101011

00000011

00000000

00000000

00000000

00000000

00000000

00010110

00000001

00000100

10010101

00011111

00010001

01111000

00001010

10011111

11010101

10010101

01011001

01010110

10001111

00101000

00011101

01010000

01010100

00000000

36

Timings

Established

37

38

39

40

41

42

43

44

45

46

47

48

49

Standard Timing ID Header

50

51

52

53

Established timing 2 (00h if not used)

24

Manufacturer's timings (00h if not used)

25

Standard timing ID1 (01h if not used)

26

Standard timing ID1 (01h if not used)

27

Standard timing ID2 (01h if not used)

28

Standard timing ID2 (01h if not used)

29

Standard timing ID3 (01h if not used)

2A

Standard timing ID3 (01h if not used)

2B

Standard timing ID4 (01h if not used)

2C

Standard timing ID4 (01h if not used)

2D

Standard timing ID5 (01h if not used)

2E

Standard timing ID5 (01h if not used)

2F

Standard timing ID6 (01h if not used)

30

Standard timing ID6 (01h if not used)

31

Standard timing ID7 (01h if not used)

32

Standard timing ID7 (01h if not used)

33

Standard timing ID8 (01h if not used)

34

Standard timing ID8 (01h if not used)

35

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

00000000

00

00000000

00

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

24 / 26

www.panelook.com

Global LCD Panel Exchange Center

code 0Ah,set remaining char = 20h)

code 0Ah,set remaining char = 20h)

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 2/3

B

yte

Byte

(Dec)

(Hex)

54

55

56

57

58

59

60

61

62

63

64

65

66

Timing Descriptor #1Timing Descriptor #2Timing Descriptor #3

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

P

ixel Clock/10,000 (LSB) 70 MHz @ 60Hz

36

Pixel Clock/10,000 (MSB)

37

Horizontal Active (lower 8 bits) 1366 Pixels

38

Horizontal Blanking(Thp-HA) (lower 8 bits) 126 Pixels

39

Horizontal Active / Horizontal Blanking(Thp-HA) (upper 4:4bits)

3A

Vertical Avtive 768 Lines

3B

Vertical Blanking (Tvp-HA) (DE Blanking typ.for DE only panels) 14 Lines

3C

Vertical Active : Vertical Blanking (Tvp-HA) (upper 4:4bits)

3D

Horizontal Sync. Offset (Thfp) 36 Pixels

3E

Horizontal Sync Pulse Width (HSPW) 48 Pixels

3F

Vertical Sync Offset(Tvfp) : Sync Width (VSPW) 3 Lines : 5 Lines

40

Horizontal Vertical Sync Offset/Width (upper 2bits)

41

Horizontal Image Size (mm) 309 mm

42

Vertical Image Size (mm) 174 mm

43

Horizontal Image Size / Vertical Image Size

44

Horizontal Border = 0 (Zero for Notebook LCD)

45

Vertical Border = 0 (Zero for Notebook LCD)

46

No

n-Interlace, Normal display, no stereo, Digital Separate ( Vsync_NEG, Hsync_NEG ), DE only note :

47

LSB is set to '1' if panel is DE-timing only. H/V can be ignored.

P

ixel Clock/10,000 (LSB) 46.67 MHz @ 40Hz

48

Pixel Clock/10,000 (MSB)

49

Horizontal Active (lower 8 bits) 1366 Pixels

4A

Horizontal Blanking(Thp-HA) (lower 8 bits) 126 Pixels

4B

Horizontal Active / Horizontal Blanking(Thp-HA) (upper 4:4bits)

4C

Vertical Avtive 768 Lines

4D

Vertical Blanking (Tvp-HA) (DE Blanking typ.for DE only panels) 14 Lines

4E

Vertical Active : Vertical Blanking (Tvp-HA) (upper 4:4bits)

4F

Horizontal Sync. Offset (Thfp) 36 Pixels

50

Horizontal Sync Pulse Width (HSPW) 48 Pixels

51

Vertical Sync Offset(Tvfp) : Sync Width (VSPW) 3 Lines : 5 Lines

52

Horizontal Vertical Sync Offset/Width (upper 2bits)

53

Horizontal Image Size (mm) 309 mm

54

Vertical Image Size (mm) 174 mm

55

Horizontal Image Size / Vertical Image Size

56

Horizontal Border = 0 (Zero for Notebook LCD)

57

Vertical Border = 0 (Zero for Notebook LCD)

58

No

n-Interlace, Normal display, no stereo, Digital Separate ( Vsync_NEG, Hsync_NEG ), DE only note :

59

LSB is set to '1' if panel is DE-timing only. H/V can be ignored.

Flag

5A

Flag

5B

Flag

5C

Data

5D

5E

5F

60

61

62

63

64

65

66

67

68

69

6A

6B

Type Tag ( ASCII String )

Flag

ASCII String L

ASCII String G

ASCII String

ASCII String D

ASCII String i

ASCII String s

ASCII String p

ASCII String l

ASCII String a

ASCII String y

Manufacturer P/N(If<13 char--> 0Ah, then terminate with ASC

Manufacturer P/N(If<13 char--> 0Ah, then terminate with ASC

Manufacturer P/N(If<13 char--> 0Ah, then terminate with ASCซ code 0Ah,set remaining char = 20h)

www.panelook.com

Product Specification

Field Name and Comments

ซ

ซ

LP140WH6

Liquid Crystal Display

Value
(Hex)

58

1B

56

7E

50
00

0E

30
24
30
35
00
35

AE

10
00
00

19

3B

12
56

7E

50
00

0E

30
24
30
35
00
35

AE

10
00
00

19

00
00
00

FE

00

4C

47
20
44
69
73
70

6C

61
79

0A

20
20

Value

(Bin)

01011000

00011011

01010110

01111110

01010000

00000000

00001110

00110000

00100100

00110000

00110101

00000000

00110101

10101110

00010000

00000000

00000000

00011001

00111011

00010010

01010110

01111110

01010000

00000000

00001110

00110000

00100100

00110000

00110101

00000000

00110101

10101110

00010000

00000000

00000000

00011001

00000000

00000000

00000000

11111110

00000000

01001100

01000111

00100000

01000100

01101001

01110011

01110000

01101100

01100001

01111001

00001010

00100000

00100000

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25 / 26

www.panelook.com

Global LCD Panel Exchange Center

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 3/3

www.panelook.com

LP140WH6

Liquid Crystal Display

Product Specification

B

yte

Byte

(Dec)

(Hex)

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

Checksum Timing Descriptor #4

Flag

6C

Flag

6D

Flag

6E

Data

6F

70

71

72

73

74

75

76

77

78

79

7A

7B

7C

7D

7E

7F

Type Tag ( ASCII String )

Flag

ASCII String L

ASCII String P

ASCII String 1

ASCII String 4

ASCII String 0

ASCII String W

ASCII String H

ASCII String 6

ASCII String -

ASCII String T

ASCII String S

ASCII String A

ASCII String 3

Extension flag (# of optional 128 panel ID extension block to follow, Typ = 0)

Check Sum (The 1-byte sum of all 128 bytes in this panel ID block shall = 0)

Field Name and Comments

Value

(Hex)

00
00
00

FE

00

4C

50
31
34
30
57
48
36

2D

54
53
41

33

00

17

Value

(Bin)

00000000

00000000

00000000

11111110

00000000

01001100

01010000

00110001

00110100

00110000

01010111

01001000

00110110

00101101

01010100

01010011

01000001

00110011

00000000

00010111

Ver. 0.4 Feb. 23. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26 / 26

www.panelook.com
