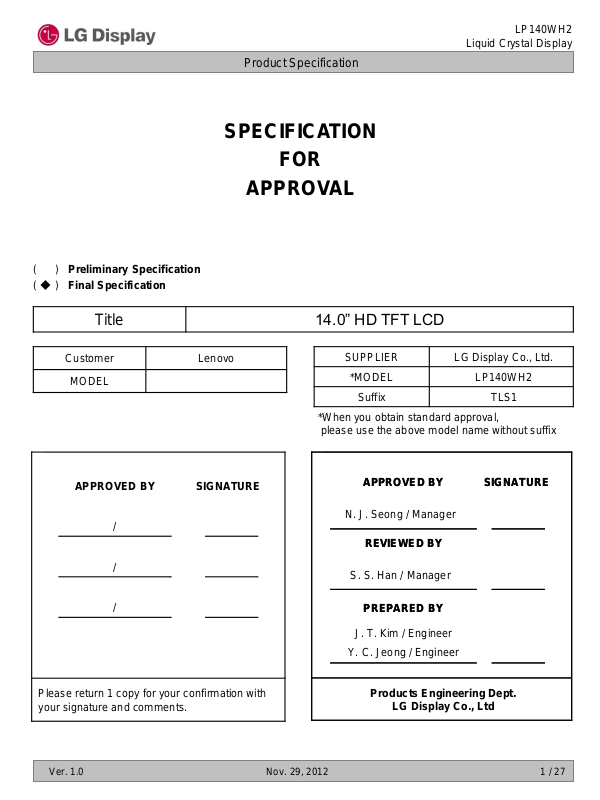

LG Display LP140WH2-TLS1 Specification

( ) Preliminary Specification ( ◆ ) Final Specification

Title 14.0” HD TFT LCD

LP140WH2

Liquid Crystal Display

Product Specification

SPECIFICATION

FOR

APPROVAL

Customer Lenovo

MODEL

SIGNATURE APPROVED BY

/

SUPPLIER LG Display Co., Ltd.

*MODEL LP140WH2

Suffix TLS1

*When you obtain standard approval, please use the above model name without suffix

APPROVED BY

N. J. Seong / Manager

REVIEWED BY

S. S. Han / Manager

PREPARED BY

J. T. Kim / Engineer

Y. C. Jeong / Engineer

SIGNATURE

Please return 1 copy for your confirmation with your signature and comments.

Ver. 1.0 Nov. 29, 2012

Products Engineering Dept.

LG Display Co., Ltd

1 / 27

Product Specification

Contents

LP140WH2

Liquid Crystal Display

No

1 2 3 3-1 3-2 3-3 3-4 3-5 3-6 3-7 4

COVER CONTENTS RECORD OF REVISIONS GENERAL DESCRIPTION ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS LVDS SIGNAL TIMING SPECIFICATION SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS

ITEM

Page

1 2 3 4 5

6-7

8

9-10

11 11 12 13

14-16 5 6 7 7-1 7-2 7-3 8 8-1 8-2 8-3 9

Ver. 1.0 Nov. 29, 2012

MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING DESIGNATION OF LOT MARK PACKING FORM Label Description PRECAUTIONS

A APPENDIX. Enhanced Extended Display Identification Data

17-19

20

21 21 21

22 22

23 24-25 26-28

2 / 27

Product Specification

RECORD OF REVISIONS

LP140WH2

Liquid Crystal Display

Revision No Revision Date Page Description

0.0 Aug. 01. 2012 - First Draft (Preliminary Specification) -

0.1 Oct. 15. 2012 26-28 Update the EDID Data 0.1

0.2 Nov. 1. 2012 13 Change the T7 Timing min 3ms → 0ms

0.3 Nov. 2. 2012 18-19 Update the LCM Drawing 18-19 Update the LCM Drawing

0.4 Nov. 16. 2012

23 Update Label Description

6 Update the Power Consumption

1.0 Nov. 29. 2012

15 Update the Gray Scale

EDID

ver

1.0 14 Update the Color Coordinates

Ver. 1.0 Nov. 29, 2012

3 / 27

LP140WH2

Liquid Crystal Display

Product Specification

1. General Description

The LP140WH2 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 14.0 inches diagonally measured active display area with HD resolution (1366 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue subpixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP140WH2 has been designed to apply the interface method that enables low power, high speed, low EMI. The LP140WH2 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the subpixels, the LP140WH2 characteristics provide an excellent flat display for office automation products such as Notebook PC.

EEPROM Block

for EDID

EEPROM Block

User connector

for Tcon Operating

1

1366

1

Gate Driver

TFT-LCD Panel

40

LVDS

1port

VCC

VLED

LED_EN

PWM

Timing Control

(Tcon) Block

DVCC

Power

Block

LED Driver

Block

TCLKs

Gate Signals, DSC

Control & Data Power

DVCC, AVDD

VGH, VGL

VOUT_LED

FB1~3

(HD, GD-IC, TN)

Source Driver

(Bottom)

LED Backlight Ass’y

EDID signal & Power

General Features

Active Screen Size 14.0 inches diagonal Outline Dimension Pixel Pitch Pixel Format 1366 horiz. by 768 vert. Pixels RGB strip arrangement Color Depth 6-bit, 262,144 colors Luminance, White 200 cd/m2 Power Consumption Total 3.1 W(Typ.) Logic : 0.4 W (Typ.@ Mosaic), B/L : 2.7 W (Typ.@ VLED 12V) Weight 310g (Max.) Display Operating Mode Transmissive mode, normally white Surface Treatment Glare treatment of the front Polarizer RoHS Compliance Yes BFR / PVC / As Free Yes for all

320.4(H, typ) × 198.1(V, typ) × 3.6(D,max) [mm] (with PCB Board)

0.2265mm × 0.2265 mm

768

Gate Signals, DSC

Ver. 1.0 Nov. 29, 2012

4 / 27

LP140WH2

Liquid Crystal Display

Product Specification

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage Operating Temperature Storage Temperature Operating Ambient Humidity Storage Humidity

VCC -0.3 4.0 Vdc at 25  5C

TOP 0 50 C 1 HST -20 60 C 1 HOP 10 90 %RH 1 HST 10 90 %RH 1

Values

Units Notes

Min Max

Note : 1. Temperature and relative humidity range are shown in the figure below. Wet bulb temperature should be 39C Max, and no condensation of water.

90% 80%

60%

Humidity[(%)RH]

Storage

40%

Operation

20%

10%

Wet Bulb Temperature [℃]

20

10

0

60

50

40

30

-20

10

20 30 40 50

60 70 80 0

Dry Bulb Temperature [℃]

Ver. 1.0 Nov. 29, 2012

5 / 27

LP140WH2

Liquid Crystal Display

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

The LP140WH2 requires two power inputs. The first logic is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second backlight is the input about LED BL with LED Driver.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Unit Notes

Min Typ Max

LOGIC : Power Supply Input Voltage VCC 3.0 3.3 3.6 V 1

Values

Power Supply Input Current

Mosaic ICC - 123 152 mA 2

Window Bliss ICC 140 161 mA Power Consumption PCC - 0.4 0.5 W 2 Power Supply Inrush Current ICC_P - - 1500 mA 3 LVDS Impedance ZLVDS 90 100 110 Ω 4 BACKLIGHT : ( with LED Driver) LED Power Input Voltage VLED 7.0 12.0 21.0 V 5 LED Power Input Current ILED - 227 243 mA 6 LED Power Consumption PLED - 2.7 2.9 W 6 LED Power Inrush Current ILED_P - - 2000 mA 7 PWM Duty Ratio 1 - 100 % PWM Jitter

-

0 - 0.2 % 9

8

PWM Impedance ZPWM 20 40 60 kΩ PWM Frequency FPWM PWM High Level Voltage V

PWM Low Level Voltage V

PWM_H

PWM_L

200 - 1000 Hz

2.2 - 3.6 V 0 - 0.3 V

10

LED_EN Impedance ZPWM 20 40 60 kΩ LED_EN High Voltage VLED_EN_H 2.2 - 3.6 V LED_EN Low Voltage VLED_EN_L 0 - 0.3 V Life Time 12,000 - - Hrs 11

Ver. 1.0 Nov. 29, 2012

6 / 27

LP140WH2

Liquid Crystal Display

Product Specification

Note)

1. The measuring position is the connector of LCM and the test conditions are under 25℃, fv = 60Hz, Black pattern.

2. The specified Icc current and power consumption are under the Vcc = 3.3V , 25℃, fv = 60Hz condition and Mosaic pattern.

3. This Spec. is the max load condition for the cable impedance designing.

4. The below figures are the measuring Vcc condition and the Vcc control block LGD used. The Vcc condition is same as the minimum of T1 at Power on sequence.

Rising time Vcc

0V

10%

90%

3.3V

0.5ms

5. This impedance value is needed for proper display and measured form LVDS Tx to the mating connector.

6. The measuring position is the connector of LCM and the test conditions are under 25℃.

7. The current and power consumption with LED Driver are under the Vled = 12.0V , 25℃, Dimming of Max luminance and White pattern with the normal frame frequency operated(60Hz).

8. The below figures are the measuring Vled condition and the Vled control block LGD used. VLED control block is same with Vcc control block.

Rising time VLED

90%

12.0V

0V

10%

0.5ms

9. The operation of LED Driver below minimum dimming ratio may cause flickering or reliability issue.

10. If Jitter of PWM is bigger than maximum, it may induce flickering.

11. This Spec. is not effective at 100% dimming ratio as an exception because it has DC level equivalent to 0Hz. In spite of acceptable range as defined, the PWM Frequency should be fixed and stable for more consistent brightness control at any specific level desired.

12. The life time is determined as the time at which brightness of LCD is 50% compare to that of minimum value specified in table 7. under general user condition.

Ver. 1.0 Nov. 29, 2012

7 / 27

LP140WH2

Liquid Crystal Display

Product Specification

3-2. Interface Connections

This LCD employs two interface connections, a 40 pin connector used for the module electronics interface and the other connector used for the integral backlight system.

Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)

Pin Symbol Description Notes

1 NC No Connection 2 VCC LCD Logic and driver power (3.3V Typ.) 3 VCC LCD Logic and driver power (3.3V Typ.) 4 V EEDID DDC Power (3.3V) 5 NC No Connection 6 Clk EEDID DDC Clock 7 DATA EEDID DDC Data 8 ORX0- Negative LVDS differential data input

9 ORX0+ Positive LVDS differential data input 10 GND High Speed Ground 11 ORX1- Negative LVDS differential data input 12 ORX1+ Positive LVDS differential data input 13 GND High Speed Ground 14 ORX2- Negative LVDS differential data input 15 ORX2+ Positive LVDS differential data input 16 GND High Speed Ground 17 ORXC- Negative LVDS differential clock input 18 ORXC+ Positive LVDS differential clock input 19 GND High Speed Ground 20 21 22 GND High Speed Ground 23 24 25 GND High Speed Ground 26 27 28 GND High Speed Ground 29 30 31 32 33 34 35 36 37 38 39 40

NC NC

NC

NC GND LED Backlight Ground GND LED Backlight Ground GND LED Backlight Ground

NC

PWM System PWM Signal input for dimming

LED_EN

NC

VLED LED Backlight Power (7V-21V) VLED LED Backlight Power (7V-21V) VLED LED Backlight Power (7V-21V)

No Connection No Connection

No Connection

LED Backlight On/Off No Connection

[Interface Chip]

1. LCD : TLI, TL2356EP(LCD Controller) Including LVDS Receiver.

2. System : TLI LVDSRx or equivalent * Pin to Pin compatible with LVDS

[Connector]

Hirose KN38-40S-0.5H

[Connector pin arrangement]

40

[LCD Module Rear View]

1

Ver. 1.0 Nov. 29, 2012

8 / 27

Liquid Crystal Display

LVDS +

LVDS -

0V

V

CM

# |VID| = |(LVDS+) – (LVDS-)| # VCM = {(LVDS+) + (LVDS-)}/2

|VID|

V

IN_MAXVIN_MIN

LVDS Data

t

SKEW

LVDS Clock

T

clk

t

SKEW (Fclk

= 1/T

clk

)

1) 85MHz > Fclk ≥ 65MHz : -400 ~ +400

2) 65MHz > Fclk ≥ 25MHz : -600 ~ +600

Product Specification

3-3. LVDS Signal Timing Specifications

3-3-1. DC Specification

Description Symbol Min Typ Max Unit Notes

LVDS Differential Voltage |VID| 100 - 600 mV -

LP140WH2

VDD=1.8V

LVDS Common mode Voltage V LVDS Input Voltage Range V

3-3-2. AC Specification

Description Symbol Min Max Unit Notes

LVDS Clock to Data Skew Margin

LVDS Clock to Clock Skew Margin (Even to Odd)

Maximum deviation of input clock frequency during SSC

Maximum modulation frequency of input clock during SSC

CM

IN

|VID| /2 1.2 VDD- |VID|/2 V -

0.3 - VDD V -

t

SKEW

t

SKEW

t

SKEW_EO

F

DEV

F

MOD

- 400 + 400 ps

- 600 + 600 ps

- 1/7 + 1/7 T

-

± 3

clk

% -

- 200 KHz -

85MHz > Fclk ≥

65MHz > Fclk ≥

65MHz

25MHz

-

Ver. 1.0 Nov. 29, 2012

9 / 27

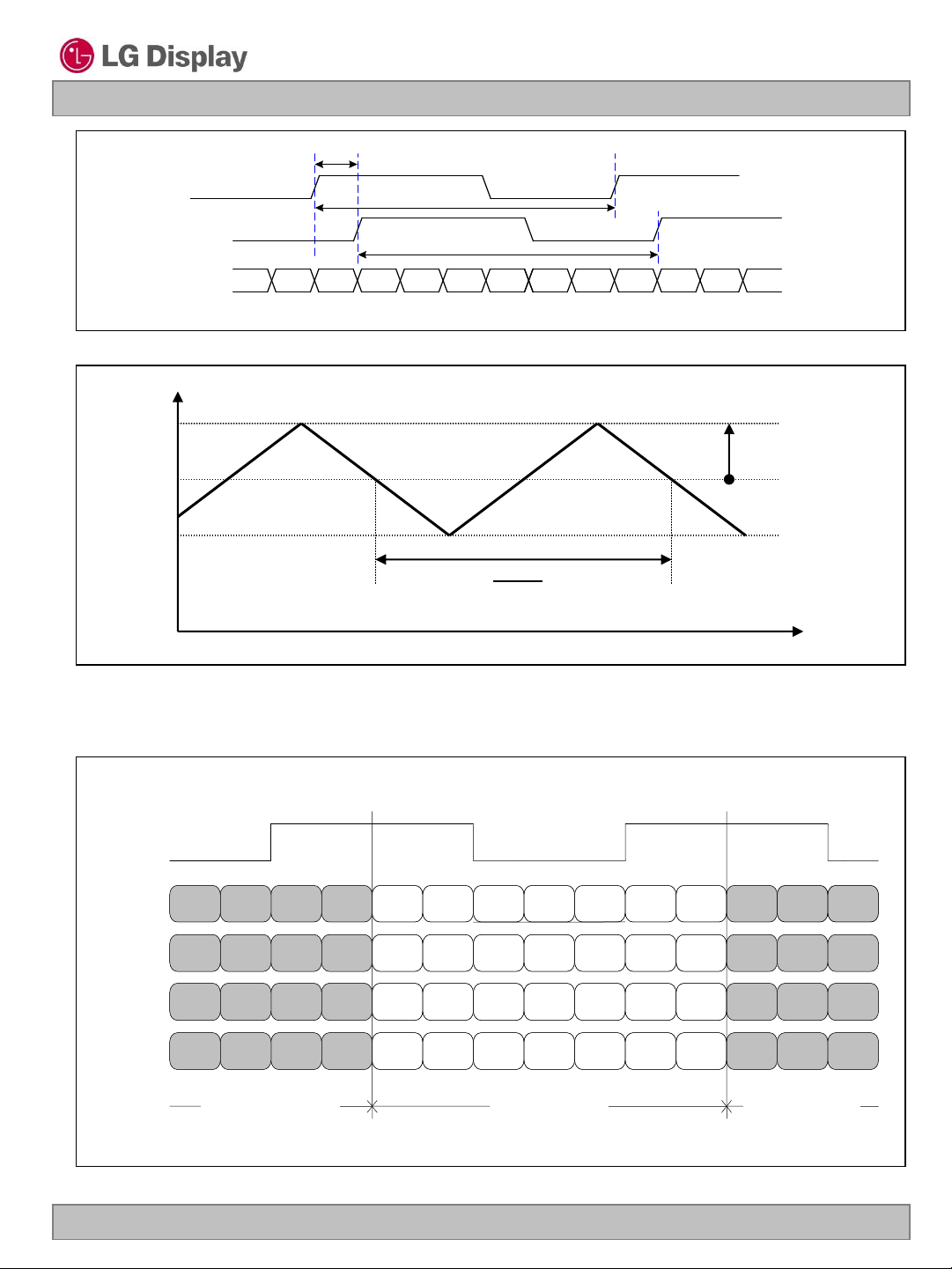

LVDS Even Data

LVDS Odd Clock

LVDS Even Clock

t

SKEW_EO

T

clk

T

clk

Freq.

F

max

F

center

F

min

Product Specification

< Clock skew margin between channel >

LP140WH2

Liquid Crystal Display

F

* F

center

DEV

3-3-3. Data Format

1) LVDS 1 Port

RCLK+

RA+/-

RB+/-

RC+/-

RD+/-

R 3 R 2

G 4 G 3

B 5 B 4

G 7 G 6

R 1 R 0

G 2 G 1

B 3 B 2

R 7 R 6

1

F

MOD

< Spread Spectrum >

G 0 R 5 R 4 R 3 R 2 R 1 R 0

B 1 B 0 G 5 G 4 G 3 G 2 G 1

DE VSYNC HSYNC B 5 B 4 B 3 B 2

X B 7 B 6 G 7 G 6 R 7 R 6

Time

G 0

R 5 R 4

B 1

B 0 G 5

DE

VSYNC HSYNC

X

B 7 B 6

Ver. 1.0 Nov. 29, 2012

Previous ( N - 1 ) th Cycle Next ( N + 1 ) th Cycle

Current ( Nth ) Cycle

< LVDS Data Format >

10 / 27

LP140WH2

Liquid Crystal Display

Product Specification

3-4. Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.

Table 4. TIMING TABLE

ITEM Symbol Min Typ Max Unit Note

DCLK Frequency f

Period

Hsync

Width tWH 32 32 32 Width-Active t

CLK

t

HP

WHA

- 69.3 - MHz

1462 1470 1526

tCLK

1366 1366 1366

Period tVP 780 786 800

Vsync

Data

Enable

Width-Active t Horizontal back porch t Horizontal front porch t Vertical back porch t Vertical front porch t

768 768 768

WVA

HBP

HFP

VBP

VFP

32 40 96 32 32 32

7 10 24 2 3 3

tHP Width tWV 3 5 5

tCLK

tHP

Appendix) all reliabilities are specified for timing specification based on refresh rate of 60Hz. However, LP140WH2 has a good actual performance even at lower refresh rate (e.g. 40Hz or 50Hz) for power saving mode, whereas LP140WH2 is secured only for function under lower refresh rate. 60Hz at Normal mode, 50Hz,

40Hz at Power save mode. Don’t care Flicker level (power save mode).

3-5. Signal Timing Waveforms

Data Enable, Hsync, Vsync

High: 0.7VCC Low: 0.3VCC

Condition : VCC =3.3V

DCLK

tCLK

0.5 Vcc

tHP

Hsync

tWH

tWHA

Data Enable

t

HBP

tVP

tWV

Vsync

Data Enable

t

VBP

Ver. 1.0 Nov. 29, 2012

tWVA

t

HFP

t

VFP

11 / 27

LP140WH2

Liquid Crystal Display

Product Specification

3-6. Color Input Data Reference

The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the color ; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Table 5. COLOR DATA REFERENCE

Input Color Data

Basic Color

RED

GREEN

BLUE

Color

Black

Red

Green

Blue

Cyan

Magenta

Yellow

White

RED (00)

RED (01)

… RED (62) RED (63) GREEN (00) GREEN (01)

... GREEN (62) GREEN (63) BLUE (00) BLUE (01)

… BLUE (62) BLUE (63)

RED

MSB LSB

R 5 R 4 R 3 R2 R 1 R 0 G 5 G 4 G 3 G 2 G 1 G 0 B 5 B 4 B 3 B 2 B 1 B 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0

… … … 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0

… … … 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

… … … 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

MSB LSB

GREEN

BLUE

MSB LSB

Ver. 1.0 Nov. 29, 2012

12 / 27

3-7. Power Sequence

Power Supply Input

VCC

0V

Product Specification

90%

LP140WH2

Liquid Crystal Display

90%

10% 10%

Interface Signal, V

i

LVDS

0V

LED BL On/Off Control Signal

LED_EN

0V (Off)

LED BL Dimming Control Signal

PWM

0V (Low)

LED Driver Input Voltage

VLED

0V

Table 6. POWER SEQUENCE TABLE

Logic

Parameter

T

1

T

2

T3 0 - 50 T

4

T5 200 - - ms T6 200 - - ms T

7

Min. Typ. Max.

0.5 - 10 ms 0 - 50 ms

400 - - ms

0 - 10 ms

Value

T

T7

T

1

2

T5

Valid Data

3.0V

T9

3

T6

T10

T4

Valid Data

T8

90%

Units

ms

T12

LED

Parameter

T8 10 - - ms

T9 0 - - ms T10 0 - - ms T11 10 - - ms T12 0.5 - - ms T13 0 - 5000 ms

10%

T11

90%

T13

10%

Value

Min. Typ. Max.

Units

Note)

1. Do not insert the mating cable when system turn on.

2. Valid Data have to meet “3-3. LVDS Signal Timing Specifications”

3. LVDS, LED_EN and PWM need to be on pull-down condition on invalid status.

4. LGD recommend the rising sequence of VLED after the Vcc and valid status of LVDS turn on.

Ver. 1.0 Nov. 29, 2012

13 / 27

LP140WH4

Liquid Crystal Display

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30 minutes in a dark environment at 25C. The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of  and  equal to 0. FIG. 1 presents additional information concerning the measurement equipment and method.

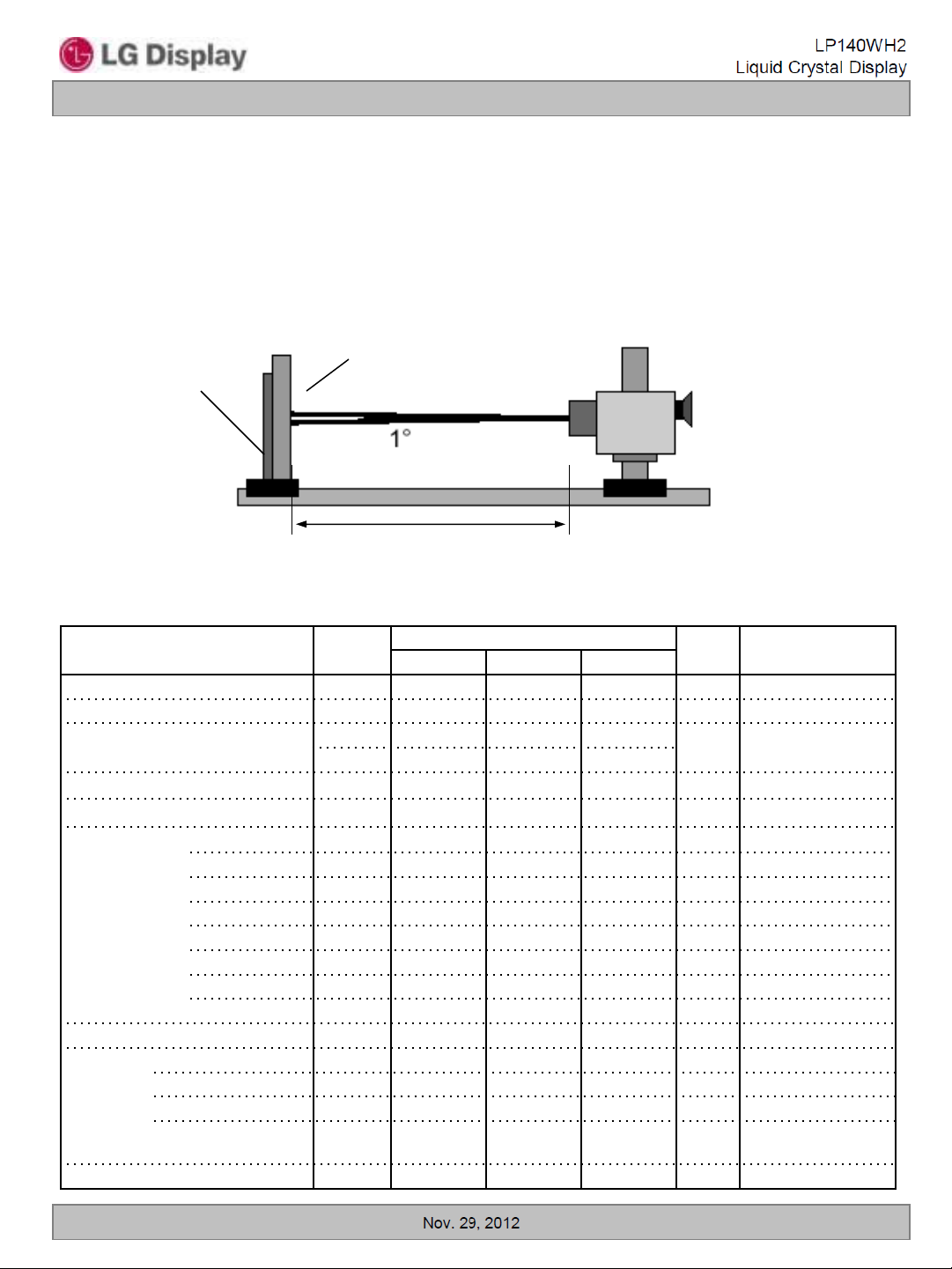

FIG. 1 Optical Characteristic Measurement Equipment and Method

Optical Stage(x,y)

LCD Module

Pritchard 880 or equivalent

500mm± 50mm

Table 9. OPTICAL CHARACTERISTICS

Table 7. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 400 500 - 1 Surface Luminance, white LWH 170 200 - cd/m



Luminance Variation Response Time

Color Coordinates

RED RX 0.549 0.579 0.609

GREEN GX 0.308 0.338 0.368

BLUE BX 0.128 0.158 0.188

WHITE WX 0.283 0.313 0.343

Viewing Angle 5

x axis, right(=0) r 40 - - degree x axis, left (=180) l 40 - - degree y axis, up (=90) u 10 - - degree y axis, down

(=270)

Gray Scale 6

WHITE(5P)



WHITE(13P)

TrR+ Tr

D

RY 0.314 0.344 0.374

GY 0.539 0.569 0.599

BY 0.094 0.124 0.154

WY 0.299 0.329 0.359

d 30 - - degree

Min Typ Max

- 1.2 1.4

- 1.4 1.6

- 16 25 ms 4

Values

Ta=25C, Vcc=3.3V, fV=60Hz, f

Units Notes

2

- 3

CLK

= 69.3MHz

2

Ver. 1.0 Jan. 10, 2011

14 / 27

LP140WH2

Liquid Crystal Display

Product Specification

Note)

1. Contrast Ratio(CR) is defined mathematically as Surface Luminance with all white pixels

Contrast Ratio = Surface Luminance with all black pixels

2. Surface luminance is the average of 5 point across the LCD surface 50cm from the surface with all pixels displaying white. For more information see FIG 1.

LWH = Average(L1,L2, … L5)

3. The variation in surface luminance , The panel total variation ( WHITE) is determined by measuring LN at each test position 1 through 13 and then defined as followed numerical formula. For more information see FIG 2.

Maximum(L1,L2, … L5) WHITE_5P = Minimum(L1,L2, … L5)

Maximum(L1,L2, … L13) WHITE_13P = Minimum(L1,L2, … L13)

4. Response time is the time required for the display to transition from white to black (rise time, TrR) and from black to white(Decay Time, TrD). For additional information see FIG 3.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG 4.

6. Gray scale specification * fV = 60Hz

Gray Level Luminance [%] (Typ)

L0 0.1

L7 0.8 L15 4.1 L23 11.0 L31 21.7 L39 35.5 L47 53.4 L55 74.9 L63 100.0

Ver. 1.0 Nov. 29, 2012

15 / 27

Product Specification

Normal

Y

Eye







= 0



,

Right



= 180



,

Left



= 270



,

Down



= 90, Up

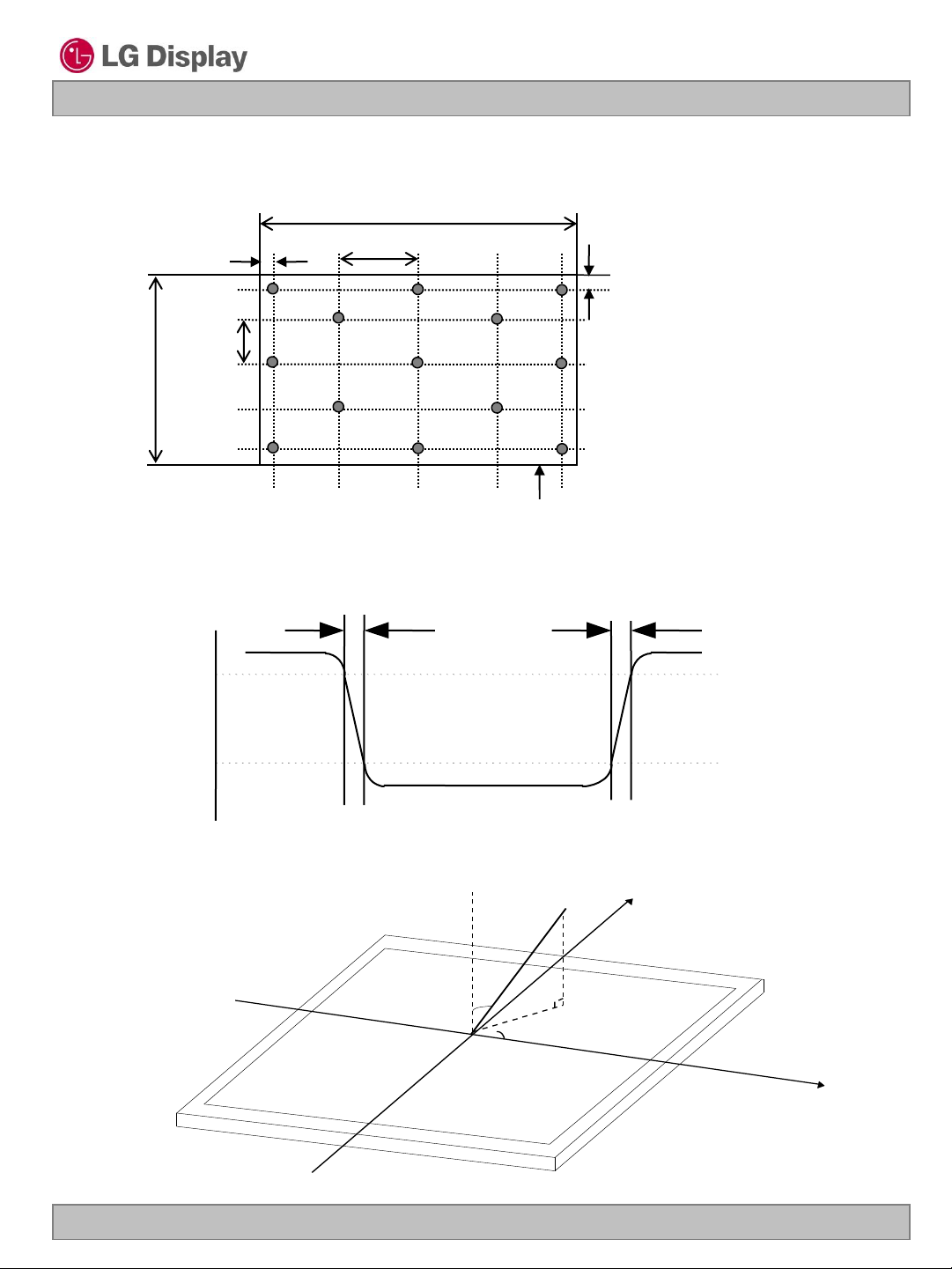

FIG. 2 Luminance

H

LP140WH2

Liquid Crystal Display

10mm

B

V

FIG. 3 Response Time

6 7 8

9 10

11 12

A

10mm

2

1

4

3

5

13

Active Area

: ACTIVE AREA

H,V

A

: H/4 mm

B : V/4 mm

POINTS: 13 POINTS

The response time is defined as the following figure and shall be measured by switching the input signal for “black” and “white”.

Tr

D

100

90

%

Tr

R

Optical

Response

10

0

white

black

FIG. 4 Viewing angle

Ver. 1.0 Nov. 29, 2012

16 / 27

LP140WH2

Liquid Crystal Display

Product Specification

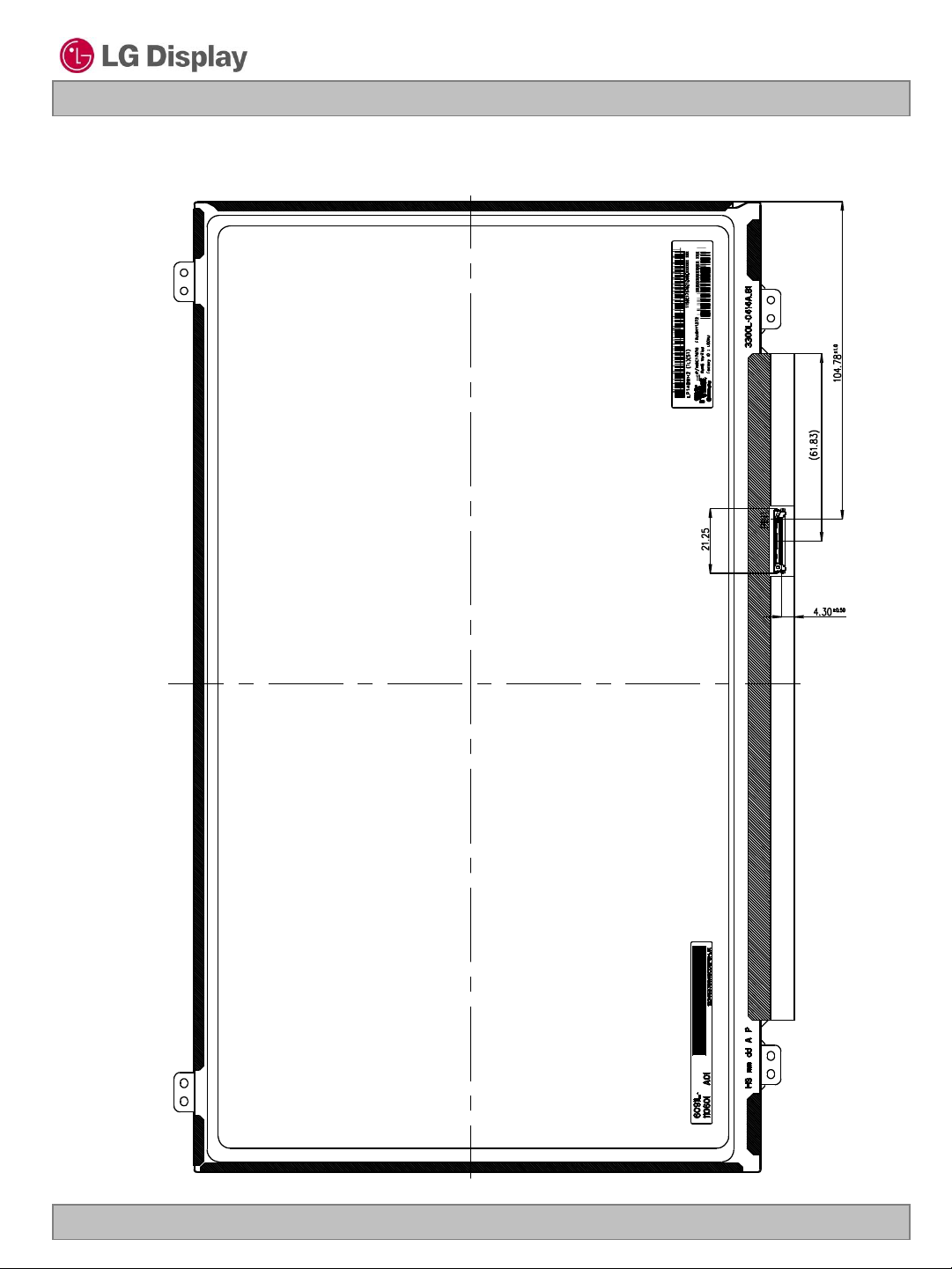

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model LP140WH2. In addition the figures in the next page are detailed mechanical drawing of the LCD.

Horizontal 320.4  0.5mm

Outline Dimension

Bezel Area

Active Display Area

Weight 310g (Max.)

Surface Treatment Hard Coating(3H), Glare treatment of the front polarizer

Vertical 198.1  0.5mm Thickness 3.6mm (max) Horizontal 312.60  0.5mm Vertical 177.50  0.5mm Horizontal 309.40 mm Vertical 173.95 mm

A

Ver. 1.0 Nov. 29, 2012

B

17 / 27

Product Specification

LP140WH2

Liquid Crystal Display

Note) Unit:[mm], General tolerance:  0.5mm

Ver. 1.0 Nov. 29, 2012

18 / 27

Product Specification

LP140WH2

Liquid Crystal Display

Note) Unit:[mm], General tolerance:  0.5mm

Ver. 1.0 Nov. 29, 2012

19 / 27

Liquid Crystal Display

Product Specification

6. Reliability

Environment test condition

No. Test Item Conditions

1 High temperature storage test Ta= 60C, 240h 2 Low temperature storage test Ta= -20C, 240h 3 High temperature operation test Ta= 50C, 50%RH, 240h 4 Low temperature operation test Ta= 0C, 240h 5 Vibration test (non-operating) Sine wave, 5 ~ 150Hz, 1.5G, 0.37oct/min

3 axis, 30min/axis

6 Shock test (non-operating) - No functional or cosmetic defects following a shock

to all 6 sides delivering at least 180 G in a half sine pulse no longer than 2 ms to the display module

- No functional defects following a shock delivering at least 200 g in a half sine pulse no longer than 2 ms to each of 6 sides. Each of the 6 sides will be shock tested with one each display, for a total of 6 displays

LP140WH2

7 Altitude operating

storage / shipment

{ Result Evaluation Criteria } There should be no change which might affect the practical display function when the display quality test is conducted under normal operating condition.

0 ~ 10,000 feet (3,048m) 24Hr 0 ~ 40,000 feet (12,192m) 24Hr

Ver. 1.0 Nov. 29, 2012

20 / 27

LP140WH2

Liquid Crystal Display

Product Specification

7. International Standards

7-1. Safety

a) UL 60950-1, Underwriters Laboratories Inc. Information Technology Equipment - Safety - Part 1 : General Requirements.

b) CAN/CSA C22.2 No.60950-1-07, Canadian Standards Association. Information Technology Equipment - Safety - Part 1 : General Requirements.

c) EN 60950-1, European Committee for Electrotechnical Standardization (CENELEC). Information Technology Equipment - Safety - Part 1 : General Requirements.

d) IEC 60950-1, The International Electrotechnical Commission (IEC). Information Technology Equipment - Safety - Part 1 : General Requirements.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.” American National Standards Institute (ANSI), 2003. b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and methods of measurement." International Special Committee on Radio Interference (CISPR), 2005. c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance characteristics – Limits and method of measurement." International Special Committee on Radio Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 1.0 Nov. 29, 2012

21 / 27

Product Specification

8. Packing 8-1. Designation of Lot Mark

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

LP140WH2

Liquid Crystal Display

Year Mark

C B A

2014 E 2015

D

2013 2012 2011

2016 G 2017 H 2018 J 2019

F

2. MONTH

Month

Mark

Apr 5 May

4

Jun 7 Jul 8 Aug 9 Sep

6

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module. This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one box : 20pcs b) Box Size : 478mm X 365mm X 288mm

2020

K

Oct

A

Nov

B

Dec Mar Feb Jan

C 3 2 1

Ver. 1.0 Nov. 29, 2012

22 / 27

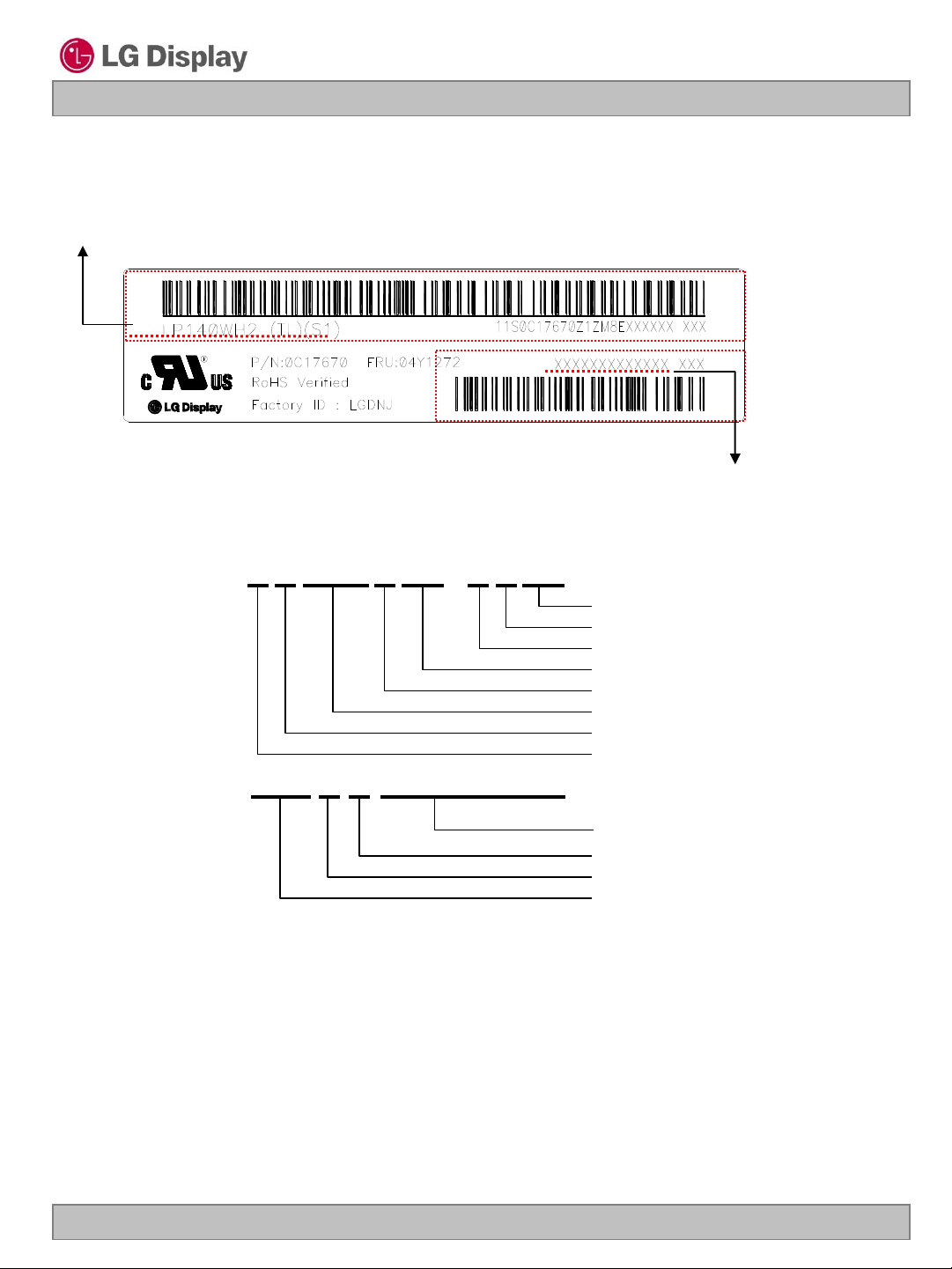

8-3. Label Description

Model Name

LGD Code

LP140WH2

Liquid Crystal Display

Product Specification

Lenovo CODE

LGD CODE

Lot Mark

(1) Model Name : L P 1 4 0 W H 2 - T L S 1

(2) Lot Mark : 1 4 0 B B 0 0 0 0 0 0 0 1

Lenovo Code

1)P/N : 0C17670

2)FRU : 04Y1272

Revision Code Product Type Display Mode Basic Model Serial No. Resolution : HD Size (inch) : 14.0” Application : NBPC LGPL Brand Initial: L

SERIAL NO.

MONTH YEAR SIZE

Ver. 1.0 Nov. 29, 2012

23 / 27

LP140WH2

Liquid Crystal Display

Product Specification

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1. MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to t h e module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module. (3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (9) Do not open the case because inside circuits do not have sufficient strength. (10) When handling the LCD module, it needs to handle with care not to give mechanical stress to the PCB and Mounting Hole area.”

9-2. OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage : V=± 200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.) (3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature, response time(required time that brightness is stable after turned on) becomes longer. (4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur. (5) When fixed patterns are displayed for a long time, remnant image is likely to occur. (6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done by system manufacturers. Grounding and shielding methods may be important to minimized the interference.

Ver. 1.0 Nov. 29, 2012

24 / 27

LP140WH2

Liquid Crystal Display

Product Specification

9-3. ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5. STORAGE

When storing modules as spares for a long time, the following precautions are necessary. (1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5C and 35C at normal humidity. (2) The polarizer surface should not come in contact with any other object. It is recommended that they be stored in the container in which they were shipped.

9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc. (2) The protection film is attached to the polarizer with a small amount of glue. If some stress is applied to rub the protection film against the polarizer during the time you peel off the film, the glue is apt to remain on the polarizer. Please carefully peel off the protection film without rubbing it against the polarizer. (3) When the module with protection film attached is stored for a long time, sometimes there remains a very small amount of glue still on the polarizer after the protection film is peeled off. (4) You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is recognized, please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

Ver. 1.0 Nov. 29, 2012

25 / 27

LP140WH2

Byte

(Dec)

Byte

(Hex)

Field Name and Comments

Value (Hex)

Value

(Bin)

0

00

Header

00

00000000

1

01

Header

FF

11111111

2

02

Header

FF

11111111

3

03

Header

FF

11111111

4

04

Header

FF

11111111

5

05

Header

FF

11111111

6

06

Header

FF

11111111

7

07

Header

00

00000000

8

08

EISA manufacture code ( 3 Character ID ) LGD

30

00110000

9

09

EISA manufacture code (Compressed ASCⅡ)

E4

11100100

10

0A

Panel Supplier Reserved - Product Code 03B3h

B3

10110011

11

0B

( Hex. LSB first )

03

00000011

12

0C

LCD Module Serial No - Preferred but Optional ("0" If not used)

00

00000000

13

0D

LCD Module Serial No - Preferred but Optional ("0" If not used)

00

00000000

14

0E

LCD Module Serial No - Preferred but Optional ("0" If not used)

00

00000000

15

0F

LCD Module Serial No - Preferred but Optional ("0" If not used)

00

00000000

16

10

Week of Manufacture 00 weeks

00

00000000

17

11

Year of Manufacture 2012 years

16

00010110

18

12

EDID structure version # = 1

01

00000001

19

13

EDID revision # = 3

03

00000011

20

14

Video input Definition = Digital signal

80

10000000

21

15

Max H image size (Rounded cm) = 31 cm

1F

00011111

22

16

Max V image size (Rounded cm) = 17 cm

11

00010001

23

17

Display gamma = (gamma*100)-100 = Example:(2.2*100)-100=120 = 2.2 Gamma

78

01111000

24

18

Feature Support (Standby, Suspend, Active Off/Very Low Power, RGB color display, Timing BLK 1,no_

EA

11101010

25

19

Red/Green Low Bits (RxRy/GxGy)

4B

01001011

26

1A

Blue/White Low Bits (BxBy/WxWy)

B5

10110101

27

1B

Red X Rx = 0.579

94

10010100

28

1C

Red Y Ry = 0.344

58

01011000

29

1D

Green X Gx = 0.338

56

01010110

30

1E

Green Y Gy = 0.569

91

10010001

31

1F

Blue X Bx = 0.158

28

00101000

32

20

Blue Y By = 0.124

1F

00011111

33

21

White X Wx = 0.313

50

01010000

34

22

White Y Wy = 0.329

54

01010100

35

23

Established timing 1 (00h if not used)

00

00000000

36

24

Established timing 2 (00h if not used)

00

00000000

37

25

Manufacturer's timings (00h if not used)

00

00000000

38

26

Standard timing ID1 (01h if not used)

01

00000001

39

27

Standard timing ID1 (01h if not used)

01

00000001

40

28

Standard timing ID2 (01h if not used)

01

00000001

41

29

Standard timing ID2 (01h if not used)

01

00000001

42

2A

Standard timing ID3 (01h if not used)

01

00000001

43

2B

Standard timing ID3 (01h if not used)

01

00000001

44

2C

Standard timing ID4 (01h if not used)

01

00000001

45

2D

Standard timing ID4 (01h if not used)

01

00000001

46

2E

Standard timing ID5 (01h if not used)

01

00000001

47

2F

Standard timing ID5 (01h if not used)

01

00000001

48

30

Standard timing ID6 (01h if not used)

01

00000001

49

31

Standard timing ID6 (01h if not used)

01

00000001

50

32

Standard timing ID7 (01h if not used)

01

00000001

51

33

Standard timing ID7 (01h if not used)

01

00000001

52

34

Standard timing ID8 (01h if not used)

01

00000001

53

35

Standard timing ID8 (01h if not used)

01

00000001

Establ

ished

Timin

gs

Standard Timing ID Header

Vendor / Product EDID

Version

Display

Parameters

Panel Color Coordinates

Liquid Crystal Display

Product Specification

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 1/3

Ver. 1.0 Nov. 29, 2012

26 / 27

LP140WH2

Byte

(Dec)

Byte

(Hex)

Field Name and Comments

Value (Hex)

Value

(Bin)

54

36

Pixel Clock/10,000 (LSB) 69.3 MHz @ 60Hz

12

00010010

55

37

Pixel Clock/10,000 (MSB)

1B

00011011

56

38

Horizontal Active (lower 8 bits) 1366 Pixels

56

01010110

57

39

Horizontal Blanking(Thp-HA) (lower 8 bits) 104 Pixels

68

01101000

58

3A

Horizontal Active / Horizontal Blanking(Thp-HA) (upper 4:4bits)

50

01010000

59

3B

Vertical Avtive 768 Lines

00

00000000

60

3C

Vertical Blanking (Tvp-HA) (DE Blanking typ.for DE only panels) 18 Lines

12

00010010

61

3D

Vertical Active : Vertical Blanking (Tvp-HA) (upper 4:4bits)

30

00110000

62

3E

Horizontal Sync. Offset (Thfp) 32 Pixels

20

00100000

63

3F

Horizontal Sync Pulse Width (HSPW) 32 Pixels

20

00100000

64

40

Vertical Sync Offset(Tvfp) : Sync Width (VSPW) 3 Lines : 5 Lines

35

00110101

65

41

Horizontal Vertical Sync Offset/Width (upper 2bits)

00

00000000

66

42

Horizontal Image Size (mm) 310 mm

36

00110110

67

43

Vertical Image Size (mm) 174 mm

AE

10101110

68

44

Horizontal Image Size / Vertical Image Size

10

00010000

69

45

Horizontal Border = 0 (Zero for Notebook LCD)

00

00000000

70

46

Vertical Border = 0 (Zero for Notebook LCD)

00

00000000

71

47

Non-Interlace, Normal display, no stereo, Digital Separate ( Vsync_NEG, Hsync_NEG ), DE only note : LSB is set to '1' if panel is DE-timing only. H/V can be ignored.

19

00011001

72

48

Flag

00

00000000

73

49

Flag

00

00000000

74

4A

Flag

00

00000000

75

4B

Data Type Tag (Descriptor Defined by manufacturer )

00

00000000

76

4C

Flag

00

00000000

77

4D
