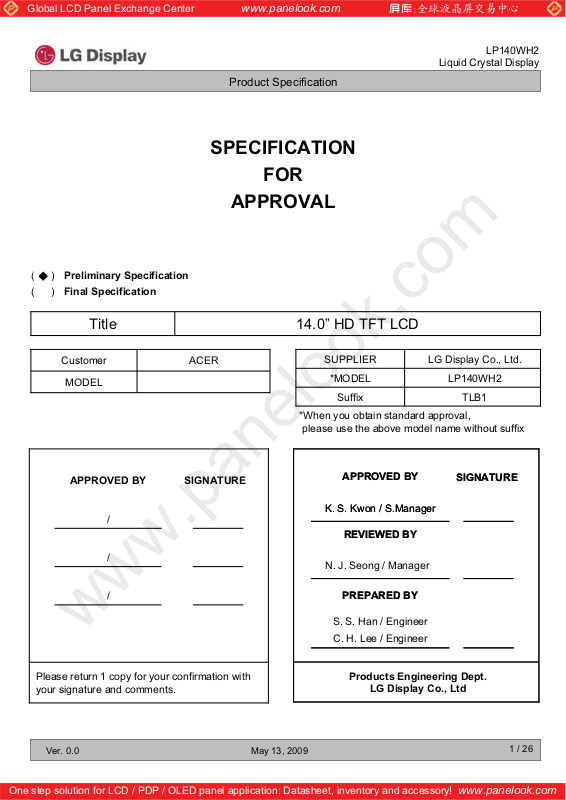

Page 1
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
()
()
Preliminary Specification
ଝ
Final Specification
Customer ACER
Title 14.0” HD TFT LCD
SUPPLIER LG Display Co., Ltd.
MODEL
*When you obtain standard approval,
SIGNATUREAPPROVED BY
/
*MODEL LP140WH2
Suffix TLB1
please use the above model name without suffix
APPROVED BY
APPROVED BY
K. S. Kwon / S.Manager
K. S. Kwon / S.Manager
REVIEWED BY
REVIEWED BY
SIGNATURE
SIGNATURE
/
/
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
ɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
N. J. Seong / Manager
PREPARED BY
PREPARED BY
S. S. Han / Engineer
C. H. Lee / Engineer
Products Engineering Dept.
LG Display Co., Ltd
1/ 26
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
Contents
No
1
2
3
3-1
3-2
3-3
3-4
3-5
3-6
COVER
CONTENTS
RECORD OF REVISIONS
GENERAL DESCRIPTION
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL SPECIFICATIONS
ELECTRICAL CHARACTREISTICS
INTERFACE CONNECTIONS
LVDS SIGNAL TIMING SPECIFICATION
SIGNAL TIMING SPECIFICATIONS
SIGNAL TIMING WAVEFORMS
COLOR INPUT DATA REFERNECE
ITEM
Page
1
2
3
4
5
6
7
8-9
10
10
11
POWER SEQUENCE
3-7
4
5
6 RELIABLITY
7 INTERNATIONAL STANDARDS
8 PACKING
9 PRECAUTIONS
OPTICAL SFECIFICATIONS
MECHANICAL CHARACTERISTICS
7-1 SAFETY
7-2 EMC
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
A APPENDIX. Enhanced Extended Display Identification Data
12
13-15
16-18
19
20
20
21
21
22-23
24-26
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2/ 26
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No Revision Date Page Description
0.0 May 13. 2009 - First Draft (Preliminary Specification) 0.0
EDID
ver
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/ 26
www.panelook.com
Page 4
Global LCD Panel Exchange Center
ڃڧڪڢںڝٻۏ۔ۋۀڄ
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
1. General Description
The LP140WH2 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive
type display operating in the normally white mode. This TFT-LCD has 15.6 inches diagonally measured
active display area with HD resolution(768 vertical by 1366 horizontal pixel array). Each pixel is divided into
Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness
of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of
more than 262,144 colors.
The LP140WH2 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP140WH2 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP140WH2 characteristics provide an excellent flat display for office automation products such as Notebook
PC.
ڌ
ڢڼۏۀٻڟۍۄۑۀۍ
گڡگڈڧڞڟٻګڼۉۀۇ
ڞک
ڌ
ڰێۀۍٻھۊۉۉۀھۏۊۍٻ
ڧڱڟڮٻځ
گۄۈۄۉۂ
ڞۊۉۏۍۊۇ
ڝۇۊھۆ
ڃڌڎڑڑٻۓٻڒڑړڄ
ګڪڲڠڭٻ
ڏڋ
ګۄۉ
ڝڧڪڞڦ
ڒڑړ
ڌ
ڮۊېۍھۀٻڟۍۄۑۀۍٻڞۄۍھېۄۏ
ڠڟڤڟٻ
ڝڧڪڞڦ
ڧڠڟٻڝڼھۆۇۄۂۃۏٻڜێێ’۔
ڔڧڠڟێٻڳٻڏڮۏۍۄۉۂێ
ࣿࣜࣜ ࣜࣜࣜ
General Features
Active Screen Size 14.0 inches diagonal
Outline Dimension 320.4(H, typ) ϧ 198.6(V, typ) Ý 3.6(D,max) [mm] (with PCB Board)
Pixel Pitch 0.2265mm Ý 0.2265 mm
Pixel Format 1366 horiz. By 768 vert. Pixels RGB strip arrangement
Color Depth 6-bit, 262,144 colors
2
Luminance, White 200 cd/m
Power Consumption TBD
Weight 320g (Max.)
Display Operating Mode Transmissive mode, normally white
Surface Treatment Hard Coating(3H), Anti glare treatment of the front polarizer
(Typ.5 point)
ڌڎڑڑ
RoHS Comply Yes
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/ 26
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.
Table 1. ABSOLUTE MAXIMUM RATINGS
Parameter
Power Input Voltage
Operating Temperature
Storage Temperature
Operating Ambient Humidity
Storage Humidity
VCC -0.3 4.0 Vdc at 25 r 5qC
T
OP
H
ST
H
OP
H
ST
Values
Units
Min Max
050qC1
-20 60 qC1
10 90 %RH 1
10 90 %RH 1
Note : 1. Temperature and relative humidity range are shown in the figure below.
qC
Wet bulb temperature should be 39
Wet Bulb
Temperature [
]
Max, and no condensation of water.
90% 80%
60
50
60%
Humidity[(%)RH]
Storage
NotesSymbol
40
30
20
10
0
-20
10
20 30 40 50
60 70 800
Dry Bulb Temperature []
)URP ZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
40%
20
%
10%
Operation
5/ 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
The LP140WH2 requires two power inputs. The first logic is employed to power the LCD electronics and to
drive the TFT array and liquid crystal. The second backlight is the input about LED BL.with LED Driver.
Table 2. ELECTRICAL CHARACTERISTICS
Parameter Symbol
LOGIC :
Power Supply Input Voltage V
Power Supply Input Current I
CC
Power Consumption P
Power Supply Inrush Current I
LVDS Impedance Z
BACKLIGHT : ( with LED Driver)
LED Power Input Voltage V
LED Power Input Current I
LED Power Consumption P
Min Typ Max
CC 3.0 3.3 3.6 V
Mosaic TBD 1
Black
CC TBD W 1
CC_P - - 1500 mA
LVDS 90 100 110
LED
LED - TBD mA 3
LED -TBD W3
7.0 12.0 20.0 V
Values
TBD
Unit Notes
mA
ȳ
2
LED Power Inrush Current I
LED_P - - 1000 mA
PWM Dimming (Duty) Ratio - 12.5 - 100 % 4
PWM Impedance Z
PWM Frequency F
PWM High Level Voltage V
PWM Low Level Voltage V
LED_EN High Voltage V
LED_EN Low Voltage V
LED_EN_H
LED_EN_L
PWM
PWM
PWM_ H
PWM_ L
20 40 60 kȳ
200 - 10000 Hz 5
3.0 - 5.5 V
0-0.5V
3.0 - 5.5 V
0-0.5V
Life Time 12,000 - - Hrs 6
Note)
1. The specified Icc current and power consumption are under the Vcc = 3.3V , 25, fv = 60Hz condition
whereas Mosaic pattern is displayed and fv is the frame frequency.
2. This impedance value is needed to proper display and measured form
LVDS Tx to the mating connector.
3. The specified LED current and power consumption are under the Vled = 12.0V , 25, Dimming of Max
luminance whereas White pattern is displayed and fv is the frame frequency.
4. The operation of LED Driver below minimum dimming ratio may cause flickering or reliability issue.
5. This Spec. is not effective at 100% dimming ratio as an exception because it has DC level equivalent
to 0Hz. In spite of acceptable range as defined, the PWM Frequency should be fixed and stable for
more consistent brightness control at any specific level desired.
6. The life time is determined as the time at which brightness of LCD is 50% compare to that of minimum
value at Table 9. These LED backlight has 6 strings on it and the typical current of LED’s string is base
on typical current at Table 2.
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6/ 26
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
3-2. Interface Connections
This LCD employs one interface connections, a 40 pin connector is used for the module electronics interface
and LED Driver.
The electronics interface connector is a model IS050-L40B-C1 manufactured by I-PEX.
Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)
Pin Symbol Description Notes
1 NC No connection
2 VCC Power Supply, 3.3V Typ.
3 VCC Power Supply, 3.3V Typ.
4 V EEDID DDC 3.3V power
5 NC No Connection
6 Clk EEDID DDC Clock
7 DATA EEDID DDC Data
8 Odd_R
9 Odd_R
10 GND Ground
11 Odd_R
12 Odd_R
13 GND Ground
14 Odd_R
15 Odd_R
16 GND Ground
17 Odd_CLKIN- Negative LVDS differential clock input
18 Odd_CLKIN+ Positive LVDS differential clock input
19 GND Ground
20 NC No Connection
21 NC No Connection
22 GND Ground
23 NC No Connection
24 NC No Connection
25 GND Ground
26 NC No Connection
27 NC No Connection
28 GND Ground
29 NC No Connection
30 NC No Connection
31 VLED_GND LED Ground
32 VLED_GND LED Ground
33 VLED_GND LED Ground
34 NC No Connection
35 BLIM PWM for Luminance control
36 BL_On Backlight On/Off Control
37 NC No Connection (Reserved)
38 VLED LED Power Supply (7V-20V)
39 VLED LED Power Supply (7V-20V)
40 VLED LED Power Supply (7V-20V)
0- Negative LVDS differential data input
IN
0+ Positive LVDS differential data input
IN
1- Negative LVDS differential data input
IN
1+ Positive LVDS differential data input
IN
2- Negative LVDS differential data input
IN
2+ Positive LVDS differential data input
IN
1, Interface chips
1.1 LCD : SW, SW0624 (LCD Controller)
including LVDS Receiver
1.2 System : THC63LVDF823A
or equivalent
* Pin to Pin compatible with LVDS
2. Connector
2.1 LCD:CABLINE-VS RECE ASS’Y, I-PEX
GT05Q-40S-H10, LSM
IS050-L40B-C10, UJU
or equivalent
2.2 Mating : CABLINE-VS PLUG CABLE
ASS’Y or equivalent
2.3 Connector pin arrangement
[W
[LCD Module Rear View]
X
)URP ZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/ 26
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
3-3. LVDS Signal Timing Specifications
3-3-1. DC Specification
LP140WH2
Liquid Crystal Display
Description
LVDS Differential Voltage |V
LVDS Common mode Voltage V
LVDS Input Voltage Range V
3-3-2. AC Specification
Description Symbol Min Max Unit Notes
LVDS Clock to Data Skew Margin
Symb
ol
| 100 600 mV -
ID
CM
IN
t
SKEW
t
SKEW
Min Max Unit Notes
0.6 1.8 V -
0.3 2.1 V -
- 400 + 400 ps
- 600 + 600 ps
85MHz > Fclk ˻
65MHz > Fclk ˻
65MHz
25MHz
LVDS Clock to Clock Skew Margin (Even
to Odd)
Maximum deviation
of input clock frequency during SSC
Maximum modulation frequency
of input clock during SSC
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
t
SKEW_EO
F
DEV
F
MOD
-1/7 -
+ 1/7 T
clk
- · 3%
- 200 KHz
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
-
-
8/ 26
www.panelook.com
Page 9
Global LCD Panel Exchange Center
Freq.
F
max
F
center
www.panelook.com
Product Specification
< Clock skew margin between channel >
LP140WH2
Liquid Crystal Display
m
QGm
kl}
F
min
3-3-3. Data Format
1) LVDS 1 Port
RCLK+
RA+/-
RB+/-
RC+/-
R3 R2
G4 G3
B5 B4
R1 R0
G2 G1
B3 B2
X
m
tvk
< Spread Spectrum >
G0 R5 R4 R3 R2 R1 R0
B1 B0 G5 G4 G3 G2 G1
DE VSYNC HSYNC B5 B4 B3 B2
Time
G0
B1
DE
VSYNC HSYNC
R5 R4
B0 G5
RD+/-
G7 G6
Previous (N-1)th Cycle Next (N+1)th Cycle
R7 R6
X B7 B6 G7 G6 R7 R6
Current (Nth ) Cycle
< LVDS Data Format >
)URP ZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
X
B7 B6
9/ 26
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
3-4. Signal Timing Specifications
This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.
Table 6. TIMING TABLE
ITEM Symbol Min Typ Max Unit Note
DCLK Frequency f
Period
Width t
Width-Active t
Period t
Vsync
Width t
Width-Active t
Horizontal back porch t
Data
Enable
Horizontal front porch t
Vertical back porch t
Vertical front porch t
3-5. Signal Timing Waveforms
Data Enable, Hsync, Vsync
CLK
t
HP
WH
WHA
VP
WV
WVA
HBP
HFP
VBP
VFP
High: 0.7VCC
Low: 0.3VCC
-
75.1 - MHz
1470 1526 1600
23 32 42
1366 1366 1366
779 800 804
25 8
768 768 768
72 118 138
84854
82424
13 4
Condition : VCC =3.3V
tCLKHsync
tHP
tCLK
tHP
DCLK
Hsync
t
tCLK
WH
t
HBP
0.5 Vcc
t
HP
WHA
t
Data Enable
t
VP
t
WV
Vsync
t
VBP
tWVA
Data Enable
)URP ZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
t
HFP
t
VFP
10 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
3-6. Color Input Data Reference
The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the
color ; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.
Table 7. COLOR DATA REFERENCE
Input Color Data
Basic
Color
RED
Color
Black
Red
Green
Blue
Cyan
Magenta
Yellow
White
RED (00)
RED (01)
RED (62)
RED (63)
…
RED
MSB LSB
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B 4 B3 B2 B1 B0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
…… …
1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
MSB LSB
GREEN
BLUE
MSB LSB
GREEN (00)
GREEN (01)
GREEN
...
GREEN (62)
GREEN (63)
BLUE (00)
BLUE (01)
BLUE
…
BLUE (62)
BLUE (63)
Ver. 0.0 May 13, 2009
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
…… …
0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0
0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
…… …
0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0
0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
11 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
3-7. Power Sequence
3-7. Power Sequence
Power Supply Input
VCC
0V
www.panelook.com
Product Specification
90%
LP140WH2
Liquid Crystal Display
90%
10%10%
Interface Signal, V
i
LVDS
LED on/off control Signal
LED_EN
Dimming control signal
Of LED BL
PWM
LED input Voltage
VLED
T
T
1
2
Valid Data
0V
T
5
0V (Off)
T
9
Valid Data
0V (Low)
T
8
90%
0V
10%
Table 6. POWER SEQUENCE TABLE
T
T
3
7
T
6
T
10
T
11
T
4
Value
Parameter
Units
Min. Typ. Max.
Note)
T
1
T
2
T
3
T
4
T
5
T
6
T
7
T
8
T
9
T
10
T
11
0.5 - 10 ms
0-50 ms
0-50 ms
400 - - ms
200 - - ms
200 - - ms
3-10 ms
10 - - ms
0-- ms
0-- ms
10 - - ms
1. Valid Data is Data to meet “3-3. LVDS Signal Timing Specifications”
2. Please avoid floating state of interface signal at invalid period.
3. When the interface signal is invalid, be sure to pull down the power supply for LCD VCC to 0V.
4. LED power must be turn on after power supply for LCD and interface signal are valid.
ɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12 / 26
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
4. Optical Specification
Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30 minutes in
a dark environment at 25
at a viewing angle of
FIG. 1 presents additional information concerning the measurement equipment and method.
FIG. 1 Optical Characteristic Measurement Equipment and Method
qC. The values specified are at an approximate distance 50cm from the LCD surface
)
and 4equal to 0q.
Optical Stage(x,y)
LCD Module
Pritchard 880 or
equivalent
50cm
Table 9. OPTICAL CHARACTERISTICS
Ta=25qC, VCC=3.3V, fV=60Hz, f
Parameter Symbol
Contrast Ratio CR 400 500 - 1
Surface Luminance, white L
Luminance Variation G
Response Time
Color Coordinates
RED RX TBD
GREEN
BLUE
WHITE WX 0.283 0.313 0.343
Viewing Angle 5
x axis, right()=0q) 4r 40 - - degree
x axis, left ()=180q)
y axis, up ()=90q)
y axis, down ()=270q)
Color Gamut % - 45 -
Gray Scale 6
WH
WHITE
TrR+ Tr
RY TBD
GX TBD
GY TBD
BX TBD
BY TBD
WY 0.299 0.329 0.359
4l 40 - - degree
4u 10 - - degree
4d 30 - - degree
Min Typ Max
170 200 - cd/m
-1.41.6 3
D
-1625ms 4
Values
= 75.1MHz, I
CLK
Units Notes
2
LED
2
= 17mA
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 / 26
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Liquid Crystal Display
Product Specification
Note)
1. Contrast Ratio(CR) is defined mathematically as
Surface Luminance with all white pixels
Contrast Ratio =
Surface Luminance with all black pixels
2. Surface luminance is the average of 5 point across the LCD surface 50cm from the surface with
all pixels displaying white. For more information see FIG 1.
= Average(L1,L2, … L5)
L
WH
LP140WH2
3. The variation in surface luminance , The panel total variation (
G
) is determined by measuring L
WHITE
N
at each test position 1 through 13 and then defined as followed numerical formula.
For more information see FIG 2.
Maximum(L
G
WHITE
=
Minimum(L
4. Response time is the time required for the display to transition from white to black (rise time, Tr
from black to white(Decay Time, Tr
). For additional information see FIG 3.
D
1,L2
1,L2
, … L13)
, … L13)
) and
R
5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined
for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the
LCD surface. For more information see FIG 4.
6. Gray scale specification * f
= 60Hz
V
Gray Level Luminance [%] (Typ)
L0 TBD
L7 TBD
L15 TBD
L23 TBD
L31 TBD
L39 TBD
L47 TBD
L55 TBD
L63 100
)URP ZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14 / 26
www.panelook.com
Page 15
Global LCD Panel Exchange Center
FIG. 2 Luminance
<Measuring point for Average Luminance & measuring point for Luminance variation>
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
H
10mm
B
V
FIG. 3 Response Time
678
910
11 12
A
10mm
2
1
4
3
5
13
Active Area
H,V
: ACTIVE AREA
A : H/4 mm
B : V/4 mm
POINTS: 13 POINTS
The response time is defined as the following figure and shall be measured by switching the input signal
for “black” and “white”.
Tr
Tr
R
D
%
100
90
Optical
Response
10
0
FIG. 4 Viewing angle
I
= 180
q
I
= 270
Left
white
,
q
Down
black
Normal
<Dimension of viewing angle range>
T
I
,
Eye
Y
white
I
= 90q, Up
I
q
= 0
,
Right
ɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 / 26
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
5. Mechanical Characteristics
The contents provide general mechanical characteristics for the model LP140WH2. In addition the figures
in the next page are detailed mechanical drawing of the LCD.
Horizontal 320.4 r 0.5mm
Outline Dimension
Bezel Area
Active Display Area
Weight 320g (Max.)
Surface Treatment Hard Coating(3H), Anti glare treatment of the front polarizer
Vertical 198.6 r 0.5mm
Thickness 3.6mm (max)
Horizontal 312.40 r 0.5mm
Vertical 176.95 r 0.5mm
Horizontal 309.40 mm
Vertical 173.95 mm
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 / 26
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
<FRONT VIEW>
Note) Unit:[mm], General tolerance:
r 0.5mm
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 / 26
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
<REAR VIEW>
Note) Unit:[mm], General tolerance:
r 0.5mm
B1
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 / 26
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
6. Reliability
Environment test condition
No. Test Item Conditions
1 High temperature storage test Ta= 60qC, 240h
2 Low temperature storage test Ta= -20qC, 240h
3 High temperature operation test Ta= 50qC, 50%RH, 240h
4 Low temperature operation test Ta= 0qC, 240h
5 Vibration test (non-operating) Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min
3 axis, 1hour/axis
LP140WH2
Liquid Crystal Display
6 Shock test (non-operating) Half sine wave, 180G, 2ms
one shock of each six faces(I.e. run 180G 2ms
for all six faces)
7 Altitude operating
storage / shipment
{ Result Evaluation Criteria }
There should be no change which might affect the practical display function when the display quality
test is conducted under normal operating condition.
0 ~ 10,000 feet (3,048m) 24Hr
0 ~ 40,000 feet (12,192m) 24Hr
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 / 26
www.panelook.com
Page 20
Global LCD Panel Exchange Center
7. International Standards
7-1. Safety
a) UL 60950-1:2003, First Edition, Underwriters Laboratories, Inc.,
Standard for Safety of Information Technology Equipment.
b) CAN/CSA C22.2, No. 60950-1-03 1
Standard for Safety of Information Technology Equipment.
c) EN 60950-1:2001, First Edition,
European Committee for Electrotechnical Standardization(CENELEC)
European Standard for Safety of Information Technology Equipment.
www.panelook.com
Liquid Crystal Display
Product Specification
st
Ed. April 1, 2003, Canadian Standards Association,
LP140WH2
7-2. EMC
a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and
Electrical Equipment in the Range of 9kHZ to 40GHz. “American National Standards Institute(ANSI),
1992
b) C.I.S.P.R “Limits and Methods o
Technology Equipment.“ International Special Committee on Radio Interference.
c) EN 55022 “Limits and Methods of Measurement of Rad
Technology Equipment.“ European Committee for Electrotechnical Standardization.(CENELEC), 1998
( Including A1: 2000 )
f Measurement of Radio Interface Characteristics of Information
io Interface Characteristics of Information
ɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
)URP
20 / 26
www.panelook.com
Page 21
Global LCD Panel Exchange Center
8. Packing
8-1. Designation of Lot Mark
a) Lot Mark
ABCDEFGHI JKLM
A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
Note
1. YEAR
Year
Mark
2. MONTH
Month
Mark
b) Location of Lot Mark
Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.
8-2. Packing Form
a) Package quantity in one box : 20pcs
2006720078200892009
6
Jun
6
Jul
7
Aug9Sep
8
321
200452005
4
Apr5May
4
200320022001
2010
0
Oct
A
Nov
B
DecMarFebJan
C321
b) Box Size : 412mm X 330mm X 274mm
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 / 26
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
9. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD module.
9-1. MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the
module. And the case on which a module is mounted shou
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the su
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with
chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.
(8) Wipe off saliva or water drops as soon as possible
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
ld have sufficient strength so that external
rface in order to protect the polarizer.
absorbent cotton or other soft materials like
. Their long time contact with polarizer causes
9-2. OPERATING PRECAUTIONS
(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :
V=· 200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable after turned on) becomes
longer.
(4) Be careful for condensation at sudden temperature
electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
change. Condensation makes damage to polarizer or
, remnant image is likely to occur.
22 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
LP140WH2
Liquid Crystal Display
Product Specification
9-3. ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.
9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
9-5. STORAGE
When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 5qC and 35qC at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM
(1) When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well
ion-blown equipment or in such a condition, etc.
(2) The protection film is attached to the polarizer with a small amount of glue. If some stress is applied
to rub the protection film against the polarizer during the time you peel off the film, the glue is apt to
remain on the polarizer.
Please carefully peel off the protection film without rubbing it against the polarizer.
(3) When the module with protection film attached is s
very small amount of glue still on the polarizer after the protection film is peeled off.
(4) You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is
recognized, please wipe them off with absorbent cotton waste or other soft material like chamois
soaked with normal-hexane.
tored for a long time, sometimes there remains a
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 / 26
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Liquid Crystal Display
Product Specification
APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 1/3
LP140WH2
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 / 26
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Liquid Crystal Display
Product Specification
APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 2/3
LP140WH2
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 / 26
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Liquid Crystal Display
Product Specification
APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 3/3
LP140WH2
)URPɋ⏨ᲬҁᇬɌĂZZZISGFOXEQHW
Ver. 0.0 May 13, 2009
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 / 26
www.panelook.com
Loading...
