LG Display LP140WH2-TLA2 Specification

Global LCD Panel Exchange Center

()Preliminary Specification

(ଝ) Final Specification

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

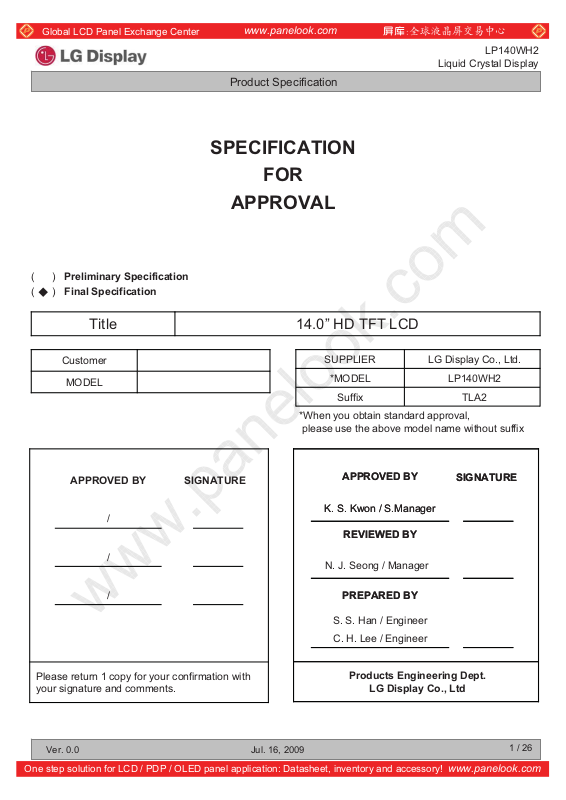

SPECIFICATION

FOR

APPROVAL

Title 14.0” HD TFT LCD

Customer

MODEL

SIGNATUREAPPROVED BY

/

/

/

SUPPLIER LG Display Co., Ltd.

*MODEL LP140WH2

Suffix TLA2

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

APPROVED BY

K. S. Kwon / S.Manager

K. S. Kwon / S.Manager

REVIEWED BY

REVIEWED BY

N. J. Seong / Manager

PREPARED BY

PREPARED BY

SIGNATURE

SIGNATURE

S. S. Han / Engineer

C. H. Lee / Engineer

Please return 1 copy for your confirmation with
your signature and comments.

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Products Engineering Dept.

LG Display Co., Ltd

1/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

Contents

No

1

2

3

3-1

3-2

3-3

3-4

3-5

3-6

COVER

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL SPECIFICATIONS

ELECTRICAL CHARACTREISTICS

INTERFACE CONNECTIONS

LVDS SIGNAL TIMING SPECIFICATION

SIGNAL TIMING SPECIFICATIONS

SIGNAL TIMING WAVEFORMS

COLOR INPUT DATA REFERNECE

ITEM

Page

1

2

3

4

5

6

7

8-9

10

10

11

POWER SEQUENCE

3-7

4

5

6 RELIABLITY

7 INTERNATIONAL STANDARDS

8 PACKING

9 PRECAUTIONS

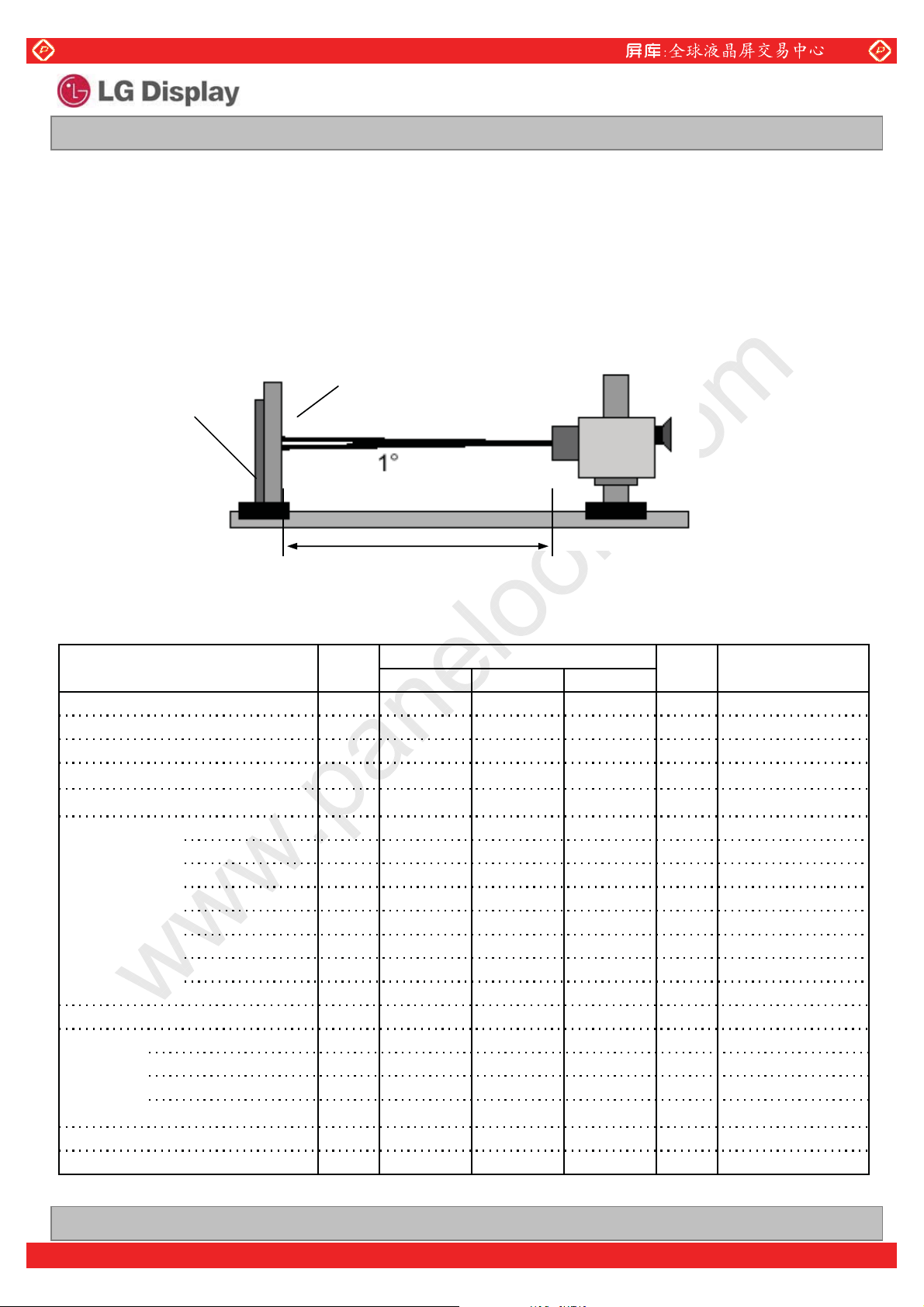

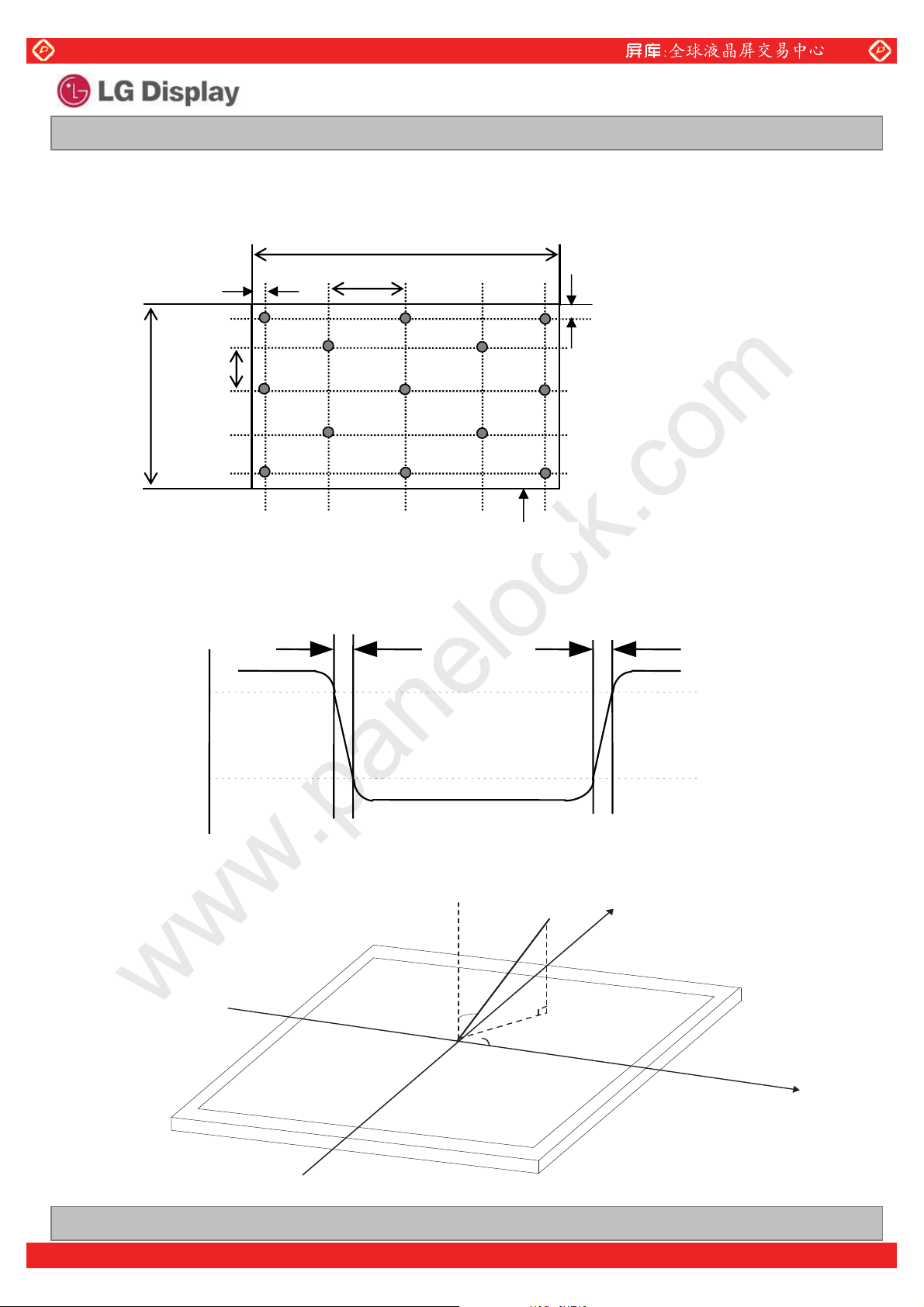

OPTICAL SFECIFICATIONS

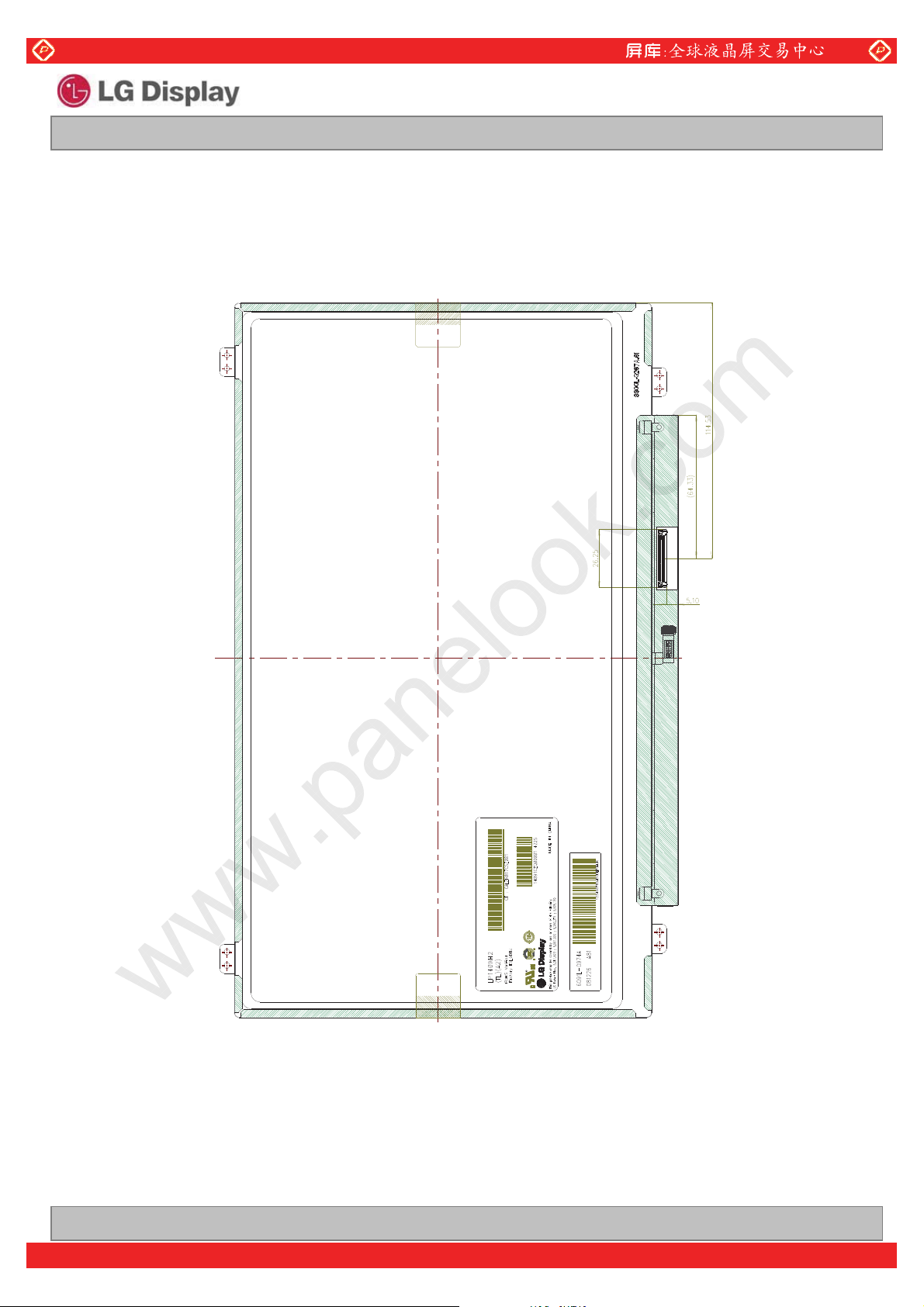

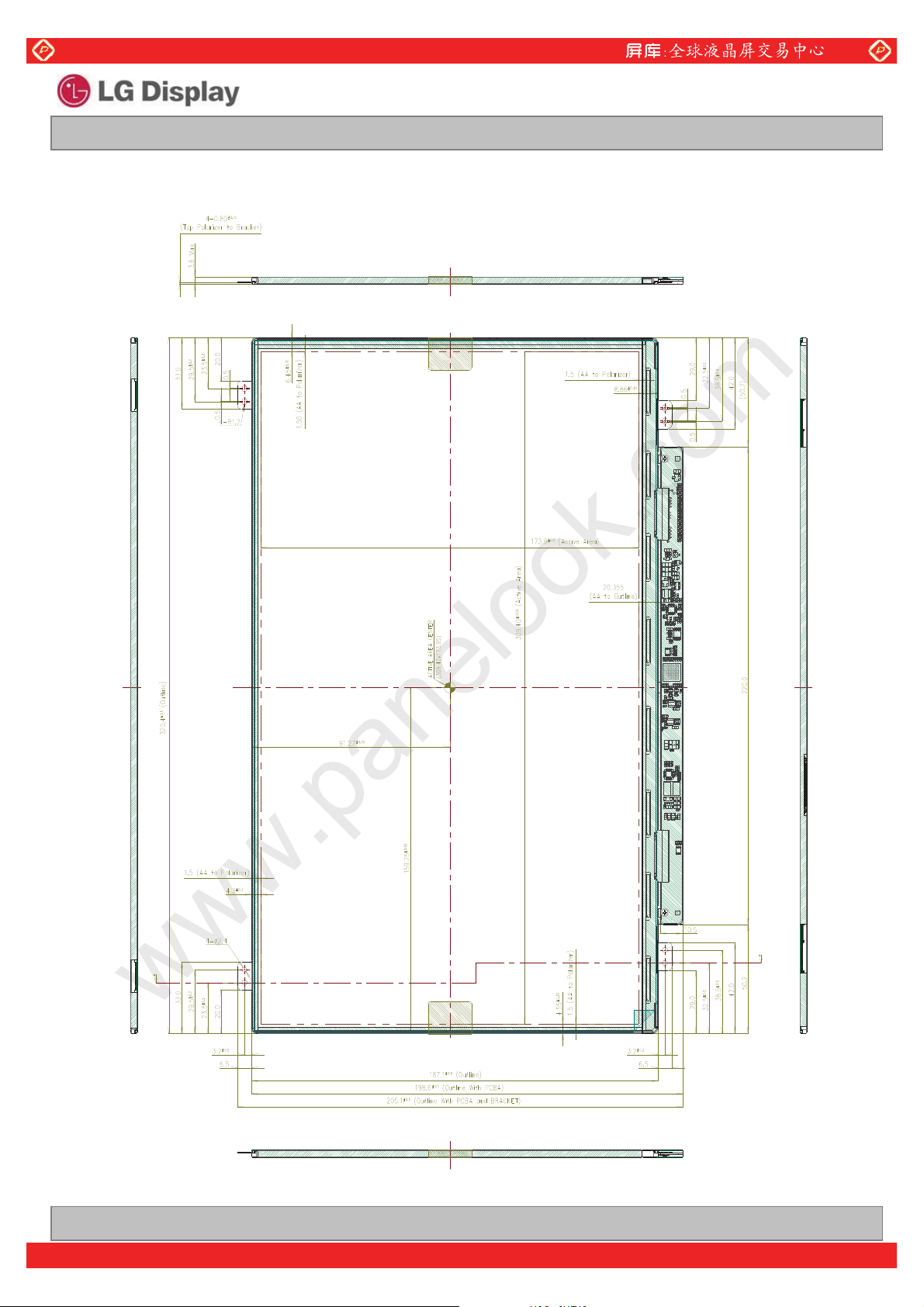

MECHANICAL CHARACTERISTICS

7-1 SAFETY

7-2 EMC

8-1 DESIGNATION OF LOT MARK

8-2 PACKING FORM

A APPENDIX. Enhanced Extended Display Identification Data

12

13-15

16-18

19

20

20

21

21

22-23

24-26

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

RECORD OF REVISIONS

Revision No Revision Date Page Description

1.0 Jul. 16. 2009 - Final Specification. 1.0

EDID

ver

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/ 26

www.panelook.com

Global LCD Panel Exchange Center

ڃڧڪڢںڝٻۏ۔ۋۀڄ

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

1. General Description

The LP140WH2 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive
type display operating in the normally white mode. This TFT-LCD has 15.6 inches diagonally measured
active display area with HD resolution(768 vertical by 1366 horizontal pixel array). Each pixel is divided into
Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness
of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of
more than 262,144 colors.

The LP140WH2 has been designed to apply the interface method that enables low power, high speed, low
EMI.

The LP140WH2 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP140WH2 characteristics provide an excellent flat display for office automation products such as Notebook
PC.

ڌ

ڢڼۏۀٻڟۍۄۑۀۍ

گڡگڈڧڞڟٻګڼۉۀۇ

ڞک

ڌ

ڰێۀۍٻھۊۉۉۀھۏۊۍٻ

ڧڱڟڮٻځ
گۄۈۄۉۂ

ڞۊۉۏۍۊۇ

ڝۇۊھۆ

ڃڌڎڑڑٻۓٻڒڑړڄ

ګڪڲڠڭٻ

ڏڋ

ګۄۉ

ڝڧڪڞڦ

ڒڑړ

ڌ

ڮۊېۍھۀٻڟۍۄۑۀۍٻڞۄۍھېۄۏ

ڠڟڤڟٻ

ڝڧڪڞڦ

ڧڠڟٻڝڼھۆۇۄۂۃۏٻڜێێ’۔

ڔڧڠڟێٻڳٻڏڮۏۍۄۉۂێ

ࣿࣜ࣢ࣜ  ࣜࣜ࣢ࣜ

General Features

Active Screen Size 14.0 inches diagonal

Outline Dimension 320.4(H, typ) ϧ 198.6(V, typ) Ý 3.6(D,max) [mm] (with PCB Board)

Pixel Pitch 0.2265mm Ý 0.2265 mm

Pixel Format 1366 horiz. By 768 vert. Pixels RGB strip arrangement

Color Depth 6-bit, 262,144 colors

2

Luminance, White 200 cd/m

Power Consumption Total 4.29 Watt(Typ.) @ LCM circuit 1.29 Watt (Typ._Mosaic), B/L 3.0Watt(Typ.)

Weight 320g (Max.)

Display Operating Mode Transmissive mode, normally white

Surface Treatment Hard Coating(3H), Glare treatment of the front polarizer

(Typ.5 point)

ڌڎڑڑ

RoHS Comply Yes

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/ 26

www.panelook.com

Global LCD Panel Exchange Center

୅

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage

Operating Temperature

Storage Temperature

Operating Ambient Humidity

Storage Humidity

VCC -0.3 4.0 Vdc at 25 r 5qC

TOP 050qC1

HST -20 60 qC1

HOP 10 90 %RH 1

HST 10 90 %RH 1

Values

Units Notes

Min Max

Note : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39

Wet Bulb
Temperature [

]

qC Max, and no condensation of water.

90% 80%

60

50

60%

Humidity[(%)RH]

Storage

40

30

60 70 800

-20

20

10

0

10

20 30 40 50

Dry Bulb Temperature [୅]

Ver. 0.0 Jul. 16, 2009

40%

Operation

20%

10%

5/ 26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

The LP140WH2 requires two power inputs. The first logic is employed to power the LCD electronics and to

drive the TFT array and liquid crystal. The second backlight is the input about LED BL.with LED Driver.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

LOGIC :

Power Supply Input Voltage V

Power Supply Input Current I

CC

Power Consumption P

Power Supply Inrush Current I

LVDS Impedance Z

BACKLIGHT : ( with LED Driver)

LED Power Input Voltage V

LED Power Input Current I

LED Power Consumption P

Min Typ Max

CC 3.0 3.3 3.6 V

Mosaic 330 390 450

Black 390 460 530

CC - 1.29 1.49 W 1

CC_P - - 1500 mA

LVDS 90 100 110

LED 7.0 12.0 20.0 V

LED -20-mA3

LED -3.03.2W3

Values

Unit Notes

mA

ȳ

1

2

LED Power Inrush Current I

LED_P - - 1000 mA

PWM Dimming (Duty) Ratio - 5 - 100 % 4

PWM Impedance Z

PWM Frequency F

PWM High Level Voltage V

PWM Low Level Voltage V

LED_EN High Voltage V

LED_EN Low Voltage V

PWM 20 40 60 kȳ

PWM 200 - 10000 Hz 5

PWM_ H

PWM_ L

LED_EN_H

LED_EN_L

3.0 - 5.5 V

0-0.3V

3.0 - 5.5 V

0-0.3V

Life Time 12,000 - - Hrs 6

Note)

1. The specified Icc current and power consumption are under the Vcc = 3.3V , 25୅, fv = 60Hz condition

whereas Mosaic pattern is displayed and fv is the frame frequency.

2. This impedance value is needed to proper display and measured form
LVDS Tx to the mating connector.

3. The specified LED current and power consumption are under the Vled = 12.0V , 25୅, Dimming of Max

luminance whereas White pattern is displayed and fv is the frame frequency.

4. The operation of LED Driver below minimum dimming ratio may cause flickering or reliability issue.

5. This Spec. is not effective at 100% dimming ratio as an exception because it has DC level equivalent

to 0Hz. In spite of acceptable range as defined, the PWM Frequency should be fixed and stable for
more consistent brightness control at any specific level desired.

6. The life time is determined as the time at which brightness of LCD is 50% compare to that of minimum
value at Table 9. These LED backlight has 6 strings on it and the typical current of LED’s string is base
on typical current at Table 2.

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

3-2. Interface Connections

This LCD employs one interface connections, a 40 pin connector is used for the module electronics interface
and LED Driver.
The electronics interface connector is a model IS050-L40B-C1 manufactured by I-PEX.

Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)

Pin Symbol Description Notes

1 NC No connection

2 VCC Power Supply, 3.3V Typ.

3 VCC Power Supply, 3.3V Typ.

4 V EEDID DDC 3.3V power

5 NC No Connection

6 Clk EEDID DDC Clock

7 DATA EEDID DDC Data

8 Odd_R

9 Odd_R

10 GND Ground

11 Odd_R

12 Odd_R

13 GND Ground

14 Odd_R

15 Odd_R

16 GND Ground

17 Odd_CLKIN- Negative LVDS differential clock input

18 Odd_CLKIN+ Positive LVDS differential clock input

19 GND Ground

20 NC No Connection

21 NC No Connection

22 GND Ground

23 NC No Connection

24 NC No Connection

25 GND Ground

26 NC No Connection

27 NC No Connection

28 GND Ground

29 NC No Connection

30 NC No Connection

31 VLED_GND LED Ground

32 VLED_GND LED Ground

33 VLED_GND LED Ground

34 NC No Connection

35 BLIM PWM for Luminance control

36 LED_EN Backlight On/Off Control

37 NC No Connection (Reserved)

38 VLED LED Power Supply (7V-20V)

39

40 VLED LED Power Supply (7V-20V)

0- Negative LVDS differential data input

IN

0+ Positive LVDS differential data input

IN

1- Negative LVDS differential data input

IN

1+ Positive LVDS differential data input

IN

2- Negative LVDS differential data input

IN

2+ Positive LVDS differential data input

IN

VLED LED Power Supply (7V-20V)

1, Interface chips

1.1 LCD : SW, SW0624 (LCD Controller)
including LVDS Receiver

1.2 System : THC63LVDF823A
or equivalent

* Pin to Pin compatible with LVDS

2. Connector

2.1 LCD:CABLINE-VS RECE ASS’Y, I-PEX

GT05Q-40S-H10, LSM
IS050-L40B-C10, UJU
or equivalent

2.2 Mating : CABLINE-VS PLUG CABLE

ASS’Y or equivalent

2.3 Connector pin arrangement

[W

[LCD Module Rear View]

X

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

3-3. LVDS Signal Timing Specifications

3-3-1. DC Specification

LP140WH2

Liquid Crystal Display

Description

LVDS Differential Voltage |V

LVDS Common mode Voltage V

LVDS Input Voltage Range V

3-3-2. AC Specification

Description Symbol Min Max Unit Notes

LVDS Clock to Data Skew Margin

Symb

ol

| 100 600 mV -

ID

CM

IN

t

SKEW

t

SKEW

Min Max Unit Notes

0.6 1.8 V -

0.3 2.1 V -

- 400 + 400 ps

- 600 + 600 ps

85MHz > Fclk ˻

65MHz > Fclk ˻

65MHz

25MHz

LVDS Clock to Clock Skew Margin (Even
to Odd)

Maximum deviation
of input clock frequency during SSC

Maximum modulation frequency
of input clock during SSC

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

t

SKEW_EO

F

DEV

F

MOD

-1/7 + 1/7 T

clk

- · 3% -

- 200 KHz -

-

8/ 26

www.panelook.com

Global LCD Panel Exchange Center

Freq.

F

max

F

center

www.panelook.com

Product Specification

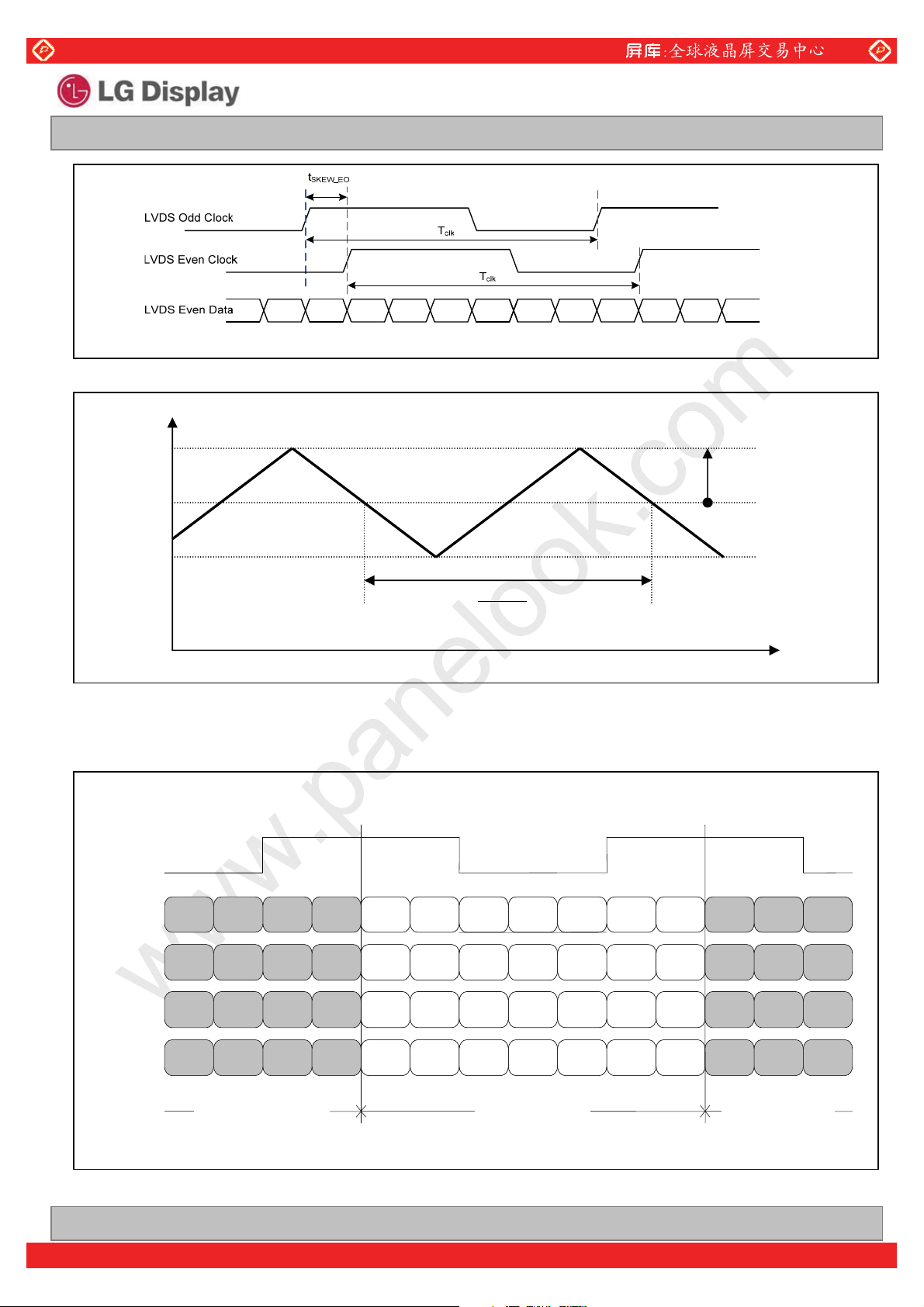

< Clock skew margin between channel >

LP140WH2

Liquid Crystal Display

m

QGm



kl}

F

min

3-3-3. Data Format

1) LVDS 1 Port

RCLK+

RA+/-

RB+/-

RC+/-

R3 R2

G4 G3

B5 B4

R1 R0

G2 G1

B3 B2

X

m

tvk

< Spread Spectrum >

G0 R5 R4 R3 R2 R1 R0

B1 B0 G5 G4 G3 G2 G1

DE VSYNC HSYNC B5 B4 B3 B2

Time

G0

B1

DE

VSYNC HSYNC

R5 R4

B0 G5

RD+/-

G7 G6

Previous (N-1 )th Cycle Next (N+1)th Cycle

R7 R6

X B7 B6 G7 G6 R7 R6

Current (Nth ) Cycle

< LVDS Data Format >

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

X

B7 B6

9/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

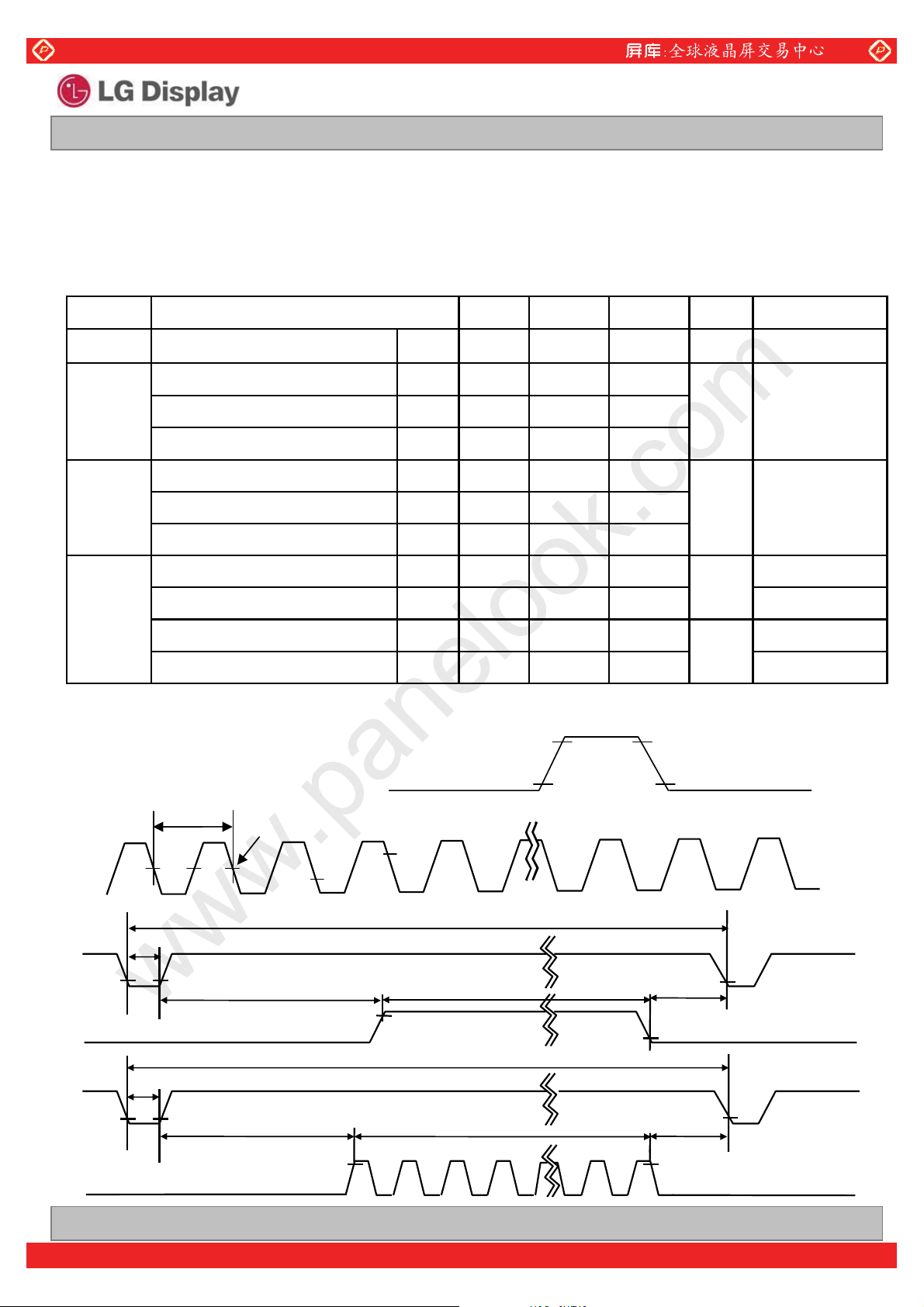

3-4. Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.

Table 6. TIMING TABLE

ITEM Symbol Min Typ Max Unit Note

DCLK Frequency f

Period

Hsync

Width t

Width-Active t

Period t

Vsync

Width-Active t

Horizontal back porch t

Data

Enable

Horizontal front porch t

Vertical back porch t

Vertical front porch t

3-5. Signal Timing Waveforms

Data Enable, Hsync, Vsync

CLK

t

HP

WH

WHA

VP

WV

WVA

HBP

HFP

VBP

VFP

High: 0.7VCC

Low: 0.3VCC

-

75.1 - MHz

1470 1526 1600

23 32 42

1366 1366 1366

779 800 804

25 8

768 768 768

72 118 138

84854

82424

13 4

Condition : VCC =3.3V

tCLK

tHPWidth t

tCLK

tHP

DCLK

Hsync

t

tCLK

WH

t

HBP

0.5 Vcc

t

HP

tWHA

t

HFP

Data Enable

t

VP

t

WV

Vsync

t

VBP

tWVA

t

VFP

Data Enable

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

3-6. Color Input Data Reference

The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the
color ; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.

Table 7. COLOR DATA REFERENCE

Input Color Data

Basic
Color

RED

Color

Black

Red

Green

Blue

Cyan

Magenta

Yellow

White

RED (00)

RED (01)

RED (62)

RED (63)

…

RED

MSB LSB

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B 2 B1 B0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0

…… …

1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

GREEN

BLUE

MSB LSB

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0

…… …

0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0

0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

…… …

0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0

0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

GREEN

BLUE

GREEN (00)

GREEN (01)

...

GREEN (62)

GREEN (63)

BLUE (00)

BLUE (01)

…

BLUE (62)

BLUE (63)

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

11 / 26

www.panelook.com

Global LCD Panel Exchange Center

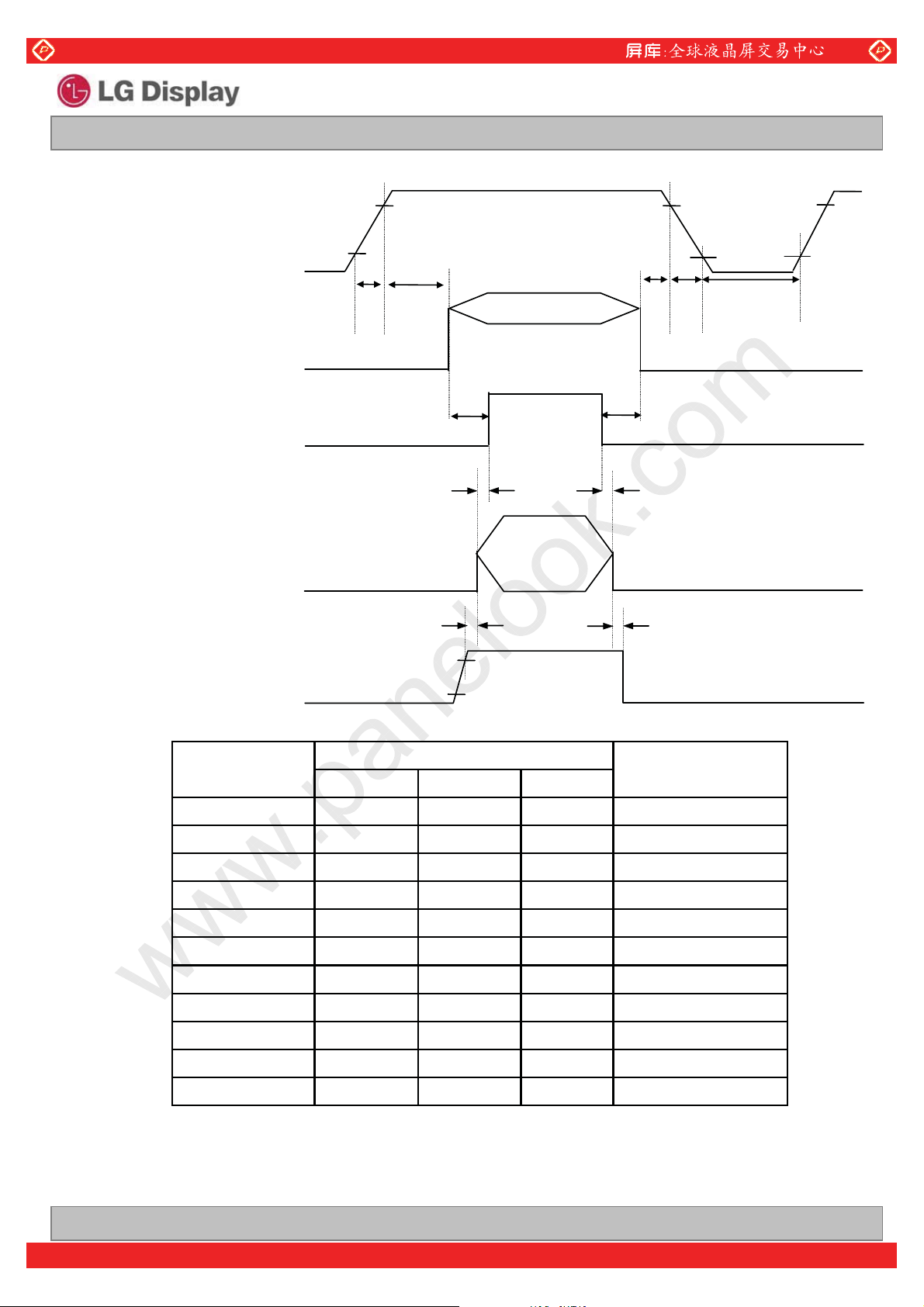

3-7. Power Sequence

3-7. Power Sequence

Power Supply Input

VCC

0V

www.panelook.com

Product Specification

90%

LP140WH2

Liquid Crystal Display

90%

10%10%

Interface Signal, V

i

LVDS

LED on/off control Signal

LED_EN

Dimming control signal
Of LED BL

PWM

LED input Voltage

VLED

T

T

1

2

Valid Data

0V

T

5

0V (Off)

T

9

Valid Data

0V (Low)

T

8

90%

0V

10%

Table 6. POWER SEQUENCE TABLE

T

T

3

7

T

6

T

10

T

11

T

4

Parameter

Units

Min. Typ. Max.

Value

Note)

T

1

T

2

T

3

T

4

T

5

T

6

T

7

T

8

T

9

T

10

T

11

0.5 - 10 ms

0-50 ms

0-50 ms

400 - - ms

200 - - ms

200 - - ms

3-10 ms

10 - - ms

0-- ms

0-- ms

10 - - ms

1. Valid Data is Data to meet “3-3. LVDS Signal Timing Specifications”

2. Please avoid floating state of interface signal at invalid period.

3. When the interface signal is invalid, be sure to pull down the power supply for LCD VCC to 0V.

4. LED power must be turn on after power supply for LCD and interface signal are valid.

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

12 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30 minutes in
a dark environment at 25
at a viewing angle of
FIG. 1 presents additional information concerning the measurement equipment and method.

FIG. 1 Optical Characteristic Measurement Equipment and Method

qC. The values specified are at an approximate distance 50cm from the LCD surface

) and 4 equal to 0q.

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

Table 9. OPTICAL CHARACTERISTICS

Ta=25qC, VCC=3.3V, fV=60Hz, f

Parameter Symbol

Contrast Ratio CR 400 500 - 1

Surface Luminance, white L

Luminance Variation G

Response Time

Color Coordinates

RED RX 0.554 0.584 0.614

GREEN GX 0.308 0.338 0.368

BLUE BX 0.127 0.157 0.187

WHITE WX 0.283 0.313 0.343

Viewing Angle 5

x axis, right()=0q) 4r 40 - - degree

x axis, left ()=180q) 4l 40 - - degree

y axis, up ()=90q) 4u 10 - - degree

y axis, down ()=270q) 4d 30 - - degree

Color Gamut % - 45 -

Gray Scale 6

WH

WHITE

TrR+ Tr

RY 0.322 0.352 0.382

GY 0.521 0.551 0.581

BY 0.107 0.137 0.167

WY 0.299 0.329 0.359

Min Typ Max

170 200 - cd/m

-1.41.6 3

D

-1625ms 4

Values

= 75.1MHz, I

CLK

Units Notes

2

LED

2

= 17mA

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Liquid Crystal Display

Product Specification

Note)

1. Contrast Ratio(CR) is defined mathematically as
Surface Luminance with all white pixels

Contrast Ratio =

Surface Luminance with all black pixels

2. Surface luminance is the average of 5 point across the LCD surface 50cm from the surface with

all pixels displaying white. For more information see FIG 1.

= Average(L1,L2, … L5)

L

WH

LP140WH2

3. The variation in surface luminance , The panel total variation (

G

) is determined by measuring L

WHITE

N

at each test position 1 through 13 and then defined as followed numerical formula.

For more information see FIG 2.

Maximum(L

G

WHITE

=

Minimum(L

4. Response time is the time required for the display to transition from white to black (rise time, Tr

from black to white(Decay Time, Tr

). For additional information see FIG 3.

D

1,L2

1,L2

, … L13)

, … L13)

) and

R

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined

for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the

LCD surface. For more information see FIG 4.

6. Gray scale specification * f

= 60Hz

V

Gray Level Luminance [%] (Typ)

L0 0.15

L7 0.84

L15 3.59

L23 9.25

L31 19.7

L39 34.9

L47 53.0

L55 78.1

L63 100

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

FIG. 2 Luminance

<Measuring point for Average Luminance & measuring point for Luminance variation>

H

LP140WH2

Liquid Crystal Display

10mm

B

V

FIG. 3 Response Time

678

910

11 12

A

10mm

2

1

4

3

5

13

Active Area

H,V

: ACTIVE AREA

A : H/4 mm

B : V/4 mm

POINTS: 13 POINTS

The response time is defined as the following figure and shall be measured by switching the input signal
for “black” and “white”.

Tr

Tr

R

D

%

100

90

Optical

Response

10

0

FIG. 4 Viewing angle

I

= 180

q

I

= 270

Left

white

,

q

Down

black

Normal

<Dimension of viewing angle range>

T

I

,

Eye

Y

white

I

= 90q, Up

I

q

= 0

,

Right

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model LP140WH2. In addition the figures
in the next page are detailed mechanical drawing of the LCD.

Horizontal 320.4 r 0.5mm

Outline Dimension

Bezel Area

Active Display Area

Weight 320g (Max.)

Surface Treatment Hard Coating(3H), Glare treatment of the front polarizer

Vertical 198.6 r 0.5mm

Thickness 3.6mm (max)

Horizontal 312.40 r 0.5mm

Vertical 176.95 r 0.5mm

Horizontal 309.40 mm

Vertical 173.95 mm

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

<FRONT VIEW>

Note) Unit:[mm], General tolerance:

r 0.5mm

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

<REAR VIEW>

Note) Unit:[mm], General tolerance:

r 0.5mm

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

6. Reliability

Environment test condition

No. Test Item Conditions

1 High temperature storage test Ta= 60qC, 240h

2 Low temperature storage test Ta= -20qC, 240h

3 High temperature operation test Ta= 50qC, 50%RH, 240h

4 Low temperature operation test Ta= 0qC, 240h

5 Vibration test (non-operating) Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min

3 axis, 1hour/axis

LP140WH2

Liquid Crystal Display

6 Shock test (non-operating) Half sine wave, 180G, 2ms

one shock of each six faces(I.e. run 180G 2ms
for all six faces)

7 Altitude operating

storage / shipment

{ Result Evaluation Criteria }

There should be no change which might affect the practical display function when the display quality

test is conducted under normal operating condition.

0 ~ 10,000 feet (3,048m) 24Hr
0 ~ 40,000 feet (12,192m) 24Hr

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

7. International Standards

7-1. Safety

a) UL 60950-1:2003, First Edition, Underwriters Laboratories, Inc.,
Standard for Safety of Information Technology Equipment.
b) CAN/CSA C22.2, No. 60950-1-03 1
Standard for Safety of Information Technology Equipment.
c) EN 60950-1:2001, First Edition,
European Committee for Electrotechnical Standardization(CENELEC)
European Standard for Safety of Information Technology Equipment.

st

Ed. April 1, 2003, Canadian Standards Association,

LP140WH2

Liquid Crystal Display

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and
Electrical Equipment in the Range of 9kHZ to 40GHz. “American National Standards Institute(ANSI),
1992
b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information
Technology Equipment.“ International Special Committee on Radio Interference.
c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information
Technology Equipment.“ European Committee for Electrotechnical Standardization.(CENELEC), 1998

( Including A1: 2000 )

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20 / 26

www.panelook.com

Global LCD Panel Exchange Center

8. Packing

8-1. Designation of Lot Mark

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

Year

Mark

2. MONTH

Month

Mark

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one box : 20pcs

b) Box Size : 412mm X 330mm X 274mm

2006720078200892009

6

Jun

6

Jul

7

Aug9Sep

8

321

200452005

4

Apr5May

4

200320022001

2010

0

Oct

A

Nov

B

DecMarFebJan

C321

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1. MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=· 200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on) becomes

longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference.

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

22 / 26

Global LCD Panel Exchange Center

www.panelook.com

LP140WH2

Liquid Crystal Display

Product Specification

9-3. ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5. STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5qC and 35qC at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well
ion-blown equipment or in such a condition, etc.

(2) The protection film is attached to the polarizer with a small amount of glue. If some stress is applied

to rub the protection film against the polarizer during the time you peel off the film, the glue is apt to
remain on the polarizer.
Please carefully peel off the protection film without rubbing it against the polarizer.

(3) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the polarizer after the protection film is peeled off.

(4) You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is

recognized, please wipe them off with absorbent cotton waste or other soft material like chamois
soaked with normal-hexane.

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Liquid Crystal Display

Product Specification

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 1/3

LP140WH2

Byte

(Dec)

0
1
2
3
4

Header

5
6
7
8

9
10
11
12
13
14
15
16

EDID Version

Vendor / Product

Display

17

18

19

20

21

22

23

Parameters

24

25

26

27

28

29

30

31

32

33

Panel Color Coordinates

34

35

EDID Data

Byte

(Hex)

Header

00

Header

01

Header

02

Header

03

Header

04

Header

05

Header

06

Header

07

EISA manufacture code ( 3 Character ID ) LGD

08

EISA manufacture code (Compressed ASC҈)

09

Panel Supplier Reserved - Product Code 0211h

0A

( Hex. LSB first )

0B

LCD Module Serial No - Preferred but Optional ("0" If not used)

0C

LCD Module Serial No - Preferred but Optional ("0" If not used)

0D

LCD Module Serial No - Preferred but Optional ("0" If not used)

0E

LCD Module Serial No - Preferred but Optional ("0" If not used)

0F

Week of Manufacture 00 weeks

10

Year of Manufacture 2009 years

11

EDID structure version # = 1

12

EDID revision # = 3

13

Video input Definition = Digital signal

14

Max H image size (Rounded cm) = 31 cm

15

Max V image size (Rounded cm) = 17 cm

16

Display gamma = (gamma*100)-100 = Example:(2.2*100)-100=120 = 2.2 Gamma

17

Feature Support (no_DPMS, no_Active Off/Very Low Power, RGB color display, Timing BLK

18

1,no_ GTF)
Red/Green Low Bits (RxRy/GxGy)

19

Blue/White Low Bits (BxBy/WxWy)

1A

Red X Rx = 0.584

1B

Red Y Ry = 0.352

1C

Green X Gx = 0.338

1D

Green Y Gy = 0.551

1E

Blue X Bx = 0.157

1F

Blue Y By = 0.137

20

White X Wx = 0.313

21

White Y Wy = 0.329

22

Established timing 1 (00h if not used)

23

Field Name and Comments

for Acer_

ver. 0.1

Value
(Hex)

00
FF
FF
FF
FF
FF
FF
00
30
E4
11
02
00
00
00
00
00
13

01
03

80

1F

11

78

0A

88
45

95
5A
56
8D
28
23
50
54

00

2009.05.14.

Value

(Bin)

00000000

11111111

11111111

11111111

11111111

11111111

11111111

00000000

00110000

11100100

00010001

00000010

00000000

00000000

00000000

00000000

00000000

00010011

00000001

00000011

10000000

00011111

00010001

01111000

00001010

10001000

01000101

10010101

01011010

01010110

10001101

00101000

00100011

01010000

01010100

00000000

36

Timings

Established

37

38
39
40
41
42
43
44
45
46
47
48
49

Standard Timing ID

50
51
52
53

Established timing 2 (00h if not used)

24

Manufacturer's timings (00h if not used)

25

Standard timing ID1 (01h if not used)

26

Standard timing ID1 (01h if not used)

27

Standard timing ID2 (01h if not used)

28

Standard timing ID2 (01h if not used)

29

Standard timing ID3 (01h if not used)

2A

Standard timing ID3 (01h if not used)

2B

Standard timing ID4 (01h if not used)

2C

Standard timing ID4 (01h if not used)

2D

Standard timing ID5 (01h if not used)

2E

Standard timing ID5 (01h if not used)

2F

Standard timing ID6 (01h if not used)

30

Standard timing ID6 (01h if not used)

31

Standard timing ID7 (01h if not used)

32

Standard timing ID7 (01h if not used)

33

Standard timing ID8 (01h if not used)

34

Standard timing ID8 (01h if not used)

35

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

00000000

00

00000000

00

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

00000001

01

24 / 26

www.panelook.com

Global LCD Panel Exchange Center

0

0

0

www.panelook.com

Liquid Crystal Display

Product Specification

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 2/3

Byte

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

Byte

(Hex)

Pixel Clock/10,000 (LSB) 75.1 MHz @ 60Hz

36

Pixel Clock/10,000 (MSB)

37

Horizontal Active (lower 8 bits) 1366 Pixels

38

Horizontal Blanking(Thp-HA) (lower 8 bits) 198 Pixels

39

Horizontal Active / Horizontal Blanking(Thp-HA) (upper 4:4bits)

3A

Vertical Avtive 768 Lines

3B

Vertical Blanking (Tvp-HA) (DE Blanking typ.for DE only panels) 32 Lines

3C

Vertical Active : Vertical Blanking (Tvp-HA) (upper 4:4bits)

3D

Horizontal Sync. Offset (Thfp) 48 Pixels

3E

Horizontal Sync Pulse Width (HSPW) 32 Pixels

3F

Vertical Sync Offset(Tvfp) : Sync Width (VSPW) 3 Lines : 5 Lines

40

Horizontal Vertical Sync Offset/Width (upper 2bits)

41

Horizontal Image Size (mm) 310 mm

42

Vertical Image Size (mm) 174 mm

43

Horizontal Image Size / Vertical Image Size

44

Horizontal Border = 0 (Zero for Notebook LCD)

45

Vertical Border = 0 (Zero for Notebook LCD)

46

Non-Interlace, Normal display, no stereo, Digital Separate ( Vsync_NEG, Hsync_NEG ), DE only

47

note : LSB is set to '1' if panel is DE-timing only. H/V can be ignored.
Flag

48

Flag

49

Flag

4A

Data Type Tag (Descriptor Defined by manufacturer )

4B

Flag

4C

Descriptor Defined by manufacturer

4D

Descriptor Defined by manufacturer

4E

Descriptor Defined by manufacturer

4F

Descriptor Defined by manufacturer

50

Descriptor Defined by manufacturer

51

Descriptor Defined by manufacturer

52

Descriptor Defined by manufacturer

53

Descriptor Defined by manufacturer

54

Descriptor Defined by manufacturer

55

Descriptor Defined by manufacturer

56

Descriptor Defined by manufacturer

57

Descriptor Defined by manufacturer

58

Descriptor Defined by manufacturer

59

Flag

5A

Flag

5B

Flag

5C

Data Type Tag ( ASCII String )

5D

Flag

5E

ASCII String L

5F

ASCII String G

60

ASCII String

61

ASCII String D

62

ASCII String i

63

ASCII String s

64

ASCII String p

65

ASCII String l

66

ASCII String a

67

ASCII String y

68

Manufacturer P/N(If<13 char--> 0Ah, then terminate with ASC҈code 0Ah,set remaining char = 2

69

Manufacturer P/N(If<13 char--> 0Ah, then terminate with ASC҈code 0Ah,set remaining char = 2

6A

Manufacturer P/N(If<13 char--> 0Ah, then terminate with ASC҈code 0Ah,set remaining char = 2

6B

(Dec)

Timing Descriptor #3 Timing Descriptor #1Timing Descriptor #2

Field Name and Comments

Value
(Hex)

56

1D

56

C6

50
00
20
30
30
20
35
00
36

AE

10
00
00

19

00
00

00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00

00
00

FE

00

4C

47
20
44
69
73
70

6C

61
79

0A

20
20

Value

(Bin)

01010110

00011101

01010110

11000110

01010000

00000000

00100000

00110000

00110000

00100000

00110101

00000000

00110110

10101110

00010000

00000000

00000000

00011001

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

11111110

00000000

01001100

01000111

00100000

01000100

01101001

01110011

01110000

01101100

01100001

01111001

00001010

00100000

00100000

LP140WH2

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Liquid Crystal Display

Product Specification

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 3/3

Byte

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

Byte

(Hex)

Flag

6C

Flag

6D

Flag

6E

Data Type Tag ( Monitor Name, stored as ASCII )

6F

Flag

70

Monitor Name, stored as ASCII L

71

Monitor Name, stored as ASCII P

72

Monitor Name, stored as ASCII 1

73

Monitor Name, stored as ASCII 4

74

Monitor Name, stored as ASCII 0

75

Monitor Name, stored as ASCII W

76

Monitor Name, stored as ASCII H

77

Monitor Name, stored as ASCII 2

78

Monitor Name, stored as ASCII -

79

Monitor Name, stored as ASCII T

7A

Monitor Name, stored as ASCII L

7B

Monitor Name, stored as ASCII A

7C

Monitor Name, stored as ASCII 2

7D

(Dec)

Timing Descriptor #4Checksum

Field Name and Comments

Value
(Hex)

00
00

00

FC

00
4C
50
31
34
30
57
48
32
2D
54
4C
41
32

Value

(Bin)

00000000

00000000

00000000

11111100

00000000

01001100

01010000

00110001

00110100

00110000

01010111

01001000

00110010

00101101

01010100

01001100

01000001

00110010

LP140WH2

126

127

Extension flag (# of optional 128 panel ID extension block to follow, Typ = 0)

7E

Check Sum (The 1-byte sum of all 128 bytes in this panel ID block shall = 0)

7F

00

28

00000000

00101000

Ver. 0.0 Jul. 16, 2009

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26 / 26

www.panelook.com
