LP133WX2
Liquid Crystal Display
Product Specification

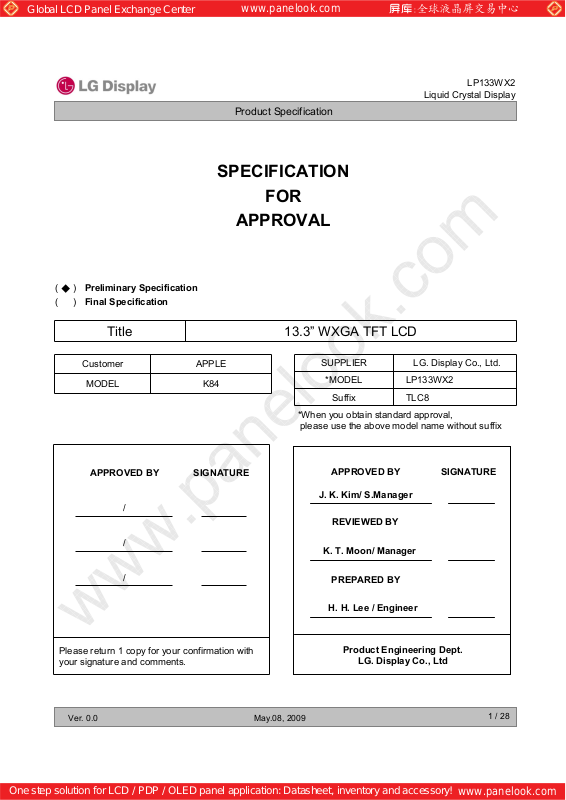

SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
◆
( ) Final Specification
Title 13.3” WXGA TFT LCD
Customer APPLE
MODEL K84
APPROVED BY SIGNATURE
/
/
SUPPLIER LG. Display Co., Ltd.
*MODEL LP133WX2
Suffix TLC8
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE
J. K. Kim/ S.Manager
REVIEWED BY
K. T. Moon/ Manager
/
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 0.0 May.08, 2009
PREPARED BY
H. H. Lee / Engineer
Product Engineering Dept.
LG. Display Co., Ltd
1 / 28
Page 2
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
LP133WX2
Liquid Crystal Display
Product Specification
Contents
No ITEM
COVER
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS
3-2 INTERFACE CONNECTIONS
3-3 LVDS SIGNAL TIMING SPECIFICATIONS
3-4 SIGNAL TIMING WAVEFORMS
3-5 COLOR INPUT DATA REFERNECE
3-6 POWER SEQUENCE

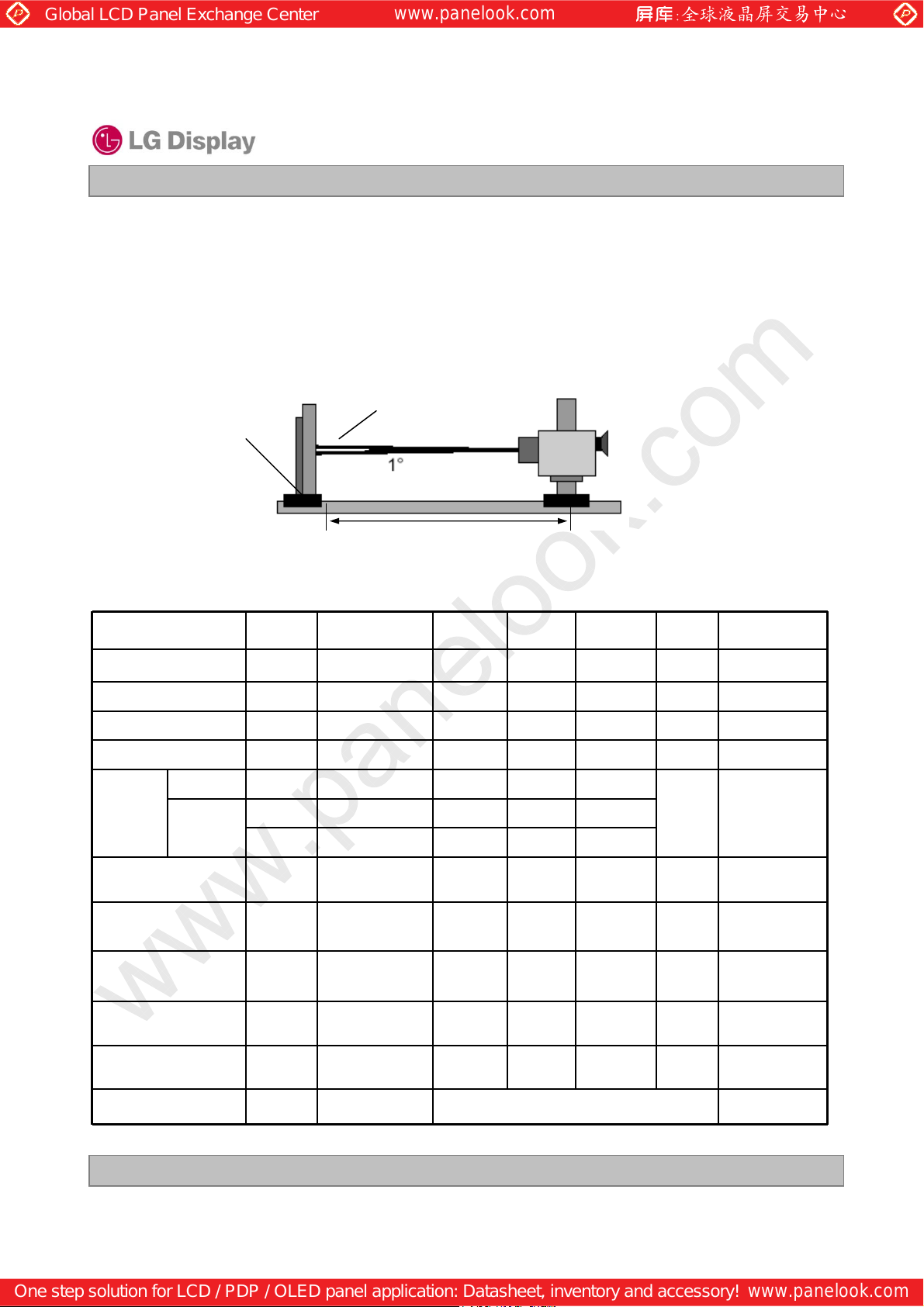

4 OPTICAL SFECIFICATIONS

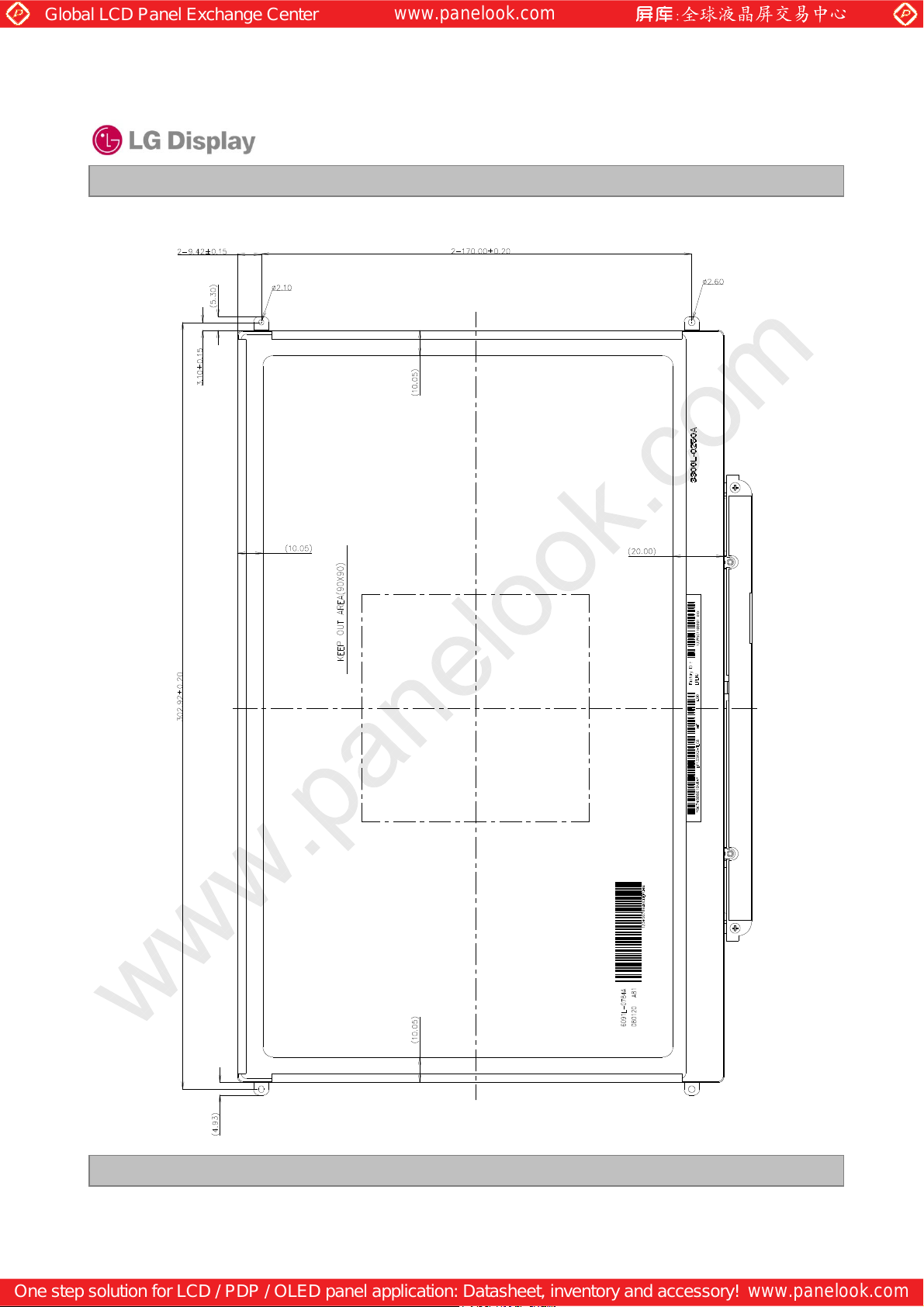

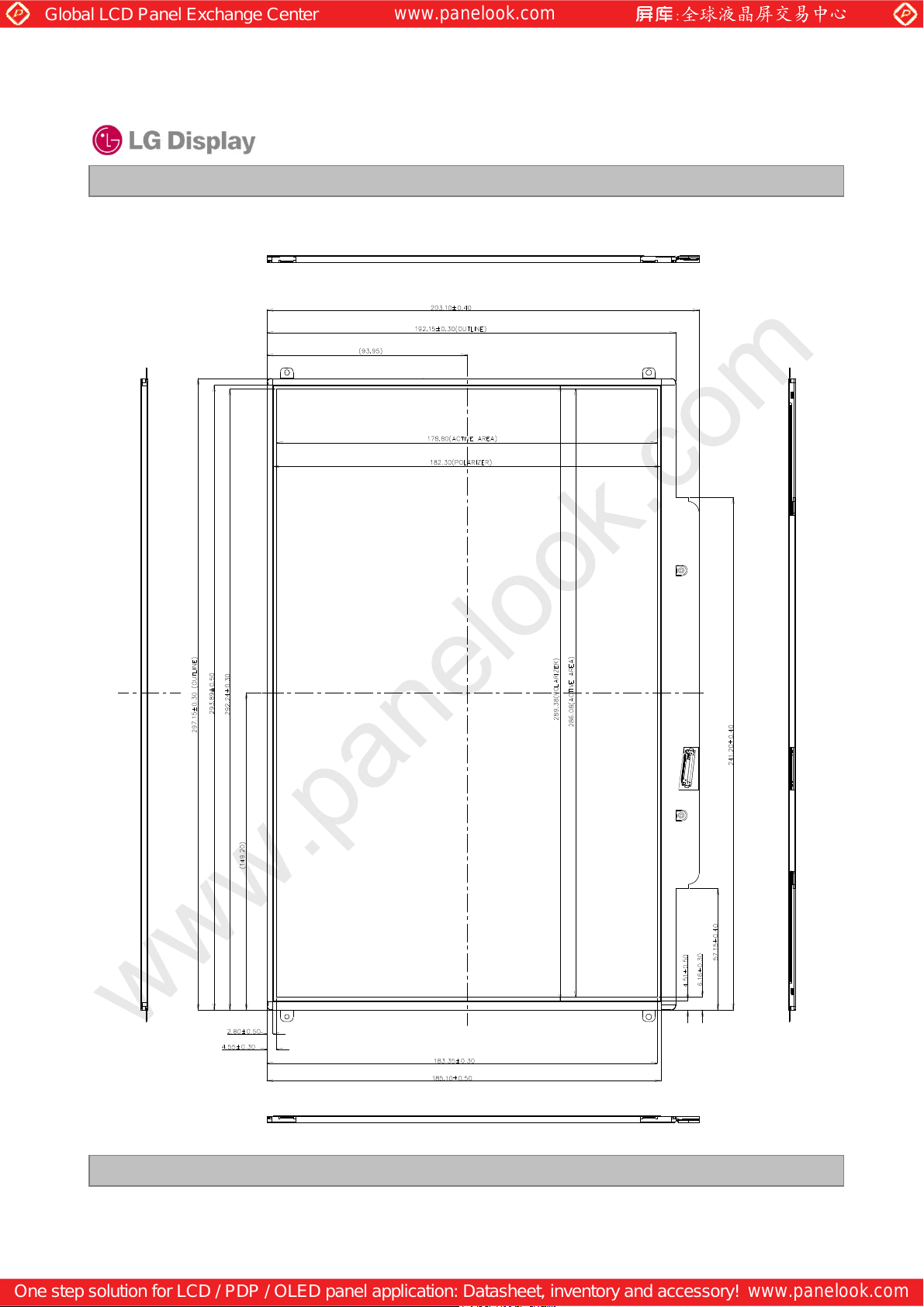

5 MECHANICAL CHARACTERISTICS
Page
1
2
3
4
5
6
7
8
11
12
13
14
18
6 RELIABLITY
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 EMC
8 PACKING
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS
A APPENDIX. Enhanced Extended Display Identification Data
Ver. 0.0 May.08, 2009
21
22
22
23
23
24
26
2 / 28
Page 3
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
LP133WX2
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No Revision Date Page Description
0.0 08. May. 2009 - First Draft 0.0
EDID
ver
Ver. 0.0 May.08, 2009
3 / 28
Page 4
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
1. General Description
The LP133WX2 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 13.3 inches diagonally measured active display area with WXGA
resolution(1280 horizontal by 800 vertical pixel array). Each pixel is divided into Red, Green and Blue subpixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors.
The LP133WX2 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP133WX2 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP133WX2
characteristics provide an excellent flat display for office automation products such as Notebook PC.
LP133WX2
Liquid Crystal Display
Product Specification
C
N
1
U
ser connector
Timing
Control
Block
LVDS &
1
Gate Driver
TFT-LCD Panel
(1280 x 800)
POWER
(LOG_B type)
(LOG_B type)
(LOG_B type)(LOG_B type)
1
Source Driver Circuit
30
P
in
BLOCK
800
EDID
BLOCK
LED Backlight Ass’y
9LEDs X 6 strings
Control & Data Power EDID signal & Power
General Features
Active Screen Size 13.3 inches diagonal
Outline Dimension 297.15 (H) × 192.15 (V) × 3.68(D, Max.) mm
Pixel Pitch 0.2235 mm × 0.2235 mm
Pixel Format 1280 horiz. by 800 vert. Pixels RGB strip arrangement
Color Depth 6-bit, 262,144 colors
Luminance, White 275 cd/m2(Typ., @I
Power Consumption Logic : 0.76W(typ.@Mosaic), Back Light : 3.2W(typ.@ I
Weight 310(Max.)
Display Operating Mode Transmissive mode, normally white
Surface Treatment Hard Coating(Glare), Anti reflection treatment of the front Polarizer (Haze 0%)
=19mA)
LED
= 19mA)
LED
1280
Ver. 0.0 May.08, 2009
4 / 28
Page 5
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.
LP133WX2
Liquid Crystal Display
Product Specification
Table 1. ABSOLUTE MAXIMUM RATINGS
Parameter Symbol
Power Input Voltage
Operating Temperature
Storage Temperature
Operating Ambient Humidity
Storage Humidity
VCC -0.3 4.0 Vdc at 25 ± 5°C
TOP 0 50 °C 1
HST -20 60 °C 1
HOP 10 90 %RH 1
HST 10 90 %RH 1
Values
Units Notes
Min Max
Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39°C Max, and no condensation of water.
90% 80%
60%
Humidity[(%)RH]
Storage
40%
Operation
20%
10%
Wet Bulb
Temperature [℃℃℃℃]
20
10
0
60
50
40
30
-20
10
20 30 40 50
60 70 800
Dry Bulb Temperature [℃℃℃℃]
Ver. 0.0 May.08, 2009
5 / 28
Page 6
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
3. Electrical Specifications
3-1. Electrical Characteristics
The LP133WX2 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input which powers the LED BL.
Parameter Symbol
MODULE :
Power Supply Input Voltage VCC 3.0 3.3 3.6 V
Power Supply Input Current I
Power Consumption Pc - 0.76 0.875 Watt 1
Differential Impedance Zm 90 100 110 Ohm 2
LED Backlight :
Operating Current per string I
Power Consumption P
Life Time 10,000 - - Hrs 5
Product Specification
Table 2. ELECTRICAL CHARACTERISTICS
Values
Min Typ Max
CC
Mosaic - 230 265 mA 1
LED
BL
5 19 20 mA 3
- 3.2 3.5 Watt 4
LP133WX2
Liquid Crystal Display
Unit Notes
DC
Note)
1. The specified current and power consumption are under the Vcc = 3.3V , 25℃, fv = 60.2Hz condition
whereas Mosaic pattern is displayed and fv is the frame frequency.
2. This impedance value is needed to proper display and measured form LVDS Tx to the mating connector.
3. The typical operating current is for the typical surface luminance (LWH) in optical characteristics.
4. The LED power consumption shown above does not include power of external LED driver circuit
for typical current condition.
5. The life time is determined as the time at which brightness of lamp is 50% compare to that of initial value
at the typical lamp current.
Ver. 0.0 May.08, 2009
6 / 28
Page 7
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
3-2. Interface Connections
This LCD employs two interface connections, a 30 pin connector is used for the module electronics interface
and the other connector is used for the integral backlight system.
The electronics interface connector is a model 20474-030E-12 manufactured by I-PEX.
Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)
Pin Symbol Description Notes
1 GND Ground [LVDS Receiver]
2 VCC Power Supply, 3.3V Typ.
3 VCC Power Supply, 3.3V Typ.
4 V EEDID DDC 3.3V power
5 GSP
6 Clk EEDID DDC Clock
7 DATA EEDID DDC Data
8 RIN0- Negative LVDS differential data input
9 RIN0+ Positive LVDS differential data input
10 GND Ground
11 RIN1- Negative LVDS differential data input
12 RIN1+ Positive LVDS differential data input
13 GND Ground
14 RIN2- Negative LVDS differential data input
15 RIN2+ Positive LVDS differential data input
16 GND Ground
17 CLKIN- Negative LVDS differential clock input
18 CLKIN+ Positive LVDS differential clock input
19 GND Ground
20 NC
21 Vdc LED Anode (Positive)
22 Vdc LED Anode (Positive)
23 NC
24 Vdc1 LED Cathode (Negative)
25 Vdc2 LED Cathode (Negative)
26 Vdc3 LED Cathode (Negative)
27 Vdc4 LED Cathode (Negative)
28 Vdc5 LED Cathode (Negative)
29 Vdc6 LED Cathode (Negative)
30 NC
GSP
No Connection
No Connection
No Connection
Product Specification
LP133WX2
Liquid Crystal Display
[LVDS Receiver]
[LVDS Receiver][LVDS Receiver]
SiliconWorks, SW0618V
[Connector]
[Connector]
[Connector][Connector]
I-PEX 20474-030E–1#
[Mating Connector]
[Mating Connector]
[Mating Connector][Mating Connector]
I-PEX 20472-030T-10 series
or equivalent (micro-coax type)
[Connector pin arrangement]
[Connector pin arrangement]
[Connector pin arrangement][Connector pin arrangement]
LCD front view
1
3
0
Ver. 0.0 May.08, 2009
7 / 28
Page 8
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
3-3. LVDS Signal Timing Specifications
3-3-1. DC Specification
LP133WX2
Liquid Crystal Display
Product Specification
Description
Symb
ol
Min Max Unit Notes
LVDS Differential Voltage |VID| 100 600 mV -
LVDS Common mode Voltage V
LVDS Input Voltage Range V
CM
IN
0.6 1.8 V -
0.3 2.1 V -
3-3-2. AC Specification
Description Symbol Min Max Unit Notes
85MHz > Fclk ≥
65MHz > Fclk ≥
LVDS Clock to Data Skew Margin
t
SKEW
t
SKEW
- 400 + 400 ps
- 600 + 600 ps
65MHz
25MHz
LVDS Clock to Clock Skew Margin (Even
to Odd)
Maximum deviation
of input clock frequency during SSC
Maximum modulation frequency
of input clock during SSC
Ver. 0.0 May.08, 2009
t
SKEW_EO
F
DEV
F
MOD
- 1/7 + 1/7 T
clk
- ± 3 % -
- 200 KHz -
-
8 / 28
Page 9
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Freq.
LP133WX2
Liquid Crystal Display
Product Specification
< Clock skew margin between channel >
F
max
F
center
F
min
3-3-3. Data Format
1) LVDS 2 Port
1
F
MOD
< Spread Spectrum >
F
center
* F
Time
DEV
< LVDS Data Format >
Ver. 0.0 May.08, 2009
9 / 28
Page 10
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

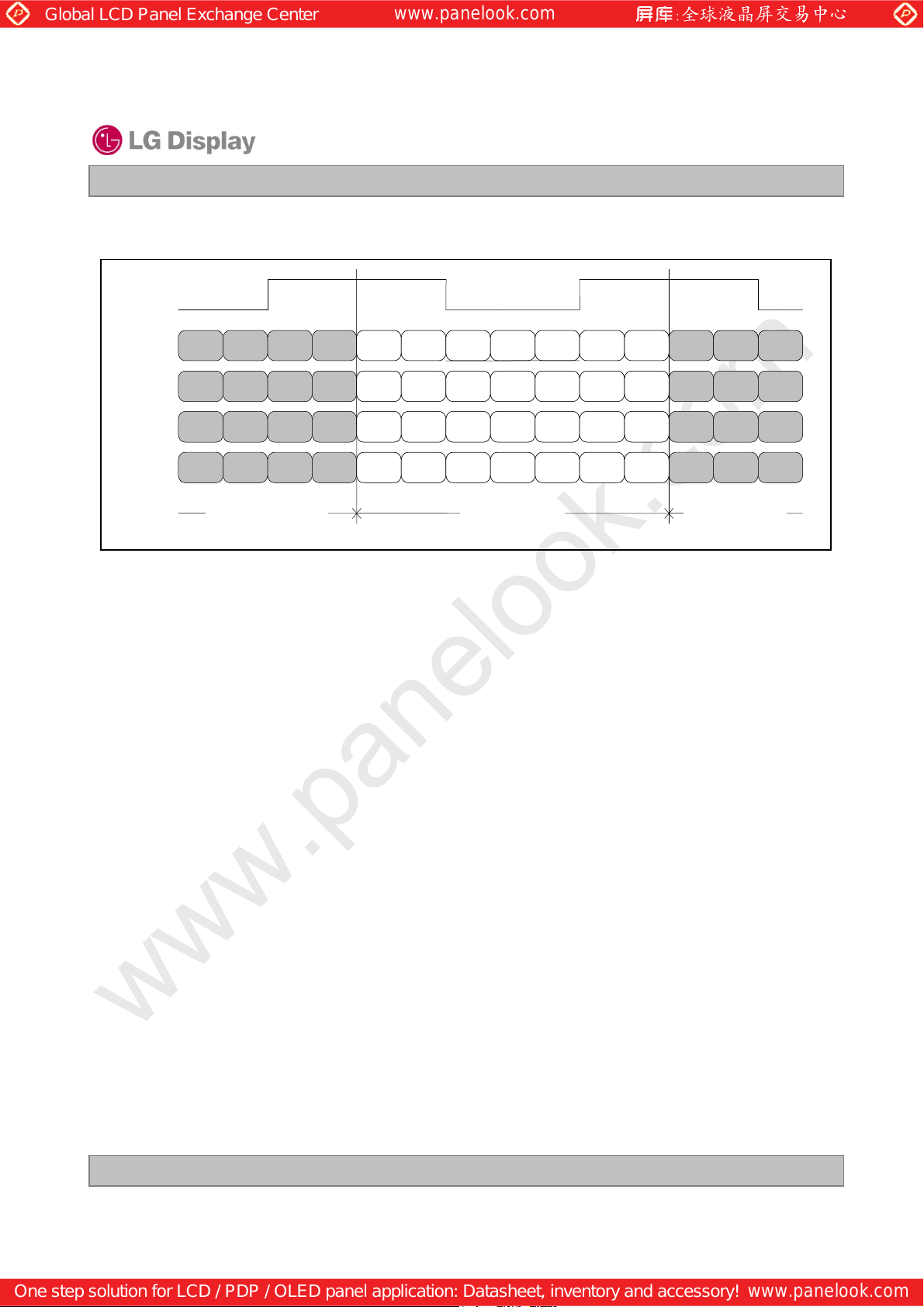

2) LVDS 1 Port
RCLK+
LP133WX2
Liquid Crystal Display
Product Specification
RA+/-
RB+/-
RC+/-
RD+/-
R3 R2
G4 G3
B5 B4
G7 G6
Previous (N-1)th Cycle Next (N+1)th Cycle
R1 R0
G2 G1
B3 B2
R7 R6
G0 R5 R4 R3 R2 R1 R0
B1 B0 G5 G4 G3 G2 G1
DE VSYNC HSYNC B5 B4 B3 B2
X B7 B6 G7 G6 R7 R6
Current (Nth ) Cycle
G0
B1
DE
VSYNC HSYNC
X
R5 R4
B0 G5
B7 B6
Ver. 0.0 May.08, 2009
10 / 28
Page 11
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

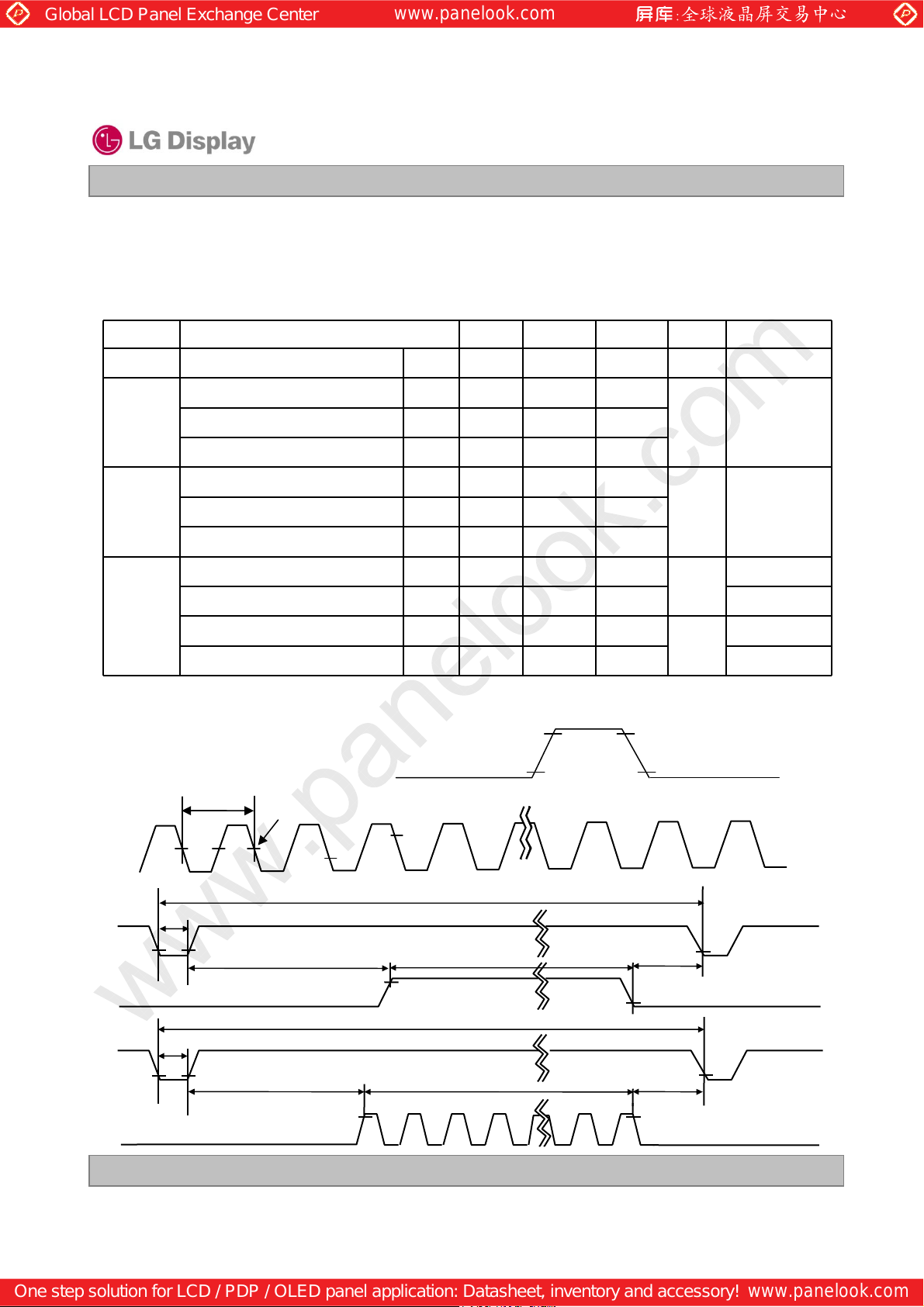

3-4. Signal Timing Specifications
This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.
ITEM Symbol Min Typ Max Unit Note
LP133WX2
Liquid Crystal Display
Product Specification
Table 6. TIMING TABLE
DCLK Frequency f
Period Thp
Hsync
Width-Active t
Period t
Vsync
Data
Enable
Width t
Width-Active t
Horizontal back porch t
Horizontal front porch t
Vertical back porch t
Vertical front porch t
3-5. Signal Timing Waveforms
Data Enable, Hsync, Vsync
DCLK
tCLK
0.5 Vcc
CLK
WH
WHA
VP
WV
WVA
HBP
HFP
VBP
VFP
High: 0.7VCC
Low: 0.3VCC
- 72.5 -
1280 1280 1280
1420 1423 1460
16 32 48
800 800 800
811 846 847
3 6 9
54 63 98
16 48 62
5 37 35
3 3 3
MHz
TclkWidth t
tHP
tCLK
tHP
Condition : VCC =3.3V
t
Hsync
t
WH
t
HBP
HP
tWHA
t
HFP
Data Enable
t
VP
t
WV
Vsync
t
VBP
tWVA
t
VFP
Data Enable
Ver. 0.0 May.08, 2009
11 / 28
Page 12
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
3-6. Color Input Data Reference
The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the
color ; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.
LP133WX2
Liquid Crystal Display
Product Specification
Table 7. COLOR DATA REFERENCE
Input Color Data
Basic
Color
RED
GREEN
BLUE
Color
Black
Red
Green
Blue
Cyan
Magenta
Yellow
White
RED (00)
RED (01)
…
RED (62)
RED (63)
GREEN (00)
GREEN (01)
...
GREEN (62)
GREEN (63)
BLUE (00)
BLUE (01)
…
BLUE (62)
BLUE (63)
RED
MSB LSB
R 5 R 4 R 3 R 2 R 1 R 0 G 5 G 4 G 3 G 2 G 1 G 0 B 5 B 4 B 3 B 2 B 1 B 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
… … …
1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
… … …
0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0
0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
… … …
0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0
0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
MSB LSB
GREEN
BLUE
MSB LSB
Ver. 0.0 May.08, 2009
12 / 28
Page 13
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

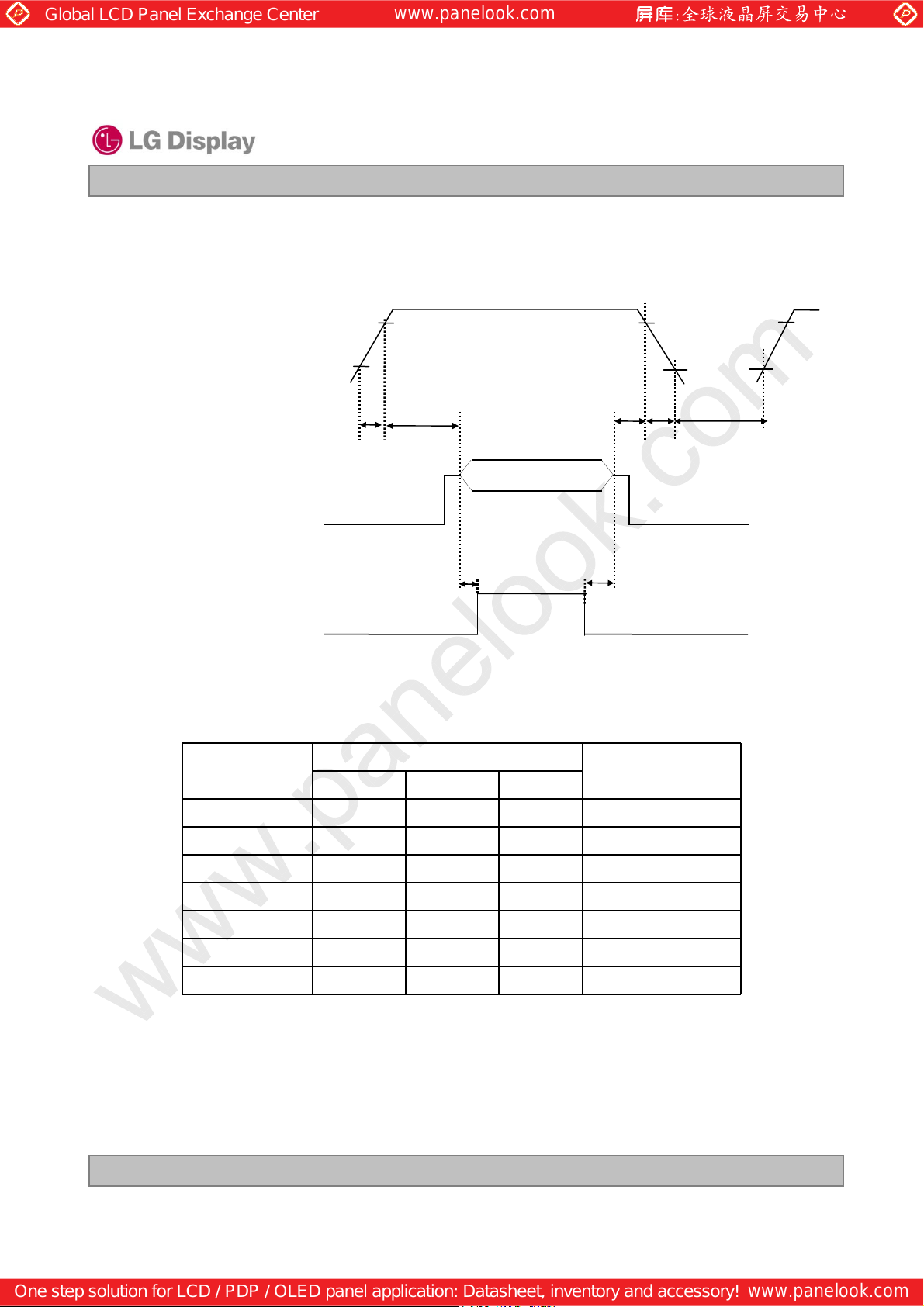

3-7. Power Sequence
LP133WX2
Liquid Crystal Display
Product Specification
Power Supply For LCD
VCC
Interface Signal,
V
i
(LVDS Signal of Transmitter)
LAMP Power
Parameter Value Units
90%
0V
T
T
1
2
Valid Data
0V
T
3
Table 8. POWER SEQUENCE TABLE
90%
10%10%
T
T
6
5
T
4
T
7
OFFOFF LAMP ON
Min. Typ. Max.
T
1
T
2
T
3
T
4
T
5
T
6
T
7
0 - 10 (ms)
0 - 50 (ms)
200 - - (ms)
200 - - (ms)
0 - 50 (ms)
0 - 10 (ms)
400 - - (ms)
Note)
1. Valid Data is Data to meet “3-3. LVDS Signal Timing Specifications”
2. Please avoid floating state of interface signal at invalid period.
3. When the interface signal is invalid, be sure to pull down the power supply for LCD VCC to 0V.
4. Lamp power must be turn on after power supply for LCD and interface signal are valid.
Ver. 0.0 May.08, 2009
13 / 28
Page 14
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
4. Optical Specification
Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 20 minutes in
a dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface
at a viewing angle of Φ and Θ equal to 0°.
FIG. 1 presents additional information concerning the measurement equipment and method.
FIG. 1 Optical Characteristic Measurement Equipment and Method
LP133WX2
Liquid Crystal Display
Product Specification
Optical Stage(x,y)
Table 9. OPTICAL CHARACTERISTICS
Parameter Symbol Condition Min Typ Max Units Notes
Average Luminance LAVE
Luminance variation % 160 points 60 70 - - Fig 2
C/R - Center 1 Point 450 600 - -
Response time
Viewing
angle
Horizontal
Vertical
TrR +
TrD
Θ
Θ
Θ
LCD Module
500mm±±±±50mm
Ta=25°C, VCC=3.3V, fV=60Hz, f
160 Points
(ILED= 19mA)
- - 16 25
φx(Left,Right) ±70 -
φyu(Up) 60 -
φyd(Down) 60 -
235 275 - cd/㎡ Fig 2
Equipment
= 72.5MHz, ILED = 19mA
CLK
㎳
˚
Fig 3
Fig 4
Worst neighbor
Brightness uniformity
White chromaticity
deviation
(W.R.T center)
White chromaticity
deviation
(Over panel)
White chromaticity
deviation
(Worst neighbor)
Cross Talk DSHA - - - 4.0 % Fig 5
Gray Scale - - Gamma 2.2
Ver. 0.0 May.08, 2009
% 70
d u’v’ - -
d u’v’ - -
d u’v’ - -
0.0075
0.0125
0.0025
14 / 28
Page 15
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Table 10. RGB Color Chromaticity
White Red Green Blue
Wx Wy Rx Ry Gx Gy Bx By
Max.
0.338 0.354 0.625 0.370 0.345 0.575 0.175 0.155
LP133WX2
Liquid Crystal Display
Product Specification
Typ.
Min.
0.313 0.329 0.600 0.345 0.320 0.550 0.150 0.130
0.288 0.304 0.575 0.320 0.295 0.525 0.125 0.105
Notes)
1. Contrast Ratio(CR) is defined mathematically as
Surface Luminance with all white pixels
Contrast Ratio =
Surface Luminance with all black pixels
2. Response time is the time required for the display to transition from white to black (rise time, TrR) and
from black to white(Decay Time, TrD). For additional information see FIG 3.
3. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined
for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the
LCD surface. For more information see FIG 4.
4. Gray scale specification * fV=60Hz
Gray Level Luminance [%] (Typ)
L0
L7
L15
L23
L31
L39
L47
L55
L63
0.10
0.71
3.43
8.90
19.2
31.9
47.2
71.2
100
Ver. 0.0 May.08, 2009
15 / 28
Page 16
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
5. Average Luminance
Ave. = SUM(L1:L160) / 160
where L1 to L160 are the luminance values measured at point #1 to #160.
6. Luminance Uniformity
Luminance Uniformity:
U = 100% - (Lmax-Lmin)/Lmax
where, Lmax = max {Luminance values at 160 points},
Lmin = min {Luminance values at 160 points}
LP133WX2
Liquid Crystal Display
Product Specification

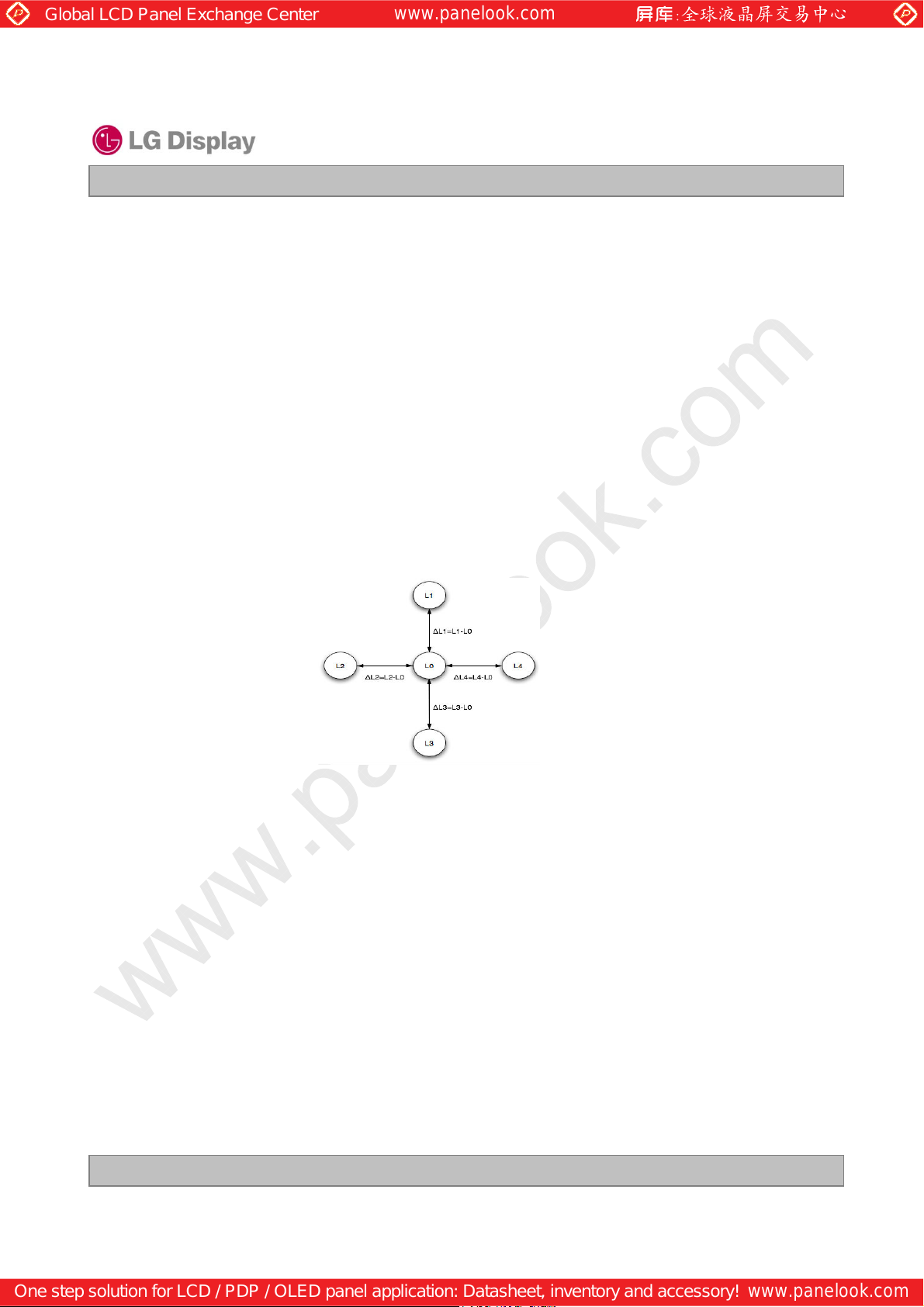

7. Worst neighbor Luminance Uniformity
Worst Neighbor Luminance Uniformity (The 4 points that are closest to the test point)
WNU=100%-Max(ΔL1, ΔL2, ΔL3, ΔL4)/L0
Global WNU = min (WNU1, …WNU160)
8. White chromaticity deviation – with respect to center
Center color coordinate is defined as the Average of points: 72, 73, 88, 89.
9. White chromaticity deviation – over panel
Maximum delta u’v’ between any two measured points over the 160 points
10. White chromaticity deviation – worst neighbor
Maximum delta u’v’ between any two neighboring points on the panel
11. White Chromaticity
Average (72, 73, 88, 89 Points)
12. RGB Chromaticity
Center Point
Ver. 0.0 May.08, 2009
16 / 28
Page 17
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

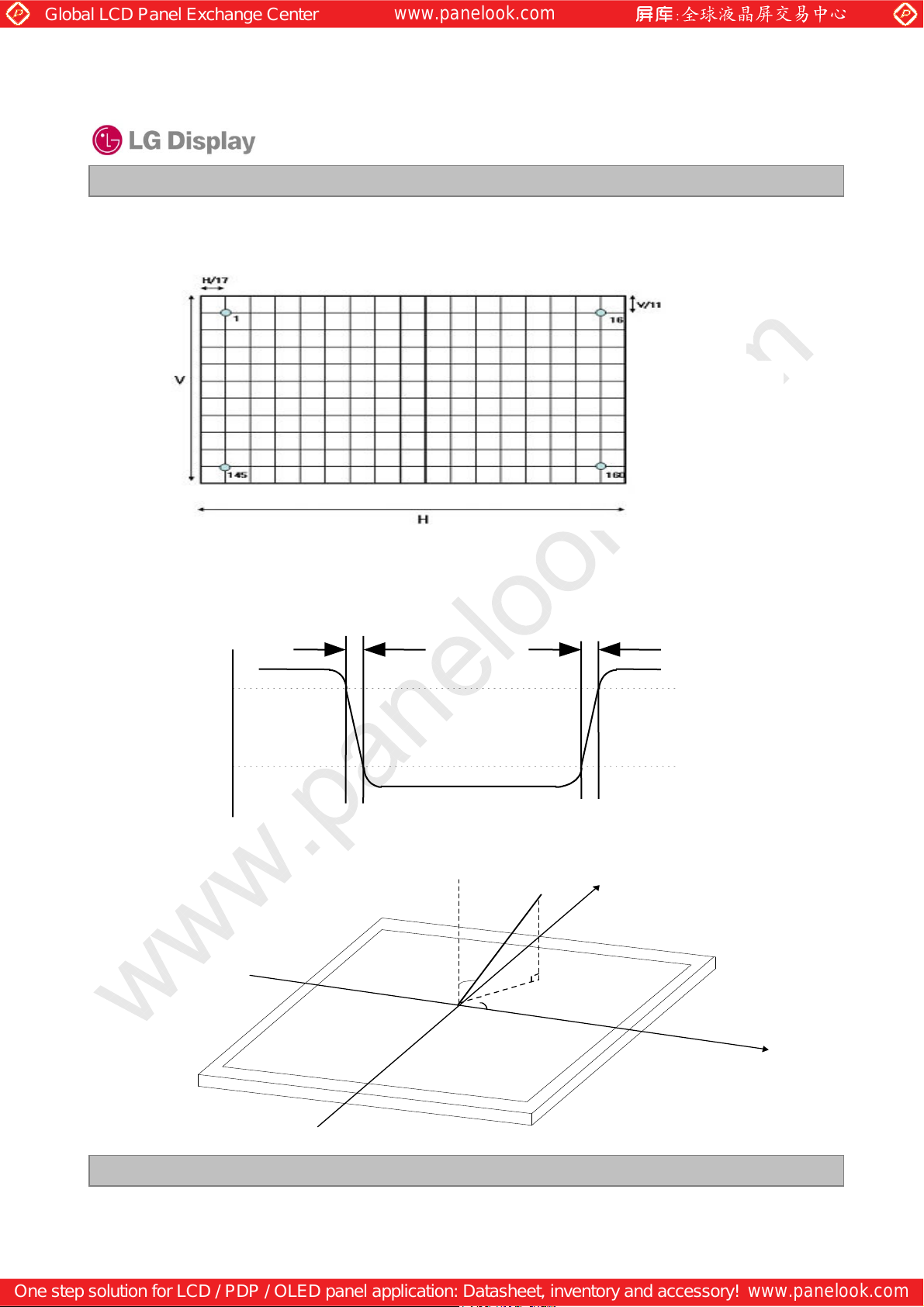

FIG. 2 Luminance
<Measuring point for Average Luminance & measuring point for Luminance variation>
LP133WX2
Liquid Crystal Display
Product Specification
H : 286.08 mm
V : 178.80 mm
HXV:Active area
(16p X 10p)
FIG. 3 Response Time
The response time is defined as the following figure and shall be measured by switching the input signal
for “black” and “white”.
Tr
Tr
R
D
%
100
90
Optical
Response
10
0
white
white
black
FIG. 4 Viewing angle
φ
= 180
°
<Dimension of viewing angle range>
,
Left
Normal
Eye
Y
φ
= 90°, Up
θ
φ
°
,
Right
φ
= 270
Ver. 0.0 May.08, 2009
°
,
Down
φ
= 0
17 / 28
Page 18
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

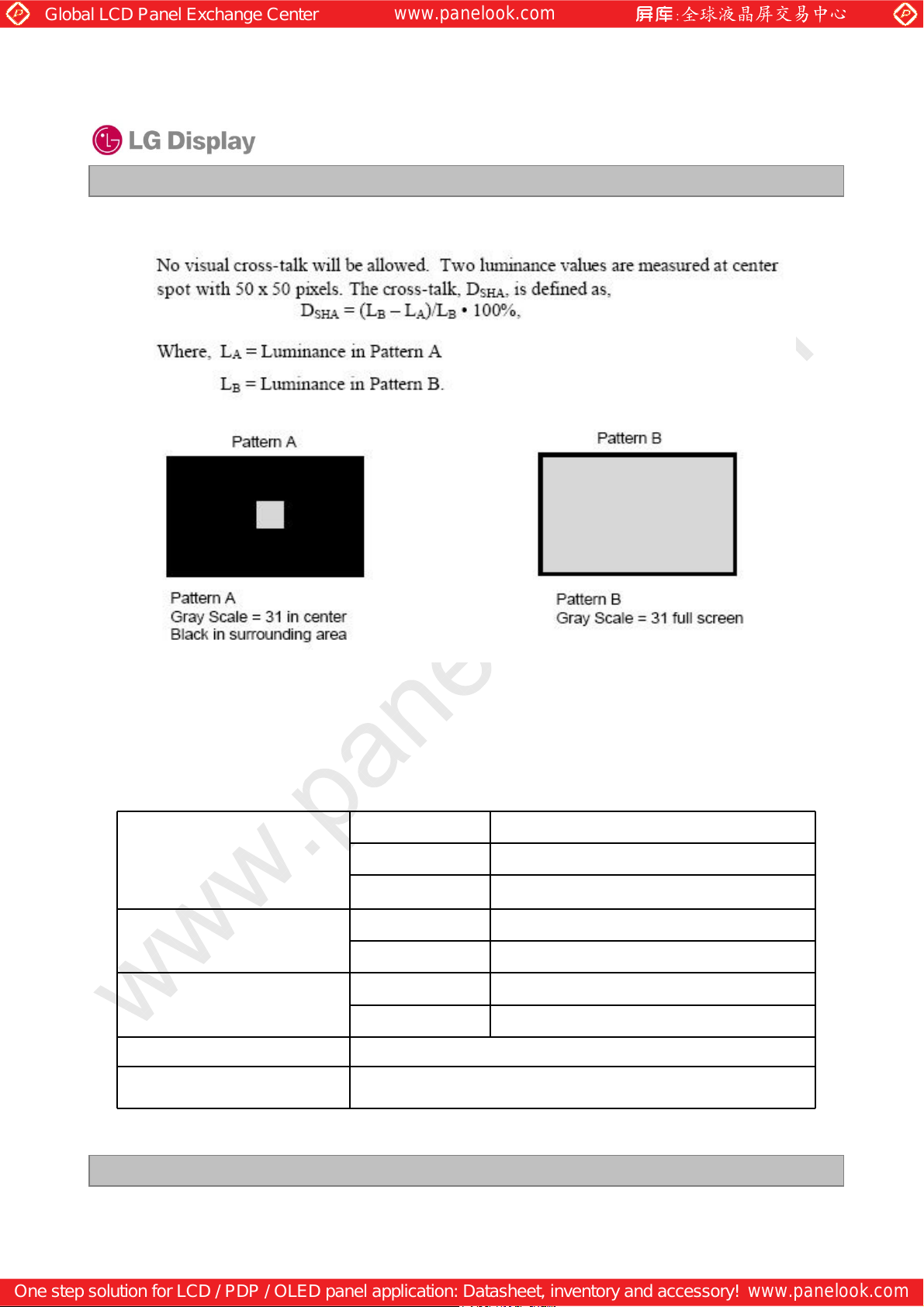

FIG. 5 Cross talk
LP133WX2
Liquid Crystal Display
Product Specification
5. Mechanical Characteristics
The contents provide general mechanical characteristics for the model LP133WX2. In addition the figures
in the next page are detailed mechanical drawing of the LCD.
Horizontal 297.15 ± 0.30mm
Outline Dimension
Bezel Area
Active Display Area
Weight 310g (Max.)
Surface Treatment Hard coating(2H), Glare treatment of the front Polarizer (Haze 0%)
Ver. 0.0 May.08, 2009
Vertical 192.15 ± 0.30mm
Thickness 3.68mm(Max.)
Horizontal 289.38 mm
Vertical 182.5mm
Horizontal 286.08mm
Vertical 178.80 mm
18 / 28
Page 19
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
<FRONT VIEW>
LP133WX2
Liquid Crystal Display
Product Specification
Ver. 0.0 May.08, 2009
19 / 28
Page 20
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
<REAR VIEW>
LP133WX2
Liquid Crystal Display
Product Specification
Ver. 0.0 May.08, 2009
20 / 28
Page 21
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
6. Reliability
Environment test condition
No. Test Item Conditions
1 High temperature storage test Ta= 60°C, 240h
2 Low temperature storage test Ta= -20°C, 240h
3 High temperature operation test Ta= 50°C, 50%RH, 240h
4 Low temperature operation test Ta= 0°C, 240h
LP133WX2
Liquid Crystal Display
Product Specification
5 Vibration test (non-operating) Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min
3 axis, 1hour/axis
6 Shock test (non-operating) Half sine wave, 180G, 2ms
one shock of each six faces(I.e. run 180G 6ms
for all six faces)
7 Altitude operating
storage / shipment
{ Result Evaluation Criteria }
There should be no change which might affect the practical display function when the display quality
test is conducted under normal operating condition.
0 ~ 10,000 feet (3,048m) 24Hr
0 ~ 40,000 feet (12,192m) 24Hr
Ver. 0.0 May.08, 2009
21 / 28
Page 22
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
7. International Standards
7-1. Safety
a) UL 60950-1:2003, First Edition, Underwriters Laboratories, Inc.,
Standard for Safety of Information Technology Equipment.
b) CAN/CSA C22.2, No. 60950-1-03 1stEd. April 1, 2003, Canadian Standards Association,
Standard for Safety of Information Technology Equipment.
c) EN 60950-1:2001, First Edition,
European Committee for Electrotechnical Standardization(CENELEC)
European Standard for Safety of Information Technology Equipment.
LP133WX2
Liquid Crystal Display
Product Specification
7-2. EMC
a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and
Electrical Equipment in the Range of 9kHZ to 40GHz. “American National Standards Institute(ANSI),
1992
b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information
Technology Equipment.“ International Special Committee on Radio Interference.
c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information
Technology Equipment.“ European Committee for Electrotechnical Standardization.(CENELEC), 1998
( Including A1: 2000 )
Ver. 0.0 May.08, 2009
22 / 28
Page 23
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
8. Packing
8-1. Designation of Lot Mark
a) Lot Mark
A B C D E F G H I J K L M
A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.
LP133WX2
Liquid Crystal Display
Product Specification
Note
1. YEAR
Year
Mark
2. MONTH
Month
Mark
b) Location of Lot Mark
Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.
8-2. Packing Form
a) Package quantity in one box : 20 pcs
b) Box Size : 422mm × 340mm × 257mm
2006720078200892009
6
Jun7Jul8Aug9Sep
6
321
200452005
4
Apr5May
4
200320022001
2010
0
Oct
A
Nov
B
DecMarFebJan
C321
Ver. 0.0 May.08, 2009
23 / 28
Page 24
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
9. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD module.
9-1. MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the
module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
LP133WX2
Liquid Crystal Display
Product Specification
9-2. OPERATING PRECAUTIONS
(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :
V=± 200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable after turned on) becomes
longer.
(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
Ver. 0.0 May.08, 2009
24 / 28
Page 25
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
9-3. ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.
9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
9-5. STORAGE
LP133WX2
Liquid Crystal Display
Product Specification
When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 5°C and 35°C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM
(1) When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well
ion-blown equipment or in such a condition, etc.
(2) The protection film is attached to the polarizer with a small amount of glue. If some stress is applied
to rub the protection film against the polarizer during the time you peel off the film, the glue is apt to
remain on the polarizer.
Please carefully peel off the protection film without rubbing it against the polarizer.
(3) When the module with protection film attached is stored for a long time, sometimes there remains a
very small amount of glue still on the polarizer after the protection film is peeled off.
(4) You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is
recognized, please wipe them off with absorbent cotton waste or other soft material like chamois
soaked with normal-hexane.
Ver. 0.0 May.08, 2009
25 / 28
Page 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
(decimal)
APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 1/3
LP133WX2
Liquid Crystal Display
Product Specification
Byte# Byte#
(HEX)
Field Name and Comments
(HEX)
0 00 Header
1 01 Header
2 02 Header
3 03 Header
4 04 Header
5 05 Header
6 06 Header
7 07 Header
8 08 EISA manufacturer code(3 Character ID) = APP
9 09 Compressed ASCII
10 0A Product code(Refer to Apple's request) = K84(0x9cbe)
11 0B (Hex, LSB first)
12 0C LCD module Serial No - Preferred but Optional (“0” if not used)
13 0D LCD module Serial No - Preferred but Optional (“0” if not used)
14 0E LCD module Serial No - Preferred but Optional (“0” if not used)
15 0F LCD module Serial No - Preferred but Optional (“0” if not used)
16 10 Week of Manufacture = April 3th 17weeks
17 11 Year of Manufacture = 2009
18 12 EDID Structure version # = 1
19 13 EDID Revision # = 3
20 14 Video Input Definition = Digital I/P,non TMDS CRGB
21 15 Max H image size(㎝)=28.608cm(29)
22 16 Max V image size(㎝)=17.880cm(18)
23 17 Display gamma =2.2
24 18 Feature support(DPMS) = Active off, RGB Color
25 19 Red/Green low Bits D A
26 1A Blue/White Low Bits E 0
27 1B Red X = 0.597 9 8
28 1C Red Y = 0.349 5 9
29 1D Green X = 0.319 5 1
30 1E Green Y = 0.549 8 C
31 1F Blue X = 0.144 2 4
32 20 Blue Y = 0.135 2 2
33 21 White X = 0.313 5 0
34 22 White Y = 0.329 5 4
35 23 Established Timing I = 00h(If not used)
36 24 Established Timing II = 00h(If not used)
37 25 Manufacturer's Timings = 00h(If not used)
38 26 Standard Timing Identification 1 was not used
39 27 Standard Timing Identification 1 was not used
40 28 Standard Timing Identification 2 was not used
41 29 Standard Timing Identification 2 was not used
42 2A Standard Timing Identification 3 was not used
43 2B Standard Timing Identification 3 was not used
44 2C Standard Timing Identification 4 was not used
45 2D Standard Timing Identification 4 was not used
46 2E Standard Timing Identification 5 was not used
47 2F Standard Timing Identification 5 was not used
48 30 Standard Timing Identification 6 was not used
49 31 Standard Timing Identification 6 was not used
50 32 Standard Timing Identification 7 was not used
51 33 Standard Timing Identification 7 was not used
52 34 Standard Timing Identification 8 was not used
53 35 Standard Timing Identification 8 was not used
Value
Value
(binary)
0 0 0000 0000
F F 1111 1111
F F 1111 1111
F F 1111 1111
F F 1111 1111
F F 1111 1111
F F 1111 1111
0 0 0000 0000
0 6 0000 0110
1 0 0001 0000
B E 1011 1110
9 C 1001 1100
0 0 0000 0000
0 0 0000 0000
0 0 0000 0000
0 0 0000 0000
1 1 0001 0001
1 3 0001 0011
0 1 0000 0001
0 3 0000 0011
8 0 1000 0000
1 D 0001 1101
1 2 0001 0010
7 8 0111 1000
0 A 0000 1010
1101 1010
1110 0000
1001 1000
0101 1001
0101 0001
1000 1100
0010 0100
0010 0010
0101 0000
0101 0100
0 0 0000 0000
0 0 0000 0000
0 0 0000 0000
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
0 1 0000 0001
Header
Header
HeaderHeader
Vender/
Vender/
Vender/Vender/
Product ID
Product ID
Product IDProduct ID
EDID Version/
EDID Version/
EDID Version/EDID Version/
Revision
Revision
RevisionRevision
Display
Display
Display Display
Parameter
Parameter
ParameterParameter
Color
Color
ColorColor
Characteristic
Characteristic
CharacteristicCharacteristic
Established
Established
EstablishedEstablished
Timings
Timings
TimingsTimings
Standard
Standard
StandardStandard
Timing ID
Timing ID
Timing IDTiming ID
Ver. 0.0 May.08, 2009
26 / 28
Page 27
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
(decimal)
APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 2/3
LP133WX2
Liquid Crystal Display
Product Specification
Byte# Byte#
(HEX)
54 36 Pixel Clock/10,000 (LSB) 72.5 MHz @ 60.2Hz 5 2 0101 0010
55 37 Pixel Clock/10,000 (MSB) 1 C 0001 1100
56 38 Horizontal Active (lower 8 bits) 1280 Pixels 0 0 0000 0000
57 39 Horizontal Blanking(Thp-HA) (lower 8 bits) 143 Pixels 8 F 1000 1111
58 3A Horizontal Active / Horizontal Blanking(Thp-HA) (upper 4:4bits) 5 0 0101 0000
59 3B Vertical Avtive 800 Lines 2 0 0010 0000
60 3C Vertical Blanking (Tvp-HA) (DE Blanking typ.for DE only panels) 46 Lines 2 E 0010 1110
61 3D Vertical Active : Vertical Blanking (Tvp-HA) (upper 4:4bits) 3 0 0011 0000 Timing
62 3E Horizontal Sync. Offset (Thfp) 48 Pixels 3 0 0011 0000 Descriptor
63 3F Horizontal Sync Pulse Width (HSPW) 32 Pixels 2 0 0010 0000 #1
64 40 Vertical Sync Offset(Tvfp) : Sync Width (VSPW) 3 Lines : 6 Lines 3 6 0011 0110
65 41 Horizontal Vertical Sync Offset/Width (upper 2bits) 0 0 0000 0000
66 42 Horizontal Image Size = 286.08mm(286) 1 E 0001 1110
67 43 Vertical Image Size = 178.80cm(179) B 3 1011 0011
68 44 Horizontal & Vertical Image Size 1 0 0001 0000
69 45 Horizontal Border = 0 0 0 0000 0000
70 46 Vertical Border = 0 0 0 0000 0000
71 47
72 48 Detailed Timing Descriptor #2 0 0 0000 0000
73 49 0 0 0000 0000
74 4A 0 0 0000 0000
75 4B 0 1 0000 0001
76 4C
77 4D
78 4E
79 4F
80 50
81 51
82 52 0 0 0000 0000
83 53 0 0 0000 0000
84 54 0 0 0000 0000
85 55 0 0 0000 0000
86 56 0 0 0000 0000
87 57 0 0 0000 0000
88 58 0 A 0000 1010
89 59 2 0 0010 0000
90 5A Detailed Timing Descriptor #3 0 0 0000 0000
91 5B 0 0 0000 0000
92 5C 0 0 0000 0000
93 5D F E 1111 1110
94 5E 0 0 0000 0000
95 5F L 4 C 0100 1100
96 60 P 5 0 0101 0000
97 61 1 3 1 0011 0001 Timing
98 62 3 3 3 0011 0011 Description
99 63 3 3 3 0011 0011 #3
100 64 W 5 7 0101 0111
101 65 X 5 8 0101 1000
102 66 2 3 2 0011 0010
103 67 - 2 D 0010 1101
104 68 T 5 4 0101 0100
105 69 L 4 C 0100 1100
106 6A C 4 3 0100 0011
107 6B 7 3 7 0011 0111
Non-interlaced,Normal display,no stereo,Digital separate sync,H/V pol negatives
Version
Apple edid signature
Apple edid signature
Link Type
Pixel and link component format(6-bit panel interface)
Panel features(Inverter NA, no inverter)
Field Name and Comments
Value
(HEX)
Value
(binary)
Timing
TimingTiming
Descriptor
DescriptorDescriptor
#1
#1#1
1 8 0001 1000
0 0 0000 0000
0 6 0000 0110
1 0 0001 0000
2 0 0010 0000 Timing
0 0 0000 0000 Description
0 0 0000 0000 #2
Timing
TimingTiming
Description
DescriptionDescription
#2
#2#2
Timing
TimingTiming
Description
DescriptionDescription
#3
#3#3
Ver. 0.0 May.08, 2009
27 / 28
Page 28
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
(decimal)
APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 3/3
LP133WX2
Liquid Crystal Display
Product Specification
Byte# Byte#
(HEX)
108 6C Detailed Timing Descriptor #4 0 0 0000 0000
109 6D 0 0 0000 0000
110 6E 0 0 0000 0000
111 6F F E 1111 1110
112 70 0 0 0000 0000
113 71 C 4 3 0100 0011
114 72 o 6 F 0110 1111
115 73 l 6 C 0110 1100 Timing
116 74 o 6 F 0110 1111 Description
117 75 r 7 2 0111 0010 #4
118 76 SPACE 2 0 0010 0000
119 77 L 4 C 0100 1100
120 78 C 4 3 0100 0011
121 79 D 4 4 0100 0100
122 7A LF 0 A 0000 1010
123 7B SPACE 2 0 0010 0000
124 7C SPACE 2 0 0010 0000
125 7D SPACE 2 0 0010 0000
126 7E Extension flag = 00 0 0 0000 0000 Extension Flag
127 7F Checksum 5555 DDDD 0101 1101 Checksum
Field Name and Comments
Value
(HEX)
Value
(binary)
Timing
TimingTiming
Description
DescriptionDescription
#4
#4#4
Extension Flag
Extension FlagExtension Flag
Checksum
ChecksumChecksum
Ver. 0.0 May.08, 2009
28 / 28
Loading...
