LG Display LP133WH2-TLE1 Specification

Global LCD Panel Exchange Center

() Preliminary Specification

()Final Specification

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

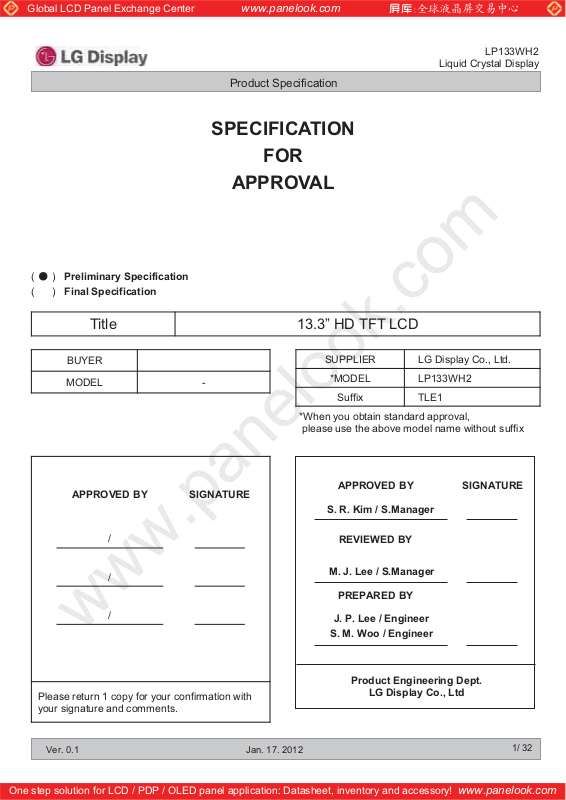

SPECIFICATION

FOR

APPROVAL

Title 13.3” HD TFT LCD

BUYER

MODEL -

APPROVED BY

/

/

SIGNATURE

SUPPLIER LG Display Co., Ltd.

*MODEL LP133WH2

Suffix TLE1

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY SIGNATURE

S. R. Kim / S.Manager

REVIEWED BY

M. J. Lee / S.Manager

PREPARED BY

/

Please return 1 copy for your confirmation with
your signature and comments.

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

J. P. Lee / Engineer

S. M. Woo / Engineer

Product Engineering Dept.

LG Display Co., Ltd

1/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

Contents

No ITEM

COVER

CONTENTS

RECORD OF REVISIONS

1

2

3

3-1

3-2

3-3

3-4

3-5

3-6

GENERAL DESCRIPTION

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL SPECIFICATIONS

ELECTRICAL CHARACTREISTICS

INTERFACE CONNECTIONS

LVDS SIGNAL TIMING SPECIFICATION

SIGNAL TIMING SPECIFICATIONS

SIGNAL TIMING WAVEFORMS

COLOR INPUT DATA REFERNECE

Page

1

2

3

4

5

6-7

8

9-10

11

11

12

4

5

6

7

8

3-7

A

7-1

7-2

7-3

8-1

8-2

8-3

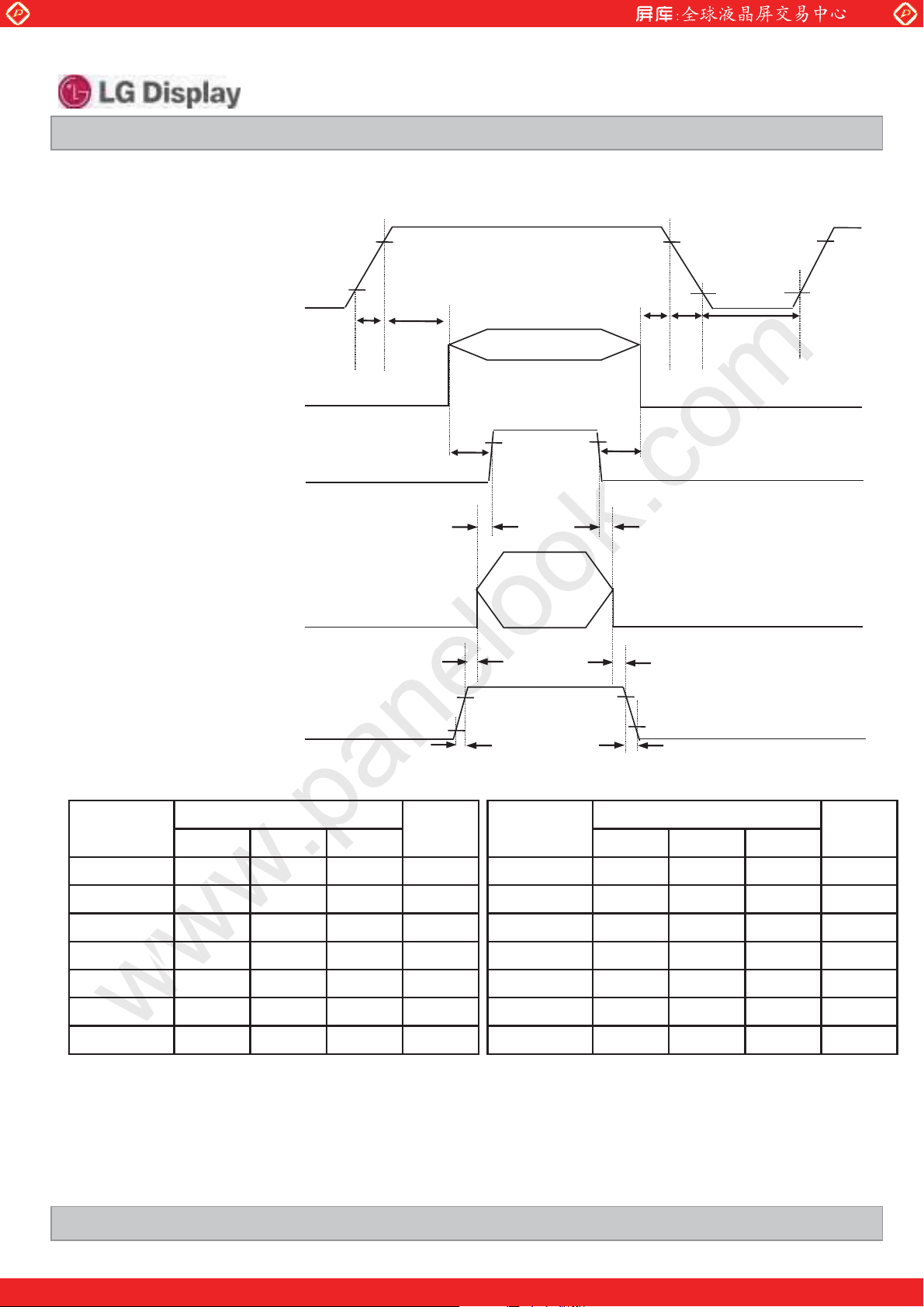

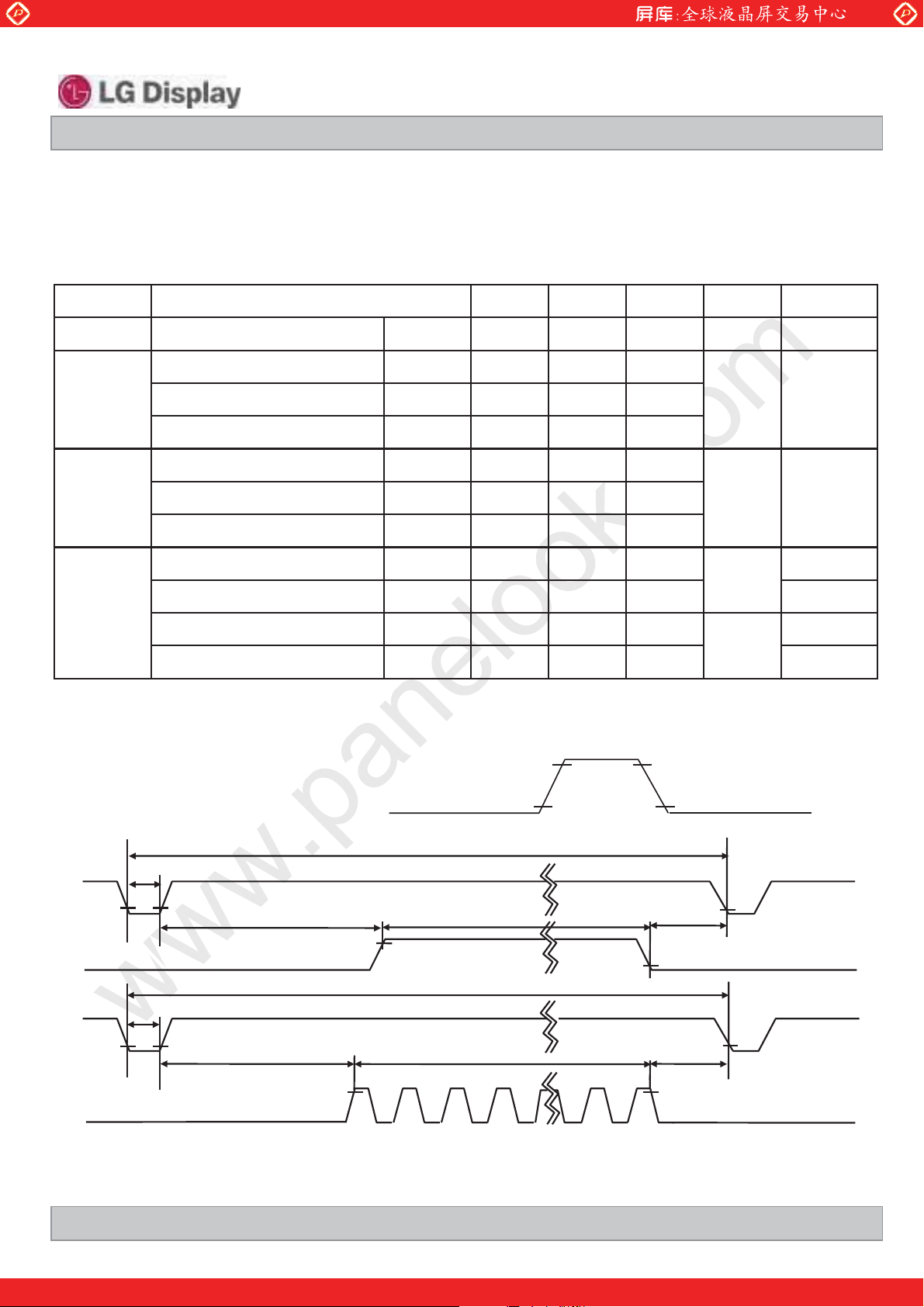

POWER SEQUENCE

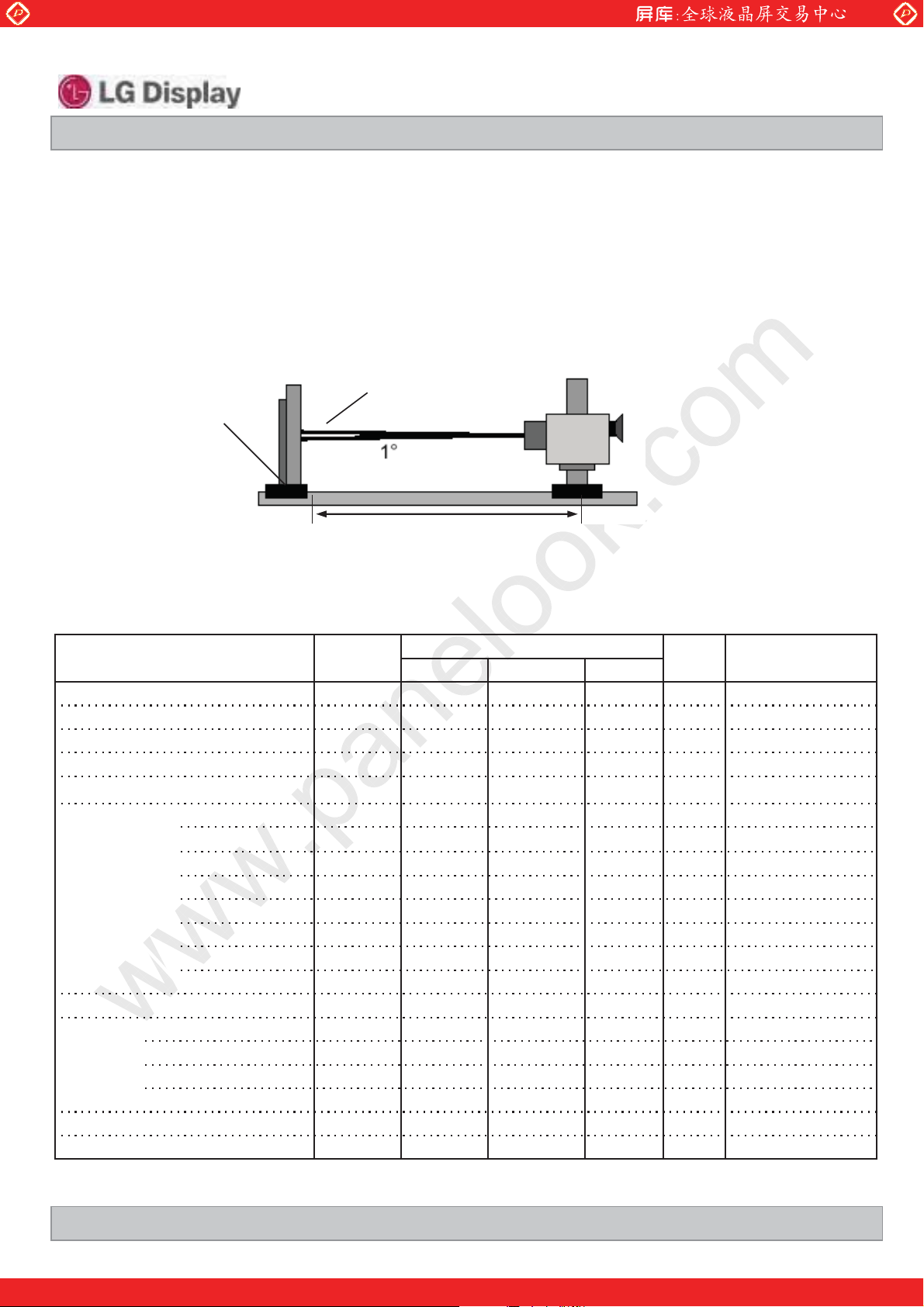

OPTICAL SFECIFICATIONS

MECHANICAL CHARACTERISTICS

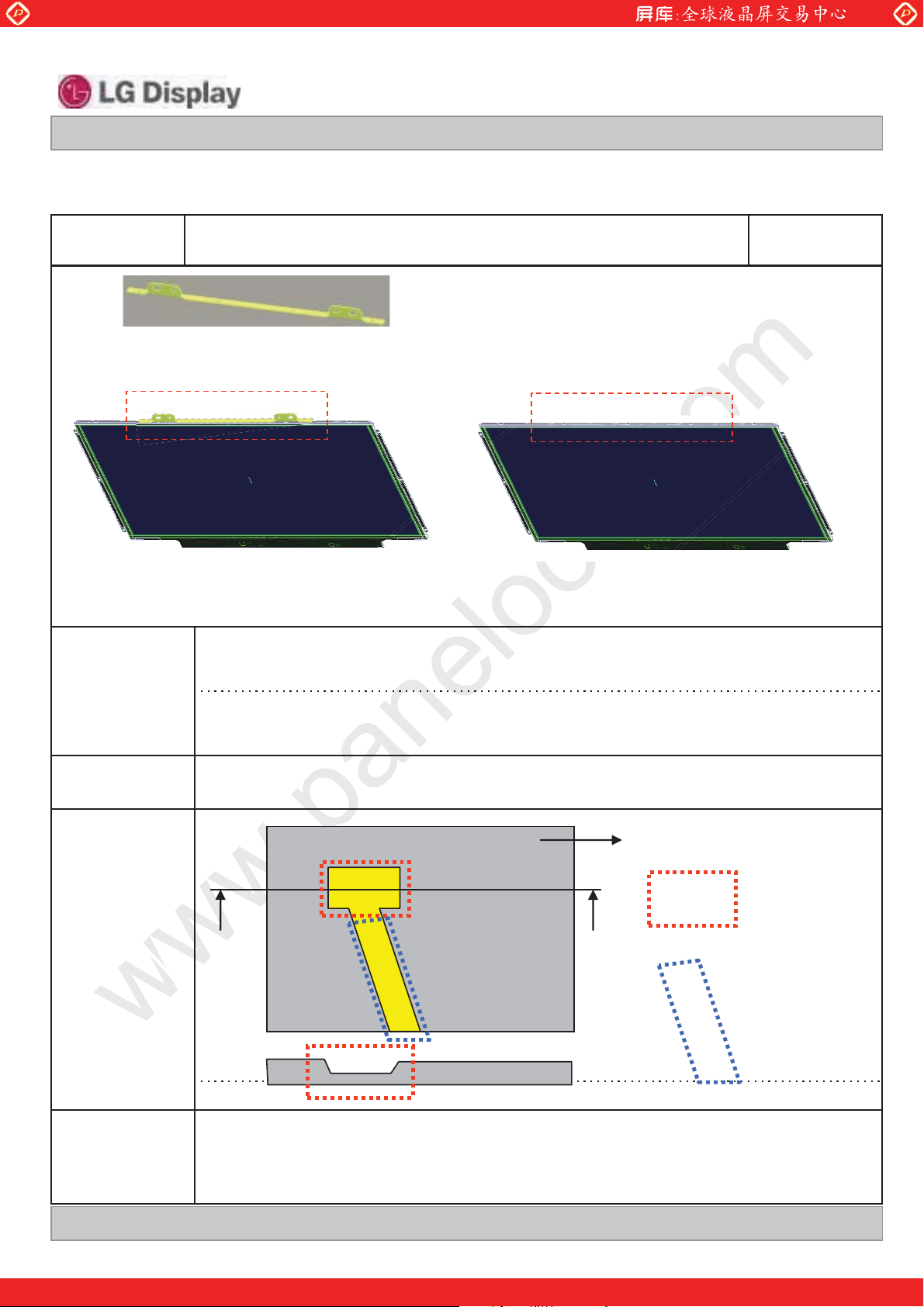

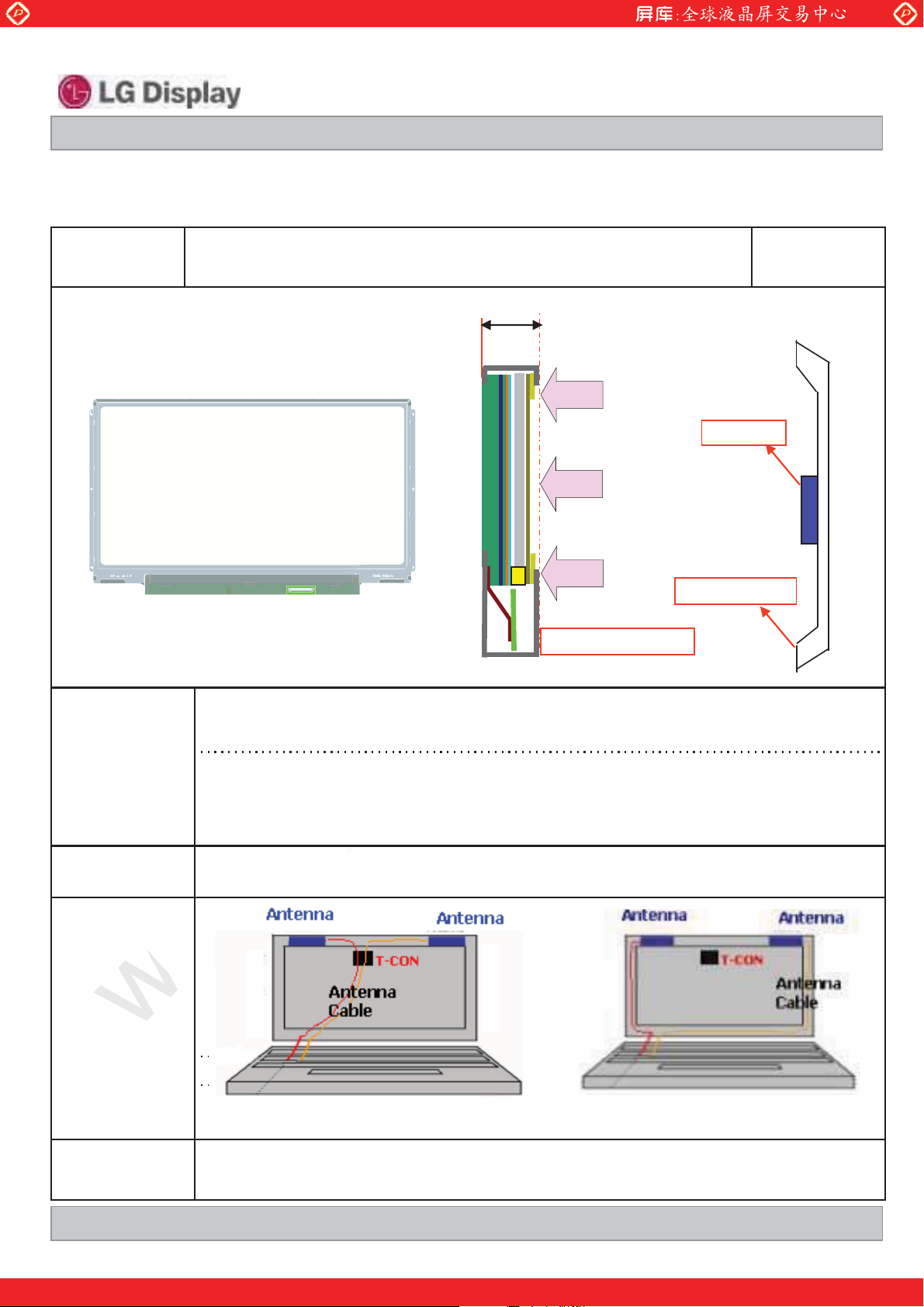

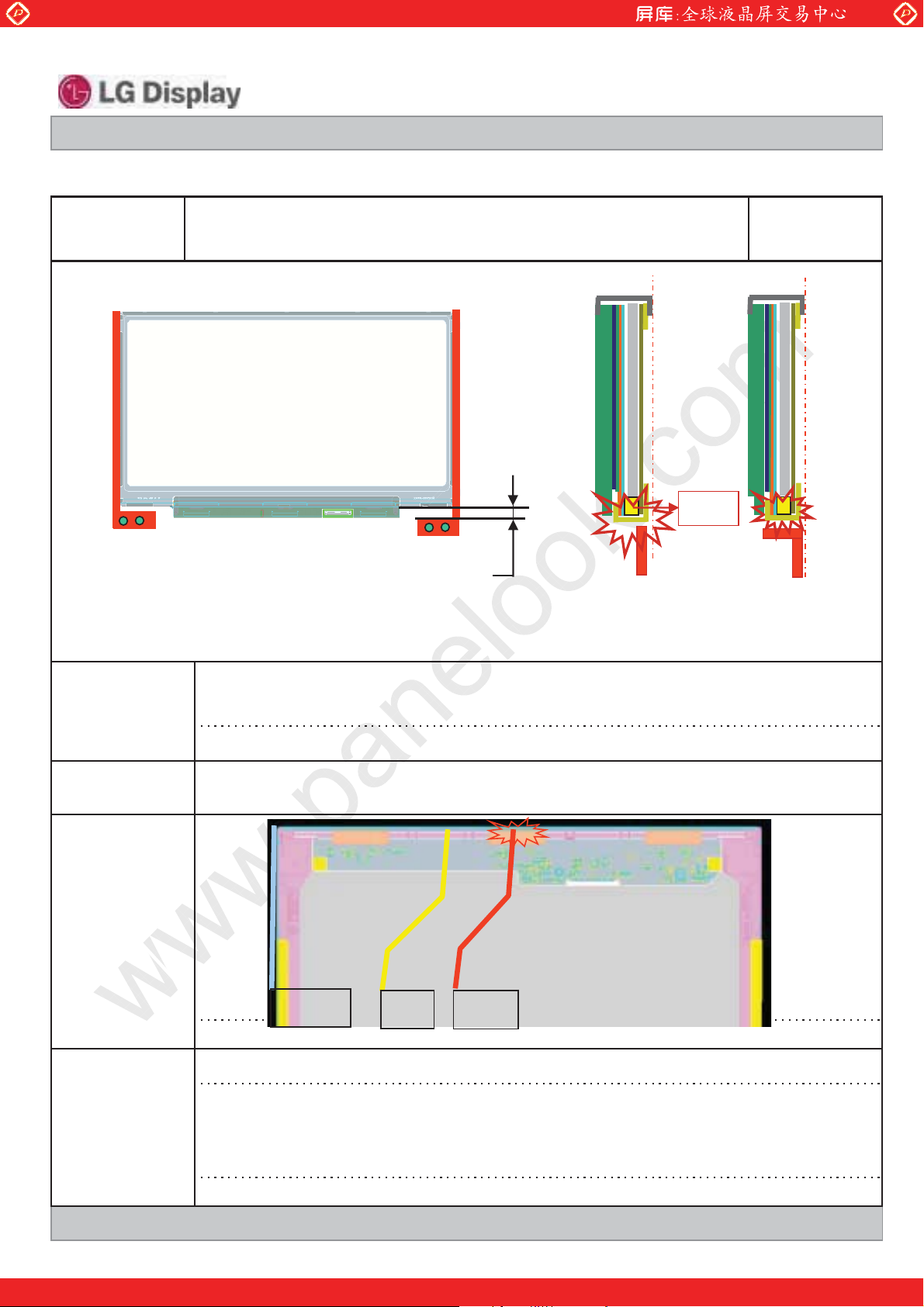

APPENDIX. LGD PROPOSAL FOR SYSTEM COVER DESIGN

RELIABLITY

INTERNATIONAL STANDARDS

SAFETY

EMC

Environment

PACKING

DESIGNATION OF LOT MARK

PACKING FORM

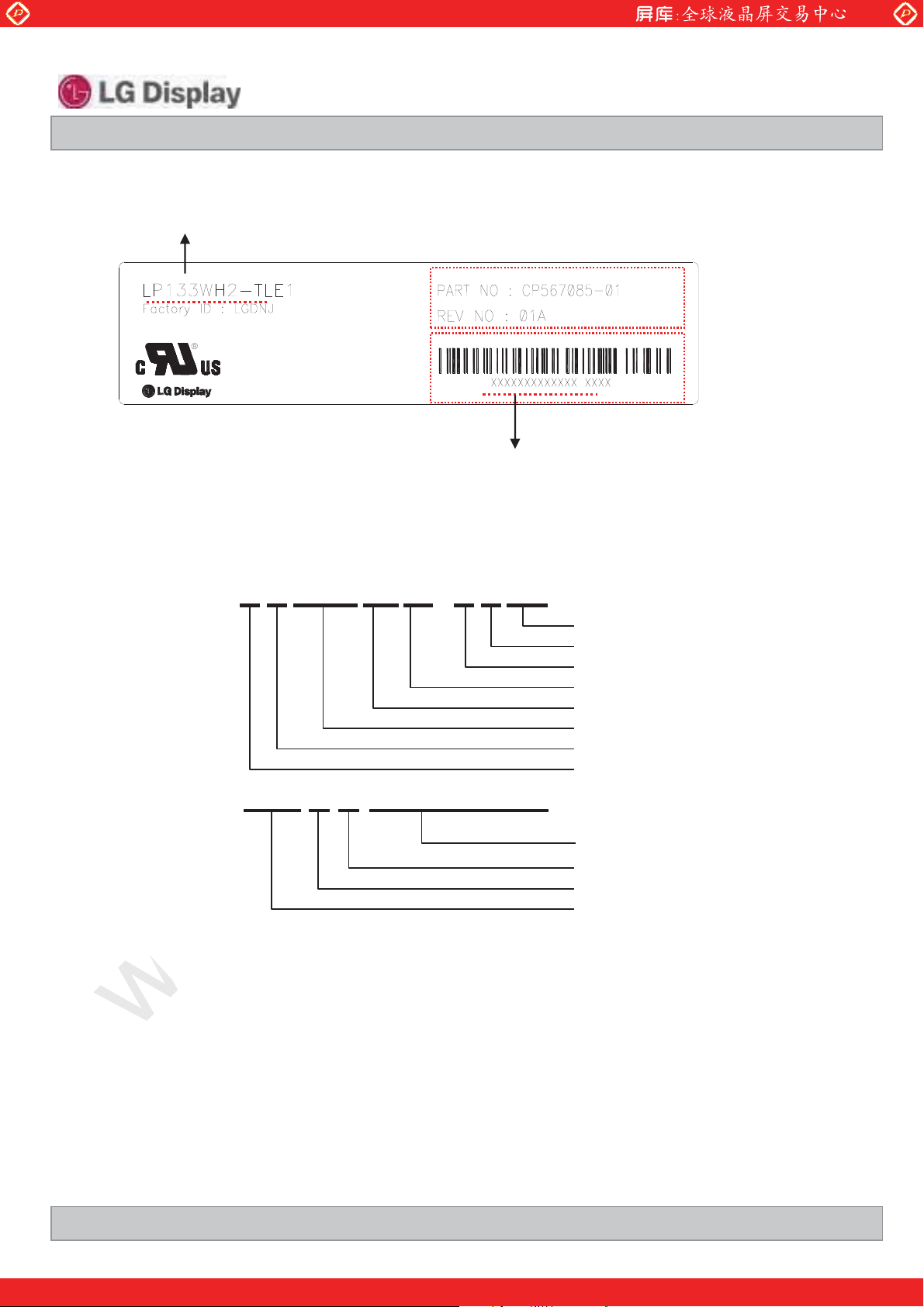

LABEL DESCRIPTION

13

14-16

17-19

20-22

23

24

24

24

25

25

26

9

Ver. 0.1 Jan. 17. 2012

PRECAUTIONS

A APPENDIX. Enhanced Extended Display Identification Data

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

27-28

29-31

2/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

8. Packing

Revision No Revision Date Page Description

0.0 Aug. 20. 2011 - First Draft (Preliminary Specification) 0.0

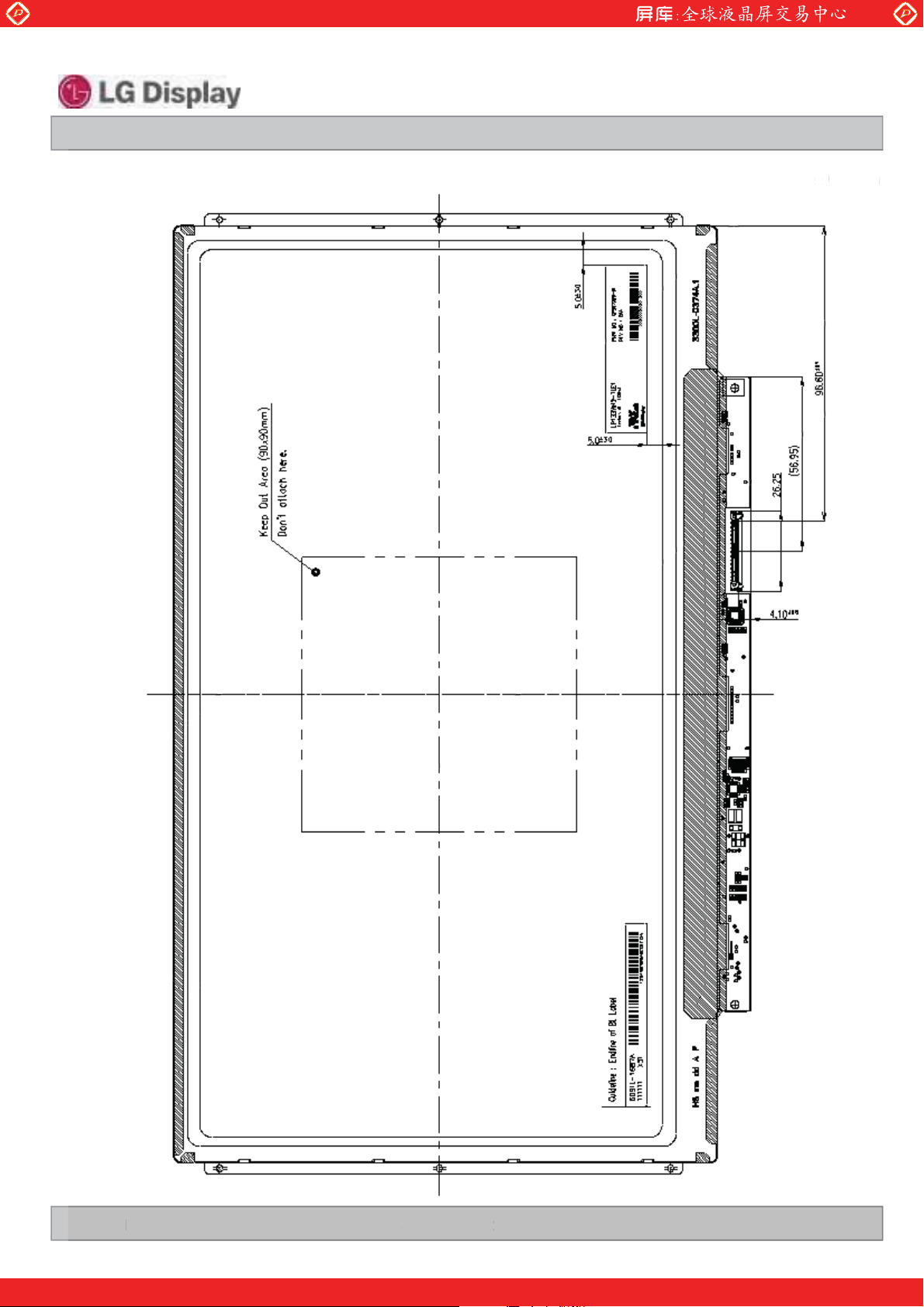

0.1 Jan. 17. 2012 19 Update Rear View Drawing 0.1

25, 26 Update Packing & Label Drawing -

29-31 Update E-EDID Table (Checksum : DE) -

RECORD OF REVISIONS

EDID

ver

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

1. General Description

The LP133WH2 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 13.3 inches diagonally measured active display area with HD
resolution (1366 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue sub­pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors. The LP133WH2 has been designed to apply the interface method that enables low power, high
speed, low EMI. The LP133WH2 is intended to support applications where thin thickness, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub­pixels, the LP133WH2 characteristics provide an excellent flat display for office automation products such
as Notebook PC.

EEPROM Block

for EDID

1

1366

User connector

EEPROM Block

for Tcon Operating

TFT-LCD Panel

40

Pin

LVDS

1port

VCC

VLED

LED_EN

PWM

Timing Control

(Tcon) Block

DVCC

Power

Block

LED Driver

Block

TCLKs

VGH, VGL, GMA

Control & Data Power

768

DVCC, AVDD

GIP CLKs, DSC

VOUT_LED

FB1~4

(HD, GIP, TN)

Source Driver

(Bottom)

LED Backlight Ass’y

EDID signal & Power

General Features

Active Screen Size 13.3 inches diagonal

Outline Dimension

Pixel Pitch

Pixel Format 1366 horiz. by 768 vert. Pixels RGB strip arrangement

Color Depth 6-bit, 262,144 colors

Luminance, White 200 cd/m

Power Consumption Total TBD (Typ.) Logic : TBDW (Max.@ Mosaic), B/L : 2.8W (Max.@ VLED 12V )

Weight 300 g (Max.)

Display Operating Mode Transmissive mode, Normally white

Surface Treatment Glare treatment of the front polarizer

RoHS Compliance Yes

BFR / PVC / As Free Yes for all.

306.3(Typ. H) Ý 177.7(Typ. V) Ý 3.6(D, Max.) mm

0.2148 Ý 0.2148 mm

2

(Typ.)

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/ 32

www.panelook.com

Global LCD Panel Exchange Center

୅

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage

Operating Temperature

Storage Temperature

Operating Ambient Humidity

Storage Humidity

VCC -0.3 4.0 Vdc at 25 r 5qC

TOP 050qC1

HST -20 60 qC1

HOP 10 90 %RH 1

HST 10 90 %RH 1

Values

Units Notes

Min Max

Note : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39

Wet Bulb
Temperature [

]

qC Max, and no condensation of water.

90% 80%

60

50

60%

Humidity[(%)RH]

Storage

40

30

20

10

0

-20

10

20 30 40 50

60 70 800

Dry Bulb Temperature [୅]

Ver. 0.1 Jan. 17. 2012

40%

Operation

20%

10%

5/ 32

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

3. Electrical Specifications
3-1. Electrical Characteristics

The LP133WH2 requires two power inputs. The first logic is employed to power the LCD electronics and to
drive the TFT array and liquid crystal. The second backlight is the input about LED BL with LED Driver.

Table 2. ELECTRICAL CHARACTERISTICS

Values

Parameter Symbol

Min Typ Max

LOGIC :

Unit Notes

Power Supply Input Voltage V

Power Supply Input Current Mosaic I

Power Consumption P

Power Supply Inrush Current I

LVDS Impedance Z

CC 3.0 3.3 3.6 V 1

CC -TBDTBDmA2

CC -TBDTBDW2

CC_P - - 1500 mA 3

LVDS 90 100 110 Ω 4

BACKLIGHT : ( with LED Driver)

LED Power Input Voltage V

LED Power Input Current I

LED Power Consumption P

LED Power Inrush Current I

LED 7.0 12.0 21.0 V 5

LED -TBDTBDmA6

LED TBD TBD W

LED_P - - 1500 mA 7

PWM Duty Ratio 5 - 100 % 8

PWM Jitter

PWM Impedance Z

PWM Frequency F

-

PWM 20 40 60 kΩ

PWM 200 - 1000 Hz 10

0 - 0.2 % 9

PWM High Level Voltage V

PWM Low Level Voltage V

LED_EN Impedance Z

LED_EN High Voltage V

LED_EN Low Voltage V

LED_EN_H 3.0 - 5.3 V

LED_EN_L 0 - 0.3 V

PWM_H

PWM_L

PWM 20 40 60 kΩ

3.0 - 5.3 V

0 - 0.3 V

DBC_EN High Voltage 3.0 - 5.3 V

DBC_EN Low Voltage 0 - 0.3 V

Life Time 12,000 - - Hrs 12

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Liquid Crystal Display

Product Specification

Note)

1. The measuring position is the connector of LCM and the test conditions are under 25୅, fv = 60Hz,

Black pattern.

2. The specified Icc current and power consumption are under

the Vcc = 3.3V , 25୅, fv = 60Hz condition and Mosaic pattern.

3. This Spec. is the max load condition for the cable impedance designing.

4. The below figures are the measuring Vcc condition and the Vcc control block LGD used.
The Vcc condition is same as the minimum of T1 at Power on sequence.

LP133WH2

Rising time
Vcc

0V

10%

90%

3.3V

0.5ms

5. This impedance value is needed for proper display and measured form LVDS Tx to the mating connector.

6. The measuring position is the connector of LCM and the test conditions are under 25୅.

7. The current and power consumption with LED Driver are under the Vled = 12.0V , 25୅, Dimming of

Max luminance and White pattern with the normal frame frequency operated(60Hz).

8. The below figures are the measuring Vled condition
and the Vled control block LGD used.
VLED control block is same with Vcc control block.

Rising time
V

LED

90%

12.0V

0V

10%

0.1ms

9. The operation of LED Driver below minimum dimming ratio may cause flickering or reliability issue.

10. If Jitter of PWM is bigger than maximum, it may induce flickering.

11. This Spec. is not effective at 100% dimming ratio as an exception because it has DC level equivalent

to 0Hz. In spite of acceptable range as defined, the PWM Frequency should be fixed and stable for
more consistent brightness control at any specific level desired.

12. The life time is determined as the time at which brightness of LCD is 50% compare to that of minimum

value specified in table 7. under general user condition.

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

3-2. Interface Connections

This LCD employs two interface connections, a 40 pin connector used for the module electronics interface and
the other connector used for the integral backlight system.

Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)

Pin Symbol Description Notes

1 NC No Connection.

2 VCC LCD Logic and driver power (3.3V Typ.)

3 VCC LCD Logic and driver power (3.3V Typ.)

4 V EEDID DDC Power (3.3V)

5 NC No Connection

6 Clk EEDID DDC Clock

7 DATA EEDID DDC Data

8 ORX0- Negative LVDS differential data input

9 ORX0+ Positive LVDS differential data input

10 GND LCM Ground

11 ORX1- Negative LVDS differential data input

12 ORX1+ Positive LVDS differential data input

13 GND LCM Ground

14 ORX2- Negative LVDS differential data input

15 ORX2+ Positive LVDS differential data input

16 GND LCM Ground

17 ORXC- Negative LVDS differential clock input

18 ORXC+ Positive LVDS differential clock input

19 GND LCM Ground

20

21

22 GND LCM Ground

23

24

25 GND LCM Ground

26

27

28 GND LCM Ground

29

30

31

32

33

34

35

36

37

38

39

40

NC

NC

NC

NC

NC

NC

NC

NC

GND

GND

GND

NC

PWM System PWM Signal input for dimming

LED_EN

NC

VLED LED Backlight Power (7V-21V)

VLED LED Backlight Power (7V-21V)

VLED LED Backlight Power (7V-21V)

No Connection

No Connection

No Connection

No Connection

No Connection

No Connection

No Connection

No Connection

LCM Ground (LED Backlight Ground)

LCM Ground (LED Backlight Ground)

LCM Ground (LED Backlight Ground)

No Connection

LED Backlight On/Off

No Connection

[Interface Chip]

1. LCD :
SiW, SW 0645A (LCD Controller)
Including LVDS Receiver.

2. System : SiW LVDS Rx or equivalent

* Pin to Pin compatible with LVDS

[Connector]

HRS KN338A-40S-0.5H
LS Mtron GT05Q-40S-H10

[Mating Connector]

20453-#40E-## series or equivalent

[Connector pin arrangement]

40

[LCD Module Rear View]

1

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/ 32

www.panelook.com

Global LCD Panel Exchange Center

Product Specification

3-3. LVDS Signal Timing Specifications

3-3-1. DC Specification

www.panelook.com

LP133WH2

Liquid Crystal Display

LVDS -

LVDS +

# |VID| = |(LVDS+) ˀ (LVDS-)|
# V

= {(LVDS+) + (LVDS-)}/2

0V

CM

Description Symbol Min Typ Max Unit Notes

LVDS Differential Voltage |V

LVDS Common mode Voltage V

LVDS Input Voltage Range V

3-3-2. AC Specification

VDD=1.8V

|VID|

V

CM

| 100 - 600 mV -

ID

CM

IN

|VID| /2 1.2 VDD- |VID|/2 V -

0.3 - VDD V -

V

IN_MAXVIN_MIN

LVDS Clock

LVDS Data

t

SKEW

Description Symbol Min Max Unit Notes

LVDS Clock to Data Skew Margin

LVDS Clock to Clock Skew Margin (Even
to Odd)

Maximum deviation
of input clock frequency during SSC

Maximum modulation frequency
of input clock during SSC

T

clk

t

SKEW(Fclk

1) 85MHz > Fclk ˻ 65MHz : -400 ~ +400

2) 65MHz > Fclk ˻ 25MHz : -600 ~ +600

= 1/T

t

SKEW

t

SKEW

t

SKEW_EO

F

DEV

F

MOD

)

clk

- 400 + 400 ps

- 600 + 600 ps

- 1/7 + 1/7 T

-

· 3

- 200 KHz -

85MHz > Fclk ≥

65MHz

65MHz > Fclk ≥

25MHz

clk

-

%-

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/ 32

www.panelook.com

Global LCD Panel Exchange Center

t

SKEW_EO

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

LVDS Odd Clock

LVDS Even Clock

LVDS Even Data

Freq.

F

max

F

center

F

min

T

clk

T

clk

< Clock skew margin between channel >

X

m

tvk

m



QGm

Time

kl}

3-3-3. Data Format

1) LVDS 1 Port

RCLK+

RA+/-

RB+/-

RC+/-

RD+/-

R3 R2

G4 G3

B5 B4

G7 G6

Previous (N-1)th Cycle Next (N+1)th Cycle

R1 R0

G2 G1

B3 B2

R7 R6

< Spread Spectrum >

G0 R5 R4 R3 R2 R1 R0

B1 B0 G5 G4 G3 G2 G1

DE VSYNC HSYNC B5 B4 B3 B2

X B7 B6 G7 G6 R7 R6

Current ( Nth ) Cycle

< LVDS Data Format >

G0

B1

DE

VSYNC HSYNC

X

R5 R4

B0 G5

B7 B6

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

3-4. Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.

Table 4. TIMING TABLE

ITEM Symbol Min. Typ. Max. Unit Note

DCLK Frequency

Period

Hsync

Vsync

Data

Enable

Width

Width-Active

Period

Width

Width-Active

Horizontal back porch

Horizontal front porch

Vertical back porch

Vertical front porch

3-5. Signal Timing Waveforms

f

CLK

t

HP

t

WH

tw

HA

t

VP

t

WV

tw

VA

t

HBP

t

HFP

t

VBP

t

VFP

High: 0.7VCC

-

1464 1476 1516

32 36 56

1366 1366 1366

776 790 792

288

768 768 768

34 38 54

32 36 40

41012

244

70.0

-

Condition : VCC=3.3V

MHz

tCLK

tHP

tCLK

tHP

Low: 0.3VCC

t

HP

Hsync

t

WH

t

HBP

Date Enable

t

VP

t

WV

Vsync

t

VBP

Date Enable

Ver. 0.1 Jan. 17. 2012

tWHA

tWVA

t

HFP

t

VFP

11/ 32

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

3-6. Color Input Data Reference

The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the
color ; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.

Table 5. COLOR DATA REFERENCE

Input Color Data

Basic
Color

RED

Color

Black

Red

Green

Blue

Cyan

Magenta

Yellow

White

RED (00)

RED (01)

RED (62)

RED (63)

…

RED

MSB LSB

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0

000000000000000000

111111000000000000

000000111111000000

000000000000111111

000000111111111111

111111000000111111

111111111111000000

111111111111111111

000000000000000000

000001000000000000

…… …

111110000000000000

111111000000000000

MSB LSB

GREEN

BLUE

MSB LSB

000000000000000000

000000000001000000

…… …

000000111110000000

000000111111000000

000000000000000000

000000000000000001

…… …

000000000000111110

000000000000111111

GREEN

BLUE

GREEN (00)

GREEN (01)

...

GREEN (62)

GREEN (63)

BLUE (00)

BLUE (01)

…

BLUE (62)

BLUE (63)

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

12/ 32

www.panelook.com

Global LCD Panel Exchange Center

3-7. Power Sequence

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

Power Supply Input

VCC

Interface Signal, V

i

LVDS

LED on/off control Signal

LED_EN

Dimming control signal
Of LED BL

PWM

0V

0V

0V (Off)

0V (Low)

90%

90%

10%10%

T

T

3

T

T

1

2

T

T

5

9

Valid Data

3.0V

3.0V

T

6

T

10

7

T

4

Valid Data

T

8

T

11

LED input Voltage

VLED

0V

90%

10%

T

12

T

13

90%

10%

Table 6. POWER SEQUENCE TABLE

Logic

Parameter

T

1

T

2

T

3

T

4

T

5

T

6

T

7

Value

Units

Min. Typ. Max.

0.5 - 10 ms

0-50ms

0-50ms

400 - - ms

200 - - ms

200 - - ms

3-10ms

LED

Parameter

T

8

T

9

T

10

T

11

T

12

T

13

Min. Typ. Max.

10 - - ms

0--ms

0--ms

10 - - ms

0.5 - - ms

0 - 5000 ms

Value

Note)

1. Do not insert the mating cable when system turn on.

2. Valid Data have to meet “3-3. LVDS Signal Timing Specifications”

3. LVDS, LED_EN and PWM need to be on pull-down condition on invalid status.

4. LGD recommend the rising sequence of VLED after the Vcc and valid status of LVDS turn on.

Units

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 20 minutes in
a dark environment at 25
at a viewing angle of
FIG. 1 presents additional information concerning the measurement equipment and method.

qC. The values specified are at an approximate distance 50cm from the LCD surface

) and 4 equal to 0q.

FIG. 1 Optical Characteristic Measurement Equipment and Method

Optical Stage(x,y)

LCD Module

500mm·50mm

Equipment

Table 7. OPTICAL CHARACTERISTICS

Ta=25qC, VCC=3.3V, fV=60Hz

Parameter Symbol

Contrast Ratio CR 400 500 - 1

Surface Luminance, white (1Point) L

Luminance Variation G

Response Time Tr

Color Coordinates

RED RX TBD TBD TBD

GREEN GX TBD TBD TBD

BLUE BX TBD TBD TBD

WHITE WX 0.283 0.313 0.343

Viewing Angle 5

x axis, right()=0q) 4r 40 - - degree

x axis, left ()=180q) 4l 40 - - degree

y axis, up ()=90q) 4u 10 - - degree

y axis, down ()=270q) 4d 30 - - degree

Gray Scale 6

Color Gamut C/G - 45 - %

WH

WHITE

R + TrD

RY TBD TBD TBD

GY TBD TBD TBD

BY TBD TBD TBD

WY 0.299 0.329 0.359

Min Typ Max

170 200 - cd/m

-1.41.6 3

-1625ms 4

Values

Units Notes

2

2

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

Note)

1. Contrast Ratio(CR) is defined mathematically as

Surface Luminance with all white pixels

Contrast Ratio =

Surface Luminance with all black pixels

2. Surface luminance is the average of 1 point across the LCD surface 50cm from the surface with
all pixels displaying white. For more information see FIG 1.

LWH = Luminance(L1)

3. The variation in surface luminance , The panel total variation (G WHITE) is determined by measuring LN

at each test position 1 through 13 and then defined as following numerical formula.

For more information see FIG 2.

1,L2

1,L2

, … L13)

, … L13)

G

WHITE

Maximum(L

=

Minimum(L

4. Response time is the time required for the display to transition from white to black (rise time, TrR) and

from black to white(Decay Time, TrD). For additional information see FIG 3.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined
for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the

LCD surface. For more information see FIG 4.

6. Gray scale specification * fV = 60Hz

Gray Level Luminance [%] (Typ)

L0 TBD

L7 TBD

L15 TBD

L23 TBD

L31 TBD

L39 TBD

L47 TBD

L55 TBD

L63 TBD

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15/ 32

www.panelook.com

Global LCD Panel Exchange Center

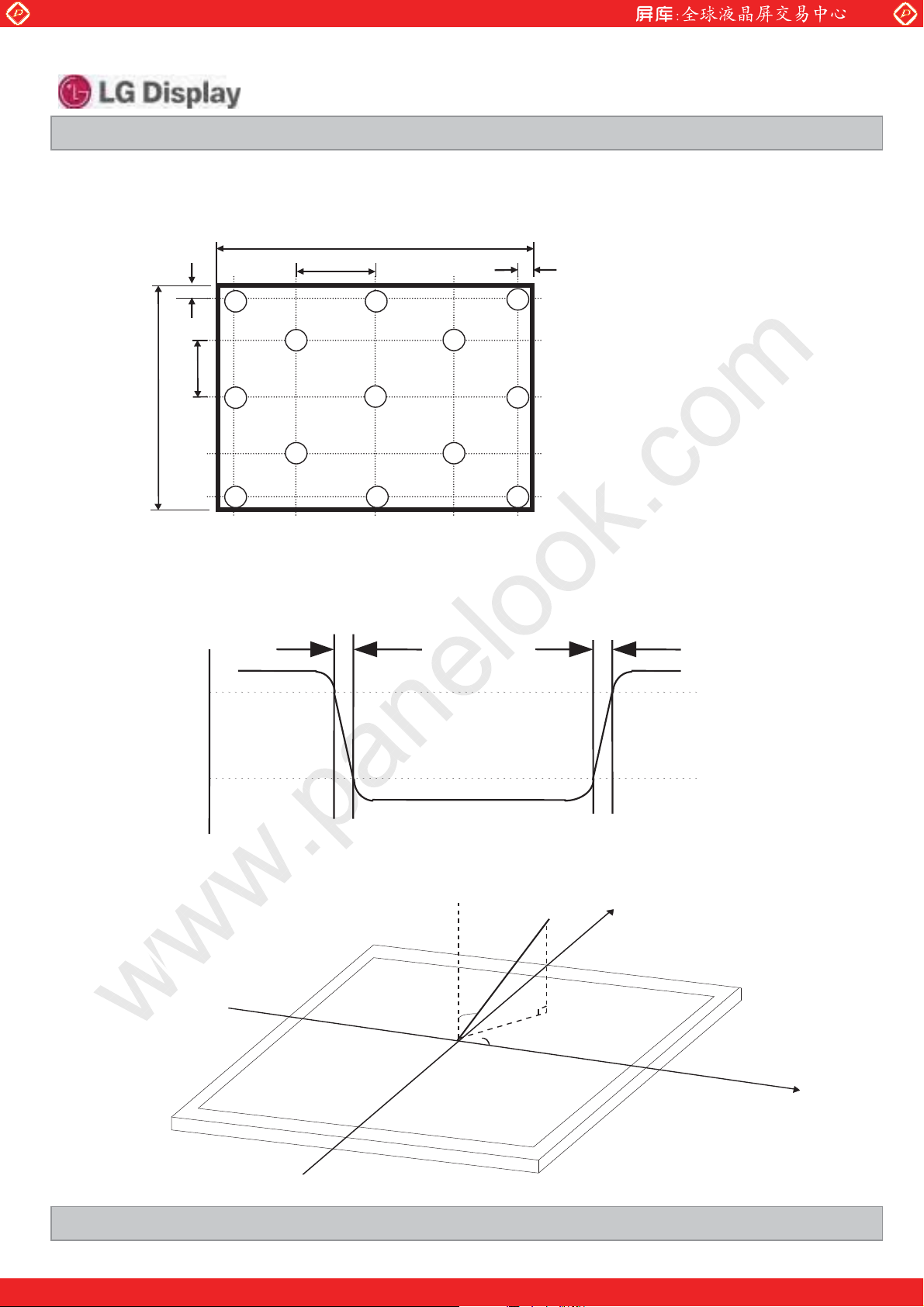

FIG. 2 Luminance

<Measuring point for Average Luminance & measuring point for Luminance variation>

www.panelook.com

Product Specification

H

A

LP133WH2

Liquid Crystal Display

D

C

V

L6

L2

B

L9

L4 L5

L11 L13

L7

L3

L1

Center Point

L12

L8

L10

H,V : ACTIVE AREA
A : H/4 mm
B : V/4 mm
C : 10 mm
D : 10 mm
POINTS : 13 POINTS

FIG. 3 Response Time

The response time is defined as the following figure and shall be measured by switching the input signal

for “black” and “white”.

Tr

Tr

R

D

%

100

90

Optical

Response

10

0

FIG. 4 Viewing angle

I

= 180

q

I

= 270

Left

white

,

q

Down

black

Normal

<Dimension of viewing angle range>

T

I

,

Eye

Y

white

I

= 90q, Up

I

q

= 0

,

Right

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model LP133WH2.
In addition the figures in the next page are detailed mechanical drawing of the LCD.

Horizontal 306.3 r 0.50mm

LP133WH2

Liquid Crystal Display

Outline Dimension

Bezel Area

Active Display Area

Weight 300 g (Max.)

Surface Treatment Glare treatment of the front polarizer

Vertical 177.7 r 0.50mm

Thickness 3.6 mm (Max.)

Horizontal 297.42 mm

Vertical 168.57 mm

Horizontal 293.42mm

Vertical 164.97 mm

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

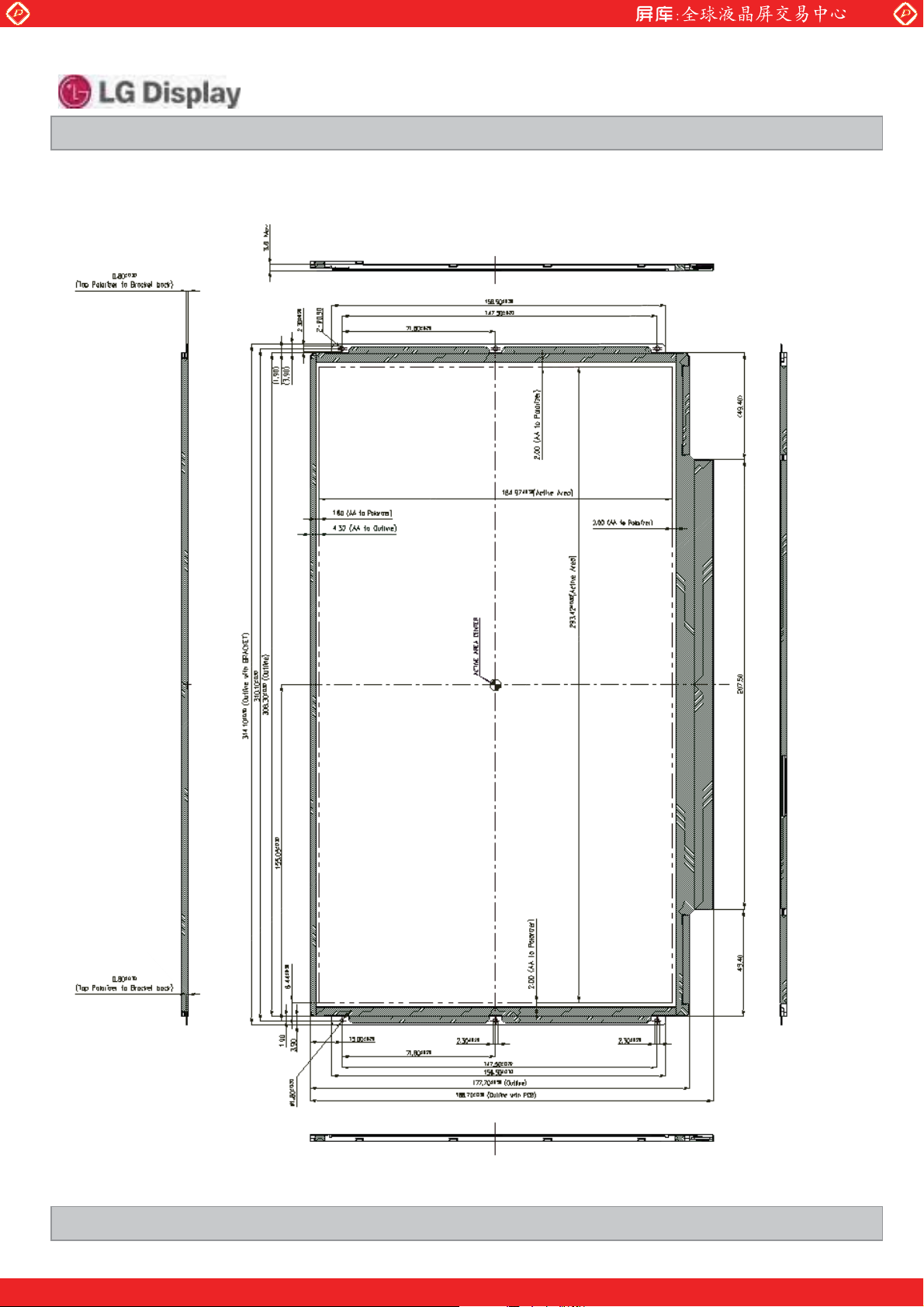

<FRONT VIEW>

Note) Unit:[mm], General tolerance:

r 0.5mm

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18/ 32

www.panelook.com

Global LCD Panel Exchange Center

V

2

/

VIEW

m

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

<REAR VIEW>

>

Note) Unit:[mm], General tolerance:

Note) Unit:[mm], General tolerance:

r 0.5mm

.5m

Ver. 0.1 Jan. 17. 2012

er. 0.1 Jan. 17. 201

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19/ 32

32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

LGD Proposal for system cover design.(Appendix)

LP133WH2

Liquid Crystal Display

1

Gap check for securing the enough gap between LCM
and System cover.

Max Thickness

Sponge

LCM reflector side

System Cover

A Boundary Line

1.Rear side of LCM is sensitive against external stress,and previous check

about interference is highly needed.

Define

2.In case there is something from system cover comes into the boundary
above,mechanical interference may cause the FOS defects.
(Eg:Ripple,White spot..)

2 Check if antenna cable is sufficiently apart from T-CON of LCD Module.

Define

NO GOOD

GOOD

1.If system antenna is overlapped with T-CON,it might be cause the noise.

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

LGD Proposal for system cover design.

LP133WH2

Liquid Crystal Display

3

Plate Bottom

Gap check for securing the enough gap between LCM

and System hinge.

LCM reflector side

Source PCB

Hinge

GAP:Min2.0mm

(“I” TYPE)

LED

(“L” TYPE)

Define

4

Define

1.At least 2.0mm of gap needs to be secured to prevent the shock

related defects.

2.”L” type of hinge is recommended than “I” type under shock test.

Checking the path of the System wire.

Good

#3

Ok

#2

Bad

#1

1.COF area needs to be handled with care.

2.GOOD ÎWire path design to system side.
OKÎ Wire path is located between COFs.

BADÎWire path overlapped with COF area.

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

LGD Proposal for system cover design.

5 Using a bracket on the top of LCM is not recommended.

bracket

LP133WH2

Liquid Crystal Display

With bracket Without bracket

1.Condition without bracket is good for mechanical noise,and can minimize

the light leakage from deformation of bracket.

Define

2.The results shows that there is no difference between the condition
with or without bracket.

6 Securing additional gap on CNT area..

A

System cover inner side.

User connector
area.

A-1

User connector
Cable pathway.

A~A-1

cut

FPC:Flexible Printed Circuit.

1.CNT area is specially sensitive against external stress,and additional

Define

gap by cutting on system cover will be helpful on removing the Ripple.

2.Using a thinner CNT will be better. (eg: FPC type)

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

6. Reliability

Environment test condition

No. Test Item Conditions

1 High temperature storage test Ta= 60qC, 240h

2 Low temperature storage test Ta= -20qC, 240h

3 High temperature operation test Ta= 50qC, 50%RH, 240h

4 Low temperature operation test Ta= 0qC, 240h

5 Vibration test (non-operating) Sine wave, 5 ~ 150Hz, 1.5G, 0.37oct/min

3 axis, 30min/axis

LP133WH2

Liquid Crystal Display

6 Shock test (non-operating) - No functional or cosmetic defects following a shock

to all 6 sides delivering at least 180 G in a half sine
pulse no longer than 2 ms to the display module

- No functional defects following a shock delivering
at least 200 g in a half sine pulse no longer than 2
ms to each of 6 sides. Each of the 6 sides will be
shock tested with one each display, for a total of 6
displays

7 Altitude operating

storage / shipment

{ Result Evaluation Criteria }

There should be no change which might affect the practical display function when the display quality

test is conducted under normal operating condition.

0 ~ 10,000 feet (3,048m) 24Hr
0 ~ 40,000 feet (12,192m) 24Hr

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Liquid Crystal Display

Product Specification

7. International Standards

7-1. Safety

a) UL 60950-1, Second Edition, Underwriters Laboratories Inc.

Information Technology Equipment - Safety - Part 1 : General Requirements.

b) CAN/CSA C22.2 No.60950-1-07, Second Edition, Canadian Standards Association.

Information Technology Equipment - Safety - Part 1 : General Requirements.

c) EN 60950-1:2006 + A11:2009, European Committee for Electrotechnical Standardization (CENELEC).

Information Technology Equipment - Safety - Part 1 : General Requirements.

d) IEC 60950-1:2005, Second Edition, The International Electrotechnical Commission (IEC).

Information Technology Equipment - Safety - Part 1 : General Requirements.

LP133WH2

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24/ 32

www.panelook.com

Global LCD Panel Exchange Center

8. Packing

8-1. Designation of Lot Mark

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

Year

Mark

CBA

2014E2015

D

201320122011

2016G2017H2018J2019

F

2. MONTH

Month

Mark

Apr5May

4

Jun

6

Jul

7

Aug9Sep

8

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one box : 20pcs

b) Box Size : 478mm X 365mm X 244mm

2020

K

Oct

A

Nov

B

DecMarFebJan

C321

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25/ 32

www.panelook.com

Global LCD Panel Exchange Center

8-3. Label Description

Model Name

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

Fujitsu CODE

LGD CODE

Lot Mark

LGD Code

(1) Model Name : L P 1 3 3 W H 2 - T L E 1

(2) Lot Mark : 1 3 3 B 1 C 0 0 0 0 0 0 1

Fujistu Code

Revision Code
Product Type
Display Mode
Basic Model Serial No.
Resolution : HD

Size (inch) : 13.3”

Application : NBPC
LGD Brand Initial: L

SERIAL NO.

MONTH
YEAR
SIZE

1)Fujistu P/N : CP567085-01

2)REV NO: 01A

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26/ 32

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1. MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to
the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
(10) When handling the LCD module, it needs to handle with care not to give mechanical stress to the PCB

and Mounting Hole area.”

9-2. OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=· 200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on) becomes

longer.
(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference.

Ver. 0.1 Jan. 17. 2012

27/ 32

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

9-3. ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5. STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5qCand 35qC at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well
ion-blown equipment or in such a condition, etc.

(2) The protection film is attached to the polarizer with a small amount of glue. If some stress is applied

to rub the protection film against the polarizer during the time you peel off the film, the glue is apt to
remain on the polarizer.
Please carefully peel off the protection film without rubbing it against the polarizer.

(3) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the polarizer after the protection film is peeled off.

(4) You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is

recognized, please wipe them off with absorbent cotton waste or other soft material like chamois
soaked with normal-hexane.

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

28/ 32

www.panelook.com

Global LCD Panel Exchange Center

Byte

(Dec)

Byte

(Hex)

Field Name and Comments

Value

(Hex)

Value

(Bin)

Feature Support (no_DPMS, no_Active Off/Very Low Power, RGB color display, Timing BLK 1,no_ GTF)

0A

00001010

Vendor / Product EDID

Version

Display

Parameters

Panel Color Coordinates

Establ

ished

Timin

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 1/3

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

Header

Standard Timing ID

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

Header

00

Header

01

Header

02

Header

03

Header

04

Header

05

Header

06

Header

07

EISA manufacture code ( 3 Character ID ) LGD

08

EISA manufacture code (Compressed ASCซ)

09

Panel Supplier Reserved - Product Code 034Ch

0A

( Hex. LSB first )

0B

LCD Module Serial No - Preferred but Optional ("0" If not used)

0C

LCD Module Serial No - Preferred but Optional ("0" If not used)

0D

LCD Module Serial No - Preferred but Optional ("0" If not used)

0E

LCD Module Serial No - Preferred but Optional ("0" If not used)

0F

Week of Manufacture 00 weeks

10

Year of Manufacture 2012 years

11

EDID structure version # = 1

12

EDID revision # = 3

13

Video input Definition = Digital signal

14

Max H image size (Rounded cm) = 29 cm

15

Max V image size (Rounded cm) = 16 cm

16

Display gamma = (gamma*100)-100 = Example:(2.2*100)-100=120 = 2.2 Gamma

17

18

Red/Green Low Bits (RxRy/GxGy)

19

Blue/White Low Bits (BxBy/WxWy)

1A

Red X Rx = 0.589

1B

Red Y Ry = 0.348

1C

Green X Gx = 0.340

1D

Green Y Gy = 0.557

1E

Blue X Bx = 0.158

1F

Blue Y By = 0.121

20

White X Wx = 0.313

21

White Y Wy = 0.329

22

Established timing 1 (00h if not used)

23

Established timing 2 (00h if not used)

24

Manufacturer's timings (00h if not used)

25

Standard timing ID1 (01h if not used)

26

Standard timing ID1 (01h if not used)

27

Standard timing ID2 (01h if not used)

28

Standard timing ID2 (01h if not used)

29

Standard timing ID3 (01h if not used)

2A

Standard timing ID3 (01h if not used)

2B

Standard timing ID4 (01h if not used)

2C

Standard timing ID4 (01h if not used)

2D

Standard timing ID5 (01h if not used)

2E

Standard timing ID5 (01h if not used)

2F

Standard timing ID6 (01h if not used)

30

Standard timing ID6 (01h if not used)

31

Standard timing ID7 (01h if not used)

32

Standard timing ID7 (01h if not used)

33

Standard timing ID8 (01h if not used)

34

Standard timing ID8 (01h if not used)

35

00
FF
FF
FF
FF
FF
FF

00

30
E4
4C

03

00

00

00

00

00

16

01

03

80
1D

10

78

C2

85

96

59

57
8E

28
1F

50

54

00

00

00

01

01

01

01

01

01

01

01

01

01

01

01

01

01

01

01

00000000

11111111

11111111

11111111

11111111

11111111

11111111

00000000

00110000

11100100

01001100

00000011

00000000

00000000

00000000

00000000

00000000

00010110

00000001

00000011

10000000

00011101

00010000

01111000

11000010

10000101

10010110

01011001

01010111

10001110

00101000

00011111

01010000

01010100

00000000

00000000

00000000

00000001

00000001

00000001

00000001

00000001

00000001

00000001

00000001

00000001

00000001

00000001

00000001

00000001

00000001

00000001

00000001

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

29/ 32

www.panelook.com

Global LCD Panel Exchange Center

Byte

(Dec)

Byte

(Hex)

Field Name and Comments

Value

(Hex)

Value

(Bin)

Non-Interlace, Normal display, no stereo, Digital Separate ( Vsync_NEG, Hsync_NEG ), DE only note : LSB is set to '1' if

Descriptor Defined by manufacturer

00

00000000

Manufacturer P/N(If<13 char--> 0Ah, then terminate with ASCซ code 0Ah,set remaining char = 20h)

Manufacturer P/N(If<13 char--> 0Ah, then terminate with ASCซ code 0Ah,set remaining char = 20h)

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 2/3

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

54

55

56

57

58

59

60

61

62

63

64

65

Timing Descriptor #1Timing Descriptor #2Timing Descriptor #3

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

Pixel Clock/10,000 (LSB) 70 MHz @ 60Hz

36

Pixel Clock/10,000 (MSB)

37

Horizontal Active (lower 8 bits) 1366 Pixels

38

Horizontal Blanking(Thp-HA) (lower 8 bits) 110 Pixels

39

Horizontal Active / Horizontal Blanking(Thp-HA) (upper 4:4bits)

3A

Vertical Avtive 768 Lines

3B

Vertical Blanking (Tvp-HA) (DE Blanking typ.for DE only panels) 22 Lines

3C

Vertical Active : Vertical Blanking (Tvp-HA) (upper 4:4bits)

3D

Horizontal Sync. Offset (Thfp) 36 Pixels

3E

Horizontal Sync Pulse Width (HSPW) 36 Pixels

3F

Vertical Sync Offset(Tvfp) : Sync Width (VSPW) 4 Lines : 8 Lines

40

Horizontal Vertical Sync Offset/Width (upper 2bits)

41

Horizontal Image Size (mm) 293 mm

42

Vertical Image Size (mm) 165 mm

43

Horizontal Image Size / Vertical Image Size

44

Horizontal Border = 0 (Zero for Notebook LCD)

45

Vertical Border = 0 (Zero for Notebook LCD)

46

47

Flag

48

Flag

49

Flag

4A

Data Type Tag (Descriptor Defined by manufacturer )

4B

Flag

4C

Descriptor Defined by manufacturer

4D

Descriptor Defined by manufacturer

4E

Descriptor Defined by manufacturer

4F

Descriptor Defined by manufacturer

50

Descriptor Defined by manufacturer

51

Descriptor Defined by manufacturer

52

Descriptor Defined by manufacturer

53

Descriptor Defined by manufacturer

54

Descriptor Defined by manufacturer

55

Descriptor Defined by manufacturer

56

Descriptor Defined by manufacturer

57

Descriptor Defined by manufacturer

58

59

Flag

5A

Flag

5B

Flag

5C

Data Type Tag ( ASCII String )

5D

Flag

5E

ASCII String L

5F

ASCII String G

60

ASCII String

61

ASCII String D

62

ASCII String i

63

ASCII String s

64

ASCII String p

65

ASCII String l

66

ASCII String a

67

ASCII String y

68

69

6A

Manufacturer P/N(If<13 char--> 0Ah, then terminate with ASCซ code 0Ah,set remaining char = 20h)

6B

58
1B

56
6E

50

00

16

30

24

24

48

00

25
A5

10

00

00

19

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00
FE

00
4C

47

20

44

69

73

70
6C

61

79
0A

20

20

01011000

00011011

01010110

01101110

01010000

00000000

00010110

00110000

00100100

00100100

01001000

00000000

00100101

10100101

00010000

00000000

00000000

00011001

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

00000000

11111110

00000000

01001100

01000111

00100000

01000100

01101001

01110011

01110000

01101100

01100001

01111001

00001010

00100000

00100000

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

30/ 32

www.panelook.com

Global LCD Panel Exchange Center

Byte

(Dec)

Byte

(Hex)

Field Name and Comments

Value

(Hex)

Value

(Bin)

Checksum

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 3/3

www.panelook.com

LP133WH2

Liquid Crystal Display

Product Specification

108

109

110

111

112

113

114

115

116

117

118

119

120

Timing Descriptor #4

121

122

123

124

125

126

127

Flag

6C

Flag

6D

Flag

6E

Data Type Tag ( ASCII String )

6F

Flag

70

ASCII String L

71

ASCII String P

72

ASCII String 1

73

ASCII String 3

74

ASCII String 3

75

ASCII String W

76

ASCII String H

77

ASCII String 2

78

ASCII String -

79

ASCII String T

7A

ASCII String L

7B

ASCII String E

7C

ASCII String 1

7D

Extension flag (# of optional 128 panel ID extension block to follow, Typ = 0)

7E

Check Sum (The 1-byte sum of all 128 bytes in this panel ID block shall = 0)

7F

00

00

00
FE

00
4C

50

31

33

33

57

48

32
2D

54
4C

45

31

00

DE

00000000

00000000

00000000

11111110

00000000

01001100

01010000

00110001

00110011

00110011

01010111

01001000

00110010

00101101

01010100

01001100

01000101

00110001

00000000

11011110

Ver. 0.1 Jan. 17. 2012

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

31/ 32

www.panelook.com
