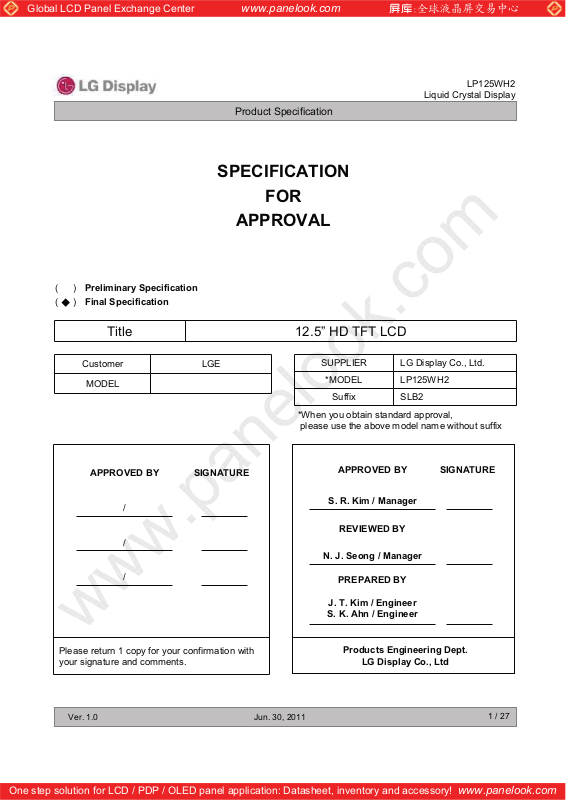

Page 1
Global LCD Panel Exchange Center
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
()Preliminary Specification
()Final Specification
Title 12.5” HD TFT LCD
Customer LGE
MODEL
APPROVED BY SIGNATURE
/
/
SUPPLIER LG Display Co., Ltd.
*MODEL LP125WH2
Suffix SLB2
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY
S. R. Kim / Manager
REVIEWED BY
N. J. Seong / Manager
SIGNATURE
/
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 1.0 Jun. 30, 2011
PREPARED BY
J. T. Kim / Engineer
S. K. Ahn / Engineer
Products Engineering Dept.
LG Display Co., Ltd
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1/27
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Contents
No ITEM
COVER
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS
3-2 INTERFACE CONNECTION
3-3 LVDS SIGNAL TIMING SPECIFICATIONS
3-4 SIGNAL TIMING SPECIFICATIONS
3-5 SIGNAL TIMING WAVEFORMS
3-6 COLOR INPUT DATA REFERNECE

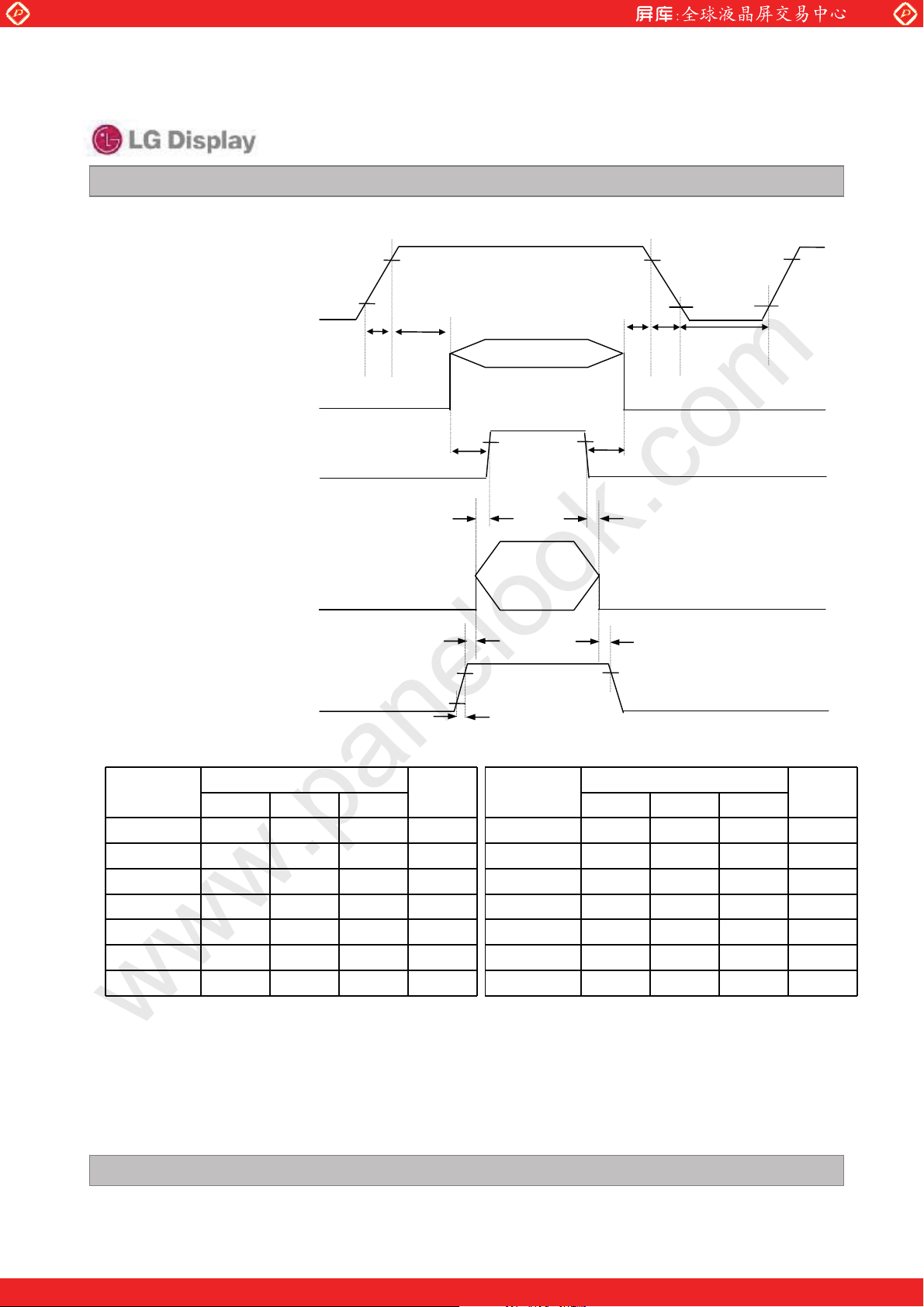

3-7 POWER SEQUENCE

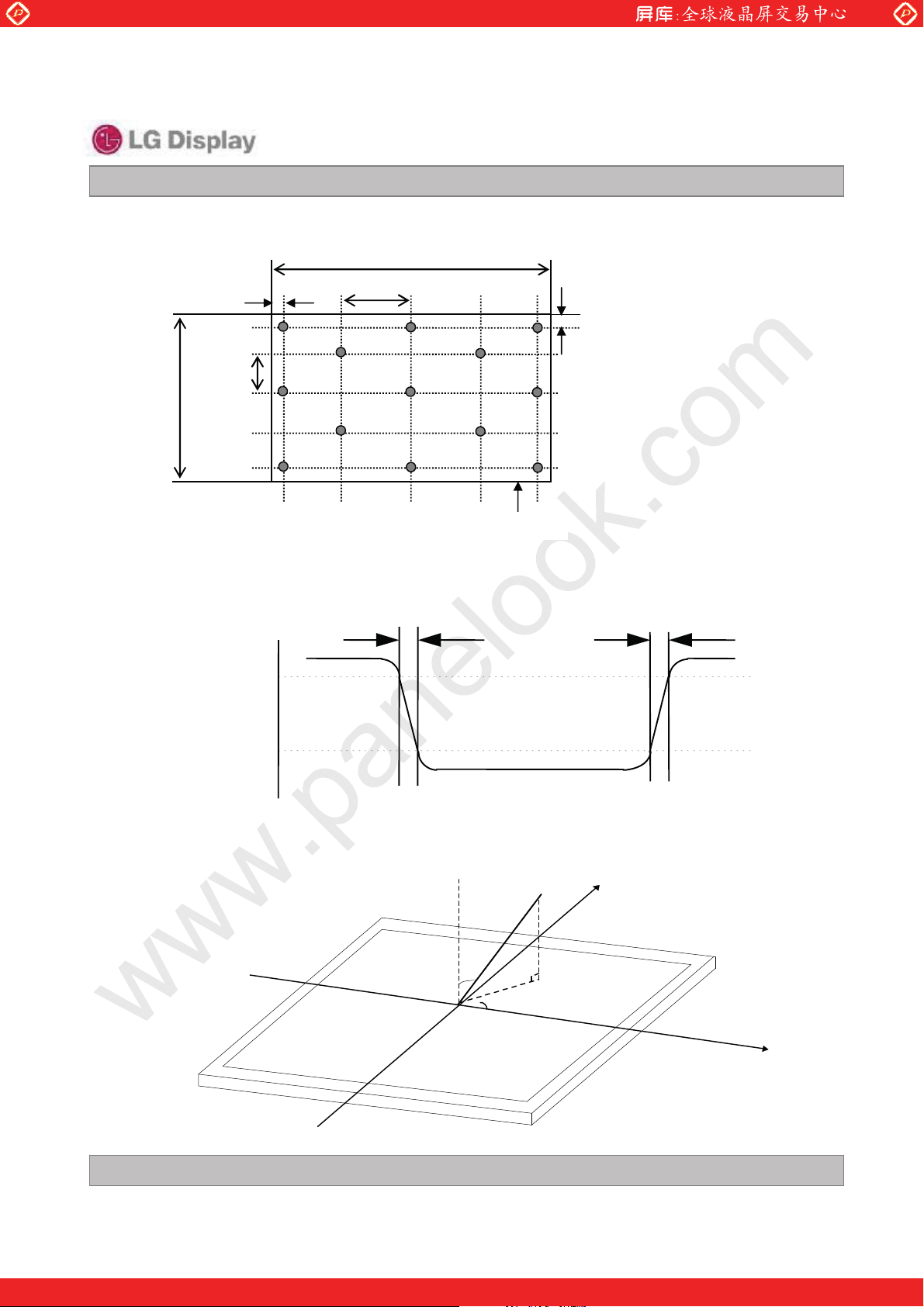

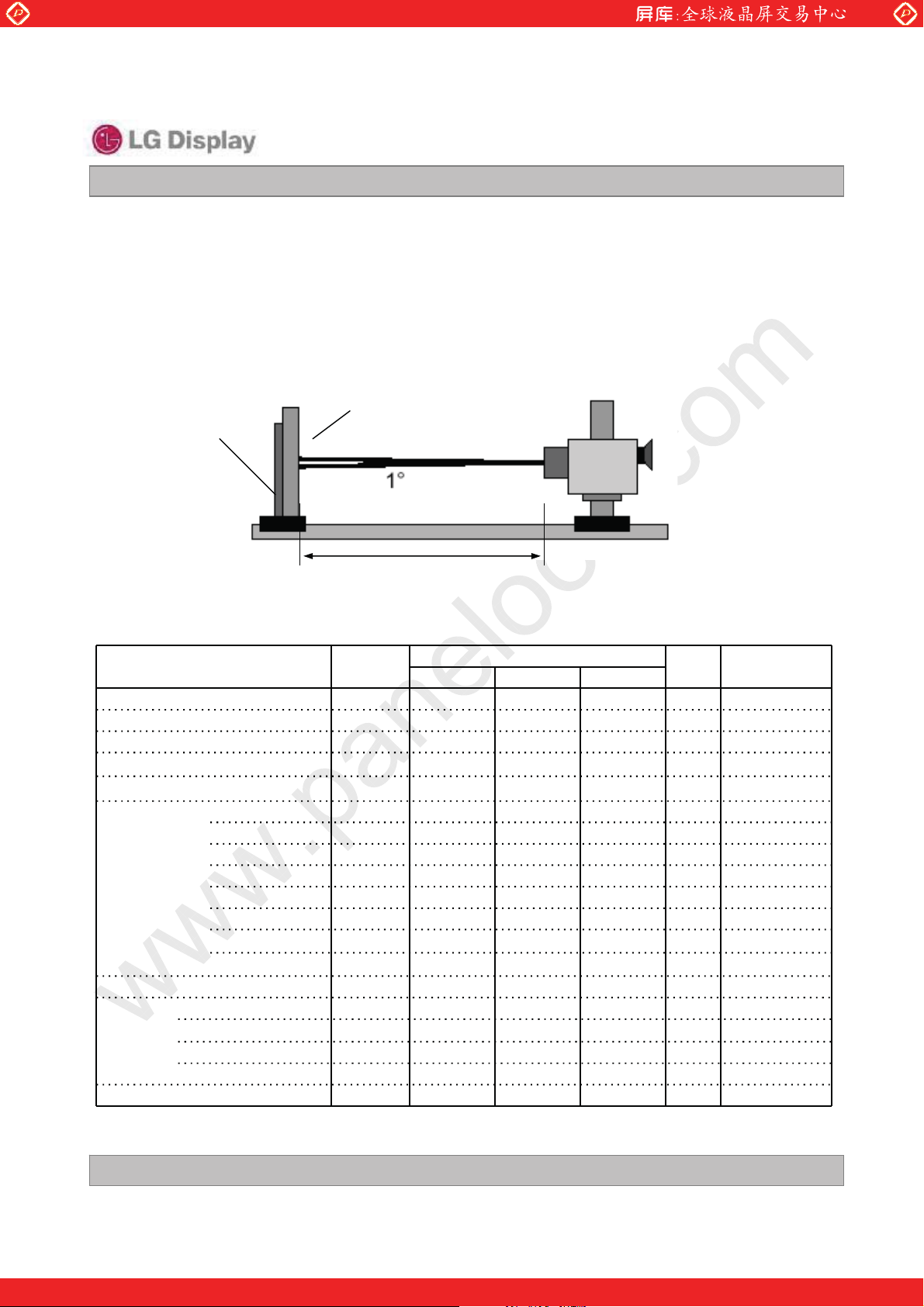

4 OPTICAL SFECIFICATIONS
Page
1
2
3
4
5
6
7
8
10
10
11
12
13

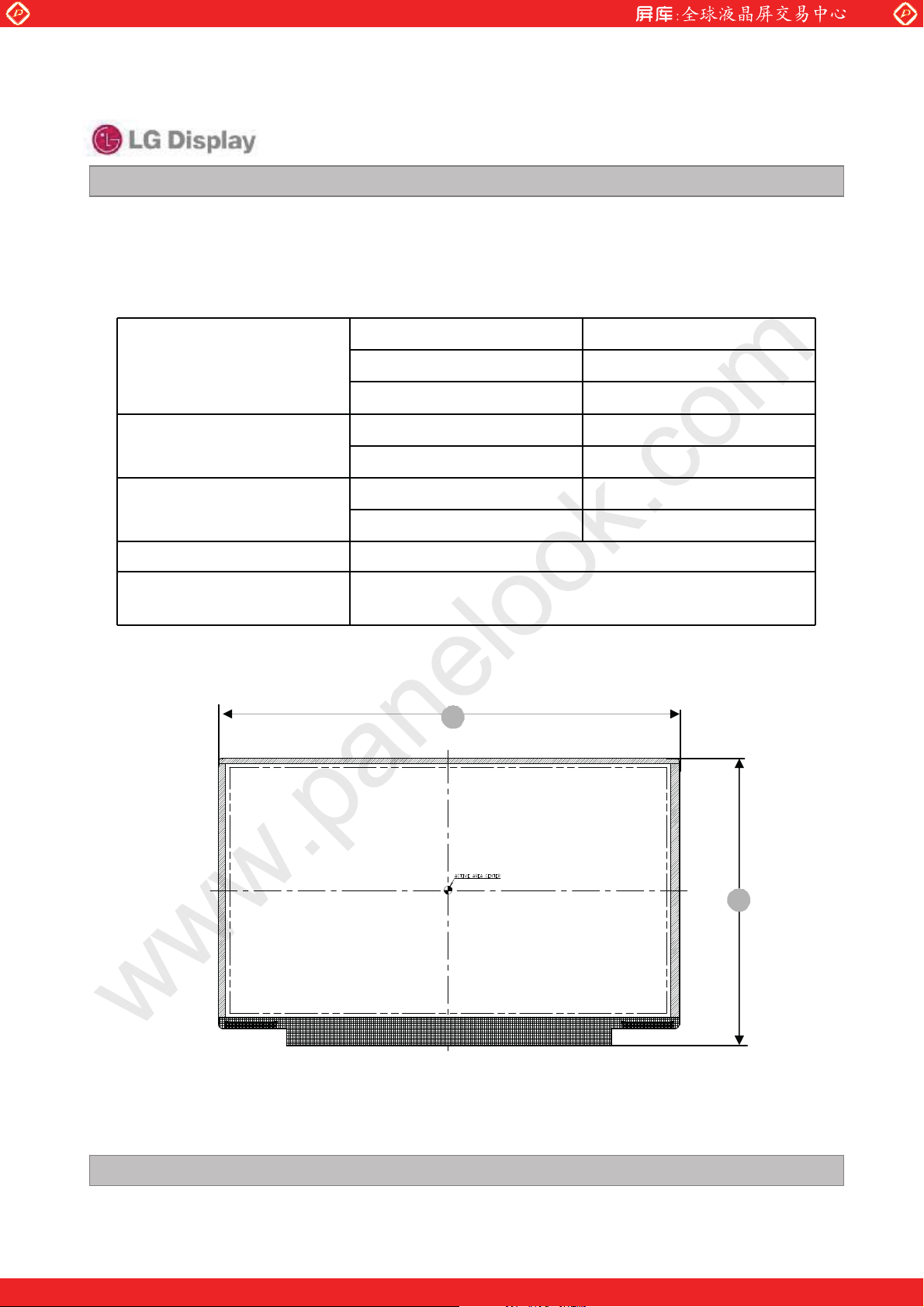

5 MECHANICAL CHARACTERISTICS
6 RELIABLITY
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 EMC
8 PACKING
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS
A APPENDIX. Enhanced Extended Display Identification Data
Ver. 1.0 Jun. 30, 2011
16
20
21
21
22
22
23
25
2/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
3-2. Interface Connections
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No Revision Date Page Description
0.0 Jun. 9. 2011 All First Draft (Preliminary Specification) 0.0
8 Add Connector UJU or equivalent
1.0 Jun. 30. 2011

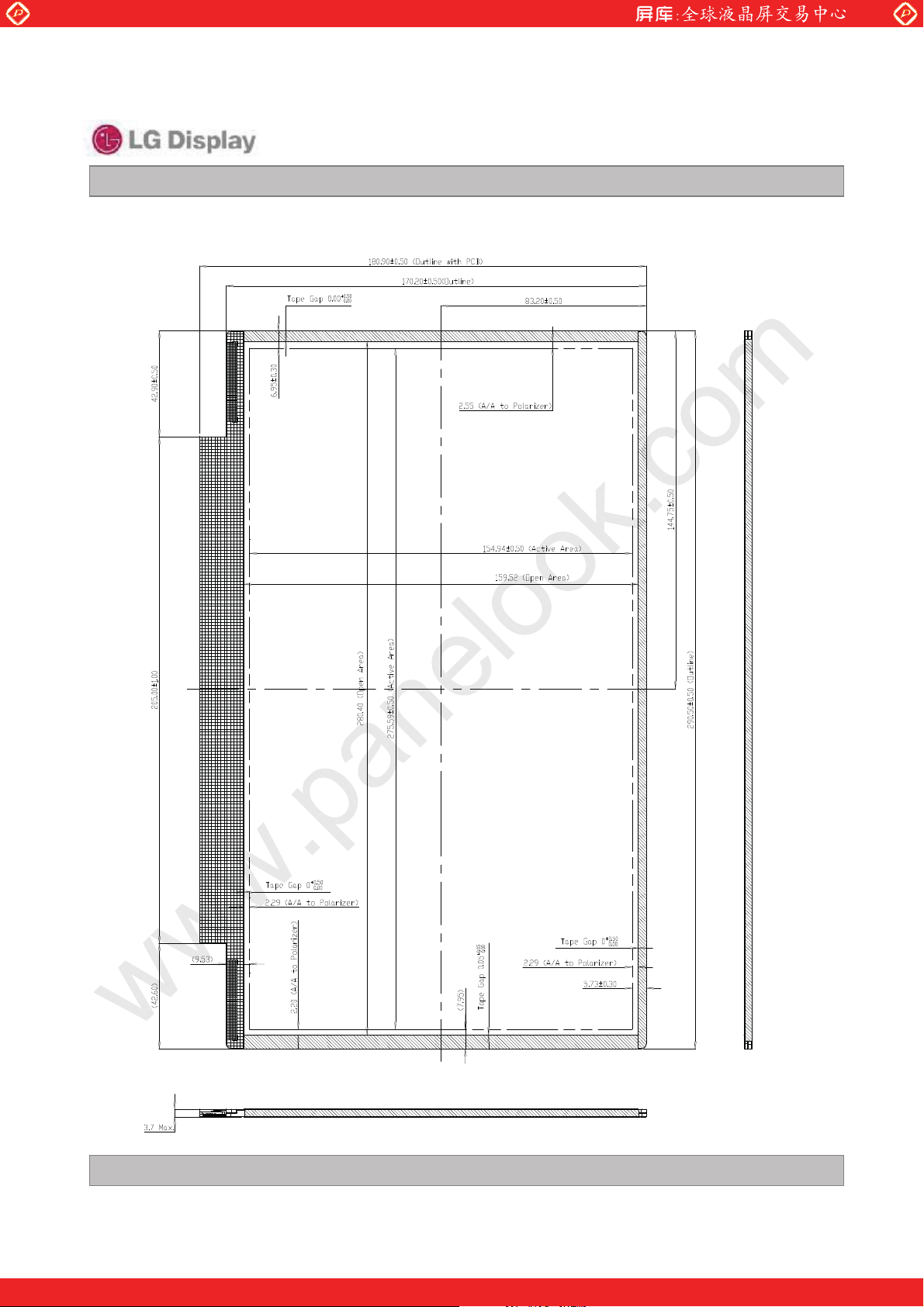

17 Add LCM dimension Drawing
- Final Specification
EDID
ver
1.0
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/27
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. General Description
The LP125WH2 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 12.5inches diagonally measured active display area with HD
resolution(1366 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue subpixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors.
The LP125WH2 has been designed to apply the interface method that enables low power, high speed, low
EMI.
The LP125WH2 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP125WH2 characteristics provide an excellent flat display for office automation products such as Notebook
PC.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
EDID
CN
1
User connector
40
Pin
BLOCK
POWER
BLOCK
LVDS &
Timing
Control
TFT-LCD Panel
(1366 x 768)
1
Source Driver Circuit
1366
Block
PWM & VBL
LED Backlight Ass’y
Control & Data Power EDID signal & Power
General Features
Active Screen Size 12.5 inches diagonal
Outline Dimension 290.5(H) 180.9(V) 3.7(D,Max.) [mm]
Pixel Pitch 0.201mm 0.201 mm
Pixel Format 1366 horiz. By 768 vert. Pixels RGB strip arrangement
Color Depth 6-bit, 262,144 colors
Luminance, White 300 cd/m
Power Consumption Total 4.8 W(Typ.) Logic :0.8 W (Typ.@ Mosaic), B/L : 4.0W (Typ.@ VLED 12V ))
Weight 290g (Max.)
Display Operating Mode Transmissive mode, normally Black
Surface Treatment Anti Glare treatment of the front polarizer
RoHS Compliance Yes
BFR / PVC / As Free Yes for all
Ver. 1.0 Jun. 30, 2011
2
(Typ.5 point)
1
COG(Chip On Glass)
768
4/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Table 1. ABSOLUTE MAXIMUM RATINGS
Parameter Symbol
Power Input Voltage
Operating Temperature
Storage Temperature
Operating Ambient Humidity
Storage Humidity
VCC -0.3 4.0 Vdc at 25 ± 5°C
TOP 050°C1
HST -20 60 °C1
HOP 10 90 %RH 1
HST 10 90 %RH 1
Values
Units Notes
Min Max
Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39
Wet Bulb
20
]
30
Temperature [
10
0
°C Max, and no condensation of water.
90% 80%
60
50
40
60%
Humidity[(%)RH]
40%
20%
10%
Storage
Operation
-20
10
20 30 40 50
60 70 800
Dry Bulb Temperature []
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5/27
www.panelook.com
Page 6
Global LCD Panel Exchange Center
3. Electrical Specifications
3-1. Electrical Characteristics
The LP125WH2 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input which powers the LED BL.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Table 2. ELECTRICAL CHARACTERISTICS
LOGIC :
BACKLIGHT : ( with LED Driver)
PWM Jitter
Values
SymbolParameter
NotesUnit
MaxTypMin
CCPower Supply Input Voltage
CCMosaicPower Supply Input Current
CCPower Consumption
CC_PPower Supply Inrush Current
LVDSLVDS Impedance
LEDLED Power Input Voltage
11010090Z
22.521-ILEDLED Power Input Current
4.24.0-PLEDLED Power Consumption
LED_PLED Power Inrush Current
1V3.63.33.0V
2mA300250-I
2W1.00.8-P
3mA1500-I
4
5V21.012.07.0V
6mA
6W
7mA2000-I
8%100-1PWM Duty Ratio
-
PWMPWM Impedance
k604020Z
9%0.2-0
PWMPWM Frequency
PWM High Level Voltage
PWM Low Level Voltage
Ver. 1.0 Jun. 30, 2011
PWM_H
PWM_L
PWMLED_EN Impedance
LED_EN_HLED_EN High Voltage
LED_EN_LLED_EN Low Voltage
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10Hz1000-200F
V5.3-3.0V
V0.3-0V
k604020Z
V5.3-3.0V
V0.3-0V
11Hrs--12,000Life Time
6/27
www.panelook.com
Page 7
Global LCD Panel Exchange Center
Note)
1. The measuring position is the connector of LCM and the test conditions are under 25, fv = 60Hz,
Black pattern.
2. The specified Icc current and power consumption are under
the Vcc = 3.3V , 25, fv = 60Hz condition and Mosaic pattern.
3. The below figures are the measuring Vcc condition and the Vcc control block LGD used.
The Vcc condition is same as the minimum of T1 at Power on sequence.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Rising time
Vcc
0V
4. This impedance value is needed for proper display and measured form LVDS Tx to the mating connector.
5. The measuring position is the connector of LCM and the test conditions are under 25.
6. The current and power consumption with LED Driver are under the Vled = 12.0V , 25, Dimming of
Max luminance and White pattern with the normal frame frequency operated(60Hz).
7. The below figures are the measuring Vled condition
and the Vled control block LGD used.
VLED control block is same with Vcc control block.
90%
10%
0.5ms
3.3V
Rising time
V
LED
0V
10%
12.0V
90%
0.5ms
8. The operation of LED Driver below minimum dimming ratio may cause flickering or reliability issue.
9. This Spec. is not effective at 100% dimming ratio as an exception because it has DC level equivalent
to 0Hz. In spite of acceptable range as defined, the PWM Frequency should be fixed and stable for
more consistent brightness control at any specific level desired.
10. The life time is determined as the time at which brightness of LCD is 50% compare to that of minimum
value specified in table 7. under general user conditionU
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/27
www.panelook.com
Page 8
Global LCD Panel Exchange Center
3-2. Interface Connections
This LCD employs two interface connections, a 40 pin connector used for the module electronics interface and
the other connector used for the integral backlight system.
Pin Symbol Description Notes
1 NC No Connection
2 VCC LCD Logic and driver power (3.3V Typ.)
3 VCC LCD Logic and driver power (3.3V Typ.)
4 V EEDID DDC Power (3.3V)
5 NC No Connection
6 Clk EEDID DDC Clock
7 DATA EEDID DDC Data
8 ORX0- Negative LVDS differential data input
9 ORX0+ Positive LVDS differential data input
10 GND LCM Ground
11 ORX1- Negative LVDS differential data input
12 ORX1+ Positive LVDS differential data input
13 GND LCM Ground
14 ORX2- Negative LVDS differential data input
15 ORX2+ Positive LVDS differential data input
16 GND LCM Ground
17 ORXC- Negative LVDS differential clock input
18 ORXC+ Positive LVDS differential clock input
19 GND LCM Ground
20
21
22 GND LCM Ground
23
24
25 GND LCM Ground
26
27
28 GND LCM Ground
29
30
31
32
33
34
35
36
37
38
39
40
NC
NC
NC
NC
NC
NC
NC
NC
GND
GND
GND
NC
PWM System PWM Signal input for dimming
LED_EN
NC
VLED LED Backlight Power (7V-21V)
VLED LED Backlight Power (7V-21V)
VLED LED Backlight Power (7V-21V)
No Connection
No Connection
No Connection
No Connection
No Connection
No Connection
No Connection
No Connection
LCM Ground (LED Backlight Ground)
LCM Ground (LED Backlight Ground)
LCM Ground (LED Backlight Ground)
No Connection
LED Backlight On/Off
No Connection
www.panelook.com
Product Specification
Liquid Crystal Display
[Interface Chip]
1. LCD :
SiW, SW0632 (LCD Controller)
Including LVDS Receiver.
2. System :
* Pin to Pin compatible with LVDS
[Connector]
LSMtron GT05Q-40S-H10
UJU IS050-L40B-C10
or equivalent
[Mating Connector]
20345-#40E-## series or equivalent
[Connector pin arrangement]
40
[LCD Module Rear View]
LP125WH2
1
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/27
www.panelook.com
Page 9
Global LCD Panel Exchange Center

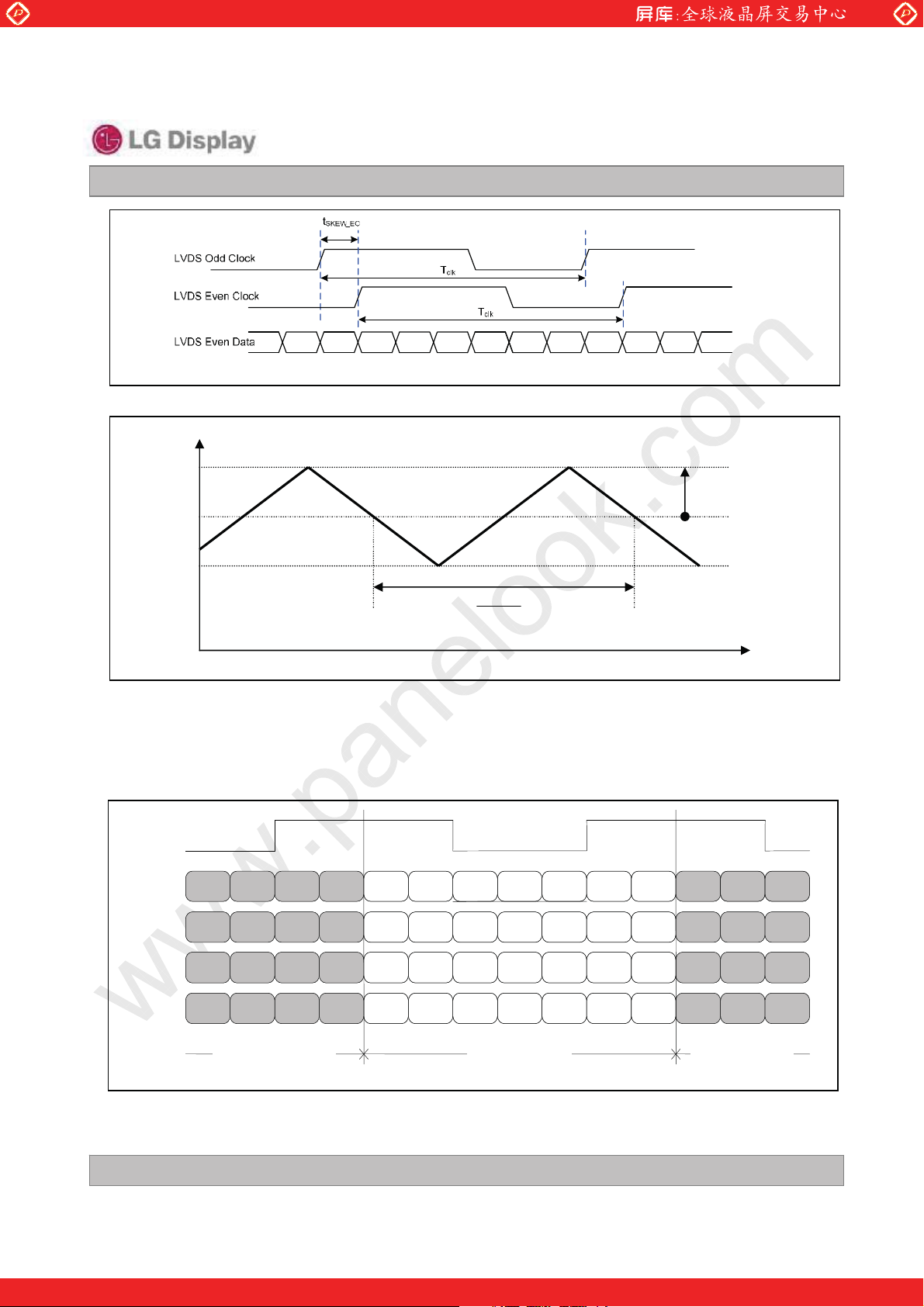

3-3. LVDS Signal Timing Specifications
3-3-1. DC Specification
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Description
LVDS Differential Voltage |V
LVDS Common mode Voltage V
LVDS Input Voltage Range V
3-3-2. AC Specification
Description Symbol Min Max Unit Notes
LVDS Clock to Data Skew Margin
Symb
ol
| 100 600 mV -
ID
CM
IN
t
SKEW
t
SKEW
Min Max Unit Notes
0.6 1.8 V -
0.3 2.1 V -
- 400 + 400 ps
- 600 + 600 ps
85MHz > Fclk
65MHz > Fclk
65MHz
25MHz
LVDS Clock to Clock Skew Margin (Even
to Odd)
Maximum deviation
of input clock frequency during SSC
Maximum modulation frequency
of input clock during SSC
Ver. 1.0 Jun. 30, 2011
t
SKEW_EO
F
DEV
F
MOD
- 1/7 + 1/7 T
clk
- 3% -
- 200 KHz -
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
-
9/27
www.panelook.com
Page 10
Global LCD Panel Exchange Center
Freq.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
< Clock skew margin between channel >
F
max
F
center
F
min
3-3-3. Data Format
- LVDS 1 Port
RCLK+
RA+/-
R3 R2
R1 R0
X
m
tvk
< Spread Spectrum >
G0 R5 R4 R3 R2 R1 R0
G0
m
QGm
kl}
Time
R5 R4
RB+/-
RC+/-
RD+/-
G4 G3
B5 B4
G7 G6
Previous (N-1)th Cycle Next (N+1 )th Cycle
G2 G1
B3 B2
R7 R6
B1 B0 G5 G4 G3 G2 G1
DE VSYNC HSYNC B5 B4 B3 B2
X B7 B6 G7 G6 R7 R6
Current (Nth ) Cycle
B1
DE
VSYNC HSYNC
X
< LVDS Data Format >
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
B0 G5
B7 B6
10 / 27
www.panelook.com
Page 11
Global LCD Panel Exchange Center

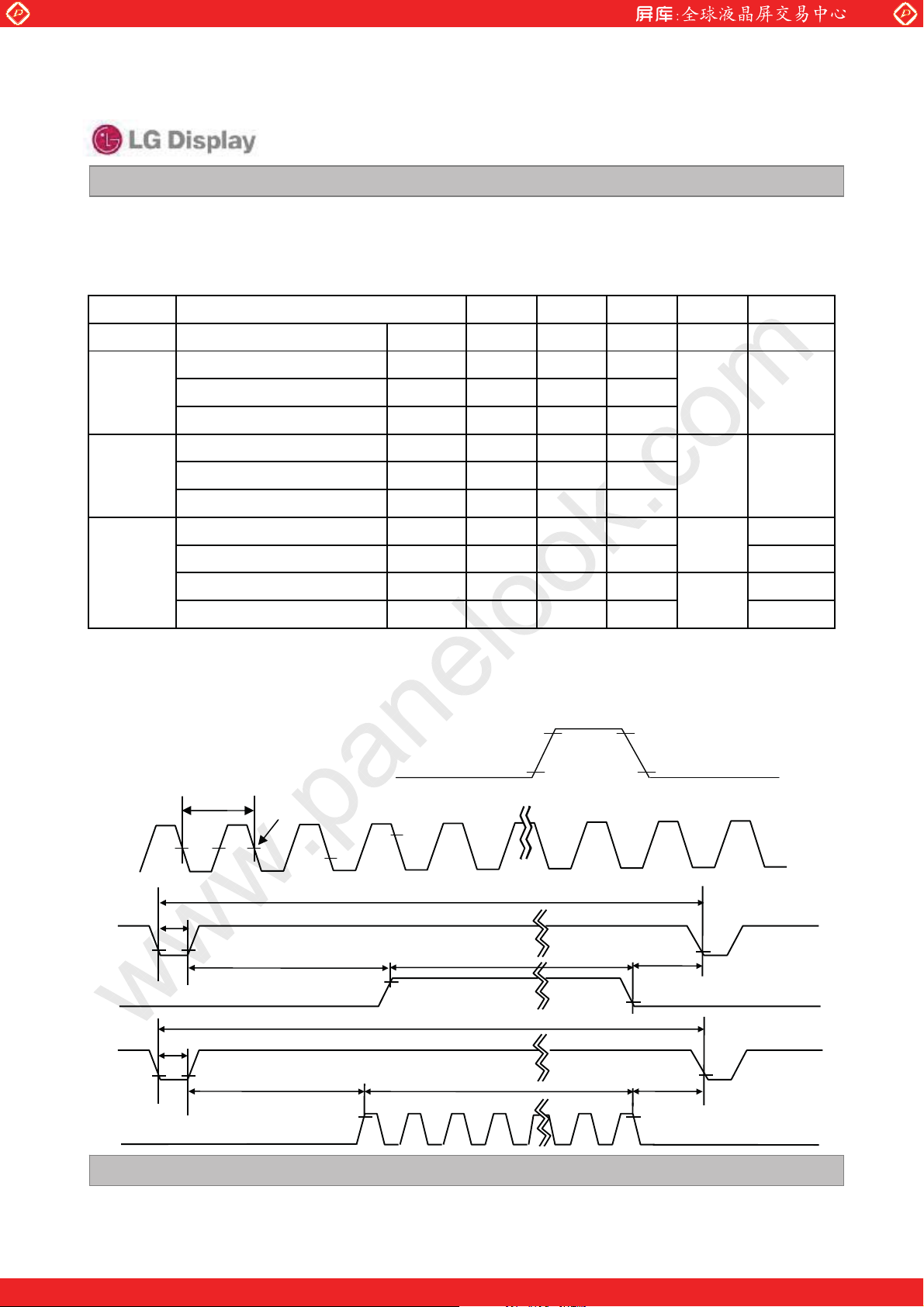

3-4. Signal Timing Specifications
This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Table 5. TIMING TABLE
NoteUnitMax.Typ.Min.SymbolITEM
Hsync
Vsync
Data
Enable
FrequencyDCLK
Period
Width
Width-Active
Period
Width
Width-Active
Horizontal back porch
Horizontal front porch
Vertical back porch
Vertical front porch
CLK
HP
WH
WV
HBP
HFP
VBP
VFP
153414861458t
323232t
HA
VP
136613661366tw
791782775t
542t
VA
768768768tw
885630t
483230t
1584t
321t
Appendix) All reliabilities are specified for timing specification based on refresh rate of 60 Hz.
Even though actual performance in 50Hz and 40Hz for low power is displayed normally,
remark and inform to user that display quality in 40 Hz and 50 Hz is out of guarantee range.
3-5. Signal Timing Waveforms
High: 0.7VCC
Condition : VCC =3.3V
Data Enable, Hsync, Vsync
Low: 0.3VCC
MHz-69.3-f
tCLK
tHP
tCLK
tHP
DCLK
Hsync
t
tCLK
WH
t
HBP
0.5 Vcc
t
HP
tWHA
Data Enable
t
VP
t
WV
Vsync
t
VBP
tWVA
Data Enable
Ver. 1.0 Jun. 30, 2011
t
HFP
t
VFP
11 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
3-6. Color Input Data Reference
The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the
color ; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Table 7. COLOR DATA REFERENCE
Input Color Data
Basic
Color
RED
GREEN
BLUE
Color
Black
Red
Green
Blue
Cyan
Magenta
Yellow
White
RED (00)
RED (01)
RED (62)
RED (63)
GREEN (00)
GREEN (01)
GREEN (62)
GREEN (63)
BLUE (00)
BLUE (01)
BLUE (62)
BLUE (63)
RED
MSB LSB
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
000000000 00000000 0
111111000 00000000 0
000000111 11100000 0
000000000 00011111 1
000000111 11111111 1
111111000 00011111 1
111111111 11100000 0
111111111 11111111 1
000000000 00000000 0
000001000 00000000 0
111110000 00000000 0
111111000 00000000 0
000000000 00000000 0
000000000 00100000 0
...
000000111 11000000 0
000000111 11100000 0
000000000 00000000 0
000000000 00000000 1
000000000 00011111 0
000000000 00011111 1
MSB LSB
GREEN
BLUE
MSB LSB
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12 / 27
www.panelook.com
Page 13
Global LCD Panel Exchange Center
3-7. Power Sequence
Power Supply Input
VCC
0V
www.panelook.com
Product Specification
90%
LP125WH2
Liquid Crystal Display
90%
10%10%
Interface Signal, V
i
LVDS
LED on/off control Signal
LED_EN
Dimming control signal
Of LED BL
PWM
LED input Voltage
VLED
Logic
Parameter
T
1
T
2
T
3
T
4
T
5
T
6
T
7
Min. Typ. Max.
0.5 - 10 ms
0-50ms
0--ms
150 - - ms
200 - - ms
0--ms
0-10ms
Value
T
T
1
2
Valid Data
0V
T
5
3.0V
3.0V
0V (Off)
T
9
Valid Data
0V (Low)
T
8
90%
0V
10%
T
12
Table 6. POWER SEQUENCE TABLE
Units
LED
Parameter
T
8
T
9
T
10
T
11
T
12
T
T
3
7
T
6
T
10
T
11
90%
T
4
Value
Units
Min. Typ. Max.
0- -ms
0- -ms
0- -ms
0- -ms
0.5 - - ms
Note)
1. Do not insert the mating cable when system turn on.
2. Valid Data have to meet “3-3. LVDS Signal Timing Specifications”
3. LVDS, LED_EN and PWM need to be on pull-down condition on invalid status.
4. LGD recommend the rising sequence of VLED after the Vcc and valid status of LVDS turn on.
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 / 27
www.panelook.com
Page 14
Global LCD Panel Exchange Center
4. Optical Specification
Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30 minutes in
a dark environment at 25
at a viewing angle of
FIG. 1 presents additional information concerning the measurement equipment and method.
°C. The values specified are at an approximate distance 50cm from the LCD surface
Φ and Θ equal to 0°.
FIG. 1 Optical Characteristic Measurement Equipment and Method
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Optical Stage(x,y)
LCD Module
Pritchard 880 or
equivalent
50cm
Table 8. OPTICAL CHARACTERISTICS
Ta=25°C, VCC=3.3V, fV=60Hz, f
Parameter Symbol
Contrast Ratio CR 500 - - 1
Surface Luminance, white L
Luminance Variation
Response Time
Color Coordinates
RED RX
GREEN GX
BLUE BX
WHITE WX
Viewing Angle 5
x axis, right(Φ=0°) Θr 80 - - degree
x axis, left (Φ=180°) Θl 80 - - degree
y axis, up (Φ=90°) Θu 80 - - degree
y axis, down (Φ=270°) Θd 80 - - degree
Gray Scale 2.2 6
WH
WHITE
TrR+Tr
RY
GY
BY
WY
D
Min Typ Max
250 300 - cd/m
-3550ms4
0.570 0.600 0.630
0.325 0.355 0.385
0.304 0.334 0.364
0.529 0.559 0.589
0.119 0.149 0.179
0.084 0.114 0.144
0.283 0.313 0.343
0.299 0.329 0.359
Values
Units Notes
2
= 69.3 MHz
CLK
2
31.61.4-δ
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14 / 27
www.panelook.com
Page 15
Global LCD Panel Exchange Center
Note)
1. Contrast Ratio(CR) is defined mathematically as
Surface Luminance with all white pixels
Contrast Ratio =
Surface Luminance with all black pixels
2. Surface luminance is the average of 5 point across the LCD surface 50cm from the surface with
all pixels displaying white. For more information see FIG 1.
= Average(L1,L2, L5)
L
WH
3. The variation in surface luminance , The panel total variation (
at each test position 1 through 13 and then defined as followed numerical formula.
For more information see FIG 2.
www.panelook.com
Product Specification
Liquid Crystal Display
δ
) is determined by measuring L
WHITE
LP125WH2
N
Maximum(L
δ
WHITE
=
Minimum(L
4. Response time is the time required for the display to transition from white to black (rise time, Tr
from black to white(Decay Time, Tr
). For additional information see FIG 3.
D
1,L2
1,L2
, L13)
, L13)
) and
R
5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined
for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the
LCD surface. For more information see FIG 4.
6. Gray scale specification * f
= 60Hz
V
Gray Level Luminance [%] (Typ)
L0 0.11
L7 0.82
L15 4.04
L23 10.0
L31 18.6
L39 32.1
L47 49.3
L55 73.3
L63 100.0
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 / 27
www.panelook.com
Page 16
Global LCD Panel Exchange Center
FIG. 2 Luminance
<measuring point for surface luminance & measuring point for luminance variation>
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
H
10mm
678
B
V
910
11 12
A
10mm
2
1
4
3
5
13
Active Area
: ACTIVE AREA
H,V
A : H/4 mm
B : V/4 mm
POINTS: 13 POINTS
FIG. 3 Response Time
The response time is defined as the following figure and shall be measured by switching the input signal
for “black” and “white”.
Tr
R
Tr
D
%
100
90
Optical
Response
10
0
white
white
black
FIG. 4 Viewing angle
φ
= 180
°
,
Left
Normal
θ
Eye
Y
φ
=90°,Up
φ
°
,
Right
φ
= 270
Ver. 1.0 Jun. 30, 2011
°
Down
,
φ
= 0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 / 27
www.panelook.com
Page 17
Global LCD Panel Exchange Center
5. Mechanical Characteristics
The contents provide general mechanical characteristics for the model LP125WH2. In addition the figures
in the next page are detailed mechanical drawing of the LCD.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Horizontal 290.5 ± 0.5 mm
Outline Dimension
Bezel Area
Active Display Area
Weight 290.0g (Max.)
Surface Treatment Anti Glare treatment of the front polarizer
Vertical 180.9 ± 0.5 mm
Thickness 3.7mm (max)
Horizontal 280.30 ± 0.5 mm
Vertical 159.52 ± 0.5 mm
Horizontal 275.59 mm
Vertical 154.94 mm
<Outline Dimension : With Bracket and PCB Board>
A
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
B
17 / 27
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
<FRONT VIEW>
Note) Unit:[mm], General tolerance:
± 0.5mm
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 / 27
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification

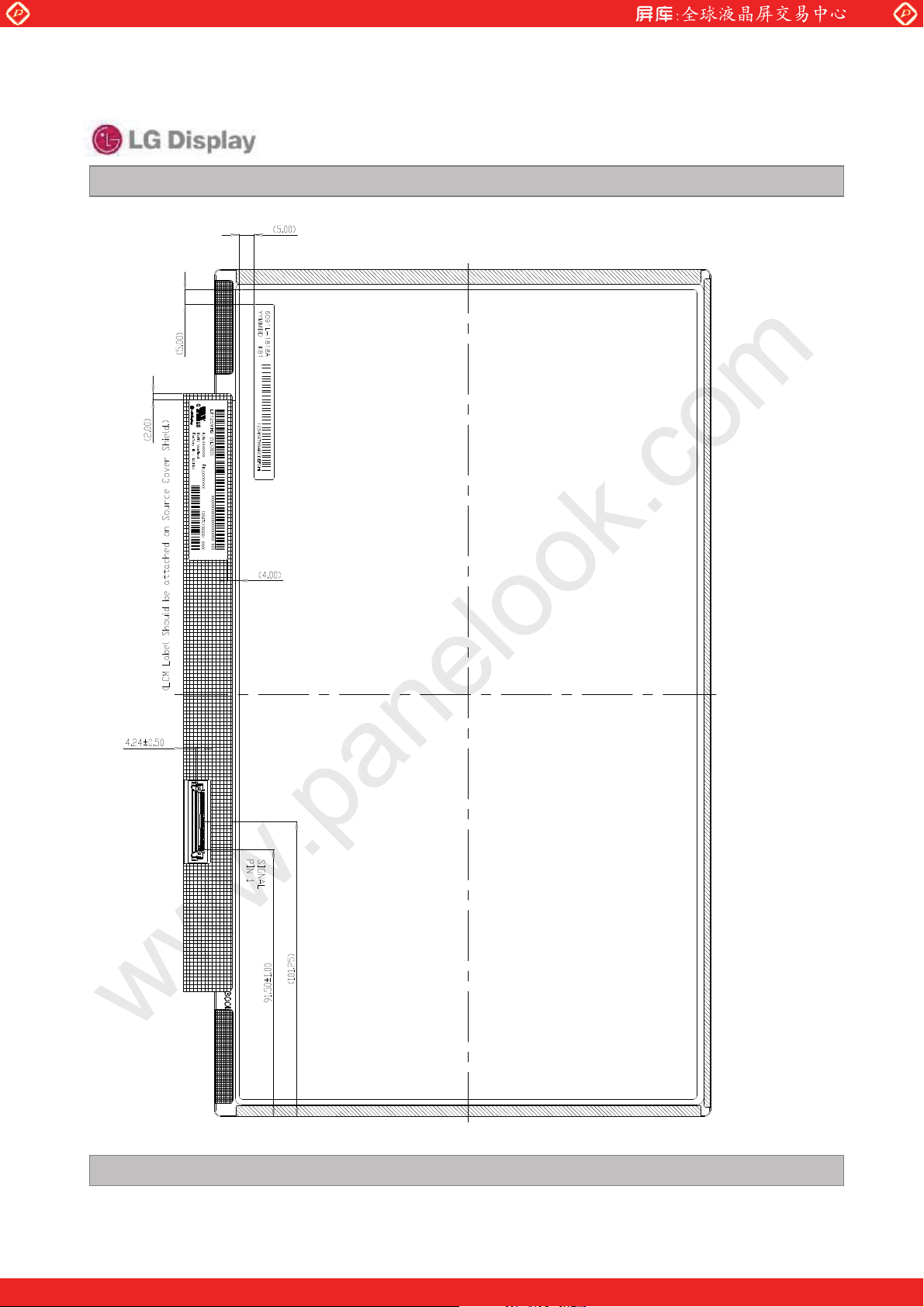

<REAR VIEW>
Note) Unit:[mm], General tolerance:
± 0.5mm
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 / 27
www.panelook.com
Page 20
Global LCD Panel Exchange Center
6. Reliability
Environment test condition
No. Test Item Conditions
1 High temperature storage test Ta= 60°C, 240h
2 Low temperature storage test Ta= -20°C, 240h
3 High temperature operation test Ta= 50°C, 50%RH, 240h
4 Low temperature operation test Ta= 0°C, 240h
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
5 Vibration test (non-operating) Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min
3 axis, 1hour/axis
6 Shock test (non-operating) Half sine wave, 180G, 2ms
one shock of each six faces(I.e. run 180G 6ms
for all six faces)
7 Altitude operating
storage / shipment
{ Result Evaluation Criteria }
There should be no change which might affect the practical display function when the display quality
test is conducted under normal operating condition.
0 ~ 10,000 feet (3,048m) 24Hr
0 ~ 40,000 feet (12,192m) 24Hr
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 / 27
www.panelook.com
Page 21
Global LCD Panel Exchange Center
7. International Standards
7-1. Safety
a) UL 60950-1, Second Edition, Underwriters Laboratories Inc.
Information Technology Equipment - Safety - Part 1 : General Requirements.
b) CAN/CSA C22.2 No.60950-1-07, Second Edition, Canadian Standards Association.
Information Technology Equipment - Safety - Part 1 : General Requirements.
c) EN 60950-1:2006 + A11:2009, European Committee for Electrotechnical Standardization (CENELEC).
Information Technology Equipment - Safety - Part 1 : General Requirements.
d) IEC 60950-1:2005, Second Edition, The International Electrotechnical Commission (IEC).
Information Technology Equipment - Safety - Part 1 : General Requirements.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
7-2. EMC
a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise
Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.
b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and
methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.
c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance
characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.
7-3. Environment
a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 / 27
www.panelook.com
Page 22
Global LCD Panel Exchange Center
8. Packing
8-1. Designation of Lot Mark
a) Lot Mark
ABCDEFGHI JKLM
A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
Note
1. YEAR
Year
Mark
CBA
2014E2015
D
201320122011
2016G2017H2018J2019
F
2. MONTH
Month
Mark
Apr5May
4
Jun7Jul8Aug9Sep
6
b) Location of Lot Mark
Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.
8-2. Packing Form
a) Package quantity in one box : 20 pcs
b) Box Size : 412 x 330 x 239
2020
K
Oct
A
Nov
B
DecMarFebJan
C321
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 / 27
www.panelook.com
Page 23
Global LCD Panel Exchange Center
9. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD module.
9-1. MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the
module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
9-2. OPERATING PRECAUTIONS
(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :
V= 200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable after turned on) becomes
longer.
(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
Ver. 1.0 Jun. 30, 2011
23 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
9-3. ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.
9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
9-5. STORAGE
www.panelook.com
LP125WH2
Liquid Crystal Display
Product Specification
When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 5°C and 35°C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM
(1) When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well
ion-blown equipment or in such a condition, etc.
(2) The protection film is attached to the polarizer with a small amount of glue. If some stress is applied
to rub the protection film against the polarizer during the time you peel off the film, the glue is apt to
remain on the polarizer.
Please carefully peel off the protection film without rubbing it against the polarizer.
(3) When the module with protection film attached is stored for a long time, sometimes there remains a
very small amount of glue still on the polarizer after the protection film is peeled off.
(4) You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is
recognized, please wipe them off with absorbent cotton waste or other soft material like chamois
soaked with normal-hexane.
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 / 27
www.panelook.com
Page 25
Global LCD Panel Exchange Center
E
t
bl
gs
APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM)1/3
Byte
Byte
(De c )
(Hex )
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Version
15
16
17
18
Vendor / Product EDID
19
20
21
22
23
Display
Parameters
24
25
26
27
28
29
30
31
32
33
Panel Color Coordinates
34
a
s
35
36
ished
Timin
37
38
39
40
41
42
43
44
45
46
47
48
49
Standard Timing ID Header
50
51
52
53
Header
00
Header
01
Header
02
Header
03
Header
04
Header
05
Header
06
Header
07
EISA manuf acture c ode ( 3 Cha racter ID ) L GD
08
EISA manuf acture c ode (Comp ressed ASC)
09
Panel Suppl ier Reser ved - Pro duct Code 0329h
0A
( Hex. L SB first )
0B
LC D Modu le S erial No - P refer red bu t Op tion al ("0" If no t used)
0C
LC D Modu le S erial No - P refer red bu t Op tion al ("0" If no t used)
0D
LC D Modu le S erial No - P refer red bu t Op tion al ("0" If no t used)
0E
LC D Modu le S erial No - P refer red bu t Op tion al ("0" If no t used)
0F
Week of Manufa cture 00 weeks
10
Year of M anufacture 2011 years
11
EDI D s tru ct ure v er sio n # = 1
12
EDI D revis ion # = 3
13
Video input Definition = Digital signal
14
Max H image size (Rounded cm) = 2 8 cm
15
Max V image size (Rounded cm) = 1 6 cm
16
Display ga mma = (ga mma*100) -100 = Ex ample:(2.2* 100)-10 0=120 = 2.2 Gamm a
17
Feature Su pport (no_D PMS, no_Active Off/Very Low P ower, RG B color di splay, Timin g BLK 1, no_ GTF)
18
Red/Gr een Low Bi ts (R xRy/GxG y )
19
Blue/W hite Low Bits (Bx By/WxW y)
1A
Red X Rx = 0.6 0
1B
Red Y Ry = 0.3 55
1C
Green X Gx = 0.33 4
1D
Green Y Gy = 0.55 9
1E
BlueX Bx = 0.149
1F
Blue Y By = 0. 114
20
White X Wx = 0.313
21
White Y Wy = 0.329
22
Est ablish ed tim ing 1 ( 00h if no t used )
23
Est ablish ed tim ing 2 ( 00h if no t used )
24
Manufact urer's timings ( 00h if not used)
25
Standard timing ID1 (01h if not used)
26
Standard timing ID1 (01h if not used)
27
Standard timing ID2 (01h if not used)
28
Standard timing ID2 (01h if not used)
29
Standard timing ID3 (01h if not used)
2A
Standard timing ID3 (01h if not used)
2B
Standard timing ID4 (01h if not used)
2C
Standard timing ID4 (01h if not used)
2D
Standard timing ID5 (01h if not used)
2E
Standard timing ID5 (01h if not used)
2F
Standard timing ID6 (01h if not used)
30
Standard timing ID6 (01h if not used)
31
Standard timing ID7 (01h if not used)
32
Standard timing ID7 (01h if not used)
33
Standard timing ID8 (01h if not used)
34
Standard timing ID8 (01h if not used)
35
www.panelook.com
Product Specification
Field Name and Comments
LP125WH2
Liquid Crystal Display
Value
Value
(Hex)
(Bin)
00000000
00
11111111
FF
11111111
FF
11111111
FF
11111111
FF
11111111
FF
11111111
FF
00000000
00
00110000
30
11100100
E4
00101001
29
00000011
03
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00010101
15
00000001
01
00000011
03
10000000
80
00011100
1C
00010000
10
01111000
78
00001010
0A
10001000
88
01010101
55
10011001
99
01011011
5B
01010101
55
10001111
8F
00100110
26
00011101
1D
01010000
50
01010100
54
00000000
00
00000000
00
00000000
00
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
00000001
01
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 / 27
www.panelook.com
Page 26
Global LCD Panel Exchange Center
APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM)2/3
Byte
Byte
(Dec)
(Hex )
54
55
56
57
58
59
60
61
62
63
64
65
66
Timing Descriptor #1Timing Descriptor #2Timing Descriptor #3
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
Pixel Clo ck/10, 000 (LSB) 69.3 MHz @ 59.6Hz
36
Pixel Clo ck/10, 000 (MSB)
37
Horizo ntal Acti ve (lowe r 8 bit s) 13 66 Pixels
38
Horizo ntal Bla nking(T hp-HA ) (low er 8 bits) 120 Pixels
39
Horizo ntal Acti ve / Ho rizont al Blan king(T hp-HA) (upper 4:4bit s)
3A
Ver tical Avt ive 76 8 Lin es
3B
Vertical Blankin g (Tvp-HA) (D E Blanking ty p.for DE onl y pane ls) 1 4 Lines
3C
Vertical A ctive : Verti cal Bla nking ( Tvp-HA) (up per 4:4 bits)
3D
Horizontal Sync. Offset (Thfp ) 32 Pixe ls
3E
Horizontal Sync Pulse Width (HSPW) 32 Pixels
3F
Vertical S ync Off set( Tvfp) : Sync W idth (VSPW) 2 Lines : 4 Lin es
40
Horizo ntal Vert ical Sync Offset/W idth (u pper 2bits)
41
HorizontalI mage Size (mm) 277 mm
42
Ver tical Im age S ize (mm) 15 6 mm
43
HorizontalI mage Size / Vertical Image Size
44
Horizo ntal Borde r = 0 (Zero for Notebook L CD)
45
Vertic al Bo rder = 0 (Zer o for Notebo ok LCD)
46
Non-Interlace, N ormal displa y, no ste reo, Digital S eparate ( Vsyn c_NEG, H syn c_NEG ) , DE only no te : LSB i s set to
47
'1' if pane l is DE -timing o nly. H/V ca n be ignore d.
Flag
48
Flag
49
Flag
4A
Data Type Tag (Descriptor Defined by manufacturer )
4B
Flag
4C
Descrip tor Defi ned by manuf acturer
4D
Descrip tor Defi ned by manuf acturer
4E
Descrip tor Defi ned by manuf acturer
4F
Descrip tor Defi ned by manuf acturer
50
Descrip tor Defi ned by manuf acturer
51
Descrip tor Defi ned by manuf acturer
52
Descrip tor Defi ned by manuf acturer
53
Descrip tor Defi ned by manuf acturer
54
Descrip tor Defi ned by manuf acturer
55
Descrip tor Defi ned by manuf acturer
56
Descrip tor Defi ned by manuf acturer
57
Descrip tor Defi ned by manuf acturer
58
Descrip tor Defi ned by manuf acturer
59
Flag
5A
Flag
5B
Flag
5C
Data Type Tag (ASCII String )
5D
Flag
5E
ASCII String L
5F
ASCII String G
60
ASCII String
61
ASCII String D
62
ASCII String i
63
ASCII String s
64
ASCII String p
65
ASCII String l
66
ASCII String a
67
ASCII String y
68
Manufa cturer P /N(If<13 char--> 0A h, then t ermi nate with ASC
69
Manufa cturer P /N(If<13 char--> 0A h, then t ermi nate with ASC
6A
Manufa cturer P /N(If<13 char--> 0A h, then t ermi nate with ASC
6B
www.panelook.com
Product Specification
Field Name and C omments
Liquid Crystal Display
code 0Ah ,set rema ining cha r = 20h)
code 0Ah,set remaining char = 20h )
code 0Ah ,set rema ining cha r = 20h)
LP125WH2
Value
(Hex)
00010010
12
00011011
1B
01010110
56
01111000
78
01010000
50
00000000
00
00001110
0E
00110000
30
00100000
20
00100000
20
00100100
24
00000000
00
00010101
15
10011100
9C
00010000
10
00000000
00
00000000
00
00011001
19
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
00000000
00
11111110
FE
00000000
00
01001100
4C
01000111
47
00100000
20
01000100
44
01101001
69
01110011
73
01110000
70
01101100
6C
01100001
61
01111001
79
00001010
0A
00100000
20
00100000
20
Value
(Bin)
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 / 27
www.panelook.com
Page 27
Global LCD Panel Exchange Center
k
APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM)3/3
Byte
Byte
(Dec)
(Hex)
108
109
110
111
112
113
114
115
116
117
118
119
120
Timing Descriptor #4Chec
121
122
123
124
125
126 7E Extension flag (# of optional 128 panel ID extension block to follow, Typ = 0)
127
Flag
6C
Flag
6D
Flag
6E
Data Type Tag ( ASCII String )
6F
Flag
70
ASCII String L
71
ASCII String P
72
ASCII String 1
73
ASCII String 2
74
ASCII String 5
75
ASCII String W
76
ASCII String H
77
ASCII String 2
78
ASCII String -
79
ASCII String S
7A
ASCII String L
7B
ASCII String B
7C
ASCII String 2
7D
Check Sum (The 1-byte sum of all 128 bytes in this panel ID block shall = 0)
7F
www.panelook.com
Product Specification
Field Name and Comments
LP125WH2
Liquid Crystal Display
Value
Value
(Hex)
(Bin)
00000000
00
00000000
00
00000000
00
11111110
FE
00000000
00
01001100
4C
01010000
50
00110001
31
00110010
32
00110101
35
01010111
57
01001000
48
00110010
32
00101101
2D
01010011
53
01001100
4C
01000010
42
00110010
32
00000000
00
11111000
F8
Ver. 1.0 Jun. 30, 2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 / 27
www.panelook.com
Loading...
