LG Display LM240WU7-SLB3 Specification



Global LCD Panel Exchange Center

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

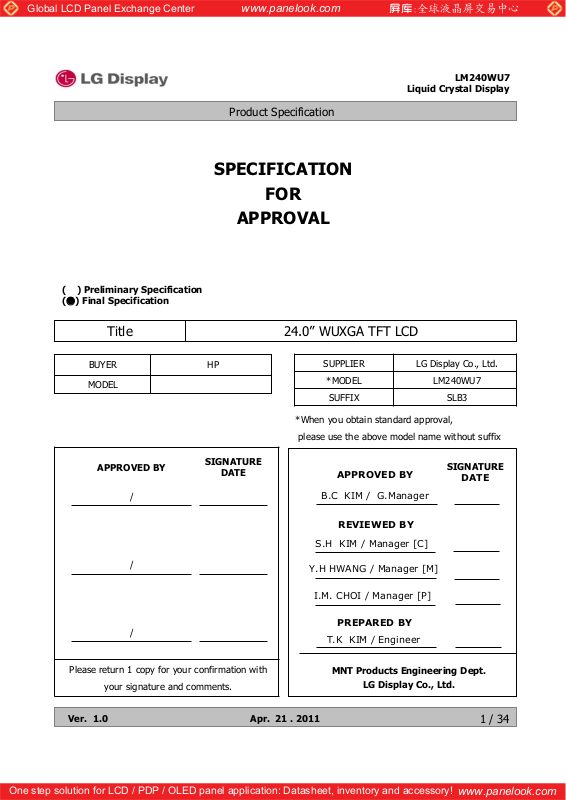

SPECIFICATION

FOR

APPROVAL

( ) Preliminary Specification

) Final Specification

(

BUYER

MODEL

APPROVED BY

/

/

HP

SIGNATURE

DATE

24.0” WUXGA TFT LCDTitle

SUPPLIER LG Display Co., Ltd.

*MODEL LM240WU7

SUFFIX SLB3

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

B.C KIM / G.Manager

REVIEWED BY

S.H KIM / Manager [C]

Y.H HWANG / Manager [M]

SIGNATURE

DATE

I.M. CHOI / Manager [P]

PREPARED BY

/

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 1.0 Apr. 21 . 2011

T.K KIM / Engineer

MNT Products Engineering Dept.

LG Display Co., Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/ 34

www.panelook.com

Global LCD Panel Exchange Center

No ITEM Page

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Contents

COVER

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTREISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

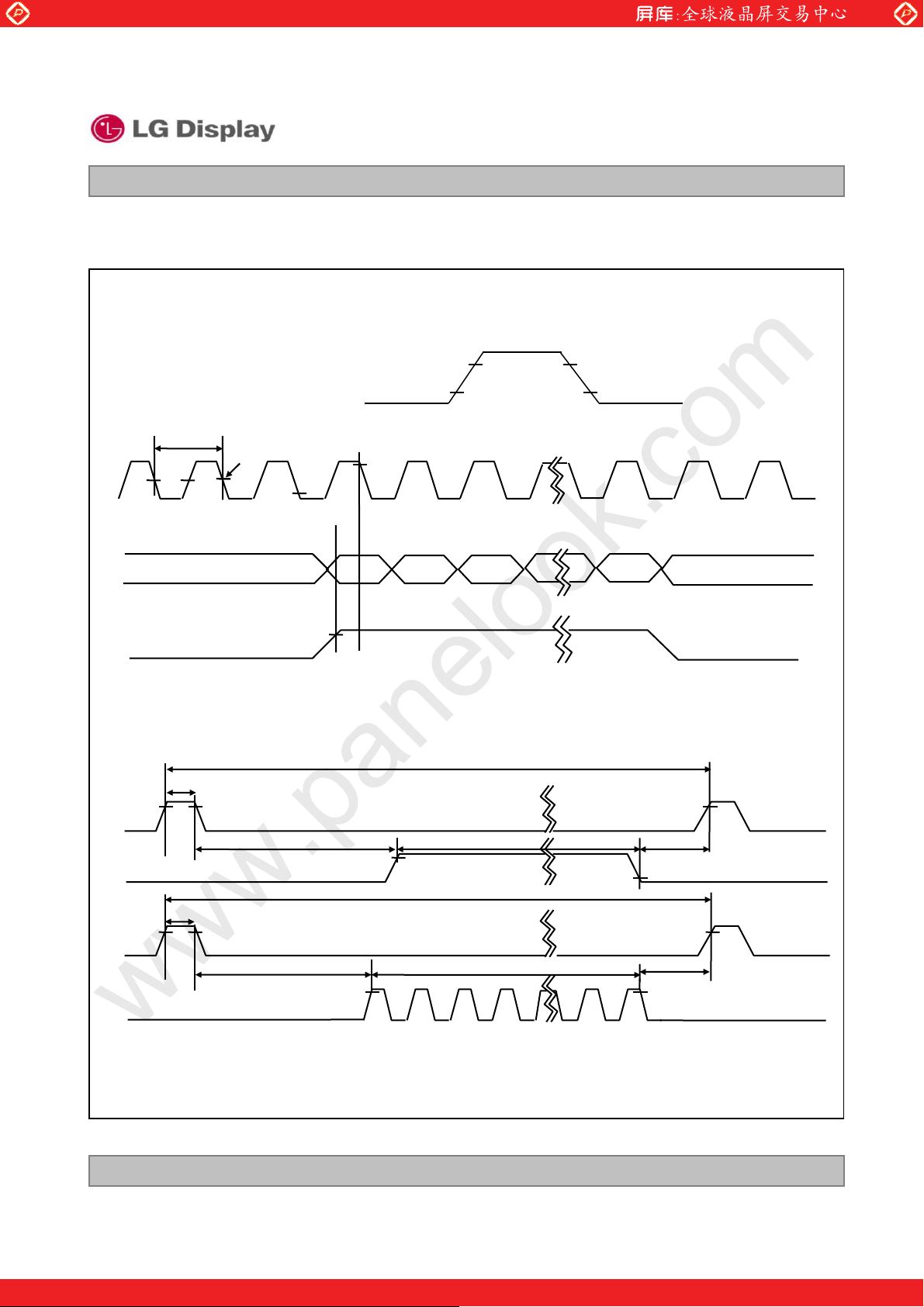

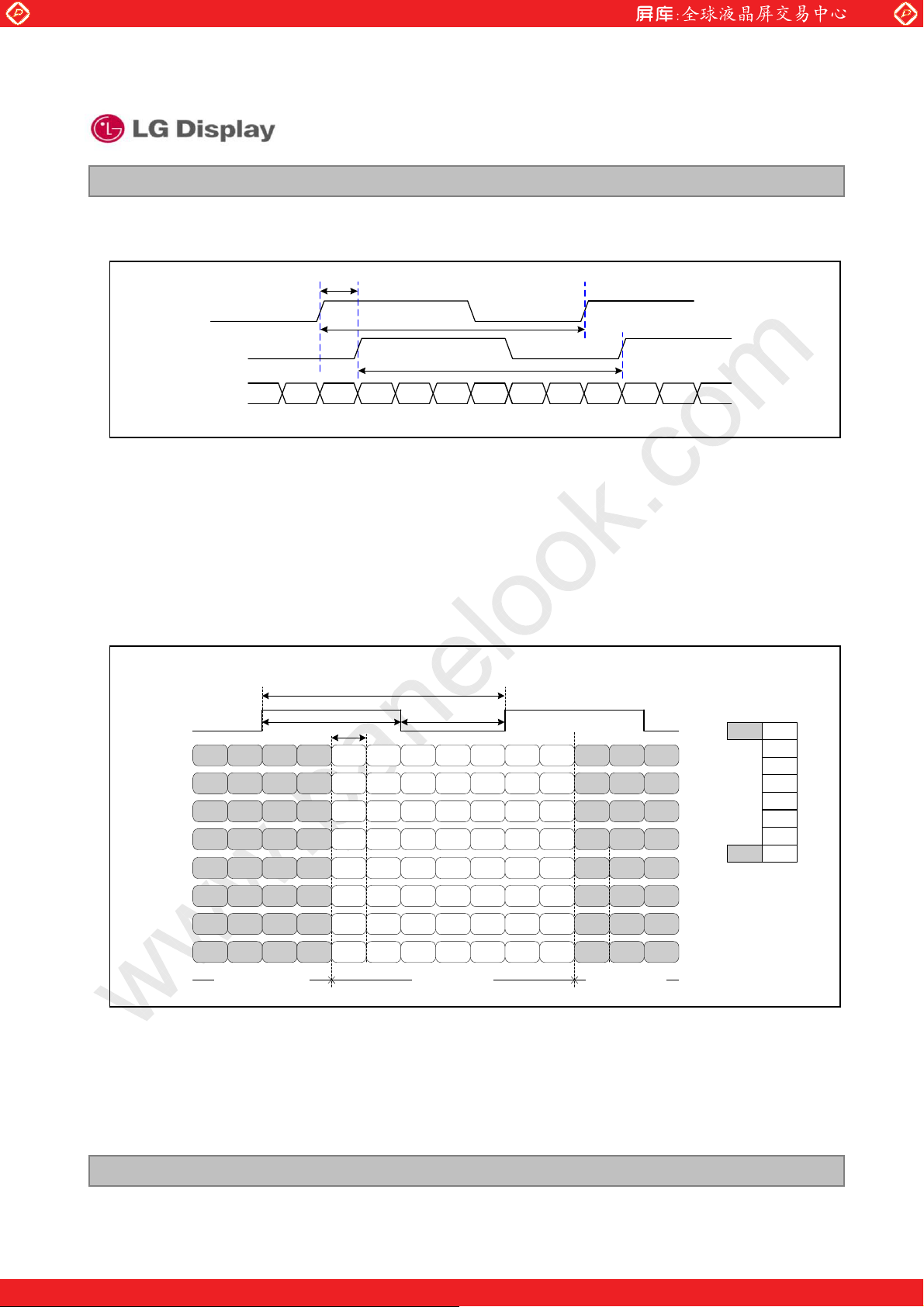

3-4 SIGNAL TIMING WAVEFORMS

3-5 COLOR INPUT DATA REFERNECE

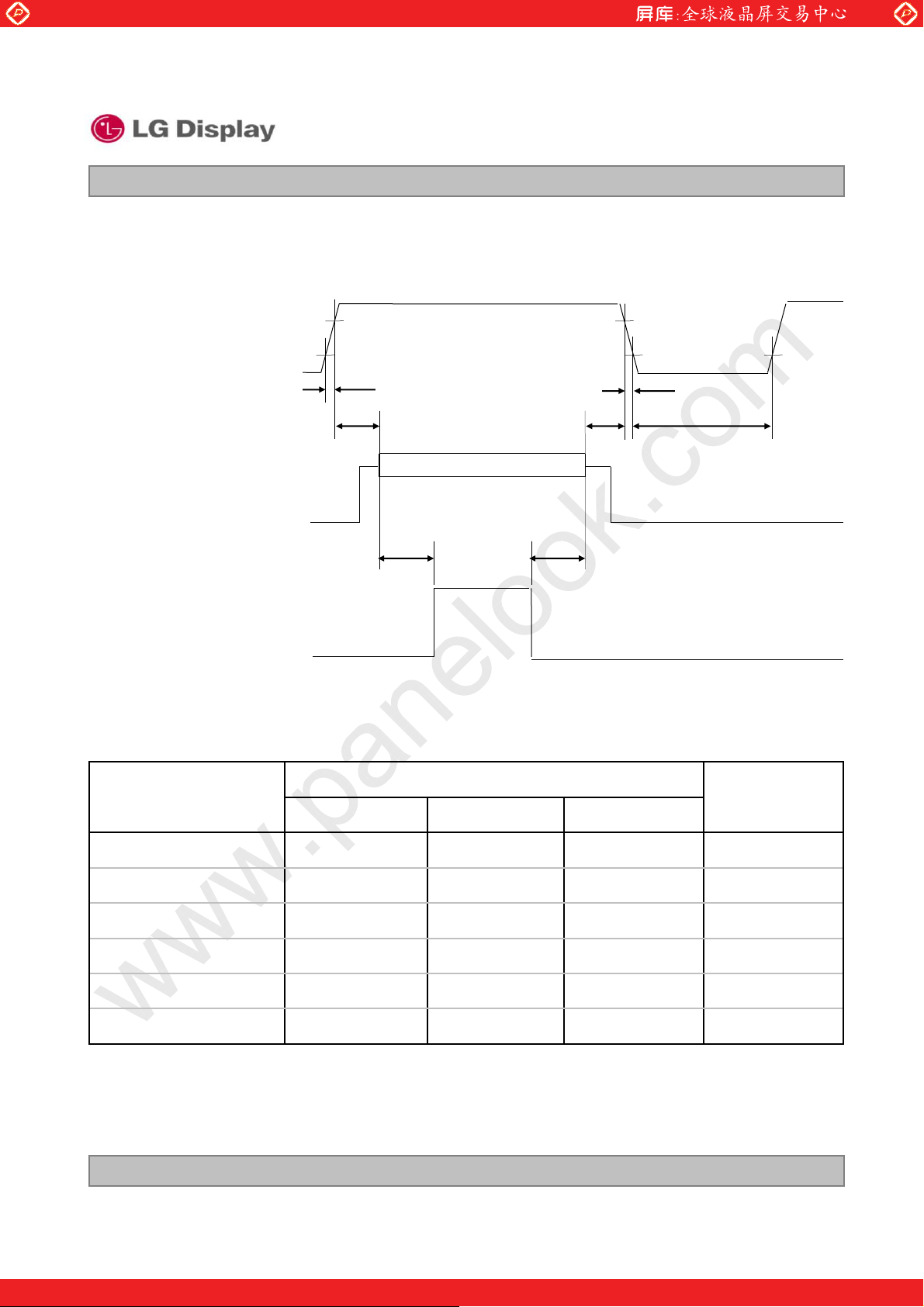

3-6 POWER SEQUENCE

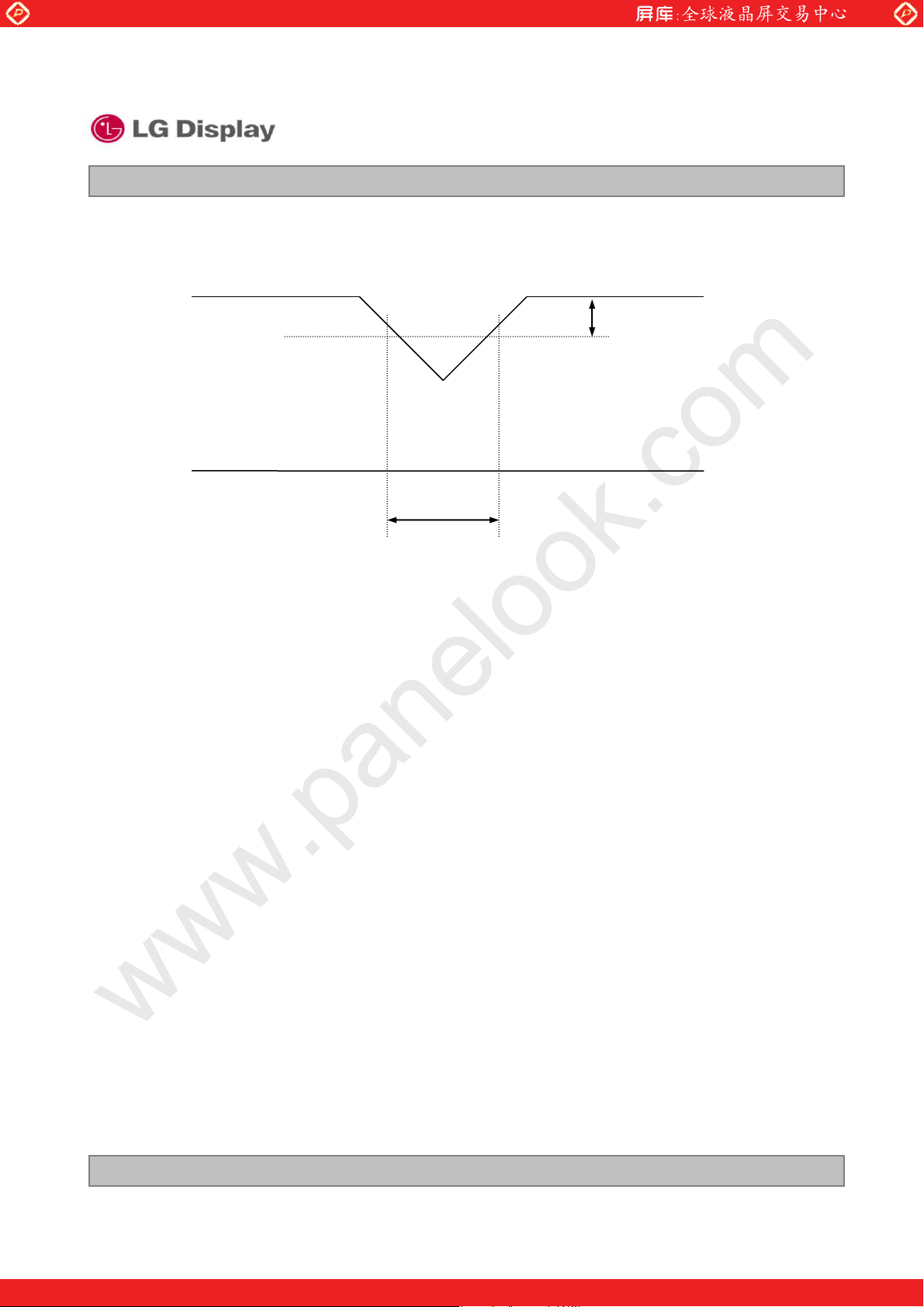

3-7 VLCD DIP CONDITION

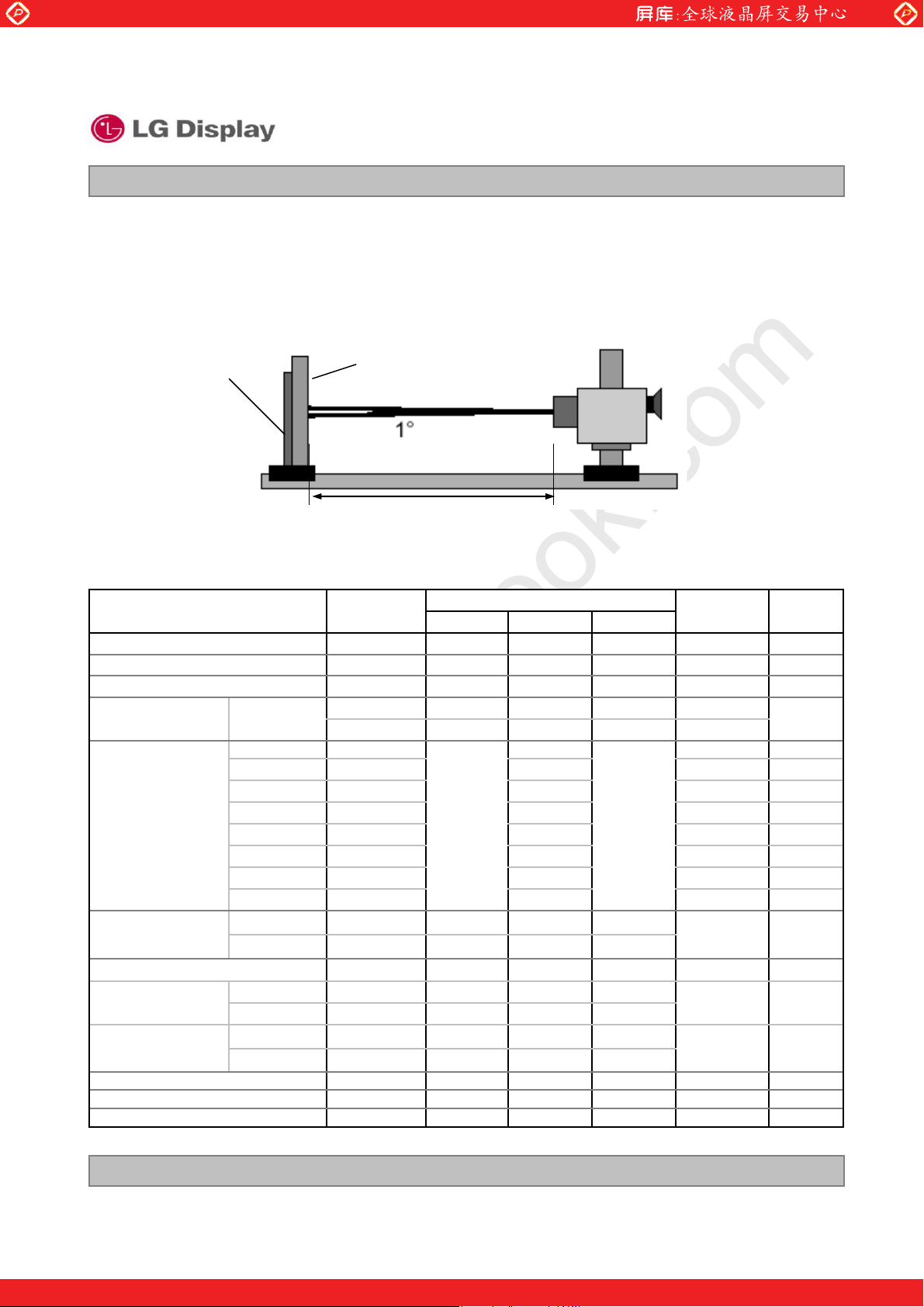

4 OPTICAL SFECIFICATIONS

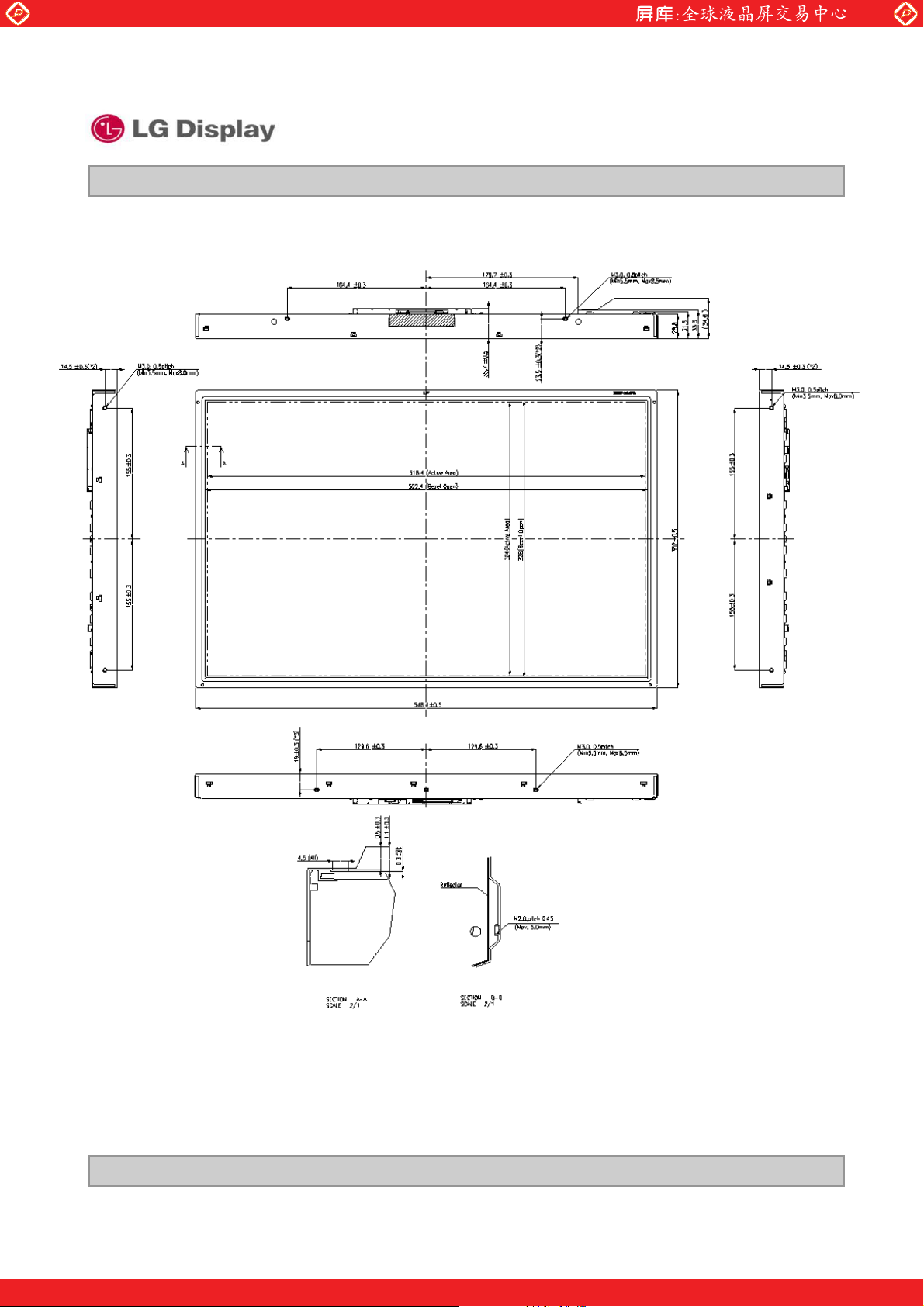

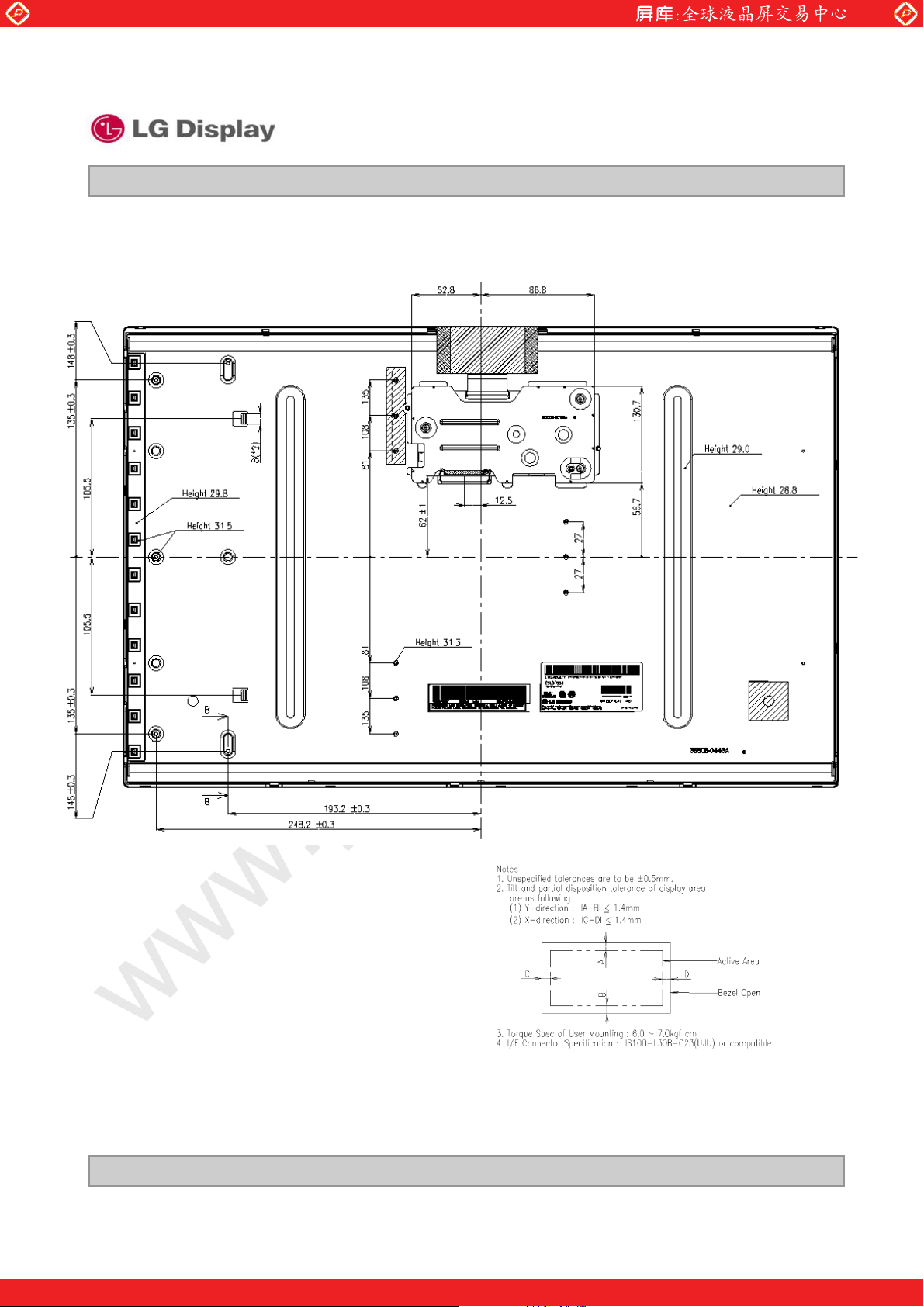

5 MECHANICAL CHARACTERISTICS

1

2

3

4

5

6

6

9

14

15

16

17

18

19

25

6 RELIABLITY

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC

7-3 ENVIRONMENT

8 PACKING

8-1 DESIGNATION OF LOT MARK

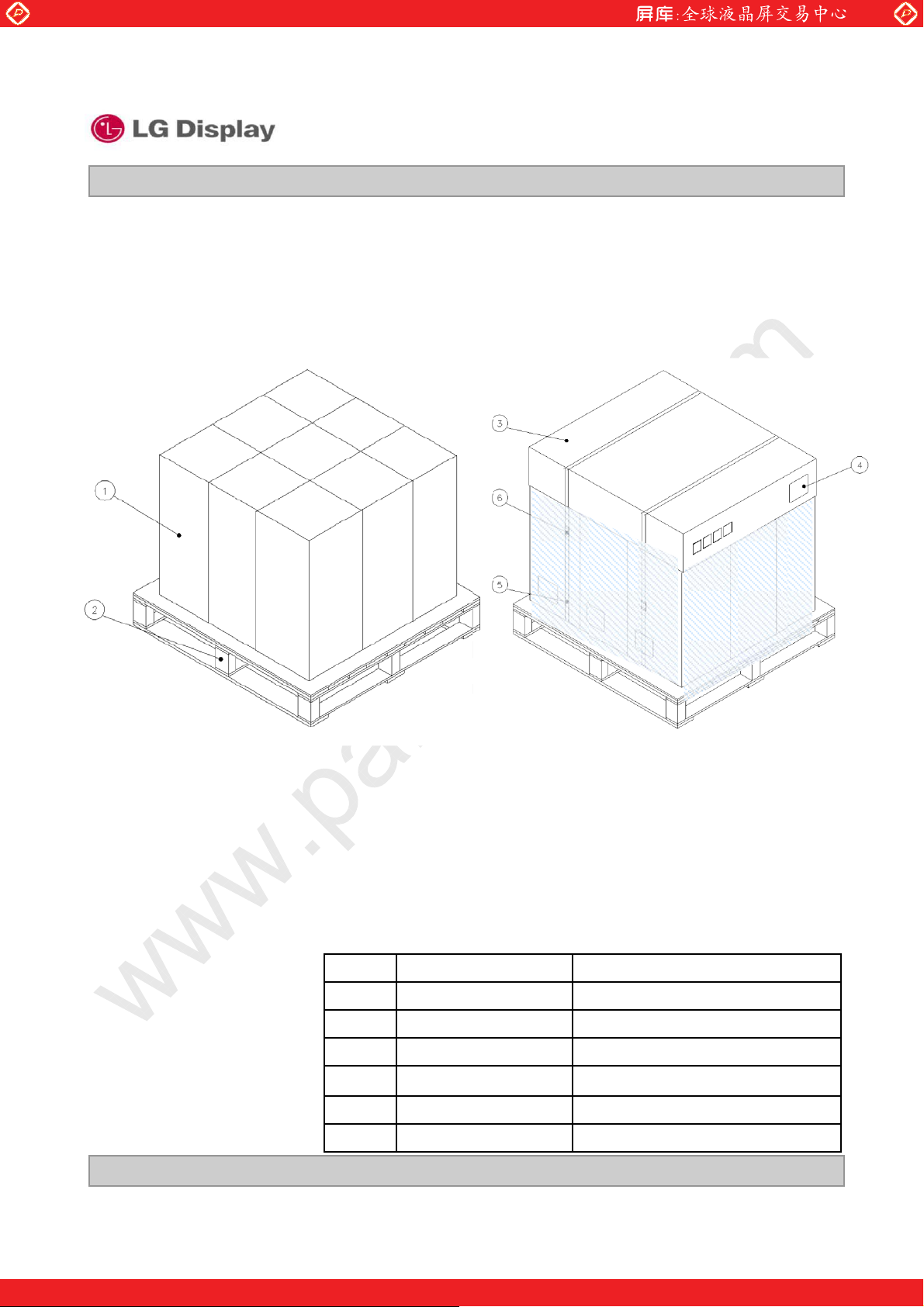

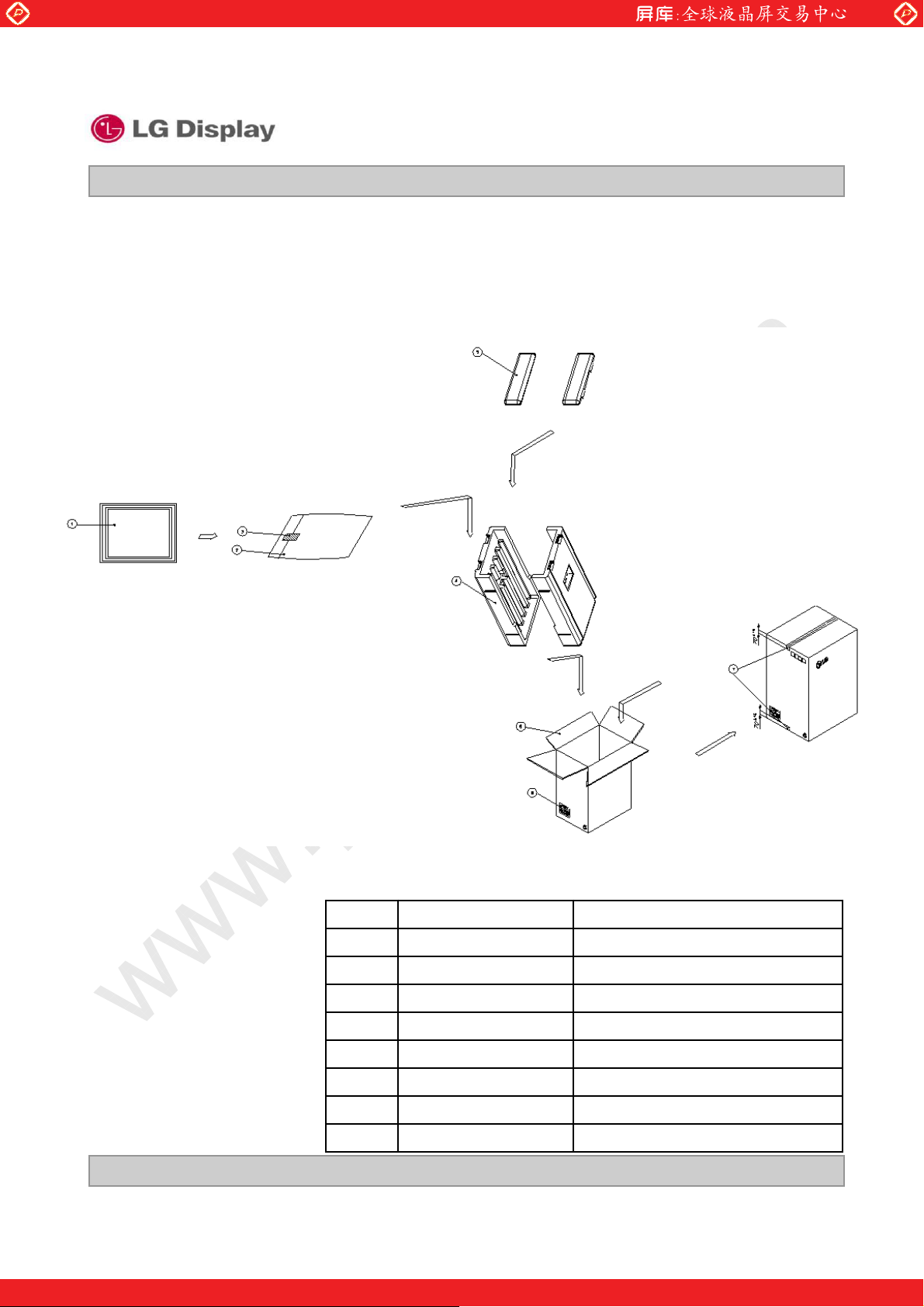

8-2 PACKING FORM

8-3 PALLET FORM 30

9 PRECAUTIONS 31

26

27

27

27

27

28

28

29

Ver. 1.0 Apr. 21 . 2011

2/ 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

RECORD OF REVISIONS

Revision

No

0.0 Dec. 08.2010 - First Draft (Preliminary)

0.1 Feb. 28. 2011 19 Update color coordinates

0.2 Mar. 02. 2011 30 Update Designation of Lot Mark

0.3 Mar. 07. 2011 5 Add notes

1.0 Apr. 21. 2011 - Final Draft

Revision Date Page

27 Update Mechanical drawings

30 Update Designation of Lot Mark

Description

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/ 34

www.panelook.com

Global LCD Panel Exchange Center

1. General Description

LM240WU7 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 24inch diagonally measured
active display area with WUXGA resolution (1200 vertical by 1920 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,7M(True) colors.
It has been designed to apply the 8Bit 2 port LVDS interface.
It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important.

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Source Driver Circuit

S1 S1920

TFT - LCD Panel

LVDS

2port

+12.0V

CN1

(30pin)

RGB

Timing

Controller

(1920 Ý RGB Ý 1200 pixels)

+12.0V

Power Circuit

Block

V

Lamp

2 x 6Sockets (High)

Back light Assembly

(U-Shape 6CCFL)

General Features

Active Screen Size 24.1 inches(61.13cm) diagonal
Outline Dimension 546.4(H) x 352.0(V) x 35.7(D) mm(Typ.) * without inverter

Pixel Pitch 0.270 mm x 0.270 mm

Pixel Format 1920 horiz. By 1200 vert. Pixels RGB stripes arrangement

Color Depth 8-bit, 16,777,216 colors

Luminance, White 400 cd/m

2

( Center 1 points)

Viewing Angle(CR>10) View Angle Free (R/L 178(Typ.), U/D 178(Typ.))

Power Consumption Total 69.72 Watt (Typ.) ( 6.72 Watt@VLCD, 63 Watt @Vlamp)

Weight 2830 g (typ.)

Display Operating Mode Transmissive mode, normally black

Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/ 34

www.panelook.com

Global LCD Panel Exchange Center

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. ABSOLUTE MAXIMUM RATINGS

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Parameter Symbol

Power Input Voltage

Operating Temperature

Storage Temperature

Operating Ambient Humidity

Storage Humidity

VLCD -0.3 14 Vdc

TOP 050

TST -20 60

HOP 10 90 %RH

HST 10 90 %RH

Values

Units Notes

Min Max

at 25  2¶C

¶C

¶C

Note : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39 ¶C Max, and no condensation of water.
Note : 2. Maximum Storage Humidity is up to 40୅, 70% RH only for 4 corner light leakage Mura.
Note : 3. Storage condition is guaranteed under packing condition

90%

60

60%

Wet Bulb
Temperature [C]

10

0

20

30

40

50

40%

Humidity [(%)RH]

10%

Storage

Operation

1, 2

10 20 30 40 50 60 70 800-20

Dry Bulb Temperature [C]

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5/ 34

www.panelook.com

Global LCD Panel Exchange Center

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and
liquid crystal. The second input power for the CCFL, is typically generated by an inverter. The inverter is an
external unit to the LCDs.

Table 2. ELECTRICAL CHARACTERISTICS

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Parameter Symbol

MODULE :

Power Supply Input Voltage V
Permissive Power Input Ripple V

Power Supply Input Current I

Differential Impedance
Power Consumption PLCD - 6.72 7.73 Watt 2
Rush current I

LAMP :

Operating Voltage V
Operating Current I
Established Starting Voltage Vs 5,7

LCD 11.4 12.0 12.6 Vdc

RF 400 mV 1

LCD

Zm

RUSH --3A4

BL 1550(8.0mA) 1750(6.0mA) 1950(3.0mA) V

BL 3.0 6.0 8.0 mA

Min Typ Max

476 560 644 mA 2
637 750 863 mA 3

90 100 110

at 25 ¶C

at 0 ¶C
Operating Frequency
Discharge Stabilization Time
Power Consumption
Life Time

fBL 40 55 80 kHz 8

Ts - 3 Min 5, 9

PBL 63 69.3 Watt 10

50,000 Hrs 5, 11

Values

2500 V
2900 V

Unit Notes

ohm

RMS

RMS

RMS

RMS

5, 6

5

Note : The design of the inverter must have specifications for the lamp in LCD Assembly.

The performance of the Lamp in LCM, for example life time or brightness, is extremely influenced by
the characteristics of the DC-AC inverter. So all the parameters of an inverter should be carefully
designed so as not to produce too much leakage current from high-voltage output of the inverter.

When you design or order the inverter, please make sure unwanted lighting caused by the mismatch
of the lamp and the inverter (no lighting, flicker, etc) never occurs. When you confirm it, the LCD–
Assembly should be operated in the same condition as installed in you instrument.

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/ 34

www.panelook.com

Global LCD Panel Exchange Center

Note : Do not Insert conducting Material to lamp connecting socket. If the conducting Material is inserted

to the lamp connecting sockets, TFT-LCD Module has a low luminance and the inverter has abnormal

action. Because leakage current is occurred between lamp connecting socket and conducting material.

1. Permissive power ripple should be measured under V
time, we recommend the bandwidth configuration of oscilloscope is to be under 20Mhz.

2. The specified current and power consumption are under the V
whereas mosaic pattern(8 x 6) is displayed and f

3. The current is specified at the maximum current pattern.

4. The duration of rush current is about 2ms and rising time of power Input is 1ms(min.).

5. Specified values are for a single lamp.

6. Operating voltage is measured at 25  2¶C, and follows as below condition.

The variance of the voltage is  10%. (Based on single Lamp.)
The variance of the voltage is  20%. (Based on system & Test equipment tolerance.)

7. The voltage above V

(Inverter open voltage must be more than lamp starting voltage.)

Otherwise, the lamps may not be turned on. The used lamp current is the lamp typical current.

8. The output of the inverter must have symmetrical (negative and positive) voltage waveform and

symmetrical current waveform (Unsymmetrical ratio is less than 10%). Please do not use the inverter
which has unsymmetrical voltage and unsymmetrical current and spike wave.
Lamp frequency may produce interface with horizontal synchronous frequency and as a result this may
cause beat on the display. Therefore lamp frequency shall be as away possible from the horizontal
synchronous frequency and from its harmonics in order to prevent interference.

9. Let’s define the brightness of the lamp after being lighted for 5 minutes as 100%.

is the time required for the brightness of the center of the lamp to be not less than 95%.

T

S

The used lamp current is the lamp typical current.

10. The lamp power consumption shown above does not include loss of external inverter.
The used lamp current is the lamp typical current. (P

11. The life is determined as the time at which brightness of the lamp is 50% compared to that of initial

value at the typical lamp current on condition of continuous operating at 25  2¶C.

12. Requirements for a system inverter design, which is intended to have a better display performance,
a better power efficiency and a more reliable lamp, are following.
It shall help increase the lamp lifetime and reduce leakage current.

a. The asymmetry rate of the inverter waveform should be less than 10%.
b. The distortion rate of the waveform should be within √2 ·10%.

* Inverter output waveform had better be more similar to ideal sine wave.

should be applied to the lamps for more than 1 second for start-up.

S

www.panelook.com

Product Specification

=12.0V, 25  2¶C,fV=60Hz condition and At that

LCD

is the frame frequency.

V

= VBLx IBLx N

BL

LM240WU7

Liquid Crystal Display

=12.0V, 25  2¶C,fV=60Hz condition

LCD

)

Lamp

* Asymmetry rate:

I p

|I

p–I–p

|/I

rms

x 100%

* Distortion rate

I -p

(or I–p)/I

I

p

rms

13. The inverter which is combined with this LCM, is highly recommended to connect coupling(ballast)

condenser at the high voltage output side. When you use the inverter which has not coupling(ballast)
condenser, it may cause abnormal lamp lighting because of biased mercury as time goes.

14. In case of edgy type back light with over 6 parallel lamps, input current and voltage wave form should

be synchronized

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/ 34

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

< Permissive Power Input Ripple (V

White Pattern

< Power consumption (V

Typical current pattern

(White : 255Gray, Black : 0Gray)

LCD

=12.0V, 25  2¶C,fV=60Hz) >

LCD

Black Pattern

=12.0V, 25  2¶C,fV=60Hz) >

Maximum current pattern

Mosaic Pattern(8 x 6)

[ Figure 3 ] Mosaic pattern & Black Pattern for power consumption measurement

Ver. 1.0 Apr. 21 . 2011

White Pattern

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/ 34

www.panelook.com

Global LCD Panel Exchange Center

3-2. Interface Connections

3-2-1. LCD Module

- LCD Connector(CN1) : IS100-L30B-C23 (UJU), KDF71G-30S-1H (Hirose ) or Equivalent

- Mating Connector : FI-X30C2L (Manufactured by JAE) or Equivalent

Table 3 MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

1 FR0M

Minus signal of odd channel 0 (LVDS)

www.panelook.com

Product Specification

16 SR1P

LM240WU7

Liquid Crystal Display

Plus signal of even channel 1 (LVDS)

2 FR0P

3 FR1M

4 FR1P

5 FR2M

6 FR2P

7 GND

8 FCLKINM

9 FCLKINP

10 FR3M

11 FR3P

12 SR0M

13 SR0P

14 GND

15 SR1M

Plus signal of odd channel 0 (LVDS)

Minus signal of odd channel 1 (LVDS)

Plus signal of odd channel 1 (LVDS)

Minus signal of odd channel 2 (LVDS)

Plus signal of odd channel 2 (LVDS)

Ground

Minus signal of odd clock channel (LVDS)

Plus signal of odd clock channel (LVDS)

Minus signal of odd channel 3 (LVDS)

Plus signal of odd channel 3 (LVDS)

Minus signal of even channel 0 (LVDS)

Plus signal of even channel 0 (LVDS)

Ground

Minus signal of even channel 1 (LVDS)

17 GND

18 SR2M

19 SR2P

20 SCLKINM

21 SCLKINP

22 SR3M

23 SR3P

24 GND

25 OPEN

26 OPEN

Ground

Minus signal of even channel 2 (LVDS)

Plus signal of even channel 2 (LVDS)

Minus signal of even clock channel (LVDS)

Plus signal of even clock channel (LVDS)

Minus signal of even channel 3 (LVDS)

Plus signal of even channel 3 (LVDS)

Ground

NC

NC

27 PWM PWM_OUT for Wavy Noise

ODC ON/OFF Control

28 ODC ON

H : ODC ON , L : ODC OFF
(Connect High or Low.No NC Condition)

29 VLCD

30 VLCD

Power Supply +12.0V

Power Supply +12.0V

Note: 1. All GND(ground) pins should be connected together and to Vss which should also be connected to

the LCD’s metal frame.

2. All V

LCD (power input) pins should be connected together.

3. Input Level of LVDS signal is based on the EIA 664 Standard.

User Connector Diagram

1

30

#1 #30

Rear view of LCM

IS100-L30B-C23(UJU)

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/ 34

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Liquid Crystal Display

Product Specification

Table 4. REQUIRED SIGNAL ASSIGNMENT FOR Flat Link (TI:SN75LVDS83) Transmitter

Pin # Require SignalPin Name Pin # Require SignalPin Name

1 Power Supply for TTL InputVCC 29 Ground pin for TTLGND

2 TTL Input (R7)D5 30 TTL Input (DE)D26

3 TTL Input (R5)D6 31 TTL Level clock InputTXCLKIN

4 TTL Input (G0)D7 32 Power Down InputPWR DWN

5 Ground pin for TTLGND 33 Ground pin for PLLPLL GND

6 TTL Input (G1)D8 34 Power Supply for PLLPLL VCC

LM240WU7

7 TTL Input (G2)D9 35 Ground pin for PLLPLL GND

8 TTL Input (G6)D10 36 Ground pin for LVDSLVDS GND

9 Power Supply for TTL InputVCC 37 Positive LVDS differential data output 3TxOUT3ు

10 TTL Input (G7)D11 38 Negative LVDS differential data output 3TxOUT3ృ

11 TTL Input (G3)D12 39 Positive LVDS differential clock outputTXCLKOUTు

12 TTL Input (G4)D13 40 Negative LVDS differential clock outputTXCLKOUTృ

13 Ground pin for TTLGND 41 Positive LVDS differential data output 2TXOUT2ు

14 TTL Input (G5)D14 42 Negative LVDS differential data output 2TXOUT2ృ

15 TTL Input (B0)D15 43 Ground pin for LVDSLVDS GND

16 TTL Input (B6)D16 44 Power Supply for LVDSLVDS VCC

17 Power Supply for TTL InputVCC 45 Positive LVDS differential data output 1TXOUT1ు

46 Negative LVDS differential data output 1TXOUT1ృ18 TTL Input (B7)D17

19 TTL Input (B1)D18

20 TTL Input (B2)D19

22 TTL Input (B3)D20

23 TTL Input (B4)D21

47 Positive LVDS differential data output 0TXOUT0ు

48 Negative LVDS differential data output 0TXOUT0ృ

49 Ground pin for LVDSLVDS GND21 Ground pin for TTL InputGND

50 TTL Input (R6)D27

51 TTL Input (R0)D0

24 TTL Input (B5)D22

25 TTL Input (RSVD)D23

26 Power Supply for TTL InputVCC 54 TTL Input (R2)D2

52 TTL Input (R1)D1

53 Ground pin for TTLGND

55 TTL Input (R3)D327 TTL Input (HSYNC)D24

56 TTL Input (R4)D428 TTL Input (VSYNC)D25

Notes : Refer to LVDS Transmitter Data Sheet for detail descriptions.

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10 / 34

www.panelook.com

Global LCD Panel Exchange Center

LVDS Input characteristics

1. DC Specification

LVDS -

LVDS +

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

|VID|

#|VID| = |(LVDS+) ˀ (LVDS-)|

= {(LVDS+) + (LVDS-)}/2

#V

CM

0V

Description Symbol Min Max Unit Notes

LVDS Differential Voltage |V

LVDS Common mode Voltage V

LVDS Input Voltage Range V

2. AC Specification

LVDS Clock

LVDS Data

t

SKEW

| 100 600 mV -

ID

CM

IN

t

SKEW(Fclk

=1/T

1) 85MHz > Fclk ˻ 65MHz : -400 ~ +400

2) 85MHz > Fclk ˻ 65MHz : -600 ~ +600

0.6 1.8 V -

0.3 2.1 V -

T

clk

)

clk

V

CM

V

IN_MAXVIN_MIN

Description Symbol Min Max Unit Notes

LVDS Clock to Data Skew Margin

LVDS Clock to Clock Skew Margin (Even to Odd) t

t

SKEW

t

SKEW

SKEW_EO

- 400 + 400 ps 85MHz > Fclk ≥ 65MHz

- 600 + 600 ps 65MHz > Fclk ≥ 25MHz

- 1/7 + 1/7 T

clk

Note 1 :

This SSC specifications are just T-CON operation specification. In case of various system condition,
the optimum setting value of SSC can be different. LGD recommend the SI should be adjust the SSC
deviation and modulation frequency in order not to happen any kinds of defect phenomenon.

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

-

11 / 34

www.panelook.com

Global LCD Panel Exchange Center

t

SKEW_EO

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

LVDS Odd Clock

LVDS Even Clock

LVDS Even Data

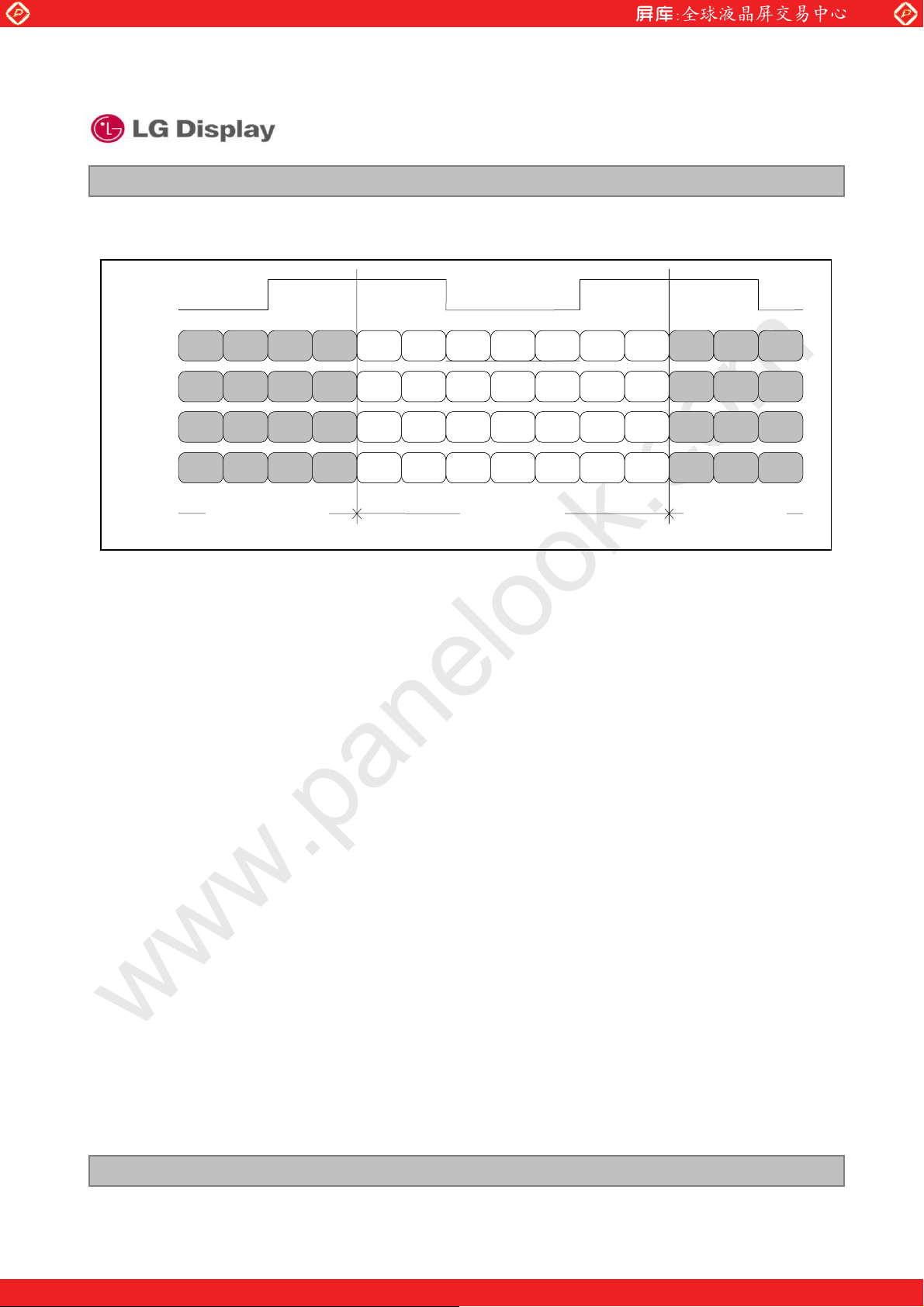

3. Data Format

1) LVDS 2 Port

RCLK +

RXinO0 +/-

RXinO1 +/-

RXinO2 +/-

RXinO3 +/-

RXinE0 +/-

RXinE1 +/-

RXinE2 +/-

OR3 OR2 OR1 OR0

OG4 OG3 OG2 OG1

OB5 OB4 OB3 OB2

OG7 OG6 OR7 OR6

ER3 ER2 ER1 ER0

EG4 EG3 EG2 EG1

EB5 EB4 EB3 EB2

T

clk

T

clk

< Clock skew margin between channel >

Tclk

Tclk * 4/7 Tclk * 3/7

Tclk * 1/7

OG0 OR5 OR4 OR3 OR2 OR1 OR0

OB1 OB0 OG5 OG4 OG3 OG2 OG1

VSYNC HSYNC

DE

X OB7 OB6 OG7 OG6 OR7 OR6

EG0 ER5 ER4 ER3 ER2 ER1 ER0

EB1 EB0 EG5 EG4 EG3 EG2 EG1

VSYNC HSYNC

DE

OB5 OB4 OB3 OB2

EB5 EB4 EB3 EB2

OG0 OR5 OR4

OB1 OB0 OG5

VSYNC HSYNC

DE

X OB7 OB6

EG0 ER5 ER4

EB1 EB0 EG5

VSYNC HSYNC

DE

MSB R7

R6

R5

R4

R3

R2

R1

R0LSB

* ODD = 1st Pixel

EVEN = 2nd Pixel

RXinE3 +/-

EG7 EG6 ER7 ER6

X EB7 EB6 EG7 EG6 ER7 ER6

X EB7 EB6

Current(Nth) CyclePrevious(N-1)th Cycle Next(N+1)th Cycle

< LVDS Data Format >

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

12 / 34

www.panelook.com

Global LCD Panel Exchange Center

2) LVDS 1 Port

RCLK+

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

RA+/-

RB+/-

RC+/-

RD+/-

R3 R2

G4 G3

B5 B4

G7 G6

Previous (N-1 )th Cycle Next (N+1 )th Cycle

R1 R0

G2 G1

B3 B2

R7 R6

G0 R5 R4 R3 R2 R1 R0

B1 B0 G5 G4 G3 G2 G1

DE VSYNC HSYNC B5 B4 B3 B2

X B7 B6 G7 G6 R7 R6

Current (Nth ) Cycle

G0

B1

DE

VSYNC HSYNC

X

R5 R4

B0 G5

B7 B6

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13 / 34

www.panelook.com

Global LCD Panel Exchange Center

3-3. Signal Timing Specifications

This is signal timing required at the input of the TMDS transmitter. All of the interface signal timing should be
satisfied with the following specifications for it’s proper operation.

Table 5. TIMING TABLE (VESA COORDINATED VIDEO TIMING)

ITEM SYMBOL Min Typ Max Unit Note

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

DCLK

Hsync

Vsync

Data

Enable

Period

Frequency

Period

Width-Active

Period

Frequency

Width-Active

Horizontal Valid

Horizontal Back Porch

Horizontal Front Porch

Horizontal Blank

Vertical Valid

tCLK 12.82 12.98 13.16 ns

fCLK 76 77 78 MHz

tHP 1036 1040 1044

tCLK

tWH 16 16 16

tVP 1233 1235 1237 tHP

fV 58.85 59.95 61 Hz

tWV 666tHP

tHV 960 960 960

tHBP 36 40 44

tHFP 20 24 28

-768084 tWH+ tHBP+ tHFP

tVV 1200 1200 1200

t

CLK

Pixel frequency

: Typ. 154MHz

Vertical Back Porch

Vertical Front Porch

Vertical Blank

tVBP 25 26 27

tVFP 234

-

33 35 37 tWV+ tVBP+ tVFP

t

HP

Note: Hsync period and Hsync width-active should be even number times of tCLK. If the value is odd number

times of t

CLK, display control signal can be asynchronous. In order to operate this LCM a Hsync,

Vsyn, and DE(data enable) signals should be used.

1. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rates.

2. Vsync and Hsync should be keep the above specification.

3. Hsync Period, Hsync Width, and Horizontal Back Porch should be any times of of character

number(8).

4. The polarity of Hsync, Vsync is not restricted.

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14 / 34

www.panelook.com

Global LCD Panel Exchange Center

3-4. Signal Timing Waveforms

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Hsync, Vsync, DE, DATA

t

CLK

Dclk

INVALID

DATA

DE(Data Enable)

Hsync

t

WH

0.5VDD

0.7VDD

0.3VDD

VALID

Data are latched at the falling edge of DCLK

t

HP

INVALID

t

HBP

t

HV

DE(Data Enable)

t

VP

t

WV

Vsync

t

VBP

t

VV

DE(Data Enable)

Ver. 1.0 Apr. 21 . 2011

t

t

HFP

VFP

15 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-5. Color Input Data Reference

The Brightness of each primary color(red,green,blue) is based on the 8-bit gray scale data input for the color;
the higher the binary input, the brighter the color. The table below provides a reference for color versus data
input.

Table 6. COLOR DATA REFERENCE

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Input Color Data

Basic
Color

RED

Color

Black 000000000000000000000000

Red (255) 1 1 1 1 1 1 1 1 0 000000000000000

Green (255) 0 0 0 0 0 0 0 0 1 111111100000000

Blue (255) 0 0 0 0 0 0 0 0 0 000000011111111

Cyan 000000001111111111111111

Magenta 111111110000000011111111

Yellow 111111111111111100000000

White 111111111111111111111111

RED (000) Dark 000000000000000000000000

RED (001) 000000010000000000000000

... ... ... ...

RED (254) 111111100000000000000000

RED (255) 111111110000000000000000

GREEN (000) Dark 0 0 0 0 0 0 0 0 0000000000000000

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN (001) 0 0 0 0 0 0 0 0 0000000100000000

GREEN

GREEN (254) 0 0 0 0 0 0 0 0 1111111000000000

GREEN (255) 0 0 0 0 0 0 0 0 1111111100000000

BLUE (000) Dark 0 0 0 0 0 0 0 0 0 000000000000000

BLUE (001) 0 0 0 0 0 0 0 0 0 000000000000001

BLUE

BLUE (254) 0 0 0 0 0 0 0 0 0 000000011111110

BLUE (255) 0 0 0 0 0 0 0 0 0 000000011111111

... ... ... ...

... ... ... ...

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16 / 34

www.panelook.com

Global LCD Panel Exchange Center

3-6. Power Sequence

V

LCD

www.panelook.com

Product Specification

90%

LM240WU7

Liquid Crystal Display

90%

Power Supply, V

LCD

Interface Signal, V
(Digital RGB signal,
SCDT ,V

sync

, H

sync

, DE,

i

0V

0V

Clock to PanelLink
Transmitter)

Power Supply for Backlight
Inverter

Table 7. POWER SEQUENCE

Parameter

10%

T1

T2 T5 T7

T6

10%

Valid Data

T3

LAMP ONLAMP OFF

Values

Min Typ Max

T4

LAMP OFF

Units

T1 0.5 - 10 ms

T2 0.01 - 50 ms

T3 500 - - ms

T4 200 - - ms

T5 0.01 - 50 ms

T7 1000 - ms

Notes : 1. Please avoid floating state of interface signal at invalid period.

2. When the interface signal is invalid, be sure to pull down the power supply for LCD V

3. Lamp power must be turn on after power supply for LCD and interface signal are valid.

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

to 0V.

LCD

17 / 34

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

3-7. V

Dip condition

LCD Power Dip Condition

[ Figure 2 ] Power dip condition

LCD_dip ≤V

V

X 0.2, td≤20ms

LCD_typ

V

LCD

V

LCD_dip

t

d

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18 / 34

www.panelook.com

Global LCD Panel Exchange Center

4. Optical Specifications

Optical characteristics are determined after the unit has been ‘ON’ for approximately 30 minutes

in a dark environment at 25·2¶C. The values specified are at an approximate distance 50cm from the LCD
surface at a viewing angle of  and  equal to 0 ¶ and aperture 1 degree.

FIG 3 presents additional information concerning the measurement equipment and method.

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

PR 880 or RD 80S

or PR 650

Optical Stage(x,y)

LCD Module

50cm

[ FIG 3 ] Optical Characteristic Measurement Equipment and Method

Table 8. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 700 1000 1
Surface Luminance, white L
Luminance Variation

Response Time Gray to Gray

RED Rx

GREEN Gx
Color Coordinates
[CIE1931]

(By PR650)

Color Shift
(Avg. Δu’v’ < 0.02)

Viewing Angle (CR>10)

General

GSR @ 60dgree
(Gamma shift rate)

WPT (White Point Tracking) - -300 G255 CCT +700 K 8
Color gamut (CG, CIE1976) - 82 - %
Gray Scale 2.2 9

BLUE Bx

WHITE Wx 0.313

Horizontal
Vertical

Horizontal

Vertical

Horizontal
Vertical

WH



WHITE

T

GTG_AVR

T

GTG_MAX

Ry

Gy

By

Wy 0.329



CST_H



CST_V



H



V



Gamma_H



Gamma_V

(Ta=25 ¶C, V

Min Typ Max

320 400 cd/m

75 % 3

-714ms

-17- ms

Typ

-0.03

- 140 -

- 100 -

170 178 ­170 178 -

--20

--20

=12.0V, fV=60Hz Dclk=154MHz, VBR=3.3V)

LCD

Values

WU][Z
WUZZ[

WUZWZ

WU]X\

WUX[]

WUW^[

Typ

+0.03

Units Notes

2

Degree 5

Degree 6

%7

2

4

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19 / 34

www.panelook.com

Global LCD Panel Exchange Center

Notes 1. Contrast Ratio(CR) is defined mathematically as : (By PR880)

It is measured at center point(Location P1)

RatioContrast 

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

pixels white all with Luminance Surface

pixels black all with Luminance Surface

2. Surface luminance(L
the surface with all pixels displaying white. For more information see FIG 2. (By PR880)

= = Average[ Lon1,Lon2,Lon3,Lon4,Lon5]

L

WH

3. The variation in surface luminance ,  WHITE is defined as : (By PR880)



Where L1 to L9 are the luminance with all pixels displaying white at 9 locations.

For more information see FIG 2.

4. Gray to gray response time is the time required for the display to transition from gray to gray. For
additional information see Table 10. (By RD80S)

5. Color shift is the angle at which the average color difference for all Macbeth is lower than 0.02.

For more information see FIG 3 and FIG 4. (By EZ Contrast)

- Color difference (Δu’v’)

'



u

WH)is luminance value at 5 points average across the LCD surface 50cm from

WHITE

4

vuAvg





x

'



3122



yx

24





i

1

)''(



v

)''(



ivu

)L .. ,L,Minimum(L

P9P2P1

100



)L .... ,L ,(L Maximum

P9P2P1

9

y

3122



yx

u’1, v’1 : u’v’ value at viewing angle direction
u’2, v’2 : u’v’ value at front (θ=0)

i : Macbeth chart number (Define 22 page)

2

21

2

)''()''('' vvuuvu 

21

24

- Pattern size : 25% Box size

- Viewing angle direction of color shift : Horizontal, Vertical

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which

is normal to the LCD surface. For more information see FIG 4. (By PR880)

7. GSR is the rate of gamma shift at up, down, left and right 60 degree viewing angle compare with
center gamma. For more information see FIG 5 and FIG 6

- GSR (

8. WPT (White Point Tracking) is the variation of color temperature between G255 and G63.

(By PR650)

Ver. 1.0 Apr. 21 . 2011

) is defined as :

Gamma




1 

GSR




(By EZ Contrast)

Degree) (0 Va lue GammaCenter

Degree) 60Light Reft, Down, (Up, Val ue Gamma angle Vi ew




100




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20 / 34

www.panelook.com

Global LCD Panel Exchange Center

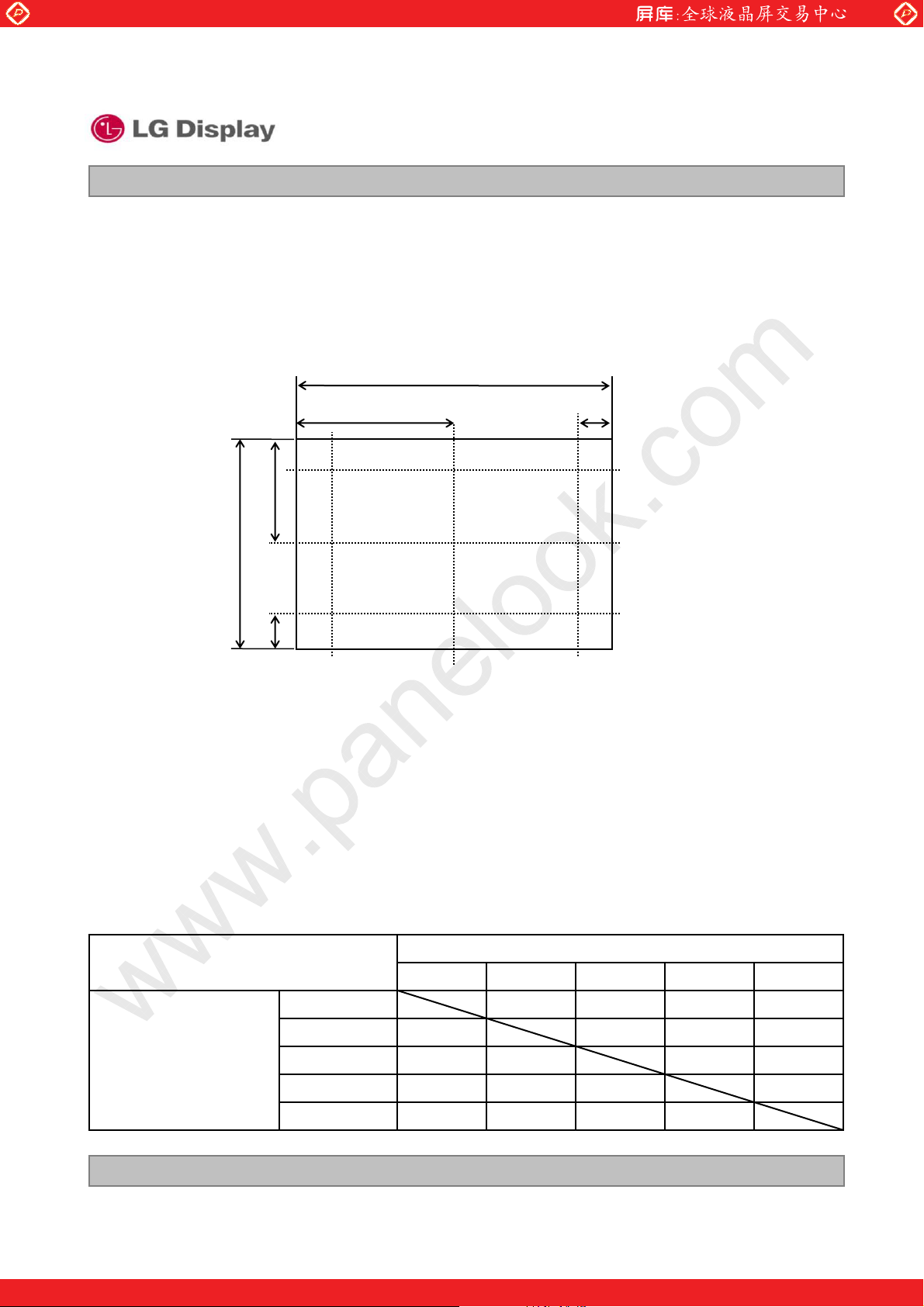

Notes 9. Gray scale specification

Gamma Value is approximately 2.2. For more information see Table 11.

Measuring point for surface luminance & measuring point for luminance variation.

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

H

H/2





P2

P5

V/2

V



V/10

P7



P3



P1



P8







H/10

P4

P6

P9

H : 518.4 mm
V : 324.0 mm

FIG. 2 Measure Point for Luminance

The gray to gray response time is defined as the following figure and shall be measured by switching the

input signal for “Gray To Gray”.

- Gray step : 5 step

GTG_AVR is the total average time at rising time and falling time for “Gray To Gray”.

-T

GTG_MAX is the max time at rising time or falling time for “Gray To Gray”.

-T

- In case of the difference in measured values due to the difference of measuring device or
program was found, correlated value will be used after discussions between both parties.

Table 10. Gray to gray response time table

Gray to Gray

Falling Time

G255 G191 G127 G63 G0

G255

G191

G127

G63

G0

Rising Time

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21 / 34

www.panelook.com

Global LCD Panel Exchange Center

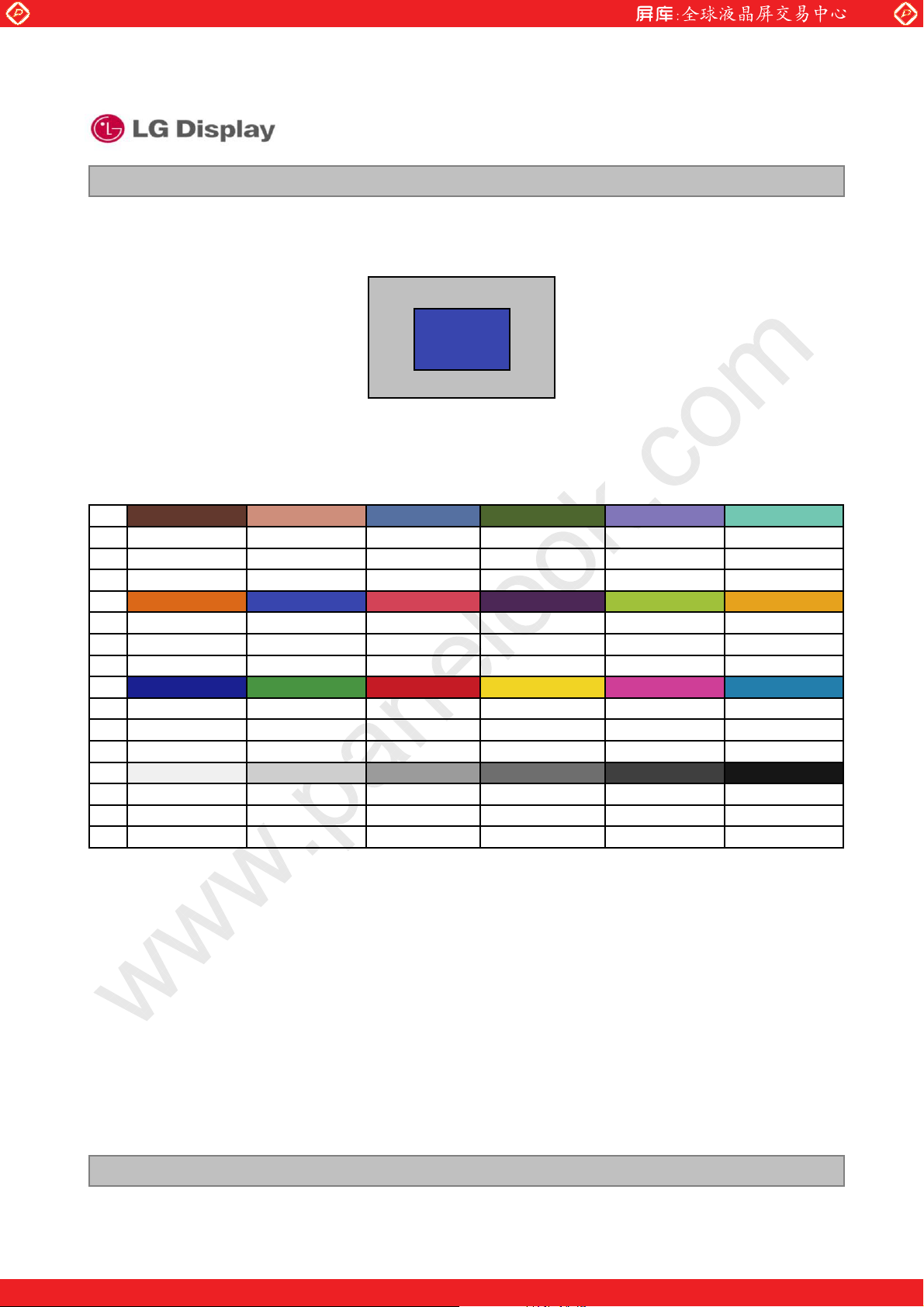

Color shift is defined as the following test pattern and color.

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

25% Box size

FIG. 3 Color Shift Test Pattern

Average RGB values in Bruce RGB for Macbeth Chart

Dark skin Light skin Blue sky Foliage Blue flower Bluish green
R 395 827 343 311 519 459
G 227 571 451 411 475 799
B 183 495 647 187 743 715

Orange Purplish blue Moderate red Purple Yellow green Orange yellow
R 879 227 847 307 643 923
G 419 279 271 159 775 651
B 99 699 351 347 235 119

Blue Green Red Yellow Magenta cyan
R 107 291 791 967 831 143
G 131 595 111 851 251 507
B 583 263 151 147 607 691

White Neutral 8 Neutral 6.5 Neutral 5 Neutral 3.5 black
R 963 827 623 443 255 91
G 963 827 623 443 255 91
B 963 827 623 443 255 91

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22 / 34

www.panelook.com

Global LCD Panel Exchange Center

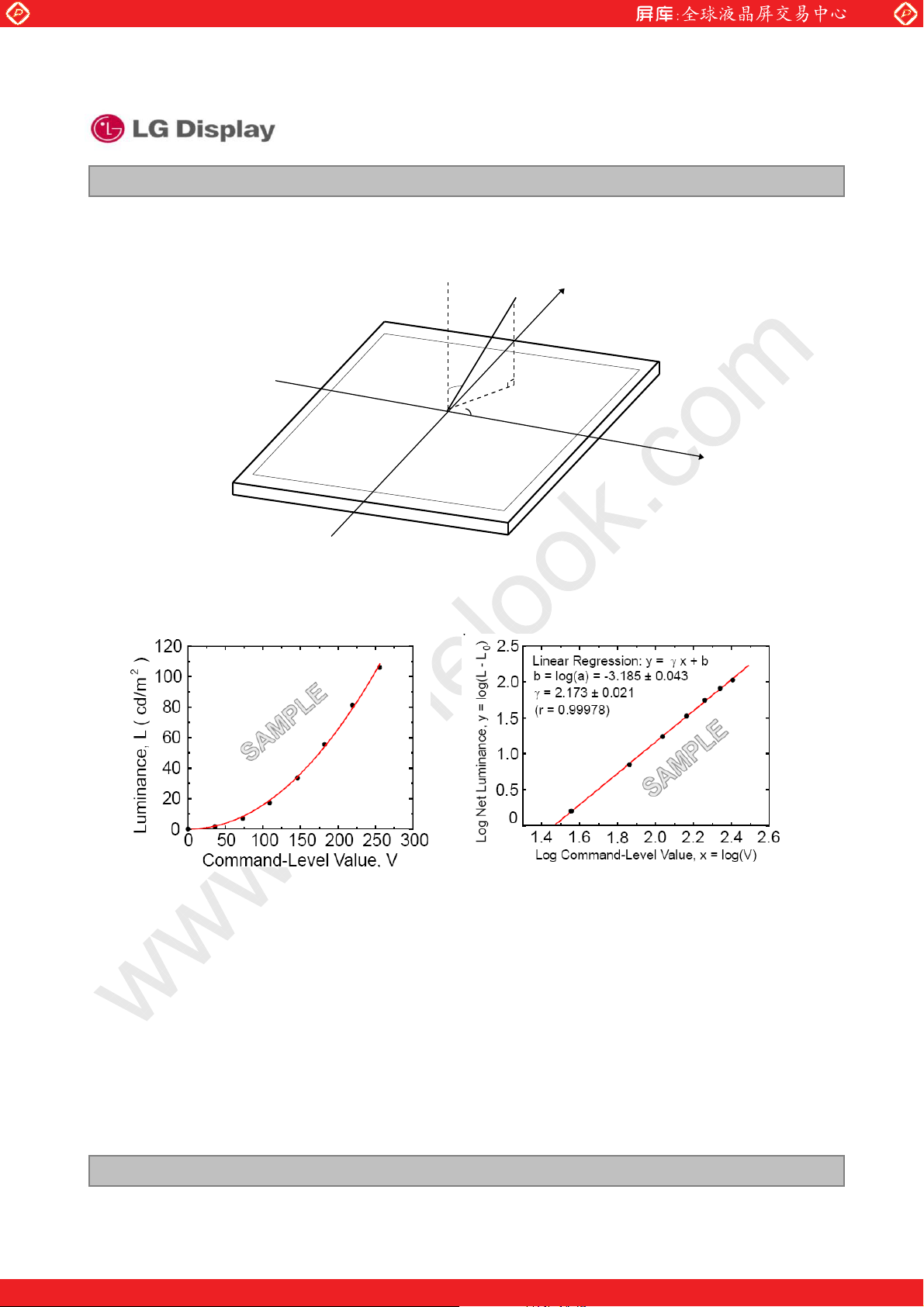

Dimension of viewing angle range.



= 180, Left

www.panelook.com

Product Specification

Normal

E





Y



= 90, Up

LM240WU7

Liquid Crystal Display



= 270, Down

FIG. 4 Viewing angle

FIG. 5 Sample Luminance vs. gray scale

(using a 256 bit gray scale)



= 0, Right

FIG. 6 Sample Log-log plot of luminance

vs. gray scale

r

LaVL 

b

b



Here the Parameter α and γ relate the signal level V to the luminance L.
The GAMMA we calculate from the log-log representation (FIG. 6)

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

)log()log()log( aVrLL

23 / 34

www.panelook.com

Global LCD Panel Exchange Center

Table 10. Gray Scale Specification

Gray Level Relative Luminance [%] (Typ.)

00.1

31 1.2

63 4.7

95 11.7

127 21.2

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

159 35.2

191 53.0

223 75.4

255 100

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24 / 34

www.panelook.com

Global LCD Panel Exchange Center

5. Mechanical Characteristics

The contents provide general mechanical characteristics. In addition the figures in the next page are detailed
mechanical drawing of the LCD.

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Horizontal 546.4mm

Outline Dimension

Bezel Area

Active Display Area

Weight 2830 g(Typ) / 2970 g(Max)

Surface Treatment

Vertical 352.0mm

Depth 35.7mm

Horizontal 522.4mm

Vertical 328.0mm

Horizontal 518.4mm

Vertical 324.0mm

Hard coating(3H)
Anti-glare treatment of the front polarizer

Notes : Please refer to a mechanic drawing in terms of tolerance at the next page.

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25 / 34

www.panelook.com

Global LCD Panel Exchange Center

<FRONT VIEW>

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26 / 34

www.panelook.com

Global LCD Panel Exchange Center

<REAR VIEW>

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

27 / 34

www.panelook.com

Global LCD Panel Exchange Center

6. Reliability

Environment test condition

No Test Item Condition

1 High temperature storage test Ta= 60¶C 240h

2 Low temperature storage test Ta= -20¶C 240h

3 High temperature operation test Ta= 50¶C 50%RH 240h

4 Low temperature operation test Ta= 0¶C 240h

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

5

6

7 Humidity condition Operation

8

9

Vibration test
(non-operating)

Shock test
(non-operating)

Altitude

storage / shipment 0 - 40,000 feet(12192m)

Maximum Storage Humidity for
4 corner light leakage Mura.

Wave form : random
Vibration level : 1.0G RMS
Bandwidth : 10-300Hz
Duration : X,Y,Z, 10 min

One time each direction

Shock level : 100G
Waveform : half sine wave, 2ms
Direction : ᇹX, ᇹY, ᇹZ

One time each direction

Ta= 40 ¶C ,90%RH

Max 70%RH , Ta=40୅

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

28 / 34

www.panelook.com

Global LCD Panel Exchange Center

7. International Standards

7-1. Safety

a) UL 60950-1:2003, First Edition, Underwriters Laboratories, Inc.,

Standard for Safety of Information Technology Equipment.

b) CAN/CSA C22.2, No. 60950-1-03 1

Standard for Safety of Information Technology Equipment.

c) EN 60950-1:2001, First Edition,

European Committee for Electrotechnical Standardization(CENELEC)
European Standard for Safety of Information Technology Equipment.

www.panelook.com

Liquid Crystal Display

Product Specification

st

Ed. April 1, 2003, Canadian Standards Association,

LM240WU7

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHZ to 40GHz. “American National Standards Institute(ANSI),
1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.“ International Special Committee on Radio Interference.

c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.“ European Committee for Electrotechnical Standardization.(CENELEC), 1998

( Including A1: 2000 )

7-3. Environment

a) RoHS. Directive 2002/95/EC of the European Parliament and of the Council on the reduction of the

use of certain hazardous substances in electrical and electronic equipment. January 2003

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

29 / 34

www.panelook.com

Global LCD Panel Exchange Center

8. Packing

8-1. Designation of Lot Mark

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

Note

1. YEAR

Year

Mark

CBA

2014E2015

D

201320122011

2016G2017H2018J2019

F

2. MONTH

Month

Mark

Apr5May

4

Jun

6

Jul8Aug9Sep

7

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

2020

K

Oct

A

Nov

B

DecMarFebJan

C321

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

30 / 34

www.panelook.com

Global LCD Panel Exchange Center

8-2. Packing Form

a) Package quantity in one box : 5EA

b) Box Size : 436 X 346 X 628

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

NO. DESCRIPTION MATERIAL

1LCM

2BAG PE

3TAPE OPP

4 PACKING, BOTTOM EPS

5 PACKING, TOP EPS

6 BOX PAPER, SW

7TAPE OPP

8 LABEL ART

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

31 / 34

www.panelook.com

Global LCD Panel Exchange Center

8-3. Pallet Form

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

NO. DESCRIPTION MATERIAL

1 PACKING ASS’Y

2 PALLET PLYWOOD_1140X990X120

3 ANGLE, PACKING SWR4

4 LABEL YUPO PAPER

5BAND PP

6 BAND, CLIP CLIP 18MM

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

32 / 34

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1. MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

9-2. OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=·200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on) becomes

longer.
(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference.
(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw.

(if not, it causes metallic foreign material and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) When LCMs are used for public display defects such as Yogure, image sticking can not be guarantee.

Ver. 1.0 Apr. 21 . 2011

33 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9-3. ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5. STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

www.panelook.com

LM240WU7

Liquid Crystal Display

Product Specification

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5¶C and 35¶C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape.

When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well ion­blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal­hexane.

Ver. 1.0 Apr. 21 . 2011

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

34 / 34

www.panelook.com
