LG Display LM230WF5-TLF1 Specification

(◆ ) Preliminary Specification ( ) Final Specification

Title 23” Full HD TFT LCD

LM230WF5

Liquid Crystal Display

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER General MODEL

SIGNATURE DATE

/

SUPPLIER LG Display Co., Ltd.

*MODEL LM230WF5

SUFFIX TLF1

*When you obtain standard approval, please use the above model name without suffix

APPROVED BY

K.G. PARK / G.Manager

REVIEWED BY

S.J. MOON / Manager [C]

J.I. PARK / Manager [M]

T.H. SHIN / Manager [P]

PREPARED BY

S.W. Park / Engineer

DATE

Please return 1 copy for your confirmation With your signature and comments.

Ver. 0.0 Feb. 16, 2012 1 / 30

Product Engineering Dept.

LG Display Co., Ltd

Product Specification

Contents

LM230WF5

Liquid Crystal Display

No ITEM

COVER 1 CONTENTS 2

RECORD OF REVISIONS 3 1 GENERAL DESCRIPTION 4 2 ABSOLUTE MAXIMUM RATINGS 5 3 ELECTRICAL SPECIFICATIONS 6

1) ELECTRICAL CHARACTERISTICS 6

2) INTERFACE CONNECTIONS 8

3) LVDS characteristics 11

4) SIGNAL TIMING SPECIFICATIONS 14

5) SIGNAL TIMING WAVEFORMS 15

6) COLOR INPUT DATA REFERNECE 16

7) POWER SEQUENCE 17

8) POWER DIP CONDITION 18

4 OPTICAL SPECIFICATIONS 19

Page

5 MECHANICAL CHARACTERISTICS 24 6 RELIABILITY 27

7 INTERNATIONAL STANDARDS 28

1) SAFETY 28

2) EMC 28

8 PACKING 29

1) DESIGNATION OF LOT MARK 29

2) PACKING FORM 29

9 PRECAUTIONS 30

1) MOUNTING PRECAUTIONS 30

2) OPERATING PRECAUTIONS 30

3) ELECTROSTATIC DISCHARGE CONTROL 31

4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 31

5) STROAGE 31

6) HANDLING PRECAUTIONS FOR PROTECTION FILM 31

Ver. 0.0 Feb. 16, 2012 2 / 30

Product Specification

Record of revisions

LM230WF5

Liquid Crystal Display

Revision No

Date Page

Description

Ver. 0.0 Feb. 16, 2012 3 / 30

LM230WF5

Liquid Crystal Display

Product Specification

1. General description

LM230WF5-TLF1 is a Color Active Matrix Liquid Crystal Display Light Emitting Diode ( White LED) backlight system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. It has a 23 inch diagonally measured active display area with FHD resolution (1080 vertical by 1920 horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than

16,7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method

that enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential Signaling) chip. It is intended to support applications where thin thickness, wide viewing angle, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LM230WF5-TLF1 characteristics provide an excellent flat panel display for office automation products such as monitors.

FIG. 1 Block diagram

LVDS

pair #1

LVDS

pair #2

CN1

(30pin)

+5V VLCD

Timing

controller

Power circuit

block

RGB

FB 2ch

Source driver circuit

S1

G1

TFT-LCD Panel

(1920×RGB×1080 pixels)

G1080

Backlight assembly (White LED)

S1920

General features

Active screen size 23 inches(58.42cm) diagonal(Aspect ratio 16:9) Outline Dimension 533.2(H) x 312.0(V) x 10.2(D) mm(Typ.) Pixel Pitch 0.265mm x 0.265mm Pixel Format 1920 horizontal By 1080 vertical Pixels. RGB stripe arrangement Interface LVDS 2Port Color depth 16.7M colors Luminance, white 250 cd/m2 ( Center 1Point, typ) Viewing Angle (CR>10) R/L 170(Typ.), U/D 160(Typ.) Power Consumption

Total 15.8 W (Typ.), ( 4.5 W@V

, 11.3 W@W/O_Driver)

LCD

Weight 1980 g (Typ.) Display operating mode Transmissive mode, normally White Surface treatments Hard coating (3H), Anti-glare treatment of the front polarizer

Ver. 0.0 Feb. 16, 2012 4 / 30

Product Specification

2. Absolute maximum ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. Absolute maximum ratings

LM230WF5

Liquid Crystal Display

Parameter Symbol

Units Notes

Min Max

Values

Power Supply Input Voltage V Operating Temperature T Storage Temperature T Operating Ambient Humidity H Storage Humidity H LCM Surface Temperature

(Operation)

T

LCD

OP

ST

OP

ST

Surface

-0.3 +6.0 Vdc 0 50

-20 60

°C °C

10 90 %RH 10 90 %RH

0 65

℃

At 25℃

1,2,3

Note : 1. Temperature and relative humidity range are shown in the figure below. Wet bulb temperature should be 39 °C Max, and no condensation of water.

2. Maximum Storage Humidity is up to 40℃, 90% RH only for 4 corner light leakage Mura.

3. Storage condition is guaranteed under packing condition.

4. LCM Surface Temperature should be Min. 0℃ and Max. 65℃ under the VLCD=5.0V,

fV=60Hz, 25℃ ambient Temperature no humidity control and LED string current is typical value.

FIG. 2 Temperature and relative humidity

90%

1,4

60

60%

Wet Bulb Temperature [℃]

30

20

10

0

10 20 30 40 50 60 70 80 0 -20 Dry Bulb Temperature [℃]

Ver. 0.0 Feb. 16, 2012 5 / 30

50

40

40%

Humidity [(%)RH]

10%

Storage

Operation

LM230WF5

Liquid Crystal Display

Product Specification

3. Electrical specifications 3-1. Electrical characteristics

It requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the LED Backlight, is typically generated by an inverter. The LED driver is an external unit to the LCDs.

Table 2. Electrical characteristics

Parameter Symbol

Values

Unit Notes

Min Typ Max

MODULE : Power Supply Input Voltage V Permissive Power Input Ripple V

I

LCD-MOSAIC

Power Supply Input Current

I

LCD-BLACK

I

LCD-L80

Power Consumption P Inrush current I

LCD

RUSH

4.5 5.0 5.5 Vdc

- - 0.6 V 3

- 900 1130 mA 1

- 1080 1350 mA 2

- 880 1100 mA 2

- 4.50 5.65 Watt 1

- - 3.5 A 4

Note :

1. The specified current and power consumption are under the VLCD=5.0V, 25  2°C,fV=60Hz condition whereas mosaic pattern(8 x 6) is displayed and fV is the frame frequency.

2. The current is specified at the maximum current pattern and L80

3. Permissive power ripple should be measured under VCC=5.0V, 25°C, fV (frame frequency)=75Hz condition and At that time, we recommend the bandwidth configuration of oscilloscope

is to be under 20MHz.

4. The duration of rush current is about 5ms and rising time of power Input is 500us  20%.

FIG.3 pattern for Electrical characteristics

power consumption

power input ripple

White : 255Gray Black : 0Gray

Mosaic Pattern(8 x 6)

Ver. 0.0 Feb. 16, 2012 6 / 30

Full Black Pattern

Energy star 5.0

White : 255Gray (80%) Black : 0Gray (20%)

L80 Pattern

LM230WF5

Liquid Crystal Display

Product Specification

Table 3. LED bar Electrical characteristics

Values

Parameter Symbol

Min. Typ. Max.

LED String Current Is - 120 125 mA 1, 2, 5

LED String Voltage Vs 44.3 47.3 50.3 V 1, 5

Power Consumption PBar - 11.3 12.1 Watt 1, 2, 4

LED Life Time LED_LT 30,000 - - Hrs 3

Notes) The LED Bar consists of 30 LED packages, 2 strings (parallel) x 15 packages (serial)

LED driver design guide : The design of the LED driver must have specifications for the LED in LCD Assembly. The performance of the LED in LCM, for example life time or brightness, is extremely influenced by the characteristics of the LED driver. So all the parameters of an LED driver should be carefully designed and output current should be

Constant current control.

Please control feedback current of each string individually to compensate the current variation among the strings of LEDs. When you design or order the LED driver, please make sure unwanted lighting caused by the mismatch of the LED and the LED driver (no lighting, flicker, etc) never occurs. When you confirm it, the LCD module should be operated in the same condition as installed in your instrument.

1. The specified values are for a single LED bar.

2. The specified current is defined as the input current for a single LED string with 100% duty cycle.

3. The LED life time is defined as the time when brightness of LED packages become 50% or less than the initial value under the conditions at Ta = 25  2°C and LED string current is typical value.

4. The power consumption shown above does not include loss of external driver. The typical power consumption is calculated as PBar = Vs(Typ.) x Is(Typ.) x No. of strings. The maximum power consumption is calculated as PBar = Vs(Max.) x Is(Typ.) x No. of strings.

5. LED operating conditions are must not exceed Max. ratings.

Unit Notes

Ver. 0.0 Feb. 16, 2012 7 / 30

Product Specification

3-2. Interface connections

3-2-1 LCD Module

LCD connector(CN1) : IS100-L30O-C23(UJU), GT103-30S-HF15-E2500 (LSM) Mating connector : FI-X30H and FI-X30HL (JAE) or Equivalent

Table 4. Module connector(CN1) pin configuration

LM230WF5

Liquid Crystal Display

Pin No

1 2

3

4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

28

29 30

Symbol Description

RXO0-

RXO0+ RXO1 RXO1+ RXO2 RXO2+ GND RXOC RXOC+ RXO3 RXO3+ RXE0 RXE0+ GND RXE1-

RXE1+

GND RXE2 RXE2+ RXEC RXEC+ RXE3 RXE3+ GND NC NC PWM_OUT

VLCD VLCD VLCD

Minus signal of 1st channel 0 (LVDS)

Plus signal of 1st channel 0 (LVDS)

Minus signal of 1st channel 1 (LVDS) Plus signal of 1st channel 1 (LVDS) Minus signal of 1st channel 2 (LVDS) Plus signal of 1st channel 2 (LVDS) Ground Minus signal of 1st clock channel (LVDS) Plus signal of 1st clock channel (LVDS) Minus signal of 1st channel 3 (LVDS) Plus signal of 1st channel 3 (LVDS) Minus signal of 2nd channel 0 (LVDS) Plus signal of 2nd channel 0 (LVDS) Ground Minus signal of 2nd channel 1 (LVDS) Plus signal of 2nd channel 1 (LVDS) Ground Minus signal of 2nd channel 2 (LVDS) Plus signal of 2nd channel 2 (LVDS) Minus signal of 2nd clock channel (LVDS) Plus signal of 2nd clock channel (LVDS) Minus signal of 2nd channel 3 (LVDS) Plus signal of 2nd channel 3 (LVDS) Ground No Connection (For LCD internal use only.) No Connection (For LCD internal use only.)

No Connection (For LCD internal use only.)

Power Supply (5.0V) Power Supply (5.0V) Power Supply (5.0V)

First Pixel data

Second Pixel data

Ver. 0.0 Feb. 16, 2012 8 / 30

FIG. 4 Connector diagram

1’st signal pairs

Product Specification

IS100-L30O-C23(UJU)

#1

#1 #30

2’nd signal pairs

Rear view of LCM

CN1

#30

Power(+5V)

LM230WF5

Liquid Crystal Display

Note:

1. NC: No Connection.

2. All GND(ground) pins should be connected together and to Vss which should also be connected to the LCD’s metal frame.

3. All V

(power input) pins should be connected together.

LCD

4. Input Level of LVDS signal is based on the IEA 664 Standard.

5. PWM_OUT is a reference signal for LED Driver control. This PWM signal is synchronized with vertical frequency. Its frequency is 6 times of vertical frequency, and its duty ratio is 50%. If the system don’t use this pin, do not connect.

Ver. 0.0 Feb. 16, 2012 9 / 30

Product Specification

3-2-2 LED Interface

The LED interface connector is a model SM06B-SHJH(HF) manufactured by JST. The mating connector is a SHJP-06V-S(HF) or SHJP-06-A-K(HF) and Equivalent. The pin configuration for the connector is shown in the table below.

Table 5. LED connector pin configuration

Pin Symbol Description Notes

1 FB1 Channel1 Current Feedback 2 NC No connection 3 VLED LED Power Supply

4 VLED LED Power Supply

LM230WF5

Liquid Crystal Display

5 NC No connection 6 FB2 Channel2 Current Feedback

FIG. 5 Backlight connector view

#1

#6

Rear view of LCM

Ver. 0.0 Feb. 16, 2012 10 / 30

3-3. LVDS characteristics

LVDS +

LVDS -

0V

V

CM

# |VID| = |(LVDS+) – (LVDS-)| # VCM = {(LVDS+) + (LVDS-)}/2

|VID|

V

IN_MAXVIN_MIN

3-3-1. LVDS Data Format

LM230WF5

Liquid Crystal Display

Product Specification

Tclk

RCLK +

RXinO 0 +/ -

RXinO 1 +/ RXinO 2 +/ -

RXinO 3 +/ -

RXinE 0 +/ -

RXinE 1 +/ RXinE 2 +/ -

RXinE 3 +/ -

OR 3 OR 2 OR 1 OR 0

OG 4 OG 3 OG 2 OG 1

OB 5 OB 4 OB 3 OB 2

OG 7 OG 6 OR 7 OR 6

ER 3 ER 2 ER 1 ER 0

EG 4 EG 3 EG 2 EG 1

EB 5 EB 4 EB 3 EB 2

EG 7 EG 6 ER 7 ER 6

3-3-2. DC Specification

Tclk * 4 / 7 Tclk * 3 / 7

Tclk * 1 / 7

OG 0 OR 5 OR 4 OR 3 OR 2 OR 1 OR 0

OB 1 OB 0 OG 5 OG 4 OG 3 OG 2 OG 1

VSYNC HSYNC

DE

X OB 7 OB 6 OG 7 OG 6 OR 7 OR 6

EG 0 ER 5 ER 4 ER 3 ER 2 ER 1 ER 0

EB 1 EB 0 EG 5 EG 4 EG 3 EG 2 EG 1

VSYNC HSYNC

DE

X EB 7 EB 6 EG 7 EG 6 ER 7 ER 6

OB 5 OB 4 OB 3 OB 2

EB 5 EB 4 EB 3 EB 2

Current ( Nth ) Cycle Previous ( N - 1 ) th Cycle Next ( N + 1 )

< LVDS Data Format >

OG 0 OR 5 OR 4

OB 1 OB 0 OG 5

VSYNC HSYNC

DE

X OB 7 OB 6

EG 0 ER 5 ER 4

EB 1 EB 0 EG 5

VSYNC HSYNC

DE

X EB 7 EB 6

th Cycle

MSB R 7

R 6 R 5 R 4 R 3 R 2 R 1 R 0 LSB

* ODD = 1 st Pixel

EVEN = 2 nd Pixel

Description Symbol Min Max Unit Notes LVDS Differential Voltage |VID| 200 600 mV LVDS Common mode Voltage V LVDS Input Voltage Range V

CM

IN

Ver. 0.0 Feb. 16, 2012 11 / 30

0.6 1.5 V -

0.3 1.8 V -

3-3-3. AC Specification

LVDS Clock

LVDS Data

Product Specification

T

clk

SKEW

clk

t

( F

t

SKEW

1 ) 95 MHz > Fclk ≥ 85 MHz : - 300 ~ + 300 2 ) 85 MHz > Fclk ≥ 65 MHz : - 400 ~ + 400

3 ) 65 MHz > Fclk ≥ 25 MHz : - 600 ~ + 600

< Clock skew margin between channel >

SKEW _ EO

t

= 1 / T

clk

)

LM230WF5

Liquid Crystal Display

LVDS Odd Clock

LVDS Even Clock

LVDS Even Data

< Clock skew margin between clock (Even/Odd) >

Description Symbol Min Max Unit Notes

LVDS Clock to Data Skew Margin

Maximum deviation of input clock frequency during SSC

LVDS Clock to Clock Skew Margin (Even to Odd)

clk

T

t

SKEW

t

SKEW

t

SKEW

F

DEV

t

SKEW_EO

clk

T

- 300 + 300 ps

- 400 + 400 ps

- 600 + 600 ps

-

± 3

- 1/7 + 1/7 T

85MHz

85MHz > Fclk ≥

95MHz > Fclk ≥

65MHz

65MHz > Fclk ≥

25MHz

% 1

clk

-

Note 1 : This SSC specifications are just T-CON operation specification. In case of various system condition, the optimum setting value of SSC can be different. LGD recommend the SI should be adjust the SSC deviation and modulation frequency in order not to happen any kinds of defect phenomenon.

Ver. 0.0 Feb. 16, 2012 12 / 30

Product Specification

Table 6. Required signal assignment for Flat Link(NS:DS90CF383) transmitter

Pin # Require Signal Pin Name Pin # Require Signal Pin Name

1 Power Supply for TTL Input VCC 29 Ground pin for TTL GND 2 TTL Input (R7) D5 30 TTL Input (DE) D26 3 TTL Input (R5) D6 31 TTL Level clock Input TX CLKIN 4 TTL Input (G0) D7 32 Power Down Input PWR DWN 5 Ground pin for TTL GND 33 Ground pin for PLL PLL GND 6 TTL Input (G1) D8 34 Power Supply for PLL PLL VCC 7 TTL Input (G2) D9 35 Ground pin for PLL PLL GND 8 TTL Input (G6) D10 36 Ground pin for LVDS LVDS GND

LM230WF5

Liquid Crystal Display

9 Power Supply for TTL Input VCC 37 Positive LVDS differential data output 3 10 TTL Input (G7) D11 38 Negative LVDS differential data output 3 11 TTL Input (G3) D12 39 Positive LVDS differential clock output 12 TTL Input (G4) D13 40 Negative LVDS differential clock output 13 Ground pin for TTL GND 41 Positive LVDS differential data output 2 14 TTL Input (G5) D14 42 Negative LVDS differential data output 2 15 TTL Input (B0) D15 43 Ground pin for LVDS LVDS GND 16 TTL Input (B6) D16 44 Power Supply for LVDS LVDS VCC 17 Power Supply for TTL Input VCC 45 Positive LVDS differential data output 1 18 TTL Input (B7) D17 19 TTL Input (B1) D18 20 TTL Input (B2) D19

22 TTL Input (B3) D20 23 TTL Input (B4) D21 24 TTL Input (B5) D22 25 TTL Input (RSVD) D23

46 Negative LVDS differential data output 1 47 Positive LVDS differential data output 0 48 Negative LVDS differential data output 0 49 Ground pin for LVDS LVDS GND 21 Ground pin for TTL Input GND 50 TTL Input (R6) D27 51 TTL Input (R0) D0 52 TTL Input (R1) D1 53 Ground pin for TTL GND

TxOUT3＋

TxOUT3－ TX CLKOUT＋ TX CLKOUT－

TX OUT2＋ TX OUT2－

TX OUT1＋ TX OUT1－ TX OUT0＋ TX OUT0－

26 Power Supply for TTL Input VCC 54 TTL Input (R2) D2

55 TTL Input (R3) D3 27 TTL Input (HSYNC) D24 56 TTL Input (R4) D4 28 TTL Input (VSYNC) D25

Notes : 1. Refer to LVDS Transmitter Data Sheet for detail descriptions.

2. 7 means MSB and 0 means LSB at R,G,B pixel data

Ver. 0.0 Feb. 16, 2012 13 / 30

LM230WF5

Liquid Crystal Display

Product Specification

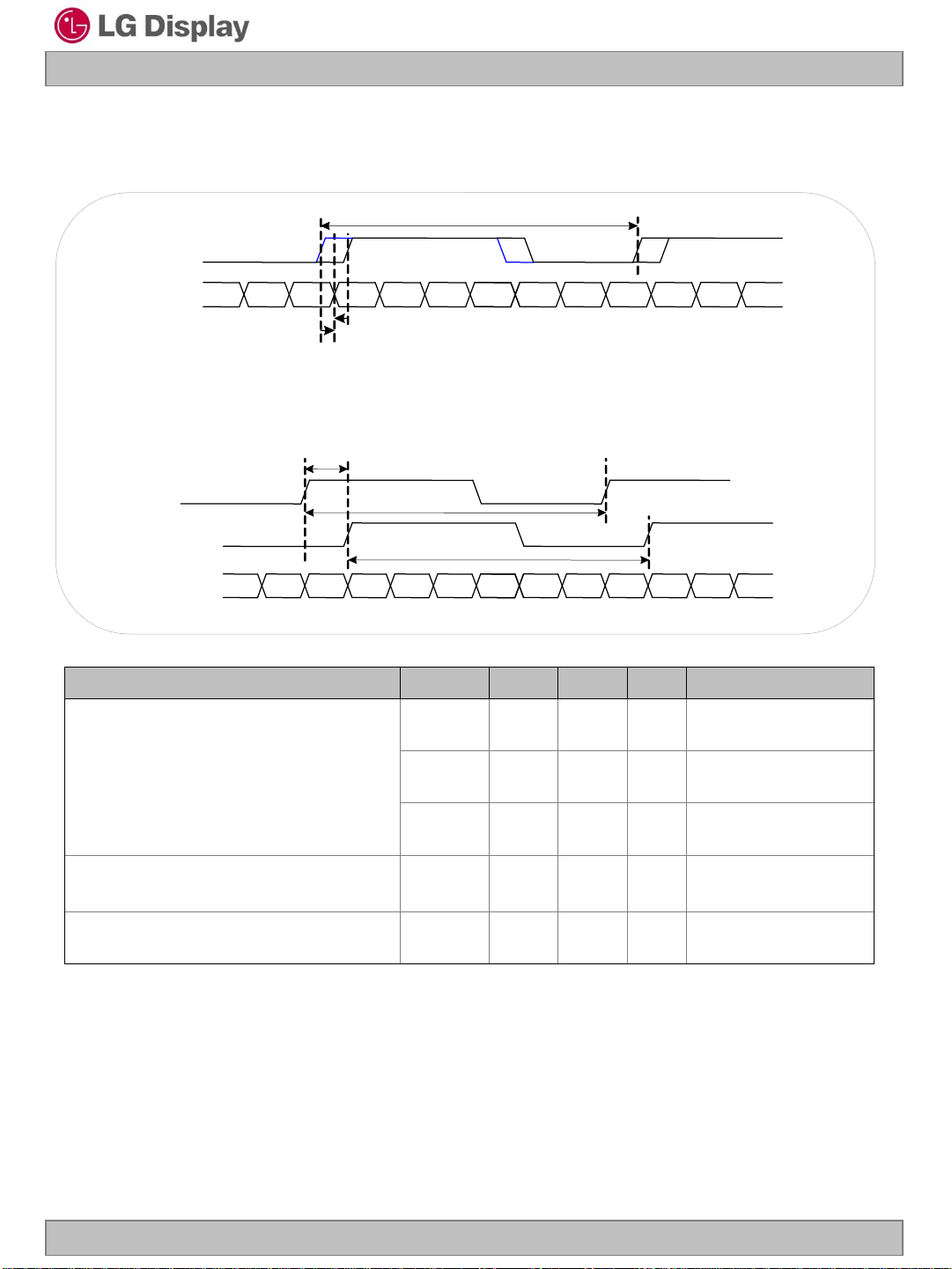

3-4 Signal timing specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications for it’s proper operation.

Table 7. Timing table

ITEM Symbol Min Typ Max Unit Note

DCLK

Hsync

Vsync

Period tCLK Frequency - Period tHP Horizontal Valid tHV Horizontal Blank tHB

Frequency fH Width tWH

Horizontal Back Porch tHBP Horizontal Front Porch tHFP Period tVP Vertical Valid tVV Vertical Blank tVB Frequency fV Width tWV

11.11 13.89 16.7 ns 60 72 90 MHz

1024 1088 1120 tCLK

960 960 960 tCLK

64 128 160 64 66 83 KHz 16 32 48 tCLK

32 48 64 16 48 48

1090 1100 1160 tHP 1080 1080 1080 tHP

10 20 80 tHP 50 60 75 Hz

2 4 16 tHP

5

Vertical Back Porch tVBP Vertical Front Porch tVFP

5 8 32 3 8 32

Note: Hsync period and Hsync width-active should be even number times of tCLK. If the value is odd number times of tCLK, display control signal can be asynchronous. In order to operate this LCM a Hsync, Vsyn, and DE(data enable) signals should be used.

1. The performance of the electro-optical characteristics may be influenced by variance of the vertical

refresh rates.

2. Vsync and Hsync should be keep the above specification.

3. Hsync Period, Hsync Width, and Horizontal Back Porch should be any times of of character number(4).

4. The polarity of Hsync, Vsync is not restricted.

5. The Max frequency of 1920X1080 resolution is 82.5Mhz

Ver. 0.0 Feb. 16, 2012 14 / 30

3-5. Signal timing waveforms

1. DCLK , DE, DATA waveforms t

CLK

Clk

tad

Invalid

Data

DE(Data Enable)

tsar

Product Specification

thud

Valid

this

LM230WF5

Liquid Crystal Display

Invalid

2. Horizontal waveform

DE(Data Enable)

3. Vertical waveform

DE(Data Enable)

tVV

tHV

th

top

DE

Ver. 0.0 Feb. 16, 2012 15 / 30

LM230WF5

Liquid Crystal Display

Product Specification

3-6. Color input data reference

The brightness of each primary color (red,green and blue) is based on the 8bit gray scale data input for the color ; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Table 8. Color data reference

Input Color Data

Color

Red

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

MSB LSB

Green

Blue

MSB LSB

Basic Color

Red

Green

Blue

Black

Red (255) Green (255) Blue (255) Cyan Magenta Yellow White

Red(000) Dark Red(001) Red(002)

- - - - - - - - -

Red(253) Red(254) Red(255) Bright

Green(000) Dark Green(001) Green(002)

- - - - - - - - -

- - - - - - - - Green(253) Green(254) Green(255)Bright

Blue(000) Dark Blue(001) Blue(002)

- - - - - - - - -

- - - - - - - - Blue(253) Blue(254) Blue(255) Bright

0

1 0 0 0 1 1 1

0 0 0

-

1 1 1

0 0 0

-

0 0 0

-

0 0 0

0

1 0 0 0 1 1 1

0 0 0

1 1 1

0 0 0

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

-

1

0

1

0

1

0

1

0

1

0

1

0

-

0

1

0

1

0

1

0

1

0

1

0

1

0

-

0

1

0

1

0

1

0

1

Ver. 0.0 Feb. 16, 2012 16 / 30

3-7. Power sequence

LM230WF5

Liquid Crystal Display

Product Specification

90% 90%

VLCD Power Supply For LCD

Interface Signal (Tx)

Power Supply for LED

Table 9. Power sequence

Parameter

T1 0.5 - 10 ms T2 0.01 - 50 ms T3 500 - - ms

10%

T2 T5 T7

T1

Valid data

0V

LED OFF

Min Typ Max

T3 T4

LED on

Values

10%

LED OFF

Units

T4 200 - - ms T5 0.01 - 50 ms T7 1 - - s

Notes :

1. Please V

power on only after connecting interface cable to LCD.

LCD

2. Please avoid floating state of interface signal at invalid period.

3. When the interface signal is invalid, be sure to pull down the power supply for LCD V

LCD

to 0V.

4. LED power must be turn on after power supply for LCD an interface signal are valid.

Ver. 0.0 Feb. 16, 2012 17 / 30

Product Specification

LM230WF5

Liquid Crystal Display

3-8. V

Power dip condition

LCD

FIG. 6 Power dip condition

1) Dip condition

3.5V ≤V

＜ 4.5V , td≤20ms

LCD

2) V

＜ 3.5V

LCD

V

-dip conditions should also follow the Power On/Off conditions for supply voltage.

LCD

td

V

LCD

4.5V

3.5V

GND(ground)

Ver. 0.0 Feb. 16, 2012 18 / 30

Liquid Crystal Display

Product Specification

4. Optical specification

Optical characteristics are determined after the unit has been ‘ON’ for approximately 30 minutes in a dark environment at 25±2°C.

LM230WF5

Table 10. Optical characteristics

Ta= 25°C, V

=5.0V, fV=60Hz f

LCD

=119MHz, I

CLK

=120mA

BL

Values

Parameter Symbol

Units Notes

Min Typ Max Contrast Ratio CR 700 1000 - 1 Surface Luminance, white L Luminance Variation 

Response Time (By RD-80S)

Rise Time Tr Decay Time Tr

WHITE

WH

200 250 - cd/m

9P 75 % 3

R D

- 1.3 2.6 ms 4

- 3.7 7.4 ms 4

2

Color Gamut ( By PR650) - 72 - %

Rx

0.640

RED

Ry 0.333 Gx 0.312

Color Coordinates [CIE1931]

(By PR650)

GREEN

BLUE

Gy 0.626 Bx 0.153

Typ

-0.03

Typ

+0.03

By 0.070

Wx 0.313

WHITE

Wy 0.329

2

Viewing Angle (CR>5)

x axis, right(=0°) x axis, left (=180°)

r 75 88 Degree 5

l 75 88

y axis, up (=90°) y axis, down (=270°)

u 70 85 d 70 85

Viewing Angle (CR>10)

x axis, right(=0°) x axis, left (=180°) y axis, up (=90°) y axis, down (=270°)

r 70 85 Degree 5

l 70 85 u 60 75 d 70 85

Crosstalk 1.5 % 6

Luminance uniformity Angular dependence (TCO 5.0)

LR - - 1.73 7

Ver. 0.0 Feb. 16, 2012 19 / 30

LM230WF5

Liquid Crystal Display

Product Specification

The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of  and  equal to 0 ° and aperture 1 degree. FIG. 7 presents additional information concerning the measurement equipment and method.

FIG. 7 Optical characteristic measurement equipment and method

Optical Stage(x,y)

LCD Module

50cm

Notes :

1. Contrast ratio(CR) is defined mathematically as :It is measured at center point(1) Surface luminance with all white pixels

Contrast ratio = --------------------------------------------------------- Surface luminance with all black pixels

2. Surface luminance is the luminance value at center 1 point(1) across the LCD surface 50cm from the surface with all pixels displaying white.

For more information see FIG 8.

3. The variation in surface luminance , 

is defined as

WHITE

Minimum (P1,P2 …..P9)  Maximum (P1,P2 …..P9)

= --------------------------------------------- *100

WHITE

For more information see Figure 8.

Pritchard 880, RD-80S or equivalent

FIG. 8 Luminance measuring point

V

V/2

V/10

H

H/2

3

5 6

7

Active Area

1

8

H : 509.184 mm

H/10

H/2

4 2

9

H

V/2

V

V : 286.416 mm @ H,V : Active Area

Ver. 0.0 Feb. 16, 2012 20 / 30

Product Specification

Normal

Y

E







= 0, Right



= 180, Left



= 270, Down



= 90, Up

Notes :

4. Response time is the time required for the display to transition from black to white (Decay Time, TrD) and from white to black (Rise Time, TrR) The sampling rate is 500K sample/sec. For additional information see FIG. 9.

The response time is defined as the following figure and shall be measured by switching the input signal for each gray to gray.

FIG. 9 Response time

TrR TrD

100

90

LM230WF5

Liquid Crystal Display

Optical

white black white

response

[%]

10

0

5. Viewing angle is the angle at which the contrast ratio is greater than 10 or 5. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG. 10 .

FIG. 10 Viewing angle

Ver. 0.0 Feb. 16, 2012 21 / 30

Notes :

LM230WF5

Liquid Crystal Display

Product Specification

6. The equation of crosstalk : (L (L

FIG. 11 Crosstalk

Pattern 1

(Half gray: gray 127)

A/2

LA1

B

LB1

LC1

A[or C]2-LA[or C]1

B[or D]2-LB[or D]1

A/8

LD1

/L

B/8

B/2

) 100(%) [Vertical],

A[or C]1

) 100(%) [Horizontal]

B[or D]1

Pattern 2

(Background: gray 127, Rectangular: gray 0, gray255 )

A/4 A/2 A/4

LA2

LB2

LC2

B/4

B/2

LD2

B/4

A

Ver. 0.0 Feb. 16, 2012 22 / 30

Liquid Crystal Display

Product Specification

Notes :

7. Luminance Uniformity - angular – dependence (LR& TB) TCO 5.0 Luminance uniformity – angular dependence, is the capacity of the VDU

to present the same Luminance level independently of the viewing direction. The angular-dependent luminance uniformity is calculated as the ratio of maximum luminance to minimum luminance in the specified measurement areas.

- Test pattern : Full white 4˚× 4˚square size, back ground shall be set to 80% image loading, RGB 204, 204, 204

- Test luminance : ≥200cd/㎡

- Test point : 5-point

- Test distance : D * 1.5

- Test method : LR = ((L TB = ((L

max.+30deg.

max.+15deg.

/ L

min. +30deg.

/ L

min. +15deg.

) + (L

)

max. -30deg.

/ L

min. -30deg.

)) / 2

LM230WF5

FIG. 12 Luminance Uniformity angular dependence

< Luminance uniformity - angular dependence measuring point >

H

H/10

V/2

D

H/2

V/10

V

V/10

Ver. 0.0 Feb. 16, 2012 23 / 30

LM230WF5

Liquid Crystal Display

Product Specification

5. Mechanical characteristics

The contents provide general mechanical characteristics. In addition the figures in the next page are detailed

mechanical drawing of the LCD.

Table 12. Mechanical characteristics

Horizontal 533.2mm

Outline dimension

Bezel area

Active display area

Weight 1980 g (Typ.) 2080 g (Max.)

Surface treatment

Notes : Please refer to a mechanic drawing in terms of tolerance at the next page.

Vertical 312.0mm Depth 10.2 mm Horizontal 513.8mm Vertical 291.0mm Horizontal 509.184mm Vertical 286.416mm

Hard coating(3H) Anti-glare treatment of the front polarizer

Ver. 0.0 Feb. 16, 2012 24 / 30

< FRONT VIEW >

LM230WF5

Liquid Crystal Display

Product Specification

Ver. 0.0 Feb. 16, 2012 25 / 30

< REAR VIEW >

LM230WF5

Liquid Crystal Display

Product Specification

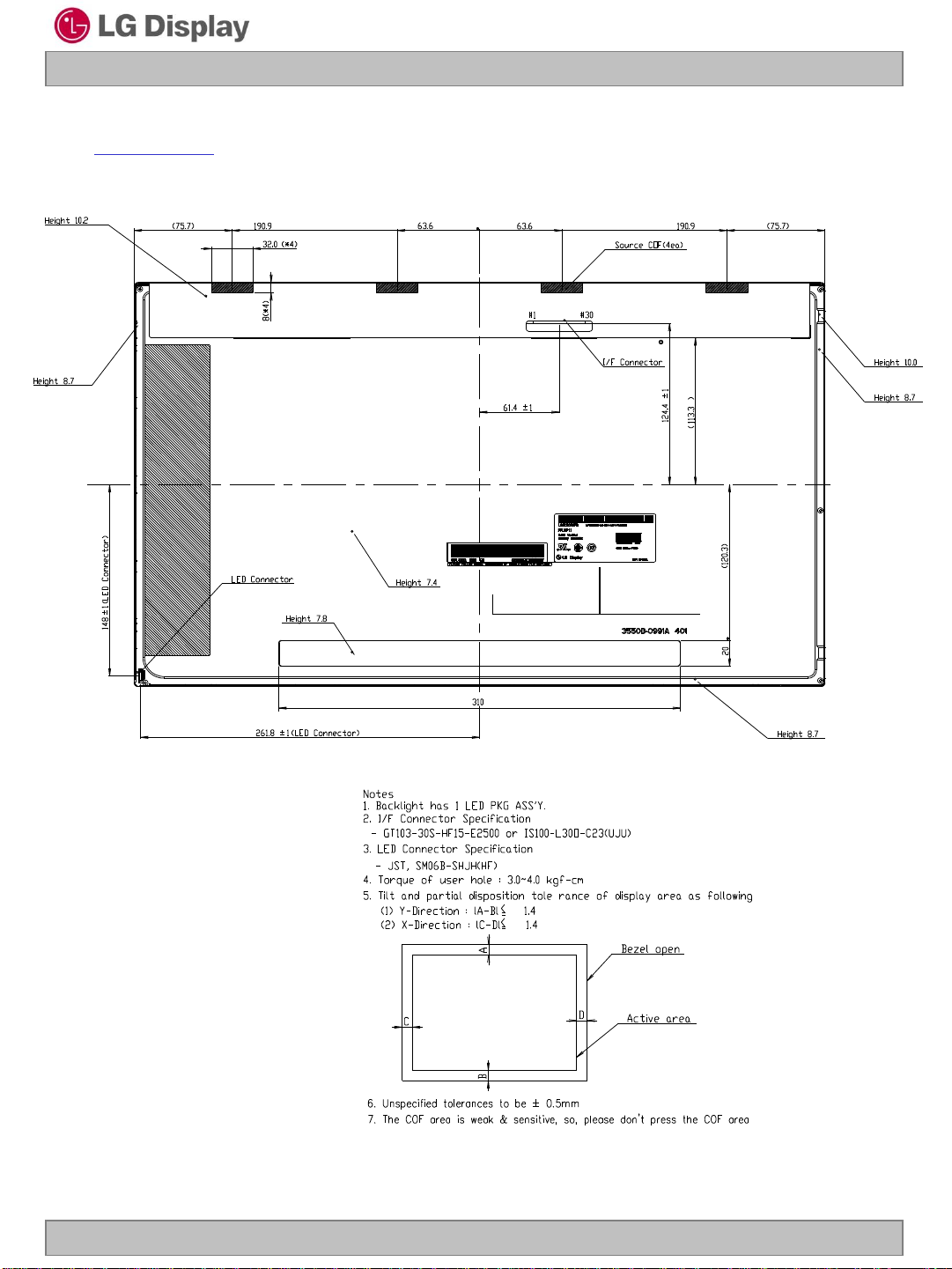

Ver. 0.0 Feb. 16, 2012 26 / 30

Product Specification

6. Reliability

Table 13. Environment test conditions

No Test Item Condition

LM230WF5

Liquid Crystal Display

High temperature storage test 1 Low temperature storage test 2 High temperature operation test 3

Low temperature operation test 4

5

6

7

{ Result evaluation criteria } There should be no change which might affect the practical display function when the display quality test is conducted under normal operating condition.

Vibration test (non-operating)

Shock test (non-operating)

Altitude operating storage / shipment

Ta= 60°C 240hrs Ta= -20°C 240hrs Ta= 50°C 50%RH 240hrs

Ta= 0°C 240hrs

Wave form : random Vibration level : 1.0GRMS Bandwidth : 10-300Hz Duration : X,Y,Z, 10 min One time each direction

Shock level : 100G Waveform : half sine wave, 2msec Direction : ±X, ±Y, ±Z One time each direction

0 - 16,400 feet(5,000m) 0 - 40,000 feet(12,192m)

Ver. 0.0 Feb. 16, 2012 27 / 30

Product Specification

7. International Standards 7-1. Safety

a) UL 60950-1, Underwriters Laboratories Inc. Information Technology Equipment - Safety - Part 1 : General Requirements.

b) CAN/CSA C22.2 No.60950-1-07, Canadian Standards Association. Information Technology Equipment - Safety - Part 1 : General Requirements.

c) EN 60950-1, European Committee for Electrotechnical Standardization (CENELEC). Information Technology Equipment - Safety - Part 1 : General Requirements.

d) IEC 60950-1, The International Electrotechnical Commission (IEC).

Information Technology Equipment - Safety - Part 1 : General Requirements. (Including report of IEC60825-1:2001 clause 8 and clause 9)

Notes

1. Laser (LED Backlight) Information Class 1M LED Product

IEC60825-1 : 2001

Embedded LED Power (Class1M)

LM230WF5

Liquid Crystal Display

2. Caution

: LED inside.

Class 1M laser (LEDs) radiation when open. Do not open while operating.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.” American National Standards Institute (ANSI), 2003. b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference

(CISPR), 2005. c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance characteristics – Limits and method of measurement." International Special Committee on Radio Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.0 Feb. 16, 2012 28 / 30

Product Specification

8. Packing

8-1. Designation of Lot Mark

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

LM230WF5

Liquid Crystal Display

Year Mark

C B A

2014 E 2015

D

2013 2012 2011

2016 G 2017 H 2018 J 2019

F

2. MONTH

Month

Mark

Apr 5 May

4

Jun 7 Jul 8 Aug 9 Sep

6

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module. This is subject to change without prior notice.

8-2. Packing form

a) Package quantity in one box : 11 pcs

b) Box size : 355 X 408 X 600

2020

K

Oct

A

Nov

B

Dec Mar Feb Jan

C 3 2 1

Ver. 0.0 Feb. 16, 2012 29 / 30

Liquid Crystal Display

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the Module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module. (3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder

than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (9) Do not open the case because inside circuits do not have sufficient strength.

LM230WF5

9-2. Operating precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage : V=±200mV(Over and under shoot voltage) (2) Response time depends on the temperature.(In lower temperature, it becomes longer.) (3) Brightness depends on the temperature. (In lower temperature, it becomes higher.) And in lower temperature, response time(required time that brightness is stable after turned on) becomes longer. (4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur. (5) When fixed patterns are displayed for a long time, remnant image is likely to occur. (6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done by system manufacturers. Grounding and shielding methods may be important to minimized the interference. (7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can not be operated its full characteristics perfectly. (8) A screw which is fastened up the steels should be a machine screw (if not, it causes metal foreign material and deal LCM a fatal blow) (9) Please do not set LCD on its edge.

Ver. 0.0 Feb. 16, 2012 30 / 30

LM230WF5

Liquid Crystal Display

Product Specification

9-3. Electrostatic discharge control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for strong light exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary. (1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep

the temperature between 5°C and 35°C at normal humidity. (2) The polarizer surface should not come in contact with any other object. It is recommended that they be stored in the container in which they were shipped.

9-6. Handling precautions for protection film

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc. (2) When the module with protection film attached is stored for a long time, sometimes there remains a very small amount of glue still on the bezel after the protection film is peeled off. (3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized, please wipe them off with absorbent cotton waste or

other soft material like chamois soaked with normal-hexane.

Ver. 0.0 Feb. 16, 2012 31 / 30

LG Display LM230WF5-TLF1 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
